ADS7809UB/1K

ADS7809UB/1K product overview and positioning

ADS7809UB/1K is positioned as a highly integrated 16-bit SAR ADC for designs that need predictable sampling behavior, moderate throughput, and low implementation overhead at the board level. In the Texas Instruments portfolio, it fits the class of precision, medium-speed data converters intended for measurement and control paths where timing determinism matters more than raw sample-rate escalation. Its 100kHz throughput, single +5V operation, and compact serial interface make it a practical choice for industrial and instrumentation designs that must preserve resolution without paying the integration cost of a more complex converter subsystem.

At the architectural level, the device is built around a CMOS successive approximation core. That choice is central to its positioning. SAR converters are typically selected when the signal chain requires fixed-latency conversion, low pipeline ambiguity, and straightforward control logic. In contrast to sigma-delta devices, which trade bandwidth and latency for noise shaping and very high effective resolution in slower domains, a 16-bit SAR such as ADS7809UB/1K gives a more direct timing model. The input is sampled, held, and converted within a known cycle, which simplifies synchronization with actuators, control loops, multiplexed sensor banks, and DSP-side processing windows.

A key strength of ADS7809UB/1K is not only its nominal resolution, but how much analog support circuitry is already absorbed into the device. It integrates the sample-and-hold, reference, clock, and serial interface. This matters more in real systems than a specification table sometimes suggests. In discrete SAR implementations, the surrounding design burden often shifts from digital control to analog housekeeping: reference routing, clock cleanliness, front-end settling, and hold-step management. By pulling these functions on chip, the converter reduces layout sensitivity, shortens design time, and lowers the number of secondary error sources that tend to emerge during prototype bring-up. For product selection, this is often the real differentiator. A converter with slightly less theoretical flexibility but better internal integration can deliver higher system-level accuracy once routing parasitics, component tolerance, and schedule pressure are considered.

The 10µs acquire-and-convert cycle defines its practical operating envelope. This is fast enough for many closed-loop control systems, programmable logic controller input modules, power monitoring channels, and general-purpose instrumentation nodes. It is not a device for wideband waveform capture, but it is very well aligned with applications where each sample must be accurate, timely, and easy to serialize into a controller or DSP. In this throughput band, the limiting factor is often not conversion speed itself but the ability of the analog source to settle to 16-bit precision before the next sample. That is an important distinction. A 100kHz, 16-bit converter places demanding settling requirements on the driver stage, especially when source impedance is nontrivial or when anti-alias filtering is added ahead of the input.

The support for six specified input ranges through internal laser-trimmed scaling resistors is another strong indicator of its system-oriented design. Laser trimming improves range accuracy and gain consistency without forcing the designer to build an external precision resistor network. This is useful in mixed-signal products where multiple signal classes must be supported from a common ADC footprint. It allows the same core converter to service bipolar and unipolar measurement needs with less external conditioning. In practice, this reduces BOM complexity and improves repeatability across production lots. It also lowers calibration burden, since a trimmed internal range network usually behaves more consistently than a board-level implementation assembled from discrete resistors, even when those discretes are nominally high precision.

That range flexibility is especially relevant in industrial acquisition paths. Current-loop receivers, bridge sensors, shunt measurements, conditioned thermocouple modules, and general ±10V instrumentation signals rarely align to a single analog range across all product variants. A device that can adapt internally to several standardized ranges simplifies platform reuse. It also helps when one hardware design must be configured into multiple SKUs through population options or software control around the converter interface. In such cases, the ADS7809UB/1K is less a raw ADC and more a compact measurement front-end building block.

Its serial data output aligns well with embedded systems that need to conserve pin count. The availability of both internal-clock and external-clock data transfer modes improves interface tolerance across different processor environments. Internal-clock transfer can simplify host timing and reduce firmware complexity in basic implementations. External-clock transfer gives tighter control where data framing, isolation boundaries, or synchronized readout across multiple devices is required. This dual-mode behavior is often understated, but it becomes valuable when the converter is placed into systems with mixed controller families or where future migration is expected. Interface adaptability reduces redesign risk.

Pin compatibility with the 12-bit ADS7808 adds a practical migration path. This is useful in two directions. One direction supports feature scaling: a design proven at 12-bit cost points can migrate upward to 16-bit resolution with minimal layout disruption. The other direction supports cost optimization: a platform initially released with higher precision can potentially be down-binned for lower-cost variants if application requirements relax. In portfolio planning, this kind of compatibility has real value because it decouples some product-line decisions from PCB respins. It also allows validation work on digital timing, power distribution, and mechanical packaging to be preserved across resolution tiers.

The 20-pin SOIC package and industrial temperature rating from -40°C to +85°C reinforce the device’s target domain. This is a converter meant for embedded hardware that must remain manufacturable, serviceable, and thermally predictable in factory and field environments. SOIC is not cutting-edge in density, but it remains favorable for robustness, inspection, and assembly compatibility across a wide manufacturing base. For industrial products expected to remain in service for long lifecycles, package practicality often outweighs package minimization. A stable assembly profile and easier rework path can be more valuable than marginal board-area savings.

From an analog front-end perspective, the main design challenge is ensuring that the signal presented to the converter is worthy of 16-bit quantization. In this class of ADC, nominal resolution is easy to quote and harder to realize. Reference stability, input-driver settling, grounding discipline, and digital edge containment will often dominate final performance. Integrated reference and clock resources help, but they do not eliminate the need for careful partitioning between quiet analog return paths and digital switching currents. On mixed-signal boards, converters like this tend to perform best when the input network is kept compact, the reference bypassing is physically local, and the serial interface is prevented from injecting transient current into the analog ground region during the acquisition interval.

A recurring practical issue in 16-bit SAR designs is overestimating allowable source impedance. Even when the datasheet appears forgiving at first glance, real settling to 16-bit accuracy can be lost by a front-end amplifier that is technically stable but too slow under capacitive kickback from the sample-and-hold. The result is usually not catastrophic failure but subtle code-dependent linearity loss, channel-to-channel variation in multiplexed systems, or a gap between static bench measurements and dynamic in-system behavior. In this operating range, a simple RC filter at the ADC input often improves noise performance, but only if the driver has enough bandwidth and phase margin to recover quickly. A balanced approach is usually better than aggressive filtering. Modest series resistance, a well-chosen local capacitor, and an amplifier validated for SAR drive behavior tend to outperform more elaborate networks that look cleaner in theory but settle too slowly in practice.

The integrated reference is a strong convenience feature, but reference strategy should still be evaluated against end-equipment goals. For many industrial measurement products, the internal reference provides a good tradeoff between simplicity and absolute performance. It reduces external component count and avoids routing a sensitive off-chip reference node. However, in systems where gain drift, channel matching across multiple ADCs, or calibration traceability are especially critical, the reference architecture deserves closer scrutiny. The right question is not whether the internal reference is “good enough” in isolation, but whether it is the dominant or subordinate error term in the full signal chain. If sensor drift, amplifier offset, and connector thermals already consume the accuracy budget, adding an external precision reference may offer little return. If the rest of the chain is tightly controlled, reference optimization may become worthwhile.

The ADS7809UB/1K is particularly well suited to deterministic measurement subsystems connected to DSPs or microcontrollers that process each sample in sequence. Motor-control feedback, programmable test equipment, industrial transmitters, power-quality monitors, and process-control input cards are all natural fits. These systems benefit from a converter that does not require complex digital filtering, deep latency compensation, or multi-rail power support. The serial interface keeps isolation design manageable, especially when digital isolation is inserted between noisy logic and field-side measurement electronics. Because the sampling model is simple and repeatable, firmware development also tends to be more predictable. Data-valid timing is easier to verify, and sample-to-decision latency can be budgeted with confidence.

Another useful way to view this device is as a converter optimized for “resolution you can actually deploy.” Many higher-speed or more feature-rich ADCs appear stronger on paper, but they shift complexity into reference design, multi-supply sequencing, package escape routing, or digital post-processing. ADS7809UB/1K avoids much of that. Its value comes from reducing system friction. In long-life industrial platforms, that often translates into better field reliability and faster design closure than chasing marginal improvements in one headline parameter.

For selection engineers comparing SAR options, the strongest argument for ADS7809UB/1K is the balance it strikes. It offers true precision-class resolution, deterministic 10µs conversion behavior, multiple input ranges, industrial temperature support, and a compact serial interface, while integrating the functions that frequently complicate discrete converter implementations. That combination places it in a very practical niche: not the fastest ADC in the catalog, not the smallest, and not the most digitally elaborate, but a well-contained precision acquisition device for systems where analog integrity, timing clarity, and board-level efficiency matter more than specification extremes.

ADS7809UB/1K core architecture and integrated functional blocks

The ADS7809UB/1K is best understood as a complete precision data-acquisition front end wrapped around a 16-bit SAR conversion core, not as a standalone ADC array that still requires substantial external conditioning. Its internal architecture combines charge-redistribution conversion, input sampling, reference management, range scaling, and serial data interfacing in a way that targets direct insertion into industrial and instrumentation signal chains. That level of integration is what makes the part architecturally efficient: it does not just convert voltage into code, it absorbs several analog and digital implementation tasks that would otherwise be pushed into the surrounding board design.

At the conversion core, the device uses a capacitor-based successive-approximation architecture. In this topology, a capacitor DAC, comparator, and SAR control logic cooperate to resolve the input voltage one bit at a time. The capacitor array first captures the input signal, then redistributes charge during the binary search process to determine the final 16-bit result. This approach is widely favored when moderate throughput, low power, deterministic latency, and good DC precision must coexist. The key advantage is that the same capacitor network used for sampling is also used in the DAC decision loop, which helps maintain tight internal matching and predictable conversion behavior. In practice, this gives the ADS7809UB/1K a strong fit for systems where repeatability and code stability matter more than very high sample rate.

The internal sample-and-hold function is central to that behavior. During acquisition, the converter tracks the analog input and charges its sampling network. Once conversion begins, the input is effectively frozen so that the SAR engine works against a stable representation of the signal. This matters whenever the source is changing during the conversion window, which is common in multiplexed measurement paths, motor-control feedback loops, and sensor interfaces with active analog dynamics. Without a proper hold interval, the converter would be forced to quantize a moving target, and the result would include conversion-phase uncertainty rather than just signal information. In real board-level designs, this becomes especially relevant when the source impedance is not negligible. If the driver cannot settle the internal sampling capacitor quickly enough, nominal converter resolution can be lost long before noise or INL become the dominant limit. For that reason, the analog source should be viewed as part of the ADC architecture, not merely as something connected to its pin.

Reference handling is another area where the device shows system-level intent. The integrated 2.5 V reference allows immediate deployment with minimal external support, which is valuable in compact or cost-sensitive designs where component count and layout complexity must be controlled. At the same time, the option to use an external reference preserves architectural flexibility. That matters when several converters must share the same full-scale definition, when drift matching across channels is more important than absolute simplicity, or when the design already includes a higher-grade reference subsystem. In precision measurement systems, reference quality often dominates long-term gain accuracy more than the converter core itself. A common design mistake is to focus heavily on ADC resolution while underestimating the impact of reference noise, thermal drift, and routing contamination. With devices such as the ADS7809UB/1K, the internal reference is often sufficient for robust standalone operation, but in synchronized multi-converter systems an external reference can produce cleaner system behavior by eliminating inter-device gain discrepancies that are otherwise difficult to calibrate out.

One of the more distinctive functional blocks in this device is the integrated laser-trimmed resistor network used to support practical input ranges. This is not a cosmetic convenience feature. It materially changes how the ADC is deployed. Rather than forcing the surrounding design to create precision attenuation or level-shifting circuits for each target range, the converter internally maps common industrial and instrumentation voltage domains such as ±10 V and 0 V to 5 V into the converter’s core range. That reduces the number of external precision resistors, trims, and amplifier stages needed to interface real-world signals. It also shortens the error chain. Every external scaling network introduces additional tolerance, temperature coefficient, noise contribution, and layout sensitivity. By internalizing this function with trimmed resistors, the device improves range consistency while simplifying calibration strategy.

This scaling network is particularly useful in mixed-signal systems that ingest field signals rather than low-level sensor outputs directly. Process-control voltages, actuator feedback, PLC-style analog outputs, and conditioned instrumentation channels often arrive in standard voltage ranges that do not naturally align with the internal input span of a SAR core. With the ADS7809UB/1K, that mismatch is already addressed inside the package. The practical result is not only reduced BOM count but also a more compact error budget. Designs tend to become easier to reproduce across manufacturing lots because fewer external passive networks need tight matching. In dense multi-channel cards, this kind of integration often has more value than a small headline improvement in converter specifications.

On the digital side, the serial output interface reflects an equally pragmatic design philosophy. The device supports data shifting with either its internal clocking arrangement or an externally supplied data clock, which allows it to fit into both self-timed and host-synchronous readout schemes. This flexibility is important when integrating with microcontrollers, DSPs, FPGAs, or timing-sensitive acquisition backplanes. Some systems prefer to let the converter define the transfer timing to minimize firmware overhead. Others require clock ownership at the controller side to maintain deterministic framing across several peripherals. By supporting both approaches, the ADS7809UB/1K avoids becoming the timing bottleneck in the chain.

The synchronization pulse output is a small feature with outsized practical value. It helps align conversion data with processor-side serial ports and DSP-oriented receive logic without requiring excessive external glue. In embedded acquisition systems, interface simplification is rarely just a matter of saving gates. It reduces timing ambiguity, eases firmware bring-up, and makes debug traces easier to interpret when conversion framing problems appear. In many implementations, the first integration issue is not analog linearity but digital alignment: off-by-one clocking, incorrect bit framing, or subtle phase mismatches between conversion completion and serial read timing. A dedicated sync indication lowers that risk and shortens the path from schematic to stable data capture.

From an architectural perspective, the value of the ADS7809UB/1K lies in how these blocks reinforce one another. The SAR core provides deterministic high-resolution conversion. The sample-and-hold protects conversion integrity against input motion. The internal or external reference path lets the design trade simplicity against system-level precision alignment. The trimmed resistor network translates application-level voltages into the converter’s operating domain. The serial interface and synchronization output bridge the result into embedded processing hardware with minimal friction. Taken together, these functions move the device closer to a signal-chain subsystem than a raw ADC.

That integration also shapes how the part should be applied. In low-noise measurement paths, attention should still be given to input drive capability, reference decoupling, and grounding strategy, because internal integration does not eliminate analog discipline. It shifts the optimization focus. Instead of building a large external scaling and timing framework around the ADC, the design effort can concentrate on source settling, reference cleanliness, and digital readout integrity. In many cases, this produces a more reliable overall system because the remaining external circuitry is easier to analyze and less vulnerable to tolerance stacking.

A useful way to view the ADS7809UB/1K is as a converter optimized for real signal environments rather than ideal bench conditions. The internal range handling acknowledges that field voltages are often larger and bipolar. The sample-and-hold acknowledges that inputs are not always static. The configurable reference path acknowledges that precision can be local or system-distributed. The serial timing options acknowledge that digital hosts do not all behave the same way. That combination gives the device a practical elegance: its architecture reduces the number of external decisions that commonly introduce avoidable error, while still leaving enough control to fit into disciplined precision designs.

ADS7809UB/1K key performance specifications for precision measurement

ADS7809UB/1K is best evaluated as a precision 16-bit SAR ADC optimized around deterministic timing, usable dynamic performance, and solid static linearity rather than raw sampling speed. Its value is not in pushing the sampling frontier, but in delivering repeatable measurement quality at 100kSPS with relatively low architectural overhead. For system selection, the most relevant specifications are conversion throughput, linearity, code stability, and AC behavior under real input conditions.

The device completes a full acquire-and-convert cycle in 10µs, typically divided into 8µs conversion time and 2µs acquisition time. That timing profile matters because it defines more than just maximum sample rate. It also determines front-end settling requirements, multiplexing feasibility, control-loop latency, and how aggressively the analog source must drive the ADC input. In many measurement systems, 100kSPS is a useful operating point: fast enough for waveform-aware monitoring, low-latency feedback capture, and oversampling of slowly varying process signals, yet still slow enough to avoid the board-level complexity, power cost, and digital throughput burden that often come with several-hundred-kSPS or MSPS-class converters. In practice, this often leads to cleaner system design, because the surrounding amplifier, reference, clocking, and layout network can be optimized for accuracy rather than for broadband survival.

Its 16-bit resolution should be interpreted in the context of both code width and guaranteed transfer behavior. Nominal resolution alone is not sufficient for precision measurement; what matters is whether those codes are monotonic, stable, and meaningfully reachable. The ADS7809UB/1K specifies ±2LSB integral nonlinearity for the UB grade and ±1LSB typical differential nonlinearity, with guaranteed 16-bit no-missing-code performance. That combination is important. INL defines how closely the transfer curve follows an ideal straight line across the input range, while DNL governs code step uniformity. In precision instrumentation, poor INL shows up as calibration curvature that cannot be fully removed with simple offset-and-gain correction. Poor DNL shows up as uneven code density, local gain irregularities, and in worse cases missing codes that undermine monotonic measurement. The no-missing-code specification therefore carries more system value than it may appear to at first glance: it confirms that the converter preserves ordered code progression through the full 16-bit range, which is essential in servo systems, threshold-based decisions, and digitally calibrated measurement chains.

Transition noise, specified at 1.3LSB typical, deserves careful attention because it often becomes the practical limit when measuring near-static or low-noise signals. Even when linearity is good, excessive transition noise causes code flicker and reduces confidence in fine-grain readings. In field use, this is usually where idealized 16-bit expectations begin to meet analog reality. If the sensor, front-end amplifier, and reference are quiet enough, 1.3LSB transition noise is manageable and often benefits from straightforward averaging. But if the source impedance is high, the reference path is poorly decoupled, or digital return currents share analog paths, the observed code spread can widen quickly. A useful engineering rule is that converters in this class reward disciplined analog drive design more than aggressive digital post-processing. Once the input and reference are stable, the ADC tends to behave predictably; when they are not, no amount of nominal resolution in the datasheet restores lost measurement confidence.

Full-scale error is specified at ±0.5%, and zero-code errors are provided for both bipolar and unipolar operating modes. This indicates that the part is designed to support multiple input range configurations rather than a single narrowly fixed measurement span. That flexibility is valuable in instrumentation products where one converter platform may be reused across several channel types. It also means that offset, gain, and reference strategy must be considered at the system level. Internal-reference convenience may be acceptable for less demanding channels, but in tighter accuracy budgets an external precision reference usually provides better temperature behavior, lower drift, and more predictable long-term calibration retention. In deployed systems, reference quality often dominates the difference between a design that merely functions and one that remains trustworthy after thermal cycling, uptime accumulation, and repeated recalibration intervals.

The AC dynamic specifications show that the ADS7809UB/1K is not limited to quasi-DC measurement. At a 20kHz input, the B version is specified for 86dB SNR and 86dB SINAD, with typical THD of -94dB and SFDR of 96dB. Full-power bandwidth is listed at 250kHz. These numbers place the device in a useful middle ground: not a high-speed spectral-analysis ADC, but clearly capable of digitizing moderate-frequency AC content with respectable fidelity. This matters in applications such as vibration monitoring, motor current observation, actuator response analysis, and sensor excitation feedback, where the signal is dynamic but the system still prioritizes precision and timing determinism over brute-force sampling rate.

It is worth reading these AC numbers with architectural realism. An 86dB SINAD at 20kHz suggests effective performance that is strong for a precision SAR in this throughput class, but only if the analog chain preserves it. Input driver distortion, anti-alias filter quality, and reference transient behavior can easily become the dominant error sources before the converter itself is reached. In bench validation, it is common to see a converter miss expected dynamic performance not because the ADC is limiting, but because the input amplifier is slewing into the sampling capacitor, the source impedance is too high for the 2µs acquisition window, or the grounding strategy lets digital edges modulate the analog baseline. For this reason, the ADS7809UB/1K should be treated as a system-level component rather than an isolated IC specification block. Its dynamic numbers are achievable, but they are conditional on respecting the charge-redistribution nature of SAR inputs.

The 250kHz full-power bandwidth is also often misunderstood. It does not mean the converter can sample arbitrary 250kHz content without qualification. Rather, it indicates the input network can accommodate full-scale signal swings up to that frequency without excessive attenuation in the sample path. Actual usable signal reconstruction is still bounded by the 100kSPS sampling rate and corresponding Nyquist constraints, so practical operation requires anti-alias filtering and proper signal-band definition. In moderate-frequency monitoring, this can still be highly effective. Signals below 20kHz to 40kHz can be captured with good amplitude integrity when the front end is designed correctly, and lower-frequency content can often be measured with excellent repeatability. This is one reason converters like the ADS7809UB/1K remain relevant in industrial instrumentation: their bandwidth is sufficient to avoid front-end sluggishness, while their sample rate remains manageable for embedded processing and deterministic transport.

From an application standpoint, the device fits systems where 16-bit nominal granularity must be paired with predictable conversion timing and credible analog fidelity. Precision data loggers are an obvious match, especially when channels require stable scaling, moderate scan rates, and straightforward calibration. Servo feedback acquisition is another strong use case, because deterministic 10µs cycle timing is often more valuable than higher but less controlled throughput. Industrial waveform and vibration monitoring at moderate frequencies also align well, provided the anti-alias network and sensor conditioning are properly engineered. Instrumentation channels for pressure, displacement, current shunt monitoring, and bridge-derived signals can benefit from the converter’s balance of static and dynamic performance, particularly when the design goal is robust field behavior rather than marketing-level sample-rate escalation.

A practical selection insight is that the ADS7809UB/1K tends to make sense when the measurement problem is bandwidth-limited by the plant, sensor, or control loop rather than by the ADC itself. If the system only needs tens of kilohertz of meaningful signal content, moving to a much faster converter often shifts difficulty into clock integrity, data movement, thermal density, and analog driver design without improving final measurement quality. In that range, a well-behaved 100kSPS SAR often produces a better instrument than an oversized high-speed ADC operated far below its natural design point. This part sits in that engineering sweet spot.

Another useful perspective is that its specification set reflects a converter built for confidence rather than headline extremes. The combination of ±2LSB INL, no-missing-code 16-bit behavior, low distortion, and fixed acquisition/conversion timing is exactly what tends to matter after the prototype stage, when systems must be calibrated, replicated, and maintained. Designs that survive production variation and field drift usually rely on components with balanced characteristics, not isolated peak metrics. ADS7809UB/1K belongs to that category. It is most compelling in measurement chains where repeatability, monotonicity, and moderate-speed signal fidelity matter more than absolute speed, and where careful analog implementation can fully translate datasheet capability into dependable system performance.

ADS7809UB/1K input ranges, scaling network, and coding formats

ADS7809UB/1K input range selection is not a convenience feature layered on top of the converter. It is part of the front-end architecture and directly shapes accuracy, source-loading behavior, code interpretation, and firmware assumptions. In practice, this is one of the parameters that most strongly determines whether the converter drops cleanly into a design or requires additional analog conditioning around it.

The device supports several standard industrial and instrumentation ranges: ±10V, ±5V, ±3.33V, 0V to 10V, 0V to 5V, and 0V to 4V. These ranges are established through the internal resistor network accessed by R1IN, R2IN, and R3IN, with different connection schemes using VIN, AGND, and CAP. This matters because the converter is not simply measuring the external input directly against a fixed low-voltage core reference domain. It is first scaling the applied signal through an internal network so that a relatively wide set of field-standard voltage ranges can be mapped into the converter’s internal operating span.

That design choice reflects a practical engineering tradeoff. External precision dividers can always be added in front of an ADC, but they consume board area, add error sources, complicate calibration, and often degrade channel-to-channel consistency in multichannel systems. By embedding the scaling structure inside the device, the ADS7809UB/1K reduces front-end variability and makes common input standards easier to support with predictable transfer characteristics. The gain path becomes more repeatable because the resistor relationships are internal to the converter rather than distributed across PCB parasitics, layout asymmetries, and component tolerance stacks.

The supported ranges align closely with real signal-chain conventions. ±10V remains common in industrial control and legacy data acquisition. ±5V appears in instrumentation outputs and many conditioned sensor interfaces. ±3.33V is less universal but useful when signal conditioning is designed to maximize converter resolution within a lower bipolar span. On the unipolar side, 0V to 10V and 0V to 5V are standard control and monitoring ranges, while 0V to 4V often appears when headroom, reference scaling, or sensor output limits make a full 5V span unnecessary. The important point is that the converter accommodates these ranges without forcing the surrounding analog chain into custom scaling just to satisfy the ADC.

Input impedance changes with the selected range because each mode uses a different effective resistor path. The specified values are 22.9kΩ for ±10V, 13.3kΩ for ±5V and 0V to 10V, 10.7kΩ for ±3.33V and 0V to 4V, and 10.0kΩ for 0V to 5V. Input capacitance is 35pF. These are not secondary numbers buried in a table. They determine how aggressively the converter loads the source and how quickly the input node can settle after switching, mux transitions, amplifier recovery, or source disturbances.

A common design mistake is to treat a 10kΩ to 23kΩ input impedance as “high enough” and stop there. For low-speed static measurements, that assumption may hold. For accurate sampled conversion, it is incomplete. The input is not only a resistive load. The 35pF capacitance and the internal acquisition process create a dynamic settling requirement. If the source has appreciable output resistance, the input node may not settle to within a fraction of 1LSB before conversion begins. At 16-bit resolution, that requirement is strict. Even a small residual settling error becomes visible as gain compression, code-dependent distortion, or channel-to-channel memory effects in multiplexed systems.

This is where the interaction between source impedance and range selection becomes more interesting than it first appears. A designer may choose a narrower input range to improve signal utilization, but that range can also present a lower effective input impedance. If the signal source is a precision amplifier with low output impedance, this is rarely a concern. If the source is a sensor bridge output, a passive network, a high-value anti-alias filter, or a remote transmitter arriving through protection resistors, the loading and settling behavior can become the dominant error mechanism. In those cases, the ADC range should be selected together with the driver topology, not afterward.

Buffering is often the cleanest fix, but not always by default. A buffer amplifier helps in three ways: it reduces effective source impedance, isolates the sensor or conditioning stage from ADC charge transients, and allows the front-end filter to be designed around known drive conditions. However, the buffer itself must remain stable while driving the converter input network and any added RC filter. Wideband amplifiers that look excellent on paper can become marginal when they see switched-capacitive loading or a capacitive node behind small series resistance. A modest series isolator and a carefully chosen local capacitor usually produce more repeatable behavior than driving the ADC pin directly through a fast amplifier.

In field designs, the cleanest results usually come from treating the ADC input as a dynamic load rather than a nominal impedance value. Once that mindset is adopted, several implementation details fall into place naturally: keep source resistance low, place RC filtering close to the ADC, verify settling after worst-case input steps, and check performance with realistic multiplexing or waveform conditions instead of only with a DC bench source. This is especially important when the selected range is bipolar and the signal regularly crosses midscale, since any asymmetry in settling or driver recovery tends to show up more clearly around zero transitions.

The coding format is selectable through the SB/BTC pin. A high level selects straight binary. A low level selects binary two’s complement. This is a small interface option with large system-level value because output coding affects firmware simplicity, digital post-processing, limit checking, data logging conventions, and interoperability with existing signal-processing pipelines.

Straight binary is typically the natural fit for unipolar ranges. Zero-scale maps to 0000h, and full-scale minus 1LSB maps to FFFFh. This encoding makes threshold logic, percentage-of-full-scale calculations, and direct register comparisons straightforward. If the measured quantity cannot go negative, straight binary avoids unnecessary offset handling in software. It also tends to reduce ambiguity when raw codes are exported to control or monitoring software that assumes unsigned data types.

Binary two’s complement is usually the cleaner choice for bipolar ranges. Midscale becomes 0000h, positive full scale minus 1LSB becomes 7FFFh, and negative full scale becomes 8000h. This aligns naturally with signed arithmetic and makes digital filtering, averaging, and control-loop calculations more direct. In closed-loop systems, that matters more than it may seem. Signed error terms, accumulated offsets, and calibration residuals all become easier to manage when the ADC output already matches the arithmetic model used downstream.

The key issue is not only readability of the code table. It is consistency across the system boundary. If the analog front end is bipolar but firmware ingests the data as unsigned, every calculation path must remember to subtract midscale before doing anything meaningful. That creates a failure mode that is subtle, because the system still appears to work under many conditions. It just produces incorrect signs, asymmetric clipping behavior, or offset-dependent scaling errors in edge cases. Selecting two’s complement for bipolar channels usually removes that entire class of mistakes at the source.

The ideal code tables provided by Texas Instruments are therefore more than documentation aids. They establish the exact transfer-function interpretation expected at the digital interface. For unipolar straight binary operation, zero input corresponds to 0000h and the upper endpoint approaches FFFFh at full scale minus 1LSB. For bipolar two’s complement operation, zero input sits at code 0000h, positive excursions increase toward 7FFFh, and negative excursions decrease toward 8000h. These definitions are essential during board bring-up, production test, and firmware validation because they eliminate uncertainty about endpoint behavior and midscale transitions.

In practice, code-table alignment should be checked early with known DC inputs near zero-scale, midscale, and both full-scale limits. That sounds obvious, yet many debug cycles come from testing only one or two points and assuming the rest of the transfer curve is correctly interpreted. The first sign of a coding mismatch is often not a fully broken reading but a plausible-looking value with the wrong polarity or offset. Systems that switch between unipolar and bipolar channel configurations are especially vulnerable if the software abstraction does not tightly couple channel range and coding mode.

A deeper point is that input range and coding format should be viewed as a paired configuration, not separate checkboxes. The selected analog span determines how the external signal is compressed into the converter core. The selected coding determines how that internal result is projected into the digital domain. If those two choices are coherent, the converter feels transparent: the analog world maps cleanly into firmware units. If they are chosen independently, the design accumulates hidden translation layers that later show up as calibration complexity, awkward test procedures, and avoidable integration bugs.

From a system architecture perspective, the ADS7809UB/1K is strongest when used exactly as intended: accept a standard field voltage range, scale it internally with a known resistor structure, and emit data in the numerical convention that best matches the processing chain. That combination reduces external analog overhead and keeps digital interpretation explicit. The main engineering discipline lies in respecting the source-drive requirement created by the selected range. When that is handled well, the device’s range flexibility and coding options become a genuine simplification rather than a source of edge-case behavior.

ADS7809UB/1K reference options and supply requirements

ADS7809UB/1K supports two reference strategies, and the choice is not merely a BOM decision. It directly affects gain accuracy, drift behavior, channel-to-channel consistency, layout sensitivity, and startup behavior. At the device level, the converter is designed to run either from its internal 2.5V reference or from an external 2.3V to 2.7V reference source while operating from a single +5V supply domain. That flexibility is useful, but it only delivers predictable precision when the reference network and supply network are treated as part of the conversion core rather than as peripheral support circuitry.

With the internal reference selected, the device generates a nominal 2.5V reference at the REF pin, specified from 2.48V to 2.52V under no-load conditions. This mode is the shortest path to a functioning precision acquisition channel because it eliminates a separate precision reference IC, reduces routing complexity, and avoids another source of temperature drift mismatch. In compact single-converter designs, that simplicity often translates into better real-world performance than an external reference implemented without sufficient attention to noise, grounding, and warm-up behavior. A common design mistake is to assume that “internal” means “self-contained.” In practice, the internal reference is only as stable as its required external bypass network allows it to be.

Two capacitors are central to that network. The REF pin must be bypassed to ground with a 2.2µF tantalum capacitor, and the CAP pin also requires a 2.2µF tantalum capacitor to ground. These components are part of the analog control loop around the reference and buffer circuitry. They are not optional filtering extras, and replacing them casually with values or dielectric types chosen for convenience can shift dynamic behavior in ways that only appear during code flicker, long settling tails, or unexplained gain instability across temperature. In board bring-up, issues attributed to digital noise or ADC linearity often trace back to inadequate placement or substitution of these capacitors. Keeping both capacitors close to their pins and returning them into a quiet analog ground region usually matters more than adding larger bulk capacitance elsewhere.

Using an external reference changes the optimization target. The ADS7809UB/1K accepts 2.3V to 2.7V at the reference input range required for specified linearity, with approximately 100µA reference current drain at 2.5000V. The current is low, so drive strength is rarely the limiting factor. Reference quality is the real constraint. Once an external reference is introduced, the converter inherits that source’s initial accuracy, temperature coefficient, noise spectrum, load regulation, startup profile, and routing exposure. This is why an external reference is most justified when the system needs correlation across multiple converters, gain matching across several acquisition paths, or consistency with other precision analog subsystems. In those cases, a common reference architecture can reduce calibration complexity and improve measurement coherence at the system level.

There is also a subtler benefit to the external reference path: it gives tighter control over full-scale behavior in systems where absolute measurement span matters more than local simplicity. In isolated single-channel designs, the internal reference is often the better engineering tradeoff. In synchronized multichannel systems, the external reference usually becomes the cleaner solution because it shifts gain control from each converter to a centralized precision node. That architectural shift tends to pay off most when measurements are compared against one another rather than interpreted independently.

Reference routing deserves the same discipline as low-level analog signal routing. Even though the reference pin current is small, the reference node is a high-leverage point in the transfer function. Noise or impedance modulation on that node appears as conversion uncertainty, often in a way that is harder to diagnose than input-referred noise. Short traces, low impedance return paths, and isolation from switching edges are more effective than post-processing or firmware averaging when the root cause is reference contamination. Averaging can suppress random noise, but it does nothing for coherent reference disturbance tied to conversion timing or digital bus activity.

The supply requirements are straightforward but should not be interpreted loosely. VANA and VDIG are both nominally +5V and specified over 4.75V to 5.25V. The digital supply must be less than or equal to the analog supply. This constraint is easy to satisfy in practice by tying both rails together, which the datasheet explicitly recommends, then decoupling to ground with 0.1µF ceramic and 10µF tantalum capacitors. That arrangement is simple, but the simplicity is intentional. It minimizes differential supply conditions inside the device and reduces the chance of digital circuitry being biased ahead of the analog core. When separate regulators are considered, the expected benefit is often smaller than assumed unless there is a specific need to isolate heavy digital transients elsewhere in the system.

The supply decoupling network should be viewed in two frequency domains. The 0.1µF ceramic capacitor handles fast edge-related current demand and suppresses high-frequency supply impedance. The 10µF tantalum capacitor supports lower-frequency load changes and helps maintain local rail stiffness during conversion activity and interface switching. Placement is critical. These capacitors should serve the converter pins directly, not the general area of the board. Long traces between the ADC and its decoupling parts convert a correct schematic into a weak implementation. In mixed-signal layouts, one of the more reliable patterns is to place the ADC, its reference capacitors, and its supply decouplers as a compact analog island, then connect that island cleanly into the wider ground and power structure.

Current consumption is moderate for this class of converter: typical analog supply current is 16mA and digital supply current is 0.3mA. At +5V and 100kHz sampling, maximum power dissipation is 100mW. These numbers indicate that most of the power is consumed by the analog section, which is consistent with the converter’s architecture and precision target. The low digital current also means that digital supply noise problems are more often imported from the surrounding logic environment than generated internally by the converter itself. This is another reason direct local decoupling and disciplined return-current control usually outperform attempts to solve noise issues with oversized bulk capacitors alone.

Power-down behavior is one of the more useful operating features in duty-cycled systems. Typical power falls to roughly 50µW in power-down mode, which enables measurement nodes that wake, acquire, and return to standby with minimal average energy cost. The practical design question is not whether power-down saves power; it clearly does. The real question is whether the analog path, reference path, and source network can settle fast enough after wake-up to preserve measurement integrity. In low-duty-cycle systems, the dominant error often comes from insufficient analog settling after power-state transitions rather than from static ADC accuracy. Designs that sample immediately after wake-up may look correct in steady-state testing yet fail in deployed conditions where temperature and source impedance vary. Allowing explicit wake-up margin for the reference and input network usually produces more repeatable results than trying to recover accuracy through calibration alone.

From an implementation standpoint, the cleanest internal-reference design is usually a single +5V rail, VANA and VDIG tied together, local 0.1µF and 10µF decoupling, and the required 2.2µF capacitors placed tightly at REF and CAP. That arrangement minimizes variables and is well suited to embedded control, instrumentation submodules, and compact data acquisition channels. The cleanest external-reference design uses a low-noise 2.5V class reference shared only where matching is valuable, with careful star distribution or buffered distribution if multiple loads are present. Sharing one reference widely without controlling trace resistance, thermal gradients, and return coupling can quietly defeat the reason for using a common reference in the first place.

A useful way to think about this device is that its accuracy is built around three tightly coupled domains: reference integrity, supply integrity, and timing discipline. The datasheet values define the legal operating window, but repeatable precision comes from controlling interactions among those domains. If the design goal is the shortest route to stable single-channel conversion, the internal reference is usually the right choice. If the goal is system-level gain coherence across several measurement paths, the external reference path is more powerful. In both cases, the support capacitors, rail ordering, and local decoupling strategy are not secondary details. They are part of the converter’s precision mechanism.

ADS7809UB/1K serial interface, timing behavior, and host processor connection

ADS7809UB/1K implements a 16-bit serial readout path designed for low-friction attachment to DSPs, MCUs, and simple serial capture logic. The interface is uncomplicated at the signal level, but correct use depends on understanding one important architectural detail: conversion and readout are offset in time. In typical operating sequences, the bits shifted out during a transfer represent the previous completed conversion, not the one being started at that instant. This is the single most important point for firmware and FPGA integration, because most field issues with this class of converter are not caused by signal integrity or clock rate, but by sample-index mistakes introduced at the driver layer.

The device supports two transfer styles through the EXT/INT control. This is not just a convenience feature. It changes where timing responsibility sits in the system. In internal-clock mode, the ADC owns the bit timing and presents a self-clocked output stream. In external-clock mode, the host owns the bit timing and can align the ADC transaction to a broader digital schedule. Choosing between them is therefore a system architecture decision, not merely a pin setting.

With EXT/INT pulled low, the converter operates in internal-clock mode. A convert command performs two actions in sequence: it launches a new conversion and initiates serial output of the previous result. The ADC generates 16 pulses on DATACLK and shifts the 16-bit word out on DATA. Between transfers, DATACLK stays low. This behavior is attractive in compact embedded designs because it reduces the number of timing relationships the host must actively manage. The host can treat the ADC almost like a source-synchronous serial peripheral: issue convert, observe BUSY, and capture the returning word using the ADC-generated clock.

That reduction in host burden has a practical effect. It simplifies firmware on processors whose SPI block is rigid or poorly matched to nonstandard ADC framing. It also helps when a small CPLD or discrete logic is used to collect samples, because the ADC defines the transfer cadence. The tradeoff is that the serial bit rate is fixed by the converter’s internal timing, so it is less suitable when the rest of the system needs deterministic scheduling around a shared serial fabric or when data from multiple converters must be phase-aligned at the bit level.

With EXT/INT driven high, the interface switches to external-clock mode. In this mode, DATACLK is supplied by the host, and the ADC shifts data in sync with that external clock. The SYNC output can provide a framing indication for the beginning of the transfer. This mode is usually the better fit when the processor already has a reliable SPI-like engine, when an FPGA is aggregating several ADCs, or when acquisition timing must be locked to a common digital timebase. External clocking also makes bus-level debug easier because the host can slow the transfer rate during bring-up and then increase it later once timing margins are proven.

The nominal data path is always 16 bits wide, but the transfer semantics deserve careful treatment. Because the interface exposes the previous conversion result during the current conversion command sequence, software should treat the ADC as a one-sample-latency pipeline. In ring-buffered acquisition code, this means the sample tag, timestamp, or channel context associated with the serial word must be delayed to match the converter’s output order. If that mapping is handled carelessly, the system can appear electrically correct while still producing analytically wrong data. This is particularly dangerous in closed-loop or event-correlated systems, where a one-sample shift can survive basic validation and only surface under dynamic conditions.

A robust integration pattern is to make the conversion command the logical boundary for sample n+1 while assigning the shifted-out word to sample n. In firmware, this often means storing metadata for the next sample at command issue time and committing the received 16-bit word to the previous slot. In HDL, the cleanest approach is usually two explicit states: one for launch and one for capture, with an internal sample-valid flag delayed by one transaction. Designs that model this behavior directly tend to be much easier to verify than those that try to hide the latency in ad hoc driver code.

The key timing numbers define the operating envelope. The convert pulse requires a minimum width of 40 ns. BUSY goes low at conversion start and remains low during the conversion interval, with an 8 µs typical low duration. That gives a direct estimate of the achievable sample cadence under straightforward sequencing. In internal-clock mode, the ADC generates DATACLK with a typical period of 440 ns, or about 2.3 MHz, and it only drives DATACLK during active data transmission. In external-clock mode, DATACLK may range from 0.1 MHz to 10 MHz, giving the host wide freedom to trade throughput against timing margin.

These numbers matter differently depending on the design context. In a simple MCU-based logger, the 8 µs conversion time usually dominates, so serial readout overhead is secondary. In a tightly packed FPGA acquisition chain, the 10 MHz external clock ceiling can become the more relevant constraint because it sets how quickly the previous sample can be extracted and handed downstream. The distinction is subtle but useful: one timing limit controls analog conversion cadence, while the other controls digital evacuation bandwidth. Stable systems are built by checking both rather than assuming one automatically covers the other.

BUSY should be treated as the authoritative indicator of conversion activity. Polling BUSY is often the safest first implementation because it exposes the real conversion boundary and helps verify transaction order during debug. Interrupt-driven use is also reasonable if BUSY is routed appropriately, but early bring-up tends to go faster when the software can explicitly log convert issuance, BUSY transitions, and the 16-bit word captured on DATA. That trace usually reveals sequencing faults immediately. A recurring integration pattern is that the interface appears to work at low test rates, then shows mislabeled samples at full rate because BUSY handling and buffer management were validated independently rather than as one timed pipeline.

Internal-clock mode is often the fastest path to first data. The ADC supplies DATACLK only when needed, so idle-line behavior is simple and there is little ambiguity about when the word is active. This mode fits timer-triggered measurement tasks well. A vibration monitor is a good example: a periodic timer asserts convert, BUSY marks the active conversion window, and the previous sample is shifted out under ADC-generated clocking. The host can capture the word with a synchronous serial input or edge-driven GPIO logic. For condition-monitoring applications, this arrangement often provides enough determinism without consuming a flexible SPI controller.

External-clock mode becomes more attractive as system coordination requirements increase. If several serial devices share an FPGA fabric, supplying DATACLK from the host allows readout windows to be aligned, stretched, or interleaved. SYNC can then be used as a framing marker to reset the bit counter or gate a deserializer. In practice, this reduces ambiguity during startup and recovery from fault conditions. When one transaction is corrupted by a clock glitch or firmware stall, a framing signal is far easier to use for resynchronization than relying only on bit count assumptions.

Signal-level implementation still deserves discipline even though the interface is simple. DATACLK and DATA form a source-synchronous pair in internal-clock mode, so route length mismatch should be kept modest if clock edges are being captured directly into fast logic. In external-clock mode, the host-generated DATACLK should be treated as a controlled digital timing reference, especially if the ADC sits off-board or across a noisy partition. The interface rates are not extreme, but marginal edge quality can still create intermittent bit slips that look like random conversion noise. If unexpected code flicker appears while the analog front end is quiet, checking serial timing integrity is often more productive than immediately questioning the converter core.

Another useful practice is to validate the pipeline behavior with a deliberately changing input rather than a static DC level. A slow ramp or step input makes it obvious whether the reported code belongs to the current trigger or the previous one. This simple bench method tends to uncover indexing mistakes much earlier than static-code tests, which can falsely suggest that the driver is correct. For this device, dynamic validation is not optional if timestamps, trigger correlation, or multisensor fusion matter downstream.

The ADS7809UB/1K serial interface is therefore best understood as a small timed pipeline with two selectable clock ownership models. Internal-clock mode favors implementation simplicity and quick attachment to embedded controllers. External-clock mode favors deterministic orchestration and easier integration into larger synchronous digital systems. In both cases, the decisive engineering task is not merely reading 16 bits, but associating those 16 bits with the correct conversion event, respecting BUSY as the conversion boundary, and selecting a clocking strategy that matches the rest of the acquisition architecture.

ADS7809UB/1K control pins, operating modes, and power-down behavior

The ADS7809UB/1K uses a pin-driven control architecture rather than a register-centric interface. That design choice matters. It shifts system behavior from firmware configuration toward edge timing, signal sequencing, and acquisition discipline. In practice, this gives tighter determinism and lower interface overhead, but it also puts more responsibility on the host to respect timing relationships that directly affect conversion integrity.

At the center of the device’s control scheme are R/C, CS, BUSY, EXT/INT, PWRD, and TAG. These pins do more than gate digital transactions. They define when the analog input is sampled, how the conversion engine is clocked, when output data becomes valid, and how the device transitions between active and reduced-power states. For this converter, digital control timing is not separate from analog performance. The two are tightly coupled.

R/C and CS form the primary conversion-control pair. With CS held low, a falling edge on R/C places the internal sample-and-hold into hold and starts conversion. This is the decisive sampling event. Any uncertainty, skew, or host-side jitter around that edge maps into sampling uncertainty, so the control source should be treated as part of the signal chain, not just interface logic. In internal-clock mode, this same action also starts transmission of the previous conversion result. That overlap is efficient because the converter pipelines control and readout without requiring a separate command phase.

This behavior is especially useful in systems that need repeatable throughput with minimal protocol complexity. A controller can issue one edge to both launch the next conversion and begin retrieving the prior result. The interface therefore behaves more like a deterministic sequencer than a packet-based peripheral. That simplicity often improves timing closure in mixed-signal boards, especially where conversions are synchronized to fixed-rate events such as motor control cycles, protection loops, or periodic instrumentation scans.

When the device operates in external-clock mode, the signaling model becomes more flexible. A rising edge on R/C with CS low, or a falling edge on CS with R/C high, can generate SYNC and initiate data transmission. This allows the host to align readout framing with its own clock domain. That is useful when the converter must fit into a broader serial timing structure, such as an FPGA-managed acquisition bus or a synchronous backplane stream. External clocking gives more control over bit timing, but it also makes the interface more sensitive to signal integrity, clock duty cycle, and host-side edge placement. Once the host owns the clock, it also owns any timing noise introduced into the transfer path.

BUSY is the converter’s most important status indicator. It falls when conversion begins and stays low until the conversion completes and the result is loaded into the output shift register. This signal is the cleanest hardware-visible boundary between analog activity and digital data availability. In a robust design, BUSY should not be treated as optional. Polling it, capturing it with an interrupt, or using it as a sequencer condition reduces ambiguity and prevents subtle timing faults.

A particularly important constraint is that CS or R/C must be high when BUSY rises. If both remain in the wrong state at that instant, the converter may start another conversion before sufficient acquisition time has elapsed. This is one of those details that appears minor in a pin description but has first-order impact on accuracy. The failure mode is not necessarily obvious corruption or a missing sample. More often, the system continues to operate while effective linearity, settling margin, or repeatability degrades. That makes the issue harder to debug because digital communication still appears nominal.

In field designs, this kind of timing violation often shows up as input-dependent error rather than complete malfunction. Fast-moving channels, high source impedance networks, or multiplexed front ends are usually the first to expose it. A static DC test may pass, while dynamic measurements drift or show code spread. The practical lesson is clear: acquisition time should be designed intentionally, not assumed from nominal throughput. If the host drives conversions back-to-back, the analog input network must still be given enough time to settle to the converter’s required accuracy before the next hold event.

This is where the device’s pin-level simplicity becomes both its strength and its constraint. There is no internal scheduler preventing aggressive timing. If the host issues edges too early, the converter will respond. That is efficient, but only when the timing budget includes the analog source, any anti-alias filtering, amplifier recovery, and board-level parasitics. A disciplined implementation usually defines conversion timing from the analog settling requirement first, then fits digital servicing around it, not the other way around.

The PWRD pin controls low-power standby. Driving PWRD high inhibits conversions and significantly reduces analog power. The previously converted result remains available in the output shift register, which is a useful detail for systems that need to preserve the last known sample through a sleep interval. This makes the part suitable for duty-cycled acquisition nodes, portable instruments, and any architecture where average power matters more than continuous sample rate.

Power-down, however, is not just a digital idle state. It is an analog state transition. On wake-up, the device requires time to return to rated accuracy. The specified recovery is 1 ms when using a 1 µF capacitor on CAP. That number should be treated as part of the measurement schedule, not as an implementation footnote. If a system wakes the converter, immediately takes a reading, and returns to sleep, it may meet functional timing while missing precision targets. The first sample after wake-up is often the most vulnerable, especially if the input path itself also requires settling.

A practical approach is to separate wake-up latency from valid-data latency. The converter may become digitally responsive before the analog core has fully stabilized. In low-duty-cycle designs, it is often better to wake the part slightly earlier, discard the first conversion if needed, and then use the next sample as the qualified measurement. That costs little energy compared with the risk of embedding a systematic startup error into every reported value. For precision systems, this is usually a better trade than trying to optimize away a millisecond that later reappears as unexplained measurement bias.

The TAG input is relevant in external-clock mode. When EXT/INT is high, data present on TAG can appear on DATA after 16 DATACLK pulses while CS remains low and R/C high. Functionally, this allows metadata to be appended to the serial output frame. The feature is simple, but it can be strategically useful. In framed acquisition systems, TAG can carry state information, channel context, or sequencing markers without needing a separate sideband signal. That can simplify routing and reduce synchronization ambiguity between measurement data and system state.

This capability becomes more valuable when multiple timing domains are involved. If acquisition data is consumed downstream by logic that does not directly observe all converter control pins, embedding a tag into the data stream helps preserve causality. A conversion result can travel with a compact marker indicating mode, channel source, or frame alignment. For tightly packed serial architectures, that is often cleaner than reconstructing context later in firmware.

From a system perspective, the ADS7809UB/1K favors explicit control over abstraction. There is no command parser, no hidden state machine exposed through registers, and little ambiguity about what starts a conversion or shifts out data. That predictability is a real advantage in industrial and real-time environments. The interface is easier to reason about under worst-case timing, easier to verify with a scope or logic analyzer, and easier to bind to fixed control loops.

The deeper implication is that this converter rewards disciplined hardware timing more than complex software handling. Good results come from clean edges, defined acquisition windows, careful sequencing around BUSY, and realistic wake-up scheduling. In return, the device offers a transparent control model that behaves the same way every cycle. That is often more valuable than a richer digital feature set, especially in systems where measurement timing is part of the control law itself.

For implementation, a few practices consistently improve results. Gate conversion start from a deterministic source rather than a software-timed GPIO when phase consistency matters. Ensure CS and R/C return to the required state before BUSY rises. Budget acquisition time from the analog front end outward, especially with high source impedance or switched inputs. Treat PWRD recovery as an analog settling interval, not merely a digital resume event. In external-clock mode, verify framing and edge placement under real board loading, not only in simulation. These details align the interface behavior with the converter’s intended operating model and prevent avoidable loss of effective performance.

The device is best understood as a precision SAR converter with a hardware-timed personality. Its control pins are not auxiliary options around the conversion engine. They are the mechanism through which sampling quality, throughput, and power behavior are actually defined. When that is recognized early in the design, the ADS7809UB/1K integrates cleanly and delivers the deterministic behavior its architecture is built to provide.

ADS7809UB/1K package, temperature range, and implementation precautions

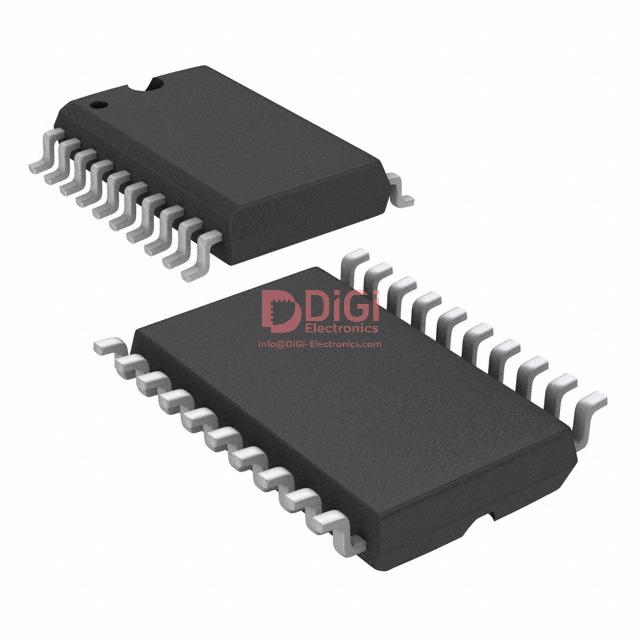

ADS7809UB/1K is delivered in a 20-pin SOIC package with a 0.295-inch, 7.50 mm body width, which places it in a familiar assembly class for dense mixed-signal boards. The package is optimized for surface-mount implementation and fits well in control modules, compact data-acquisition cards, and instrumentation channels where board area is constrained but analog performance still matters. The specified thermal resistance of 75°C/W for the SO package is not unusually high for this form factor, but it is still relevant when the converter is placed near regulators, isolation components, or other heat sources. In practice, this device does not dissipate enough power to create severe self-heating under normal conditions, yet local temperature rise can still shift error terms if the surrounding board region runs hot. For precision designs, package-level thermal behavior should be treated not as a power problem, but as a stability problem.

The specified operating temperature range for full performance is -40°C to +85°C, which aligns with industrial deployment in automation racks, process instrumentation, outdoor control electronics, and embedded measurement nodes. The wider derated range of -55°C to +125°C indicates that the silicon and package can survive and function beyond the fully guaranteed region, but the design assumption should remain clear: specified accuracy, linearity, and timing should only be claimed inside the formal operating range unless the system has been characterized independently. The storage limit to +150°C is primarily a survivability boundary for handling and non-operating exposure. It should not be confused with a usable thermal operating condition. In robust field designs, the important distinction is not whether the converter still runs at temperature extremes, but whether the entire signal chain still settles, references correctly, and preserves calibration under those extremes.

Absolute maximum ratings define stress boundaries, not valid operating conditions, and this distinction is critical for reliable implementation. The analog inputs R1IN, R2IN, and R3IN are rated to ±25 V absolute maximum, which offers some tolerance against fault exposure or transient overdrive. That margin is useful, but it should not encourage direct connection to uncontrolled field wiring without front-end protection. Repetitive stress near absolute limits can degrade long-term reliability even when immediate failure does not occur. Supply pins are limited to 7 V absolute maximum, and digital inputs must stay within -0.3 V to VDIG + 0.3 V. The allowed potential difference between DGND and AGND2 is only ±0.3 V, which is a strong indicator that internal analog and digital domains are separated for noise control, not for tolerating significant ground offsets. Once that ground delta grows, the device is no longer simply “noisy”; it is being operated outside a condition the internal structures were designed to withstand.

ESD sensitivity should be treated as a board-level design concern rather than a handling footnote. Devices with integrated precision analog front ends, internal reference-related nodes, and sample-and-hold structures tend to be more vulnerable to latent damage than purely digital components. A part may pass initial production test after an ESD event and still exhibit increased offset drift, degraded leakage behavior, or marginal conversion repeatability later. That is why input protection strategy, connector placement, and controlled assembly flow matter as much as bench handling discipline. In systems exposed to cable insertion, maintenance access, or external sensors, transient suppression should be arranged so that surge energy is intercepted before it reaches the converter pins or the reference network.

Power implementation is straightforward in principle but deserves careful execution. The analog and digital supplies should be tied directly together at +5 V, with local decoupling placed close to the device pins. This recommendation reflects the converter’s internal architecture: separate naming of supply and ground domains helps isolate switching noise, but the device is not intended to run from loosely related or remotely joined rails. The cleanest approach is to feed both supply pins from the same low-impedance 5 V node and then control high-frequency current paths through capacitor placement and return routing. A common failure mode in mixed-signal layouts is to connect AGND and DGND “somewhere on the board” while assuming that split naming alone improves performance. In reality, poor joining strategy usually creates loop area and return-current ambiguity. For this device, short local interconnection and disciplined current steering are more effective than aggressive plane fragmentation.

The REF and CAP pins are especially important because they support internal precision analog behavior and therefore deserve treatment similar to that of a low-noise reference subsystem. The datasheet calls for 2.2 µF tantalum capacitors from both pins to ground. That requirement should be followed closely unless a validated alternative has been characterized for equivalent impedance, stability, and temperature behavior. These capacitors are not generic bulk storage. They directly influence reference stability, internal charge redistribution, and conversion repeatability. Placement should be tight, with short traces and a quiet return path into the analog ground region. If these nodes share return impedance with digital bursts, the converter can show symptoms that are difficult to diagnose: code flicker, gain instability, missing-noise assumptions that fail in production, or behavior that changes with firmware activity rather than input signal conditions.

Layout quality often determines whether the part performs like a precision converter or like an average one. Because ADS7809UB/1K integrates precision analog functions and a sample-and-hold, digital return-current contamination near analog ground and reference bypass nodes must be minimized. The sample-and-hold front end is sensitive not only to broadband noise amplitude, but also to the timing relationship between switching currents and the acquisition window. This means that even when average supply ripple appears acceptable, short current spikes from nearby logic, bus transceivers, or clock edges can still inject deterministic conversion error. A useful layout rule is to reserve the area around REF, CAP, input traces, and analog ground returns for low-current analog routing only. Fast digital traces should avoid passing under or alongside these nodes, especially if layer transitions create localized return-path disruption.

Ground strategy should be based on current flow rather than labels. AGND2 should serve as the quiet analog return reference for the reference bypass and input-related circuitry. DGND should return digital interface currents with the shortest practical path back to the same local supply origin. The two grounds should be connected in a controlled manner close to the converter, not separated by long copper distance and not bridged through a noisy plane bottleneck. When the connection is made too far away, digital edge currents can force voltage modulation across the ground structure, effectively moving the converter’s analog reference point during acquisition. On the bench this often appears as input-dependent repeatability loss that disappears when the interface clock is slowed or when probes are attached, which is a strong sign that return-path geometry rather than converter core performance is the limiting factor.

Input drive capability is another central implementation issue. The converter’s input impedance depends on the selected input range, and the acquisition time is only 2 µs. That means the signal source must not only provide the correct voltage range, but also charge the input network and settle to final accuracy inside a short window. This is where many otherwise correct designs lose effective resolution. A source that looks accurate in static measurement can still fail dynamically if its output impedance is too high, if it is driving through long PCB traces, or if it sees switching kickback from upstream multiplexing. The result is usually not a dramatic failure. More often, the symptom is a subtle gain compression, code-dependent error, or channel-to-channel inconsistency that increases with throughput.

A precision op-amp buffer is frequently the right solution when long traces, multiplexers, sensor conditioning stages, or protection resistors make direct drive marginal. The buffer should be selected for fast settling to the required accuracy, not just for low offset or low noise in the datasheet headline. Output phase margin with capacitive load, recovery from transient current demand, and behavior over temperature are all relevant. In practice, adding a buffer without reviewing its settling response can simply move the problem one stage earlier. A compact RC network between buffer and ADC input is sometimes beneficial for charge isolation, but only if its time constant is chosen with the 2 µs acquisition period in mind. Oversized series resistance or excessive filter capacitance can turn a stability fix into a settling failure.

Front-end protection must also be balanced carefully. The generous ±25 V absolute maximum on the analog inputs gives some fault tolerance, but precision acquisition chains rarely benefit from relying on internal structures for repeated protection events. If external protection elements are added, their leakage, capacitance, and recovery behavior become part of the analog source seen by the converter. TVS devices, clamp diodes, and large series resistors can all protect the pin while quietly degrading linearity or settling. The most reliable approach is usually staged protection: limit surge energy at the interface, keep high-current fault handling away from the ADC node, and preserve a low-impedance, clean local source for the converter input itself.

Temperature effects should be considered across the complete implementation, not only at the package specification level. Reference bypass capacitor characteristics, op-amp output drive, resistor network drift, and ground impedance all change with temperature. A layout that passes room-temperature validation with comfortable margin can become borderline near -40°C because amplifier drive slows, or near +85°C because leakage and dielectric losses increase. This is one reason compact boards sometimes show more variation in environmental testing than larger boards: thermal gradients and shared return paths become more severe as density increases. For high-confidence designs, it is worth validating dynamic settling and reference stability at temperature extremes rather than checking only static code accuracy.

In practical board bring-up, the most useful diagnostics are often indirect. If conversion noise changes when digital traffic increases, the issue is usually reference or ground contamination. If gain error appears only at higher sampling rates, the input source is often under-settling. If one board spin performs better than another with identical schematic and firmware, package placement and return-current geometry are usually involved. These patterns are consistent across many precision SAR-style converter integrations: the converter core is rarely the weakest link; the interface between source, reference, and layout usually is.

A disciplined implementation therefore centers on a few priorities. Keep the +5 V supply common and low impedance. Decouple supply, REF, and CAP pins exactly where the current loops demand it. Control analog and digital ground interaction based on return paths, not naming conventions. Ensure the input source can settle fully within the 2 µs acquisition interval across the intended temperature and range conditions. Treat fault protection and ESD hardening as analog design tasks, not only reliability additions. When these details are executed well, the ADS7809UB/1K fits naturally into compact industrial and embedded measurement systems and delivers performance much closer to its specified capability rather than to the limitations of the surrounding board.

ADS7809UB/1K engineering use cases and selection considerations

ADS7809UB/1K fits a specific class of data-conversion problems: precision measurement nodes that must accept industrial voltage levels directly, convert them with solid 16-bit SAR performance, and hand data to a controller through a relatively simple serial path while operating from a +5V rail. Its value is not in being the newest or most integrated ADC. Its value is architectural efficiency in systems where analog range compatibility, deterministic conversion behavior, and straightforward digital integration matter more than extreme sampling rate, ultra-low power, or deep system-on-chip consolidation.

At the analog front end, the most important feature is the built-in support for ±10V and 0V to 10V input ranges. That capability aligns closely with common field and instrumentation signaling conventions. Many industrial transmitters, programmable outputs, motion-control feedback circuits, and signal-conditioning boards already operate in these domains. When an ADC can accept those levels without a large external resistor network or an extra scaling amplifier, the signal chain becomes shorter and easier to control. Fewer front-end components usually mean lower cumulative gain error, lower thermal drift contribution, less board area, and fewer failure points. In practice, this also reduces the amount of analog trimming and tolerance analysis needed during bring-up.

That input-range compatibility is often more important than it first appears. A converter with excellent core linearity can still create a difficult design if the required external attenuation network introduces resistor mismatch, amplifier offset, common-mode limitations, or extra settling time. With devices like ADS7809UB/1K, part of that problem is absorbed into the converter architecture. This does not eliminate analog design work, but it shifts the design effort from basic range translation toward higher-value tasks such as anti-alias filtering, source protection, EMC hardening, and reference integrity. In engineering terms, this is usually a good trade because those areas dominate real-world measurement reliability.

The converter’s 16-bit resolution and stated dynamic performance make it suitable for instrumentation paths that need more than coarse monitoring. It can resolve relatively small changes across a wide span while preserving usable amplitude fidelity for control loops, diagnostic capture, and moderately dynamic waveform observation. This makes it appropriate for applications such as programmable power instrumentation, servo-system feedback observation, test fixtures, process input modules, and embedded analyzers where the signal is not broadband RF-fast but still demands disciplined quantization performance. A useful way to view this device is not as a “high-speed ADC,” but as a precision SAR that captures one channel cleanly and predictably enough for systems where timing determinism is often as important as nominal resolution.

The SAR architecture itself is one reason it remains attractive in many control and measurement systems. SAR converters generally offer a clear conversion cycle, no digital filter latency, and a direct relationship between sample instant and output code. That matters when firmware needs precise temporal correlation between a control event and the sampled result. In closed-loop equipment, calibration stations, and synchronized measurement nodes, deterministic acquisition can simplify both software and validation. There is often less ambiguity about when the sample was taken compared with architectures that hide timing behind pipeline or filtering stages. This tends to reduce debugging effort when correlating ADC data with GPIO strobes, PWM edges, relay switching, or actuator commands.

On the digital side, the clocking flexibility is a practical advantage. Internal and external clock options allow the converter to adapt to different system timing strategies. In one design, the ADC may run as a mostly self-contained peripheral. In another, it may be slaved to a broader timing framework so that several acquisition paths remain phase-consistent. The SYNC signaling is particularly helpful when firmware must align sampled data from multiple sources or when a fixed serial-port framing model already exists in the processor. This is one of those features that looks minor in a datasheet but often saves time during integration. Serial ADCs are frequently judged only by resolution and throughput, yet interface timing compatibility can decide whether a design is elegant or fragile.

The selectable binary output format is another small but meaningful integration feature. In mixed embedded systems, numeric representation affects more than convenience. It influences DSP scaling, exception handling, calibration routines, and fixed-point arithmetic efficiency. If the ADC output can match the arithmetic convention used elsewhere in the data path, firmware becomes simpler and less error-prone. That reduces not only code size but also subtle defects around sign handling, offset correction, and threshold comparisons. In systems with safety or traceability requirements, that simplification can be more valuable than a small improvement in headline converter specifications.

Selection, however, should be grounded in the practical limits of the part. ADS7809UB/1K is centered around a +5V operating environment. That immediately places it outside the preferred voltage domain of many current low-power digital platforms, especially those built around 1.8V to 3.3V logic and strict power budgets. Using it in a modern mixed-voltage system is possible, but the supply plan and logic-level compatibility need to be checked early. If the rest of the board is already 5V-centric, this is usually not a penalty. If the design is otherwise low-voltage, the converter may introduce rail-generation, level-translation, and sequencing overhead that weakens its range-handling advantage.

The single-channel nature of the device also deserves careful interpretation. A single-channel SAR converter is often the right answer when one signal is genuinely important and needs disciplined treatment. It is less attractive when the application really needs many channels with matched behavior, compact board area, and low per-channel cost. Designers sometimes attempt to extend a precision single-channel ADC with external multiplexers. That can work, but the analog consequences must be understood. Multiplexing changes source impedance as seen by the converter, can degrade settling after channel switching, and often complicates crosstalk control. For slowly changing signals this may be acceptable. For mixed fast/slow channels or for channels with very different source impedances, the implementation can become harder than selecting a converter family that was built for multichannel acquisition from the start.

Source drive is one of the most common areas where designs underperform. Even when the ADC supports the required nominal input range, the preceding stage must still settle to the required accuracy within the converter’s acquisition window. This includes the output impedance of sensors, filter resistors, protection networks, instrumentation amplifiers, and any sample-path switching elements. A front end that looks fine at DC may fail during dynamic sampling because the internal sampling capacitor is not being driven firmly enough. The result is often code-dependent error, unexplained gain compression at higher sample rates, or conversion noise that disappears only when the source is replaced by a lab generator. In practice, keeping source impedance low and validating settling with worst-case step tests usually reveals these issues faster than relying on static calculations alone.

Reference bypassing and grounding deserve equal attention. Precision SAR converters are unforgiving of casual reference layout. The converter can only be as stable as the voltage standard and return path supporting it. If the reference node is noisy, inductive, or poorly decoupled, the output code will reflect that instability directly. The analog input path, reference bypass network, and digital return currents should be treated as an interacting system rather than separate checklist items. Short current loops, local high-quality capacitors, and disciplined partitioning between quiet analog sections and edge-rich digital traces generally produce better results than elaborate filtering added late in the layout cycle. In measurement hardware, many “ADC problems” are actually reference distribution or grounding problems wearing a different label.

Timing is another area where this device rewards disciplined implementation. Because conversion control and serial readback are closely linked, firmware and hardware must agree on sequencing with little ambiguity. This is not inherently difficult, but it is less forgiving than interfaces that fully decouple start-convert, data-ready, and buffered readout. Early prototype work should therefore include direct observation of control lines, serial clocking, and data-valid windows with an oscilloscope or logic analyzer. It is often worth validating the exact interaction between processor SPI behavior and ADC timing before the board design is frozen. Edge placement, idle states, and transaction framing can all matter. Resolving those details early tends to prevent late-stage software workarounds that complicate maintenance.

From an application standpoint, ADS7809UB/1K is strongest where the analog environment is more important than converter novelty. It is a sensible fit in industrial input cards, laboratory instruments, embedded testers, legacy-compatible control platforms, and retrofit designs that already standardize on ±10V or 0V to 10V signaling. It is especially effective when one precision channel must be acquired cleanly without adding a large analog-conditioning stack. In these cases, the part reduces design friction because the converter’s native behavior maps well onto the system’s physical signals. That alignment is often a better predictor of project success than chasing a newer ADC with better paper specifications but poorer fit to the actual signal chain.

There is also a lifecycle dimension that cannot be separated from technical selection. A last-time-buy status changes the nature of the decision. Once lifecycle risk becomes visible, the part is no longer just a component choice; it becomes a platform strategy question. For new designs, that usually shifts the burden of proof. The converter must not only solve the immediate signal-conversion problem but do so strongly enough to justify inventory commitments, second-source planning, or a defined migration path. For sustaining existing products, the calculus is different. If the analog performance is already qualified and field behavior is understood, a controlled last-time-buy can be rational. For a new platform expected to remain in service for many years, selecting a device with constrained availability often creates avoidable downstream cost in requalification, documentation updates, and service logistics.

A practical selection process should therefore evaluate four layers together. First, confirm analog fit: required input range, source drive capability, settling, protection, and reference strategy. Second, confirm digital fit: clocking method, serial timing, data format, and controller compatibility. Third, confirm architectural fit: single-channel SAR behavior versus actual channel count, latency, synchronization, and calibration needs. Fourth, confirm lifecycle fit: availability horizon, replacement options, and qualification impact. Treating these as one stack rather than isolated checks usually leads to better decisions. A converter that looks ideal at only one layer can still be the wrong part overall.

The most defensible view of ADS7809UB/1K is that it is a high-fit legacy precision ADC for systems built around real industrial voltage domains and deterministic serial acquisition. Its strengths are concrete: direct support for common field ranges, solid 16-bit SAR behavior, timing options that ease processor integration, and reduced need for front-end scaling. Its weaknesses are equally concrete: +5V dependence, single-channel scope, careful sequencing requirements, and lifecycle constraints. If the design already lives in a 5V instrumentation environment and the signal chain benefits from native ±10V or 0V to 10V handling, the part can still be an efficient engineering choice. If the platform is new, low-voltage, highly integrated, or intended for long production life without special supply planning, the same characteristics point toward a more current converter family.

Potential Equivalent/Replacement Models for ADS7809UB/1K

Potential equivalent or replacement options for ADS7809UB/1K must be evaluated with caution. Based strictly on the provided documentation, the only directly referenced related device is the ADS7808 from Texas Instruments. Its relevance comes from pin compatibility, not full functional equivalence. That distinction matters immediately: pin compatibility can simplify board-level substitution, but it does not guarantee that the converter will preserve measurement fidelity, system accuracy, or firmware behavior.

The ADS7809UB/1K is a 16-bit SAR ADC, while the ADS7808 is a 12-bit device. In practical terms, this is not a minor parametric variation. It changes the quantization step size, effective dynamic range, code transition granularity, and often the amount of usable low-level signal detail available to the rest of the signal chain. If the original design uses the ADS7809UB/1K near the limits of offset, gain, or noise budgeting, replacing it with ADS7808 can materially alter system performance even when the board powers up and communication appears normal. For that reason, ADS7808 is better treated as a mechanically and electrically related part, suitable only where reduced resolution is acceptable and the application has enough margin to absorb it.

A more useful way to frame replacement analysis is to separate the problem into compatibility layers. The first layer is package and pinout compatibility. The documentation indicates that ADS7808 aligns with ADS7809UB/1K at this level, which can reduce PCB redesign effort. The second layer is interface compatibility, including serial output behavior, timing relationships, SYNC handling, and clocking options. The third layer is conversion behavior: resolution, throughput, reference structure, input range support, and no-missing-code guarantees. The fourth layer is system impact, which includes calibration flow, error budgeting, analog front-end scaling, firmware assumptions, and production test limits. A candidate that matches only the first layer is not a true replacement. In converter design, substitutions usually fail at the second or third layer long before they fail mechanically.

From the source material, the ADS7809UB/1K should be characterized by the following requirements when screening any replacement candidate: 16-bit SAR architecture, 100kHz throughput class, single +5V supply operation, serial output interface, support for internal or external reference modes, multiple bipolar and unipolar industrial input ranges, 20-pin SOIC package, industrial temperature capability, and DSP-oriented timing features such as SYNC plus selectable internal or external data clocking. These attributes collectively define the device’s role in the system. Resolution and sample rate are only the visible top-level parameters; they are rarely sufficient on their own.

The input range architecture is especially important. Devices that nominally share resolution and throughput can still be poor replacements if they do not support the same unipolar and bipolar ranges or if they implement those ranges differently. That difference propagates into front-end amplifier gain settings, common-mode assumptions, protection margins, and calibration constants. In industrial designs, this is often where a replacement path breaks down. A converter may appear acceptable in the distributor search filters, but once the expected ±10V, 0V to 5V, or other scaled process signals are mapped into the new ADC input structure, the surrounding circuitry no longer lands in the intended operating region. This can quietly reduce linearity margin or create clipping under fault or overrange conditions.

Reference handling is another decisive factor. The ADS7809UB/1K supports internal or external reference capability, and that flexibility is often embedded deeply into the original design intent. Some systems rely on the internal reference to reduce component count and startup complexity. Others use an external precision reference to align multiple measurement channels, improve drift performance, or tie conversion scale directly to a calibrated metrology path. A replacement that changes reference drive requirements, warm-up behavior, decoupling sensitivity, or reference input impedance can force rework in both hardware and validation procedure. In precision SAR applications, reference dynamics are not a secondary issue; they shape real conversion accuracy under load and at speed.

Serial timing must also be examined beyond protocol labels. “Serial output interface” sounds generic, but implementation details matter: when data becomes valid, whether clocking is source-synchronous or host-driven, how SYNC frames the transaction, and how internal versus external clock selection affects firmware sequencing. Systems built around DSP timing often depend on deterministic edge placement and consistent latency. A candidate device with slightly different timing can still communicate, yet fail under temperature, interrupt load, or burst sampling conditions. This type of mismatch tends to surface late, often during integration rather than schematic review, because it hides behind apparently successful bench reads.

The 100kHz throughput class should be interpreted in context as well. Throughput is not only a raw sampling number. It couples to acquisition time, source impedance tolerance, internal settling behavior, and output data transfer overhead. In many converter substitutions, a nominally equal sample rate masks a different balance between sampling window and digital readout timing. If the original analog source has moderate output impedance or uses multiplexed channels upstream, acquisition dynamics can become the limiting factor. This is one reason a datasheet-level “same speed” claim frequently collapses during characterization.

Temperature range and package style complete the practical screening set. The 20-pin SOIC package and industrial temperature rating are not just logistics items. They affect assembly compatibility, thermal behavior, qualification reuse, and maintenance strategy. In long-life industrial products, preserving the package and temperature class often has more value than achieving a superficial electrical match, because qualification cost and field risk usually dominate component price differences. A replacement that requires board re-spin or environmental revalidation may not be a replacement in any economically meaningful sense.

Given the documentation provided, no other Texas Instruments or third-party devices can be asserted as drop-in replacements without extending beyond the source material. That limitation should be respected. In engineering terms, the evidence supports only one clear statement: ADS7808 is pin-compatible and therefore potentially relevant when footprint and interface adjacency matter, but it is not a true equivalent to ADS7809UB/1K because the resolution class is fundamentally different. Any design that depends on 16-bit no-missing-code behavior, fine LSB resolution, or higher dynamic range must be requalified carefully before considering such a substitution.

A disciplined replacement workflow for ADS7809UB/1K would therefore start with a hard filter rather than a broad search. First, preserve 16-bit SAR performance, +5V single-supply operation, package form, and industrial temperature capability. Next, verify input range support and reference architecture. Then validate serial timing, SYNC behavior, and clocking mode against the host processor implementation. Only after those checks should static accuracy, drift, and production calibration implications be reviewed. In practice, this ordering prevents wasted effort. Mechanical similarity is easy to see, but the real risk usually sits in range handling, reference interaction, and timing edge cases.

The central point is simple: for ADS7809UB/1K, replacement suitability is defined by system behavior, not by catalog resemblance. The ADS7808 is the nearest documented related model, but only within a constrained interpretation of compatibility. If 16-bit performance is part of the design requirement rather than a convenience, ADS7808 should be treated as a downgrade option, not an equivalent path.

conclusion

The ADS7809UB/1K from Texas Instruments is a 16-bit SAR ADC built for precision measurement paths that need roughly 100 kSPS throughput, serial data extraction, and direct compatibility with industrial signal ranges. Its value is not just in nominal resolution, but in how much analog interface work it absorbs into a single device. Internal sample-and-hold circuitry, selectable input scaling for practical voltage ranges, an internal reference option, and flexible serial timing reduce the amount of surrounding circuitry that would otherwise be required to make a precision converter usable in a real control or instrumentation system.

At the architectural level, the device reflects a pragmatic SAR ADC design philosophy. A successive-approximation converter is often the preferred choice when the system requires deterministic latency, moderate sample rates, low complexity in the digital interface, and predictable noise behavior. In this operating region, delta-sigma converters may offer higher effective resolution under slower bandwidth conditions, but they usually introduce digital filter latency and different settling behavior. The ADS7809UB/1K instead targets applications where each conversion result must correspond closely to a known sampling instant and where control loops, multiplexed measurements, or event-driven acquisition benefit from bounded timing. That distinction matters in industrial designs, because timing certainty is often as important as nominal resolution.

One of the strongest practical features is the support for common industrial input ranges through internal scaling resistors. This is more important than it first appears. Many converters advertise high resolution but assume low-level input spans that force the designer to add external precision dividers, buffer stages, protection networks, and calibration effort before the ADC can even observe the actual field signal. By embedding the scaling network, the ADS7809UB/1K shortens the analog front-end path and reduces error sources associated with resistor ratio drift, board contamination sensitivity, and layout-induced pickup on high-impedance divider nodes. In systems that need to digitize signals such as 0 V to 5 V, 0 V to 10 V, or bipolar industrial ranges, this kind of integration improves not only BOM efficiency but also repeatability across production builds.

The internal sample-and-hold also deserves more attention than a simple feature list usually gives it. In a SAR converter, the quality of the acquired charge at the front end directly affects linearity, distortion, and settling accuracy. An integrated acquisition path allows the converter’s internal timing, capacitor network, and comparator operation to be better aligned than in loosely coupled external solutions. In practice, this simplifies the task of driving the ADC, but it does not eliminate source-drive requirements. The analog source must still settle to 16-bit accuracy within the acquisition window, especially when the input channel sees step changes or when upstream multiplexing is involved. Designs that ignore source impedance, amplifier output recovery, or RC filter settling often lose far more effective resolution than the data sheet’s static specifications would suggest. In this class of converter, the front-end driver is part of the converter system, whether or not it appears on the ADC package.

The reference strategy further shapes real measurement quality. The integrated reference option is useful because it reduces component count and shortens the path between the reference source and the SAR capacitor array. That generally helps with compactness and eases integration in cost-sensitive or space-constrained systems. However, reference selection should be treated as a system-level accuracy decision, not a convenience checkbox. If the application prioritizes ease of implementation and moderate drift requirements, the internal reference may be the right balance. If the design must hold gain accuracy across wider temperature swings, long calibration intervals, or tighter metrology targets, an external precision reference may still be justified. A recurring lesson in precision systems is that reference noise and drift often dominate long-term error once quantization and nominal linearity are no longer the limiting factors.

The serial output interface is another reason the device fits cleanly into embedded acquisition chains. Serial timing flexibility allows connection to a wide range of controllers, DSPs, and FPGA logic without a heavy glue-logic penalty. That matters in mixed-generation industrial platforms where the ADC may need to coexist with legacy processors or tightly budgeted microcontroller peripherals. A well-behaved serial ADC can simplify board partitioning by letting the analog section sit near sensors while routing digital data back to the host with better noise immunity than a wide parallel bus. In practice, this also helps when EMI constraints are tight, because fewer simultaneous switching lines generally reduce digital coupling into sensitive analog nodes.

From a system integration standpoint, the device is particularly attractive where a single +5 V supply must support both precision conversion and straightforward processor interfacing. Single-supply operation lowers power-tree complexity and removes the need for additional analog rails in many cases. That said, the real challenge in such systems is usually not powering the ADC itself, but preserving measurement integrity when digital logic, switching regulators, sensor excitation, and communication interfaces all share the same supply ecosystem. Good results typically come from treating the converter as a boundary component: quiet reference return paths, disciplined grounding, short analog loops, and controlled separation between high di/dt digital currents and the input network usually matter more than minor schematic refinements.

The device is well suited to instrumentation modules, PLC analog input cards, data acquisition subsystems, industrial control loops, and precision monitoring equipment. In these applications, its integrated input-range handling reduces front-end design time, while SAR conversion behavior supports responsive measurements. It is especially effective in systems where the measured variable is already presented in a standard voltage form and where the design objective is to convert that signal with minimal external conditioning. It also fits retrofit or sustaining-engineering scenarios, where replacing a broader analog chain with a converter that already understands practical field ranges can lower redesign risk.

There is also a procurement and lifecycle dimension that should not be separated from the technical evaluation. A converter can be well matched electrically and still create long-term support risk if lifecycle status, package continuity, or second-source strategy are weak. For product selection, the ADS7809UB/1K remains compelling when the priority is direct integration of industrial-range inputs into a 16-bit serial SAR path on a +5 V rail. For platform planning, that benefit should be balanced against availability horizon, redesign cost, and qualification effort for potential successors. In industrial programs with long service lives, the best component is often not the one with the most elegant specification set, but the one whose performance, sourcing stability, and migration path stay aligned over the full maintenance window.

A useful way to view the ADS7809UB/1K is as a converter that reduces analog friction. It does not eliminate the need for careful signal-chain design, but it moves several difficult interface problems inside the device boundary, where matching and timing control are inherently better managed. That is why it remains relevant as an example of precision industrial SAR design: not simply because it delivers 16-bit, 100 kSPS class conversion, but because it translates real field-voltage signals into processor-ready digital data with a level of integration that supports fast, dependable system implementation.
