ADS7804U

Texas Instruments ADS7804U Product Overview

Texas Instruments ADS7804U is a 12-bit CMOS successive-approximation ADC built for one of the most common problems in industrial signal acquisition: digitizing true bipolar field signals, especially ±10V, without forcing the surrounding system into a complicated multi-rail architecture. Its key value is not just the converter core itself, but the level of integration around it. The device combines a sample-and-hold stage, a capacitor-based SAR conversion engine, an internal clock, reference circuitry, a microprocessor-oriented interface, and three-state parallel outputs in a single component powered from +5V. That combination reduces external support logic, simplifies timing closure, and makes the part especially attractive in control and instrumentation hardware where deterministic behavior matters more than interface minimalism.

At the architectural level, the ADS7804U is best understood as a practical data-acquisition front end rather than only a standalone ADC. The built-in sample-and-hold captures the input signal before the SAR algorithm begins its bit trials, which is essential for maintaining conversion accuracy when the source is changing during acquisition. In systems sampling sensor outputs, analog feedback nodes, programmable power stages, or conditioned transducer channels, this internal hold function removes the need for a separate track-and-hold in many designs. That directly lowers board area, component count, and analog routing complexity, which often has more impact on real system accuracy than nominal converter resolution alone.

The capacitor-based SAR topology is also a strong fit for this class of application. SAR converters offer a useful middle ground between flash and integrating architectures: they provide predictable conversion latency, moderate throughput, low power, and relatively clean static linearity. For designs running closed-loop control, scan-based multiplexed measurement, or event-driven acquisition, this deterministic conversion behavior is often more valuable than raw sample rate. A 100kHz guaranteed sampling rate is not extreme by current standards, but it is fast enough for many industrial monitoring paths, motion subsystems, and instrumentation channels where the analog bandwidth is modest and timing repeatability is more important than data-stream density.

One of the most important engineering advantages of the ADS7804U is its direct support for standard ±10V analog inputs while using a single +5V supply. That design choice addresses a persistent integration issue in industrial electronics. Many field-level signals, legacy instrumentation outputs, and control-system analog interfaces are defined around bipolar ranges such as ±10V or similar. When an ADC cannot accept that range directly, the designer is forced to add attenuators, level shifting, precision op amps, protection networks, or extra supply rails. Each added stage introduces offset, gain error, drift, settling concerns, and additional validation effort. By aligning the converter more closely with the signal domain already present in the system, the ADS7804U helps preserve signal integrity and shortens the analog design path.

This direct-input capability is particularly useful in retrofit-compatible platforms and mixed-generation systems. In many deployed installations, ±10V remains the electrical language of sensors, PLC-adjacent modules, and instrumentation cards. A converter that accepts that range natively tends to reduce surprises during qualification because it avoids forcing the signal through extra translation circuitry that must itself be calibrated and temperature-characterized. In practice, every removed analog stage usually eliminates at least one subtle error source, and those small reductions accumulate into more stable field performance.

The parallel output interface is another defining feature. While modern low-pin-count serial ADCs dominate many new embedded designs, a parallel ADC still has clear advantages in systems that prioritize fixed-latency reads, simple bus observation, and straightforward host timing. With the ADS7804U, the digital result can be acquired with minimal protocol overhead. This is useful in FPGA-connected subsystems, bus-oriented microprocessor designs, older DSP platforms, and industrial controller boards where a parallel data path already exists. It also makes debugging easier. Timing can be inspected directly with a logic analyzer, and conversion-read sequencing is typically more transparent than with deeply framed serial interfaces.

That transparency matters more than it may appear at first glance. In mixed-signal debugging, uncertainty often comes less from the converter core and more from interface sequencing, read strobe alignment, bus contention, and software timing assumptions. A three-state parallel bus with explicit control timing can be easier to validate than a serial path hidden behind firmware drivers and clock-domain interactions. In systems with multiple ADC channels or shared buses, this predictability can reduce integration risk, especially during early board bring-up.

The integrated reference and clock further support that system-level simplicity. An ADC with internal timing and reference support can be dropped into a design with fewer dependencies, which is useful when schedule pressure is high or when the converter is one functional block among many. That said, the presence of integrated support circuitry should not be interpreted as immunity to board-level analog discipline. Layout, grounding, input protection, and reference decoupling still shape the delivered accuracy. In practice, converters in this performance class often succeed or fail based on implementation details around them. Clean return paths, controlled digital edge placement near the converter, and careful treatment of analog input source impedance usually produce larger gains than chasing nominally better specifications on paper.

For engineers comparing the ADS7804U against higher-resolution or more modern interface alternatives, the main question is not whether 12 bits is enough in abstract terms, but whether 12 bits is enough after the real error budget is assembled. In many industrial systems, sensor nonlinearity, front-end drift, wiring noise, common-mode disturbances, and calibration uncertainty dominate before a 16-bit converter can deliver meaningful extra information. In that context, a robust 12-bit ADC with direct bipolar input support and deterministic timing can outperform a nominally superior converter that demands a more fragile analog front end. Resolution only creates value when the surrounding signal chain can support it.

This is where the ADS7804U’s pin compatibility with the 16-bit ADS7805 becomes strategically useful. It gives platform designers a migration path without forcing a complete board redesign. A common hardware footprint can support multiple accuracy tiers, allowing one PCB to address cost-sensitive and precision-oriented product variants. That flexibility is valuable in instrumentation product families, modular data-acquisition systems, and OEM platforms that evolve over time. It also creates room for staged validation: a design can be proven first with one resolution target and later upgraded if the measured analog environment justifies it.

The guaranteed industrial operating range of −40°C to +85°C reinforces the device’s intended deployment profile. This is not only about survivability. Across that temperature span, component drift, timing margin, and analog front-end behavior become system-level concerns. A converter specified for industrial temperature operation reduces one layer of uncertainty when building equipment for factory floors, outdoor cabinets, distributed control nodes, or test racks with uneven thermal conditions. The 28-pin SO package also fits well into established industrial board practices, where handoff between analog and digital domains, manufacturability, and rework accessibility still matter.

From an application standpoint, the ADS7804U fits best in data-acquisition cards, industrial controllers, programmable test equipment, process monitoring nodes, motor-control support instrumentation, and legacy-compatible measurement subsystems. It is especially effective where the signal source already lives in a ±10V domain and where the host can benefit from direct parallel data access. In multiplexed systems, it can serve as the conversion core behind conditioned sensor channels, provided the preceding analog path settles adequately before acquisition. In control systems, its deterministic SAR timing supports repeatable sample-to-decision intervals, which helps maintain loop consistency.

A recurring implementation detail worth noting is input drive behavior. Even when an ADC advertises direct bipolar input support, the source driving it must still settle within the acquisition window and tolerate the switched-capacitor loading behavior of the internal front end. Designs that connect the converter through large resistances, weak output amplifiers, or heavily filtered nodes can unintentionally degrade effective accuracy. In practice, a stable low-impedance driver, moderate RC filtering, and attention to charge kickback produce much better results than assuming the nominal input range alone guarantees easy interfacing. This is one of the common gaps between schematic-level compatibility and measured board performance.

Another practical point concerns digital bus activity during sensitive analog moments. Parallel interfaces are convenient, but they can inject noise if bus transitions coincide with acquisition or conversion intervals on a poorly partitioned board. Keeping bus edges controlled, separating return currents, and avoiding unnecessary digital toggling near the analog section often improves repeatability. For medium-resolution industrial converters, this kind of board-level discipline is usually the difference between hitting typical performance and actually meeting end-product error budgets across temperature and production spread.

Viewed as a product choice, the ADS7804U is compelling because it solves a specific engineering problem cleanly. It is not trying to be the fastest ADC, the smallest ADC, or the most serial-interface-friendly ADC. Its strength is that it maps well onto real industrial signal environments: bipolar analog levels, single-supply logic domains, moderate throughput, and host systems that value direct access and predictable timing. That makes it a durable option for engineers building practical acquisition hardware rather than specification-driven demonstrations.

In that sense, the ADS7804U represents a design style that remains relevant. Good mixed-signal components are not defined only by converter resolution or interface modernity, but by how efficiently they reduce system friction. A converter that accepts the signal range already present in the field, exports data in a timing model the controller can trust, and minimizes external analog dependencies often leads to a better end product than a theoretically better part that complicates the rest of the design. For industrial and instrumentation platforms where robustness, clarity, and integration time carry real weight, the ADS7804U remains a focused and technically sound choice.

Texas Instruments ADS7804U Core Architecture and Integration Level

Texas Instruments ADS7804U is better understood as a fully realized acquisition block rather than an isolated ADC core. Its value is not only in the 12-bit conversion engine, but in how the surrounding analog and digital functions are consolidated into a predictable signal-chain element. This distinction matters in embedded measurement design. A bare SAR core still leaves the designer responsible for sample capture behavior, reference stability, timing generation, and bus interfacing. The ADS7804U absorbs most of that complexity into a single device, which shifts the design effort from circuit completion to system-level optimization.

At the conversion layer, the device uses a capacitor-based successive approximation architecture. This is a practical choice for control, instrumentation, and data acquisition platforms that need bounded latency and repeatable conversion timing. SAR converters do not rely on long averaging windows or digital filtering to produce output codes. Instead, they resolve the input through a fixed sequence of comparison steps, which makes timing behavior easier to budget in mixed-signal systems. In real deployments, this determinism is often more valuable than raw speed. It simplifies firmware scheduling, reduces uncertainty in control loops, and makes channel-to-channel synchronization more manageable when multiple converters share a bus or acquisition trigger structure.

The internal sample-and-hold stage is central to that behavior. In systems with rapidly changing analog inputs, conversion accuracy depends on freezing the signal long enough for the SAR process to complete. If this function is external, the interface between track-and-hold circuitry and the ADC core becomes another error source, especially in the presence of charge injection, settling limitations, or layout-induced noise pickup. By integrating the sample-and-hold, the ADS7804U tightens control over aperture timing and internal settling paths. That reduces the number of analog interactions the board designer must characterize. In practice, this tends to improve first-pass success, especially in compact industrial boards where long analog traces and shared grounds can otherwise erode measurement fidelity.

The integration level is one of the strongest architectural features of the ADS7804U. Internally, it combines the 12-bit SAR converter, sample-and-hold circuitry, a +2.5 V reference, an internal clock, conversion and output control logic, and three-state parallel data bus drivers. Each of these blocks removes a separate dependency from the external design. The internal reference is especially important because reference design is often underestimated. In a precision ADC channel, the reference is not a secondary support element; it is part of the transfer function. Once the reference is internal, gain consistency, thermal behavior, and converter matching are managed inside a characterized boundary rather than distributed across board-level components. This usually leads to a more stable design baseline, even if some high-end systems may still prefer external reference control for calibration strategy reasons.

The internal clock serves a similar role in reducing integration risk. With many data converters, externally supplied timing appears flexible, but that flexibility can become another source of uncertainty. Clock routing, edge quality, coupling into analog nodes, and firmware coordination all affect performance. By embedding the conversion clock, the ADS7804U constrains that variable and makes conversion execution more self-contained. This is not merely a convenience feature. It lowers sensitivity to timing implementation details and shortens validation effort during bring-up, where timing-related faults often hide behind apparently random code instability.

On the digital side, the built-in control logic and three-state parallel outputs position the device for straightforward processor or bus-oriented integration. This is consistent with the design style of many industrial and legacy embedded systems, where direct parallel capture is still preferred for low-latency readout and simple state-machine control. Three-state outputs allow the ADC to coexist on a shared data bus without requiring excessive external glue logic. That matters in dense acquisition subsystems, especially where multiple peripherals compete for limited processor I/O. A well-integrated bus interface often saves more board complexity than expected, because it reduces not only component count but also the amount of timing arbitration and signal qualification required in firmware and FPGA logic.

The ±10 V input capability is another defining architectural decision. Many converters require the incoming signal to be translated into a lower unipolar range before conversion. That translation stage can involve op-amps, resistor networks, protection elements, and calibration overhead. Every added stage introduces offset, drift, gain error, bandwidth constraints, and fault-handling concerns. By accepting a standard ±10 V signal directly, the ADS7804U aligns with common industrial signaling conventions and avoids unnecessary front-end scaling in a large class of applications. This is more significant than it first appears. In industrial control cabinets, test equipment interfaces, and retrofits of legacy measurement channels, ±10 V remains a common electrical contract. A converter that speaks that range natively reduces interface friction and preserves the original signal semantics with fewer intermediate transformations.

From an analog front-end perspective, direct ±10 V support also improves error budgeting. If a signal must be attenuated or level-shifted before conversion, the designer must now allocate error to resistor matching, amplifier offset, amplifier drift, common-mode behavior, and settling time under source impedance variation. Once those terms accumulate, the practical resolution of a 12-bit converter can degrade noticeably. Eliminating the scaling stage does not automatically guarantee precision, but it removes one of the most common mechanisms by which precision is lost in implementation rather than in the converter itself. In many fielded systems, the dominant errors are not in the ADC datasheet headline numbers, but in the support circuitry wrapped around it.

This level of integration also has a supply-chain and manufacturability dimension. Fewer external support parts mean fewer BOM lines, fewer placement operations, fewer tolerance stack-ups, and fewer second-source qualification points. That has direct consequences for production resilience. A converter that internalizes reference, timing, and bus-driving functions is easier to substitute into volume designs without repeatedly reopening the surrounding analog design. The reduction in external analog components is particularly valuable because analog support parts are often the least interchangeable elements in a procurement-constrained environment. From that standpoint, the ADS7804U does not merely simplify schematics; it compresses system risk into a smaller and more testable boundary.

A practical pattern often seen in embedded acquisition boards is that designers initially select an ADC based on resolution and throughput, then later discover that the surrounding circuitry dominates schedule and validation effort. Reference routing becomes noisy, sample timing becomes ambiguous, and signal scaling stages require more calibration than expected. Devices such as the ADS7804U avoid that trap by treating conversion as a subsystem, not just a comparator algorithm. That is a design philosophy worth emphasizing. In mixed-signal engineering, the best component is often not the one with the most aggressive isolated specification, but the one that minimizes uncontrolled interactions across the full signal path.

For application fit, the ADS7804U is well suited to PLC-style analog input modules, industrial process monitoring, data acquisition instruments, motor-control support measurement, and retrofit interfaces where existing ±10 V outputs must be digitized with minimal redesign. It is also attractive in systems where deterministic read timing is more important than extreme sampling density. The device fits especially well when the objective is to build a reliable single-channel acquisition path with low integration overhead and stable behavior across temperature, layout variation, and manufacturing spread.

Viewed from the bottom up, the architecture is coherent. The SAR engine provides deterministic conversion. The sample-and-hold stabilizes the input during that process. The internal reference and clock reduce external dependencies that commonly destabilize performance. The control logic and three-state bus drivers simplify digital extraction of the conversion result. The direct ±10 V input range removes avoidable analog conditioning in many industrial designs. Taken together, these choices show that the ADS7804U was engineered not as a generic ADC block, but as a complete measurement interface element optimized for practical system integration.

Texas Instruments ADS7804U Key Electrical and Dynamic Performance

Texas Instruments ADS7804U is a 12-bit successive-approximation ADC positioned for designs that need deterministic timing, moderate sampling speed, and controlled accuracy without the cost or interface complexity of higher-speed data acquisition parts. Its headline operating point is a 100 kSPS throughput rate, implemented as a complete acquire-and-convert cycle of 10 µs. Within that cycle, the specified conversion time is 5.7 µs typical and 8 µs maximum, which is more important than it first appears. In embedded measurement chains, bounded conversion latency often matters as much as nominal sample rate because timing uncertainty directly affects control-loop phase margin, interrupt scheduling, and multiplexed channel settling budgets. A device with an explicitly constrained maximum conversion interval is therefore easier to integrate into real-time systems than one that only advertises typical performance.

From an architectural perspective, these numbers indicate a converter optimized for balanced behavior rather than raw speed. The remaining portion of the 10 µs cycle is effectively available for input acquisition and interface overhead, which helps when the analog source is not an ideal low-impedance driver. In actual designs, this often becomes the hidden limit. A 100 kSPS ADC can underperform if the front-end amplifier, sensor bridge, or RC anti-alias network cannot charge the internal sampling node quickly enough. In that context, the ADS7804U’s timing profile is useful because it leaves enough room for disciplined analog settling while still sustaining a practical sample rate for industrial instrumentation, motor monitoring, and general waveform capture.

Linearity is one of the main differentiators inside the ADS7804 family. The standard ADS7804U is specified for ±0.9 LSB integral nonlinearity, while the ADS7804UB tightens that to ±0.45 LSB. Differential nonlinearity follows the same pattern: ±0.9 LSB for ADS7804U and ±0.45 LSB for ADS7804UB. Both versions guarantee no missing codes at 12 bits. These are strong specifications for a converter in this throughput class because they say more than simple DC accuracy. INL reflects how closely the transfer curve follows an ideal straight line across the full input range, which directly affects precision in calibration-sensitive systems. DNL reflects code-width uniformity, which matters in low-noise averaging systems, threshold detection, and any application where monotonicity and predictable code progression are required.

The practical implication is not just that the B-grade is “more accurate.” The tighter linearity grade changes how much correction effort is needed elsewhere in the signal chain. In systems that already include gain and offset calibration, loose INL can remain as a residual error that software cannot fully remove with simple two-point adjustment. That is why the ADS7804UB is often the better choice in precision control loops, programmable power instruments, and closed-range sensor interfaces where transfer consistency over the entire span matters more than endpoint accuracy alone. By contrast, the standard ADS7804U remains a very sensible fit for industrial measurement, slow process variables, and feedback channels where environmental drift, sensor tolerance, or analog front-end limitations dominate the total error budget anyway. In many cases, paying for tighter ADC linearity yields little system-level improvement unless the rest of the chain is already disciplined.

Dynamic performance gives a clearer picture of where the part stops behaving like a simple “DC converter” and starts becoming useful in sampled-signal applications. At a 45 kHz input, the family delivers 70 dB typical SINAD for the standard grade and a minimum 72 dB SINAD for the higher-grade version, along with 80 dB spurious-free dynamic range and -80 dB total harmonic distortion. For a 12-bit ADC, these values indicate a well-controlled dynamic error profile. SINAD in this range corresponds to effective resolution that remains credible under AC stimulus, not just under static code testing. The SFDR figure suggests that large discrete spurs are reasonably suppressed, which is relevant in spectral monitoring, inverter feedback observation, and condition-monitoring channels where narrowband artifacts can be more disruptive than broadband noise. THD at -80 dB also points to a converter that preserves waveform shape well enough for moderate-fidelity sampling tasks.

The specified 250 kHz full-power bandwidth extends that usefulness. It does not mean the converter should be used as a 250 kHz precision digitizer at full spectral fidelity; the 100 kSPS throughput still defines the sampling limit. What it does mean is that the input track-and-hold path can accommodate relatively fast analog transitions without severe amplitude collapse over that bandwidth range. That characteristic is valuable in multiplexed systems, transient monitoring, and control applications where the signal may contain fast edges or higher-frequency components even if the information of interest lies at lower frequencies. In practice, this usually translates into cleaner capture of real-world signals after appropriate anti-alias filtering, rather than unrealistic operation near the analog bandwidth limit.

A useful way to interpret the ADS7804U is to view it as a converter with strong temporal discipline and balanced analog behavior. It is not trying to maximize one metric at the expense of the others. That balance makes it robust in mixed-signal boards where layout parasitics, reference quality, and driver settling often dominate the final result. For example, in motor-drive monitoring, current and voltage waveforms are rarely ideal sine waves. They contain switching residue, common-mode disturbances, and fast transients. A converter with decent SINAD and SFDR, combined with predictable conversion timing, can provide stable sampled data for protection logic and trend analysis without requiring the complexity of a much faster acquisition subsystem. Similarly, in industrial control modules, the difference between a successful and problematic ADC integration is often not the nominal resolution but whether the converter can maintain repeatable results when the source impedance changes, channels are multiplexed, or reference routing is less than perfect.

Selection between ADS7804U and ADS7804UB should therefore be driven by error-budget structure rather than by headline preference for the tighter grade. If the application depends on transfer-curve integrity across the span, uses digital correction beyond offset and gain, or must preserve small nonlinear trends in sensor outputs, the UB version justifies itself. If system uncertainty is dominated by sensor nonlinearity, amplifier drift, reference variation, or noisy field wiring, the standard U version is usually the more efficient choice. A recurring pattern in deployed systems is that designers overestimate the benefit of a finer ADC grade before validating the analog front-end settling, reference decoupling, and grounding strategy. With parts in this class, those implementation details often decide whether the last half-LSB is visible at all.

The ADS7804U is therefore best understood as a practical 12-bit SAR converter for deterministic acquisition, moderate-frequency signal observation, and industrial-grade measurement paths. Its 10 µs cycle time, bounded conversion delay, no-missing-codes behavior, and respectable AC metrics give it enough range to serve both static measurement and lightly dynamic waveform tasks. The UB grade extends that capability into applications where linearity margin has direct system value. In well-executed designs, this family offers a useful middle ground: faster and more dynamically capable than purely low-speed measurement converters, yet simpler and more timing-stable than many higher-rate alternatives.

Texas Instruments ADS7804U Input Range, Reference Options, and Signal Handling

Texas Instruments ADS7804U is attractive largely because it solves a common interface problem cleanly: direct digitization of standard bipolar industrial signals without front-end level shifting. Its native ±10 V input range matches many control, test, and instrumentation outputs, so the signal path can remain simple and predictable. That matters not only for schematic reduction, but also for preserving error margin. Every removed gain stage or offset stage eliminates another source of drift, noise, settling delay, and fault sensitivity.

At the input, the device presents approximately 23 kΩ impedance with about 35 pF input capacitance. Those numbers are not just static specifications; they shape how the signal source must drive the converter. A low-bandwidth sensor output or a high-impedance conditioning stage may see measurable loading, especially if source resistance is already significant. The 35 pF input capacitance also means fast source transitions can momentarily demand charge current, so the driving amplifier must remain stable under capacitive loading and must settle quickly enough before conversion. In practice, this is where otherwise acceptable op amps begin to show weaknesses: output phase margin erodes, small overshoot appears, and conversion repeatability degrades even though the DC transfer path looks correct on paper.

The nominal full bipolar span is 20 V, so one least significant bit is 4.88 mV. That resolution is often interpreted only as a quantization number, but in system design it is better viewed as a threshold for everything else in the signal chain. Reference drift, amplifier offset, source impedance interaction, PCB leakage, and noise all compete directly against that 4.88 mV step. If the front end contributes several millivolts of uncertainty under temperature or load variation, effective code stability starts to collapse even while the ADC itself remains within specification. The practical implication is that a 12-bit converter on a ±10 V range is usually limited less by nominal code width than by how disciplined the surrounding analog design is.

The bipolar transfer characteristic uses Binary Two’s Complement output coding. This is an efficient choice for systems that already process signed values in digital control loops, feedback algorithms, or waveform analysis pipelines. The ideal mapping is straightforward: +9.99512 V corresponds to 0111 1111 1111, 0 V to 0000 0000 0000, −4.88 mV to 1111 1111 1111, and −10 V to 1000 0000 0000. The value of this scheme is not only software convenience. It preserves symmetry around zero in a way that aligns naturally with actuator commands, current loops, bridge sensors, and AC-coupled measurement channels. Offset-binary devices can handle the same physics, but they force an extra translation layer, and that translation often becomes a silent source of sign errors, clipping mistakes, or misinterpreted calibration constants when systems evolve.

This coding also simplifies fault analysis. When a waveform crosses through zero, the code transition is intuitive in signed arithmetic form. That is useful in motor control, vibration monitoring, and power measurement, where negative excursions are expected operating states rather than exceptional cases. A signed digital path tends to reduce firmware branching and makes fixed-point scaling cleaner. In mixed hardware-software systems, this kind of representational alignment is more valuable than it first appears. Stable products are often built around interfaces that are easy to reason about under stress, not merely under nominal conditions.

Reference architecture is another strong point. The ADS7804U can use either its internal reference or an external one. The internal reference is nominally 2.5 V, specified from 2.48 V to 2.52 V, with typical drift of 8 ppm/°C. For many embedded measurement nodes, that is sufficient and often preferable. It reduces component count, avoids external routing of a sensitive low-noise node, and shortens bring-up time. A compact layout with the internal reference can deliver surprisingly good performance if thermal gradients are modest and the board environment is electrically quiet.

An external reference becomes attractive when the converter must fit into a tighter system error budget or must track a larger measurement architecture. The specified external reference range for linearity is 2.3 V to 2.7 V, with 2.5 V nominal, and the reference current drain is about 100 µA at 2.5000 V. That current is small enough that many precision reference devices can drive it directly, but the real issue is not DC drive capability. It is dynamic cleanliness. The reference pin participates in the converter’s internal charge and comparison activity, so reference source impedance, bypass strategy, and local grounding strongly affect repeatability. A precision reference with excellent initial accuracy but poor local decoupling can perform worse than the internal reference in real hardware.

There is a broader design trade here. If absolute accuracy is dominated by sensor tolerance, resistor matching, or field calibration, an external ultra-precision reference may not move the total error meaningfully. In such cases, the internal reference is usually the better engineering choice because it lowers implementation risk. If, however, multiple converters must correlate tightly, or if long-term thermal stability sets the measurement floor, an external reference can justify itself. The most effective use of an external reference is not to chase a better datasheet number in isolation, but to align the ADC with the true dominant error mechanisms in the complete signal chain.

Input robustness deserves special attention. The ADS7804U includes inherent overvoltage protection through its input resistor divider network, with the analog input guaranteed to at least ±25 V. This is a meaningful advantage in field-connected systems, where nominal ±10 V signals are often accompanied by wiring mistakes, hot-plug events, inductive transients, or ground shift conditions. The protection does not mean the input should be treated as a transient absorber for arbitrary surge energy, but it does provide a valuable first layer of resilience. In practice, this kind of margin often prevents nuisance failures during commissioning and maintenance, where the environment is less controlled than the bench.

The internal divider-based protection also has a subtle system benefit: it allows the converter to tolerate moderate fault exposure without forcing aggressive external clamping that would otherwise inject leakage, capacitance, or nonlinear behavior into the measurement path. That said, in electrically harsh installations, relying on the ADC input alone is rarely enough. Series resistance, controlled clamp paths, and layout that keeps surge current away from quiet analog ground remain important. The converter’s built-in tolerance should be viewed as a robustness enhancer, not as a replacement for disciplined front-end protection design.

When applying the device, the signal source should be considered in three layers. First is static compatibility: can the source deliver the required voltage swing into 23 kΩ without unacceptable gain error? Second is dynamic behavior: can it settle into the ADC input capacitance with margin before the conversion instant? Third is fault interaction: will startup, shutdown, or abnormal line conditions force the driver into nonlinear regions that create persistent errors or recovery delays? Many integration issues appear only in the third layer. For example, a front-end amplifier may behave correctly during normal operation but latch into saturation briefly after a fault, causing several invalid conversions after the input returns within range.

A practical implementation often benefits from a modest RC network ahead of the ADC, but only if its time constant is chosen with care. Too little filtering leaves the converter exposed to high-frequency noise and cable-borne disturbances. Too much filtering slows settling and introduces gain error when source impedance interacts with the input structure. The best results usually come from treating the network as both an anti-noise element and a charge reservoir for the sampling action, while verifying that the driver remains stable across tolerance and temperature. This is one of those interfaces where a few passive components can either stabilize the whole measurement chain or quietly degrade it.

In control and instrumentation systems, the ADS7804U sits in a useful middle ground. It does not demand the complexity of a fully custom bipolar front end, yet it preserves enough analog realism to support serious measurement work. Its ±10 V direct input, two’s-complement coding, internal or external reference flexibility, and tolerant input structure collectively reduce system friction. The device is most effective when used as part of a balanced design philosophy: keep the analog path simple, spend precision where the error budget truly requires it, and treat signal integrity and fault behavior as first-class design parameters rather than cleanup tasks after basic functionality is achieved.

Texas Instruments ADS7804U Digital Interface and Output Data Format

Texas Instruments ADS7804U exposes a fully parallel digital interface intended for deterministic readout. This interface is useful when the design goal is fixed-latency data capture, simple bus timing, or direct attachment to FPGA fabric, CPLD logic, or MCU GPIO without adding a serial protocol layer. Compared with serial-output converters, the parallel path trades pin count for lower transfer overhead and simpler cycle-level control. In systems where conversion results must be sampled immediately after end of conversion, that trade is often favorable.

The device supports two readout styles. A host can capture the complete 12-bit output in one parallel transaction, or it can read the result as two 8-bit segments. This matters in practical board design because bus width, connector pin budget, and routing congestion often dominate interface choices more than raw converter speed. A 12-bit bus gives the cleanest implementation when enough pins are available. The byte mode reduces routing width and fits naturally into 8-bit processor architectures, especially in legacy control platforms or mixed-width memory-mapped buses.

Byte selection is controlled by the BYTE pin. When BYTE is low, the converter presents the upper byte, which contains the 8 most significant bits. When BYTE is high, it presents the lower byte, containing the 8 least significant bits. This arrangement is more than a convenience feature. It allows the designer to prioritize coarse value inspection first, then fetch fine-resolution information only when needed. In control loops with thresholding or window detection, reading the MSB portion first can reduce unnecessary bus activity if only magnitude classification is required. In a tightly timed implementation, that can simplify firmware and reduce GPIO switching noise near the analog section.

Output activation is governed by the combination of R/C and CS. The parallel outputs drive valid logic levels only when R/C is high and CS is low. Outside that state, the outputs enter high impedance. This tri-state behavior is essential for shared-bus designs. It allows the ADS7804U to coexist with other peripherals on a common data bus without external bus transceivers in many cases. The key engineering implication is that bus ownership is explicit and hardware-enforced by control pins rather than inferred from timing alone. That reduces contention risk, but only if control sequencing is clean. Small overlap errors between chip selects on a parallel bus can still produce current spikes and corrupt readings, so it is worth treating CS timing as a signal-integrity issue, not only a logic issue.

The four pins labeled DZ are a special case. Under CS low and R/C high, they are actively driven low. Otherwise, they return to high impedance. This behavior is easy to overlook, yet it can affect byte-read bus mapping and external pull-up strategy. If these lines are tied into a broader data bus structure, their forced-low state during active read should be accounted for explicitly in the bus definition. In practice, these pins are best treated as controlled low-driving outputs rather than general data bits. Designs that ignore this detail often end up with confusing readback patterns during first-board validation.

The output coding is Binary Two’s Complement. That choice directly reflects the converter’s support for bipolar signal representation. In digital processing terms, the most significant bit acts as the sign bit, and the code range is centered around zero rather than offset from zero as in straight binary. This is the right format for signal chains measuring positive and negative excursions around a reference point, such as motor current, vibration, or AC-coupled sensor outputs. The practical consequence is that software should not reinterpret the raw code as an unsigned integer unless the analog input range and scaling have already been shifted accordingly. A surprising number of integration issues come from correct hardware paired with incorrect sign handling in firmware, especially when quick bench checks only exercise positive inputs.

The electrical drive characteristics define how robustly the ADS7804U can interface to the digital domain. A low output voltage of 0.4V at 1.6mA sink current indicates solid logic-low drive for standard 5V digital loads. A high output voltage of 4V at 500µA source current shows that the logic-high state is valid for TTL-compatible receivers, though it is not intended to source heavy current. This asymmetry is typical of many logic outputs and suggests a simple design rule: avoid loading the bus with excessive pull-down current demands or large fan-out if edge quality matters. If the converter is connected to multiple receivers, buffer insertion may be a better choice than assuming the ADC can comfortably drive every load directly.

High-impedance leakage is specified at ±5µA. That number becomes relevant when the bus is shared, weakly pulled, or sampled after long idle intervals. Leakage at this level is usually harmless in standard CMOS bus environments, but in marginal cases it can bias floating nodes enough to create nonrepeatable startup states or false reads. The output capacitance of 15pF also deserves attention. On a short local bus, it is minor. On a wide parallel bus with long traces, multiple receivers, and probe loading during debug, it contributes meaningfully to edge rate degradation. This is one reason why a parallel ADC interface that looks trivial in schematic form can become less forgiving on the PCB than a serial interface. Signal integrity starts to matter well below frequencies that would normally be considered “high speed” if many data lines switch together.

The digital input thresholds make the device straightforward to use in 5V logic systems. With VIH specified at 2.0V minimum and VIL at 0.8V maximum, the control pins are TTL-compatible. This lowers integration friction in mixed-logic environments and is particularly helpful when the host side uses classic 5V microprocessors, programmable logic with TTL-level outputs, or glue logic that does not swing rail-to-rail. The threshold margins also make the interface relatively tolerant of moderate ground offsets and edge rounding, though that should not be taken as permission to neglect layout discipline.

From an implementation standpoint, the interface is easiest to understand if viewed in three layers. At the control layer, CS and R/C determine whether the ADC owns the bus and whether outputs are actively driven. At the data-format layer, BYTE selects which portion of the conversion word is exposed, while Two’s Complement defines how that word should be interpreted numerically. At the electrical layer, output drive strength, leakage, capacitance, and threshold levels determine whether the bus transaction remains valid under real loading and routing conditions. Reliable designs align all three layers. Many interface failures occur because only one or two are considered. Logic may be correct while bus loading is excessive, or electrical margins may be fine while signed data is decoded incorrectly.

In practical board work, a few patterns tend to produce cleaner results. If the full 12-bit bus is used, keep the data traces length-matched enough to avoid skew-driven sampling ambiguity at the host latch point, especially when the receiving logic captures asynchronously relative to ADC control edges. If byte mode is used, latch each byte with a stable BYTE control interval and avoid changing BYTE too close to the sampling instant. If the bus is shared, verify that all nonselected devices truly release the bus, including any pins with unusual forced states such as DZ. During bring-up, it is often more effective to validate the interface with a small set of known bipolar analog input points and confirm exact Two’s Complement transitions than to start with dynamic waveforms. Static code checks expose sign inversion, byte ordering mistakes, and stuck bus bits quickly.

A useful design perspective is that the ADS7804U parallel interface is not merely a data exit path from the converter. It is part of the measurement system’s timing architecture. The choice between full-word and byte reads, the handling of tri-state intervals, and the interpretation of signed output codes all shape how easily the conversion result can be moved into computation without ambiguity. When that interface is treated as a first-class subsystem rather than a passive connection, the converter is much easier to integrate cleanly into low-latency acquisition and control designs.

Texas Instruments ADS7804U Conversion Timing and Throughput Behavior

The ADS7804U timing model is simple at the interface level, but its real value appears when the device is placed in a mixed-signal system and timing margins start interacting with noise, source impedance, and bus behavior. Its conversion cycle is driven by CS and R/C, which are internally OR’d and level-triggered. A low pulse on either control input, with a minimum width of 40ns, starts a conversion. Once the conversion is accepted, BUSY transitions low after a delay of up to 65ns from R/C going low, marking the start of the active conversion interval. BUSY remains low until the conversion completes and the output register is refreshed with the new result.

This timing arrangement matters because the device does not behave like a free-running converter with continuous throughput independent of interface sequencing. It operates as a command-driven SAR converter with a distinct alternation between track, hold, convert, and output update phases. That distinction is what defines both its achievable throughput and the practical constraints around data access.

The essential timing parameters form a compact but tightly coupled set. A conversion command requires a minimum 40ns low pulse. The BUSY low time is specified at up to 8µs, which defines the worst-case conversion duration. Aperture delay is 40ns, indicating the interval between the command edge and the effective sampling instant. Acquisition requires 2µs. Throughput is therefore specified at 10µs, not because the core conversion itself consumes that long, but because the converter needs both conversion time and sufficient reacquisition time before the next command. Bus access time and bus relinquish time are each specified at up to 83ns, which is relevant when the output bus is shared or when timing closure must be guaranteed at higher host clock rates.

A useful way to interpret these numbers is to separate the timing into three layers. The first layer is conversion initiation: a valid command pulse is applied, the sample is taken after the aperture interval, and BUSY asserts low. The second layer is the internal conversion process: the ADC is no longer tracking the input and is resolving the held sample, during which new conversion commands are ignored. The third layer is re-entry into track mode: once BUSY returns high and the output register updates, the input path resumes tracking and the device begins acquiring the next signal value. This last phase is often underestimated, but in practice it is what determines whether the next code represents the input accurately or only approximately.

The 2µs acquisition time deserves more attention than it usually receives. In many systems, the assumption is that once BUSY returns high the converter is immediately ready for another meaningful sample. Electrically, that is only true if the input has already settled within the required error band at the internal sampling node. If the signal source is low impedance and quiet, the 2µs figure may appear generous. If the source is a multiplexed channel, a sensor behind an RC anti-alias network, or an amplifier with limited large-signal settling, that same 2µs can become the dominant throughput limiter. In those cases, the ADC timing specification is no longer the full story; the analog front end becomes part of the conversion timing budget.

That is why the 10µs throughput specification should be read as a system-level number rather than only a digital interface number. The device can complete the internal conversion in as little as the BUSY interval, but it cannot deliver full specified accuracy at that rate unless the input has been reacquired correctly. The recommended 10µs spacing between conversion commands ensures that the converter has exited conversion, resumed tracking, and been given enough time to settle to the new input. For stable operation, that interval should be treated as the baseline sample period unless the analog source has been carefully characterized and the timing margin validated across temperature, supply variation, and input step size.

Another practical detail is command masking during BUSY low. New conversion commands issued while BUSY is low are ignored. This behavior simplifies interface logic because the device effectively rejects invalid retriggers during conversion, but it also means the host cannot rely on edge-counting alone to confirm sample cadence. In tightly timed firmware or FPGA control, BUSY should be treated as the authoritative state indicator. A command may be generated by the controller, but only a command that lands outside the active conversion window produces a real sample. In systems with interrupt latency or non-deterministic software timing, this distinction can explain missing samples or irregular throughput.

The read timing creates an interesting overlap opportunity. Previous conversion data can be read while the next sample is being converted, since the output register already contains the last completed result. On paper, this allows efficient pipelining: start a new conversion, then use the conversion interval to fetch the prior code, which improves bus utilization and reduces dead time in the controller. From a purely digital design perspective, that is attractive and often appears to be the optimal schedule.

However, Texas Instruments explicitly advises against reading data during conversion when best performance is required. That recommendation is not a formality. It reflects the analog sensitivity of SAR conversion to digital switching noise. Output bus transitions create current spikes in package leads, bond wires, return paths, and local supply impedance. Those disturbances can couple into the reference path, substrate, or input node as digital feedthrough. If bus activity is asynchronous and poorly aligned with the converter’s internal switching sequence, the resulting error is not always obvious as a large deterministic offset. More often it appears as elevated transition noise, degraded SNR, reduced repeatability on quiet DC inputs, or code-dependent artifacts that are difficult to isolate.

In practice, this means the timing diagram alone does not define best throughput. There are really two throughput numbers: the maximum command rate the logic can sustain, and the maximum sample rate that preserves the intended converter performance. Those are not always the same. In low-resolution or noise-tolerant applications, overlapping read and convert phases may be acceptable. In precision measurement paths, especially where the input signal is small or the reference network is lightly bypassed, separating all bus activity from the BUSY-low interval usually produces cleaner results. This is one of the cases where a few hundred nanoseconds of extra interface idle time can recover far more than it costs.

A robust operating sequence is therefore straightforward. Issue a valid conversion pulse of at least 40ns. Wait for BUSY to go low, then high. Avoid data bus transitions during the BUSY-low interval if performance margin matters. Read the conversion result after completion, allowing for the 83ns access specification. Then leave enough time for reacquisition so that the next command occurs no sooner than 10µs after the previous one. This sequence is not merely conservative; it aligns the digital transaction pattern with the analog behavior of the converter.

When the ADS7804U is connected to a shared microprocessor bus, the 83ns bus access and 83ns bus relinquish times become important beyond simple read latency. They determine whether another device can safely drive the bus without contention and whether glue logic needs additional wait states. In FPGA-based systems, these values are typically easy to accommodate, but in older asynchronous bus architectures they can become part of the memory-map timing closure. It is worth noting that bus contention near a conversion edge is undesirable not only for logic integrity but also because the associated transient current can worsen the same feedthrough mechanisms discussed earlier.

The aperture delay of 40ns also has system implications. For slowly varying signals it is nearly irrelevant, but for phase-sensitive sampling or when synchronizing to an external event, the actual sampling instant is offset from the command pulse by that delay. What matters even more is not the absolute delay alone, but its consistency. In many control and instrumentation applications, fixed delay is easy to calibrate out; uncertainty is what causes trouble. The ADS7804U’s timing structure is therefore best used with a command source that has low jitter and a layout that prevents control-line ringing from creating ambiguous edge timing.

One recurring implementation issue is the assumption that BUSY high immediately means the bus should be read and the next conversion should be launched back-to-back. That often works functionally, yet small degradations appear when the input source is not ideal. A cleaner pattern is to treat BUSY high as “conversion complete,” not “cycle complete.” The cycle is complete only after output data has been read in a quiet interval and the analog input has had enough time to settle for the next sample. This distinction tends to produce designs that are both more accurate and easier to validate.

From an engineering perspective, the most important insight is that ADS7804U timing should be managed as an analog integrity problem wrapped in a digital interface, not the other way around. The converter accepts simple logic pulses, but the quality of the result depends strongly on what the rest of the system is doing during those pulses. Designs that reserve the BUSY-low window as a quiet zone, keep the reference and input return paths compact, and allow the full 10µs sample period typically realize the device’s intended performance with minimal debugging. Designs that chase bus efficiency too aggressively often meet nominal timing while quietly sacrificing measurement fidelity.

Texas Instruments ADS7804U Pin Functions and System Connection Essentials

Texas Instruments ADS7804U pin functions are best understood in the context of the signal path it supports: analog input conditioning, reference generation, conversion timing, and parallel data extraction. Although the device is simple to wire at first glance, stable performance depends on how these pin groups interact electrically rather than on pin-by-pin connectivity alone. In practice, the ADS7804U behaves like many high-speed SAR converters: it rewards clean partitioning of analog and digital domains, short return paths, and deterministic bus timing.

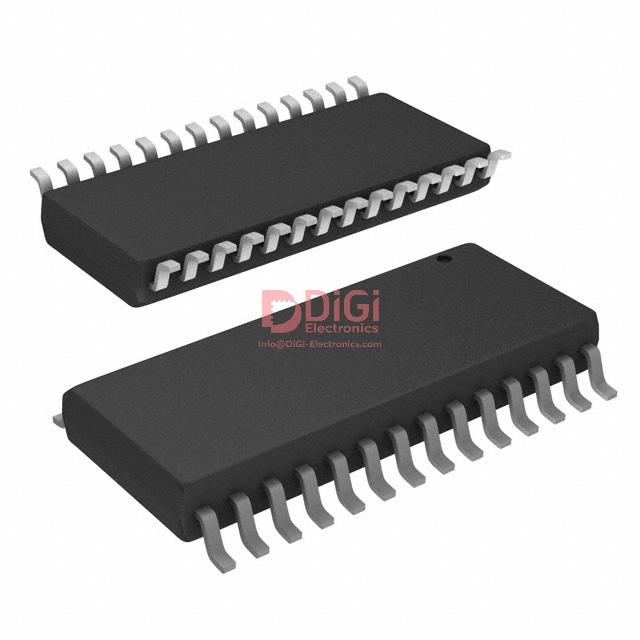

The device is packaged in a 28-pin SO form factor and is intended for direct integration into a parallel acquisition subsystem. Its pinout reflects a clear separation between analog infrastructure and digital interface logic. That separation should be preserved at the board level. A common mistake is to treat the converter as a purely digital peripheral because the output is a parallel word. In reality, the digital bus is only the final stage of a precision analog measurement chain, and layout or grounding errors made upstream usually appear as missing codes, conversion jitter, or repeatable low-order bit instability.

VIN is the primary analog input and should be viewed as the front door to the internal sample-and-convert structure. The quality of the signal presented here defines the upper bound of achievable accuracy. If the source impedance is too high, if the trace is long and noisy, or if the driver cannot settle quickly enough before conversion, the converter will not realize its nominal resolution. In short parallel data systems, attention often shifts too quickly to bus timing, but for SAR devices the more common limit is incomplete analog settling at VIN. A low-impedance driver, compact routing, and isolation from switching nodes usually matter more than adding digital-side complexity later.

AGND1 and AGND2 provide the analog ground reference for the converter core. Their presence is not redundant. Multiple analog ground pins reduce internal impedance and help stabilize the converter’s reference and signal return network. These pins should connect into a quiet analog ground region with minimal loop area. A useful design pattern is to let both analog grounds tie into the same local analog copper area near the converter, then join analog and digital ground at a controlled point close to the data converter or system ground transition. The objective is not abstract “ground separation,” but return-current control. If digital bus currents are allowed to flow through the same copper used by the analog input and reference network, the converter will measure those disturbances as signal content.

REF is the reference input/output node and has a central role in overall transfer accuracy. In converters of this class, the reference does more than define full-scale range. It directly influences gain accuracy, code transition linearity, and conversion repeatability under dynamic load. A noisy reference is effectively indistinguishable from a noisy input at the converter output. When Texas Instruments shows a 2.2µF tantalum capacitor from REF to ground, that recommendation should be interpreted as part of a local charge reservoir strategy. The reference node must remain stiff across conversion events. If an external precision reference is used, it should not only meet DC accuracy targets but also tolerate the converter’s transient current demand without excessive droop or ringing. This is one of the places where nominally “good” reference sources fail in actual boards: the datasheet ppm specification looks excellent, but output impedance versus frequency is poor and the converter output develops pattern noise.

CAP is associated with the internal reference buffer and also requires local bypassing, shown as 2.2µF tantalum to ground in the basic connection. This capacitor is not decorative support circuitry. It stabilizes the internal reference buffering behavior and helps maintain consistent internal operating conditions during conversion cycles. Placement matters. The capacitor should sit close to the pin with a low-inductance path to analog ground. Long traces here can turn a correct schematic into an unstable or noisy implementation. In compact mixed-signal layouts, reference-related capacitors often deserve higher placement priority than some of the digital decoupling because their parasitic sensitivity is higher.

VANA powers the analog section and should be treated as a low-noise supply rail. The recommended decoupling of 0.1µF ceramic plus 10µF tantalum to ground reflects a two-band strategy: the ceramic handles high-frequency switching components, while the larger capacitor supports lower-frequency energy demand and reduces local rail modulation. This pairing is common, but the value alone does not guarantee performance. The ceramic should be physically close to the VANA pin, with very short connection lengths. The bulk capacitor can sit slightly farther away, but still within the local analog supply island. If the analog supply is derived from a shared 5V rail that also feeds logic, an additional ferrite bead or small impedance element is often beneficial, provided it does not create an underdamped LC structure with the local capacitors. The goal is to reduce digital edge energy entering the converter core through the supply path.

VDIG powers the digital interface and is specified for nominal +5V operation, with the requirement that VDIG be less than or equal to VANA. That constraint is important because it prevents digital structures from being driven beyond the analog-domain operating potential, which could otherwise create undesirable internal current paths or substrate coupling effects. In mixed-supply systems, this rule often forces a design decision early: either keep both domains at 5V, or ensure the digital interface level strategy never violates the converter’s internal supply relationship. Even when both are tied to the same 5V source, it is still useful to route and decouple VDIG independently near the device so that bus transients do not directly disturb the analog rail.

DGND is the return for the digital interface and should carry the switching current associated with D11 through D0, BYTE, R/C, CS, and BUSY. It should not become the default return path for analog bypass components. The separation between AGND and DGND is most effective when each set of currents returns through its intended region and only merges where the impedance is controlled. On dense boards, a solid ground plane generally works better than split planes if placement is disciplined, because it reduces overall impedance and avoids creating accidental slot antennas or return detours. The critical detail is current steering by placement, not arbitrary geometric division.

The digital output pins D11 through D0 present the 12-bit conversion result, with D11 as the MSB and D0 as the LSB. This direct parallel mapping is straightforward in a full-width interface, but it deserves timing discipline. Parallel outputs can switch simultaneously and inject noise back into the package through supply and ground inductance. If the receiving logic samples too close to output transitions, apparent data instability may be blamed on the ADC when the real cause is bus skew or insufficient read margin. Conservative read timing and local digital decoupling usually solve this cleanly. Where the bus length grows, small series resistors at the receiving or driving end can help control ringing, though they must be chosen with awareness of setup and hold margins.

BYTE supports byte-wise access and is especially relevant in systems with 8-bit processors, narrow memory buses, or FPGA interfaces optimized for staged reads. Designers should pay careful attention to how the 12-bit word is partitioned under different BYTE states. The bit mapping changes depending on which half of the word is being read, so firmware and bus logic must explicitly track the selected byte phase. This is one of those interface details that looks trivial in a block diagram and then causes persistent off-by-16 or nibble-shift errors during bring-up. A reliable approach is to define the read sequence in terms of a reconstructed 12-bit word at the software or HDL boundary, not in terms of loosely named “high byte” and “low byte” signals. That avoids ambiguity when later modifications are made to bus timing or state sequencing.

R/C combines read and convert control, which makes it a key timing pin in the acquisition process. Consolidating these functions saves pins, but it also means the system designer must understand the converter’s operating sequence rather than treating read and start-conversion as independent events. Control logic should guarantee that conversion initiation, BUSY monitoring, and output readback occur in a deterministic order. Shared-control pins like this often expose weak edges in CPLD or MCU timing design because asynchronous firmware-driven toggling can generate unintended pulse widths. Clean edges and explicit state-machine sequencing are preferable, especially when throughput is pushed near the upper operating range.

CS provides chip select and gates the converter’s participation in the external bus. In multi-device parallel systems, CS should be considered part of both timing and bus-contention control. If multiple peripherals share a data bus, CS must not overlap in a way that allows another device to drive the bus while the ADS7804U outputs are active. It is wise to validate this at the board level, not just in logic simulation, because skew between address decode, glue logic, and trace propagation can produce brief contention spikes that never appear in functional code review but still corrupt conversions or raise local noise.

BUSY reports conversion status and is typically the safest way to synchronize downstream logic with conversion completion. Polling BUSY, using it as an interrupt source, or feeding it into FPGA control logic all work well as long as metastability and asynchronous capture are respected. BUSY should not be treated as a decorative indicator. It is the timing boundary between analog conversion activity and valid digital data availability. Systems that ignore BUSY and instead rely only on fixed delays often work in lab conditions and then fail across temperature, supply variation, or compiler timing changes if a processor is involved. Deterministic hardware handshaking is usually more robust than software-estimated latency.

At the system connection level, the most effective way to think about the ADS7804U is as three coupled subsystems. The first is the analog input path around VIN and AGND. The second is the reference and supply stabilization network around REF, CAP, VANA, and VDIG. The third is the bus interface around D11–D0, BYTE, R/C, CS, BUSY, and DGND. Designs that physically cluster each subsystem and then connect them through short, intentional paths tend to perform well with minimal tuning. Designs that interleave these functions, especially by routing the data bus through the analog side of the package or placing reference capacitors remotely, usually spend more time in debug than expected.

A practical implementation detail that often improves first-pass success is to place the reference and analog decoupling components before finalizing digital bus escape routing. This feels backward in digital-centric layouts, but it aligns with what actually limits converter performance. Another useful habit is to verify bus readback with a stable DC input near several code-transition boundaries, not just at midscale. That quickly reveals whether byte mapping, polarity assumptions, or timing margins are wrong. Many interface problems hide when only a single easy test voltage is used.

From an architectural perspective, the ADS7804U is most comfortable in systems that value deterministic, low-latency parallel access over serial interface simplicity. It fits well in control loops, instrumentation backplanes, legacy processor buses, and FPGA-based acquisition blocks where immediate word availability matters. The pin functions support that role directly, but the converter reaches its intended performance only when the board treats reference integrity and return-current management as first-class design constraints. In mixed-signal work, that is usually the dividing line between a converter that merely operates and one that measures accurately.

Texas Instruments ADS7804U Calibration Approaches and Error Management

Texas Instruments ADS7804U supports two calibration paths: analog trim in hardware and numerical correction in software. This is not just a convenience feature. It reflects a design tradeoff in the converter itself. The device can deliver useful performance across very different system architectures, but the error removal strategy must match how the product is built, tested, and deployed.

The key point is that calibration on the ADS7804U is not only about reducing static error. It is about deciding where correction authority lives in the system. Hardware trim pushes correction into the analog front end and improves the converter’s native transfer function before any code is generated. Software calibration leaves the analog path untouched and instead corrects the digital result afterward. Both methods can achieve acceptable system accuracy, but they differ in residual error behavior, manufacturing effort, long-term stability management, and serviceability.

At the converter level, the two dominant first-order errors are offset and gain. Offset error shifts the transfer curve horizontally. Gain error changes its slope. In a bipolar converter, offset is especially important because it disturbs the location of bipolar zero, and any gain adjustment made on top of a misplaced zero tends to inherit that error. This is why Texas Instruments recommends trimming offset before gain. That sequence is not procedural formality; it follows directly from the geometry of the transfer function. If offset is wrong, gain calibration is performed against the wrong baseline, and the final result usually requires another pass. In practice, a few iterations are often needed because analog trim elements interact and the measurement setup itself introduces finite uncertainty.

For hardware calibration, external resistors and potentiometers are used to adjust bipolar offset and gain. The specified trim authority is ±15 mV for offset and ±60 mV for gain. Those numbers define the correction window available to absorb part-to-part spread and system-level analog tolerances. In production, this approach is most effective when the reference source, input driver, and board parasitics are already well controlled. Otherwise, trim range can be consumed compensating for surrounding circuitry rather than the ADC alone. A common failure mode in mixed-signal boards is assuming the trim network fixes everything, while reference drift, amplifier bias current, or ground potential differences continue to move the effective transfer function after calibration.

Hardware trim has a clear advantage when the product must meet analog accuracy immediately at power-up, without relying on firmware execution, stored coefficients, or field recalibration. It also helps when modules must remain interchangeable and still produce closely aligned raw codes. In these cases, reducing error before digitization simplifies downstream software and avoids dependence on calibration data integrity. This matters in distributed control systems, replacement cards, and test instruments where raw measurement consistency is itself a requirement, not just final displayed accuracy.

The cost of hardware trim is equally real. Additional components increase BOM count, board area, assembly complexity, and calibration time. Potentiometers also introduce reliability concerns if the environment includes vibration, contamination, or long service life. Even fixed resistor trim networks require tolerance analysis and process discipline. From an engineering economics perspective, analog trim is justified when the product value is high enough that manufacturing touch time and extra components are cheaper than accepting looser accuracy or implementing a more elaborate digital correction framework.

If external calibration resistors are omitted, the ADS7804U can still be used effectively, but the transfer function must be interpreted differently. The datasheet notes that the external resistor network compensates for an internal adjustment used to support single-supply operation. This detail is important because it explains why the untrimmed device does not simply exhibit a random increase in offset and gain spread. The nominal transfer function itself shifts in a predictable way. In other words, software calibration is not correcting a vague imperfection; it is compensating for a known structural displacement of the converter characteristic plus the remaining unit-to-unit variation.

Texas Instruments shows that error bounds tighten significantly when external resistors are used. Without them, typical offset is around -30 mV and typical gain error is about -1.5%, with corresponding transfer function limits. For many embedded systems, these numbers are not automatically disqualifying. If the signal chain already includes a processor, nonvolatile memory, and a startup calibration routine, software correction can absorb these errors with little recurring cost. This is especially true when the measured variable changes slowly, calibration references are available in-system, and the application ultimately consumes corrected engineering units rather than raw ADC counts.

Software calibration is usually implemented as a two-point correction. One measurement near zero-scale determines offset, and another near full-scale determines gain. The corrected code can then be expressed as:

corrected_code = (raw_code - offset_code) × gain_factor

That model is sufficient when integral nonlinearity is small relative to system requirements. For the ADS7804U, this is often the right assumption in practical control and monitoring applications. The more important issue is coefficient quality. Calibration points must be generated from references that are substantially more accurate and stable than the error being removed. Otherwise, firmware calibration simply replaces converter error with calibration fixture error. In fielded systems, a startup self-calibration tied to an unstable reference or a noisy mux path often gives results that look mathematically correct but degrade repeatability.

A useful engineering pattern is to separate factory calibration from runtime compensation. Factory calibration establishes baseline offset and gain coefficients under controlled conditions. Runtime compensation then updates only what actually moves in operation, usually offset with temperature or supply variation. This layered strategy avoids unnecessary complexity while capturing most of the available benefit. Full gain recalibration at every startup is often less valuable than expected unless the reference or analog front-end gain stage is also moving significantly.

Temperature behavior deserves more attention than it usually receives in calibration discussions. A trim performed at room temperature only guarantees room-temperature accuracy unless the dominant error terms are thermally stable. Hardware trim does not eliminate drift; it just reduces initial error. Software calibration does not eliminate drift either unless recalibration is repeated across operating conditions or temperature dependence is modeled. In systems with broad ambient range, a single-point trim can create false confidence because the room-temperature result looks excellent while endpoint error at hot or cold remains large. The practical fix is to identify which term dominates with temperature: ADC offset, reference drift, front-end amplifier drift, or source impedance interaction. Calibration strategy should then target that term directly rather than assuming a generic correction method is enough.

Another subtle issue is where calibration is referenced in the signal chain. If correction coefficients are derived after the complete analog path is assembled, they include not only ADC error but also reference error, amplifier offset, passive ratio error, and layout-induced effects. That is often desirable because it calibrates the system actually being shipped. However, it also means replacing a front-end component can invalidate the stored coefficients. Conversely, calibrating only the ADC isolates the device behavior but may leave substantial board-level error uncorrected. For the ADS7804U, system-level calibration is usually the more effective choice unless modular replacement of subcircuits is expected.

Application choice follows naturally from these mechanisms. In closed-loop industrial control, omitting trim components is often reasonable if the controller can run a startup calibration or apply stored coefficients. The loop typically operates on corrected values, and a small increase in raw converter error has limited impact once digitally compensated. This approach reduces analog complexity and improves manufacturing scalability. It also aligns well with products that already maintain configuration data in firmware.

For interchangeable field modules, data acquisition cards, or instrumentation channels that must exhibit tight analog consistency before any software intervention, hardware trim remains valuable. It reduces dependence on digital infrastructure and narrows unit-to-unit spread at the source. This is particularly useful when a module may be swapped in service and expected to behave correctly with minimal commissioning effort. In those environments, the analog path is part of the product contract, not merely a precondition for later numerical cleanup.

A balanced design view is to treat hardware trim as a way to improve the default physics of the measurement path, and software calibration as a way to manage residual error intelligently. Neither method is universally superior. If the product can tolerate coefficient management, startup routines, and some dependence on reference quality, firmware calibration usually gives the better cost-performance ratio. If the product must deliver tighter raw accuracy, immediate interchangeability, or reduced software dependency, analog trim earns its place. The strongest designs often mix both ideas selectively: enough analog correction to keep the transfer function well-behaved, followed by software compensation to remove the remaining deterministic error with minimal production burden.

Texas Instruments ADS7804U Power, Temperature, Package, and Reliability Characteristics

Texas Instruments ADS7804U is a 12-bit, 100kSPS SAR ADC whose power, thermal, package, and handling characteristics are tightly aligned with industrial mixed-signal design. Its supply and environmental limits are not just catalog data; they directly define conversion stability, layout margin, assembly flow, and long-term field behavior.

The device is intended for single-supply +5V operation, with both analog and digital supplies specified from +4.75V to +5.25V. That narrow range is important because the converter’s linearity, reference-related behavior, and digital interface timing all assume a regulated 5V domain. In practice, this means the ADS7804U fits best into systems where the 5V rail is treated as a precision resource rather than a general-purpose board supply. If the rail also powers switching loads, communication transceivers, or relays, local filtering and low-impedance decoupling become more than good practice; they are part of preserving converter accuracy.

The current profile reflects the internal partitioning of the device. Typical digital supply current is only 0.3mA, while analog supply current is 16mA. This imbalance shows that most energy is consumed by the analog core, including the SAR conversion engine, internal switching network, and reference-dependent circuitry, rather than by the digital output path. From a board-level perspective, this has two implications. First, analog supply cleanliness matters far more than the raw digital current number might suggest. Second, separating current return paths is useful even when digital activity appears light, because the dynamic edges on the logic side can still inject noise into the conversion process through shared impedance.

At a 100kHz sampling rate, maximum power dissipation is 100mW. On paper this is a moderate number, but its engineering value depends on context. In a sparse layout with good copper area, 100mW is rarely a thermal concern. In a compact acquisition card with multiple ADCs, references, amplifiers, and isolated power blocks clustered together, the local temperature rise can become measurable. That rise affects not only the ADS7804U itself but also nearby signal-conditioning components whose drift may dominate total system error. A useful design pattern is to treat the ADC and its reference path as a thermal island: keep them away from heat sources such as DC/DC converters, processors, and linear regulators dropping significant voltage. Even a few degrees of localized heating can shift offset and gain behavior enough to complicate calibration budgets.

This relatively modest power level still makes the ADS7804U a practical choice for dense mixed-signal boards. It supports multi-channel architectures where several converters share a constrained enclosure or where airflow is minimal. The key is not simply that the device runs at low enough power, but that its dissipation is predictable. Predictable thermal behavior is often more valuable than absolute minimum power, because it allows tighter error modeling across load, ambient, and sampling conditions. In systems that must maintain accuracy over industrial temperature swings, repeatable self-heating is easier to compensate than irregular thermal interaction with surrounding circuitry.

The specified operating temperature range of −40°C to +85°C places the device firmly in the industrial class. This range covers factory instrumentation, outdoor control nodes, motor-drive monitoring, and process measurement equipment where ambient temperature can move well beyond office conditions. More importantly, this range should be read as the region in which the datasheet performance is intended to apply under recommended operating conditions. The listed derated performance from −55°C to +125°C indicates that the device may remain functional beyond the standard operating window, but critical parameters may no longer meet the primary published limits. This distinction matters during qualification. A system may boot and convert outside the nominal range, yet still fail its accuracy requirement because INL, offset, acquisition behavior, or timing shifts beyond the guaranteed envelope.

Storage temperature extends from −65°C to +150°C, which is typical for robust plastic-packaged ICs. This specification supports logistics, warehousing, and unpowered exposure during transport or assembly staging. It should not be interpreted as permission for powered operation near those extremes. In practice, repeated exposure to high storage temperature does not usually cause immediate failure, but it can accelerate package and solder-joint aging mechanisms in the broader assembly. For long-life industrial platforms, component storage history and board rework history often matter more than is acknowledged in early design phases.

From a packaging and manufacturing standpoint, RoHS compliance ensures compatibility with lead-free assembly flows. That is operationally relevant because lead-free reflow profiles impose higher peak temperatures and tighter process control than legacy tin-lead assembly. The ADS7804U is classified as moisture sensitivity level 3, with a 168-hour floor life. MSL3 means package moisture absorption must be actively managed once the dry pack is opened. If the exposure window is exceeded before reflow, the package can experience internal stress during soldering, with the usual risks of popcorn cracking, delamination, or latent reliability damage. On prototypes this is often overlooked because assembly lots are small and handling is informal. On production lines, however, moisture control discipline is one of the simplest ways to avoid intermittent analog failures that are otherwise difficult to trace.

The ESD sensitivity note is especially important for precision converters. An ADC can survive an electrostatic event and still no longer behave like a precision ADC. That is the subtle failure mode. Catastrophic damage is obvious; parametric degradation is not. A slight shift in input leakage, reference-related behavior, comparator threshold, or digital interface robustness can appear as unexplained gain drift, missing-code behavior, or channel-to-channel inconsistency in the finished system. For that reason, ESD protection around the ADS7804U should be viewed as an accuracy-preservation measure, not only a survivability measure. Grounded handling, protected workstations, controlled packaging, and careful probe practices during bench validation are all justified by the cost of chasing small conversion errors later.

A broader engineering reading of these characteristics is that the ADS7804U is most effective when used in systems that respect analog discipline even though the part itself is operationally simple. The 5V-only supply requirement encourages stable legacy industrial power architectures. The modest but nontrivial analog current makes supply filtering and return-path design meaningful. The industrial temperature range supports harsh deployment, but only if the surrounding reference, driver amplifier, and layout strategy are designed to the same standard. The package and reliability data further indicate that assembly control is part of electrical performance. With converters in this class, manufacturing quality, thermal placement, and power integrity frequently shape real-world accuracy as much as the nominal resolution does.

In practical designs, the strongest results usually come from treating the ADS7804U not as an isolated ADC block but as the center of a small measurement subsystem. A clean 5V analog rail, short reference and input paths, disciplined decoupling, thermal separation from hot components, MSL-aware assembly handling, and strict ESD controls together produce a converter that behaves close to its published characteristics across industrial use cases. That systems view is often the difference between a board that merely functions and one that delivers stable, repeatable measurement performance over time.

Texas Instruments ADS7804U Engineering Use Cases and Selection Considerations

Texas Instruments ADS7804U fits a specific class of data-acquisition problems: systems that must sample bipolar analog signals with predictable timing, modest latency, and low interface complexity. It is especially effective where the upstream signal chain already produces conditioned ±10V-class outputs and where the converter must drop into an existing digital architecture without the added cost of serial protocol handling or split-supply ADC support logic. In practice, this places the device in industrial measurement nodes, motion-control feedback paths, programmable instrumentation, and long-life embedded platforms that value stable implementation more than interface novelty.

At the architectural level, the ADS7804U is attractive because it solves two recurring integration problems at once. First, it accepts bipolar input operation in applications where the analog environment is centered around positive and negative signal excursions. Second, it exposes results through a parallel interface with BUSY handshaking, which makes the conversion process easy to model in deterministic state machines. That combination is more important than it may first appear. In many control and test systems, the difficulty is not merely converting a voltage into a code. The real challenge is guaranteeing when that code becomes valid, how much firmware attention is required to retrieve it, and whether timing remains stable across revisions of the processing platform.

This is why the ADS7804U often aligns well with FPGA-based acquisition cards and legacy microprocessor boards. A parallel output bus removes the need for serial clock generation, framing, bit alignment, and packet-level error checking that often accumulates around SPI-style converters. The interface is simpler to close in timing analysis, easier to probe on a logic analyzer, and usually faster to bring up on mixed-generation digital hardware. In systems with hard real-time constraints, that simplicity reduces integration risk. The engineering value is not only lower software overhead. It is also lower ambiguity. A BUSY edge, a read strobe, and a stable data bus are easier to reason about than an interaction spread across multiple serial timing domains.

This determinism becomes even more valuable in servo and feedback applications. When monitoring motor current, torque-related analog outputs, or controller error signals, the useful metric is often not raw sample rate alone but the repeatability of sample timing relative to the control loop. The ADS7804U supports this style of design because the acquisition and conversion sequence can be embedded into a fixed hardware schedule. That allows the data path to be aligned with PWM cycles, interrupt service windows, or FPGA control frames. In these cases, a converter with a theoretically modern interface can still be the less suitable choice if its protocol introduces variable software latency or forces the processor to spend cycles managing data transport rather than control computation.

The device is also well suited to programmable test equipment and data loggers that interface to conditioned bipolar outputs from external modules. A large amount of field instrumentation still standardizes on analog ranges such as ±10V because they are robust, intuitive, and compatible with long-established signal-conditioning ecosystems. When the front end is already handling protection, scaling, and filtering, the ADS7804U can be inserted as a direct digitization stage with relatively few digital-side complications. In retrofit programs, this matters more than headline converter novelty. A stable component with known timing often creates less total engineering work than a higher-speed alternative that requires protocol adaptation and board-level requalification.

Input drive behavior is one of the main selection checkpoints. The specified 23kΩ input impedance is not high enough to ignore source loading in precision designs, especially when the preceding stage includes a resistor network, multiplexing element, or amplifier with limited settling current. The key issue is not static loading alone. It is dynamic settling during the acquisition interval. If the source cannot charge the converter input cleanly and repeatedly within the available acquisition time, resolution is lost in a way that is often mistaken for noise, gain drift, or missing-code behavior. The safest design approach is to treat the ADC input as a switched load rather than a purely resistive node and verify settling to the required error band under worst-case source impedance, full-scale step size, and temperature.

This is where bench behavior often reveals what schematic review does not. Circuits that appear acceptable with slow ramp inputs can fail once they are exercised with full-scale steps or rapid polarity changes. A front-end amplifier may meet bandwidth targets on paper yet still show residual settling tails that corrupt the least significant bits. In bipolar measurement chains, this is especially noticeable near zero crossing and during transitions from large negative to large positive values. A low-output-impedance driver, modest RC isolation chosen with care, and realistic transient validation usually produce far better results than relying on nominal impedance figures alone.

Conversion timing deserves equal attention. The ADS7804U should be given the full 10µs between conversions to ensure accurate acquisition. This requirement is not a formality. It defines the real operating envelope of the signal chain. If the surrounding logic schedules conversions more aggressively, the resulting error may not appear as a clean reduction in specification margin. Instead, it can show up as signal-dependent distortion, channel-history effects, or apparent nonlinearity under dynamic input conditions. For that reason, timing closure should include not only digital strobes but also analog recovery time from the preceding stage. A robust implementation treats the ADC cycle as an analog-digital transaction, not just a digital handshake.

Digital bus activity during conversion is another practical issue that deserves more weight than it often receives. Parallel interfaces are convenient, but they can inject switching noise into the board through shared return paths, package coupling, and local supply disturbances. Keeping bus transitions outside the conversion interval helps preserve AC performance, particularly when the analog front end is compact or the grounding strategy is constrained by board area. This is one of those cases where layout discipline and transaction scheduling reinforce each other. A converter with decent intrinsic dynamic performance can still underperform if the data bus is allowed to toggle aggressively at the wrong moment. Quiet time around the conversion window is often worth more than adding complexity to post-processing.

From a board-level perspective, the best results usually come from treating the ADS7804U as a mixed-signal boundary device rather than a simple digital peripheral. Short analog return paths, clean reference routing, local decoupling with low loop inductance, and physical separation between the parallel bus and sensitive analog nodes all matter. If the design includes an FPGA or other fast edge-rate logic, it helps to control bus slew where possible and avoid broadside routing of digital lines across analog sections. Many conversion problems attributed to the ADC are in fact layout-induced coupling or reference contamination. The device tends to perform predictably when the surrounding implementation is equally disciplined.

Family compatibility with the ADS7805 adds another strategic reason to consider the ADS7804U. Pin-compatible upgrade paths are rarely just a convenience feature. They reduce redesign exposure. If a product may later require more resolution while preserving the existing board outline, connector placement, and firmware structure, that compatibility can protect both schedule and qualification effort. This is particularly useful in instrumentation platforms that are sold into multiple performance tiers. A shared hardware base with selective population or ADC substitution can simplify inventory, test procedures, and lifecycle management. The real advantage is not only future performance expansion. It is the ability to defer that decision until system-level requirements are better understood.

Device grade selection also deserves a more deliberate approach than simple availability matching. The distinction between ADS7804U and ADS7804UB matters when linearity and dynamic fidelity propagate directly into system error. The UB grade offers tighter INL and DNL and better SINAD, which makes it more suitable for precision-sensitive products, calibration-light architectures, and measurement channels where digital correction is limited or undesirable. In contrast, if the overall error budget is dominated by sensor drift, external amplifier offset, reference uncertainty, or environmental variation, the standard grade may be entirely sufficient. The important point is to compare ADC grade against the full signal-chain budget, not against converter specifications in isolation. Overselecting the grade can waste cost, but underselecting it often creates a recurring burden in test guard-banding and field variability.

For industrial acquisition systems, the ADS7804U is strongest when the design priorities are bipolar input compatibility, hard timing determinism, and straightforward digital integration. For control loops, it works best when sample scheduling is fixed and analog settling is carefully managed. For test equipment, it provides a practical bridge between conditioned legacy analog domains and processor-based measurement engines. In all of these cases, the device rewards disciplined front-end drive design and conversion-window noise control more than aggressive theoretical optimization. That pattern is worth noting: with converters of this class, system performance is usually determined less by datasheet peak numbers than by how well the analog source, timing plan, and board activity are coordinated around the acquisition process.

Texas Instruments ADS7804U Potential Equivalent/Replacement Models

Texas Instruments ADS7804U replacement analysis starts with one practical fact: the most credible migration path in the same device lineage is the Texas Instruments ADS7805. The reason is not generic similarity, but explicit pin compatibility combined with a closely related architecture. That matters because ADC replacement risk is rarely dominated by resolution alone. In mixed-signal boards, the real failure points usually appear at the interfaces: input range conditioning, reference behavior, digital bus timing, and power-domain assumptions. A replacement candidate is useful only if it preserves those boundaries with minimal disturbance.

The ADS7804U is a 12-bit successive-approximation converter intended for bipolar analog input handling, notably with a ±10 V input capability while operating from a single +5 V supply. That combination is one of its defining system-level advantages. It allows direct or near-direct connection to industrial and instrumentation signal paths that are naturally bipolar, without forcing a split-supply ADC domain. In practice, this means the converter is often embedded in designs where the surrounding analog front end, protection network, and calibration flow were tuned around that exact operating model. Any replacement decision should therefore begin from the analog contract of the part, not from catalog filtering by resolution or package alone.

In that context, the ADS7805 stands out because it extends the same platform toward 16-bit resolution while preserving pin compatibility. For an engineer, this is attractive because it suggests a mechanical and layout-stable upgrade path. If the existing board is constrained by connector geometry, enclosure dimensions, or regulatory requalification cost, pin compatibility can eliminate a large class of redesign work. More importantly, it can preserve routing topology around the digital data bus and control signals, which is often more valuable than it first appears. On legacy parallel-interface acquisition boards, even small timing or pin-function changes can propagate into FPGA logic, ASIC glue logic, or software driver updates. A pin-compatible device reduces that risk envelope.

Still, pin compatibility should not be mistaken for drop-in equivalence. A higher-resolution SAR converter is less forgiving of analog imperfections that were acceptable at 12 bits. Noise from the reference, source impedance at the input, grounding discontinuities, and digital feedthrough may all become more visible after moving to the ADS7805. In other words, the board may accept the part physically and logically, yet fail to deliver meaningful extra resolution unless the surrounding signal chain is quiet enough. This is a common issue in upgrades of this type: the nominal converter resolution increases, but effective system resolution improves far less than expected because the analog environment was originally optimized only to satisfy a 12-bit error budget.

That is why replacement evaluation should be organized around a few non-negotiable technical checks.

First, confirm that the substitute truly preserves the ±10 V input capability. This is not a cosmetic specification. It defines the scaling, headroom, and protection philosophy of the entire front end. If an alternate converter requires a narrower bipolar span or a unipolar input, then resistor dividers, attenuation stages, level shifting, or amplifier topology changes may become necessary. Once those changes begin, the replacement is no longer local. It becomes a partial redesign of the acquisition path, with corresponding effects on offset, gain error, noise, settling time, and fault tolerance.

Second, verify that single +5 V supply operation remains intact. Many systems using devices in this class depend on a simple digital supply architecture, especially in older industrial or embedded designs where power rails are tightly budgeted. If a substitute introduces the need for additional analog rails, charge pumps, or negative supply generation, the board-level impact expands quickly. Beyond schematic changes, extra rails often create new startup sequencing concerns and new noise coupling paths. A part that appears electrically “better” on paper can become operationally worse if it complicates the power architecture.

Third, examine the parallel interface and timing in detail. Interface compatibility is often treated too casually in ADC substitution work. Matching bus width and pin count is not enough. The host system may depend on specific read latency, conversion-start behavior, output enable timing, tri-state release timing, data-valid windows, or BUSY/EOC signaling relationships. In embedded controllers and programmable logic, these timing assumptions are frequently baked into firmware state machines or fixed logic without much abstraction. If the replacement device shifts any of those boundaries, intermittent acquisition faults can appear that are difficult to diagnose because they resemble software instability rather than hardware incompatibility. A disciplined approach is to compare not just static pin functions but full timing diagrams under worst-case conditions.

Fourth, assess whether reference architecture changes alter the analog front end or calibration strategy. Even within closely related ADC families, reference input behavior may differ enough to matter. Reference current transients, input loading, decoupling sensitivity, and reference noise coupling can all affect performance. In precision measurement chains, the reference is effectively part of the transfer function. If the replacement device has a different reference interface requirement, then gain calibration constants, drift characteristics, and dynamic linearity may shift. In production systems, this can surface as increased unit-to-unit spread or recalibration burden rather than as an obvious design failure.

Fifth, determine whether package and pinout compatibility are exact or only nominal. This distinction matters. Two devices may share pin functions and package names while differing in thermal behavior, lead-frame revision, package code details, or ordering-grade performance bins. In controlled production environments, even small package differences can affect solder profile qualification, inspection criteria, or long-term sourcing stability. Engineers working on sustaining designs often learn that “same package” is useful only after confirming the exact mechanical drawing and orderable suffix behavior.

Within the ADS7804 family itself, the ADS7804UB is a practical alternative when the objective is not architectural migration but performance tightening. It should be viewed as a higher-grade implementation of the same core converter concept rather than a fundamentally different replacement class. That distinction is useful. If the current design already fits the ADS7804U functionally and the need is mainly better linearity or improved dynamic behavior, then the ADS7804UB may offer the lowest-risk path. It preserves the existing system assumptions while improving precision margins. In maintenance programs and incremental product refreshes, this type of substitution is often more efficient than moving to a nominally superior converter that disrupts validation.

The engineering tradeoff between ADS7804UB and ADS7805 is therefore straightforward in structure, even if the final decision is system-dependent. If the goal is to preserve the 12-bit architecture and gain tighter performance consistency, ADS7804UB is the more conservative option. If the goal is to increase nominal resolution while keeping board changes constrained, ADS7805 is the more ambitious but still credible path. The subtle point is that these are not interchangeable motives. One is about reducing error; the other is about increasing quantization granularity. Those are related, but not identical. In real systems, better nominal resolution does not automatically translate into better usable accuracy.

A sound replacement process should move in layers. Start with physical compatibility: package, pins, power rails. Then verify digital compatibility: bus behavior, control timing, startup state, and host interaction. After that, validate analog compatibility: input span, source loading, reference implementation, and front-end settling. Finally, confirm metrological compatibility: offset, gain, linearity, noise, temperature drift, and calibration impact. This layered method prevents a common mistake in converter substitution, where mechanical fit and basic functionality are proven early, but precision behavior is discovered late, after substantial integration effort.

It is also worth treating datasheet similarity with caution. ADCs that look adjacent in a vendor portfolio can still differ in the assumptions they place on the board. The most reliable replacements are usually those that preserve the original signal-chain philosophy, not just the nominal feature list. For the ADS7804U, that philosophy includes bipolar high-level analog input handling, single-supply operation, and a parallel host interface. Once a candidate departs from any of those pillars, the replacement cost rises disproportionately.

Since the available technical material explicitly identifies ADS7805 and supports ADS7804UB as a practical same-family alternative, any move beyond these devices should be validated with much stricter scrutiny. In those cases, the burden of proof shifts from “can it fit” to “can it preserve system behavior.” That means checking not only converter specifications, but also the behavior of the complete acquisition chain under real operating conditions, including noise floor, transient response, fault cases, and recalibration flow. For legacy and instrumentation-class designs, preserving predictability is often more valuable than chasing a marginally newer specification set.

For most engineers evaluating the Texas Instruments ADS7804U, the replacement hierarchy is therefore clear. ADS7804UB is the closest path when the same device concept is needed with stronger performance margins. ADS7805 is the strongest upward migration candidate when increased resolution is desired without major mechanical redesign, provided the analog environment is capable of supporting that improvement. Beyond those options, replacement should be treated as a system redesign exercise rather than a simple part substitution.

Conclusion

The Texas Instruments ADS7804U is a 12-bit SAR ADC designed for systems that need direct conversion of ±10 V analog signals without a large external support network. Its value is not only in the nominal resolution or 100 kSPS throughput, but in how much analog front-end effort it removes from the surrounding design. A single +5 V supply, integrated sample-and-hold, internal clocking, on-chip reference support, and a full parallel output interface make it a practical fit for control, instrumentation, and data acquisition paths that favor predictable behavior over architectural complexity.

At the signal-chain level, the most important feature is the direct bipolar input capability. In many industrial designs, sensor conditioning stages, actuator feedback loops, and legacy interface standards naturally produce bipolar voltages. Devices that only accept unipolar inputs often force the designer to add level shifting, gain staging, or precision offset generation ahead of the converter. Each added stage increases error sources, layout sensitivity, drift exposure, and startup uncertainty. The ADS7804U avoids much of that overhead by accepting the ±10 V domain directly, which simplifies analog design and reduces the number of components that can undermine long-term measurement stability. In practice, that kind of simplification often matters more than a small headline specification difference, because fewer external analog elements generally translate into easier calibration and more repeatable field behavior.

Its SAR architecture is also well aligned with deterministic sampling systems. Unlike converters whose latency or digital filtering complicates time alignment, a SAR ADC gives a clear conversion sequence with bounded timing. That matters in industrial control loops, multiplexed measurement systems, and embedded acquisition platforms where software, FPGA logic, or bus timing must remain tightly coordinated with physical events. The 100 kHz throughput places the ADS7804U in a useful middle range: fast enough for many control, monitoring, and waveform capture tasks, yet slow enough that board-level implementation, parallel read timing, and source-drive requirements remain manageable without resorting to highly specialized layout or interface logic.

The integrated sample-and-hold is especially significant when input signals are not perfectly static during conversion. In discrete implementations, ensuring that the analog value remains stable long enough for accurate bit decisions can require external hold circuitry or a very low-impedance driver with careful settling analysis. By embedding this function, the ADS7804U narrows a common source of integration risk. That does not eliminate front-end design discipline, but it does make system behavior more predictable. With SAR devices, source impedance and settling remain critical. If the upstream amplifier or sensor path cannot charge the internal sampling network quickly and cleanly, nominal resolution is lost through dynamic settling error long before datasheet static figures become the limiting factor. This is one of the recurring failure modes in otherwise competent designs: the converter is selected correctly, but the drive stage is treated as secondary.

The internal clock and reference resources further reduce design burden. In mixed-signal boards, every external precision support block introduces another coupling path for noise, drift, and layout mistakes. By internalizing core conversion functions, the ADS7804U creates a more self-contained conversion subsystem. That is particularly useful in dense controller boards where digital buses, switching regulators, relay drivers, and communication transceivers share limited PCB area. A converter that requires fewer precision traces and fewer sensitive external nodes generally survives that environment better. Even so, integrated convenience should not be confused with immunity. Reference decoupling, ground return discipline, and digital read timing still shape real accuracy. In practice, clean partitioning between analog input return paths and bus switching currents often determines whether the converter performs like a precision component or like a nominal 12-bit part with several effective bits sacrificed to board noise.

The full parallel interface reflects a design philosophy centered on simple, deterministic data movement. For microprocessors, DSPs, and FPGA-based controllers that can spare the pins, parallel output removes serial framing overhead and minimizes read latency. This is useful where conversion results must be captured on a fixed schedule or mapped directly into a memory-like interface. It also reduces firmware complexity in systems where software timing margins are already consumed by control, communications, or diagnostics. The tradeoff is obvious: parallel buses consume routing resources and I/O count. In compact modern designs, that can be a stronger constraint than conversion performance itself. This makes the ADS7804U particularly attractive in equipment where board area is available, bus-level transparency is valued, and interface determinism outweighs pin-efficiency concerns.

From a deployment perspective, the industrial temperature range and modest power consumption make the part credible for field equipment rather than only for controlled laboratory instruments. Temperature behavior matters not only because semiconductor parameters drift, but because industrial systems often experience thermal gradients across the PCB. Precision analog performance is frequently limited less by absolute ambient temperature than by localized heating from regulators, processors, or output drivers. A converter with reasonable power and integrated support circuitry helps contain those gradients. In practical layouts, placing the ADC away from switching hotspots and high dI/dt return loops often yields more benefit than chasing marginal improvements elsewhere in the schematic.

For product selection, the ADS7804U is strongest in applications where direct bipolar acquisition and straightforward integration are primary design goals. Instrumentation channels, PLC analog input modules, test fixtures, servo feedback paths, and general-purpose data acquisition boards are typical examples. In these environments, the ability to accept ±10 V signals directly often simplifies both new designs and drop-in replacement strategies for existing analog ecosystems. It also supports maintenance-friendly architectures, since technicians and system integrators are already familiar with that signal range and can verify operation using standard equipment without specialized interface assumptions.

When linearity margin is more critical, the ADS7804UB becomes the better variant to consider. That option is relevant in systems where error budgeting is already tight and downstream calibration is either limited or undesirable. In many real installations, linearity errors are harder to mask than offset or gain errors because they vary across the transfer function and can interact badly with lookup-based compensation. Choosing the tighter-grade version early can be cheaper than trying to recover performance later through software correction, especially if the system must remain stable over temperature and service life.

If roadmap flexibility matters, the pin-compatible ADS7805 offers a clean migration path toward higher resolution. That compatibility has strategic value. It allows a platform to be architected once, validated at the board level, and then scaled across product tiers or future revisions with less disruption to mechanics, firmware interfaces, and manufacturing flow. In development programs, pin-compatible upgrades are often underestimated. They reduce redesign risk at exactly the stage where analog changes are most expensive, because they preserve PCB topology, interface timing assumptions, and much of the qualification effort.

A useful way to view the ADS7804U is as a converter optimized for engineering efficiency rather than for pushing one headline metric to the limit. It sits in a class of components that help a design converge quickly because they match real signal environments, not idealized lab conditions. For mixed-signal systems that need reliable ±10 V acquisition, bounded timing, and uncomplicated digital interfacing from a +5 V rail, it remains a strong and technically balanced choice. Its best use is in designs where reducing analog translation stages, preserving timing determinism, and keeping implementation risk low are more valuable than chasing maximum sampling speed or the highest available resolution.
