Texas Instruments ADS62P48 Product Positioning and Family Context

Texas Instruments positions the ADS62P48 as a dual-channel, 14-bit, pipelined ADC for designs that need strong dynamic performance at high sample rates without paying the full power, interface, or cost penalty associated with the fastest devices in the same class. Rated up to 210 MSPS, it sits in the ADS62Px9/x8 family as the 14-bit, 210-MSPS option, directly below the ADS62P49, which extends the same nominal resolution to 250 MSPS. Its closest family parallels are therefore easy to map: ADS62P49 for higher 14-bit speed, ADS62P48 for the more balanced 14-bit point, ADS62P29 for 12-bit at 250 MSPS, and ADS62P28 for 12-bit at 210 MSPS.

This family split is not just a catalog convenience. It reflects a practical design axis used repeatedly in high-speed acquisition systems: first choose the resolution class, then choose the sample-rate ceiling that preserves system margin without overspecifying the converter. In that framework, ADS62P48 is the part selected when 14-bit quantization and the associated SFDR/SNR class are still required, but the signal plan, channel bandwidth, or intermediate-frequency placement does not justify moving to 250 MSPS. That distinction matters because converter selection is rarely driven by maximum sample rate alone. It is usually constrained by the combined budget across analog front-end bandwidth, clock quality, FPGA I/O capacity, thermal density, and supply noise tolerance. A device like ADS62P48 often lands in the most stable point of that trade space.

From an architectural perspective, the ADS62P48 belongs to the well-established pipeline ADC category, which remains a strong fit for broadband receive chains. Pipeline converters are used here because they provide a useful middle ground between flash speed and sigma-delta precision. For communication receivers, observation paths, and simultaneous-sampling measurement subsystems, that balance is often more valuable than pursuing an extreme on either side. The converter can digitize relatively wide instantaneous bandwidths while still preserving enough amplitude and spurious performance to support multi-tone environments, digitally downconverted channels, and spectral analysis tasks where 12-bit devices may begin to show limits in blocker tolerance or calibration headroom.

The dual-channel, simultaneous-sampling configuration is a central part of its product positioning. In many systems, two channels are not simply “more inputs”; they are functionally linked acquisition paths. Typical examples include I/Q sampling, dual-antenna diversity receivers, phase-coherent measurement, and paired sensor capture where interchannel timing alignment matters as much as standalone converter performance. Integrating both channels into one package reduces skew management effort, simplifies clock distribution, and usually improves matching consistency relative to using two separate single-channel ADCs. That advantage becomes more visible during board bring-up, where channel-to-channel timing offsets, routing asymmetry, and reference distribution often consume more debug time than the nominal converter configuration itself.

The family context sharpens the ADS62P48’s role further. If the application can tolerate 12-bit resolution, ADS62P29 and ADS62P28 provide a lower-resolution path at the same two speed grades. That matters in systems where effective number of bits is dominated by RF front-end noise, AGC behavior, or interference rather than converter quantization. In those cases, 12-bit options may be the better engineering choice. But when downstream digital processing depends on extra margin for crest factor, calibration, gain normalization, or blocker-rich spectral environments, 14 bits becomes materially useful even if the final demodulation chain does not consume all nominal resolution. This is one of the subtler reasons the ADS62P48 remains relevant: the added bits are often not about static precision alone, but about preserving system elasticity under imperfect operating conditions.

The 210-MSPS limit should also be understood in system terms rather than as a simple downgrade from 250 MSPS. In many receiver plans, 210 MSPS is already sufficient for direct IF sampling, undersampling of selected RF zones, or capture of broadband complex baseband channels with practical anti-alias filtering. If a design does not benefit from the extra 40 MSPS, choosing the faster device can create secondary costs with little return. Clock generation becomes tighter, digital output timing closure can become less forgiving, and power density usually rises. In several board-level implementations, the nominally faster ADC improves the datasheet headline more than the end system. The more useful question is whether the converter leaves enough margin for the real signal chain, not whether it reaches the highest family speed bin.

Texas Instruments also makes the ADS62P48 attractive through interface flexibility. Support for DDR LVDS or parallel CMOS outputs broadens compatibility with different generations of digital backends. LVDS is usually the natural choice for high-speed FPGA capture because it reduces edge-related noise, supports denser routing, and behaves better in mixed-signal layouts. Parallel CMOS can still be useful in shorter-reach, lower-complexity designs or in legacy platforms where logic compatibility outweighs signal-integrity concerns. This dual-option strategy is significant from a product-positioning perspective: the device is not limited to one narrow integration style, so it can fit both performance-oriented new designs and constrained upgrades of existing hardware.

Package choice reinforces the same idea. A 64-pin QFN gives the part a compact footprint suitable for channel-dense boards while still keeping thermal and grounding performance within practical limits for high-speed mixed-signal design. In this class of converter, package efficiency is not merely about saving area. Shorter interconnects help control parasitics on clock, analog input, and output paths, and a compact thermal loop improves repeatability under sustained load. Experience with broadband ADC layouts repeatedly shows that package-adjacent implementation details—ground stitching, exposed-pad attachment quality, reference bypass placement, and lane breakout symmetry—can shift actual performance more than small nominal differences between related converter variants. The ADS62P48 benefits from being in a package style that supports disciplined placement and short return paths.

Its stated fit for multi-carrier and wide-bandwidth communications applications is technically consistent with these attributes. Multi-carrier systems stress an ADC differently from single-tone test conditions. Peak-to-average ratio rises, blocker interactions become more relevant, and the converter must maintain useful linearity across a larger occupied spectrum. In such designs, the practical value of a 14-bit dual ADC is often seen not in isolated ENOB metrics but in how gracefully the digitized spectrum behaves after channelization, decimation, and gain correction. A device positioned like the ADS62P48 gives enough conversion depth to keep the digital backend from compensating for avoidable analog weakness.

A useful way to interpret the family is as a matrix of design intent. The P49 and P29 variants serve teams that are pushing sample-rate headroom, either to widen Nyquist bandwidth or to simplify frequency planning. The P48 and P28 variants serve teams that have already closed the signal-band calculation and want a more efficient operating point. Within those lower-speed options, the real decision is whether the application is noise-limited enough to justify 14 bits. If yes, ADS62P48 becomes the natural candidate. If not, ADS62P28 may deliver better overall efficiency. This makes the ADS62P48 less of a compromise device and more of a deliberately centered one.

In practice, that centered positioning is often the most durable. Designs built around “just enough speed plus preserved dynamic range” tend to scale better through layout revisions, clock-tree substitutions, and FPGA migrations than designs built around maximum converter speed with little margin elsewhere. The ADS62P48 fits that pattern. It targets systems where balanced performance matters more than absolute extremes: broadband communications receivers, simultaneous-sampling acquisition nodes, compact multi-channel cards, and digital front ends that need credible 14-bit behavior at a sample rate high enough for modern wideband signal plans but not so high that the rest of the platform is forced into unnecessary complexity.

Texas Instruments ADS62P48 Core Architecture and Functional Overview

Texas Instruments ADS62P48 is a dual-channel, 14-bit pipelined ADC designed for systems that need simultaneous high-speed capture with tight channel-to-channel consistency. Its architecture is not just a duplication of two converters in one package. The value comes from how the analog front end, clock path, reference generation, digital output formatting, and on-chip correction functions are combined to reduce system-level uncertainty. In practice, this kind of integration matters more than raw resolution alone, because timing skew, reference stability, interface integrity, and front-end range planning usually dominate whether the converter delivers its datasheet performance inside real hardware.

At the core of the device, each channel contains a sample-and-hold stage followed by a 14-bit pipelined conversion chain. The sample-and-hold function is fundamental because it defines how accurately the instantaneous analog input is transferred into the converter at the clock edge. In high-frequency systems, this stage largely determines sensitivity to clock jitter, input drive quality, and source impedance variation. Once the signal is captured, the pipelined ADC resolves it over multiple internal stages, each generating partial decisions that are digitally combined to form the final output code. This architecture is widely used because it offers a strong balance between speed, resolution, latency, and power. It is especially effective when the design target is wideband signal acquisition rather than ultra-low-speed precision measurement.

The dual-channel structure supports simultaneous sampling, and this is one of the most important architectural properties of the ADS62P48. In I/Q receivers, the benefit is obvious: any timing mismatch between channels directly translates into phase error, image degradation, and reduced demodulation accuracy. In diversity receivers and phased measurement systems, sampling alignment affects beamforming quality, angle estimation, and amplitude correlation. In dual-path monitoring systems, simultaneous capture avoids the ambiguity introduced when two channels observe a rapidly changing waveform at slightly different times. A dual ADC without deterministic alignment can still digitize two signals, but it cannot guarantee coherent observation. The ADS62P48 is clearly positioned for coherent acquisition, where synchronization quality is part of the signal chain, not an afterthought.

The analog input path is differential on both channels, using INA_P/INA_M and INB_P/INB_M. This differential structure is important for more than common-mode noise rejection. It improves even-order distortion behavior, supports cleaner interface to transformer-coupled or differential amplifier drivers, and helps preserve dynamic range in electrically noisy environments. For converters in this class, the input network often determines whether the measured SFDR and SNR approach the datasheet values. A clean ADC can still produce poor results if driven by an underdesigned front end with imbalanced routing, excessive kickback sensitivity, or weak settling behavior. In board-level implementations, short symmetrical routing, controlled impedance where appropriate, and careful selection of the ADC driver or transformer are often more effective than trying to correct distortion later in DSP.

Clocking deserves equal attention because a pipelined ADC is only as accurate as the aperture timing presented to its sample-and-hold. The ADS62P48 includes clock generation support internally, but system performance still depends heavily on the external clock source, clock distribution network, and the quality of the signal delivered to the clock input. At higher input frequencies, aperture jitter converts directly into noise and limits achievable SNR. This means a design can appear resolution-limited on paper while actually being clock-limited in operation. A recurring system issue is that engineers optimize the analog input path and reference decoupling but underestimate the spectral purity of the sampling clock. In wideband receivers, clock phase noise often sets the true performance ceiling long before quantization noise becomes dominant.

On the digital side, the ADS62P48 offers both DDR LVDS outputs and parallel CMOS outputs. This dual-interface flexibility is useful because it allows the same converter family to fit very different digital back-end architectures. LVDS is the natural choice for higher-speed capture because it reduces switching noise, supports better signal integrity over short board distances, and aligns well with FPGA input standards. DDR transmission further increases throughput efficiency by transferring data on both clock edges. CMOS outputs are simpler to integrate in less speed-critical systems or in platforms where differential capture resources are limited. The practical tradeoff is that CMOS can impose a heavier noise burden on mixed-signal boards due to larger voltage swings and stronger digital edge coupling. In dense layouts, LVDS generally gives more predictable results, particularly when analog performance is being pushed near the limit.

The output serialization logic is more than a convenience block. It is part of the converter’s system-level timing strategy. High-resolution, high-sample-rate converters can become difficult to route if raw parallel outputs consume too many pins and create bus skew problems. Serialization reduces interconnect complexity and can simplify timing closure at the FPGA boundary. Even so, interface timing should be validated with real routing parasitics in mind. It is common for a converter-digital interface to work on the bench at room temperature and then become marginal across process, voltage, and temperature corners if setup and hold margins were assumed rather than measured.

The reference subsystem is another notable design element. The ADS62P48 includes internal references, avoiding the dedicated reference pins and decoupling network often required in more traditional converter designs. This simplifies schematic capture, saves board area, and reduces one class of layout-induced instability. It also shortens the path between reference generation and internal conversion stages, which can improve repeatability at the device level. At the same time, external reference support remains available for systems that need a customized full-scale strategy or tighter control over gain consistency across multiple devices. This flexibility is useful in modular instruments or multiboard systems where global calibration policy may require a common reference architecture.

The decision between internal and external reference operation should be made at the system level rather than by default. Internal reference mode is often the right choice when design simplicity, low component count, and robust baseline performance are the priority. External reference mode becomes attractive when gain matching across channels, cards, or production lots must be tightly managed, or when the signal chain is calibrated around a known external standard. In practice, external references only help if the surrounding implementation is equally disciplined. A precision reference with weak routing, noisy grounding, or poor thermal placement rarely improves the end result. A stable internal reference with a clean layout often outperforms a theoretically superior external scheme implemented carelessly.

The programmable gain options up to 6 dB provide useful control over the relationship between input signal amplitude and converter full-scale range. This feature can be applied to improve effective signal utilization when upstream stages cannot fully drive the ADC. It can also be used to optimize spurious behavior under specific operating conditions. The important point is that gain is not free. Increasing gain changes the signal amplitude seen by internal stages and can alter headroom, distortion profile, and overload behavior. The best setting depends on the signal statistics, not just on nominal peak level. In communication receivers with bursty inputs or occasional blockers, a gain setting that looks optimal in steady-state lab conditions may reduce robustness in the field. Range planning should therefore include crest factor, blocker scenarios, and front-end compression margin, not just average operating level.

The DC offset correction loop addresses another issue that is often underestimated until it appears in FFTs or downstream control loops. Offset in a high-speed signal chain can arise from the source, driver amplifier, transformer imbalance, bias network asymmetry, or the converter itself. Even when the signal of interest is AC-coupled, residual DC can consume dynamic range, complicate digital filtering, and generate low-frequency artifacts after digital downconversion. The on-chip offset correction loop helps suppress these errors before they become a system-level nuisance. This is particularly valuable in zero-IF and near-zero-IF architectures, where DC terms can interfere directly with the desired spectrum. It is also useful in instrumentation chains where baseline stability influences thresholding or long-window averaging accuracy.

One subtle but important engineering point is that gain control and offset correction should be treated as interacting features, not independent checkboxes. Adjusting gain changes how much offset is represented in codes relative to full scale, while offset correction can slightly alter the apparent operating point used during dynamic testing. When optimizing SFDR or low-level linearity, it is better to tune these settings using the actual signal environment and downstream processing path rather than relying only on isolated converter measurements. Converter configuration that looks ideal under a clean sine-wave test may not remain ideal when the input contains broadband noise, interferers, or changing common-mode conditions.

From a system integration perspective, the ADS62P48 fits well in communications receivers, multichannel data acquisition modules, industrial imaging subsystems, radar-related digitizers, and dual-observation monitoring equipment. In I/Q applications, the simultaneous channels simplify coherence management. In phased systems, they provide a compact building block for array expansion. In instrumentation, the combination of integrated reference capability, digital output flexibility, and on-chip correction reduces external support circuitry and shortens design iteration time. This is often where the device’s architecture creates the most value. A converter that removes several board-level dependencies can reduce not only component count but also the number of analog interactions that must be debugged late in development.

Board-level experience with devices in this class consistently shows that the highest-risk failure modes are rarely inside the ADC core itself. They usually come from three external sources: poor clock quality, weak analog drive design, and digital interface contamination of the analog plane. The ADS62P48 architecture helps mitigate some of these risks through integration and interface options, but it does not eliminate them. Good results typically come from partitioning the layout so that analog return currents remain controlled, the clock path is short and spectrally clean, and LVDS outputs are routed with disciplined pair matching and isolation from sensitive input nodes. When these basics are done well, the converter tends to behave predictably. When they are neglected, enabling internal features alone cannot recover lost dynamic performance.

A useful way to view the ADS62P48 is as a balanced converter platform rather than a standalone ADC core. Its dual simultaneous-sampling pipeline channels provide the raw conversion function. Its differential inputs define how signal integrity is preserved at the analog boundary. Its internal or external reference options determine how gain is stabilized and scaled. Its programmable gain and offset correction features allow adaptation to nonideal signal chains. Its LVDS and CMOS outputs shape how efficiently the captured data can be moved into digital logic. This layered architecture is what makes the device practical in real systems. It reduces the number of external decisions that can destabilize performance, while still leaving enough configurability for engineers to align the converter with the needs of the larger acquisition chain.

Texas Instruments ADS62P48 Key Performance Specifications at a Glance

Texas Instruments ADS62P48 is best understood not as a generic 14-bit dual ADC, but as a device positioned for systems that need a balanced mix of sampling speed, spectral purity, channel alignment, and power efficiency. At a glance, the headline numbers are straightforward: dual-channel, 14-bit resolution, and up to 210 MSPS. It runs from a 3.15 V to 3.6 V analog supply and a 1.7 V to 1.9 V digital output supply, with 3.3 V AVDD and 1.8 V DRVDD as the standard operating point. Those values place it firmly in the class of medium-to-high-speed IF and wideband digitization converters, where interface compatibility and power budgeting matter almost as much as nominal resolution.

The more meaningful view begins with how those specifications interact. A 14-bit converter at 210 MSPS suggests high dynamic range in theory, but real design value comes from the AC performance at frequency, not just the static resolution figure. For the ADS62P48, the datasheet highlights performance at a 170 MHz input, which is a useful stress point because many converters appear strong at low input frequencies yet degrade quickly as the front-end bandwidth and sampling network are pushed harder. Here, the device shows 78 dBc SFDR at 0 dB gain and 84 dBc SFDR at 6 dB gain. That improvement with gain is not just a line-item feature. It indicates that the internal signal chain can be configured to trade headroom for spur performance in a controlled way, which is often valuable when the preceding analog stage cannot deliver a large swing cleanly.

That programmable gain behavior deserves closer attention because it changes how the ADC can be placed in the signal chain. In practical receiver designs, front-end gain distribution is rarely ideal on the first pass. There is usually tension between noise figure, blocker tolerance, anti-alias filtering loss, and ADC full-scale utilization. A converter that maintains strong spurious performance while offering gain flexibility reduces the burden on external amplification stages. In many cases, this can simplify the IF chain, lower overall sensitivity to board-level parasitics, and reduce the number of gain states that need system calibration. The 6 dB gain mode, in particular, can be useful when the design target favors weaker signal recovery over maximum large-signal margin.

SINAD provides the second half of the performance picture. At the same 170 MHz input, the ADS62P48 is specified at 70.1 dBFS in 0 dB gain mode and 66.3 dBFS in 6 dB gain mode. This tells an important story: the gain setting improves SFDR but reduces SINAD. That is a familiar engineering tradeoff and should not be viewed as a contradiction. Spur suppression and overall noise-plus-distortion performance do not always peak under the same internal operating conditions. In systems dominated by a single interfering tone, the higher-SFDR mode may deliver better downstream demodulation or channelization behavior even if SINAD drops slightly. In broadband capture paths where integrated noise matters more than isolated spurs, the 0 dB mode may be the cleaner operating point. The key is that the ADS62P48 exposes this trade space in a usable way rather than forcing a single compromise.

Power consumption is another area where the device shows a deliberate balance. Typical analog power is 0.92 W, compared with 1.01 W for the faster ADS62P49. That difference looks small in isolation, but in dense multichannel platforms it becomes more significant than the raw number suggests. Thermal density, not just total board power, often limits achievable performance in mixed-signal layouts. A reduction of even a few hundred milliwatts per converter can ease local heating around the analog input network, reduce temperature-driven offset and gain drift, and make clock and reference routing less vulnerable to thermally induced variation. In compact acquisition modules, lower dissipation also gives more freedom in package placement and airflow strategy. The ADS62P48 therefore fits well in designs where 210 MSPS is sufficient and the extra speed of the ADS62P49 does not produce system-level value proportional to its power cost.

The dual-channel architecture is especially relevant for phase-coherent systems. Simultaneous sampling means both channels acquire at the same instant, which is essential in applications such as I/Q reception, diversity paths, beamforming prototypes, power quality analysis, and multi-sensor transient capture. In these use cases, timing skew between channels is not a secondary parameter. It directly affects phase error, image rejection, angular estimation accuracy, and event correlation. Devices that offer two channels but do not guarantee true simultaneous acquisition often shift complexity into digital correction. The ADS62P48 avoids much of that burden at the source. That matters because digital compensation can correct fixed mismatch, but it is less effective against temperature drift, clock-distribution asymmetry, and frequency-dependent analog mismatch.

The 90 dB crosstalk specification strengthens that position. Inter-channel isolation is often underestimated during early part selection because it does not show up in single-tone, single-channel test thinking. In actual layouts, one channel may carry a strong signal while the other is trying to resolve a much smaller adjacent or unrelated signal. Poor isolation then appears as deterministic contamination that can be misread as front-end leakage, LO feedthrough, or even DSP artifacts. A 90 dB crosstalk figure gives the ADS62P48 a strong basis for dual-path architectures where each channel must remain credible in the presence of unequal signal levels. This is particularly useful in test instrumentation and communications receivers, where one path may be operating near full scale while the other is still expected to preserve low-level detail.

From a system perspective, the supply partitioning also reflects sound converter design practice. The analog core uses the higher 3.3 V domain, while the digital output interface is separated onto the 1.8 V DRVDD rail. This split reduces digital switching stress on the analog section and simplifies interfacing to lower-voltage logic. It also gives board designers a practical lever for noise containment. When the digital rail is treated as a high-edge-rate switching domain and isolated accordingly, the converter has a better chance of delivering datasheet-level AC performance. In mixed-signal boards, this separation is more than a convenience. It is often the difference between a converter that performs as specified in the lab and one that loses several dB of dynamic range in the assembled product.

Clock quality remains one of the most decisive external factors in realizing the ADS62P48’s performance. At 170 MHz input frequencies, aperture uncertainty and clock phase noise can consume the available SNR margin quickly. A converter with 70 dB-class SINAD at high input frequency is already operating in a region where mediocre clock generation will dominate the error budget. The practical implication is simple: selecting the ADC correctly is only half the task. The clock tree, input balun or driver, reference decoupling, and return-current control determine whether the published numbers remain meaningful. In many implementations, gains achieved by upgrading the clock source or tightening the analog input layout exceed those achieved by moving to a nominally higher-resolution converter.

The analog input strategy should therefore be matched carefully to the intended operating mode. When using the 6 dB gain setting to improve SFDR, it is wise to verify full-scale margin across process, temperature, and signal crest factor, not just under nominal sine-wave test conditions. High-PAPR signals can expose clipping risk earlier than expected. Conversely, when prioritizing SINAD in 0 dB mode, preserving common-mode stability and minimizing transformer imbalance often matter more than squeezing the last fraction of a dB from input amplitude. Experience with similar converter classes consistently shows that input network symmetry, short return paths, and disciplined decoupling produce more repeatable results than aggressive but fragile matching tactics.

The ADS62P48 is therefore best applied where the design objective is not merely high sample rate, but predictable high-frequency conversion across two coherent channels. Its specification set supports wideband IF sampling, dual-channel measurement systems, and communication receivers that need stable spur behavior, useful gain flexibility, and manageable power dissipation. The device’s value lies in how these parameters combine: enough speed to cover demanding signal bandwidths, enough spectral cleanliness to support real downstream processing, enough isolation for serious dual-channel work, and enough power restraint to remain practical in dense hardware. That combination is often more useful than chasing the highest available sampling rate, especially in systems where layout, thermal behavior, and clock integrity ultimately set the performance ceiling.

Texas Instruments ADS62P48 Analog Input Characteristics and Signal Handling

Texas Instruments ADS62P48 uses a differential analog input structure, and that choice strongly shapes how the front end should be designed. At 0 dB gain, the converter is specified for a 2 Vpp differential full-scale input range. The recommended input common-mode voltage is 1.5 V ±0.1 V, and in external reference mode the CM pin should be driven more tightly at 1.5 V ±0.05 V. These numbers are not merely static bias targets. They define the operating center around which the internal sampling network achieves its intended linearity, settling behavior, and distortion performance. When the common-mode point drifts, the first degradation often appears not as an obvious clipping event but as a gradual rise in even-order distortion, intermodulation products, and input-dependent gain error.

The high DC input resistance, greater than 1 MΩ differential, can make the converter look easy to drive at first glance. In practice, the dominant loading mechanism is not resistive but dynamic. The differential input capacitance is about 3.5 pF, and that capacitance is periodically charged and discharged by the internal sampling action. At low frequencies, the driver mainly sees a light load. As input frequency increases, the capacitive nature of the interface becomes increasingly relevant, and the apparent ease of driving the ADC can disappear quickly if the source network is not impedance-controlled. This is why a front end that looks acceptable in a low-frequency bench test may lose flatness or SFDR when pushed toward IF sampling conditions.

The specified analog input bandwidth of 700 MHz with a 25 Ω source impedance indicates that the ADS62P48 is capable of handling relatively high-frequency content directly at its input. This is useful in undersampling or IF-sampling receivers where one wants to reduce analog downconversion stages. Still, the bandwidth figure should not be interpreted as a blanket guarantee that all frequencies inside that range will deliver equal performance. The practical ceiling depends on the interaction among source impedance, transformer or amplifier response, board parasitics, anti-alias filtering, and input amplitude. In other words, the ADC core may be fast enough, but the system around it determines whether that speed is actually usable.

A particularly important specification is the dependence of maximum input frequency on signal amplitude. Texas Instruments states that with a 2 Vpp input, the maximum analog input frequency is 500 MHz, while with a 1 Vpp input the maximum rises to 800 MHz. This behavior is consistent with the physics of switched-capacitor sampling. Larger signal swings require the input network to settle more accurately over a larger voltage excursion within a fixed aperture window. As frequency rises, the time available for accurate charge transfer becomes more limited, and large-signal linearity becomes harder to preserve. Reducing input amplitude relaxes this requirement and effectively extends the frequency range over which the sampling network can maintain acceptable fidelity.

This amplitude-versus-frequency tradeoff has direct implications for receiver architecture. If the target signal sits at a high IF, it may be more effective to reduce gain ahead of the ADC and operate at a smaller input swing than to force full-scale drive and accept degraded high-frequency behavior. That decision, however, is never free. Lowering the swing reduces the converter’s utilization of its available full-scale range, which can penalize SNR unless the upstream noise floor is already dominant. The better design move often depends on where the system is constrained. In a spur-limited chain, sacrificing some input swing to gain bandwidth margin and distortion headroom can be beneficial. In a noise-limited chain, the same choice may unnecessarily weaken dynamic range.

The programmable gain, up to 6 dB, provides a useful mechanism for reshaping this trade space. It allows the converter to operate with a reduced effective full-scale input range, which can improve SFDR under the right conditions. This feature is especially valuable when the analog front end cannot realistically deliver a 2 Vpp differential swing across process, temperature, and signal crest-factor variations. Rather than overdesigning the driver to hit the ADC’s maximum range at all times, it is often cleaner to let the ADC’s internal gain absorb part of the scaling function. That can reduce driver stress, simplify wideband matching, and avoid pushing the amplifier into a region where its own distortion dominates before the ADC becomes the limiting element.

In wideband designs, the common mistake is to focus only on nominal full-scale voltage and overlook how the source actually drives the sampling capacitor across frequency. The ADS62P48 may present more than 1 MΩ at DC, but the front end should still be treated as a high-speed switched-capacitor load. The driver, transformer, or passive matching network must be selected not just for gain but for settling behavior, return loss, and distortion versus frequency. A network that is flat in small-signal S-parameters may still produce poor code distribution if its transient behavior around the sample instant is weak. This is one of the reasons why simple impedance matching alone is not enough in high-performance ADC interfaces.

The common-mode requirement deserves similar attention. Maintaining 1.5 V at the ADC input pair is not just about satisfying a datasheet line item. It establishes the bias point from which the internal input switches and sampling capacitors operate most symmetrically. In transformer-coupled interfaces, the common-mode path must still be managed with care even though the signal path is AC-coupled. In amplifier-driven interfaces, the output common-mode control loop of the driver becomes part of the converter linearity budget. A small common-mode error can be tolerable at low frequency and modest input levels, then become a measurable spur source near the upper end of the input band.

From a front-end planning perspective, it is useful to think of the ADS62P48 input in three layers. The first layer is electrical compatibility: differential swing, common-mode bias, and static loading. The second is dynamic interaction: capacitive loading, sample-and-hold settling, and frequency-dependent amplitude limits. The third is system optimization: choosing whether to prioritize maximum SNR, better SFDR, wider IF coverage, or reduced analog complexity. The right operating point is rarely the one that maximizes every datasheet number at once. More often, the best result comes from aligning the ADC input range with the true signal statistics of the application, including crest factor, blocker environment, and gain variation across the receive chain.

In direct-IF sampling systems, one practical pattern is to reserve some headroom at the ADC input rather than calibrating the chain so that nominal wanted signals land exactly at 2 Vpp differential. That approach usually survives real signal environments better. Burst peaks, blocker mixing products, and filter ripple can otherwise push the converter into a region where distortion rises before obvious clipping is visible in the time domain. A slightly backed-off operating point, combined with programmable gain when needed, often produces more stable wideband performance across operating corners. This is especially true when the input frequency approaches the upper end of the converter’s practical range.

Another useful perspective is that the 2 Vpp specification should be treated as a maximum usable envelope, not a universal target. At lower IFs and with a robust driver, using the full range makes sense when SNR is the governing metric. At higher IFs, especially beyond a few hundred megahertz, the system often benefits from a more balanced strategy: moderate swing, cleaner drive, controlled common-mode, and careful gain distribution across the analog chain. That usually yields a more predictable result than forcing full-scale operation and then trying to recover performance through filtering or digital correction.

When applied this way, the ADS62P48 becomes more than a converter with a stated input range and bandwidth. It becomes a tunable interface between the analog front end and the digital domain. Its differential structure, common-mode sensitivity, input capacitance, amplitude-dependent frequency capability, and programmable gain all interact. Treating these as a coupled design set, rather than isolated specifications, leads to cleaner receiver partitioning and fewer late-stage surprises during validation.

Texas Instruments ADS62P48 Clocking Requirements and Sampling Conditions

Texas Instruments ADS62P48 places unusually strong emphasis on clock integrity because its converter performance is not determined by sampling rate alone, but by the interaction between aperture uncertainty, clock slew rate, duty-cycle symmetry, and the selected interface mode. In practice, the clock path is part of the analog signal chain. If that path is treated as a generic digital timing network, the ADC will usually function, but SNR, SFDR, and wideband repeatability will degrade long before the failure appears as a hard functional fault.

The device supports two primary sampling regions. With low-speed mode enabled, the sample rate spans 1 MSPS to 80 MSPS. With low-speed mode disabled, which is the post-reset default, the operating region extends from above 80 MSPS to 210 MSPS. This split is more than a convenience setting. It reflects an internal biasing and timing regime optimized for different conversion speeds. A robust design should therefore treat the low-speed threshold as an architectural boundary rather than a loose recommendation. Running near that boundary without explicitly managing the mode can produce avoidable uncertainty during bring-up, especially when firmware controls power-up state and clock activation order.

The input clock specification shows similar nuance. Texas Instruments indicates support for differential clock amplitudes down to 400 mVpp differential in the feature summary, while the recommended operating conditions specify a sine-wave, AC-coupled differential clock amplitude range of 0.2 Vpp to 1.5 Vpp. At first glance, these numbers look inconsistent. They are better understood as describing different views of the same requirement: the converter clock receiver has enough sensitivity to operate with relatively small differential swings, but the guaranteed operating window is framed around signal form, coupling method, and practical margin. For implementation, the more conservative interpretation is usually the correct one. A clock path that barely meets sensitivity may still create excessive timing dispersion if the edge slope at the sampling threshold is weak or distorted by transformer mismatch, AC-coupling capacitor selection, or poor source termination.

This is why clock amplitude should not be evaluated in isolation. For a high-speed ADC, the useful parameter is edge quality at the crossing point. A 400 mVpp differential clock with clean spectral purity, balanced routing, and fast zero-crossing behavior can outperform a larger swing degraded by common-mode conversion, ringing, or asymmetrical trace loading. In lab characterization, systems that appear compliant on amplitude often show degraded ENOB because the real issue is not insufficient voltage swing but degraded slew symmetry at the ADC pins. The ADS62P48 is flexible, but it still rewards disciplined analog-style clock design.

The supported clock formats make the device easier to integrate into mixed-vendor signal chains. The ADC accepts AC-coupled LVPECL at 1.6 Vpp, AC-coupled LVDS at 0.7 Vpp, and AC-coupled single-ended LVCMOS at 3.3 V. That flexibility helps when the upstream clock source is shared with FPGA fabric, JESD-era clock buffers, or legacy logic families. Even so, not all supported formats are equally desirable. Differential clocking is generally the preferred path because it provides better immunity to common-mode interference, lower sensitivity to ground potential variation, and more predictable threshold behavior under broadband noise. Single-ended LVCMOS can be attractive for board simplification, but at higher sample rates it often injects more deterministic jitter through supply bounce, edge-induced crosstalk, and return-current discontinuities. A design may pass bench verification with LVCMOS and still underperform in a populated chassis where multiple switching domains are active.

The 40% to 60% allowable duty cycle, with 50% nominal, should also be read carefully. For many digital devices, duty cycle mainly affects setup and hold margins. In a sampling ADC, duty-cycle distortion can leak into the internal timing network and subtly shift effective sampling behavior, especially when the front-end and output timing are both sensitive to clock symmetry. Staying near 50% is not simply about satisfying a datasheet box. It reduces internal timing skew and avoids mode-dependent ambiguity when the same source drives multiple converters or an FPGA plus ADC combination. A clock conditioner with low additive jitter but poor duty-cycle control is therefore not automatically a good fit.

From a clock-tree design standpoint, the ADS62P48 is best treated as a differential analog load with digital compatibility, not as a purely digital sink. That framing leads to better decisions. Source selection should prioritize low phase noise in the offset band that matters for the input signal frequency plan. Buffer choice should consider additive jitter, output balance, and isolation between channels. AC-coupling networks should be sized not only for nominal frequency response but also for baseline stability and start-up behavior. Layout should maintain differential impedance, length balance, and uninterrupted return paths through the coupling and termination region. The smallest discontinuity near the ADC clock pins often matters more than a longer but cleaner route elsewhere on the board.

A practical integration pattern is to use a low-noise synthesizer or VCXO-cleaner stage, followed by a differential clock fanout buffer placed close enough to the ADC cluster that routing remains short and symmetric. If the clock must also feed FPGA logic, it is usually better to branch the tree at the fanout stage rather than route through the FPGA region first. This reduces the chance that digital-plane noise and dense via fields will contaminate the ADC branch. In dense receiver boards, the difference is often visible in spur floor and inter-channel consistency before it is obvious in time-domain measurements.

The sample-rate flexibility also has system-level implications. In receiver platforms, the ability to cover 1 MSPS through 210 MSPS allows the ADS62P48 to serve both narrowband and wider-bandwidth signal chains with a common hardware footprint. That simplifies platform reuse, but only if the clock architecture is designed for the full range from the outset. A clock network optimized only for the top-end rate may exhibit excessive low-frequency wander or poor startup stability in low-speed mode. Conversely, a network designed around relaxed low-speed assumptions may reach 210 MSPS functionally while failing to preserve the dynamic performance expected at higher input frequencies. It is often more effective to design for clock spectral cleanliness first and rate programmability second.

The mention of multiplexed mode, operating from 1 MSPS to 65 MSPS, introduces a different trade space. This mode reduces interface width and can ease FPGA pin pressure or simplify routing in systems where converter throughput is moderate and board escape is constrained. However, multiplexing shifts complexity from the physical interface into timing interpretation, data alignment, and downstream deserialization logic. For systems already operating near the edge of timing closure, this mode can save pins while increasing verification cost. It is most attractive when the sampling rate is modest, FPGA I/O resources are constrained, and latency or framing complexity is acceptable. For mainstream high-throughput acquisition, the standard LVDS interface remains the more natural operating point because it keeps timing relationships more explicit and usually scales better in debug.

One subtle but important implementation detail is that “support” for multiple clock formats does not imply equal robustness across all board environments. AC-coupled LVDS is often the most balanced choice for the ADS62P48 because it offers enough swing for reliable threshold crossing, strong ecosystem support, and lower EMI burden than larger-swing formats. LVPECL can provide very strong edge quality, but if the termination network is not tightly controlled, it can create unnecessary power dissipation and spectral contamination. The best clock is usually not the one with the largest swing or the fastest nominal edge, but the one that arrives at the ADC pins with the least ambiguity.

In receiver designs that reuse an existing differential clock tree, the ADS62P48 can often be inserted without level translation, provided differential amplitude, common-mode behavior, and AC-coupling implementation remain within the intended operating window. That said, reuse should never bypass validation at the ADC pins themselves. Measurements made only at the clock source or fanout output can be misleading, especially when the route includes connectors, stubs, or shared reference-plane transitions. A recurring issue in mixed-signal boards is that the clock looks excellent at the generator and marginal at the converter because of asymmetry introduced by layout constraints rather than by the source.

The most effective engineering approach is to close the loop between specification, physical design, and measured converter performance. Verify clock amplitude and duty cycle at the ADC inputs. Correlate phase-noise and jitter expectations with FFT-based dynamic testing at representative input frequencies. Check performance in both low-speed and high-speed modes if the application spans the mode boundary. This process usually reveals that clock design margin is not an academic refinement but one of the main determinants of whether the ADS62P48 behaves like a nominal 14-bit high-speed converter or merely a functioning one.

Texas Instruments ADS62P48 Digital Output Interfaces and System Integration Options

Texas Instruments ADS62P48 offers an unusually practical digital interface strategy for a medium-to-high-speed ADC: the device supports both DDR LVDS and parallel CMOS outputs. This is not just a feature-list convenience. It directly affects capture timing, PCB routing rules, FPGA pin planning, power distribution behavior, and long-term platform reuse. The result is a converter that can fit two very different system philosophies: tightly controlled high-speed acquisition paths and simpler parallel digital subsystems where interface complexity must be minimized.

At the signal-transfer level, the difference between the two modes is fundamental. In DDR LVDS mode, the converter drives differential data pairs together with a differential clock. Data is transferred on both clock edges, which lowers the required clock frequency for a given throughput while keeping timing margins more manageable inside the receiving logic. Because the signaling is differential, the receiver detects the voltage difference between the two lines rather than the voltage of one line relative to ground. That mechanism suppresses common-mode noise, reduces sensitivity to ground bounce, and improves tolerance to local switching disturbances on the board. For ADC outputs, where edge placement and bit alignment directly influence capture reliability, this matters more than the raw interface speed figure often suggests.

The 100-Ω differential termination specified by Texas Instruments is a key part of that behavior. It is not merely a compliance item. It defines the transmission environment seen by the output drivers and shapes the transition quality at the receiver. If the termination is omitted, misplaced, or significantly mismatched, reflections increase, eye opening degrades, and timing uncertainty grows. In practice, the cleanest results usually come from placing the termination at or very near the receiver pins, keeping intra-pair skew small, and avoiding stubs. On short ADC-to-FPGA links, designers sometimes assume routing is forgiving because distances are only a few centimeters. That assumption often fails once multiple pairs switch simultaneously at full sample rate. Even modest discontinuities can show up as deterministic jitter or capture bit errors when margins are already compressed by DDR timing.

LVDS mode also aligns well with modern FPGA architectures. Many FPGA families include dedicated differential input buffers, on-chip termination options, and input SERDES or DDR capture resources that map naturally to converters like the ADS62P48. This reduces glue logic and usually simplifies timing closure. A useful design pattern is to treat the ADC output clock as a source-synchronous domain local to the capture interface, then perform clock-domain transfer only after word alignment and optional deskew. That partitioning keeps the highest-speed timing problem bounded to a small region of the FPGA and prevents unnecessary coupling between converter timing and the rest of the digital fabric.

Parallel CMOS mode serves a different design objective. It is attractive when the receiving logic is simple, when differential-capable pins are scarce, or when the broader platform already uses single-ended parallel buses. In that mode, however, the electrical cost becomes more visible. Each output line swings relative to ground, so every transition injects current into the local return path and makes the interface more sensitive to simultaneous switching noise. As edge rates and bus width increase, the combination of package inductance, plane impedance, and load capacitance starts to dominate behavior. This is why the load-capacitance guidance in the datasheet deserves close attention.

Texas Instruments recommends low output loading, with 5 pF per output pin to DRGND under recommended operating conditions, while also indicating that 10 pF may be the upper practical limit depending on interface power conditions. That difference should not be read as a contradiction. It reflects the reality that CMOS output performance is strongly load-dependent. At lower loading, transitions are faster and cleaner, dynamic current is lower, and timing uncertainty remains more controlled. As capacitance rises, edge rates slow, switching current increases, and the interface consumes more power while becoming more vulnerable to setup-and-hold erosion at the receiver. The effect is nonlinear enough that a design appearing functional on the bench with short traces can become marginal after a layout revision, connector insertion, or FPGA bank reassignment adds a few extra picofarads per line.

This load sensitivity is one of the main reasons CMOS mode requires stricter discipline than its conceptual simplicity suggests. Trace length must be kept short and balanced where possible. Receiver placement matters. Output fanout should be avoided. Probe loading during validation can be misleading, because a passive probe may materially alter edge shape and timing on a line already near its capacitive budget. Power integrity also becomes more critical than many first-pass schematics imply. In parallel CMOS buses, digital switching current returns through the ground network in bursts, so poor decoupling or fragmented return paths can convert interface activity into local reference movement. Once that happens, the ADC’s digital outputs may still meet nominal logic thresholds while the system accumulates intermittent timing faults that are difficult to reproduce.

From a board-integration standpoint, LVDS is generally the safer choice when sample rate, noise immunity, and capture robustness are the primary goals. It produces less radiated noise, couples less energy into adjacent analog regions, and scales better when routing must cross dense FPGA breakout areas. In mixed-signal boards, that last point is often decisive. The analog performance of the converter is rarely isolated from digital interface behavior. A wide CMOS bus switching against ground near the converter can degrade the local noise floor indirectly through supply and substrate coupling, even if the analog input chain itself is carefully designed. Differential signaling does not eliminate these interactions, but it reduces their amplitude enough to make system-level optimization easier.

CMOS mode remains valuable when system constraints point in another direction. Legacy processors, CPLDs, low-complexity capture engines, or cost-optimized digital boards may benefit from a straightforward parallel interface. In these cases, success depends on acknowledging that the digital bus is part of the analog system budget. Short routes, compact pin escape, strong local decoupling, disciplined return-current paths, and conservative timing assumptions usually determine whether CMOS mode behaves like a simple interface or an unstable one. A practical rule is to reserve CMOS mode for physically compact implementations where the receiving device can sit close to the ADC and where the board stack-up supports low-inductance return paths.

The dual-interface capability becomes especially powerful at the platform level. It allows one converter family to support multiple product derivatives without forcing a complete analog redesign. A performance-focused variant can use LVDS into an FPGA with tighter timing control and better EMI behavior. A lower-complexity derivative can reuse the same front-end architecture and migrate to CMOS if the digital subsystem changes. This kind of reuse reduces qualification effort, eases supply-chain planning, and preserves firmware and test investment across product tiers. The strategic value is often larger than the interface choice itself. A converter that can bridge both architectures gives hardware teams room to adapt after the initial design phase, which is often when real constraints become visible.

There is also a less obvious benefit: dual-interface parts reduce early architectural lock-in. During prototyping, interface assumptions are frequently made before pin budgets, FPGA utilization, thermal limits, and EMC margins are fully known. A converter like the ADS62P48 leaves an escape path. If LVDS pin count becomes difficult, CMOS may remain viable for a compact derivative. If CMOS power or timing margins collapse during validation, LVDS can absorb the throughput with better signal integrity. That flexibility is valuable because digital-output behavior tends to become a board-level issue long before it becomes a datasheet-limit issue.

For most new high-speed designs, LVDS should be considered the default integration path for the ADS62P48. It is more consistent with modern FPGA capture methods and offers a cleaner electrical environment. CMOS should be selected deliberately, not casually, and only when the physical implementation can support the load, routing, and power-return constraints that single-ended parallel outputs impose. Seen this way, the ADS62P48 is not simply offering two output formats. It is offering two different system integration models, each with distinct assumptions about noise, timing, and scalability. Understanding that distinction early usually leads to better pin planning, cleaner layouts, and fewer surprises during bring-up.

Texas Instruments ADS62P48 Accuracy, Dynamic Performance, and Channel Matching

Texas Instruments positions the ADS62P48 as a dual-channel, communications-grade ADC, and its published accuracy, dynamic performance, and channel-matching data show where it fits best: wideband signal capture that needs solid spectral cleanliness, repeatable channel behavior, and moderate calibration overhead rather than extreme metrology-class DC precision. The key point is not any single number in isolation, but how the static and dynamic specifications combine under realistic operating conditions: 25°C, AVDD = 3.3 V, DRVDD = 1.8 V, 50% clock duty cycle, internal reference enabled, 0 dB gain unless noted, and a differential input driven near full scale at -1 dBFS. Those conditions matter because this class of converter is highly sensitive to drive level, clock quality, and front-end implementation. In practice, the data sheet values are best treated as a well-controlled baseline from which board-level degradation can be estimated.

The dynamic performance profile is the strongest indicator of the ADS62P48’s intended use. The specified SNR remains relatively high and degrades gradually with input frequency: 73.4 dBFS at 20 MHz, 73 dBFS at 60 MHz, 72 dBFS at 100 MHz, and 71 dBFS at 170 MHz with 0 dB gain. That slope is modest, and it reflects a converter architecture with good high-frequency sampling behavior, but also the expected impact of input bandwidth limitations, aperture uncertainty, and internal track-and-hold nonidealities as the input tone rises. The fact that SNR drops more noticeably at 170 MHz when the internal gain is set to 6 dB, reaching 66.4 dBFS, indicates the usual tradeoff between gain and noise/distortion headroom. Internal gain can help interface weaker signals, but it also magnifies internal noise contributions and reduces margin against nonlinear behavior. In receiver chains, this means the gain setting should be chosen as part of the system noise plan, not as a convenience feature applied late in integration.

SINAD follows a similar pattern: 73 dBFS at 20 MHz, 72.8 dBFS at 60 MHz, 71.5 dBFS at 100 MHz, and 70.1 dBFS at 170 MHz at 0 dB gain, then 66.3 dBFS at 170 MHz with 6 dB gain. Since SINAD includes both noise and distortion, its close proximity to SNR at lower and midband input frequencies implies that harmonic distortion is well controlled under the stated test conditions. As the input frequency increases, the growing gap between ideal quantization-limited behavior and actual SINAD is typically dominated by front-end linearity limits and sampling-edge imperfections. This is especially relevant in undersampling or IF-sampling designs, where a 170 MHz tone is no longer an edge case but a normal operating point. In such systems, the converter may still meet sensitivity targets, but spur budgeting becomes more important than the nominal SNR number alone.

The specified ENOB of 11.4 bits at 170 MHz is consistent with the SINAD performance and gives a more intuitive measure for system-level resolution at high input frequency. For communications capture, ENOB at the upper end of the intended IF range is often more useful than low-frequency DC-oriented precision metrics. It directly affects demodulation margin, adjacent-channel interference handling, and digital filtering efficiency after conversion. A practical reading of the 11.4-bit figure is that the ADS62P48 retains meaningful resolution in wideband receiver use, but does not leave much room for careless clocking or poor analog drive. On densely integrated boards, the converter itself is often not the first limit reached; clock phase noise, transformer imbalance, and reference or supply contamination usually consume dynamic margin sooner than expected.

Static linearity metrics provide another layer of interpretation. The ADS62P48 specifies DNL from -0.95 to +1.3 LSB, with ±0.6 LSB typical, and INL from -5 to +5 LSB, with ±2.5 LSB typical. These numbers are acceptable for a high-speed converter optimized for AC performance, but they also signal that the part should not be treated as a precision low-frequency measurement ADC. DNL close to 1 LSB indicates code-width variation is controlled well enough for stable transfer behavior, while the wider INL range reflects cumulative transfer-curve deviation that becomes more relevant in slow or absolute-amplitude measurement use cases. For spectral applications, moderate INL is usually less problematic than poor noise or distortion, because the signal path is dominated by AC fidelity rather than absolute endpoint linearity. For servo loops, instrumentation channels, or mixed-use systems where one board is expected to serve both RF capture and precision DC observation, that distinction becomes important early in architecture selection.

Offset and gain terms define the converter’s DC accuracy envelope. Offset error is specified from -20 mV to +20 mV, with ±2 mV typical, and the offset drift is only 0.02 mV/°C. That drift is low enough that thermal variation alone usually does not drive recalibration frequency unless the analog front end has tighter absolute requirements than the ADC. In practical signal chains, offset often ends up dominated by input amplifier bias, transformer asymmetry, or common-mode generation rather than the converter core itself. Even so, the ADS62P48’s offset specification is useful when digitizing low-IF or direct-conversion signals, where residual DC can leak into digital correction loops or consume headroom in narrowband FFT analysis.

Gain accuracy is more nuanced because the data sheet separates internal reference inaccuracy and channel gain error. Gain error due to internal reference alone is -1% to +1% FS, with ±0.2% typical, and channel gain error alone follows the same range and typical value. This framing indicates that full-scale accuracy is affected both by reference tolerance and by channel transfer variation. In many communications systems, absolute full-scale accuracy is less critical than repeatability and interchannel tracking, because digital calibration can remove static scale factors with little cost. The more important question is whether gain remains stable enough over temperature, time, and supply variation to keep calibration valid. Devices in this class usually perform well once the board reaches thermal equilibrium, but mismatch can shift during warm-up if the two channels see unequal front-end loading or layout-induced thermal gradients. That behavior is rarely visible in headline specifications, yet it often determines whether a one-time factory trim is sufficient.

The channel-matching data are therefore among the most operationally useful specifications. The difference in gain errors between the two channels in the same device is specified from -2% to +2% FS, while across two devices it broadens to -4% to +4% FS. This is a meaningful distinction. Two channels integrated on the same die generally share reference behavior, process variation, and thermal environment more closely than two standalone converters, so the relative gain spread is naturally tighter. In simultaneous-sampling systems, that tighter within-device matching reduces calibration complexity, especially in dual-channel phase-coherent receive paths, I/Q-adjacent architectures, beamforming subsystems, and two-channel instrumentation where the measurement of relative amplitude matters more than absolute scale. A subtle but important consequence is that calibration tables can often be simplified from full per-channel independent correction to a smaller set of differential adjustments when both channels reside on one converter. That reduces test time and also improves long-term tracking because fewer independent drift sources exist.

Crosstalk performance of 90 dB supports this same multichannel use case. At that level, the ADC itself is unlikely to be the dominant isolation bottleneck unless the board is exceptionally clean and channel spacing is minimal. In practical layouts, package escape routing, shared reference return paths, and analog input coupling through transformers or baluns usually determine actual isolation before intrinsic converter crosstalk does. Even so, a strong crosstalk baseline is valuable because it preserves margin. It lets the designer spend the isolation budget on unavoidable board-level parasitics rather than internal converter coupling. On compact RF cards, this often makes the difference between a design that only passes in a shielded lab setup and one that remains stable after enclosure integration.

From a mechanism perspective, the overall specification set reveals a balanced converter architecture. The ADS62P48 is optimized for AC fidelity over a broad input range, while keeping static errors controlled but not exceptionally tight. That balance is typical for pipeline or high-speed mixed-signal architectures where capacitor matching, residue amplification accuracy, sampling clock integrity, and reference settling all contribute to final performance. Dynamic metrics dominate because they represent the actual bottlenecks in IF-sampling and communication receiver chains. Static metrics remain relevant, but mostly as secondary error terms that must be calibrated or bounded rather than eliminated at the component level.

This distinction also helps in application mapping. In a dual-channel receive path, the 71 dB-class SNR at high input frequency and good channel matching support coherent processing, digital downconversion, and channel-comparison functions with manageable correction effort. In measurement instruments, the same device works well for waveform capture, transient analysis, and moderate-accuracy spectral measurements, but less well for precision DC transfer measurements that demand tighter INL and gain certainty. In multichannel acquisition boards, the integrated two-channel format gives practical benefits in skew control, gain consistency, and thermal tracking that are not obvious if one only compares top-line SNR against single-channel alternatives.

One design pattern repeatedly proves useful with converters in this performance class: treat the ADC, clock source, and analog driver as a single coupled subsystem. If the clock phase noise is marginal, the high-frequency SNR advantage collapses first. If the differential drive is imbalanced, harmonic distortion rises before noise does. If reference decoupling or supply partitioning is weak, interchannel consistency degrades in ways that look like unexplained calibration drift. For that reason, the most successful implementations usually reserve layout priority for clock return integrity, input symmetry, and local decoupling geometry rather than attempting to recover performance later with DSP. The ADS62P48 gives enough intrinsic headroom for this approach to pay off, but not enough to mask weak front-end engineering.

Viewed as a whole, the ADS62P48 offers a solid and coherent performance envelope. Its SNR, SINAD, and ENOB remain strong into higher input frequencies. Its linearity and DC terms are competent for a high-speed communications ADC. Its within-device channel matching is materially better than what is typically achieved by pairing separate converters, and that directly reduces integration risk in simultaneous-sampling designs. The most effective way to use it is to lean into its strengths: AC-focused acquisition, dual-channel coherence, and moderate calibration workflows. When applied in that role, the published numbers are not just acceptable; they are structurally aligned with the needs of real communication and mixed-signal acquisition systems.

Texas Instruments ADS62P48 Power Consumption and Thermal Considerations

Texas Instruments ADS62P48 is positioned in a useful efficiency band within high-speed dual-channel ADCs. Its power profile is not merely a datasheet footnote. It directly shapes clocking strategy, output-interface choice, PCB stackup, enclosure airflow, and long-term conversion stability. The device is often selected not only for sample-rate and dynamic-performance balance, but because it avoids the thermal and power-management penalties that appear quickly in faster converter classes.

At the supply level, the analog section is the primary power consumer. The typical analog supply current is 280 mA, rising to 320 mA at maximum conditions. This corresponds to 0.92 W typical and 1.05 W maximum. For an ADC in this performance range, that is a meaningful design advantage. Analog power is usually the less negotiable portion of the budget because it supports the sampling core, reference circuitry, front-end buffers, and internal bias networks that define noise, linearity, and bandwidth. In practice, this means system-level power reduction opportunities usually come less from trying to “optimize” AVDD and more from controlling operating mode, interface format, and thermal path quality.

The digital side is more design-dependent. In LVDS mode with 100-ohm external termination, the DRVDD current is 122 mA typical and 165 mA maximum, corresponding to 0.22 W typical and 0.3 W maximum. This is a relatively controlled and predictable power domain compared with CMOS operation. LVDS tends to be favorable in dense mixed-signal layouts because the current profile is more stable, simultaneous switching noise is lower, and radiated emissions are easier to contain. The external termination does add power dissipation, but the total interface behavior is generally cleaner and more repeatable at high edge rates. That trade is usually worth it once routing length, channel count, and timing margin begin to matter more than absolute pin simplicity.

Global power-down consumption is listed at 45 mW typical and 100 mW maximum. That number is operationally important in systems with burst acquisition, low-duty-cycle sensing, or thermal headroom constraints. However, low standby power should not be interpreted as zero-cost mode switching. Wake-up behavior, clock re-stabilization, and reference settling still need to be considered in timing budgets. In tightly synchronized systems, a power-down feature is most effective when paired with deterministic startup sequencing rather than being treated as a generic on-off control.

CMOS mode deserves careful scrutiny. Its apparent simplicity often hides a steeper system penalty. Digital power in CMOS mode varies strongly with sampling frequency, output loading, input frequency, and supply voltage. That dependency follows the usual switching-power behavior: as bus capacitance, transition rate, and toggle activity rise, power climbs quickly. The more subtle issue is that this extra digital activity does not stay confined to the output pins. It couples into return paths, package inductance, supply rails, and nearby analog nodes. As sample clocks increase and interface widths remain parallel, CMOS can become the less efficient choice even if it initially looks easier to implement. In boards with marginal grounding or long parallel routes, the resulting signal-integrity cleanup effort can easily outweigh any advantage from avoiding LVDS receivers.

A practical way to think about the ADS62P48 power budget is to split it into three layers. First is fixed conversion power, dominated by the analog core. Second is interface-dependent power, driven by LVDS or CMOS selection and the associated loading. Third is board-induced overhead, which includes regulator loss, termination loss, clock distribution power, and any thermal mitigation added later because the original layout did not spread heat effectively. This third layer is often underestimated. A converter specified at roughly 1.1 W to 1.3 W total device dissipation can drive noticeably higher end-to-end subsystem power once supply inefficiency and interface support circuitry are included.

Thermal behavior is where the package and board become inseparable from the silicon. The ADS62P48 is offered in a 64-pin RGC package with junction-to-ambient thermal resistance of 23.0°C/W. Junction-to-board thermal resistance is 4.2°C/W, junction-to-case top is 10.5°C/W, and junction-to-case bottom is 0.57°C/W. These values show that the dominant heat-removal path is through the package bottom into the PCB, not through the top surface into still air. That is a critical distinction. For this class of exposed-pad QFN, the board is effectively the heatsink. If the exposed pad is tied into a solid copper region with dense thermal vias and low spreading resistance, junction temperature remains well controlled. If the pad lands on fragmented copper or sparse via stitching, the datasheet thermal numbers become difficult to realize in an actual product.

A quick estimate helps frame the design margin. At about 1.14 W typical dissipation using 0.92 W analog plus 0.22 W digital LVDS power, a simple junction rise based on 23°C/W suggests roughly 26°C above ambient. At the higher end, around 1.35 W using maximum analog and digital power, the rise approaches 31°C. In a 70°C ambient environment, that places the junction around 96°C to 101°C before adding local heating from neighboring components, airflow shadowing, or regulator losses nearby. This is still manageable, but it leaves less margin than many first-pass layouts assume. Once the ADC sits near an FPGA, clock synthesizer, or DC/DC stage, local board temperature often dominates over room ambient.

This is why thermal design should begin with placement rather than with late-stage heatsinking. The ADC benefits from short analog input paths and close clock routing, but it should not be boxed in by the highest-power digital devices. A balanced placement usually gives it a quiet analog perimeter on the input side and a short, controlled digital exit path on the output side, while preserving a copper-rich thermal footprint underneath. In multilayer boards, an uninterrupted ground plane directly under the package and via connection into deeper copper layers usually improves both heat spreading and return-current quality. Those two benefits reinforce each other; thermal and signal-integrity objectives are aligned more often than they conflict.

Regulator selection also affects thermal behavior more than the raw ADC numbers suggest. A linear regulator feeding the analog rail may be preferred for noise reasons, but if the input-to-output drop is large, the regulator can dissipate heat comparable to a significant fraction of the ADC itself. That local heat raises board temperature around the converter and indirectly increases junction temperature. A common pattern in robust designs is to use a switching preregulator for efficient voltage reduction and a low-noise post-regulation stage near the ADC. This keeps analog rails clean without converting the power tree into an avoidable heat source.

Clocking strategy matters as well. Excessive input clock swing, poor duty-cycle control, or a noisy driver does not just degrade SNR and jitter performance. It can also increase effective system dissipation through stronger driver stages, repeated rework on termination, or the need for shielding and cleanup components. A cleaner clock architecture usually reduces both thermal stress and debug time. For converters like the ADS62P48, the most efficient system is often the one where the clock source, digital interface, and board return paths were treated as a single coupled problem from the start.

Another practical point is that thermal performance should be validated under realistic code activity. ADC digital outputs do not dissipate the same way under all signal conditions. Input tone selection changes output switching density, and switching density influences digital rail current, especially in CMOS mode. Bench evaluation with only a static or low-activity pattern can understate real thermal load. Stress testing with representative input bandwidth, sample rate, and output toggling gives a more credible estimate of junction temperature and rail noise.

From an application perspective, the ADS62P48 is well suited to designs where moderate-to-high sampling performance is needed without moving into the steeper thermal and power costs of very high speed converters. Communications receivers, portable instrumentation, compact data acquisition modules, and multichannel measurement systems all benefit from that balance. In these cases, the converter’s efficiency is most valuable when it enables a simpler enclosure, lower airflow requirement, or denser channel packing. That system-level gain is often more important than the device-level wattage number alone.

The key engineering takeaway is that the ADS62P48 should be evaluated as a thermal-electrical component, not just as an ADC with a quoted power figure. Its analog core power is reasonable and predictable. Its digital power is manageable in LVDS and potentially much less attractive in CMOS as speed and loading rise. Its package can dissipate heat effectively, but only if the PCB is designed to serve as the primary thermal path. When those conditions are met, the device offers a strong operating point: enough performance for demanding signal chains, without forcing the board into the heavier cooling and power-delivery measures that faster alternatives often require.

Texas Instruments ADS62P48 Supply Rails, Operating Range, and Reliability Boundaries

Texas Instruments ADS62P48 uses split supply domains to protect conversion fidelity from digital switching noise. This is not just a datasheet convenience. It is a core architectural boundary that affects noise floor, clock purity, output timing margin, and long-term robustness. AVDD powers the analog conversion path and should be kept within 3.15 V to 3.6 V, with 3.3 V as the nominal target. DRVDD powers the digital output interface and should remain within 1.7 V to 1.9 V, with 1.8 V nominal. In practice, treating these rails as functionally different power systems rather than simply two regulated voltages usually leads to better board behavior. The analog rail benefits from low broadband noise and controlled impedance distribution, while the digital rail benefits from fast transient support near output switching loads.

The separation between AVDD and DRVDD is especially important in high-speed ADC layouts because output switching currents can inject return noise into shared supply or ground paths. If that energy folds into the sampling network or clock path, the result is rarely a catastrophic failure. More often it appears as degraded SNR, elevated spurs, or conversion instability near performance limits. Designs that meet voltage specifications but ignore rail isolation often underperform in lab correlation. A stable nominal voltage is therefore only one part of compliance. The spectral quality of that rail matters just as much.

From an operating-range standpoint, the ADS62P48 is specified for industrial environments from -40°C to 85°C ambient. That range makes it suitable for communication infrastructure, outdoor electronics, distributed radio platforms, and industrial data acquisition nodes where temperature headroom is not optional. The junction temperature limit extends to 125°C, which provides internal thermal margin above ambient operation, but that margin should not be treated as free budget. Junction temperature rises with power dissipation, airflow limitations, copper density, nearby heat sources, and enclosure conditions. A board that appears safe at room temperature can lose meaningful reliability margin once installed in a sealed or sun-exposed assembly. In high-density systems, it is often the local thermal gradient rather than the average ambient temperature that determines whether the ADC remains comfortably inside its intended operating zone.

Storage temperature from -65°C to 150°C defines non-operational survivability, not functional readiness. This distinction matters during manufacturing flow, logistics, and field servicing. Components may tolerate those extremes in storage, yet repeated excursions near the limits can still stress solder joints, packaging interfaces, and surrounding passives. For systems expected to cycle through transport, warehouse, and deployment environments, thermal specification should be read as a lifecycle envelope, not just a line item.

Absolute maximum ratings define damage thresholds, not usable operating points. AVDD must never exceed 3.9 V, and DRVDD must never exceed 2.2 V. These numbers are often misunderstood during power-tree definition. A regulator tolerance stack, startup overshoot, hot-swap transient, or fault recovery pulse can violate an absolute limit even when the nominal rail looks compliant on paper. That is why bench validation should include startup and shutdown capture with sufficient bandwidth, not only static DC measurement. Short-duration overshoot is one of the more common sources of hidden margin loss in mixed-signal platforms.

The allowable voltage difference between AGND and DRGND is only -0.3 V to 0.3 V. This is a tight constraint and should be read as a grounding discipline requirement. The split ground naming does not imply permission for large ground offsets. It indicates functional partitioning inside the device while demanding strong external control of return current paths. If digital return currents are allowed to create local ground bounce, the ADC can experience both signal integrity degradation and electrical stress across internal structures. A good implementation typically ties analog and digital grounds into a low-impedance reference strategy with short return paths and clear current containment, rather than allowing them to wander independently across the board.

Input protection limits reinforce the same idea. Analog input pins must remain between -0.3 V and the lower of 3.6 V or AVDD + 0.3 V. Clock and control pins must remain between -0.3 V and AVDD + 0.3 V. These constraints are not merely about preventing obvious overvoltage events. They also shape front-end interface design, especially when the signal chain includes transformers, AC coupling, active drivers, or external clock sources that may power up earlier than the ADC. A front-end that swings correctly in steady state can still violate pin limits during bias settling, rail ramping, or cable insertion. This is where clamp strategy, series resistance, common-mode control, and sequencing logic become part of ADC reliability, not just signal conditioning.

Clock pins deserve particular care because they sit at the intersection of signal integrity and device protection. Overdriving the clock input, undershooting below ground during fast edge transitions, or allowing a source to remain active while AVDD is absent can all create boundary stress. In high-speed converters, clock path mistakes often show up first as performance anomalies and only later as reliability concerns. A clock network designed with controlled amplitude, clean edge behavior, and known startup state tends to improve both.

The 2 kV ESD human body model rating provides baseline handling robustness, but it should not be treated as system-level immunity. Board-level exposure during connector events, cable discharge, or field maintenance can greatly exceed component handling assumptions. For that reason, external protection, current limiting, and layout attention around exposed interfaces remain necessary. The converter may survive assembly handling well, yet still be vulnerable in a real product if transient energy is allowed to couple through signal or supply paths unchecked.

In practical platform design, the most important boundary is not the gap between recommended and absolute values. It is the hidden region where the device still functions but no longer behaves predictably across production spread, temperature, and aging. Operating near the top of AVDD, near the edge of thermal budget, or near allowable pin excursions may appear acceptable during early bring-up, especially on a small sample set. But mixed-signal systems tend to punish narrow margins later, when supply noise, process variation, and field transients align. A conservative design usually does not cost much more, yet it buys disproportionate stability in converter performance.

This is particularly relevant in systems with hot-plug exposure, uncertain rail sequencing, or wide upstream supply tolerance. If one rail rises substantially before the other, internal structures can see unintended bias conditions. If digital I/O is driven before the converter is properly powered, parasitic conduction paths may become active. If the platform allows connector bounce or inrush-induced ground shift, the AGND-to-DRGND constraint can be challenged even without a direct fault. These are not rare corner cases. They are common integration issues in modular backplanes, remote radio heads, and serviceable industrial assemblies. Reviewing startup waveform order, rail ramp monotonicity, and pin state during fault recovery is often more valuable than checking nominal voltages alone.

A useful design approach is to treat the ADS62P48 as a precision analog device surrounded by high-speed digital behavior, not the other way around. That mindset leads naturally to cleaner decoupling placement, tighter return-path control, more realistic transient validation, and better attention to thermal and sequencing edges. The datasheet limits then become more than compliance numbers. They become design boundaries that shape how to preserve performance while avoiding latent reliability risk across the full product lifecycle.

Texas Instruments ADS62P48 Package, Temperature Grade, and Deployment Considerations

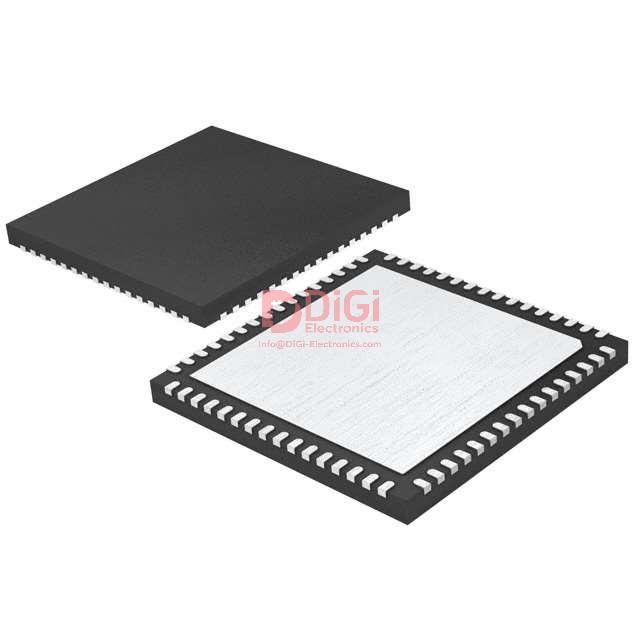

Texas Instruments ADS62P48 uses a 64-pin VQFN package in a 9 mm × 9 mm body with an exposed thermal pad. This package choice is not just a mechanical detail. It directly shapes thermal behavior, grounding quality, escape routing complexity, manufacturability, and ultimately the achievable dynamic performance of the converter in a real system. For a dual-channel high-speed ADC, the package sits at the intersection of analog fidelity and digital integration. In practice, the electrical advantages of short bond paths and compact lead geometry are valuable, but they shift more responsibility onto PCB design quality.

The 64-VQFN format is well suited to space-constrained acquisition hardware such as multichannel data capture boards, compact radio front ends, portable instrumentation, and embedded receive chains. A package of this size allows two simultaneous high-speed channels to be integrated without consuming the area typically associated with larger leaded packages. That benefit becomes more pronounced when the surrounding design already includes differential input networks, clock conditioning, power regulation, and high-speed digital interfaces. In dense layouts, reducing package area often creates enough room to preserve controlled impedance routing and proper supply partitioning, which matters more than nominal board area reduction alone.

The exposed pad is one of the most important package features. Thermally, it provides the primary low-resistance path from die to board. Electrically, it serves as a low-inductance reference connection that helps stabilize the local ground environment. Those two roles are tightly coupled. When the pad is well tied into a solid ground structure through an appropriate via array, junction temperature is better controlled and ground impedance is reduced at high frequency. When this connection is weak, two problems often appear together: elevated thermal stress and degraded noise behavior. For converters in this performance class, those failures rarely announce themselves as obvious functional faults. More often they show up as subtle SNR loss, increased spurious content, clock sensitivity, or unexplained channel-to-channel variation.

The specified operating range of -40°C to 85°C places the device in the industrial temperature class. That range is broad enough for outdoor radio units, factory instrumentation, distributed acquisition nodes, and embedded control platforms exposed to variable ambient conditions. It also implies that deployment planning must consider temperature not only as a reliability variable but as a signal-integrity variable. Converter offset, gain drift, clock buffer behavior, reference stability, and input network characteristics all move with temperature. A design that looks clean at room temperature can show measurable degradation near thermal extremes if passive tolerances, power rail noise, or clock margins were optimized too narrowly. In this category of ADC, temperature qualification should include dynamic measurements, not just power-up verification and static code checks.

The moisture sensitivity classification of MSL 3 with 168-hour floor life has direct implications for assembly flow control. Once the package is removed from controlled dry storage, the allowed exposure time before reflow is limited. This is a routine manufacturing constraint, but it becomes more critical for VQFN packages because solder joint quality under the body and beneath the exposed pad cannot be inspected as easily as with leaded packages. If floor life control is loose, moisture-related reflow damage can create latent defects rather than immediate hard failures. For production environments, that means bake procedures, reel handling discipline, and reflow timing should be treated as process controls rather than documentation formalities. In low-volume prototype builds, this point is often underestimated, and the resulting failures are frequently misdiagnosed as board-level signal issues.

RoHS compliance and REACH-unaffected status simplify material qualification for most modern deployment programs. Even so, environmental compliance should be viewed as one layer of deployment readiness, not the final one. In mixed-signal hardware, long-term field robustness depends at least as much on solder integrity, board warpage control, and thermal cycling behavior as it does on material declarations. Compact QFN devices are generally strong choices for automated assembly, but they are less forgiving of stencil errors, coplanarity issues, and uneven reflow profiles. Good compliance status helps procurement and certification workflows, while sound assembly engineering determines whether the installed device maintains performance over service life.

From a PCB perspective, the package demands disciplined partitioning of analog, clock, power, and digital paths. The ADS62P48 includes dual analog channels and can present substantial digital routing density, especially when LVDS outputs are enabled. In a small package, these interfaces converge into a concentrated breakout region, and that concentration can become the dominant board-level challenge. The most common mistake is to think of the package as compact and therefore easy. Electrically, compactness increases coupling risk. The shorter physical distances between input pins, clock pins, supply pins, and output pins mean the board must enforce isolation where the package no longer provides much geometric separation.

The analog input routing should be treated first. Differential inputs need length symmetry, stable return referencing, and minimal discontinuity between the front-end network and the ADC pins. The objective is not aesthetic symmetry but equal electrical environment. Small asymmetries in pad fanout, reference plane openings, or anti-pad geometry can convert common-mode disturbances into differential error. At moderate frequencies this may appear tolerable, but as input frequency rises the penalty often emerges as harmonic growth and reduced SFDR. In practice, keeping the input path short, matched, and free from nearby digital transitions usually provides more benefit than aggressive matching of every passive value around the channel.

Clock routing deserves even stricter attention. For high-speed converters, clock quality often limits achievable performance before the core ADC does. Differential clock traces should be tightly coupled, impedance-controlled, and isolated from output switching regions. The routing path should avoid stubs, unnecessary vias, and plane interruptions. More importantly, the clock source and its power supply should be considered part of the ADC subsystem rather than a separate utility block. A low-jitter oscillator can still produce disappointing conversion results if its return current path is forced through a noisy region near output drivers or if its supply filtering is shared with active digital logic. On dense boards, moving the clock source a few centimeters farther away but preserving a cleaner return structure often performs better than placing it very close with compromised isolation.

Grounding strategy around the exposed pad should be deliberate rather than generic. A solid low-impedance ground reference under the converter is usually preferable, but it must be paired with careful control of how digital return currents leave the package area. The real problem is not that analog and digital domains coexist; it is that poorly managed return paths force high-edge-rate currents through the analog reference region. A practical layout pattern is to keep the immediate ADC area tied to a continuous reference plane, then steer digital outputs quickly toward their destination layers and regions so that switching current loops remain compact and separate from sensitive analog paths. This approach is generally more effective than aggressive plane splitting under the converter, which often introduces impedance discontinuities and unexpected coupling.

Power delivery should be organized by function and frequency content. The ADC’s supply pins need local decoupling placed with minimal loop area, using a staged capacitor network that covers high-frequency edge currents and lower-frequency rail stability. It is rarely enough to satisfy nominal capacitance values. Placement geometry determines effectiveness. Small capacitors nearest the relevant pins, direct via access into the reference plane, and short paths back to the power source matter more than adding excessive component count. In boards where both channels perform differently despite identical schematics, the root cause is often asymmetry in decoupling placement or current return geometry rather than variation inside the converter itself.

Digital output escape routing can become dense quickly, especially with LVDS. Differential pair routing rules are necessary, but they are not sufficient. Pair-to-pair spacing, return continuity across layer transitions, and the position of receiving logic all affect whether output switching injects noise back into the converter region. One useful design habit is to treat the first few centimeters outside the ADC as a protected breakout zone. During this segment, the priority is controlled departure from the package with minimal interaction with analog or clock paths. Once the outputs enter a cleaner digital region, routing flexibility increases. This zoning approach usually reduces layout iteration time and avoids the common pattern of late-stage rework around the converter footprint.

Thermal behavior should be evaluated at both steady-state and workload-driven extremes. Although the package is compact, thermal margin depends strongly on board copper, airflow, nearby heat sources, and output activity. In many systems, the ADC is not the hottest component, but it can still be thermally influenced by adjacent FPGA, DSP, or power stages. When the converter is placed too close to these devices without a clear thermal path into the board, the local ambient around the package may exceed assumptions even if the global enclosure temperature remains within limits. A design that uses the exposed pad properly and provides enough copper spreading area often gains both thermal headroom and a cleaner electrical reference, which is one reason compact QFN packages reward integrated thermal-electrical thinking.

For deployment in multichannel systems, channel proximity introduces another layer of consideration. The dual-channel architecture is efficient, but it raises sensitivity to crosstalk through shared supplies, reference structures, and neighboring routing. Good isolation is achieved less by physical distance alone and more by preserving symmetry and current containment. If one channel consistently measures better than the other, the package is rarely the root cause by itself. More often the issue comes from unequal breakout topology, unequal input filtering placement, or a clock path that favors one side electrically even when the traces look similar in CAD.

In field-oriented designs, the most reliable implementation strategy is to validate the package and layout together as one electromechanical system. X-ray inspection of first articles, thermal imaging under active conversion, and dynamic ADC testing across temperature usually reveal issues earlier than schematic review alone. That is especially true with VQFN devices, where solder voiding beneath the exposed pad, minor assembly drift, or local routing compromises can have measurable but non-obvious impact. Experience shows that once the converter is placed, the surrounding centimeter of layout determines a disproportionate share of final performance. For the ADS62P48, the package is compact and production-friendly, but it is not passive packaging. It is an active part of the signal chain, and treating it that way is what allows the device to deliver its rated capability in a deployed system.

Texas Instruments ADS62P48 Application Scenarios and Engineering Selection Insights

Texas Instruments ADS62P48 fits a specific class of signal-chain problems: dual-channel, simultaneous-sampling acquisition where bandwidth is wide enough to stress lower-speed converters, but system cost, power, and digital interface complexity still matter. Its position is not simply “a 14-bit, 210-MSPS ADC.” In practice, it is better understood as a balanced front-end component for receivers and instrumentation paths that need enough sampling speed for modern IF placement, enough dynamic range for crowded spectra, and enough channel consistency to avoid excessive correction in the FPGA.

At the architectural level, the value of the ADS62P48 comes from the combination of three properties that are often difficult to obtain together in a compact device: two channels sampled at the same instant, 14-bit quantization depth, and a sampling rate high enough to support wideband digitization strategies. This matters because many real systems no longer rely on narrow analog channel selection ahead of conversion. They move more selectivity, channel separation, and impairment correction into the digital domain. Once that shift is made, the ADC is no longer only a data converter. It becomes the boundary that determines how much spectral content can be captured, how much blocker energy can be tolerated, and how much correction downstream logic must absorb.

In wideband communications equipment, this converter is well matched to dual-channel IF sampling stages. A common receiver implementation places one or two intermediate-frequency bands in a region that balances analog filtering difficulty against clocking and digital processing cost. The ADS62P48’s 210-MSPS sampling rate gives useful room for such placement, while the 700-MHz analog input bandwidth prevents the front end from becoming overly constrained by the converter itself. That analog bandwidth does not mean every design should push the IF upward aggressively. It means the converter will not be the first limitation when selecting a practical IF plan, especially in superheterodyne or undersampling-assisted architectures where image management, anti-alias filtering, and LO planning must all coexist.

The 14-bit resolution is equally important, but its practical value is often misunderstood. In communications receivers, the main issue is rarely just thermal noise. The more serious problem is usually signal coexistence: desired channels, adjacent carriers, blockers, and crest-factor-heavy modulation all arriving together. In that environment, nominal resolution only becomes useful if the converter also maintains enough linearity and dynamic behavior to keep strong signals from corrupting weaker ones through distortion products or clipping. This is where the ADS62P48 serves well as a middle-ground device. It is not aimed at the extreme end of GSPS-class direct-RF digitization, but it provides enough dynamic headroom for many IF-stage designs where blocker tolerance and digital filtering gain must be traded carefully.

A practical receiver example is a dual-channel observation path used in diversity reception, phase-coherent analysis, or parallel monitoring of I/Q-related signal branches. Simultaneous sampling matters here because timing skew between channels immediately turns into phase error, amplitude mismatch, or degraded spatial processing. When separate single-channel ADCs are combined to achieve dual-channel capture, matching can become a recurring source of engineering drag. Small differences in gain, offset, aperture behavior, or clock routing can consume calibration budget and verification time. A dual simultaneous-sampling converter with a shared internal reference structure reduces that burden materially. The benefit is not only better datasheet alignment. It is simpler bring-up, fewer compensation coefficients, and more stable behavior across board builds and temperature corners.

This same characteristic makes the ADS62P48 attractive for measurement and observation equipment. In dual-channel digitizers, oscillographic capture, power analysis, and correlated sensing paths, synchronous acquisition is often more important than absolute peak sample rate. When both channels see related events, correlation quality depends on deterministic timing and predictable channel matching. In these cases, within-device gain matching is not just a convenience. It directly improves cross-channel confidence and lowers the amount of post-processing needed to separate true signal behavior from front-end mismatch. Designs using two independent converters can certainly achieve good results, but they typically demand tighter analog layout discipline, more characterization effort, and more sophisticated production calibration.

From an implementation perspective, the LVDS output interface remains a practical advantage. For FPGA-connected systems, LVDS provides a mature and well-understood handoff between the converter and downstream logic. It is fast enough for this performance class while avoiding the integration overhead that often accompanies higher-speed serialized interfaces. This simplifies timing closure, board routing, and debug. In many projects, the ADC itself is not the hard part; deterministic data capture into the FPGA is. A parallel LVDS-style interface keeps visibility high during integration, which usually shortens the path from first samples to stable channelization, decimation, or spectral analysis firmware.

Clock quality deserves explicit attention because it strongly shapes how much of the ADS62P48’s nominal performance is actually realized. In a 14-bit, 210-MSPS design, aperture uncertainty and phase noise are not secondary details. They are often the mechanism that collapses SNR when the input frequency rises. A clean sample clock, low additive jitter in clock distribution, and disciplined power isolation around the clock tree will often yield more real performance improvement than minor refinements elsewhere in the analog front end. In practice, many disappointing ADC results trace back not to the converter, but to clock routing, ground return discontinuities, or underestimating the spectral impurity of the synthesizer driving the sampling clock.

Input network design also deserves careful engineering. A converter with broad analog input bandwidth gives freedom, but not immunity from front-end mistakes. Transformer selection, balun behavior across frequency, common-mode management, anti-alias filtering, and source impedance all affect SFDR and amplitude flatness. In wideband IF designs, a common failure mode is treating the ADC input like a generic termination point rather than a frequency-sensitive analog interface. That approach may still pass low-frequency lab tests while degrading noticeably in deployed bandwidth corners. A more reliable method is to design the input path as a coupled system: signal source, filter, matching network, and ADC input all optimized together around the intended IF span and blocker profile.

Power and thermal decisions should also be viewed at the system level rather than as isolated datasheet values. Choosing the ADS62P48 instead of a faster family member such as the ADS62P49 is not only about reducing converter power. It often enables lower clock-tree demands, lighter FPGA input timing stress, and less board-level thermal concentration. If the application truly does not need 250 MSPS, using the slower part tends to produce a cleaner and more robust implementation. This is one of the more underappreciated selection principles in mixed-signal design: excess speed rarely comes for free, and in many cases it quietly expands complexity in every adjacent subsystem.

Within the product family, the ADS62P48 occupies a useful selection point. For designs that need 14-bit depth but do not require the top sample rate of the family, it offers a sensible balance of performance margin and implementation cost. If analysis shows that ENOB, adjacent-channel conditions, and digital gain staging can tolerate lower nominal resolution, the ADS62P28 becomes a credible alternative at the same 210-MSPS rate. That substitution can reduce power or procurement pressure while preserving board architecture. This family continuity is valuable in platform-based development, where a single PCB may support multiple market variants. It allows one hardware framework to scale across product tiers with limited redesign, which is often more important commercially than extracting the absolute maximum performance from a single SKU.

For procurement and lifecycle planning, the family alignment helps in another way. Keeping multiple pin- and performance-related options within the same qualification path reduces sourcing friction when demand shifts or specifications change late in the program. In practice, programs often begin with conservative converter choices, then move downward after measured system margins are understood. A family such as ADS62Pxx supports that optimization path. It allows overdesign risk to be retired with relatively low requalification cost, provided the board, clocking, and FPGA interface were planned with that flexibility in mind from the start.

The strongest reason to select the ADS62P48 is not that it leads any single headline metric. It is that it minimizes compromise across several interacting requirements: dual-channel coherence, meaningful 14-bit dynamic behavior, practical IF flexibility, and straightforward digital integration. That combination is often more valuable than chasing a higher sample-rate number. In receiver and observation designs, the converter that wins is usually the one that preserves system margin while staying easy to integrate, characterize, and manufacture. The ADS62P48 sits in that category. It is a part chosen not for spectacle, but for disciplined engineering balance.

Texas Instruments ADS62P48 Potential Equivalent/Replacement Models

Texas Instruments ADS62P48 sits in a well-structured high-speed ADC family, which makes replacement analysis more straightforward than in many mixed-signal product lines. The most relevant potential substitutes inside the same TI family are ADS62P49, ADS62P28, and ADS62P29. Each aligns with a different substitution priority: preserving resolution while increasing sample rate, preserving sample rate while relaxing resolution, or trading resolution for higher throughput.

The ADS62P48 itself is a dual-channel, 14-bit, 210-MSPS converter. That baseline matters because most replacement decisions in this class are not driven by a single headline parameter. In practice, converter migration is usually constrained by the interaction between ENOB-class performance, clocking margin, thermal budget, and downstream digital capture limits. A candidate may appear equivalent on paper but still shift system behavior in subtle ways, especially in IF sampling chains, multi-channel synchronization designs, or FPGA interfaces operating near timing margins.

Among the available options, ADS62P49 is the most direct upward replacement when 14-bit resolution must be maintained. It extends the maximum sampling rate from 210 MSPS to 250 MSPS, which gives extra headroom in systems where anti-alias filter placement, intermediate-frequency planning, or oversampling ratio is becoming tight. That additional speed can be valuable even when the design does not continuously run at 250 MSPS, because it reduces the risk of operating at the top edge of the converter’s specified range. The main cost is higher analog power: typical analog power increases from 0.92 W in ADS62P48 to about 1.01 W in ADS62P49. That difference is modest at component level, but on dense receive boards it can affect local temperature rise, airflow margin, and power rail noise coupling. In tightly packed layouts, even a small power increase can shift offset drift or degrade long-term gain stability if thermal spreading is already limited.

ADS62P28 is the closest same-speed alternative when the system can move from 14 bits to 12 bits without compromising the signal chain objective. It retains the 210-MSPS maximum sample rate and dual-channel architecture, so it fits cases where the capture bandwidth and board timing must remain essentially unchanged. The reduction in resolution moves the device into a different performance class, mainly visible through lower SINAD and reduced dynamic range margin. That trade is often acceptable in communication systems where the front-end noise figure, not converter quantization, dominates overall performance. It can also be reasonable in architectures where digital post-processing, averaging, or channel filtering already limits the practical benefit of the extra two bits. The typical analog power remains at 0.92 W, matching ADS62P48, so thermal and power-tree behavior stay close to the original design target.

ADS62P29 combines the two major shifts: it reduces resolution to 12 bits and increases maximum sample rate to 250 MSPS. This makes it the natural choice when throughput matters more than absolute converter precision. It is particularly relevant in systems that prioritize wider instantaneous bandwidth, relaxed analog filtering, or higher-frequency undersampling strategies over maximum dynamic range. Typical analog power is about 1 W, placing it near ADS62P49 from a thermal planning perspective. From an engineering standpoint, ADS62P29 is often not just a “lower-resolution version” of ADS62P49. It can be the more balanced option when the digital backend benefits from higher sample rate, but the analog front end or application-level SNR budget does not justify staying in the 14-bit class.

Texas Instruments also references ADS62C17 as a nearby lower-resolution family option. It should not be treated as a direct ADS62P48 replacement based on the available information. Its relevance is more strategic than literal: it signals that TI offers adjacent migration paths for designs willing to step further away from the original 14-bit dual-channel performance target. That kind of family adjacency can matter during cost-down phases or when a platform is being split into premium and standard variants using a common board concept.

A useful way to evaluate replacement candidates is to work from the converter decision stack rather than from part-number proximity. The first layer is resolution requirement. If system-level SFDR, SINAD, or small-signal sensitivity depends on 14-bit-class behavior, ADS62P49 is the only clear family-side upgrade path among the listed options. If analysis shows the effective number of usable bits is already limited by front-end noise, LO phase noise, or clock jitter, then ADS62P28 or ADS62P29 may deliver equivalent application-level results with fewer constraints.

The second layer is sample-rate requirement. If 210 MSPS already places the design close to aliasing boundaries, DSP decimation limits, or desired channel bandwidth edge, the 250-MSPS options create useful operating margin. This margin is often more valuable than it first appears. In real designs, nominal sample rate is tied to clock source availability, FPGA PLL ratios, JESD or parallel data capture timing, and sometimes software assumptions. A faster ADC can solve one bottleneck while exposing another. That is why sample-rate upgrades should be checked not only against analog requirements but also against bit-clock generation, lane timing, and memory throughput.

The third layer is power dissipation. The absolute power delta between these devices is not dramatic, but converter replacement rarely happens in isolation. A board designed around ADS62P48 may already have local regulators sized with limited overhead, or may place the ADC near clocking and analog gain stages sensitive to temperature. In those cases, moving to ADS62P49 or ADS62P29 can require more than a spreadsheet-level power check. Rail transient behavior, package temperature under worst-case ambient, and heat coupling into neighboring references or amplifiers deserve verification. Experience shows that “small” ADC power increases can become system issues when airflow assumptions were optimistic in the original design.

The fourth layer is output interface compatibility. This is often the hidden gating factor. Even when resolution and speed look acceptable, interface timing, word width, lane mapping, output clocking, and FPGA deserializer constraints can determine whether a substitution is easy or disruptive. A lower-resolution device may simplify some digital paths, but it can also affect framing assumptions, bit alignment logic, or calibration coefficients. Likewise, a higher-speed part may still fit electrically while pushing setup/hold margin outside what the existing capture logic comfortably supports. In families like ADS62Px9/x8, the product segmentation is disciplined enough that substitutions are easier to reason about, but that should not be mistaken for zero integration risk.

From a system design perspective, the best replacement is usually the one that preserves the dominant constraint of the original architecture. If the design was fundamentally built around 14-bit linearity and dynamic range, ADS62P49 is the logical extension. If the design was actually bandwidth-limited and the extra bits were never fully exploited, ADS62P29 may be the more efficient engineering choice. If the existing board, firmware, and timing closure are tuned around 210 MSPS, ADS62P28 offers the least disruptive way to relax converter cost or complexity while maintaining platform stability. The important point is that ADC substitution should be based on effective system performance, not nominal specification symmetry. In high-speed data acquisition chains, the converter is only one contributor to signal fidelity, and replacement success depends on how well the new part fits the full signal, clock, thermal, and digital context.

Conclusion

The Texas Instruments ADS62P48 is a dual-channel, 14-bit, 210-MSPS pipelined ADC positioned for wideband communications, multichannel receiver chains, and other simultaneous-sampling systems that require a disciplined balance between sampling rate, dynamic performance, integration flexibility, and power. Its value is not defined by raw speed alone. The stronger engineering case is that it packages several system-level controls around the core converter: dual simultaneous channels, support for internal or external reference drive, programmable gain, digital offset correction, and selectable DDR LVDS or parallel CMOS outputs. That combination reduces the amount of compensation, adaptation, and interface glue logic that would otherwise migrate into the surrounding board design or FPGA fabric.

At the architecture level, the ADS62P48 belongs to the class of pipelined converters that remain attractive when designers need more bandwidth than precision SAR devices can typically sustain, but do not want to move into the much higher power and greater digital correction burden often associated with GSPS-class devices. A 14-bit, 210-MSPS operating point sits in a practical middle region. It is fast enough to support direct or near-direct sampling strategies in many IF and undersampling front ends, while still retaining enough resolution to preserve useful dynamic range in dense spectral environments. In practice, this makes the device well aligned with receiver paths where blocker tolerance, channelization margin, and downstream digital filtering all depend on maintaining a clean balance between noise floor, linearity, and clock quality.

The simultaneous-sampling dual-channel structure is one of its more important attributes. In systems that perform I/Q capture, phase comparison, beamforming, diversity reception, or dual-sensor correlation, deterministic timing between channels matters as much as standalone ENOB. Separate converters can achieve similar nominal resolution, but once channel-to-channel aperture alignment, reference consistency, and digital output timing are considered, integration complexity rises quickly. A monolithic dual ADC reduces that burden. It does not eliminate board-level matching requirements, but it shortens the list of variables that need active calibration. That distinction becomes meaningful during late-stage validation, when many performance issues turn out to be timing and symmetry problems rather than missing bits in the converter core.

The reference options also deserve more attention than they usually get in brief product summaries. Support for internal or external reference allows the converter to fit different optimization priorities. The internal reference simplifies implementation and is often sufficient when time-to-bring-up, component count, and board area dominate the design target. The external reference path is more relevant when full-scale range consistency, thermal drift behavior, or cross-channel gain alignment must be controlled more tightly across operating conditions. In high-speed data acquisition chains, reference stability is often treated as secondary compared with clock purity, yet it directly affects gain accuracy and long-term repeatability. Designs that look solid in lab conditions can drift more than expected in environmental testing if the reference strategy was chosen only for convenience.

Programmable gain and DC offset correction extend the usefulness of the part beyond a fixed front-end digitizer. These functions give the ADS62P48 some elasticity in systems where the analog chain cannot be perfectly normalized across all operating modes. Programmable gain helps recover dynamic range when the upstream signal level varies across standards, channels, or deployment conditions. Offset correction is especially useful in direct-conversion and low-IF architectures, where residual DC terms can consume headroom and interfere with digital post-processing. While these features are not substitutes for a well-designed analog front end, they reduce the need for excessive analog trimming and can simplify calibration flow in production. In many builds, that translates into less iteration on gain staging and fewer compensating adjustments in firmware.

The selectable output interface is another reason the device integrates cleanly into different generations of digital back ends. DDR LVDS is typically the preferred mode for higher-speed, lower-noise data transfer into FPGAs, especially where routing discipline and timing closure are already part of the design methodology. Parallel CMOS remains useful in systems that prioritize simpler logic capture, lower interface complexity at moderate speeds, or compatibility with existing processor and FPGA platforms. The significance here is not just electrical compatibility. Interface choice affects board stack-up, edge-rate containment, power integrity, EMI behavior, and capture timing margins. Having both options available allows the converter to serve both performance-driven and cost-constrained platforms without forcing a redesign of the digital side.

From a signal-chain perspective, the ADS62P48 is best understood as a converter that helps preserve architectural optionality. It can sit behind an amplifier-and-filter front end in a conventional IF receiver, or support undersampling arrangements where RF planning pushes more selectivity and image control into analog preprocessing. In either case, the practical performance ceiling will usually be set by three external factors: clock phase noise, front-end linearity, and input network implementation. This is where many otherwise capable converters are unfairly judged. If the sampling clock is noisy, SFDR and SNR collapse long before the ADC itself reaches its limits. If the drive amplifier introduces distortion or poor common-mode behavior, the converter appears nonlinear. If the input transformer or matching network is laid out with asymmetry, channel balance degrades and spurs emerge that look like converter defects. Experience with devices in this class repeatedly shows that the ADC is often the easiest part of the chain to specify and the hardest part to evaluate in isolation.

That is why the ADS62P48 makes the most sense in designs where the team is prepared to treat the clock path and analog drive path as first-class subsystems. A low-jitter clock tree, carefully selected differential driver or transformer interface, controlled impedance routing, and disciplined decoupling are not optional refinements. They are the conditions under which a 14-bit converter can behave like a 14-bit converter. In bench evaluation, one recurring pattern is that initial measurements often improve materially after relatively small physical changes: shortening the clock return path, tightening the symmetry of the analog inputs, isolating supply noise from the digital output region, or refining the output timing relationship into the FPGA. These are not exotic optimizations. They are the difference between nominal integration and extraction of actual converter performance.

For component selection, the ADS62P48 stands out because it occupies a clearly defined point within a structured converter family. As the 14-bit, 210-MSPS member of that lineup, it simplifies tradeoff analysis. Engineers can compare adjacent family devices not only by top-line speed and resolution, but by how much system redesign each alternative would trigger. That family continuity matters more than datasheet symmetry suggests. When a project is still negotiating bandwidth, thermal budget, FPGA I/O allocation, or channel count, migration within a coherent family reduces risk. It is easier to preserve PCB partitioning, software assumptions, and procurement flexibility when variant devices share a recognizable implementation model.

This also improves sourcing strategy. Relationship to devices such as ADS62P49, ADS62P28, and ADS62P29 provides practical fallback paths for performance tuning, lifecycle planning, or availability constraints. In real programs, converter choice is rarely frozen by technical merit alone. BOM resilience, second-pass optimization, and qualification timing all influence the final decision. A device family that supports adjacent options helps contain that uncertainty. It allows one design to be evaluated across multiple operating points without reopening the entire signal-chain architecture. That kind of substitutability is often undervalued early and becomes critical when schedules tighten.

A useful way to frame the ADS62P48 is not simply as a high-speed ADC, but as a converter intended for systems where analog fidelity and digital integration must remain balanced. Some devices win on one side and impose penalties on the other. This part is more disciplined. It offers enough performance for serious communications-oriented sampling tasks, while embedding enough configurability to reduce friction at the board and interface level. That balance is often the more durable advantage than a marginal improvement in a single headline metric.

When the design target is a compact, industrial-temperature, dual-channel converter with simultaneous sampling, strong wideband performance, and a manageable integration profile, the ADS62P48 is a well-bounded candidate. It fits especially well where the architecture benefits from synchronized channels, the platform may need interface flexibility, and the design team wants a clear path across related family variants. In that role, it is less a niche part than a stable engineering choice: fast enough to matter, configurable enough to integrate cleanly, and structured enough to support both technical optimization and procurement resilience.
