ADS1672IPAGR

Texas Instruments ADS1672 Product Overview

Texas Instruments ADS1672 is a 24-bit delta-sigma ADC built for measurement chains that need high resolution, high throughput, and predictable accuracy at the same time. Its operating point is unusual because many precision converters force a clear compromise between dc precision and usable signal bandwidth. ADS1672 reduces that tradeoff. It supports output data rates up to 625kSPS, while still delivering dynamic range around 107dB at the top rate and up to 115.5dB at 78.125kSPS. That makes it suitable for systems where both low-level signal visibility and fast signal capture matter, such as automated test equipment, vibration monitoring, sonar front ends, precision data acquisition, and broadband test instruments.

The architectural foundation is a high-order delta-sigma conversion path. In practical terms, this means the device oversamples the input and shapes quantization noise out of the signal band, then reconstructs the final output through digital filtering and decimation. This approach is well known for precision, but ADS1672 pushes it into a region where speed remains useful for real measurement workloads, not just for static specifications. That distinction matters. In many systems, a nominally high-resolution ADC becomes less valuable once settling time, filter delay, and front-end noise are included. ADS1672 is effective because its internal design aligns these factors instead of optimizing only one headline number.

One of the more important internal features is the chopper-stabilized modulator. Chopper techniques are used to suppress low-frequency offset and drift mechanisms that otherwise limit dc performance, especially in precision measurement chains exposed to thermal variation or long acquisition intervals. In bench conditions, offset can appear manageable, but once the converter is installed near power components, clock trees, or enclosed analog front ends, thermal gradients often become the real error source. A chopper-stabilized stage helps contain that behavior. The result is more stable low-level measurement performance without demanding excessive recalibration effort at the system level. In instrumentation design, that directly reduces software correction burden and simplifies long-term error budgeting.

The digital back end is another reason the device stands out. ADS1672 includes a programmable dual-path digital filter structure, which gives the designer two distinct operating styles from the same converter. One path is optimized for lower latency, which is valuable when control loops, event capture, or fast step-response analysis are involved. The other path is tuned for better frequency-domain behavior and wider usable bandwidth, which is more attractive in spectral analysis, modal testing, and acoustic or vibration measurements. This flexibility is more significant than it first appears. In many platforms, the converter selection is driven not only by signal amplitude resolution but by the shape of the measurement workflow. A latency-sensitive system and a frequency-analysis system usually pull the ADC specification in different directions. ADS1672 allows both behaviors to be addressed with one device family, which can simplify platform reuse across instrument variants.

From a signal-chain perspective, this means the converter can be positioned closer to the actual application objective. For example, in vibration analysis, preserving dynamic range across a wide band is critical because useful defect signatures may be small and spread over frequency. In automated test equipment, deterministic behavior and good dc accuracy often matter just as much as raw throughput because measurement integrity must remain stable across channels, ranges, and thermal conditions. In sonar and acoustic systems, the ability to capture weak signals in the presence of stronger adjacent components benefits from strong dynamic range and careful filter behavior. The ADS1672 addresses these different requirements through architecture rather than through a narrow single-mode optimization.

Out-of-range detection is another practical feature that deserves more attention than it usually gets in short product summaries. In real systems, overrange events are not rare edge cases. They happen during startup, transducer faults, gain-switch transitions, cable hot-plug conditions, or unexpected mechanical shock in sensor systems. When the ADC can explicitly report that the input has exceeded its expected range, fault handling becomes cleaner and faster. This is useful not only for protection logic but also for data validity management. Instead of post-processing corrupted samples and trying to infer whether clipping occurred, the system can tag suspect intervals immediately. That improves reliability in logging systems and reduces ambiguity in automated measurement software.

The converter’s value becomes clearer when viewed against the limits of alternative ADC types. A SAR ADC may offer lower latency and simpler digital behavior, but at this resolution and speed level the analog input driver, reference network, and board layout can become far more demanding if one also expects very high ac performance. A slower precision delta-sigma ADC may provide excellent dc behavior but may not leave enough bandwidth margin for broadband sensing or transient capture. ADS1672 occupies the middle ground where precision remains credible while throughput is high enough for serious dynamic measurements. That positioning is often more useful in practice than pursuing the absolute best number in a single category.

Board-level implementation strongly affects whether the published performance is actually achievable. At these dynamic range levels, the converter is only one part of the result. Reference quality, clock phase noise, input driver linearity, power-supply cleanliness, and return-path control all contribute. One recurring issue in mixed-signal layouts is underestimating how digital interface activity couples into the analog input or reference path. Even when the ADC itself is highly capable, excessive edge energy from nearby logic can raise the apparent noise floor or introduce repeatable spurs. A disciplined partition between analog and digital regions, short reference loops, solid local decoupling, and controlled clock routing usually matter more than adding complexity later in firmware. In high-resolution systems, layout is not a finishing step. It is part of the conversion architecture.

Input network design also deserves careful attention. A delta-sigma ADC with this level of bandwidth and precision benefits from a front end that is stable, low noise, and matched to the converter’s input behavior. Designers sometimes focus on the nominal source impedance and overlook settling behavior under fast signal changes or anti-alias filter interactions. In broadband systems, a poorly chosen driver amplifier can become the dominant distortion source long before the ADC itself is stressed. In lower-frequency precision systems, resistor thermal noise and reference buffer drift may become the limiting factors instead. The best results usually come from treating the analog front end, reference subsystem, and ADC as a coupled block rather than as separate components connected by schematic convenience.

The programmable nature of the digital filter also creates system-level opportunities. A single hardware platform can support different acquisition modes through firmware configuration. One mode can prioritize lower delay for monitoring or control, while another can prioritize spectral purity for diagnostics or calibration. This is especially useful in modular test equipment, where product differentiation often depends more on software-defined measurement behavior than on major hardware changes. Devices like ADS1672 support that strategy because they allow one board design to cover multiple measurement profiles with limited redesign risk.

In application terms, ADS1672 is best selected when the measurement objective cannot tolerate a simplistic speed-versus-resolution trade. It is well suited to systems that need to see weak signals accurately, maintain credible dc behavior over time, and still capture enough bandwidth to make dynamic analysis meaningful. The strongest aspect of the device is not any single specification in isolation. It is the way the modulator design, chopper stabilization, out-of-range signaling, and selectable digital filtering work together to make the converter adaptable without becoming generic. That balance is difficult to achieve and is exactly why the part remains relevant in demanding instrumentation and sensing platforms.

Texas Instruments ADS1672 Core Architecture and Operating Principle

Texas Instruments ADS1672 is built around a high-resolution delta-sigma conversion core optimized for precision dc and low-frequency ac measurement. Its behavior is best understood by looking at three layers together: the modulator that captures the analog signal, the digital filtering chain that reconstructs usable data, and the interface philosophy that favors hardware determinism over register-driven configurability. This combination makes the device particularly attractive in systems where repeatability, drift control, and timing predictability matter more than broad feature programmability.

At the conversion core, the ADS1672 uses a chopper-stabilized delta-sigma modulator. This detail is central, not incidental. In a conventional precision ADC, low-frequency offset and 1/f noise inside the front-end amplifier path often become the limiting error terms once averaging and digital filtering suppress broadband noise. Chopper stabilization addresses that mechanism directly by translating low-frequency offset and flicker components away from the signal band, where they can be filtered more effectively. The practical result is improved dc stability over time and temperature, which is exactly why the device is suited to instrumentation, weigh scale, seismic, medical, and industrial sensing paths that cannot tolerate slow baseline movement.

The published drift figures give a good indication of that design intent. Offset drift of 2 µV/°C and gain drift of 2 ppm/°C are not just marketing numbers; they define how often the surrounding system must be recalibrated and how much thermal motion the measurement chain can absorb before error budgets are exceeded. In precision systems, drift usually dominates after initial calibration is complete. A converter with low drift reduces the need for aggressive field correction and often allows simpler calibration workflows. In practice, this tends to matter more than raw nominal resolution, because an unstable 24-bit path rarely delivers meaningful 24-bit measurement performance once the ambient temperature begins to move.

The differential input structure also reveals the intended application class. The ADS1672 provides one fully differential analog input channel, and the full-scale input is defined as ±VREF with the conversion quantity equal to AINP minus AINN. That means the reference voltage does more than set a scale factor; it directly establishes the allowable signal span and therefore the achievable dynamic range in the real system. Any noise, drift, or impedance weakness on the reference path transfers into the measurement result. A common design mistake is to treat the reference as a static support node. In this class of converter, the reference should be treated almost like a second analog input, with equal attention to noise density, thermal drift, routing symmetry, and decoupling.

The common-mode requirement is equally important. The differential input is centered around a 2.5 V common-mode level, so the ADC expects a deliberately biased signal path rather than an arbitrary floating differential source. This is one of the clearest signals that the device is meant to sit behind a properly engineered analog front end. Sensor outputs, bridge interfaces, transimpedance stages, and anti-alias driver amplifiers must all deliver not only the correct differential amplitude, but also the correct common-mode operating point across process, supply, and temperature variation. If that condition is not maintained, linearity and overload behavior can degrade well before the nominal differential full-scale range is reached.

This requirement has direct implications for front-end design. A differential amplifier or fully differential driver is often the cleanest way to feed the ADS1672, especially when the source signal is small, remotely located, or exposed to common-mode interference. The driver stage must settle cleanly, preserve phase symmetry, and avoid injecting excess low-frequency noise that would nullify the converter’s own drift performance. In lower-bandwidth precision systems, passive level shifting and filtering can work well, but only if resistor matching, source impedance balance, and bias current effects are controlled. Small asymmetries at the input often show up as common-mode to differential conversion, and that error tends to become visible only after the rest of the design is already quiet enough to expose it.

Another useful way to view the ADS1672 is as a converter that rewards analog discipline. Because the input is differential and the architecture is delta-sigma, many assume the device is naturally forgiving. It is forgiving in some areas, especially against high-frequency quantization artifacts thanks to oversampling and digital filtering. It is much less forgiving with respect to reference integrity, common-mode placement, input source balance, and grounding strategy. Layout quality strongly influences whether the converter performs like a precision instrument component or merely like a high-resolution part on paper.

The hardware control model is another defining characteristic. Instead of relying on a register map, the ADS1672 is configured through dedicated pins. This changes how the device fits into a system. Pin-based control removes software initialization sequences, register verification steps, and bus transaction timing uncertainties. For systems that need repeatable startup behavior or deterministic acquisition timing, that is a real architectural advantage. Conversion mode, interface behavior, and operational state are visible directly in hardware, which simplifies validation and often shortens bring-up time.

This approach becomes especially valuable when the ADC must align with external events. In motor control instrumentation, pulsed excitation measurement, multiplexed sensor scanning, or synchronized test equipment, timing errors of only a few sample periods can complicate reconstruction or calibration. Hardware pin control allows those relationships to be enforced at the board level with minimal firmware dependency. The result is not just lower software complexity, but tighter timing closure across the whole signal chain. That distinction matters in mixed-signal systems, where uncertainty often comes less from nominal converter latency and more from control-path jitter introduced by layered software abstractions.

There is also a system reliability benefit in this design choice. Registerless devices eliminate an entire class of silent configuration faults caused by partial writes, startup race conditions, or unexpected reset states during brownout and watchdog recovery. In platforms exposed to electrical noise or complex power sequencing, a hardware-defined operating state can be easier to audit and protect. That does not make the design simpler in every dimension, since more planning is required up front at the schematic level, but it often makes the final behavior more transparent and easier to debug.

From an application standpoint, the ADS1672 is strongest where one channel of very stable, very predictable conversion is more valuable than dense multichannel integration. It fits precision data acquisition modules, metrology instruments, bridge and strain measurement, industrial analyzers, and similar systems where the analog path is carefully controlled and software overhead is not allowed to obscure timing or measurement integrity. It is less suited to designs that need flexible runtime reconfiguration, internal multiplexing, or loosely conditioned sensor inputs. In other words, this is a part for deliberate architectures, not opportunistic hookups.

A practical implementation usually succeeds or fails on a few recurring details. The first is reference routing. Keeping the reference source low-noise and close to the ADC, with tight local decoupling and minimal shared return current, often produces a larger performance gain than further refinement of the digital interface. The second is input symmetry. Matching the impedance seen by AINP and AINN helps preserve common-mode rejection and reduces distortion from parasitic imbalance. The third is thermal consistency. Precision drift specifications are meaningful only if local heat gradients are controlled; placing hot digital devices, isolated dc-dc converters, or clock sources too close to the ADC or reference often creates measurement movement that looks mysterious until thermal coupling is examined.

Experience with this class of converter also suggests that startup and transient behavior deserve explicit validation. Delta-sigma ADCs with internal digital filtering can show settling characteristics that are entirely correct by design but still problematic in systems that switch channels externally, gate sensor excitation, or expect immediately valid data after a mode change. Even when the static specifications are excellent, the surrounding system has to respect filter settling time, reference warm-up, and driver recovery. Stable precision is usually a result of temporal discipline as much as component accuracy.

The deeper value of the ADS1672 lies in its balance. The chopper-stabilized delta-sigma core provides the low-drift foundation. The differential architecture enforces clean analog signaling practices. The hardware-driven control model preserves deterministic operation. Taken together, these choices indicate a converter designed for measurement chains where predictability is part of accuracy. That is the key point: in precision systems, uncertainty in timing, bias conditions, thermal behavior, and reference quality often degrades results faster than quantization noise does. The ADS1672 is effective because its architecture pushes the design toward controlling exactly those variables.

Texas Instruments ADS1672 Performance Highlights for Precision Measurement

Texas Instruments ADS1672 is positioned for measurement chains that need both high dynamic fidelity and useful throughput. Its value is not just the headline 24-bit output word. The more meaningful point is that it preserves low noise, good linearity, and stable conversion behavior across operating modes that are fast enough for real instrumentation. For selection work, the parameters that matter most are dynamic range, SNR, THD, SFDR, INL, and monotonicity, because these together determine whether the converter can represent small signals accurately while remaining trustworthy near larger signal levels.

At the dynamic level, the ADS1672 shows a strong balance between speed and noise. It delivers 107 dB typical dynamic range at 625 kSPS in wide-bandwidth mode and 115.5 dB typical dynamic range at 78.125 kSPS in the same mode. This scaling is important. It reflects the expected tradeoff in a precision delta-sigma architecture: when output data rate decreases, in-band noise is pushed down through oversampling and digital filtering, which improves effective measurement floor. In practice, this means the same device can be tuned for either faster transient-aware capture or lower-noise steady-state acquisition, without moving to a different converter family.

SNR performance further clarifies its usable ac precision. The ADS1672 reaches up to 103 dB SNR at a 10 kHz input and 625 kSPS, depending on signal level. This places it in a range where low-amplitude spectral components can remain visible even in the presence of a relatively large fundamental tone. In vibration analysis, modal testing, or excitation-response measurements, that matters more than nominal resolution alone. A 24-bit converter with weak noise behavior rarely delivers meaningful low-level information. Here, the noise floor is low enough to support real extraction of small components, provided the front-end, clock, and grounding strategy are built to the same standard.

Harmonic performance is another strong point. THD as low as -113 dB at 10 kHz and -6 dBFS indicates that the converter introduces very little harmonic distortion when driven close to full scale. That is especially relevant in systems where amplitude accuracy and spectral purity must coexist. If the converter itself creates distortion products, it becomes difficult to distinguish sensor nonlinearity, analog front-end artifacts, and actual signal content. Low THD reduces that ambiguity. The stated SFDR of -120 dB, with signal harmonics excluded, adds another useful dimension. It implies a clean spurious environment beyond the main harmonic set, which is often what limits narrowband detection of weak interferers or sideband components in mixed-signal test platforms.

For dc and low-frequency precision work, the linearity specifications are equally important. The ADS1672 provides monotonic differential nonlinearity and 3 ppm typical INL at 25°C over an input range of ±0.5 dBFS. Monotonic behavior is not just a specification checkbox. It guarantees that the transfer function does not reverse direction locally, which is essential in closed-loop control, calibration equipment, and precision servo measurements where code progression must track input progression predictably. The 3 ppm typical INL figure indicates a very small deviation from an ideal transfer curve, which supports accurate amplitude reconstruction without requiring aggressive digital correction.

Offset and gain terms define another part of the real error budget. Offset error is specified from -2 mV to 2 mV, and gain error is 1% typical, 2% maximum at 25°C. These numbers are not unusually tight compared with the converter’s noise and linearity metrics, but that is not a contradiction. In many precision systems, offset and gain are the easiest errors to calibrate out, while noise, distortion, and nonlinearity are much harder to repair after digitization. This is why the ADS1672 is often more attractive than converters with superficially better static gain accuracy but weaker spectral purity. A simple two-point calibration can remove much of the static transfer error, but no practical calibration can recover information lost to converter-generated noise or distortion.

The architecture behind these results is what makes the part useful across application classes. A high-resolution delta-sigma converter shapes quantization noise out of band and relies on digital filtering to recover a low-noise in-band signal. That mechanism gives the ADS1672 an advantage in instrumentation environments where wide instantaneous bandwidth is helpful but raw pipeline-type converter noise is too high. It also explains why system bandwidth planning matters. The converter can produce excellent numbers, but only if the analog anti-alias path, input driver settling, reference stability, and decoupling network do not inject broadband noise or modulation into the signal path.

In practical board-level use, the reference and clock paths usually determine whether the measured result approaches the datasheet. A converter with 100 dB-plus SNR will expose phase noise, reference ripple, and layout-induced coupling very quickly. In dynamic testing setups, one recurring issue is that the clock source is treated as a digital utility rather than an analog performance element. That assumption tends to degrade FFT results long before the ADC core reaches its own limit. The same applies to the reference network. If the reference has excess broadband noise or poor local bypassing, the apparent noise floor rises and low-level spectral structure becomes unstable. The ADS1672 rewards disciplined implementation because its intrinsic performance is high enough that surrounding errors are no longer hidden.

Its dc behavior also benefits from careful signal conditioning. With a typical INL of 3 ppm and monotonic DNL, the converter can support precision amplitude measurements, but only if the input stage preserves source integrity over the selected range. Leakage, thermal gradients, resistor self-heating, and common-mode contamination can easily dominate the converter’s own static error in slow measurement systems. In bridge sensing, laboratory instrumentation, or source-measure subsystems, a clean layout with matched passive networks and stable front-end biasing often contributes more to final accuracy than chasing marginal improvements in nominal ADC resolution.

The device is therefore well suited to two broad classes of use. The first is spectral and dynamic analysis, where the combination of 625 kSPS throughput, high dynamic range, low THD, and clean spur behavior enables capture of vibration signatures, audio-band or ultrasonic excitation content, and dynamic test waveforms with enough margin for meaningful frequency-domain analysis. The second is precision amplitude measurement, where monotonic transfer behavior, low INL, and low in-band noise support accurate low-frequency or quasi-static digitization. That dual capability is not common. Many converters are optimized for either ac purity or dc precision. The ADS1672 is more useful because it reaches a practical midpoint without forcing an immediate tradeoff.

A useful way to evaluate this device is not to ask whether it is a “24-bit ADC,” but whether its error mechanisms match the dominant failure modes of the target system. If the application depends on extracting weak components near larger tones, THD and SFDR matter more than nominal code width. If the task is precision level measurement over temperature and time, INL, monotonicity, offset drift, reference behavior, and calibration strategy matter more than peak sample rate. In that sense, the ADS1672 is best seen as a converter for systems where measurement credibility matters across both time-domain and frequency-domain views.

That makes it a strong candidate for vibration monitoring nodes, dynamic stimulus evaluation, precision instrumentation digitizers, and mixed ac/dc metrology channels. It can capture low-level signatures without immediately giving up throughput, and it can support accurate amplitude reconstruction without forcing the design into a slow, purely dc converter class. When implemented with a quiet reference, a low-jitter clock, and a front end designed to match its range and bandwidth, it delivers the kind of balanced performance that shortens the gap between datasheet potential and deployed measurement quality.

Texas Instruments ADS1672 Digital Filter Paths and Their Application Value

Texas Instruments ADS1672 uses a dual digital-filter architecture that is more than a datasheet checkbox. It is a system-level design lever that changes signal fidelity, timing behavior, channel throughput, and firmware complexity. For that reason, filter-path selection should not be treated as a late optimization. It belongs in the earliest stage of converter evaluation, alongside input range, clocking, reference design, and interface bandwidth.

At a functional level, the ADS1672 exposes two distinct operating personalities. One path is tuned for frequency-domain integrity and wide usable bandwidth. The other is tuned for short settling time and rapid response to input transitions. These two goals are often in direct conflict in delta-sigma conversion chains, because the digital decimation filter that improves out-of-band rejection and passband flatness also increases latency and extends impulse response. TI effectively surfaces that tradeoff in hardware, allowing the same converter to serve either measurement-centric or control-centric acquisition tasks with minimal platform change.

The wide-bandwidth path is the stronger choice when the signal itself is the object of analysis. Its specified bandwidth of 305kHz, passband extension to 0.424fDATA, ripple of only ±0.0001dB, and 86dB stop-band attenuation indicate a filter designed to preserve amplitude accuracy across a broad frequency span while suppressing decimation artifacts and out-of-band noise. Those numbers matter in practical terms. A flat passband with negligible ripple reduces amplitude error across swept or broadband content. Strong stop-band attenuation lowers the risk that unwanted spectral components fold back into the measurement result after decimation. A passband extending close to half the output data rate gives more usable spectrum before filter roll-off begins to distort the transfer function.

This is why the wide-bandwidth path fits applications such as vibration diagnostics, acoustic capture, sonar front ends, power-quality analysis, and laboratory instrumentation. In these systems, waveform shape and spectral distribution carry the useful information. Any excessive passband droop, ripple, or inconsistent phase behavior can bias FFT results, hide narrowband components, or complicate calibration. The ADS1672 wide-band path is clearly intended for these conditions. It behaves less like a generic precision readout chain and more like a measurement-grade front end where frequency response has been treated as a first-class parameter.

The tradeoff is latency. Group delay of 28 tDRDY is not excessive for a spectral measurement instrument, but it is very real in a time-sensitive system. In control loops, edge-correlated sampling, triggered acquisition, or event detection, that delay shifts the apparent time of the signal and elongates settling after a step change. This often becomes visible not in static accuracy tests, but during system integration. The converter appears numerically correct while still being temporally inconvenient. That distinction is easy to miss if filter selection is based only on ENOB or noise metrics.

The low-latency path addresses exactly that issue. Its value is not merely that it is faster, but that it shortens the temporal memory of the digital filter. The device can settle in one cycle, with the product description noting settling as fast as 5.5µs. In a multiplexed or rapidly changing signal environment, this is often the difference between a clean architecture and one that requires guard times, dummy conversions, or reduced channel scan rate. Once a system begins switching channels with significantly different amplitudes, the filter’s residual response from the previous sample history becomes a real throughput limiter. A low-latency mode suppresses that penalty at the converter level.

This behavior is especially important in instrumentation that shares one ADC across multiple sensors, programmable gain stages, or switched signal paths. A common integration issue appears when one channel carries a low-level sensor signal and the next carries a much larger calibration or excitation feedback signal. With a long-settling filter, the second channel can contaminate the first for multiple output periods, forcing conservative timing margins. Single-cycle settling removes much of that burden and simplifies deterministic scheduling. It also reduces the amount of compensation logic required in firmware, which is often where hidden system cost accumulates.

The low-latency path is also relevant in systems that are not traditionally described as multiplexed. Protection relays, motor diagnostics, pulse-based measurement, and threshold-triggered acquisition all encounter abrupt input changes. In these cases, the primary concern is not the ultimate flatness of the passband but the ability to trust the sample stream immediately after an event. A converter that settles quickly allows downstream logic to act on fresh data without waiting for a long filter tail to decay. That improves not only reaction time but also confidence in timestamp alignment between analog events and digital decisions.

FPATH provides the high-level selection between these two filter paths. LL_CONFIG further refines behavior in low-latency mode, selecting either single-cycle settling or fast-response operation. This hardware control is more valuable than it first appears. It enables product families built on a common board to differentiate by firmware strap options or configuration state rather than by ADC replacement. A measurement instrument variant can prioritize spectral quality, while a protection or scanning variant can prioritize response speed, all while preserving the analog front end, clock tree, and digital interface. That reduces validation effort and keeps the converter from becoming a hard partition line in the product architecture.

From an engineering standpoint, this configurability should be read as a signal that TI expects the ADS1672 to sit in mixed-priority systems, not just fixed-purpose instruments. The device does not force one interpretation of “precision.” It recognizes that precision may mean amplitude linearity over frequency in one design, and deterministic post-step validity in another. That is a useful distinction. In practice, many converter selection errors come from treating precision as a single scalar metric, when the actual design question is which error dimension matters most: spectral distortion, latency, settling residue, or implementation overhead.

A useful way to evaluate the two paths is to think in terms of filter memory and measurement intent. If the application needs to characterize a signal’s content, the wide-bandwidth path is usually the right default because it preserves the frequency-domain meaning of the data. If the application needs to react to a signal change, especially after switching or transients, the low-latency path is usually the correct baseline because it minimizes historical contamination from previous samples. This framing is often more actionable than simply comparing bandwidth and delay values in isolation.

Clocking and system timing should also be considered together with filter-path choice. Group delay expressed in tDRDY scales directly with output data rate, so the absolute delay budget depends on how the converter is clocked in the final design. A path that looks acceptable at one output rate can become problematic at another, especially when synchronized with FPGA pipelines, actuator timing, or communication slots. It is good practice to map the ADC delay into absolute microseconds and then place it on the same timeline as mux switching, interrupt handling, DMA framing, and control deadlines. That exercise usually makes the correct filter choice obvious.

Another practical point is calibration strategy. The wide-bandwidth path may reduce the need for frequency-response correction because its passband behavior is already highly controlled. The low-latency path may reduce the need for timing compensation because valid data arrives sooner after a transition. In either case, the right filter can shift complexity away from post-processing and into an intentional hardware mode selection. That is often the better trade, since digital correction added later tends to increase validation burden and create corner cases under nonideal signal conditions.

In test and validation, step-response measurement is often more revealing than steady-state noise plots when comparing the two paths. A clean sine-wave test confirms amplitude performance, but a step or channel-switch test exposes filter memory, residual settling, and the real cost of latency. Designs that appear equivalent in static characterization can diverge sharply once the input is no longer stationary. For the ADS1672, that is precisely where the distinction between wide-bandwidth and low-latency modes becomes operationally meaningful.

The central value of the ADS1672 dual filter paths is therefore not just flexibility. It is the ability to align converter behavior with signal semantics without redesigning the acquisition platform. One mode favors spectral purity, wide usable bandwidth, and measurement-grade passband control. The other favors immediacy, deterministic settling, and efficient handling of dynamic or switched inputs. In precision data acquisition, that tradeoff is unavoidable. What makes the ADS1672 notable is that the tradeoff is exposed cleanly, in hardware, and in a way that can be exploited directly at the system architecture level.

Texas Instruments ADS1672 Input, Reference, and Signal Chain Considerations

Texas Instruments ADS1672 is best treated as a precision signal-chain element rather than a standalone ADC. Its input behavior, reference dependency, and front-end requirements are tightly coupled, and the usable system performance is determined by how well those pieces are aligned. The device uses a differential analog input structure with a full-scale range of ±VREF, so the reference does more than define a nominal endpoint. It directly sets the conversion gain of the entire analog path. With a reference input range of 2.75V to 3.25V and a nominal target of 3.0V, VREFP carries the positive reference potential and VREFN is typically tied to analog ground. That arrangement appears simple, but in a high-resolution design it creates a strict requirement: any noise, drift, or impedance error on the reference path is translated into conversion uncertainty.

A useful way to view the ADS1672 is as a ratio-measuring engine. The converter reports the input signal relative to its reference, not relative to an abstract ideal voltage. This means reference design is inseparable from accuracy, linearity consistency, and low-frequency repeatability. A mediocre reference can make a good front end look unstable, while a strong reference network often unlocks performance that would otherwise be blamed on the ADC itself. In practice, a low-noise 3V reference with low temperature drift, low long-term aging, and low dynamic output impedance is the right starting point. Buffering may be needed if the selected reference does not maintain low impedance across the frequency band seen by the converter. Local decoupling at the reference pins is equally important. The objective is not just DC correctness, but a quiet and mechanically stable reference node under real conversion activity.

Layout around the reference pins deserves the same discipline normally reserved for sensitive analog inputs. Reference traces should be short, direct, and isolated from digital transitions, clock lines, and return-current bottlenecks. Shared impedance in the reference return path is a common source of unexplained noise and code spread. Even when the nominal reference voltage measures correctly on a multimeter, high-frequency contamination can still degrade effective resolution. Designs that place the reference source physically close to the converter and maintain a clean analog ground region tend to behave more predictably during both bench evaluation and field deployment. This becomes especially visible when the system is exposed to switching regulators, FPGA activity, or multiplexed sensor excitation nearby.

The input path requires equal care because the ADS1672 expects a differential signal centered around a 2.5V common-mode level. That requirement is not a minor biasing detail. It defines the operating point of the internal input structure and strongly influences linearity and overload behavior. A front-end amplifier must therefore do two things at once: preserve the desired differential amplitude and hold the average input level at the expected common-mode voltage. If either condition is violated, the converter may still produce data, but the resulting performance will often show elevated distortion, asymmetric clipping, or degraded settling. These issues are easy to miss when checking only low-frequency static signals and become more obvious with dynamic inputs or fast channel-to-channel changes.

For sensor interfaces and instrumentation channels, the driver stage should be selected based on more than bandwidth and noise density. Output common-mode control, differential settling, overload recovery, and capacitive-load stability matter just as much. Many front-end issues that appear to be ADC anomalies are actually driver-stage limitations. A differential amplifier that settles cleanly in small-signal conditions may still leave residual error after large steps, and that residual error can leak directly into the converter input during the acquisition interval. In high-resolution systems, that behavior is often more damaging than a slightly higher broadband noise floor. It is generally better to use a driver with predictable settling and robust common-mode behavior than one optimized only for headline speed.

Input network design should also be approached as part of a controlled interface, not as an afterthought. Small series resistors and properly selected capacitors can help suppress kickback, isolate amplifier output dynamics, and provide anti-alias filtering. However, these parts must remain well matched between the two differential paths. Mismatch converts common-mode disturbances into differential error and directly reduces achievable precision. It can also distort the symmetry of overload behavior. A balanced RC network close to the ADC pins usually performs better than a more aggressive filter placed farther away. The main goal is to shape bandwidth without introducing phase imbalance or forcing the driver to fight an unstable load.

The 2.5V common-mode target deserves particular attention in mixed-signal systems where signals originate from ground-referenced sensors or bipolar sources. Level shifting into the required common-mode window is not optional. If the source is centered elsewhere, the conditioning stage must translate the signal while maintaining low offset and low distortion. This often drives the topology choice toward fully differential amplifiers or carefully configured instrumentation amplifiers with downstream common-mode control. In lower-speed prototypes, it is tempting to validate only differential amplitude and assume common-mode accuracy is secondary. Experience shows the opposite: once the converter is pushed toward its intended resolution, common-mode errors become one of the faster ways to lose margin.

The out-of-range detection output, OTRD, is more valuable than a simple fault flag. It can serve as an active observability feature for the entire signal chain. When connected into supervisory logic, FPGA monitoring, or firmware diagnostics, it provides immediate visibility into whether the digital filter input range has been exceeded. That is useful not only for obvious overload conditions but also for intermittent front-end faults, sensor disconnections, gain-stage instability, and unexpected transients during startup. In production systems, OTRD can help distinguish between a signal that is merely noisy and a signal chain that is genuinely operating outside its valid envelope. That distinction shortens debug cycles and reduces the temptation to mask faults in software.

In validation work, OTRD is especially effective when correlated with stimulus conditions, amplifier outputs, and reference integrity. A recurring pattern is that occasional OTRD assertions under dynamic input swings are not caused by the nominal input amplitude alone, but by transient settling failures or common-mode excursions in the driver stage. Watching OTRD alongside the analog waveforms often reveals that the front end is briefly leaving the valid region even when average operating levels appear acceptable. That kind of insight is difficult to extract from conversion codes alone. Using OTRD early in characterization tends to expose hidden margin problems before they become field issues.

The broader design lesson is that the ADS1672 rewards system-level coherence. A clean 3V reference, compact reference routing, controlled common-mode biasing, and a well-settled differential driver are not separate optimization tasks. They are the operating conditions required for the converter to behave like a precision instrument. If one of those conditions is weak, the loss often appears gradually rather than as a hard failure: extra noise, reduced repeatability, temperature-sensitive behavior, or unexplained distortion. That is why this device should be integrated from the reference outward, then from the input driver inward, with layout and monitoring features treated as first-class design elements rather than cleanup work after schematic completion.

In practical implementations, the most reliable approach is to treat the reference path, input drive path, and fault-monitoring path as three coupled control loops. The reference path establishes scale integrity. The driver path establishes signal fidelity and valid common-mode operation. The monitoring path verifies that real operating conditions remain within the converter’s usable envelope. When those three loops are designed together, the ADS1672 delivers performance that is much closer to its datasheet potential. When they are designed independently, the final system often spends unnecessary effort calibrating around problems that were actually architectural.

Texas Instruments ADS1672 Power Supplies, Power Consumption, and Temperature Range

Texas Instruments ADS1672 uses a split-supply architecture built around a 5 V analog rail and a 3 V digital rail. AVDD is specified from 4.75 V to 5.25 V, while DVDD is specified from 2.7 V to 3.3 V. This partition is not just a convenience for logic compatibility. It is a deliberate isolation strategy. The analog modulator, reference-related circuitry, and precision signal path benefit from the higher analog headroom, while the digital output stage operates in a lower-voltage domain that integrates more easily with modern processors, FPGAs, and digital isolators. In practice, this split also reduces the extent to which digital switching noise directly contaminates the analog supply plane, assuming the board layout respects the separation.

From a system perspective, the supply arrangement says a great deal about the device class. ADS1672 is designed as a high-performance delta-sigma converter, not as a deeply power-optimized sensor-front-end part. The 5 V analog rail supports linearity, dynamic range, and internal analog stability under demanding sampling conditions. The 3 V digital rail gives flexibility at the interface boundary. That combination is common in converters intended for precision measurement chains, where analog performance margins are preserved first and digital interoperability is handled second.

The current profile reinforces that positioning. Typical AVDD current is 51 mA. DVDD current depends on the output interface mode: 28 mA typical in CMOS mode and 33 mA typical in LVDS mode. Total power dissipation is specified at 350 mW typical and 370 mW maximum under stated operating conditions. Power-down reduces dissipation to 5 mW, which is useful for duty-cycled instruments or thermally constrained standby states, but it does not change the fundamental character of the device. This is a converter optimized for throughput and signal fidelity, with power treated as a managed cost rather than a minimized objective.

The difference between CMOS and LVDS output power is worth reading as an interface tradeoff rather than just a datasheet number. CMOS output mode usually simplifies connectivity when the converter sits close to the receiving logic and trace lengths are short. It avoids the need for LVDS termination strategy and can reduce component count in compact designs. LVDS mode increases DVDD current, but it offers better signal integrity in electrically noisy environments, across longer interconnects, or at higher edge-rate sensitivity. In mixed-signal boards with dense digital activity nearby, the extra digital power in LVDS mode is often a reasonable exchange for lower susceptibility to timing corruption and radiated coupling. In other words, the interface-mode current delta should be evaluated together with layout geometry, clocking scheme, and EMC margin, not in isolation.

A practical supply design around ADS1672 should assume that nominal current values are only the starting point. Regulator sizing needs transient margin, startup sequencing tolerance, and enough headroom for worst-case temperature and interface loading. The analog rail should be treated as a precision supply, with low noise over the converter’s effective bandwidth and careful local decoupling close to AVDD pins. The digital rail can tolerate more switching activity, but poor decoupling or shared return paths can still degrade converter behavior indirectly. One recurring issue in high-resolution data acquisition boards is that the converter meets all static power specs, yet system noise is elevated because the analog and digital return currents reconnect in the wrong place. With parts in this performance class, power integrity and grounding decisions often have as much influence on measured results as the nominal ADC specifications.

Thermal behavior follows directly from the power numbers. At roughly 350 mW typical dissipation, ADS1672 is not difficult to cool in most industrial assemblies, but it is also not thermally negligible. In a low-airflow enclosure, especially one already populated with processors, isolated power modules, or front-end amplifiers, local board temperature can rise enough to affect both converter drift and long-term reliability margin. The specified maximum junction temperature is +150 °C, but that value should not be treated as a normal operating target. Good engineering practice keeps steady-state junction temperature comfortably below absolute limits, because precision converters tend to reveal thermal stress first through performance shifts rather than outright failure. Offset behavior, reference stability, and gain consistency usually become more valuable indicators than mere survival.

The operating temperature range of -40 °C to +85 °C places the device squarely in the industrial category. That range is broad enough for factory instrumentation, process control nodes, portable test equipment, and embedded acquisition systems installed in non-conditioned spaces. Storage from -60 °C to +150 °C provides adequate margin for logistics and inactive exposure, but operating performance should still be interpreted in the context of thermal gradients, warm-up time, and board self-heating. Precision data converters rarely deliver their best repeatability immediately after power application or during rapid ambient transitions. In systems that care about stable calibration, a short thermal settling interval often improves real-world measurement consistency more than additional digital post-processing.

Board-level thermal management does not need to be elaborate, but it does need to be intentional. A solid ground plane under the package, sensible copper distribution, and avoidance of nearby hot components usually provide enough thermal spreading. Problems appear when the ADC is placed beside DC/DC converters, isolated transceivers, or FPGAs that create local hotspots and inject both heat and noise into the same region. In such layouts, the converter may remain inside its rated temperature range while still showing degraded noise floor or drift behavior. That is why thermal planning for precision ADCs should be treated as a performance exercise, not just a reliability exercise.

For procurement and platform planning, ADS1672 fits best in designs where measurement quality, bandwidth, and deterministic behavior matter more than energy budget. Bench instrumentation, industrial analyzers, vibration monitoring, power quality measurement, and embedded acquisition modules are natural fits. It is less suitable for battery-dominant architectures unless the converter is heavily duty-cycled and the surrounding system can absorb the wake-up and stabilization overhead. The nominal power-down dissipation of 5 mW is attractive, but the real value depends on how often the application can tolerate transitions between active and inactive states without compromising data continuity or calibration integrity.

The more useful way to view the power and temperature specifications is not as isolated operating limits but as a combined system contract. The 5 V analog rail tells you the converter expects a disciplined analog environment. The 3 V digital rail tells you it is ready to live beside contemporary logic. The 350 mW-class dissipation tells you the design must budget for heat, not ignore it. The -40 °C to +85 °C rating tells you it belongs in industrial equipment, provided the implementation protects signal integrity under thermal and electrical stress. When those conditions are met, ADS1672 behaves like the type of converter it was built to be: a performance-oriented data acquisition component whose supply architecture and thermal envelope are tightly aligned with precision measurement use.

Texas Instruments ADS1672 Serial Interface and Conversion Control

Texas Instruments ADS1672 uses a register-free conversion and data output model that is unusually direct for a high-resolution delta-sigma ADC. Its serial interface and conversion control are exposed through dedicated pins rather than an internal command set, which changes how the device behaves at system level. Instead of spending design effort on SPI register transactions, firmware state tracking, or configuration recovery after resets, the timing model is pushed into hardware. This approach reduces software overhead and makes converter behavior more deterministic, especially in acquisition systems where sampling alignment, interface latency, and recovery from fault conditions matter more than feature-rich programmability.

The serial output path supports two electrical standards: standard CMOS and serialized LVDS. This is not just a convenience option. It allows the same converter core to be placed into very different digital environments without changing the signal protocol or redesigning the acquisition chain. In a compact embedded design, CMOS output can connect directly to a microcontroller, FPGA, or DSP with minimal supporting circuitry. In larger systems, especially where the ADC is physically separated from the processing device or where digital switching noise is a concern, LVDS provides a more robust transport layer. Differential signaling reduces susceptibility to common-mode interference, lowers radiated emissions, and preserves edge integrity at higher data rates and longer trace or cable lengths.

The LVDS pin selects the interface mode. Pulling it low enables LVDS-compatible signaling, while pulling it high selects CMOS-compatible signaling. The practical value of this pin-level selection is that the PCB can often be reused across multiple product variants. One design may route the ADC into a low-cost controller through CMOS, while another version of the same hardware family may populate an FPGA and run the interface in LVDS mode for higher noise margin. This kind of reuse becomes particularly valuable in instrumentation platforms that evolve from benchtop prototypes into distributed or industrial deployments. The electrical interface can be adapted without changing converter behavior or rewriting control logic around a register map.

From an engineering standpoint, the LVDS/CMOS option should be treated as a system partitioning decision, not only an I/O choice. CMOS is attractive when the ADC and host logic sit close together on the same board, share a clean reference plane, and operate at moderate interconnect lengths. It reduces BOM count and avoids the need for differential receivers. However, as edge rates increase or digital return currents begin to couple into sensitive analog regions, CMOS becomes less forgiving. LVDS generally provides better margin when routing crosses noisy regions, connectors, or backplane structures. In mixed-signal layouts, that extra margin often translates into less time spent debugging intermittent bit errors that only appear under full system activity or in temperature corners.

The conversion control model centers on the START pin. This single pin is used for start convert, reset, and synchronization functions, which is consistent with the ADS1672 philosophy of hardware-defined operation. The absence of internal configuration registers means the device state is largely visible at the pin level. That simplifies bring-up because there are fewer hidden conditions between power application and valid data output. It also improves predictability in systems that require deterministic startup. A logic analyzer capture of START, the output clock, and serial data is often enough to explain converter behavior, which is not always true for ADCs that depend on layered register initialization sequences.

START is especially important in synchronized sampling architectures. When multiple converters must acquire data with fixed phase alignment, distributing a common START signal is usually simpler than coordinating independent software commands across multiple devices. A shared hardware edge avoids command skew through serial buses and reduces uncertainty caused by firmware scheduling or processor interrupt latency. In practice, this makes the ADS1672 well suited for modular data acquisition systems, multi-axis control measurements, power analysis instruments, and distributed sensor front ends where simultaneous sampling windows must be repeatable from cycle to cycle.

That said, synchronization quality depends on more than asserting the same logic edge to all devices. The START network should be treated as a timing-critical signal path. Trace length mismatch, buffer propagation variation, and ground reference noise can all introduce skew. On small boards these effects may be negligible, but across multiple cards or cables they become measurable. A common pattern is to route START through a low-skew clock fanout device or a carefully matched distribution tree, then verify alignment with scope captures during early validation. This tends to reveal whether the limiting factor is converter timing, distribution asymmetry, or host-side data framing.

The phrase “toggling START begins a conversion” is simple, but the system implication is deeper. In a delta-sigma converter, conversion timing is tied to internal digital filtering as well as modulator activity. That means the instant a conversion is initiated is not the same as the instant a fully settled output word becomes available. Designs that gate measurements around external events should account for the converter’s latency and settling behavior, particularly after resets, synchronization events, or signal path changes. A common source of confusion in first prototypes is assuming that the first output frame after START represents a fully settled sample. In precision systems, it is safer to define data-valid windows explicitly and treat synchronization edges and output-word acceptance as separate events.

Because the ADS1672 is register-free, control sequencing is implemented externally through hardware pins and timing relationships. This has a subtle but important benefit in reliability-oriented designs. After a brownout, watchdog reset, or partial digital fault, the converter does not need a long reconfiguration script to return to its intended state. If the hardware pins are defined correctly, the device powers back into a known operating mode. This reduces the number of failure modes where the host and ADC disagree about configuration state. In field systems, those mismatches are often harder to diagnose than outright link failures because the interface still appears active while the data is wrong or phase-shifted.

The PDWN pin provides active-low power-down control and can shut down the converter when measurements are not required. This is useful not only for reducing average power but also for controlling thermal behavior. Precision converters are sensitive to temperature gradients, both internally and across the surrounding analog front end. In intermittent acquisition systems, leaving the ADC continuously active can create a stable but elevated thermal condition; aggressively cycling power can reduce average dissipation but may introduce warm-up transients and gain drift immediately after wake-up. The right strategy depends on the duty cycle and the required accuracy immediately after resume.

In practice, power-down should be evaluated as part of the measurement timing budget rather than treated as a generic energy-saving feature. If the system wakes briefly, captures one sample, then returns to sleep, the converter and reference network may never reach a thermally stable state. Under those conditions, the saved power may be offset by degraded repeatability. A more effective pattern in precision instrumentation is often to keep the reference and the most drift-sensitive analog stages active while gating the ADC only during longer idle intervals. Where full shutdown is required, firmware should allow enough recovery time for the converter output, reference source, and any input driver amplifier to settle before marking data as valid.

The simplicity of the ADS1672 interface also shifts responsibility to board-level design discipline. Without register-based abstraction layers, electrical correctness becomes more visible. Logic-level selection on the LVDS pin must be deterministic at startup. START should not float or glitch during power sequencing. PDWN must be driven in a way that prevents accidental shutdown during noisy transients or host reset conditions. These are straightforward requirements, but they matter because pin-controlled devices respond immediately to hardware state. Pull resistors, reset supervisors, and clean logic thresholds are therefore not optional refinements; they are part of the converter control architecture.

A useful design perspective is to view the ADS1672 as a timing component as much as an analog component. Its value is not only in resolution and noise performance, but in how cleanly it can be inserted into deterministic acquisition pipelines. The selectable CMOS/LVDS serial interface defines how data leaves the converter and how much physical margin exists in the interconnect. The START pin defines when the conversion process is aligned or restarted. The PDWN pin defines whether the converter remains thermally and electrically active between acquisitions. Together, these pins expose the key operational states directly to hardware, which can simplify system validation and reduce the gap between schematic intent and measured behavior.

For that reason, the best results usually come from designing around three questions early in the project. First, where is the host logic located relative to the ADC, and does the environment justify LVDS rather than CMOS? Second, is START being used merely to trigger conversions, or as a true synchronization reference across channels or boards? Third, is PDWN part of a real power strategy, or will thermal settling penalties erase its benefit? Answering those questions up front tends to prevent interface choices from being made in isolation. With the ADS1672, the serial interface and conversion control are simple on paper, but they strongly shape signal integrity, timing determinism, and measurement stability in the finished system.

Texas Instruments ADS1672 Package, Pin Functions, and Hardware Integration Points

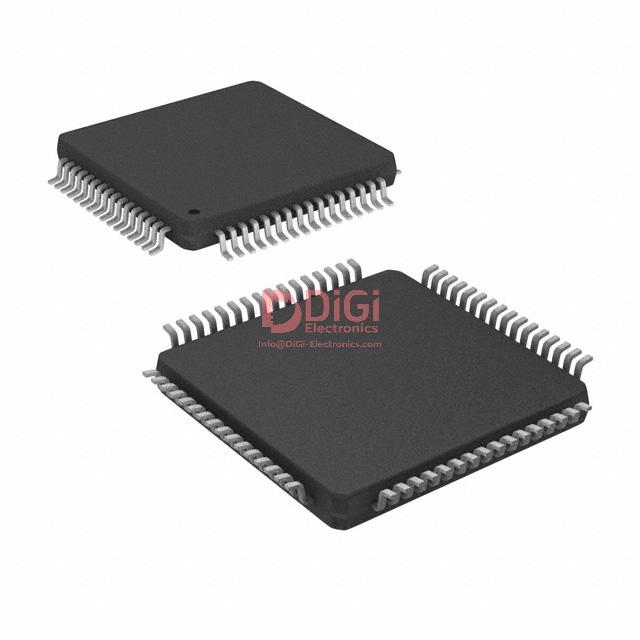

The Texas Instruments ADS1672 is implemented in a 64-pin TQFP package with a 10 mm × 10 mm body, optimized for surface-mount assembly and high-pin-count mixed-signal routing. This package choice is not just a mechanical detail. It reflects the converter’s architectural split between sensitive analog nodes, clocking resources, digital control, and high-speed output signaling. For PCB design, the package provides enough pin granularity to physically separate noisy digital return currents from the analog signal path, which is essential when the converter is operated near its dynamic performance limits.

At the board level, the ADS1672 should be treated as a precision analog front end with a digital interface attached, not as a generic logic device. That mindset usually leads to better floorplanning decisions: short analog input loops, tight local decoupling, controlled clock routing, and deliberate partitioning of analog and digital ground current paths. The package supports that approach by exposing the major functional domains distinctly enough for disciplined placement and routing.

The primary analog signal pins are AINP and AINN, which form the differential input pair. Their electrical behavior is tightly coupled to the converter’s input sampling structure, so external source impedance, anti-alias filtering, and driver settling all directly affect achievable linearity and noise. In practice, these pins should be routed as a tightly matched differential pair with minimal loop area and strong symmetry relative to nearby ground reference copper. Any imbalance here tends to convert common-mode interference into differential error, which becomes visible long before gross functionality fails.

Reference pins VREFP and VREFN define the converter’s full-scale transfer characteristic and therefore deserve the same level of attention as the signal input itself. A high-resolution ADC only performs as well as its reference network. Noise, drift, and impedance modulation on these pins map directly into code variation and gain instability. The reference path should be low noise, low impedance, and locally decoupled, with routing kept short and isolated from digital transitions. A common integration mistake is to assume that a high-quality reference IC alone is sufficient. In reality, the interconnect and bypass network often determine whether the reference behaves like a precision source or a noise antenna.

VCM provides access to the internal common-mode voltage and is intended for an external bypass capacitor. This node is often underestimated because it is not part of the obvious signal chain, yet it influences input bias stability and the behavior of any driver circuitry that references the ADC common-mode level. The capacitor connected at VCM should be placed close to the pin with a direct, low-inductance return. If the front-end amplifier uses this node for output centering, routing cleanliness becomes even more important, since any disturbance can propagate into the differential input operating point.

RBIAS sets the internal analog bias current and is specified with a 7.5 kΩ resistor under the electrical test conditions. This pin should be treated as a precision analog configuration node rather than a casual resistor strap. The resistor value, tolerance, temperature coefficient, and placement all matter. A short routing path with low contamination risk is preferred. In dense layouts, avoiding adjacency to fast-switching nets around RBIAS is worthwhile, because bias perturbation can appear as subtle performance degradation rather than an immediate fault. These are the kinds of issues that tend to surface during noise characterization, not during initial power-up.

CAP1 and CAP2 each require 1 µF external bypass capacitors. These pins support internal analog circuitry and should be regarded as local stabilization nodes. The capacitors must be placed close to the device pins, with compact return paths and minimal parasitic inductance. Long traces to these capacitors reduce their effectiveness and can alter internal settling behavior. In high-resolution data acquisition systems, details like this often separate a design that merely converts from one that consistently meets expected ENOB and distortion targets across boards and temperature.

The digital control interface is organized around operating-mode selection, filter behavior, clocking, and conversion management. DRATE[1:0] selects the output data rate, which directly trades bandwidth, latency, and noise performance. This is not only a configuration choice but a system-level architectural decision. Lower data rates generally improve noise performance through increased filtering, while higher rates reduce latency and support wider-band signals. The right setting depends less on the ADC in isolation and more on the complete signal chain, including sensor bandwidth, control-loop timing, and post-processing strategy.

FPATH selects the digital filter path, and LL_CONFIG refines low-latency filter behavior. These pins are especially important when the ADC is used in control-oriented or event-driven systems where deterministic response matters as much as raw resolution. The digital filter inside the ADS1672 is not merely a formatting stage. It shapes the time-domain response, passband behavior, and out-of-band rejection. In measurement systems, the default instinct is often to optimize for the lowest noise figure. In practice, low-latency operation can be the better engineering choice when phase delay, step response, or synchronization with external stimuli dominates system performance.

LVDS determines the output interface format, enabling adaptation to different downstream receivers and signal integrity constraints. This choice should be aligned early with the FPGA, DSP, or data-capture device that receives the ADC stream. If LVDS signaling is used, routing should follow standard differential high-speed practice: controlled impedance, pair matching, continuous return reference, and avoidance of unnecessary stubs or discontinuities. Interface problems at this layer can mimic converter faults, especially when bit slips or intermittent framing errors appear only at full operating speed.

SCLK_SEL selects the shift-clock source, which influences how output timing is generated and captured. Clocking decisions around a precision ADC deserve more attention than they often receive, because jitter and timing uncertainty can degrade dynamic performance, especially with higher-frequency inputs. It is usually beneficial to think of the converter clock tree and data-capture clock tree as one timing system, not as independent blocks. That perspective simplifies timing closure and reduces the chance of marginal setups that only fail under temperature drift or production spread.

CS, START, and PDWN provide the basic control hooks for device access, conversion sequencing, and power management. START governs conversion activity and should be driven with a clean, deterministic signal if the design depends on repeatable acquisition timing. PDWN enables power-state control, but repeated power cycling of precision converters should be evaluated in the context of reference settling, bias stabilization, and downstream firmware readiness. A design can appear logically correct while still producing invalid early samples if analog subsystems have not fully settled after wake-up. This is one of the more common integration traps in systems that emphasize aggressive power savings.

Reserved-pin handling is unusually important on the ADS1672 and should be enforced at both schematic and layout review stages. RSV1 and RSV2 must be shorted to digital ground. RSV3 must be left floating and must not be tied to ground or any other net. These requirements should be encoded clearly in the schematic symbol, layout constraints, and design checklist. Reserved pins are easy to dismiss because they do not participate in obvious functional paths, yet violations here can create ambiguous bring-up behavior that wastes debug cycles. The most effective way to avoid that class of problem is to make the correct treatment impossible to miss during design entry and review.

From a hardware integration perspective, pin-level correctness is necessary but not sufficient. The ADS1672 performs best when the PCB is partitioned according to signal energy and return-current behavior. Analog inputs, reference circuitry, bias components, and local analog bypassing should occupy a quiet region with short interconnects. Digital control and serial output routing should exit the device cleanly toward the receiving logic without crossing the analog front end. Ground strategy should emphasize current containment rather than simply splitting copper indiscriminately. A continuous reference plane with disciplined placement often performs better than an aggressive split that forces return-current detours.

Decoupling around the package should be layered by function. High-frequency ceramic capacitors should sit close to each supply-related pin group, backed by local bulk capacitance where appropriate. The objective is not only to reduce supply ripple but also to contain transient current loops within the smallest possible area. In mixed-signal converters, poor decoupling rarely presents as a binary failure. It usually appears as elevated noise floor, idle tones, sensitivity to digital activity, or unexplained variation between nominally identical boards.

Thermal and assembly considerations also matter. The 64-pin TQFP is straightforward to manufacture, but leaded packages still benefit from balanced copper and careful solder mask design to avoid coplanarity or inspection issues in dense layouts. Because converter accuracy can drift with local temperature gradients, placing heat-generating digital devices immediately adjacent to the ADC is usually unwise. Even when the datasheet limits are respected, thermal asymmetry around the package can show up as gain drift or offset movement over time.

For validation, a staged bring-up approach is usually more effective than full-system activation on first power. Start by confirming supplies, reserved-pin states, reference voltage, VCM behavior, and clock presence. Then verify control-pin configuration and interface signaling before attempting performance measurements. Once basic communication is stable, evaluate noise and spectral behavior with a quiet input condition, then with a known differential stimulus. This progression tends to isolate integration defects quickly because it separates configuration errors, signal-integrity problems, and analog-performance limitations into distinct checkpoints.

The strongest designs around the ADS1672 usually come from treating every external pin as part of an analog measurement ecosystem, even when the pin name suggests simple digital control. That approach leads to cleaner schematics, more predictable layouts, and much shorter debug cycles. With this converter, package details, pin function interpretation, and hardware integration discipline are not secondary implementation tasks. They are central to whether the final system reaches its intended precision, latency, and robustness targets.

Texas Instruments ADS1672 Timing Requirements and Data Retrieval Methods

Texas Instruments ADS1672 timing behavior is best understood by separating the device into two interacting timing domains: the conversion domain driven by CLK and START, and the data-output domain driven by either the internally generated serial clock or a host-supplied serial clock. Most integration issues appear when these two domains are treated as if they were independent. In practice, they are tightly coupled through DRDY, serial shifting latency, and the exact instant at which output data becomes valid.

The ADS1672 supports two serial data retrieval modes selected by SCLK_SEL. This pin does more than choose a clock source. It changes the ownership of the serial interface timing budget. With SCLK_SEL low, the converter defines the shift timing and exports SCLK as an output. With SCLK_SEL high, the host assumes responsibility for generating a compliant serial clock and must meet the timing margins required for valid data capture. That distinction has direct consequences for FPGA design, MCU interrupt handling, signal integrity, and deterministic latency.

When SCLK_SEL is low, the ADS1672 operates in internal-SCLK mode. In this configuration, SCLK is generated by the converter and behaves as an output timing reference for reading conversion data. The timing table indicates a minimum CLK period of 50 ns, so the master conversion clock must not exceed the corresponding maximum frequency implied by that limit. Internal SCLK has a period of 1 tCLK, which means the serial output engine is phase-related to the master clock rather than being independently timed. This is important because it simplifies closure of timing relationships inside the converter while also making board-level timing more predictable.

The specified CLK-to-DRDY delay of 36 ns defines when the data-ready indication appears relative to the master clock. This delay is often treated as a simple output latency number, but it is more useful to interpret it as the point where the conversion result is committed to the serial interface boundary. In systems that timestamp DRDY events or use DRDY as a trigger into a synchronous capture block, this 36 ns figure becomes part of the deterministic latency chain.

The internal-mode SCLK-to-data propagation delay of 3 ns is small, which indicates that the data output transitions closely follow the converter-generated SCLK edges. That typically gives comfortable timing margin for downstream capture logic, especially in FPGA-based receivers. However, the small propagation delay also means routing skew starts to matter sooner than expected at higher clock rates. If SCLK and data traces are mismatched in length, the board can consume a nontrivial fraction of the timing budget even though the datasheet numbers look generous. On compact layouts this rarely causes trouble, but on isolated ADC modules, mezzanine cards, or ribbon-linked prototypes, skew can become the dominant variable.

Internal-SCLK mode is usually the cleaner option when deterministic acquisition matters more than interface flexibility. Since the converter emits the shift clock, there is no ambiguity about the serial phase relationship intended by the device. This reduces firmware complexity and removes one source of clock-domain crossing. It is particularly attractive in fixed-function acquisition systems where the ADC streams continuously into a deserializer, DSP front end, or dedicated FPGA input block.

When SCLK_SEL is high, the ADS1672 enters external-SCLK mode. In this case, the positive SCLK pin becomes an input and the negative SCLK output remains three-stated. The converter no longer dictates serial shifting cadence. Instead, the host must provide SCLK that satisfies the external timing limits. The minimum SCLK period is 25 ns, with minimum high and low pulse widths of 12 ns. These values define a duty-cycle-sensitive interface rather than a simple maximum frequency specification. A nominally correct clock frequency can still violate timing if the duty cycle is distorted by GPIO asymmetry, poor level translation, or excessive capacitive loading.

Data propagation delay in external-clock mode is specified as 11 ns from the SCLK rising edge. That number deserves careful interpretation. It means the host should not sample data immediately at the same edge used to launch the shifting action unless the receiver is explicitly designed for that timing relationship. In most digital interfaces, reliable capture comes from sampling on the opposite edge or from inserting enough setup margin in the receiver timing. This becomes especially relevant when interfacing to microcontrollers using SPI peripherals, because not every SPI mode maps cleanly onto an ADC serial protocol even when the pin names appear compatible. A logic analyzer often shows “correct-looking” waveforms while the receiver still accumulates occasional bit slips due to marginal sampling phase.

External-SCLK mode is useful when the acquisition controller needs strict control over readout timing, such as sharing one serial engine across multiple devices, pausing the readout stream, or aligning serial transfers with a broader digital schedule. It can also simplify systems where the host clocking fabric already provides carefully managed clocks with known skew and phase characteristics. The tradeoff is that timing closure shifts from the converter vendor to the system designer. Once that happens, line delay, edge rate, I/O standard selection, and receiver sampling phase all become first-order design parameters rather than implementation details.

The DRDY outputs serve as the boundary marker between conversion completion and serial retrieval. Both positive and negative outputs are provided to support different interface styles, including differential signaling preferences and receiver topologies that benefit from complementary timing indicators. DRDY should be treated as a timing qualifier, not merely as a status flag. In robust designs, serial shifting starts only after DRDY confirms that a fresh conversion word is available. This avoids race conditions where the host begins clocking near the update instant and reads a frame with mixed old and new bit content.

Using both positive and negative DRDY outputs can improve resilience in electrically noisy environments, especially where the ADC is physically separated from the digital capture logic. Even when only one polarity is ultimately used, routing the pair with matched geometry often gives cleaner edge behavior and lower susceptibility to common-mode interference. In lower-speed laboratory setups, a single-ended DRDY connection is usually enough. In multi-board systems with strong digital switching currents, differential-style handling of readiness signals can noticeably reduce intermittent framing faults.

Chip select can be tied low, as shown in the timing illustration, which is often beneficial in dedicated acquisition architectures. This removes one control signal, eliminates chip-select sequencing mistakes, and reduces the risk of partial-frame transactions caused by firmware jitter. The simplification is real, but it comes with an architectural assumption: the serial bus is effectively dedicated to the ADS1672. If multiple slaves share the same serial path, tying CS low can create contention or make bus arbitration impossible. It is therefore a good optimization only when the converter owns the link or when downstream logic isolates it from other devices.

The START input controls conversion initiation and is referenced to the master CLK. The rising edge of START requires a setup time of 0.5 tCLK before the rising edge of CLK, and the START pulse width must be at least 1 tCLK. This requirement is straightforward on paper, but in implementation it means START is sampled in the CLK timing domain and should be generated as if it were a synchronous control signal. If START is produced by asynchronous firmware GPIO or a loosely related clock domain, metastability or cycle ambiguity can shift the effective sampling instant by one clock period. For single-converter applications this may go unnoticed. In synchronized multi-converter systems it directly degrades aperture alignment and channel-to-channel phase repeatability.

For that reason, START distribution deserves the same discipline as the master clock when multiple ADS1672 devices are used together. Equalized route lengths, common logic families, and controlled edge placement matter. A frequent source of unexplained inter-channel skew is not the ADC itself but inconsistent START buffering or logic-level translation among channels. Even when the nominal skew is small, variation across temperature and supply changes can move the edge enough to affect repeatability. A useful design pattern is to register START in the same clock domain that generates CLK, then fan it out through matched paths. This converts a vague timing requirement into a controlled synchronous launch.

From an engineering perspective, the key timing numbers should not be read in isolation. They form a chain: CLK defines the conversion cadence, START defines alignment to that cadence, DRDY marks result availability, SCLK controls bit extraction, and propagation delays define the safe capture window. Reliable integration comes from budgeting the entire chain end to end. In FPGA systems, this usually means constraining DRDY and serial data as source-synchronous or near-source-synchronous signals depending on the selected SCLK mode. In MCU systems, it means validating actual sampling phase with a scope rather than assuming the closest SPI mode is correct.

A practical implementation strategy is to decide early whether the design values determinism or bus flexibility. If determinism is primary, internal-SCLK mode is often the stronger choice because it preserves the converter’s intended serial timing relationship and simplifies verification. If the design must integrate the ADS1672 into a broader serialized control framework, external-SCLK mode can work well, but only if the host side is engineered with explicit timing margin and not treated as generic SPI. That distinction is subtle in schematics and decisive in the lab.

Another useful perspective is that DRDY should drive the system architecture more than SCLK mode does. Once DRDY is used as the central event for data capture, the rest of the interface becomes easier to reason about. Internal SCLK then acts as a forwarded clock from the converter, while external SCLK becomes a host-controlled readout phase launched after a confirmed ready event. Designs that ignore DRDY and attempt fixed-rate blind polling often appear functional under nominal conditions but fail during startup, clock interruptions, or dynamic reconfiguration.

In short, the ADS1672 timing model is simple at the pin-description level and demanding at the system level. The device offers two valid serial timing strategies, but each places responsibility in a different part of the design. Internal SCLK reduces ambiguity and favors stable high-integrity capture. External SCLK increases control but requires disciplined management of phase, duty cycle, and sampling margin. START and CLK define conversion alignment, and DRDY is the critical handshake that bridges conversion timing to data retrieval. Designs that treat these signals as one coordinated timing fabric tend to achieve repeatable behavior with far less debug effort.

Texas Instruments ADS1672 Typical Application Scenarios

The Texas Instruments ADS1672 is positioned for signal-chain designs that need an unusual combination of high dynamic range, low distortion, and medium-to-high output data rates. In practice, this places it between slower precision converters optimized mainly for static accuracy and very high speed converters that often sacrifice noise performance for bandwidth. Its value appears most clearly in systems where the signal of interest is not merely being detected, but measured, compared, or characterized with meaningful spectral and amplitude fidelity.

At a device level, the ADS1672 is attractive because it does not force a single tradeoff profile onto the system. Its architecture supports different digital filter behaviors, allowing the conversion path to be aligned with the measurement objective. When the priority is frequency-domain integrity across a broader signal span, the wide-bandwidth path is useful because it preserves more usable spectrum and avoids over-constraining the front end with an overly narrow response. When the priority is deterministic timing and short settling behavior, the low-latency path becomes more relevant. That flexibility matters in instrumentation, because many real systems alternate between steady-state measurement, transient observation, and event-driven acquisition.

Another practical strength is that the ADS1672 fits embedded hardware environments that favor deterministic control. Pin-configurable behavior reduces software overhead and removes a layer of register management that can complicate startup sequencing, maintenance, and compliance validation. In fixed-function instruments, this often shortens bring-up time and makes behavior easier to verify at the board level. It also reduces the chance of subtle configuration drift between firmware revisions, which is a more common field issue than many designs initially assume.

In automated test equipment, the ADS1672 is well suited to precision acquisition channels used for response measurement, source verification, and waveform analysis. ATE platforms often need to observe analog outputs with enough fidelity to separate actual device behavior from measurement-chain artifacts. This is where dynamic range and harmonic performance become operational requirements rather than specification luxuries. If the converter introduces too much distortion or broadband noise, the measurement floor rises and weak nonlinear behavior in the device under test becomes harder to isolate.

The wide-bandwidth filter option is especially relevant in characterization tasks where the useful signal content extends across a meaningful portion of the Nyquist band. Examples include gain-flatness validation, harmonic inspection, and stimulus-response analysis where preserving amplitude relationships over frequency is more important than maximizing narrowband noise suppression. By contrast, the low-latency mode is more attractive in test flows that depend on rapid channel switching or short measurement windows. In multisite or high-throughput systems, settling time often limits efficiency more than raw sample rate, so latency behavior can directly affect test cost.

A recurring implementation detail in ATE is that converter capability alone does not guarantee measurement integrity. The analog driver, reference network, and grounding structure often determine whether the ADC can actually deliver its datasheet-level performance. In bench and production designs, it is common to see good nominal converter selection undermined by reference noise coupling, driver instability into the converter input network, or clock contamination that folds into the passband. The ADS1672 tends to reward disciplined front-end design. Clean reference buffering, controlled input source impedance, and clock path isolation are not optional refinements here; they are part of the effective converter architecture.

In vibration analysis systems, the ADS1672 aligns well with applications that need both spectral sensitivity and measurement headroom. Machine condition monitoring rarely consists only of capturing large, obvious faults. The more valuable use case is often the detection of subtle changes over time: low-level bearing signatures, sideband growth around rotating components, or early-stage mechanical imbalance masked by stronger baseline motion. These tasks require enough dynamic range to keep the small content visible while still accommodating larger broadband energy or transient events.

The converter’s resolution and dynamic behavior help preserve fine spectral structure, which is critical when downstream processing relies on FFT-based diagnostics, envelope analysis, or trend extraction. In these systems, a converter with insufficient linearity or elevated noise does more than degrade raw amplitude accuracy. It can blur fault signatures, bury weak harmonics, and distort trend baselines over long observation periods. That degradation often shows up first not as an obviously bad waveform, but as unstable diagnostic indicators and poor repeatability between installations.

From a system perspective, the ADS1672 is a strong fit when paired with IEPE sensor interfaces, charge amplifiers, or conditioned differential analog front ends that present a controlled signal to the converter. In vibration instruments, practical performance usually depends on front-end bandwidth planning. If anti-alias filtering is too aggressive, diagnostically useful high-frequency content may be lost. If it is too relaxed, out-of-band energy can alias back into the analysis band and create false confidence in spectral features. The ADS1672 is most effective when the entire channel is designed as a measurement pipeline rather than a sequence of independent blocks.

In sonar systems, the device supports high-fidelity capture where weak signal extraction and waveform preservation are both important. Sonar receive paths often deal with signals spanning wide amplitude ranges, from strong reflections or self-generated acoustic energy down to weak target returns close to the noise floor. In this environment, converter dynamic range has a direct effect on detection sensitivity and post-processing quality. A low-noise, low-distortion conversion stage helps preserve matched-filter gain, improves the stability of beamforming inputs, and reduces the chance that weak returns are corrupted before digital processing begins.

Bandwidth behavior also matters in sonar because the usefulness of the waveform extends beyond simple amplitude capture. Pulse shape, phase consistency, and transient detail influence classification, timing estimation, and range processing. A converter path that preserves these properties more faithfully contributes to better system-level extraction, especially when the application depends on distinguishing weak echoes in the presence of clutter or interference. The ADS1672 is therefore more valuable in sonar front ends where signal integrity across the entire acquisition chain is treated as part of detection performance, not just as a component-level metric.

A practical lesson in sonar and other low-level sensing systems is that clock quality can become a hidden limiter. Even when broadband noise appears acceptable, sampling jitter can degrade effective performance for higher-frequency input content and reduce the clarity of narrow spectral features. For converters in the ADS1672 class, low-phase-noise clock generation is often worth more than small gains from nominally better passive components elsewhere in the signal chain. This is one of the less visible design priorities, but it can determine whether the measured system behavior matches simulation expectations.

In general test and measurement equipment, the ADS1672 fits instruments that need strong dynamic performance without the complexity of a deeply software-configured data converter. Oscillation analyzers, power measurement instruments, spectral acquisition units, and fixed-architecture embedded instruments can all benefit from this profile. The combination of low distortion, good dynamic range, and deterministic interface behavior is especially useful where measurement repeatability matters more than feature-rich runtime reconfiguration.

Its pin-based setup is a practical advantage in instruments designed for stable operating modes. Hardware-selected configuration simplifies validation, reduces firmware dependence, and makes failure analysis more straightforward. In products that must boot quickly and enter a known acquisition state without a long initialization sequence, this can be more important than it first appears. It also supports a design style that prioritizes observability and bounded behavior, which is often preferable in industrial and metrology-oriented equipment.

The broader engineering point is that the ADS1672 is most compelling not simply because it offers good converter specifications, but because its specification set maps cleanly onto real measurement problems. Many applications need to observe moderate-bandwidth analog phenomena with enough purity that downstream digital processing remains meaningful. If the converter adds too much distortion, too much latency, or too much uncertainty in control behavior, the rest of the system spends effort compensating for avoidable losses. The ADS1672 reduces that burden when used in architectures that value clean analog drive, disciplined clocking, and a deliberate choice between bandwidth-oriented and latency-oriented filtering.

For designs operating in this middle ground of precision and speed, that balance is often the decisive factor. It enables one converter family to support characterization, monitoring, and detection tasks without forcing the system too far toward either slow metrology-style acquisition or high-speed compromise-driven digitization. That is why the ADS1672 continues to make sense in automated instrumentation, vibration monitoring, sonar receive chains, and general-purpose measurement platforms where signal fidelity must remain intact from the analog domain into digital analysis.

Texas Instruments ADS1672 Design Cautions and Reliability Considerations

The Texas Instruments ADS1672 is a high-resolution delta-sigma ADC, and its reliability is determined as much by system implementation as by the silicon itself. Devices in this class rarely fail in dramatic ways first. More often, they lose margin. A converter can continue operating while quietly giving up noise performance, linearity, offset stability, or long-term repeatability. That is the practical meaning of the ESD and absolute-maximum cautions in the documentation: the device may still respond over SPI and produce codes, yet no longer behave like a precision measurement component.

This is especially important because the ADS1672 is often selected for applications where the error budget is already tight. In those systems, subtle damage matters more than obvious failure. A small increase in input leakage, degraded reference behavior, weakened ESD structures, or stress-induced shifts in internal analog nodes can appear as unexplained low-frequency drift, elevated idle noise, intermittent gain movement, or reduced consistency across temperature. These symptoms are easy to misclassify as layout noise, reference instability, or software filtering issues unless the hardware stress history is considered early.

The absolute maximum ratings define the non-negotiable electrical envelope. AVDD to AGND must stay between -0.3 V and +6 V. DVDD to DGND must stay between -0.3 V and +3.6 V. AGND to DGND must remain within -0.3 V to +0.3 V. Analog and digital pins must not exceed their local rails by more than 0.3 V. Input current is limited to 100 mA momentary and 10 mA continuous. These numbers are not operating targets and should not be treated as allowable design headroom. In precision data acquisition, a robust design keeps normal operation comfortably away from these edges, including during startup, shutdown, hot-plug events, fault injection, cable discharge, and field transients.

Power sequencing deserves more attention than it often receives. Since the ADS1672 contains separate analog and digital domains, rail timing mismatches can create temporary violations even when steady-state voltages are correct. A common failure mechanism is a digital interface driving into an unpowered or partially powered device. In that case, protection structures can conduct, back-power internal nodes, or force current into domains not yet biased correctly. The result may be latch-up, overstress, corrupted startup state, or gradual parametric degradation. The safest approach is to ensure that external drivers connected to ADC pins remain high-impedance until the relevant supply is valid, or to add current-limiting and sequencing logic so that no pin is driven beyond the allowed rail window during transitions.

Ground strategy is equally critical. The AGND-to-DGND limit of ±0.3 V is easy to violate transiently even when DC continuity looks fine on the schematic. Fast digital return currents, connector ground bounce, long ground traces, and power-stage switching currents can momentarily lift one ground domain relative to the other. In a precision converter, that is not just a reliability concern; it is also a direct performance limiter. Once ground domains move dynamically, the analog front end and digital interface stop sharing a stable electrical reference. This can inject sampling errors, reference modulation, and code-dependent disturbances. A disciplined layout usually treats AGND and DGND as distinct local return regions with controlled connection strategy, low impedance, and short return paths rather than as abstract net labels.

Bypass implementation should be considered part of the signal chain, not an afterthought. The required capacitors are not only for bulk energy support. They provide the local charge reservoir that absorbs dynamic current demand and suppresses rail impedance at frequencies where package inductance and plane spreading resistance matter. With converters like the ADS1672, poor decoupling often shows up as unexplained broadband noise rise, tone-related artifacts, startup sensitivity, or device-to-device inconsistency. The practical pattern is well known: place high-frequency ceramic capacitors as close as possible to each supply pin pair, minimize loop area, and give each capacitor a clean, direct return path into the associated ground domain. Larger capacitors can support lower-frequency energy storage, but they do not replace the need for tight local high-frequency decoupling.

Reserved-pin handling should be locked down early in schematic capture. Precision converters often include internal nodes, test structures, or configuration-related pins that are not intended for functional use. Leaving these pins floating, tying them incorrectly, or repurposing them for convenience can create behavior that survives bench bring-up but fails under temperature, production variation, or EMC stress. The safest design discipline is to follow the manufacturer guidance literally, document each reserved-pin connection explicitly, and prevent later “cleanup” edits from altering them during board revisions.

Transient control is a major practical issue in deployed systems. Absolute maximum compliance is often broken for nanoseconds or microseconds, not milliseconds, and those events are easy to miss unless the measurement setup is designed for them. Supply hot-plugging, relay switching, cable insertion, inductive load commutation, and test-point probing can all generate overshoot or undershoot beyond the 0.3 V rail margin. The risk is highest on analog inputs and digital communication lines that leave the board or connect to other powered subsystems. Series resistors, RC damping, Schottky or low-capacitance steering clamps where appropriate, controlled edge rates, and careful connector pin ordering can significantly reduce this stress. In practice, adding a small amount of intentional impedance at the interface often improves both reliability and measured converter behavior by reducing fast charge injection into sensitive nodes.

Input current limits also deserve an implementation-level reading. The 100 mA momentary and 10 mA continuous limits imply that fault cases must be designed, not assumed away. Overvoltage at the analog input, reference pin stress, digital pin contention, and mis-sequenced drivers can all force current through internal protection paths. A simple series resistor can be the difference between a recoverable interface upset and latent damage. In precision front ends, this resistor must be chosen with awareness of input sampling behavior, source impedance constraints, noise contribution, and settling. That tradeoff is often misunderstood. Excessive resistance may protect the ADC while quietly degrading dynamic accuracy or introducing gain error through input bias interactions. The better approach is to co-design the protection network with the driver stage and expected fault envelope rather than adding protection after the signal chain is already fixed.

Layout quality strongly determines whether the system approaches datasheet-level performance. For the ADS1672, separation of noisy digital activity from low-level analog paths is not a cosmetic recommendation. It is the mechanism that protects resolution. Clock routing, digital output return currents, reference routing, and analog input symmetry all interact. A layout can satisfy net connectivity and still underperform badly because return currents were forced through shared impedance or because a high-dI/dt clock edge was routed adjacent to the reference network. Good implementations usually keep the reference path compact, quiet, and thermally stable; isolate clock and serial lines from analog inputs; and avoid routing digital transitions across analog return regions. When debugging unexplained noise, the most useful question is often not whether the trace is short, but where its return current actually flows.

Thermal behavior is another reliability and accuracy multiplier. Even when electrical limits are respected, localized heating from adjacent regulators, processors, or power components can shift offset, gain, and drift characteristics. Precision ADCs respond not only to absolute temperature but also to temperature gradients across the package and surrounding board area. A board that performs well after long settling may still show poor repeatability during warm-up because the reference source, input driver, and converter do not track thermally. In dense mixed-signal assemblies, placing the ADC away from pulsed heat sources and avoiding asymmetric copper heat spreading around sensitive pins often improves real measurement stability more than additional digital filtering.

Validation should explicitly target parametric degradation, not just functional pass/fail. It is not enough to confirm that the ADS1672 starts, communicates, and outputs plausible codes. More meaningful checks include noise histogram stability, FFT baseline comparison, gain and offset drift across power cycles, startup repeatability, and behavior after controlled ESD and transient exposure within system-level test limits. Subtle damage frequently reveals itself through margin loss before catastrophic failure. Capturing a golden-unit signature early in development makes later anomaly detection far easier, especially when production boards begin showing “soft” failures that firmware cannot explain.

A sound design philosophy for the ADS1672 is to treat every protection recommendation as a performance requirement in disguise. In high-resolution converters, reliability and accuracy are tightly coupled. The same overshoot that threatens long-term device health can also inject conversion error. The same ground discontinuity that risks domain stress can also elevate the noise floor. The same careless pin handling that seems harmless in prototype builds can later reduce yield or long-term stability. Designs that consistently achieve datasheet-class behavior are usually not built around heroic post-processing. They are built around conservative electrical margins, controlled transients, disciplined grounding, and layouts that respect how mixed-signal current actually moves through the board.

Texas Instruments ADS1672 Potential Equivalent/Replacement Models

Texas Instruments ADS1672 replacement evaluation should start from function-level equivalence, not from resolution alone. Based strictly on the provided documentation, no explicit equivalent or drop-in replacement model is identified for the ADS1672. That means any substitution effort must be handled as a constraint-matching exercise across signal chain behavior, digital interface timing, power domains, and package-level integration.

The ADS1672 sits in a demanding part of the converter space. Its value is not defined only by 24-bit output coding or delta-sigma topology, but by the combination of high sample rate, selectable filter behavior, differential input handling, and output interface flexibility. In practice, this kind of device is often designed into systems where the ADC is tightly coupled to the analog driver, clock architecture, FPGA capture logic, and calibration flow. As a result, many nominally similar converters fail as replacements because they match headline specifications but diverge in latency, data framing, or usable bandwidth.

A technically sound comparison baseline for ADS1672 alternatives includes these core parameters:

24-bit resolution

Delta-sigma conversion architecture

Sampling rates up to 625 kSPS

Differential analog input

Dual filter behavior with emphasis on either low latency or wider bandwidth

CMOS- and LVDS-compatible serial output options

5 V analog supply and 3 V digital supply operation

Industrial temperature range from -40°C to +85°C

TQFP-64 package

These parameters should be treated as the first screening layer. They define the broad operating class of the device. However, replacement risk usually emerges in the second layer, where implementation details begin to affect the surrounding design.

The first critical issue is filter behavior. In high-speed delta-sigma converters, digital filter selection is not just a noise-bandwidth tradeoff. It also defines group delay, passband flatness, settling behavior, and out-of-band rejection. If the original design uses the ADS1672 in a low-latency mode, a replacement with a longer effective delay may break control-loop timing, event correlation, or phase alignment across multiple channels. If the design instead depends on wide usable bandwidth, then a part with stronger filtering but lower passband edge may reduce effective signal content even when the nominal sample rate appears adequate. This is one of the most common sources of unexpected performance loss during substitution.

The second issue is the interface method. CMOS and LVDS-compatible serial outputs give the ADS1672 flexibility across processor-driven and FPGA-based systems. A candidate replacement must be checked for logic-level compatibility, clocking method, bit framing, lane count, and timing margins. Even small changes in output protocol can force redesign of FPGA deserializers, PCB routing constraints, or isolation boundaries. In mixed-voltage systems, digital I/O domain assumptions matter as much as converter performance. A part that requires different output swing, stricter setup and hold timing, or alternate framing may not be practical even if the analog section looks acceptable.

The third issue is the analog input and reference model. Differential input alone is not enough. Input common-mode range, full-scale reference relationship, input sampling behavior, and driver loading characteristics all influence whether the existing front end can be reused. In precision acquisition chains, the ADC and input amplifier often form a coupled system. A replacement part with different switched-capacitor input behavior or reference drive demand can introduce gain error drift, distortion, or stability problems in the driver stage. Designs that appear stable in static simulation sometimes show degraded THD or unexplained noise rise once the actual converter input network is changed.

Supply architecture is another meaningful discriminator. The ADS1672 uses 5 V analog and 3 V digital supplies, which often aligns with legacy precision analog rails and lower-voltage digital logic. A replacement that moves to lower analog supply voltage may reduce input headroom or require front-end attenuation changes. A part with different digital supply expectations may affect level translation, sequencing, or power tree complexity. These are not trivial board-level edits. They can alter noise coupling paths and ground return behavior, especially in dense acquisition layouts.

Thermal and environmental fit also matters. Industrial temperature support from -40°C to +85°C is a minimum requirement for many instrumentation and embedded deployments. But equivalent temperature range does not guarantee equivalent drift behavior. Offset drift, gain drift, reference sensitivity, and timing variation across temperature often determine whether recalibration remains valid. In field systems, these effects are frequently more important than room-temperature noise figures.

Package compatibility should be treated carefully. A TQFP-64 package match may simplify mechanical integration, but pin compatibility should never be assumed. Even when the package outline is shared, pin function placement, exposed routing priorities, decoupling placement, and high-speed output pin assignment may differ enough to require a board respin. For converters with LVDS output capability, pin adjacency and escape routing can strongly influence signal integrity, so package-level similarity is only the starting point.

For engineering and procurement teams, a practical replacement workflow is usually more reliable than ad hoc spec comparison. Start with architectural fit: 24-bit delta-sigma, differential input, sample rate class, and filter options. Then verify system-level compatibility: reference range, input common-mode window, output format, latency, and clocking. After that, review implementation constraints: supply rails, pinout, package, thermal behavior, and software or FPGA impact. Only after these layers align does cost or availability become meaningful. This sequence avoids the common trap of selecting a part that is commercially attractive but expensive to integrate.

A useful way to think about ADS1672 substitution is that there are three replacement categories. The first is a true functional near-equivalent, where the analog behavior, timing model, and interface are close enough to preserve most of the existing design. The second is a firmware- and FPGA-tolerant substitute, where the board and front end may remain largely intact but digital capture logic and timing assumptions need adjustment. The third is a specification-level alternative, where the converter can meet top-line measurement goals but requires substantial analog and digital redesign. Most candidate parts fall into the second or third category, not the first.

In actual design review, the most fragile assumptions usually hide in timing and calibration. A converter with different digital filter latency can quietly invalidate synchronization logic between ADC data and external triggers. A slightly different reference scaling model can shift gain constants and saturate unexpectedly near full scale. A change in output coding or framing can look correct at low rates and fail only under maximum throughput. These failure modes tend to appear late unless they are checked explicitly during part selection.

For that reason, any candidate replacement for the Texas Instruments ADS1672 should be validated against four high-priority compatibility domains: filter response, interface protocol, reference and input behavior, and timing architecture. These domains directly affect firmware, FPGA logic, analog front-end stability, and calibration transfer. If all four align closely, substitution risk is manageable. If even one diverges, the device may still be usable, but it should be treated as a redesign path rather than a simple replacement.

At the current documentation level, the correct position remains narrow and evidence-based: no specific equivalent or replacement models are identified for the Texas Instruments ADS1672. The most defensible next step is to evaluate alternatives against the ADS1672’s functional envelope, with particular attention to dynamic filter characteristics, digital output implementation, analog interface constraints, and system timing dependencies. In this class of converter, those details determine whether a replacement is truly compatible or only superficially similar.

Conclusion

The Texas Instruments ADS1672 is best viewed as a precision acquisition component built for signal chains where resolution alone is not the deciding metric. In this class of converter, the real design value comes from how effectively sampling speed, noise floor, linearity, settling behavior, clock discipline, and digital interface timing are balanced in one device. The ADS1672 addresses that balance with a 24-bit architecture capable of 625 kSPS, while sustaining dynamic performance and dc accuracy at a level that makes it suitable for serious measurement-grade systems rather than general-purpose embedded sensing.

Its practical strength is that it supports two design priorities that often conflict. One priority is fast and deterministic response to changing inputs, which matters in multiplexed measurement, control-loop observation, and transient capture. The other is spectral cleanliness across a wider signal band, which matters in vibration analysis, power quality monitoring, audio-band instrumentation, and other frequency-domain oriented systems. The dual-path digital filter structure is the key enabler here. Instead of forcing the designer into a single compromise point, the converter provides filtering options that let the signal chain be tuned toward either shorter settling time or stronger wideband fidelity. That flexibility is not cosmetic. It directly affects end-to-end system latency, usable bandwidth, antialias filter complexity, and the quality of downstream numerical analysis.

At the architectural level, this device fits the category of high-performance delta-sigma conversion, where oversampling and digital filtering are used to extract high-resolution measurements from analog inputs while maintaining excellent linearity. In practice, the converter’s effective usefulness depends less on the headline 24-bit label and more on how much of that resolution survives real operating conditions. Dynamic range, total harmonic distortion, offset stability, and gain accuracy determine whether weak signals can be separated from noise and whether larger signals remain trustworthy under broadband or fast-changing conditions. The ADS1672 is compelling because it is engineered to preserve meaningful measurement integrity under both dc and ac workloads, which is far more relevant than nominal code width.

A useful way to evaluate this part is to start from the signal path backward. If the application demands deterministic acquisition timing, the converter’s digital behavior becomes as important as its analog core. Hardware-controlled operating modes and interface flexibility simplify that requirement. They reduce software dependency during critical acquisition phases and make integration more predictable in FPGA-based or mixed-controller systems. In instrumentation platforms, that matters because timing uncertainty often propagates into calibration complexity, synchronization error, and data-validity edge cases that are difficult to debug after board release. Devices that behave consistently at startup, during mode transitions, and across temperature typically save more engineering effort than parts with similar static specifications but weaker operational determinism.

The dc precision characteristics also deserve attention in a system-level context. Precision converters are frequently selected on the basis of noise and SNR, yet many deployed systems fail first on offset drift, reference path instability, front-end leakage, or thermal gradients across the board. A converter such as the ADS1672 is therefore most effective when paired with an analog front end that respects its precision envelope. Reference selection, reference buffering, input driver linearity, common-mode management, and PCB partitioning all influence whether the converter performs close to its datasheet region. In high-resolution designs, it is common to discover that layout symmetry, return-current control, and clock edge containment have a larger practical impact than one more round of digital post-processing. The part gives enough performance headroom that these surrounding design choices become visible, which is usually a sign of a serious converter.

Its 625 kSPS throughput also changes how the converter can be used. At lower sample rates, many precision ADCs are limited to slowly varying process variables or narrowband sensors. The ADS1672 extends precision conversion into domains where waveform shape and temporal behavior matter. That opens use in industrial analyzers, modal testing, precision power measurement, medical and scientific instrumentation, sonar or geophysical front ends, and advanced data acquisition modules. In these scenarios, the converter is not just measuring amplitude. It is preserving time-domain structure while keeping amplitude and spectral errors under control. That distinction is important because applications with dynamic signals often expose weaknesses in settling, distortion, and digital latency long before they expose nominal resolution limits.

From a product selection perspective, the part clearly targets systems that allocate budget, power, board area, and design effort toward measurement quality. It is not an economical fit for battery-driven sensor nodes or dense multichannel low-power endpoints where conversion energy dominates the architecture. Its value appears when one channel must perform exceptionally well, or when a smaller number of premium channels define the system’s differentiation. In such designs, spending more on the converter often reduces cost elsewhere: calibration becomes more stable, analog gain staging can be simplified, and digital compensation becomes less aggressive. That trade is easy to underestimate early in development, but it becomes obvious when trying to maintain repeatable performance across production variation and environmental stress.

For sourcing and platform planning, several practical attributes improve its deployment profile. Industrial temperature support broadens suitability for factory instrumentation and outdoor or thermally variable installations. The TQFP-64 package is conventional enough for mature assembly flows and inspection, which is often preferable in industrial programs that prioritize manufacturability and rework access over minimum footprint. The availability of dual-interface options helps when the same analog platform is expected to feed either an FPGA-centric architecture or a processor-driven control board. This kind of interface adaptability is useful in product families, where one converter choice can be reused across multiple hardware tiers without redesigning the acquisition section.

One subtle advantage of hardware-oriented configurability is operational robustness. In precision systems, it is often preferable to have critical acquisition behavior determined by pins and fixed timing relationships rather than deep register sequencing at runtime. That approach reduces initialization ambiguity, avoids corner cases during watchdog recovery, and makes behavior easier to verify during compliance or production test. When acquisition faults are rare but expensive, simplicity in mode control has real engineering value. The ADS1672 aligns well with that philosophy.

In real designs, the main challenge is usually not getting data out of the converter, but getting data that still reflects the input signal after the entire board environment has acted on it. Fast precision ADCs reveal weaknesses in driver amplifiers, reference decoupling, clock source phase noise, and ground strategy very quickly. A common pattern is that the first prototype meets dc expectations yet underperforms in ac tests because the input network or clock tree was treated as secondary. With a device in this performance class, the converter should be placed at the center of a tightly controlled measurement island: short reference loops, quiet supplies, low-jitter clock routing, and carefully modeled input drive impedance. When that discipline is applied early, the ADS1672 tends to reward the effort with repeatable and interpretable data rather than numbers that look impressive only in static lab conditions.

Another important point is that deterministic behavior is often undervalued during part selection. Many teams focus on peak SNR or nominal ENOB, but in deployed acquisition systems, repeatable latency and predictable filter response can matter just as much. Data alignment across channels, trigger correlation, and closed-loop observability all depend on stable timing semantics. A converter that offers clarity in these areas reduces software compensation burden and lowers integration risk. In high-end instrumentation, that is often the difference between a design that scales cleanly and one that remains fragile despite strong component-level specifications.

The ADS1672 therefore fits best in applications where the ADC is not a passive support component but a defining element of system performance. It serves precision instrumentation, industrial analysis, laboratory-grade acquisition, and advanced embedded measurement platforms that need speed, real resolution, and controlled behavior in the same conversion path. Its combination of throughput, dynamic range, low distortion, dc precision, and selectable digital filtering makes it a specialized but highly effective solution when the signal chain must capture both subtle detail and dynamic content without surrendering timing discipline.
