ADS1299IPAG

ADS1299IPAG Product Overview and ADS1299 Family Positioning

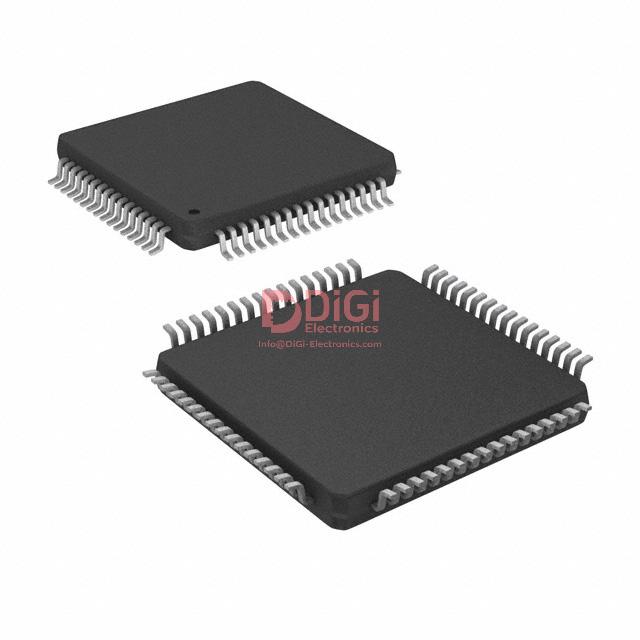

Texas Instruments ADS1299IPAG is the 64-pin TQFP version of the ADS1299, the eight-channel member of the ADS1299 biopotential front-end family. Within the same family, ADS1299-4 and ADS1299-6 provide four and six channels, while maintaining the same core architecture: 24-bit delta-sigma conversion, simultaneous sampling, integrated programmable gain stages, and support circuitry tailored for low-amplitude physiological signals. This family-level consistency is important in practice because it allows a common analog and digital design strategy to scale from compact prototypes to denser acquisition platforms with minimal architectural change.

The device is positioned for extracranial EEG, ECG, and related biopotential measurement systems where signal amplitudes are small, common-mode interference is persistent, and channel-to-channel timing alignment directly affects signal interpretation. In these applications, front-end quality is not defined by resolution alone. Effective performance depends on the interaction between input-referred noise, gain accuracy, input impedance, reference stability, and synchronization across channels. ADS1299IPAG addresses this as a system-oriented analog front end rather than as a standalone converter. That distinction matters: in neural and cardiac acquisition, a clean data path is usually achieved by reducing analog complexity before digitization, not by compensating for weak front-end behavior afterward in software.

At the core of the ADS1299 architecture is the integration of a low-noise programmable gain amplifier ahead of each delta-sigma ADC channel. This arrangement improves sensitivity to microvolt-level signals while preserving simultaneous sampling across all inputs. For EEG in particular, synchronized acquisition is not just a convenience feature. It is essential for preserving phase relationships, spatial correlation, and event timing across electrodes. Once channel skew appears, downstream processing such as source localization, artifact rejection, or coherence analysis becomes less reliable. The ADS1299 family avoids that problem by sampling all channels concurrently, which is one of the main reasons it remains attractive in multichannel electrophysiology designs.

Its 24-bit resolution should be understood in engineering terms, not marketing terms. The practical value lies less in nominal code width and more in how the converter, PGA, and noise floor work together over the usable bandwidth. In low-frequency biopotential systems, delta-sigma conversion is a strong fit because it pushes quantization noise out of band and supports high dynamic range within relatively narrow signal bandwidths. When combined with a low-noise input stage, this allows weak EEG or ECG waveforms to be captured without requiring a large number of discrete preamplifier and filter stages. That reduction in external circuitry often improves repeatability and board-level noise performance, since every removed analog node is one less place for leakage, interference pickup, or component mismatch to degrade the signal.

Another important aspect of ADS1299IPAG is its level of integration. The device includes internal reference support and an onboard oscillator, which simplifies implementation and shortens the sensitive analog path around the converter. In medical instrumentation, integration is not merely about reducing BOM count. It also helps constrain error sources that tend to grow when precision analog functions are distributed across multiple packages. Reference routing, clock coupling, and gain-stage placement all become easier to control when the converter vendor has already optimized those interactions internally. The result is often a more predictable layout and a faster path to stable performance, especially when the design must fit into compact, battery-powered, or portable systems.

The eight-channel configuration gives ADS1299IPAG a useful balance between integration density and routing practicality. Four-channel devices can be too limiting for meaningful spatial acquisition, while larger systems built from many discrete front ends can become difficult to synchronize and shield effectively. Eight channels is often enough for compact EEG headsets, focused cardiac mapping subsystems, or research-grade biopotential recorders that need moderate spatial coverage without excessive board area. In many designs, this channel count also matches well with isolation boundaries, processor bandwidth, and battery constraints, making the part easier to embed into a complete signal chain.

Scalability is another defining feature. Through daisy-chain capability, multiple ADS1299 devices can be combined for higher channel-count systems without forcing a redesign of the host interface concept. This matters in real instruments because channel growth rarely happens uniformly. A project may begin with eight channels for proof-of-concept validation, then expand to sixteen, twenty-four, or more once electrode geometry and signal-processing requirements become clearer. Devices that preserve timing coherence and interface consistency across this growth curve reduce redevelopment risk. The ADS1299 family is well aligned with that progression, which is one reason it fits both standalone instruments and modular acquisition backplanes.

From an implementation perspective, the main challenges are rarely in basic device bring-up. They usually emerge in grounding, input routing, biasing, and interference control. With microvolt-level signals, board layout and electrode interface quality can dominate measured performance. High-resolution converters will faithfully digitize power-line pickup, motion artifacts, and reference contamination if the analog environment is weak. A recurring pattern in successful designs is to treat the ADS1299 not as a drop-in precision block, but as the center of a tightly controlled measurement environment. Short differential routes, disciplined partitioning between analog and digital return paths, careful placement of reference and decoupling components, and a stable electrode bias network often determine whether the theoretical device performance is visible in the final waveform.

The package choice also has practical implications. The ADS1299IPAG in 64-pin TQFP form offers a manufacturable balance between pin accessibility and integration level. It is generally easier to prototype and inspect than finer-pitch alternatives, while still exposing the necessary channels, supply pins, and digital interface signals for a full multichannel front end. For teams moving from bench validation to production-oriented PCB design, that package can reduce assembly friction without compromising the channel density expected from the eight-channel version.

For engineers selecting among biopotential front ends, the most relevant positioning of ADS1299IPAG is this: it is not simply an ADC with extra features, and it is not just a low-noise amplifier array. It is a front-end platform built around the realities of synchronized physiological acquisition. The four-, six-, and eight-channel family options support channel-count matching, but the eight-channel ADS1299IPAG stands out when the design target requires a compact, low-noise, multichannel architecture with room to scale. Its value is highest in systems where preserving signal integrity at the electrode interface is more important than maximizing raw sampling speed, and where integration is used strategically to reduce analog uncertainty rather than merely to save space.

ADS1299IPAG Core Architecture and Signal-Chain Integration

ADS1299IPAG is fundamentally a multichannel biopotential front end optimized for signals that are small, slow, and highly sensitive to channel-to-channel timing error. Its core value is not only that it integrates eight channels, but that it integrates the full low-noise acquisition path in a way that preserves correlation across channels. In EEG and related measurements, this is critical because much of the useful information lies in microvolt-level amplitude differences and phase relationships distributed over many electrodes. Any inconsistency in gain, sampling instant, or reference routing directly degrades spatial interpretation, artifact rejection, and downstream feature extraction.

At the front end, each channel combines a low-noise programmable gain amplifier with a dedicated high-resolution delta-sigma conversion path. This architecture is more important than the raw channel count. The PGA establishes the first noise-critical gain stage close to the converter, reducing exposure to external interference and limiting the need for discrete analog conditioning. For EEG-class signals, where source amplitudes are often only tens of microvolts, the placement and quality of this gain stage largely determine whether later digital processing extracts physiology or just amplifies environmental contamination. In practice, once the front-end noise floor is under control, algorithmic improvements begin to matter; before that point, software rarely compensates for poor analog decisions.

The simultaneous-sampling ADC architecture is equally central. Unlike multiplexed systems, where channels are sampled sequentially with small but real temporal offsets, ADS1299IPAG captures all channels at the same sampling instant. For multichannel waveform analysis, this removes a subtle but consequential source of error. EEG source localization, coherence analysis, evoked response timing, and motion-artifact separation all benefit from deterministic interchannel alignment. Multiplexed acquisition may appear acceptable at low frequencies, but the error becomes visible when comparing transient events across channels or when combining EEG with synchronized stimulation or motion data. Systems intended for serious multichannel analysis generally perform better when timing uncertainty is removed at the converter level instead of corrected later in firmware.

The internal signal routing is deliberately flexible. Each channel includes an input multiplexer that can select external electrode inputs or internally generated sources for test, temperature, and lead-off related functions. This is not just a convenience feature. It changes how the system is validated and maintained. During board bring-up, internal test routing makes it possible to verify the digital path, channel mapping, gain consistency, and register configuration before the electrode interface is even connected. During fault isolation, the ability to inject known internal conditions allows separation of analog-front-end issues from cable faults, electrode problems, or software parsing errors. That capability often shortens debug cycles more than any nominal electrical specification.

The lead-off and internal test mechanisms are especially useful in designs where uptime and field reliability matter. Electrode contact quality is one of the least stable parts of any biopotential system. A front end that can directly support lead status observation reduces dependence on external supervisory circuitry and gives the host processor better context for interpreting corrupted data. In real deployments, many “noisy signal” reports trace back not to converter performance, but to reference instability, partial electrode detachment, or poor skin contact. Integrating these observability hooks into the analog front end makes the system more diagnosable and less dependent on assumptions.

Reference management is another area where ADS1299IPAG goes beyond simple data conversion. The built-in bias drive amplifier supports active common-mode control, which is essential in high-impedance biopotential acquisition. EEG electrodes are exposed to strong common-mode interference, especially from mains coupling and capacitive pickup from the surrounding environment. The bias amplifier helps drive the body or reference network toward a controlled potential, improving common-mode rejection at the channel inputs. This function should be viewed as part of the signal chain, not as an accessory block. A low-noise converter cannot deliver its specified performance if the common-mode environment is unmanaged.

The SRB routing options add practical flexibility for referential montage implementations. In many EEG configurations, a common reference must be distributed across multiple measurement channels. Without internal routing support, this often requires external analog switches, buffering stages, or more complex PCB interconnect strategies. ADS1299IPAG simplifies this by allowing common signal routing internally, reducing analog path length and minimizing opportunities for mismatch, leakage, or board-level noise injection. This matters because reference topology is often where elegant schematic designs become unstable physical systems. Internal routing tends to improve repeatability and reduces the number of external analog decisions that must be tuned across revisions.

From a signal-chain perspective, the device is best understood as a tightly coupled stack: electrode interface, programmable low-noise gain, simultaneous high-resolution conversion, reference and bias management, health-monitoring functions, and serialized output formatting. The benefit of this level of integration is not only reduced BOM count. It also narrows the analog boundary that the system designer must control. Once the signal enters the device, many error sources that normally accumulate across discrete amplifiers, multiplexers, references, and ADC interfaces are either eliminated or made more deterministic. In precision acquisition, determinism is often more valuable than nominal flexibility.

This integration also affects PCB and mechanical design strategy. Since amplification and conversion are colocated inside the device, board-level routing can prioritize short, symmetric input traces, stable reference return paths, and shielding discipline rather than managing a long chain of discrete analog stages. That typically improves susceptibility to EMI and reduces parasitic mismatch between channels. In dense wearable or portable designs, this is a major advantage. The smaller the analog footprint, the easier it becomes to partition noisy digital domains away from the input network. Good results still depend on layout discipline, but the device makes a clean implementation more achievable.

Another practical benefit is calibration behavior. In multichannel EEG systems, consistency between channels often matters as much as absolute accuracy. Since the channels share a coherent architecture and support internal test paths, gain and offset verification can be done in a controlled and repeatable manner. This is useful not only during manufacturing test but also during periodic in-system verification. A system that can self-check its acquisition path with minimal external stimulus is easier to maintain and more trustworthy over long operating cycles. That trust becomes important when downstream algorithms assume stable channel statistics.

The serial data output completes the integration in a way that matches embedded acquisition workflows. Rather than requiring separate converter control and external synchronization logic, the device presents a structured digital interface that can be consumed directly by a microcontroller, DSP, or FPGA. This reduces glue logic and makes timing closure easier at the system level. More importantly, it preserves the architectural benefit of simultaneous sampling all the way into firmware. If the host stack treats the output as a coherent frame instead of as independent channel reads, data integrity and software simplicity both improve.

A useful way to frame ADS1299IPAG is that it collapses the distance between analog acquisition physics and digital system design. It is not just an ADC with extra features. It is a front-end platform that embeds the assumptions required for practical biopotential measurement: signals are weak, electrodes are imperfect, references are dynamic, common-mode interference is unavoidable, and timing coherence matters across all channels. By integrating PGAs, simultaneous converters, internal routing, bias control, lead monitoring, test support, and digital output into one architecture, it reduces the number of places where those assumptions can be violated.

For that reason, the strongest advantage of ADS1299IPAG is architectural coherence. Each integrated block supports the others: low-noise gain makes high-resolution conversion meaningful, simultaneous sampling preserves multichannel interpretability, bias drive protects the input range from common-mode disruption, SRB routing simplifies reference topology, and internal test paths make the whole chain observable. In well-designed EEG systems, this kind of coherence usually produces better real-world performance than assembling individually capable discrete parts with looser interaction control.

ADS1299IPAG Key Performance Specifications for Biopotential Measurement

ADS1299IPAG is built for biopotential acquisition in the regime where the signal of interest is often close to the noise floor of the entire measurement chain. In EEG, evoked potentials, and other low-amplitude bioelectric measurements, useful information may sit in the single-digit microvolt range. Under those conditions, front-end specifications are not secondary selection criteria. They define whether downstream filtering, feature extraction, and classification operate on physiological content or on artifacts introduced at the analog boundary.

The most important starting point is the input-referred noise specification of 1 μVpp over a 70 Hz bandwidth. This number matters because it describes how much uncertainty the analog front end injects before any digital post-processing begins. When the target waveform may only be a few microvolts, even modest internal noise can compress effective dynamic range and blur low-energy components such as background rhythms, slow cortical trends, or weak event-related signatures. In practice, this means the ADS1299IPAG can preserve more of the original amplitude structure without forcing aggressive external gain or narrow analog filtering. That is a meaningful advantage because excessive analog conditioning often trades away flexibility early in the signal path. A quieter converter front end shifts more of the signal-shaping burden into the digital domain, where filters are easier to tune, validate, and reproduce across channels.

Low noise alone is not enough if source impedance is high and unstable, which is common in electrode interfaces. The specified input bias current of 300 pA is therefore equally important. Electrode-skin impedance can vary widely with preparation quality, motion, moisture, cable routing, and long-duration drift. With higher bias current, these impedance variations translate into larger DC offsets and greater baseline error. That can consume input headroom, increase recovery time from disturbances, and complicate common-mode control. A bias current in the picoampere range reduces loading of the electrode interface and helps maintain more predictable operating conditions across channels. This becomes particularly valuable in systems where some electrodes remain well coupled while others degrade over time. In those cases, low bias current does not eliminate imbalance effects, but it slows the rate at which electrode mismatch turns into measurable front-end error.

The programmable gain amplifier is another core element of the device architecture. Gain settings of 1, 2, 4, 6, 8, 12, and 24 allow direct adaptation of the analog front end to different biopotential amplitudes and electrode conditions. This flexibility is more important than it first appears. Gain is not only about making a waveform larger. It is about placing the signal inside the most useful region of the converter’s input range while preserving margin for motion artifacts, electrode offset, and transient interference. In EEG-oriented designs, high gain can improve small-signal utilization of the ADC range, but only if electrode offsets and common-mode disturbances remain controlled. In mixed-mode biopotential systems that may switch between EEG, ECG, EMG, or experimental recordings, lower gain settings can be more stable and easier to deploy. A practical design pattern is to begin validation at a moderate gain, observe worst-case offset and artifact amplitude under real electrode conditions, and then increase gain only when the available headroom is clearly understood. That approach often prevents saturation issues that do not appear during benchtop testing but emerge immediately in worn systems or clinical use.

Data-rate programmability from 250 SPS to 16 kSPS extends the usefulness of the device beyond a narrow EEG-only role. At the low end, 250 SPS is well aligned with typical low-bandwidth biopotential monitoring, where emphasis is placed on noise performance, long recording duration, and manageable data volume. At higher rates, the device becomes suitable for waveform capture, artifact analysis, transient studies, and algorithm development workflows that benefit from oversampling or wider spectral visibility. The broader engineering implication is that one hardware platform can support both finalized acquisition modes and exploratory characterization work. This reduces redesign effort when moving from proof-of-concept to deployed instrumentation. It also makes it easier to compare processing chains under different sample-rate assumptions without changing the analog front end. In practice, high-rate operation is often most valuable during system bring-up, where it exposes line interference structure, cable motion signatures, and settling behavior that may be hidden at lower rates.

The specified common-mode rejection ratio of -110 dB is a critical parameter in electrode-based systems because most environmental interference does not enter as a clean differential signal. It appears first as common-mode pickup from mains fields, cable coupling, body capacitance, and nearby digital electronics. Strong CMRR allows the differential measurement path to reject a large portion of that contamination before it folds into the useful signal band. However, the effective system-level CMRR is never determined by the silicon alone. It depends heavily on electrode impedance symmetry, routing balance, cable management, shielding strategy, and bias drive implementation. This is where the ADS1299IPAG’s built-in bias drive and referential routing options become practically significant. They support active control of common-mode voltage and provide a cleaner path toward stable measurements in electrically noisy settings. In well-executed layouts, these features reduce the amount of downstream notch filtering required, which is important because excessive digital rejection of line noise can distort nearby physiological content and complicate phase-sensitive analysis.

Power dissipation of 42 mW for the eight-channel analog front end is modest enough to support portable and expandable systems, but it should not be viewed only as a battery-life number. Power also shapes thermal behavior, board density, and channel scaling strategy. In compact biopotential instruments, localized heating near analog inputs, references, or electrodes can create subtle drift mechanisms that are hard to diagnose from schematics alone. Lower dissipation reduces those risks and simplifies enclosure design, especially when multiple AFEs are stacked for higher channel counts. In battery-powered recorders, the power figure also interacts with wireless transmission, local processing, and storage. A front end that is efficient at the channel level provides more room for filtering, compression, and edge analytics without forcing immediate tradeoffs in operating time.

Taken together, these specifications show that the ADS1299IPAG is not simply a high-resolution ADC with integrated gain. It is a front-end platform shaped around the failure modes of real biopotential measurement: microvolt-level signals, unstable electrode interfaces, large common-mode interference, and strict power constraints. The strongest aspect of the device is the way its specifications reinforce one another. Low input-referred noise preserves weak signals. Low bias current limits error growth at imperfect electrodes. Gain programmability helps align small signals with converter range. Wide data-rate control supports both monitoring and characterization. High CMRR and bias drive features improve robustness in environments where electrical noise is unavoidable. Moderate power enables practical channel scaling.

For engineering deployment, the device performs best when the surrounding design respects the same priorities as the silicon. Electrode impedance matching should be treated as a signal-integrity requirement, not just a setup variable. Input routing should remain short, symmetric, and isolated from clock and radio energy. Bias drive should be validated under disturbed conditions rather than only in ideal bench configurations. Gain should be selected against worst-case artifact amplitude, not nominal signal level. Sample rate should be chosen based on both spectral content and artifact observability. In many biopotential systems, the front end appears excellent on paper long before the full assembly behaves correctly. The difference usually comes from these implementation details, not from the AFE itself.

What makes the ADS1299IPAG especially effective is that its specifications align with the actual bottlenecks of EEG-class acquisition rather than with generic converter metrics alone. In this signal domain, the best component is rarely the one with the most aggressive headline number in isolation. It is the one whose noise, bias behavior, rejection capability, programmability, and power profile remain balanced when exposed to imperfect electrodes and noisy surroundings. By that standard, the ADS1299IPAG is engineered with the right priorities.

ADS1299IPAG Channel Options Across ADS1299, ADS1299-6, and ADS1299-4

ADS1299IPAG channel selection is best understood as a scalability decision inside a single analog front-end family rather than as three unrelated part choices. The ADS1299 family is partitioned into ADS1299-4, ADS1299-6, and ADS1299, offering four, six, and eight simultaneous acquisition channels respectively. Across these variants, the architectural baseline remains largely constant: all devices are available in the TQFP-64 package, all provide 24-bit delta-sigma conversion, and all support sampling rates up to 16 kSPS. That consistency is not just a catalog convenience. It materially reduces redesign effort when moving between product tiers, because the signal chain, digital interface model, and board-level integration approach remain closely aligned.

At the device level, the practical distinction is channel density. The ADS1299-4 is aimed at systems where electrode count is tightly bounded and board area or cost pressure is dominant. The ADS1299-6 fits intermediate designs that need additional spatial coverage without stepping to the full eight-channel configuration. ADS1299IPAG, as the eight-channel member, is the most capable option when a design needs broader simultaneous acquisition, more flexible derivations of differential measurements, or denser integration in a single front-end footprint. In EEG-oriented systems, that often translates into fewer compromises in montage planning, easier support for reference and auxiliary channels, and less need to partition the analog front end across multiple ICs.

This matters because channel count in biopotential acquisition is never only about the number of electrodes. It affects synchronization fidelity, analog routing complexity, common-mode behavior, power budgeting, isolation strategy, firmware scheduling, and eventual algorithm design. Once a design is split across multiple lower-channel converters, the system inherits extra coordination tasks: clock distribution becomes more sensitive, startup and reset sequencing require tighter control, and channel-to-channel matching must be validated not only within each device but also across devices. Using ADS1299IPAG can avoid much of that overhead in applications that naturally fit within eight channels. The simplification is often more valuable than the raw channel increase itself.

From a platform architecture perspective, the family supports a clean scaling model. A product line can start with a four-channel entry system, extend to a six-channel mid-tier unit, and culminate in an eight-channel premium configuration while preserving a large fraction of the hardware and software framework. Connector definitions, SPI transaction structure, register configuration logic, power-tree assumptions, and enclosure constraints can often be carried forward with only bounded changes. That kind of reuse shortens validation cycles and lowers risk during variant expansion. In practice, this is one of the stronger advantages of the ADS1299 family: the migration path is visible early, so the initial board can be laid out with future channel growth in mind rather than treated as a one-off implementation.

There is also a subtler engineering benefit in keeping the package constant across variants. A common TQFP-64 footprint allows a base PCB concept to support multiple channel-count SKUs with minimal mechanical disruption. This helps when a design team wants to standardize assembly, test fixtures, and manufacturing documentation. It also improves flexibility during sourcing and product segmentation. If one hardware platform is expected to serve multiple clinical, research, or industrial monitoring roles, a shared footprint reduces the friction of creating derivative designs. The package uniformity effectively turns channel count into a controlled configuration variable rather than a trigger for full board re-architecture.

For teams evaluating ADS1299IPAG specifically, the eight-channel version is usually the right choice when system-level simplicity outranks the marginal savings of a lower-channel device. That tends to happen in designs requiring full EEG cap segment capture, denser electrode clustering, or richer differential recombination in software. It is also attractive when BOM consolidation is important. One eight-channel device can replace combinations of smaller devices that would otherwise introduce additional routing, synchronization, and qualification effort. In mixed-signal boards, every removed interconnect and every avoided cross-device timing dependency improves robustness more than it appears on a schematic.

The choice becomes especially clear when looking at real deployment constraints. Early prototypes often underestimate the value of spare channels. Additional channels are frequently consumed by reference experimentation, driven electrode schemes, impedance checks, auxiliary sensors, or future firmware features that emerge only after signal-quality evaluation starts. A four-channel design may appear sufficient on paper, yet become restrictive once test data exposes the need for more flexible referencing or more aggressive artifact observation. In that context, selecting ADS1299IPAG upfront can act as a design margin strategy rather than overdesign. The extra channels absorb late-stage requirement drift without forcing a second analog front-end revision.

That said, higher channel density is not automatically optimal. If the application is fixed, tightly cost-constrained, and unlikely to expand, ADS1299-4 or ADS1299-6 may provide a better balance. Fewer active channels can simplify electrode harnessing, reduce data throughput, and lower unnecessary subsystem load. The key is to align channel count with the actual acquisition topology rather than with a generic preference for maximum integration. A disciplined design usually starts from the electrode model, the intended montage flexibility, and the expected evolution of firmware features. From there, the part choice becomes a system decision, not merely a procurement decision.

A useful way to frame the family is this: ADS1299-4 optimizes minimal sufficient acquisition, ADS1299-6 supports moderate expansion without changing architectural direction, and ADS1299IPAG delivers the highest integration efficiency when eight synchronized channels fit the measurement plan. Because all three share the same 24-bit resolution and 16 kSPS maximum sampling rate, the tradeoff is not converter quality or speed. It is how much acquisition capacity the system should internalize at the front-end level. In most scalable EEG and biopotential platforms, that distinction is exactly where long-term product value is decided.

ADS1299IPAG Analog Inputs, PGA Configuration, and Reference Architecture

ADS1299IPAG centers its analog front end around fully differential channel inputs, INxP and INxN, which feed an integrated PGA followed by the delta-sigma conversion path. That structure is not just a pin-level detail; it defines how signal integrity, dynamic range, and reference stability interact across the entire acquisition chain. In practice, the device rewards designs that treat the analog inputs, PGA gain, input common-mode control, and reference distribution as one coupled system rather than four independent configuration items.

Each channel measures the differential voltage between INxP and INxN. The PGA amplifies only that differential component before digitization, so the usable input span is set by the familiar relationship of full-scale differential input equal to ±VREF/gain. This directly means gain is both a sensitivity control and an overload constraint. Increasing gain improves the converter’s ability to resolve small biopotential signals, but it also compresses the allowable input range at the pins. With a fixed reference, every gain step trades margin for resolution. That tradeoff becomes especially important when electrode offset, motion artifact, or bias-loop excursions can be much larger than the desired signal.

A useful design approach is to size gain from worst-case front-end behavior first, not from nominal signal amplitude. The nominal EEG-level signal may suggest aggressive gain, but startup transients, electrode polarization, cable disturbance, and patient-dependent offset can easily consume the available PGA headroom. In bench validation, channels that appear clean under static conditions often clip intermittently once leads are moved or input impedance balance shifts. For that reason, gain selection is usually more robust when based on maximum expected differential disturbance plus offset budget, with resolution optimization handled afterward through filtering and digital processing rather than by pushing the PGA too close to its limits.

The reference architecture is equally central because the ADS1299 effectively measures everything relative to VREFP and VREFN. The stated reference input voltage of 4.5 V defines the ADC full-scale basis, and the device allows either internal or external reference operation. VREFP serves as the positive analog reference input/output, while VREFN is the negative analog reference input. The requirement for a minimum 10-μF capacitor on VREFN is not a formality; it reflects the need to stabilize the reference return node and suppress low-frequency disturbance that would otherwise translate directly into conversion uncertainty. In precision delta-sigma systems, reference noise is functionally indistinguishable from input-referred noise after scaling, so reference routing and decoupling deserve the same discipline as the signal path.

The internal reference simplifies the design and reduces component count, which is often attractive for compact systems or early prototypes. It also reduces interdependence on external reference IC behavior and can ease layout partitioning. An external reference becomes more compelling when tighter control of temperature drift, low-frequency noise, system-wide synchronization, or multi-device consistency is required. In larger systems, especially where several precision converters share a metrology budget, external reference distribution can improve predictability, but only if routing is short, low impedance, and isolated from digital return contamination. A weak external reference implementation is often worse than using the internal source cleanly.

Reference selection should therefore be treated as an architectural decision, not a catalog checkbox. If the system noise floor is dominated by electrode interface noise or environmental pickup, an elaborate external reference may add complexity without measurable benefit. If the design is already optimized at the sensor and layout levels, reference quality starts to matter much more. The practical threshold is usually reached when low-frequency drift and channel-to-channel repeatability become more limiting than broadband noise.

The common-mode range of the analog inputs introduces another layer that is easy to underestimate. Even when the differential signal is comfortably within ±VREF/gain, the channel can still misbehave if INxP and INxN do not remain inside the valid common-mode operating window. This is where the external electrode network, the bias drive loop, input protection elements, and the analog supply rails all become tightly linked. The ADC does not only care about the voltage difference between the pins; the absolute voltage level of both pins relative to the analog supply domain also matters.

In real front-end implementations, common-mode problems often appear before differential overrange becomes obvious. A channel may show distortion, elevated noise, or erratic settling even though the computed differential amplitude seems safe. The cause is frequently input nodes drifting toward a rail due to electrode offset current, imbalance in source impedance, leakage through protection networks, or an overactive bias drive. High-value series resistors and RC filtering help with protection and EMI suppression, but they also introduce voltage drops and settling behavior that shift input node operating points. This makes common-mode analysis inseparable from the passive network around each electrode input.

A sound method is to evaluate three conditions together: steady-state electrode offset, transient excursion under motion or reconnection, and bias-loop response under faulted or missing electrodes. If all three remain inside the allowed common-mode window with gain applied conservatively, the design tends to behave predictably in the field. If common-mode margin is narrow, the system may pass static bench tests and still fail intermittently when the cable set, enclosure grounding, or source impedance changes. That pattern is common enough that common-mode headroom should be considered a first-order design margin, not a secondary check.

The bias drive scheme is particularly influential because it sets the average common-mode operating point seen by the inputs. A well-tuned bias loop recenters the electrode potentials within the ADC’s valid range and improves rejection of external interference. A poorly tuned loop can instead inject instability, increase recovery time, or push certain channels toward the edge of the operating window under asymmetric loading. The most reliable implementations treat the bias path as part of the analog control system, with deliberate attention to loop bandwidth, fault behavior, and interaction with electrode impedance spread.

Unused-pin handling looks minor in comparison, but it affects production robustness. Connecting unused analog inputs directly to AVDD prevents them from floating into undefined states where they can couple noise or create parasitic internal activity. Tying unused GPIO pins to DGND through at least 10-kΩ resistors provides deterministic logic states without forcing unnecessary current. These recommendations are simple, but they matter because floating nodes tend to expose edge-case behavior only after assembly variation, humidity shifts, or EMC stress. On dense mixed-signal boards, seemingly harmless unconnected pins can become antennas, injection points, or latent test escapes.

Layout discipline reinforces all of these electrical choices. The analog input traces should be routed as tightly coupled differential pairs where practical, with matched parasitics and minimal exposure to digital transitions. Reference pins should see short, quiet connections to their decoupling network and return path. Guarding, shielding, and careful partitioning of analog and digital return currents are more valuable than decorative complexity. For this class of converter, layout quality often determines whether the theoretical data-sheet performance remains a simulation artifact or becomes observable in hardware.

A layered view of the ADS1299 front end helps avoid fragmented decisions. At the device level, the key constraints are differential full-scale, reference magnitude, and common-mode limits. At the interface level, electrode impedance, bias drive behavior, and protection/filter components determine whether those constraints are respected dynamically. At the board level, routing, decoupling, and unused-pin termination decide how much real noise and uncertainty reach the silicon. When these layers are designed in alignment, the converter behaves predictably and preserves low-level signal detail. When they are handled independently, most problems show up as intermittent clipping, unexplained drift, or noise that seems impossible to reproduce twice in the same way.

ADS1299IPAG Bias Drive, Lead-Off Detection, and Common Electrode Functions

In biopotential acquisition, electrode management is not a peripheral feature. It defines whether the converter operates near its intended noise floor or spends most of its time recovering from common-mode drift, contact imbalance, and intermittent disconnection. ADS1299IPAG addresses this system layer with three tightly coupled functions: bias drive generation, lead-off detection, and flexible common-electrode routing through the SRB structure. These blocks are most effective when treated as part of the analog control loop around the body-electrode interface, not as isolated support features.

The bias drive path is centered on BIASIN, BIASINV, BIASREF, and BIASOUT. Functionally, this is a common-mode feedback system. Selected channel inputs are summed or derived internally, processed by the bias amplifier, and driven back to the subject through a bias electrode. The purpose is not signal amplification in the usual sense. It is active stabilization of the body potential relative to the ADC input common-mode range. In low-level EEG and ECG systems, this matters because the electrode-body interface is a high-impedance, polarization-sensitive source that easily picks up mains interference and environmental electric fields. If the body common-mode voltage is left unmanaged, the front end must absorb larger interference swings, and the programmable gain stages lose effective headroom long before the converter itself reaches its theoretical resolution.

A useful way to view the bias amplifier is as a common-mode actuator. The selected input channels provide observation of the aggregate electrode environment, and BIASOUT injects a correcting signal that pulls the subject potential toward a controlled operating region. This improves common-mode rejection at the system level, even though the ADC already relies on high intrinsic channel matching and differential measurement. In practice, the converter’s internal CMRR is only one part of the story. Real rejection is dominated by electrode impedance mismatch, cable asymmetry, leakage paths, and layout parasitics. The bias loop reduces the amplitude of the unwanted common-mode content before it reaches the vulnerable parts of the signal chain.

The pin set supports several implementation styles. BIASIN and BIASINV define how the bias amplifier senses and closes its loop. BIASREF establishes the reference point for the bias drive, which is important because the “best” common-mode target is not always simple mid-supply in a practical front end. It is the operating point that keeps all active electrodes, PGA inputs, and the body interface within linear range under motion, offset drift, and environmental coupling. BIASOUT then drives the selected electrode through the external network required for stability, protection, and current limiting. This external network is often treated as routine, but it strongly influences phase margin and recovery behavior. Long electrode leads and high source impedance can turn the bias electrode path into a lightly damped feedback node. Conservative compensation is usually preferable to aggressive loop bandwidth because a slightly slower bias loop is less harmful than one that oscillates or rings under cable movement.

In EEG front ends, the bias drive often plays a role similar to a driven reference or driven ground, depending on system architecture. In ECG, the same concept aligns closely with the driven-right-leg approach. The naming differs by application, but the engineering objective is the same: suppress common-mode interference and center the patient interface in a predictable voltage region. One practical pattern is to exclude channels known to be unstable or application-specific from the bias derivation set. If a channel is attached near a high-motion area or expected to carry abnormal artifact energy, feeding it directly into the bias summation can contaminate the global common-mode estimate. The internal configurability is valuable because it lets the designer build a bias signal from the cleaner subset of channels rather than forcing a one-size-fits-all average.

Lead-off detection complements the bias system by adding observability to the electrode interface. ADS1299 supports internal lead-off implementation using source or sink excitation currents. This enables the system to test whether an electrode is connected, weakly attached, or drifting toward an unusable impedance condition. At startup, this reduces ambiguity during attachment and calibration. During runtime, it provides a mechanism to distinguish physiological changes from contact failures. That distinction is essential in systems where low-frequency drift, saturation events, and motion artifacts can otherwise resemble each other at the waveform level.

From a mechanism perspective, lead-off detection works by injecting a known current and observing the resulting response at the channel input. A properly connected electrode with acceptable interface impedance produces a response within an expected range. An open or degraded contact shifts that response enough to be flagged. The elegance of internal lead-off support is that it avoids a separate analog integrity-check circuit, which would otherwise introduce more switches, leakage sources, and layout complexity near high-impedance nodes. Integration here is more than convenience. It preserves signal-path cleanliness around the electrodes, where even small parasitic currents and dielectric contamination can create measurable errors.

There is an important design tradeoff in lead-off current selection. Larger excitation currents improve detectability and speed, but they also increase the risk of disturbing the measured biopotential, especially in ultra-low-frequency or high-gain EEG modes. Smaller currents are gentler but can become ambiguous when electrode impedance is already high and environmental noise is strong. In practice, lead-off settings work best when aligned with the operational phase of the device. A stronger detection configuration is often suitable during setup and attachment verification. A lighter-touch mode is preferable during acquisition, particularly when preserving microvolt-level baseline quality is more important than immediate fault response. This staged approach usually yields better real-world robustness than trying to use one static detection profile for every state.

The interaction between lead-off detection and bias drive deserves attention. These are not independent features. The bias loop alters common-mode conditions, while lead-off detection probes the interface using injected current. If both are configured without considering each other, the measured response can become harder to interpret. For example, a poorly chosen bias derivation set can partially mask a weak electrode by forcing the body potential into a range that looks superficially acceptable at the affected channel. Conversely, an overly active lead-off scheme can modulate the very node the bias loop is trying to stabilize. The cleanest designs assign clear roles: bias drive manages common-mode control continuously, and lead-off detection validates contact integrity with excitation settings appropriate to the acquisition state.

The SRB1 and SRB2 pins extend this flexibility into the reference-routing domain. These pins support routing of a common signal to multiple channel inputs, which is especially useful in referential montage configurations. In EEG systems, many channels are measured relative to a shared reference electrode. Implementing that reference externally with discrete analog routing can quickly become cumbersome as channel count rises. The SRB structure reduces this burden by allowing common reference distribution inside the device’s input architecture, simplifying board routing and reducing the number of high-impedance external traces that must be kept clean.

SRB1 and SRB2 are similar in purpose but differ in how they fit channel grouping and routing strategy. The main value is architectural. They let the designer choose where commonality should exist: at the electrode level, at the analog input network, or within the internal switching topology. This matters because every centimeter of external high-impedance routing is an opportunity for capacitive pickup, leakage, and crosstalk. Shared-reference systems often fail not because the converter lacks precision, but because the reference node becomes a distributed antenna. Internal routing options reduce that risk and make channel behavior more repeatable across layout revisions.

In referential EEG montages, the SRB path can also simplify gain and input-consistency management across channels. When multiple channels share the same reference through a controlled internal route, mismatch introduced by external resistor networks, connector variability, and trace parasitics is reduced. That does not eliminate the need for disciplined PCB design, but it narrows the problem. The analog effort can then focus on electrode protection, anti-alias filtering strategy, and guarding of truly sensitive nodes instead of repeatedly solving the same reference-distribution problem outside the converter.

A practical implementation detail is that the common electrode function should be planned together with fault behavior, not only with nominal acquisition. When a reference electrode degrades, a shared-reference topology can propagate the impact across many channels at once. In such a case, lead-off detection becomes the diagnostic layer that explains a simultaneous quality drop, while the bias loop may either help maintain temporary operability or, if misconfigured, spread the disturbance more broadly. Good designs therefore define channel inclusion for bias generation, SRB usage, and lead-off thresholds as one coherent electrode strategy. Treating them separately often leads to systems that look correct on a schematic but behave unpredictably on the bench.

Another recurring lesson is that the electrode interface is dynamic. Gel condition changes, skin preparation varies, cable stress shifts impedance, and mains coupling is rarely stationary. The ADS1299 feature set is strongest when used adaptively. Bias channel selection, lead-off mode, and common-reference routing should reflect the montage, expected motion environment, and startup-versus-acquisition state. The integrated architecture makes this possible without expanding the analog bill of materials, but the real advantage is not component reduction. It is the ability to shape electrode behavior as a controlled subsystem around the ADC.

Seen this way, BIASIN, BIASINV, BIASREF, and BIASOUT provide the feedback mechanism; lead-off detection provides observability; SRB1 and SRB2 provide routing economy and montage flexibility. Together they form the converter’s electrode-management framework. In high-resolution biopotential systems, that framework often determines whether the theoretical performance of the silicon can survive contact variation, interference, and field use. The converter measures microvolts, but the system succeeds or fails at the electrode boundary.

ADS1299IPAG Digital Interface, Conversion Control, and Daisy-Chain Expansion

ADS1299IPAG uses an SPI-compatible digital interface, but in practice its interface behavior is closer to a timing-governed acquisition link than a simple register bus. DIN, DOUT, SCLK, CS, DRDY, RESET, START, and PWDN are not only control pins; together they define how conversion timing, data coherency, startup state, and system scalability are maintained. For EEG front ends, where low-noise analog performance is only useful if digital extraction is equally deterministic, this interface becomes part of the signal chain rather than a peripheral detail.

At the transaction level, CS, SCLK, DIN, and DOUT implement the serial command and data path. The host uses DIN to write commands and configuration words, and reads conversion results or register contents from DOUT. This appears conventional, but the useful design distinction is that ADS1299 is a continuous data producer. The host is not merely polling status; it must service the converter at the rate imposed by the selected output data rate and channel count. That shifts the design emphasis from protocol compatibility to sustained timing integrity. In low-channel prototypes this is easy to overlook, yet once channel count rises or multiple devices are cascaded, SPI clock budget, interrupt latency, and frame parsing become first-order constraints.

DRDY is the anchor for deterministic readout. It asserts low when a new conversion frame is available, allowing the host to align every read cycle to a well-defined sample boundary. For precision biopotential systems, this matters more than bus efficiency. Sampling is not just about collecting values; it is about ensuring that all channels correspond to the same conversion instant and that no frame is skipped or partially read. A robust implementation typically treats DRDY as the primary timing event and schedules the serial transfer immediately after assertion. When this is done well, downstream filtering, artifact removal, and time-domain analysis become much more reliable because software receives uniformly aligned sample blocks instead of loosely timed data fragments.

START controls the conversion state machine. It can initiate conversions and, just as importantly, re-establish conversion alignment after a reset or abnormal bus condition. In single-device systems, START may seem like a simple enable input. In larger instruments, it is better viewed as a synchronization signal. Driving START from a common source across multiple ADS1299 devices provides a clean way to force simultaneous conversion boundaries. This is one of the practical reasons the device scales well in modular EEG architectures: the same signal that starts acquisition also helps preserve temporal coherence across repeated front-end blocks.

RESET and PWDN manage the non-measurement states of the converter. RESET returns the digital core and register map to a known condition, which is essential during initialization and fault recovery. PWDN reduces power consumption when acquisition is inactive. These functions are often treated as housekeeping, but in field systems they influence reliability and recovery time. A clean reset sequence prevents subtle register mismatches that can otherwise look like analog instability. Power-down control also matters in battery-operated instruments, especially where thermal behavior, standby autonomy, and staged subsystem wake-up must be balanced. In compact mixed-signal designs, bringing the converter up in a controlled order often reduces startup anomalies and simplifies software state management.

The daisy-chain capability is one of the most valuable digital features of the ADS1299 family. Multiple ADS1299-4, ADS1299-6, or ADS1299 devices can be cascaded so that a larger aggregate channel count is exposed through a serial chain. Architecturally, this allows a repeated analog front-end tile to be expanded without replacing the converter family or redesigning the host interface from scratch. For dense EEG systems, that modularity is more important than it first appears. It supports a board strategy where analog input routing, reference distribution, shielding, and electrode connector placement can be replicated in manageable blocks, while the host still receives a unified serial stream.

The underlying mechanism of daisy-chaining is straightforward: the serial output of one device propagates through the chain, and the host clocks out a longer composite data frame containing the results from all converters. The engineering consequence is less trivial. As devices are added, frame length grows linearly, and the SPI clock must scale accordingly to ensure the entire data packet is extracted before the next DRDY event. This creates a clear bandwidth inequality: total bits per frame multiplied by sample rate must remain comfortably below the sustainable serial throughput, with margin for command traffic, interrupt handling, and software jitter. Designs that only satisfy this condition on paper often become fragile once real firmware overhead is included. A practical approach is to reserve generous timing margin and verify it with logic-analyzer captures under worst-case load rather than nominal conditions.

Synchronized acquisition is often cited as a benefit of daisy-chain expansion, and that is correct, but synchronization in real systems depends on more than simply wiring multiple devices together. Shared START timing, matched clocking strategy, disciplined reset sequencing, and consistent read servicing all contribute. If one device enters a different state due to an initialization race or missed command, the chain can still shift bits, yet channel ordering or frame interpretation may silently break. This is why a defensible implementation usually includes explicit startup validation, known-pattern register reads, and frame-length checks before normal acquisition begins. Those checks cost little and prevent failures that are otherwise difficult to diagnose because they present as corrupted physiology rather than digital faults.

From a board-level perspective, daisy-chain expansion simplifies some routes while making others more sensitive. It reduces the number of independent SPI chip-select paths and can lower controller pin usage, which is attractive for FPGA or MCU-based concentrators. At the same time, it increases dependence on signal integrity across the serial path. Long traces, multiple connectors, and mixed-voltage domains can degrade SCLK edge quality or introduce setup-and-hold violations that only appear at higher data rates. In compact EEG hardware, where digital lines often run near high-gain analog nodes, the cleaner architecture is not always the quieter one. Good partitioning between analog and digital return paths, controlled clock edge rates where possible, and careful placement of the chained devices usually have more impact than interface topology diagrams suggest.

In application scenarios such as multi-electrode headsets, sleep-monitoring systems, or research acquisition platforms, the ability to scale beyond eight channels without changing converter architecture is a practical advantage. It keeps the analog characteristics, register model, and firmware abstraction largely consistent as the product grows from prototype to expanded platform. That continuity reduces validation effort and helps preserve data comparability across hardware variants. It also enables a more disciplined design flow: one validated eight-channel block can become the foundation for 16, 24, or 32 channels, with system effort redirected toward electrode layout, mechanical integration, and artifact mitigation instead of requalifying a new ADC path.

One useful design perspective is to treat the ADS1299 digital interface as a deterministic streaming subsystem rather than a generic SPI peripheral. That mindset changes several implementation choices for the better. Firmware is then organized around DRDY-driven frame capture, DMA-backed serial transfer, fixed frame parsing, and explicit state transitions for reset, standby, and restart. Hardware is then arranged to support shared timing references, low-skew control distribution, and expansion margin in serial bandwidth. Systems built this way tend to scale more gracefully because the digital interface is designed with the same rigor as the low-noise analog front end.

For engineers building higher channel-count instrumentation, the main value of the ADS1299 daisy-chain model is not merely channel multiplication. It is architectural continuity with timing discipline. The same converter family can support modular growth while preserving synchronized sampling, predictable control behavior, and manageable host integration. When the interface is designed with enough margin and treated as part of the measurement path, the result is a front end that scales cleanly from a compact prototype to a dense acquisition platform without losing coherence or maintainability.

ADS1299IPAG Power Supply Requirements, Clocking, and Operating Conditions

ADS1299IPAG power architecture, clock strategy, and operating limits define much of the system behavior long before signal-processing firmware is written. These parameters are not just compliance items from a datasheet. In precision biopotential acquisition, they directly shape noise floor, channel stability, startup behavior, EMC performance, and long-term field robustness. A design that meets the numeric limits but ignores the interaction between supply domains, clock quality, and environmental stress will often show intermittent artifacts that are difficult to trace later.

ADS1299IPAG supports both unipolar and bipolar supply configurations. The analog supply range is 4.75 V to 5.25 V, and the digital supply range is 1.8 V to 3.6 V. The device documentation also identifies practical connection schemes using unipolar 5 V with 3.3 V digital logic, as well as bipolar analog rails such as ±2.5 V combined with a 3.3 V digital domain. This flexibility is more important than it may first appear. It allows the front end to be adapted to different system-level constraints, including battery chemistry, patient-isolation architecture, DC-DC conversion topology, and the available logic rail in the host processor domain.

In a unipolar implementation, the power tree is usually simpler. A single positive analog rail and a lower-voltage digital rail reduce regulator count and often shorten bring-up time. This approach fits compact battery-powered instruments where efficiency, board area, and qualification effort matter as much as raw analog headroom. The tradeoff is that input common-mode planning becomes more critical. With only positive analog headroom, electrode offset, reference placement, and bias drive behavior must be managed carefully so that the input path remains inside the valid operating region under all expected electrode conditions, including lead-off events and transient recovery.

A bipolar analog supply often gives cleaner operating margins for low-frequency differential measurements. With ±2.5 V analog rails, the internal analog path can be centered more naturally around ground, which can simplify biasing strategy and reduce stress on common-mode control loops when electrode offsets drift. In practice, this tends to make edge-case behavior more predictable, especially when the input network must tolerate slow baseline shifts, motion-induced imbalance, or front-end protection leakage. The cost is added power complexity. Generating a quiet negative rail is rarely free. Charge pumps can inject ripple into sensitive bands, and isolated converters can create common-mode noise that only becomes visible once the electrodes are attached. For that reason, bipolar rails are only advantageous when the extra analog margin is actually used by the application and not merely added as a theoretical improvement.

The analog and digital supplies should be treated as functionally distinct noise domains even when they are derived from a common upstream source. The analog rail feeds the precision measurement core, so ripple, load-step response, and high-frequency switching residue matter more than the nominal voltage value alone. The digital rail mainly defines logic interface compatibility and internal digital operation, but it can still contaminate the analog section through substrate and package coupling if decoupling and return-current paths are not controlled. A common implementation mistake is to focus on regulator accuracy while underestimating layout symmetry, local bypass placement, and the impedance of the ground return between the ADS1299IPAG and the rest of the board. In high-gain, microvolt-level systems, poor current-loop control often appears as unexplained low-frequency noise or data-dependent interference rather than obvious switching spikes.

Power sequencing deserves attention as well. Although the device supports a wide digital supply range, the system should avoid states where digital pins are actively driven before the device supply domains are stable. Back-powering through interface pins can create partial bias conditions that lead to unreliable startup or latent stress. A robust design typically includes controlled rail ramp-up, logic-level restraint during reset, and enough local bulk capacitance to prevent analog droop during wireless bursts, processor wakeups, or isolated power transients. These details are often what separate a stable medical front end from one that passes bench tests but becomes erratic in portable use.

Clocking has a similarly strong influence on overall performance. ADS1299IPAG includes an internal oscillator and also accepts an external clock. For external clocking, the supported input range is 1.5 MHz to 2.25 MHz, with 2.048 MHz identified as the nominal value. CLK and CLKSEL pins are used for clock input and clock-source selection. From a system perspective, the choice between internal and external clocking is primarily a tradeoff between simplicity and timing control.

The internal oscillator reduces BOM count and avoids routing a high-speed clock across a mixed-signal board. That usually improves integration speed and lowers the risk of coupling a digital edge source into the analog front end. For many standalone acquisition units, this is the cleaner default choice. If the product does not need tight synchronization with other converters, stimulators, or communication framing, the internal oscillator often provides the best balance between performance and implementation risk.

An external clock becomes valuable when deterministic timing is required across multiple devices or across a larger measurement system. In synchronized multi-channel platforms, phase coherence matters not only for simultaneous sampling but also for downstream artifact rejection, source localization, and timing correlation with other sensors. In these cases, a common external clock can remove a class of software alignment problems that would otherwise need compensation. However, external clocking only helps if the clock is genuinely cleaner and better distributed than the internal option. A noisy or poorly routed external source can degrade performance more than it improves synchronization.

Clock integrity should therefore be treated as an analog issue, not only a digital timing issue. Fast clock edges can couple into electrode inputs, reference nodes, or bias-drive traces through capacitance, ground bounce, or supply modulation. Keeping the clock path short, controlling impedance where needed, and isolating it from high-impedance analog nodes are basic but necessary steps. It is also good practice to prevent unnecessary clock fanout near the converter if only one clock consumer exists. A common field observation is that many unexplained narrowband tones in precision acquisition systems are eventually traced to avoidable clock routing decisions rather than to the converter core itself.

The nominal 2.048 MHz external clock value is also significant because it aligns well with digital decimation structures commonly used in precision delta-sigma converters. Choosing the nominal frequency usually simplifies expectation management around data rates, digital filter behavior, and timing validation. Deviating within the allowed range may still be valid, but it should be done with a clear reason, such as synchronization to another system clock or a deliberate throughput tradeoff. In precision instrumentation, nonstandard clock choices often expand verification effort more than expected.

The operating ambient temperature range of -40°C to +85°C gives the device enough margin for portable, bedside, industrial-adjacent, and transportable instrumentation scenarios. Still, ambient rating should not be confused with guaranteed analog consistency under all thermal gradients. Precision front ends are sensitive to local heating from processors, radios, isolated converters, and linear regulators. Even when the ambient environment is moderate, localized board temperature rise can shift offset behavior, bias currents, and noise characteristics. It is often useful to think in terms of thermal zones on the PCB rather than a single board temperature. Keeping the converter and its input network away from concentrated heat sources generally pays back in reduced drift and shorter stabilization time after power-up.

Temperature also affects passive components around the device. The performance seen at room temperature can change noticeably once input protection resistors, RC anti-alias filters, reference decoupling capacitors, and bias-network components move across tolerance and temperature coefficients. In low-frequency biomedical acquisition, these effects are subtle but cumulative. A design with excellent nominal converter specifications can still lose system-level accuracy if the surrounding network was selected only for cost or footprint. In practice, thermal repeatability of the entire signal chain matters more than the converter’s isolated specification table.

The ESD ratings are ±1000 V for the human-body model and ±500 V for the charged-device model. These values indicate that standard disciplined ESD control is necessary during assembly, test, rework, and service. For this type of device, the more relevant design question is not whether the package survives a handling event in the factory, but whether the full system withstands repeated cable attachment, electrode contact transients, and maintenance access in the field. Package-level ESD robustness is only one layer. Board-level protection, connector shielding, series impedance, transient steering paths, and return-path continuity determine whether an external discharge becomes a harmless event or a latent failure source.

In mixed-signal medical front ends, ESD protection must be balanced carefully against leakage and noise. Overly aggressive protection structures can add capacitance, leakage current, or nonlinear behavior directly at sensitive inputs. A better approach is usually staged protection: keep the first protection layer near the external entry point, manage surge current before it reaches the precision input network, and ensure that the final protection elements near the converter are selected for low leakage and predictable behavior across temperature. This layered strategy tends to preserve measurement fidelity while still improving survivability.

Taken together, the supply options, clocking paths, temperature range, and ESD limits show that ADS1299IPAG is designed for flexible integration into demanding low-level acquisition systems. The real design work lies in using that flexibility selectively. Unipolar rails are often the best answer when simplicity and efficiency dominate. Bipolar rails are justified when common-mode behavior and analog margin clearly benefit. Internal clocking is usually safer unless synchronization requirements demand otherwise. External clocking should be adopted only with disciplined distribution and noise control. Thermal and ESD specifications should be interpreted as system design inputs, not as isolated device guarantees. That mindset typically leads to a front end that is quieter, more predictable, and much easier to validate under real operating conditions.

ADS1299IPAG Package, Pin-Level Implementation, and Layout Considerations

ADS1299IPAG uses a 64-pin TQFP package with a 10.00 mm × 10.00 mm body, a form factor that fits well in dense biopotential acquisition systems without pushing assembly complexity into BGA-class constraints. This package choice is more significant than it first appears. For EEG, EMG, ECG-adjacent front ends, and other low-amplitude measurement systems, package style directly affects routing freedom, visual inspection, rework access, and the ability to enforce analog-versus-digital floorplanning on a practical board outline. TQFP-64 gives enough perimeter pins to distribute sensitive analog functions away from digital control and clock activity, while still remaining compatible with conventional four-layer and six-layer medical-grade PCB processes.

At the pin level, the device is organized in a way that reflects its mixed-signal architecture rather than simple I/O grouping. Analog supply pins, digital supply pins, channel inputs, reference connections, bias circuitry nodes, internal regulator capacitor nodes, and serial interface pins are intentionally separated to support current containment and noise isolation. This separation only becomes useful if the PCB preserves it. If analog inputs are routed across digital return corridors, or if reference nodes share impedance with switching currents, the package-level isolation is effectively defeated. In low-noise converters, pinout is not just a mechanical map; it is part of the signal integrity model.

The supply structure deserves careful interpretation. AVDD powers the analog core and must be treated as the quiet energy domain for the front-end amplifiers, reference distribution, and conversion path. DVDD supports digital logic and serial communication, which means it carries edge-driven current transients even when average power remains low. Local decoupling on both rails is mandatory, but the intent is different for each domain. AVDD decoupling should minimize broadband impedance and suppress analog rail modulation near the package. DVDD decoupling should contain transient current loops generated by internal switching and external bus activity. In practice, using one small high-frequency ceramic capacitor very close to each supply pin group, backed by a nearby bulk capacitor, gives more repeatable results than relying on a single shared capacitor bank placed several centimeters away.

VCAP1 through VCAP4 are often underestimated during first-pass designs. These pins are not general-purpose bypass points and should not be treated as optional refinements. They are tied to internal biasing and regulation functions that support the converter’s operating stability and noise behavior. The external capacitors on these nodes complete part of the device’s internal analog environment. If capacitor value, dielectric behavior, ESR, or placement is poor, symptoms may not appear as outright startup failure. More often they show up as elevated noise floor, unsettled baseline, gain inconsistency between channels, or unexplained sensitivity to SPI activity and clock harmonics. That pattern is common in precision mixed-signal boards: what looks like a minor capacitor placement issue often manifests as a difficult system-level noise problem. For that reason, the VCAP network should be routed with the same discipline as a local reference support circuit, with short traces, minimal loop area, and no opportunistic via sharing with busy return currents.

The reference and bias pins are equally central to system behavior. In ADS1299-class devices, the reference path is not just another analog net. It sets the scale against which very small differential signals are resolved, so any contamination on this path directly appears as conversion uncertainty, gain drift, or channel-to-channel correlation of noise. Reference routing should therefore be short, shielded by a stable analog ground environment, and isolated from digital edges, clocks, and high-impedance sensor leads. The bias network requires similar attention because it closes part of the common-mode control loop seen by the electrodes or input network. Routing bias lines casually through dense digital areas often leads to unexpectedly large motion sensitivity or mains-related artifacts. A useful rule is to think of the reference path as the converter’s measurement ruler and the bias path as its common-mode stabilizer; both should be routed as controlled analog infrastructure, not accessory connections.

Input channel routing must start from the source impedance reality of biopotential systems. The measured signals are typically small, bandwidth-limited, and vulnerable to leakage, capacitive pickup, and imbalance between positive and negative input paths. This means the PCB should preserve symmetry where possible, avoid unnecessary trace length, and prevent high-impedance input nets from running parallel to clocks, data lines, switching supplies, or LED drive traces. Even when crosstalk is not visible in a static schematic review, it can become measurable once the assembly sits inside an enclosure with cable harnesses, DC/DC converters, and radio modules active nearby. Short, direct routing with a quiet return reference under the analog section tends to outperform visually neat but electrically exposed routes.

Ground strategy is often where otherwise competent layouts lose most of the converter’s theoretical performance. The right objective is not arbitrary splitting of ground copper, but controlled return-path behavior. Analog and digital sections should be partitioned so that digital current loops remain local to the serial interface and clock region, while the analog front end sees a continuous low-impedance reference plane free from switching return traffic. Blindly cutting the ground plane under the package can create more problems than it solves by forcing return currents to detour and increasing loop area. A better approach is functional zoning: keep the analog area compact, place digital components so their return currents do not cross under input, reference, or bias networks, and connect ground regions in a deliberate low-impedance manner near the converter’s intended grounding structure. In these devices, clean geometry usually matters more than aggressive segmentation.

Clock and serial interface pins also require discipline, even though they may seem secondary compared with the analog channels. Fast edges on SCLK, CS, DIN, DOUT, and related digital lines inject displacement currents through package capacitance, plane capacitance, and shared impedance. The effect is usually strongest when these lines pass close to reference nodes or run underneath sensitive inputs on adjacent layers. Series damping resistors on high-edge-rate digital lines can be useful when trace lengths or driver strength create ringing. The goal is not only digital integrity but analog quietness. A serial bus that works functionally can still degrade noise performance if its edge spectrum is allowed to spread across the analog section.

Thermal behavior is modest in absolute terms, but it should not be ignored. The listed junction-to-ambient thermal resistance of 46.2 °C/W for the TQFP-64 package indicates that package temperature can rise noticeably when several devices are clustered in a compact enclosure with limited airflow. ADS1299IPAG is not a high-power IC, yet precision analog performance is still temperature-sensitive. Local heating gradients can shift input characteristics, alter reference behavior, and create channel-to-channel offset variation over time. In multi-device boards, placing all converters in a tight thermal island beside processors, radios, or power stages is rarely optimal. A slightly more distributed placement often improves both thermal uniformity and analog repeatability, especially during long continuous recordings.

Manufacturability should be considered part of electrical design rather than a downstream concern. The TQFP package supports optical inspection and rework more easily than area-array packages, which is valuable in regulated or low-volume builds where traceability and repair matter. However, its exposed leads also make solder bridging, flux residue accumulation, and fine-pitch cleaning quality relevant to front-end leakage and long-term stability. On high-impedance analog inputs, contamination around pins can create subtle leakage paths that do not fail production test but later appear as baseline drift or poor electrode-off behavior. Guard spacing, clean solder mask definition, and disciplined post-assembly cleaning improve measurement stability more than many expect.

From an implementation perspective, component placement order should follow signal criticality rather than schematic hierarchy. Place the ADS1299IPAG first. Then place VCAP capacitors immediately at their associated pins. Next place AVDD and DVDD decoupling, then the reference network, then the bias components, and only after that route the input channels. Digital interface routing should be fitted around this analog core, not through it. This sequence tends to produce a board where noise control emerges naturally from placement geometry instead of requiring late-stage fixes. When the layout starts with connectors, MCU position, or display mechanics, the converter often ends up absorbing the routing compromises.

A practical pattern seen across successful designs is that the best results do not come from extreme complexity. They come from respecting a few non-negotiable constraints consistently: keep capacitor-to-pin distances very short, prevent digital return currents from entering the analog acquisition zone, control reference and bias routing as if they were part of the sensor path, and avoid giving low-level input traces any reason to coexist with switching fields. ADS1299IPAG already integrates much of the difficult low-noise analog design internally. The board’s job is to avoid undoing that work. In precision biopotential systems, the difference between datasheet-class performance and disappointing field behavior is usually not the converter itself. It is whether the package pins were translated into a physically correct current-flow layout.

ADS1299IPAG Application Fit in EEG, ECG, Sleep Study, BIS, and EAP Systems

ADS1299IPAG is structurally well matched to biomedical acquisition systems that depend on microvolt-level signal fidelity, deterministic channel timing, and compact analog front-end design. Its fit across EEG, ECG-related monitoring, sleep diagnostics, BIS, and evoked auditory potential systems is not accidental. These use cases share the same core constraint set: weak biopotentials, strong common-mode interference, long capture windows, electrode variability, and a need to preserve correlation across channels rather than merely digitize each input independently.

At the device level, the strongest architectural advantage is the combination of eight simultaneous-sampling channels, low input-referred noise, integrated programmable gain, internal support functions, and a medical-oriented signal path. This matters because many biomedical waveforms are not interpreted from absolute amplitude alone. Clinical and algorithmic value often comes from spatial relationships, phase consistency, differential comparisons, and subtle temporal evolution across multiple electrodes. A converter that preserves inter-channel simultaneity simplifies that entire chain, from analog design through digital post-processing.

In EEG systems, this alignment is especially clear. EEG acquisition depends on synchronized sampling across an electrode array so that spatial patterns, rhythmic activity, coherence measures, and montage-dependent interpretations remain valid. If channels are multiplexed into a single converter, even small inter-channel sampling delays can distort phase relationships and complicate artifact rejection, source localization, and spectral analysis. ADS1299IPAG avoids that class of problem by sampling all channels simultaneously. That is not just a specification benefit. It reduces compensation work in firmware and lowers uncertainty in downstream feature extraction. In practice, this becomes more important as systems move beyond basic waveform display and into automated seizure detection, depth-of-anesthesia estimation, sleep staging, and cognitive-state analytics.

The referential-routing flexibility also fits EEG workflows well. Electrode configurations vary significantly across diagnostic, research, and wearable systems. Some designs rely on common references, some on average-reference reconstruction, and some on bipolar derivations created later in software. A front end that supports flexible channel usage gives the system architect room to optimize both hardware routing and software montage generation without forcing unnecessary analog complexity. This is one of those features that quietly improves platform reuse. A single hardware base can often be adapted across several headset or cap variants with limited redesign.

Noise performance is central in EEG and in any low-amplitude biopotential system. The challenge is not only achieving a low noise floor in isolation, but maintaining usable dynamic range after factoring in electrode impedance imbalance, motion artifacts, mains coupling, and baseline drift. ADS1299IPAG’s low-noise front end and programmable gain are useful here because they allow the analog chain to be tuned closer to the actual signal environment instead of relying on a generic external amplification stage. In many builds, reducing the number of discrete gain stages helps more than expected. It removes board-level leakage paths, eases input routing, and reduces sensitivity to component mismatch and thermal drift. The resulting improvement is often seen less as a dramatic lab-number change and more as a cleaner, more repeatable production design.

For sleep study monitors, the device maps well to the operational reality of long-duration recording. Sleep systems often combine EEG, EOG, EMG, ECG, respiratory channels, and event markers over many hours. During that time, electrode quality changes. Gel dries, impedance rises, movement introduces transient disturbances, and cable stress alters contact behavior. Integrated lead-off detection becomes highly practical in this setting because channel integrity is not static. It supports continuous confidence monitoring rather than assuming that a good hookup at the start of a study guarantees valid data at hour six. That reduces the risk of discovering unusable segments only after acquisition is complete.

Long-duration monitoring also amplifies the value of integration. Internal oscillator support, reference-related functions, and SPI connectivity help reduce external component count and board area. For compact sleep devices, wearable recorders, or bedside systems with strict cost targets, this is more than a BOM optimization. Fewer external analog support blocks generally mean fewer opportunities for coupling noise into sensitive inputs. It also simplifies layout partitioning between analog, digital, and power domains. In mixed-signal medical boards, every removed component can create disproportionate value by making the remaining signal path easier to control.

In fetal ECG and other weak ECG-derived measurements, the relevance of ADS1299IPAG comes from the same principle: the target signal is small, while the interference environment is not. Fetal ECG is particularly demanding because the desired waveform is embedded within maternal ECG, motion artifacts, and broad common-mode contamination. A low-noise front end with programmable gain does not solve the extraction problem alone, but it preserves more usable information for separation algorithms. This is a critical distinction. When the analog front end degrades low-level morphology or injects channel-to-channel timing uncertainty, later filtering and blind source separation become less effective. Good algorithmic performance starts with preserving signal structure at acquisition time.

That same logic applies to evoked potential systems and BIS monitors. In these applications, amplitude resolution matters, but temporal alignment is often equally important. Evoked responses may be buried in noise and revealed through repeated stimulation and ensemble averaging. If the acquisition channels are not aligned well, averaging loses coherence and the extracted response degrades. Simultaneous sampling gives a cleaner basis for latency analysis, phase-sensitive processing, and cross-channel comparison. For BIS-style systems, which derive state information from multichannel EEG characteristics, preserving exact inter-channel timing improves confidence in spectral and bispectral computations. Multiplexed converters can sometimes be made to work, but they push timing correction into software and validation. ADS1299IPAG handles this at the architecture level, which is usually the right place to solve it.

Another practical advantage is that this device encourages a cleaner partition between acquisition and interpretation. When the front end already provides synchronized low-noise channels, gain control, lead-off support, and compact digital interfacing, the system designer can spend more effort on electrode mechanics, shielding, patient isolation, artifact handling, and algorithm quality. That shift matters because in real instruments, those areas often dominate end performance. A technically strong ADC cannot rescue poor cable design or bad grounding strategy, but a well-integrated front end makes it easier to implement those parts correctly.

From an engineering perspective, ADS1299IPAG is most compelling when the design goal is not just to digitize biosignals, but to preserve their multi-channel structure with minimal analog overhead. That is why it fits EEG and sleep systems especially well, and why it remains relevant in BIS, evoked response, and low-amplitude ECG applications. Its value comes from architectural consistency with the physics of these signals: they are weak, correlated across electrodes, sensitive to timing error, and easily damaged by unnecessary analog complexity. Devices that respect those constraints tend to produce systems that are easier to scale, easier to validate, and more robust in field conditions.

ADS1299IPAG Practical Engineering Evaluation Considerations

Evaluating ADS1299IPAG properly requires a system view. The nominal 24-bit resolution is useful only when the surrounding analog front end preserves enough signal integrity to make that resolution meaningful. In biopotential acquisition, the converter does not operate in isolation. Electrode impedance, input protection, PGA setting, reference stability, bias drive behavior, clock quality, and PCB parasitics all shape the effective noise floor, recovery behavior, and robustness of the final instrument. In practice, the question is rarely whether the ADC is precise enough on paper. The real question is whether the entire signal chain can support stable microvolt-level measurements under imperfect electrode contact, motion, common-mode disturbance, and production variation.

A practical starting point is channel-count strategy. ADS1299IPAG is often selected not only for current channel requirements but for architectural headroom. If a design is fixed at four or six channels with no foreseeable expansion, smaller variants may reduce cost, routing complexity, and software validation effort. However, in many medical and neurotechnology platforms, channel requirements tend to drift upward once features such as denser spatial sampling, reference reconfiguration, impedance monitoring, or algorithmic redundancy are added. Starting with the eight-channel device can avoid a later board respin and preserve firmware compatibility across product tiers. That trade is often favorable when mechanical form factor, connector strategy, and power budget already anticipate future options. The hidden benefit is not just additional electrodes. It is the freedom to reserve channels for internal experiments, alternate montages, or service diagnostics without destabilizing the main hardware platform.

Gain planning deserves more attention than simple signal-amplitude matching. The PGA gain interacts directly with reference voltage and determines the available input range. That range must accommodate the desired biopotential signal, electrode DC offsets, baseline drift, startup transients, and fault conditions. A common design error is to optimize gain only for nominal EEG amplitude and ignore the offset envelope introduced by electrode chemistry and contact variation. The result is a system that performs well on the bench and clips intermittently in field use. A more robust approach is to define the expected signal band, estimate worst-case electrode offset and motion artifact magnitude, then allocate headroom before choosing gain. This usually leads to a slightly more conservative setting than the theoretical maximum. The apparent loss in quantization utilization is often irrelevant compared with the improvement in recovery margin and operational stability. In low-frequency biopotential systems, clipping recovery and overload resilience usually matter more than squeezing every last count from the digital code range.

Reference strategy is equally important because the converter’s performance tracks reference quality more directly than many early prototypes assume. A clean, low-drift reference improves more than static accuracy. It also stabilizes channel matching and reduces gain uncertainty over temperature and time. In multichannel biopotential systems, reference noise can appear as a correlated error across channels, which is especially damaging for differential spatial analysis and source localization workflows. Local decoupling around the reference pins must be treated as part of the analog signal path, not as a generic power detail. Short return paths, controlled grounding, and careful segregation from digital switching current are necessary to prevent reference modulation. Designs that share reference routing casually with unrelated analog nodes often pass basic functionality tests yet show elevated noise or unexplained interchannel correlation in full-rate recordings.

The electrode interface sets the real operating boundary for the ADS1299IPAG. High input impedance helps, but it does not cancel poor front-end decisions. Protection networks must balance patient safety, ESD tolerance, EMI suppression, and input leakage. Series resistance that is too large can interact with input bias current, sampling structure, and source impedance mismatch, increasing error and degrading common-mode rejection. Protection capacitance placed without symmetry can create channel-to-channel phase mismatch and uneven RF filtering. This matters because biopotential systems often operate in electrically noisy environments where cable pickup is unavoidable. Good results usually come from a matched, symmetrical input network with predictable bandwidth, followed by layout that preserves impedance balance from connector to ADC pins. A design that is mathematically differential but physically asymmetric often behaves like a compromised single-ended system once interference is present.

Lead-off detection and bias drive should be evaluated as dynamic system functions, not as isolated checkboxes. Lead-off capability can simplify electrode diagnostics, but its practical value depends on how detection current, update timing, and firmware interpretation fit into the acquisition workflow. If the thresholding logic is too aggressive, transient contact degradation will generate nuisance events. If it is too tolerant, meaningful quality issues will be missed until downstream algorithms fail. The best implementations treat lead-off status as one layer in a broader signal-quality framework that also watches baseline shift, impedance trends, and saturation behavior. This is especially useful in wearable or semi-mobile systems where electrode conditions evolve during use rather than failing cleanly.

Bias drive is often the difference between a technically functional design and a quiet one. In theory, bias feedback reduces common-mode voltage and improves rejection of power-line interference. In practice, its stability depends on electrode impedance spread, cable capacitance, and the phase shift introduced by the analog front end. A bias loop that is too aggressive can oscillate or inject low-frequency disturbances that resemble physiological content. A loop that is too weak may leave substantial residual common-mode movement, reducing effective dynamic range. It is usually worth characterizing bias performance with representative cable sets and deliberately mismatched electrode impedances, because a stable bench setup with short leads often hides problems that appear immediately in deployed hardware. One recurring pattern is that bias compensation tuned for ideal gel electrodes may behave poorly with dry electrodes or partially degraded contact, so margin in loop design is not optional.

PCB layout is one of the strongest determinants of whether ADS1299IPAG reaches its intended performance class. At these signal levels, layout quality directly affects effective number of bits, hum rejection, and artifact sensitivity. The analog input path should be short, matched, and shielded from digital edges. Ground strategy should prevent digital return currents from crossing sensitive analog reference regions. The placement of the crystal or external clock source matters because clock phase noise and edge contamination can couple into the conversion process or digital interface timing. Decoupling should be localized and low inductance, with separate attention to analog supply pins, reference nodes, and digital supply entry points. It is usually better to think in terms of controlled current loops rather than abstract net names. Once the return path of each noisy signal is understood physically, many layout decisions become straightforward. This mindset also exposes common mistakes early, such as routing SPI lines parallel to high-impedance inputs or placing via transitions in the most sensitive reference return corridor.

Digital interface evaluation should scale with channel count and sample rate, not be deferred as a firmware detail. ADS1299IPAG can move substantial data when all channels are active, especially when continuous acquisition, status words, and strict latency requirements are involved. The host must service DRDY reliably, clock out frames without timing violations, and avoid burst activity that couples back into the analog section. Daisy-chain mode can simplify interconnects in larger systems, but it also concentrates timing dependency and increases sensitivity to clock integrity and host-side scheduling jitter. This is manageable, but only when the full timing budget is calculated early. It is good practice to model worst-case interrupt latency, DMA behavior, and SPI throughput before committing to processor selection. Systems that appear overprovisioned at the CPU level can still fail deterministically if the data-ready service path is not bounded tightly enough.

Power architecture also deserves explicit review. Low-noise analog rails, quiet reference support, and controlled digital switching behavior are more important than raw regulator accuracy. A regulator that is nominally precise but injects broadband switching residue into the analog ground structure can degrade the measurement chain far more than a slightly less accurate but quieter source. Partitioning analog and digital domains helps, but separation alone is not sufficient. The domains must reconnect in a way that avoids forcing fast digital currents through the analog measurement return. In mixed-signal biopotential boards, power integrity and grounding are the same problem viewed from different frequencies. Treating them separately often leads to designs that look correct in schematic form yet remain vulnerable to repeatable interference.

Validation should include scenarios that stress the full signal chain rather than only ideal electrical tests. Bench verification with precision sources is necessary, but it does not reveal how the system behaves with impedance imbalance, cable motion, mains-field exposure, or intermittent electrode contact. Useful characterization usually includes shorted-input noise, common-mode rejection under controlled interference, step recovery after saturation, lead-off event behavior, and bias-loop stability under varying source impedance. Temperature drift and long-duration baseline behavior are also worth measuring because low-frequency biopotential systems are sensitive to effects that short test runs miss. One practical lesson is that many performance issues emerge only when several nonidealities occur together: moderate electrode mismatch, a moving cable, elevated ambient EMI, and simultaneous host communication activity. Testing these interactions early reduces the risk of chasing “random” artifacts late in development.

From an engineering perspective, ADS1299IPAG is best evaluated as a precision mixed-signal subsystem rather than as a standalone ADC. Its value is highest when the design uses its integration to simplify architecture while still respecting the analog discipline required by microvolt-level acquisition. The strongest implementations do not chase maximum gain, minimum component count, or the most compact layout in isolation. They balance noise, headroom, diagnostic visibility, loop stability, and manufacturing repeatability. That balance is what turns the device from a promising datasheet component into a dependable acquisition platform.

Potential Equivalent/Replacement Models for ADS1299IPAG

Potential replacement paths for ADS1299IPAG are best understood in two tiers: true form-fit-function continuity within the ADS1299 family, and broader migration within the related ADS129x analog front-end portfolio. The most credible documented alternatives are ADS1299-6 and ADS1299-4. They are not eight-channel substitutes, but they preserve the same design philosophy and most of the electrical behavior that matters in EEG, biopotential, and low-amplitude instrumentation chains.

At the architecture level, ADS1299IPAG belongs to a family built around simultaneous-sampling 24-bit delta-sigma conversion, integrated programmable-gain amplification, and multichannel biopotential acquisition. That matters because replacement risk in this class rarely comes from the digital interface alone. It usually comes from changes in front-end settling, channel synchronization, input-referred noise, bias drive behavior, lead-off support, or reference strategy. ADS1299-6 and ADS1299-4 remain attractive alternatives precisely because they stay inside the same architectural envelope. They retain the 24-bit resolution, the simultaneous-sampling scheme across channels, the 16 kSPS maximum data rate, and the TQFP-64 package option. In practical board-level terms, that significantly reduces migration effort compared with moving to a different AFE family or to a discrete PGA-plus-ADC chain.

ADS1299-6 is the nearest family-level alternative when the design can tolerate a reduction from eight channels to six. This is often more realistic than it appears at first glance. In many acquisition systems, the nominal eight-channel requirement includes some margin for future sensors, redundancy, or optional derivations. If the actual deployed configuration uses six active electrodes and derives the rest algorithmically or does not need full parallel capture, ADS1299-6 can preserve the core analog behavior while reducing unnecessary channel count. The value of this option is not just BOM trimming. It can simplify routing density around sensitive analog inputs, reduce connector complexity, and make guard-ring and return-path control easier on compact boards. In mixed-signal layouts, those secondary effects often improve real performance more than the raw channel reduction suggests.

ADS1299-4 serves the same role at a lower channel count and is most relevant when the platform is being deliberately re-scoped rather than merely repaired or second-sourced. It fits reduced-channel monitors, derivative product variants, and designs where only a subset of differential inputs must be captured with the full ADS1299 signal fidelity. This can be useful when a product family shares a common digital baseboard but uses different analog daughtercards for market segmentation. In such cases, keeping the same conversion architecture while varying only channel density is usually a cleaner strategy than redesigning around a lower-cost but fundamentally different converter. The firmware impact is also more predictable because register behavior, timing concepts, and data framing typically remain close to the original family model.

The most important constraint is that neither ADS1299-6 nor ADS1299-4 is a strict like-for-like replacement for ADS1299IPAG in systems that truly require eight simultaneously sampled channels. If all eight inputs are functionally occupied, reducing channel count forces architectural changes elsewhere. Those changes may include input multiplexing, multiple devices, or a revised sensing topology. In low-frequency biopotential systems, input multiplexing may appear acceptable on paper, but it often degrades temporal coherence, increases switching artifacts, and complicates calibration. For waveform morphology analysis, source separation, or phase-sensitive multichannel reconstruction, preserving simultaneous sampling is usually more valuable than saving channels. That is why the original ADS1299 device remains the first choice for strict replacement.

The documentation also notes that ADS1299-x devices are pin-compatible with the broader ADS129x family. This is a meaningful statement, but it should be interpreted carefully. Pin compatibility lowers mechanical and PCB barriers, yet it does not guarantee measurement equivalence. Across analog front-end families, nominal compatibility can hide important differences in gain ranges, reference implementation, internal test signal behavior, noise density, bias amplifier characteristics, channel feature sets, and even startup sequencing. In sensitive instrumentation, those details decide whether a migration is painless or whether it silently alters dynamic range, common-mode handling, or artifact susceptibility. The practical rule is simple: pin compatibility is a strong enabler for migration, not proof of interchangeability.

For that reason, migration to ADS129x devices should be treated as a specification-driven redesign path rather than a replacement decision. The comparison should start with channel count and package, then move immediately to the analog parameters that shape system behavior: input noise at the intended PGA gain, CMRR in the expected electrode environment, reference voltage architecture, bias drive current capability, input impedance, lead-off method, and digital timing compatibility at the target sample rate. Engineers sometimes focus too heavily on ADC resolution because 24-bit labeling creates an illusion of equivalence. In biopotential systems, the more decisive factor is usable resolution under real electrode conditions, where common-mode motion, source impedance imbalance, and reference contamination dominate error budgets. A “compatible” device that shifts those interactions can force significant changes in firmware filtering and front-end protection.

From an implementation standpoint, package-level continuity within the ADS1299 family is one of the strongest arguments for choosing ADS1299-6 or ADS1299-4 in derivative designs. Reusing the TQFP-64 footprint can preserve placement constraints, isolation spacing, and much of the analog partitioning already validated on the board. That said, pin-compatible families still deserve a fresh review of unused channel handling, decoupling placement, reference bypassing, and bias network stability. A recurring issue in family migrations is the assumption that no-load or disabled channels can simply be left in their previous state. In low-noise front ends, unused analog inputs, bias returns, and reference nodes still influence crosstalk and idle behavior. It is worth revalidating those termination strategies rather than inheriting them unchanged.

Software and data-path implications should also be considered, even for family-near replacements. Fewer channels affect frame size, parsing logic, synchronization assumptions, and any downstream DSP that expects fixed-width channel vectors. If the application includes electrode quality monitoring, artifact rejection, or source localization, a reduced channel count can alter algorithm stability more than expected. In practice, the hardware replacement question often becomes a system observability question: what information is truly required at the application layer, and what was merely available because the original AFE provided eight channels. That distinction helps determine whether ADS1299-6 or ADS1299-4 is a valid optimization or a false economy.

A disciplined selection approach is therefore straightforward. If the requirement is strict eight-channel continuity with minimal risk, match ADS1299IPAG with the same ADS1299 device and package class. If the system can be intentionally reduced to six channels without loss of measurement intent, ADS1299-6 is the closest documented family alternative. If the platform is being simplified, segmented, or cost-optimized around four channels, ADS1299-4 is the logical option. If broader ADS129x migration is being considered, use pin compatibility only as the starting point and verify analog, timing, and firmware-level equivalence in detail before committing.

The key insight is that, for precision biopotential acquisition, “replacement” is not mainly about whether the chip fits the footprint. It is about whether the full signal chain continues to behave the same way under noise, motion, electrode imbalance, and synchronization stress. By that standard, ADS1299-6 and ADS1299-4 are strong alternatives only when the channel-count reduction is intentional and system-level consequences are fully accounted for. For direct continuity, the original ADS1299IPAG remains the correct reference target.

Conclusion

ADS1299IPAG is an eight-channel, 24-bit, simultaneous-sampling biopotential analog front end engineered for low-noise medical and research-grade acquisition systems, including EEG, ECG, polysomnography, BIS, and evoked-potential instruments. Its importance is not defined by nominal resolution alone. The device is valuable because it concentrates the most failure-prone and noise-sensitive parts of the signal chain into a single, coherent architecture: low-noise programmable gain amplifiers, channel input multiplexing, internal reference support, bias drive generation, lead-off detection, clocking resources, and an SPI-compatible digital interface. In practice, this level of integration changes the design problem. Instead of spending most of the effort stabilizing a distributed analog front end, system designers can focus on electrode interface quality, isolation strategy, motion robustness, and downstream signal interpretation.

The main engineering advantage of ADS1299IPAG is that all eight channels are sampled simultaneously. For multichannel biopotential measurement, this is not a cosmetic specification. It is fundamental to preserving phase relationships across channels, which directly affects source localization, coherence analysis, artifact removal, and any algorithm that depends on inter-channel timing consistency. In systems built from multiplexed converters, channel skew often becomes an invisible error source. It may remain tolerable for slow signals, but it quickly degrades performance once synchronous interference, stimulus-locked responses, or spatial filtering methods enter the system. Simultaneous sampling removes this class of timing ambiguity at the hardware level, which is often a better solution than trying to compensate for it later in software.

The 24-bit converter depth is best interpreted as dynamic range headroom rather than a promise of 24 noise-free bits at the electrode. Biopotential acquisition lives in a regime where signal amplitudes are small, source impedances are variable, common-mode interference is large, and electrode conditions drift over time. In that environment, a high-resolution delta-sigma architecture is useful because it supports extraction of microvolt-level information while preserving margin for offsets, motion artifacts, and environmental interference. The more meaningful metric is the relationship between converter architecture, PGA noise, input-referred noise density, and usable bandwidth. ADS1299IPAG is effective because its internal analog path is optimized around these low-level signal conditions, allowing the practical system floor to be driven more by electrodes, cabling, grounding, and enclosure design than by the converter itself.

Its integrated PGAs are a particularly important part of that story. In biopotential systems, gain staging cannot be treated as a generic amplification step. Gain affects noise contribution, saturation behavior, recovery time after artifacts, and the balance between small-signal visibility and large-signal tolerance. A front end with programmable gain allows the same hardware platform to be adapted across EEG, ECG, and hybrid monitoring applications without redesigning the analog chain. This flexibility is especially useful during development, where the initial gain plan rarely survives first-contact testing with real electrodes, long leads, and mixed interference environments. A design that can be re-tuned through register settings instead of resistor changes usually reaches stable performance faster and with fewer board revisions.

The input multiplexing architecture adds another layer of practical value. It supports internal test configurations and channel routing modes that simplify board bring-up, self-test, and production diagnostics. That matters more than it first appears. Many low-level acquisition problems are difficult to localize because faults can originate at the sensor, cable, connector, bias network, reference path, or digital interface. Having internal switching options lets teams isolate whether an anomaly is coming from the external analog domain or from configuration and data path issues. This shortens debug cycles and reduces the tendency to overcomplicate the surrounding circuitry in an attempt to “protect” against uncertainty that can already be diagnosed inside the device.

The bias drive function is another feature with outsized system impact. Biopotential measurements are dominated by common-mode interference, especially mains pickup coupled through the body, leads, and nearby electronics. Bias drive improves common-mode control by actively feeding back an inverted common-mode signal to the patient reference node. When implemented carefully, this improves effective common-mode rejection for the whole acquisition chain, not just the front end in isolation. The practical qualifier is important: bias drive is powerful, but it is not magic. Stability depends on electrode impedance balance, cable layout, PCB leakage control, and how aggressively the bias node is distributed across the system. Designs that treat bias drive as a substitute for layout discipline often see unstable settling or disappointing interference rejection. Designs that combine it with symmetric input routing, controlled return paths, and clean isolation boundaries tend to extract its full benefit.

Lead-off detection and reference support further reinforce the device’s role as a platform component rather than a bare converter. In deployed systems, signal quality is often limited by contact integrity, not by nominal AFE performance. A disconnected or degraded electrode can generate misleading data that still appears numerically valid. Integrated lead-off detection allows the system to supervise electrode state continuously and act on quality faults early, which is essential in wearable, ambulatory, and long-duration recordings. Reference integration is similarly important because the reference network in multichannel biopotential systems often becomes a hidden source of drift, noise injection, or crosstalk if handled externally with insufficient rigor. Consolidating these functions inside the same architectural domain reduces interface complexity and tends to make system behavior more repeatable across production lots and operating conditions.

Clocking and digital interfacing also deserve attention. Precision analog acquisition is often compromised not by analog blocks themselves, but by how digital activity couples into them. By providing internal oscillator resources and a straightforward SPI-compatible interface, ADS1299IPAG helps contain the boundary between low-level analog measurement and host-side processing. This makes PCB partitioning easier and reduces the need for additional timing components in compact systems. Even so, robust implementation still depends on disciplined digital design. SPI edge rates, grounding transitions, and processor burst activity can all leak into the front end if the layout does not enforce analog-digital separation. A recurring pattern in successful designs is to treat the AFE as a quiet measurement island, then control data extraction around it rather than allowing the host processor to dictate all timing behavior.

From a selection perspective, ADS1299IPAG is strongest in designs that need eight synchronized channels, very low input-referred noise, and a scalable architecture in a compact TQFP package. This combination is especially attractive when board area, power budget, and analog design risk matter as much as raw channel count. The device reduces external component burden and compresses the error surface of the analog front end. That has direct implications for certification effort, manufacturability, and long-term support. Fewer discrete analog stages generally mean fewer gain drifts to characterize, fewer precision passives to source, and fewer layout-dependent behaviors to revalidate after supply-chain substitutions.

The broader ADS1299 family extends this advantage at the platform level. ADS1299-6 and ADS1299-4 provide a practical path to channel-count optimization while preserving the same architectural base. This is useful for product families built around a common firmware and PCB strategy. A single design framework can support multiple SKUs, from lower-channel wearable or portable instruments to fuller clinical or research configurations, without forcing a complete rewrite of the acquisition stack. That continuity is often more valuable than it appears in early planning. Shared register models, similar noise behavior, and comparable interface methods reduce migration cost and lower integration risk across a product line.

In application terms, ADS1299IPAG is best viewed as a biosignal acquisition building block that shifts complexity away from fragile external analog circuitry and into a tightly integrated front-end subsystem. That shift is strategically important. In modern multichannel instruments, competitive performance rarely comes from adding more analog stages. It comes from preserving signal integrity at the electrode interface, controlling artifacts before they become data problems, and keeping the acquisition architecture stable enough that algorithm teams can trust what they receive. A highly integrated AFE supports that goal by making the front end more deterministic.

A useful way to think about the device is that it narrows the gap between prototype behavior and production behavior. Discrete front ends often perform well on a carefully tuned bench setup, then drift once cable assemblies change, enclosure constraints tighten, or manufacturing variability enters. ADS1299IPAG reduces that sensitivity because the most critical low-noise and matching-dependent blocks are already internally optimized. The remaining challenge moves to system-level execution: electrode mechanics, shielding, isolation, power cleanliness, and firmware configuration. That is a better allocation of engineering effort, because those factors dominate real-world biopotential quality anyway.

For teams evaluating component fit, the decisive question is not whether a standalone ADC could be paired with external amplifiers to reproduce the same nominal function. In principle, it could. The more relevant question is whether that alternative can match the same synchronization, noise efficiency, diagnostic support, development speed, and platform scalability within the same area and risk envelope. In most multichannel biopotential designs, the answer is no. That is why ADS1299IPAG continues to stand out: it is not just a high-resolution converter, but a system-oriented analog front end designed to deliver low-noise, synchronized, configurable acquisition with substantially less external analog burden.
