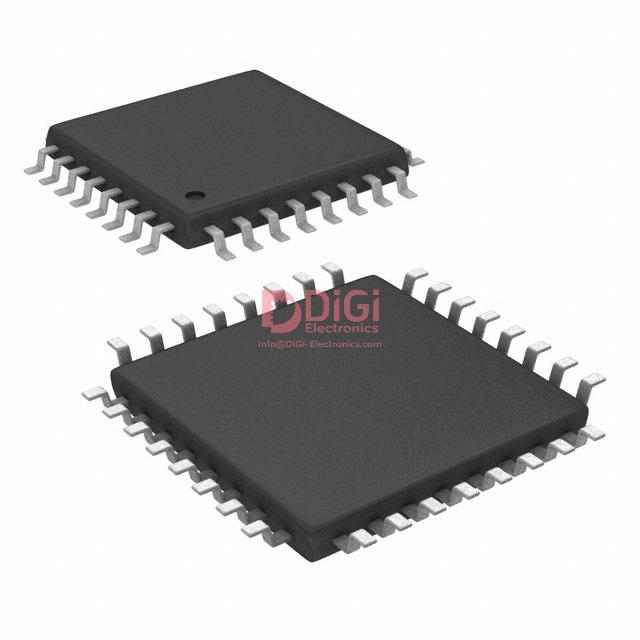

ADS127L01IPBS
Texas Instruments
IC ADC 24BIT SIGMA-DELTA 32TQFP
2073 Pcs New Original In Stock
24 Bit Analog to Digital Converter 1 Input 1 Sigma-Delta 32-TQFP (5x5)
Request Quote
(Ships tomorrow)
*Quantity
Minimum 1
Minimum 1
5.0 / 5.0
- (44 Ratings)
ADS127L01IPBS
Product Overview
1371725
DiGi Electronics Part Number
ADS127L01IPBS-DGManufacturer
Texas Instruments
ADS127L01IPBS
Description
IC ADC 24BIT SIGMA-DELTA 32TQFPInventory
2073 Pcs New Original In Stock
24 Bit Analog to Digital Converter 1 Input 1 Sigma-Delta 32-TQFP (5x5)
Quantity
Minimum 1
Minimum 1
Purchase and inquiry
Warranty & Returns
How to Order
Shipping & Delivery
Quality Assurance
365 - Day Quality Guarantee - Every part fully backed.
90 - Day Refund or Exchange - Defective parts? No hassle.
Limited Stock, Order Now - Get reliable parts without worry.
Global Shipping & Secure Packaging
Worldwide Delivery in 3-5 Business Days
100% ESD Anti-Static Packaging
Real-Time Tracking for Every Order
Secure & Flexible Payment
Credit Card, VISA, MasterCard, PayPal, Western Union, Telegraphic Transfer(T/T) and more
All payments encrypted for security
ADS127L01IPBS Technical Specifications
Category
Data Acquisition, Analog to Digital Converters (ADC)
Packaging
Tray
Series
-
Product Status
Active
Number of Bits
24
Sampling Rate (Per Second)
512k
Number of Inputs
1
Input Type
Differential
Data Interface
SPI
Configuration
ADC
Ratio - S/H:ADC
-
Number of A/D Converters
1
Architecture
Sigma-Delta
Reference Type
External
Voltage - Supply, Analog
2.7V ~ 3.6V
Voltage - Supply, Digital
1.7V ~ 3.6V
Features
-
Operating Temperature
-40°C ~ 125°C
Package / Case
32-TQFP
Supplier Device Package
32-TQFP (5x5)
Mounting Type
Surface Mount
Base Product Number
ADS127L01
Datasheet & Documents
Manufacturer Product Page
ADS127L01IPBS Specifications
HTML Datasheet
ADS127L01IPBS-DG
Environmental & Export Classification
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
2 (1 Year)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
Additional Information
Other Names
296-48867
ADS127L01IPBS-DG
Standard Package
250
Reviews
5.0/5.0-(Show up to 5 Ratings)
de desembre 02, 2025
Service exceptionnel ! Produits très fiables et livraison ultra-rapide. Je recommande à tous.
de desembre 02, 2025
DiGi Electronics' reliable supply chain ensures we never face shortages or delays.
de desembre 02, 2025
I trust DiGi Electronics because of their consistent product performance and excellent customer support.
de desembre 02, 2025
It’s refreshing to see a company that offers budget-friendly options with eco-awareness.
de desembre 02, 2025
Their after-sales support is exceptional and always ensures our issues are resolved promptly.
de desembre 02, 2025
Reliability is key for me, and DiGi Electronics consistently delivers durable products that last.
de desembre 02, 2025
I highly recommend DiGi Electronics for their reliable logistics and excellent after-sales service.
Publish Evalution
Evalution Message
Please enter your review message.
Please post honest comments and do not post ilegal comments.
Frequently Asked Questions (FAQ)
What are the key design risks when integrating the ADS127L01IPBS into a high-noise industrial environment with long sensor cables?
When using the ADS127L01IPBS in high-noise environments with long sensor leads, the primary risk is degraded signal integrity due to EMI coupling on the differential input lines. Although the sigma-delta architecture and inherent filtering help reject noise near the sampling frequency, high-frequency common-mode transients can still overwhelm the input stage. To mitigate this, use shielded twisted-pair cabling with guard traces on the PCB, and implement RC filtering (e.g., 10Ω in series with 10nF differential) close to the ADS127L01IPBS input pins. Ensure the external reference is low-noise and well-bypassed (e.g., REF5025) to maintain 24-bit accuracy. Also, keep the digital SPI traces short and avoid routing under the ADS127L01IPBS to prevent ground bounce from affecting the analog section.
Can the ADS127L01IPBS replace the ADS1282 in a seismic sensing application, and what performance trade-offs should be expected?
While both the ADS127L01IPBS and ADS1282 are 24-bit sigma-delta ADCs, replacing the ADS1282 with the ADS127L01IPBS in seismic applications requires careful consideration. The ADS1282 supports higher data rates (up to 4k SPS with integrated digital filters) and includes onboard PGAs and FIR filters optimized for low-frequency geophysical signals, whereas the ADS127L01IPBS runs up to 512k SPS but lacks internal amplification and complex filtering. Using the ADS127L01IPBS demands external signal conditioning, increasing design complexity. Additionally, its noise performance at sub-10Hz may not match the ADS1282’s specialized architecture. Ensure your system can accommodate external amplification and implement digital post-processing to replicate the ADS1282's effective resolution in low-drift, high-dynamic-range scenarios.
How does the dual-supply requirement (analog and digital) of the ADS127L01IPBS affect power design in battery-powered edge sensors?
The ADS127L01IPBS requires separate analog (2.7V–3.6V) and digital (1.7V–3.6V) supplies, which complicates power architecture in battery-powered systems. To minimize noise coupling, avoid sharing regulators between analog and digital domains. Use a low-noise LDO for AVDD (e.g., TPS7A47) and a separate efficient buck-boost for DVDD if operating from a single Li-ion cell. Voltage mismatch can limit headroom—ensure AVDD ≥ DVDD to prevent latch-up or data corruption. Also, monitor startup sequencing: apply AVDD before or simultaneously with DVDD. A delay circuit or power supervisor (e.g., TPS3839) can prevent SPI interface glitches during brown-out conditions, ensuring stable ADS127L01IPBS operation in energy-constrained nodes.
What PCB layout guidelines are critical to maintain SNR performance when designing with the ADS127L01IPBS at full 24-bit resolution?
To preserve the full 24-bit dynamic range of the ADS127L01IPBS, strict PCB layout practices are essential. Use a dedicated analog ground plane (AGND) connected to digital ground (DGND) at a single point near the ADS127L01IPBS to prevent return currents from contaminating sensitive analog nodes. Place 10µF X7R and 100nF ceramic capacitors within 2mm of each power pin, with vias to respective planes. Route SPI signals using controlled impedance traces and terminate with series resistors (22Ω) close to the source if trace length exceeds 2 inches. Avoid routing digital signals under the ADS127L01IPBS package. Use the exposed thermal pad to connect to AGND via multiple vias for optimal thermal and electrical performance.
Is the ADS127L01IPBS a suitable drop-in replacement for the AD7768-1 in portable medical instrumentation, and what integration challenges arise?
The ADS127L01IPBS is not a direct drop-in replacement for the AD7768-1 due to architectural and interface differences. The AD7768-1 includes an integrated buffer, lower power modes, and a more flexible digital filter set tailored for precision biopotential measurements, while the ADS127L01IPBS relies on external signal conditioning and has simpler filtering. Additionally, the AD7768-1 supports faster SPI clock rates and has lower typical noise in medical bandwidths (<1kHz). When substituting with the ADS127L01IPBS, redesign the front-end to include a low-noise instrumentation amplifier (e.g., INA188) and revalidate noise performance across the passband. Also, adapt firmware to handle the different SPI timing and data formatting requirements of the ADS127L01IPBS, particularly for daisy-chain or simultaneous sampling setups.
