ADS1261 Product Overview and Positioning in the ADS126x Family

The ADS1261 is a 24-bit delta-sigma ADC from Texas Instruments built for precision sensor acquisition in systems where low error, channel flexibility, and diagnostic visibility matter as much as nominal resolution. Within the ADS126x family, it sits as the more integration-oriented and channel-rich option, aimed at designs that must interface directly with real-world sensors rather than simply digitize a clean voltage source. Its value is not defined by converter resolution alone. The more important point is that it combines conversion, analog conditioning, reference management, excitation support, and health monitoring into a single measurement front end that can be dropped into industrial and instrumentation architectures with relatively little external analog support.

The family context is important because the ADS126x devices target a class of designs where error budgets are dominated by front-end behavior, reference drift, sensor excitation quality, settling behavior after multiplexing, and fault detectability. In that environment, a precision ADC with insufficient analog support often pushes complexity into external circuitry and firmware compensation. The ADS1261 reduces that burden by integrating the blocks that usually determine whether a precision measurement chain performs well in actual hardware or only on paper.

At the architectural level, the ADS1261 supports up to 10 single-ended or 5 differential analog inputs. That immediately positions it for multiplexed sensor systems, compact data acquisition nodes, and PLC-style analog input modules where several channels must share one high-performance conversion path. In practice, this channel count changes more than board routing density. It enables a different system partitioning strategy. Instead of pairing a lower-channel ADC with multiple external multiplexers, references, and signal-conditioning devices, the ADS1261 allows the analog path to remain more centralized and more predictable. That tends to improve channel-to-channel consistency, reduce leakage-related surprises, and simplify calibration strategy across the full input set.

The integrated programmable gain amplifier is one of the key blocks that makes the device sensor-ready. Many industrial sensors, especially bridge-based and resistive sensors, produce low-level differential signals that are too small to exploit the ADC’s full dynamic range without gain. An external instrumentation amplifier can solve that, but it also introduces additional offset, drift, noise, board area, and stability concerns. The ADS1261 internal PGA helps close that gap efficiently, especially in systems measuring strain gauges, load cells, pressure bridges, and low-level thermocouple or RTD-related signals. The practical advantage is not only lower component count. It is also tighter control over the signal chain because gain and conversion are coordinated within the same device timing model.

The integrated precision reference is equally significant. In high-resolution delta-sigma systems, reference quality directly defines measurement repeatability and long-term stability. A nominally high-resolution ADC paired with a mediocre reference rarely delivers meaningful effective performance. By integrating a precision reference and also supporting multiple reference input options, the ADS1261 gives designers flexibility in how they close the metrology loop. Internal reference operation can reduce BOM and layout sensitivity in compact modules, while external reference options remain available when a system-level reference architecture requires traceability, ratiometric behavior, or tighter thermal performance. This dual-mode approach is especially useful in products that must span both cost-optimized and premium variants without a major redesign.

Digital filtering inside the ADS1261 is another major part of its positioning. Delta-sigma ADC performance depends heavily on the interaction between modulator behavior, filter characteristics, output data rate, and the noise spectrum of the input signal. The device is therefore not just a converter but a configurable measurement engine. Proper filter selection determines whether the system is optimized for low noise, line-frequency rejection, step response, or multiplexed throughput. In instrumentation work, this matters more than headline resolution. A 24-bit converter that settles too slowly after a channel switch or fails to reject 50 Hz and 60 Hz interference in a mixed-power environment can become difficult to deploy. The ADS1261 addresses this by providing filtering options that better align the converter with industrial measurement realities, where signal integrity is often shaped by switching supplies, long cables, ground offsets, and slow-moving sensor outputs.

The on-chip current sources and AC excitation support make the ADS1261 particularly well aligned with bridge and resistive sensor applications. This is one of the more practical distinctions in the family. AC excitation is not just a feature checkbox. It is a system technique used to reduce offset-related error, suppress low-frequency drift mechanisms, and improve extraction of small sensor signals buried in thermoelectric and board-level parasitics. In bridge measurements, especially at low signal amplitudes, DC error terms that appear minor in simulation can become dominant once connectors, thermal gradients, and field wiring are introduced. AC excitation helps move the measurement into a more controllable regime. That capability gives the ADS1261 an advantage in precision weigh scales, strain-based instrumentation, and bridge transducers where long-term stability and offset suppression are often more valuable than raw sample rate.

The integrated temperature sensor and internal monitor functions further reinforce the device’s role as a measurement subsystem rather than a standalone ADC. In precision systems, internal diagnostics are not optional overhead. They are part of the control loop for reliability and calibration. Monitoring supply conditions, reference behavior, and local temperature allows firmware to make informed decisions about self-test, drift tracking, fault isolation, and serviceability. This becomes particularly useful in remote or industrial installations where a failed reading is more damaging than a temporarily unavailable one. A design that can distinguish sensor failure, reference instability, overrange behavior, and wiring issues is much easier to support over its lifetime.

From a family-positioning perspective, the ADS1261 is best understood as the higher-flexibility member of the ADS126x line. Compared with the ADS1260, it offers more input channels, two reference input options, four GPIOs, and AC excitation support for bridge sensors. Those differences are not cosmetic. They directly affect the type of system that can be built around the device. If the requirement is a compact, high-accuracy front end for a few fixed channels with a simpler sensor mix, the lower-complexity family member may be sufficient. If the design must handle multiple sensor types, perform internal housekeeping, support bridge-based transducers, and expose some local control or status through GPIOs, the ADS1261 is usually the more natural fit.

The GPIO resources are easy to underestimate, but in embedded instrumentation they often remove the need for a small companion controller or external logic. They can support sensor selection, excitation control, fault signaling, or synchronized switching around the measurement path. In dense analog designs, even a few GPIOs can simplify timing relationships between analog events and conversion windows. That has practical value when trying to suppress switching artifacts, coordinate multiplexed excitation, or manage low-power sensor interfaces.

The application list specified by Texas Instruments is a useful indicator of where the ADS1261 fits best: PLC analog input modules, weigh scales, strain-gauge digitizers, temperature and pressure measurement, laboratory instrumentation, and process analytics. These are all systems where precision conversion must coexist with harsh electrical environments, mixed sensor interfaces, and long service life. The common pattern across these applications is that signal acquisition is rarely isolated from the rest of the system. There are field cables, EMI sources, thermal gradients, maintenance expectations, and often strict calibration requirements. The ADS1261 addresses that environment well because it reduces the number of loosely coupled precision components that would otherwise each need their own error analysis and layout protection.

In actual design work, the strongest benefit of the ADS1261 often appears during board bring-up and validation rather than during initial schematic capture. Highly integrated precision devices tend to shorten the path from first power-on to stable measurements because fewer external analog interactions need to be debugged. There is less time spent tracing drift back to reference routing, amplifier biasing, or excitation mismatch. That does not remove the need for careful layout and grounding, but it narrows the range of likely failure modes. For multiplexed sensor systems, this can materially reduce characterization time, especially when the design must support several channel types on one board.

A useful way to view the ADS1261 is as a converter optimized for measurement credibility, not just measurement resolution. In precision sensing, credibility comes from repeatability, diagnosability, and controllable error behavior under non-ideal conditions. The ADS1261 earns its place in the ADS126x family by offering the extra channels, excitation features, reference flexibility, and support functions needed to preserve that credibility in more complex systems. It is the better choice when the ADC is expected to act as the center of a multi-channel sensor front end rather than as a simple endpoint in a signal chain. For engineers building industrial and instrumentation platforms, that distinction is usually the one that matters most.

ADS1261 Core Architecture and Integrated Functional Blocks

The ADS1261 is centered on a 24-bit delta-sigma conversion chain designed for low-bandwidth, high-accuracy measurements where noise, drift, and interference usually dominate error budgets more than nominal resolution. Its internal path is straightforward: an input multiplexer selects the measurement source, the programmable gain amplifier conditions the signal, the delta-sigma modulator oversamples and noise-shapes the analog input, and a programmable digital filter reconstructs the final output data. This arrangement is not just a block-level convenience. It reflects a design strategy optimized for sensor interfaces that require high dynamic range, flexible channel routing, and predictable settling behavior rather than raw throughput alone.

The practical significance of this architecture appears when measuring low-level transducer outputs. In many sensor systems, the useful signal is only a small fraction of the ADC full-scale range, and the front-end must extract microvolt-level information while operating in the presence of common-mode variation, supply ripple, and line-frequency interference. A delta-sigma architecture is particularly effective here because it trades bandwidth for noise performance through oversampling and digital filtering. In the ADS1261, that tradeoff is implemented in a way that makes the device suitable for weigh scales, RTD modules, bridge sensors, pressure transmitters, and similar precision endpoints where update rate and accuracy must be balanced carefully.

The input multiplexer is the first point of flexibility in the signal chain. It allows the converter to service multiple analog sources without requiring an external switching network in many designs. That matters because every external switch, leakage path, and board-level routing branch can inject offset, thermocouple effects, or charge injection artifacts into a precision measurement path. Keeping multiplexing internal reduces those risks and simplifies channel-to-channel consistency. In multi-sensor designs, this also improves repeatability during production because fewer external analog components need calibration or tolerance management.

Following the multiplexer, the integrated PGA provides gain settings from 1 to 128. This is one of the most useful blocks in the device because gain placement ahead of the modulator directly improves the utilization of the converter’s input range for small-amplitude signals. A bridge sensor or RTD front-end often produces outputs too small to exploit a full-scale ADC without front-end amplification. By raising gain internally, the ADS1261 can increase effective sensitivity while avoiding the layout burden and drift contribution of an external precision amplifier stage. In practice, this often reduces not only component count but also the number of analog error sources that need to be modeled across temperature.

The 1 GΩ input impedance of the PGA is more important than it may first appear. High source impedance sensors, resistor networks used in temperature measurement, and bridge-based structures are all vulnerable to loading errors. Even when the static gain error from input loading appears small on paper, it can interact with source imbalance and bias currents to create asymmetrical offsets that are difficult to separate during calibration. High input impedance reduces this coupling and makes the analog behavior more predictable across channels and operating states. In systems where long sensor leads are present, that predictability tends to matter more than the idealized gain number.

The PGA also supports a wider operating envelope because it can be reduced in gain or bypassed when input amplitude increases. This flexibility is valuable in mixed-signal instrumentation designs where one channel may read a low-level bridge output and another may monitor a higher-level process voltage. Instead of forcing the entire system around a single front-end scaling strategy, the ADS1261 allows the acquisition chain to be tuned to the signal class. That improves overall dynamic range usage and often simplifies firmware scaling because each measurement can be acquired closer to its optimal analog condition.

The core conversion engine is the 24-bit delta-sigma modulator. While “24-bit” is often interpreted as a direct statement of usable field resolution, in practice the more relevant engineering question is how much noise-free resolution remains after accounting for gain, data rate, reference quality, common-mode behavior, and environmental interference. The ADS1261 architecture addresses this by combining the modulator with programmable digital filtering rather than exposing a raw high-speed bitstream. The modulator pushes quantization noise out of band, and the digital filter suppresses that out-of-band energy while shaping the final tradeoff between throughput, settling time, and interference rejection. This is where much of the device’s real system value is created.

The digital filter options are especially significant in deployed industrial systems. Single-cycle settling means the output can become valid after a step change without requiring multiple conversion periods for the filter to flush its impulse response. That is useful in multiplexed sensor acquisition, control loops with periodic channel switching, and startup sequences where long filter memory would otherwise create stale or blended readings. In practical use, this reduces software complexity because fewer discard cycles are needed after channel changes or gain reconfiguration. It also makes timing behavior easier to guarantee, which is often more valuable than peak throughput in deterministic measurement systems.

The simultaneous 50 Hz and 60 Hz rejection mode addresses a common failure point in precision data acquisition: line-frequency pickup. In factory floors, building automation nodes, and distributed sensor modules, mains interference rarely enters through a single path. It can couple through sensor leads, ground gradients, shield termination choices, or supply rails. Firmware-based averaging alone often does not remove this cleanly because the interference may drift in phase relative to the sampling instant. A digital filter specifically designed to notch both 50 Hz and 60 Hz avoids this dependency and tends to produce more stable low-rate measurements with less tuning effort. In field designs, this usually translates into fewer unexplained count fluctuations during installation and less pressure to over-design shielding and cabling.

One of the strongest aspects of the ADS1261 is the level of functional integration around the converter core. The device includes a precision 2.5 V reference, internal signal and reference monitors, a temperature sensor, excitation current sources, and CRC support. These are not peripheral conveniences. They close several common gaps in precision measurement systems that otherwise require separate devices, routing, and verification logic. The internal reference can reduce dependence on an external precision reference in applications where board area, cost, or simplicity matter more than achieving the absolute lowest possible drift. The key advantage is not only BOM reduction but tighter internal coupling between the converter and its reference environment, which can improve consistency when the board-level analog design budget is constrained.

That said, integrated references should be evaluated in the context of the target accuracy model rather than chosen by default. For many sensor modules, the internal 2.5 V reference is the right answer because it reduces component interactions and eases layout. In higher-end metrology paths, an external reference may still be preferred when long-term drift, thermal gradients, or ratiometric strategy dictate a different optimization. The architecture gives enough flexibility to make that decision at the system level instead of forcing it. This is one of the better indicators of a mature precision ADC design: integration is provided as a tool, not as a rigid assumption.

The internal excitation current sources are particularly useful for resistive sensors such as RTDs. In these applications, the measurement accuracy depends not only on ADC noise but also on current-source stability, lead resistance management, and self-heating control. Having excitation currents integrated allows a compact measurement loop with fewer external precision components and shorter sensitive routing. It also supports cleaner implementation of ratiometric measurement techniques, where the same current path and reference relationships are exploited to cancel certain drift terms. When this is done well, the converter becomes part of a tightly coupled sensor subsystem rather than a standalone digitizer.

The internal monitors and temperature sensor support diagnostics and compensation workflows that are often overlooked during initial schematic design but become valuable later in product validation and field support. Reference monitoring helps detect fault conditions that can silently corrupt measurement integrity. An internal temperature reading can assist in drift characterization, health monitoring, or temperature-aware correction strategies. These features are especially useful in remote or sealed systems where direct probing is limited. In practice, devices that expose internal observability points are easier to validate because failure modes can be narrowed more quickly without adding external instrumentation hooks.

CRC support serves a different but equally important role. In precision systems, data integrity is not only about analog fidelity. Once measurements leave the converter, digital communication errors can become indistinguishable from true process variation if they are not checked. CRC provides a lightweight mechanism to verify that configuration writes and conversion reads have not been corrupted by interface noise or timing faults. This matters more as systems become electrically noisy or physically distributed. It is often the small integrity features like CRC that prevent long debugging cycles, especially when intermittent faults only appear under specific load or EMI conditions.

From a system engineering perspective, the ADS1261’s integrated block set reduces BOM count, but the deeper benefit is reduction of analog interface uncertainty. Every external amplifier, reference, current source, and monitor adds tolerance stacking, layout sensitivity, startup sequencing concerns, and thermal interaction. By consolidating these functions, the device compresses the analog problem into a smaller and more controlled space. This typically shortens bring-up time and improves design portability across product variants. A design that uses the internal resources intelligently is often easier to replicate across channels, boards, and manufacturing lots than one assembled from discrete precision blocks.

Application fit depends on understanding where the architecture is strongest. The ADS1261 is not primarily a high-speed waveform digitizer. It is better viewed as a precision measurement engine for slowly varying signals where amplitude is small, source impedance may be nontrivial, and interference rejection is essential. In that role, its combination of PGA, delta-sigma conversion, programmable filtering, reference support, diagnostics, and excitation resources is unusually cohesive. The architecture favors designs that benefit from signal conditioning close to the converter and from firmware that can exploit configurable gain, filter, and diagnostic modes instead of compensating for missing analog capability elsewhere in the system.

A practical design pattern is to treat the ADS1261 as the center of a measurement domain rather than a generic ADC endpoint. For bridge sensors, use the PGA to maximize signal usage, keep sensor routing symmetrical, and align filter choice with the expected update rate and interference profile. For RTDs, pair the excitation currents with a ratiometric reference scheme where possible, and use internal monitoring to validate operating conditions during startup and fault events. For multiplexed systems, take advantage of single-cycle settling to keep scan timing deterministic and reduce the number of discarded conversions after channel changes. These patterns usually deliver more value than simply chasing the highest nominal resolution setting.

In precision acquisition, architecture quality is revealed less by the converter headline and more by how gracefully the supporting blocks interact under real constraints. The ADS1261 is strong because its internal functions are aligned around the actual failure points of sensor measurement chains: tiny signal amplitudes, loading effects, reference uncertainty, mains interference, and communication robustness. That coherence is what makes the device effective in practice. It reduces the amount of analog scaffolding required around the ADC and shifts more of the design effort toward measurement strategy, where system-level improvements are usually easier to sustain.

ADS1261 Input Resources, Channel Configuration, and Signal Routing

ADS1261 input planning is one of the device’s strongest advantages, but it is also where many design errors originate. The device is not just a high-resolution ADC with many pins. It is a configurable analog routing matrix that combines measurement inputs, reference connections, excitation resources, and auxiliary digital functions on a limited set of terminals. That flexibility reduces component count and board area, but it shifts more responsibility into system-level channel planning. On this device, pin assignment is part of the analog architecture, not a late-stage schematic detail.

The ADS1261 supports up to 10 single-ended inputs or 5 differential pairs. At first glance, this looks like a simple muxed input structure. In practice, the value is deeper: it allows a single converter to service mixed sensor topologies, such as bridge sensors, thermocouples, RTDs, and general low-bandwidth voltage channels, without external analog switching in many cases. This is especially useful when low-level signals must be acquired with consistent conversion behavior and when cost or space makes multiple dedicated ADCs unattractive. A well-partitioned design can use one ADS1261 to cover channels with very different electrical behavior, provided the routing strategy accounts for settling, reference integrity, and gain constraints.

The multifunction nature of the analog pins is central to that flexibility. Several AIN pins can be reassigned as reference inputs, GPIO, excitation outputs, or AC-excitation nodes depending on the operating mode. AIN0 and AIN1 can serve as REFP0 and REFN0. AIN2 and AIN3 can serve as REFP1 and REFN1. AIN2 through AIN5 can also participate in GPIO or AC-excitation roles. This means the input map is not fixed by package labels. It is defined by the measurement strategy. A pin reserved for a precision reference connection is no longer freely available as a sensor input. A pin used for AC excitation cannot be treated as a quiet adjacent analog node. The schematic must therefore be built from function allocation outward, not from pin count inward.

A useful way to approach the device is to think in three layers. The first layer is resource inventory: how many measurement channels are required, which ones need differential routing, which ones require ratiometric reference behavior, and which ones need current excitation or digital side functions. The second layer is conflict resolution: identifying where one pin could serve multiple purposes and deciding which role has the highest signal-integrity priority. The third layer is operational sequencing: determining whether shared resources can be time-multiplexed safely or whether they must remain dedicated to avoid calibration drift and routing errors. Designs usually become robust when these three layers are handled together rather than sequentially.

Reference routing deserves particular attention because the ADS1261 lets reference pins overlap with input resources. This is powerful in ratiometric systems. For example, when measuring a resistive bridge or RTD network, assigning reference inputs close to the stimulated sensor path can suppress excitation drift and improve gain stability at the system level. However, this only works well if the return paths and source impedances are controlled. A common mistake is to treat reference reassignment as a purely logical configuration option while ignoring the physical current loops on the PCB. Once reference pins share package adjacency with sensor nodes, layout parasitics and shared copper resistance begin to affect both the measured signal and the conversion scale factor. The device can support elegant ratiometric architectures, but only when the reference path is designed with the same discipline as the signal path.

The AINCOM pin adds another degree of freedom. It acts as an analog common node and can also participate in biasing and current-source-related functions. This is useful in sensor interfaces where multiple channels share a controlled return or where a common-mode operating point must be established explicitly. In low-level sensor systems, the presence of AINCOM can simplify routing by reducing the need for external analog summing or return steering networks. At the same time, it should not be treated as a generic ground substitute. Its electrical role depends on the active configuration, and any current flowing through common return impedance can translate into measurement error if sensitive channels reference that node. In multi-sensor designs, separating “quiet analog common” from “load return” is often more important than adding extra filtering.

For differential measurements in PGA mode, the differential input range is constrained primarily by the selected reference voltage and the programmed gain. The recommended operating range is approximately ±VREF / Gain, with additional limits imposed by the supply rails and internal analog headroom. This relationship is simple but easy to misuse. Increasing gain improves sensitivity to small signals, but it compresses the allowable input span proportionally. A sensor that appears to fit the gain setting under nominal conditions may still overrange during startup, fault conditions, open-sensor events, or transient excitation changes. A robust design therefore selects gain from worst-case sensor behavior, not from nominal resolution targets alone.

This point becomes more important when the PGA is used with sensors whose output can shift in common-mode or whose polarity can momentarily invert. Bridge sensors during power sequencing, thermocouples with fault injection paths, and RTD networks during lead reconnection can all produce conditions that exceed the intended differential range even if the steady-state signal is small. Once the PGA saturates, recovery is not always invisible at the system level. The next sample may require additional settling, and multiplexed channel schedules can inherit that disturbance. In practical front ends, a slightly lower gain often produces better overall measurement quality than an aggressive gain setting that looks optimal on paper but spends part of real operation near the limits.

Channel-to-channel multiplexing also changes the design rules compared with a dedicated ADC per signal. When the ADS1261 switches between channels with different source impedances, different common-mode voltages, or different gain settings, the analog front end and the converter input path need time to settle. This is particularly relevant when one channel is a low-impedance bridge signal and the next is a high-impedance sensor or reference-derived measurement. If firmware assumes every channel is instantly valid after a mux change, subtle repeatability errors can appear that resemble noise or calibration drift. A more reliable approach is to classify channels by analog similarity and group the scan order to minimize large charge redistribution steps. In many systems, scan sequencing is as important as hardware filtering.

The multifunction pin structure also affects fault containment. A pin that can act as an input in one mode and as an excitation or GPIO resource in another should be protected for the most demanding role it may assume. If external circuitry clamps or loads that pin based only on its “normal” analog-input use, a future configuration change can create unexpected current paths or degrade excitation waveforms. This is one reason why early configuration tables are valuable. They make hidden resource coupling visible before the board is routed. On complex mixed-sensor boards, a tabular pin-role matrix usually prevents more errors than repeated schematic reviews.

Another practical consideration is calibration strategy. Since input pins can be reassigned among signal and reference roles, calibration should reflect the actual routed measurement path, not just the ADC core. Offset and gain correction are most effective when the channel definition includes the selected mux path, reference source, gain, and any excitation state associated with that measurement. Treating calibration as a single global ADC constant leaves performance on the table. The ADS1261 is flexible enough that the conversion path is really a configurable instrument state. Calibration should follow that model.

From an architecture perspective, the most effective use of the ADS1261 is not to maximize raw channel count, but to maximize measurement coherence. Channels that share excitation style, reference topology, and expected signal range tend to coexist well on one device. Channels with fundamentally different analog behavior can still be combined, but they require more careful timing, protection, and configuration management. This is where the device’s flexibility becomes either a strength or a liability. When the input resources are treated as a coordinated analog subsystem, the ADS1261 can replace a surprising amount of external circuitry while preserving precision. When the same flexibility is approached as simple pin multiplexing, the design often becomes harder to stabilize.

A disciplined implementation usually starts with four questions. Which pins must remain dedicated to precision references. Which channels require differential acquisition with PGA gain. Which functions can be time-shared without corrupting settling or calibration. Which return paths must remain isolated to protect low-level accuracy. Once those are answered, the final schematic tends to emerge naturally. The device provides the resources needed for compact and sophisticated sensor acquisition, but the best results come from planning signal routing, reference usage, and gain structure as one integrated problem.

ADS1261 Measurement Performance, Precision Metrics, and Conversion Capabilities

ADS1261 measurement performance is best understood by reading its specifications as a system-level trade space rather than as isolated headline numbers. The device is built for precision signal chains in which the measured quantity is small, slow-moving, and easily corrupted by thermal drift, supply variation, EMI, and front-end layout errors. Its 24-bit no-missing-codes output and data-rate range from 2.5 SPS to 40 kSPS give it unusual flexibility: the same converter can be tuned for near-metrology-grade low-speed acquisition or for moderately fast multiplexed sensing, provided the designer understands how noise, latency, settling, and rejection shift across operating modes.

The 24-bit specification is often misunderstood. It does not imply that every application will realize 24 bits of usable resolution. In practice, the effective resolution is shaped by input-referred noise, PGA gain, reference stability, source impedance, digital filter selection, and board parasitics. What the ADS1261 offers is a conversion engine with enough dynamic range and linearity that, if the surrounding analog domain is disciplined, the converter itself does not become the first limiting factor. That distinction matters. In precision systems, the more valuable property is not nominal code width but predictable behavior under gain, temperature, and time.

At the core of its measurement capability is the combination of low offset drift, low gain drift, and low noise. A 1 nV/°C offset drift is extremely small in practical instrumentation terms. It means the converter contributes very little temperature-dependent baseline movement when measuring low-level differential signals, especially in bridge sensors, thermocouples, and shunt-based current measurements. The 0.5 ppm/°C gain drift is equally important because gain stability determines whether a system can hold calibration over environmental changes. Offset drift affects the zero point; gain drift stretches the transfer function. In many real measurement chains, offset can be periodically nulled in firmware, but gain drift is harder to hide because it directly impacts slope accuracy across the full measurement range. This is one reason gain drift deserves at least as much attention as noise in high-accuracy designs.

The specified 30 nVRMS noise at 20 SPS with gain = 128 highlights where the ADS1261 is strongest: extracting information from very small differential inputs. At high PGA gain and low output data rate, the digital filter has more time to average internal and external noise contributions, producing excellent input-referred performance. This makes the device well suited for sensors whose outputs sit in the microvolt-to-millivolt range. In such cases, a few tens of nanovolts RMS can be the difference between stable sub-count repeatability and visibly wandering readings. A useful engineering interpretation is that the converter enables aggressive front-end gain without immediately paying a severe noise penalty, which simplifies low-level sensor interfacing.

Linearity is another area where the ADS1261 supports precision design beyond simple low-noise operation. The quoted 2 ppm linearity places the device in a class where transfer-function curvature is tightly controlled. For many sensing applications, this means a one- or two-point calibration is sufficient because the converter contributes minimal nonlinearity compared with the sensor itself. In bridge sensors, RTD excitation systems, and precision current measurement, the sensor or excitation path usually dominates nonlinearity well before the ADC does. That shifts design effort toward controlling references, excitation current accuracy, and thermal gradients rather than compensating for converter distortion.

Calibration support is especially important because it changes how the raw specifications should be interpreted. The ADS1261 allows offset and gain errors to be corrected so that residual error is often pushed down near the noise floor in typical operating conditions. This is not just a convenience feature. It means the converter can be deployed in systems where production spread, PCB stress, input amplifier offset contributions, or reference tolerance would otherwise force expensive analog trimming. In practice, calibration is most effective when performed under the same gain, reference, and routing conditions used in normal measurement. A common mistake is to calibrate at room temperature and then assume the result fully characterizes the fielded system. In reality, calibration removes static error most effectively; it does not eliminate thermally induced gradients, leakage changes, or reference drift. The best results come when calibration is treated as one layer in an error-control strategy, not as a substitute for sound analog design.

The converter’s rejection performance gives it another practical advantage in industrial and sensor-heavy environments. A common-mode rejection ratio of 105 dB to 130 dB means the ADC can tolerate substantial common-mode disturbance while still resolving a small differential signal, provided the input remains within the allowable common-mode operating range. This is crucial in bridge measurements, remote sensing, and grounded sensor installations where cable pickup and local ground movement are unavoidable. High CMRR does not excuse poor wiring, but it does make the signal chain more resilient when ideal grounding is not possible. Likewise, PSRR up to 120 dB on DVDD helps suppress the translation of digital supply noise into measurement error. This becomes valuable in mixed-signal systems where a microcontroller, communications interface, or switched power stage shares the board. The practical insight here is that strong rejection specs reduce sensitivity to real-world imperfections, but they work best when layout avoids creating deterministic coupling paths that bypass the converter’s intrinsic rejection mechanisms.

The available data-rate range from 2.5 SPS to 40 kSPS should be viewed as a control over measurement personality. At the low end, the ADS1261 behaves like a precision averaging instrument. Noise decreases, line-frequency rejection improves, and output stability becomes suitable for static or slowly varying parameters such as mass, pressure, and temperature. At the high end, the converter becomes more responsive, but the designer gives up some of that noise and rejection advantage. This trade is unavoidable in delta-sigma architectures. The engineering task is to align the digital filter and sample rate with the spectral content of the signal of interest. If the process changes slowly, there is no value in sampling quickly and then fighting excess noise in software. If the signal contains transient content or the system multiplexes multiple channels, settling behavior and effective throughput become more important than ultimate low-speed noise.

For weigh scale designs, the ADS1261 aligns particularly well with the physics of the problem. Load-cell bridge outputs are small, often only a few millivolts full scale, and they drift with temperature, mechanical stress, excitation variation, and cable resistance. In this setting, low input-referred noise allows meaningful amplification of the bridge output, while low offset and gain drift preserve calibration over ambient changes. The 50/60-Hz rejection modes matter because weigh scales are often installed near mains-powered equipment, and line-frequency interference can create visible instability even when average accuracy is good. Experience with this class of design shows that converter performance is often limited less by the ADC and more by bridge excitation cleanliness, connector thermoelectric effects, and board temperature gradients near the reference network. The ADS1261 provides enough intrinsic precision that these second-order effects become first-order design concerns.

The same logic extends to RTD and thermocouple measurement, though the dominant error terms shift. For RTDs, gain drift and reference accuracy become central because the measured resistance is often converted through a ratiometric or current-excited scheme. The converter’s linearity and calibration support help preserve a clean transfer function, but stable excitation and careful routing of the reference path usually determine whether the design reaches its target accuracy. For thermocouples, the very low offset drift is especially valuable because the signal itself is small and easily masked by parasitic thermoelectric voltages generated at connectors and copper junctions. In these systems, a high-performance ADC does not simply improve resolution; it exposes layout and materials issues that would remain hidden in lower-precision designs. That is a sign of a capable converter, not an inconvenience.

One of the more subtle strengths of the ADS1261 is that it gives the designer room to simplify the external analog chain. When an ADC offers strong low-speed noise performance, usable PGA gain, and calibration capability, it can reduce dependence on ultra-precision external amplification for many sensor interfaces. This lowers component count and can improve long-term stability by removing extra offset and drift sources. However, this simplification should be applied selectively. If the signal source has high impedance, long cable exposure, or severe common-mode disturbance, an external front-end may still be necessary to manage filtering, protection, and settling. The most effective architectures use the ADS1261 as a precision conversion core while assigning only the unavoidable signal-conditioning tasks to external circuitry.

From an implementation perspective, the published metrics are easiest to realize when several practical details are handled early. Reference integrity is critical because ADC gain accuracy is only as stable as the reference path. Ground partitioning should prevent digital return currents from modulating analog nodes. Input filtering must be designed so that resistor values do not create excess thermal noise or input bias interaction. Sensor leads should be routed as tightly coupled differential pairs to preserve CMRR in the actual PCB and cable environment, not just in the data sheet. Thermal symmetry also matters more than many designs assume. Even with nanovolt-class drift, a small temperature gradient across terminals or copper transitions can generate error large enough to dominate the converter’s own offset behavior.

A useful way to frame the ADS1261 is this: it is not merely a 24-bit ADC with good noise numbers, but a converter whose precision is coherent across multiple dimensions—noise, drift, linearity, calibration, and rejection. That coherence is what makes it suitable for serious measurement systems. Many devices look strong in one metric and weaker in the interactions between metrics. Here, the balance is better. The low-speed precision mode is genuinely useful, the drift terms support long-term repeatability, and the rejection characteristics make the device more tolerant of imperfect installation conditions. For engineering teams building instrumentation rather than just digitizers, that balance often matters more than peak specification in any single category.

ADS1261 Reference System, PGA Behavior, and Sensor-Facing Advantages

ADS1261 gains much of its system value from how completely it integrates the precision analog front end around the delta-sigma core. The device is not just a converter with a digital interface. It already contains the reference infrastructure, programmable gain stage, sensor excitation resources, and measurement supervision features that usually consume a large part of the error budget and board area in precision designs. This level of integration changes the design task. Instead of building a measurement chain from separate reference, amplifier, current source, and diagnostic blocks, the focus shifts toward managing noise, grounding, sensor routing, and calibration strategy at the system level.

The internal 2.5 V reference is one of the most important building blocks in that integration. It is specified as a precision reference and requires a 10 µF capacitor from REFOUT to AVSS for proper stability and low-noise operation. That capacitor is not a formality. It acts as the local energy reservoir and filtering element for the internal reference buffer, and its placement directly affects reference noise coupling and dynamic settling. In practice, placing it close to the REFOUT pin with a short return to the analog ground region tends to matter as much as the nominal capacitor value. At 24-bit-class resolution, even small parasitic impedance in the reference path can convert digital activity or input switching into measurable code movement.

Reference quality sets the scale factor for the entire converter. Any drift, noise, or disturbance on the reference appears directly as gain error or conversion noise. This is why the integrated reference should be viewed as more than a convenience feature. It is a tightly matched element inside the converter environment, with known behavior relative to the ADC core. That often produces a more predictable result than pairing the ADC with an external reference of good standalone specifications but poor board-level implementation. In compact industrial modules, that predictability is often more valuable than chasing headline reference numbers in isolation.

The support for both internal and external reference operation gives the ADS1261 a broader system role. When compactness, BOM reduction, and simplified layout are primary targets, the internal reference is usually the best fit. When the application is ratiometric, sensor-dependent, or architected around a shared precision reference domain, the external reference inputs become more important. This flexibility is especially relevant in bridge-based and resistive sensor systems. If the same excitation quantity that drives the sensor is also used as the ADC reference, many supply-related errors cancel naturally. That is the core advantage of ratiometric measurement: the converter resolves a ratio rather than an absolute voltage, so excitation drift has reduced impact on the final result.

This reference flexibility is also useful when partitioning error sources. In some systems, absolute accuracy is limited less by ADC linearity and more by thermal gradients, cable drop, or excitation instability. In such cases, selecting the reference mode is part of system architecture, not just a pin-configuration choice. A common design mistake is to choose the internal reference by default and then attempt to recover ratiometric behavior through software scaling. That does not eliminate analog-domain errors introduced before conversion. If the sensor physics favors ratiometric readout, the reference path should reflect that directly.

The PGA is the next major enabler. With gain settings from 1 to 128, it allows direct interface to low-level sensors such as strain gauges, load cells, and RTDs without requiring an external instrumentation amplifier in many cases. This matters because every external gain stage adds offset, drift, noise, common-mode constraints, and layout sensitivity. An integrated PGA does not remove those concerns, but it keeps them inside a characterized signal path that is already designed to work with the converter modulator and digital filter chain.

From a signal-chain perspective, the PGA shifts the useful dynamic range of the ADC toward the actual sensor output. Low-output sensors often produce signals in the microvolt to millivolt range. Without gain, much of the converter full-scale range remains unused, and practical resolution degrades because the sensor signal occupies only a small fraction of the available code span. By applying gain before quantization, the PGA raises the sensor signal relative to downstream quantization and input-referred noise mechanisms. This is where the low-noise behavior of the ADS1261 becomes especially important. High gain only helps if the front-end noise remains controlled; otherwise, gain simply amplifies the uncertainty along with the signal.

The 1 GΩ differential input impedance in PGA mode is particularly valuable when dealing with weak or high-impedance sources. It reduces source loading and helps preserve sensor linearity and bridge balance. This is not only a static effect. High input impedance also reduces interaction with source resistance asymmetry, which can otherwise translate into offset and common-mode conversion errors. In precision temperature and bridge measurements, these small interactions often dominate once the obvious noise sources have already been addressed.

Input current specifications deserve more attention than they usually receive. Low input absolute current and low differential input current are essential when the source network has significant resistance, as in RTD wiring, precision divider networks, high-value calibration resistors, or sensor multiplexing structures. Input current flowing through source resistance creates voltage drops that appear as offset or gain error. Differential mismatch in those currents is even more problematic because it can create direction-dependent errors that are difficult to calibrate out over temperature. In practical debugging, unexplained offsets in high-impedance channels often trace back to leakage paths, bias currents, flux residue, or contamination long before they trace back to ADC nonlinearity.

This is why the front end should be treated as a current-sensitive network, not only a voltage-sensitive one. The ADS1261’s low input current behavior helps, but board conditions still matter. Moisture films, long solder-mask gaps, and thermally stressed connector regions can create leakage paths comparable to the sensor-level signals being measured. Designs that look clean in schematic form can still drift in field conditions if the analog input network is not laid out with the same discipline as the reference path.

The integrated excitation current sources extend the device from generic data conversion into direct sensor interfacing. For resistive sensors, especially RTDs, a stable excitation current is what converts resistance into a measurable voltage. When that current source is inside the same device that performs the conversion, matching and consistency across channels tend to improve. External current sources can certainly be more specialized, but they also introduce routing complexity, additional thermal EMF junctions, and another analog block whose drift must be tracked. With the ADS1261, the measurement chain becomes shorter and easier to characterize.

In RTD systems, this integration offers several practical advantages. First, the excitation path can be tightly coupled to the selected measurement configuration. Second, lead resistance effects can be managed more consistently in 2-wire, 3-wire, or 4-wire topologies. Third, diagnostic features can be layered into the same hardware path rather than added as external supervision circuitry. In systems with multiple sensor classes, the ability to reuse on-chip current sources across configurations simplifies firmware and production calibration flow. It also reduces the number of analog nodes that need guarding and shielding.

Burn-out current sources and signal/reference monitoring functions add an important reliability layer. These features are easy to underestimate because they do not improve nominal converter resolution, but they significantly improve system observability. Open sensors, disconnected wiring, degraded contacts, and reference faults often present as plausible but wrong measurement values. A converter that can help distinguish valid low-level signals from fault conditions reduces the chance of silent failure. In industrial instrumentation, that distinction matters more than small differences in static accuracy specifications.

The monitoring functions are especially useful because reference integrity is often assumed rather than verified. Yet the reference path is one of the most failure-sensitive parts of a precision measurement system. If the reference is compromised, every conversion remains numerically stable but physically meaningless. Integrating reference and signal monitoring inside the converter makes it easier to detect these conditions close to where they occur. This is a more robust strategy than relying only on periodic software reasonableness checks after the fact.

A useful way to think about the ADS1261 is as a measurement subsystem rather than a standalone ADC. The reference, PGA, current sources, and diagnostics are not isolated feature bullets. They form a coordinated architecture aimed at low-level sensor acquisition. That architecture is strongest when the design uses those blocks coherently. For example, pairing the PGA with a poorly chosen external reference scheme, or using excitation currents without considering self-heating and lead compensation, leaves much of the benefit unrealized. The device rewards designs that align sensor physics, reference strategy, gain planning, and fault handling from the start.

In practice, the best results usually come from treating the integrated resources as the default path and adding external analog circuitry only when there is a clear system-level reason. That keeps the error chain shorter and more traceable. It also makes validation easier because fewer analog interfaces have to be characterized across temperature, supply variation, and sensor fault conditions. For precision sensor systems, that reduction in hidden interactions is often the real advantage. The ADS1261 does not merely simplify the schematic. It reduces the number of places where accuracy can quietly degrade before the digital result ever reaches the application.

ADS1261 Power Supply Requirements, Clocking, and Operating Conditions

ADS1261 power planning should be treated as part of the measurement chain, not as a secondary implementation detail. Its resolution and low-speed precision are only meaningful when supply rails, clock source, and pin stress are controlled as a coherent system. The device is flexible enough to fit mixed-voltage industrial platforms, but that flexibility works well only when the operating envelope is translated into concrete board-level rules.

The analog supply can be arranged either as a single 5-V domain or as a split ±2.5-V style domain. In practice, the key requirement is that AVDD relative to AVSS stays within the recommended 4.75 V to 5.25 V range, while AVSS itself may sit anywhere from -2.6 V to 0 V relative to DGND. This is more than a convenience item. It directly affects allowable input common-mode range, headroom for sensor interfaces, and the ease of handling bipolar signals without forcing extra level shifting ahead of the ADC. In systems measuring bridge sensors, low-level shunts, or grounded thermocouple front ends, the ability to place AVSS below digital ground often simplifies the analog path and reduces the number of active conditioning stages.

The digital supply range of 2.7 V to 5.25 V gives straightforward compatibility with common controller and isolation-side logic rails. That said, broad compatibility should not be mistaken for immunity to digital noise. When the converter is used near its noise floor, the digital rail becomes a coupling path into conversion integrity through substrate injection, reference disturbance, and return-current interaction. A practical design pattern is to treat DVDD as a logic-compatibility rail, but treat its routing and decoupling as if it were part of the analog system. Short local decoupling, controlled return paths, and separation from fast edge-rate buses usually produce more benefit than adding complexity elsewhere in the signal chain.

Supply architecture also influences startup behavior and fault handling. Precision converters rarely fail dramatically when supplies are poorly sequenced; instead, they tend to become quietly inaccurate, intermittently unstable, or difficult to debug under corner conditions. If analog inputs or reference pins are allowed to drive before the supplies are valid, internal protection structures may conduct. Even when this does not create immediate damage, it can introduce latch-up risk, stress clamp paths, or create unexplained offset behavior during warm startup. Designs that include sensor excitation, external references, or multiplexed field wiring benefit from ensuring that no ADC-facing pin is driven beyond its valid range during ramp-up, brownout, or hot-plug events.

Thermal capability is one of the device’s strong enablers for industrial use. The operating ambient range extends to +125°C, with family-level coverage from -40°C to +125°C and recommended operating conditions including down to -45°C. This is important not only for outright survival in harsh installations, but for maintaining predictable metrology under enclosure heating, solar loading, and self-heating from nearby power components. High ambient capability does not remove the need for thermal discipline. Reference drift, resistor network drift, leakage growth, and thermoelectric gradients across connectors usually become limiting factors before the ADC itself does. In dense layouts, a useful rule is that every heat source near the reference network or input filter should be assumed to create a measurement error until proven otherwise.

At elevated temperature, leakage-related effects become less theoretical and more visible. Input protection networks that appear harmless at room temperature can generate measurable offsets once bias currents and board contamination rise. This is especially relevant in high-impedance sensor paths and low-data-rate precision modes, where long settling windows expose tiny parasitic currents. Conservative resistor values, clean board surfaces, and guard-aware routing often yield more stable performance than aggressive filtering with very high impedances. The deeper lesson is that the ADS1261 can resolve errors that the rest of the board may accidentally create.

Clocking is another area where the device’s flexibility needs disciplined interpretation. The internal oscillator supports nominal operation from 2.5 SPS to 25.6 kSPS with a nominal 7.3728 MHz clock. This makes low- and mid-speed precision operation easier to implement because no external timing source is required. For many systems, this is the best default choice: lower component count, simpler routing, and no additional clock-domain contamination near sensitive analog nodes. Where conversion timing is not tightly synchronized to other subsystems, the internal oscillator usually offers the cleanest implementation tradeoff.

The requirement changes at the highest throughput setting. For 40-kSPS operation, the clock requirement increases to a nominal 10.24 MHz, with the recommended external clock range extending up to 10.75 MHz. This has direct system implications. The top data-rate mode is not merely a register setting; it is an architecture choice that pulls in clock source selection, timing validation, and EMI awareness. If the design roadmap may eventually require 40 kSPS, it is wise to reserve the clock input strategy early rather than treating it as a late-stage patch. Retrofitting an external clock into a layout originally optimized for internal-oscillator operation often introduces exactly the kind of noise coupling that precision channels dislike.

External clock use should also be evaluated from a phase-noise and distribution standpoint, not just frequency correctness. In delta-sigma converters, timing quality interacts with digital filtering and modulator behavior in ways that are not always obvious from a top-level throughput number. A spectrally dirty clock can degrade effective performance, especially in systems already contending with switching regulators, digital isolators, or motor-control transients. A low-jitter source, controlled trace impedance where needed, and isolation from fast current loops usually matter more than raw oscillator accuracy. Throughput errors can often be calibrated or tolerated; noise coupled through careless clock routing is much harder to remove later.

The internal-versus-external clock decision is therefore best made from application context. If the converter is used for slowly varying process measurements, weigh scales, RTD acquisition, or precision sensor diagnostics, the internal oscillator is usually the more robust choice because it minimizes implementation risk. If the converter must align tightly with system-wide sampling frames, coexist with deterministic control loops, or run at the highest output data rate, an external clock becomes more attractive. The important point is to treat clocking as a signal-integrity problem, not only a timing problem.

Input and reference pin operating limits deserve strict interpretation. The documentation’s warnings about analog input range, reference input range, and clamp current are not legal formality. They define the boundary between precision conversion and stressed operation. Once any pin exceeds supply-related thresholds, internal protection mechanisms may conduct, and then the error model changes completely. At that point, offset, gain, noise, and linearity assumptions no longer hold in a stable way. In field-connected equipment, transient overvoltage is often routine rather than exceptional, so front-end protection must be designed to keep the ADC inside its valid operating region under both steady-state and fault conditions.

A good protection strategy balances survivability against leakage, settling time, and source impedance. Series resistance helps limit clamp current, but excessive resistance can interact with input sampling behavior, filter capacitors, and bias current to create gain or settling errors. TVS devices improve surge handling, but many are too leaky or too nonlinear for direct placement on precision input nodes. RC filters help attenuate noise and absorb transients, yet they must be matched to the selected data rate and sensor source impedance so that the converter sees a settled input before each conversion cycle. In practice, the most reliable designs use layered protection: modest series resistance at the pin, surge handling moved slightly upstream, and reference-grade passive components around the ADC itself.

Reference pins require the same level of care as the signal inputs, sometimes more. A precision ADC only converts ratios accurately when the reference path is quiet, stable, and protected. Noise or stress on the reference side maps directly into conversion uncertainty. This is one reason why field failures and unexplained drift are often traced back not to the analog input channel, but to a reference path that was routed too casually, filtered with the wrong dielectric, or exposed to external fault energy without current limiting. A converter of this class rewards symmetric thinking: protect and decouple the reference network with the same seriousness given to the measured signal.

From a system review perspective, the ADS1261 should be considered tolerant in configuration but intolerant of casual implementation. Its supply ranges make it easy to interface with mixed-voltage controllers and bipolar analog domains. Its temperature range makes it suitable for harsh installations. Its clocking options support both simple precision measurements and higher-throughput modes. But these strengths only deliver their full value when the design preserves analog headroom, limits pin overstress, and keeps timing and return-current noise under control.

A useful engineering approach is to lock three decisions early: the analog ground strategy, the intended maximum data rate, and the worst-case fault energy that can reach any ADC pin. Once those are fixed, the rest of the design becomes clearer. The supply arrangement defines signal headroom. The data-rate target defines clock architecture. The fault model defines input and reference protection. That sequence tends to prevent a common failure mode in precision designs: optimizing the nominal measurement path first, then discovering too late that startup behavior, field transients, or thermal drift dominate the actual error budget.

ADS1261 Interface, Control Pins, and Data Integrity Features

The ADS1261 interface is built for precision measurement systems that need more than basic SPI connectivity. Its pin set supports not only data transfer, but also deterministic conversion control, fault containment, and observability of the measurement path. In high-resolution delta-sigma ADC designs, this distinction matters. The digital interface is not just a transport layer. It is part of the system timing model and part of the data integrity strategy.

At the physical interface level, the device exposes the expected serial pins: CS, SCLK, DIN, DRDY, and DOUT/DRDY. These cover command framing, clocked data transfer, input configuration writes, and conversion-result signaling. In addition, the ADS1261 provides dedicated START, RESET, and PWDN pins. That extra control is significant in embedded instrumentation because it separates critical state management from normal serial traffic. A controller can force a conversion sequence, recover from abnormal states, or place the converter into a low-power condition without depending on a multi-byte register transaction. In practice, this reduces firmware complexity during fault recovery and shortens the path from event detection to corrective action.

CS and SCLK define the synchronous serial transaction boundary in the usual way, but their role in a precision converter should be viewed through a signal-integrity and determinism lens. Poor edge quality, uncontrolled routing, or excessive clock activity near the analog front end can couple interference into sensitive measurements. On mixed-signal boards, stable operation is often improved when the SPI clock is only active during required transactions and its return path is tightly controlled. This becomes more important when the ADC is resolving small differential signals in the presence of large common-mode or digital switching activity nearby.

DIN carries commands and configuration data into the device. Since the ADS1261 exposes substantial internal configurability, DIN is effectively the control path for the converter state machine. Register writes influence mux selection, gain, digital filtering, reference choice, monitoring functions, and data formatting. In well-structured firmware, these writes are usually treated as configuration epochs rather than ad hoc updates. That pattern helps avoid subtle issues where timing, settling, and filter latency are overlooked after a parameter change. Precision ADCs do not respond like simple instantaneous samplers; any change in operating mode can alter valid-data timing, and the interface design should reflect that.

DRDY is one of the most operationally important pins because it defines when a conversion result is ready for retrieval. In low-speed, high-accuracy systems, data readiness is often more important than raw bus throughput. The host does not need to poll blindly or infer timing from nominal output data rate alone. Instead, it can synchronize acquisition to the converter’s actual completion event. This improves determinism and reduces unnecessary bus traffic. It also helps when digital filters introduce latency, since DRDY reflects the real availability of filtered data rather than an assumed schedule.

The DOUT/DRDY pin adds flexibility by combining serial data output with an active-low data-ready indication. This dual-function behavior can simplify routing and reduce GPIO consumption in resource-constrained controllers. It is especially useful when the data rate is modest and the firmware architecture benefits from interrupt-driven acquisition. A common implementation pattern is to connect DOUT/DRDY to an interrupt-capable input so the controller remains idle until the converter asserts readiness, then begins the read transaction with bounded latency. That approach tends to produce more repeatable timing than periodic polling loops, particularly in systems running communication stacks, control tasks, and diagnostics in parallel.

There is, however, a design tradeoff in dual-function signaling. Shared-status/data pins reduce pin count, but they also require careful firmware sequencing and board-level understanding of line behavior. If the host samples the line incorrectly during bus transitions, or if pull-up and timing assumptions are not aligned with the converter mode, false-ready detection or read corruption can occur. On dense boards with multiple SPI devices, that risk is best controlled by explicitly documenting bus ownership, interrupt polarity, idle states, and transaction timing margins. In other words, the interface should be treated as a timed protocol, not merely a set of wires.

The dedicated START pin gives the controller direct authority over conversion initiation. This is useful in systems where sampling must be aligned with an external event, actuator phase, multiplexed sensor sequence, or deterministic measurement slot. Software-only start commands can work, but hardware start control usually gives tighter temporal behavior and cleaner integration with real-time logic. In applications such as bridge sensing, weigh scales, electrochemical instruments, or slow process metrology, this may not be about speed. It is about repeatability and known phase relationship between the physical world and the conversion cycle.

RESET provides a hardware path back to a known state. This matters more than it may seem. Precision measurement firmware often evolves into a layered stack that manages calibration, input routing, self-test, filtering, and communications. When an unexpected condition appears, a hardware reset pin is often the fastest way to restore a valid converter state without ambiguity about retained settings. It also simplifies startup design, because power sequencing irregularities or brownout events can leave digital devices in partially initialized conditions. A clean reset strategy usually saves more debugging time than it costs in one extra routed trace.

PWDN extends control into the power-management domain. In battery-powered or duty-cycled systems, this allows the converter to be disabled explicitly rather than left in a static but active mode. The practical engineering question is not only whether power can be saved, but what recovery cost is introduced. A precision ADC coming out of power-down may require reference stabilization, analog settling, and digital filter refill before measurements are trustworthy. Designs that switch aggressively between active and sleep states need to account for this full reacquisition interval, not just the digital wake-up time. Ignoring that detail often leads to first-sample errors that appear random until the startup sequence is examined carefully.

Data integrity is where the ADS1261 moves beyond a generic SPI peripheral. CRC support is particularly valuable in industrial and instrumentation environments, where electromagnetic interference, long traces, connector wear, isolation barriers, and shared cable bundles can all introduce communication faults. SPI by itself is fast and simple, but it does not inherently guarantee that the received payload matches what the ADC transmitted. In low-resolution consumer sensing, an occasional bit error may be tolerable or filtered statistically. In a 24-bit or higher precision chain, a single flipped bit can translate into a numerically plausible but physically incorrect measurement. That is the dangerous case because it looks valid.

CRC reduces the probability of silent corruption by adding an integrity check across the transmitted data. This is not a substitute for good layout, proper grounding, shielding, or controlled digital signaling. It is a second line of defense. When used correctly, CRC changes a latent fault into a detectable fault, and that shift is crucial in systems that must prove reliability or isolate failures cleanly. In firmware, the right response to a CRC mismatch is usually not just to discard one sample and continue silently. Better practice is to count events, classify them by frequency, and correlate them with operating states such as motor switching, relay actuation, or external communication bursts. That turns CRC from a passive checker into a diagnostic instrument.

In many designs, intermittent interface faults are first noticed only after extended field operation, especially where cables pass near inverters, solenoids, or high-current switching paths. CRC helps expose these marginal conditions early. It often reveals that the issue is not the converter at all, but edge-rate coupling, inadequate return paths, or a ground reference that shifts during load transients. Once these faults become observable, corrective actions become straightforward: reduce bus speed, improve shielding, add series damping, rework trace adjacency, or revise the interrupt/read sequence. The presence of CRC does not merely improve trust in the data. It accelerates root-cause isolation across the whole digital-analog boundary.

The ADS1261 also strengthens measurement integrity through internal signal and reference monitors. These functions are important because errors in precision systems frequently originate outside the modulator core. The converter can digitize accurately while the surrounding measurement chain is already compromised. Reference drift, open connections, sensor excitation loss, input saturation, and unexpected bias shifts can all produce results that remain digitally well-formed but physically meaningless. Internal monitors help expose these failure modes before they propagate into control logic, logging systems, or calibration routines.

Reference monitoring is particularly valuable because the reference path is inseparable from conversion accuracy. In ratio-based systems, designers sometimes focus heavily on input signal conditioning while treating the reference as a static utility node. In reality, the reference is part of every code transition the ADC produces. If the reference becomes noisy, unstable, disconnected, or loaded unexpectedly, the entire measurement scale moves. Internal reference supervision provides a way to verify that the converter’s basis for quantization remains valid. That capability is especially useful in remote or sealed systems where direct probing of the analog path is inconvenient after deployment.

Signal-path monitoring complements this by watching for abnormal input conditions. This is helpful in sensor interfaces where fault modes are not dramatic enough to trigger obvious out-of-range behavior. A damaged cable, moisture ingress, partial short, or degraded connector may not force a full-scale error. Instead, it may introduce a subtle offset, intermittent instability, or invalid common-mode condition. By combining ADC output analysis with internal monitor status, firmware can distinguish between a real process change and a measurement-chain anomaly. That distinction is often what separates robust instrumentation from a system that merely digitizes voltages.

The internal temperature sensor adds another useful observability channel. Temperature affects offset, gain, reference behavior, sensor excitation, and board-level leakage. Even when it is not used as a precision thermal measurement, it helps contextualize converter behavior. For instance, a slow drift in baseline readings may be interpreted differently if accompanied by a known internal temperature rise caused by enclosure heating or nearby power dissipation. Temperature awareness also improves maintenance diagnostics. Repeated CRC faults or reference warnings that correlate with thermal excursions often point to marginal solder joints, connector stress, or components operating too close to their limits.

A strong implementation strategy is to treat these monitor functions as part of normal acquisition, not as rare maintenance tools. Systems become more resilient when health data is sampled, logged, and interpreted continuously alongside primary measurements. That means DRDY-driven data collection can be paired with periodic status reads, CRC validation, and threshold checks on internal monitors. Once this is done, the ADC effectively becomes a self-observing measurement node rather than a blind converter. This architectural shift is subtle but valuable. It reduces dependence on external watchdog logic and makes fault handling more local, faster, and easier to validate.

From an application standpoint, these features are well aligned with industrial transmitters, laboratory instrumentation, precision weigh scales, energy metering subsystems, and remote sensor nodes. In all of these, the challenge is not simply obtaining high-resolution data. The real challenge is obtaining data that remains trustworthy under noise, temperature variation, intermittent wiring faults, and software state changes. The ADS1261 interface and monitoring design directly support that goal by combining deterministic control pins, explicit data-ready signaling, communication integrity checking, and internal path supervision.

The most effective use of the device comes from viewing the interface, diagnostics, and conversion engine as one integrated system. START, RESET, and PWDN control timing and state. DRDY and DOUT/DRDY define how data becomes observable. CRC verifies that transported data remains intact. Internal monitors verify that the analog assumptions behind the data still hold. When these are used together, the converter does more than produce precise codes. It supports a measurement architecture that can detect when precision is no longer credible, which is often the more important capability in real deployments.

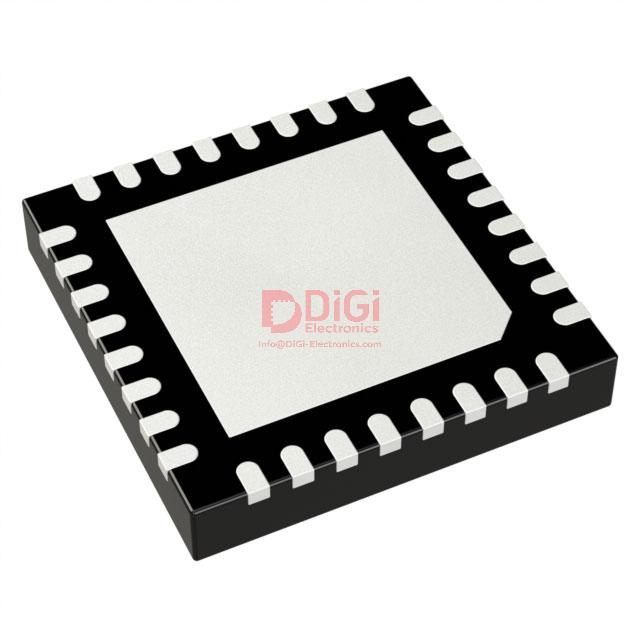

ADS1261 Package, Pin Functions, and Layout-Oriented Hardware Considerations

ADS1261 package selection and pin usage are not secondary implementation details. In this device, package mechanics, capacitor placement, pin-role assignment, grounding strategy, and routing topology all couple directly into conversion stability, noise floor, and repeatability. The 32-pin VQFN, 5 mm × 5 mm body, is compact, but the small footprint increases the density of sensitive nodes and makes layout discipline more important than in lower-resolution converters.

The exposed pad must be soldered to AVSS. This serves three functions at once: mechanical anchoring, thermal transfer into the board, and establishment of a low-impedance analog ground reference beneath the die. In high-resolution delta-sigma converters, that last point is often underestimated. The exposed pad is not only a thermal feature; it also helps define the electrical quiet zone under the converter. If the pad connection is weak, segmented poorly, or tied into a noisy return structure, the result is not usually a catastrophic failure. More often, it appears as elevated low-frequency noise, drift-like behavior, or conversion spread that is difficult to explain from the schematic alone.

The required external capacitors form part of the internal analog operating environment. The 4.7 nF C0G capacitor between CAPP and CAPN stabilizes the PGA-related internal nodes. Its dielectric choice matters because voltage coefficient, piezoelectric behavior, and temperature dependence can translate directly into gain nonlinearity or modulation of internal analog behavior. A C0G part is therefore not simply a conservative recommendation; it preserves the intended small-signal behavior across temperature and bias conditions. This capacitor should be placed with very short, symmetric routing to both pins, avoiding vias unless the layout leaves no alternative. Any parasitic imbalance added here can degrade the symmetry of a sensitive internal analog loop.

The 1 µF capacitor from BYPASS to DGND supports the internal subregulator. That connection should be treated as a local high-priority decoupling node rather than a generic bulk capacitor placement task. The shortest return path to DGND is preferred, and the loop area should be minimized. If this capacitor is placed far from the package or forced to share a noisy return path with digital switching currents, the internal rail can become a conduit for digital activity into analog performance. In practice, this often shows up as repeatable code-dependent noise or degraded rejection of external disturbances rather than obvious supply instability.

REFOUT requires a 10 µF capacitor to AVSS. This is critical because the reference network defines the amplitude basis for every conversion result. When the internal reference is used, its dynamic stability is part of the converter signal chain, not an auxiliary function. The capacitor should be placed close to REFOUT and returned directly into the analog ground structure. If the reference return current is allowed to circulate through mixed analog-digital ground paths, the resulting microvolt-level disturbances can be indistinguishable from real sensor changes. In precision systems, the reference node deserves the same placement priority as the analog input path.

A useful way to approach these capacitor requirements is to think in terms of local analog domains. CAPP/CAPN supports internal amplifier behavior. BYPASS supports internal regulation integrity. REFOUT supports conversion scale stability. Each capacitor belongs to a different functional loop, and each should be routed to preserve that loop locally. Grouping them visually around the package is not enough; the return path geometry must also align with the function of the capacitor. This distinction often separates a board that merely works from one that reaches the expected data sheet performance.

Pin multifunctionality in the ADS1261 has major consequences for floorplanning. Analog inputs are not fixed-purpose pins in the usual sense. Depending on configuration, a channel may serve as a measurement input, a reference input, a current-source output, a GPIO, or an AC-excitation output. This means the PCB cannot be laid out as if all channels are equivalent and fully interchangeable after assembly. The intended end-use of each pin should be decided early, because different roles impose different constraints on shielding, spacing, return routing, and coupling control.

If a channel will be used as a low-level sensor input, it should be routed with the shortest practical path, strong isolation from clocks and digital edges, and close pairing if used differentially. If another channel will carry excitation or reference functions, it must be treated as a source node whose switching or load behavior can contaminate adjacent traces. Mixing these routing styles without a channel-specific plan often creates avoidable coupling paths. A trace that is harmless as a static GPIO can become problematic when reassigned as a reference sense line or current-source path. The multifunction design provides flexibility, but it also removes the safety margin that comes from fixed-function partitioning.

This becomes especially important in bridge sensors, RTDs, thermocouples, and other low-level front ends. In those systems, the error budget is often dominated less by nominal ADC resolution and more by board-level parasitics. A few millimeters of parallel routing between a sensor input and an excitation line can introduce enough coupling to disturb settling or to create phase-related measurement artifacts in AC-excited configurations. Similarly, sharing return copper between current-source outputs and reference-sense nodes can convert load-dependent voltage drops into apparent gain variation. These effects are easy to miss in first-pass layouts because continuity and DC correctness remain intact while precision quietly degrades.

For that reason, final channel allocation should drive placement and routing. It is better to floorplan the ADS1261 around signal classes than around pin numbers. Low-level differential inputs should be grouped by quietness and symmetry requirements. Reference inputs and REFOUT-related paths should be protected as scale-defining nets. Current-source outputs should be routed with awareness of voltage drop, thermal gradients, and return sharing. GPIO and digital control lines should be kept from crossing or paralleling sensitive analog traces, even if the package pinout makes such routing convenient.

Grounding deserves similar discipline. The device includes analog and digital grounds, but successful implementation is not achieved by simply pouring separate copper regions and connecting them somewhere arbitrary. The goal is low-impedance return control with predictable current flow. Analog return currents associated with inputs, reference, exposed pad, and local analog decoupling should remain in a quiet analog region. Digital return currents from interface activity should loop tightly back to their source without traversing the analog ground area. A clean partition matters less as a visual artifact than as a current-path strategy. A board can look neatly split and still perform poorly if return currents are forced to detour across sensitive nodes.

In most implementations, the best result comes from a unified but functionally controlled ground system, with local analog quiet zones around the ADC and deliberate connection geometry between analog and digital return regions. The exposed pad tied to AVSS should anchor this analog core region. Decoupling capacitors for analog supply and reference-related functions should return into that region with minimal shared impedance. Digital decoupling should return locally to the digital side. This reduces the chance that serial interface bursts, GPIO transitions, or nearby logic switching appear as perturbations on the analog baseline.

Supply decoupling should be treated as a frequency-partitioned network. Small-value capacitors handle fast transients close to the supply pins, while larger capacitors support lower-frequency stability in the local power region. Placement matters more than nominal capacitance once values are in the appropriate range. A capacitor that is electrically correct but physically remote often contributes little at the frequencies that matter. For the ADS1261, this is particularly relevant because the converter’s high effective resolution makes it sensitive not only to large disturbances but also to subtle rail modulation that would be ignored in lower-resolution systems.

Thermal behavior also connects back to accuracy. The package offers low junction-to-case-bottom thermal resistance, and the exposed pad efficiently transfers heat into the PCB. This is useful not only for junction temperature control but also for thermal uniformity. In precision measurement systems, thermal gradients across the ADC, reference network, and input conditioning can create offset drift and gain movement that resemble slow sensor variation. A solid, well-connected pad region helps spread heat and reduce local hot spots. However, thermal management should not be separated from electrical layout. Copper added for heat spreading must not create unintended coupling structures or inject digital return currents into the analog base region.

A practical layout pattern is to place the ADS1261 so that sensitive analog inputs enter from one side, digital interface lines exit from the opposite side, and reference and decoupling components cluster tightly around the corresponding pins. The CAPP-CAPN capacitor should sit adjacent to its pins with matched trace lengths. The BYPASS capacitor should be placed close enough that the current loop is visually compact. The REFOUT capacitor should connect into a clean analog return point, not a broad return path shared by unrelated activity. This arrangement reduces crossing routes and makes return-current behavior easier to predict.

Another useful practice is to review the layout by function rather than by net name. Ask which traces define measurement amplitude, which traces carry sensor-level signals, which nodes carry switching energy, and which return paths are shared. This often reveals hidden weaknesses. For example, a net labeled as an analog input may be safe electrically but routed next to a driven excitation line. A reference return may appear short on screen but pass through a congested via field that shares impedance with digital currents. These are the kinds of details that determine whether the assembled board reaches the converter’s real capability.

The central design point is simple: with the ADS1261, layout is part of the analog front end. The package, pad connection, mandatory capacitors, multifunction pins, ground architecture, and thermal strategy all participate in the measurement path. Treating them as integrated elements of the converter design leads to a board that not only powers up correctly but also preserves the precision the device was selected to provide.

ADS1261 Application Fit in Weigh Scales, RTDs, Pressure, and Industrial Analog Input Modules

ADS1261 fits best in sensor front ends where signal amplitude is small, channel count is moderate, error budget is tight, and the design must remain compact. Its value is not only in raw resolution. The stronger advantage is architectural consolidation: a low-noise delta-sigma converter, programmable gain, current sources, reference support, multiplexing, and diagnostic monitors are combined in one signal chain. That combination reduces external precision circuitry, shortens calibration paths, and makes system behavior easier to control across production spread and temperature.

This matters most in designs where analog accuracy is limited less by nominal converter resolution and more by parasitics around the converter. In practice, discrete excitation circuits, external PGAs, reference routing, and protection networks often introduce more drift and mismatch than the ADC core itself. ADS1261 helps by collapsing those interfaces. Fewer precision nodes leave the package, so there are fewer places for leakage, thermocouple effects, gain error, and EMI pickup to accumulate.

In weigh scales and strain-gauge digitizers, the fit is especially strong because the sensor output is fundamentally difficult: microvolt-per-volt level bridge signals, high common-mode sensitivity, long settling requirements after channel changes, and strict rejection of mains interference. ADS1261 addresses this at several levels. The PGA enables direct amplification of low-level bridge outputs. The delta-sigma architecture supports low in-band noise at low output data rates. Its digital filtering is well suited to 50 Hz and 60 Hz rejection, which is often a non-negotiable requirement in legal-for-trade and industrial weighing environments. The result is a cleaner path from bridge output to stable code without building a large analog front end around the sensor.

The AC-excitation capability adds a less obvious but important benefit for bridge sensors. Bridge-based measurements are often limited by offset mechanisms that look static in DC operation: thermoelectric junctions, amplifier offset, low-frequency drift, and board-level thermal gradients. By alternating excitation polarity and synchronizing the conversion path, those error terms can be suppressed substantially. This is not just a feature checkbox. In bridge layouts with long traces, mixed connector metals, or nearby power devices, AC excitation can recover accuracy that would otherwise be lost to effects that are hard to calibrate over time. In well-tuned systems, this can be the difference between a design that only meets room-temperature targets and one that holds specification across installation conditions.

Another practical advantage in weighing systems is channel consolidation. A design may include a main load cell, corner compensation channels, temperature tracking, and supply or reference monitoring. ADS1261’s input flexibility allows these support measurements to be folded into the same acquisition domain. That improves correlation between mechanical load data and system-state variables because all are measured through a common precision chain. It also simplifies diagnostics, since faults can be detected relative to the same reference framework used for the primary sensor.

RTD measurement is a second area where ADS1261 aligns well with the physics of the sensor. RTDs require accurate current excitation, precise ratio measurement, low drift, and careful treatment of lead resistance. The integrated current sources simplify the excitation path and reduce dependence on external matched current circuits. Combined with the PGA and precision conversion engine, they enable direct measurement of small resistance changes with good linearity and repeatability. For many designs, this means the RTD front end can be implemented with fewer precision resistors, fewer amplifiers, and less calibration overhead.

The most effective RTD implementations with ADS1261 usually treat the measurement as a ratio problem rather than an absolute voltage problem. Driving the RTD and reference element from the same excitation path allows current-source error to cancel to first order. That approach is often more robust than chasing absolute current accuracy, especially over temperature. The integrated monitor features then become useful for tracking open-sensor conditions, reference integrity, or excitation faults without adding separate supervision circuitry. In field systems, these checks often matter as much as nominal accuracy because intermittent sensor wiring is more common than ideal lab conditions suggest.

In multiplexed RTD systems, the 10-input architecture reduces or eliminates external analog multiplexers. That is more significant than it first appears. External switching devices add leakage, charge injection, additional thermocouple junctions, and settling uncertainty after channel changes. When measuring small differential voltages derived from resistance changes, those effects can dominate the channel-to-channel repeatability budget. Keeping multiplexing internal to the converter shortens the analog path and makes conversion timing easier to model. It also reduces board complexity in multi-point temperature modules used in process skids, thermal chambers, and machine monitoring systems.

For pressure transmitters and process analytics equipment, ADS1261 is attractive because these systems rarely measure just one idealized signal. A pressure node may need bridge measurement, board temperature compensation, loop or supply monitoring, and health diagnostics within the same unit. Process analyzers often combine electrochemical, resistive, and low-level differential channels, each sensitive to drift in different ways. ADS1261 supports this mixed-signal environment by offering a stable precision core with enough configurability to adapt measurement mode without changing the converter platform.

Pressure systems are also strongly affected by long-term stability. Initial accuracy is relatively easy to achieve; maintaining it after thermal cycling, enclosure stress, and supply variation is harder. Drift specifications therefore matter more than headline resolution. ADS1261 is well positioned here because its integrated architecture reduces the number of separate drift contributors that must be characterized. A simpler analog chain generally calibrates faster and ages more predictably. In production, that often translates into tighter calibration distributions and less need for elaborate multi-temperature correction tables.

Industrial analog input modules, particularly PLC and remote I/O modules, benefit from ADS1261 for a related reason: density with diagnostics. These modules are expected to acquire diverse field signals accurately while surviving electrical noise, wiring faults, and wide ambient variation. A high-resolution ADC alone is not enough. The acquisition element must also support reference checks, sensor fault detection, and stable operation under line-frequency interference. ADS1261 provides a good balance between precision acquisition and embedded observability. This helps when the module must distinguish between a valid low-level sensor reading and a wiring or excitation fault without relying entirely on host software inference.

In compact analog input cards, integrated features also influence layout quality. Every removed precision analog component frees routing space and reduces coupling between channels. This improves not only manufacturability but also real conversion performance. Dense industrial boards often fail their first noise targets because high-impedance analog nodes are forced to run near digital isolators, DC/DC converters, or field protection circuits. A more integrated ADC front end reduces those exposed nodes. That is often one of the fastest ways to improve real-world ENOB without touching firmware.

For laboratory and portable instrumentation, ADS1261 supports a different optimization target. The issue is usually not whether a custom discrete analog chain could outperform it under ideal conditions. In many cases it could. The relevant question is whether that extra analog development effort creates meaningful product value. ADS1261 gives precision-class conversion with enough integrated functionality to let development focus on stimulus control, signal interpretation, user interface, communications, and system-level calibration strategy. This is often the better engineering trade when schedule, maintainability, and repeatability across builds matter more than extracting the last fractional improvement from a bespoke front end.

A useful way to think about ADS1261 is that it shifts design effort from analog construction to measurement architecture. Instead of spending resources building excitation, gain, mux, and monitor blocks from scratch, the effort can move toward ratiometric schemes, thermal layout, calibration flow, fault handling, and digital filtering choices. That tends to produce stronger products. Precision systems usually succeed or fail at the architecture level, not at the level of any single component specification.

To get the best results, several implementation details deserve attention. Reference routing should be treated as a primary signal path, not as a support net. Current return paths for excitation should be controlled so that sensor current does not modulate local ground around the ADC inputs. Multiplexed systems should allow for settling behavior when switching gain, channel, or excitation state. AC-excited bridge systems should be laid out symmetrically so that the benefits of polarity reversal are not undermined by asymmetric parasitics. In RTD designs, connector metallurgy and lead routing still matter because thermal EMFs can re-enter the error budget even when the converter itself is highly stable.

There is also a system-level trade worth recognizing. Highly integrated precision ADCs simplify design, but they reward disciplined partitioning. If the surrounding power, isolation, and protection network is careless, integration alone will not rescue performance. When the front end is laid out with clean reference strategy, balanced differential routing, and explicit fault-detection paths, ADS1261 can serve as a compact measurement backbone across weighing, temperature, pressure, and industrial input modules with unusually little compromise. That is where it stands out most: not as a universal ADC, but as a very efficient precision platform for sensor systems where analog detail, channel flexibility, and embedded diagnostics must coexist.

ADS1261 Selection Considerations Versus Other ADS126x Devices

ADS1261 selection is best understood as a system-partitioning decision rather than a simple ADC comparison. Inside the ADS126x family, ADS1261 and ADS1260 are architecturally very close. They share the same precision-oriented signal chain, including a high-resolution delta-sigma conversion core, integrated PGA, low-noise front-end behavior, and digital filtering strategy intended for low-bandwidth, high-accuracy measurements. In many designs, raw conversion performance is not the factor that separates them. The real decision point is how much integration the measurement subsystem needs around the converter.

At the converter-core level, choosing between ADS1261 and ADS1260 does not usually imply a major tradeoff in measurement philosophy. Both are built for applications where noise, offset, drift, and effective resolution matter more than very high throughput. This makes them suitable for bridge sensors, RTDs, thermocouples, precision current shunts, and multiplexed industrial sensing nodes. If the design target is a single or limited set of analog channels with a relatively stable front-end topology, the ADS1260 often covers the need cleanly. If the design must service more sensors, more switching states, or more mixed-function measurement paths, the ADS1261 begins to show its value.

The most visible distinction is channel density. ADS1260 supports 5 single-ended or 3 differential inputs, while ADS1261 extends that to 10 single-ended or 5 differential inputs. That difference looks modest on paper, but in board-level design it changes architecture options significantly. More input channels reduce the need for external analog multiplexers, and that usually improves more than just BOM count. It can reduce leakage paths, charge injection effects, layout congestion, and software complexity associated with controlling external switching devices. In precision systems, every external switch added ahead of the ADC tends to create another error source that must be characterized across temperature, common-mode range, and source impedance. A higher native channel count therefore improves not only expandability but also predictability.

This is especially relevant in systems where one ADC is expected to serve several sensor classes at once. A common pattern is mixing differential bridge measurements with a few auxiliary single-ended diagnostics such as supply monitoring, board temperature sensing, excitation verification, or fault detection nodes. In that scenario, the ADS1261 can absorb these side channels without forcing a redesign around external multiplexing. The benefit is subtle but important: the measurement chain remains more coherent, calibration strategy becomes easier to manage, and timing behavior across channels is easier to model.

The GPIO and AC excitation resources further shift the device from being just an ADC to being a compact measurement controller. The ADS1261 includes four GPIOs and AC excitation support, giving it a stronger role in sensor interface management. That matters in applications where the ADC must coordinate switching, sensor biasing, excitation sequencing, or simple digital control without relying on a separate logic device. When these support functions are integrated, the design can remove small glue-logic blocks, reduce routing overhead, and simplify firmware ownership of the measurement state machine.

AC excitation is particularly useful in resistive sensor systems where offset, thermoelectric effects, or low-frequency interference need to be suppressed through excitation reversal or correlated measurement techniques. In practice, this kind of integration often determines whether a design remains compact and robust or evolves into a patchwork of analog switches, timing dependencies, and calibration exceptions. A converter with built-in support for these measurement methods usually leads to cleaner implementation and more stable field behavior, especially when channel count grows and the number of measurement modes increases.

The GPIO addition also has value beyond generic digital control. In compact sensor modules, these lines can be used for sensor presence detection, driving external analog switch enables, selecting current paths, controlling low-duty-cycle peripherals, or reading fault/status pins from companion circuits. That does not replace a microcontroller, but it can reduce how often external support logic is required. In highly constrained designs, this kind of integration frequently removes just enough peripheral circuitry to improve both PCB area and error budgeting.

A useful way to frame the ADS1261-versus-ADS1260 choice is this: if the analog front end is fixed and simple, the ADS1260 is often sufficient; if the front end is dynamic, multiplexed, or expected to consolidate several sensing and control functions, the ADS1261 is the safer long-term platform. The extra channels and I/O flexibility are not merely convenience features. They provide margin against late-stage requirement growth, which is common in instrumentation products. It is much easier to leave channels unused than to retrofit external multiplexing and control once the board is committed.

Grade selection adds another layer. TI identifies variants such as ADS1261B, and the family data indicates tighter maximum reference drift for ADS1261B compared with ADS1261. This matters when the design error budget is dominated not by short-term noise but by long-term stability and temperature-dependent gain accuracy. In many precision systems, reference drift is one of the least visible but most consequential contributors to measurement error. Designers often focus heavily on ADC resolution and input-referred noise, then discover that long-duration calibration retention is limited by reference behavior rather than converter quantization or front-end offset.

That distinction becomes more important in systems that operate across wide ambient ranges, experience infrequent recalibration, or must preserve ratio accuracy over service life. A tighter reference drift spec does not change the architecture, but it reduces uncertainty in the gain path. For laboratory instruments, process transmitters, remote sensing nodes, and calibrated weighing or thermal systems, this can justify selecting the tighter grade even when nominal functionality is identical. The cost delta, if acceptable, often buys back margin elsewhere in the calibration and maintenance plan.

In practical selection work, it helps to evaluate these devices using three stacked questions. First, how many channels are truly needed today, including diagnostic and service channels rather than only primary sensors? Second, how much external switching or digital coordination would be required to support those channels and measurement modes? Third, how much long-term accuracy depends on reference stability rather than one-time room-temperature performance? These questions usually expose the correct device more reliably than comparing only headline resolution or sample rate.

One recurring design pattern is to underestimate channel consumption early in development. A system may begin as two differential sensors and later add excitation monitoring, open-wire detection, reference validation, board health telemetry, and a service input for production calibration. What looked like a three-channel design can quickly become a five- or six-path measurement problem. In that situation, ADS1261 provides breathing room without disturbing the core analog architecture. That margin is often more valuable than the small apparent savings from selecting the narrower device first.

Another practical point is firmware complexity. External multiplexers and support logic seem inexpensive at schematic stage, but they create sequencing constraints, settling delays, fault cases, and verification overhead. A more integrated ADC often simplifies the software model because channel selection, excitation behavior, and auxiliary control stay closer to the conversion engine. This tends to reduce edge-case behavior during startup, sensor hot-plug events, and recovery from fault conditions. In precision systems, reduced state complexity is often equivalent to improved reliability.

From an engineering standpoint, ADS1261 is the better fit when the ADC is expected to act as the center of a feature-rich sensor interface. ADS1260 remains attractive when the application is channel-light and the surrounding measurement topology is stable. ADS1261B should be considered when the same functional fit is required but tighter reference drift is needed to protect long-term precision. The key insight is that the most important differentiators in this family are not in the converter core itself, but in how much analog and control-system complexity can be absorbed inside the device boundary. That is where ADS1261 creates its real advantage.

Potential Equivalent/Replacement Models for ADS1261

Potential replacement models for the ADS1261 should be evaluated first within the ADS126x family, because that is where architectural continuity is strongest and migration risk is lowest. In practice, the closest option is the ADS1261B from Texas Instruments. It preserves the same core topology: 10 single-ended or 5 differential analog inputs, two reference inputs, and four GPIOs. That means the signal-chain structure, channel allocation strategy, and most firmware assumptions can remain intact. The meaningful difference is the internal voltage reference grade. ADS1261B is specified at 12 ppm/°C maximum drift, while ADS1261 is specified at 40 ppm/°C maximum. For systems where low-frequency thermal drift is a visible part of the error budget, this is not a cosmetic improvement. It directly reduces gain variation over temperature and can simplify calibration strategy, especially in precision bridge, RTD, or slow-moving sensor applications where long-term stability matters more than raw throughput.

This makes ADS1261B not just a replacement, but in many designs a cleaner production choice. If the original design already uses the ADS1261 internal reference, the lower drift grade can improve measurement consistency without requiring architectural changes elsewhere. If the design relies on an external reference, the benefit may be less critical, but even then the part remains the safest in-family substitution because channel map, peripheral behavior, and package-level integration stay aligned. In engineering terms, it is the highest-probability path when the requirement is “same design, lower substitution risk.”

The ADS1260B is a more conditional alternative. It belongs to the same converter family and shares enough of the underlying architecture to make it relevant, but it is not a full-feature replacement for ADS1261. The main limitation is input capacity. ADS1260B provides fewer channels, so any design that depends on the ADS1261’s larger MUX space will immediately face allocation pressure. This matters more than it may appear at first glance. A design that nominally uses only a few active measurement paths can still depend on spare channels for reference monitoring, burnout detection routing, sensor diagnostics, or future firmware-configurable variants. Reducing channel count often creates second-order redesign work in both schematic partitioning and production test coverage.

Integrated resource differences also matter. GPIO availability and AC-excitation support are not peripheral details; they often determine how tightly the ADC is coupled to the rest of the measurement subsystem. If GPIO lines are used for sensor switching, external analog front-end coordination, or low-pin-count status control, losing those resources can ripple into board-level redesign. The same applies to AC excitation. In precision resistive sensing, especially where offset suppression, polarization control, or low-frequency interference mitigation is important, AC excitation can be structurally embedded in the measurement method. In such cases, a part that appears package-compatible may still be functionally incompatible.

A useful way to assess replacement viability is to break the decision into four engineering filters. The first is channel topology. Confirm whether the application truly needs 10 single-ended or 5 differential channels, not only for current measurement points but also for diagnostics, redundancy, and manufacturing modes. The second is excitation method. If the system uses AC excitation as part of the sensor interface technique, that requirement should be treated as non-negotiable. The third is digital integration. Check whether the ADC’s GPIO resources are part of the board-control strategy or firmware timing model. The fourth is reference behavior. Determine whether the internal reference drift contributes materially to total system error across the target thermal range.

These four filters are more effective than a simple parametric comparison because ADC substitutions often fail at the interface between analog assumptions and firmware assumptions. On paper, two parts may share package style, resolution class, and family name. In implementation, small mismatches in channel count, GPIO behavior, or internal feature mapping can force register-level changes, altered startup sequences, modified calibration flow, and updated fault handling. The substitution effort is usually determined less by the converter core and more by these surrounding dependencies.

From a migration standpoint, ADS1261B is the only option in this set that can reasonably be treated as a near drop-in functional upgrade. It keeps the original system architecture intact while offering a tighter internal reference specification. That combination is valuable because it improves one of the most temperature-sensitive internal blocks without disturbing the rest of the design. In precision instrumentation, the best replacement is usually the one that changes the error budget in a favorable direction while leaving the validation matrix as small as possible. ADS1261B fits that pattern.

ADS1260B is better understood as a cost, availability, or feature-trim option for designs that do not fully use the ADS1261 resource set. If the application only requires a limited number of channels and does not depend on the broader peripheral set, it can be a practical substitute. But that decision should be made only after checking actual channel utilization across normal operation, calibration routines, fault cases, and production test. A design that appears underutilized in the schematic can still be tightly coupled to the original ADC in firmware. That is where many “almost equivalent” substitutions become expensive.

For most designs currently built around ADS1261, the replacement hierarchy is clear. ADS1261B is the direct and preferred successor when the goal is feature continuity with improved reference drift. ADS1260B is a narrower-fit alternative when the application can tolerate reduced channel and feature resources. If any uncertainty exists, the safest approach is to verify not only pin and register compatibility, but also the full measurement workflow: sensor routing, excitation method, calibration sequence, diagnostics, and thermal error budget. That is the level where a replacement becomes either genuinely transparent or unexpectedly disruptive.

Conclusion

The ADS1261 is best understood not as a standalone 24-bit delta-sigma ADC, but as a precision measurement front end that collapses several analog building blocks into a single device. Its value comes from integration with intent: multiplexed inputs, programmable gain, internal reference, digital filtering, excitation current sources, diagnostic logic, and data integrity features are combined around a conversion core designed for low-level sensor signals. In sensor systems, that combination matters more than raw resolution alone. A 24-bit output code is only useful when the surrounding signal chain preserves stability, suppresses noise, and exposes failure modes early. The ADS1261 is engineered around that broader requirement.

At the signal-path level, the device supports 10 single-ended or 5 differential inputs, which gives it a practical advantage in multi-sensor or mixed-signal measurement nodes. This input flexibility allows one converter to serve bridge sensors, resistance-based sensors, and general low-bandwidth voltage channels without external analog switching in many designs. That reduces board complexity, but more importantly it reduces leakage, routing imbalance, and switch-induced error sources that often become visible only when the target signal is in the microvolt range. In precision systems, every removed component is not just a cost reduction; it is often an error term eliminated before calibration is even considered.

The programmable gain amplifier, adjustable from 1 to 128, extends that principle. Low-output sensors such as load cells and pressure bridges frequently operate at signal levels where external gain stages add offset drift, noise, and layout sensitivity. By placing gain close to the converter core, the ADS1261 shortens the vulnerable analog path and improves the ratio between sensor signal amplitude and downstream quantization plus interference effects. This is especially useful when one design must support both high-level voltage inputs and low-level bridge outputs. A configurable front end prevents overdesign around the worst case and avoids maintaining multiple analog variants of the same platform.

The integrated 2.5 V reference is another feature whose importance is often underestimated during early architecture work. Precision conversion depends as much on reference quality as on modulator linearity. An internal reference simplifies design and can be entirely sufficient for many industrial systems, especially where space, BOM count, and thermal coupling all matter. In practice, keeping the reference physically inside the same silicon environment as the converter helps avoid some of the board-level contamination paths that affect external references through trace pickup or poor local grounding. At the same time, applications with strict long-term drift or system-level ratiometric strategies still retain the option to evaluate external reference architectures where needed. That flexibility is part of what makes the device suitable across both compact embedded designs and more performance-driven instrumentation platforms.

Its delta-sigma architecture and digital filtering are central to real measurement quality. In industrial and laboratory environments, the useful problem is rarely just conversion; it is extraction of a small, low-frequency signal from a noisy electrical environment. Delta-sigma conversion shifts much of that challenge into oversampling and filtering, enabling high effective resolution for slowly changing signals. The practical benefit is strongest in applications exposed to mains interference, broadband EMI, and sensor noise. Digital filter configuration gives designers a way to trade throughput against noise rejection with fine control. That matters in systems such as weigh scales or RTD modules, where the highest sample rate is usually less important than settling behavior, repeatability, and immunity to line-frequency artifacts. A converter that allows the filter to be tuned to the actual measurement bandwidth often outperforms a theoretically faster device that produces more unstable data.

The integrated excitation current sources significantly expand the ADS1261 beyond bridge and voltage measurement. For RTDs and other resistive sensors, stable excitation is part of the measurement itself. Integrating current sources removes another layer of external circuitry and improves system compactness, but the larger advantage is consistency. When excitation and conversion resources are coordinated within one device, channel sequencing and diagnostic routines become easier to control. In practice, this simplifies designs that need to switch among multiple resistive sensors while keeping thermal loading, self-heating, and measurement timing predictable. It also supports cleaner implementation of ratiometric schemes, where measurement robustness often depends less on absolute current accuracy and more on current matching and repeatable timing.

Diagnostic and integrity features such as CRC and internal monitoring are particularly relevant in industrial deployments, where precision alone is not enough. Data path corruption, reference degradation, supply anomalies, and out-of-range internal conditions can all produce plausible but wrong measurement results if the converter offers no visibility into its own operating state. The ADS1261 addresses this by adding mechanisms that support fault-aware design rather than blind acquisition. CRC is especially valuable when the ADC sits on a longer SPI path, shares a digital backplane, or operates near switching power stages and motor-control sections. In those environments, communication integrity is not a theoretical concern. Quiet failures can consume more engineering time than outright faults because they appear intermittently and resist quick isolation. Devices that expose internal health information reduce debug time and improve maintainability over the full product lifecycle.

For product selection, the strongest argument for the ADS1261 is not simply feature count. It is architectural consolidation without a disproportionate penalty in measurement fidelity. Many precision designs begin with a discrete chain: input mux, instrumentation amplifier, precision reference, current source, ADC, and supervision logic. That approach can still be justified at the highest performance tier, but in a large range of industrial systems the integration overhead of such a chain exceeds its benefit. Layout becomes fragile, error budgeting becomes fragmented, and production variation becomes harder to control. The ADS1261 compresses that analog stack into a device whose internal resources are already characterized to work together. That tends to improve first-pass success, especially when design teams need flexibility across several sensor types but cannot afford a custom analog front end for each one.

The device is particularly well aligned with weigh scales, RTD measurement, pressure sensing, PLC analog input modules, and laboratory instrumentation. In weigh scales, the combination of high gain, low-noise conversion, and line-frequency rejection supports stable load-cell readout without a large external analog chain. In RTD systems, integrated current excitation and precision conversion simplify both two-wire and more advanced resistance measurement schemes. In pressure sensing, especially with bridge-based transducers, the multiplexed differential inputs and programmable gain help accommodate multiple sensor ranges within a single hardware platform. In PLC analog input modules, where channel density, diagnostics, and compactness all matter, the ADS1261 enables a dense precision input card with fewer supporting components and lower calibration overhead. In laboratory instrumentation, it offers a useful middle ground: enough integration to keep the hardware compact, but enough configurability to support nuanced measurement modes.

A practical pattern seen repeatedly in precision sensor designs is that integration pays off most when the environment is electrically hostile or mechanically constrained. On the bench, a discrete front end may appear straightforward. Once the design moves into a cabinet near relays, isolated power domains, digital comms, and temperature gradients, the number of second-order interactions rises sharply. Internal PGA placement, reference routing reduction, built-in diagnostics, and fewer inter-device analog connections begin to deliver measurable advantages. In other words, integration is not only about reducing BOM. It is about limiting uncontrolled analog interfaces. That is where devices like the ADS1261 often justify themselves.

Within the ADS126x family, the ADS1261 becomes the stronger option when the design needs higher channel density and broader peripheral support than the ADS1260. That distinction matters in scalable platforms. If the converter is expected to handle several sensors, support mixed measurement modes, or act as a central acquisition element for a compact industrial node, the added connectivity and integrated resources become operationally significant. Choosing the larger-featured device early can also preserve headroom for later firmware-defined product variants, where one hardware platform is reused across multiple SKUs with different sensing requirements.

The most important design insight is that the ADS1261 should be evaluated as a system enabler rather than only as a converter specification sheet. Its real advantage appears when analog precision, sensor interface flexibility, and diagnostic robustness need to coexist on a constrained board. In that role, it reduces the number of design compromises. It allows the measurement architecture to stay compact without becoming fragile, and configurable without becoming inconsistent. For engineering teams balancing accuracy, integration, and deployment reliability, that is often the more decisive metric than nominal resolution alone.
