ADS1261IRHBR

Texas Instruments ADS1261 Product Positioning and What the ADS1261IRHBR Variant Represents

Texas Instruments positions the ADS1261 as a highly integrated precision measurement front end rather than a generic high-resolution ADC. That distinction matters. In many sensor systems, converter resolution alone does not determine end performance. The dominant constraints usually come from input signal conditioning, reference stability, sensor excitation, fault behavior, and board-level noise coupling. The ADS1261 addresses these system-level constraints by combining a 24-bit delta-sigma conversion engine with the analog support blocks typically required around bridge sensors, RTDs, thermocouples, and other low-level transducers.

Within the ADS126x family, the ADS1261 is aimed at designs that need more input flexibility and higher front-end integration. It is the variant better aligned with multiplexed measurement architectures, where one device is expected to service multiple sensor nodes or several analog channels with different signal types. In practical design terms, this shifts the component from being just a converter into the center of a compact instrumentation subsystem. That is its real product positioning: not maximum channel count in isolation, but a reduction of analog design burden in precision, low-speed, high-accuracy measurement equipment.

The specific ordering code ADS1261IRHBR represents more than the base silicon identity. It indicates the commercial form in which the device is supplied. ADS1261 identifies the converter itself. The “I” denotes industrial temperature qualification, which is the typical choice for factory, process, and embedded measurement deployments. “RHB” refers to the 32-pin VQFN package, and “R” indicates tape-and-reel shipment for automated surface-mount assembly. When a bill of materials or AVL lists ADS1261IRHBR, it is therefore specifying not just electrical functionality, but also package geometry, assembly compatibility, and operating-grade expectations. For procurement and manufacturing teams, that precision avoids substitution errors that can quietly disrupt layout, thermal behavior, or production flow.

From an architectural perspective, the ADS1261 is built for sensor-interface efficiency. Its delta-sigma topology is suited to low-bandwidth, high-dynamic-range measurements where noise shaping and digital filtering can extract small signals with strong rejection of out-of-band interference. This is especially useful in environments with line-frequency contamination, long sensor wiring, or slowly varying physical signals. The integrated programmable gain amplifier extends this advantage by allowing small differential sensor outputs to be amplified ahead of conversion, improving usable input resolution without requiring an external instrumentation amplifier in many cases. That removal of an external gain stage often reduces offset stacking, leakage paths, layout sensitivity, and calibration overhead.

The integrated precision reference is another important part of the positioning. In precision converters, the reference path is often as critical as the analog input path. By embedding a precision reference, Texas Instruments reduces one of the common sources of system-level error and parts-count growth. This does not mean an external reference is never useful; in metrology-grade systems or in designs with a tightly controlled reference distribution strategy, an external solution may still be preferred. But for many industrial modules, the internal reference provides a strong accuracy-to-complexity tradeoff. It shortens design cycles and tends to produce more repeatable results across production lots because fewer external precision components are exposed to placement, routing, and sourcing variation.

The inclusion of excitation current sources makes the ADS1261 particularly relevant for resistive sensors. RTD measurement is the obvious example. Precision current excitation allows direct sensor stimulation without a separate current-source IC, and that directly simplifies ratiometric or resistance-based measurement chains. In bridge or resistance temperature applications, this integration can remove subtle matching problems between discrete excitation circuitry and the ADC input stage. Designs using discrete current sources often spend considerable effort managing drift interactions, startup sequencing, and fault cases such as open-sensor detection. With the ADS1261, those concerns are not eliminated, but they become easier to control within one measurement device and one register model.

Fault-monitoring and internal diagnostic support further reinforce the device’s role as a system component rather than a raw converter block. In industrial sensing, the ability to detect open inputs, overrange conditions, abnormal excitation paths, or thermal drift indicators can be as valuable as nominal resolution. Systems deployed in the field rarely fail in ideal laboratory ways. They fail through connector oxidation, cable intermittency, transient stress, or incorrect sensor replacement. Devices like the ADS1261 are better understood when evaluated by their behavior during these edge cases. A converter that helps expose invalid measurements before they propagate into control logic delivers practical system value beyond its data-sheet noise figures.

The serial digital interface keeps the output side simple and compatible with typical embedded controllers, isolation devices, and modular backplanes. That is not a minor feature. In precision systems, digital simplicity helps preserve analog integrity. A compact serial interface reduces routing congestion near the converter, limits unnecessary switching activity, and eases isolation when measurements must cross noisy ground domains. In mixed-signal layouts, this often contributes indirectly to accuracy by making it easier to separate quiet analog regions from bus activity and power conversion zones.

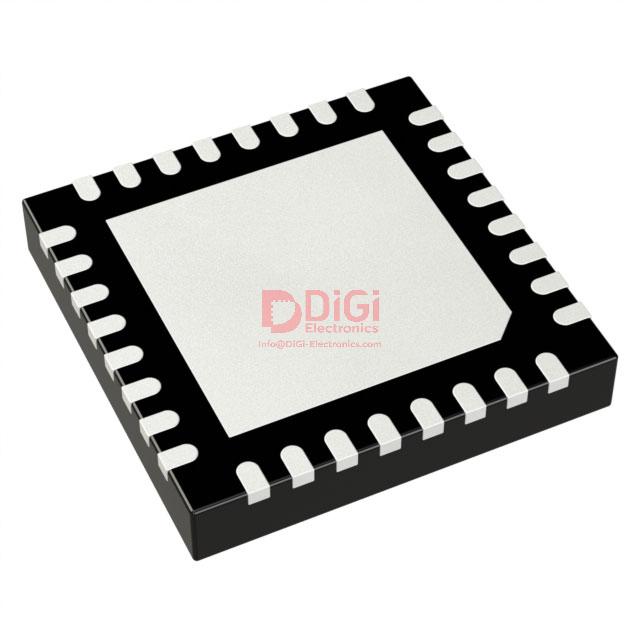

The 32-pin 5 mm × 5 mm VQFN package used by the ADS1261IRHBR is also consistent with its intended market. It offers a relatively compact footprint while still providing enough pins for multiplexed analog inputs, supply segregation, reference nodes, and digital control. For dense sensor modules, this package is usually a good balance between board area and routability. It does, however, impose expectations on layout discipline. Thermal pad grounding, short reference loops, careful bypass placement, and clean partitioning between analog and digital return paths are not optional if the target is near data-sheet performance. In practice, many precision ADC issues attributed to the converter are actually package-and-layout execution problems. The ADS1261’s integration helps shrink the analog BOM, but it does not relax the need for disciplined board design.

The most meaningful way to view the ADS1261 in product selection is as a platform for precision sensor acquisition. It is especially strong when the design goal is to consolidate multiple analog support functions into one device and reduce dependency on separate PGA, reference, excitation, and diagnostic components. This makes it attractive for process transmitters, temperature measurement modules, weighing systems, portable instrumentation, and multichannel sensor hubs. In these applications, the engineering cost of discrete analog design often exceeds the silicon cost difference between a simple ADC and an integrated front end. That is where the ADS1261 creates leverage.

A useful selection insight is that highly integrated precision converters like the ADS1261 often improve not only schematic simplicity but also verification efficiency. When the gain stage, reference source, and excitation functions are internally characterized to work together, bring-up tends to converge faster. There are fewer unknown interactions to isolate. Debug time shifts from basic analog compatibility toward measurement strategy, calibration structure, and noise budgeting. That is usually a better use of engineering effort. The tradeoff, of course, is that integration narrows the space for custom analog optimization. If a design requires unconventional front-end filtering, exotic sensor excitation, or independent metrology-grade reference management, a more discrete architecture may still be justified.

In that context, ADS1261IRHBR should be read as the industrial-grade, surface-mount, production-ready expression of TI’s sensor-centric precision ADC strategy. It represents a converter intended for real embedded measurement systems, where accuracy, channel flexibility, diagnostics, manufacturability, and BOM compression all matter at the same time. The part is not merely selected for 24-bit resolution. It is selected when the design needs a compact and coherent analog measurement subsystem that can move from prototype to volume production with fewer external precision dependencies.

Texas Instruments ADS1261 Core Architecture and Signal-Chain Integration

Texas Instruments ADS1261 is notable not simply because it is a 24-bit delta-sigma ADC, but because it compresses a large portion of the precision measurement front end into one tightly coupled conversion path. The device combines an input multiplexer, a low-noise programmable gain amplifier with gains from 1 to 128, a high-resolution delta-sigma modulator, an internal 2.5 V precision reference, and programmable digital filtering. This level of integration changes the design problem. Instead of assembling a signal chain from separate mux, instrumentation amplifier, reference, anti-noise filtering stages, and ADC, the engineer works with a conversion system whose internal blocks were designed to operate together with controlled interaction, matched error budgets, and predictable timing.

That integration is especially valuable in low-level sensor acquisition, where the signal of interest is often only a small differential voltage sitting on top of common-mode voltage, wiring resistance, thermal gradients, EMI pickup, and slow drift. Bridge sensors, RTDs, thermistors, load cells, pressure transducers, and other resistive sensing elements all expose the same practical challenge: the signal amplitude is small enough that interface errors can become comparable to the measurement itself. In these systems, every analog boundary matters. Each connector, amplifier stage, and reference routing node can inject offset, bias-current error, thermoelectric voltage, or gain instability. By collapsing these functions into a single device, the ADS1261 reduces those analog boundaries and therefore reduces the number of places where precision is quietly lost.

At the front of the device, the input multiplexer is more than a convenience feature. It allows multiple sensor nodes or calibration paths to share the same precision conversion core. In multiplexed measurement systems, this creates a consistent transfer path across channels, which simplifies system-level calibration because channel-to-channel variation is less dependent on external component spread. There is still a settling cost when switching channels, especially at high PGA gain or low output data rates, but the behavior is at least localized to one device architecture rather than distributed across several ICs. In practice, this often makes firmware timing easier to reason about because the dominant settling mechanisms are known: mux charge redistribution, PGA stabilization, and digital filter latency.

The PGA is one of the key architectural elements. Gain settings up to 128 allow microvolt-level sensor outputs to be expanded before digitization, improving effective use of the ADC input range. This is essential when the sensor signal is much smaller than the reference-scaled full-scale input span. If amplification is deferred to a separate external stage, noise, offset, and drift from interconnects and board parasitics accumulate before the signal is made robust. Locating gain inside the converter path shortens that vulnerable analog distance. It also helps preserve ratiometric consistency when used with bridge sensors, where both excitation and measurement are linked and gain accuracy must remain stable over temperature and time.

The specified high input impedance in PGA mode, around 1 GΩ, is not just a line-item specification. It directly affects measurement integrity for weak-output and high-source-impedance sensors. If the ADC front end draws appreciable current, the sensor sees a load, and that load transforms into gain error, nonlinearity, or source-dependent settling behavior. This is particularly relevant in resistive sensor networks, long-cable installations, and multiplexed architectures where source impedance can vary significantly from channel to channel. High input impedance decouples the converter from the sensor, making the measurement more representative of the actual source voltage rather than the interaction between source and interface. In field designs, this often becomes visible when one channel appears stable on the bench but shifts in the installed system because wiring resistance and leakage paths alter the source conditions. A high-impedance front end makes such failures less likely.

The delta-sigma modulator and programmable digital filter form the core of the precision conversion mechanism. Delta-sigma conversion is fundamentally well suited to slowly varying, high-resolution measurements because it trades bandwidth for resolution and noise shaping. Rather than attempting to resolve the full input amplitude in one instantaneous step, the modulator oversamples and pushes quantization noise out of the band of interest. The digital filter then removes out-of-band noise and presents a high-resolution output at a lower data rate. For sensor systems, this structure aligns naturally with the signal physics: many industrial and instrumentation signals evolve slowly, but they must be resolved with high precision in the presence of line-frequency interference and broadband noise.

The digital filter is often where the practical value of the ADS1261 becomes most visible. Precision sensing is rarely limited by nominal ADC resolution alone. It is usually limited by how effectively the system suppresses 50 Hz and 60 Hz interference, mains harmonics, switching noise aliases, and mechanical or thermal fluctuations outside the signal band. A programmable filter lets the designer align converter behavior with the measurement environment. Low data-rate modes can significantly improve noise rejection, but they also increase latency. That tradeoff matters. In closed-loop systems, too much filtering can make the measurement clean but operationally late. In data logging or weighing applications, the same filtering may be ideal because repeatability matters more than response speed. The right setting is therefore not the one with the lowest noise floor on paper, but the one that best matches plant dynamics, update-rate requirements, and interference conditions.

The internal 2.5 V precision reference further reinforces the single-chip signal-chain model. Reference quality is inseparable from ADC accuracy because the converter reports input as a fraction of reference. A noisy or drifting reference turns directly into gain uncertainty. Integrating the reference reduces routing sensitivity, external noise pickup, and thermal mismatch between ADC and reference source. It also simplifies BOM and layout. That said, the internal reference should not be treated as universally optimal. In systems built around ratiometric sensors, especially bridge-based measurements, an external reference tied to sensor excitation may still provide better end-to-end stability because it causes excitation variation to divide out of the result. The more useful design principle is not “internal is better” or “external is better,” but that reference strategy must follow sensor physics. The ADS1261 gives enough integration to simplify the common case while still allowing more specialized reference architectures when the application demands them.

From a board-level perspective, integration reduces several second-order errors that are often underestimated during schematic design. Separate front-end ICs require additional traces, reference routing, gain-setting networks, decoupling partitions, and ground-return management. Each of these introduces opportunities for leakage current, capacitive coupling, thermoelectric offsets across dissimilar metals, and temperature-dependent stress. These effects are small in absolute terms, but precision systems fail because many small errors add coherently. With the ADS1261, fewer external analog nodes means fewer exposed high-impedance points and fewer places where layout quality becomes the hidden determinant of performance. This does not eliminate layout discipline, but it makes good performance easier to reproduce.

A practical pattern appears in bridge and RTD designs. On the first prototype, the integrated PGA and digital filtering usually produce results that already look respectable. Then the remaining error budget is dominated not by the ADC core, but by excitation current stability, connector thermal gradients, sensor self-heating, cable shielding, and grounding strategy. This is important because it changes optimization priorities. Once the conversion path is internally coherent, system accuracy depends more on sensor interface realism than on adding more front-end circuitry. In other words, integration tends to expose the real bottlenecks sooner. That is a useful property in engineering because it shifts effort toward the parts of the system that actually govern long-term accuracy.

Another benefit of the integrated architecture is calibration simplification. Offset and gain correction are easier when the dominant analog path sits inside one device. External multi-stage chains often require separate characterization of amplifier offset, ADC offset, reference tolerance, resistor ratio error, and channel switching effects. With the ADS1261, many of these contributions are inherently tied together. This does not remove the need for system calibration, especially in thermally dynamic environments, but it often reduces calibration complexity and improves repeatability across units. In production, that can translate into shorter trim procedures and more stable field behavior.

There is also a less obvious system advantage: fault behavior becomes easier to bound. When a precision chain is spread across multiple devices, an abnormal reading can come from any one of several analog interfaces. When the chain is more integrated, diagnosis tends to narrow more quickly to sensor fault, wiring issue, reference strategy, or configuration error. This matters in industrial systems where maintainability is part of performance. A compact analog chain is not only smaller; it is often more observable.

The ADS1261 therefore stands out because its architecture matches the needs of real precision sensor systems at multiple layers. At the circuit level, it provides high input impedance, low-noise gain, stable referencing, and high-resolution conversion. At the signal-processing level, it provides filtering that can be tuned to the noise environment and application bandwidth. At the system level, it reduces analog fragmentation, lowers layout sensitivity, simplifies calibration, and helps contain drift mechanisms that would otherwise spread across the board. That combination is what makes the device more than a high-resolution ADC. It functions as a compact precision measurement platform, particularly effective when the task is to digitize very small sensor signals with predictable accuracy in electrically imperfect environments.

Texas Instruments ADS1261 Input Channel Resources and Multiplexing Flexibility

Texas Instruments ADS1261 is the wider-input member of the ADS126x family. Its practical advantage is not just a higher pin count, but a denser concentration of analog resources behind a highly programmable front end. The device supports up to five differential channels or ten single-ended channels through AIN0 to AIN9, which gives it a clear edge over ADS1260 in systems that need to aggregate multiple low-speed precision measurements into a single converter domain.

The important point is that these input pins are not simple ADC terminals. In ADS1261, the analog interface is built as a shared resource matrix. The same physical pins can participate in signal input selection, reference routing, IDAC current excitation, GPIO usage, and in some cases AC-excitation functions. This architecture increases system-level flexibility, but it also shifts complexity from external hardware into configuration strategy and pin allocation discipline.

At the signal-path level, the value of the ten analog-capable pins comes from how they feed the internal multiplexer and programmable measurement chain. A designer can pair pins as differential inputs for bridge sensors, RTD measurements, thermocouples with external conditioning, or general low-level voltage sensing. The same pin set can also be used in single-ended mode when channel count matters more than common-mode rejection. In mixed-sensor systems, this matters because not every source needs a fully differential acquisition path. Voltage monitors, supply supervision nodes, slow process feedback, and diagnostic points often fit naturally into single-ended assignments, leaving differential pair capacity available for channels with tighter noise and CMRR requirements.

The multiplexing becomes more powerful when viewed together with the reference network. ADS1261 allows reference inputs to be assigned through multiplexed pins, which means the converter is not locked into one static reference topology. That is useful in modular instrumentation where some channels may use a local ratiometric reference, while others benefit from a more stable external reference path. In bridge-based measurement systems, this flexibility can simplify ratiometric implementations by allowing the excitation and reference strategy to track the sensor domain more closely. In practice, that often reduces gain error sensitivity caused by excitation drift, especially when the sensor output is interpreted relative to the same electrical source that defines the ADC reference.

The IDAC routing is another major part of the device’s channel-resource model. ADS1261 includes two programmable excitation current sources that can be routed through multiple analog pins. This is especially relevant for resistive sensors such as RTDs, remote resistive probes, and bridge-adjacent calibration structures. The benefit is not merely that current excitation exists on-chip. The stronger benefit is routing freedom. Current sources can be mapped to the sensor connection points without requiring a fixed external current-injection network, which reduces BOM count and can make a multi-sensor front end significantly cleaner. It also enables measurement reconfiguration in firmware. One channel can be excited, measured, then released while the same current-source resources are reassigned to another sensor path.

That said, this flexibility is best understood as controlled reuse, not unlimited parallelism. Internal resources are shared, so only one active configuration exists at a time for a given conversion path. This makes ADS1261 well suited for multiplexed precision systems where signals are relatively slow and deterministic scheduling is acceptable. It is less ideal when many channels need simultaneous acquisition or when sensor excitation must remain continuously isolated per channel. A useful design instinct here is to treat ADS1261 as a precision measurement engine that time-slices high-value analog functions, rather than as a bank of independent converters.

The GPIO capability further extends the consolidation theme. Four GPIOs can support local digital control, status signaling, or simple sequencing tasks around the analog subsystem. In many sensor modules, these lines are enough for gain-stage enables, sensor power gating, fault inputs, alert outputs, or external analog switch control. This can remove the need for a small companion MCU port expander or discrete logic devices. The practical value is not just lower component count. It also tightens synchronization between measurement state and control state, because the same device managing conversions can participate directly in the surrounding signal-conditioning workflow.

AC excitation support deserves special attention because it indicates that ADS1261 is designed with bridge and low-level sensor measurement in mind, not just generic voltage digitization. AC excitation is useful in applications where offset, drift, electrode polarization effects, or low-frequency interference must be managed more aggressively. For bridge sensors and certain impedance-sensitive transducers, the ability to generate and coordinate excitation internally can simplify designs that would otherwise require external waveform generation and switching. The real gain is in system cohesion: excitation, sensing, and measurement timing can be aligned more tightly, which usually improves repeatability more than raw feature lists suggest.

In multichannel sensor modules, these features combine into several practical architectures. One common pattern is a mixed instrumentation node in which two or three channels are allocated to bridge or resistive sensors using differential inputs plus IDAC excitation, several additional inputs monitor board temperature or compensation elements, and the remaining channels supervise supply rails, reference nodes, or field diagnostics. Another pattern is a configurable measurement platform where the same hardware is deployed across product variants, with firmware selecting whether pins act as analog inputs, excitation routes, or housekeeping I/O depending on the installed sensor set. ADS1261 supports this kind of reuse well because its pin functions are not rigidly partitioned.

This is where procurement and hardware architecture goals start to align. By consolidating analog muxing, excitation-current routing, reference flexibility, GPIO, and bridge-oriented support into one converter, ADS1261 can reduce the need for external multiplexers, GPIO expanders, dedicated excitation controllers, and extra reference switching circuitry. Fewer support ICs usually mean lower assembly risk, smaller board area, and fewer analog interconnects that can inject leakage, offset, or EMI sensitivity. In precision designs, removing one unnecessary analog switch stage is often more valuable than adding one extra headline feature elsewhere.

The tradeoff is pin planning. Because several functions are multiplexed onto the same physical pins, early assignment mistakes can propagate into difficult layout or firmware constraints later. A pin that looks available for a spare analog channel may later be needed for IDAC routing or reference placement. A channel map that works electrically may create awkward trace lengths for the highest-impedance inputs. A seemingly efficient GPIO allocation may block the cleanest bridge-excitation topology. In practice, the best results come from treating pin assignment as a system-level optimization problem rather than a schematic-capture detail.

A robust design flow usually starts by classifying signals into groups: precision differential sensors, resistive sensors needing excitation, low-priority single-ended monitors, reference-related nodes, and digital control functions. After that, the highest-sensitivity paths should be placed first, with attention to return-current geometry, reference symmetry, and the routing requirements of the IDAC sources. Only then should lower-risk housekeeping signals fill the remaining pins. This ordering tends to prevent the common failure mode where critical analog channels are left to route around earlier convenience decisions.

Settling behavior also needs to be considered whenever the internal multiplexer is used heavily. Switching between channels with different source impedances, common-mode levels, or excitation states can introduce transient error and longer stabilization time. On paper, one converter can service many inputs. In a real schedule, throughput is shaped by mux settling, digital filter latency, and the time required for excitation or reference conditions to stabilize after reconfiguration. This is one reason why channel count should not be evaluated in isolation. Effective channel capacity depends on how fast measurement accuracy must be recovered after each context switch.

This is particularly relevant in RTD and bridge applications. When IDAC routing changes from one sensor to another, the electrical environment changes with it. Lead resistance distribution, sensor self-heating state, and front-end settling all influence how quickly the next reading becomes trustworthy. Designs that look equivalent at the block-diagram level can differ noticeably in cycle time depending on how intelligently channels are grouped. A practical strategy is to schedule similar measurements back-to-back so the analog state moves in smaller steps. Differential bridge channels can be acquired as a block, then temperature channels, then slow single-ended diagnostics. This usually improves both timing efficiency and repeatability.

Another subtle point is that multiplexing flexibility increases the importance of firmware architecture. Register programming cannot be treated as a flat list of writes. It should reflect measurement intent. Each acquisition mode should define input selection, reference selection, IDAC routing, filter choice, gain setting, excitation timing, and validity delay as one coherent transaction. When this is done well, ADS1261 becomes a configurable precision instrument. When it is not, field behavior often looks inconsistent even though the converter itself is operating correctly.

From an application standpoint, ADS1261 is strongest where many precision-oriented but relatively low-bandwidth measurements must coexist. Industrial sensor concentrators, portable instrumentation, bridge-sensor modules, thermal process controllers, and laboratory front ends are good examples. In those systems, the device’s channel count matters, but its real advantage is resource fusion. It compresses several analog support functions into the same programmable boundary as the ADC itself.

The broader engineering implication is that ADS1261 should be selected less for “ten inputs” than for “ten inputs with movable analog roles.” That distinction matters. A conventional higher-channel ADC may still require external current excitation, reference switching, GPIO, or bridge support logic. ADS1261 reduces that boundary. If the design team is willing to invest in disciplined pin mapping, sequencing, and analog-state management, the result is usually a cleaner and more adaptable measurement subsystem with fewer external dependencies and better control over precision-critical interactions.

Texas Instruments ADS1261 Precision Performance Characteristics for Measurement-Critical Designs

Texas Instruments ADS1261 targets measurement paths where the limiting factor is not nominal resolution, but the accumulation of small analog errors over time, temperature, and operating conditions. Its published precision metrics show that it is designed for systems that must resolve microvolt-level changes while remaining stable across long deployments and repeated calibration cycles.

At a device level, the ADS1261 combines 24-bit conversion capability, no missing codes, and a programmable output data-rate range from 2.5 SPS to 40 kSPS. That range is more significant than it first appears. It allows one architecture to support two very different operating regimes: low-bandwidth, noise-optimized acquisition for bridge sensors and temperature channels, and higher-throughput sampling for control-oriented or multiplexed systems. In practice, this means the converter can be tuned around the signal rather than forcing the signal chain to adapt to a fixed ADC behavior.

The most important specifications are the ones that determine whether a design remains accurate after the first lab test. Offset drift of 1 nV/°C and gain drift of 0.5 ppm/°C are not just attractive datasheet numbers. They directly shape how often the system must be recalibrated, how aggressively thermal gradients must be managed, and whether field performance remains consistent after enclosure heating, power cycling, or seasonal ambient changes. In precision systems, drift is often the dominant error source because it converts a well-calibrated instrument into a slowly moving target. A converter with low initial error but weak drift behavior usually creates more maintenance overhead than one with modest static error and excellent thermal stability. The ADS1261 is clearly positioned on the right side of that tradeoff.

The noise figure is equally important. At 20 SPS and gain = 128, the converter achieves 30 nVRMS noise. This places it in a class suitable for direct acquisition of low-level bridge outputs and other small differential signals without demanding excessive front-end amplification. That matters because every added analog stage introduces its own offset, drift, 1/f noise, input bias interactions, and stability concerns. In many measurement chains, reducing analog gain stages improves total accuracy more than simply chasing higher ADC resolution. A low-noise converter with sufficient PGA capability can simplify the signal path, and simplicity in precision instrumentation usually translates into better reproducibility and fewer hidden corner cases.

Linearity, specified at 2 ppm, addresses another issue that becomes visible only after the noise floor has been controlled. Once offset and noise are sufficiently low, transfer-function fidelity starts to matter. In weigh scales, pressure instruments, and laboratory transducers, nonlinearity appears as a calibration curve that fits well at one point and drifts at another. This is especially problematic in systems expected to operate over a wide fraction of full scale rather than near a single setpoint. The ADS1261’s linearity performance supports designs that need confidence not only at zero and span, but across the usable measurement range. That reduces dependence on multi-point correction tables and makes system behavior easier to validate.

The documentation also highlights offset voltage, gain error, and calibration-related parameters. These should not be treated as secondary details. In precision converters, raw error numbers only describe one part of the problem; the more relevant question is how those errors can be characterized and removed. A well-designed measurement product usually assumes that some calibration will occur, but it cannot tolerate unstable or poorly repeatable error terms. The ADS1261’s value is that its error mechanisms are small enough, and stable enough, that calibration can be effective rather than merely cosmetic. A one-time factory trim or periodic system calibration becomes meaningful when the converter does not wander significantly between calibration events.

Common-mode rejection ratio and power-supply rejection ratio are especially relevant in industrial measurement, where the analog input rarely lives in an ideal electrical environment. Long sensor leads, bridge excitation currents, shared grounds, switching supplies, and nearby digital activity all inject disturbances that can masquerade as signal. A precision ADC must reject these external mechanisms before high resolution becomes useful. It is common to see systems advertise 24-bit conversion while delivering much less effective measurement depth because common-mode coupling, supply ripple, or layout-induced contamination dominates the low-order bits. The ADS1261’s rejection performance shows that it was built with real sensor interfaces in mind, not just bench-top characterization.

For weigh scale and strain-gauge applications, the device’s strengths align closely with the actual error budget. These systems often operate with bridge outputs in the millivolt-per-volt range, so the useful signal can be very small even when the sensor is properly excited. Under those conditions, offset drift and low-frequency noise are often more damaging than quantization limits. Thermal gradients across the board, self-heating from excitation circuitry, and reference instability can easily overwhelm the mechanical signal if the converter is not stable enough. A converter like the ADS1261 helps because it reduces the need to fight basic ADC behavior, allowing attention to shift toward bridge excitation quality, ratiometric reference design, and mechanical repeatability.

In pressure measurement, the situation is similar but often complicated by wider environmental variation and longer wiring runs. Pressure bridges may sit near pumps, valves, or power electronics, and the electrical environment is rarely quiet. Good CMRR and PSRR are therefore not optional refinements; they determine whether the digitized output reflects actual pressure or system interference. In these designs, one of the more reliable strategies is to treat the ADC, reference, and sensor excitation as a tightly coupled subsystem. The ADS1261 fits that approach because its low drift only delivers full value when paired with a reference network and layout strategy of comparable quality. Precision parts tend to expose weaknesses elsewhere in the chain rather than hiding them.

RTD measurement introduces another perspective. RTD systems often appear easier because the sensor physics are well understood and the signal is relatively slow. In reality, they are highly sensitive to gain drift, reference drift, lead resistance effects, and current-source stability. Since the temperature signal evolves slowly, low data rates can be used to suppress broadband noise, but this also makes low-frequency error sources more visible. The ADS1261 is well suited here because its low-speed precision characteristics match the actual bandwidth of the measurement. This is a recurring pattern in converter selection: the best ADC is not the one with the highest headline speed, but the one whose error behavior matches the signal’s time constants and required confidence interval.

One practical lesson from precision designs is that ADC selection should start from the residual system error after calibration, not from advertised resolution. A 24-bit converter does not guarantee 24 bits of usable measurement content. The real question is how much of the remaining output code variation corresponds to physical input change after accounting for drift, noise, reference movement, EMI coupling, and sensor nonidealities. The ADS1261 stands out because its key specifications are aligned with that real-world question. Its low noise supports signal extraction. Its low drift protects calibration value. Its rejection metrics help preserve measurement integrity outside the lab. These are the characteristics that decide whether a design behaves like an instrument or merely like a digitizer.

Another important design implication is the balance between throughput and settling strategy. With support from 2.5 SPS to 40 kSPS, the ADS1261 can be configured for very different filter and latency tradeoffs. For static or quasi-static channels, running at low output rates is often the most efficient way to improve effective resolution and reject line-frequency interference. For multiplexed systems or faster control feedback, higher rates become necessary, but they shift more burden onto analog settling, input source impedance control, and digital post-processing. In practice, using the widest available bandwidth is rarely the best default. The stronger approach is to choose the minimum rate that still satisfies response-time requirements, because every unnecessary hertz tends to invite more noise and less repeatability.

There is also a broader architectural point. Devices like the ADS1261 are most valuable when the system is designed to preserve their strengths. Short, symmetric sensor routing, guarded high-impedance nodes, clean reference distribution, careful thermal placement, and separation between digital return currents and analog measurement paths often matter as much as the converter itself. In one common failure mode, the ADC is selected for nanovolt-level performance, but the reference traces run beside switching clocks or the bridge return shares current with digital loads. The resulting system still converts 24-bit words, but the extra bits describe board behavior rather than sensor behavior. Precision converters are unforgiving in this way, which is exactly why they are useful: they reveal true system quality.

Taken together, the ADS1261’s specifications indicate a converter engineered for measurement-critical designs where long-term stability, low-level signal fidelity, and environmental robustness matter more than maximum sample rate. Its offset drift, gain drift, low-noise performance, linearity, and rejection capabilities form a coherent precision profile rather than a collection of isolated datasheet claims. That coherence is what makes the part compelling for weigh scales, strain-gauge digitizers, pressure transmitters, and RTD instrumentation. In these applications, success comes from controlling the full error chain, and the ADS1261 reduces several of the hardest error terms at the point where they matter most.

Texas Instruments ADS1261 PGA, Reference, and Digital Filter Capabilities

Texas Instruments designed the ADS1261 so the signal chain can be shaped around the sensor, not just around ADC constraints. That matters because many precision measurement problems are not caused by raw converter resolution, but by the mismatch between sensor output characteristics, reference strategy, settling behavior, and interference environment. In the ADS1261, the programmable gain amplifier, reference architecture, and digital filter options form the core of that adaptation capability.

The PGA is central to how the device handles low-level sensors. With gain settings from 1 to 128, the converter can directly condition small differential signals before conversion, which is especially useful for bridge sensors, resistive transducers, pressure elements, load cells, and other low-amplitude sources. In these cases, moving gain ahead of the modulator improves effective use of the ADC input range and helps preserve signal fidelity that would otherwise be buried in noise if digitized at unity gain. This is often the difference between a design that merely resolves counts and one that extracts stable, meaningful measurement data across temperature, cable resistance variation, and sensor offset drift.

The specified input range, extending from very small differential inputs such as ±7 mV up to wider ranges near ±5 V depending on configuration, shows that the ADS1261 is not locked into a single measurement style. It can be set up for high-gain microvolt-level sensing or for broader-range measurement modes where the sensor or front end already provides significant signal swing. That flexibility is more important than it first appears. In many systems, early prototypes are built around high gain because the sensor output is weak, but later revisions reveal startup overloads, calibration injection signals, or fault conditions that require wider headroom. A converter that can span both narrow precision measurement and wider diagnostic measurement reduces the need for parallel signal paths.

The PGA also changes system partitioning. In a conventional architecture, an external instrumentation amplifier is often added to raise a bridge output into the ADC range. That approach can work well, but it introduces more offset terms, more layout sensitivity, and another noise source that must be characterized over temperature and common-mode variation. By integrating gain inside the ADS1261, the design can often eliminate one active stage and shorten the analog path. In practice, this usually improves repeatability more than headline noise numbers suggest, because fewer external analog nodes means fewer opportunities for leakage, EMI pickup, and grounding errors. The main engineering tradeoff is that gain selection must be made with realistic worst-case sensor offset and transient behavior in mind, since high gain reduces overload margin quickly.

The internal 2.5 V reference is another feature that has system-level consequences beyond component reduction. A precision on-chip reference simplifies the bill of materials, reduces routing complexity, and avoids the need to qualify a separate reference source for many designs. That is particularly attractive in compact industrial modules and isolated sensor boards, where every analog trace and every precision component creates another path for thermal error or coupling. If the internal reference meets the required drift and accuracy targets, it enables a more controlled and more repeatable implementation with less board-level tuning.

At the same time, the ADS1261 does not force the use of the internal reference. It supports both internal and external reference configurations, and that flexibility is important in serious instrumentation work. Reference choice sets the absolute scale of every conversion, so the correct decision depends on the measurement objective. If the system is ratio-based, as with many bridge sensors excited from a known source, an external reference tied coherently to the excitation path can suppress gain error caused by excitation variation. If the design prioritizes integration and acceptable absolute accuracy over extreme long-term stability, the internal 2.5 V reference is often the better system choice. The real value is not that one option is universally superior, but that the ADS1261 allows the reference strategy to match the error model of the application.

This reference flexibility also affects calibration philosophy. In systems calibrated at production and expected to hold performance across field life, external references may be preferred if drift budgeting is tight and periodic recalibration is impractical. In systems where offset and gain calibration are already part of startup or service procedures, the internal reference can be entirely sufficient and may even improve manufacturability by removing external tolerance stacking. A recurring pattern in precision design is that integrated references are often underestimated because evaluation focuses on static datasheet comparison rather than total system uncertainty, including layout gradients, solder stress, and contamination sensitivity around external precision nodes.

The digital filter options are where the ADS1261 becomes especially practical for real sensor environments. Precision ADCs live in the presence of line-frequency interference, switching supplies, relay transients, and multiplexing artifacts. Raw resolution has limited value if the output data stream is not aligned with the interference spectrum and acquisition pattern of the end system. The ADS1261 addresses this with programmable digital filtering, including single-cycle settling and simultaneous 50 Hz and 60 Hz rejection.

Single-cycle settling matters most when the converter is used across multiple channels or when the input source changes dynamically. In a multiplexed measurement system, every channel switch creates a settling problem. The analog input path, modulator state, and digital filter memory all need time to converge to the new input. If the filter requires multiple output periods to settle, throughput drops sharply and timing control becomes awkward. Single-cycle settling reduces that penalty by allowing a valid result after one conversion cycle, which makes the ADC much easier to schedule in scanning systems. This is valuable in process control modules, multi-sensor data acquisition, and diagnostics subsystems where the converter must rotate through channels without long dead time.

In practice, this capability often determines whether one high-performance ADC can serve several sensors or whether the design must split into multiple converters. On paper, multiplexing into a delta-sigma ADC always looks efficient. In deployed systems, however, the filter settling delay usually becomes the limiting factor before nominal sample rate does. A filter with single-cycle settling shifts that boundary and makes multiplexed precision measurement more realistic, provided source impedance and channel charge recovery are also managed correctly.

Simultaneous 50 Hz and 60 Hz rejection addresses another common deployment issue. Many instruments are designed in one region and used in another, or they operate near equipment powered from mixed mains standards. Rejecting only one line frequency is often not enough, especially when harmonics, ground coupling, and shield current create interference that drifts in amplitude over time. A filter that suppresses both 50 Hz and 60 Hz reduces regional customization and improves robustness in installations where power quality is not tightly controlled. This is not just a convenience feature. It directly lowers the burden on analog anti-interference design, especially for slow sensors with long leads and high source impedance.

There is also a broader design lesson in the ADS1261 filter architecture: filtering should be selected as part of the measurement objective, not as an afterthought. If the system values lowest possible noise on a static channel, slower settings with stronger averaging may be appropriate. If it values fast response after channel switching or after a step event, settling behavior dominates. The right operating point is therefore not a single “best” mode, but a deliberate trade between latency, throughput, line rejection, and noise bandwidth. The ADS1261 is strong because it exposes that trade clearly enough that it can be engineered rather than worked around.

Taken together, the PGA, reference options, and programmable filtering make the ADS1261 adaptable across very different measurement classes. In a bridge sensor design, the PGA can raise a millivolt-level output into a useful conversion range, the reference can be chosen to track the excitation strategy, and the filter can suppress mains interference without sacrificing too much throughput. In a multiplexed instrumentation front end, the same converter can be run with lower gain, wider input range, and single-cycle settling to support faster channel rotation. In a mixed-mode system, one configuration can be optimized for precision sensing while another supports broader-range health monitoring or calibration checks.

The more important point is that these three functions should not be treated independently. Gain selection affects usable input range and overload behavior. Reference selection affects absolute accuracy and drift. Filter selection affects throughput and interference immunity. In precision systems, these choices interact strongly. A high-gain setup with an excellent reference still performs poorly if the filter does not reject the dominant interference. A well-chosen filter cannot rescue a measurement path whose gain leaves no room for sensor offset or fault excursions. The ADS1261 is most effective when configured as a coordinated signal-chain element rather than as a high-resolution ADC used in a default mode.

That is why the device is well suited to engineers who need configurability without building a fully discrete precision front end. It can be tuned toward minimum noise, strong line-frequency rejection, and small-signal sensitivity, or shifted toward faster multichannel response and broader operating range. The practical advantage is not only higher integration. It is the ability to move the optimization point late in the design cycle as sensor behavior, installation environment, and throughput requirements become clearer. In real instrumentation work, that kind of flexibility usually has more value than peak specifications viewed in isolation.

Texas Instruments ADS1261 Built-In Monitoring, Reliability, and Diagnostic Functions

Texas Instruments ADS1261 integrates a set of monitoring and diagnostic functions that materially change how a precision measurement chain can be designed. In many high-resolution data acquisition systems, the ADC is often evaluated only by noise, linearity, and effective resolution. That view is incomplete. In deployed systems, the dominant failure modes are frequently external to the conversion core: drifting references, broken sensor leads, marginal connectors, thermal gradients, configuration corruption, and intermittent digital communication faults. The ADS1261 addresses these failure paths directly through built-in observability features, and that makes it more valuable than a converter that is merely accurate under ideal lab conditions.

A useful way to interpret these functions is to separate them into three layers. The first layer protects measurement validity at the analog level. The second layer protects data integrity at the digital interface. The third layer improves system-level fault coverage and serviceability. The strength of the ADS1261 is not any single feature in isolation, but the way these layers interact to reduce undetected error.

At the analog level, signal and reference monitoring provide visibility into whether the converter is operating inside a trustworthy measurement envelope. In a precision delta-sigma system, the reference is not just a support circuit; it is part of the measurement equation. Any instability, droop, overload, or unexpected shift at the reference path directly maps into gain error or code movement. Internal reference monitoring therefore serves as an early warning mechanism for conditions that would otherwise appear as unexplained measurement drift. This is especially important in low-bandwidth industrial systems where slow faults can persist for long periods before being noticed at the application layer.

Signal monitors serve a related purpose. They help verify that the analog input remains within expected operating bounds and that the front-end path is still physically connected and behaving plausibly. In practice, many field issues are not hard failures but partial failures: increased contact resistance, moisture-driven leakage, cable damage, or a sensor entering an abnormal electrical state while still producing a nominally valid-looking signal. Monitoring functions cannot solve every ambiguity, but they significantly reduce the number of silent faults that pass through the chain as if they were real process changes. That distinction is critical in instrumentation, because the most expensive failures are often not missing data, but believable wrong data.

The internal temperature sensor adds a second dimension of observability. Temperature is a hidden state variable in most precision analog systems. Offset, gain drift, reference behavior, input leakage, sensor self-heating, and board-level stress all tend to move with temperature. An internal temperature reading does not replace full thermal characterization, but it provides a local indicator of the converter environment that can be used for drift tracking, compensation, and health logging. In practice, this is most effective when treated less as an absolute thermometer and more as a contextual signal. For example, a stable process reading accompanied by an unusual ADC temperature rise can indicate power-path stress, enclosure heating, or degraded airflow long before the primary measurement goes out of specification. Systems that log this parameter over time gain a simple but effective tool for predictive diagnostics.

The excitation current sources built into the ADS1261 are especially relevant for resistance-based sensors such as RTDs. Generating a stable, known current is central to converting resistance into voltage with predictable accuracy. By integrating excitation current sources, the device reduces external precision circuitry, shortens the analog signal path, and simplifies error budgeting. This has practical impact beyond schematic reduction. Every external current source introduces its own temperature coefficient, noise, compliance limits, layout sensitivity, and startup behavior. Internalizing that function often leads to a cleaner architecture with fewer interactions to characterize. It also makes ratiometric approaches more straightforward, where the same current-related behavior influences both sensor and reference paths, causing some error terms to track rather than accumulate independently.

That said, integrated excitation is not just a convenience feature. It changes calibration strategy. In discrete implementations, the current source is often treated as a separate analog block with its own production trim and validation flow. With the ADS1261, the excitation path becomes part of the converter subsystem, which encourages tighter co-calibration between current generation, input path, and digital correction. This is generally a better engineering trade in compact or distributed instrumentation nodes, where component count, board area, and thermal coupling matter as much as nominal precision.

Sensor burn-out current sources target a different but equally important problem: detection of open or disconnected sensors. In field-connected systems, open-circuit faults are common and can be deceptively difficult to detect if the input node floats to a plausible voltage through leakage or EMI pickup. Burn-out currents provide a controlled bias that forces the input into a recognizable state when the sensor path opens. This allows firmware to distinguish a true physical reading from a wiring fault with far better confidence. In industrial transmitters, remote sensor heads, and long-cable installations, this capability often closes a major diagnostic gap with very little external circuitry.

The practical value becomes more obvious when considering maintenance behavior. A broken RTD lead, a loose terminal, or corrosion in a connector may not produce immediate gross failure. Instead, it can create intermittent opens that appear as random process spikes, slow drift, or unstable readings under vibration. Burn-out current detection helps convert these ambiguous symptoms into deterministic fault signatures. That makes alarm handling more reliable and shortens debug time in deployed systems. In design reviews, this kind of feature is sometimes underestimated because it does not improve datasheet accuracy numbers. In actual operation, it often improves trustworthiness more than another fractional reduction in noise.

At the digital layer, CRC support protects configuration writes and conversion reads across the serial interface. This matters more than it first appears. Precision ADCs are usually embedded in electrically noisy environments: motor drives, switched supplies, long digital traces, shared grounds, and multi-device SPI buses. Under these conditions, communication corruption is not theoretical. A single flipped bit in a configuration register can silently alter gain, data rate, mux selection, filter choice, or reference path. A flipped bit in conversion data can inject outliers that are difficult to distinguish from real process transients. CRC provides a lightweight but effective mechanism to validate both command integrity and returned data, reducing the chance that interface faults propagate upward as measurement faults.

The note regarding correction of the CRC polynomial in the revision history is operationally significant. Firmware teams often assume protocol details in the first implementation and then leave them untouched for years. If the polynomial is implemented incorrectly, the system may appear functional during nominal communication while losing the very protection CRC was intended to provide. This is one of those details that tends to surface only during interoperability testing or unusual field failures. A robust implementation should therefore treat the datasheet revision as part of the software baseline, not merely as documentation. In well-controlled designs, CRC validation is tested not only with known-good frames but also with intentionally corrupted traffic to verify that error handling, retry logic, and fault counters behave as expected.

From a reliability perspective, the most effective use of the ADS1261 is to combine these functions into a coordinated diagnostic policy rather than enabling them opportunistically. For example, an RTD measurement channel can use excitation current for normal conversion, burn-out current for open-wire checks during scheduled diagnostic windows, reference monitoring to validate gain integrity, and CRC on every transaction to ensure that both configuration and sampled data are trustworthy. The internal temperature sensor can then provide context for trend analysis, allowing the system to separate environmental influence from electrical anomalies. This layered approach raises diagnostic coverage without adding much board complexity.

A practical pattern is to schedule diagnostics according to failure dynamics. Fast checks such as CRC can run continuously. Reference and signal plausibility checks can run at the conversion rate or at a decimated supervisory rate. Burn-out tests may be inserted during noncritical intervals, since they can perturb the normal sensor bias condition. Temperature tracking can be logged slowly, because thermal changes are typically low bandwidth. This staged scheduling avoids unnecessary measurement disruption while still maintaining strong fault visibility. Systems that apply all diagnostics at the same rate often waste power and processing time without improving actual coverage.

Another point worth emphasizing is that integrated diagnostics are most valuable when their outputs are interpreted probabilistically, not as isolated pass/fail flags. A single reference monitor event may be benign. A slight temperature rise may be normal. One CRC failure on a noisy bus may not justify a shutdown. But when these indicators correlate over time, they often reveal root causes earlier than threshold-based alarms. For instance, repeated CRC retries combined with elevated local temperature and occasional reference monitor excursions may indicate a grounding or power integrity problem near the converter rather than a sensor issue. The ADS1261 provides enough internal observability to support this style of correlation, which is a substantial advantage in systems designed for long unattended operation.

In resistance measurement applications, the integrated current sources and diagnostics also support cleaner fault modeling. RTD systems are usually analyzed in terms of sensor tolerance, lead resistance, self-heating, and ADC noise. That is necessary but not sufficient. Real deployments add connector oxidation, cable asymmetry, common-mode shifts, and maintenance-induced wiring errors. When excitation, monitoring, and burn-out detection are available in one device, these nonidealities can be tested more directly at runtime rather than being handled only through design margin. This shifts part of the engineering effort from prevention alone to prevention plus detection, which is generally the more scalable strategy in distributed instrumentation.

The broader engineering implication is clear: the ADS1261 should be viewed as a measurement subsystem with embedded health awareness, not just as a high-resolution converter. Its signal and reference monitors improve confidence in the analog operating state. The internal temperature sensor exposes thermal context that often explains slow drift and latent stress. CRC support strengthens the trust boundary at the serial interface. Burn-out currents improve detection of open-sensor and wiring faults. Excitation current sources simplify and tighten resistance-based measurements. Used together, these functions support systems that are easier to validate, easier to diagnose, and more resistant to silent failure modes that are otherwise difficult to catch in precision field instrumentation.

Texas Instruments ADS1261 Power Supply, Clocking, and Operating Conditions

Texas Instruments ADS1261 is designed to fit precision measurement systems that do not all share the same supply architecture, clocking strategy, or environmental envelope. Its power, timing, and operating-condition options are not just convenience features; they directly affect achievable input range, noise behavior, system integration effort, and long-term measurement stability. Read correctly, these specifications describe where the converter is easiest to deploy and where extra design discipline is required.

From the supply perspective, the ADS1261 supports either a single 5 V analog rail or a bipolar analog supply arrangement centered around ground. The documented analog operating range is typically expressed as AVDD to AVSS = 4.75 V to 5.25 V, with examples such as 5 V single-supply or ±2.5 V bipolar operation. On the digital side, DVDD can range from 2.7 V to 5.25 V, which allows direct interfacing with both lower-voltage controllers and legacy 5 V logic domains. This split-supply capability is especially useful in mixed-signal systems where the analog front end must preserve sensor fidelity while the digital controller is selected for power or integration reasons rather than voltage compatibility.

The analog supply flexibility matters most when the input signal approaches ground or crosses it. In a single-supply configuration, every analog node must remain valid within the converter’s allowable common-mode and absolute input limits. That often means the signal chain needs level shifting, sensor excitation planning, or a carefully chosen reference scheme. In contrast, when AVSS is allowed to go negative, the system gains headroom below digital ground. That reduces the burden on external signal conditioning for bridge sensors, shunt-based current measurements, low-level differential transducers, and other sources that naturally produce bipolar outputs. In practice, this can remove an amplifier stage or at least relax its output swing requirement, which usually improves error budget closure more than expected because each removed active stage eliminates offset, drift, 1/f noise, and layout sensitivity.

A useful way to interpret the AVSS specification is not simply as “negative rail support,” but as a mechanism for preserving linearity and recovery margin near zero-crossing conditions. Precision delta-sigma converters are often selected for microvolt-level work, where the signal itself is small but the common-mode behavior of the front end still determines whether the measurement remains clean. When the analog supply includes negative headroom, the PGA and input path typically operate with less boundary stress around ground-adjacent signals. Systems that must digitize thermocouples, load cells, strain gauges, or electrochemical sensors often benefit from this arrangement because the sensor output is low level, polarity can reverse, and external protection networks introduce small shifts that become significant near the rails.

At the same time, bipolar supply support should not be treated as an automatic improvement in every design. A negative analog rail adds power-generation complexity and can inject switching artifacts if generated from a charge pump or poorly filtered inverting converter. In precision measurement hardware, the rail itself is rarely the main issue; the problem is usually the current return path and the way negative-supply ripple couples into reference, sensor-return, or shield nodes. A compact schematic can still perform poorly if AVSS current shares copper with reference return. The more reliable approach is to think in terms of analog loop integrity: keep the reference path quiet, keep sensor return deterministic, and ensure the digital return does not modulate the analog ground boundary.

The digital supply range of 2.7 V to 5.25 V is equally important at the system level. It allows the ADS1261 to sit beside modern low-power MCUs and FPGAs without external logic translation in many cases. That reduces interface latency, board area, and edge-shape uncertainty introduced by translators. It also helps when the measurement subsystem is physically distributed, because lower digital swing generally lowers radiated and conducted switching energy. In high-resolution ADC layouts, this matters more than is often acknowledged. Small reductions in digital edge energy can materially improve repeatability when the converter is operating at low data rates and trying to resolve signals close to its noise floor.

Clocking is another area where the ADS1261 gives useful architectural freedom. The converter includes an internal oscillator, which supports straightforward implementation when absolute synchronization is not critical. It also accepts an external clock at CLKIN, enabling tighter control over timing relationships in systems where multiple converters, sensor excitation phases, or communication slots must remain aligned. For operation from 2.5 SPS to 25.6 kSPS, the nominal clock frequency is 7.3728 MHz. For 40 kSPS operation, the nominal clock frequency is 10.24 MHz. These values are not arbitrary; they tie directly to the modulator and digital filter operating conditions needed to achieve the specified conversion rates and rejection characteristics.

In many designs, the internal oscillator is the right default choice. It simplifies startup sequencing, reduces BOM count, and avoids the routing discipline required for an external clock line. For a standalone measurement channel that reports slow-changing process variables, the internal source is usually sufficient. The real advantage appears during board bring-up: one less high-frequency net to verify, one less source of coupling into high-impedance analog regions, and fewer failure modes tied to clock integrity. This can shorten debug time considerably, especially in dense industrial modules where analog and digital functions are packed tightly.

An external clock becomes more compelling when timing determinism matters at the system level. If several ADCs must sample coherently, if sensor excitation is multiplexed, or if line-frequency rejection must stay phase-stable relative to the rest of the platform, a shared clock can make the signal-processing chain easier to reason about. This is particularly relevant in vibration monitoring, power analysis, multiplexed weighing systems, and distributed process I/O where timestamp consistency matters as much as raw resolution. A common clock does not automatically guarantee better accuracy, but it reduces uncertainty in how independent measurement nodes relate to one another. That distinction often separates a lab-proven design from a field-ready one.

Clock-source selection also interacts with noise in subtle ways. The ADC’s digital filtering suppresses much of the broadband timing imperfection, but periodic jitter or coupling from a noisy clock buffer can still fold into the measurement path indirectly through substrate activity, supply modulation, or reference disturbance. In practice, the best external clock implementation is often the least dramatic one: moderate drive strength, short routing, controlled return path, and no unnecessary fanout transitions near the converter. Fast clock edges are rarely beneficial in precision conversion unless routing losses force them. Cleaner edge management usually outperforms brute-force drive.

The specified operating temperature range reinforces that the ADS1261 is aimed at industrial and harsh-environment instrumentation. The family is specified from –40°C to +125°C, with recommended ambient operation extending from –45°C to +125°C. That supports deployment in outdoor instrumentation, process control, remote sensing nodes, and thermally stressed embedded systems where local heating from power devices, enclosure solar loading, or cold-start exposure cannot be ignored. The practical significance of this range is not just survivability. It indicates that the converter can remain a valid part of the error budget over a wide environmental span, provided the surrounding reference, sensor, and passive network are selected with similar discipline.

Temperature capability at the converter level does not remove the need for thermal design in the signal chain. Precision systems often fail their stability target not because the ADC is out of spec, but because board-level temperature gradients create small thermoelectric voltages and reference drift. This is especially visible in low-level differential measurements. A converter rated to 125°C can still report unstable microvolt signals if copper junctions, connector materials, and airflow create asymmetric thermal paths. One practical lesson is that thermal symmetry in layout often contributes more to low-level DC stability than adding another round of digital averaging. Placing the ADC, reference, input filter network, and sensor connector with matched thermal exposure usually pays back more than expected.

For application mapping, the supply and clock options line up cleanly with several common use cases. In bridge-based measurement systems such as load cells or pressure sensors, bipolar analog rails can simplify direct capture of small differential outputs around ground, while a lower digital rail lets the converter interface cleanly with a low-power controller. In process-monitoring equipment, the internal oscillator often keeps implementation simple unless synchronized acquisition across channels is required. In electrically noisy industrial cabinets, the ability to separate analog and digital supply domains helps contain switching noise, particularly when the controller and communication interfaces are active near the converter. In thermally exposed outdoor systems, the wide ambient range supports stable operation as long as reference and layout choices are equally robust.

A strong implementation strategy is to treat the ADS1261 not as an isolated ADC, but as the center of a measurement domain with three constraints: analog headroom, timing discipline, and thermal consistency. If the input can cross ground, give the analog path sufficient negative margin or ensure the signal is intentionally shifted with low error. If data from multiple channels must align, define clock ownership early rather than retrofitting synchronization after firmware is complete. If the system will see wide ambient swings, design the PCB for thermal balance, not just temperature tolerance. That mindset usually produces a cleaner architecture than starting from nominal voltage and data-rate tables alone.

The most valuable aspect of the ADS1261 power and operating-condition specification is that it gives room to optimize for system priorities instead of forcing a single integration model. Single-supply operation favors simplicity. Bipolar analog rails favor signal fidelity near ground. Internal clocking favors low integration effort. External clocking favors coordination and timing control. Wide temperature support favors deployment flexibility. The best design choice depends less on what the converter can technically accept and more on which constraints dominate the full measurement chain. When those tradeoffs are handled deliberately, the device fits naturally into precision instrumentation with minimal compromise.

Texas Instruments ADS1261 Package, Pin-Level Functional Highlights, and Hardware Design Implications

Texas Instruments positions the ADS1261IRHBR as a precision delta-sigma ADC for low-level sensor measurement, and its 32-pin VQFN package is a meaningful part of that system-level story rather than a simple mechanical detail. The 5 mm × 5 mm body with exposed pad supports compact industrial designs, but the package also compresses several high-sensitivity analog, reference, and digital timing functions into a small routing area. In practice, this means package selection, pin planning, and PCB implementation directly affect noise floor, settling behavior, reference stability, and production repeatability.

The 32-VQFN format is well aligned with dense instrumentation modules, handheld calibrators, weigh scales, temperature transmitters, and multichannel sensor front ends where board area is constrained. The exposed pad is especially important because it is not only a thermal and mechanical anchor but also part of the electrical return strategy. For the ADS1261, tying the thermal pad to AVSS is not a packaging formality. It establishes a low-impedance analog ground reference under the die and helps keep internal analog circuitry referenced to a quiet local plane. If the exposed pad is left floating, poorly stitched, or connected through a noisy return path, the result is often not catastrophic failure but a harder-to-debug class of errors: excess code flicker, inconsistent offset behavior, unexplained gain drift, or unit-to-unit variation between otherwise identical assemblies.

At the pin level, the device reveals its real design priorities. Several pins are not optional convenience features. They are mandatory support nodes for internal analog subsystems. CAPP and CAPN are the outputs of the internal PGA capacitor network and require a 4.7 nF C0G capacitor placed directly across the pins. This capacitor should be treated as an internal analog compensation component that happens to live outside the silicon. Its dielectric matters because voltage coefficient, temperature dependence, and piezoelectric behavior feed directly into the front-end linearity and stability. A substitute X7R capacitor may appear acceptable on a first prototype and still degrade low-frequency precision, especially when measuring microvolt-level bridges or thermocouples where the PGA is active and the signal chain is expected to settle cleanly after input or gain changes.

REFOUT is the internal 2.5 V reference output and requires a 10 µF capacitor to AVSS. This node deserves the same discipline normally reserved for a standalone precision reference. The capacitor should be placed close to the pin with a short return to the analog ground region. If REFOUT is used as the system reference for conversions, any inductive loop area, digital return sharing, or dielectric instability at this node can show up as conversion noise or low-frequency gain modulation. One useful design instinct is to regard REFOUT not as a voltage source to be casually distributed across the board, but as a precision analog asset whose local decoupling and routing determine whether the converter performs like a laboratory ADC or merely like a nominal 24-bit part on paper.

The BYPASS pin serves the internal subregulator and requires a 1 µF capacitor to DGND. This detail often gets underestimated because the pin sounds auxiliary, but it is tightly connected to internal supply conditioning. The capacitor here should also be close and routed with minimal parasitic impedance. Even though the return is DGND, layout should avoid forcing noisy digital current spikes through the same local copper used by the capacitor. In mixed-signal converters, supply bypass networks are often where partitioning discipline is either preserved or unintentionally broken. A converter can have excellent analog input routing and still lose performance if internal regulator bypass current is contaminated by serial-interface return currents.

Clock selection is another pin-level decision with direct architectural consequences. When the internal oscillator is used, CLKIN must be tied to DGND. That requirement is easy to overlook during schematic capture because unused clock pins are often left open in less integrated devices. Here, the tie-down is part of establishing a defined operating state. Floating or loosely handled clock inputs can create intermittent behavior, startup ambiguity, or sensitivity to board-level EMI. In high-resolution conversion systems, these faults do not always appear as obvious communication failures. They may present as sporadic conversion anomalies, timing irregularities, or difficult-to-reproduce production escapes.

The digital control set includes PWDN, RESET, START, CS, SCLK, and DIN. These pins define not only SPI communication but also the determinism of conversion control. RESET and START are especially important in systems that must guarantee known startup state and synchronized measurement timing. If these lines are driven from a controller with uncertain boot behavior, the ADC can enter valid but unintended operating sequences before firmware takes full control. A conservative hardware strategy is to use defined pull states on mode-critical pins so the converter powers up in a predictable condition. This is particularly useful in instrumentation boards that may be hot-plugged, remotely powered, or exposed to slow supply ramps.

The output signaling options, including DRDY and combined DOUT/DRDY behavior, provide flexibility but also shape firmware and timing architecture. A dedicated DRDY line simplifies interrupt-driven acquisition and makes it easier to separate data-valid timing from SPI shift timing. The shared DOUT/DRDY mode saves a pin, which can be attractive in compact processor designs, but it tightens interface assumptions and can complicate timing verification, especially when multiple high-resolution converters share a bus or when isolation delays are present. In tightly budgeted embedded platforms, pin savings often look favorable early in the design, yet a dedicated data-ready path usually pays back in easier validation, cleaner driver implementation, and more robust recovery from corner cases.

One of the more consequential aspects of the ADS1261 is that several pins are multiplexed across analog input, reference, excitation, and GPIO-related functions. This is where the part transitions from a generic ADC into a configurable measurement subsystem, and where early project decisions can either preserve flexibility or quietly consume it. If AC excitation is enabled for sensor interfaces, the associated resources are no longer free for general analog-channel use. If GPIO functions are assigned to certain pins, available measurement topologies narrow. If an external reference is introduced through multiplexed pins, channel count and routing complexity change immediately. These interactions are not implementation details to be deferred until PCB layout. They should be resolved during front-end architecture definition, because the true usable channel map depends on more than the package pin count.

This multiplexing has a practical implication that is often missed in early block diagrams: nominal feature availability is not the same as simultaneous feature availability. The ADS1261 appears highly flexible because it integrates references, excitation support, a PGA, sensor-bias resources, and configurable digital I/O, but each enabled function consumes pin budget, routing budget, or analog isolation budget. The most reliable design flow is to build a pin-resource matrix before finalizing the schematic. That matrix should list every intended sensor type, required reference scheme, excitation method, calibration path, and service/debug function, then map them against all multiplexed pins. Doing this early usually reveals hidden conflicts such as losing a differential channel pair after adding external reference inputs, or discovering that a factory test hook has been assigned to a pin later needed for low-noise sensing.

From a signal-integrity perspective, the package and support-pin requirements push the design toward disciplined physical partitioning. The analog support capacitors for CAPP/CAPN, REFOUT, and BYPASS should be grouped as a local converter island rather than scattered according to global placement convenience. The ADC should sit at the boundary between the quiet analog region and the controlled digital interface region, with sensor inputs entering from one side and SPI/control lines leaving from the other. This geometry reduces crossing currents and makes return-path behavior more predictable. In compact VQFN layouts, a few millimeters of placement error can materially increase loop area or couple clock edges into the reference network. For a precision converter, short and topologically correct routing is usually more important than purely aesthetic symmetry.

Ground strategy should be based on current return behavior rather than naming alone. AVSS and DGND imply functional separation, but they still need a coherent board-level return structure. The exposed pad connection to AVSS should anchor the local analog ground region. The REFOUT capacitor should return into that analog region. The BYPASS capacitor should return to the digital ground reference as specified, but the local routing should prevent serial bus currents from sharing its immediate return path. A common mistake is to force all grounds to meet only at a distant star point while ignoring the actual high-frequency current loops around the ADC. In mixed-signal converters, local loop containment usually matters more than rigid adherence to a symbolic star-ground doctrine.

Assembly quality also deserves to be considered part of electrical design. The VQFN exposed pad demands a controlled stencil and reflow profile to avoid voiding, tilt, or incomplete wetting. Those issues affect not just yield but also analog consistency because the exposed pad forms part of the converter’s ground and thermal interface. Support capacitors near critical pins should use stable packages and land patterns that minimize tombstoning and solder-joint stress. This becomes relevant in field instruments exposed to thermal cycling, where seemingly minor passive-placement variations can alter long-term stability. In precision data-acquisition hardware, manufacturing variation often enters through passive implementation and grounding details long before it appears through semiconductor variation.

For procurement and manufacturing-risk evaluation, the package itself is standard enough to be broadly supportable, but the total implementation is not commodity-like. Precision performance depends on a small set of mandatory external components and on disciplined assembly execution. That shifts part of the risk assessment away from simple component availability and toward process capability: can the assembly flow reliably solder the exposed pad, maintain capacitor quality and placement accuracy, and preserve the intended analog ground structure across production lots? For this class of converter, PCB quality is effectively an extension of the device specification.

A useful way to interpret the ADS1261 package and pinout is to see them as a compact analog instrument core. The mandatory capacitors are not peripheral accessories. They close internal loops. The multiplexed pins are not just flexible I/O. They define measurement topology. The exposed pad is not just for heat. It establishes analog reference integrity. Designs that treat these details as first-order architectural elements usually achieve predictable low-noise performance with fewer late-stage fixes. Designs that treat them as checklist items often end up spending time compensating in firmware, averaging longer than planned, or reworking layouts to recover performance that was theoretically available from the start.

Texas Instruments ADS1261 Application Fit in Weigh Scales, RTDs, Pressure, and Industrial Measurement

Texas Instruments positions the ADS1261 for PLC analog input modules, weigh scales, strain-gauge digitizers, RTD temperature sensing, pressure measurement, laboratory instrumentation, and process analytics. That positioning is technically well aligned with what the device actually delivers. The ADS1261 is not most compelling when treated as a standalone high-resolution ADC. Its real value appears when the design goal is to build a dense precision measurement front end with minimal external support circuitry, controlled error behavior, and predictable performance in electrically noisy industrial environments.

At the architectural level, the ADS1261 combines a high-resolution delta-sigma conversion path, an integrated PGA, programmable digital filtering, current sources for sensor excitation, internal diagnostics, and reference-monitoring functions. That combination matters because many industrial sensor interfaces fail not at the converter core, but in the surrounding signal chain: excitation instability, reference drift, EMI coupling, line-frequency contamination, open-sensor faults, and thermal gradients often dominate the true measurement error. The ADS1261 addresses several of these failure paths inside the device boundary, which is why it fits best in systems where board area, validation effort, and long-term stability matter as much as nominal resolution.

In weigh scales and strain-gauge measurement, the fit is especially strong. Load cells and bridge sensors produce very small differential signals, often in the presence of common-mode disturbances, cable resistance variation, and strong 50 Hz or 60 Hz interference. The ADS1261’s low-noise PGA is important here because it lifts microvolt-level bridge outputs into a range where the modulator can use more of its dynamic range without demanding an ultra-low-noise external amplifier. That reduces component count, but more importantly it reduces one of the most common sources of gain drift and offset interaction in bridge front ends. The digital filter options and line-frequency rejection are equally valuable. In scale systems, the challenge is rarely just obtaining a high-resolution sample. The challenge is obtaining a stable value that converges quickly and does not wander when mains interference or vibration is present. Devices that look impressive in raw resolution but require heavy external filtering often produce disappointing real-world settling behavior. The ADS1261 is better viewed as a converter optimized for usable resolution under practical interference conditions.

For bridge-based systems, another useful perspective is that effective performance depends on system symmetry. The converter can resolve very small changes, but only if bridge excitation, reference strategy, and PCB thermal layout are treated as part of the same measurement loop. A robust implementation typically benefits from ratiometric design, short and balanced input routing, and careful separation between digital return currents and sensor return paths. In practice, this is where integrated features create disproportionate value. Fewer external precision blocks generally means fewer parasitic thermocouples, fewer gain-setting tolerances, and fewer opportunities for low-frequency drift to enter unnoticed.

RTD measurement is another area where the ADS1261 is a natural fit. Precision RTD systems need accurate low-level resistance measurement, but the real engineering problem is broader: excitation current accuracy, lead compensation, self-heating control, reference integrity, and long-term drift all shape the final temperature error. The integrated excitation current sources reduce external circuit burden and simplify implementation of 2-wire, 3-wire, or 4-wire RTD interfaces. This can materially improve compactness, especially in multi-channel modules where each external current source otherwise adds routing complexity and thermal coupling concerns. The simplification also helps calibration strategy. When excitation and conversion are tightly integrated, channel-to-channel behavior is often easier to characterize and compensate.

There is also a subtle system-level advantage in RTD designs. Many temperature modules are limited less by ADC noise than by layout-induced thermal gradients and mismatch between excitation and reference paths. A highly integrated converter does not remove those issues, but it narrows the number of variables that must be controlled. That tends to shorten bring-up time and reduce the amount of empirical tuning required to get repeatable low-drift results across production builds. In fielded systems, the difference becomes visible during slow thermal cycling, where small implementation details often dominate the residual error after initial calibration.

In pressure measurement, the ADS1261 fits particularly well when the pressure sensor output is low level, bridge based, or expected to remain stable over wide environmental variation. Pressure transmitters and industrial pressure modules often operate in installations where ambient temperature changes, long cable runs, and conducted noise all challenge measurement stability. The converter’s precision signal chain, diagnostic support, and wide operating temperature capability address those conditions directly. For pressure systems, it is useful to think beyond resolution and focus on confidence in the reported value. Internal monitors and fault-detection features can help detect abnormal reference behavior, overrange conditions, or input faults before they silently corrupt process data. In safety-conscious or maintenance-sensitive systems, this diagnostic visibility is often more valuable than a marginal improvement in nominal ENOB.

Process analytics and laboratory instrumentation also match the ADS1261 well, but for slightly different reasons. In these systems, the measurement front end often needs to support multiple sensor types or evolving configurations without a full hardware redesign. The ADS1261’s integrated resources make it suitable for platforms where one board may support bridge sensors, resistive sensors, low-level differential sources, or slow-moving analog process signals. This flexibility is important in analytical instruments, where precision, drift behavior, and repeatability matter more than raw throughput. It also benefits distributed industrial measurement modules that must fit within tight power and space budgets while still offering strong self-test and fault coverage.

For PLC analog input modules, the device is attractive when the module is intended for precision sensor-class inputs rather than only generic voltage and current acquisition. A standard industrial analog input card often needs broad compatibility, channel isolation strategies, fault tolerance, and deterministic update behavior. The ADS1261 is best suited when some of those channels are expected to measure RTDs, bridges, or other low-level sensors that justify a higher-performance front end. Its integrated current sources and diagnostic functions can reduce BOM complexity in these sensor-oriented input stages. That said, module-level architecture still matters. If the design requires high aggregate throughput across many simultaneously active channels, muxed delta-sigma behavior and settling constraints must be evaluated carefully. The ADS1261 performs best when accuracy per channel is more important than maximizing scan speed.

That tradeoff is worth stating clearly. The device is not a universal answer for every industrial analog problem. If the application demands fast multiplexed acquisition of many unrelated channels with minimal latency, a different converter architecture may be more appropriate. If the application instead requires excellent low-frequency precision, drift control, sensor excitation support, and line-noise resilience, the ADS1261 becomes far more compelling. This distinction is often missed early in device selection, where headline resolution can obscure the more important question: what kind of measurement system is actually being built?

A practical design approach with the ADS1261 usually starts by defining the dominant error mechanism before selecting the final configuration. In weigh scales, that error is often a mix of bridge signal level, vibration-induced instability, and mains pickup. In RTD systems, it is often excitation error, lead effects, and thermal EMFs. In pressure systems, it is commonly offset drift, reference behavior, and environmental coupling. Once that dominant error source is identified, the integrated features of the ADS1261 can be mapped intentionally rather than used generically. This tends to produce cleaner designs and more realistic performance expectations. In several industrial sensor interfaces, the converter itself stops being the limiting factor well before the overall measurement chain is fully optimized.

Another recurring lesson is that diagnostics should not be treated as optional convenience features. In industrial deployments, silent degradation is more dangerous than visible failure. Reference anomalies, sensor opens, intermittent wiring faults, and supply irregularities often appear long before complete failure occurs. A converter that can participate in fault detection improves not only reliability, but also maintainability and calibration confidence. This is one reason the ADS1261 stands out in process and field measurement roles. It supports not just precise acquisition, but controlled observability of the measurement path.

Viewed as a whole, the ADS1261 is best understood as a compact precision measurement platform aimed at low-speed, high-accuracy sensor acquisition. It is especially well matched to weigh scales, strain gauges, RTDs, pressure sensors, and industrial measurement nodes where integrated excitation, strong line-noise rejection, low drift, and built-in diagnostics reduce both analog complexity and validation risk. For designs that need multiple precision sensor channels with predictable field behavior, it offers a strong application fit. Its advantage is not that it replaces every ADC. Its advantage is that it collapses much of the precision sensor interface problem into a more manageable, more verifiable subsystem.

Texas Instruments ADS1261 Design and Layout Considerations for Achieving Datasheet Performance

Texas Instruments ADS1261 can reach near-datasheet performance only when the PCB is treated as part of the conversion chain rather than as a neutral interconnect platform. With this device, electrical precision is strongly coupled to physical implementation. The converter integrates a low-noise front end, programmable gain, precision reference functions, current sources, and digital filtering, but those blocks do not isolate the design from board-induced errors. In practice, the layout, supply conditioning, thermal behavior, and return-current control often determine whether the measured result resembles the datasheet or merely the architecture.

At the device level, the ADS1261 is sensitive because it resolves very small differential signals while operating with high internal gain and aggressive noise shaping. That combination improves resolution, but it also amplifies weaknesses outside the silicon. Supply ripple can modulate the analog core. Leakage current can shift high-impedance sensor nodes. Small thermal gradients across dissimilar metals can generate offsets large enough to matter at low-level inputs. These effects are usually negligible in ordinary mixed-signal boards, yet they become first-order error sources in precision delta-sigma systems. A useful way to think about the ADS1261 is that it measures not just the sensor, but also the discipline of the surrounding implementation.

Power integrity is the first constraint. The documented emphasis on decoupling, analog supply clamping, and sequencing is not procedural overhead; it is protection against subtle performance collapse. The local decoupling network must present low impedance across the frequency range that matters to the ADC core, the reference circuitry, and the digital interface transitions. Capacitors should not merely be present in the schematic. Their loop area, dielectric behavior, grounding path, and distance from the corresponding pins directly affect effectiveness. A decoupler that is electrically close but routed through a long return detour often behaves worse than expected. For the ADS1261, this matters because internal modulator activity and digital sections can translate local supply disturbances into conversion noise or spurious offset movement.

Analog supply clamping deserves particular attention. In precision systems, supply rails do not always move monotonically during startup, hot-plug events, or fault cases. If one rail rises earlier than another, internal protection structures or analog nodes may be driven into states that disturb bias conditions or stress the device. Clamping and controlled sequencing reduce this risk. In boards with external references, sensor excitation rails, multiplexed inputs, or shared backplanes, this becomes more important because the ADC may see external voltages before its internal analog domain is fully settled. Designs that ignore this often appear functional in bench testing yet show unexplained drift, startup instability, or occasional channel corruption in the field.

The reference output, bypass node, and PGA capacitor pins require special treatment because they support internal precision functions rather than generic I/O behavior. Their capacitors should be placed with minimal series inductance and short, quiet return paths. The reference output capacitor stabilizes the internal reference behavior and helps suppress local disturbances. The bypass node capacitor supports internal bias stability, so any noise injected there can propagate through the conversion path indirectly. The PGA capacitor network is especially important at higher gain settings, where the front-end bandwidth shaping and charge movement become more sensitive to parasitics. In practice, placing these capacitors “nearby” is not enough. They should be placed so that the current loops are compact, isolated from digital edge currents, and not forced to share vias or copper neck-downs with unrelated return traffic.

Return-path design is often where otherwise competent layouts lose precision. The usual instruction to separate analog and digital grounds is incomplete unless the current paths are understood. What matters is not abstract ground labeling, but preventing digital switching currents from sharing impedance with sensitive analog return currents. The ADS1261 can tolerate mixed-signal integration well if the board routes current intentionally. Analog input networks, reference returns, decoupling returns, and the exposed pad connection to AVSS should form a low-impedance local analog region. Digital interface currents should return through their own compact path to the digital source, avoiding traversal of the analog measurement area. A split plane used without current-path discipline can be worse than a continuous plane. In many precision layouts, a continuous reference plane with careful placement and zoning produces more predictable behavior than hard partitioning.

The exposed thermal pad tied to AVSS is not only a thermal and mechanical feature. It contributes to electrical stability by lowering impedance to the analog ground reference and by improving thermal uniformity across the package. For high-resolution measurement, thermal asymmetry is an error mechanism. Local self-heating, uneven copper spreading, or nearby hot digital devices can create gradients that shift offsets over time. A solid, well-via-stitched pad connection helps both heat spreading and analog grounding. Boards that leave the pad weakly connected or thermally isolated may still function, but long-term settling and low-frequency stability often suffer in ways that are difficult to explain from the schematic alone.

Input routing must be approached as an analog field problem, not just a connectivity task. The ADS1261 is often used with RTDs, bridges, thermocouples, and low-level differential sources. These sensors are highly sensitive to leakage, capacitive imbalance, and common-mode disturbance. Differential traces should be kept short, symmetrical, and free from adjacent aggressors. Symmetry is especially important when using high PGA gain, because any imbalance converts external interference into differential error. Guarding can help around very high-impedance nodes, but it must be implemented carefully so that guard potentials track correctly and do not inject additional coupling. Flux residue, moisture, and contamination also become nontrivial in this region. On boards intended for precision sensing, cleaning strategy and surface finish quality affect measurement repeatability more than many teams expect.

Parasitic thermocouples are easy to underestimate. Every junction of dissimilar metals under a temperature gradient creates a small thermoelectric voltage. In low-level measurement systems, that voltage can be comparable to the signal being measured. This is especially relevant at connector transitions, relay contacts, terminal blocks, and even uneven copper-to-solder structures. The best mitigation is usually thermal symmetry rather than chasing each junction individually. Keeping the two input paths physically similar, avoiding hot components near only one side of a differential pair, and reducing airflow asymmetry can materially improve offset stability. On bridge and RTD boards, it is often the connector region rather than the ADC itself that sets the low-frequency error floor.

In multichannel designs, multiplexing introduces another layer of layout sensitivity. The ADS1261 can reduce component count by integrating functions that would otherwise require external amplifiers, references, and excitation circuitry. That benefit is real, but only if channel-to-channel contamination is controlled. Shared routing corridors, long input stubs, and incomplete settling after mux transitions can reduce effective precision. High-impedance sensor sources are particularly vulnerable because charge injection and dielectric absorption in the routing network can leave residual memory between channels. A practical layout pattern is to keep each channel’s front-end passive network physically compact and consistent, then route all channels into the ADC through controlled, short paths with matched parasitics. This does not eliminate settling concerns, but it makes behavior predictable and easier to calibrate.

For RTD and bridge applications, the interaction between excitation currents, reference strategy, and copper resistance is often more important than nominal ADC resolution. If sensor excitation traces carry measurable current, their IR drop and thermal rise can alter the measurement indirectly. Kelvin routing becomes valuable not only at the sensor but also around reference and return nodes near the converter. In bridge systems, matching the thermal environment and resistance of the excitation paths often improves long-term stability more effectively than adding post-processing. In RTD systems, keeping current-source routing away from sensitive voltage sense nodes reduces coupled error and eases compliance with the converter’s common-mode limits. These are small implementation choices, yet together they often determine whether the final design behaves like a precision instrument or just a high-resolution digitizer.

A recurring pattern in successful ADS1261 layouts is that the highest-value improvements are rarely dramatic. Shorter return loops, cleaner local capacitor placement, fewer thermal asymmetries, reduced contamination risk, and disciplined routing around high-gain nodes usually outperform heroic digital correction later. The converter already contains substantial precision capability. The board should avoid taking it away. When a design misses datasheet expectations, the root cause is often not a single major mistake but the accumulation of several small physical effects that align in the same direction.

For that reason, layout review should be done with an error-budget mindset. Treat every copper segment, capacitor location, connector choice, and plane transition as a potential contributor to offset, noise, drift, or rejection loss. Start from the internal mechanisms: reference stability, modulator supply integrity, PGA sensitivity, and return-current isolation. Then map those mechanisms into board-level structures: decoupling loops, AVSS impedance, thermal pad implementation, sensor routing, and channel spacing. This layered approach leads to better decisions than generic “good analog layout” rules because it ties each PCB choice to a specific failure mode.

In a multichannel RTD or bridge input board, the ADS1261 can indeed collapse analog complexity and reduce component count substantially. That advantage becomes meaningful only when the layout supports the precision architecture with equal rigor. Otherwise, the design inherits the integration benefits while giving up the noise floor, drift stability, and rejection performance that justified the device choice in the first place. The most effective implementation strategy is to treat the ADC, the reference network, the sensor routing, and the board thermals as one analog system with one error budget. That is usually the shortest path to results that actually resemble the datasheet.

Texas Instruments ADS1261 Potential Equivalent/Replacement Models

Texas Instruments ADS1261 potential equivalent and replacement options are best understood inside the ADS126x family rather than through a broad cross-family search. The closest functional alternative is the ADS1260. It is not merely similar in resolution class; it is built on the same precision measurement platform and targets many of the same low-speed, high-accuracy sensing applications. In practice, this makes the ADS1260 the first candidate when ADS1261 availability, cost, or design consolidation becomes a concern.

At the architectural level, ADS1261 and ADS1260 share the same core conversion strategy: a 24-bit delta-sigma ADC optimized for precision sensor interfacing. Both devices integrate a programmable gain amplifier, internal reference capability, and system-monitoring support. This common foundation matters more than headline resolution, because in precision instrumentation the usable performance is defined by the full signal chain: input mux behavior, PGA operating range, reference stability, digital filter behavior, calibration strategy, and firmware control of settling and diagnostics. From that perspective, ADS1260 is not a distant substitute. It is a constrained sibling.

The main separation between the two devices is not conversion quality but peripheral allocation. ADS1261 provides 10 single-ended or 5 differential analog inputs, while ADS1260 provides 5 single-ended or 3 differential inputs. That difference directly affects front-end routing flexibility. In a board that already uses the higher channel count for multiple bridge sensors, thermocouples, RTDs, or auxiliary diagnostics, ADS1260 is not a drop-in functional replacement even if the package footprint is compatible. Pin compatibility reduces PCB disruption, but it does not preserve system capability when the application depends on the larger mux matrix.

The ADS1261 also includes four GPIOs and support for AC excitation for bridge sensors. These details are easy to underestimate during part selection because they sit outside the core ADC path, yet they often determine whether the device fits the measurement architecture cleanly. GPIOs on a precision ADC are frequently used for sensor power sequencing, mux control, burnout-current management, external analog switch coordination, or simple system-state signaling. When these pins are part of the original design intent, replacing ADS1261 with ADS1260 may shift burden onto the host MCU or require external logic. That can introduce board rework, firmware expansion, and in some cases additional switching noise near sensitive analog nodes.

AC excitation support is even more application-specific. In bridge-based measurement systems, especially where offset drift and low-frequency interference need suppression, AC excitation can be valuable because it enables synchronous demodulation techniques and helps reject parasitic thermoelectric effects and low-frequency offset mechanisms in the sensor path. If the original design leverages this mode, ADS1260 cannot be treated as an equivalent in the full system sense, even if basic conversions still appear possible. This is one of the recurring failure points in replacement decisions: the ADC data-sheet table suggests near-equivalence, but the measurement method itself depends on a feature that is not preserved.

Another relevant family option is ADS1261B. This is not a different platform but a tighter variant within the same broader device context. The comparison data indicates that ADS1261 is specified with a maximum reference grade of 40 ppm/°C, while ADS1261B is listed at 12 ppm/°C maximum. For designs where the internal reference performance materially contributes to system error, that tighter reference grade can be meaningful. This is especially true in low-bandwidth systems expected to maintain stable gain accuracy across ambient temperature excursions without relying entirely on frequent field recalibration.

That said, reference grade should be evaluated in context, not in isolation. In many deployed systems, total error is dominated by sensor tolerance, board-level thermal gradients, input leakage interactions, reference routing, or mechanical stress effects rather than the converter’s internal reference tempco alone. A tighter internal reference is most valuable when the rest of the design is already disciplined enough to expose that improvement. If the analog front end, sensor connection method, or enclosure thermal behavior is loose, upgrading from ADS1261 to ADS1261B may produce less real benefit than expected. Precision parts only deliver precision when the surrounding implementation stops fighting them.

For selection work, the decision variables can be organized in a practical order.

First, confirm channel topology. Count not only the nominal sensor channels but also auxiliary measurements such as reference monitoring, board temperature tracking, open-wire checks, or supply diagnostics. Many designs begin with a comfortable margin and later consume spare inputs during validation or field-robustness updates. A migration from ADS1261 to ADS1260 can become difficult not because of the main sensors, but because those “temporary” support measurements became permanent.

Second, verify feature dependency beyond conversion. Check whether firmware uses GPIO functions, whether AC excitation is part of the measurement method, and whether startup or fault-handling routines assume ADS1261-specific behavior. In precision systems, firmware and hardware are usually co-designed. Replacements fail less often at the schematic level than at the system-control level, where timing, sequencing, and diagnostics are embedded into software assumptions.

Third, evaluate the reference strategy. If the design uses the internal reference and the accuracy budget is tight over temperature, ADS1261B may be the more appropriate direction than ADS1260. If the design already uses a high-grade external reference with controlled layout and Kelvin-like routing discipline, the internal reference grade difference may be largely irrelevant. In that case, channel count and peripheral features become the primary filters.

Fourth, review procurement assumptions against actual engineering constraints. Pin compatibility within ADS126x is useful for lifecycle planning and second-source-like internal family flexibility, but it should not be interpreted as unrestricted substitutability. A pin-compatible ADC can still alter mux reach, feature availability, and firmware register usage enough to force a validation cycle nearly as serious as a board spin. This is particularly important in regulated instrumentation, weigh scales, process control transmitters, and laboratory sensing platforms where characterization data is tied to one exact configuration.

In application scenarios, ADS1260 is a strong candidate when the original ADS1261 design uses only a small number of input channels, does not rely on the four GPIOs, and does not require AC excitation. Under those conditions, the shared precision architecture and package compatibility can make migration relatively clean. This often applies to compact transmitter modules, isolated sensor heads, or single-sensor precision front ends where the ADC is intentionally underutilized for future expansion. In such cases, ADS1260 can reduce complexity in sourcing without materially degrading system behavior.

ADS1261 remains the better fit when the ADC acts as a measurement hub rather than just a converter. Multi-sensor platforms, bridge-heavy designs, and systems that use the ADC’s integrated digital and control resources tend to benefit from its broader channel map and feature set. The value is not simply that it has “more.” The value is that it can reduce external circuitry, simplify measurement synchronization, and keep sensitive functions closer to the conversion engine, where timing and noise control are easier to manage.

ADS1261B fits a narrower but important niche. It is the natural choice when the ADS1261 feature set is already correct, but tighter reference stability is needed to support long-term or wide-temperature accuracy goals. This is more common in industrial metrology, slow precision logging, and bridge or resistive sensing systems where gain drift accumulates directly into the reported variable and recalibration opportunities are limited.

A useful design instinct here is to classify replacement risk in three layers. Electrical compatibility is the first layer and usually the easiest to check. Functional compatibility is the second layer and is where most substitutions begin to weaken. Measurement-method compatibility is the third layer and is the one that actually determines field success. The ADS1260 can pass the first layer quickly and often the second layer conditionally, but it does not automatically pass the third. That distinction is more valuable than a simple “equivalent” label.

For engineering teams and procurement groups alike, the practical message is clear: ADS1260 is the nearest potential replacement for ADS1261 within Texas Instruments’ family, and ADS1261B is a tighter-grade variant worth considering when reference performance matters. The final choice should be driven by channel requirements, GPIO dependence, bridge excitation method, and the real error budget of the measurement system. In precision analog design, replacements are rarely decided by bit count. They are decided by what the system quietly depends on.

Conclusion

For product selection and procurement evaluation, the Texas Instruments ADS1261 should be assessed as a precision measurement subsystem, not merely as a standalone high-resolution ADC. Its real value comes from the way multiple signal-chain functions are assembled around the 24-bit delta-sigma conversion core. The device integrates a programmable gain amplifier, precision reference support, programmable digital filters, sensor excitation current sources, diagnostic monitoring, CRC protection, internal temperature sensing, GPIO resources, and AC excitation for bridge-based sensors. In practice, this level of integration changes the system architecture. It shifts complexity away from the board-level analog front end and into a tightly coupled mixed-signal device whose internal blocks are designed to work together with predictable error behavior.

From an engineering perspective, this matters because precision measurement performance is rarely determined by converter resolution alone. Resolution is easy to advertise; usable accuracy is harder to achieve. In low-level sensing applications, the dominant design effort usually goes into controlling offset, drift, gain error, common-mode behavior, noise coupling, reference stability, and fault detectability. The ADS1261 addresses these system constraints at the device level. Its PGA allows direct interfacing to small differential signals from load cells, bridge sensors, and resistive sensors without requiring an external instrumentation amplifier in many cases. Its digital filtering options help tailor the noise-bandwidth tradeoff to the application, which is especially important in industrial environments where 50 Hz and 60 Hz interference, switching noise, and low-frequency drift often dominate the measurement floor more than quantization effects.

A useful way to evaluate the ADS1261 is to move from conversion physics to deployment behavior. At the core, the delta-sigma architecture oversamples the input and shapes quantization noise out of band. This is then followed by digital filtering that reconstructs a highly linear low-frequency measurement. The practical result is strong performance for slowly varying sensor signals, where precision and noise rejection matter more than very high throughput. This makes the device a natural fit for weigh scales, RTD measurement chains, pressure transmitters, process analyzers, and PLC analog input modules. These applications typically operate with small signal amplitudes, long sensor wiring, electrically noisy surroundings, and strict stability requirements over time and temperature. In such environments, the integrated filtering and diagnostic features are not convenience features; they directly reduce design risk.

The channel count and configurability further strengthen its position in multichannel systems. In many sensor platforms, the challenge is not only measuring one signal accurately but managing several input types under one conversion framework. The ADS1261 enables a compact architecture where bridge sensors, resistive temperature elements, and general low-level analog inputs can be handled within one device family and one firmware model. That reduces analog fragmentation across the design. It also simplifies calibration strategy, manufacturing test flow, and software maintenance. Designs that begin as single-sensor products often evolve into variants with more channels, added diagnostics, or different sensor types. Devices like the ADS1261 tend to age well in such product lines because their configurability provides margin for derivative designs without a full analog redesign.

Its built-in excitation current sources are particularly valuable in resistive sensing. For RTDs and similar elements, current excitation must be stable, predictable, and easy to route without adding thermal or layout-induced error. Integrating this function reduces sensitivity to external component mismatch and routing parasitics. AC excitation for bridge sensors adds another layer of practical benefit. In bridge-based measurements, low-frequency offset and thermoelectric effects can become a serious limitation, especially when signal levels are small and thermal gradients across connectors or copper junctions are unavoidable. AC excitation helps suppress these error terms by modulating the sensor response and separating wanted signal from certain classes of offset. This is one of those features that appears specialized on a datasheet but becomes highly persuasive once the design target includes long-term zero stability or very small bridge output signals.

The diagnostic and integrity features also deserve more weight in selection decisions than they often receive. CRC support, internal monitors, and temperature sensing are not just defensive additions. They improve observability of the measurement chain. In industrial and laboratory systems, many field issues are not caused by catastrophic component failure but by partial faults: loose sensor wiring, degraded connectors, reference drift, overrange conditions, supply disturbances, or thermal excursions that slowly bias readings. Devices that help expose these conditions reduce troubleshooting time and improve system trustworthiness. In procurement terms, this can translate into lower support cost and fewer unexplained returns. In engineering terms, it enables firmware to distinguish between a bad process value and a bad measurement path, which is a major difference in closed-loop systems.

For selection engineers comparing alternatives, the strongest argument for the ADS1261 is that it offers precision with architectural leverage. External analog components can always be added around a simpler ADC, but each added amplifier, reference, mux, excitation circuit, or diagnostic block introduces its own offset, drift, noise source, tolerance stack, and qualification burden. A more integrated device often produces a shorter and more controllable error budget. This is especially true when board area is constrained, analog layout resources are limited, or multiple sensor interfaces must coexist on the same PCB near digital logic and power switching. In those conditions, integration is not only about BOM reduction; it is about preserving measurement integrity in a real product rather than in an ideal schematic.

For procurement teams, the value proposition is broader than unit price. The ADS1261 can reduce the number of precision analog ICs, references, excitation components, monitoring circuits, and interface glue required around the sensor front end. That consolidation can lower sourcing complexity, reduce inventory diversity, and improve build consistency across production lots. It can also simplify qualification for industrial-grade designs because fewer critical analog components need to be validated across temperature, operating modes, and supply variation. In supply-chain planning, a highly integrated converter can provide a more stable cost structure than a fragmented front end assembled from multiple precision parts whose availability and drift behavior must all be managed independently.

There is also a practical systems insight worth emphasizing: feature-rich precision converters are most valuable when their features are intentionally used, not merely present. If the design only needs a basic low-channel-count conversion path with minimal diagnostics and external circuitry is already fixed, the ADS1261 may be more capability than required. But when the application needs measurement fidelity, channel flexibility, fault awareness, and a compact implementation at the same time, its integration begins to compound in value. The savings show up not just in components removed, but in fewer analog iterations, cleaner firmware diagnostics, easier compliance testing, and better repeatability between prototype and production hardware.

Relative to other devices in the ADS126x family, the ADS1261 stands out as the more feature-rich and higher-channel-count option for designs that need a dense, flexible, and industrially robust measurement front end. That makes it well suited to products where one device is expected to support several sensing modes or future product variants. For teams choosing parts with a long platform horizon in mind, that flexibility is often more important than small differences in nominal specification. The better choice is not always the converter with the highest headline resolution or the lowest isolated noise figure. It is often the one that reduces total measurement uncertainty at the system level while keeping the design scalable, diagnosable, and manufacturable. Under that lens, the ADS1261 is a strong candidate for precision sensor interfaces that must perform reliably beyond the lab bench.
