ADC161S626 from Texas Instruments: Product Overview and Positioning
Texas Instruments positions the ADC161S626 as a precision SAR converter for systems that need more than nominal 16-bit resolution on paper. Its real value is not just the resolution number, but the combination of true differential acquisition, strong common-mode rejection, low power, and a supply architecture that fits mixed-voltage embedded designs without extra interface glue. In practice, this places the device in a useful middle ground: more noise-resilient and measurement-oriented than many general-purpose low-cost ADCs, yet much simpler to integrate than fully isolated or high-speed precision signal chains.
At the architecture level, the ADC161S626 is a 16-bit successive-approximation converter operating from 50 kSPS to 250 kSPS. SAR devices are often chosen when a design needs deterministic latency, moderate throughput, and good energy efficiency per sample. That matters in control loops, sensor front ends, and battery-operated instrumentation, where sigma-delta alternatives may offer excellent low-frequency noise but often at the cost of higher latency or more digital filtering overhead. The ADC161S626 fits cases where the system needs a clean snapshot of an analog quantity at predictable timing, and where the digital side prefers a straightforward serial interface rather than a more complex data path.
The differential input structure is central to the device’s positioning. Many ADCs described as differential are only pseudo-differential in behavior, with one input effectively tied to a fixed reference domain. The ADC161S626 is specified with a true differential input, and that distinction has practical design consequences. A true differential front end measures the voltage difference between two nodes while rejecting common-mode movement that appears on both. In electrically noisy systems, this often determines whether 16-bit conversion is usable or merely theoretical. TI’s specified 85 dB common-mode rejection ratio indicates that the part is intended for environments where wiring, ground offsets, motor transients, or shared supply return currents would otherwise leak directly into the measurement.
This makes the converter especially relevant in bridge-based sensing, remote transducer interfaces, and distributed measurement modules. In a bridge sensor path, for example, signal amplitude is often small while the surrounding common-mode content can be substantial due to cable pickup, excitation ripple, or ground potential differences across the installation. A single-ended ADC can digitize the same nominal signal, but the usable dynamic range often collapses once layout parasitics and field noise are included. A differential SAR like the ADC161S626 does not eliminate front-end design requirements, but it materially improves the odds that the measured code stream reflects the sensor rather than the environment.
The supply arrangement reinforces this system-level flexibility. The analog core runs from 4.5 V to 5.5 V, while the digital I/O rail supports 2.7 V to 5.5 V. This split is more important than it may first appear. It allows the analog section to retain a 5 V operating margin, which is often beneficial for input headroom, reference utilization, and noise performance, while the serial interface can connect directly to a 3.3 V controller or FPGA bank. That reduces level-shifting components, avoids unnecessary digital translation delay, and simplifies power-domain partitioning. In mixed-signal boards, every avoided translator is one less source of edge distortion, leakage, and routing congestion.
From an engineering standpoint, this dual-supply scheme also supports cleaner floorplanning. The analog rail can be filtered and treated as a quiet domain, while the digital I/O rail can follow the host logic voltage. In compact industrial boards, that separation often helps contain return-current interaction. One recurring integration lesson is that converter performance is rarely limited by the converter alone; it is usually limited by how digital transients are allowed to couple into the analog sampling instant. A device that separates analog and interface supplies gives the layout more leverage over that problem.
Power behavior is another reason the ADC161S626 is positioned as a precision converter for low-power platforms rather than as a generic acquisition part. TI’s numbers show 0.24 mW at 10 kSPS, around 5.3 mW at 200 kSPS, and 5.8 mW typical at 250 kSPS on a 5 V supply. In power-down mode, dissipation can drop to roughly 10 µW typical when the serial clock is inactive. These figures indicate a part that scales well with duty-cycled measurement strategies. For portable instruments, wireless sensor nodes, and intermittently sampled process channels, the practical advantage is not just lower average power. It is the ability to keep the precision signal path available without paying a large continuous energy penalty.
That characteristic becomes more valuable when the system samples in bursts. Many sensing platforms do not need constant full-rate conversion. They wake, settle the analog path, collect a block of samples, transmit or process the data, and return to a low-energy state. In that usage model, a converter with low active power and a credible standby mode can materially extend battery life. The ADC161S626 aligns well with that pattern, provided the firmware manages clock inactivity and wake timing cleanly. In field designs, average power is usually determined less by the headline active current than by how effectively the software controls idle intervals and how quickly the analog front end stabilizes after wake-up.
Application fit follows naturally from these traits. In industrial input modules, the differential input and strong CMRR help preserve accuracy when sensors are placed far from the acquisition board or when the local ground is contaminated by switching loads. In portable instruments, the low power and compact 10-pin VSSOP package support dense, battery-powered layouts. In remote sensing nodes, the separate VIO rail simplifies direct attachment to low-voltage digital logic while keeping the analog section at conditions favorable to precision conversion. In bridge-sensor interfaces, the device is a practical option when the signal level is modest and the design needs a compact ADC rather than a full integrated instrumentation front end.
The package choice also reflects the part’s intended role. A 10-pin VSSOP keeps board area low and parasitics manageable, but it also pushes the layout to be disciplined. On high-resolution SAR converters, input routing symmetry, reference bypassing, and return-current control matter more than package size alone. A compact package can help by shortening sensitive traces, yet it can also compress analog and digital routing into the same region if placement is careless. A good implementation usually places the ADC close to the sensor-conditioning stage or driver, keeps the differential pair tightly coupled and balanced, and prevents serial clock edges from crossing beneath the analog input path.
One subtle but important point in the ADC161S626’s positioning is that noise tolerance should not be confused with immunity to poor front-end design. A high-CMRR differential ADC helps reject common-mode disturbance, but only within the limits imposed by source impedance matching, driver bandwidth, reference cleanliness, and sampling charge injection. In practice, mismatch in the source path can convert common-mode interference into differential error before the ADC ever sees it. This is why precision differential measurement chains often succeed or fail on passive component matching and layout symmetry rather than on converter specifications alone. The device gives the system a strong foundation, but extracting its value requires treating the input network as part of the converter.
Viewed against the broader SAR market, the ADC161S626 is best understood as a measurement-grade component for designers who want robust differential sensing without stepping into a more complex signal-chain architecture. It is not trying to be the fastest 16-bit ADC, nor the lowest-voltage one, nor the most integrated. Its differentiation comes from balance: solid throughput, true differential behavior, low power, mixed-voltage interface flexibility, and a package small enough for space-constrained designs. That combination is often more useful than chasing any single extreme specification, because real systems tend to fail at the boundaries between analog accuracy, digital compatibility, noise environment, and power budget. The ADC161S626 addresses those boundaries directly, which is why its positioning remains clear and technically coherent.
ADC161S626 Core Architecture and What It Means for System Designers
ADC161S626 is built around a single-channel SAR core with an integrated sample-and-hold stage, and that choice defines most of its system-level behavior. For design work, SAR is rarely just a converter type on a datasheet. It is a timing model, a power model, and a signal-chain constraint. In the ADC161S626, the SAR approach gives deterministic conversion latency, no pipeline delay, and predictable SPI-framed data movement. That combination is often more valuable than raw speed because it simplifies control-loop timing, synchronized sampling, and firmware scheduling.
The device uses binary 2’s complement output coding, aligned with its differential input structure. This is not just a formatting detail. It reduces software overhead when the signal being measured is naturally bipolar around a mid-condition, such as current across a shunt, bridge sensor imbalance, or amplifier-generated differential swing. In those cases, the digital output maps more directly to the physical quantity, which avoids extra offset translation in downstream processing. That tends to make thresholding, calibration, and digital filtering more straightforward, especially when the signal chain is already modeled as a signed quantity.
At the architectural level, the differential input path is one of the most important design signals the part sends to the system designer. The converter measures a differential voltage from -VREF to +VREF, while each input pin must remain between 0 V and VA. This means the device is not simply a “bipolar-input ADC” in the traditional sense. It is a constrained differential ADC. That distinction matters. The useful signal is the voltage difference between the two inputs, but the common-mode voltage must still be managed carefully so neither pin violates the supply rails. In practice, this tends to reward front-end topologies that deliberately control common-mode level rather than allowing it to drift with sensor or amplifier conditions.
This differential architecture is particularly effective when the measured variable is generated as a small voltage riding on a controlled common-mode node. Current shunts, bridge sensors, isolated amplifier outputs, and fully differential drivers fit this model well. It is less forgiving when a design tries to force an arbitrary bipolar waveform into the input pins without respecting pin-level headroom. A common integration mistake is to validate only the differential amplitude while ignoring absolute pin swing. The result can be subtle distortion or clipping long before the nominal differential range is reached. In bench bring-up, this usually appears first near full-scale transitions or under temperature and supply variation, when common-mode margin shrinks.
The conversion process takes 17 SCLK cycles, with a 600 ns track/acquisition time, over a specified serial clock range of 1 MHz to 5 MHz. The maximum sample rate is 250 kSPS. Those numbers place the ADC161S626 in a useful middle band. It is not intended for very high bandwidth capture, but it is fast enough for many control, sensing, and instrumentation tasks where resolution, repeatability, and power matter more than spectrum span. More importantly, its timing is explicit. SAR converters like this one are easier to integrate into systems that need bounded latency. That is valuable in motor control feedback, power monitoring, and multiplexed sensor polling, where a few uncertain microseconds can be harder to tolerate than a lower sample rate.
The 600 ns acquisition interval deserves more attention than it often gets. In SAR systems, acquisition behavior is where analog design quality becomes visible. During track mode, the internal sampling network must settle to the external input voltage before conversion starts. If the source impedance is too high, or if the driving amplifier cannot recover quickly from the charge kickback of the sampling capacitor, the converter will still return a valid code, but not the correct one. This is one of the recurring reasons why nominal-resolution SAR designs underperform in real hardware. The ADC itself is often blamed first, while the actual issue sits in source settling, reference stability, or layout parasitics.
For that reason, front-end drive design should be treated as part of the converter architecture, not as a separate analog afterthought. A low-impedance differential source, or a properly chosen driver amplifier with short settling time and stable behavior into switched-capacitor loading, will usually determine whether the last few bits are usable. Small series resistors and local input capacitors can help absorb kickback and reduce transient charge injection effects, but they must be chosen with care because they also form an RC network that can lengthen settling time. In practice, the best results usually come from balancing three variables together: source impedance, acquisition window, and the size of any external anti-alias or charge reservoir capacitor. Optimizing only one of them rarely solves the full problem.
The specified 1 MHz to 5 MHz clock range also has practical implications beyond throughput. At the high end, the device reaches its rated sample rate, but digital edge activity and reference loading become more concentrated in time. At the low end, timing relaxes, but conversion energy per sample may not improve in a system-level sense if the rest of the platform remains awake longer. This is why converter selection should not stop at “maximum kSPS.” In low-average-power systems, the better metric is often energy per useful measurement, including SPI traffic, reference settling, and processor service time. The ADC161S626 fits well when measurements are periodic, bounded, and purposeful rather than continuous and oversampled without clear value.
The zero-power track mode with 0-µs wake-up delay is especially relevant in that context. This feature supports aggressive duty cycling without adding a wake-up uncertainty term to the timing budget. In remote data acquisition, portable instruments, and event-driven monitoring nodes, that behavior allows the measurement subsystem to remain mostly dormant and still produce time-aligned samples when needed. The key benefit is not only lower average current. It is also cleaner scheduling. Firmware can initiate a measurement sequence without building in extra guard time for converter recovery, which keeps both timing and power accounting tighter.
This operating style is particularly effective in systems that sample slowly relative to the ADC’s maximum rate. If a design only needs one sample every few milliseconds, keeping the converter fully active between conversions is wasteful. With zero-power track mode, the ADC161S626 can be pulsed into action, clocked through a conversion, and returned to a low-power condition with very little timing friction. In deployed sensor nodes, this tends to shift the dominant power question away from the ADC core itself and toward the surrounding analog chain. Often the reference, input buffer, or sensor excitation current will outweigh converter consumption. That observation matters because it changes optimization priorities. Reducing ADC active time helps, but managing reference architecture and front-end biasing often yields the larger system gain.
Reference handling is another area where architecture directly shapes application success. Because the differential input range spans ±VREF, the reference effectively sets both full-scale sensitivity and code weight. Any noise, drift, or dynamic disturbance on VREF appears as gain error or conversion noise. In SAR designs, the reference is not a passive label. It is a dynamic energy source that must supply charge during bit decisions. A reference that looks accurate in DC conditions but has poor transient behavior can still degrade performance. This is one of the less obvious integration risks in compact layouts, especially when the reference trace is long, poorly decoupled, or shares return current paths with digital switching.
A practical rule is to place the reference network physically and electrically close to the ADC, with low-inductance decoupling and a quiet return path. If the design uses a precision reference IC, its output stability under pulsed load should be checked rather than assumed. If the reference is derived from a broader analog rail, local filtering becomes more important, but filtering alone is not enough if the source impedance remains too high. Stable references for SAR converters are built from both low noise and low dynamic impedance. Missing either characteristic typically shows up as code spread, full-scale instability, or performance that degrades as SCLK increases.
From an application perspective, ADC161S626 fits systems where the signal bandwidth is moderate, the polarity is inherently differential, and the timing budget is firm. Industrial current measurement is a strong example. A shunt develops a small differential voltage, often in the presence of ground noise and switching transients. The ADC’s signed output and differential input range map naturally to this problem, provided the common-mode level is conditioned correctly. Another good fit is bridge-based sensing, where the quantity of interest is already represented as a differential imbalance. In these cases, the converter can often be connected with less signal remapping than a single-ended ADC would require.
It also works well in periodic instrumentation channels where sample timing must line up with an excitation cycle, control loop, or communication frame. Because SAR conversion timing is deterministic, the designer can place sampling instants precisely relative to external events. That is harder to guarantee with architectures that have more internal latency variation or digital filtering delay. In systems that perform synchronous demodulation, pulsed excitation, or phase-aware measurement, this timing clarity is often more useful than headline sample-rate margin.
One important design perspective is that ADC161S626 rewards disciplined analog boundaries. It is capable of accurate conversion, but it does not hide weak front-end design behind architectural averaging or digital post-processing. Delta-sigma converters often tolerate rougher source conditions because internal filtering masks some behavior at the expense of latency. A SAR converter like this one exposes settling quality directly. That is not a weakness. It is a useful property when the system needs immediate, phase-accurate data. But it means the surrounding circuitry must be intentional: controlled impedance, stable reference drive, clean grounding, and careful common-mode management.
In that sense, the part sits in a very practical design space. It offers enough speed for real-time sensing, enough resolution for fine measurement, and low enough power to support duty-cycled operation, but only if the interface between analog source and converter is engineered as a matched system. The most successful implementations usually treat the ADC, reference, driver, and layout as one conversion block rather than four separate components. When approached that way, ADC161S626 becomes less a generic data converter and more a precise timing-aware measurement endpoint for differential signals.
ADC161S626 Key Electrical and Accuracy Specifications
ADC161S626 electrical performance is best understood by separating nominal resolution from usable accuracy. The device is a 16-bit SAR ADC with guaranteed no missing codes, which means the transfer curve remains monotonic across the full code range. In practice, this matters more than the headline resolution alone. A 16-bit converter that occasionally skips codes can destabilize fine control loops, complicate threshold detection, and inject uncertainty into calibration tables. The no-missing-codes guarantee makes the ADC161S626 more predictable in closed-loop regulation, position sensing, and slow-moving precision measurements where each code transition may carry decision weight.
The linearity specifications show that the converter is designed to preserve transfer-function integrity rather than merely advertise raw bit depth. Differential nonlinearity is typically -0.5/+0.8 LSB, with limits of -1 LSB minimum and +2 LSB maximum. Integral nonlinearity is typically ±0.8 LSB and limited to ±2 LSB. These numbers place the device in a class where precision is not just theoretical but system-relevant. DNL determines local code-step behavior, so it influences monotonicity, histogram uniformity, and small-signal fidelity. INL reflects cumulative deviation from the ideal transfer line, so it directly affects absolute measurement accuracy after offset and gain are removed. In many sensor systems, INL becomes the residual error floor once first-order calibration is complete. A converter with low INL therefore reduces the need for high-order correction schemes, lookup tables, or piecewise linear compensation in firmware.
A useful way to interpret these figures is to translate them into design margin. At 16 bits, one LSB corresponds to only a small fraction of full scale, so even sub-LSB nonlinearity can become visible when measuring bridge sensors, current shunts, or precision references. Where the signal chain is already carefully engineered, ADC transfer error often becomes the dominant remaining contributor. This is why the ADC161S626 is a better fit for systems that care about repeatable absolute conversion behavior, not just relative tracking.
Signal-span accuracy is one of the stronger aspects of this device. The specified minimum signal-span accuracy of ±0.003% over -40°C to +85°C indicates that gain stability and end-point behavior remain tightly controlled across industrial temperature conditions. Positive and negative full-scale error are typically -0.003% FS and -0.002% FS, while gain error is typically -0.002% FS positive and -0.0001% FS negative. Gain error drift is only 0.3 ppm/°C. These are unusually useful numbers because they describe how much recalibration effort the system will need after assembly and over life. In many fielded instruments, the expensive part is not achieving initial accuracy on the bench but holding it after thermal cycling, enclosure heating, or seasonal ambient shifts. Low drift at the converter level buys real system simplicity. It allows calibration intervals to be stretched, reduces the value of multi-point thermal compensation, and keeps derived measurements such as pressure, flow, and actuator current from slowly biasing over time.
The more subtle implication is that reference quality becomes the next limiting factor. Once ADC gain drift is pushed this low, the reference source, reference routing, and board thermal gradients start to dominate long-term span behavior. In other words, the converter can only deliver these specifications if the surrounding analog infrastructure does not degrade them. That usually means treating the reference path as a precision analog signal, not as a convenient supply node. Short routing, local decoupling, low-noise reference drive, and thermal symmetry around the reference network are often worth more than another round of digital correction.
Offset performance is also favorable, especially in systems with small DC signals or low-level sensor outputs. Offset error is typically -0.1 mV at VREF = 2.5 V and -0.4 mV at VREF = 5 V, with offset drift of 2.5 µV/°C at VREF = 5 V. Offset is often easier to calibrate out than gain or nonlinearity, but only if it is stable. Low offset drift matters because it determines how often that calibration remains valid. In practical front ends, offset error from amplifiers, sensor bias currents, and grounding asymmetry can overshadow converter offset, but when those are controlled, the ADC no longer becomes the obvious weak point. This is particularly relevant in multiplexed measurement paths, where thermal settling and source impedance changes can create channel-dependent baseline shifts. A converter with low intrinsic offset drift makes those second-order effects easier to isolate and manage.
For precision sensor interfaces, it is important to view offset not as a standalone specification but as part of the entire zero-scale error chain. If the system measures around zero crossing, or if useful information is encoded in small deviations near baseline, a few tens of microvolts of extra drift elsewhere can erase the benefit of a high-resolution converter. Good layout discipline, matched source impedance seen by the input, and quiet ground return paths are often what determines whether the listed offset numbers are actually visible in the assembled hardware.
Dynamic performance shows that the ADC161S626 is not limited to static instrumentation use. With VREF between 4.5 V and 5.5 V, the device achieves typical SNDR of 93.0 dBc, SNR of 93.2 dBc, THD of -106 dBc, and SFDR of 111 dBc, with ENOB reaching 15.2 bits typical. These values are strong for a 16-bit SAR converter and indicate that quantization, thermal noise, and distortion are all kept under control at a level close to the ideal resolution limit. ENOB is especially informative because it collapses several error mechanisms into a single practical metric. A 15.2-bit ENOB means most of the nominal 16-bit range remains usable under dynamic test conditions, which is a good indicator for waveform capture, spectral measurements, and control systems processing non-DC inputs.
The distinction between SNR and SNDR is worth noting. The very small gap between them implies distortion products are already low relative to the noise floor. That is consistent with the strong THD number and suggests the input sampling network and internal capacitor DAC are well behaved when driven correctly. In applications such as vibration monitoring, motor-current analysis, or low-frequency spectral estimation, this matters because harmonic artifacts can easily be mistaken for real signal content. High SFDR is particularly helpful when a small signal must be extracted in the presence of a larger nearby tone, as in mixed-signal control systems or sensor channels exposed to switching interference.
The -3 dB full-power bandwidth of 26 MHz adds another layer of flexibility. It does not mean the converter samples at tens of megahertz, but it does mean the input path can track relatively fast edges and higher-frequency content without immediately collapsing in amplitude. This creates margin when sampling signals with sharp transients, multiplexed channels, or non-sinusoidal waveforms containing significant harmonic energy. In SAR ADCs, bandwidth headroom often translates into easier analog front-end design because the input network can settle more reliably during the acquisition window. That said, bandwidth on paper does not remove the need to manage source impedance. If the driver cannot rapidly charge the sampling capacitor, dynamic linearity will degrade before static specs do. In real designs, this is where many otherwise capable SAR converters appear to underperform.
A recurring pattern with the ADC161S626 is that the published numbers are good enough to shift system attention outward. Once converter linearity, gain drift, and dynamic noise are all tightly controlled, the dominant errors usually come from reference noise, driver settling, source impedance mismatch, and board-level thermal behavior. This is a useful sign. It means the ADC is unlikely to be the first bottleneck in a well-built measurement chain. For precision DC systems, the converter supports low calibration overhead and strong temperature consistency. For dynamic or mixed-signal environments, it offers enough spectral purity and effective resolution to preserve meaningful signal detail without forcing an overly complex interface.
From an engineering selection standpoint, the ADC161S626 is most compelling when the design requires both precision transfer accuracy and credible AC performance in the same device. Some converters look strong in static datasheet tables but lose appeal when distortion and ENOB are examined. Others handle dynamic signals well but impose more offset or gain drift than precision sensing can tolerate. This device sits in a balanced middle ground. It is well suited for industrial data acquisition, precision sensor modules, calibrated control nodes, and measurement subsystems where the converter must remain trustworthy across temperature, time, and signal type. The main design implication is straightforward: if the surrounding analog path is treated with equal discipline, the ADC161S626 can deliver performance that remains close to its datasheet character in deployed hardware.
ADC161S626 Input Structure, Reference Requirements, and Common-Mode Behavior
The ADC161S626 is built around a true differential input stage, and that detail drives most of its system-level behavior. The converter senses the voltage difference between +IN and -IN, not either node in isolation. Its usable differential input range is set directly by the external reference, so the converter accepts a differential signal from -VREF to +VREF. At the same time, each physical input pin is constrained to remain within the analog supply rails, from 0 V to VA. This dual requirement is easy to overlook: the differential signal may be centered anywhere within the allowed common-mode range, but neither input is allowed to violate the single-ended pin limits.
That input model is particularly effective when the signal of interest is small and rides on a larger common-mode level. Bridge sensors, shunt monitors with level shifting, pressure transducers, and low-level instrumentation outputs often behave this way. In these cases, the ADC does not need the signal to be ground-referenced. It only needs the difference between the two input nodes to stay within ±VREF while both pins remain inside 0 V to VA. This gives useful freedom in front-end design. A sensor can sit on a bias point chosen for linearity, headroom, or cable tolerance, while the converter still resolves the small differential component.
The specified 85 dB common-mode rejection ratio is one of the more practical parameters in this device. It indicates that common-mode disturbances appearing similarly on both inputs are strongly attenuated in the conversion result. In mixed-signal boards, that matters more than idealized differential range numbers. Digital edge currents, ground bounce, PWM activity, and external EMI rarely couple as purely differential errors. They usually arrive first as common-mode motion on both sensor lines. A high CMRR does not eliminate the need for routing discipline, but it substantially reduces the penalty of imperfect environments. In practice, this tends to show up as more stable codes when long sensor leads run near clock lines or switching nodes, provided the pair remains reasonably balanced.
The common-mode range from 0 V to VA is broad enough to simplify many signal-conditioning topologies. It allows the differential pair to be biased near ground, mid-supply, or close to the upper analog rail, as long as adequate margin is preserved for signal swing. That flexibility is useful in single-supply systems where level shifting would otherwise consume amplifier headroom or add offset error. For motor current sensing, instrumentation channels, and medically oriented low-level acquisition paths, the ability to place the signal where the front end operates best often reduces analog complexity. It also makes the converter easier to pair with rail-to-rail amplifiers or sensor outputs that cannot center naturally around half-scale.
The external reference is not just a support component; it defines the transfer scale of the converter. Because the ADC maps differential input directly against VREF, any reference error appears immediately as gain error in the digitized result. If the reference drifts with temperature, the full-scale span drifts with it. If the reference carries broadband or low-frequency noise, that noise is effectively injected into the conversion scaling. For that reason, reference selection should be treated as part of the measurement chain, not as a power detail. The device supports reference voltages from 0.5 V up to VA, while performance is ensured over 2.5 V to 5.5 V. That distinction matters. Operation may be possible across the wider range, but the guaranteed accuracy envelope is tied to the narrower one. Designs intended for repeatable precision should stay inside the guaranteed region unless the error budget has been explicitly verified.
A useful engineering way to view VREF is as a tradeoff knob between range and resolution per volt. A larger reference expands allowable differential input span but increases volts per LSB. A smaller reference compresses span and improves nominal sensitivity to small signals, but only if noise, offset, and source settling are controlled tightly enough to exploit it. In low-level sensor systems, reducing VREF can look attractive on paper, yet the practical result may be worse if the front end, layout, or reference noise floor does not scale with it. The converter can only resolve what the surrounding analog path preserves.
The input current characteristics make the ADC161S626 relatively easy to interface, but not carefree. With CS high, analog input current is specified at only ±1 µA. Under operating conditions such as VREF = 5 V and VIN = 0 V, the typical input current is 3.2 nA at 50 kSPS and 10.3 nA at 200 kSPS. These values are low enough that static input loading is rarely the limiting factor for most sensors or amplifier outputs. The more consequential parameter is the switched-capacitor nature of the input. Each analog input presents about 20 pF in acquisition mode and 4 pF in conversion mode. That means the source does not merely drive a DC input resistance; it must repeatedly charge and settle a dynamic capacitive load.
This is where many front ends pass bench checks at low sample rates but lose linearity as throughput rises. The acquisition interval is only 600 ns, and settling to 16-bit accuracy is demanding. A signal path that appears stable at the oscilloscope level may still be several LSBs short of final value when the sample is taken. High source impedance, weak amplifier output current, series filtering that is too aggressive, or poorly chosen RC anti-alias networks can all create this problem. In precision systems, the question is not whether the input eventually settles, but whether it settles within the acquisition window under worst-case step size, temperature, and reference conditions.
For that reason, source design should begin with dynamic settling analysis rather than static input current numbers. If the ADC is driven directly from a sensor, the sensor’s output impedance must be low enough across frequency to charge the sampling capacitance quickly. If an amplifier is used, it should have sufficient bandwidth, phase margin, and output drive to remain stable into the ADC’s switched input behavior. A small series resistor can help isolate amplifier ringing, but if it is too large, it forms an RC time constant with the input capacitance that erodes settling margin. A local charge reservoir capacitor near the ADC inputs often improves behavior, but only when the driver can refresh that capacitor cleanly between samples. This is one of those interfaces where “works” and “meets 16-bit performance” are not the same condition.
The differential architecture also rewards symmetrical layout and impedance matching. Since common-mode rejection depends on both internal converter behavior and external balance, routing +IN and -IN as a tightly coupled pair usually improves real-world immunity. Mismatched trace impedance, asymmetrical RC filters, or unequal coupling into the two lines can convert common-mode interference into differential error before the ADC ever sees it. The 85 dB CMRR specification is best treated as a ceiling achievable by a balanced front end, not as a blanket guarantee under arbitrary layout. In boards carrying fast serial clocks or switching power stages, keeping the differential pair compact and away from high dV/dt nodes typically has a larger effect than adding post-facto filtering.
Reference routing deserves the same level of discipline. Since VREF defines conversion scale instant by instant, its bypassing and return path must be quiet and low impedance. A reference with excellent DC accuracy can still produce disappointing conversion results if its local decoupling is weak or if digital return currents modulate its ground potential. Placing the reference source close to the ADC, using dedicated decoupling, and preventing shared high-current return paths usually yields a larger improvement than chasing marginal ppm-grade reference specifications alone. In moderately noisy systems, reference integrity often sets the floor for repeatability.
At the application level, the ADC161S626 fits best where the signal is inherently differential, the common-mode level is not fixed at ground, and board space or power budget favors a compact SAR solution over a larger instrumentation chain. In bridge-based sensing, it can digitize the bridge imbalance directly while tolerating the bridge excitation common-mode level. In current-sense paths, it can observe small voltage differences superimposed on a bias point chosen by the analog front end. In isolated or cable-connected transducer systems, its differential input and strong common-mode rejection reduce sensitivity to external pickup when the line pair is routed and filtered coherently.
The key design mindset is to treat the converter as a precision differential sampler, not as a generic high-impedance input. Differential range, pin voltage limits, reference quality, and acquisition settling all interact. When those four are aligned, the ADC161S626 is straightforward to integrate and delivers robust performance in noisy mixed-signal environments. When one is handled casually, the resulting error often looks random at first, even though the root cause is usually deterministic: incomplete settling, reference contamination, or common-mode imbalance converted into differential error.
ADC161S626 Power Supplies, Power Consumption, and Low-Power Operating Strategy
ADC161S626 power behavior is shaped by a design choice that is more useful in practice than it first appears: the analog core supply and the digital interface supply are separated. VA powers the converter’s precision analog path and must stay between 4.5 V and 5.5 V. VIO powers the serial interface and can range independently from 2.7 V to 5.5 V. This split allows the device to preserve full analog performance on a clean 5 V domain while interfacing directly with lower-voltage controllers or logic fabric. In mixed-voltage systems, that removes the need for external level shifting, reduces interface complexity, and avoids the timing uncertainty and extra current that level translators often introduce on SPI lines.
From an engineering standpoint, the independent VIO rail is not only a convenience feature. It is a system partitioning tool. The analog section can remain referenced to the supply level that supports the converter’s linearity and full input range, while the digital section can be tied to the logic domain that minimizes board-level integration cost. This is especially valuable when the ADC sits near a sensor front end powered from 5 V, but the host processor operates at 3.3 V. The result is a cleaner power architecture with fewer compromises between analog fidelity and digital compatibility.
The device’s active current profile is modest for a 16-bit differential SAR converter. In conversion mode, the analog supply current is typically 1060 µA at 200 kSPS with a 4 MHz serial clock, rising to about 1160 µA at 250 kSPS with a 5 MHz clock. The digital I/O current remains comparatively small, typically 80 µA at 200 kSPS and 100 µA at 250 kSPS when VIO is 3 V. Reference current is also controlled, typically 80 µA at 200 kSPS and 100 µA typical at 250 kSPS, with a 170 µA maximum at the higher rate.
These numbers reveal how the converter actually consumes energy. Most of the current is drawn by the analog conversion engine, not by digital switching. That distinction matters when optimizing the platform. If average power is too high, reducing SPI edge activity or lowering VIO may help at the margins, but the strongest lever is usually throughput management. In other words, this ADC rewards duty-cycled operation more than aggressive digital trimming. The energy cost is tied primarily to how often conversions occur and how long the analog core remains active.
That behavior is reflected in the published power figures. With VA = 5 V, total power is listed at 5.3 mW at 200 kSPS and 5.8 mW typical, 6.7 mW maximum, at 250 kSPS. At lower sample rates, power drops sharply; at 10 kSPS and 5 V, the datasheet cites only 0.24 mW. This scaling is important because it shows that the ADC161S626 is not simply “low power” in a static sense. It is more accurately a converter whose average power can be shaped by the sampling schedule. For many embedded measurement systems, that is the more useful characteristic.
The mechanism behind this is straightforward. SAR converters consume energy in bursts associated with acquisition, internal comparison cycles, and data transfer. If the application does not require continuous high-rate sampling, the converter does not need to sit in its highest activity state. When the interval between measurements grows, the average current collapses accordingly. In systems that wake briefly, sample, transmit data, and return to idle, this conversion-driven power profile maps very well onto the rest of the platform’s energy budget.
The power-down behavior strengthens that advantage. When CS is held high, the ADC161S626 enters a low-power state. With no clock activity, analog supply current can fall to about 2 to 3 µA typical, digital I/O supply current to roughly 0.3 to 0.5 µA typical, and reference current to about 0.5 to 0.7 µA typical. Total power-down power is typically only 10 to 15 µW without clock activity. Even with a 5 MHz clock present, power-down dissipation is only around 35 µW at 5 V.
This detail is often underestimated: low-power mode is only fully effective when the interface is also quiet. Leaving the clock running during deselection may appear harmless because conversions are paused, but it still injects avoidable switching activity into the digital domain and raises standby power. On densely packed boards, it can also couple noise into nearby analog nodes. A cleaner strategy is to gate both chip select and serial clock whenever fresh data is not required. That approach improves both energy efficiency and analog cleanliness with almost no firmware cost.
For battery-powered equipment, the practical implication is that average power depends far more on duty cycle than on peak conversion current. If the system samples once every few milliseconds or once per second, the ADC can remain in power-down for most of its operating life and wake only for a short acquisition-and-read window. The active power then becomes a brief pulse superimposed on an otherwise very low baseline. In portable instruments, remote data loggers, and sensor nodes, this operating pattern is often the difference between a design that merely functions and one that meets battery life targets with margin.
A useful way to think about this device is to separate three design regimes. In continuous monitoring mode, the ADC runs near its rated throughput, and thermal stability, reference quality, and SPI timing dominate performance. In burst-sampling mode, the transition energy between idle and active states becomes relevant, so the firmware should batch measurements efficiently rather than waking the ADC too frequently for single isolated samples. In low-duty-cycle sensing, leakage paths around the ADC can easily exceed the converter’s own standby draw, so board-level choices such as reference buffering, resistor divider sizing, and pull-up values become more important than the ADC datasheet current alone.
Reference current deserves special attention in this context. Because the reference pin is part of the converter’s precision signal path, its current is not just another supply number. It influences the external reference design, decoupling strategy, and wake-up behavior. A weak or slow-settling reference source can erase the benefits of low ADC power by forcing longer stabilization delays before valid conversions can begin. In practice, a low-noise reference with fast dynamic settling often produces a better energy outcome than an ultra-low-quiescent reference that recovers sluggishly after idle intervals. The best low-power design is therefore not always the one with the smallest static current on paper, but the one with the shortest clean path from standby to accurate data.
Supply isolation also affects measured results. Since VA carries the analog conversion load and VIO carries interface switching, each rail should be decoupled according to its role. VA benefits from local, low-impedance bypassing and a routing strategy that minimizes shared return current with digital signals. VIO is less sensitive from an accuracy perspective, but poor digital return routing can still inject edge noise into the analog ground structure. On mixed-signal layouts, the separate supplies are most effective when the board actually respects that separation. Simply tying both rails together at the source gives up part of the architectural benefit.
In field designs, one recurring lesson is that low ADC power does not automatically produce a low-power measurement subsystem. Front-end amplifiers, sensor bias networks, and reference circuits frequently dominate the energy budget once the converter enters duty-cycled operation. The ADC161S626 makes this visible because its standby consumption is already very low. That shifts optimization effort upstream. If the sensor interface remains permanently biased while the ADC sleeps, most of the potential gain is lost. The strongest results come from coordinating the ADC power state with the entire signal chain, including sensor excitation, reference enable, and host wake timing.
The device is therefore well suited to systems that need precision without paying a constant energy penalty. Its separated VA and VIO rails simplify mixed-voltage integration. Its active power is low for a 16-bit differential converter. Its standby current is low enough to support aggressive duty cycling. Most importantly, its power characteristics are predictable and scalable, which makes it easier to model battery life and allocate energy across the full acquisition chain. When used with disciplined clock gating, a fast-settling reference, and a front end designed for synchronized wake-sleep behavior, the ADC161S626 fits naturally into efficient measurement architectures that prioritize average power without surrendering resolution.
ADC161S626 Digital Interface, Timing, and Controller Compatibility
The ADC161S626 uses a compact 3-wire serial interface built around CS, SCLK, and DOUT. At the electrical and protocol level, this interface aligns well with SPI, QSPI, and MICROWIRE timing styles, which makes controller integration unusually low-friction. Most MCU SPI peripherals can drive it directly. DSP serial ports configured for synchronous receive also fit cleanly. In FPGA designs, the interface is simple enough to implement either with a vendor SPI IP block or with a small custom state machine when tighter timing control is needed.
The digital behavior is simple, but it is not trivial. The converter streams data out in binary two’s complement format, which is a strong design choice for differential measurement systems. Zero differential input maps naturally around code zero. Positive and negative excursions are represented symmetrically without the translation overhead required by straight binary coding. In control loops, current shunt measurement, bridge sensors, or bipolar signal chains, this reduces firmware post-processing and often eliminates avoidable sign-handling mistakes. That matters more than it first appears, because digital interface simplicity is not only about pin count. It is also about how naturally the data representation fits the physics of the signal being measured.
From a timing perspective, the device is best understood as a converter with a tightly bounded serial transaction window. It requires 17 SCLK cycles to complete the conversion and hold sequence, while acquisition occurs during the track interval. In practice, system designers usually budget around a 20-clock frame because that maps more cleanly onto common SPI hardware and aligns with the effective throughput relationship. This is why the maximum sample rate is often treated as SCLK/20. At the 5 MHz maximum serial clock, the device reaches its full 250 kSPS operating rate. At the 1 MHz minimum clock, throughput drops accordingly, which is useful in lower-bandwidth systems but must still respect analog settling and latency expectations.
The key timing numbers define whether a controller can sample the output data reliably without adding guard delays. CS setup time before an SCLK rising edge is 3 ns minimum. CS hold time after an SCLK rising edge is 3 ns minimum, with 6 ns typical and 11 ns maximum noted in the specification context. DOUT becomes valid after the falling edge of SCLK with an access time of 18 ns minimum and 41 ns maximum, and it remains held for at least 3 ns after that falling edge. DOUT enable after the second falling edge of SCLK ranges from 20 ns minimum to 70 ns maximum. DOUT disable after CS rises is 20 ns minimum to 30 ns maximum. These values are not difficult to meet in most embedded systems, but they do shape how the SPI mode should be selected and how much margin exists at the top end of clock rate.
The most robust way to interpret these numbers is to design around where the data is launched and where the controller samples it. Since DOUT timing is referenced to the falling edge of SCLK, the receiving side should normally sample on the opposite edge to maximize setup margin. In practical controller terms, this often points to an SPI configuration where the host captures data on the rising edge and shifts timing so that the ADC has enough time to present a stable bit after each falling edge. The exact SPI mode naming depends on the controller vendor, which is why relying only on CPOL/CPHA labels can be misleading. Edge-level reasoning is safer than mode-name reasoning. That small discipline prevents a large share of bring-up issues.
Controller compatibility is helped further by the VIO-referenced input thresholds. Logic high is recognized at 0.7 × VIO minimum, and logic low at 0.3 × VIO maximum. With VIO allowed from 2.7 V to 5.5 V, the ADC can align directly with a broad set of digital domains. This often removes the need for level translation when paired with 3.3 V logic and many 5 V-tolerant environments. The practical constraint is that logic compatibility should be validated against real threshold margins, not just nominal rail values. Some mixed-voltage systems look compatible on paper but lose noise margin after accounting for trace ringing, supply droop, and weak edge rates. In compact boards or cable-connected modules, that margin check is worth doing early.
For firmware scheduling, the device is easy to place into a deterministic sampling loop. The conversion cadence follows the serial clock, so throughput estimation is direct. If the host can sustain a clean 5 MHz SCLK and issue frames without gaps, the converter can run at 250 kSPS. That makes timing analysis easier than with converters that require a separate conversion-start pulse, variable busy intervals, or asynchronous data-ready handling. In real firmware, the cleanest implementation is usually DMA-driven SPI with CS controlled either by hardware framing or by a timer-synchronized GPIO. This keeps sample spacing uniform and reduces interrupt jitter. Uniform spacing matters because timing variation at the digital interface often reappears as spectral spreading or measurement inconsistency once data is processed downstream.
In FPGA-based designs, the interface is even more predictable. A small finite-state machine can assert CS, generate exactly the required clock count, and register DOUT on the proper edge. That approach gives full visibility into bit alignment and frame timing, which is useful when the ADC output must feed filtering, decimation, or control logic with fixed-cycle latency. It also avoids a common integration trap: generic SPI masters are often optimized for byte-oriented transfers, while this ADC’s framing is better treated as a converter transaction rather than a standard 8-bit peripheral exchange. Designing to the converter’s timing model instead of forcing it into a byte-centric abstraction usually produces cleaner logic and simpler verification.
The 17-clock conversion requirement also has implications for analog behavior. Acquisition occurs during the track interval, so the source driving the ADC inputs must settle sufficiently within that available window. This is where digital and analog integration stop being separable topics. A controller may satisfy every serial timing parameter and still deliver poor measurement quality if the input source impedance is too high or the front-end amplifier cannot recover between samples. In high-throughput operation, the serial clock effectively defines not only data movement but also the analog sampling rhythm. That coupling is easy to underestimate during schematic review and becomes obvious only during dynamic testing.
A practical pattern is to validate the interface in three layers. First, verify static communication: CS framing, clock polarity and phase, and correct bit ordering. Second, verify timing margin at the target SCLK with a scope or logic analyzer, paying attention to DOUT validity relative to the receiver’s sampling edge. Third, verify measurement integrity under realistic input conditions, especially near full sample rate. This staged approach catches the silent failures that digital-only validation misses, such as one-bit shifts, intermittent metastability at temperature corners, or analog droop that appears to be a protocol issue at first glance.
Another useful design habit is to leave margin below the 5 MHz SCLK ceiling unless the application truly needs maximum throughput. Running slightly slower often improves interoperability across process, voltage, and temperature variation and reduces sensitivity to routing quality. The gain is not just electrical margin. It also simplifies timing closure inside the controller, especially when SPI traffic shares resources with other real-time tasks. A nominally faster interface is not always a better system choice if it increases scheduling jitter or makes board-level signal integrity harder to control.
The ADC161S626 is therefore easy to integrate not because it has a minimal interface alone, but because its serial behavior is deterministic, its output coding matches bipolar measurement use cases, and its timing can be reasoned about directly from edge relationships. When paired with a controller that can generate a stable clock and sample on the correct edge, it drops into embedded systems with little overhead. The strongest implementations treat the device as a timed measurement engine rather than just another SPI peripheral. That view naturally leads to better clocking, cleaner framing, and fewer surprises at full-rate operation.
ADC161S626 Package, Pinout, and Integration Details

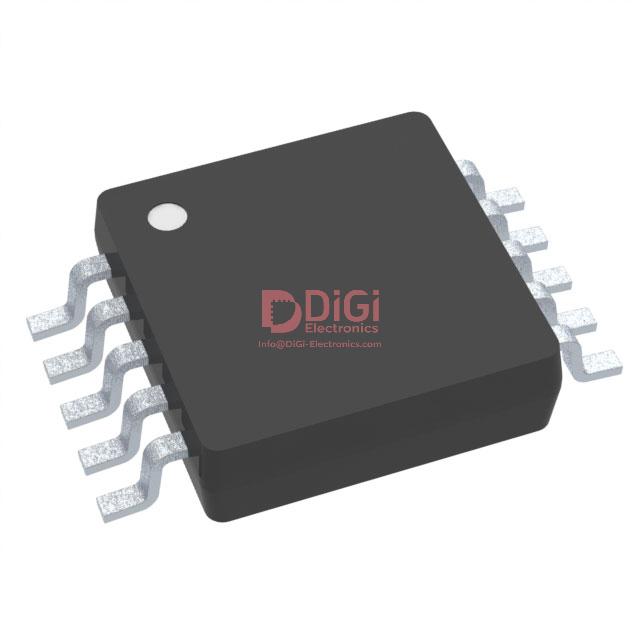

The ADC161S626 is housed in a 10-lead VSSOP package identified as DGS, with a nominal body size of 3.00 mm × 3.00 mm. This compact outline is not just a mechanical convenience. It directly affects routing density, analog path length, and overall signal integrity in space-limited systems. In portable instrumentation, dense sensor front ends, and multi-channel control boards, the package size allows the converter to be placed close to the signal source, which is often more valuable than the area saving alone. Shorter analog traces reduce exposure to coupled digital noise, lower parasitic pickup, and make input filtering more predictable. In practice, this package works best when placement is treated as part of the analog design rather than a late-stage PCB constraint.
The pin arrangement is optimized for mixed-signal integration with relatively clean physical separation between analog and digital functions. Pin 1 is VREF. Pins 2 and 3 are +IN and -IN. Pins 4 and 5 are GND. Pin 6 is CS. Pin 7 is DOUT. Pin 8 is SCLK. Pin 9 is VIO. Pin 10 is VA. This ordering supports a natural left-to-right partition between the analog acquisition side and the digital interface side. That matters because layout quality in small SAR ADC designs is usually limited less by schematic correctness and more by return-current control and capacitive coupling across adjacent nets.
VREF at pin 1 deserves careful treatment because it defines the converter’s measurement scale and directly influences gain accuracy and noise floor. The reference node should be driven from a low-noise source with tight local decoupling to ground. A short connection from the reference capacitor to the pin and to the ground return is preferable to a visually tidy but electrically longer route. In compact boards, reference instability often appears before obvious analog input issues do, especially when the digital clock edge rate is high relative to the board size.
The differential input pins, +IN and -IN, allow the device to reject a portion of common-mode disturbance when the surrounding signal chain is designed correctly. However, the benefit is not automatic. Differential routing should maintain symmetry in impedance and parasitics, especially if the source is remote or bandwidth is nontrivial. If one side of the pair sees a different RC environment than the other, dynamic conversion error can increase even when static DC tests look acceptable. A practical pattern is to place any anti-alias or charge-kickback isolation network directly adjacent to the input pins so the ADC sees a controlled source impedance during sampling.
The two ground pins are a useful feature for such a small package. They reduce ground lead impedance and help stabilize both analog sampling currents and digital return currents. Even so, simply tying both pins into a generic ground pour is not enough in high-resolution layouts. The ground region under and around the ADC should be quiet, continuous, and free from fast digital current loops. A common failure mode in dense boards is allowing serial clock return current to share the same narrow ground path used by the reference bypass capacitor. The schematic remains correct, but conversion repeatability degrades under interface activity. The dual-ground-pin structure gives some margin, but only if the PCB preserves a low-inductance return path.
The digital interface pins are grouped on the opposite side: CS, DOUT, SCLK, and VIO. This grouping simplifies routing to a host MCU or FPGA and helps keep digital traces away from sensitive analog nodes. SCLK is usually the dominant aggressor because of its periodic edges and direct relationship to conversion timing. Routing it with controlled length, avoiding unnecessary via transitions, and keeping it away from VREF and the input pair pays off immediately in cleaner codes. DOUT is less problematic but can still inject switching noise through package parasitics if the receiving logic is heavily loaded or routed over split return paths.
VIO is particularly important for integration flexibility. It allows the digital I/O level to match the host logic domain without forcing the analog supply to the same voltage. This is useful in systems where the ADC front end operates from one supply regime while the controller runs at a lower digital core-compatible interface level. The practical advantage is not only compatibility. It also reduces the temptation to use level-shifting components on the serial bus, which would otherwise add propagation uncertainty, edge distortion, and additional sources of EMI near the converter.
VA, the analog supply pin, should be isolated from noisy shared rails as much as the board budget allows. A dedicated local decoupling capacitor placed very close to VA and referenced into the same quiet ground region as VREF is the baseline requirement. Where the main supply is noisy, a ferrite bead or small isolation resistor can help, but only if the resulting impedance does not create a resonant supply node with the bypass network. In low-power SAR ADC layouts, power filtering is often most effective when it is critically simple: one well-chosen high-frequency capacitor, one local bulk capacitor if needed, and a short current loop.
From a thermal standpoint, the DGS package is specified with a junction-to-ambient thermal resistance of 163 °C/W, junction-to-case-top thermal resistance of 57 °C/W, and junction-to-board thermal resistance of 82 °C/W. For a low-power converter, these figures are rarely the primary design constraint, but they should not be ignored. In tightly packed modules with nearby processors, radios, power stages, or enclosed housings, local board temperature can rise enough to shift the ADC’s operating point and reference behavior. The more relevant engineering issue is usually thermal gradient, not absolute self-heating. If the reference source, input network, and converter body sit across different heat zones, small but measurable offset and gain drift can appear across warm-up time. Placing the ADC away from hot switching components and giving the surrounding copper some thermal uniformity generally improves repeatability more than focusing on package dissipation alone.
The specified operating temperature range of -40°C to +85°C positions the ADC161S626 well for industrial control, distributed sensing, and field-installed instrumentation. Within that range, successful deployment depends on more than the converter rating itself. Input source impedance, reference drift, PCB dielectric behavior, and connector contamination all become more visible at the edges of temperature. Designs that perform well on the bench at room temperature can show unexpected code spread in cold startup or elevated ambient conditions if the analog source cannot settle cleanly into the ADC sampling network. For this reason, it is usually worth validating dynamic input settling and reference stability across temperature rather than relying only on static transfer measurements.
ESD robustness is rated at ±2500 V for the human body model, ±1250 V for the charged-device model, and 250 V for the machine model. These numbers are useful for manufacturing control, handling discipline, and assessing how much external protection may be needed at the system level. They should not be interpreted as a substitute for board-level protection on exposed signal paths. If the analog input or digital interface reaches a connector or cable, transient suppression and current-limiting strategy should be evaluated separately. A recurring integration issue is adding aggressive TVS protection directly at the ADC input without considering leakage, capacitance, and distortion. Protection works best when it is partitioned: robust suppression at the external entry point, then a quieter conditioning stage near the converter.
In board integration, the package and pinout naturally support a three-zone placement strategy. The first zone is the signal acquisition area around +IN, -IN, VREF, and the local passive network. The second is the conversion support area around VA, decoupling, and the quiet ground return. The third is the serial interface escape around CS, SCLK, DOUT, and VIO. When these zones are physically respected, routing decisions become simpler and performance becomes more consistent across PCB revisions. This matters because with compact SAR ADCs, layout-derived error often dominates over nominal device specifications.
A useful design habit with the ADC161S626 is to treat the package orientation as part of the signal chain architecture. Rotate the device so the analog pins face the source circuitry and the digital pins face the controller, even if that slightly complicates mechanical symmetry. This small decision often eliminates crossover traces, reduces reference loop area, and prevents digital return currents from passing through the analog section. The package is small enough that these placement choices have disproportionate impact.
For assembly and procurement flows, the combination of compact VSSOP packaging, industrial temperature capability, and defined ESD limits makes the ADC161S626 straightforward to deploy in production, but only when manufacturing assumptions align with electrical intent. Fine-pitch packages benefit from controlled stencil design, stable reflow profiles, and inspection criteria that account for solder fillet visibility limitations. Electrically, post-assembly validation should include not just continuity and SPI communication, but also a quick noise and code-stability check with the intended reference and clock source. In mixed-signal products, that short validation step often reveals integration weaknesses much earlier than full functional testing.
Overall, the ADC161S626 package and pinout are well suited to compact precision acquisition systems, but the real advantage appears only when the mechanical, electrical, and layout aspects are handled as one design problem. The device gives enough pin-level separation to build a clean mixed-signal boundary. The board must preserve that separation. When it does, the small package becomes an enabler of accuracy rather than a constraint on it.
ADC161S626 Typical Application Scenarios and Engineering Value
Texas Instruments positions the ADC161S626 across direct sensor interfaces, industrial I/O, data acquisition, portable equipment, motor-control-adjacent measurement paths, medical electronics, and general instrumentation. That positioning is not marketing breadth alone. It follows directly from the converter’s electrical behavior: a 16-bit differential SAR architecture, strong common-mode rejection, low drift, and a power profile that supports intermittent operation without a timing penalty on restart. The device is most valuable where signal integrity is shaped as much by the installation environment as by nominal ADC resolution.
At the architectural level, the ADC161S626 solves a specific class of measurement problem: extracting a relatively small differential signal riding on top of a non-ideal common-mode environment. In many real systems, the signal source is not referenced cleanly to the ADC ground. Cable resistance, ground offsets, EMI coupling, and switching transients shift the apparent baseline seen at the converter input. A single-ended ADC often forces this problem back into the analog front end, requiring additional amplification, filtering, or level shifting. A differential-input SAR converter with high CMRR changes that balance. It allows the design to preserve the signal in its native form longer, which usually reduces front-end complexity and lowers the number of analog error sources introduced before digitization.
This is where the ADC161S626 delivers engineering value beyond raw resolution. Sixteen bits are only useful if the converter can maintain code stability when the common-mode voltage moves, when the source impedance is not perfectly matched, and when the ambient temperature drifts over time. The practical advantage of this device is that it improves the ratio between useful system resolution and analog design effort. In other words, it can reduce the amount of circuitry needed to make 16-bit performance believable in deployed hardware.
Direct sensor interfaces are the clearest example. Bridge sensors, pressure transducers, strain gauges, and some current-shunt or inductive measurement elements often produce low-level differential outputs with shared interference on both lines. With the ADC161S626, the differential input path and common-mode tolerance allow the sensor signal to be digitized with less dependence on a precision instrumentation amplifier in front of the converter, or at least with a simpler gain stage. That does not eliminate the need for front-end care, but it shifts the optimization target. Instead of spending most of the effort on rejecting ground noise and common-mode contamination in analog circuitry, the design can focus on gain setting, anti-alias filtering, and source settling.
In practice, this becomes especially useful when the sensor is physically separated from the acquisition board. A balanced sensor pair routed over cable will inevitably collect coupled noise. If the routing remains symmetric and the input network is matched, much of that interference appears as common mode. Under those conditions, the ADC’s CMRR turns directly into measurement robustness. A recurring design pattern is to place modest RC filtering at each input, keep impedance seen by both differential pins closely matched, and let the converter reject the residual shared noise. That approach often performs better than trying to “fix” a noisy line with aggressive single-ended filtering after the fact.
Industrial I/O modules and remote acquisition nodes expose the device’s strengths even more clearly. These systems operate in electrically hostile spaces: long harnesses, multiple grounding domains, PLC switching edges, relay transients, motor drives, and digital backplanes all interact. In such environments, the stated 85 dB CMRR is not a secondary parameter. It is one of the main reasons the converter remains accurate outside the lab. A wide common-mode input range further helps because field signals do not always sit at an ideal reference potential. Small ground offsets between sensor and controller are normal, and a converter that tolerates this gracefully reduces the need for elaborate isolation or signal conditioning in every channel.
There is also a practical board-level implication. In multi-channel industrial modules, channel density often competes with front-end complexity. If each measurement channel requires a heavy analog conditioning chain, PCB area, cost, and thermal drift all increase together. A differential SAR ADC that can accept more realistic input conditions enables a leaner per-channel implementation. Over a large channel count, that simplification matters more than a small improvement in headline converter specs. The better engineering trade is often not the highest theoretical dynamic performance, but the architecture that preserves accuracy with fewer external dependencies.
For data acquisition equipment, the ADC161S626 fits applications where deterministic conversion behavior is more important than very high throughput. SAR converters are attractive because of their low latency and straightforward timing model. That is useful in closed-loop logging, synchronized measurements, and triggered capture systems where the designer wants the digital result to correspond tightly to a known sampling instant. Differential input support extends that advantage to low-level analog sources that are not ground-clean. In measurement systems that combine voltage, current, bridge, and transducer channels, this can reduce the number of converter variants needed across the design.
A subtle but important point in DAQ design is that converter performance is often limited by input drive quality rather than the converter core itself. The ADC161S626 rewards careful source design. If the driver network can settle fully within the acquisition interval and if the differential source impedance is balanced, the resulting linearity and noise performance are much easier to preserve. Conversely, if one input sees a different RC constant than the other, common-mode disturbances can be partially converted into differential error. This is one of the less obvious failure modes in fielded precision systems. The converter’s differential capability is powerful, but it assumes symmetry in the surrounding network. Good results usually come from treating the input path as a matched pair rather than as two independent lines.
Portable systems benefit from a different aspect of the device: energy proportionality. Many battery-powered instruments do not sample continuously. They wake, acquire a result, process locally, and return to a low-power state. In that regime, low power-down dissipation and zero-delay wake-up are more valuable than a marginal reduction in active current alone. A converter that resumes operation without a startup latency penalty simplifies firmware scheduling and allows tight duty-cycling windows. This improves not only battery life but also measurement determinism, because the acquisition sequence does not need extra guard time to accommodate analog warm-up.
That behavior is especially useful in handheld diagnostics, portable environmental meters, and embedded health-monitoring nodes. These systems often combine sparse sampling with bursty digital activity from displays, radios, or host processors. If the ADC can wake, convert, and sleep before the rest of the system becomes electrically noisy, the effective measurement floor improves. This operating style is often more productive than chasing ultra-low-noise performance while keeping the entire analog section continuously powered.
Medical instruments and instrumentation systems map well to the ADC161S626 because long-term stability is often more important than peak speed. Low offset drift and low gain drift reduce the amount of calibration correction required over temperature and over service life. In systems that measure slowly varying physiological, chemical, or process variables, drift becomes a first-order usability parameter. A converter that stays aligned reduces maintenance overhead and helps preserve confidence in trend data. This matters because small gain movement accumulated over months can be more damaging than occasional random noise, particularly when decisions rely on absolute value consistency rather than relative short-term changes.
The same logic applies in control and instrumentation platforms. When a measurement channel feeds a supervisory loop, threshold detector, or compensation algorithm, repeatability over temperature is often the true requirement. An ADC with stable offset and gain behavior reduces software compensation burden and lowers the chance that recalibration intervals become operationally inconvenient. It also makes factory calibration more transferable to field conditions. This is one of the less visible forms of engineering value: not a dramatic specification, but a reduction in lifecycle friction.
Motor control is slightly more nuanced. The ADC161S626 is not a high-speed current-loop converter intended for the innermost commutation path in fast control systems. Its value is stronger in support measurements around the motor system: differential current sensing, bus monitoring in noisy environments, thermal channels, torque-related transducers, or condition-monitoring signals. Near inverters and switching stages, common-mode disturbance is severe. Differential acquisition with strong CMRR can preserve low-level analog observability where single-ended approaches become fragile. This makes the device well suited to monitoring and diagnostic layers around power electronics, where accuracy and noise immunity matter more than extreme sample rate.
From an implementation perspective, several design habits consistently unlock the device’s strengths. Keep the differential pair tightly coupled in routing and electrically matched in filtering. Avoid asymmetrical source impedances. Place anti-alias components close to the ADC pins and preserve the same parasitic environment on both inputs. Treat the reference path with the same seriousness as the signal path, since 16-bit conversion quality collapses quickly if the reference is noisy or poorly bypassed. Separate fast digital return currents from the analog input region. In remote-sensor systems, use cable topology that preserves differential symmetry all the way to the board entry point. These are not exotic recommendations, but with a differential SAR converter they have disproportionate impact.
One broader insight follows from these application scenarios: the ADC161S626 is most compelling when used as a system simplifier rather than as an isolated precision part. Its real advantage appears when it allows the designer to remove one analog stage, relax grounding sensitivity, shorten calibration procedures, or adopt aggressive power cycling without timing complexity. That is where the part creates durable engineering value. It is not merely a 16-bit ADC with differential inputs. It is a converter that aligns well with mixed-signal systems in which installation realities, thermal stability, and architecture-level efficiency determine whether the measured data remains trustworthy outside controlled conditions.
ADC161S626 Design-In Considerations for Layout, Supply Planning, and Reliable Performance
ADC161S626 design-in quality is determined less by the converter alone than by the behavior of the signal chain wrapped around it. Its datasheet performance is achievable only when supply noise, reference stability, input-drive dynamics, and PCB current flow are treated as one coupled system. In practice, this device rewards disciplined mixed-signal design and exposes weak assumptions quickly, especially when the application aims to use the full 16-bit dynamic range.
The first design axis is supply architecture. ADC161S626 separates VA and VIO for a reason: the analog core and the digital interface generate different noise signatures and should not share the same local supply environment without control. VA should be sourced from a quiet rail with low wideband noise and low impedance over frequency, not merely a nominally accurate DC regulator. A regulator that looks clean at low frequency but rises in impedance in the MHz region can still degrade conversion repeatability. Local bypassing at VA should therefore be selected to cover both transient current demand and high-frequency suppression. A common implementation uses a small ceramic capacitor placed very close to the pin, backed by a larger nearby bulk capacitor, with current loops kept tight.
VIO should be chosen strictly from interface compatibility, but that does not make it electrically unimportant. Fast digital edges on VIO and SCLK inject return currents into the board structure. If those currents share impedance with the analog ground region, they modulate the analog front end indirectly. The separation of VA and VIO only produces real benefit when the return paths are also controlled. A useful layout pattern is to keep the digital interface physically on one side of the ADC and the analog/reference network on the other, so current loops are naturally discouraged from crossing. This often improves performance more than adding filtering after the fact.
Ground strategy deserves more nuance than the usual “split or do not split” rule. For this class of SAR ADC, the key objective is not symbolic ground separation but predictable return-current behavior. The analog input driver, reference decoupling, and VA bypass network should see a compact, low-impedance local ground region. Digital return currents from SCLK, CS, and data lines should be routed so they close their loops without traversing that same area. A solid ground plane is often preferable to aggressive splits, provided signal placement prevents noisy returns from flowing under sensitive analog nodes. Poorly executed split grounds can create longer return detours, larger loop areas, and more EMI sensitivity than a continuous plane.
Reference design has direct first-order impact on measurement quality. Because the ADC161S626 transfer function scales with VREF, reference noise appears as code noise, and reference drift appears as gain drift. This makes the reference path functionally equivalent to part of the signal path, not a secondary support circuit. Low-noise, low-temperature-coefficient references are preferred in precision instrumentation, but component selection alone is not sufficient. Routing to the reference pin must be short, shielded from clock activity, and supported by local decoupling placed for minimum parasitic inductance. If the reference source is remote, the interconnect can pick up digital interference or exhibit enough impedance to let dynamic conversion currents disturb the node.
One recurring issue in lab bring-up is that a reference looks correct on a DMM yet performs poorly under conversion activity. The cause is usually dynamic loading combined with routing inductance or insufficient local capacitance. The reference node may remain accurate in average value while showing narrow disturbances synchronized to SCLK or internal sampling events. Those disturbances are often large enough to cost several LSBs of effective performance. For that reason, reference validation should include oscilloscope observation with appropriate probing discipline, ideally correlated to conversion timing rather than relying only on static voltage checks.
The analog input path is the next critical layer. ADC161S626 presents a switched-capacitor sampling behavior, which means the source does not drive a purely static input. During acquisition, the source must charge the internal sampling structure to the required accuracy within roughly 600 ns. At 16-bit resolution, settling requirements are tight. Even a small residual error at the end of acquisition converts directly into gain compression, distortion, or code-dependent error. High source impedance, RC filtering with excessive resistance, sensor outputs with limited drive current, and amplifier stages with insufficient bandwidth are all common causes of incomplete settling.
This is where many otherwise reasonable front ends fall short. A sensor may be accurate in steady state but still be a poor direct driver for a SAR ADC. The issue is dynamic charge delivery, not nominal voltage accuracy. If the source cannot rapidly replenish the charge drawn by the sampling process, the converter sees a moving target during acquisition. In lower-resolution systems this may be tolerable. At 16 bits, it rarely is. A buffer or dedicated ADC driver is often the correct solution, especially when input filtering is required or when channel source impedance varies over operating conditions.
Input filtering should be designed with awareness of this settling tradeoff. A small RC network can reduce broadband noise and isolate the driver from charge kickback, but if the resistor is too large, settling margin collapses. The most effective networks are usually modest in resistance and intentionally paired with an amplifier that remains stable while driving the resulting capacitive load. In differential implementations, component matching matters because imbalance converts common-mode disturbances into differential error and weakens the common-mode rejection that the converter can otherwise provide. Short, symmetrical routing on the input pair helps preserve this balance.
Driver amplifier selection should be based on dynamic behavior, not only offset and noise. Output impedance across frequency, settling to 16-bit accuracy, recovery from transient load current, and stability with switched-capacitor inputs all matter. Some precision amplifiers have excellent DC error but poor large-signal or capacitive-load behavior in this application. In practice, an amplifier that appears ideal in a static simulation can still generate code spread or harmonic distortion once connected to the ADC. Bench evaluation with the intended RC network and conversion clock is therefore more valuable than relying on generic amplifier specifications.
The serial interface is straightforward, but timing discipline still affects reliability. CS, SCLK, and data-valid windows should be verified at the actual VIO level, clock rate, and process corner used by the host. FPGA implementations usually succeed when I/O timing is constrained explicitly rather than assumed from nominal edge placement. Bit-banged interfaces deserve similar caution because firmware jitter, interrupt latency, or uneven GPIO edge timing can create occasional frame errors that resemble analog instability. When measurement anomalies appear random, digital framing should be checked early, not only after the analog path is exhausted.
Clock and edge management also influence analog performance indirectly. Very fast digital edges are not automatically better. They increase spectral content, excite more coupling paths, and can worsen substrate or ground noise near the converter. If the host allows it, moderate edge-rate control can improve overall system behavior without compromising interface timing. This is especially relevant on dense boards where the ADC sits close to FPGAs, high-speed memory buses, or switching power stages.
PCB layout should be approached as a current-routing problem rather than a component-placement exercise. The most sensitive loops are the analog input loop, the reference bypass loop, and the VA decoupling loop. These should be compact and free from digital adjacency. Analog traces should be short, with balanced geometry where differential signaling is used. Reference routing should avoid parallel runs with SCLK or data lines. If layer transitions are unavoidable, they should be symmetrical for differential paths and minimized for the reference node. Every extra via adds parasitic inductance and raises susceptibility to injected noise.
Placement order matters. The ADC, its reference bypass components, and the input driver should form a tight functional cluster. The reference source should be placed close enough that the route behaves as a controlled local connection rather than a shared distribution line. Digital pull-ups, level translators, and clock sources should be pushed away from the analog side of the converter. This simple spatial partitioning often resolves issues that are otherwise chased through component changes and firmware revisions.
A subtle but important point is that converter performance is often limited by interaction terms, not by isolated component flaws. For example, a slightly noisy reference, a moderately high source impedance, and an acceptable-but-not-ideal ground return may each look harmless individually. Combined, they can create repeatable ENOB loss, elevated harmonics, or input-dependent offset shifts. Precision mixed-signal design is therefore less about optimizing one parameter to an extreme and more about preventing small weaknesses from aligning in the same error path.
Validation should mirror this systems view. Static DC tests are necessary but insufficient. It is useful to examine code spread with the input shorted, then compare that against performance with the actual sensor or driver attached. Sweeping input amplitude and frequency can reveal settling-related distortion. Monitoring performance while toggling nearby digital activity can expose layout coupling. Testing over temperature is also informative because marginal settling, reference drift, and ground impedance effects often become more visible at operating extremes.
In robust ADC161S626 designs, the winning pattern is consistent: quiet VA delivery, correctly matched VIO, a reference path treated as part of the measurement chain, an input driver designed for switched-capacitor loading, and a layout that controls where return currents flow. When those conditions are met, the converter’s low distortion, strong SNR, and common-mode performance become available in the real system rather than remaining only datasheet potential.
Potential Equivalent/Replacement Models for ADC161S626
Potential equivalent or replacement models for the ADC161S626 must be evaluated as system-level substitutes, not just as converters with similar headline specifications. A superficial match on resolution and sample rate is rarely sufficient. The ADC161S626 sits at the intersection of analog front-end behavior, reference strategy, digital interface timing, and power-domain partitioning. Any replacement decision should therefore begin with the operating assumptions embedded in the original design rather than with distributor parametric filters alone.
The ADC161S626 is a 16-bit SAR ADC intended for moderate-speed precision acquisition. Its defining characteristics are not limited to 16-bit resolution and SPI compatibility. The more consequential traits are its true differential input structure, external reference support, low-power operation, independent analog and digital supply rails, and its ability to run in mixed-voltage systems without translation overhead. In practice, these features often reflect deliberate architectural choices in the host design. Replacing the part without preserving those choices can introduce error sources that are difficult to diagnose because they emerge as system behavior changes rather than obvious functional failures.
The first screening layer should focus on conversion architecture and signal path equivalence. The ADC161S626 uses a SAR core, which implies deterministic latency, relatively simple digital integration, and behavior that is usually well suited to multiplexed measurement, control loops, and periodic sensor sampling. A sigma-delta converter may offer equal or better nominal resolution, but it can alter bandwidth, settling profile, latency, and anti-aliasing assumptions. In embedded acquisition chains, that difference matters. A design expecting fast command-response sampling and stable per-conversion timing can degrade if a replacement adds digital filtering delay or conversion pipeline effects. For that reason, SAR-to-SAR replacement is generally the safest starting point unless the surrounding firmware and signal-conditioning path are being revisited as part of the redesign.
Input topology is the next hard constraint. The ADC161S626 provides a differential input, and this should be treated as a functional requirement unless the original schematic proves otherwise. A single-ended replacement may appear viable on paper, yet it often fails in deployed systems because differential acquisition is not only about measuring a voltage difference. It is also about controlling ground offsets, rejecting coupled noise, and preserving measurement integrity when the sensor or front-end amplifier does not share a perfectly clean local ground with the ADC. The cited common-mode rejection capability is an important clue that the part may have been selected specifically to tolerate electrically noisy environments, long sensor traces, bridge-type sensors, or high-side current-sense arrangements. Replacing it with a single-ended ADC can convert common-mode interference into apparent signal content, shifting the error profile from random noise to structured measurement drift.
Beyond differential versus single-ended classification, the input common-mode range and full-scale definition must be checked carefully. Two ADCs can both be labeled “differential” and still behave differently at the pins. Some accept bipolar-like differential swings around a given common-mode point; others require the input pair to remain tightly bounded within the analog supply rails while only the difference is digitized. The ADC161S626’s allowable input span relative to VA and reference voltage affects how instrumentation amplifiers, sensor bridges, or passive attenuation networks were originally dimensioned. A replacement with a narrower common-mode window can create clipping long before the nominal differential full scale is reached. This often appears during transients, startup, or fault conditions rather than in steady-state bench testing, which is why input compliance deserves more attention than the resolution number in the datasheet table.
Output coding and transfer function should also be treated as compatibility items, not minor details. If firmware expects offset binary or two’s complement formatting, or if diagnostic thresholds are calibrated to a specific code map, even a mathematically simple difference in coding can create silent errors. These are especially common in maintenance replacements because the interface still “works,” but scaled values become inverted, shifted, or compressed. It is usually worth validating not just the serial frame length and SPI mode, but also code transition points, overrange behavior, and how the part reports negative differential inputs if supported by the original signal model.
Power architecture is one of the ADC161S626’s most practical selection filters. The device allows the analog core supply and digital I/O supply to be set independently, with VA in the 4.5 V to 5.5 V range and VIO in the 2.7 V to 5.5 V range. That dual-rail flexibility is highly valuable in systems where analog dynamic range benefits from a 5 V domain while the controller, FPGA, or isolation boundary operates at 3.3 V. A replacement that collapses these rails into a single-supply requirement may still be electrically usable, but it often forces secondary changes: logic-level translators, reduced input headroom, altered reference selection, or modified power sequencing. These secondary changes are where replacement projects accumulate risk. In mixed-signal boards, preserving the original power partitioning usually prevents more problems than chasing small improvements in converter specs.
Reference behavior deserves equal attention because the reference pin is often the hidden anchor of the entire measurement chain. The ADC161S626 supports an external reference from 0.5 V up to VA, which provides flexibility in setting full-scale range, noise performance, and calibration strategy. This means the original design may rely on a precision external reference, a ratiometric sensor excitation scheme, or a custom full-scale value selected to match the signal-conditioning gain. Replacing the ADC with a device that uses only an internal reference, or that supports a narrower reference range, can shift the transfer function of the entire channel. That affects not only resolution in LSB terms, but also noise density referred to input, calibration coefficients, and fault thresholds. In many fielded systems, the reference scheme is more tightly coupled to system accuracy than the ADC core itself.
Reference-input characteristics should be checked beyond nominal voltage range. Input impedance at the reference pin, dynamic reference current during SAR bit cycling, decoupling recommendations, and sensitivity to source impedance all matter. SAR converters draw transient charge from the reference during conversion. If the replacement has a different reference loading profile, the existing reference buffer or passive filter may no longer be adequate. The resulting issue is rarely obvious as a catastrophic failure. More often it shows up as code-dependent noise, gain instability, or degraded INL under specific sample-rate conditions. A candidate replacement should therefore be examined for reference drive requirements with the same care given to analog input drive requirements.
Throughput compatibility should be considered in context rather than as a broad speed class. The ADC161S626 operates in the 50 kSPS to 250 kSPS range, which places it in a region where acquisition time, source impedance tolerance, and serial readout timing all interact. A faster ADC is not automatically a drop-in upgrade. If the new part shortens acquisition windows or increases switched-capacitor loading at the input, a front-end amplifier or sensor network that was stable with the original device may fail to settle to 16-bit accuracy. This is one of the most common replacement traps in precision SAR designs. The converter “works,” but effective resolution drops because the source cannot charge the sampling capacitor quickly enough. The result is often mistaken for random noise when it is actually deterministic settling error.
The SPI interface should be verified at the transaction level. “SPI-compatible” is not a sufficient criterion. Clock polarity, clock phase, frame length, chip-select timing, output data valid delay, acquisition start timing, and whether conversion is initiated by CS or serial clocks can all differ meaningfully between ADC families. Even when firmware changes are possible, timing differences can ripple into DMA setup, interrupt cadence, and synchronization with other sampled channels. If the original design depends on tightly scheduled acquisitions, deterministic CS behavior, or low-overhead polling, then serial protocol similarity becomes a major practical factor in replacement feasibility.
Thermal and environmental range should remain aligned with the original requirement. The ADC161S626 supports operation from -40°C to +85°C, which covers a wide set of industrial and embedded applications. A replacement that only matches room-temperature performance but degrades offset, gain drift, or reference linearity near the temperature extremes can undermine field reliability while still passing bench qualification. Parametric drift over temperature often matters more than static room-temperature accuracy, especially in low-frequency sensing systems where offset and gain errors dominate over quantization noise. It is worth checking not only the operating temperature range but also the temperature coefficients of offset, gain, INL, and reference path parameters.
Mechanical compatibility is the final gate for true drop-in substitution. The ADC161S626 uses a 10-pin VSSOP package, and package similarity should be treated as a board-level constraint, not a procurement convenience. Even if an alternative uses the same nominal pin count, the pin functions, exposed pad requirement, thermal behavior, and land pattern tolerances may differ enough to force PCB changes. In maintenance programs, this distinction is decisive. A technically strong ADC that requires board rework is not equivalent to a pin-compatible second source. Layout compatibility also extends to analog routing. Differential input pin placement, reference pin adjacency, and digital return current paths influence noise coupling. A substitute with a different pin arrangement can degrade performance even when the schematic remains functionally correct.
When evaluating actual replacement classes, candidates generally fall into three categories. The first is a near-form-fit-function substitute, where package, pinout, interface, and major analog behaviors align closely. This is the ideal outcome but often the rarest. The second is a functional replacement, where the ADC can preserve measurement performance with manageable firmware or schematic adjustments. This is often acceptable in redesigns or controlled maintenance revisions. The third is a parametric alternative, which matches only broad specs such as 16-bit SAR and SPI. This category is useful for concept comparison but usually carries the highest integration risk. In practice, many procurement searches stop at the third category too early. The better approach is to classify candidates explicitly, because it prevents optimistic assumptions from entering the sourcing process.
A disciplined replacement workflow helps avoid expensive late-stage surprises. Start by extracting the non-negotiable constraints from the original design: differential input requirement, analog and digital supply voltages, reference scheme, throughput, package, and temperature range. Then compare second-order parameters: input common-mode range, source impedance tolerance, reference drive current, serial timing, code format, and power sequencing behavior. After that, validate the candidate in the actual use mode of the system rather than under generic evaluation-board conditions. For example, test with the real sensor interface or front-end amplifier, the intended reference source, and the MCU SPI timing already used in production. This usually reveals more than static datasheet comparison because many replacement issues appear only when all interfaces interact simultaneously.
From a practical design perspective, the most reliable replacements are those that preserve analog assumptions first and digital assumptions second. Firmware can often be adapted with modest effort. Analog behavior is less forgiving. If the original board was tuned around a differential sensor path, a particular reference source, and a 5 V analog rail, preserving those conditions usually protects both accuracy and project schedule. Conversely, replacing the ADC with a nominally “better” part that changes input loading, common-mode handling, or reference dynamics can create a longer debug cycle than a full redesign would have required.
For teams screening alternatives to the ADC161S626, the core question should not be “Which 16-bit SPI SAR ADC is available?” but “Which candidate preserves the measurement contract established by this converter in the existing design?” That contract includes input behavior, supply separation, reference flexibility, timing model, and mechanical fit. Once viewed this way, the replacement process becomes more deterministic. Fewer candidates survive the filter, but the ones that do are far more likely to work on the first pass.
Conclusion
The ADC161S626 from Texas Instruments is best understood as a precision measurement component rather than a generic 16-bit SAR ADC. Its real value appears when a design must extract small differential signals in electrically noisy environments, maintain low power consumption, and still fit into a compact embedded architecture. In that operating space, the device combines 16-bit SAR conversion, differential input capability, external reference flexibility, and mixed-supply interoperability in a way that maps cleanly to practical sensor and control systems.
At the architecture level, the device targets applications where signal fidelity depends as much on front-end behavior as on nominal resolution. A 16-bit output code is only useful if the converter can preserve linearity, reject common-mode interference, and remain stable across temperature and supply variation. The ADC161S626 addresses this with strong linearity performance, low drift characteristics, and approximately 85 dB common-mode rejection. That combination matters because many real measurement chains are limited less by quantization and more by coupled noise, reference instability, grounding asymmetry, and front-end settling errors. In such systems, differential conversion is not simply a feature checkbox; it is a system-level tool for protecting measurement integrity.
Its throughput range of 50 kSPS to 250 kSPS places it in a useful middle zone. It is fast enough for responsive control loops, multiplexed sensor acquisition, and portable instrumentation, yet slow enough to prioritize precision and power efficiency over raw sampling rate. This balance is often more valuable than headline speed. In embedded measurement designs, excessive sample rate frequently shifts complexity into the analog front end, digital filtering path, and power budget without improving effective system accuracy. A converter in the ADC161S626 class avoids that trap by aligning performance with the bandwidth of many physical signals such as bridge sensors, current shunts, pressure transducers, and conditioned industrial outputs.
The differential input structure is one of the most important selection drivers. In industrial and instrumentation environments, common-mode disturbances often enter through cable routing, shared return paths, motor switching activity, or local ground offsets between subsystems. A converter with high common-mode rejection can materially reduce the error contribution from these mechanisms, especially when paired with a carefully matched input network and a low-impedance signal source. This is where the ADC161S626 becomes more than a low-power converter. It acts as a boundary element between an imperfect analog world and a digital processing domain that expects stable, interpretable data.
External reference support further increases its practical value. Designs that require stable gain accuracy, ratiometric measurement strategies, or calibration traceability often cannot accept the limitations of a loosely controlled internal reference. An externally referenced ADC allows the signal chain to be optimized around system priorities. A precision voltage reference can be chosen for drift, noise, startup behavior, or long-term stability, and in some sensor systems the reference can be shared with excitation circuitry to suppress ratio-dependent errors. That flexibility is particularly useful in bridge-based sensing and low-level differential acquisition, where reference quality can directly determine whether the full 16-bit code range translates into usable measurement resolution.
The supply structure also deserves attention because it simplifies integration into mixed-voltage systems. Many modern embedded platforms separate analog and digital supply domains to contain switching noise and support low-voltage logic. A converter that can bridge those domains cleanly reduces level-shifting complexity and makes board-level partitioning easier. That may appear secondary during specification review, but in implementation it often affects layout quality, EMI behavior, and firmware interface simplicity. Components that fit naturally into both the analog and digital power plan tend to reduce integration risk, and that usually matters more than small differences in nominal converter metrics.
From an application standpoint, the ADC161S626 is well aligned with sensor interfaces where signal amplitude is modest and environmental noise is unavoidable. Pressure sensors, strain gauges, current-monitoring stages, battery-powered instrumentation, and remote analog nodes are typical examples. In these cases, differential acquisition and low power operation are not independent goals. They reinforce each other. A lower-power design usually has tighter thermal constraints, less tolerance for aggressive filtering or buffering, and greater sensitivity to reference and grounding decisions. A converter that performs well without demanding excessive support circuitry can therefore improve both measurement quality and system efficiency.
In industrial data acquisition, the device is particularly relevant when channel density is moderate and per-channel accuracy matters more than maximum aggregate throughput. It fits systems that monitor slow or mid-bandwidth physical variables, especially where cabling and plant-level electrical noise create common-mode challenges. In portable instruments, the same characteristics translate differently: low power preserves runtime, differential measurement improves robustness against internal switching noise, and external reference capability supports tighter calibration strategies. The core feature set remains the same, but the engineering value shifts with the environment.
A useful way to evaluate the ADC161S626 is to start from error budget composition rather than from datasheet resolution alone. In many designs, the dominant limits come from reference drift, source impedance mismatch, amplifier offset, layout-induced coupling, and digital feedthrough. If those terms are poorly controlled, a 16-bit converter behaves like a much lower-resolution subsystem. The ADC161S626 is attractive because its own precision characteristics are strong enough that system-level improvements remain visible. In other words, careful front-end design is rewarded rather than masked. That is usually a sign of a well-positioned precision converter.
Implementation quality still determines results. Differential inputs do not automatically guarantee noise immunity if input traces are imbalanced, if the source impedance seen by each input differs significantly, or if the reference path is noisy. Likewise, low-power ADCs are sometimes paired with front ends that settle too slowly, causing conversion errors that are misread as converter nonlinearity. In practice, the cleanest results usually come from short, symmetric routing around the input pins, a reference network with low dynamic impedance, and analog grounding that avoids forcing return currents through sensitive measurement regions. When those basics are respected, converters in this class tend to deliver performance that is much closer to their theoretical capability.
For selection engineers, the device stands out when the design objective is not merely digitization, but trustworthy digitization under practical constraints. It is especially suitable where common-mode rejection, low drift, and power efficiency must coexist. For sourcing and lifecycle decisions, it should be categorized as a differential precision measurement ADC with external-reference dependence and mixed-voltage integration flexibility. That framing is important because its value is tied to the completeness of that feature combination, not just to its nominal bit depth or sample rate.
The broader design lesson is that precision converters should be selected by system role, not by resolution headline. The ADC161S626 is compelling because it solves several adjacent problems at once: preserving differential signal integrity, fitting low-power architectures, supporting controlled reference strategies, and integrating cleanly into embedded digital platforms. In measurement systems where those constraints intersect, it is a strong and efficient choice.
