Product Overview: 1P1G125QDCKRG4Q1 Texas Instruments Non-Inverting Buffer
The 1P1G125QDCKRG4Q1 from Texas Instruments represents a focused approach to signal buffering where signal integrity and control are crucial. This non-inverting buffer, part of the AEC-Q100 qualified SN74LVC1G125-Q1 series, integrates a single gate architecture offering precise, bidirectional control with a dedicated 3-state output. Such output enables dynamic signal isolation and controlled interfacing, especially valuable in bus-oriented systems and mixed-voltage domains. The inclusion of output enable logic enhances the device's effectiveness for shared signal lines—preventing bus contention and enabling clean multiplexed architectures. The SC70-5 (DCK) footprint consolidates premium electrical characteristics within a minimal PCB area, directly addressing space constraints in densely populated automotive and industrial PCBs.
Delving into electrical characteristics, the wide operating V_CC range from 1.65 V to 5.5 V facilitates seamless translation and bridging across divergent logic standards, such as interfacing 1.8 V MCUs with legacy 5 V peripherals. The buffer’s inputs tolerate voltages up to 5.5 V regardless of the supply, further enhancing its robustness in hot-swap or level-shifting situations. This flexibility is often leveraged in real-world automotive nodes, where modules encounter variable voltage domains and require consistent logic state propagation—such as managing communication between microcontrollers and sensor clusters under fluctuating supply rails. In practical deployment, the device demonstrates excellent ESD resilience and stable electro-thermal behavior, factors that streamline board-level validation and reduce system rework during qualification phases.
On a system level, the 1P1G125QDCKRG4Q1’s ability to actively control line states via its enable pin stands out in EMC-sensitive applications. The high-impedance off-state becomes essential for disconnection of subsections of dense wire harnesses, especially during diagnostics or low-power modes in automotive ECUs. Such granularity brings design agility not only for classical buffering but also for functions like address/data bus gating, clock domain crossing, and as a basic element in fine-grained fault detection schemes. Integrators benefit from reduced pin-to-pin propagation delay, yielding reliable timing closure even as system operating frequencies escalate.
Experienced use suggests the device’s compact form promotes strategic placement close to signal sources or sinks, minimizing stub length and reflection, thus optimizing signal fidelity. Avoiding simultaneous enable across multiple units on a shared bus is advisable to preclude drive contention—a subtle design check that frequently arises during schematic reviews. The AEC-Q100 qualification is more than a compliance marker; in practice, it reflects sustained reliability across temperature cycling and voltage transients, essential for lifecycle cost control in the automotive supply chain.
Ultimately, the 1P1G125QDCKRG4Q1 builds on foundational circuit techniques yet aligns with modern integration demands—offering not just signal buffering, but also the flexibility and resilience necessary for scalable, robust system design. This synthesis of function and qualification crystallizes the device’s value in environments where both board space and durability determine long-term deployment success.
Key Features and Advantages of 1P1G125QDCKRG4Q1
The SN74LVC1G125-Q1 is engineered for environments demanding reliable, high-speed digital buffering with stringent power and protection requirements. The device’s ±24 mA output drive at 3.3 V positions it as a robust solution for applications where rapid switching and capacitive load management are critical. This performance is especially relevant in LED matrix control and digital bus interfacing, where the buffer’s low propagation delay and ability to maintain full logic integrity across fast transitions directly translate to smoother signal timing and minimized jitter. Precise output capability ensures stable operation even when tasked with driving long traces or multiple parallel loads, eliminating the need for external power amplifiers in most scenarios.
Input tolerance up to 5.5 V provides seamless integration with mixed-voltage system architectures, enabling direct interfacing with legacy 5 V logic outputs without implementing additional level shifters. This adaptability supports both modern and legacy platform requirements while minimizing design effort and board space. The inclusion of I_off isolation in the output stage is particularly significant for hot-plug systems and partial-power-down modes, as it blocks unwanted leakage and current backflow when supply voltage is removed or disconnected. In automated test setups and modular embedded systems, this feature directly improves system durability, reducing the risk of inadvertent overcurrent-induced failures during maintenance or live module swaps.
ESD resilience is highlighted by both HBM Class 2 and CDM Class C5 ratings, presenting strong protection against common handling and assembly hazards. This capability is complemented by latch-up immunity above 100 mA per JESD 78 Class II, ensuring sustained reliability even under transient overstress conditions often encountered in automotive and industrial environments. Practical deployment further reveals that the buffer’s steady-state characteristics simplify signal distribution across harsh physical domains, with negligible degradation under variable temperature or voltage fluctuations. The logic-level versatility and electrical ruggedness allow designers to confidently select the SN74LVC1G125-Q1 for safety-critical subsystems, favoring robust predictable behavior over cycles of repetitive switching.
A pivotal advantage is the synergy between the device’s electrical performance and its compatibility with distributed system architectures. The combination of high output drive, low static power, and seamless partial-power-down support fits well with modern low-power embedded designs, where modular expansion and strict energy budgets drive component selection. Notably, direct experience in multi-rail I/O environments shows that this buffer’s tolerant input structure and isolation features reduce board redesign cycles and logistics overhead, tightening the development timeline and elevating final product reliability. The capacity to pair high-speed logic operation with enhanced protection mechanisms establishes the SN74LVC1G125-Q1 as a preferred choice for engineers targeting dependable signal buffering without excessive circuit complexity or auxiliary safeguard components.
Package Information for 1P1G125QDCKRG4Q1

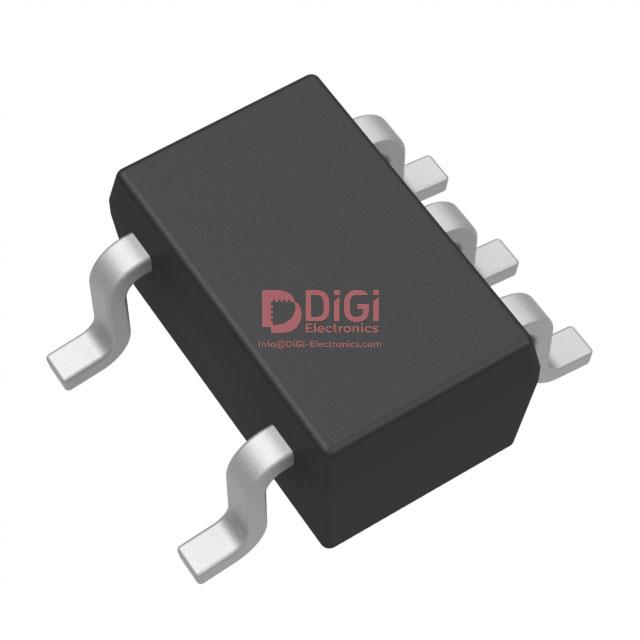

The 1P1G125QDCKRG4Q1's SC70-5 (DCK) package demonstrates a rigorous approach to miniaturization, achieving an ultra-compact footprint of roughly 1.45 mm² while maintaining robust mechanical stability. The thin profile and refined lead pitch permit high component density, supporting the aggressive integration demands of modern electronics such as portable instrumentation, tightly packed control units, and advanced sensor modules. Tight process window control is achieved through precise pin spacing and dimensional tolerances, which streamline the routing of high-speed signals on narrow and densely layered PCBs, mitigating the risk of crosstalk or parasitic coupling.
Alternative packages offered for the SN74LVC1G125-Q1, including the SOT-23 (DBV) and small outline no-lead DRY (SON), exemplify adaptability to varying assembly and reliability requirements. SOT-23 delivers moderate size with well-established test and assembly compatibility, especially in environments favoring wave solder or selective hand rework. The DRY package, being no-lead, reduces package standoff, enhancing thermal paths while controlling package warpage under thermal cycling—a key factor for long-term automotive reliability standards such as AEC-Q100. These format choices streamline logistics and enable seamless adaptation to evolving board assembly infrastructures, from automated pick-and-place to pilot prototypes.
Board layout guidance for each package is engineered with exacting detail. Specified pad geometries, solder mask definitions, and stencil thickness recommendations are anchored in extensive empirical data, minimizing solder balling, tombstoning, or bridging during reflow. Pad designs incorporate thermal relief and current-carrying capacity, improving not just mechanical retention but also electro-thermal performance. Consistent reference to IPC standards, notably IPC-7351 and IPC-2221, enforces process discipline and enables design transfer across subcontractors without yield degradation.
Key in practical deployments is attention to factors like precise paste volume control and the ESD sensitivity of fine-pitch parts. Consistent results arise from optimally chosen reflow profiles and X-ray inspection of solder joints in no-lead packages, especially for applications where field failure is intolerable, such as functional safety domains in automotive or critical control systems. Well-documented pad and land configurations not only raise first-pass yield but also offer resilience against process variability encountered during transitions between prototype and mass production.
Ultimately, the flexibility of the 1P1G125QDCKRG4Q1 portfolio, underscored by methodically defined package attributes and robust layout guidelines, equips system engineers with a comprehensive toolkit for volumetric efficiency and manufacturing reliability. The interplay between package selection, assembly technique, and electrical performance remains a nuanced tactical lever, instrumental to securing both high-density integration and cost-optimal manufacturability in constrained environments.
Electrical and Thermal Specifications of 1P1G125QDCKRG4Q1
The electrical characteristics of the 1P1G125QDCKRG4Q1 buffer demonstrate well-engineered tolerance for wide operational demands. Internal circuit topology is optimized for low propagation delay, with a maximum t_pd of 3.7 ns at a supply voltage of 3.3 V, enabling reliable timing closure in designs with high-speed data flows. This rapid switching, accompanied by tightly controlled output rise and fall times, reduces inter-channel skew, a key concern in multi-signal routing and clock tree architectures.
The device operates effectively within an ambient temperature range of –40°C to 125°C, supporting deployment in contexts subject to elevated thermal stress or rapid temperature fluctuations. Notably, the absolute maximum ratings provide safeguards against common electrical stresses during manufacturing, power-cycle transients, and in-circuit testing. Adherence to recommended operating conditions preserves long-term reliability, as silicon degradation is minimized and protective device margins are maintained. Experienced practitioners often design with buffer derating, considering board-level thermal hotspots and airflow constraints to fully exploit the buffer’s specification envelope.
Thermal management remains integral to compact package design. Adherence to IC Package Thermal Metrics ensures system-level modeling accuracy for both steady-state dissipation and peak-load transient events. Low junction-to-ambient thermal resistance, combined with optimized leadframe geometries, facilitates heat evacuation even in densely packed PCB layouts. Practical implementation benefits from dedicated ground planes and localized copper pours to further lower effective junction temperature, an approach validated in high-power automotive subnetworks and industrial control surface designs.
Input and output thresholds are defined to support both legacy logic levels and contemporary voltage domains, streamlining integration with advanced microcontrollers or FPGAs. Output drive capabilities are specified for robust fanout, balancing signal integrity with low electromagnetic emissions. Circuit-level experience attests that integrating such buffers upstream of sensitive loads mitigates the effects of capacitive coupling, spurious switching, and ground bounce, improving system immunity under real-world deployment conditions.
The 1P1G125QDCKRG4Q1 exemplifies an architecture that leverages process technology for optimal electrical and thermal robustness. Its profile anticipates modern board design challenges, from high-density interconnects to thermally stressful environments, ensuring that application-layer reliability is rooted in a solid physical foundation. Through careful parameter selection and implementation discipline, engineers extend signal integrity and component lifespan, fostering architectures that remain responsive to evolving system requirements.
Functional Description and Operation Modes of 1P1G125QDCKRG4Q1
The 1P1G125QDCKRG4Q1 serves as a high-integrity single-gate buffer optimized for non-inverting signal transmission with integrated output-enable logic. Its core digital pathway executes the Y = A transfer, where output state directly tracks the logic level applied to input A under the condition of an active OE. The buffer transitions into a tri-state, high-impedance output when OE is inactive, a crucial mechanism for bus-oriented designs. This ensures low cross-talk and precise signal isolation, supporting robust implementation in multiplexed or multi-driver architectures where clean separation of signal sources is mandatory.
At the architectural level, the device embodies CMOS fabrication principles, resulting in low static power dissipation and high input impedance. Signal compatibility spans numerous logic families, allowing voltage down-translation for seamless interfacing with circuits operating at elevated input levels. This is particularly facilitated by the device’s built-in I_off circuitry, which blocks unwanted leakage and mitigates backdrive risks during power-off or floating input scenarios—a necessity for hot-swap and partial-power-down systems. Experience confirms that integrating devices with such protection reduces fault incidence and simplifies board-level validation in complex power domains.
Functional block abstraction highlights the direct signal path and fault-tolerant mechanisms. The input stage benefits from tight biasing requirements: all unused inputs must be secured to V_CC or GND to suppress susceptibility to logic ambiguity and unpredictable switching—an especially vital practice when deployed in large-scale, noise-prone environments. Not adhering to this recommendation often results in subtle, intermittent failures that compound debugging complexity in high-reliability applications.
For signal routing designs, such buffers prove essential where deterministic timing and low propagation delay are required. The output-enable gating supports efficient time-multiplexing, permitting multiple drivers to operate without contention. This characteristic finds frequent application in address decoding, bus arbitration, or selective signal retiming tasks. Subtle optimizations in system layout—such as positioning the buffer close to source loads—minimize transmission line effects and bolster edge integrity.
The robustness of output enable control within the 1P1G125QDCKRG4Q1 enables designers to engineer predictable system states even within dynamically switched topologies. This facilitates modular design strategies, enhancing system scalability and fault isolation without compromising timing budgets. Integrating such buffers effectively forms the backbone of precision digital switching, favoring maintainability and systemic reliability within tightly constrained electrical environments.
Typical Applications and Design Considerations for 1P1G125QDCKRG4Q1
The 1P1G125QDCKRG4Q1 serves as a robust buffer or driver solution within automotive electronic control units, industrial I/O modules, and precision display electronics. Its versatility is rooted in a CMOS-based architecture that combines robust high-side and low-side drive transistors, enabling reliable translation between logic families and supporting direct interfacing with legacy voltage standards. This high input tolerance up to 5.5 V, irrespective of Vcc, streamlines board-level integration across mixed-voltage signal domains, eliminating the need for external level shifters and reducing both system complexity and BOM cost.
Signal conditioning and bus management are central to its core utility. In digital systems with intensive bus architecture, improper management of enable and output pins can introduce significant contention risks, potentially degrading signal integrity and increasing device stress. Therefore, designers prioritize the unambiguous decoding of enable logic, often deploying pull-down or pull-up resistors on unused inputs to guarantee deterministic logic levels, especially during power-up events or extended tri-state operation. Such practices mitigate susceptibility to floating node-induced leakage or spurious toggling, enhancing long-term system reliability.
Output drive characteristics are precisely tuned for application flexibility. With a 24 mA drive strength, the device supports direct connection to moderate-current loads such as LEDs in cluster displays or relays within control mezzanines. As drive current approaches critical thresholds, careful analysis of cumulative package power dissipation and instantaneous sink/source current profiles becomes mandatory; transgression beyond specified output limits accelerates wear-out mechanisms in the device's output stage, manifesting as increased on-resistance or latent early-life failures. An understanding of these multi-layered trade-offs directly impacts thermal management strategies and layout partitioning in dense control PCBs.
Signal integrity maintenance is paramount in high-speed switching contexts. The device’s fast edge rates demand disciplined PCB routing—short trace runs, tightly coupled ground returns, and minimal capacitive loading all serve to preserve eye diagram margins and suppress transmission line artifacts. In practice, source-side series damping resistors are often introduced in clock or strobed communication channels, balancing fast transition requirements with the need to quell underdamped ringing or cross-channel crosstalk.
A distinctive attribute of the 1P1G125QDCKRG4Q1 lies in its application in environments demanding rapid shutdown and isolation, such as safety-critical automotive subnets. Here, its tri-state capability not only prevents catastrophic bus lockup during fault conditions but also facilitates hot-swap scenarios without risking global outage. This operational resilience, coupled with ESD robustness and latch-up immunity provided by targeted process enhancements, positions the device as a first-choice building block in platforms where functional safety cannot be compromised.
The device’s utility extends beyond traditional buffering or driving roles; strategic use as a controlled interface can decouple timing domains, enforce clock domain crossing boundaries, and enable staged system bring-up in modular controller backplanes. These layered capabilities, when factored into a holistic digital architecture, provide designers with both immediate performance benefits and long-term platform scalability.
Power Supply and PCB Layout Guidelines for 1P1G125QDCKRG4Q1
Power supply integrity and PCB layout strongly influence the reliability and signal fidelity of the 1P1G125QDCKRG4Q1. Acceptable V_CC spans from 1.65 V to 5.5 V, offering flexibility across mixed-voltage systems; in noise-sensitive designs, operating at the lower end can reduce output switching noise, provided timing constraints are met. To minimize voltage ripple and transient response at the device’s power rails, decoupling capacitors must be strategically deployed: a 0.1 μF ceramic capacitor with low ESR should be placed within a few millimeters of each V_CC pin. This proximity is critical, minimizing inductive effects in the return path. Supplementary parallel capacitors—typically 1 μF or larger—address lower-frequency transients and load changes, but require careful layout to prevent ground-plane disruption. For multi-V_CC packages, the decoupling network must be duplicated per power domain, prioritizing symmetry to prevent supply-to-supply crosstalk.
From a layout perspective, avoiding floating logic inputs is non-negotiable. Any unconnected pin threatens to drift to intermediate logic states, risking oscillatory currents and unpredictable device operation. Input pins should be terminated via weak pull-up or pull-down resistors as dictated by the signal topology, especially in unused gates. This approach stabilizes logic levels, sharply reducing ground bounce and unnecessary static current. High-speed traces to I/O pins benefit from direct, layer-consistent routing with controlled impedance where edge rates or trace length dictate; stub minimization and short trace lengths mitigate signal reflection and radiated susceptibility.
Pad geometry and assembly design must align with both Texas Instruments recommendations and IPC-7351 standards. Accurate stencil aperture sizing and optimized solder mask clearances assure consistent solder joint formation, which directly correlates with thermal cycling robustness and failure rates in volume production. Novel reflow profiles that adapt dwell times and peak temperature in tandem with the footprint’s thermal mass have been observed to further reduce voiding and cold joint risks during mass production.
Applying these guidelines yields tangible advantages when upscaling to dense multi-device PCBs, where power delivery networks and input edge noise accumulate across devices. Early adoption of robust decoupling, input sanitation, and mechanical lifecycle-aware assembly methods helps safeguard against subtle production yield drops, especially as frequencies increase or when deploying into thermally constrained enclosures. In competitive hardware deployments, subtle layout refinements and disciplined power delivery design often define the margin separating marginal boards from consistently performant systems—an observation reinforced by board-level validation across successive production batches.
Potential Equivalent/Replacement Models for 1P1G125QDCKRG4Q1
Selecting Equivalent and Replacement Models for the 1P1G125QDCKRG4Q1 involves a systematic evaluation of functional and physical parameters, balancing compatibility requirements with application-specific constraints. Beginning with the architecture, the 1P1G125QDCKRG4Q1 registers as a single-channel buffer/line driver featuring a 3-state output, widely implemented in signal routing where low propagation delay and strong drive capability are fundamental. Texas Instruments’ standard alternative, the SN74LVC1G125, aligns electrically in voltage range and input threshold, furnishing predictable transition timing and input tolerance, which is critical in heterogeneous voltage system integration.
Expanding the landscape, the SN74LVC1G125-EP variant introduces extended performance metrics tailored to the rigors of aerospace, medical, and defense sectors. This enhanced product series is qualified with advanced reliability screening, longer lifecycle documentation, and stringent traceability, meeting standards such as MIL-PRF and AEC-Q100 where applicable. In practice, deploying -EP or automotive-qualified derivatives is a prerequisite in designs bound by ISO 26262 or similar functional safety mandates. Moreover, engineers often leverage the uniform electrical characteristics (voltage, current drive, threshold levels) across this family, enabling seamless interchangeability and scalability from prototype to production, even as requirements shift from commercial to mission-critical domains.
Package selection exerts tangible influence on board layout and manufacturability. While the DCK (SC70-5) remains widely adopted for dense PCBs, consideration must be given to alternate footprints such as DBV (SOT-23-5) or YEP (X2SON-6), especially for rework constraints or high-frequency layout optimization. Substitution exercises involve scrutinizing land pattern compatibility, height profiles, and thermal characteristics—parameters frequently overlooked until late-stage design validation. A best practice is to pre-select pin-compatible packages with equal or larger tolerances, thereby reducing re-spin risk and accelerating cross-platform validation.
Electrical equivalence does not guarantee functional interchange unless system-level timing, I/O capacitance, and enable logic polarity are explicitly matched. Margin analysis at extremes of the operating envelope—power-up sequencing, transient immunity, and signal integrity under simultaneous switching—reveals subtle differences that datasheet snapshots may not expose. Incorporating automated regression tests with behavioral models helps uncover edge-case mismatches early, particularly in mixed-voltage or modular platforms.
Datasheet review forms the foundation of any swap analysis, but direct engagement with field application notes and errata bulletins often yields actionable subtleties—such as power-clamp behaviors or portfolio lifecycle advisories—that can preempt downstream reliability events. Integrators who extend qualification coverage to environmental stress, ESD resilience, and solder joint durability consistently report fewer intermittent failures post-deployment, underscoring the holistic view required when substituting buffered logic elements.
The broader takeaway for designers is to cultivate a parametric perspective: recognize families with stable, scalable electrical performance and invest in early cross-qualification of both commercial and enhanced-grade variants. This approach not only streamlines bill-of-materials rationalization but also inoculates development programs against unpredictable supply or regulatory churn, optimizing both risk control and product longevity.
Conclusion
The 1P1G125QDCKRG4Q1, a member of Texas Instruments’ SN74LVC1G125-Q1 family, exhibits characteristics precisely aligned with the demands of contemporary automotive and industrial signal management. Its foundation—a non-inverting buffer with 3-state outputs—addresses critical needs for logic level translation and signal integrity in electrically noisy or high-speed environments.
Central design strengths stem from its wide operating voltage range (1.65 V to 5.5 V), supporting seamless interfacing across legacy and next-generation subsystems. The device’s high output drive capacity (up to ±24 mA) facilitates reliable operation in systems with considerable fanout, enabling robust downstream signal delivery and minimizing voltage drop, even under intensive load conditions. Enhanced ESD protection and latch-up immunity are engineered for resilience in electromagnetically harsh automotive or industrial zones, where transient voltages and ground shifts can challenge less fortified solutions.
From an implementation perspective, the chip’s small outline package options optimize its integration into dense layouts typical of advanced control units. The inclusion of an active-low output enable pin allows deterministic bus management and isolation. This is highly valuable where multi-source data lines must be strictly managed to avoid contention and signal collision, such as CAN, LIN, or proprietary fieldbus architectures. Operating across the automotive AEC-Q100 qualification, the device meets stringent reliability standards, lowering validation effort in safety- or mission-critical assemblies.
Optimizing circuit performance with the 1P1G125QDCKRG4Q1 involves careful attention to PCB layout recommendations. A low-inductance ground and power system, short routing of input/output traces, and proper decoupling (0.1μF ceramic placed close to Vcc) are critical for preserving signal fidelity. Experience indicates the importance of controlled slew-rate at the buffer’s input to curb potential output ringing—a consideration especially relevant when the device is used at the edge of its frequency capability or in environments susceptible to EMI.
The device’s real-world reliability is reflected through its ability to maintain output characteristics under repetitive stress, such as frequent output toggling at high frequency or exposure to under-voltage conditions. Critical applications benefit from its predictable behavior during system brown-outs, where fast power-down characteristics help prevent inadvertent logic states—a detail that often determines qualification in functional safety analyses.
When specifying the 1P1G125QDCKRG4Q1, it is prudent to consider supply chain continuity, leveraging its multiple form factor and automotive-grade lot tracking. For high-volume series production, such flexibility in sourcing and assembly logistics can materially reduce risk in project timelines and long-term field support.
Collectively, the device’s design attributes and operational parameters converge to create a signal buffering solution that transcends basic logic-level adaptation. By integrating robust physical characteristics, advanced protection schemes, and versatile interfaces, the buffer addresses both straightforward and nuanced design challenges in modern embedded systems. Strategic deployment can enhance overall system reliability, simplify layout, and contribute to future-proofing signal management infrastructures amidst evolving application requirements.
