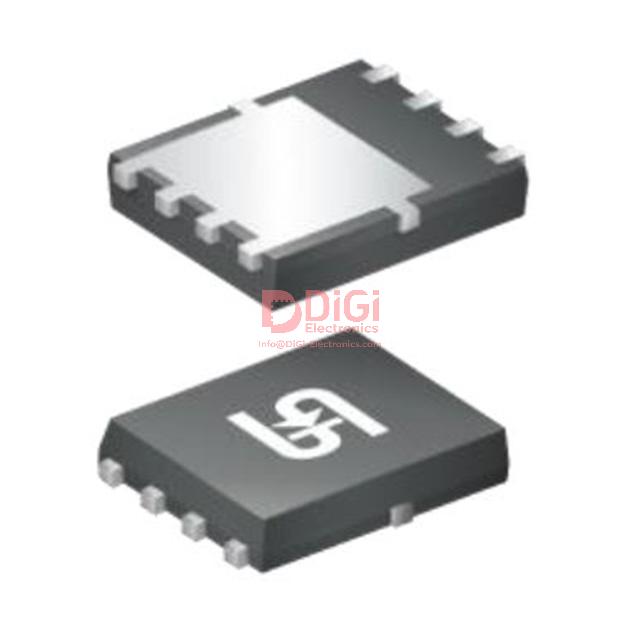

TQM033NB04CR RLG >
TQM033NB04CR RLG
Taiwan Semiconductor Corporation
MOSFET N-CH 40V 21A/121A PDFN56U
10229 Pcs New Original In Stock
N-Channel 40 V 21A (Ta), 121A (Tc) 3.1W (Ta), 107W (Tc) Surface Mount, Wettable Flank 8-PDFNU (5x6)
Request Quote (Ships tomorrow)
*Quantity
Minimum 1
TQM033NB04CR RLG Taiwan Semiconductor Corporation
5.0 / 5.0 - (90 Ratings)

TQM033NB04CR RLG

Product Overview

12937847

DiGi Electronics Part Number

TQM033NB04CR RLG-DG
TQM033NB04CR RLG

Description

MOSFET N-CH 40V 21A/121A PDFN56U

Inventory

10229 Pcs New Original In Stock
N-Channel 40 V 21A (Ta), 121A (Tc) 3.1W (Ta), 107W (Tc) Surface Mount, Wettable Flank 8-PDFNU (5x6)
Quantity
Minimum 1

Purchase and inquiry

Quality Assurance

365 - Day Quality Guarantee - Every part fully backed.

90 - Day Refund or Exchange - Defective parts? No hassle.

Limited Stock, Order Now - Get reliable parts without worry.

Global Shipping & Secure Packaging

Worldwide Delivery in 3-5 Business Days

100% ESD Anti-Static Packaging

Real-Time Tracking for Every Order

Secure & Flexible Payment

Credit Card, VISA, MasterCard, PayPal, Western Union, Telegraphic Transfer(T/T) and more

All payments encrypted for security

In Stock (All prices are in USD)
  • QTY Target Price Total Price
  • 1 0.5205 0.5205
Better Price by Online RFQ.
Request Quote (Ships tomorrow)
* Quantity
Minimum 1
(*) is mandatory
We'll get back to you within 24 hours

TQM033NB04CR RLG Technical Specifications

Category Transistors, FETs, MOSFETs, Single FETs, MOSFETs

Manufacturer Taiwan Semiconductor

Packaging Cut Tape (CT) & Digi-Reel®

Series -

Product Status Active

FET Type N-Channel

Technology MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss) 40 V

Current - Continuous Drain (Id) @ 25°C 21A (Ta), 121A (Tc)

Drive Voltage (Max Rds On, Min Rds On) 7V, 10V

Rds On (Max) @ Id, Vgs 3.3mOhm @ 21A, 10V

Vgs(th) (Max) @ Id 3.8V @ 250µA

Gate Charge (Qg) (Max) @ Vgs 87 nC @ 10 V

Vgs (Max) ±20V

Input Capacitance (Ciss) (Max) @ Vds 4917 pF @ 20 V

FET Feature -

Power Dissipation (Max) 3.1W (Ta), 107W (Tc)

Operating Temperature -55°C ~ 175°C (TJ)

Grade Automotive

Qualification AEC-Q101

Mounting Type Surface Mount, Wettable Flank

Supplier Device Package 8-PDFNU (5x6)

Package / Case 8-PowerTDFN

Base Product Number TQM033

Datasheet & Documents

HTML Datasheet

TQM033NB04CR RLG-DG

Environmental & Export Classification

RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095

Additional Information

Other Names
1801-TQM033NB04CRRLGCT
TQM033NB04CR
1801-TQM033NB04CRRLGDKR
1801-TQM033NB04CRRLGTR
Standard Package
2,500

Taiwan Semiconductor TQM033NB04CR RLG: High-Performance 40V Automotive MOSFET for Demanding Power Applications

Product Overview: Taiwan Semiconductor TQM033NB04CR RLG

The Taiwan Semiconductor TQM033NB04CR RLG is an automotive-grade N-channel MOSFET tailored for demanding power switching applications where high current throughput and low voltage operation are critical. Engineered to withstand a continuous drain-source voltage (V_DS) of 40V, it inherently supports the voltage margins typical of automotive power rails and industrial domains, while its thermal rating up to 175°C ensures reliable function under elevated junction temperature conditions common in harsh automotive environments and dense power modules.

From a device physics perspective, the MOSFET architecture optimizes conduction efficiency and switching speed, balancing on-resistance (R_DS(on)) and capacitances to reduce power dissipation during both static and dynamic states. Lower R_DS(on) directly translates to improved efficiency, minimizing heat generation and enabling smaller, lighter heat dissipation structures. This aligns with modern vehicle design imperatives where weight and thermal management constraints are increasingly tight.

The 8-lead PDFN56U package, enhanced with a wettable flank design, supports advanced assembly processes by facilitating dependable solder fillet inspection through automated optical inspection (AOI) systems. This package configuration simultaneously accommodates high pin density within a compact footprint, which supports increasing functional integration and space-saving PCB layouts—an essential factor given the complex and miniaturized modules prevalent in electric and hybrid vehicle powertrains.

Integrating the TQM033NB04CR into power conversion stages, such as synchronous buck converters or dc-dc regulators, reveals its operational advantages. The device’s low gate charge results in reduced switching losses, driving efficiency gains at higher switching frequencies common in automotive power electronics. Additionally, its avalanche energy ratings and rugged design support transient conditions including load dumps and high di/dt events, which are inherent to automotive power networks subject to inductive loads and rapid switching.

Practical implementation benefits from carefully managing gate drive signals to capitalize on the MOSFET’s fast switching capability while minimizing electromagnetic interference (EMI). Using gate resistors optimized for rise/fall times can strike a balance between switching efficiency and noise generation, contributing to overall system robustness. Including thermally conductive PCB materials and layout strategies such as multiple thermal vias and large copper areas under the MOSFET further enhances heat dissipation, maintaining device junction temperatures within recommended limits and extending operational longevity.

The incorporation of wettable flanks in the package not only aids AOI but also improves solder joint reliability under vibration and thermal cycling typical in automotive environments. This supports the overall system durability, enabling higher confidence in long-term maintenance-free operation—a critical factor for automotive OEMs targeting extended warranties and reduced field failures.

Within the broader context of automotive power electronics, devices like the TQM033NB04CR underscore the trend toward integrating high-performance discrete components that deliver both efficiency and ruggedness required by ever-evolving electrification and advanced driver-assistance systems (ADAS). Its design balances electrical performance with manufacturability considerations, reflecting an emphasis on scalable production without sacrificing quality or reliability.

Understanding this MOSFET’s characteristics and their translation into system-level behavior aids in making informed design decisions, supporting the development of power electronics that meet stringent automotive standards while optimizing overall vehicle performance and safety.

Core Features of the TQM033NB04CR RLG MOSFET

The TQM033NB04CR RLG MOSFET is specifically engineered for automotive-grade robustness, combining advanced design elements and stringent qualification standards to address elevated reliability demands. At the foundation lies its adherence to AEC-Q101 qualification, which mandates thorough stress testing and tight process controls. This certification provides confidence during design-in for mission-critical vehicle powertrain, safety, and body electronics modules, where failure rates must be exceptionally low across extended lifetimes.

At the device level, the implementation of 100% Unclamped Inductive Switching (UIS) and comprehensive gate charge characterization demonstrates commitment to rugged performance against dynamic electrical stresses. UIS testing validates the MOSFET’s avalanche capability, ensuring that inductive load switching events—common in solenoid, motor drive, or relay applications—do not compromise device integrity. This proactive strategy mitigates the risk of latent defects, supporting long-term reliability under real-world operating conditions characterized by frequent high-energy switching.

The high maximum junction temperature rating of 175°C significantly broadens application scope in thermal-challenged environments, such as engine compartments or direct-drive actuation zones. This elevated thermal ceiling provides design headroom, enabling power stage downsizing or closer proximity to heat sources without reliability sacrifice. Thermal derating can thus be minimized, resulting in more compact system layouts without breaching safe operating limits.

Mechanically, the wettable flank package presents a robust solution for modern automotive surface-mount processes. By facilitating automated optical inspection of solder joints, this package design addresses a critical pain point in automotive manufacturing: ensuring fault-free assembly at high volumes. The enhanced inspectability directly supports zero-defect quality targets, reducing latent soldering-related field failures and meeting tier-one supplier requirements for traceable quality assurance.

In addition to operational attributes, compliance with RoHS and halogen-free standards confirms the device’s adherence to evolving environmental and safety regulations. This ensures compatibility with global legislative frameworks and environmentally conscious supply chains. The halogen-free rating, specifically conforming to IEC 61249-2-21, further extends suitability to manufacturers committed to green electronics initiatives.

Integrating the TQM033NB04CR RLG into automotive systems streamlines risk assessment during process FMEAs and supports concurrent engineering with PCB assembly partners. Field-oriented experience reveals that its UIS resilience and high-temperature tolerance reduce warranty issue rates in high-power, thermally stressed domains such as electric power steering or pump controllers. Moreover, early adopters have leveraged the wettable flank package to optimize AOI programs, improving first-pass yield without additional manual inspection resources.

A key insight is that the intersection of device ruggedness, package-level inspectability, and environmental compliance serves as a template for future-proofing power system designs in next-generation vehicles. The convergence of these attributes not only satisfies today’s stringent requirements but anticipates further tightening of both technical and regulatory landscapes seen across e-mobility and autonomous platforms.

Electrical Specifications and Thermal Performance of TQM033NB04CR RLG

The TQM033NB04CR RLG MOSFET features a maximum drain-source breakdown voltage of 40V, positioning it for low-voltage switching applications where efficiency and thermal robustness are crucial. Its continuous drain current rating stands at 21A with a 25°C ambient temperature (Ta), while the maximum current reaches 121A when measured at the case temperature (Tc). This stark difference underscores the pivotal role of thermal management strategies, especially the conductive heat path from the device junction through the package to the board and ultimately to the ambient environment.

Power dissipation parameters further illustrate the thermal dependency of device performance. At a standard ambient temperature, the device can dissipate up to 3.1W without exceeding safe operating limits. However, with optimized heat sinking and effective thermal interface materials decreasing junction-to-case resistance, the dissipation capability can reach 107W at Tc. This variance serves as a practical reminder that PCB layout—copper pour thickness, pad area, and proximity to heat spreaders—directly influences not only device longevity but also transient and steady-state power handling.

The datasheet provides two vital thermal resistance figures: junction-to-ambient (RθJA) and junction-to-case (RθJC). While RθJC is tightly controlled through consistent packaging and die attach processes, RθJA is highly board-dependent and benchmarked against a 1in², 2oz copper pad on a multi-layer PCB. This distinction is essential when integrating the device into real-world environments where airflow, board material, and thermal vias significantly modify thermal resistance paths. Accurate modeling of these parameters allows for refined thermal simulations, ensuring that thermal runaway risks are minimized and switching efficiency remains stable under varying load conditions.

The switching behavior of the TQM033NB04CR is equally notable. Its switching times remain virtually invariant across typical operating temperature ranges, a characteristic that simplifies gate drive design and reduces timing uncertainty. This stability mitigates electromagnetically induced voltage spikes and switching losses, particularly beneficial in high-frequency power conversion scenarios such as automotive electronic control units. When implementing this device, the predictable timing behavior can streamline gate resistor optimization and layout parasitic considerations, enhancing both efficiency and reliability under dynamic operating conditions.

In advanced applications where thermal cycling and transient loads challenge device integrity, integrating the TQM033NB04CR with well-engineered PCB heat extraction techniques—such as solid copper planes augmented by thermal vias and tailored solder mask openings—can unlock the device’s full electrical potential without compromising margins. The intricate balance between electrical efficiency and thermal design should guide system architects toward co-optimization strategies that leverage the device’s robust current carrying capabilities while maintaining controlled junction temperatures below critical thresholds.

This component exemplifies a design philosophy where electrical performance is tightly coupled with thermal engineering. Its specification encourages a holistic approach to power stage development, acknowledging that mechanical layout and material selection decisively influence semiconductor longevity and operational stability. Accordingly, design decisions that prioritize thermal pathway optimization directly correlate with improved device utilization and system-level reliability, elevating the role of the MOSFET beyond a mere switching element to a critical thermal-electrical interface in power electronics.

Suitability for Automotive and Other Applications: TQM033NB04CR RLG in Engineering Context

In evaluating the TQM033NB04CR RLG, the component's intrinsic characteristics lend themselves directly to the demands of contemporary automotive engineering. The device is optimized for 12V systems, where low-voltage, high-current environments mandate robust power switch performance. Its exceptionally low on-resistance not only minimizes conduction losses but also serves to mitigate thermal accumulation in high-duty-cycle scenarios. This becomes particularly critical during rapid actuation events for solenoids, motors, and transmission modules, ensuring minimal voltage drop across the device and maintaining system responsiveness. The high current threshold further accommodates transient loads common in motor start and solenoid activation, supporting fault-tolerant architectures without the need for supplementary parallel devices.

Delving into junction temperature management, the device’s rated thermal resilience enables deployment in localized hot spots—proximal to engine or transmission assemblies. In such locations, ambient and self-generated thermal stress can degrade lesser components, yet the TQM033NB04CR RLG maintains electrical integrity, directly contributing to predictable system longevity. This thermal margin also simplifies PCB layout, decreasing the need for elaborate heat sinking, which can reduce overall assembly complexity and cost.

From a reliability engineering perspective, the integration of 100% Unclamped Inductive Switching (UIS) testing and comprehensive AEC-Q101 qualification satisfies automotive-grade benchmarks. This systematic validation process is pivotal; it reveals latent failure modes such as avalanche breakdown and ensures silicon ruggedness. These attributes translate to tangible reductions in field failure instances and post-market warranty exposure. In practice, devices subjected to full UIS screening demonstrate markedly greater consistency when exposed to harsh transients, surges, and repetitive switching stress.

Considering broader application scenarios, the switch’s robust thermal and electrical performance extends its utility beyond automotive systems, notably into industrial automation and high-reliability DC-DC conversion environments. For example, in industrial motor drives where rapid cycling and ambient heating are routine, the same attributes—low RDS(on), fast switching response, and high reliability—mitigate downtime and supports predictive maintenance strategies.

One nuanced engineering insight is the benefit conferred by specifying such power switches early in board-level architecture. Early adoption allows for simplified thermal management strategies and the possibility of direct integration near noise-sensitive elements without incurring excessive EMI risk, courtesy of the device’s rapid switching and tight parameter spread. Through careful consideration of device placement and biasing, engineers consistently observe meritorious system stability and low total cost of ownership across the vehicle lifecycle, reinforcing the role of rigorous component selection in high-reliability applications.

Mechanical and Package Details: TQM033NB04CR RLG PDFN56U

The TQM033NB04CR RLG integrates Taiwan Semiconductor’s PDFN56U 8-lead surface mount package, featuring a compact footprint of 5mm by 6mm. This package design employs a wettable flank construction technique, which enhances solder joint visibility during automated optical inspection (AOI). Such configurability enables highly reliable, non-contact quality verification in large-scale automotive and industrial manufacturing lines, reducing the risk of undetected assembly defects.

Mechanically, the dimensioning and tolerances strictly conform to JEITA ED-7500B and EIAJ SC-111BB standards. This standardization guarantees seamless mechanical interchangeability within established assembly frameworks, facilitating component replacement and supplier flexibility without necessitating redesigns. Maintaining adherence to these industry norms not only ensures consistent manufacturing precision but also strengthens cross-vendor interoperability in complex multi-sourced electronic systems.

The integrated marking schema encodes critical traceability information, including the model number, manufacturing date, lot identification, and factory origin. Embedding this data directly on the package supports stringent supply chain visibility essential in high-reliability sectors such as automotive electronics, where failure modes and production variances require thorough documentation and auditability. This traceability capability also enables efficient root cause analysis processes during field failure investigations, providing a data-driven foundation for continuous quality improvements.

In practice, the wettable flank design facilitates optimal solder fillet formation, which improves joint reliability by enhancing mechanical strength and mitigating issues like tombstoning or cold joints. The ability of AOI systems to detect the wettable flanks contributes significantly to early defect identification, shortening repair cycles and limiting downstream quality fallout. Adopting packages compliant with established dimensional and marking standards streamlines procurement, as supply chain engineers can trust consistent fit, form, and traceability attributes across multiple production runs and vendors.

Overall, the TQM033NB04CR RLG's package selection exemplifies a balanced optimization of mechanical integrity, inspection compatibility, and traceability—each a foundational element in designing electronic components for demanding environments. Its integration into automotive and industrial applications demonstrates how adhering to defined standards and leveraging advanced package features empowers manufacturers to uphold stringent reliability, quality control, and supply chain management imperatives.

Environmental and Compliance Information for TQM033NB04CR RLG

The TQM033NB04CR RLG module demonstrates rigorous adherence to stringent environmental and regulatory standards essential for modern electronic component deployment. Its Moisture Sensitivity Level (MSL) is classified as Level 1 according to J-STD-020, signifying that the device can endure unlimited exposure time on the manufacturing floor under controlled conditions of up to 30°C and 85% relative humidity without risk of moisture-induced damage. This attribute simplifies inventory handling and storage protocols, reducing the necessity for expedited processing or specialized dry packaging, thereby streamlining assembly workflows and lowering operational overhead.

Further environmental compliance is established through RoHS3 certification, ensuring that the component is free from restricted hazardous substances, aligning with lead-free manufacturing mandates. Its halogen-free status, complying with IEC 61249-2-21 standards, mitigates risks associated with toxic halogen emissions during device operation or disposal. This extends the applicability of the TQM033NB04CR RLG in designs targeting compliance with international directives and corporate sustainability goals. The absence of halogens also enhances material compatibility and reduces potential corrosive effects within complex electronic assemblies, which is critical for long-term reliability in harsh or sensitive environments.

From a regulatory and logistical perspective, the component is classified as REACH unaffected and assigned an Export Control Classification Number (ECCN) of EAR99. This classification implies minimal regulatory restrictions on international distribution, significantly easing global supply chain complexities, especially in diversified market regions. The EAR99 status ensures that the part can be integrated into international product lines without extensive export licensing, thus expediting procurement timelines and supporting agile manufacturing strategies.

Practically, selecting components with these characteristics reduces risk in production environments, where moisture sensitivity can induce latent failures through popcorn cracking during solder reflow. The Level 1 MSL rating inherently implies a robust design tolerant to environmental exposure, minimizing product rework and yield loss. Additionally, the compatibility with halogen-free processes benefits stakeholders aiming to comply with evolving environmental legislation, which increasingly mandates reductions in hazardous materials.

Incorporating the TQM033NB04CR RLG within an electronic system reflects an understanding of not only component-level environmental compliance but also its impact on manufacturing efficiency, supply chain robustness, and end-product sustainability. The seamless integration of such components facilitates design strategies that anticipate regulatory shifts and optimize for reliability, offering a foundational advantage in competitive market contexts.

Potential Equivalent/Replacement Models for TQM033NB04CR RLG

When evaluating potential replacement models for the TQM033NB04CR RLG, several core parameters demand scrutiny to ensure seamless integration within automotive power applications. The device’s 40V breakdown voltage and robust current handling file it squarely in demanding vehicular environments, where both reliability and durability are non-negotiable. Any considered alternative must be an N-channel MOSFET, specifically AEC-Q101 qualified, to guarantee resilience against the rigorous mechanical and electrical stressors found in transportation systems. These qualifications directly influence device longevity, especially under repetitive load cycles and thermal cycling stresses that frequently push package and silicon boundaries.

Breakdown voltage remains the primary electrical gatekeeper, dictating MOSFET survivability in transient-rich circuit topologies common in automotive ECUs, motor drivers, or power distribution modules. Devices with insufficient voltage headroom quickly manifest reduced safety margins, risking avalanche breakdown. The replacement candidate’s typical and maximum drain current ratings must match or exceed the TQM033NB04CR RLG’s design envelope to avoid saturation, excessive conduction losses, or RDS(on)-induced self-heating.

Packaging technology further dictates system-level efficacy. The original PDFN56U format, with its compact thermal path and low profile, is engineered for efficient heat dissipation within spatial constraints and automated optical inspection compatibility. Engineers should favor alternatives offering advanced wettable flank PDFN or closely related footprints, ensuring both backward compatibility and straightforward migration in established board layouts. Attention to pinout symmetry and solderability features is essential, particularly in high-volume, automated SMT flows.

Thermal resistance is closely tied to package technology and defines maximum junction temperature operation. Replacements must offer equivalent or superior RθJA and RθJC values to maintain predictable behavior under peak load, especially when devices are densely arrayed or deployed in minimal airflow environments. Subtle differences in copper leadframe composition, die attach materials, or mold compound can significantly alter heat extraction efficiency, influencing derating curves and overall system robustness.

Application transferability extends beyond datasheet metrics. Integration in pre-existing automotive busbars, high-side/low-side switching topologies, or low-inductance power planes hinges on tight control of dynamic parameters—gate charge, avalanche energy, and switching speeds—where mismatches subtly degrade EMI performance or system timing. Experience affirms that even within AEC-Q101 qualified product families, minor variations in intrinsic diode behavior or threshold voltage can lead to unforeseen rail noise or control instability, particularly under fast transient loads.

Selecting the optimal alternative often requires a pragmatic blend of simulation, bench validation, and PCB-level thermal modeling. Footprint matching is necessary but not sufficient; it’s prudent to assess real-world switching and thermal cycling, as differential field aging can mark the difference between robust long-term reliability and premature wear-out. Ultimately, alternatives only realize their full value when system-level derisking—spanning pin-to-pin interchangeability, dynamic performance, and passive component interplay—receives equal emphasis.

This multi-layer evaluation, blending datasheet alignment with nuanced field experience, reliably filters replacement candidates that match the TQM033NB04CR RLG not only in headline specs, but in the intricate interplay of tolerance, thermal management, and automotive compliance required for next-generation mobility platforms.

Conclusion

The TQM033NB04CR RLG from Taiwan Semiconductor integrates essential attributes for advanced automotive electronic platforms, specifically targeting reliability and operational resilience within stringent vehicular environments. By employing a compact, automotive-qualified package, this MOSFET directly addresses spatial constraints in contemporary ECU layouts while preserving ease of thermal management—a challenge often amplified in dense system designs. The component’s robust thermal and electrical ratings are not merely nominal values; they indicate rigorous engineering intent to withstand the cyclic stresses common in automotive power distribution, start-stop modules, and electric drive units. This thermal resistance profile enables integration in high-side switching and load control applications where sustained efficiency and low on-resistance are critical under fluctuating ambient conditions.

Electrically, the TQM033NB04CR RLG demonstrates controlled switching characteristics and precise gate charge parameters, minimizing EMI risks and ensuring compatibility across diverse gate drive architectures. The device’s low Rdson value coupled with its avalanche energy tolerance underpins safe operation during transient events, such as inductive load switching or power line perturbations—the sort frequently encountered in under-hood installations. Notably, its AEC-Q101 qualification is not simply a checkbox but a practical guarantee, reducing field failure rates and simplifying qualification validation for both OEMs and Tier 1 suppliers. Such conformity eliminates guesswork during development, streamlines supply chain approval processes, and assures continued fit within evolving regulatory landscapes.

Application-wise, the MOSFET’s versatility manifests in both traction inverter modules and auxiliary power supplies, adapting seamlessly to battery management subsystems and intelligent fuse replacements. Its robust construction and compliance facilitate design cycles where long-term reliability requirements are allied to increasingly aggressive downsizing and modularity trends within EV and ICE vehicles alike. From firsthand deployment, an attention to gate-source voltage margining and careful PCB layout for thermal dissipation unlocks the full potential of this device—lessening derating margins and sustaining peak performance even under extended duty cycles.

The capability set of the TQM033NB04CR RLG exemplifies an ongoing shift from generic power devices to application-calibrated components engineered for system-level synergy, providing clear risk mitigation and lifecycle advantages. This direction highlights a trend towards selecting devices that not only meet but anticipate evolving industry demands in terms of both regulatory compliance and electro-thermal reliability.

View More expand-more

Catalog

1. Product Overview: Taiwan Semiconductor TQM033NB04CR RLG2. Core Features of the TQM033NB04CR RLG MOSFET3. Electrical Specifications and Thermal Performance of TQM033NB04CR RLG4. Suitability for Automotive and Other Applications: TQM033NB04CR RLG in Engineering Context5. Mechanical and Package Details: TQM033NB04CR RLG PDFN56U6. Environmental and Compliance Information for TQM033NB04CR RLG7. Potential Equivalent/Replacement Models for TQM033NB04CR RLG8. Conclusion

Reviews

5.0/5.0-(Show up to 5 Ratings)
Jard***eLune
de desembre 02, 2025
5.0
L’assistance après-vente m’a donné des conseils précieux pour optimiser l’utilisation de mes produits.
Tra***elle
de desembre 02, 2025
5.0
DiGi Electronics bietet hervorragende Preisvorteile, und der Service nach der Bestellung ist erstklassig.
Sunsh***Spirit
de desembre 02, 2025
5.0
Overall, their shop provides a trustworthy and high-quality shopping environment.
Wav***der
de desembre 02, 2025
5.0
Fast delivery times and eco packaging that minimizes waste made me very happy.
Starlig***erenity
de desembre 02, 2025
5.0
The packaging was airtight and reinforced, giving me confidence in the safety of my order.
Rainb***orizon
de desembre 02, 2025
5.0
They prioritize customer satisfaction with efficient and timely support.
Publish Evalution
* Product Rating
(Normal/Preferably/Outstanding, default 5 stars)
* Evalution Message
Please enter your review message.
Please post honest comments and do not post ilegal comments.

Frequently Asked Questions (FAQ)

What are the key thermal design considerations when using the TQM033NB04CR RLG in high-current applications where the junction temperature approaches 175°C?

When operating the TQM033NB04CR RLG near its maximum junction temperature of 175°C, thermal management is critical due to its 107W power dissipation capability at Tc. Engineers must ensure low thermal resistance from the device to the PCB by using sufficient copper pour, multiple vias under the thermal pad, and ideally a 4-layer board with internal ground planes. The Rds On of 3.3mΩ @ 10V helps minimize conduction losses, but at high Id (121A Tc), even small resistances contribute to heating. Use the TQM033NB04CR RLG’s wettable flank 8-PDFNU package to ensure reliable solder joint inspection and avoid voiding. Additionally, derate Id as ambient temperature increases—remember that the 21A rating is at Ta, not sustained high-temperature operation.

Can the TQM033NB04CR RLG directly replace the Infineon BSC035N10NS5 in a 40V motor control circuit, and what design-in risks should I evaluate?

While both the TQM033NB04CR RLG and BSC035N10NS5 are 40V N-channel MOSFETs in similar power-TDFN packages, direct replacement requires careful analysis. The TQM033NB04CR RLG has a lower Rds On (3.3mΩ vs 3.5mΩ) and higher peak current capability (121A Tc), but its gate charge is higher (87nC vs ~60nC), increasing switching losses in high-frequency applications. Ensure your gate driver can source/sink sufficient current to charge the TQM033NB04CR RLG’s 4917pF Ciss quickly without excessive rise times. Also verify the Vgs(th) of 3.8V max is compatible with your drive signal—logic-level FETs may turn on prematurely if noise is present. Layout adjustments may be needed for optimal thermal performance due to subtle footprint differences.

How does the AEC-Q101 qualification of the TQM033NB04CR RLG improve reliability in automotive power distribution designs?

The AEC-Q101 qualification of the TQM033NB04CR RLG ensures it meets stringent automotive reliability standards for temperature cycling, humidity, mechanical shock, and long-term endurance. This is essential for automotive power distribution, door modules, or fan controllers exposed to harsh environments. Its -55°C to 175°C operating range supports under-hood applications, and the MSL1 rating (unlimited floor life) reduces moisture-related failure risks during assembly. Combined with ROHS3 and REACH compliance, the TQM033NB04CR RLG offers robustness against thermal runaway and electromigration, especially during repeated load switching—critical in 12V/24V vehicle systems.

What are the risks of using the TQM033NB04CR RLG at Vgs = 7V instead of 10V in a synchronous buck converter?

Operating the TQM033NB04CR RLG at Vgs = 7V increases Rds On above its specified 3.3mΩ (tested at 10V), leading to higher conduction losses and temperature rise. While the device is rated for 7V drive, actual performance depends on the gate-to-threshold margin—near Vgs(th) of 3.8V, small variations due to temperature or manufacturing tolerances can cause significant Rds On drift. In a synchronous buck converter, this can unbalance duty cycles and reduce efficiency. Always design with sufficient overdrive (preferably 10V) unless using an adaptive gate driver. If limited to 7V, derate Id significantly and simulate thermal behavior under worst-case load transients.

How does the wettable flank feature in the TQM033NB04CR RLG package impact PCB assembly and AOI inspection in high-volume manufacturing?

The wettable flank on the TQM033NB04CR RLG’s 8-PDFNU (5x6) package enables reliable visual and automated optical inspection (AOI) of solder joints on bottom-terminal components, which are traditionally difficult to inspect. This improves first-pass yield in high-volume SMT lines by allowing direct camera access to solder fillets. To leverage this, ensure stencil design provides adequate paste volume (typically 100–120% of pad area) and use a reflow profile with sufficient liquidus time for proper wetting. Avoid excessive pad undercutting in the PCB design. The wettable flank also supports IPC-A-610 compliance for end-user acceptance in automotive and industrial applications where traceability and quality assurance are critical.
