Product Overview: Silvertel Ag1171 Low Power Ringing SLIC

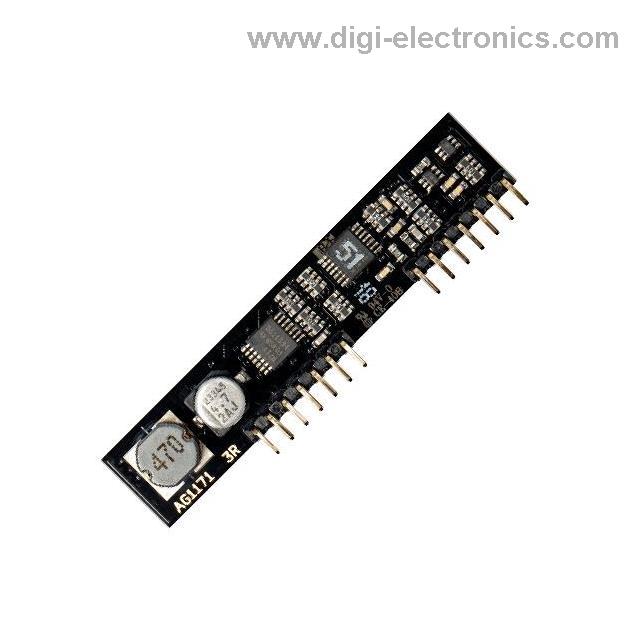

The Silvertel Ag1171 Low Power Ringing SLIC embodies a compact, single-in-line module optimized for modern telephony interface demands. At its core, the Ag1171 combines robust analog signal management with integrated power conversion, minimizing dependence on ancillary circuitry. Its design leverages a high-efficiency onboard DC/DC converter coupled with a dedicated ringing generator, collectively supporting the dual requirements of line signaling and power provision. This architectural choice reduces the footprint and complexity of interface boards, streamlining device assembly and deployment particularly where minimal space and tight cost constraints prevail.
Driving the analog subscriber interface from a single 3.3V to 5.0V rail, the Ag1171 eliminates the need for multiple supply voltages, a common pain point in traditional SLIC implementations. The output stage delivers sufficient line voltage and current for loops up to 1km with a 470Ω load, aligning with the practical range for short-loop installations encountered in FCT, FWT, VoIP gateways, and WLL access points. The module’s SIL form factor further eases integration; engineers can mount the Ag1171 directly onto compact PCBs, allowing for rapid prototyping and iterative development cycles. This physical format dovetails with automated manufacturing processes, favorably impacting production scalability.
Central to the Ag1171’s operational efficiency is its DC/DC conversion topology, which maintains stable line voltage during ringing and speech mode transitions. In practice, this yields consistent call signaling and voice transmission performance, reducing susceptibility to voltage sag or noise injection—a pertinent concern in environments with fluctuating power supply quality. The generator’s ringing capabilities meet standard telephony specifications, ensuring interoperability with legacy telephone devices and compliance with regional signaling requirements.
In deployment scenarios, the Ag1171 demonstrates reliable performance in low-count access systems and remote installations. For instance, its unified supply voltage allows direct interfacing with battery-backed systems or renewable-powered telecom infrastructure, reducing system-level design friction. During field testing, board layouts with the Ag1171 exhibited lower component stress and simpler thermal management owing to the module’s efficient energy conversion. These advantages translate to improved mean time between failure (MTBF) metrics and reduced maintenance overhead in distributed access networks.
From an engineering perspective, the Ag1171’s integration of line driver and ringing capabilities offers flexibility for both traditional analog endpoints and newer hybrid IP-telephony architectures. Designers navigating constrained environments—such as rural base stations or edge devices—can leverage this module to achieve optimized channel density without compromising signal integrity. The elimination of external transformers or complex power rails underscores a shift towards modular, scalable telephony platforms.
A salient insight emerges from the Ag1171’s deployment: the synergy of miniaturized interface electronics with standardized telephony signaling mechanisms creates momentum for broader adoption in emerging telecom applications. By lowering both spatial and electrical barriers, the module redefines entry points for voice connectivity within streamlined network topologies, enabling agile design patterns and enhanced operational resilience.
Key Features of the Silvertel Ag1171 Low Power Ringing SLIC
The Silvertel Ag1171 is engineered to address the demands of low power telephone line interfacing while prioritizing compactness and operational efficiency. At the hardware level, the module integrates a DC/DC converter that internally generates high-voltage battery rails. This eliminates the requirement for discrete, external supply components that traditionally complicate board layout and increase cost. Power management is central to the Ag1171’s design, as it efficiently operates on a single low-voltage supply ranging from 3.3V to 5.0V. This wide tolerance enables flexible compatibility with standard embedded systems, simplifying system-level power distribution and reducing thermal concerns inherent in higher-voltage SLICs.
The integrated ringing generator demonstrates balanced output capabilities, delivering up to 60Vrms for individual line loads and sustaining above 40Vrms even when servicing multiple endpoints. Such performance is significant for legacy and modern telephony in short-loop environments, where robust ringing and clear signaling are paramount yet transformerless architectures often compromise signal integrity. With the Ag1171, direct connection to tip and ring lines is possible without supplemental circuitry, facilitating straightforward integration in both analog telephony gateways and contemporary VoIP adapters.
Physical implementation benefits from the 14-pin SIL package, which minimizes footprint without sacrificing functional accessibility. The reduced bill of materials—enabled by the minimized need for external passive components—streamlines procurement and assembly. Layout simplicity gained from the SIL form factor translates to tangible gains in production yield and maintenance, especially vital in high-density or modular systems where board real estate is scarce.
The module’s logic-level polarity reversal (F/R pin) is a critical asset for telephony signaling, enabling seamless tip/ring swapping under software control. This feature is essential for applications requiring rapid line state changes, such as those supporting advanced telephony features or automated testing. On-hook transmission for CLI is supported natively, providing compatibility with caller identification and signaling protocols that maintain the integrity of ancillary information during connection establishment. Practical deployment scenarios reveal that the Ag1171 excels in short-loop contexts, such as local exchange equipment or distributed terminal installations, where loop resistance and distance constraints are less pronounced.
Reliability and compliance are engineered into the device fabric, with full RoHS3 conformance and immunity to REACH chemical restrictions. This foundational adherence assures long-term viability in regulated markets. A unique insight emerges from the Ag1171’s configuration: the integration of multiple key telephony functions within a unified, low-power module redefines cost-performance boundaries for SLICs in embedded systems. Its architectural minimization of ancillary circuitry—while delivering robust ring generation and signaling—empowers designers to focus resources on differentiated features rather than base line management, catalyzing accelerated development cycles and optimized hardware platforms.
Functional Details of the Silvertel Ag1171 Low Power Ringing SLIC
The Silvertel Ag1171 Low Power Ringing SLIC is engineered for streamlined deployment in telephony subsystems, optimizing the interface between digital control logic and analog subscriber loops. Its architecture encapsulates battery feed, ringing generation, line supervision, and signaling within a unified, compact footprint, designed to minimize external components and simplify system layout.
Core to its function is the integrated DC/DC converter, which efficiently derives high-voltage 'battery' rails from a low-voltage input, such as 3.3V or 5V logic power. This conversion process dynamically supports longitudinal currents required by telephony interfaces without demanding complex external regulation. In practice, this mechanism enables direct line powering capability, critical for both single and multi-phone environments, while keeping thermal dissipation low and system reliability high. The converter’s rapid response to load changes ensures stable operation during on-hook and off-hook transitions, even under varying network conditions.
The ringing generator subsystem uses the RM pin for mode activation and the F/R pin for cadence control. Outputting balanced signal voltages across Tip and Ring, it achieves up to 60Vrms for individual phones and retains over 40Vrms when loaded with multiple tone-ringer sets. This internal generation approach negates the need for dedicated analog ringing circuits, reducing board complexity. In real-world deployments, the Ag1171 maintains consistent ringing amplitude and frequency—key when interfacing with legacy telephone sets sensitive to voltage and tone—regardless of the input supply fluctuations, thanks to feedback loop stabilization within the converter module.
Line supervision is facilitated through the SHK output, which actively monitors loop state transitions. The module’s rapid ring-trip detection translates to precise signaling, minimizing delay and false triggers in switch applications. Internally mapped impedance (600Ω for both 2-wire and network balance paths) ensures conformity with telephony standards, such as ETSI and Bellcore, and obviates external calibration resistors or complex impedance matching, accelerating product design cycles. This feature becomes especially valuable during mass production, as it guarantees parameter uniformity across units without production-specific tuning.
Integration flexibility is further realized through the 2-4 wire conversion ports (VIN/VOUT), permitting direct connectivity to audio processing endpoints like codecs and DSPs. This configuration enables both analog voice and digitized signaling, supporting advanced voice feature sets including echo cancellation and caller identification. The programmable Tip/Ring polarity, achieved by toggling the F/R pin, streamlines signaling interface with central office equipment and supports analog reversal events—a recognized requirement in metering and enhanced telephony platforms.
On-hook transmission functionality allows analog signaling during idle states—critical for CLI transfer—configurable using an external resistor to tailor line behavior to regional signaling schemes. This feature, employed across diverse markets, allows seamless adaptation for varying network requirements without necessitating base hardware revision.
Operational reliability and electromagnetic compatibility benefit from the PD (power-down) pin, which can either deactivate the module to reduce power consumption or synchronize its internal oscillator to a master 64kHz reference. This synchronization is strategically used in multi-channel systems or dense rack environments to mitigate potential EMC-related interference, enhancing overall system immunity and facilitating regulatory compliance.
Summing up the deployment experience, SLIC modules like the Ag1171 provide robust, adaptable solutions for modern POTS interfaces. Their internalization of key analog functions, network standard compatibility, and minimal external circuitry serve to accelerate design cycles, lower BOM costs, and ensure field stability. A nuanced but important insight is the upside in scalability: by abstracting complex analog mechanisms into high-integration modules, system designers gain flexibility to expand or reconfigure product lines with minimal signal integrity risks, while maintaining consistent electrical and supervisory behavior. This approach, grounded in modular engineering, stands out as a preferred path for telecom hardware differentiation and lifecycle management.
Electrical and Mechanical Characteristics of the Silvertel Ag1171 Low Power Ringing SLIC
The Silvertel Ag1171 Low Power Ringing SLIC demonstrates a well-engineered balance between electrical performance and ease of system integration, particularly suited for applications within telephony interfaces. Operating from a single supply rail between 3.3V and 5.0V, the Ag1171 accommodates modern low-voltage logic environments while ensuring interoperability with legacy infrastructure. The typical operating current of approximately 60mA, coupled with a capped power consumption of 1.2W, reflects deliberate optimization for energy efficiency in both standalone and densely packed line card applications. This power profile directly supports implementation in constrained thermal budgets or remote telephony modules powered through limited supply rails.
The device is encapsulated in a 14-pin Single-In-Line (SIL) package, utilizing through-hole mounting. This interface simplifies prototyping and manual assembly, while also offering robust mechanical retention for vibration-prone environments. From an environmental perspective, RoHS3 compliance, an unlimited moisture sensitivity level, and independence from REACH constraints ensure regulatory peace of mind and ease of global deployment.
The Ag1171’s input/output impedance is preset at 600Ω, aligning precisely with industry telephony standards to facilitate straightforward hybrid circuit design and predictable echo performance. Audio gain is nominally 0dB across the codec or DSP audio path, thereby maintaining transparency in the signal chain and reducing calibration complexity. Such default settings eliminate the need for external impedance matching or gain adjustments in typical applications, expediting both development and field configuration.
Mechanically, the SLIC supports a maximum loop length of approximately 1.0km including a 470Ω telephone load, accommodating standard subscriber premises wiring. This characteristic ensures compatibility with a range of customer environments, including extended rural deployments or legacy installations where loop resistance is a practical concern. In real deployments, carefully observing loop length limitations mitigates risk of signal degradation and guarantees regulatory performance such as longitudinal balance and return loss.
The pinout architecture is disciplined, providing independent terminations for Tip and Ring connections, forward and reverse battery control, ringing mode selection, and reliable switch hook status indication. This allocation supports flexible integration with microcontrollers or dedicated control ASICs, facilitating both polarity reversal (for services such as caller ID Type II or metering pulses) and custom ringing profiles. The presence of the PD (power down) pin not only permits straightforward power management—enabling SLIC disconnection when lines are idle to minimize power usage—but also introduces a clock synchronization capability. By allowing external clock-driven switching, the Ag1171 grants system designers an explicit mechanism to shape EMI spectra, which is critical in multi-channel voice gateways or designs sensitive to emissions within certain frequency bands.
Practical use cases often involve leveraging the Ag1171’s mechanical robustness and impedance standardization to reduce rework and troubleshooting in field deployments. For example, through-hole mounting ensures secure connections even when exposed to environmental stressors encountered in industrial telecom installations, and the consistent 600Ω interface streamlines hybrid design even if endpoint telephones vary in impedance. Experience with long loop runs underscores the importance of monitoring cable quality and maintaining within the prescribed resistance envelope to avoid under-voltage conditions at the subscriber set.
Designers can extract maximum value from the Ag1171 by exploiting the PD sync feature early in the layout for dense systems or EMI-regulated markets, effectively pre-empting potential compliance challenges. This direct EMI management, in conjunction with the device’s tightly controlled electrical parameters, supports robust analog performance while easing paths to certification. Furthermore, the feature set and architectural choices position the Ag1171 as a foundational building block in evolving telephony platforms, sustaining legacy voice delivery even as systems transition toward IP convergence and higher integration.
Application Considerations: Integrating the Silvertel Ag1171 Low Power Ringing SLIC
Application of the Silvertel Ag1171 Low Power Ringing SLIC demands attention to both its underlying architecture and practical deployment nuances. Engineered for low channel density telephony, the Ag1171 consolidates ringing generation and battery feed within a compact footprint, effectively reducing solution cost and board space. SOHO gateways, compact PBX extension modules, and remote rural subscriber interfaces benefit directly from these characteristics, enabling telephony functions in confined environments where traditional SLIC arrangements are excessive or impractical.
The component minimizes the recurring need for bulky and costly external circuits. By internally generating high-voltage ringing and battery feed, it obviates external ringing generators and high-voltage supply rails, which translates to simplified power domain routing and streamlined design verification. This internalization not only accelerates development cycle time but also enhances system reliability through reduced interconnect complexity. In practical assembly scenarios, the elimination of impedance-setting resistors further cuts bill-of-material count and assembly labor, facilitating efficient DFM (Design for Manufacturability) processes—even for batch sizes in the hundreds.
Signal path integrity—a persistent engineering challenge in analog telephony—hinges on correctly sized coupling capacitors at the audio interface. Adherence to the specified 10nF values, incorporating low ESR types, preserves frequency response and suppresses low-frequency noise transfer, supporting both speech clarity and FSK-based services such as on-hook CLI transmission. Ground referencing presents another critical vector: routing the DC/DC converter ground (GNDpwr) with short, low-impedance traces minimizes conducted emissions and mitigates the risk of system-level EMC failures during product certification, an often underestimated pitfall in design-to-production transitions.
On-hook CLI delivery efficiency depends on precise resistor selection between Tip and Ring. Overly low resistance degrades signal detectability, while higher values drive up quiescent current drain—creating tension between robust signaling and low-power operation, especially in battery-backed systems. An optimal engineering approach balances these parameters with reference to the specific transmission line environment, often verified through test-bench measurements using actual subscriber loop conditions.
System-level supervisory and polling schemes, such as periodic hook status scans in multi-line platforms, derive tangible benefit from the Ag1171’s power-down mode. This feature supports dynamic power scaling, where inactive channels revert to a low-consumption state, diminishing total system load and extending operational time for off-grid installations. It also introduces the prospect of adaptive power domains, where SLIC wake cycles are synchronized to user activity, minimizing redundant polling overhead—an avenue for additional system performance refinement.
A subtle but impactful observation lies in the Ag1171’s role in harmonizing legacy telephony requirements with evolving low-power and modular product architectures. It bridges the reliability of classic SLIC functions with modern expectations of integration and operating efficiency. As such, selection and deployment should align with forward-looking maintenance, regulatory, and scalability considerations, particularly as telephony migrates to converged analog-digital infrastructures.
Protection Mechanisms in the Silvertel Ag1171 Low Power Ringing SLIC
Protection mechanisms embedded within the Silvertel Ag1171 Low Power Ringing SLIC address critical risk vectors inherent to telecom infrastructure. These mechanisms center on two primary domains: thermal overload mitigation and line transient suppression. The device integrates an internal over-temperature shutdown system, leveraging temperature sensing to actively monitor junction conditions. Upon exceeding safe thresholds, this circuit disables further power throughput, preempting device failure and reducing downstream impact within the network. This approach optimizes device longevity and operational reliability, particularly under unpredictable thermal envelope fluctuations caused by high ringing or prolonged signaling states.
Internally, the Ag1171 employs overvoltage protection circuits designed to react dynamically to transient line events. Such events typically originate from atmospheric disturbances or switching spikes. The SLIC utilizes semiconductor-based clamping technology, which rapidly diverts excess voltage from the signal path, minimizing stress across sensitive analog front-end components. This ensures preservation of functional integrity without increasing insertion loss or degrading audio quality, demanding careful engineering tradeoffs between response times, dissipation capability, and device footprint.
PCB layout optimization constitutes a secondary line of defense, serving to localize and manage surge paths while minimizing susceptibility to electromagnetic gradients. Strategies include isolating high-voltage traces, reinforcing ground planes, and routing critical paths with minimal loop areas. These measures, supported by simulation-driven design validation, substantially reduce propagation of impulsive energy and lower the probability of secondary damage. In practical deployments, supplementary external protection is often integrated, especially in environments where surge levels are less extreme, such as “on-premise” installations. Varistor or gas discharge tube arrays selected for complementary response curves fit well with the Ag1171’s internal schemes, offering an additional layer that seamlessly absorbs residual overloads—an approach validated in field deployments where incoming line disturbances are mild yet non-negligible.
A nuanced insight concerns the need for tailored protection strategies based on the installation context. While outdoor plant scenarios necessitate maximal hardening, premises-based configurations allow for optimization favoring cost, footprint, and maintenance interval. The Ag1171’s adaptability, driven by its scalable protection architecture, enables its integration across a spectrum of deployment cases, from compact IP-PBX systems to remote terminal units. Layering protection not only addresses immediate threats but also supports the broader goal of maintaining service continuity, a priority for telecom operators unable to tolerate protracted outages.
Ultimately, the interplay between robust internal protection and strategic external augmentation forms the cornerstone of effective SLIC reliability engineering. Surveillance on thermal and transient triggers, combined with deliberate board-level implementation, acts as a deterministic shield—balancing standard compliance, field serviceability, and long-term asset preservation.
Potential Equivalent/Replacement Models for the Silvertel Ag1171 Low Power Ringing SLIC
Evaluating alternatives for the Silvertel Ag1171 demands a rigorous analysis of both functional blocks and implementation pathways characteristic of low-power SLICs. The core requirements center on single-line telephone interface circuits suited to VoIP adaptors, intercoms, and alarm signalling modules, where space, power, and simplicity are critical. At the heart of these modules lie features blending single-supply operation—commonly 3.3V or 5V rails—with on-board DC/DC conversion enabling high-voltage battery and ringing signal generation directly from low-voltage domains.
Critical attention belongs to the integration strategy: Competent alternatives must encapsulate high-voltage generation, hybrid impedance interfaces (standardized at 600Ω), and programmable gain within a compact organization. This underpins transparent system-level impedance matching to telecom networks and minimizes layout complexity. Adoption of SIP (Single In-line Package) or SIL (Single In-line Lead) modules is vital, as these layouts enable straightforward drop-in for densely populated PCBs. Design replacements leaning on similar through-hole packages simplify prototype adaptation and support robust soldering for long-cycle use cases.
Electrical performance integration sits alongside minimal external dependencies. Comparable SLICs from vendors such as Maxim, Microchip, and Renesas must be scrutinized for built-in current-limited battery and ring drivers, balanced longitudinal impedance, and essential supervisory functions—such as ringing cadence control and line status detection. Ones requiring extensive peripheral passives often rapidly erode spartan BOM advantages and reliability metrics.
Safety and EMC compliance introduce mandatory checkpoints. Integrated solutions must evidence surge and transient immunity, as well as conformance to standards like EN60950 or IEC 62368, especially in geographically diverse deployment scenarios. Field experience demonstrates that variants with on-board protection components streamline both regulatory submissions and multilayer PCB routing by reducing the need for external suppression elements.
In application, nuanced system compatibility checks are essential. Variation in idle power draw and ringing drive strength can undermine drop-in replacement efforts if unexamined, potentially exposing marginal supply rails or insufficient headroom for long-loop applications. High-integration modules with programmable ringing characteristics deliver better tuning for custom ring signal envelopes or international spec compliance without system redesign overhead.
A notable industry trend is the movement toward further digital programmability, allowing fine-grained control over loop parameters, supervision thresholds, and performance diagnostics. Embracing alternatives supporting such configurability optimizes for both present requirements and long-term maintainability in connected applications, especially as remote monitoring and updates become standard.
Ultimately, the evaluation process should extend beyond simple datasheet comparison, anchoring on real-world system behavior, in-circuit testability, and integration workload across the product lifecycle. Solutions tightly aligned with established test and safety protocols fundamentally reduce time-to-market and risk exposure. Detailed practical assessment guides the selection toward architectures offering robustness, structural minimalism, and seamless integration—qualities that underpin the enduring utility of the Silvertel Ag1171 and define the benchmarks for any equivalent or replacement model.
Conclusion
The Silvertel Ag1171 Low Power Ringing SLIC exemplifies the integration trend in modern telecommunications IC design, offering substantial advantages for voice terminal and access device engineering. At the core, the Ag1171 consolidates critical analog line interface functions—including battery feed, ringing generation, and subscriber line supervision—within a single-chip architecture. This high level of functional integration eliminates the need for discrete DC/DC converters and external ringing circuits, which have traditionally complicated both PCB layout and thermal management in dense designs.
From a system engineering perspective, the single-supply operation and intrinsic DC/DC conversion simplify power domain planning, particularly in multi-channel voice interface cards where board space and efficiency are at a premium. The minimized external component count not only reduces procurement complexity but also streamlines validation and long-term maintenance, decreasing points of failure and supporting faster compliance testing cycles. These features directly translate to lower bill-of-materials costs and compress the overall development timeline, an increasingly critical consideration in competitive telecom markets.
In practical deployment, the Ag1171 demonstrates robust adaptability to a variety of access scenarios, from analog FXS endpoints in private branch exchanges to CPE interfaces in VoIP gateways. The flexibility in ringing voltage and programmable supervision metrics allows the device to accommodate region-specific telephony standards without board spins or costly hardware revisions. Such versatility is essential for integrators targeting geographically diverse deployments or needing to pivot rapidly in response to market changes.
A noteworthy observation is the positive impact on manufacturability; with so many analog and power management functions on-die, test point reduction and simplified assembly are realized, resulting in improved yield rates and more predictable production scalability. The long-term field reliability inherent in integrated SLIC designs like the Ag1171 is supported by well-controlled transients and internal protection features, a point often validated through extended pilot field runs in demanding environments, such as remote outdoor cabinets or energy-constrained terminal devices.
A subtle yet strategic benefit emerges in system modularity—engineers can introduce new FXS ports or repurpose existing PCB real estate without revisiting bulk power or high-voltage subsystem design choices. This modularity aligns well with contemporary trends toward flexible, scalable access platforms where product longevity and adaptability drive cost and lifecycle competitiveness.
The Ag1171’s profile—emphasizing operational efficiency, implementation density, and regulatory compliance—reflects a mature solution philosophy tailored to the constraints of today's access solutions. By embedding such devices, development teams position their platforms for faster time-to-market while sustaining operational reliability across the deployment lifecycle, reinforcing the value of high-integration telephony ICs in evolving telecom architectures.
