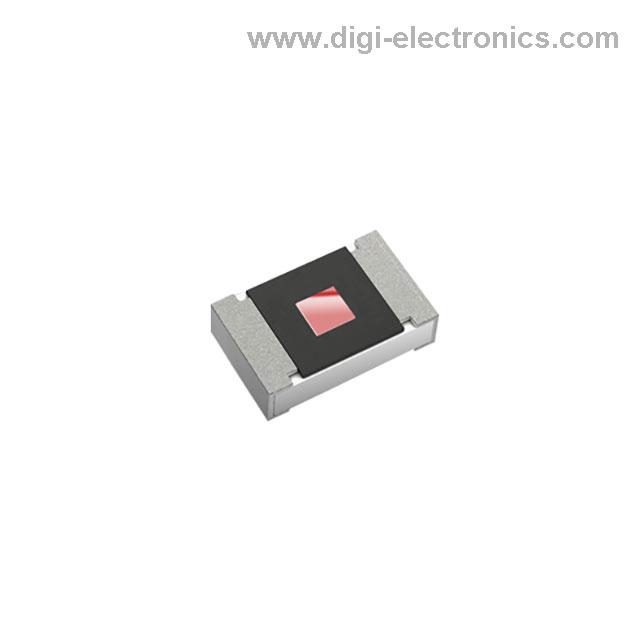

Product overview: ERJ-U3RD2002V Panasonic Precision Anti-Sulfur Chip Resistor
The ERJ-U3RD2002V represents Panasonic’s response to the increasing demand for high-reliability chip resistors in environments susceptible to atmospheric contaminants, particularly sulfur. Engineered as a thick-film resistor with a nominal value of 20 kΩ and a tight ±0.5% tolerance, this component targets precision analog circuitry where resistance drift could compromise system calibration. The core innovation lies in its anti-sulfur technology, which safeguards the internal metallic elements—typically silver-based—from corrosion and subsequent open-circuit failures. This resilience is achieved through proprietary passivation techniques applied at the material and termination interface level, effectively inhibiting the formation of silver sulfide even in prolonged exposure to industrial or automotive atmospheres.
The compact 0603 (1608 metric) SMD format facilitates deployment in densely populated PCBs, supporting the ongoing miniaturization of electronic control units, sensors, and industrial modules. With a power dissipation rating of 0.1W, the ERJ-U3RD2002V covers low to moderate signal processing needs, making it suitable for feedback networks, signal filtering, and precision biasing stages where thermal self-heating must remain minimal to preserve long-term stability.
AEC-Q200 compliance demonstrates not just basic reliability but also qualification under the rigorous scenarios encountered in automotive applications—such as extended thermal cycling, mechanical shock, and exposure to harsh chemical agents. This level of certification is increasingly being adopted in non-automotive industries as a benchmark for elevated reliability expectations, particularly in safety-critical and mission-critical system layers. Lessons from fielded designs underscore that even minor sulfuration-induced drifts can lead to latent faults in sensor arrays, analog front-ends, or power train subsystems—addressing these at the component level reflects a system-oriented engineering mindset.
Application-wise, the value proposition of anti-sulfur resistors extends to regions with fluctuating air quality or manufacturing sites adjacent to petrochemical facilities, where standard resistors exhibit increased failure rates. Integration of the ERJ-U3RD2002V directly enhances product lifecycle metrics by curbing unpredictable maintenance or recall events caused by passive component degradation. Best results are observed when deployment precedes corrosion events, reinforcing the wisdom of embedding environmental robustness into the bill of materials rather than retroactively managing failures.
Notably, the consistent deployment of anti-sulfur thick-film resistors in quality-driven sectors is beginning to shift industry norms, with environmental resilience being perceived as a baseline requirement rather than an application-tailored upgrade. A holistic evaluation of supply chain reliability now naturally incorporates anti-sulfur characteristics, reflecting an implicit consensus on the need for robust passive technologies in advanced design portfolios. This pragmatic shift supports the long-term scalability and functional safety of today’s electronics, particularly as new mobility and industrial automation paradigms increasingly converge.
Key features and technical advantages of ERJ-U3RD2002V
At the foundation of the ERJ-U3RD2002V's technical architecture lies its adoption of Ag-Pd-based inner electrode technology. Silver-palladium composition forms a critical barrier against the penetration of sulfur atoms, a primary driver of resistor failure in high-sulfur or chemically aggressive atmospheres. In environments where sulfur-containing gases, such as hydrogen sulfide or sulfur dioxide, are persistent, conventional Ni-based electrodes tend to suffer from rapid degradation, resulting in open-circuit failures. The Ag-Pd system intrinsically resists the electrochemical reactions that lead to electrode migration and structural embrittlement, thereby securing the device’s long-term stability and reliability.
Surrounding the Ag-Pd electrodes, a tri-layer electrode structure is strategically implemented. This layering enhances both the skin and core connectivity, distributing thermal and electrical stresses more evenly through the device. By engineering the electrodes to interface optimally with a metal glaze thick film resistive element, the ERJ-U3RD2002V achieves a balance between robust adhesion and controlled resistive characteristics. The thick film material, when fired to specification, develops a granular matrix that offers consistent electron pathway integrity, reducing incidence of localized hot spots and resistive drift over extensive operational periods.
Precision and stability further distinguish the ERJ-U3RD2002V. The resistor maintains a tight resistance tolerance of ±0.5%, with a temperature coefficient of ±50 ppm/°C. This low TCR is achieved through meticulous selection of film composition and process parameters, resulting in predictable and negligible resistance variance under temperature cycling—a critical requirement in analog precision circuitry, signal conditioning, and high-density control environments. Devices that demand clock synchronization, such as industrial automation controllers, strongly benefit from these attributes, as even minor resistance deviations can translate to signal latency or logic errors.
From a compliance and interoperability perspective, the resistor is engineered in accordance with IEC 60115-8, JIS C 5201-8, and JEITA RC-2134C. These alignments standardize performance metrics, making integration into global platforms direct and minimizing the need for platform-specific qualification tests. With RoHS and REACH conformity, integration into projects prioritizing environmental sustainability is streamlined, and product certification hurdles are reduced at both region-specific and multinational deployment scales.
In demanding field deployments, such as remote IoT sensor modules situated near petrochemical plants, the ERJ-U3RD2002V has demonstrated ongoing resistance value retention and electrical continuity, where standard chips exhibited visible sulfur-related failures within weeks. These real-world outcomes underscore the importance of material and structural choices when reliability under chemical attack is not simply preferable but essential. Furthermore, the device’s design simplifies qualification processes in multi-standard environments, facilitating rapid time-to-market for engineered solutions where downtime or field failure incurs significant operational risk.
The ERJ-U3RD2002V’s construction represents an advanced synthesis of material science and electrical engineering principles. Its multi-layered approach—leveraging anti-sulfur electrode metallurgy, optimized resistive elements, and standardized package compliance—delivers consistent performance in sectors where precision, durability, and regulatory clarity converge as mandatory design parameters. This layered structure yields tangible benefits across automotive sensor networks, renewable energy control panels, and industrial automation nodes, where exposure to pollutants and the necessity for stable signal pathways define application success.
Engineering practice consistently reveals that prioritizing sulfurization resistance at the materials level, rather than relying on board-level mitigation, proves both cost-effective and robust for mission-critical electronics. The ERJ-U3RD2002V stands as a reference model in this domain, bridging advanced anti-sulfur architecture with streamlined system-level integration, and sets a definitive benchmark for future developments in the resistor landscape.
Electrical characteristics and performance parameters of ERJ-U3RD2002V
The ERJ-U3RD2002V, incorporating a nominal resistance of 20 kΩ in 0603 SMD format with a rated power capacity of 0.1W, represents a stable choice for precision resistor deployment in densely packed or thermally varied environments. At the foundational level, its rated continuous working voltage (RCWV) is determined by RCWV = √(Power rating × Resistance), yielding approximately 44.7V. This calculation is bounded by the manufacturer's maximum voltage limit, ensuring electrical integrity and mitigating risk of dielectric breakdown. Such abstraction allows system designers to confidently integrate the component into higher-density PCBs where board real estate is constrained and voltage transients are a concern.
From a materials perspective, the device's internal structure leverages established thick-film resistor technology, integrated into a ceramic substrate. This confers a stable temperature coefficient and low drift performance, fundamental for analog signal conditioning and feedback networks where resistance stability impacts circuit accuracy. Layered terminal metallization ensures reliable solder joint formation, enhancing mechanical resilience during thermal cycling or board flex events.
Thermal management is critical, as 0603 package geometry limits dissipation area—requiring strict adherence to the power derating curve: above 70°C ambient, maximum allowable power must be reduced linearly to prevent thermal runaway or resistance shifts. In practical operation, establishing generous headroom below the 0.1W ceiling enables long-term reliability in loggers, sensor interfaces, and low-power analog front ends where passive stability is paramount.
Overload characteristics further strengthen applicability in noise-sensitive and precision environments. The device sustains short-duration overvoltage scenarios up to the overload test voltage without drift or open-circuit failure, provided the event remains within datasheet values. This directly supports robust performance in industrial control, process automation, and rapidly switching signal paths where fault resilience distinguishes component selection.
EMS houses report consistent placement and solder wettability owing to the smooth SMD finish and tight dimensional tolerances, streamlining automated assembly and minimizing costly rework. In-circuit resistance testing consistently identifies low ppm drift over extended operational cycles, confirming suitability for calibrated measurement or reference networks. When designing for environments with fluctuating thermal loads or moderate vibration, the ERJ-U3RD2002V's mechanical and thermal endurance helps avoid latent failures that are common in lower-grade alternatives.
An important consideration, distinct from baseline specification, is the strategic utilization of this resistor in mixed-signal layouts. Its minimal parasitic inductance and predictable impedance at high frequency make it an asset in filter topologies and precision DAC or ADC reference paths, where excess noise or deviation would otherwise degrade performance. The intersection of robust overload tolerance, reliable long-term performance, and high placement yield make it an optimal choice for engineers seeking durability without sacrificing measurement integrity.
In summation, ERJ-U3RD2002V’s electrical and performance characteristics position it as a workhorse for precision, low-noise, and high-reliability applications, especially when board density, temperature variability, and lifecycle stability are design priorities.
Compliance, environmental standards, and safety in ERJ-U3RD2002V applications
The ERJ-U3RD2002V’s compliance profile is anchored in the rigorous AEC-Q200 automotive standard, evidencing its steadfast reliability under thermal, mechanical, and environmental stress. Layers of validation extend from humidity and temperature cycling to high vibration resistance, providing assurance for deployment in dynamic electronic operational environments. Conformance with RoHS directives is embedded at the material sourcing phase, eliminating lead, cadmium, and other hazardous constituents. Manufacturing pathways are designed to avert any introduction of ozone-depleting compounds and regulated brominated flame retardants, underscoring a robust sustainability strategy that anticipates tightening international chemical regulations. The full traceability of raw materials enables smooth certification for global supply chain requirements, substantially reducing cross-jurisdictional compliance friction.
From an engineering integration perspective, the ERJ-U3RD2002V demonstrates optimal function in AV systems, household appliances, office infrastructure, and communication technologies where general reliability demands predominate. Its stabilized temperature coefficient and precisely controlled resistance tolerances contribute to persistent signal integrity and predictable power consumption profiles in dense PCB layouts. When extending the component’s utility into sectors governed by elevated safety thresholds—such as automotive safety circuits, telecommunications fail-safe modules, or medical device subsystems—engineered risk mitigation necessitates a dual approach. First, close technical engagement with the manufacturer for application-specific validation, leveraging design-in qualification processes, statistical lifetime estimations, and accelerated stress testing pertinent to the target environment. Second, multilayer circuit protection architectures, including redundancy, real-time failure detection, and fault-tolerant design topologies, must overlay the baseline component-level assurance. Experience indicates that systematic derating, sequenced protection circuits, and integration into functional safety loops measurably improve field reliability metrics while easing certification for standards such as ISO 26262 or IEC 60601.
Within the product lifecycle, ongoing regulatory vigilance is fundamental. The capacity to preemptively align material composition records with emerging global substance bans minimizes retroactive adaptation costs and production downtime during qualification audits. Forward-looking deployment strategies use the ERJ-U3RD2002V’s compliance backbone not merely for regulatory fulfillment but as an enabler of streamlined device qualification and modular system architecture. By embedding reliability and environmental robustness at the component selection phase, engineering teams lay the groundwork for both rapid market access and sustained operational safety—a paradigm that elevates system-level quality assurance from a procedural requirement to a strategic advantage.
Application considerations and design guidelines for ERJ-U3RD2002V integration
Integrating the ERJ-U3RD2002V into advanced electronic architectures demands meticulous attention to the device’s power rating curve, voltage limits, and the implications of resistor network topology. At the foundation, understanding the resistor’s derating characteristics is critical—especially under varying ambient and operating conditions. Effective allocation of power across the resistor array minimizes the likelihood of overstress, while respecting maximum permissible voltages constrains the risk of dielectric breakdown and preserves device integrity. When configuring series and parallel networks, precise calculation of load distribution is required to preempt localized overloading and ensure uniform thermal dissipation, a pivotal concern when leveraging the ERJ-U3RD2002V in applications ranging from precision analog domains to power regulation circuits.
Thermal management strategies extend beyond simple heatsinking; the mode of heat transfer, PCB layout decisions, and airflow dynamics collectively shape the ability to maintain safe junction temperatures. For instance, optimizing copper trace width and spacing mitigates thermal bottlenecks, promoting efficient heat evacuation and safeguarding resistor performance over prolonged operational cycles. Integrating thermal simulation early in the design cycle reveals subtle hotspots, enabling preemptive adjustments to layout or component selection. These efforts are particularly essential when the resistor operates in environments subject to wide ambient temperature fluctuations or high-density component placement.
In high-frequency and mixed-signal designs, empirical validation is indispensable. Effects such as parasitic capacitance, inductance, and self-heating can induce measurable drift in the rated resistance, challenging performance consistency in RF filters or timing-critical oscillator circuits. Bench-level testing within the true operational context exposes these non-idealities, guiding iterative adjustment of component values and board geometries. Observations from prototype runs often highlight that minute variations in solder joint quality or board cleanliness can skew impedance characteristics, underscoring the need for disciplined assembly procedures.
Electrostatic management forms another pillar of robust design. During assembly, the potential for ESD discharge is amplified in automated handling or human-touch processes; selecting proper grounding schemes, employing ESD-safe work surfaces, and utilizing controlled environmental humidity effectively curtail latent damage risk. The resistor’s intrinsic construction renders it susceptible to micro-cracking or open-circuit faults if over-stressed during depanelization or subjected to mechanical flexure. Strategically positioning support points and defining depanelization processes with stress analysis in mind reduce the chance of fracture propagation within the resistive film.
An implicit optimal design practice emerges: the pursuit of system-level reliability begins with recognition of the interconnected vulnerabilities in thermal, electrical, and mechanical domains. Leveraging data from application-specific stress tests, concurrently with simulation, yields insight into long-term drift and deviation patterns—especially valuable in mission-critical or high-uptime platforms. Ultimately, a seamless integration of the ERJ-U3RD2002V arises from harmonizing its electrical properties with the nuances of assembly, board layout, and operational stress, thus establishing a solid baseline for high-fidelity, resilient circuit operation.
Mounting, handling, and storage recommendations for ERJ-U3RD2002V
Mounting, handling, and storage of ERJ-U3RD2002V resistors require coordinated attention to process control at each stage to ensure consistent reliability throughout assembly and operational use. The component’s compatibility with both reflow and flow soldering enables flexible integration into various production lines, yet only within the confines of precise thermal profiles as specified by the manufacturer. Controlling temperature elevation rates, peak dwell times, and cooling rates is paramount, as deviation not only risks microcracks from thermal shock but also degrades inner termination integrity—issues often manifest in latent field failures.
One technical nuance is that solder volume directly affects heat dissipation across the resistor package. Excessive solder can create localized thermal gradients as well as stress concentration points, propagating early failures under cyclic loading. In high-density assembly, maintaining uniform solder fillets via accurate stencil design and deposit inspection mitigates such risks. Furthermore, residue from flux choice plays a critical role. Highly active, halogen-based, or water-soluble fluxes, if inadequately removed, can catalyze ionic contamination, promoting electrochemical migration or even metallization corrosion. Cleaner protocols and post-solder residue analysis help safeguard long-term stability, especially in high-reliability sectors.
During handling, the mechanical integrity of ERJ-U3RD2002V can be compromised by micro-vibrations or impact loading even before soldering. Utilizing precision vacuum placement tooling and conveying solutions with controlled acceleration profiles minimizes inadvertent chip cracking. Strict ESD mitigation is indispensable; not only does static discharge threaten the thin resistive elements, but also it can leave undetectable latent defects. Integrating ESD controls into the entire material flow—from unpacking to placement—reduces such exposure substantially.
Storage management bridges supply chain logistics with end-device performance. Environmental parameters—primarily temperature and humidity—must remain within prescribed thresholds. Elevated humidity accelerates oxidation of terminations, especially in elastomer-sealed reels, degrading solderability and increasing the likelihood of insufficient wetting. Therefore, climate-controlled storage with continuous condition monitoring, paired with a disciplined FIFO (First-In-First-Out) rotating inventory, optimizes downstream process yields. In practical lines, regular cross-section analysis of solder joints from inventory aged at various intervals reveals the onset of wetting degradation, informing proactive warehousing adjustments.
Incorporating these layered controls, not only does one ensure robust mounting, but the design-to-field reliability curve is notably flattened. Recognizing that minor process escapes—such as subtle thermal overstress or residual contamination—are among the top root causes for premature resistor failures, a holistic, detail-oriented regimen is indispensable. Maintaining this rigor, while sometimes adding complexity up front, delivers measurable yield improvements and reduces costly rework or warranty exposure in real-world applications.
Potential equivalent/replacement models for ERJ-U3RD2002V
When addressing the substitution of ERJ-U3RD2002V, a systematic technical evaluation becomes essential to mitigate operational and performance risks. The ERJ-U2R and ERJ-U6R series from Panasonic present themselves as credible alternatives, primarily due to their alignment in anti-sulfur designs and robust reliability profiles. Selection processes must pivot on the granular matching of electrical parameters–resistance value, tolerance, and temperature coefficient of resistance (TCR)–to maintain circuit stability and prevent deviations in intended application outcomes. Package dimensions and power dissipation must precisely align with layout constraints and thermal design limits; mismatches may induce assembly issues or accelerate wear-out mechanisms.
Beyond datasheet matching, deeper analysis derives from an understanding of the material science underlying anti-sulfur protection. These series leverage enhanced electrode constructs and specialized barrier layers, which demonstrate resilience in polluted or high-humidity environments—a common root cause for premature parametric drift or opens in automotive and industrial deployments. The ERJ-U6R, for example, expands the range of available package sizes and higher rated power, granting tactical flexibility when board real estate or dissipation demand varies. Yet, integration of substitutes should be governed not only by nominal ratings but also by long-term reliability data, especially when designs must endure elevated vibration, temperature cycling, or exposure to corrosive agents.
Process-level experience underscores the utility of cross-referencing suppliers’ qualification reports and stress-test outcomes. AEC-Q200 compliance serves as the minimum bar for automotive-grade designs, but continuity of RoHS conformity and manufacturer’s production process controls are equally pivotal, particularly when maintaining traceability or when the product lifecycle management mandates rigorous reliability tracking. Deployment in high-reliability ecosystems benefits from field feedback; for instance, ERJ-U2R’s performances under cyclical thermal stress reveal marginally lower self-heating drift versus legacy components, suggesting its effectiveness in densely packed modules.
Adaptive sourcing strategies must recognize the interplay between procurement cost, lead time, and logistical footprint. Real-world substitution exercises demonstrate that while ERJ-U2R and ERJ-U6R provide electrical and reliability correspondence, the decision matrix broadens when balancing supply chain risk and multi-sourcing policies. Embedded within this evaluation is the perspective that harmonizing spec equivalence with dynamic qualification workflows ultimately reduces total system risk and enhances production agility.
In conclusion, robust resistor model substitution is best guided by a layered approach: starting from parameter integrity, through reliability modeling, and extending to system-level traceability. Practical deployment history and nuanced material choices often delineate the true performance boundaries not immediately apparent from catalog specifications, therefore continuous iteration of sourcing and application feedback remains critical to optimal implementation.
Conclusion
The Panasonic ERJ-U3RD2002V anti-sulfur chip resistor integrates specialized material engineering to counteract sulfur-induced corrosion, a pervasive degradation mechanism in environments with heightened sulfur contamination. Leveraging proprietary terminal alloys and optimized barrier layers, this component achieves stable electrical performance across extended lifecycles, mitigating common failure modes observed in conventional resistors during exposure to polluted atmospheres or industrial emissions. The precise laser trimming process ensures exceptional accuracy within narrow tolerance windows, empowering designers to maintain signal integrity and minimize drift even under aggressive thermal and humidity cycling.
Rigorous in-process screening and tightly controlled production standards support traceable quality assurance, meeting reliability benchmarks critical for mission-sensitive sectors such as automotive powertrain control, advanced industrial automation, and densely populated consumer circuit boards. In densely packed layouts with prolonged exposure to fluctuating temperatures and atmospheric contaminants, the ERJ-U3RD2002V consistently outperforms legacy solutions, sustaining a predictable resistance value and minimizing latent risks associated with invisible sulfur migration or microstructural instability.
Deployment in multi-layer board configurations demands careful soldering profile adherence and avoidance of excessive thermal shock to preserve protective metallization. During initial qualification, it becomes evident that the resistor’s footprint and robust construction streamline assembly, reduce susceptibility to solder bridging, and facilitate automated optical inspection—directly impacting throughput and first-pass yield rates. When supply constraints or last-minute design modifications arise, comparing alternative anti-sulfur models from similar manufacturers is essential, yet direct substitution may require recalibration of circuit parameters due to subtle differences in temperature coefficient or pulse-load capacity.
Wider adoption reflects an evolving mindset: reliability is no longer solely a matter of component cost, but an integral aspect of system longevity and post-deployment maintenance expenditure. Forward-looking selection of parts like the ERJ-U3RD2002V, especially in rapidly evolving automotive electronics and edge-computing modules, shifts the engineering focus towards lifecycle analysis and sustainable design practices, ensuring that operational resilience is maintained even as environmental regulations tighten and real-world conditions become increasingly unpredictable.
