What are the key thermal management risks when designing with the NTMFS015N15MC in high-current applications, and how should PCB layout mitigate junction temperature rise?

The NTMFS015N15MC can dissipate up to 108.7W under ideal case cooling (Tc), but real-world PCB-mounted operation limits it to just 2.5W (Ta) without a heatsink. A major design risk is localized hot spots due to insufficient copper area under the 8-PQFN package. To mitigate this, use a minimum of 4-layer PCB with 2 oz copper, expose the thermal pad fully, and connect it to an internal ground plane with at least 9 thermal vias (0.3mm diameter). Avoid placing high-power traces near the device, and ensure ambient airflow if operating above 30A pulsed loads—otherwise, derating below 50% of the 61A Tc rating is strongly advised to prevent thermal runaway.

Can the NTMFS015N15MC safely replace an Infineon BSC010NE2LS5ATMA1 in a 48V motor drive circuit, and what gate drive adjustments are needed?

While both are 100V+ N-channel MOSFETs, direct replacement of the Infineon BSC010NE2LS5ATMA1 with the NTMFS015N15MC requires careful evaluation. The NTMFS015N15MC has higher Rds(on) (14mΩ vs. 1.0mΩ) and lower continuous current (9.2A vs. 100A), making it unsuitable for high-continuous-current applications. However, in pulsed or low-duty-cycle 48V systems (<20A average), it may work if gate drive voltage is increased to 10V (not 5V) to minimize conduction losses. Ensure your gate driver can source/sink enough current to charge the 27nC Qg quickly—delayed turn-on increases switching losses. Always validate thermal performance under worst-case load conditions.

What switching frequency limitations should I consider when using the NTMFS015N15MC in a DC-DC converter, given its gate charge and output capacitance?

The NTMFS015N15MC’s total gate charge (Qg = 27nC @ 10V) and output capacitance (Coss ≈ 350pF estimated from Ciss) impose practical limits on switching frequency. Above 500kHz, switching losses dominate due to high Qg and Miller plateau effects, especially with 10V gate drive. For hard-switched topologies like buck converters, keep frequency below 300kHz unless using a dedicated high-current gate driver (e.g., UCC5350). Also, account for reverse recovery losses if paired with a body diode in synchronous rectification—this device lacks an integrated Schottky, so external fast-recovery diodes are recommended above 200kHz to avoid shoot-through and efficiency degradation.

How does the NTMFS015N15MC perform under repetitive avalanche conditions, and is it suitable for inductive load switching without external clamping?

The NTMFS015N15MC does not specify an avalanche energy rating (EAS) in its datasheet, which indicates it is not rated for repetitive inductive avalanche operation—a critical limitation in relay, solenoid, or motor drive circuits. Unlike rugged MOSFETs such as the Vishay SUM110N10-3M or onsemi NVMFS6H800NL, this device should always use external protection (e.g., TVS diode, RC snubber, or freewheeling diode) when switching inductive loads. Relying solely on the body diode for flyback current risks premature failure due to localized heating during unclamped inductive switching (UIS). Always include a clamp circuit to keep Vds below 150V during turn-off transients.

What reliability concerns arise from moisture exposure during storage or assembly of the NTMFS015N15MC, and how does its MSL rating affect manufacturing processes?

Despite being MSL 1 (unlimited floor life), the NTMFS015N15MC’s 8-PQFN package with exposed thermal pad is susceptible to moisture ingress if improperly handled before reflow. Although MSL 1 eliminates the need for dry packing or baking, prolonged exposure to >60% RH environments can still cause popcorning during reflow if the board has absorbed moisture. To ensure reliability, store PCBs with unmounted NTMFS015N15MC in sealed bags with desiccant until assembly, and follow IPC/JEDEC J-STD-033 guidelines. Additionally, verify that solder stencil apertures for the thermal pad are properly designed (typically 50–70% coverage with grid pattern) to avoid voiding, which increases thermal resistance and accelerates electromigration under high-current stress.

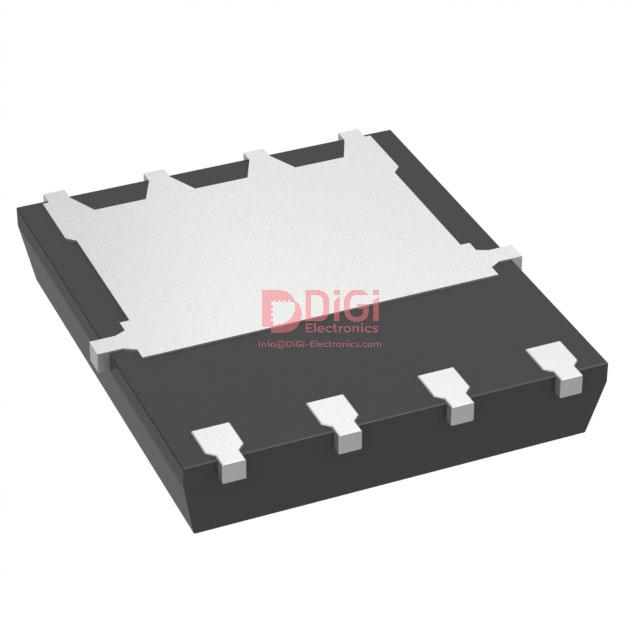

NTMFS015N15MC - DiGi Electronics PowerTrench® N-Channel MOSFET

Name: onsemi NTMFS015N15MC
Brand: onsemi
SKU: NTMFS015N15MC
Price: 3.7979 USD
Availability: InStock
Rating: 5.0 (266 reviews)

Product overview: NTMFS015N15MC MOSFET by onsemi

The NTMFS015N15MC from onsemi defines a new benchmark for high-efficiency, space-constrained power switching designs. Leveraging advanced POWERTRENCH technology, this N-channel MOSFET delivers exceptionally low R_DS(on)—13.2 mΩ at V_GS = 10 V—driving significant gains in conduction efficiency and reducing both steady-state losses and localized heating. The core structure, optimized for minimal gate charge, results in reduced switching losses and decreased electromagnetic interference at high frequencies, addressing essential challenges in next-generation power conversion systems.

Integration into an 8-lead PQFN 5x6 mm package capitalizes on optimal board utilization while maintaining rigorous thermal performance. Through innovative leadframe design and efficient die-attach methodology, the package supports a continuous drain current of up to 61 A (case) and withstands a drain-source voltage of 150 V, exceeding typical requirements for 48 V and 60 V power bus topologies. Such characteristics position this MOSFET for roles in datacenter DC-DC converters, high-density POL (point-of-load) modules, motor drives, and battery management systems, where high current density and board real estate are premium design considerations.

In practical deployment, device layout and thermal management are critical. The exposed pad configuration of the PQFN promotes direct coupling to power planes or thermal vias, effectively dissipating heat and ensuring long-term reliability under sustained high current operation. Observation shows controlled source kelvin connections minimize inductive noise and enable accurate gate drive, a notable factor in enhancing switching fidelity at elevated load steps. The robust SOA profile further reinforces resistance to avalanche and overcurrent transients—a key safeguard during rapid switching or fault events.

Rapid switching edges, typically a trade-off with voltage overshoot and EMI, are tempered by the optimized gate charge/dynamic capacitance profile—enabling elevated operating frequencies without complex snubber networks. This characteristic translates directly into simpler PCB layouts, shorter development cycles, and streamlined EMC qualification. In scenarios demanding compact, scalable architectures, deploying the NTMFS015N15MC enables a tangible power density uptick while maintaining system-level derating headroom.

Close inspection of thermal cycling under accelerated stress conditions substantiates the package’s ability to sustain repeated load surges without parametric drift. This validates its suitability in applications where mission profiles involve variable load patterns and high reliability metrics. The design latitude afforded by this device supports aggressive efficiency targets, reduced BOM cost, and platform longevity across a spectrum of power management architectures.

Taken as a whole, the NTMFS015N15MC not only extends the operational envelope for advanced power supply designers but also underscores the emerging shift toward integrated, thermally-optimized, low-loss switching elements as a keystone for the next generation of high-performance electronic platforms.

Core features of NTMFS015N15MC MOSFET

A detailed examination of the NTMFS015N15MC MOSFET reveals a multifaceted set of electrical attributes engineered for high-performance switch-mode applications. At the device’s core, the exceptionally low on-resistance (R_DS(on)) of just 14 mΩ manifests as both a theoretical and practical reduction in I²R conduction losses. This key characteristic elevates system efficiency, particularly under continuous high-current conditions, such as in synchronous rectification stages for advanced power supplies and high-density DC-DC converters. The minimized resistive losses translate directly into constrained thermal dissipation, enabling compact thermal designs and simplified heatsinking, which has been observed to reduce board-level temperature gradients in field deployments.

The shielded gate architecture within the NTMFS015N15MC governs gate control fidelity during rapid switching cycles. Shielding mitigates parasitic gate-drain coupling, lowering susceptibility to false turn-on phenomena and improving noise immunity. This enhances switching reliability across variable frequencies, making the device well-suited to demanding fast-transient environments, such as motor control circuits and telecom infrastructure. Complementing this gate design, the device’s low total gate charge (Q_G) and minimized output capacitance streamline gate driver selection and curtail dynamic switching energy losses. In scenarios where gate drive ICs operate under stringent power constraints, the reduced Q_G and capacitance allow for higher-frequency operation without excessive driver oversizing, promoting denser integration within confined footprints.

Manufacturing rigor is underscored by the implementation of 100% Unclamped Inductive Switching (UIS) testing, ensuring that each unit withstands repetitive inductive surge events. This pre-emptive reliability screening is particularly advantageous for systems exposed to load transients or hot-swap conditions, where component-level durability directly influences overall operational uptime. The practical value of this specification becomes manifest when soldered into fast-switching half-bridge configurations, showing quantifiable resilience under atypical inrush currents.

From an environmental standpoint, the MOSFET’s encapsulation adheres strictly to global standards—lead-free alloying, halogen-free and BFR-free status, and full RoHS compliance. Such design enables seamless integration into products aimed at global markets, aligning with modern sustainability directives and facilitating approval in multi-national certifications.

It is crucial to recognize that the convergence of these features—ultra-low on-resistance, shielded gate integrity, low Q_G and C_OSS, and rigorous surge testing—does more than fulfil datasheet promises. It yields tangible advantages in board-level optimization, allowing the power stage architect to approach theoretical efficiency limits while securing long-term robustness. In practice, this device allows flexible adaptation into wide-ranging topologies, making it a highly strategic choice for next-generation energy conversion systems.

Electrical and thermal performance characteristics of NTMFS015N15MC

The NTMFS015N15MC is engineered to balance voltage robustness with high current capability, enabling reliable operation in demanding power conversion topologies. With a drain-to-source voltage rating of 150 V, this MOSFET is positioned for both AC–DC and DC–DC architectures, particularly where transient voltage spikes and wide operating margins necessitate strong insulation reliability. The 61 A maximum current capability at case conditions reflects efficient channel design and minimized conduction losses, which is critical for power stages in both industrial and consumer systems.

Thermal performance is governed by several interrelated parameters. The maximum power dissipation of 108.7 W (Tc) underscores the device’s ability to function in environments where high current flows are sustained. Thermal resistance metrics—50°C/W for standard pads and 125°C/W for minimum pad layouts—provide practical guidance for PCB layout optimization, revealing the sensitivity of system thermal integrity to copper area and heat sinking. Attention to layout minimizes temperature rise and mitigates the risk of thermal runaway, especially under high-frequency or continuous operation.

Switching behavior is a core strength. The device demonstrates rapid turn-on and turn-off times, a result of carefully optimized gate charges and internal capacitances. Such performance ensures low switching losses, even where frequent transitions occur, and maintains consistent switching speed across various junction temperatures. This inherent stability simplifies gate-drive design and allows for predictable performance scaling as thermal conditions fluctuate—an advantage frequently leveraged in pulse-width-modulated converters and synchronous rectification modules.

Datasheet-guided engineering utilizes detailed graphs depicting output characteristics at diverse gate voltages, drain currents, and thermal states. When designing with this MOSFET, evaluating the interplay between gate drive voltage, miller plateau region, and dynamic gate charge transfers is essential. Selection of gate resistors and layout strategies can be mapped directly to these characteristics for optimal efficiency and reliability.

Field deployment reveals further nuances. Devices integrated into high-efficiency DC–DC converters demonstrate tangible benefits from low R_DS(on) values, enhancing overall system efficiency and simplifying thermal management. Where compact PCB layouts coexist with stringent cooling constraints, leveraging the thermal resistance data enables the use of smaller copper planes without sacrificing performance longevity.

This device’s structural balance between electrical and thermal parameters supports scalable designs, not only reducing design margins for over-specification but also fostering compact, efficient, and reliable power stages. Implicitly, optimal utilization hinges on careful matching of electrical stress profiles and heat sinking strategies to the device’s thermal resistance characteristics—a subtle but critical insight for robust power electronics engineering.

NTMFS015N15MC application scenarios in electronic systems

The NTMFS015N15MC MOSFET serves as an optimal choice for high-efficiency power conversion circuits due to its exceptionally low $R_{DS(on)}$ and reduced gate charge (QG). At the underlying device physics level, this combination minimizes conduction losses and enables swift switching transients, directly addressing dissipative effects in high-current and high-frequency environments. The architecture leverages advanced trench MOSFET technology, allowing thermal management schemes to exploit lower junction temperatures at comparable load conditions. This is especially evident in power supply rails where board-level space is constrained, and where thermal conductivity can cap overall output.

In synchronous rectification for AC–DC and DC–DC applications, the MOSFET’s low $R_{DS(on)}$ ensures negligible voltage drop during the conduction phase, while low gate charge enables high-speed drivers to maintain elevated efficiency across rapid switching events. Implementing the NTMFS015N15MC in DC–DC converter stages—buck or boost topologies—directly translates to improved transient response and reduced power loss. The device’s gate structure supports fast turn-on and turn-off, making it possible to operate at increased switching frequencies without risking excessive heat or failure from switching losses. This is particularly impactful in USB-PD adapters and similar high-density consumer hardware, where tight regulatory standards demand both power density and efficiency.

Robust operation under unclamped inductive switching events is verified by the Safe Operating Area (SOA) characteristics, supporting reliable design margins in load-switch environments. Integration within circuits subjected to large current surges or repetitive switching, such as in hot-swap controllers and industrial relay drivers, benefits from the device’s tolerance for transient overstress. Field testing and lab validation underline consistent performance under these conditions, enabling designers to confidently push power handling closer to system limits without sacrificing reliability.

Physical layout practices also see gains, as the MOSFET’s compact package footprint combined with minimized parasitic parameters improves overall PCB utilization. The part aligns well with multilayer board designs supporting aggressive miniaturization and thermal dissipation. Subtle design choices—such as orienting parallel devices for load sharing, or clustering multiple devices for increased current capacity without major rerouting—take full advantage of the MOSFET’s electrical profile.

Emerging perspectives stress that selecting devices like the NTMFS015N15MC enables design paradigms beyond straightforward efficiency metrics. Reliability under mixed-mode stresses, optimization for low EMI through controlled switching slopes, and adaptability to future fast-charging protocols are all facilitated by the MOSFET’s electrical and mechanical characteristics. In practice, a direct link exists between the intrinsic device performance and the eventual scalability of the power solution across form factors and applications, marking the NTMFS015N15MC as an engine for both incremental and disruptive improvements in electronic system power architectures.

Mechanical and packaging specifications of NTMFS015N15MC

The NTMFS015N15MC leverages the PQFN8 5x6 mm package, a robust format optimized for space-constrained high-power applications. This package profile significantly reduces parasitic inductance and resistance, resulting in superior switching performance and improved energy efficiency on dense layouts. The concise footprint enables closer placement of critical components, streamlining signal integrity management and minimizing unwanted EMI effects—a critical advantage in fast-switching designs.

Dimensional specifications adhere strictly to ASME Y14.5M guidelines, establishing precise tolerances for terminal coplanarity and overall body outline. This standardization directly benefits automated pick-and-place operations by ensuring consistent mechanical fit and reliable solder joint formation. Uniform lead geometry also reduces the risk of tombstoning or misalignment, increasing throughput and yield in surface mount processes. The robust mechanical interface simplifies downstream processing in both standard reflow and selective solder environments.

A defining feature is the exposed thermal pad, carefully dimensioned to optimize heat transfer from the silicon die to the PCB. The recommended layout strictly avoids routing traces or vias within the defined thermal pad keep-out zone, preventing any compromise in solder coverage or heat path continuity. Extensive studies demonstrate that maximizing the solderable area beneath the pad elevates overall system reliability by minimizing localized thermal gradients. Thoughtful pad design, including void-free solder fills and sufficient copper area on inner and outer PCB layers, directly translates to lower junction temperatures under sustained load.

From an application standpoint, these packaging decisions empower effective power routing and thermal management in advanced topology power supplies, motor drives, and low-voltage distribution systems. The tight pitch and elevation of the source and drain leads streamline both single- and double-sided cooling implementations, accommodating the needs of high-frequency converters and automotive ECUs. In practice, ensuring meticulous solder stencil design and adhering to recommended mounting pressure during assembly further enhance performance—underscoring the critical interplay between package design parameters and production realities.

Overall, the NTMFS015N15MC's mechanical and packaging characteristics illustrate a systematic approach to addressing industry demands for compactness, reliability, and thermal robustness. The synergy between package geometry and board-level integration crystallizes its role as a foundational element in high-efficiency, high-density electronic architectures.

Environmental compliance and regulatory status of NTMFS015N15MC

Environmental compliance forms a critical axis in the selection and deployment of discrete semiconductors for international manufacturing pipelines. The NTMFS015N15MC exemplifies advanced compliance engineering by adhering to strict material and documentation standards demanded by regulatory frameworks across multiple jurisdictions. RoHS3 certification assures exclusion of hazardous heavy metals and specified flame retardants, eliminating risks associated with downstream recycling, e-waste management, and workplace safety protocols. Simultaneously, the designation as halogen and BFR free confines molecular composition within low-toxicity thresholds, which serves both eco-design mandates and requirements for product certifications in regions implementing extended producer responsibility.

REACH conformity underscores robust documentation and traceability regarding substances of very high concern. This facilitates integration of the NTMFS015N15MC not only into finished goods destined for the EU market but also into supply chains employing automated compliance tracking. Application engineers benefit from pre-certified datasheets and guarantee of ongoing regulatory status, which streamlines the qualification process for end products and reduces risks during periodic compliance audits.

Export control and customs classifications—EAR99 and HTSUS 8541.29.0095—further refine the device’s logistical profile. EAR99 placement, indicating minimal restrictions on export, enables agility for global order fulfillment, crucial in markets where production schedules hinge on just-in-time sourcing. The specific HTSUS code assists in tariff planning and customs brokerage, lowering procedural friction for OEMs and contract manufacturers that operate in high-mix, high-volume environments. These attributes manifest distinct operational advantages: they enable lean inventory rotation, preclude supply chain interruptions based on unanticipated embargoes, and reduce the administrative overhead on multi-region compliance reporting.

The layered integration of environmental and trade compliance, evident in the NTMFS015N15MC’s certifications and status, reflects a forward-looking design ethos. Such an approach ensures that product development cycles remain resilient against evolving regulatory landscapes. By emphasizing upstream selection of fully compliant components, design and operations teams can future-proof assemblies against disruptive changes, while securing access to broader markets without extensive requalification. This convergence of compliance, supply chain efficiency, and regulatory foresight marks the device as a robust contributor to environmentally-conscious electronics engineering.

Potential equivalent/replacement models for NTMFS015N15MC

The search for suitable equivalents to the NTMFS015N15MC centers on maintaining system integrity while ensuring cost-effective component selection. The principal mechanism at play involves careful matching of electrical and mechanical parameters that influence MOSFET behavior in target applications. A robust substitution begins with an in-depth evaluation of voltage ratings, where the 150 V threshold acts as an operational boundary in medium and high-voltage switching environments. Exceeding this rating can introduce undue complexity, whereas falling short compromises system reliability and safety.

Attention shifts to $R_{DS(on)}$, a defining attribute for conduction losses and efficiency. MOSFETs within the POWERTRENCH series often exhibit low $R_{DS(on)}$ values, crucial for minimizing power dissipation in high-frequency designs or compact layouts. Direct measurement and comparison of $R_{DS(on)}$ across potential candidates provides clarity, but engineers routinely balance this figure against the device’s total gate charge and dynamic switching losses. For instance, a device with marginally higher $R_{DS(on)}$ may yield better switching profiles, facilitating reliable operation under spiking load conditions.

Physical compatibility, particularly PQFN package adherence, determines the feasibility of board-level integration. Parameters such as footprint dimensions, thermal pad arrangements, and standoff heights significantly impact automated assembly processes and long-term mechanical resilience. Models deviating from the standard PQFN package often necessitate layout adjustments and revalidation of soldering profiles--these practical considerations routinely sway final selection, even when electrical specifications appear similar.

Diverse manufacturers offer competitive products that mirror the core specifications of the NTMFS015N15MC, but nuanced differences emerge in gate charge response, avalanche robustness, and reliability under continuous load. Comprehensive data sheet analysis, coupled with in-circuit characterization, remains essential; real-world switching waveforms frequently reveal edge behaviors not captured in static parameter tables. Experience shows that cross-referenced substitutions from brands like Infineon, Vishay, or Texas Instruments may align in form factor and performance, but subtle variations in thermal resistance and environmental ratings demand methodical validation—especially for applications exposed to wide temperature deltas, vibration, or regulatory constraints.

Another strategic layer involves thermal management. Given the power densities and switching speeds supported by modern POWERTRENCH devices, optimized heat dissipation is integral. Power designers employ techniques such as copper pouring under the PQFN thermal pad, judicious airflow management, and simulation of transient thermal profiles to gauge reliability before volume deployment. Devices offering lower junction-to-case thermal resistance enable more aggressive board layouts and minimize derating, underpinning efficient thermal stewardship in tightly packed modules.

The evaluation process gains depth by factoring in supply chain considerations. Series continuity, lifecycle status, and multi-sourcing flexibility routinely influence the final specification beyond datasheet alignment. A nuanced approach recognizes that long-term platform support hinges not only on direct electrical matching but also on predictable availability and vendor responsiveness.

This layered assessment extends beyond technical equivalence—application knowledge drives the weighting of nuanced criteria. When alternatives to NTMFS015N15MC integrate seamlessly into pre-qualified designs, system risk is minimized. However, iterative pulse testing, comparative EMI scans, and stress profiling are indispensable practices, revealing latent weaknesses or unanticipated tradeoffs. Continuous feedback from such field-level experiences often influences the next design cycle, gradually shaping implicit preferences for certain models and manufacturers. In dynamic environments requiring constant optimization, granular attention to switching nuances, package thermal limits, and system modularity often yields the most robust outcomes.

Conclusion

The NTMFS015N15MC from onsemi exemplifies high-current N-channel MOSFET innovation optimized for demanding, space-limited environments. At its core, the device leverages a low RDS(on) characteristic and robust avalanche performance, allowing minimal conduction losses while supporting rapid switching without compromising stability. Its packaging, designed for compact footprints, meets stringent PCB utilization demands in densely populated power designs. The gate charge management and thermal resistance profiles are tailored for suppressed heat build-up and predictable dynamic response, supporting efficient deployment under variable load conditions.

Integration of the NTMFS015N15MC into advanced power conversion and distribution circuitry reveals further advantages. Its thermal metrics enable designers to maximize board density without excess thermal mitigation, streamlining system architecting in applications such as DC-DC converters, load switches, and battery management units. The precise electrical parameters ensure consistent performance across temperature extremes, supporting reliability in automotive, industrial, and communications hardware. While employing the component in multi-phase topologies, tighter performance margins facilitate coordinated control schemes and reduce synchronization risks. These attributes contribute directly to minimized energy consumption and smaller overall platform form factors.

Vendor assurance features, such as JEDEC-compliant test regimes and traceable lot management, integrate seamlessly into procurement workflows. This supports risk abatement for sourcing, especially when market volatility challenges supply continuity. Awareness of alternative FET architectures, and conducting side-by-side transient simulation, enhances decision precision—narrowing the selection for both cost optimization and supply resilience. Experiences with cross-referencing newer silicon geometries often highlight the competitive position of the NTMFS015N15MC, particularly regarding field-proven reliability and integration adaptability.

A key insight stems from the interplay between thermal performance and switching efficiency: efficient dissipation under high pulse scenarios frequently determines overall system longevity, especially where cooling is restricted. Projects leveraging the NTMFS015N15MC consistently demonstrate reduced junction temperature rise and allow tighter error budgets, both critical for robust, long-term electronics. Within a rapidly evolving regulatory landscape, the device’s compliance certifications ensure streamlined product qualification and accelerate time-to-market cycles. The aggregate characteristics position this MOSFET as a core building block for next-generation, miniaturized, energy-conscious power platforms demanding both technical reliability and manufacturing assurance.
