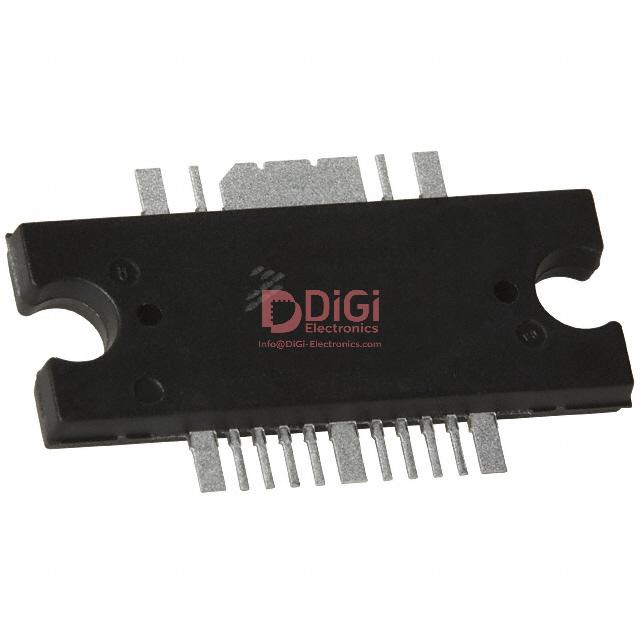

MW6IC2420NBR1
NXP USA Inc.
IC AMP ISM 2.11-2.17GHZ TO272WB
1805 Pcs New Original In Stock
RF Amplifier IC ISM 2.11GHz ~ 2.17GHz TO-272 WB-16
Request Quote
(Ships tomorrow)
*Quantity
Minimum 1
Minimum 1
5.0 / 5.0
- (443 Ratings)
MW6IC2420NBR1
Product Overview
7244123
DiGi Electronics Part Number
MW6IC2420NBR1-DGManufacturer
NXP USA Inc.
MW6IC2420NBR1
Description
IC AMP ISM 2.11-2.17GHZ TO272WBInventory
1805 Pcs New Original In Stock
RF Amplifier IC ISM 2.11GHz ~ 2.17GHz TO-272 WB-16
Quantity
Minimum 1
Minimum 1
Purchase and inquiry
Warranty & Returns
How to Order
Shipping & Delivery
Quality Assurance
365 - Day Quality Guarantee - Every part fully backed.
90 - Day Refund or Exchange - Defective parts? No hassle.
Limited Stock, Order Now - Get reliable parts without worry.
Global Shipping & Secure Packaging
Worldwide Delivery in 3-5 Business Days
100% ESD Anti-Static Packaging
Real-Time Tracking for Every Order
Secure & Flexible Payment
Credit Card, VISA, MasterCard, PayPal, Western Union, Telegraphic Transfer(T/T) and more
All payments encrypted for security
MW6IC2420NBR1 Technical Specifications
Category
RF Amplifiers
Packaging
-
Series
-
Product Status
Obsolete
Frequency
2.11GHz ~ 2.17GHz
P1dB
-
Gain
19.5dB
Noise Figure
-
RF Type
ISM
Voltage - Supply
28V
Current - Supply
210mA
Test Frequency
-
Mounting Type
Chassis Mount
Package / Case
TO-272-16 Variant, Flat Leads
Supplier Device Package
TO-272 WB-16
Base Product Number
MW6IC
Datasheet & Documents
HTML Datasheet
MW6IC2420NBR1-DG
Environmental & Export Classification
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8541.29.0095
Additional Information
Standard Package
500
Reviews
5.0/5.0-(Show up to 5 Ratings)
de desembre 02, 2025
기술적 문의에 대한 대응이 빠르고 구체적이어서 너무 만족스럽습니다. 앞으로도 좋은 서비스를 기대할게요.
de desembre 02, 2025
在庫が豊富で、必要なときにいつでも対応してもらえます。
de desembre 02, 2025
スタッフの対応が非常に丁寧で、安心して取引できました。価格面でもメリット大です。
de desembre 02, 2025
I found their after-sales service to be prompt and solution-oriented.
de desembre 02, 2025
I’m always pleased with DiGi Electronics' punctuality and protective packaging.
de desembre 02, 2025
I trust DiGi Electronics for their consistent product excellence and punctuality.
de desembre 02, 2025
The durability of their equipment gives me peace of mind during long-term projects.
de desembre 02, 2025
Their shipping packages are eco-friendly, which aligns with my values.
de desembre 02, 2025
Their team is approachable, knowledgeable, and always polite.
Publish Evalution
Evalution Message
Please enter your review message.
Please post honest comments and do not post ilegal comments.
Frequently Asked Questions (FAQ)
What are the key design-in risks when using the MW6IC2420NBR1 in a new ISM band RF amplifier design given its obsolete status?
Using the MW6IC2420NBR1 in new designs carries significant supply chain and lifecycle risks due to its obsolete status. While current stock is available (1723 pcs), long-term availability is not guaranteed, increasing the risk of production discontinuity. Engineers should evaluate second-sourcing options such as the Qorvo QPA2728 or comparable GaN-based amplifiers operating in the 2.1–2.2 GHz ISM band. If proceeding, implement robust end-of-life (EOL) mitigation strategies: secure buffered inventory, confirm manufacturer last-time-buy (LTB) dates, and design in socket or footprint compatibility for potential drop-in replacements to reduce redesign effort later.
How does the MW6IC2420NBR1 compare to the RF2176 in terms of gain stability and thermal performance in high-duty-pulse applications?
The MW6IC2420NBR1 offers higher small-signal gain (19.5 dB vs. ~16 dB for RF2176) in the 2.11–2.17 GHz range, but its 28V/210mA operating point generates more heat than the RF2176’s lower-voltage CMOS design, requiring careful thermal management in high-duty-pulse systems. Unlike the RF2176, the MW6IC2420NBR1 uses a TO-272WB chassis-mount package, which relies on proper metal-core PCB or heatsinking for thermal dissipation. In pulsed radar or industrial heating systems, ensure junction temperature stays below 150°C by verifying thermal interface material (TIM) quality and airflow; thermal runaway risks increase if chassis mounting is compromised.
Can the MW6IC2420NBR1 be used as a drop-in replacement for the MHW917 from MACOM in a 2.15 GHz ISM amplifier stage?
The MW6IC2420NBR1 is not a direct drop-in replacement for the MHW917 despite overlapping frequency ranges. Key differences include supply voltage (28V vs. MHW917’s 12V), current draw (210mA vs. ~150mA), and package pinout — the TO-272 WB-16 chassis-mount configuration of the MW6IC2420NBR1 requires ground-lug alignment that differs from MHW917’s SOT-503. Additionally, biasing networks must be redesigned due to different gate threshold and quiescent current requirements. Always verify matching network compatibility and perform stability analysis across the 2.11–2.17 GHz band; oscillation risks may arise if layout and grounding are not optimized for the MW6IC2420NBR1’s RF return paths.
What are the reliability concerns when operating the MW6IC2420NBR1 near maximum supply voltage in outdoor industrial environments?
Operating the MW6IC2420NBR1 at its nominal 28V supply in outdoor environments introduces reliability risks due to voltage transients, temperature cycling, and moisture ingress. The TO-272WB package has MSL-3 rating (168 hours floor life), so improper handling after dry pack exposure can lead to popcorning during reflow, especially in high-humidity installations. To mitigate risks, use overvoltage protection (e.g., TVS diodes on the Vdd line), conformal coating on the PCB, and ensure hermetic chassis sealing to prevent condensation. Additionally, derate operating current by 20% and monitor thermal performance with remote sensors during extended operation under load.
What layout and grounding practices are critical for maintaining stability and gain of the MW6IC2420NBR1 in high-power ISM applications?
For stable performance, the MW6IC2420NBR1 requires low-impedance RF grounding through the chassis-mount tab — this must be securely fastened to a grounded metal frame or heatsink with a screw and star washer to minimize inductance. Use a continuous ground plane on multi-layer PCBs, and place bypass capacitors (100 pF, 1 nF, and 10 µF) as close as possible to the supply pin to suppress oscillations. Keep input and output traces short and impedance-controlled (50 Ω), and isolate RF and DC lines to prevent coupling. In high-power setups, avoid 90-degree trace bends and consider guard rings to reduce radiated feedback that can degrade gain flatness and noise performance across the 2.11–2.17 GHz band.
Quality Assurance (QC)
DiGi ensures the quality and authenticity of every electronic component through professional inspections and batch sampling, guaranteeing reliable sourcing, stable performance, and compliance with technical specifications, helping customers reduce supply chain risks and confidently use components in production.
MW6IC2420NBR1 CAD Models
NXP USA Inc. MW6IC2420NBR1 PCB symbols & footprints
