Product overview: BLM03PX121SZ1D Murata Electronics Ferrite Bead
Product Overview: The BLM03PX121SZ1D Murata Electronics Ferrite Bead is designed for precision electromagnetic interference (EMI) attenuation in space-constrained automotive and high-density consumer electronics applications. Its operation is grounded in the controlled impedance of ferrite material, which selectively suppresses high-frequency noise on power lines without impeding DC signals or necessary low-frequency power transmission. This frequency-selective suppression mechanism stems from the bead’s inherent composition and geometry, allowing it to shunt unwanted RF energy to ground and attenuate noise currents that typically compromise system integrity in modern multilayer boards.
At its core, the BLM03PX121SZ1D features a robust construction optimized for automated surface mounting within ultra-miniature form factors, with dimensions tailored to support higher component densities and optimize PCB real estate. Compliance with AEC-Q200 reliability standards ensures resilience to automotive temperature cycling, mechanical shock, and humidity, making it adaptable for dashboards, infotainment, body electronics, and other non-safety-critical modules. The device’s impedance profile, centered at 120 Ω at 100 MHz, offers a balanced trade-off between effective high-frequency noise filtering and low DC resistance—critical for low-voltage operation and power efficiency.
A layered approach to noise countermeasures is essential in dense or mixed-signal systems. The BLM03PX121SZ1D provides significant advantages when employed near the source of noise or at power entry points, minimizing propagation through sensitive circuitry downstream. Integrating the bead in conjunction with multilayer ceramic capacitors can further enhance attenuation at specific frequencies. Placement strategies—such as locating ferrite beads after voltage regulators and before critical analog or digital subsystems—maximize performance gains while maintaining power integrity.
In practical deployment, subtle variances in PCB layout, via positioning, and trace geometry can impact the bead’s effectiveness. Recognizing this, the design often incorporates guard traces and ground plane continuity to support its intended suppression role. Matching ferrite bead characteristics with the system's real-world noise spectrum through bench-level validation accelerates design cycles and reduces the risk of EMI-related field failures. These applications highlight a core viewpoint: leveraging the tailored frequency response of advanced ferrite beads, such as the BLM03PX121SZ1D, delivers superior EMI performance in next-generation compact electronic assemblies, directly supporting the trend toward higher integration and reduced system size without compromising reliability.
Key electrical characteristics of BLM03PX121SZ1D
BLM03PX121SZ1D serves as a chip-style ferrite bead optimized for EMI suppression in high-density electronic layouts. Its impedance of 120 Ohms at 100 MHz is engineered to provide targeted attenuation within crucial frequency bands frequently encountered in digital transmission and switching regulator environments. The sharp impedance peak at 100 MHz acts decisively against noise propagation, inhibiting transient spikes and harmonics that can destabilize sensitive analog and digital subsystems.
Rated for 900mA maximum current, BLM03PX121SZ1D extends its utility across low-to-moderate power lines without introducing voltage drop hazards associated with undersized filtering elements. This current rating is critical in contexts where repetitive surges and steady loads frequently coexist, as found in microprocessor voltage rails, clock distribution networks, and primary sensor interfaces. Integration challenges, such as thermal management and derating under pulsed loads, are minimized by this rating, enabling designers to standardize filter arrays across mixed signal boards.
DC resistance capped at 160mΩ further reveals the component’s low insertion loss aptitude. This characteristic is vital in applications prioritizing signal integrity and energy efficiency, such as high-speed serial interfaces or precise analog measurement paths. Marginal resistance ensures filtering without substantially degrading baseline voltages or interfering with bias requirements, even when deployed in tightly regulated feedback loops.
The convergence of these parameters positions BLM03PX121SZ1D as a strategic solution in compact electronic assemblies. Its profile supports parallel deployment in multi-channel environments, scaling EMI mitigation without notable PCB real estate penalties. In practice, filters like these streamline iterative debug cycles during board validation, as predicted impedance behavior matches measured noise suppression, reducing guesswork during EMC pre-compliance.
Consideration of the trade-off between impedance and current handling is perceptively balanced in this part. Excessive impedance often exacerbates voltage drop and heat buildup, while insufficient impedance fails to curb radiated and conducted emissions. BLM03PX121SZ1D establishes an equilibrium, supporting both robust noise filtering and reliable power throughput—qualities essential in next-generation wearable devices, automotive ECUs, and IoT sensor nodes demanding both high data fidelity and operational resilience.
This nuanced combination of electrical ratings informs selection criteria beyond generic part matching. When tightly managed layouts require coordinated EMI suppression with minimal circuit impact, components like BLM03PX121SZ1D embody a design philosophy that favors harmonized electrical and physical characteristics. In these deployments, the systematic alignment of impedance profile, rated current, and resistance values inform engineered solutions for regulatory compliance, system stability, and manufacturability.
Physical dimensions and appearance of BLM03PX121SZ1D

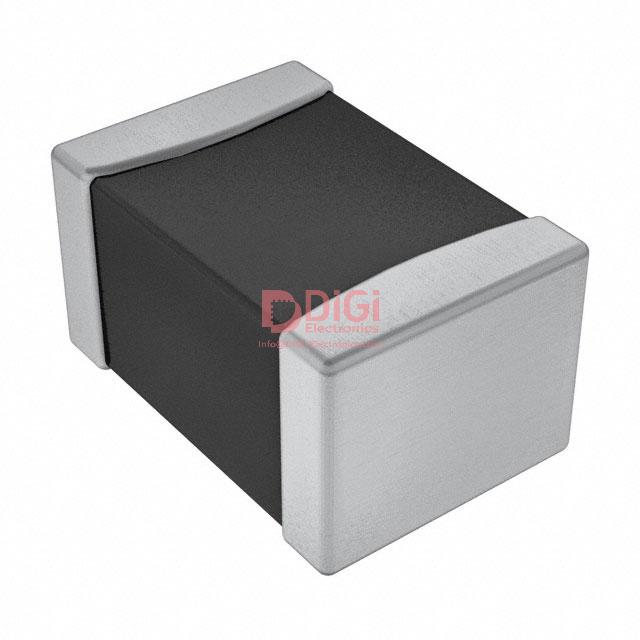

The BLM03PX121SZ1D embodies the miniaturization trend crucial for advanced electronic systems, with its 0201 (metric 0603) footprint of 0.60 mm × 0.30 mm and a negligible mass of 0.3 mg. This physical specification not only permits direct incorporation into highly complex circuit layouts but also supports tight integration on crowded PCBs. In environments demanding utmost spatial efficiency—such as in automotive control modules, wearable IoT nodes, or high-frequency communication arrays—such dimensions facilitate parallel component routing without degrading signal pathways or thermal profiles. The 0201 package, now a standard for precision SMD assembly, aligns closely with automated pick-and-place requirements, mitigating misalignment risks that traditionally plagued sub-millimeter scale parts.
Absence of surface marking and non-polarity characterize the BLM03PX121SZ1D’s user-centric design. Having no polarity removes concern for orientation during reflow soldering, accelerating throughput in multi-line manufacturing scenarios. Placement errors due to ambiguous marking are further minimized, enhancing post-process yield and reliability, especially under high-mix, low-volume configurations where rework windows must be limited. Experienced practitioners often prefer components without visual identifiers at this package scale to achieve higher throughput and integration accuracy within automated optical inspection (AOI) systems.
Beyond physical attributes, the ultra-miniature size enables circuit designers to realize filter networks and EMI suppression strategies that would otherwise be impractical on cost-sensitive or miniaturized platforms. The ability to densely array such parts along sensitive signal traces yields better control of impedance discontinuities and crosstalk, supporting higher data rates and electromagnetic compatibility objectives. In practical deployment, this has translated into simplified multilayer board stack-ups and a reduction in overall system thickness—key for both automotive under-hood installation and ultra-slim industrial IoT endpoints.
An implicit advantage observed in real-world implementation is the increase in design flexibility. Component-level miniaturization not only maximizes board utilization, but also allows for iterative prototyping and fast design cycles. Teams can rapidly adopt improved circuit topologies without extensive PCB redesigns or significant routing constraints, promoting responsive development practices essential in industries where time-to-market is critical.
Highlighting the BLM03PX121SZ1D within modern electronic ecosystems, its form factor and lack of orientation dependency establish it as a foundational element for scalable, error-tolerant manufacturing. As embedded hardware trends accelerate toward even smaller geometries, adopting such optimized passive components will be key. The design choices reflected in this device—non-polarity, ultra-miniature profile, streamlined assembly handling—set benchmarks for future developments in passive part engineering, building a path toward intelligent, highly compact, and robust signal conditioning for next-generation electronics platforms.
Packaging details for BLM03PX121SZ1D
Packaging configuration for the BLM03PX121SZ1D component is precisely engineered to streamline integration within automated surface-mount assembly lines. Delivered in standardized 8mm paper tape format, this setup is fully compatible with contemporary pick-and-place equipment, enabling uninterrupted component transfer from reel to board with minimal risk of misfeeds or orientation errors. The selection of 8mm tape reflects an industry preference for high positional accuracy, contributing directly to elevated placement speeds in densely populated layouts.
Identification protocols embedded in both reel and shipping carton labeling are meticulously defined. Each reel is marked with critical parameters: Murata and customer-specific part numbers enable seamless database cross-referencing, inspection tracking identifiers support quality assurance audits, and RoHS compliance symbols expedite environmental verification during incoming inspection. Precise unit counts per reel and box are standardized, reinforcing inventory management within just-in-time and batch traceability paradigms.
The mechanical integrity of the tape structure addresses several operational concerns. Leader and trailer sections are dimensioned to facilitate initial thread-in and final extraction stages without component loss. Empirical testing of break down force ensures the tape withstands sudden tension spikes during reel changes, while tightly controlled peel-off force maintains positioning stability and mitigates tombstoning phenomena at the moment of transfer. These metrics are validated throughout prototype builds and maintained rigorously across volume production runs—a practice proven to reduce unplanned stoppages and preserve high placement yield.
Experience reveals that dimensional stability of paper tape, as opposed to some plastic variants, contributes to lower incidences of static charge buildup, safeguarding ESD-sensitive devices during assembly. Moreover, alignment features, such as sprocket holes, undergo periodic inspection for wear and tear that might impact feeder accuracy over extended operational cycles; regular calibration protocols account for these variables, mitigating feeder downtime.
Such packaging strategies underscore a recurring insight: the reliability of electronic assembly often hinges on the unglamorous but critical attributes of the tape-and-reel interface. Optimizing these parameters, synchronized with the nuanced tolerances of automation equipment, yields tangible gains in throughput and defect reduction. As production complexity scales, continuous feedback between packaging design and deployment scenarios remains essential, driving iterative improvements in both material specification and process control.
Reliability and compliance: AEC-Q200 requirements for BLM03PX121SZ1D
Reliability and compliance in automotive electronics hinge on adherence to AEC-Q200 standards, particularly for components like the BLM03PX121SZ1D in Murata’s BLM03_SZ series. AEC-Q200 Rev. D outlines comprehensive qualification frameworks tailored for passive components intended for demanding vehicular environments. The BLM03PX121SZ1D, while not specified for powertrain or safety-critical circuits, meets these requirements and functions reliably within secondary automotive modules such as infotainment systems, communications interfaces, and sensor networks.
Underlying reliability mechanisms stem from rigorous acceptance criteria addressing electrical characteristics, mechanical integrity, and environmental resilience. Electrical tests verify stability under voltage and current fluctuations, including transient suppression and failure mode analysis. Mechanical qualification covers vibration, shock, and mounting robustness, which are critical when modules are exposed to road-induced forces and assembly variances. Environmental stress testing—such as temperature cycling, humidity exposure, and long-term operational aging—ensures dependable performance over the vehicle’s intended lifetime. These stress scenarios emulate real-world automotive deployment, with particular attention to variations in installation location and proximity to thermal hotspots or sources of electromagnetic interference.
Application scenarios reveal the nuanced value of proper qualification. In telematics control units, the BLM03PX121SZ1D’s combination of low-profile SMT compatibility and qualified noise attenuation supports high-frequency signal integrity even as ambient operating temperatures fluctuate. In advanced driver-assistance system submodules not covered by functional safety standards, the same component delivers predictable suppression of parasitic oscillations amid fluctuating power rails. Practical experience demonstrates that inventory selection based on AEC-Q200 status mitigates costly hardware revisions and field returns, especially during late-stage design when compliance documentation expedites automotive OEM approval cycles.
A core insight is that compliance with AEC-Q200 should not be treated as a checkbox, but as a foundational aspect of engineering risk management that directly impacts downstream reliability, regulatory pass rates, and lifecycle maintenance costs. Components meeting this standard, like the BLM03PX121SZ1D, provide design teams with confidence to expand product feature sets without incurring unanticipated system-level failure modes, enabling more ambitious integration in evolving automotive electronics platforms. The interplay between systematic qualification and real-world deployment underscores the necessity for strategic sourcing and precise specification alignment throughout the design-in process.
Design recommendations for integrating BLM03PX121SZ1D into PCB layouts
Selection and integration of the BLM03PX121SZ1D chip-type ferrite bead require disciplined attention to both physical and electrical layout specifics. Land pattern design forms the cornerstone of mechanical reliability and electrical performance for this device. Adhering strictly to the recommended pad dimensions maintains solder fillet integrity during reflow, producing robust joints and reducing cold or insufficient connections. Understated variations in pad geometry or solder mask can introduce unanticipated solder wicking or tombstoning, leading to elevated DPPM rates in high-volume production. The solder paste stencil aperture and thickness also warrant calibration in line with the component's diminutive 0201 metric size; insufficient paste volume destabilizes the bead’s mechanical anchorage during the solidification phase, while excess can push the component off its footprint.
Mounting strategies extend beyond pad sizing. Placement algorithms should emphasize distance from mechanical stress concentration zones, such as corners with mounting screws, V-cuts for depanelization, and high-vibration subregions. Ferrite beads, by nature of their brittle ceramic core, are susceptible to board warpage, especially if subject to localized flexure or breakouts. Routing traces to and from the BLM03PX121SZ1D should respect minimum bend radii and avoid abrupt direction changes under or near the component to limit PCB stress transmission. Implementing breakaway tabs with filleted relief and supporting nearby planes can distribute mechanical loads, preserving solder joint integrity even in aggressive assembly flows.
Thermal profiling during reflow emerges as another critical parameter, given the susceptibility of ultra-small beads to solder balling, incomplete wetting, or thermal shock fractures. Carefully staged ramp rates and soak intervals tailored for sub-millimeter passives mitigate these risks, especially when boards integrate multiple high-density arrays. Board-level functional validation invariably reveals that beads installed near power supplies or sensitive analog domains perform reliably only when clear isolation from stress regions is enforced at the design level.
The interaction between PCB stackup and ferrite bead placement cannot be overlooked. Multi-layer board construction often introduces CTE mismatch, amplifying warpage in localized areas, particularly adjacent to heavy copper planes. Strategic selection of core materials with stable expansion characteristics, combined with judicious anchor-point distribution, enables tight mechanical tolerance control—an often underestimated contributor to overall signal conditioning reliability.
Integrating empirical feedback loops from production testing and root cause analysis into the layout process uncovers subtle defect sources, like pad underetching or unbalanced copper pours, that would otherwise escape first-pass DFM checks. Design iteration, drawing on both simulation and field return tracking, should favor conservative placement policies and robust stencil definitions for the BLM03PX121SZ1D, prioritizing mechanical and solder joint survivability as the pathway to stable noise suppression performance. Regular cross-section analysis of assembly coupons often reveals margin gains achieved by slight pad recession or mask expansion, which in practice outperformed strictly nominal recommendations under reflow variability.
Overall, merging detailed IPC-compliant footprinting, stress-aware placement, and thermally optimized assembly conditions is essential to unlock the full potential of the BLM03PX121SZ1D in high-reliability filtering applications. Achieving a resilient, field-tolerant implementation relies as much on meticulous mechanical strategy as it does on theoretical circuit design.
Mounting, soldering, and handling considerations for BLM03PX121SZ1D
Mounting protocols for the BLM03PX121SZ1D demand strict adherence to reflow soldering parameters to maintain component integrity. The device’s multilayer ceramic structure is highly susceptible to thermal gradients; thus, the prescribed thermal profile minimizes temperature differentials, directly curbing risks of substrate cracking and electrode dissolution. In practical assembly, even minor deviations in preheat ramp rates or peak temperatures can introduce stress asymmetries, undermining long-term reliability. Real-world process validation often reveals that uniform thermal distribution across densely populated PCBs prevents localized failures, especially for components with minimal mass like BLM03PX121SZ1D.
Solder volume control is critical, reflecting a deeper interplay between electrical and mechanical limits. Excess solder not only augments the joint's mechanical load during thermal cycling but also promotes stress concentrations at the ceramic-body interfaces, accelerating fracture initiation. Field observations indicate that automated paste deposition, calibrated for minimal excess, yields the most consistent results, eliminating potential for shorting adjacent pads inherent in high-density layouts. Conversely, insufficient solder may result in cold joints or erratic impedance, both detrimental to intended filtering performance. This balance becomes especially crucial in power supply applications where transient spikes test joint efficacy.
Rework scenarios demand meticulous technique refinement. Soldering iron selection, tip size accuracy, and real-time thermal tracking are pivotal; uncontrolled tip temperatures or prolonged dwell times rapidly compromise electrode adhesion and chip integrity. Experienced practitioners favor quick, gentle touch-ups with preheated soldering stations, minimizing direct pressure on the component and surrounding substrate. Empirical evidence supports that anti-static tweezers and low-force mechanical manipulation reduce the incidence of stress-induced microcracks—a subtle but pervasive menace under repeated thermal excursion.
The ultra-small footprint accentuates vulnerability to board flexure. Post-mount handling, particularly during connector engagement or mechanical fixture installation, mandates stabilization protocols at the PCB level. Even slight torsional loads propagate through the mounting pads, magnified by the ceramic’s brittleness. Design strategies such as strategic placement away from high-mechanical-load zones and underfill reinforcement for mission-critical circuits have proven effective in mitigating post-assembly attrition. Integration into substrates with controlled coefficient-of-thermal-expansion matching further extends operational resilience.
In summary, deployment of BLM03PX121SZ1D necessitates multilayered procedural refinement—from thermal profile optimization in soldering to judicious layout and handling controls—each decision intersecting longevity and functional reliability. Intrinsic sensitivity to environmental and process nuances underscores the pivotal role of holistic design foresight, where every minor procedural choice compels direct impact on downstream performance and yield.
Environmental and operational limitations of BLM03PX121SZ1D
The environmental and operational constraints of the BLM03PX121SZ1D necessitate methodical design considerations to ensure functional longevity, particularly within automotive and compact electronic assemblies. This component’s construction is optimized for general electronic suppression tasks, exhibiting resilience against standard operational stressors. However, usage must be judiciously limited in mission-critical sectors—such as aerospace, advanced medical instrumentation, undersea communications, or industrial systems with elevated safety requirements—unless explicit validation and manufacturer endorsement are procured. This operational perimeter stems from the unpredictable long-term reliability of ferrite materials in environments with fluctuating electromagnetic and mechanical stress profiles, compounded by stringent service life demands.
Electrochemical stability is paramount for sustained filter integrity. Direct exposure to corrosive atmospheres—especially those containing hydrogen sulfide, sulfur dioxide, halogens, or reactive amines—accelerates migration and oxidation of internal electrodes, undermining impedance characteristics and reducing effective attenuation bandwidth. Proximity to industrial lubricants or fluid contaminants further exacerbates these risks, with molecular ingress often initiating latent failures not immediately evident upon standard visual inspection. Empirical deployment data underscore the necessity of robust enclosure strategies and controlled environmental interfaces, especially in units installed near fluid management subsystems.
Thermal management bears direct influence on solder joint reliability and body integrity. Cycling between ambient and elevated temperatures induces microstructural stresses in the ferrite core and metallization layers. Rapid humidity transitions—specifically those encountered during power cycling in mixed climates—can propagate crack formation along grain boundaries, jeopardizing both mechanical anchoring and EMI filtering capacity. Strategic placement away from primary heat sources and judicious routing of airflow within assemblies demonstrably mitigates these degradation pathways, supporting extended operational periods without functional drift.
Cleaning protocols attract operational complexity, particularly during post-assembly inspection and remediation. Aggressive ultrasonic cleaning and high-temperature solvents introduce mechanical shock, elevating crack propagation and accelerating solder mask delamination. Empirical studies highlight the efficacy of controlled aqueous systems such as IPA and PINE ALPHA ST-100S in maintaining solder and body integrity, provided process variables are thoroughly validated within the local manufacturing setup. Critical evaluation of cleaning cycles and solvent compatibility remains integral, as subtle shifts in agent concentration or process timing materially affect unit yield.
Conformal coating practices impose additional scrutiny. Resin-based encapsulants can introduce parasitic mechanical stress vectors and also modulate filter parameters via dielectric coupling effects. A complete compatibility analysis—preferably involving real-time impedance spectrum validation post-encapsulation—should precede broad adoption. Field deployments reveal that unvetted resin interactions occasionally precipitate performance drifts, especially in high-frequency EMI regimes where parasitic capacitance thresholds are tight.
In essence, upstream attention to corrosive exposure, thermal transitions, cleaning methodologies, and encapsulation effects are pivotal for sustaining the BLM03PX121SZ1D’s filtering function across its intended lifecycle. Proactive design reviews, combined with iterative environmental simulation and process qualification, form a robust foundation for mitigating the dominant failure modes that affect miniaturized EMI filters in dense electronics environments.
Potential equivalent/replacement models for BLM03PX121SZ1D
When evaluating equivalent or replacement models for the BLM03PX121SZ1D, the most immediate approach leverages the Murata BLM03_SZ series as it maintains consistency in package dimensions (0201/0603 metric), pad layout, and typical impedance values. Within this subset, selecting parts with matching nominal impedance at the target frequency ensures minimal impact on signal integrity or EMI suppression performance. Additionally, analyzing current rating consistency across candidate models is imperative, especially for circuits handling sensitive analog signals or high-speed data lines, where excessive DC resistance or derating can subtly compromise signal quality or thermal reliability.
In scenarios where the precise characteristics of the BLM03PX121SZ1D—such as 120Ω impedance at 100MHz or maximum current rating—are not directly replicated within the immediate BLM03_SZ lineup, Murata’s extensive ferrite bead offerings provide alternative paths. By fine-tuning parameters like impedance curve, maximum rated current, and DC resistance, the designer can address unique circuit conditions, such as aggressive transient spike filtering on power rails or targeted suppression of harmonics in RF blocks. Selection is further guided by attention to packaging, as different reels or tape geometry may affect pick-and-place efficiency or automated optical inspection compatibility, aspects often overlooked during initial substitution.
A robust cross-reference process involves detailed review of not only headline specifications but also secondary parameters, including self-resonant frequency and insertion loss curves. It is critical to determine AEC-Q200 qualification status whenever automotive or high-reliability segments are involved. This certification assures consistent performance over wide temperature and humidity ranges, reducing field failure risk in safety-critical environments. Furthermore, even marginal shifts in impedance or mechanical tolerances may affect EMC compliance results, necessitating bench validation or rapid re-qualification to maintain product certification.
Application scenarios for these variants range from input filtering on low-noise analog modules to high-frequency suppression in embedded controllers. Practical experience demonstrates that substituting within a manufacturer’s family typically results in the most seamless transitions, but even minor deviations—such as a slightly higher DC resistance—can accumulate over multiple placements, affecting voltage margins or board-level thermal gradients.
A core insight emerges: effective component selection transcends simple parameter matching and requires a holistic interpretation of the part’s interaction with real-world electrical and mechanical constraints. Leveraging parametric search tools and supplier cross-reference documentation accelerates the sourcing process but must be underpinned by empirical validation on representative hardware. Only by correlating bench measurements with datasheet promises can confidence be built, streamlining the transition between primary and alternative ferrite bead models in constrained supply environments.
Conclusion
The Murata BLM03PX121SZ1D ferrite bead leverages a multilayer construction and finely tuned material composition to attenuate high-frequency noise, particularly in applications where board real estate is a limiting factor. The underlying mechanism relies on ferromagnetic ceramics that dissipate EMI energy as heat while maintaining DC continuity, making this component inherently suitable for use on densely packed power and signal lines. Its electrical characteristics, notably a 120 Ω impedance at 100 MHz and minimal DC resistance, balance effective noise filtration with negligible impact on voltage levels—an essential consideration for stable IC operation.
This device’s integration into automotive-qualified circuits aligns with rigorous AEC-Q200 standards, ensuring consistent performance under extended temperature ranges and vibration profiles encountered in embedded control modules and infotainment systems. Its 0201 size (0.6 × 0.3 mm) not only supports ultra-compact layouts but also enables high-density routing without compromising layout flexibility or manufacturability. When deploying the BLM03PX121SZ1D across multi-layer PCBs, optimal EMI suppression is achieved by positioning beads as close as possible to vulnerable IC supply pins and minimizing trace length between the bead and load. Proven board-level experience highlights the importance of soldering quality and pad design—the adoption of recommended land patterns, coupled with precise reflow temperature control, consistently delivers low defect rates in mass production.
Selection of this model over alternatives in the BLM03_SZ series is often informed by the superior trade-off between EMI attenuation, physical robustness, and process reliability. Its consistent performance profile under thermal cycling and exposure to electrical transients makes it preferable in scenarios where electrical interference from switched power sources or crosstalk risk from adjacent signals must be mitigated. In practical deployments, the bead’s non-safety-critical domain qualification streamlines approval cycles and supports expedited component sourcing in tiered supply chains.
Application scenarios that benefit most from the BLM03PX121SZ1D include compact sensor nodes, on-board telematics units, and high-speed digital interconnects in automotive and industrial platforms. Enhanced EMC margins have been observed when beads from this series are implemented as part of a holistic noise mitigation strategy, especially in assemblies with mixed-signal architectures. Experience shows that parallel evaluation of noise sources and real-time validation using spectrum analyzers during prototype development amplifies system-level robustness. The BLM03PX121SZ1D’s distinctive value emerges through its low profile, process compatibility, and reliable EMI suppression—attributes that position it as an efficient solution for evolving electronic systems constrained by space, weight, and complexity.
