Product Overview: PIC16C73B-04/SO Microcontroller
The PIC16C73B-04/SO microcontroller exemplifies the essential engineering tradeoffs in 8-bit embedded platforms. Anchored in Microchip's established PIC16CXX mid-range architecture, this device optimizes system design by integrating critical peripherals and offering efficient core performance at a clock speed of up to 4 MHz. Leveraging a CMOS process, it achieves low static and dynamic power consumption, which is fundamental for battery-driven and cost-sensitive applications.
At its core, the microcontroller provides 7 KB (4K x 14) of One-Time-Programmable (OTP) program memory and 192 bytes of RAM. The fixed program memory is tailored for stable product lines where firmware changes post-deployment are minimized, supporting predictable behavior in environments with strict validation requirements. In deployment scenarios such as industrial controllers, small-scale motor control, or simple instrumentation, the memory architecture consistently delivers predictable timing and code retention without the complexity of field reprogrammability.
The I/O subsystem is defined by a standard set of bidirectional digital ports and a rich suite of integrated peripherals. Three 8-bit timers allow for scheduling, real-time task handling, and pulse-width modulation—all features regularly utilized in motor control or signal processing. The inclusion of a 5-channel, 8-bit analog-to-digital converter expands interface possibilities, enabling the device to monitor sensor signals, battery voltages, or analog setpoints. Engineers consistently report achieving stable and repeatable readings in noisy environments by combining the built-in ADC with careful PCB layout and tightly managed input coupling.
Serial communication modules, including SPI and I²C support, facilitate device-to-device connectivity—key for scalable modular systems and distributed control topologies. UART support streamlines the direct interface to legacy peripherals or serial debug links, favoring rapid troubleshooting and firmware validation. In mixed-signal designs, the microcontroller’s deterministic latency and pin-level control streamline the development of robust, timing-critical systems without reliance on complex software workarounds or costly external glue logic.

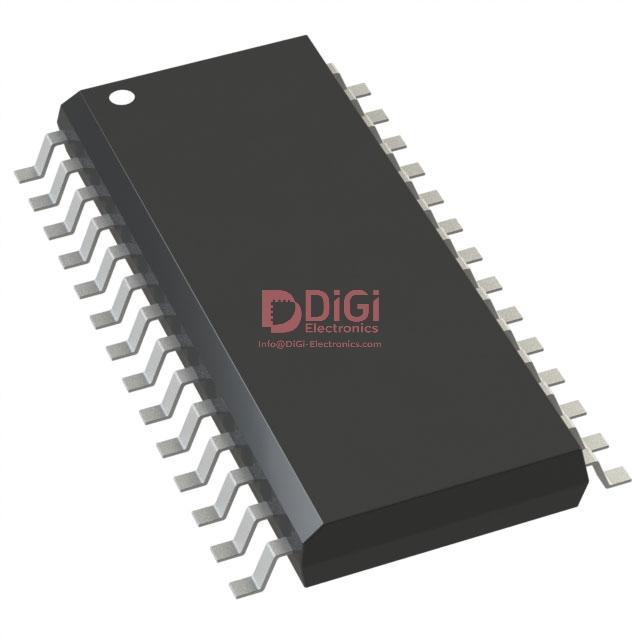

A characteristic feature is the 28-pin SOIC package, which balances PCB area constraints against pinout flexibility. This footprint is widely adopted for both prototyping and mass production, enabling rapid iteration cycles and ease of transition to automated assembly. The mechanical robustness of this package is conducive to environments with moderate shock or vibration, typical of consumer appliances or commercial instrumentation.
Deployment experience shows that the predictable electrical characteristics and maturity of the PIC16C73B-04/SO ecosystem simplify analog interfacing and electromagnetic compatibility compliance. The microcontroller's widespread industry adoption contributes to a wealth of reference designs and proven development workflows, accelerating design-in and minimizing risk for time-sensitive product rollouts. In settings where life cycle stability and known-good firmware images are advantageous, this microcontroller’s characteristics directly reduce both field failure rates and sustainment overhead.
Fundamentally, the PIC16C73B-04/SO excels where deterministic operation, peripheral-rich integration, and cost constraints converge. While it may not target high-throughput or compute-intensive workloads, its disciplined architectural choices and focus on robust core features define a microcontroller optimized for foundational embedded control. This approach, emphasizing reliability and simplicity, aligns closely with the evolving priorities of accessible embedded system deployment in resource-constrained environments.
Core Features and Architectural Highlights of the PIC16C73B-04/SO
At the center of the PIC16C73B-04/SO microcontroller is a refined RISC core leveraging a Harvard architecture, which splits program and data buses to eliminate fetch-execute bottlenecks. This separation allows parallelism in instruction and data access, markedly reducing latency for operations and raising overall throughput. The result is most instructions—drawn from a concise 35-command set—executed within a single clock cycle, while only conditional branching incurs a minor additional delay. The orthogonality of the instruction set, coupled with streamlined addressing modes, supports efficient code development and optimization, facilitating not only rapid execution but also portability and scalability for evolving embedded system requirements.
The memory subsystem features 4K x 14-bit one-time programmable (OTP) program memory, complemented by 192 x 8-bit data RAM. This configuration provides sufficient code space for control algorithms and data manipulation in small-to-medium applications, while also enabling designers to balance ROM permanence against RAM flexibility in runtime operations. The 8-level hardware stack is pivotal in enabling both nested subroutine execution and robust interrupt management, allowing control paths to be maintained and restored with minimal software overhead. Practical deployment shows that hardware stack depth directly influences reliable real-time event handling, especially in timing-critical industrial control systems or sensor interfaces.
Addressing flexibility further strengthens application adaptability: direct, indirect, and relative addressing modes facilitate efficient access patterns for memory and registers, satisfactorily supporting both linear and dynamic data management models. Indirect addressing, in particular, is vital when implementing generic routines or managing arrays—a common requirement in modular firmware design.
Interrupt mechanisms are highly integrated and responsive. The architecture provides dedicated hardware for interrupt prioritization and servicing, making precise real-time control feasible. This feature has proven essential in scenarios such as motor control, where rapid response to external state changes is mandatory. Through judicious interrupt enablement and handling, systems can maintain consistent behavior even under fluctuating workload conditions, ensuring deterministic outputs when required.
Oscillator flexibility is another strategic pillar of the PIC16C73B-04/SO design. The microcontroller supports RC, LP, XT, and HS oscillator modes, allowing designers to select the optimal trade-off between stability, accuracy, cost, and power consumption. In deployment scenarios, it becomes clear that oscillator configuration is often project-defining—for instance, RC oscillators excel in cost-sensitive and moderate-speed designs, while HS oscillators are preferred for applications demanding precision timing and higher clock rates.
The architecture’s layered structure forms a foundation for modular system design, with separation of processing, memory, and peripheral timing functionality. This modularity fosters extensibility and facilitates resource allocation decisions at both the hardware and firmware levels. Such clarity in block-level separation not only streamlines troubleshooting but also accelerates iterative prototyping in field applications. In summary, the PIC16C73B-04/SO’s architecture delivers a fine balance between execution speed, flexibility, memory management, and control sophistication, serving as an effective platform for developing versatile, reliable embedded solutions.
Memory Structure and Data Handling in the PIC16C73B-04/SO
Memory architecture within the PIC16C73B-04/SO is engineered for deterministic response and optimal resource allocation in embedded systems. Program memory utilizes a 4K x 14-bit word structure, striking a balance between compact storage and sufficient instruction width. This arrangement ensures rapid sequential fetches, minimizing instruction pipeline latency and supporting real-time execution. Each instruction fetch occurs consistently within a tightly bounded timing window, which is advantageous when precise control and repeatability are required, such as in motor control or closed-loop regulation scenarios.
Data memory is partitioned into up to four banks, each mapped to 128 bytes, collectively forming a versatile yet manageable address space. The banking technique addresses the limitations posed by a constrained address bus, reducing hardware complexity while maintaining code efficiency. Special Function Registers (SFRs) are mirrored across banks, a deliberate design that reduces context-switching overhead. Routine access to critical registers thus does not depend on explicit bank switching, reducing cycle cost and enabling seamless interrupt handling—crucial for time-sensitive signal processing or communication protocol handling. A subtle optimization emerges here: by grouping critical variables and I/O registers in common banks, latency associated with bank switching can be further mitigated, supporting smoother ISR execution.
The working register (W), paired with the 8-bit ALU, forms the core of execution for arithmetic and logical instructions. This arrangement demands that code be carefully structured around accumulator-based operations, encouraging streamlined, highly optimized instruction sequences. Direct operations on W eliminate unnecessary memory accesses, reducing both power consumption and execution time—a significant advantage for battery-powered or resource-limited devices. In iterative routines such as sensor data aggregation or software-based PWM generation, leveraging the W register for intermediate values leads to superior throughput.
Data addressing flexibility is achieved through dual direct and indirect addressing modes. The File Select Register (FSR), coupled with the INDF register, allows the firmware to implement indirect pointer-based manipulation of RAM and registers. Indirect addressing enables efficient handling of dynamic data structures, circular buffers, or variable-length arrays common in real-time communication stacks or filter implementations. For example, input stream buffering for UART or I2C can be managed with minimal code overhead, as the incrementing pointer handles sequential storage without repetitive address calculations.
Configuration bits embedded in the program memory unlock customization at programming time. These nonvolatile options affect foundational aspects such as code protection, oscillator source selection, and brown-out reset behavior. Strategic configuration of these bits—such as enabling brown-out detection in automotive environments or selecting appropriate oscillator modes for low-jitter timing—yields greater system resilience and compliance with application-specific constraints. Code protection, while often underutilized, provides an essential security layer for protecting proprietary algorithms in fielded devices.
A nuanced understanding of the PIC16C73B-04/SO’s memory model reveals that efficient firmware design hinges upon thoughtful banking, targeted register usage, and adaptive addressing modes. By exploiting the mirrored SFRs, maximizing in-register computation, and carefully mapping persistent variables, high reliability and minimal latency are achieved even within the tight resources characteristic of mid-range microcontrollers. Employing these engineering best practices ensures predictable, high-performance operation in demanding embedded environments.
I/O and Peripheral Capabilities of the PIC16C73B-04/SO
The PIC16C73B-04/SO embodies a well-balanced suite of I/O and peripheral features engineered for embedded system integration, minimizing external circuitry while maximizing functional density. Its architecture incorporates three hardware timers—Timer0 (8-bit), Timer1 (16-bit), and Timer2 (8-bit, equipped with period register and postscaler)—each addressing distinct timing requirements, from simple event counting to generating complex PWM signals required in motor control or power management subsystems. Timer2’s dedicated period and postscaler greatly enhance flexibility in frequency generation and allow for granular PWM tuning, a practical advantage in applications demanding precise actuation or analog waveform synthesis.
The dual Capture/Compare/PWM (CCP) modules deliver multipurpose capabilities: input signal timestamping, output event scheduling, and robust 10-bit PWM generation. This modularity supports diverse tasks such as closed-loop motor control, digital signal modulation, and intersystem synchronization. Design experience shows that leveraging both CCPs well simplifies control algorithms, particularly in multi-channel actuation or sensor data acquisition scenarios, and reduces firmware complexity by offloading critical timing to hardware.
The integrated multichannel 8-bit analog-to-digital converter, with five channels accessible in the PIC16C73B variant, facilitates direct interfacing with analog sensors, potentiometers, or feedback circuits. This tight integration expedites instrumentation development and process control loop implementation, streamlining signal conditioning and acquisition workflows. Experience demonstrates the ADC's throughput and conversion accuracy suffice for most low- to mid-speed sensing tasks, such as environmental monitoring, actuator feedback, or voltage level tracking, without incurring the latency or board area penalty of separate ADC chips.
Serial connectivity is addressed via a full-featured Synchronous Serial Port (SSP) supporting both SPI and I²C protocols. This enables direct communication with memory devices, display modules, and complex peripherals. The dual-protocol support accelerates design cycles—SPI’s speed benefits high-bandwidth links, while I²C’s addressing flexibility suits sensor networks and configuration interfaces. A Universal Synchronous Asynchronous Receiver Transmitter (USART) module further augments versatility, allowing seamless asynchronous device communication, debugging access, and cross-platform connectivity through standard protocols.
The chip presents 22 multiplexed I/O pins, an asset for designers needing concurrent analog, digital, and serial interfacing. The flexible pin mapping allows reallocation of resources as system demands evolve, alleviating the board redesign effort in iterative prototyping or feature scaling. Interfacing practicalities show that judicious configuration of these multiplexed lines often enables simultaneous sensor sampling, serial data transfer, and actuator control without contention or bottleneck.
A key insight emerges in system-level optimization—centralizing timing, analog, and serial functions on-chip reduces external component count, enhances reliability, and shortens project schedules. The PIC16C73B-04/SO’s integrated peripherals not only offer broad feature coverage but also permit tight co-design of hardware and firmware, yielding efficient, cost-effective solutions for instrument control, automation, and custom embedded platforms. In sum, its layered peripheral framework underpins high flexibility, practical scalability, and robust performance in compact embedded designs.
System Control, Power Management, and Reliability Enhancements in the PIC16C73B-04/SO
System control and power management in the PIC16C73B-04/SO microcontroller are engineered to address core challenges encountered in embedded applications, particularly those demanding sustained reliability and precise energy utilization under volatile conditions. The architecture weaves together dedicated hardware subsystems aiming to preempt system failures and optimize operational resilience.
The watchdog timer (WDT), segregated from the main oscillator and driven by an independent RC circuit, establishes a defensive boundary against unintended software execution stalls. By maintaining autonomy from the primary clock source, the WDT continues to supervise system activity even if the main clock waveform degrades, thus significantly enhancing fault tolerance. In typical industrial deployments, deliberate configuration of the WDT prescale values shapes the window for safe task completion before corrective action, such as a system reset, is forced. This layered approach permits deterministic recovery from unforeseen firmware anomalies, bypassing the need for external intervention and reducing downtime in mission-critical scenarios.
System initialization relies on a sequenced power-on logic path. The Power-on Reset (POR) asserts a thorough reset condition upon voltage application, preventing incomplete or erroneous state latching during ramp-up. Complementing this, the Power-up Timer (PWRT) introduces a quantized delay where circuit stabilization is empirically tailored for optimal charge integration on the internal and external bypass components. For oscillator-driven systems, the Oscillator Start-up Timer (OST) warrants a stable clock threshold before normal instruction execution commences. This staged hand-off between reset modules prevents propagation of spurious instructions or ambiguous system behavior, a frequent root cause for early-life failures in electronics subjected to noisy power domains.
When encountering irregular supply voltages, the built-in Brown-out Reset (BOR) circuitry activates as a sentinel, instantly resetting the core upon voltage drops beneath operational tolerances. By differentiating genuine brown-out conditions from transient noise, the BOR forestalls non-deterministic logic levels that often manifest in erratic application behavior or latent data corruption within critical state registers. This feature is indispensable in scenarios such as battery-operated logistics devices, where source transients are recurrent, and assured recovery must override sluggish brown-out conditions.
For energy-conscious deployments, SLEEP mode leverages internal clocks and interrupts to reduce power consumption without relinquishing state retention. The microcontroller’s capability to suspend core execution while maintaining vital peripherals enables staggered wake-up patterns—a design trait commonly exploited in remote sensing and interval-driven data aggregation systems. SLEEP mode’s interplay with event-driven hardware peripherals forms a foundation for both extended operational cycles and streamlined energy budgets.
Security domains are addressed with programmable code protection. By delineating hardware-enforced bounds between read/write operations, the device minimizes vectors for unauthorized firmware access—a prudent safeguard in commercial platforms where intellectual property integrity or regulatory compliance motivate robust anti-tamper measures.
Collectively, these subsystems act in concert to reinforce the PIC16C73B-04/SO’s suitability for embedded environments requiring predictable operation and minimal maintenance. This consolidated hardware basis arrests many root causes of silent system failures and power instabilities, transferring critical supervisory logic from user firmware into silicate-proven circuitry. With judicious configuration, these features unlock architecturally resilient designs, compressing field returns and strengthening deployment confidence even in electrically hostile or security-sensitive applications.
Electrical and Packaging Characteristics of the PIC16C73B-04/SO
The PIC16C73B-04/SO microcontroller integrates a blend of robust electrical and packaging attributes, directly addressing the critical requirements of contemporary embedded system designs. Core to its adaptability is a broad operating voltage window spanning 2.5V to 5.5V. This allows seamless interfacing with both legacy 5V peripherals and modern low-voltage logic components, simplifying mixed-voltage system architecture and extending product applicability in markets transitioning between process nodes.
Power efficiency is engineered into the device, as evidenced by an active current draw of under 5 mA at 5V/4 MHz and a standby mode consumption of less than 1.2 μA. Such figures are essential for battery-operated applications and designs with stringent thermal constraints. Real-world deployment often leverages this characteristic to extend operational life in data loggers or portable controllers, with power-saving achieved without the need for external low-dropout regulators.
The high drive capability of up to 25 mA per I/O pin distinguishes the PIC16C73B-04/SO in scenarios necessitating direct control of LEDs, relays, or other peripheral elements, reducing the BOM by eliminating additional buffer stages. This characteristic is particularly advantageous in dense IO-multiplexed systems where board real estate is at a premium and power distribution is tightly managed.
Mechanically, availability in a 28-pin SOIC package supports high-yield, automated surface-mount processes, ensuring robust solder joint reliability and facilitating dense multilayer PCB layouts. This packaging supports streamlined thermal dissipation and mechanical stress relief during thermal cycling, a nontrivial factor in high-reliability deployments. The wider series support for alternative packages broadens design-in flexibility, allowing footprint reuse or design migration as requirements evolve.
Coverage of commercial, industrial, and automotive temperature ranges establishes the device’s thermal resilience. This qualification suite underscores suitability for deployment in unpredictable or harsh environments, including factory floor controllers subjected to temperature swings, in-vehicle modules, and distributed sensor nodes in outdoor enclosures. Deployments in automotive and industrial automation have demonstrated that the device not only withstands prolonged exposure to vibration and thermal cycling but maintains parametric stability across its operational envelope.
One subtle but significant insight is that the intersection of broad voltage support, aggressive power management, and robust I/O drive enables the PIC16C73B-04/SO to function reliably in distributed or retrofit control networks where nodes often operate with diverse, sometimes marginal supply rails and loads. The device's mechanical and electrical resilience, combined with package flexibility, unlock platform longevity—a trait increasingly decisive as system engineering shifts towards long lifecycle, future-proofed designs.
Development Support and Ecosystem for the PIC16C73B-04/SO
Development support and ecosystem for the PIC16C73B-04/SO are constructed to optimize each stage of product realization, starting from initial design validation to high-volume manufacturing. The MPLAB Integrated Development Environment (IDE) forms the backbone of this workflow, offering a tightly coupled toolchain—assembler, C compiler, linker, and simulator—that allows engineers to iterate rapidly between code writing, debugging, and performance refinement. The simulation capabilities are robust; iterative instruction-level and system-level validation significantly reduce the risk of latent defects, enabling early identification of integration issues, timing anomalies, and resource contention—often before hardware becomes available.
On the hardware interface level, in-circuit emulators such as MPLAB ICE streamline the transition from simulation to real-world deployment. Precise execution tracing and real-time breakpoints facilitate seamless hardware/software co-debugging. Industry-standard programmers, including PICSTART Plus and PRO MATE II, offer reliable device flashing and quickly adapt from laboratory prototyping to production test fixtures. Purpose-built demonstration boards for the PIC16C7X series serve as reference platforms, promoting rapid prototyping cycles and providing a controlled environment for peripheral exploration, power analysis, and firmware validation.
Programming flexibility underpins efficient project management. One-Time Programmable (OTP) parts and UV-erasable CERDIP packages provide engineers with cost-effective options for iterative prototyping, accelerated feature testing, and risk mitigation during architectural exploration. For production, factory-programmed QTP and serialized quick-turnaround versions reduce lead times and inventory handling overhead, supporting traceability and rapid deployment. This dual-track approach to device programming ensures tight control of configuration during low-volume runs while maintaining scalability and repeatability during mass production.
Empirical utilization of this ecosystem reveals that time-to-market is most heavily influenced by the quality of integration between development tools and hardware interfaces. Seamless transitions between simulation, emulation, and device programming minimize context-switching and technical friction. For embedded designs where reliability and signal integrity are paramount, the ecosystem’s depth allows fine-tuning of firmware and electrical characteristics iteratively until corner-case behaviors are fully understood. Leveraging this toolset has repeatedly shown that comprehensive test coverage and parameterization are essential to sustaining robust production flows.
In the broader context, this layered ecosystem supports a modular and risk-tolerant engineering process. Design teams benefit from predictable ramp-up and the ability to pivot between code, hardware, and manufacturing touchpoints without compromising fidelity. For applications requiring stringent validation—such as control systems, consumer electronics, and low-power instrumentation—the tightly integrated PIC16C73B-04/SO development environment supports both agility in prototyping and resilience in scaling. The convergence of flexible programming, advanced emulation, and development tool integration thus represents a mature foundation for embedded innovation.
Application Scenarios and Engineering Considerations for the PIC16C73B-04/SO
The PIC16C73B-04/SO showcases a well-integrated microcontroller architecture designed to meet a diverse array of embedded application demands. At its core, several foundational mechanisms contribute to both its adaptability and targeted engineering performance. The device’s low-power CMOS process and efficient instruction set enable deployment in remote sensor nodes and security-critical endpoints, where minimizing standby current and ensuring predictable wakeup for event-driven operation are essential. Its hardware provisioning for code protection and glitch-resistant I/O further reinforce viability in security-sensitive deployments.
Analog subsystem design features, including an on-chip ADC and programmable voltage reference, facilitate precise sensor interfacing and feedback acquisition in smart appliance controllers and industrial instrumentation. Effective utilization of these analog resources mandates disciplined PCB layout to minimize parasitic coupling; analog inputs should be routed with short, shielded traces, and input source impedance controlled below 10kΩ. High-fidelity signal processing is achieved by leveraging integrated sample-and-hold mechanisms and adhering to manufacturer recommendations for filter design at analog front ends.
Flexible pin multiplexing is engineered to optimize board area, but pin-sharing between digital and analog functions requires methodical register configuration. TRIS and ADCON1 registers must be set according to the desired function per cycle, ensuring that unintentional mode switching and signal contention are precluded. Careful I/O planning enables simultaneous PWM-driven actuator control and ADC-driven sensor feedback, expanding system capabilities while containing BOM count.
Within automotive and industrial control environments, operational robustness across temperature gradients and transient voltage disturbances is delivered through carefully managed supply decoupling and selection of automotive-grade passive components. The device’s resilience to thermal excursions and electrical stress is maximized by following layout best practices, including multilayer PCBs with adequate ground planes and localized bypassing near supply pins. This design discipline supports consistent performance during continuous power cycling and in electrically noisy environments.
The unit’s OTP program memory is engineered for streamlined, cost-effective mass production, yet precludes firmware reprogramming after assembly. This drives the necessity for full functional validation and regression testing prior to final code commitment. Employing automated simulation and hardware-in-loop test benches prior to deployment helps mitigate the risk of latent firmware faults, promoting stable long-term operation.
Single-chip integration within small-footprint SO packaging enables compact designs with reduced assembly complexity and cost. Application scenarios with stringent spatial and cost constraints, such as decentralized sensor arrays or consumer electronics, take advantage of reduced component interconnect and simplified logistics, yielding scalable and manufacturable solutions.
This microcontroller consistently demonstrates that a disciplined approach to analog/digital resource management, PCB design for signal integrity and reliability, and rigorous pre-production verification yield robust and efficient embedded systems. The simultaneous availability of analog and digital resources on shared pins, when managed systematically, unlocks advanced multifunctionality in form-factor-constrained environments, pushing the boundaries of what legacy MCU architectures typically offer.
Potential Equivalent/Replacement Models for the PIC16C73B-04/SO
Selecting an optimal replacement for the PIC16C73B-04/SO requires detailed consideration of both the silicon feature set and the architectural nuances influencing hardware and firmware integration. The migration process often hinges on functional compatibility, long-term supply stability, and design scalability. Evaluating alternatives within the Microchip portfolio necessitates a careful mapping between the target application’s analog, digital, and interfacing demands and the capabilities offered by candidate devices.
The PIC16C74B-04/SO extends the feature matrix by integrating eight analog input channels and a higher I/O count, reaching 33 pins. This expansion directly addresses scenarios where system design calls for concurrent sensor acquisition or additional signal pathways, such as multiplexed analog front ends or multi-peripheral communication buses. Increased I/O density benefits composite systems, where pin availability dictates auxiliary function integration, but further verification of timing behavior and routing constraints remains critical to preserve signal integrity under higher pin utilization.
The PIC16C65B-04/SO augments general digital interfacing by providing expanded I/O resources; however, it omits an analog-to-digital converter. This variant becomes relevant in architectures dominated by discrete logic, digital sensor arrays, or externally converted analog signals. Its deployment can reduce system complexity when mixed-signal capability is unnecessary, but it requires careful review of board-level ADC provisioning if analog support is retrofitted. Detailed pinout inspection is essential, as subtle incongruities may arise, especially when port definitions differ or are reallocated between device generations.
The PIC16C63A-04/SO presents a more stripped-down yet core-compatible alternative, lacking built-in A/D conversion and thereby targeting use cases with strictly digital requirements. Migration here favors designs prioritizing code reusability over peripheral breadth, enabling direct firmware porting with minor adaptation for pin mapping and errata management. This device is beneficial in communication control applications or dedicated logic handlers where analog input is architecturally abstracted or undesired.
Considering application longevity and maintainability, transitioning to a Flash-based platform such as the PIC16F7X series offers a decisive advantage. In-circuit reprogrammability transforms iterative development and field maintenance, supporting rapid firmware upgrades, simplified production testing, and long-term product support. These devices typically introduce richer peripheral options, improved development toolchains, and supply continuity — factors crucial to sustaining complex, evolving deployments or remote system infrastructures. In practice, the transition to Flash-based devices can surface latent timing or initialization inconsistencies, especially when legacy code assumes OTP or EPROM memory models, so hardware abstraction and robust regression testing must be embedded in the upgrade cycle.
Throughout device selection and migration, special attention must be given to peripheral set disparities — such as oscillator configurations, timer architectures, and communication interface revisions. Differences between chip revisions (A to B) may introduce register mapping changes or subtle electrical characteristic shifts that ripple into board layout and EMC performance. In practical redesigns, cross-referencing data sheets and errata enables preemptive identification of risks, minimizing post-silicon surprises.
Modern engineering workflows reveal that risk-managed migration is not merely a matter of specification matching but of anticipating system-level consequences of device selection. Prioritizing programmable flexibility, toolchain maturity, and migration documentation accelerates both initial integration and future-proofing, reducing lifecycle costs and sustaining product viability in unpredictable supply environments. Selecting a replacement for the PIC16C73B-04/SO thus becomes a strategic function within embedded design, balancing the granular needs of the current project against the broader trajectories of technology and support.
Conclusion
The PIC16C73B-04/SO microcontroller offers an architecture rooted in RISC principles, yielding efficient instruction execution and predictable real-time performance. The internal structure integrates a suite of on-chip peripherals—including versatile timers, PWM modules, and multi-channel ADC—which streamlines hardware design and reduces component count. This convergence not only minimizes bill-of-materials complexity but also mitigates signal integrity risks when deploying solutions in automotive, industrial automation, and security control domains where reliability thresholds are stringent.
Power management is engineered at multiple levels. The device supports low-power modes such as sleep and idle, enabling optimized energy consumption strategies in duty-cycled or battery-sensitive environments. Additionally, voltage supervisory features and configurable brown-out detection ensure stable operation across transient conditions frequently encountered in field deployments. EMI resilience further distinguishes the platform, verified in environments with heavy electrical noise—a critical factor for ensuring robustness in factory automation and smart appliance control systems.
Deployment experience confirms that the mature Microchip development ecosystem accelerates prototyping and production ramp-up. Comprehensive toolchains, including MPLAB IDE and a broad C compiler suite, allow rapid firmware iterations and facilitate code portability. Module abstraction reduces recertification overhead during design upgrades and supports migration to higher-memory or enhanced-peripheral variants within the PIC family, protecting investments in firmware and hardware IP. Notably, the availability of pin-compatible successors supports scalability for evolving requirements without disruptive PCB redesign.
Supply chain stability and extended availability mitigate lifecycle risk, simplifying sourcing for long-duration projects in sectors with strict obsolescence policies. The device’s proven reliability record underpins its acceptance for safety-critical systems, such as automotive body electronics and industrial sensor nodes, where low defect rates and consistent performance are paramount. Positive results have been observed in applications with rigorous MTBF and yield analysis, reinforcing the MCU's position as a preferred choice in routine and mission-critical deployments.
A core insight stems from the microcontroller’s balance between legacy support and forward adaptability. Firms leveraging the PIC16C73B-04/SO can harness the advantages of established toolchains and validated reference designs, reducing time-to-market while retaining options for future enhancement. Embedded engineering workflows benefit from the MCU’s predictable behavior and peripheral integration, supporting both cost-sensitive consumer applications and high-reliability industrial projects. The PIC16C73B-04/SO positions itself as a versatile, extensively proven solution that meets contemporary embedded control demands and aligns with strategic requirements for maintainability and scalability.
