Product overview: MCP9501PT-115E/OT Microchip Technology Thermostat
The MCP9501PT-115E/OT represents a refined implementation of electronic overtemperature protection, integrating precise analog sensing with robust digital output logic to meet the stringent requirements of contemporary thermal management architectures. At its core, the device leverages a tightly calibrated sensing element, guaranteed in production to trigger at 115°C ± high-precision factory tolerances, ensuring deterministic switching behavior across production lots and environmental conditions.
A particular strength of this model lies in its active-low and open-drain output. This configuration permits seamless interfacing with low-voltage digital logic or microcontrollers, and supports direct wired-OR connections for fail-safe thermal shutdown schemes. The open-drain topology further eliminates output contention, simplifying system-level integration while maintaining reliable logic-level compatibility in multi-voltage environments.
Physically, the SOT-23-5 enclosure grants high packing density and ease of placement on crowded PCBs, with minimal thermal footprint and low parasitic heat conduction paths, preserving sensor response times and accuracy. Experience shows that incorporating such a compact footprint facilitates deployment in high-power modules, multi-stage amplifier chains, and tight automotive electronics bays where space is not merely a constraint but a core design variable.
In complex supervisory systems, the MCP9501 guards high-reliability switching power supplies, instantly signaling thermal excursions to protect downstream loads. Fan controllers benefit from precise activation thresholds: even under fluctuating ambient conditions, the fixed 115°C trip guarantees that concealed hot spots within dense enclosures do not escape rapid intervention. Alarm architectures frequently exploit the device’s predictable response curve, enabling low-latency signaling and remote diagnostics in base station deployments, especially where thermal budgets fluctuate and time-to-intervention must be minimized for uptime guarantees.
From a circuit engineering perspective, employing the MCP9501 streamlines board-level protection without requiring firmware overhead. Systems using discrete NTC thermistors often suffer from drift or calibration complexity; in contrast, the MCP9501 provides binary simplicity and eliminates cross-device variance. This characteristic is particularly attractive when scaling to production, where consistency and low external component count reduce manufacturing risk and cost.
A subtle but critical insight is that device stability under voltage variation and electromagnetic interference (EMI) further underscores its suitability for automotive or industrial-grade designs. Field installations have demonstrated that deploying the MCP9501 in noisy environments maintains trip-point integrity, avoiding spurious shutdowns and false positives, preventing unnecessary service dispatches, and enhancing operational continuity.
In modern applications, the deterministic switch-point behavior of the MCP9501 enables more sophisticated control schemes. For example, staged thermal management can build upon its output to trigger multi-tiered warning and shutdown cycles, supporting regulatory compliance and safety certifications. By anchoring system response at a fixed temperature, higher-level algorithms can focus on granular fan speed control or adaptive performance throttling strategies, leaving the foundational safety override in reliable hardware.
In summary, the MCP9501PT-115E/OT is more than a passive safeguard; it represents a convergence point of miniaturization, application flexibility, and rigorous engineering discipline, providing architects of thermal-critical systems with a proven, low-latency solution for real-world challenges.
Key features and operating principles of MCP9501PT-115E/OT
The MCP9501PT-115E/OT is a precision, factory-programmed temperature switch engineered for robust thermal management across electronic systems. Its architecture integrates three critical components: a silicon-based analog temperature sensor, a comparator for setpoint logic, and a laser-trimmed resistor network that defines the precise threshold temperature of 115°C. By embedding these functions at the silicon level, the device ensures consistent performance, with minimal susceptibility to drift or component variation—crucial for designs where thermal protection reliability is non-negotiable.
Threshold selection within the broader MCP9501 family spans -35°C to 125°C in standardized 10°C steps. The chosen value is inherently stable due to wafer-level trimming during manufacturing, removing the need for external resistor networks or field calibration routines. This reduces both assembly complexity and the probability of in-field threshold misconfiguration, thus significantly simplifying the design-in process and yielding more maintainable hardware in long-lifetime applications such as industrial motor drivers, power supply units, and battery management systems.
Within thermal control loops, the MCP9501PT-115E/OT operates by continuously monitoring its local ambient or substrate temperature. Once the temperature crosses the factory setpoint of 115°C, the internal comparator asserts the open-drain output by pulling it low. This output is suitable for direct logic interfacing or for activating remote control elements such as MOSFETs, relays, or supply sequencers. Open-drain configuration supports flexible pull-up voltages and wired-OR arrangements, facilitating straightforward multiplexing in system alert buses or shutdown chains.
The hysteresis control feature is a practical tool for managing response stability amid large thermal gradients or noisy environments. By tying the HYS pin either to GND or VDD, system designers select a 2°C or 10°C differential between switch-off and reset points, respectively. This adjustable hysteresis mechanism is key to preventing output chatter when the system is operating near the thermal threshold, a common cause of relay contact wear or logic controller overload in real-world thermal cycling scenarios.
Precision temperature accuracy, with a typical ±1°C margin, is not merely a datasheet figure but critically shapes protection reliability. In protection-intensive segments, such as power amplifiers or high-density DC/DC converters, minimal offset and narrow tolerance bands translate into repeatable response and maximized component lifetimes. In system validation, the elimination of multi-point calibration procedures further enables reproducible test results and reduces development cycles.
The MCP9501 portfolio provides additional configurability: MCP9503/4 variants are optimized for cold detection (asserting as temperatures fall), while MCP9502/4 options deliver push-pull, active-high outputs. This matrix of functional permutations aligns with both positive and negative temperature trip requirements, simplifying unified design strategies for products sharing a platform but requiring divergent thermal policies.
A notable insight is the strategic leverage of factory-set temperature switches to enhance manufacturability and fleet reliability. Field experience demonstrates that minimizing BOM count and precluding variable tolerances at the board level sharply decreases NPF (No Problem Found) rates seen in deployed infrastructure. The wide threshold selection further supports modularity in deploying a family of systems with varied derating targets. In heavily regulated or safety-critical installations, MCP9501-based solutions expedite compliance documentation by externalizing the calibration step to semiconductor-level traceability.
Overall, the MCP9501PT-115E/OT delivers a tightly integrated and application-adaptable approach to hardware thermal protection. Its deterministic design, broad configurability, and operational simplicity jointly address the stringent requirements of modern electronic safety, while optimizing the cost and reliability profile for embedded systems.
Electrical characteristics and performance benchmarks
The MCP9501PT-115E/OT is engineered for stable electrical performance within a defined voltage envelope of 2.7V to 5.5V, addressing the prevalent supply rails found in embedded and industrial control electronics. This voltage flexibility, coupled with a minimal quiescent current draw of 25μA, effectively reduces system-level standby power, a crucial metric in battery-driven architectures and remote sensor deployments. The device’s low static power demand also enables denser power budgeting in multi-sensor platforms where aggregated consumption becomes a limitation.
From a design safety perspective, the absolute maximum ratings permit transient excursions up to 6V on supply lines and current spikes of 20mA on I/O paths, accommodating brief fault conditions without component failure. The extended ambient temperature range of -40°C to +125°C is a decisive trait for deployments in thermally dynamic environments, including automotive engine compartments and industrial machinery enclosures, where thermal cycling and long operating lifetimes are expected. Enhanced ESD tolerance to 4kV (HBM) further positions the part for direct interface in applications prone to static discharge events, minimizing downtime and maintenance triggered by latent component failures due to electrical overstress.
Layered characterization data reveal tight distributions in output parameters such as leakage current and voltage thresholds across samples and temperature sweeps. For high-reliability circuits, this deterministic behavior facilitates predictable response curves, simplifying integration into closed-loop feedback systems and tiered fault detection modules. Hysteresis attributes retain stability over temperature, averting false triggering in environments with rapid thermal transients—an engineering advantage when designing edge detection in motor control or HVAC applications.
Noise resilience is optimized through the strategic use of local bypass capacitance, with 0.1μF to 1μF ceramic capacitors at the VDD node demonstrably reducing conducted and radiated susceptibility induced by high-frequency switching power supplies. Practical prototyping has shown that such filtering not only suppresses supply ripple but also attenuates digital domain glitches that may compromise sensing accuracy or system state recognition. This technique is widely adopted for systems with mixed-signal interfaces, where analog precision and digital timing converge.
Analysis of deployment scenarios indicates that selection of the MCP9501PT-115E/OT is most impactful where robust parametric consistency must be balanced against strict power envelopes. Integrating this device within distributed sensor networks or autonomous control units yields measurable reductions in maintenance cycles and unscheduled resets due to voltage or temperature anomalies. This sets a practical precedent for choosing well-characterized, electrically resilient components when scaling high-reliability systems across varying operational climates.
Package details and pin configuration of MCP9501PT-115E/OT

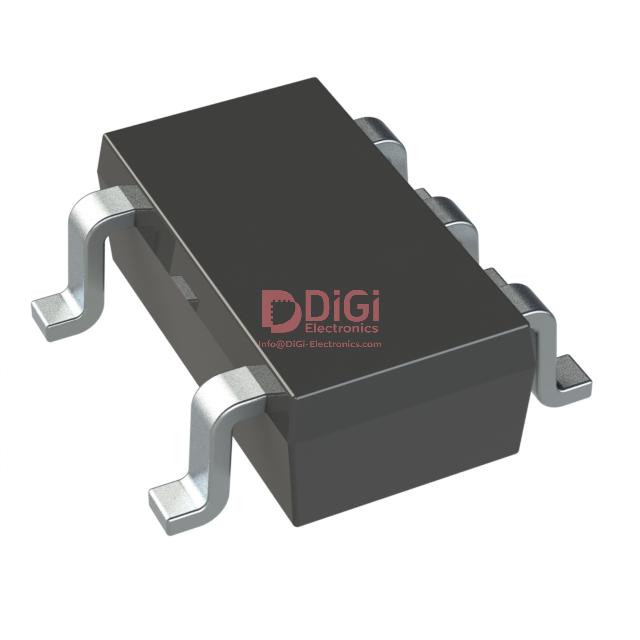

The MCP9501PT-115E/OT is engineered with a compact 5-lead SOT-23 package, optimizing board real estate for applications where component density and thermal management are priorities. The pin configuration is intentionally straightforward: GND serves circuit grounding, HYS enables adjustable hysteresis thresholds to minimize false switching due to minor temperature fluctuations, VDD supplies operating voltage, OUT provides open-drain switching output, and the auxiliary ground connection reinforces thermal dissipation. This arrangement facilitates rapid schematic integration and streamlined layout routing, critical for iterative hardware design cycles.
The open-drain OUT pin, integral to the device’s digital signaling strategy, is leveraged for compatibility with diverse logic families. By selecting an appropriate external pull-up resistor value, designers can define the rise time and output high level, thus supporting direct interfacing with microcontrollers operating at different input voltages. This feature proves vital in systems utilizing multiple voltage rails, where direct pin compatibility is often a challenge and inadvertent logic level mismatches can precipitate system failures. Empirically, implementing a calculated pull-up resistance optimizes output signal integrity without imposing excessive current draw or compromising switching speed, particularly in environments subject to electromagnetic interference.
Thermal path optimization is central to device accuracy. Placement of the MCP9501PT-115E/OT proximate to the target heat source, such as a power MOSFET or processor, capitalizes on its response time and ensures minimal temperature gradient error. The package's extended ground pad, supplemented by designated PCB copper pours, enhances heat conduction away from the sensor, stabilizing readings under varying system loads. In practical layout implementations, designers often employ thermal vias beneath the package to distribute heat efficiently across internal layers, maintaining sensor response fidelity during dynamic thermal events.
The mechanical specification and recommended land pattern, constructed per ASME Y14.5M, assure precise, repeatable footprint alignment in automated pick-and-place workflows. This standardization safeguards against placement drift and solderability issues in high-volume production runs, ultimately increasing finished board yield. Experience with SOT-23 geometries underscores the value of strict adherence to these design rules—subtle deviations can introduce solder bridging or insufficient thermal contact, undermining sensor performance and reliability.
An implicit strategic viewpoint emerges from integrating these details: the MCP9501PT-115E/OT excels not merely as a space-conserving thermal switch but as a design enabler for robust, scalable systems where temperature management and signal integrity are closely intertwined. By harmonizing pin functionality, output topology, and mechanical conformity, the device delivers predictable behavior amid electrical and thermal complexity, affirming its role in advanced embedded architectures.
Application examples and design considerations for MCP9501PT-115E/OT
The MCP9501PT-115E/OT integrates a robust open-drain, active-low output with programmable temperature thresholds, making it a practical choice for power system protection and intelligent thermal management. Its architecture facilitates seamless integration into automatic shutdown or alarm circuits in power supplies, FET switch modules, or intelligent fan controllers. The open-drain topology supports wired-OR logic, which enables multiple device outputs to be interconnected. This feature is particularly valuable for distributed overtemperature monitoring, where thermal status signals from diverse nodes merge onto a single microcontroller input, simplifying system management and reducing processor pin overhead.
From a circuit design standpoint, the device’s interface flexibility extends to voltage domain accommodation. Deploying an appropriate pull-up resistor allows the output to be referenced to logic levels distinct from the local sensor supply. This level-shifting mechanism becomes crucial where the sensing environment operates at elevated voltages relative to downstream digital controllers. Ensuring correct resistor selection adapts the output swing, enhances compatibility, and preserves signal integrity during logic transition events, even in the presence of noise or parasitic coupling across board traces.
In hardware layout considerations, strategic placement directly influences the MCP9501’s thermal response and measurement fidelity. The device should be physically isolated from components that induce localized heating or air turbulence, such as high-current inductors or exhaust-side fan mounts. Sufficient copper pour and minimized trace resistance between the device package and heat-dissipating nodes enhance response accuracy while counteracting localized self-heating, which may otherwise skew temperature readings. Additionally, compact routing and low-inductance returns on the output line help suppress unwanted electromagnetic interference that might trigger false alarms in densely packed enclosures.
Power supply integration requires mitigation of supply-side disturbances. When operating from switching regulators, the inclusion of a local high-frequency bypass capacitor near the VDD pin is non-negotiable. This decouples high-frequency noise, ensuring stable comparator thresholds and preventing erratic output behavior. Introducing a 200Ω series resistor on VDD further attenuates voltage spikes attributable to rapid switching transients, thereby improving power supply rejection and safeguarding against nuisance trips. Such protection strategies become especially relevant in environments where multiple loads cycle asynchronously and ground bounce is present.
Experience indicates that mismanagement of PCB layout or bypassing often manifests as intermittent faults that complicate validation, emphasizing the necessity of upfront simulation and prototyping with actual board-level parasitics. It is advantageous to implement diagnostic test points, enabling real-time monitoring of both supply rails and output lines under various thermal loads, confirming stable performance. The device’s fast thermal response curve also lends itself well to predictive fan profiling algorithms in advanced thermal management systems, where early intervention can extend system lifespan and maintain operational safety margins.
A nuanced perspective recognizes that the MCP9501’s configurability and electrical tolerance profile provide substantial leverage in modular platform designs. When deploying multiple thermal sensors across a system, designers can standardize backend handling logic, allowing for firmware-based setpoint calibration and adaptive system tuning without extensive hardware revision. This flexibility introduces efficiencies in both product development cycles and subsequent field service adaptability, where environmental conditions or component aging might otherwise necessitate elaborate redesigns.
Potential equivalent/replacement models for MCP9501PT-115E/OT
In thermal management circuit design, selecting an appropriate temperature switch involves evaluating nuanced performance parameters and interface needs. The MCP9501PT-115E/OT, a widely used fixed-threshold temperature switch, belongs to a modular series with highly adaptable configurations. This series, produced by Microchip Technology, includes the MCP9502, MCP9503, and MCP9504 models, each offering distinct logic output characteristics and threshold options to optimize integration within diverse forms of temperature monitoring subsystems.
At the functional core, these devices operate as comparator-based threshold sensors, deploying factory-programmed trip points in increments of 10°C across a broad -35°C to 125°C range. The MCP9501 utilizes an open-drain output for external pull-up customization, while the MCP9502 advances this interface with a push-pull, active-high output, permitting direct microcontroller connection and eliminating the need for additional biasing components. Such active-high logic significantly improves signal integrity, especially in noise-sensitive environments or when operating at low system voltages, supporting rapid, deterministic fault signaling in embedded control systems. Based on observed application requirements, this output configuration is preferred for MCUs lacking internal weak pull-ups.
For applications emphasizing low-temperature protection or cold-start sequencing, the MCP9503 and MCP9504 variants pivot the operational paradigm: their outputs assert when sensed temperature drops below the threshold. These cold-switching models are instrumental in battery charging, thermal shutdown in consumer devices, and power management modules where system stability at low ambient temperatures takes precedence. The selection between these models is often determined by reviewing system recovery behavior and the desired fail-safe response curve.
Deployment in high-reliability systems reveals the importance of harmonizing threshold accuracy, response time, and output topology. For instance, deploying MCP950x series devices in series-connected thermal zones across industrial control platforms has demonstrated minimal cross-zone interference and stable trip-point reproduction. In prototyping scenarios, precise threshold selection often requires iterative validation through environmental chamber cycling and logic monitoring, highlighting the device’s tolerance drift over extended duty cycles.
It is essential to align the chosen output mode with the host system’s digital input characteristics and establish margin between the selected trip point and critical thermal limits, factoring in ambient drift, PCB layout-induced temperature gradients, and potential hysteresis effects. Integrating these considerations with direct experience of system tuning, the MCP950x series offers robust adaptability without sacrificing simplicity or diagnostic clarity. For specialized requirements, such as uncommon trip points or atypical output behavior, leveraging Microchip's in-house customization capabilities can yield significant advantages, particularly in systems where traditional catalog components underperform due to nuanced thermal or electrical constraints.
Ultimately, optimal implementation of MCP950x thermal switches hinges on a layered understanding of both device-level characteristics and broader application context. The progressive enhancements across the series empower engineers to architect responsive, reliable temperature management schemes while navigating diverse electrical interface ecosystems.
Conclusion
The MCP9501PT-115E/OT temperature switch integrates a silicon-based switching sensor architecture optimized for precision overtemperature detection, targeting compact electronic assemblies. Its low-profile SOT-23 packaging enables streamlined integration onto densely populated PCBs without sacrificing accuracy or thermal response. Utilizing a programmable hysteresis mechanism, the device allows designers to fine-tune response intervals, directly improving thermal control granularity and minimizing nuisance trips under transient conditions. The threshold logic couples with an open-drain output, easily interfacing with microcontrollers or discrete transistor logic, facilitating adaptation to both legacy and emerging system architectures.
Electrical robustness is achieved via input supply versatility (ranging from 1.6 V to 5.5 V), overvoltage tolerance, and minimal quiescent current draw, which collectively offer operational stability across diverse application voltages while maintaining power budget discipline. The switch’s response time and thermal tolerance matrix, verified through rigorous burn-in and qualification, demonstrate consistent performance when exposed to rapid ambient fluctuations and noisy electrical environments. These traits prove essential in critical systems such as industrial controllers, medical instruments, automotive modules, and IoT sensors, where localized heat pockets or current surges pose risks to adjacent silicon or passive components.
Deploying the MCP9501PT-115E/OT in distributed temperature management schemes, especially within multi-zone power supplies or battery systems, substantially streamlines fault isolation and mitigation procedures. Its cost-effective sourcing and repeatable switching thresholds support scalable deployment, enabling parallel monitoring strategies across redundant thermal clusters. The device’s field record reinforces its suitability for high-reliability domains, where predictability and service longevity justify its selection over less engineered discrete alternatives.
Switch design is often constrained by layout restrictions and paired with strict bill-of-material controls—criteria for which this part offers distinct engineering value. Leveraging its rapid shutdown interface and spec-tuned hysteresis, advanced designs effectively reduce downstream component stress, elevating system MTBF. Integration case studies highlight reduced rework rates and simplified qualification cycles compared to legacy thermistor-latch methods, underscoring the part’s impact on development efficiency and long-term resilience. For thermal-centric applications with evolving standards and demand for traceable safety margins, this switch family offers a proven, adaptable foundation imbued with practical design flexibility.
