Product Overview: dsPIC33FJ128GP310A-I/PT Series
The dsPIC33FJ128GP310A-I/PT exemplifies a design that integrates high-performance digital signal processing with robust microcontroller features, supporting advanced control applications in demanding environments. At its core, this 16-bit device adopts a modified Harvard architecture, leveraging separate instruction and data buses to optimize data throughput, a critical factor in time-sensitive signal processing tasks. The 40 MIPS processing capability, achieved through a deterministic, single-cycle DSP engine, enables precise execution of complex algorithms, such as PID control for motor systems, fast Fourier transforms for audio processing, and real-time filtering in communication protocols.
Retaining 128 KB of field-programmable Flash memory ensures field updates and robust in-circuit reprogrammability, which simplifies firmware iteration in iterative development cycles and accelerates product validation for industrial standards. The provision of up to 16 KB dedicated RAM supports extensive buffering, essential for high-speed data acquisition and manipulation, while optimizing memory allocation for multitasking applications. Peripheral integration extends to multiple UART, SPI, and I²C channels, along with advanced PWM modules and multiple 10-bit or 12-bit ADCs. Such a suite supports not only sensor-rich control loops in industrial automation but also real-time feedback systems in automotive domains, reducing external component count and board complexity.
System reliability is further reinforced by extended temperature tolerances—Grade 1 and Grade 0 devices address both automotive under-hood and severe industrial conditions, overcoming thermal drift and ensuring data integrity through all mission profiles. Brown-out reset, watchdog timers, and other hardware-driven safety features form part of the embedded system-level risk mitigation strategy, decreasing the likelihood of silent failures in safety-critical processes.

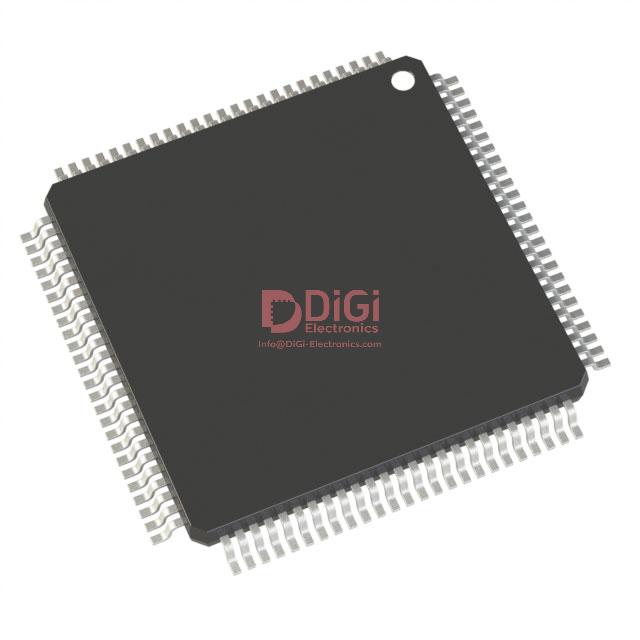

From a layout engineering perspective, the 100-TQFP (12x12 mm) encapsulation balances high pin count for parallel expansion with a manageable footprint for dense multi-board designs. Engineers routinely leverage the device's pin-multiplexing capabilities to prioritize essential interfaces while minimizing PCB routing complexity—a best practice in scalable hardware platforms.
Design validation often exposes the true value of deterministic interrupt handling with core-tailored exception vectors, ensuring rapid response to real-world events. This becomes vital in applications requiring synchronized multi-motor orchestration or fail-safe emergency stops in mechatronics. Integrating the microcontroller’s hardware support for DSP instructions minimizes cycle wastage compared to bit-banged software approaches on pure microcontrollers, often reducing total system power due to faster completion of algorithmic bursts.
An essential consideration in broader deployment is firmware portability within the dsPIC33FJXXXGPX06A/X08A/X10A family. Developers can prototype with this variant, then scale memory and I/O resources as production demands evolve, accelerating time-to-market and reducing NPI risks. The on-chip debugging and trace infrastructure, further supported by mature ecosystem tools, underpin sustained productivity throughout the development lifecycle.
A nuanced appreciation of the dsPIC33FJ128GP310A-I/PT reveals its particular suitability for applications where digital control performance, memory flexibility, and environmental resilience must coexist with high peripheral density. In practice, the device’s unique value emerges in its ability to unify real-time control, signal computation, and reliable communication on a single silicon platform—streamlining engineering workflows and sharply reducing BOM complexity. This alignment of hardware capabilities with control-centric requirements results in superior system-level efficacy, especially in solutions where uptime, precision, and adaptability are paramount.
Device Architecture and Core Features of dsPIC33FJ128GP310A-I/PT
The dsPIC33FJ128GP310A-I/PT integrates a modified 16-bit Harvard architecture, optimized for deterministic high-throughput DSP and control-centric computations. The datapath centers on two 40-bit wide saturating accumulators, empowering precision-intensive arithmetic required by digital control and signal processing algorithms. Augmenting this capability, the single-cycle MAC/MPY unit supports streamlined multiply-accumulate operations, closely coupled with a hardware divider to accelerate integral DSP tasks such as filtering, correlation, and numerical integration.
Memory management is structured through 16 general-purpose working registers, with W15 serving as a dedicated stack pointer for efficient software context switching. Instruction execution leverages flexible memory addressing, accommodating single-cycle parameter fetches and enabling seamless DMA-style transfers. The architecture’s strength resides in its DSP engine, which features a 17x17-bit multiplier, a bidirectional 40-bit barrel shifter for rapid scaling and normalization, and both conventional and convergent rounding schemes. It also offers fractional and integer arithmetic pathways, reflecting the nuanced requirements of mixed-signal and power electronics applications.
Interrupt management is deterministic and hierarchical, supporting up to 118 prioritized vectors and dedicated trap handling. This facilitates rapid context response essential for hard real-time control, motor drive applications, and adaptive sampling routines. The inclusion of hardware MODULO addressing and bit-reversed access acts as a force multiplier for FFT execution and circular buffer schemes, eliminating typical bottlenecks associated with algorithmic overhead in buffer management and high-throughput data transformation.
Field deployment frequently exploits these architectural features in scenarios such as motor control loops, where the device’s barrel shifter and MAC pipelines yield low-latency torque computations and efficient vector space transformations. In embedded signal analysis, the hardware FFT acceleration directly translates to improved spectral resolution and sampling efficiency. A high degree of deterministic interrupt response aids precise timing in multi-axis robotics, digital power conversion, and real-time sensor fusion, minimizing jitter and overruns in tightly coupled control loops.
The robust integration of DSP-centric hardware blocks within a microcontroller framework marks a strategic advantage. Rather than relying on external coprocessors or FPGAs, system architects can consolidate design and firmware complexity. This enables scalable solutions from low-power sensor front ends to multi-channel motor controllers, where architectural depth redefines flexibility and computational headroom. Underpinning the device, the tightly coupled memory access and dedicated addressing modes deliver a foundation for sustained throughput, optimized for both algorithmic density and real-world response profiles.
Memory Organization in dsPIC33FJ128GP310A-I/PT
Memory organization within the dsPIC33FJ128GP310A-I/PT is architected to serve both general-purpose embedded control and high-performance digital signal processing. The device utilizes a modified Harvard architecture, physically separating the program and data memory spaces. This bifurcated bus approach is fundamental for sustaining high instruction throughput and enabling parallel data access, which is crucial for real-time processing in control and DSP-rich environments.
Program memory comprises 128 KB of Flash, segmented into 24-bit word-aligned units. This organization matches the instruction fetch width, minimizing latency during sequential code execution and optimizing branch performance. Flash is engineered with support for both In-Circuit Serial Programming (ICSP™) and Run-Time Self-Programming (RTSP), allowing flexible firmware management strategies. ICSP™ streamlines device deployment and production workflows, while RTSP empowers applications to implement field upgrade and bootloader routines without requiring external interfaces. Flash program and erase cycles operate at page and row granularity, safeguarded by controlled sequences to reduce the risk of accidental corruption. Integrating security at the hardware level, the memory incorporates features such as code protection, ensuring proprietary algorithms and sensitive routines are shielded from unauthorized access.
Data memory is organized as a 16-bit wide address space, further divided into X and Y memory banks. This partitioning enables simultaneous data fetches for the DSP engine, directly supporting dual operand access on single-cycle multiply-accumulate (MAC) instructions. The total available RAM is up to 16 KB, with 2 KB allocated specifically for the Direct Memory Access (DMA) subsystem. This dual-ported RAM block facilitates high-bandwidth, low-latency transfers between the CPU and peripherals, essential for applications that require rapid and deterministic data movement, such as motor control or fast ADC data logging. The seamless accessibility of DMA RAM from both the CPU and DMA controller avoids bus contention and maximizes data transfer efficiency, a critical factor in tightly-timed embedded applications.
The addressing structure in the dsPIC33FJ128GP310A-I/PT is highly advanced, offering direct, indirect, pre/post-modified, literal, register offset, and register indexed modes. These diverse modes minimize instruction cycles required for data manipulation and movement, permitting streamlined implementation of complex algorithms directly in firmware. Of particular importance are modulo and bit-reversed addressing. Modulo addressing automates the management of circular buffers, essential for real-time data streaming and digital filters. It eliminates manual boundary checks, reducing code size and execution time. Bit-reversed addressing is a hardware acceleration feature tailored for FFT and other spectral analysis routines, transforming in-place data reordering into a single-cycle operation and thus drastically accelerating computation-heavy processes.
To ensure the reliability and integrity of both code and data, the architecture incorporates stack pointer limit registers and robust data protection features. Stack pointer limits mitigate stack overflows that can compromise application stability, especially in safety-critical control or monitoring scenarios where predictable execution is paramount. Meanwhile, the confluence of hardware protection mechanisms across Flash and RAM underscores a commitment to secure execution environments—a pressing concern given the proliferation of connected devices and remote firmware update requirements.
Practical use reveals that effective utilization of the dual bus structure and advanced addressing can substantially elevate deterministic behavior in real-time applications. Configuring DMA channels to maximize CPU offloading, for instance, enables simultaneous high-speed acquisition and real-time processing without technique-limiting bottlenecks. Leveraging native modulo addressing in circular buffer management not only simplifies firmware but also avoids subtle bugs introduced by software-based bounds checking. Insight gained through field deployment indicates particular value in using the RTSP features to implement robust, fail-safe firmware update protocols, reducing downtime and improving maintenance cycles.
Overall, the dsPIC33FJ128GP310A-I/PT memory system embodies a confluence of architectural choices explicitly tailored to demanding signal processing and real-time tasks, providing a high-performance, scalable foundation for embedded system design.
Peripheral and Interface Resources of dsPIC33FJ128GP310A-I/PT
The dsPIC33FJ128GP310A-I/PT microcontroller consolidates architectural efficiency by integrating a comprehensive array of peripheral and interface resources designed for diverse embedded scenarios. At the analog front end, dual ADC modules deliver selectable conversion precision—opting between 10-bit resolution at 1.1 Msps and 12-bit resolution at 500 ksps—enabling tradeoffs between speed and accuracy as determined by application demands. Support for up to 32 analog inputs and independent trigger sources, combined with versatile sample-and-hold structures, facilitates simultaneous multi-channel acquisition, crucial for motor control, sensor fusion, and real-time monitoring applications. This flexibility reduces latency in time-critical systems and simplifies analog front-end design.
Timer modules present deep configurability, offering nine separate 16-bit timers that pair to form four 32-bit counters. This enables the implementation of high-resolution time-stamping, precision pulse-width modulation, and synchronized event capture. Input capture and output compare features, with gated accumulation and support for external clock sources, allow precise measurement and generation of digital signals—key for industrial instrumentation and power electronics where deterministic timing is paramount.
Communication capabilities are architected for high-bandwidth and multi-protocol environments. Dual UARTs, supporting up to 10 Mbps, LIN 2.0, and IrDA, provide robust asynchronous connectivity, while hardware flow control streamlines error management in demanding data streams. SPI modules, operating up to 15 Mbps, support both master/slave roles and framed/non-framed transactions, enabling seamless integration with memory, sensors, and display drivers. I²C interfaces extend functionality up to 1 Mbaud, with multi-master arbitration, clock stretching, and support for SMBus and both 7/10-bit addressing. This empowers secure and flexible communication between microcontrollers, peripheral sensors, and real-time clock devices.
Enhanced CAN modules, compliant with CAN 2.0B and operating up to 1 Mbaud, establish ready interfacing with automotive and industrial networks, supporting reliable message prioritization and error handling. The dedicated Data Converter Interface (DCI), programmed for I²S codecs, unlocks direct audio streaming and real-time digital signal interfacing, ideal for voice recognition and sound processing applications.
The general-purpose I/O attributes emphasize resilience and configurability. 5V-tolerant pins accommodate legacy peripherals and high-voltage signaling; open-drain outputs, programmable pull-ups/pull-downs, and individual external interrupts on all I/O pins grant granular control over input conditions and allow responsive event detection. This design improves system robustness in noisy environments and simplifies the adaptation to diverse external circuitry.
Eight-channel DMA architecture further elevates system responsiveness, facilitating concurrent data movement with ping-pong buffering, block and one-shot modes, and peripheral-indirect addressing. Such architectures remove bottlenecks associated with CPU intervention, optimizing throughput for ADC sampling, memory-to-memory transfers, and high-speed communication tasks. Practical deployment reveals substantial reductions in interrupt overhead and throughput latency—especially evident when implementing multi-channel signal acquisition systems and high-speed sensor fusion pipelines.
Collectively, the integration of these peripherals on a single device fosters architectural elegance and modularity. Signal processing chains benefit from low-latency data paths, while deterministic control loops are enabled by tight synchronizations between timers, DMA, and analog subsystems. The ability to consolidate connectivity, control, and acquisition onto a robust microcontroller platform not only accelerates development cycles but substantially reduces BOM complexity and PCB real estate. Experience confirms that harnessing the full breadth of these resources enables rapid prototyping and agile refinement, particularly in applications like multi-axis motor drive, smart sensor nodes, and data acquisition systems where adaptability and performance are closely intertwined. Insightful selection and orchestration of the dsPIC33FJ128GP310A-I/PT’s peripherals result in scalable architectures that can be tailored to stringent timing, bandwidth, and interoperability requirements, underpinning both legacy integrations and future-focused designs.
Power Management and Environmental Capabilities in dsPIC33FJ128GP310A-I/PT
Power management features in the dsPIC33FJ128GP310A-I/PT enable precise energy optimization, critical for embedded systems operating under stringent resource constraints. The device operates from a stable voltage range of 3.0V to 3.6V, ensuring supply compatibility with most industrial power rails. At approximately 2.1 mA/MHz dynamic current consumption, the microcontroller demonstrates effective power scaling proportional to actual workload, minimizing wasted consumption during computational peaks.
Core to its robustness are the integrated power-on reset and brown-out protection circuits. These mechanisms guarantee controlled startup and safe operation amid voltage fluctuations. In practice, reliable reset sequencing prevents corruption of system states, particularly in environments with unstable supply rails common in automotive and automation applications.
The microcontroller provides granular control over power states. Sleep, Idle, and Doze modes offer designers a graded spectrum of power savings. Notably, Doze mode separates core and peripheral clocks, allowing peripherals to remain fully operational while the CPU idles. This mechanism directly supports low-latency wake-up scenarios, essential for real-time control loops and high-availability signal acquisition. Implementing Peripheral Module Disable registers further improves power efficiency by selectively gating unused modules, mitigating leakage and reducing static losses. In applied scenarios, this translates to facilitated subsystem isolation, supporting battery-critical designs and thermal management constraints.
Ruggedness is assured by adherence to AEC-Q100 REVG standards, supporting operational grades from -40°C to +125°C and even up to +150°C. Such wide temperature tolerance renders the device suitable for deployment in demanding automotive, industrial, and outdoor environments, where exposure to temperature extremes is routine. The physical and electrical endurance of the device enables sustained performance without frequent recalibration, reducing maintenance overhead.
Functional safety aligns with IEC 60730 Class B compliance, further enhanced by dedicated safety library support. These capabilities underpin fault detection and mitigation strategies vital for household and industrial control, facilitating certification processes. Practical integration of the safety library enables early phase diagnostics and runtime monitoring, contributing to predictable system operation and regulatory adherence.
The architecture’s layered power management and environmental capabilities dovetail to form a resilient foundation for embedded systems. The interplay between dynamic power scaling, fine-grained operational modes, and selective module gating allows seamless transitions between high-performance routines and energy-conserving states. This inherent flexibility serves high-reliability scenarios, such as safety controllers and distributed sensor platforms, where continuous uptime and controlled energy budgets are paramount.
A strong insight emerges when considering the strategic value of combining power management with environmental ruggedness. When implemented in concert, these features extend device lifecycles and enhance deployment adaptability—countering the often-competing demands of efficiency and resilience within a single solution. In advanced applications, leveraging these mechanisms optimizes not only instantaneous power draw but also long-term system reliability, positioning the dsPIC33FJ128GP310A-I/PT as a robust candidate for next-generation energy-aware embedded designs.
Application Guidelines and Hardware Design Considerations for dsPIC33FJ128GP310A-I/PT
Successful application of the dsPIC33FJ128GP310A-I/PT hinges on meticulous attention to board-level implementation, particularly regarding power integrity, signal fidelity, and layout architecture. Robust decoupling forms the first line of defense against voltage transients and high-frequency noise. Each power pin pair—VDD/VSS and AVDD/AVSS—should be paired with a 0.1 μF ceramic capacitor, optimally in X7R or similar dielectric, positioned as close as possible to the device leads. For environments with significant EMI or switching noise, supplementing these with 0.01 μF high-frequency capacitors adjacent to sensitive subcircuits further tightens supply rail cleanliness, a principle proven effective in noise-critical motor control and precision measurement applications.
VCAP pin stability is non-negotiable for internal regulator performance. Deploying a low-ESR (typically 4.7 μF–10 μF) ceramic or tantalum capacitor—verified for ESR within Microchip’s stipulated range—avoids startup issues and unpredictable brownout scenarios. Real-world bench testing often reveals that undervaluing ESR in this context can manifest as elusive, temperature-dependent reset anomalies traceable only via oscilloscope capture of VCAP waveform during load transients.
Reset and debug infrastructure requires uncompromising circuit integrity. The MCLR line must incorporate a robust pull-up resistor (commonly 10 kΩ), clamping diode to VDD, and local filtering capacitor. This structure not only guarantees glitch-free resets but is crucial during In-Circuit Serial Programming (ICSP), where glitches or bounce can corrupt firmware uploads. For the ICSP pair (PGECx/PGEDx), direct routing with minimal stub length minimizes capacitive loading and reflection. Physical separation from high-speed or high-current traces, in tandem with comprehensive ESD protection, demonstrates measurable reductions in programming failures and field returns.
Oscillator module precision is intricately linked to crystal selection and PCB layout. The crystal must be placed within millimeters of OSC1/OSC2 pins—preferably on the same PCB layer—avoiding vias or long traces that act as antennas or introduce parasitic capacitance. A continuous, unbroken ground pour encircling the oscillator region reduces radiated EMI and susceptibility to external fields. Empirical data from EMC testing underlines the difference a disciplined layout brings; even minor deviations can elevate system clock jitter or violate industry compliance thresholds.
Unused I/O pins, if left floating, invite latch-up or spurious switching due to capacitive coupling or ambient noise. A methodical approach configures such pins either as digital outputs and drives them low, or, if input functionality is mandatory, applies termination resistors in the 1 kΩ–10 kΩ range. This eliminates indeterminate states and is particularly vital in high-reliability or fail-safe designs, where latent pin activity can trigger unintended system responses.
Analog and digital function multiplexing on shared pins necessitates accurate ADPCFG/ADPCFG2 register programming. This transition must be handled judiciously during debugging to prevent sampling cross-talk and logic contention. When reconfiguring multifunction pins, employing initialization routines that clearly sequence these functions ensures that peripheral setups remain deterministic and free from transient glitches—an aspect often underappreciated until integration testing exposes erratic conversions or lost interrupts.
Pin multiplexing schemes must always honor hardware-defined priorities, as peripheral pin select collisions can silently disrupt communication or sensor reads. Explicit review of the device datasheet’s function tables is indispensable; practical experience demonstrates that deferred or ad-hoc remapping is a recurrent source of “ghost” bugs on complex boards.
Methodical application of these guidelines transforms the dsPIC33FJ128GP310A-I/PT from a capable microcontroller into a deterministic, ruggedized node suitable even for electrically harsh environments. The details in layout, bypassing, and configuration often spell the difference between first-pass success and elusive, deployment-stage issues. Recognizing and accommodating these nuanced interactions—rather than treating them as formulaic checklist items—enables predictable system behavior and unlocks the full potential of the device’s mixed-signal architecture.
Debug, Safety, and Qualification Support in dsPIC33FJ128GP310A-I/PT
Debug, Safety, and Qualification Support in dsPIC33FJ128GP310A-I/PT devices form a comprehensive ecosystem catering to embedded system development from the prototyping stage through to scalable production deployments. Central to this ecosystem is the provision of in-circuit debugging and programming via ICSP, enabling engineers to program and debug the target system without disassembly or removal. This supports rapid iteration by allowing real-time inspection and modification of firmware during development cycles. Further, ICSP facilitates production-line programming, seamlessly integrating with automated test equipment for streamlined manufacturing workflows.
Advanced validation methodologies are realized through the inclusion of a JTAG IEEE 1149.2 boundary scan interface. This function allows robust board-level fault detection and isolation, particularly valuable in densely populated or multilayer PCBs where visual inspection or physical probing is impractical. Boundary scan accelerates hardware bring-up and reduces overall board test time, enabling fine-grained pin-level control for interconnect verification and facilitating early fault detection before firmware execution.
Safety assurance is structurally embedded via certified Class B libraries targeting IEC 60730 compliance. These routines execute diagnostic self-tests covering essential CPU, memory, clock, and peripheral integrity, offering runtime detection of latent faults. This mechanism ensures real-time fault response in household appliances or industrial controllers, enhancing operational reliability. Integrating software-centric safety mechanisms reduces dependency on discrete hardware diagnostics, supporting maintenance of compliance even as hardware platforms evolve.
The debugging infrastructure is further enhanced by support for multiple, independent breakpoints—both program and data—that allow non-intrusive interrogation of code execution. Dedicated hardware tracing and runtime watch capabilities enable analysis of rare or timing-sensitive anomalies, particularly in complex, event-driven control systems. Deep inspection features support root-cause analysis and closed-loop development iterations, minimizing undetected systemic issues before large-scale deployment.
Field-upgradeable firmware via secure flash programming is crucial for sustaining deployed systems and addressing post-production feature updates or regulatory corrections. Embedded cryptographic features ensure the integrity and authenticity of firmware images, mitigating risks posed by unauthorized updates or malicious code injection. This mechanism supports long service lifecycles while maintaining the trust boundary essential in safety- and mission-critical applications.
The dual adherence to automotive-grade qualification and demonstrated Class B safety compliance positions this device as a compelling option for applications where system failure entails significant risk to safety or regulatory compliance. This engineering focus on diagnostic visibility, runtime anomaly detection, and secure lifecycle management establishes a solid foundation for application scenarios ranging from smart appliances and automotive subsystems to precision instrumentation.
Through the harmonization of advanced test interfaces, certified safety routines, and secure field operation, the dsPIC33FJ128GP310A-I/PT demonstrates an integrated approach to lifecycle assurance in embedded platforms. This architectural coherence not only reduces time-to-certification but also equips system designers with granular control and visibility throughout system deployment and maintenance. In practice, this cohesive feature set consistently proves decisive in project environments where diagnostic transparency and post-deployment agility dictate technical and commercial success.
Potential Equivalent/Replacement Models for dsPIC33FJ128GP310A-I/PT
When examining alternatives to the dsPIC33FJ128GP310A-I/PT, a structured approach to both architectural equivalence and functional scope ensures the integrity of system migration or new hardware selection. Within the Microchip portfolio, slightly differentiated options such as dsPIC33FJ64GP306A, dsPIC33FJ128GP706A, and dsPIC33FJ256GP710A frequently serve as drop-in replacements when seeking similar digital signal control capabilities, with RAM and Flash scalability offering performance tailoring. Compatibility with the PIC24H family extends migration options, benefiting designs that prioritize pin-to-pin alignment, but engineers must account for nuances in the DSP instruction set and real-time filtering capabilities, particularly if high-precision signal processing is integral to application demands. The dsPIC30F family further broadens the migration landscape, supporting legacy code bases and established firmware architectures, albeit demanding careful review of electrical characteristics and peripheral timings.
Effective selection strategies derive from a balanced analysis of core technical parameters, starting with memory sizing and package configuration, where pin counts (64, 80, 100) directly influence IO availability for expanded analog sensing channels or multiplexed serial communication. Peripheral mix—such as advanced PWM, CAN, and USB modules—should be mapped against system needs, especially in automation, motor control, or embedded networking contexts. Prioritizing computational headroom aligns with the intended DSP workload and expected control loop bandwidth, while temperature range and package dimensions must satisfy environmental and spatial constraints, mitigating risk during board layout iteration.
Practical experience reveals that successful cross-family migration leverages the code portability and hardware abstraction features of the XC compiler suite, reducing integration time and preserving validation assets. Pin mapping discrepancies and subtle shifts in peripheral initialization procedures routinely surface during prototyping; leveraging simulation platforms or reference design notes mitigates integration hurdles and protects against unexpected behavior under load. Notably, robust migration workflows hinge on early identification of peripheral mismatches—UART module options, ADC resolution, or timer frequencies—ensuring downstream reliability and regulatory compliance in safety-critical sectors.
A unique insight emerges from evaluating vendor-specific roadmaps and sustaining long-term product support, where the lifecycle stage of candidate MCUs strongly influences field longevity and maintenance strategy. Future-proofing at the architectural selection stage introduces value throughout multi-year product deployments, particularly as communication standards or industry requirements evolve. Layered evaluation—starting from microarchitectural parity and progress toward practical deployment nuances—drives optimal fit and supports resilient, high-performance solutions in embedded sub-systems.
Conclusion
The Microchip dsPIC33FJ128GP310A-I/PT exemplifies a convergence of deterministic real-time digital signal processing with extensive mixed-signal capabilities. Rooted in a 16-bit modified Harvard architecture, the device deploys tightly coupled DSP engines, advanced memory resources, and hardware multipliers, sharply reducing cycle latency for control loops and signal processing pipelines. The integrated peripheral matrix features high-resolution ADCs, precision comparators, output capture interfaces, and flexible timers, streamlining development for motor control, sensor fusion, and power conversion systems.
The robust noise tolerance and brown-out detection, alongside voltage regulation modules, enhance reliability in industrial environments. Safe operation under transient conditions is enforced at the silicon level, including support for fault signaling and error correction, a critical consideration for deployment in mission-critical applications. The debug and trace infrastructure—ranging from JTAG/EIC tools to on-chip breakpoints—enables granular analysis and validation, accelerating prototyping and compliance workflows.
Peripheral convergence within the dsPIC33FJ128GP310A-I/PT minimizes board space and BOM complexity, allowing for compact PCB designs even in systems with demanding interfacing, such as multi-channel control or mixed analog-digital domains. The software stack harnesses deterministic interrupt handling and autonomous DMA transfers; these features underpin high-bandwidth, low-jitter task scheduling, pivotal in real-time automation, robotics, and precision instrumentation. Configurability of the I/O matrix provides migration ease between legacy and new architectures, optimizing pin utilization while maintaining functional parity.
Empirically, careful mapping of peripheral selection to system use-cases, coupled with the choice of environmental grade, ensures durability across temperature, humidity, and EMI constraints. Package selection, such as TQFP versus QFN, affects not only footprint but also thermal behavior and manufacturability—a nuanced decision for tightly integrated solutions. Iterative bench testing during design validation confirms the device’s resilience under voltage excursions and ESD stress.
A discerning application of the dsPIC33FJ128GP310A-I/PT involves exploiting its parallel processing capabilities to decouple critical real-time logic from background tasks, yielding superior latency and throughput compared to conventional microcontroller architectures. Leveraging native support for motor control PWM and sensorless algorithms streamlines development cycles for high-efficiency drives and energy management nodes. The platform’s analog granularity and configurability allow for multi-modal sensing and adaptive feedback, critical in predictive maintenance and autonomous systems.
The true strength of the dsPIC33FJ128GP310A-I/PT reveals itself when complex system requirements—low power consumption, high precision, functional safety, and fast throughput—must be harmonized. Architecture-level segmentation, tight peripheral coupling, and robust tooling support position it as an engineering-grade solution for embedded systems requiring seamless integration, deterministic execution, and long-term reliability.
