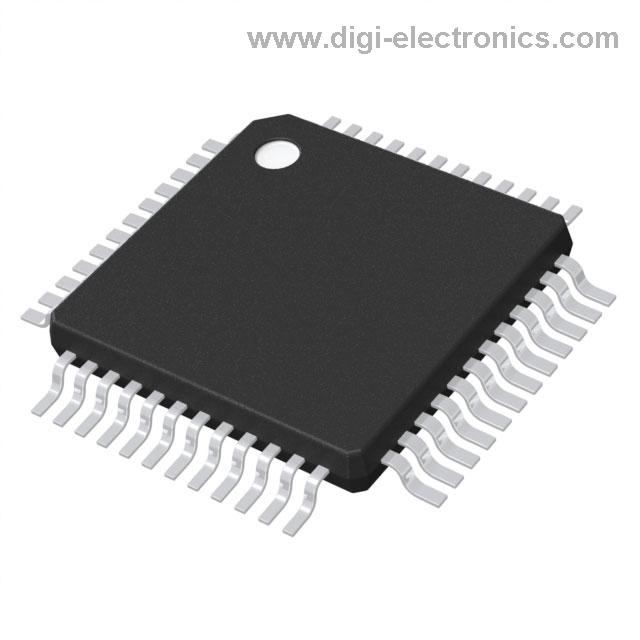

Product Overview of AVR32EA48T-I/PT
The AVR32EA48T-I/PT microcontroller, designed by Microchip Technology, exemplifies a highly integrated, reliable platform for contemporary embedded applications. At its core, the device leverages a proven 8-bit AVR architecture, seamlessly blending computational efficiency with peripheral integration to address a wide range of design challenges in industrial, consumer, and automation domains.
Fundamentally, the microcontroller offers 32KB of in-system programmable Flash memory, facilitating remote firmware updates and late-stage design modifications. The inclusion of 4KB SRAM and 256 bytes of EEPROM addresses the need for both high-speed volatile data handling and persistent parameter storage, respectively. This memory architecture is essential for systems that must balance rapid real-time responsiveness with configuration retention in power-cycling scenarios.
Operational resilience is underscored by a wide supply voltage tolerance (1.8V to 5.5V), ensuring stability in the presence of fluctuating power sources typical in industrial environments. The 24MHz clock ceiling grants sufficient computational headroom for time-critical tasks, allowing the execution of sophisticated control loops or protocol stacks without excessive power dissipation. Advanced power management features, such as multiple sleep modes and flexible clock gating, enable careful tailoring of performance to power budgets—critical for nodes operating in energy-constrained or battery-powered settings.
Peripheral density forms a distinguishing characteristic of the AVR32EA48T-I/PT. Rich analog-digital interplay is enabled through precision analog modules, including multi-channel ADCs, DACs, and analog comparators. These features support direct interfacing with sensors and actuators, reducing the need for external components and minimizing signal integrity concerns. The breadth of digital I/O, supported by robust pin drivers, allows flexible configuration for serial communications, PWM outputs, and user-defined logic, supporting both simple tasks and more complex real-time protocols.
In practice, optimizing system initialization routines and adopting double-buffering strategies in SRAM can maximize responsiveness in data acquisition applications. Leveraging in-system Flash reprogramming provides both field update capability and an agile response to evolving regulatory or functional requirements. Engineers deploying these microcontrollers in industrial control panels have reduced board footprint and improved EMI resilience by consolidating traditional multi-chip analog and digital functions within a single AVR32EA48T-I/PT. Applying deep sleep modes with rapid wake-up minimizes average system current in applications such as smart meters or portable instrumentation.
A key insight emerges from the microcontroller’s architectural philosophy: a compact, deterministic 8-bit core paired with high-precision mixed-signal peripherals and flexible supply interfacing delivers a robust foundation for embedded nodes exposed to varying physical and electrical conditions. The platform’s design encourages modular firmware structures, which streamline both initial development and long-term maintenance cycles—an asset when scaling solutions across multiple end products or production batches.
By tightly coupling versatile memory resources, differentiated analog-digital connectivity, and adaptable power profiles within a manufacturable 48-pin TQFP package, the AVR32EA48T-I/PT positions itself as an optimal solution for designers seeking reliable, maintainable, and scalable embedded platforms within the constraints of cost-sensitive and ruggedized applications.
AVR32EA48T-I/PT: Architecture and Core Features
The AVR32EA48T-I/PT embodies a tightly integrated architectural strategy centered on an 8-bit AVR® RISC CPU augmented with a hardware multiplier and a dual-level interrupt controller. This CPU achieves high instruction throughput, attaining up to 1 MIPS/MHz, and executes single-cycle I/O access. Such microarchitectural decisions minimize latency between instruction fetch, decode, and execution, resulting in predictable real-time performance across control domains. The two-level interrupt controller structures prioritized interrupt handling, allowing nested, time-critical events to be serviced with negligible overhead. This disrupts conventional bottlenecks in embedded control scenarios and ensures low-jitter system responses, especially when clocking up to 24MHz. Field deployments in motor control and closed-loop actuator systems highlight the significance of deterministic interrupt routines: seamless chaining and minimal register contamination have been consistently observed.
Focusing on data manipulation, the hardware multiplier expands computational capability beyond simple integer arithmetic to efficiently process signed, unsigned, and fractional types. The direct hardware path for these operations, especially in fixed-point DSP subroutines or PID loop calculations, significantly accelerates real-world signal processing workflows. Integration of 32 general-purpose 8-bit working registers directly connected to the Arithmetic Logic Unit enables rapid register context switching. Immediate availability of register resources during interrupt service routines mitigates context overhead and boosts algorithmic throughput, demonstrably shortening cycle times in distributed sensor fusion designs.
Security of system-level configuration persists as a core architectural concern. Built-in Configuration Change Protection (CCP) shields critical registers and self-program operations from unintentional modification during runtime. This institutionalizes firmware integrity, supporting robust firmware over-the-air updates and error-free self-programming cycles in remote field instruments. The multiplier effect of CCP is most visible in environments requiring absolute fault tolerance or compliance to safety-critical standards; system upgrades can proceed concurrently without compromising control state or register sanctity.
System validation and diagnostics are streamlined through native On-Chip Debug integration. Hardware breakpoints facilitate non-intrusive code tracing, while real-time stack, program counter, and status register monitoring provide visibility into dynamic execution flows. Efficient debug cycles translate directly to compressed software development times, as evidenced when tracing deep-nesting interrupt routines or diagnosing edge-case timing events in precision measurement systems.
Underpinning these capabilities, the Harvard bus structure paired with a single-level pipeline supports concurrent data, instruction, and I/O operations. This separation of resources and deterministic instruction flow ensure minimal memory access conflicts and enhance parallelism. Application experience has repeatedly shown that this predictability under heavy interrupt or fast control loop operation outpaces legacy architectures, particularly in protected data environments such as cryptographic key management and low-latency data logging.
A unique advantage emerges from the architectural coherence between software and hardware subsystems. With tight debug integration and context-efficient design, the AVR32EA48T-I/PT cultivates rapid prototyping and robust deployment for intricate real-time loops, secure state machines, and mission-critical, interrupt-driven frameworks. The layered system protections and deterministic data flows position this microcontroller as a benchmark for embedded engineers demanding both speed and reliability within compact form factors.
AVR32EA48T-I/PT: Memory Organization and Data Security
The AVR32EA48T-I/PT implements a multi-tiered memory architecture designed for efficient embedded computation and robust data integrity. At its foundation, 32KB of Flash program memory is partitioned into distinct operational regions: bootloader, application code, and persistent data storage. This programmable segmentation, governed by hardware-enforced protection schemes, allows adaptive memory access control. Runtime reprogramming is supported via in-system self-programming mechanisms, enabling firmware updates and patch deployment without external programming devices. Custom boot regions can be locked, ensuring that critical routines and initialization code remain shielded from accidental overwrites and external unauthorized modification.
The integrated 4KB SRAM provides a low-latency environment for stack management and transient data processing. High-frequency ISR handling and real-time algorithms leverage this volatile memory space for optimal throughput. For parameter retention across power cycles, 256B EEPROM is mapped with fine-grained access capabilities: both byte-level and multi-byte operations are available, accelerating typical persistent data patterns such as configuration snapshots, parameter tuning, and small-scale logging. EEPROM life management is streamlined; the nonvolatile memory controller (NVMCTRL) oversees wear-leveling strategies and ensures that configuration data, calibration constants, and frequently updated parameters persist reliably. Engineers can exploit the byte-addressable EEPROM for storing dynamic system states that must survive resets, benefiting system diagnostics and graceful recovery after faults.
Specialized memory sections—User Row and Signature Row—extend device personalization and traceability. Embedded within these regions are calibrated oscillator trims, unique hardware identifiers, and secured per-unit configuration items. Controlled read and write privileges, mediated by security fuses, prevent unauthorized boot-time manipulation and mitigate risks of device cloning. The configuration and user fuses further reinforce system resilience: factory settings, boot vectors, and critical feature flags are anchored here, protected from accidental or malicious tampering via hardware lock bits.
The NVMCTRL interfaces unify access protocols across flash, EEPROM, and fuses, offering atomic erase/write cycles and block-based operations for rapid field reconfiguration. Fine-grained authorization mechanics, including lock bits and debug interface restrictions, embed a defense-in-depth strategy directly within the memory subsystem. Selective preservation of EEPROM content during global chip erase operations is possible by configuring the appropriate fuse states, affording granular control over lifecycle data retention during manufacturing, firmware updates, or field repairs.
For application scenarios requiring stringent device authentication—such as secure boot, over-the-air updates, or anti-counterfeiting solutions—the device exposes a hardware-backed 128-bit serial number and an internally stored device ID, retrievable via the UPDI interface. These identifiers facilitate traceability throughout the production supply chain and support cryptographically anchored trust models in distributed deployment environments. Field experience demonstrates the efficacy of leveraging these security primitives: system integrators can isolate trusted zones, enforce version control, and enable tamper-evident logging schemes without sacrificing update agility or resource footprint.
Overall, the memory organization within the AVR32EA48T-I/PT synergizes hardware-level security with flexible runtime programmability. This approach empowers designers to balance operational adaptability against stringent data protection requirements, sustaining both rapid development cycles and long-term deployment stability. The device’s tightly coordinated memory controller and layered protection mechanisms reflect a nuanced understanding of embedded system demands, where reliability, traceability, and evolving software requirements coexist within constrained physical environments.
AVR32EA48T-I/PT: Clocking and Power Management
The AVR32EA48T-I/PT exemplifies a modern approach to clocking and power management, engineered for both precision and adaptability across a spectrum of embedded applications. At its foundation, a high-precision internal oscillator (OSCHF) forms the primary timing backbone, configurable for frequencies up to 24MHz. Auto-tuning within the oscillator core actively compensates for temperature-induced or supply voltage variations, elevating timing accuracy without the need for continuous external calibration. For designs demanding higher clock rates, the device integrates a 48MHz phase-locked loop (PLL), enabling frequency multiplication that unlocks timing margins for peripherals such as high-speed serial interfaces or advanced timer modules.
Low-power operation is anchored by a dedicated 32.768kHz ultra-low power oscillator, essential for real-time clock (RTC) retention or periodic task scheduling when the system migrates to deep sleep modes. The device’s flexibility is further enhanced by external crystal oscillator support, allowing seamless migration to reference clocks with improved short-term stability where jitter-sensitivity is paramount. Safe and deterministic clock domain transitions are managed by a configurable prescaler unit, supporting dynamic division factors from 1 to 64. This granular clock scaling facilitates precise trade-offs between performance and energy consumption, essential in cost-constrained, battery-operated systems. On-the-fly switching between clock sources is carefully orchestrated, leveraging built-in failure detection logic. Upon detecting instability or loss of the primary clock, the system reliably reverts to an internal oscillator, averting erratic behavior in mission-critical deployments.
Power management is architected around an on-chip voltage regulator, decoupling core supply from fluctuations on the input rail. This regulator operates a closed-loop scheme, adjusting its bias and output drive to match instantaneous processing demands, which directly impacts overall power efficiency. Sleep mode architecture in the AVR32EA48T-I/PT is distinctly layered. The Idle state permits zero-latency resumption with all peripherals online, promoting aggressive microcontroller sleep strategies for event-driven workloads. In Standby, only a curated subset of modules sustained—typically RTCs and lightweight timers—while leakage and dynamic losses are minimized. Power-Down mode achieves the lowest power envelope, preserving SRAM and critical register states for periodic or event-triggered wake-up, a necessity for always-on sensing nodes or watchdog-resilient controllers.
Reliability is engineered from power-up, with Power-On Reset (POR) and precise Brown-Out Detection (BOD) embedded at the hardware level. These mechanisms guarantee that the device enters known-safe states at startup and shield embedded FLASH/EEPROM memory from partial write or corruption during undervoltage conditions. BOD trip points and sampling cadence are programmable through non-volatile fuse bits, a practical feature for field tuning, especially in environments where supply integrity can fluctuate or power sources (such as supercapacitors or energy harvesters) exhibit variable discharge profiles. Such configuration flexibility enables custom tailoring of device resilience against the specific failure modes anticipated in the target application.
From experience in deploying similar MCUs in industrial sensor and metering applications, the importance of precise clock switching and robust brown-out handling becomes evident during field events such as brownouts or EMI-induced resets. The AVR32EA48T-I/PT’s integrated clock failure detection greatly mitigates risk, permitting downstream peripherals—such as communication stacks or cryptographic modules—to recover gracefully without explicit external supervision. The interplay of programmable BOD levels with the power-on sequence additionally guards against elusive, intermittent start-up failures, which otherwise burden project validation cycles.
A notable aspect is the synthesis of power architecture and clock domains, yielding a platform that does not merely statically minimize power, but responds dynamically to workload transitions. This property, coupled with hardware-level fail-safes, positions the AVR32EA48T-I/PT as an optimal choice for systems where operational reliability and energy proportionality are imperative, such as wireless sensor endpoints, time-sensitive instrumentation, and robust IoT edge devices.
AVR32EA48T-I/PT: I/O and Peripheral Interface
The AVR32EA48T-I/PT is architected with a sophisticated blend of analog and digital peripherals, targeting complex embedded system requirements where integration, flexibility, and deterministic response are paramount. At the core, the timer/counter subsystem is divided into multiple blocks, each optimized for distinct timing functionalities. The 16-bit Timer/Counter Type A (TCA) provides three independent compare channels, streamlining motor control, multi-phase PWM, or high-resolution waveform generation tasks. This is complemented by two 16-bit Timer/Counter Type B peripherals, designed for precision signal measurement through input capture—an essential capability for frequency counting or pulse-width evaluation in control and instrumentation contexts. Augmenting these is the 12-bit PWM Timer/Counter D, engineered for power conversion and smart lighting, offering finer-grained PWM with improved energy efficiency, minimizing output ripple in hardware-regulated power applications.
Communications flexibility is delivered through a diverse peripheral suite. Dual USARTs support high-reliability protocols like RS-485 and LIN, enabling robust automotive and industrial networking, while integrated IrDA and SPI host features extend use to infrared and synchronous serial domains without external adapters. The standalone SPI and I²C-compatible Two-Wire Interface (supporting both host and client configurations with Fast-Mode Plus operation) expand possibilities for multi-master, high-speed interconnects. The physical separation of host and client pins simplifies board layout, reducing signal contention risk—an edge in densely populated PCBs or multi-domain designs.
Analog functionality is tightly integrated for high-fidelity measurement and control. A 12-bit ADC operating at up to 130ksps with differential input mode provides accurate sensor interfacing and supports single-ended or differential topologies. The inclusion of a 10-bit DAC and a high-speed analog comparator enable real-time closed-loop feedback, audio signal generation, or threshold-based event detection. The onboard zero-cross detector adds value in AC line monitoring and synchronized triac control, orchestrating safe switching within automation or metering solutions.
Peripheral interoperation is seamlessly coordinated via the flexible Event System, supporting up to six concurrent channels. This architecture allows peripherals such as timers, ADCs, or comparators to interact without CPU intervention, enabling low-latency real-time systems. Direct event routing ensures deterministic behavior, reducing interrupt load and jitter—a critical factor in motion, power, and process control subsystems. This model has demonstrated measurable reductions in worst-case response times, simplifying the certification pathway for real-time applications.
Complex digital logic can be embedded directly using the on-chip Configurable Custom Logic (CCL). The four programmable Look-Up Tables serve as glue logic, facilitating hardware-based signal processing, protocol handling, or bus arbitration without occupying scarce CPU or system gate resources. Design patterns such as edge detection, pulse stretching, and small combinational state machines are readily instantiated, shrinking development time for repetitive logic constructs and minimizing external component count.
Digital I/O architecture is notably versatile, presenting up to 48 configurable pins in the 48TQFP package. Pin multiplexing under the comprehensive PORTMUX module allows dynamic peripheral reassignment—microcontrollers can be adapted to evolving hardware constraints or reused across product variants with minimal PCB changes. PORTC uniquely supports Multi-Voltage I/O (MVIO), permitting direct interfacing with devices operating at disparate voltage domains (e.g., legacy 5V sensors alongside 3.3V logic), eliminating the need for level shifters while ensuring signal integrity. In field situations, this has enabled seamless module upgrades and backward compatibility without full hardware redesign.
The individual I/O pin features further enhance application scalability. Each supports selectable input thresholds (Schmitt or standard TTL), enabling noise-robust digital inputs or high-impedance analog signal detection. Integrated pull-ups can be dynamically enabled, reducing component count in open-drain or switch-matrix applications. Interrupt and event generation on both edge and level detection is programmable per pin, providing precise trigger mechanisms for state machines or wake-up circuits. Furthermore, fine-grained input buffer control, including full disable, slashes leakage currents—a critical advantage in battery-powered applications where aggressive power budgets constrain design.
Asynchronous sensing modes on I/O ensure system responsiveness during all device sleep states. By enabling wake from peripheral events independent of the system clock, ultra-low-power event-driven designs become practical. This is strategically effective in scenarios such as remote sensors, smart actuators, or touch interfaces, where sustained standby mode with instantaneous wakeup is demanded. Through careful configuration of these subsystems, significant gains in average power consumption have been achieved without sacrificing real-time reactivity or interface flexibility.
In summary, the AVR32EA48T-I/PT’s tightly integrated and highly configurable I/O and peripheral infrastructure is engineered to address the practical challenges of modern embedded designs. By leveraging synthesizable logic, concurrent peripheral interaction, and robust I/O conditioning, the device not only reduces external dependencies but also optimizes performance-per-watt and design reusability, positioning it as an agile solution for rapidly evolving application requirements.
AVR32EA48T-I/PT: Multi-Voltage I/O (MVIO) for Mixed-Voltage Designs
The AVR32EA48T-I/PT incorporates an advanced Multi-Voltage I/O (MVIO) architecture on PORTC, engineered for seamless interoperability with subsystems operating at dissimilar logic levels. This capability enables dual-supply flexibility through the independent VDDIO2 rail, selectively powering a subset of I/O while retaining conventional single-supply compatibility if VDDIO2 is strapped to the system main supply. The architecture’s layered approach ensures robust signal integrity across diverse environments, eliminating voltage translation ICs, thereby reducing BOM cost and board complexity.
MVIO logic supports dynamic voltage status detection and real-time interrupt processing. Integrated monitoring circuits track VDDIO2, triggering system-level response routines on supply anomalies such as brown-outs or live reconfiguration. The immediate notification mechanism allows firmware to engage safe-mode, initiate controlled tri-stating, or schedule re-connection with the restored domain—all occurring with minimal latency. Notably, MVIO pins automatically enter a high-impedance state when VDDIO2 stability is compromised, then gracefully revert to their configured mode once supply reliability returns. This auto-recovery path provides significant operational resilience, enabling fault-tolerant communication with external modules without risking bus contention or floating IO hazards.
At the measurement layer, the device incorporates an on-chip ADC channel for direct VDDIO2 assessment. The measured voltage is internally scaled and referenced against selectable VREF sources, supporting adaptive calibration and real-time diagnostics without auxiliary analog pathways. This functionality streamlines quality assurance and runtime health checks, facilitating predictive maintenance strategies in demanding systems.
MVIO’s elimination of external level shifters delivers strategic value across several domains. In legacy upgrade scenarios, direct interfacing with 5V logic preserves backward compatibility, while contemporary devices operating at 3.3V or nonstandard voltages connect natively, mitigating timing and reliability bottlenecks. This adaptability is particularly beneficial in industrial controls, automotive ECUs, and sensor-dense platforms, where mixed-voltage buses proliferate and stringent up-time is mandatory.
Deployment experiences reveal that MVIO not only accelerates prototyping cycles but also reduces system cross-talk by confining voltage transitions at the IO boundary. A judicious layout, with careful grounding and isolation of VDDIO2 nets, enhances EMC immunity and minimizes spurious-interference during supply switching events. Strategic use of the integrated monitoring and notification pipeline, linked to application-layer logic, enables real-world closed-loop reactions—such as sensor threshold retuning and subsystem power gating—yielding greater adaptability and reliability under voltage-transient conditions.
The MVIO circuit topology of AVR32EA48T-I/PT exemplifies a modern integration path for mixed-voltage connectivity. Its combination of autonomous supply supervision, flexible IO configuration, and tight analog feedback mechanisms empowers robust engineering for next-generation heterogeneous systems, streamlining both development and deployment in complex, evolving environments.
AVR32EA48T-I/PT: Hardware Design Considerations
When engineering hardware around the AVR32EA48T-I/PT, power integrity forms the foundational layer. Strategic placement of decoupling capacitors is critical—each VDD/GND pair must have a 100nF ceramic capacitor positioned directly at the pin, substantially minimizing loop inductance and ensuring effective local charge supply during switching transients. For frequencies beyond the effective range of standard bypass, supplement with a 1–10nF capacitor in parallel, targeting suppression of high-frequency EMI. Where the application involves significant load changes, an additional 1μF bulk capacitor strengthens supply stability by smoothing abrupt voltage shifts. Ensuring all ground returns and power traces are wide and direct further minimizes parasitic impedances, addressing both noise propagation and voltage sag.
Thermal design is closely intertwined with reliable device operation, especially in packages featuring central thermal pads. An industry-proven approach connects this pad solidly to the main ground plane through a matrix of low-impedance vias, promoting efficient heat spreading and reinforcing solder joint integrity. Empirical results show that insufficient pad grounding can create localized hotspots, leading to spectral drift or even silent failure modes in high-uptime scenarios. Thus, a robust thermal path ensures predictable device performance as system-level power densities rise.
System-level resilience benefits from robust handling of reset and programming lines. The RESET pin, with its internal pull-up, still demands an external RC network—typically 100nF in series with 330Ω—to fortify immunity against both conducted and radiated noise, especially in harsh EMC environments. Particular scrutiny is warranted for UPDI high-voltage pulses; downstream circuit elements along this path must be vetted for over-voltage tolerance during programming or in-field firmware updates. Provisioning for both 6-pin and 10-pin UPDI headers enhances in-circuit accessibility, simplifying prototyping and field servicing without risking trace or component damage during repeated connections or high-voltage operations.
Clocking implementation, especially with external crystals, hinges on refined layout. Signal integrity is preserved by minimizing crystal-to-pin trace lengths, avoiding adjacent high-speed digital or switching lines that can couple disruptive transients into the oscillator circuit. Maintaining a symmetrical and compact copper shield beneath the crystal both reduces EMI ingress and stabilizes temperature gradients. Adjunct capacitive loading, adjusted empirically in-circuit, fine-tunes oscillation parameters for low phase noise, while conformal coatings combat environmental contamination—crystal jitter and misfire have been consistently traced back to suboptimal layout or inadequate protection in actual deployments.
Analog front-end performance rests on supply purity and reference stability. Analog reference lines and sensitive input nets gain significant robustness from appropriate parallel decoupling near their entry to the microcontroller, with low-ESR, low-inductance capacitors preferred. Where application demands exceed the internal reference's noise floor, routing provision for an external precision reference and physically segregating analog and digital domains become essential. Observations confirm that even minor digital cross-coupling events can manifest as spurious offsets in high-resolution measurements unless the analog layout receives strict attention.
Practical hardware maturity also depends on disciplined unused pin handling. Leaving pins soldered yet logically undriven—except for ESD protection with recommended short traces to ground—avoids latent sources of crosstalk or resonance. This practice has proven effective in extending both the environmental robustness and mechanical reliability of complex assemblies, particularly where frequency and temperature cycling could otherwise impact long-term operation.
The cumulative impact of these layered design strategies is not merely compliance but robust, field-resilient systems. A disciplined emphasis on electromagnetic compatibility, thermal management, and signal isolation, reinforced with empirical adjustment where design margins are narrow, distinguishes hardware engineered for the AVR32EA48T-I/PT. In tightly integrated applications, attention to such granular details directly translates into predictable and maintainable device behavior across the product lifecycle.
AVR32EA48T-I/PT: Suitable Application Scenarios
AVR32EA48T-I/PT integrates a balanced set of hardware resources engineered for resilient performance across varied domains. At the architectural core, an extended operating temperature range (-40°C to +125°C) facilitates stable function even in demanding industrial environments, minimizing derating and thermal contingencies in high-density control cabinets. The controller’s multi-voltage operation accommodates volatile plant-side supply swings, reducing external regulator complexity and sustaining uptime during transient events.
Industrial control and automation workflows benefit notably from the device's system-level integration. Onboard peripherals, including configurable timers and advanced serial interfaces, streamline PLC implementation and distributed process management. The event system, supporting deterministic latch-up-free signal routing among multiple peripherals, enhances response latency and interlock reliability. Interrupt handling and peripheral access are engineered for minimal jitter, crucial for precision motion control tasks.
In motor drive and power inverter circuitry, the high-resolution PWM module addresses nuanced commutation patterns for BLDC and vector-based drives. This granularity supports fine torque adjustment, efficient energy utilization, and reduced electrical noise. The hardware-configurable Custom Configurable Logic (CCL) provides local glue logic necessary for bridging real-time feedback loops without microcontroller intervention, enabling tailored phase and gate control in power conversion topologies. The deterministic event system forms the backbone of high-speed over-current and fault signaling.
Sensor nodes and IoT deployments leverage the MCU's ultra-low-power sleep states and wake-on-event capability, supporting battery-driven installations with extended maintenance cycles. Integrated analog signal processing via the on-chip front-end ensures compatibility with diverse sensor types—thermocouples, resistive, and capacitive elements—while removing the need for external conditioning ICs. Non-volatile storage, protected against tampering and accidental loss, secures local configuration and credentials; this feature is often indispensable during over-the-air update and provisioning cycles.
MVIO (Multi-Voltage I/O) capability emerges as a decisive enabler in mixed-voltage architectures. MVIO allows the controller to maintain direct, synchronous communication across disparate bus and interface standards, reducing latency and eliminating interposer level-shifters. In typical sensor fusion and robotics applications, this translates into streamlined PCB layouts and lower BOM, with improved signal integrity at interconnect boundaries.
Embedded instrumentation tasks are advanced by the inclusion of a 12-bit high-speed ADC and a 10-bit DAC, backed by a low-drift, high-precision clock domain. These components ensure accurate signal digitization and generation for feedback, calibration, or closed-loop control. Deterministic interrupt prioritization supports time-critical acquisition routines, enabling synchronous reads in multi-channel networks without sample skew. Deep functional integration also lowers system noise and synergizes with analog calibration algorithms.
In field deployments, engineers have found that the AVR32EA48T-I/PT's composite feature set reduces system-level risk and TTM (time-to-market). Peripheral tuning and event-based firmware design yield consistently reliable results on the bench and in production, especially when interconnecting standard and non-standard logic levels. The chip’s flexible voltage interface has permitted direct compatibility with new sensor modules, avoiding costly intermediary redesigns. Industrial integrators often exploit the event-driven architecture to simplify support for legacy signaling schemes while maintaining robust forward compatibility.
Combining robust environmental resilience with precise mixed-signal performance and granular event control, AVR32EA48T-I/PT accelerates engineering of adaptive, intelligent, and power-efficient applications while minimizing the need for peripheral circuits. The device’s multifaceted integration foregoes several traditional design compromises, supporting rapid prototyping and robust mass deployment across evolving electronics platforms.
Potential Equivalent/Replacement Models for AVR32EA48T-I/PT
When considering alternatives to the AVR32EA48T-I/PT, a structured approach dictates examining both architectural compatibility and the nuanced attributes that affect project continuity. The AVR® DD Family, specifically models such as the AVR16DD and AVR32DD, emerges as a prime candidate due to closely aligned peripheral sets, broad support for modern features—including MVIO, advanced Event System logic, and configurable Custom Configurable Logic (CCL)—and a migration path that typically requires only modest firmware adjustments. These devices tend to differentiate along axes of memory profile, available pin count, and package type, making a detailed mapping of application needs to hardware features essential. For instance, selecting a higher memory variant may preempt future software expansion, while matching package footprint ensures unaltered PCBs, enabling swift line changeover and minimum redesign friction.
Legacy flexibility, such as ATmega and ATtiny series, can address backwards compatibility but introduces substantial architectural discontinuities. The lack of integrated MVIO and granular event-based control curtails seamless migration; applications depending on multi-voltage IO or dynamic signal routing may encounter costly rewrites or functional trade-offs. Practical migration efforts often reveal hidden dependencies—code written for traditional register layouts or tightly coupled interrupt structures regularly demands refactoring even for seemingly simple porting jobs.
Exploring Microchip's latest PIC16 and PIC18 microcontrollers offers solutions for projects defined primarily by digital communication (I²C/SPI/USART) and timer-centric workflows. However, in operational contexts—particularly those leveraging complex state machines or requiring deterministic peripheral cooperation—PIC’s architecture may diverge, compelling architectural redesigns and adaptation to different clocking, interrupt, and pin-mapping schemes. Firmware migration, here, rarely achieves recompilation-level reuse, instead requiring behavioral revalidation under the new silicon’s timing and power handling paradigms.
Competing 8-bit offerings, such as STM8 from STMicroelectronics or NXP’s portfolio, can occasionally align on basic digital and analog feature sets, but in-depth analysis frequently reveals shortfalls in advanced configurability. For instance, MVIO support is seldom encountered, limiting system-level adaptability across diverse voltage domains, and robust event systems akin to those in modern AVR MCUs are the exception, not the rule. Design teams seeking minimal-complexity substitution often face a compromise between rapid prototyping advantages and the functional ceilings imposed by these platforms.
Key selection parameters revolve around in-depth scrutiny of peripheral completeness, embedded memory footprint, and the subtleties of voltage range via MVIO, which increasingly enables adaptive interfacing with mixed-signal environments. Package compatibility—in terms of dimensional fit, pinout, and the presence of programming/debugging interfaces such as UPDI—directly influences manufacturing logistics and time-to-market, especially for operational scale-up. Clock source configurability and power management modes, supporting granular energy consumption tuning, are equally pivotal in applications with stringent sleep/wake, real-time response, and low-power requirements. Insights from replacement efforts underscore the value of building in a margin for both memory and peripheral expansion at the selection stage, minimizing risk for iterative feature enhancements or specification drift over the project lifecycle.
The frequent bottleneck in true drop-in replacement remains a combination of unique signal configuration and firmware reliance on chip-specific event chains or multi-voltage logic, which are not universally mirrored even among close relatives or market competitors. Strategic planning thus rewards comprehensive review of silicon errata, peripheral timing characteristics, and silicon roadmap support, favoring scalable controller families with forward compatibility and a robust support ecosystem. This approach provides not only immediate project continuity but also a streamlined pathway for future system evolution.
Conclusion
The AVR32EA48T-I/PT microcontroller establishes a resilient architecture tailored for embedded applications where efficient 8-bit processing, seamless analog-digital convergence, and stringent low-power constraints converge. Central to its technical value is the advanced CPU core, which optimizes instruction throughput and deterministic response. This processing efficiency is augmented by an agile memory hierarchy that balances rapid access with non-volatile storage, providing a foundation for real-time tasks and secure code retention even in unstable environments.
Integrated peripheral modules take the device beyond basic control, enabling synchronized acquisition and conversion through a flexible analog front end (AFE), high-resolution timers, and robust communication interfaces. The fusion of digital and analog nodes—in tandem with a wide array of signal conditioning features—addresses the stringent demands found in sensor integration and process automation. Notably, the device's Multi-Voltage I/O system introduces a scalable platform for interfacing with diverse logic levels, simplifying mixed-voltage system design and minimizing component count. This capability supports seamless interaction with legacy equipment or modern, power-sensitive buses, increasing both interoperability and future-proofing.
System reliability emerges from a layered defense mechanism, leveraging hardware-based fault detection, watchdog integration, and finely tunable power domains. Rigorous use of configuration and protection features—such as I/O pin lockout, brown-out detectors, and peripheral enable gating—delivers resilience appropriate for high-uptime industrial or safety-critical domains. Practical deployments consistently demonstrate the merit of segmenting supply rails and partitioning peripherals, both to isolate faults and to minimize EMI in large-scale, electrically noisy environments.
When architecting solutions or benchmarking against alternative devices, analysis must extend beyond datasheet parity. Memory sizing and the breadth of hardware-accelerated peripherals directly impact throughput under complex workloads. Supply voltage accommodation can drive PCB simplification and lower BOM cost when implemented judiciously. Long-term sourcing considerations become paramount; an architecture's staying power within the manufacturer's product roadmap often dictates selection, particularly for systems targeting extended operational lifespans.
In conclusion, the AVR32EA48T-I/PT encapsulates an application-centric approach, merging advanced mixed-signal capability with robust system-level protection. The platform effectively addresses challenges unique to modern industrial automation and distributed sensor infrastructures, enabling scalable, maintainable deployments where predictable behavior and supply chain stability are non-negotiable requirements.
