ATXMEGA256D3-AU

ATXMEGA256D3-AU Product Overview and Positioning in the AVR XMEGA D3 Family

ATXMEGA256D3-AU is a high-integration member of Microchip’s AVR XMEGA D3 family, positioned for designs that have outgrown basic 8-bit microcontrollers but do not yet justify the cost, software overhead, or power profile of a larger 32-bit platform. In practical product planning, it occupies a useful middle ground: enough memory and peripheral density to support complex embedded control, communication bridging, and mixed-signal acquisition, while preserving the deterministic behavior, short interrupt latency, and development familiarity associated with the AVR architecture.

Within the XMEGA D3 family, this device sits in the upper memory class, combining 256KB Flash, 16KB SRAM, and 4KB EEPROM in a 64-pin TQFP package. That combination is not simply a capacity upgrade. It changes the type of firmware architecture the device can support. At this memory level, it becomes realistic to partition code into communication stacks, control loops, diagnostic logic, bootloader support, calibration storage, and application-level scheduling without immediately running into space pressure. The 16KB SRAM is particularly relevant because many embedded designs fail at the memory-planning stage not due to Flash shortage, but because buffering, protocol handling, and runtime state machines consume RAM faster than expected. For systems with multiple serial interfaces active at once, this memory balance is often more important than raw CPU speed.

The real value of ATXMEGA256D3-AU is better understood through its internal system model. It is not designed around the old idea of a microcontroller as a single CPU polling peripherals in a loop. The XMEGA architecture pushes toward distributed real-time behavior. Timers, event routing, ADC triggering, serial interfaces, and interrupt controllers are structured to reduce unnecessary CPU intervention. This matters because embedded performance is often limited less by instruction throughput and more by timing jitter, software overhead, and interrupt congestion. A device that can move events between peripherals directly, trigger conversions from timer edges, or capture timing information without software polling typically delivers more stable control behavior than a nominally faster MCU with weaker internal coordination.

That event-driven orientation is one of the strongest reasons to choose this part. In many control and sensing systems, the CPU should supervise rather than micromanage. For example, a timer can generate a periodic trigger, the ADC can sample synchronously to that trigger, and the result can be handled through a lightweight interrupt only when a complete data point is ready. This reduces phase error and makes the firmware easier to validate. In motor-adjacent control, power regulation, metering, or synchronized sensor sampling, these details are not peripheral conveniences; they directly influence system accuracy and EMC behavior.

The mixed-signal capability also deserves a more precise interpretation. Devices in this class are often described as having “ADC plus timers,” but in practice the usefulness of the analog subsystem depends on how well it integrates with the rest of the chip. ATXMEGA256D3-AU is suited to systems where analog measurement is embedded into control flow rather than treated as an isolated function. That includes current sensing, voltage monitoring, temperature acquisition, feedback sampling, and threshold-based supervision. Good mixed-signal integration reduces the need for external glue logic and can simplify board routing, provided that layout discipline is maintained. In deployment, analog performance on a feature-rich MCU is rarely limited by the converter alone. Ground return strategy, reference stability, switching noise from PWM outputs, and sampling instant alignment usually dominate the error budget. This is exactly where the XMEGA-style event system and timer coupling become valuable.

Its peripheral set supports a broad communications role. The device is appropriate not only for endpoint control nodes but also for protocol concentration and subsystem coordination. Systems in industrial control, building automation, utility metering, HVAC, and appliance control often need to sit between sensors, local actuator loops, and one or more external host interfaces. In those cases, the MCU must manage several asynchronous data streams while maintaining deterministic control timing. ATXMEGA256D3-AU is well suited to that pattern because its peripheral density allows communication and control tasks to coexist without forcing a fragile software design. This becomes especially important when field reliability matters more than benchmark speed.

Low-power behavior is another key part of its positioning, but it should not be interpreted narrowly as a battery-only feature. Efficient low-power modes are useful anywhere the system has idle phases, thermal limits, or standby requirements. The more important question is how quickly and predictably the device can move between sleep and active operation while preserving functional context. In real designs, power efficiency often comes from architectural choices such as waking only on hardware events, keeping clock domains scoped to actual use, and avoiding software polling loops. A controller with strong peripheral autonomy often achieves better practical energy performance than one with a lower headline current but heavier firmware activity.

From a family-positioning standpoint, the ATXMEGA256D3-AU is a strong fit for designs that need more than simple GPIO and a couple of UARTs, but still benefit from the compact software model of an AVR-based system. It is especially attractive when the application demands a broad peripheral footprint in a single package. The 64-pin format provides enough I/O exposure to make the peripheral set usable in a real board design rather than merely available on paper. That distinction matters. Many microcontrollers advertise rich integration, but package limitations or pin multiplexing conflicts make those resources difficult to exploit simultaneously. Devices in this pin and memory class are often selected because they reduce external support ICs and leave more routing freedom for production boards.

Its target application list reflects this balance of integration and control capability. In industrial and factory automation, it fits sensor nodes, actuator controllers, local machine interfaces, and communication-enabled control boards. In climate control and HVAC, it can combine user interface management, temperature and current sensing, relay or motor actuation, and supervisory diagnostics. In utility metering and building control, it supports periodic acquisition, event logging, low-power standby, and serial communication to upstream controllers. In white goods and power tools, it provides enough timing precision for drive-related tasks and enough memory for fault handling, configuration management, and product differentiation across firmware variants. In RF and ZigBee-adjacent systems, it is often better viewed as the control and sensor-processing engine paired with a radio frontend, rather than as a standalone wireless solution. That partition usually leads to cleaner architecture.

A useful way to evaluate this device is to ask whether the design benefits from hardware-assisted concurrency. If the answer is yes, the ATXMEGA256D3-AU becomes much more compelling than a simpler 8-bit MCU. Applications that need synchronized sampling, multiple communication interfaces, periodic control actions, nonvolatile parameter storage, and power-aware behavior can use its architecture efficiently. If the application is only blinking outputs, reading a few slow sensors, and sending occasional serial data, the device may be oversized. But once the firmware starts to accumulate scheduling complexity, protocol overlap, calibration requirements, and real-time constraints, this part tends to become appropriately sized rather than excessive.

From an engineering selection perspective, one of its most practical strengths is system consolidation. It can often absorb functions that would otherwise be split across a smaller MCU plus external analog support, timing logic, or communication handling. That reduces BOM count and can improve reliability, though it also raises the importance of early peripheral allocation and clock planning. With XMEGA-class devices, projects generally go more smoothly when the event paths, timer ownership, ADC trigger sources, and communication bandwidth are mapped at the architecture stage instead of being left for firmware integration later. Once these resources are planned coherently, the device tends to scale well across product variants.

ATXMEGA256D3-AU is therefore best positioned as a feature-dense general-purpose controller for embedded systems that need deterministic real-time behavior, strong peripheral interaction, meaningful on-chip memory, and efficient power management in a compact AVR environment. Its value is not just that it integrates many functions, but that those functions can be orchestrated with relatively low software overhead. That makes it a very capable choice for control-oriented embedded products where timing integrity, peripheral cooperation, and practical board-level integration matter as much as CPU core simplicity.

ATXMEGA256D3-AU Core Architecture and Performance Characteristics

ATXMEGA256D3-AU is built on the AVR XMEGA implementation of the enhanced AVR RISC architecture, and its value is best understood by looking at how the core, memory access behavior, and clocking model work together rather than treating frequency alone as the performance indicator. The device targets the common embedded design tension between deterministic control behavior, low energy operation, and enough computational headroom to manage multiple peripherals without forcing a move to a more complex 32-bit platform.

At the core level, the architecture is optimized for short, predictable execution paths. Most instructions complete in a single clock cycle, which is significant not only because it raises raw instruction throughput, but because it keeps timing analysis tractable. In real control firmware, predictability often matters more than peak arithmetic capability. When a control loop, communication stack, and interrupt-driven sensor path all share the same CPU, bounded instruction timing reduces uncertainty in latency budgets. That directly improves the stability of periodic tasks and simplifies worst-case execution analysis.

The 32 general-purpose registers are one of the most important performance features of the AVR core. Because these registers are directly connected to the ALU, the processor can read operands and write back results with very little overhead. This is materially different from accumulator-centric architectures, where frequent moves between memory and a limited arithmetic register create hidden instruction cost. On the ATXMEGA256D3-AU, keeping active variables in registers allows arithmetic, comparisons, pointer updates, and branch preparation to proceed with minimal friction. In practice, this tends to reduce the instruction count in tight loops, especially in signal conditioning, protocol parsing, and state-machine execution.

That register-rich design also improves interrupt behavior in a subtle but important way. Embedded systems rarely fail because of average execution speed; they fail when asynchronous events arrive faster than expected and software cannot respond in time. A core with strong register availability can preserve working context more efficiently, shorten interrupt entry and exit overhead, and make nested or back-to-back interrupt scenarios easier to manage. This is particularly useful when timer events, serial traffic, and ADC completion interrupts are active simultaneously. In such systems, a few saved cycles per service routine often determine whether the design remains robust under load.

The advertised operation up to 32 MHz gives the ATXMEGA256D3-AU solid processing capacity for a broad class of embedded applications, but the more interesting characteristic is the voltage-frequency operating envelope. The device can run from 0 to 12 MHz at supply voltages starting around 1.6 V, and from 0 to 32 MHz at 2.7 V and above. This creates a scalable operating model. A design can be tuned for low-voltage, reduced-frequency operation during standby-heavy or energy-sensitive phases, then shifted upward when communication bursts, data processing, or tighter control timing demand more performance. That flexibility is often more useful than a fixed high-speed rating, because embedded workloads are usually dynamic rather than constant.

From an engineering perspective, the frequency scaling range supports several practical design strategies. One is power-performance staging, where firmware runs the system clock at the lowest acceptable rate during background supervision, then raises it only when latency-critical work appears. Another is supply-adaptive design, where a product variant powered from a weak energy source, such as a small battery rail or harvested supply, can still share much of the same firmware structure as a higher-voltage version. This lowers redesign effort and preserves software reuse across product tiers. The architecture therefore supports not just execution speed, but also platform flexibility.

The single-cycle execution model should not be read as a blanket statement that all code paths scale linearly with clock rate. Real application performance also depends on memory access patterns, peripheral interaction, branch density, and interrupt load. Even so, the ATXMEGA256D3-AU remains efficient because the core is balanced for embedded control rather than benchmark-style throughput. When firmware is written to exploit the register file, minimize unnecessary memory traffic, and align critical operations with hardware peripherals, the effective performance can be disproportionately good relative to clock speed. This is one reason AVR XMEGA devices have remained attractive in systems where timing determinism and software compactness are more valuable than wide datapaths.

For control-oriented applications, the architecture’s strengths are especially visible in repetitive, bounded tasks. Motor control support routines, digital power supervision, industrial I/O scanning, and sensor aggregation all benefit from fast branch handling, efficient register-based arithmetic, and reliable interrupt timing. In these cases, the processor does not need speculative execution, cache hierarchies, or complex pipelines. In fact, avoiding those features can be advantageous because it reduces execution variability. The ATXMEGA256D3-AU occupies that useful middle ground where the core is simple enough to remain deterministic yet powerful enough to coordinate multiple real-time activities at meaningful rates.

There is also a practical software engineering benefit in this architecture. Code optimization on the AVR XMEGA family tends to reward structural clarity. Tight C code with careful attention to data width, pointer use, and interrupt boundaries often compiles into efficient machine sequences without heroic low-level intervention. Where cycle-level tuning is required, the architecture is transparent enough that hand-optimized routines remain understandable and maintainable. This matters in long-lived embedded products, where the cost of future modification can easily exceed the cost of the first implementation.

A useful way to position the ATXMEGA256D3-AU is not as a device chasing maximum MIPS, but as a microcontroller engineered for high control efficiency per clock and per milliwatt. Its enhanced AVR RISC core, large directly accessible register set, and voltage-dependent clock scalability form a coherent performance model. The result is a device that handles interrupt-driven embedded workloads with strong determinism, good code density, and adaptable energy behavior. For designs that need reliable real-time response, moderate computational complexity, and room to scale operating modes without changing architecture class, this core remains a technically disciplined choice.

ATXMEGA256D3-AU Memory Resources and In-System Programming Capabilities

ATXMEGA256D3-AU offers a memory architecture that fits well in embedded designs that sit above simple control nodes but below high-end application processors. Its resource mix is balanced rather than excessive: 256KB of in-system self-programmable flash, an 8KB boot section, 4KB EEPROM, and 16KB SRAM. That combination is large enough to support layered firmware, communication stacks, diagnostics, and upgrade logic in one device, while still keeping the hardware footprint compact and the software model predictable.

The 256KB flash capacity is the main enabler for code-rich applications. In practice, this headroom matters less for a single control loop and more for what accumulates around it: protocol handling, state management, fault processing, safety checks, production test hooks, event logging, and versioned update support. On smaller MCUs, these functions often compete aggressively for space, forcing teams to remove instrumentation or compress architecture into tightly coupled code. With ATXMEGA256D3-AU, firmware can be partitioned more cleanly into service layers, hardware abstraction, protocol modules, and application logic. That usually improves maintainability and reduces the cost of future feature additions.

The 8KB boot section is especially valuable because it turns the device from a fixed-function controller into an update-capable platform. A bootloader in this region can handle image validation, communication-based firmware delivery, rollback policy, and manufacturing programming flows. The size is sufficient for more than a minimal jump stub. It can accommodate a robust update routine with framing, integrity checks, timeout handling, and version control logic, which is often where product reliability is won or lost. In deployed systems, the difference between a basic bootloader and a resilient one is significant. A minimal loader may work in the lab, but under unstable power, noisy communication links, or interrupted update sessions, weak recovery logic becomes a field failure mechanism.

A notable strength of the device is its in-system self-programmable flash combined with read-while-write capability. This is not just a specification detail; it changes how firmware updates can be designed. The boot section can remain operational while the application section is being reprogrammed, which supports controlled in-field updates without fully halting device intelligence. In practical terms, this allows a communication session, update state machine, and validation process to continue running while flash pages in the application region are rewritten. For industrial nodes, utility endpoints, or distributed control equipment, this is a strong architectural advantage because physical service access is often expensive, delayed, or operationally disruptive.

Read-while-write also improves update safety when used correctly. The usual pattern is to keep the update engine isolated in the boot region, stream new firmware into temporary buffers, commit page-by-page to the application section, and only transfer execution after verification succeeds. That reduces the risk of leaving the unit nonfunctional after a partial update. The deeper engineering point is that memory architecture and software update policy must be designed together. Read-while-write provides the mechanism, but system reliability depends on image integrity checks, reset behavior, brownout handling, and a strict rule for when the new image is considered bootable. A device with self-programmable flash is only as robust as its failure path.

The flash size also supports dual-purpose designs where the application includes both operational firmware and embedded service functions. It becomes feasible to retain built-in diagnostics, command interpreters, protocol analyzers, or manufacturing calibration routines without stripping them out to save space. In products with long maintenance cycles, this often pays back quickly. Firmware that can explain its own state, expose traceable failure codes, and accept controlled updates is easier to deploy and sustain than firmware optimized only for initial release size.

The 4KB internal EEPROM adds an important second tier of nonvolatile storage. Flash is efficient for executable code and larger structured images, but EEPROM is better suited to small, persistent data that changes during operation. Calibration constants, configuration profiles, learned thresholds, device identifiers, fault counters, service history markers, and regional settings all fit naturally here. Keeping this data inside the MCU removes a common dependency on external serial EEPROM and simplifies both the schematic and the firmware. It reduces bus traffic, saves board area, and removes one more component from the power-up and signal-integrity budget.

The practical value of internal EEPROM is strongest when parameters need to survive firmware replacement. In many products, application code evolves more frequently than calibration data or installed configuration. Storing these values in EEPROM allows the bootloader or application to preserve them across updates without needing external storage migration logic. This separation between executable image and persistent product state is easy to underestimate early in development, but it becomes critical once devices begin receiving revisions in the field. A clean persistence model prevents a large class of upgrade regressions.

That said, EEPROM should be treated as structured storage, not as an unrestricted log sink. Write endurance and update frequency still matter. A good implementation usually uses versioned data blocks, integrity fields such as CRCs, and controlled commit policies rather than byte-level ad hoc writes. For parameters that change frequently, batching updates or using ring-buffer style wear distribution can significantly extend service life. Designs that skip this discipline often work well in early testing but degrade over time when configuration values are rewritten more often than originally expected.

The 16KB SRAM budget is modest by processor standards but useful by MCU standards, especially when managed deliberately. It is enough for communication buffers, protocol state machines, control variables, temporary parsing workspaces, and interrupt-driven runtime state. It also provides room for a more structured firmware design instead of forcing every module into highly static, tightly shared memory usage. For example, one portion of SRAM can be reserved for RX/TX buffering, another for scheduler and driver state, and another for application data and transient processing. This makes the software easier to reason about under load.

In real deployments, SRAM pressure usually appears before flash pressure. Communication-heavy applications are a common example. A design may fit comfortably in code space while still struggling with concurrent buffers for UART, SPI, I2C, USB-class emulation, or custom framing layers. The ATXMEGA256D3-AU sits in a useful middle ground: it has enough SRAM to support practical buffering strategies, but not so much that memory discipline can be ignored. This tends to encourage better design habits, such as fixed-size pools, bounded queues, and clear ownership of shared buffers. Those habits usually improve determinism and make worst-case behavior easier to validate.

The memory resources are most effective when treated as separate functional domains. Flash should hold stable executable logic and update images. The boot section should hold recovery-critical code that is small, heavily reviewed, and rarely changed. EEPROM should hold persistent operational data with explicit integrity management. SRAM should hold only live runtime state and temporary workspaces. When these boundaries are respected, the firmware becomes easier to test and much more resilient to resets, interrupted updates, and unexpected power loss.

From a system-cost perspective, this memory integration can meaningfully reduce BOM complexity. Internal EEPROM may eliminate a standalone serial memory device. Self-programmable flash may remove the need for dedicated external programming hardware in service workflows. A capable boot section may reduce dependence on physical access during maintenance. These savings are not only about part count. They also affect routing, qualification effort, failure points, and production programming strategy. In cost-sensitive designs, reducing one external memory component often simplifies more of the system than expected.

ATXMEGA256D3-AU is therefore best understood not simply as a 256KB MCU, but as a device with a well-layered memory subsystem that supports maintainable firmware architecture. Its flash capacity enables feature growth. Its boot section enables controlled updates. Its read-while-write capability enables safer in-system reprogramming. Its EEPROM supports persistent product state without external memory. Its SRAM is sufficient for structured real-time software if buffer planning is done carefully. For moderately complex embedded equipment that must be deployable, serviceable, and stable over time, this mix is unusually practical.

ATXMEGA256D3-AU Peripheral Set for Control, Communication, and Signal Acquisition

ATXMEGA256D3-AU targets control-centric embedded designs by combining communication interfaces, timing hardware, signal supervision, and integrity features in a way that minimizes software overhead and improves determinism. Its peripheral mix is not simply broad; it is balanced around the needs of systems that must sense, decide, communicate, and actuate at the same time. That balance is often more valuable than raw interface count, because in practical designs the limiting factor is usually timing isolation between tasks rather than CPU frequency alone.

On the communication side, the device provides three USARTs, including IrDA support on one channel, two two-wire interfaces compatible with I2C and SMBus with dual address match, and two SPI interfaces. This combination supports a clean partitioning of communication roles. One serial channel can be reserved for diagnostics or field service access, another for a modem or wireless transceiver, and a third for a local intelligent node such as a secondary controller, HMI module, or protocol bridge. Keeping these paths physically and logically separated reduces software multiplexing and lowers fault propagation risk. In systems that need to remain serviceable during active operation, this separation becomes especially useful because debug traffic does not have to compete with control traffic.

The two-wire interfaces are particularly effective in sensor-rich designs. Dual address match allows the controller to respond to more than one logical address without firmware-intensive filtering, which is useful in multi-role devices, protocol adaptation layers, or systems that expose separate control and telemetry endpoints. SMBus compatibility also improves interoperability with power devices, smart batteries, thermal monitors, and supervisory ICs. In practice, shared-bus designs benefit from careful pull-up sizing and bus segmentation strategy. When multiple peripherals with different cable lengths or noise environments are attached, stable bus timing depends as much on capacitance management as on firmware correctness. The peripheral support helps, but robust deployment still comes from treating the bus as an analog structure, not only a digital one.

The two SPI interfaces add an important high-throughput path for peripherals that need deterministic, low-latency transfers. Displays, ADCs, DACs, memory devices, and fast digital sensors often fit better on SPI than on two-wire buses because transaction framing is simpler and bandwidth scales more predictably. Having two SPI modules enables architectural separation between high-speed data movement and lower-priority device control. One SPI can be dedicated to continuous acquisition or display refresh, while the other services configuration registers, external storage, or isolated peripheral clusters. This reduces scheduling contention and simplifies worst-case timing analysis, which is often a hidden requirement in industrial and power electronics systems.

The timer/counter subsystem is one of the more strategically important parts of the device. ATXMEGA256D3-AU integrates five 16-bit timer/counters, with four modules offering four output compare or input capture channels and one offering two such channels. This structure is well suited to applications that must generate multiple synchronized timing domains or capture external events with low jitter. Output compare channels support PWM generation, phase scheduling, and periodic interrupt creation. Input capture channels allow precise measurement of pulse widths, edge timing, rotational speed feedback, or external synchronization signals. The key value here is that timing operations occur in hardware, which sharply reduces latency variation compared with software-driven GPIO control.

Two of the timer/counters include high-resolution extension, and one includes advanced waveform extension. These features matter when edge placement quality directly affects system behavior. In motor drives, switch-mode power control, lighting control, and precision actuator systems, PWM resolution and waveform shape influence efficiency, acoustic behavior, thermal stress, and closed-loop stability. Higher effective timing resolution allows finer duty-cycle adjustment without forcing the entire application to run at a higher interrupt rate. Advanced waveform support further improves the ability to generate complementary outputs, controlled switching sequences, or more complex pulse patterns with less firmware intervention. In real designs, this can be the difference between a stable control loop and one that spends too much CPU time chasing timing artifacts introduced by software scheduling.

A useful way to view these timers is as distributed hardware state machines rather than simple counters. Once configured, they continue producing events, measuring edges, and driving outputs independently of the CPU. That shifts the firmware role from direct signal generation to supervisory orchestration. This is usually the more scalable design model. As channel count grows, firmware that relies on ISR-heavy bit manipulation becomes difficult to maintain and validate. By contrast, hardware-timed peripherals create a system that is easier to reason about under load, especially when communication bursts, fault handling, and control updates happen concurrently.

The 16-bit real-time counter with a dedicated oscillator extends this hardware autonomy into long-period timekeeping. Because it can operate from a separate clock source, it supports time base continuity even when the main clock domain is optimized for performance changes, sleep behavior, or dynamic power control. This is useful for periodic housekeeping, timestamp generation, maintenance intervals, watchdog servicing strategies, and low-power wake scheduling. In supervisory systems, a separate real-time domain often becomes the anchor for temporal consistency. Without it, event timing can drift whenever the core clock is altered for energy or performance reasons.

Data integrity features are also integrated in a practical way. CRC-16 and CRC-32 generation provide hardware assistance for message validation, block storage verification, configuration integrity checks, and firmware image protection workflows. Hardware CRC does more than save cycles. It makes integrity verification cheap enough to use routinely rather than selectively. That tends to improve system quality because checks can be applied at every interface boundary: incoming communication frames, parameter tables loaded from nonvolatile memory, logged data blocks, and boot-time image validation. In fielded systems, corruption rarely appears in a convenient location. It may come from line noise, marginal connectors, interrupted updates, or partial writes after power disturbances. When CRC support is readily available in hardware, defensive design becomes easier to implement consistently.

External interrupts on all general-purpose I/O pins significantly improve responsiveness to distributed events. This allows nearly any digital input to become an event source without awkward routing compromises. Limit switches, fault lines, wake signals, user inputs, encoder edges, and alert outputs from companion ICs can all be handled with hardware-assisted notification. The practical advantage is not just responsiveness but cleaner board-level partitioning. Signals can be assigned according to layout quality, EMC considerations, or connector placement rather than being constrained to a small subset of interrupt-capable pins. That flexibility often reduces trace crossings and improves noise immunity.

The programmable watchdog timer, driven by a separate ultra-low-power oscillator, is another feature whose importance grows with system complexity. A watchdog should remain independent of the main execution and clock domains; otherwise it cannot be trusted to detect the class of failures that matter most. Here, the separate oscillator improves that independence. The watchdog can supervise firmware lockups, clock failures, stalled scheduling, or uncontrolled state transitions even when the primary timing environment is compromised. In robust designs, the watchdog should not be treated as a last-minute safety checkbox. It works best when paired with a structured recovery model: clear reset cause handling, safe output states, idempotent initialization, and fault logging that survives resets when possible.

Taken together, these peripherals support a control architecture with three strong properties: communication parallelism, hardware-timed actuation, and independent supervision. That makes the device well suited to industrial controllers, sensor hubs, compact motor systems, power conversion nodes, instrumentation front ends, and mixed-function embedded gateways. A typical deployment might place real-time control on timer hardware, periodic health monitoring on the real-time counter, high-speed peripheral exchange on SPI, low-speed supervisory devices on TWI, and diagnostics on a dedicated USART. In that arrangement, the CPU mainly coordinates policy and exception handling rather than spending its budget emulating peripheral timing in software.

One of the stronger design patterns for this device is to map each subsystem to the peripheral type that best matches its temporal behavior. Fast deterministic streams belong on SPI and timer capture logic. Slow shared telemetry belongs on TWI. Asynchronous maintenance and service interaction belongs on separate USART paths. Fault detection belongs on external interrupts and watchdog supervision. This seems obvious, but many embedded implementations lose reliability by collapsing unlike traffic classes onto a single interface or by using software timers where hardware compare units were available. The peripheral set of ATXMEGA256D3-AU rewards a disciplined partitioning strategy.

Another practical advantage is reduced interrupt pressure. Because the timers can generate waveform outputs directly and capture input timing in hardware, and because CRC calculation is offloaded, the CPU is freed for control-law execution, protocol parsing, and state management. Lower interrupt density generally leads to more predictable firmware behavior, fewer race conditions, and simpler timing closure. This is especially relevant once a design moves beyond prototype stage. Systems that appear stable in the lab often fail under worst-case traffic combinations, heavy EMI exposure, or maintenance access during active control. Hardware offload is one of the most effective ways to preserve margin.

For signal acquisition and distributed event sensing, the value of this peripheral set lies less in any single block than in how the blocks can be composed. External interrupts detect a signal edge, timer capture timestamps it, the real-time counter tags the broader schedule context, CRC secures the resulting message or log entry, and USART/SPI/TWI move the information outward. This kind of end-to-end hardware-assisted path is what makes a microcontroller effective in control systems. It allows the design to preserve temporal accuracy and communication integrity without inflating firmware complexity.

ATXMEGA256D3-AU therefore stands out not merely as a microcontroller with many interfaces, but as a device whose peripherals are aligned around deterministic embedded control. Its USARTs, TWI modules, and SPI channels handle concurrent communication roles cleanly. Its timer infrastructure supports precise actuation and measurement with low jitter. Its RTC, CRC engine, pin interrupts, and watchdog provide the supervision and integrity mechanisms that real deployments need. When these resources are used as coordinated hardware building blocks rather than isolated features, the device supports systems that are easier to validate, more resilient in the field, and more efficient in their use of CPU time.

ATXMEGA256D3-AU Event System, Interrupt Structure, and Real-Time Control Advantages

ATXMEGA256D3-AU stands out in real-time embedded design because its event system and interrupt architecture are not just peripheral features; they define how the device behaves under timing pressure. In many microcontrollers, deterministic performance depends heavily on firmware quality because nearly every interaction passes through the CPU. In the ATXMEGA256D3-AU, a significant part of that coordination can be shifted into hardware. That changes the design model from CPU-centered control to distributed peripheral orchestration, which is often the difference between a system that merely works and one that remains stable at scale, under load, and across edge conditions.

The four-channel event system is the clearest example of this approach. It allows one peripheral to generate an event and another peripheral to consume it directly, without requiring instruction execution, register polling, or interrupt entry for every transfer of intent. At the hardware level, this creates a fast internal signaling path between modules such as timers, counters, ADCs, comparators, and external interrupt sources. The immediate engineering consequence is lower latency variation. Instead of depending on current CPU state, interrupt masking, stack activity, or branch path length, the event travels through a dedicated internal mechanism with far more predictable timing.

This matters most when the timing relationship between peripherals is more important than the absolute execution speed of the core. A timer can trigger an ADC conversion at an exact phase point in a PWM cycle. An external edge can initiate a capture operation without waiting for firmware response. A comparator can feed timing logic in a closed signal path that avoids software jitter. These are not just convenience features. They reduce the number of software-managed timing boundaries, and every timing boundary removed from firmware reduces the probability of race conditions, ISR contention, and non-repeatable behavior during integration.

In practice, the event system is especially valuable when sampling and actuation must remain aligned over long operating periods. For example, in motor control or power conversion, triggering an ADC from a timer rather than from an interrupt service routine avoids phase drift caused by interrupt latency variation. The result is cleaner current or voltage measurements relative to switching activity, which directly improves control loop quality. In sensing systems, event-triggered acquisition can preserve temporal consistency between excitation, sampling, and timestamp capture. That consistency often produces more useful data than simply increasing nominal sample rate.

The four-channel structure is also a useful compromise. It is not excessive, but it is enough to separate several critical hardware workflows in parallel. One channel might coordinate timing between PWM generation and ADC sampling. Another might carry external edge events for pulse measurement. A third might support communication timing or capture synchronization. A fourth can remain available for diagnostic triggering or backup control flow. In constrained embedded systems, this level of internal routing flexibility often removes the need for awkward software multiplexing strategies that increase maintenance complexity later.

The programmable multilevel interrupt controller complements the event system by handling the cases where CPU intervention is still necessary. Not every decision can or should be reduced to a hardware event path. Protocol parsing, state transitions, fault handling, and supervisory logic still require software execution. The key advantage here is that ATXMEGA256D3-AU does not treat all interrupt sources as equivalent. It supports structured prioritization, allowing time-critical work to preempt less urgent processing in a controlled way. This is a major improvement over simpler MCU designs where a flat interrupt model forces developers to simulate priority through ad hoc masking, ISR minimization, or complicated scheduling conventions.

From an engineering perspective, multilevel interrupt control is less about raw responsiveness and more about bounded interference. A fast response time is useful, but a known worst-case response time is far more valuable. When high-priority interrupts can be isolated from lower-priority service traffic, system timing becomes easier to model. Control loops can be protected from communication bursts. Safety-related fault detection can be given precedence over background data movement. Time-stamped measurement paths can remain stable even while multiple interfaces are active. This kind of partitioning tends to reduce the amount of defensive firmware structure needed elsewhere in the codebase.

The interaction between the event system and the interrupt controller is where the architecture becomes particularly effective. The event system handles deterministic signal propagation between peripherals, while the interrupt controller manages the software consequences of those events according to urgency. This separation is architecturally clean. Hardware performs the immediate, timing-sensitive transitions. Firmware handles interpretation, adaptation, and policy. That division usually leads to simpler state machines and shorter ISRs because the software no longer needs to emulate peripheral cooperation that the silicon already supports.

A useful design pattern is to treat events as the fast data plane and interrupts as the control plane. In that model, repetitive real-time edges, conversions, and captures are routed through event channels, while interrupts are reserved for threshold crossings, buffer completion, exception conditions, or supervisory decisions. Systems built this way generally scale better because the CPU is not spending cycles acknowledging every low-level transition. It reacts only when the hardware pipeline reaches a point where software adds value. That distinction is subtle, but it often determines whether additional features can be added later without destabilizing timing.

Under system stress, these features become even more valuable. Bench-level firmware often looks adequate when peripherals are lightly loaded and interrupt collisions are rare. Problems emerge when communication interfaces become active simultaneously, control loops tighten, and asynchronous events begin overlapping. In those conditions, CPU-centric designs show jitter, missed deadlines, and priority inversions that were not obvious during early testing. Offloading peripheral interaction to the event system and explicitly ranking software work through multilevel interrupts reduces that collapse mode. The system degrades more gracefully because its critical timing paths are less coupled to incidental firmware activity.

There is also a power and efficiency dimension. Reducing software intervention means fewer wakeups, fewer interrupt entries, and less overhead spent moving information between peripherals that already reside on the same chip. In battery-powered or thermally constrained designs, eliminating unnecessary CPU involvement can produce measurable gains without any algorithmic compromise. More importantly, it improves efficiency in the control-theoretic sense: useful work happens closer to the hardware source of the event, with less transactional overhead.

For applications such as sensor fusion, closed-loop control, industrial monitoring, and multi-interface embedded gateways, the architecture provides a practical path to deterministic behavior without requiring an oversized processor. Sensor fusion benefits from more consistent acquisition timing and cleaner prioritization between data capture and communication. Control systems benefit from reduced jitter in measurement-actuation chains. Multi-interface designs benefit because communication stacks can run concurrently with time-critical local processing without forcing everything into a single interrupt urgency level. In mixed-function products, that separation is often more important than headline clock speed.

A recurring lesson in real deployments is that flash size and peripheral count rarely tell the full story of MCU suitability. Two devices may look similar on a specification sheet, yet behave very differently once timing interactions become dense. The ATXMEGA256D3-AU is better understood as a coordination-focused MCU. Its value comes from how well it manages internal causality: what triggers what, how quickly that propagation occurs, and how strongly critical tasks are protected from unrelated activity. That tends to shorten debug cycles in timing-sensitive systems because more of the behavior is anchored in hardware-defined paths rather than firmware timing assumptions.

For engineering teams selecting a device for deterministic embedded work, the event system and programmable multilevel interrupt controller should be evaluated as first-order architectural assets. They directly affect latency, jitter, CPU budget, and system composability. In the ATXMEGA256D3-AU, these features are not ornamental enhancements around a conventional core. They are central to its design intent and make it particularly well suited to applications where peripheral cooperation, timing efficiency, and controlled real-time behavior are core requirements rather than secondary preferences.

ATXMEGA256D3-AU Power Supply Range, Clocking, and Low-Power Operating Modes

The ATXMEGA256D3-AU power architecture is built around a practical tradeoff: maintain deterministic digital behavior across a wide operating envelope while giving firmware precise control over energy use. Its 1.6 V to 3.6 V supply range makes it suitable for both directly battery-powered nodes and tightly regulated low-voltage rails. That range is not just a compatibility number. It affects clock margin, peripheral timing, ADC behavior, nonvolatile memory safety, and wake-up strategy. In real designs, the supply range should be treated as a dynamic constraint rather than a static limit, especially when the source is a coin cell, alkaline stack, supercapacitor, or an RF-harvested rail with significant impedance.

A useful way to read the device is from the bottom up: supply integrity first, then clock generation, then reset supervision, and finally operating modes. That order mirrors how failure actually propagates in embedded systems. If the rail is marginal, clock stability degrades. If the clock is unstable, timing assumptions fail. If timing fails during write or erase activity, state corruption becomes a realistic risk. The ATXMEGA256D3-AU includes the right primitives to manage this chain, but the quality of the result depends heavily on how these primitives are combined in firmware and board design.

The supply range of 1.6 V to 3.6 V gives substantial deployment flexibility. At the low end, the part can remain viable in energy-constrained systems where every millivolt of battery discharge matters. At the high end, it integrates cleanly into common 3.3 V digital domains. The engineering implication is that voltage and frequency must be selected together rather than independently. Running at a higher clock near the lower edge of the supply range reduces timing margin and raises susceptibility to noise, temperature drift, and transient current spikes. A robust design usually scales clock frequency with available supply headroom instead of fixing the clock at the maximum and assuming the rail will remain ideal. This is especially relevant when radio bursts, LED loads, motor starts, or sensor excitation currents share the same source.

The clock system is one of the more valuable parts of the XMEGA family because it enables performance shaping instead of forcing a single global operating point. Internal oscillators support compact designs with minimal BOM impact and simpler startup behavior. External clock sources and crystals support higher accuracy and better long-term stability, which matters for communication timing, precise sampling intervals, or RTC-driven scheduling over long unattended intervals. The PLL adds another layer by allowing a lower-frequency source to be multiplied for higher core or peripheral performance when needed. Prescalers then let that generated clock be distributed selectively, reducing effective operating frequency without changing the upstream source.

This matters because power is not only a function of whether the MCU is awake or asleep. It is strongly coupled to how often internal nodes switch and how many domains are clocked. Designers sometimes focus on sleep current and overlook active-mode energy, but in many real duty-cycled systems, most battery loss comes from short active bursts executed inefficiently. The clock tree in the ATXMEGA256D3-AU allows those bursts to be shaped. A common low-energy pattern is to remain in a low-frequency state for background supervision, briefly switch to a higher-frequency clock for computation, communication framing, or memory movement, and then return to a lower-power state immediately after the critical path completes. Used well, this can reduce total energy even if instantaneous current rises during the short high-speed interval.

Internal versus external clock selection should be made based on system error budget, not habit. Internal oscillators are often sufficient for control loops, housekeeping logic, and sensor polling, particularly when calibration tolerance is acceptable. External crystals become more compelling when startup determinism, serial timing accuracy, or RTC precision dominate the requirement set. A subtle but important point is that oscillator choice also shapes wake-up latency. If a design sleeps frequently and wakes for very short transactions, oscillator start time can become comparable to useful work time. In those cases, a theoretically lower-power clock source may increase total energy because the MCU spends too long waiting for it to stabilize.

The device includes power-on reset and programmable brown-out detection, and these are essential for making the wide supply range usable in practice. Power-on reset establishes a known entry condition during startup. Brown-out detection extends that protection into runtime by supervising undervoltage events. This is not just about avoiding a crash. It protects the system from entering partially valid states where instruction execution, SRAM retention assumptions, peripheral logic, and flash access may no longer be trustworthy. In embedded systems, the most expensive failures often come from these intermediate states because they are intermittent and hard to reproduce.

Programmable brown-out detection is particularly important when the supply has slow ramps, droop under pulse load, or long tails during power removal. Battery-backed systems often exhibit exactly these patterns. If brown-out thresholds are set too low, the MCU may continue running through a voltage region where timing margin is already compromised. If thresholds are set too high, the system resets too aggressively and gives up useful battery capacity. The right setting depends on operating frequency, temperature range, write activity, and the impedance of the source path. A practical approach is to validate the threshold under worst-case dynamic load, not under a clean lab supply. The rail behavior during a radio transmit slot or simultaneous GPIO switching is usually more revealing than steady-state current measurements.

Brown-out handling becomes even more critical during flash or EEPROM operations. Nonvolatile memory writes require both timing accuracy and sufficient energy reserve. A rail collapse during the middle of a write cycle can leave corrupted data or incomplete configuration states. The safest design pattern is to combine brown-out protection with software policy: only initiate nonvolatile writes when the supply is comfortably above threshold and load conditions are quiet or predictable. In battery systems, it is often worth measuring VCC indirectly or through an internal reference path before committing settings that cannot tolerate interruption.

The low-power subsystem provides five software-selectable modes, and the value of these modes lies in how cleanly they segment retained state, running clocks, and wake sources. Selecting the correct mode is less about memorizing names and more about matching a workload to the minimum set of domains that must remain alive.

In Idle mode, the CPU stops while SRAM, interrupts, the event system, and peripherals remain functional. This is usually the first optimization level because it preserves most real-time capability with minimal software disruption. It is effective when peripheral hardware is doing the actual work, such as ADC conversions, timer capture, serial reception, or event-driven counting. In this mode, the best results come from pushing transactions into hardware pipelines and using interrupts only at completion boundaries. If firmware repeatedly wakes the CPU for fine-grained polling, much of the benefit is lost. The XMEGA event system makes Idle mode more powerful than it first appears because it allows peripheral-to-peripheral interaction without CPU intervention.

Power-down mode is the deep-sleep option for event-driven systems that can tolerate larger wake restrictions. SRAM and register contents are preserved, while oscillators and most functions stop until an enabled wake source occurs, such as TWI activity, pin-change interrupt, or reset. This mode suits systems that spend long intervals waiting for an external trigger: a door sensor, a bus master, a tamper line, or a threshold comparator. The practical challenge here is wake qualification. A noisy input line can create repeated false wakeups, and each unnecessary wake cycle can dominate the energy budget. Good board-level filtering, input hysteresis, and careful interrupt configuration matter as much as the sleep mode itself.

Power-save mode retains the asynchronous RTC while most of the device remains asleep. This is one of the most useful modes for battery-operated loggers, meters, and periodic sensing nodes because it supports scheduled wakeups without keeping the main clock tree alive. The asynchronous timer effectively becomes the system heartbeat. A strong design pattern is to let the RTC define the global duty cycle and to treat all active operations as bounded service windows attached to that schedule. This keeps firmware deterministic and makes energy estimation much easier. It also avoids the common mistake of leaving a high-frequency clock active merely to maintain software timing.

Standby mode keeps the external crystal oscillator running, which reduces wake-up latency. Extended Standby goes further by keeping both the main oscillator and asynchronous timer active. These modes are appropriate when the system must resume operation quickly and repeatedly, but full active mode would waste too much energy between transactions. Typical examples include low-latency communication endpoints, synchronized acquisition systems, or burst-processing designs where startup time directly impacts throughput. The engineering tradeoff is clear: energy saved by deeper sleep can be erased if every wake incurs long oscillator stabilization time. Standby modes exist to optimize exactly that boundary.

A useful way to choose among the five modes is to evaluate three parameters together: required wake latency, required timing continuity, and allowed retained functionality. If timing continuity is not needed, Power-down is usually the best baseline. If periodic wake is required, Power-save is often the default candidate. If response time dominates, Standby or Extended Standby may produce lower system-level energy than deeper modes because less time is wasted reinitializing clocks and requalifying peripherals. Idle is ideal when hardware blocks remain busy and the CPU is only supervisory.

The ATXMEGA256D3-AU also supports fine-grained peripheral clock gating in active and Idle modes, allowing clocks to individual peripherals to be stopped independently. This is one of the highest-leverage features for reducing active-mode power, because unused peripherals consume energy not only through analog biasing or digital leakage but also through unnecessary clock toggling. Clock gating should be treated as part of the normal driver lifecycle. A peripheral should not merely be configured and forgotten; it should be explicitly enabled for the transaction window and disabled afterward. In compact embedded software, this discipline often saves more energy than aggressive sleep optimization because many systems spend significant time technically awake but functionally underutilized.

The best results come from combining clock gating with peripheral ownership rules. For example, ADC, SPI, timer, and communication blocks should each have clear activation boundaries so that firmware does not leave them clocked due to hidden dependencies. Systems with layered middleware often lose efficiency because one layer assumes another may still need a peripheral. Tight ownership and deterministic shutdown solve this. Measuring current while selectively disabling domains is often revealing. It frequently exposes that a small number of forgotten clocks dominate the active current profile.

From an implementation perspective, low-power design on this device works best as a state-machine problem, not as a collection of isolated API calls. Each functional state should define four things explicitly: supply assumptions, clock source and frequency, enabled peripherals, and sleep eligibility. Once this is modeled clearly, transitions become analyzable and testable. It also becomes easier to validate brown-out thresholds, wake-up behavior, and oscillator choices under each state rather than treating power management as a background concern. This structure tends to prevent the classic failure mode where a system enters a low-power mode successfully in the lab but becomes unstable in field conditions because one hidden dependency was left unspecified.

An important practical insight is that wake-up energy often matters more than static sleep current. If the firmware wakes too frequently, performs scattered work, or waits on slow peripheral bring-up while fully clocked, the low-power architecture is underused. Grouping work into compact execution bursts usually gives better results than reacting immediately to every minor event. The event system and asynchronous timing support this style well. They allow the design to defer, aggregate, and process with intention rather than waking the core for every transition.

In this device, the real power-management advantage does not come from any single feature in isolation. It comes from the way supply supervision, configurable clocking, sleep modes, and peripheral gating can be combined into a coherent operating policy. When that policy is aligned with actual workload timing, the ATXMEGA256D3-AU can deliver both reliable behavior under unstable supply conditions and efficient operation across a wide range of application profiles.

ATXMEGA256D3-AU Analog Functions and Capacitive Touch Support

ATXMEGA256D3-AU integrates a mixed-signal front end that is stronger than its MCU class might initially suggest. Its 16-channel, 12-bit ADC running up to 300 ksps, together with two analog comparators that support window comparison and programmable current-source-assisted sensing, gives the device enough analog capability to handle measurement, supervision, and simple real-time control without depending heavily on external analog ICs. In practice, this matters less as a matter of raw specification and more as a system-level advantage: fewer external multiplexers, fewer supervisor parts, simpler routing, and tighter coupling between sensing, decision, and actuation.

The ADC is positioned well for applications that need moderate resolution with broad channel coverage rather than laboratory-grade precision. A 12-bit converter over 16 channels is a useful balance for embedded sensor systems, especially where several analog variables must be observed at once: temperatures, voltages, currents, pressure outputs, bridge sensors with conditioning, or buffered environmental transducers. At 300 ksps, the converter is fast enough to support periodic multisensor scans while still leaving bandwidth for oversampling, filtering, or event-driven spot measurements. That makes it suitable for climate control nodes, utility metering subsystems, portable medical front ends, and industrial controller auxiliaries where deterministic acquisition is often more important than headline resolution.

The practical strength of the 16-channel structure is architectural. It reduces or eliminates the need for external analog multiplexing in many designs, which avoids the extra settling delays, leakage paths, board area, and error terms that external switches often introduce. Once external muxes are added, firmware usually has to absorb their non-ideal behavior through longer acquisition windows and channel-specific calibration. Integrating the channel selection inside the MCU keeps the signal chain shorter and usually more predictable. That tends to improve not only BOM cost but also validation time, which is often the hidden constraint in embedded analog work.

ADC performance in real systems depends heavily on reference quality, source impedance, grounding, and sampling strategy. On devices in this class, the converter can deliver stable and useful data if the analog inputs are treated as a signal chain rather than just pins on a package. High-impedance sensors often benefit from buffering or longer sampling intervals. Fast channel hopping can introduce residual charge effects, so arranging the scan order by signal amplitude or source impedance often improves consistency. A common implementation pattern is to group low-level sensors together, place noisy power-monitor channels later in the sequence, and trigger conversions from a timer so sampling remains phase-consistent with the control loop. That simple discipline often produces a larger accuracy gain than chasing nominal converter specifications.

For sensor control applications, the ADC supports both broad visibility and local intelligence. In HVAC and environmental control, it can monitor thermistors, setpoint potentiometers, supply rails, and actuator feedback in one scan frame. In metering equipment, it can supervise current-sense outputs, divider-scaled voltages, and reference nodes while still leaving channels available for diagnostics. In compact medical instrumentation, it is more suitable for secondary acquisition and housekeeping than for precision bio-signal capture, but that distinction is exactly where it fits well. A recurring design pattern is to reserve high-precision analog functions for dedicated front-end ICs only when strictly needed, and let the MCU absorb everything else. The ATXMEGA256D3-AU supports that split efficiently.

The two analog comparators add a different kind of value. Comparators are not just simplified ADCs; they are decision elements. They let the system react to analog conditions without waiting for a conversion, software evaluation, and interrupt service path. That difference becomes important in threshold protection, brownout-adjacent supervision, overcurrent indication, zero-cross or level crossing detection, and input qualification for closed-loop systems. Hardware-level threshold detection is often the cleanest way to separate urgent events from ordinary telemetry. The ADC can then be reserved for context and logging, while the comparator handles immediate response.

Window compare support extends this idea from simple thresholding to bounded supervision. Instead of asking whether a signal is above or below one limit, the hardware can determine whether it remains inside an acceptable operating band. This is particularly useful for fault containment and control validation. A supply rail can be checked for undervoltage and overvoltage simultaneously. A sensor output can be verified to remain within a plausible physical range, which helps catch open-circuit or short-circuit conditions. In motor or actuator support circuits, feedback signals can be constrained to a valid envelope before software accepts them. Window logic is often underused in embedded systems, yet it provides one of the most efficient ways to turn analog uncertainty into a clean digital event model.

The integrated current-source capability broadens what the comparators can do with resistive or quasi-resistive sensors. It enables straightforward excitation methods for certain sensing schemes, including threshold-oriented detection of resistive elements, line integrity checks, or simple interface diagnostics. In designs where only a go/no-go decision is needed, using a current source plus comparator can be lighter and more robust than routing everything through the ADC. This is one of those implementation choices that often improves system behavior quietly: less firmware load, faster response, and fewer opportunities for threshold instability caused by sampled noise.

A useful engineering approach is to treat the ADC and comparators as complementary rather than competing resources. The comparators should handle fast boundary decisions, wake-up triggers, or fault detection. The ADC should handle quantification, calibration, trend analysis, and control refinement. When these roles are separated cleanly, the firmware becomes simpler and the timing model becomes more deterministic. This division also improves power management. A comparator can watch a critical analog line while the core remains in a low-power state, then wake the system only when a meaningful event occurs. For battery-powered or duty-cycled equipment, that mechanism often gives a better energy return than periodic ADC polling.

ATXMEGA256D3-AU also supports capacitive touch through the Atmel QTouch library, enabling buttons, sliders, and wheels without requiring a dedicated touch controller in many designs. The underlying acquisition method uses charge transfer, which is well suited to low-cost PCB electrodes and compact front-panel layouts. For embedded user interfaces, this is more than a convenience feature. It allows the MCU to unify sensing, control, and interaction on one platform, which is especially valuable in appliances, compact industrial panels, sealed interfaces, and products that need to avoid mechanical keys for reliability or ingress reasons.

The QTouch support includes debounced reporting and Adjacent Key Suppression, both of which are central to usable capacitive interfaces. Debouncing in capacitive systems is not just about suppressing chatter; it is about managing drift, environmental variation, and transient coupling while maintaining a responsive feel. Adjacent Key Suppression is especially important when keys are packed tightly or when sliders and wheels share overlapping electric fields. Without it, false activations and ambiguous touches increase quickly as industrial design pushes for denser layouts. Integrated support for these behaviors reduces the amount of ad hoc filtering logic that would otherwise accumulate in firmware.

Capacitive touch performance, however, depends strongly on mechanical and PCB implementation. Electrode geometry, overlay thickness, ground placement, routing symmetry, and shielding strategy often dominate the final behavior more than software settings do. Large copper pours near touch channels can distort sensitivity. Long routes can raise parasitics and channel-to-channel imbalance. Front panels with varying dielectric thickness may make one key feel overly sensitive while another becomes marginal. A reliable pattern is to prototype the electrode stackup early, tune sensitivity with the actual enclosure materials, and reserve firmware margin for seasonal drift and conducted noise. The library provides the acquisition framework, but stable field performance comes from treating the touch interface as an electrostatic structure, not just a digital feature.

In appliance and control-panel designs, the combination of analog acquisition and capacitive touch can be exploited in a layered architecture. The ADC handles physical process variables such as temperature, pressure surrogate voltages, or supply health. The comparators guard the operating envelope and issue immediate warnings. The QTouch interface provides the operator layer through sealed controls. Because all three functions reside in the same MCU family, timing coordination becomes easier. A control loop can align sensor sampling away from touch acquisition windows to reduce interference. Fault events from comparators can temporarily suppress nonessential UI processing. Calibration data for analog channels and touch baselines can be stored and managed under one firmware model. That integration is often more valuable than adding isolated “best-in-class” peripherals from separate devices.

For mixed-signal control tasks, this device is most effective when used with clear partitioning rules. Use the ADC for measured values that need scaling, averaging, or logging. Use comparators where latency and autonomy matter. Use capacitive touch only after the analog and layout domains have been budgeted for noise interaction. This prevents a common failure mode in compact embedded products: the assumption that peripherals can all run at once without coupling consequences. In reality, touch scanning, switching loads, PWM edges, and ADC sampling can interfere with each other unless scheduling and grounding are planned together. The ATXMEGA256D3-AU provides enough peripheral flexibility to manage that well, but the design must still be intentional.

Viewed as a platform feature set, the analog functions and capacitive touch support are not isolated checkboxes. They form a coherent embedded interface layer: measure the analog world, detect abnormal conditions quickly, and provide a modern sealed input method. That combination is particularly effective in systems that sit between low-cost consumer design and light industrial control, where integration, response time, and board simplicity usually matter more than extreme precision. In that space, the device offers a practical balance. It is strong where embedded systems usually need to be strong: enough analog depth to avoid external clutter, enough hardware supervision to reduce software burden, and enough touch support to enable clean user interfaces with minimal additional hardware.

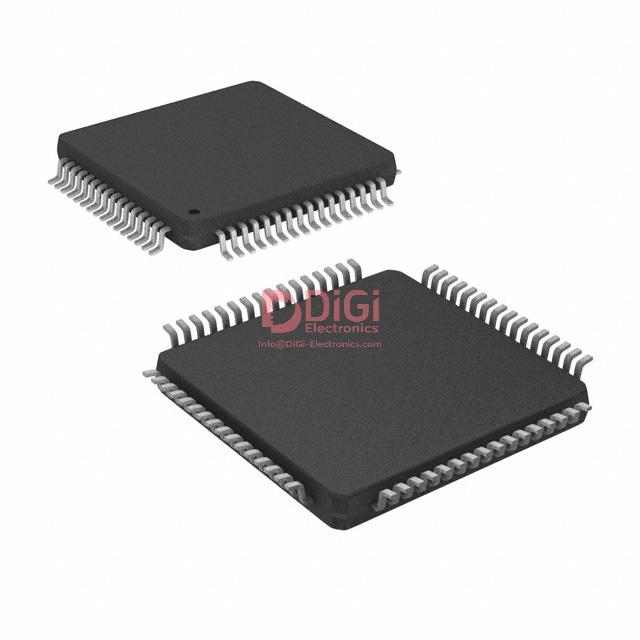

ATXMEGA256D3-AU Package, I/O Resources, and Integration Considerations

ATXMEGA256D3-AU combines a relatively high peripheral density with a package format that remains practical for mainstream PCB assembly. It is housed in a 64-lead TQFP with a 14 mm × 14 mm body, 1.0 mm thickness, and 0.8 mm pitch. That combination matters more than the raw dimensions suggest. A 0.8 mm pitch is still comfortable for standard fabrication and inspection flows, while the 64-pin outline provides enough escape capacity to expose a large share of the device’s internal capability without immediately driving the board into HDI territory. In many designs, this is the point where pin count, manufacturability, and routing effort are still balanced rather than competing.

The package choice also has direct implications for integration margin. Compared with smaller lead-count options, the 64-pin TQFP gives more freedom in power distribution, peripheral assignment, and signal partitioning. That usually translates into fewer compromises during late-stage routing, especially when digital interfaces, analog inputs, and timing-sensitive control signals must coexist. In practice, package selection is often less about fitting the MCU on the board and more about reducing the number of cross-domain tradeoffs the board will be forced to absorb later.

The device exposes 50 programmable I/O pins, which is a meaningful resource level for a controller in this class. That number is large enough to support several concurrent interface layers at once: external sensors, local control signals, communication buses, status indicators, and timing outputs. The value is not only in the count, but in the reduced pressure it places on multiplexing decisions. Once pin resources become tight, architectural simplicity degrades quickly. Debug visibility drops, test points disappear, analog channels get repurposed, and firmware complexity increases because multiple functions must be serialized onto fewer physical lines. With 50 programmable I/Os, ATXMEGA256D3-AU avoids that failure mode in many medium-complexity systems.

This I/O headroom is especially useful in designs that sit between simple embedded nodes and full industrial controllers. Examples include multi-sensor acquisition modules, compact HMI panels, gateway boards that bridge multiple serial standards, and distributed control units that need both local signal handling and upstream communication. In these cases, the MCU can often absorb the full interface set directly. Avoiding external I/O expanders is not just a bill-of-materials improvement. It reduces bus traffic, startup sequencing complexity, interrupt fan-in issues, and board-level failure points. It also improves timing determinism, which becomes relevant when edge capture, PWM generation, or low-latency control loops run alongside communication tasks.

Internally, the device is organized around a well-structured MCU subsystem set: CPU, Flash, EEPROM, SRAM, interrupt controller, event system, timer/counters, analog blocks, watchdog, RTC, oscillator network, and port groups. This architecture is important because the integration quality of an MCU is defined less by peripheral quantity than by how cleanly those peripherals interact. The XMEGA family generally separates functional domains in a way that supports parallel operation with reduced firmware overhead. That internal segmentation tends to age well in real projects, because it leaves room for feature growth without forcing a full software redesign.

The event system deserves particular attention. In many microcontroller designs, peripherals are present but still software-coupled, so timing chains depend on interrupt latency and firmware state. Here, hardware event routing allows peripherals to trigger one another directly. That changes the design style. ADC sampling can be synchronized to timer edges without CPU intervention. Capture operations can be aligned with external activity while minimizing jitter. Control loops can be made more deterministic because the signal path is shortened and timing ownership moves closer to hardware. In systems that must maintain repeatable timing under mixed workloads, this is one of the most valuable architectural features in the device, often more valuable than a higher clock number on paper.

The interrupt controller, timers, RTC, and watchdog complete that picture by supporting layered time management. Fast control timing, slow supervision, fault recovery, and scheduled background activity can be separated rather than merged into one overloaded scheduler. That separation improves software maintainability and fault isolation. A design that uses hardware timing resources intentionally will usually be easier to validate than one that pushes everything into a single interrupt framework. A recurring pattern in robust XMEGA designs is to reserve the CPU for policy and exception handling, while assigning repetitive timing and signal-transfer work to dedicated hardware blocks.

The dedicated PDI programming and debug interface uses two pins, which helps preserve application I/O. This looks like a small detail, but it improves system integration in several ways. First, it reduces the incentive to share debug pins with operational interfaces, which avoids manufacturing and field-service conflicts. Second, it simplifies bring-up because programming access can remain available even in dense pin maps. Third, it supports a cleaner boundary between development infrastructure and deployed application circuitry. On boards where connector space is limited, retaining a minimal yet reliable programming path can make the difference between a recoverable platform and one that becomes difficult to service after first assembly.

At the PCB level, power and analog integration need more attention than the package simplicity might imply. The device family includes separate supply and analog-reference-related pins, and that partitioning should be treated as functional guidance, not just pinout detail. The ADC and analog comparator can only perform as well as the local supply environment allows. If digital return currents are allowed to share narrow or noisy paths with analog reference currents, conversion repeatability will degrade long before the datasheet limits are reached. The issue is rarely absolute failure. More often it appears as unstable LSBs, threshold drift, or channel-to-channel variation that is difficult to attribute during debugging.

A sound layout strategy starts with local decoupling at each supply pin pair, short current loops, and low-impedance return paths. Analog reference routing should be kept quiet and physically protected from fast digital edges, especially clock traces, high-drive GPIOs, and switching regulator nodes. If the design uses the ADC for low-level measurements, it is often worth treating the analog section as a small controlled island even on a two-layer board. That does not require elaborate partitioning, but it does require discipline in current flow. Keeping bursty digital loads away from the analog return path often yields more benefit than adding filtering after the fact.

Clocking and oscillator configuration also affect analog and timing quality. Internal oscillators are convenient and often sufficient, but the designer should decide early whether the application values absolute frequency accuracy, low jitter, low-power operation, or BOM reduction most. Those goals do not always align. For communication-heavy systems, clock tolerance may dominate. For sampled measurement systems, edge stability and noise coupling may matter more than nominal frequency error. The right choice usually comes from identifying which subsystem will fail first when timing margin shrinks.

Port-group organization influences firmware and hardware partitioning in subtle but important ways. When related signals are assigned to the same port where possible, register-level access becomes more efficient and software paths become easier to reason about. This matters in high-update-rate applications such as matrix scanning, parallel control outputs, and coordinated edge generation. It also simplifies diagnostics, since grouped signals can often be sampled or updated atomically. During schematic capture, a pin assignment strategy that follows functional clustering rather than only routing convenience usually pays back during firmware development and test.

In mixed-interface products, a practical approach is to assign pins in three passes. First, lock down fixed-function and timing-critical peripherals. Second, isolate analog-capable pins and reference-related connections so they are not compromised by later routing pressure. Third, distribute general GPIO based on port coherence and board topology. This method reduces the chance that a late mechanical or connector change will force rework in the analog or timing architecture. It is a small planning step, but it consistently lowers integration risk.

ATXMEGA256D3-AU is therefore best viewed not merely as a 256 KB MCU in a 64-pin package, but as a device whose package, I/O depth, and internal hardware coupling allow a relatively clean system partition. It fits designs that need more than basic embedded control but do not yet justify external interface logic or a larger processor platform. Its strongest position is in systems where deterministic peripheral interaction, moderate I/O density, and careful mixed-signal integration matter more than headline compute performance. When used that way, the device tends to deliver its value through reduced architectural friction rather than through any single standalone feature.

ATXMEGA256D3-AU Typical Application Scenarios and Engineering Selection Considerations

ATXMEGA256D3-AU is a strong fit for embedded designs that need one MCU to aggregate communications, time-critical control, mixed-signal sensing, and a moderately large firmware image without moving into a more complex processor class. Its value is not defined by any single peripheral. It comes from how the device combines memory capacity, peripheral concurrency, low-power behavior, and deterministic internal routing into a balanced control platform. In practice, this makes it especially effective in systems where board space, BOM discipline, and firmware cohesion matter as much as raw compute performance.

A useful way to evaluate this device is to start from its architectural character rather than from the flash size alone. The ATXMEGA256D3-AU is well suited to designs where multiple peripheral domains must operate at the same time: serial communication must continue while timers generate control waveforms, ADC channels sample physical inputs, EEPROM stores configuration or service data, and the CPU remains available for application logic. That operating model is common in field nodes, appliance controllers, energy endpoints, and distributed automation modules. The device is often most compelling when replacing a design that would otherwise require either a larger MCU family or a secondary support controller for housekeeping tasks.

In industrial control nodes, the main advantage is peripheral density with relatively deterministic behavior. Multiple serial interfaces allow one controller to bridge local sensors, upstream supervisory communication, and service or diagnostic ports without excessive multiplexing. Timers, comparators, and ADC resources support actuator feedback loops, threshold detection, and analog acquisition in the same device. The event system is particularly important here because it allows peripheral-to-peripheral interaction without routing every timing decision through interrupt service routines. That reduces latency variation and lowers CPU load. In real deployments, this matters less for average throughput than for worst-case timing. A design may appear stable on the bench when CPU utilization is moderate, then show jitter once communication bursts, fault logging, and control updates collide. Offloading edge-triggered timing paths into the event system usually improves robustness more than simply increasing clock frequency.

For actuator modules and sensor concentrators, this architecture enables a cleaner partitioning of work. Fast signal paths can remain inside hardware. Slower decision logic can stay in firmware. This separation tends to simplify validation because signal capture, timer gating, compare actions, and alarm thresholds can be reasoned about as hardware timing chains instead of software scheduling artifacts. That becomes valuable when debugging intermittent field issues, where the root cause is often not missing functionality but timing interaction under combined load.

In climate control and HVAC equipment, the ATXMEGA256D3-AU maps well to systems that combine analog sensing, control outputs, and communication with supervisory electronics. Temperature, pressure, current, airflow, and position signals can be acquired through ADC channels and comparators, while timers generate PWM or scheduled switching patterns for fans, dampers, valves, or compressor-related stages. The device is not intended for advanced digital control algorithms that demand heavy floating-point throughput, but it is highly capable for practical closed-loop and state-based control where deterministic sampling and stable actuation matter more than algorithmic complexity. One of the more useful patterns in this class of system is synchronizing ADC activity with timer events so that sampling occurs at a consistent phase relative to PWM edges or switching intervals. That often improves measurement repeatability without adding external circuitry.

Low-power modes also align well with HVAC operating profiles, where much of the product lifetime is spent in monitoring, standby, or low-duty supervisory behavior rather than continuous peak activity. The benefit is not only lower average power. Reduced self-heating can also improve measurement stability in tightly packed sensing assemblies. In thermally sensitive designs, that secondary effect can be more important than the current number itself.

In utility metering and battery-powered equipment, the device’s RTC, watchdog, brown-out protection, EEPROM, and sleep capabilities form a coherent low-energy control base. The usual pattern is to keep the MCU asleep for most of the time, wake on RTC intervals or external events, perform acquisition and local validation, update counters or status records, and communicate only when necessary. EEPROM is particularly useful for retaining calibration factors, consumption accumulators, fault history, and manufacturing data without forcing a separate nonvolatile memory device into the design. That said, practical selection should account for write endurance strategy early in the firmware architecture. Logging too frequently into the same EEPROM region can shorten useful life long before the rest of the system reaches wear limits. A ring-buffer or leveled storage scheme is often the difference between a robust field product and one that degrades after a few years of normal use.

Brown-out protection and watchdog support also deserve more weight than they often receive in early selection phases. In metering, remote sensing, and battery-powered nodes, many failures are caused not by absolute power loss but by slow rails, supply dips, connector bounce, or recovery from unstable energy sources. A controller with good supervision primitives can contain these conditions more gracefully. The engineering advantage is not simply fault detection. It is the ability to define startup, recovery, and data preservation behavior explicitly, which reduces ambiguous failure modes in the field.

In building control systems and white goods, ATXMEGA256D3-AU offers a practical balance between user-interface handling, sensor processing, relay or motor coordination, and multi-link communication. These applications tend to look simple at block level and become complicated during integration. A front panel, several sensors, one or two motor channels, safety interlocks, field communication, manufacturing diagnostics, and service features can quickly consume MCU resources. The available memory and I/O help absorb that complexity without pushing the design into immediate scarcity. QTouch support is also relevant here because capacitive interfaces are often chosen to improve environmental sealing, simplify industrial design, or remove wear-prone mechanical buttons. The benefit is strongest when the same MCU can handle both touch input and the rest of the appliance logic without introducing user-interface lag during communication or control events.

The key engineering question is not whether the device can implement these functions individually. It is whether it can run them concurrently with sufficient margin. That is where selection discipline matters. Four criteria are especially important.

Firmware size and data buffering needs should be evaluated from the complete product lifecycle perspective, not only from the first release. A design that initially fits comfortably in flash can become constrained once production diagnostics, field-update hooks, protocol expansion, regulatory logging, and service modes are added. The same applies to RAM. Communication stacks, sensor filtering, event queues, and temporary formatting buffers tend to grow in parallel. It is common for early prototypes to underestimate RAM pressure because they exercise functions sequentially, while production firmware often runs them concurrently. Selecting the 256 KB variant makes sense when future firmware layering is likely, not only when the current code image is already large.

The need for multiple concurrent serial interfaces is another decisive factor. If the product must maintain separate channels for a host link, a sensor bus, a debug or service port, and perhaps a wireless module, interface count becomes a first-order design parameter. External multiplexing or bit-banged workarounds usually look acceptable in schematic review and become expensive in firmware maintenance, latency management, and fault diagnosis. A microcontroller with enough native communication resources often reduces system complexity more than a nominally faster device with fewer usable interfaces.

The event system deserves explicit consideration because it changes how the design can be partitioned. If the application depends on deterministic coupling between input capture, timer actions, ADC triggers, or comparator responses, the event system is not just a convenience feature. It is an architectural advantage. In many embedded products, the performance bottleneck is not instruction throughput. It is interrupt density and timing nondeterminism. A controller that can move repetitive, time-aligned interactions into hardware often delivers better real behavior than one with higher headline processing capability but weaker peripheral orchestration.

Supply voltage and clock-speed operating point must also be checked as a system-level constraint, not as a table lookup exercise. Industrial and appliance designs often operate across supply variation, startup transients, and thermal drift. The chosen clock target should leave margin for these conditions, especially when communication timing, ADC performance, and low-power entry or exit behavior all interact. Designs that run close to operating limits can pass functional tests yet become fragile across temperature corners or noisy supply environments. Conservative operating points usually improve field resilience more than incremental clock gains improve application performance.

Cost optimization within the XMEGA family should be approached carefully. If the design truly needs the D3 feature mix but uses only a fraction of the 256 KB flash and associated resources, a smaller family member may improve cost efficiency. This is most sensible when the firmware scope is mature and protocol growth is unlikely. On the other hand, if the architecture is already close to resource limits during early development, stepping down in capacity often creates hidden cost later through software compression, feature compromises, or redesign pressure. Choosing a larger variant can be the lower-risk decision when roadmap expansion, localization, data logging, or field update support is expected. The apparent silicon cost difference is often smaller than the engineering cost of operating with no headroom.

One practical insight is that this MCU is at its best in designs that exploit its peripherals intentionally rather than treating it as a generic 8-bit controller with extra memory. If the implementation relies mainly on CPU-driven polling and heavy interrupt traffic, much of the device’s architectural value is lost. If, instead, the firmware is structured around hardware-triggered acquisition, timer-synchronous control, selective wake-up, and clear separation between fast hardware paths and slower software policy, the part becomes markedly more capable than its class might suggest from core performance alone.

For that reason, the strongest selection case for ATXMEGA256D3-AU is not simply “needs 256 KB flash.” It is “needs a single MCU that can coordinate several peripheral domains with predictable timing, moderate code growth room, and efficient low-power behavior.” When that is the real requirement, the device remains a highly practical choice for controller nodes, sensing hubs, appliance logic boards, metering endpoints, and similar embedded systems where integration quality matters more than peak compute metrics.

Potential Equivalent/Replacement Models for ATXMEGA256D3-AU

Potential replacement paths for ATXMEGA256D3-AU are best evaluated inside the AVR XMEGA D3 family first, because this preserves the underlying execution model, peripheral topology, and most firmware assumptions. In practice, the closest candidates are the memory-density variants built on the same architectural base:

ATxmega192D3-AU

ATxmega128D3-AU

ATxmega64D3-AU

ATxmega32D3-AU

ATxmega384D3-AU

These devices are not merely smaller or larger memory options. They represent the lowest-friction migration space when the original design already depends on XMEGA D3 behavior such as its event system, DMA-style data movement model, peripheral register organization, clocking structure, and interrupt philosophy. That family continuity is usually more valuable than the raw memory number, because most redesign effort is rarely caused by flash size alone. The real cost tends to come from changes in startup behavior, peripheral timing, pin mapping, toolchain handling, and edge-case firmware interactions.

The ATxmega192D3-AU is typically the first downward replacement to examine when the existing design is only moderately above its actual firmware and buffer needs. It reduces flash from 256 KB to 192 KB while keeping the same general device class, and it usually fits projects where application code has grown conservatively rather than structurally. This distinction matters. If code size is inflated by duplicated drivers, debug instrumentation, overly defensive abstraction layers, or static lookup tables, a move to 192 KB can often be achieved with controlled cleanup. If the firmware already includes multiple communication stacks, field upgrade logic, or substantial protocol framing buffers, the reduction may appear safe on paper but fail later when maintenance releases add features. A practical screening method is to evaluate not just current binary size, but the delta over the last several revisions. Growth trend is often a better predictor than the present snapshot.

The ATxmega128D3-AU and ATxmega64D3-AU are more suitable when the product line is being segmented and the original ATXMEGA256D3-AU platform is serving as a common hardware baseline for several less demanding variants. These devices can work well in control-oriented nodes, dedicated sensor concentrators, compact interface modules, or derivative designs where the software image is intentionally constrained. The key question is whether the original application was memory-heavy because of true functional need or because the platform was standardized around a larger device for purchasing or development convenience. In many embedded programs, a single large device is initially selected to shorten bring-up time, then later optimized for cost. That strategy is valid, but migration downward should include a full audit of SRAM pressure, not just flash occupancy. SRAM exhaustion usually appears earlier than expected once communication buffers, RTOS objects, stack depth, temporary parsing space, and interrupt-driven data paths start interacting under real workload conditions.

The ATxmega32D3-AU is technically within the same replacement family, but it should be treated as a redesign-level substitution rather than a casual equivalent. A drop from 256 KB to 32 KB flash changes software architecture constraints so substantially that the replacement only makes sense if the original device was heavily over-selected or if the target application is a much narrower derivative. For a compact state-machine controller or simple bridge function, it may be viable. For any design carrying bootloader support, diagnostics, protocol flexibility, field calibration logic, or future update margin, it becomes difficult very quickly. Experience shows that aggressive downscaling often succeeds in laboratory builds but fails during product lifecycle expansion, where even small additions such as extended telemetry, more robust fault logging, or new communication commands consume the margin that seemed abundant during first evaluation.

The ATxmega384D3-AU is the natural upward migration target when ATXMEGA256D3-AU begins to constrain system growth. The extra flash and SRAM are valuable not only for larger application code, but for reducing architectural stress. Larger memory allows cleaner separation between application layers, more maintainable protocol handling, safer buffering strategies, and less pressure to compress data structures prematurely. This is especially relevant when the design starts absorbing added protocol stacks, richer user interface behavior, remote update capability, data logging, or more sophisticated signal processing. In these situations, moving upward within the same family is often better than forcing optimization beyond a reasonable point. Excessive code squeezing can increase complexity, reduce testability, and create timing side effects that cost more engineering effort than the component savings justify.

Memory density, however, should never be the only filter. A replacement decision should be grounded in three layers: architectural compatibility, board-level compatibility, and lifecycle suitability.

At the architectural layer, the advantage of staying inside XMEGA D3 is that core behavior and peripheral usage patterns remain broadly aligned. This preserves driver structure, interrupt models, register-level software assumptions, and much of the validation strategy. Even so, the migration should still verify device-specific limits such as peripheral instance count, available channels, calibration data layout, boot section options, and signature-row handling. Small family-level differences can surface in production only after corner-case firmware paths are exercised.

At the board level, package suffixes and package variants matter as much as functional equivalence. The AU designation indicates a specific package style, and alternatives with other suffixes such as MH or MN may require a different land pattern, assembly profile, thermal expectation, or pinout review. A device may be logically equivalent at the silicon family level while still being an impractical replacement for an existing PCB. Engineers usually save the most time by checking package code, pin assignment, supply decoupling needs, oscillator implementation, and programming/debug interface accessibility before reviewing firmware impact. If any of these diverge, the replacement stops being a simple BOM substitution and becomes a board revision exercise.

At the lifecycle layer, operating temperature grade, availability stability, qualification status, and long-term sourcing risk should be assessed early. It is common for a nominally compatible device to look attractive during technical comparison but become less suitable once environmental qualification or procurement continuity is considered. For industrial designs, temperature range is not just a datasheet checkbox. It affects oscillator margin, analog drift behavior, startup robustness, and validation scope. If the original design was qualified across a wide thermal envelope, replacing it with a narrower-grade variant can trigger hidden rework in system verification.

A useful way to frame the replacement options is by migration intent rather than by part number alone.

If the goal is cost reduction with minimal platform disturbance, ATxmega192D3-AU is usually the first candidate worth modeling.

If the goal is product-line down-binning for simpler derivatives, ATxmega128D3-AU and ATxmega64D3-AU are stronger fits, provided firmware is intentionally partitioned and not merely trimmed.

If the goal is aggressive simplification for a narrowly scoped function, ATxmega32D3-AU may be considered, but only after treating the software as a new resource-constrained design.

If the goal is feature growth or risk reduction against future firmware expansion, ATxmega384D3-AU is the most straightforward upward path.

The most reliable replacement strategy inside this family is to measure actual resource behavior under representative load, then choose the smallest device that still leaves credible engineering margin. That margin should cover stack growth, communication bursts, bootloader coexistence, diagnostics, and future maintenance changes. Designs that select a replacement based only on current compiled image size often underestimate how quickly embedded firmware expands once field feedback starts shaping the product. In that sense, the best equivalent is not the part that barely fits today, but the one that preserves family-level compatibility while keeping the design stable through the next revision cycle.

For ATXMEGA256D3-AU specifically, the XMEGA D3 memory variants listed above remain the most natural replacement set because they preserve the broader device philosophy and minimize migration risk. Among them, ATxmega192D3-AU is the closest downward adjustment, while ATxmega384D3-AU is the clearest upward extension. The others are appropriate when the design objective is not simple substitution, but deliberate platform resizing around a shared XMEGA D3 foundation.

ATXMEGA256D3-AU Development and Debug Ecosystem

ATXMEGA256D3-AU is not just a feature-rich MCU; its real engineering value comes from the fact that the device sits inside a mature and usable development ecosystem. For embedded work, silicon capability alone is rarely the limiting factor. Project velocity, defect isolation, production readiness, and maintainability depend far more on how efficiently firmware can be built, programmed, observed, and updated across the product lifecycle. In that respect, ATXMEGA256D3-AU is strengthened by the broader AVR XMEGA toolchain and documentation base.

At the interface level, the device supports PDI, a two-pin Program and Debug Interface designed to reduce physical overhead while preserving full development access. This is a practical design choice. On dense boards, every dedicated debug pin competes with application I/O, routing space, test access, and connector cost. PDI keeps that burden low without forcing teams into reduced debug visibility. During early board bring-up, this matters immediately: firmware can be loaded with minimal hardware setup, and debug access remains available even when pin budgets are tight or package escape is constrained. For compact designs or cost-sensitive products, that small interface footprint often has an outsized system-level benefit.

The mechanism is straightforward but strategically important. A fast programming and debug path shortens iteration loops. That improves more than developer convenience. It changes how aggressively teams can test initialization sequences, peripheral configuration, clock switching behavior, interrupt timing, and fault recovery paths. When firmware can be reloaded quickly and consistently, low-level experimentation becomes less expensive, which usually leads to better hardware-software convergence in the first stages of platform stabilization. In practice, shorter flash-debug cycles often reveal power sequencing issues, peripheral ownership conflicts, and startup race conditions much earlier than a less capable interface would.

PDI also has implications beyond lab debugging. It helps shape manufacturing and service strategy. The same interface used during development can often be carried into production programming fixtures and, where appropriate, into maintenance workflows. That continuity reduces process fragmentation. A board that is easy to flash on the bench is usually easier to integrate into automated programming stations, boundary test setups, or controlled field recovery procedures. This is especially useful when firmware images, calibration data, configuration bytes, or device-specific provisioning steps must be handled in a repeatable sequence. Keeping development and production access aligned tends to reduce tooling drift and lowers the chance of process-specific failures appearing late in the release cycle.

The broader XMEGA software support stack is equally important. The device is backed by a complete tool environment including C compilers, macro assemblers, debugger/simulators, programmers, and evaluation kits. That combination supports multiple engineering styles. Teams that prefer direct register-level control can work close to the hardware. Teams that need faster feature integration can rely on established examples, libraries, and reference implementations. The key advantage is not merely tool availability, but tool completeness. A mature MCU family becomes easier to adopt when the path from prototype code to production firmware does not require building every workflow from scratch.

Compiler and debugger quality are often underestimated when evaluating MCU platforms. In reality, they define the practical ceiling of firmware complexity that a team can manage safely. As projects grow, visibility into optimized code paths, interrupt interactions, memory layout, and peripheral state transitions becomes essential. XMEGA support in established debug and simulation tools helps close that gap. Even when simulation is not cycle-perfect for every use case, it remains useful for validating control flow, confirming startup assumptions, and reproducing classes of bugs before hardware is fully available. That capability becomes especially valuable when hardware access is scarce or when multiple firmware branches must be evaluated in parallel.

The documentation structure around ATXMEGA256D3-AU adds another layer of engineering value. The device-level datasheet defines electrical, memory, and peripheral capabilities, but effective use of the MCU usually depends on combining that with the XMEGA D manual and relevant application notes. This layered documentation model is more powerful than it may first appear. It lets teams move from high-level device selection to peripheral-level implementation detail without relying on guesswork. The datasheet identifies what exists. The family manual explains how subsystems behave. Application notes show how those subsystems are typically combined in working designs. That progression supports a more deterministic development process.

This is particularly relevant for a peripheral-dense MCU such as ATXMEGA256D3-AU. Devices in this class often expose substantial configurability: clock trees, DMA interactions, event routing, timer modes, ADC triggering, communication interfaces, and low-power behavior all create flexibility, but also integration risk. A strong ecosystem reduces the cost of using that flexibility well. Example implementations and family-level guidance help avoid common mistakes such as overcomplicated interrupt structures, inefficient polling architectures, unsafe initialization ordering, or poor separation between peripheral drivers and application logic. The difference between a successful XMEGA design and a fragile one often lies less in register knowledge and more in whether the software structure respects the architecture’s strengths.

One of those strengths is that XMEGA devices reward system-oriented firmware design. Engineers who treat peripherals as isolated blocks tend to leave performance and determinism on the table. Engineers who lean into family-level capabilities such as coordinated peripheral triggering, reduced CPU intervention, and cleaner timing partitioning usually get better real-time behavior and lower software overhead. The ecosystem around ATXMEGA256D3-AU makes that transition easier. It enables movement from simple bare-metal experiments toward deliberate architectures where drivers, startup code, board support layers, and application logic are separated cleanly enough to remain maintainable over time.

From board bring-up through sustained product support, the development and debug environment influences failure modes in subtle ways. Early on, fast and reliable programming access helps validate clocks, reset behavior, supply stability, and basic peripheral enumeration. In the middle of the project, debugger support and documentation quality help isolate intermittent defects, especially around interrupts, communication framing, and timing-dependent analog behavior. Later, during production transfer, the same ecosystem helps standardize image generation, programming steps, revision tracking, and recovery paths. For long-lived products, this continuity becomes a form of technical risk reduction. Teams are less exposed to ad hoc tooling, undocumented programmer scripts, or one-off debug methods that only work in the original lab setup.

A practical pattern often emerges in successful deployments of this class of MCU. Initial firmware starts as direct register configuration for clocks, GPIO, UART, and timers. Once hardware confidence improves, development shifts toward reusable initialization layers and peripheral abstractions grounded in the family manuals and application notes. At that stage, the availability of stable programming tools and trustworthy debug access becomes critical, because defects become less about obvious misconfiguration and more about interaction effects between modules. The ecosystem around ATXMEGA256D3-AU supports that transition well. It allows low-level control without trapping the project in low-level methods forever.

The strongest argument for adoption is therefore not that ATXMEGA256D3-AU has PDI or that XMEGA offers compilers and debuggers. Those are necessary, but not sufficient, facts. The more important point is that the device can participate in a disciplined engineering flow. It supports efficient flash-and-test cycles, structured debugging, staged documentation lookup, and production-aware programming strategy. That makes the MCU more usable in real projects than its peripheral list alone would suggest. For teams evaluating whether a capable MCU can scale from experimentation to robust deployment, that ecosystem maturity is often the deciding factor.

Conclusion

ATXMEGA256D3-AU is one of the more balanced devices in the AVR XMEGA D3 family because its value comes from system composition rather than from any isolated specification. It combines 256 KB of flash, 4 KB of EEPROM, 16 KB of SRAM, up to 50 programmable I/O lines, multiple serial interfaces, substantial timer and counter resources, a 16-channel 12-bit ADC, analog comparators, an RTC, an event system, and low-power operating modes in a 64-pin TQFP package. That combination makes it particularly effective in designs that must sense, decide, communicate, and actuate within a single controller without forcing immediate migration to a larger 32-bit platform.

From an architecture perspective, the device sits in an important middle ground. It is still an 8-bit AVR, so its programming model remains familiar and efficient for control-oriented firmware, but it is clearly more capable than entry-level AVR parts. The XMEGA family improves throughput not only through clock speed and instruction efficiency, but also through peripheral autonomy. In many practical designs, raw CPU width matters less than how often the core can stay out of the data path. That is where this device becomes more interesting. Its event system, DMA-style peripheral interaction patterns within the XMEGA architecture, timer synchronization options, and interrupt structure allow real-time behavior to be organized with much less firmware overhead than a conventional polling-heavy design.

The memory configuration is one of its strongest practical advantages. With 256 KB of flash, the device can hold layered firmware rather than a narrowly optimized control loop. It can support a communication stack, calibration routines, diagnostics, fault logging, a user-interface layer, and still leave room for future revisions. The 16 KB SRAM is not large by modern MCU standards, but it is usually sufficient for systems built around deterministic control and bounded buffering rather than dynamic allocation. In practice, this memory size works well when the firmware is partitioned carefully: protocol buffers are sized explicitly, sensor pipelines are kept shallow, and lookup-heavy processing is preferred over RAM-intensive intermediate storage. The 4 KB EEPROM is also more useful than it first appears. It gives enough space for configuration persistence, field calibration constants, serial numbers, maintenance counters, and small audit records without consuming flash rewrite cycles.

The peripheral set is where the device starts to feel like a complete embedded control platform. The serial connectivity supports interface-rich products such as industrial nodes, sensor gateways, smart appliances, and instrumentation modules that need to speak to multiple external devices at the same time. In many deployments, this means one interface can be reserved for service access, another for a field bus or host controller, and another for local peripherals such as converters, displays, or secondary controllers. That separation reduces software contention and simplifies timing analysis. It also lowers the need for software bit-banging, which is often the hidden source of timing instability in lower-end designs.

Its timer and counter resources are especially valuable for deterministic systems. Timers are not only for periodic interrupts; they are the backbone of edge capture, waveform generation, pulse measurement, scheduling, dead-time control, and precision triggering. In motor-adjacent control, power conversion support logic, or metering front ends, having multiple capable timers allows one subsystem to generate control outputs while another timestamps asynchronous events and a third provides system scheduling. That separation is often what determines whether the firmware remains maintainable after feature expansion. A design that looks comfortable during initial prototyping can become brittle later if timing functions are all forced into one overloaded timer block. This device avoids much of that compression.

The mixed-signal capability is another major reason to consider it. The 16-channel 12-bit ADC and analog comparators allow direct integration with sensor-heavy designs. For metering, environmental sensing, appliance feedback loops, and general instrumentation, this reduces external component count and keeps latency low. The ADC is not equivalent to a dedicated precision measurement front end, but it is well matched to embedded acquisition tasks where the objective is repeatable control-grade data rather than laboratory-grade absolute accuracy. In practice, the best results usually come from disciplined board-level treatment: separating noisy digital return paths, controlling reference stability, managing source impedance, and aligning sampling instants with quiet periods in PWM activity. When these fundamentals are respected, the converter performs far more predictably than a superficial reading of the datasheet resolution alone might suggest.

The analog comparators add another layer of utility that is easy to underestimate. Comparators are often treated as secondary features, yet they can solve timing-critical threshold detection problems with much lower latency than an ADC-plus-software approach. They are useful for zero-cross detection, fault threshold response, current-limit enforcement, pulse shaping, and wake-up conditions in low-power systems. In designs where protection timing matters, hardware thresholding usually produces behavior that is both faster and easier to validate than firmware-mediated detection loops.

One of the defining features of the XMEGA line is the event system, and it is central to why this device remains technically attractive. The event system enables peripherals to interact directly without routing every transition through the CPU. An ADC conversion can be triggered by a timer. A timer can react to a comparator edge. Capture logic can timestamp external activity with minimal interrupt latency influence. This creates a hardware-level signal flow that behaves more like an engineered pipeline than a sequence of software reactions. For control and measurement systems, that distinction matters. It reduces jitter, improves repeatability, and frees the core for supervisory work. In real firmware, this often marks the difference between a design that merely functions and one that remains stable under communication bursts, background diagnostics, and fault handling.

The RTC and low-power modes extend the device into duty-cycled and energy-aware applications. Battery-backed sensing nodes, metering products, and intermittently active controllers often need to wake on schedule, sample quickly, store results, communicate briefly, and return to sleep. This device supports that pattern well. Low-power capability is most effective when treated as a system behavior rather than a checkbox feature. Leakage through external circuitry, clock domain choices, unnecessary pull states, and peripheral wake configuration often dominate the final power figure. In that context, the MCU provides a solid foundation, but the eventual result depends heavily on how aggressively the firmware disables unused blocks and how carefully the board avoids parasitic consumption paths.

Package and pin count also deserve attention because they directly affect design flexibility. The 64-pin TQFP gives enough I/O headroom for mixed-function products that combine communications, sensing, local control, and serviceability. Fifty usable I/O lines are often enough to avoid immediate recourse to external expanders, which simplifies software and improves fault containment. More importantly, the pin budget gives room for cleaner signal partitioning. That has practical consequences in EMC-sensitive designs. It is much easier to isolate noisy switching outputs from analog inputs, preserve debug access, and maintain expansion options when the pin map is not already saturated in the first revision.

For application fit, ATXMEGA256D3-AU is strongest in systems that need deterministic control and integrated mixed-signal support without the complexity overhead of a larger software ecosystem. Industrial control nodes, smart sensors, building automation modules, appliance controllers, energy metering subsystems, compact HMI-backed controllers, and multi-protocol embedded instruments are all plausible matches. It is particularly effective where firmware complexity is moderate to high but still bounded: enough code to require structured memory planning and modular drivers, yet not so much middleware that an RTOS-heavy 32-bit platform becomes mandatory.

There is also a strategic design argument in its favor. Devices like this tend to perform well in products where long-term predictability matters more than architectural fashion. The AVR toolchain, development model, and peripheral behavior are mature. Debugging tends to be straightforward. Bring-up risk is usually lower than in more software-heavy platforms, especially when the application depends on tightly controlled peripheral timing rather than extensive protocol stacks or graphics frameworks. In many engineering schedules, reduced integration risk is more valuable than theoretical compute headroom that remains unused.

At the same time, the device should be chosen with clear boundaries in mind. It is not the right answer for computation-heavy digital signal processing, large encrypted communication frameworks, complex graphical interfaces, or memory-intensive network stacks. Its strength is not abstraction-rich software scale. Its strength is efficient embedded control with strong on-chip peripheral coverage. Designs that respect that boundary tend to extract excellent value from it. Designs that ignore it often end up fighting RAM limits, code-space pressure from layered libraries, or throughput ceilings caused by excessive software handling of data streams that should have remained in hardware.

A useful way to evaluate ATXMEGA256D3-AU is to ask whether the application benefits more from integrated deterministic peripherals than from raw core width. If the system depends on coordinated timers, direct sensor acquisition, threshold detection, multiple serial channels, scheduled low-power behavior, and reliable event-driven interaction, this MCU is unusually well composed for the task. Its appeal lies in architectural balance: enough memory for substantial firmware, enough analog and timing resources for serious control work, enough interface capacity for connected systems, and enough hardware coordination to keep execution predictable. For embedded designs that sit between simple 8-bit control and full 32-bit software platforms, that balance is often exactly the point.
