ATSAMC21N18A-ANT

ATSAMC21N18A-ANT product overview and positioning within the Microchip SAM C21 family

ATSAMC21N18A-ANT sits in the upper integration tier of Microchip’s SAM C21 functional safety MCU family. Its role is clear: deliver a 5 V-capable, mixed-signal, network-ready controller for embedded systems that must remain cost-sensitive while still meeting the electrical, thermal, and interface demands of industrial and automotive-adjacent designs. It is built on a 32-bit Arm Cortex-M0+ core running at up to 48 MHz and combines that core with 256 KB Flash, 32 KB SRAM, and a 100-pin TQFP package exposing up to 84 programmable I/O pins. That combination places it in a useful middle ground. It is materially more capable than a basic low-end control MCU, yet it avoids the complexity, power profile, and software overhead often associated with moving to higher-performance core classes.

The strongest positioning feature of ATSAMC21N18A-ANT is not the CPU itself. A Cortex-M0+ at 48 MHz is well understood and intentionally modest. The real value comes from system-level integration around that core. Microchip uses the SAM C21 family to solve a recurring design problem: many edge controllers need deterministic real-time behavior, robust field connectivity, analog acquisition, and direct 5 V interfacing in a single device. In practice, that often matters more than raw computational throughput. In distributed control nodes, actuator interfaces, sensor concentrators, and body electronics, the bottleneck is frequently not instruction execution but peripheral coordination, signal integrity, network timing, and fault handling. This device is engineered around that reality.

Within the broader SAM C20/C21 family, ATSAMC21N18A-ANT belongs specifically to the SAM C21 branch, and that distinction is important at the architectural level. The SAM C21 devices carry the family’s more capable mixed-signal and communication feature set, including CAN, a 16-bit sigma-delta ADC, DAC capability, and an integrated temperature sensor. These are not minor peripheral variations. They materially shift the type of systems that can be implemented without companion ICs. The presence of CAN alone moves the device from general embedded control into domains where robust in-vehicle or industrial field communication is mandatory. The sigma-delta ADC and DAC extend its value in systems that bridge control logic with physical measurement and analog actuation. This makes the part especially attractive where PCB area, BOM count, and certification burden must be tightly controlled.

The “N” device grouping also deserves attention because it affects practical design flexibility. Family documentation indicates that some functions, including hardware interrupt debouncing and certain timer or frequency-meter options, are only available on SAM C20/C21 N devices. On paper, such features can look secondary. In deployed systems, they often remove exactly the kind of small instability that consumes disproportionate debug effort. Mechanical inputs, noisy switching environments, pulse-based sensing, and low-cost external transducers tend to create edge conditions that are manageable in software but handled more cleanly in hardware. Integrating those functions into the MCU reduces ISR load, simplifies firmware state handling, and improves timing consistency under worst-case event density.

Electrically, the 2.7 V to 5.5 V operating range is one of the most commercially significant aspects of this device. Many modern MCUs are optimized for 3.3 V ecosystems and require level shifting or protection circuitry when attached to legacy industrial sensors, transceivers, switches, or actuator-side logic. A 5 V-tolerant or 5 V-native controller changes the board design equation immediately. It reduces interface glue logic, eases EMC-conscious routing, and often simplifies power-tree partitioning. In mixed-voltage systems, every removed translator stage is not just a cost reduction; it is one less latency source, one less fault point, and one less path for noise injection. In dense control boards, that directly improves design margin.

Thermal and qualification positioning further reinforce the intended application domain. The SAM C20/C21 family is specified for operation from -40°C to +125°C at up to 48 MHz, and the family carries AEC-Q100 Grade 1 qualification. That combination signals more than environmental ruggedness. It indicates that the device is intended for systems where temperature drift, startup behavior, long-duration thermal stress, and field reliability must be treated as primary design constraints rather than afterthoughts. In practical terms, this makes the part relevant for modules placed near power electronics, in sealed enclosures, or in zones with limited airflow and variable ambient loading. It also supports platform reuse across industrial and transportation-adjacent products, which can be a major advantage when one hardware architecture must serve multiple deployment classes.

From a memory and package perspective, 256 KB Flash and 32 KB SRAM in a 100-pin TQFP provide a balanced envelope for communication-heavy real-time firmware. This is enough space for a layered application that includes a bootloader, protocol stack, safety diagnostics, calibration tables, and a moderate control application, provided the software is structured with discipline. It is not excessive memory, and that is worth stating directly. The part rewards efficient architecture. Teams that rely on large middleware stacks, dynamic allocation, or abstraction-heavy frameworks may find the envelope tighter than expected. By contrast, designs using event-driven scheduling, DMA-aware peripheral servicing, compact protocol handling, and static memory planning generally fit well and gain better determinism. In this class of MCU, disciplined firmware architecture is not merely an optimization strategy; it is part of the product fit.

The I/O count is another reason this device is attractive for centralizing edge functions. Up to 84 programmable I/O pins in the 100-pin package create room for direct attachment to sensors, switches, status outputs, communication channels, and timing resources without quickly exhausting pin budget. This matters in designs that would otherwise split functions across multiple controllers or add expanders. The more integration is pulled into a single MCU, the more coherent timing behavior becomes, especially when input capture, PWM generation, ADC triggering, and bus communication need to be correlated. That is one of the quiet advantages of this device class: even with a modest core, tightly coupled peripherals and sufficient pin availability often outperform a nominally faster but more fragmented architecture.

The integrated CAN capability is central to the part’s positioning in modern control nodes. CAN remains one of the most resilient and deployment-proven communication layers for distributed embedded systems, especially where noise tolerance, deterministic arbitration, and field diagnostics are required. By embedding CAN in the MCU, ATSAMC21N18A-ANT supports designs such as body control modules, smart actuators, local sensor hubs, gateway subnodes, and industrial interface boards without external controller overhead. That integration improves timing visibility inside firmware because message handling, error states, and application response can be coordinated around a single processing and interrupt model. It also simplifies safety-oriented designs, where internal visibility of communication faults is easier to manage than in split-controller topologies.

The analog subsystem meaningfully expands use cases beyond simple digital control. The presence of the 16-bit sigma-delta ADC is particularly relevant where low-bandwidth but higher-resolution measurement is needed, such as current sensing, bridge sensors, temperature measurement, pressure channels, or slow process variables. Sigma-delta conversion is not a universal replacement for SAR ADCs; it trades conversion behavior and bandwidth characteristics for resolution and filtering advantages. Used correctly, it allows a controller in this class to absorb measurement tasks that might otherwise require an external analog front-end plus converter. The DAC adds another useful dimension, enabling threshold generation, bias control, analog referencing, or simple waveform and setpoint output. Combined with the integrated temperature sensor, these blocks make the MCU suitable for self-monitoring and calibration-aware designs.

A practical design pattern emerges from these features. The device works especially well when used as a local intelligence node near the physical process. It can sample analog channels, debounce and timestamp discrete events, generate local control outputs, monitor its own thermal condition, and publish status over CAN or serial links. That reduces backplane traffic and avoids pushing every signal to a central processor. In distributed systems, local preprocessing often creates a larger system benefit than a faster central controller would. It improves fault containment, reduces wiring complexity, and shortens reaction paths. This is where ATSAMC21N18A-ANT is strongest: not as a compute engine, but as a disciplined edge controller with enough integration to make the board around it simpler and more robust.

The serial connectivity available in the SAM C21 family also broadens deployment options. Broad serial interfacing allows the same hardware platform to be adapted across variants that use UART-based service ports, SPI-connected companion devices, I2C sensors, and CAN networking. For product families, this flexibility is often more valuable than isolated benchmark improvements. One board can be provisioned into multiple SKUs through population changes and firmware configuration, while retaining a common MCU and software base. That lowers validation cost and shortens derivative development cycles. In practice, MCU selection is frequently won by platform leverage rather than by peak feature count, and this device aligns well with that model.

For motor-control support logic, the part is best viewed as a supervisor and peripheral manager rather than a high-end field-oriented control processor. It can handle sensing, protection paths, communications, parameter storage, startup sequencing, and distributed coordination around a motor subsystem. It can also support timer-driven control loops where bandwidth and algorithm complexity remain within Cortex-M0+ limits. This distinction is important. The MCU is highly capable in motion-adjacent designs, but its advantage appears when it manages the surrounding system with strong I/O, analog integration, and network connectivity. In many products, that is exactly the harder integration problem.

For sensor aggregation and gateway functions, the part’s balance is particularly effective. A gateway node often does not need a large application processor. It needs enough local intelligence to normalize sensor data, apply thresholding and plausibility checks, timestamp events, manage bus traffic, and survive harsh electrical conditions. ATSAMC21N18A-ANT fits that profile well. The integrated analog and serial resources reduce dependency on external glue devices, while the memory size is adequate for structured protocol handling and event logging. If the design goal is a compact field node that can make local decisions and communicate reliably upward, this MCU is well aligned.

One design insight worth emphasizing is that devices like ATSAMC21N18A-ANT create the most value when the architecture deliberately exploits peripheral autonomy. Teams sometimes underuse this class of MCU by treating it as a small general-purpose processor that polls peripherals in software. That leaves performance on the table and increases jitter. A more effective approach is to let timers trigger conversions, use interrupt filtering where available, push repetitive transfers through DMA or peripheral chaining where supported, and reserve the CPU for control logic, diagnostics, and communication decisions. On a 48 MHz Cortex-M0+, that difference is substantial. The same silicon can feel either constrained or comfortably capable depending on whether the firmware architecture matches the hardware model.

Another important practical consideration is pin planning early in the design cycle. A 100-pin device with high I/O density offers flexibility, but multiplexed peripheral routing can become a hidden constraint if interface ownership is decided too late. CAN, analog channels, debug access, timing inputs, and service interfaces should be mapped with production test and future derivatives in mind. It is usually better to reserve a few strategically placed pins for diagnostics, field rework access, or variant expansion than to consume every available line in the first revision. With highly integrated MCUs, a small amount of pin discipline can prevent major respins.

Overall, ATSAMC21N18A-ANT is best understood as a highly integrated 5 V-capable control and networking MCU for harsh-environment embedded systems that need practical mixed-signal capability, CAN connectivity, strong I/O reach, and functional-safety-oriented family positioning without stepping into a more expensive processing tier. Its value is concentrated in board-level simplification, edge-node autonomy, and robust deployment characteristics. For body electronics, industrial nodes, distributed control modules, sensor concentrators, and gateway-style designs, it offers a well-judged feature set that maps closely to real system constraints rather than marketing checklists.

ATSAMC21N18A-ANT core architecture, memory resources, and processing capabilities

ATSAMC21N18A-ANT is built around an Arm Cortex-M0+ core, and that choice defines the device more clearly than the raw clock number alone. This is a 32-bit single-core MCU intended for deterministic embedded control, low-latency peripheral coordination, and efficient mixed-signal supervisory tasks. In product listings the operating point is typically given as up to 48 MHz, while broader family references may mention higher limits under certain conditions. In practical design work, the useful interpretation is straightforward: this device is optimized for control-oriented firmware with tight power, cost, and response-time constraints, not for compute-heavy workloads better suited to Cortex-M4 or application-class processors.

The Cortex-M0+ architecture is especially relevant because of its efficiency per cycle and low interrupt latency. For control systems, communication gateways, body electronics, industrial nodes, and sensor-actuator coordination, those traits usually matter more than peak instruction throughput. The single-cycle hardware multiplier further improves the execution profile for fixed-point arithmetic, scaling operations, digital filtering, and duty-cycle or timing calculations. In many embedded loops, multiplication is the dominant arithmetic primitive, so this feature has a measurable effect on cycle budget even when the core itself remains modest.

The debug and protection features are also more important than they may appear at first glance. The Micro Trace Buffer gives useful visibility into runtime behavior without requiring an aggressive external trace setup, which is valuable when diagnosing timing faults, unexpected interrupt interactions, or startup issues in dense peripheral configurations. Family-level documentation also references a Memory Protection Unit. On a device in this performance class, MPU capability is less about running a rich software stack and more about improving firmware containment. It can separate bootloader and application assumptions, harden communication stacks against memory misuse, and reduce the blast radius of pointer corruption in modular codebases. That tends to matter most in long-lived products where field reliability becomes a bigger cost driver than initial development speed.

Memory resources are one of the strongest practical selection points of ATSAMC21N18A-ANT. The commonly cited configuration includes 256 KB of Flash and 32 KB of SRAM, which places the device above entry-level MCU territory and gives enough headroom for communication stacks, bootloader support, diagnostics, and moderate application logic in a single image. That Flash size is particularly useful when firmware must carry not only the main application but also protocol handlers, production test routines, calibration tables, and update-safe recovery logic. In real deployments, nominal code size tends to grow faster than expected once diagnostics, versioning, fault logging, and manufacturing hooks are added. A 256 KB Flash ceiling leaves meaningful room for that growth.

The 32 KB SRAM is more constrained, so its value depends heavily on firmware style. It is generally sufficient for control-oriented applications with disciplined buffer design, but it does require attention if the system includes multiple communication channels, layered drivers, and data logging. The practical limit is often not algorithm storage but simultaneous buffer pressure from CAN, serial interfaces, ADC sample handling, and state machines. In systems like this, stable operation usually comes from deliberate SRAM partitioning early in the design rather than late-stage optimization. Static allocation, bounded queues, and DMA-aware buffer placement tend to produce much more predictable results than dynamic memory strategies.

The EEPROM-related description deserves careful interpretation. Some listings present a 32 KB EEPROM size field, while family documentation explains that nonvolatile user storage is implemented through self-programmable Flash and EEPROM emulation mechanisms, with capacity depending on the exact device variant and configuration model. From an engineering standpoint, that distinction is important. It means nonvolatile data handling must be designed with Flash endurance, erase granularity, wear leveling, and update atomicity in mind. This is not merely a naming issue in the datasheet; it affects how calibration constants, counters, configuration records, and field parameters should be stored. A robust implementation typically uses structured records, version markers, and controlled rewrite policies rather than treating the region like byte-addressable EEPROM.

The nonvolatile subsystem is supported by the Nonvolatile Memory Controller, along with device service and identification infrastructure described at the family level. That combination is highly useful in manufacturing and lifecycle management. It enables firmware update strategies, serialization, calibration retrieval, traceable unit identification, and controlled provisioning. In practice, this becomes valuable long before field updates are needed. During production ramp, access to reliable identification and calibration mapping simplifies test software, reduces fixture-side complexity, and improves the audit trail between programmed firmware, measured offsets, and shipped hardware revisions.

Processing support beyond the CPU core is where the ATSAMC21N18A-ANT becomes much more capable than its Cortex-M0+ label might initially suggest. The DIVAS accelerator for divide and square-root operations removes a class of arithmetic bottlenecks that can otherwise consume a surprising amount of CPU time on smaller cores. This matters in sensor scaling, RMS-like calculations, actuator linearization, and closed-loop control where repeated normalization or coordinate conversion appears inside periodic tasks. On a low-end MCU, division is often avoided or approximated because of cycle cost. Here, that tradeoff softens significantly, which can simplify firmware and improve numerical clarity without immediately harming timing margins.

The more consequential system-level features are the 12-channel DMA controller and 12-channel Event System. These are not just convenience peripherals; they are the mechanism by which the MCU shifts from a CPU-driven design model to a hardware-orchestrated one. DMA allows data movement between peripherals and memory with minimal core involvement. The Event System allows peripherals to trigger one another directly, often without interrupt latency. When used well, this architecture reduces jitter, lowers CPU load, and improves determinism. For example, an ADC conversion can be triggered by a timer event, transferred by DMA into a buffer, and processed later in bounded batches rather than through per-sample interrupt service. That pattern is cleaner, more scalable, and usually easier to validate for timing compliance.

This hardware-interconnect model is one of the most underused advantages in MCUs of this class. Many designs still rely too heavily on interrupts for tasks that the Event System and DMA can handle more predictably. That usually works in early prototypes, but as communication traffic increases and timing edges tighten, interrupt-centered firmware becomes fragile. The SAM C21 architecture rewards a different mindset: push repetitive timing and transport tasks into peripherals, reserve the CPU for state decisions and exception handling, and treat interrupts as boundary events rather than the primary execution fabric. Designs that follow that approach typically gain both performance margin and maintainability.

In application terms, the ATSAMC21N18A-ANT fits well into mid-range embedded control products that need more than basic GPIO handling and serial communication. It is well suited to distributed control nodes, industrial interface modules, motor-adjacent supervisory functions, smart sensors, vehicle subsystems, and protocol-aware edge devices. Its resource mix supports systems where the firmware must coordinate ADC activity, timers, communication buses, diagnostics, and nonvolatile parameter management at the same time. It is less attractive for workloads dominated by large DSP pipelines, graphical interfaces, or heavy middleware, but very effective where timing structure and peripheral interaction dominate the problem.

From a platform architecture perspective, the value of this MCU is not in any single specification. It comes from the balance between a lean core, adequate memory, hardware arithmetic assistance, and a strong event-and-DMA fabric. That combination makes it possible to build firmware that is responsive without being oversized, and capable without becoming architecturally heavy. In many embedded products, that balance is exactly where long-term design efficiency is found: enough hardware support to avoid constant CPU micromanagement, but not so much complexity that integration cost overtakes system value.

A practical design strategy for ATSAMC21N18A-ANT is to treat Flash as both code and managed asset storage, SRAM as a tightly budgeted real-time resource, and the CPU as a coordinator rather than the default executor of every transaction. When that allocation model is adopted early, the device scales well through feature expansion. When it is treated like a generic small MCU and all behavior is routed through interrupts and ad hoc memory usage, its strengths are only partially realized. The architecture is compact, but it is not simplistic; it rewards deliberate partitioning between core execution, hardware-triggered data flow, and structured nonvolatile management. That is what places ATSAMC21N18A-ANT firmly in the capable mid-range class for embedded control engineering.

ATSAMC21N18A-ANT operating conditions, power architecture, and clocking options

ATSAMC21N18A-ANT is defined as much by its operating envelope as by its CPU and peripheral set. In practical designs, supply range, thermal derating, reset behavior, and clock topology often determine whether the device integrates cleanly into a system or creates avoidable complexity later in validation. For this device, the combination of 5 V-capable operation, industrial-grade temperature support, and a flexible clock/power subsystem makes it notably well aligned with mixed-voltage embedded control platforms.

A central advantage is the 2.7 V to 5.5 V supply range. This is not just a broad electrical specification; it directly affects board architecture. In systems built around 5 V field interfaces, relay drivers, industrial sensors, encoder modules, or legacy transceiver domains, a 5 V-capable MCU reduces dependency on external level translators and protection glue logic. That simplification improves more than BOM cost. It also reduces propagation uncertainty, eases EMI control, and removes several common failure points at signal-domain boundaries. In many control boards, the difficulty is not digital computation but reliable coexistence between logic, analog sensing, and noisy power stages. A wider supply range helps absorb that complexity at the MCU boundary.

The temperature and frequency limits should be read as a coupled operating constraint rather than two independent headline numbers. The device supports -40°C to +125°C from DC to 48 MHz, and -40°C to +85°C from DC to 64 MHz. This distinction matters in real products because clock frequency is often selected early for software throughput, while thermal corner cases are verified much later. If the board is intended for sealed enclosures, engine-compartment mounting, inverter-adjacent control, or sun-exposed outdoor equipment, the 48 MHz at +125°C limit becomes the realistic design point. A frequent source of rework is choosing the higher clock mode during firmware development, then discovering during environmental validation that the thermal target forces a lower-frequency operating profile. It is usually better to treat the high-temperature frequency limit as a first-order architectural input, not a late-stage qualification detail.

From a power architecture perspective, the integrated supervision blocks are highly relevant. The inclusion of Power-on Reset, Brown-out Detection, Supply Controller, Reset Controller, and Power Manager means the device is built to handle imperfect supply behavior, not just ideal bench conditions. That distinction is critical in systems powered from batteries, vehicle rails, long cable runs, or switching regulators with non-monotonic startup. Brown-out detection is especially important because undervoltage faults rarely appear as clean failures. More often they produce partial logic operation, corrupted state transitions, stalled flash reads, or communication faults that are difficult to reproduce. A well-configured brown-out threshold and reset strategy converts these ambiguous states into deterministic restart behavior.

In practice, startup sequencing deserves more attention than it often receives. A design may appear stable when powered from a lab supply yet become intermittent when connected to a field source with slow ramp-up, load transients, or shared rails. The presence of reset and supply supervision blocks in the ATSAMC21N18A-ANT allows software and hardware to cooperate around these edge conditions. That cooperation is where robust systems are usually built: reset is held long enough for rails to stabilize, clocks are switched only after sources are valid, and peripherals with external dependencies are enabled in a controlled order. Devices with strong internal supervision reduce the amount of external circuitry required to achieve that discipline.

The clocking subsystem is one of the more technically valuable parts of the SAM C20/C21 family. Rather than exposing only a single system clock path, the architecture separates clock generation and distribution through blocks such as GCLK, MCLK, OSCCTRL, and OSC32KCTRL, with the FDPLL96M providing a 48 MHz to 96 MHz fractional digital PLL capability. This structure gives fine control over how timing quality is allocated across the device. Core execution speed, peripheral clocking, low-frequency timekeeping, and high-accuracy communication references do not need to share the same source or operating cost. That is a meaningful architectural advantage because timing requirements inside embedded systems are rarely uniform.

The mechanism is straightforward but powerful. OSCCTRL manages higher-speed oscillators and clock sources. OSC32KCTRL handles low-frequency domains, typically relevant for RTC, low-power scheduling, and long-term timing. GCLK acts as a configurable distribution matrix, routing selected sources to different peripherals. MCLK governs the main clocking relationship for the processor and bus domains. The FDPLL96M can synthesize higher-frequency clocks from suitable references, enabling precise scaling for performance-sensitive functions. When viewed together, these blocks form a clock tree that can be engineered instead of merely accepted.

That flexibility matters in several application classes. Communication interfaces often require tighter timing than the main application loop. PWM generation for motor control or power conversion benefits from stable, well-defined clock sources with controlled jitter. RTC/calendar functions need low-power persistence and reasonable long-term accuracy, often under sleep-oriented conditions. A single-clock MCU can support these use cases only by compromise. The ATSAMC21N18A-ANT instead allows timing quality to be matched to function. A low-power source can sustain timekeeping, a more accurate source can feed communication peripherals, and the core clock can be raised or reduced according to workload.

The FDPLL96M is especially useful when peripherals need clock rates not directly available from base oscillators. Fractional PLL capability enables finer frequency synthesis, which helps when deriving communication-friendly clock domains or optimizing timer resolution. The practical value is not simply “higher frequency.” It is the ability to land closer to frequencies that reduce timing error, improve waveform granularity, or align with protocol expectations. In designs with serial buses, synchronized sampling, or multi-rate timing domains, that additional frequency-shaping freedom often avoids awkward software compensation.

Internal and external oscillator support further extends the design space. Internal oscillators are attractive when BOM reduction, simpler layout, and faster startup are priorities. External oscillators or crystals become preferable when tighter absolute accuracy, better long-term stability, or interoperability margins are more important. This is one of those decisions that looks minor in schematic review but strongly influences system behavior. For example, a design that relies on internal clocking may pass basic communication tests but show margin loss across temperature or during interoperability testing with stricter peer devices. Conversely, some products carry unnecessary external timing components when internal sources would have been entirely adequate. The better approach is to choose the reference strategy according to measured timing budget rather than default habit.

Sleep-oriented operating modes interact closely with the clock system and are part of the device’s practical value. Low-power behavior is most effective when the clock tree can be selectively reduced instead of globally disabled. With the available clock controllers and low-frequency domains, the system can preserve essential timing functions while shutting down higher-cost activity. This is useful not only for battery-powered nodes but also for mains-powered equipment constrained by thermal dissipation or standby energy targets. In many control systems, average power matters because it affects enclosure temperature, component aging, and regulator stress just as much as it affects energy consumption.

There is also a subtle but important systems-level benefit in having both broad supply capability and flexible clocking. These features allow one hardware platform to serve multiple product variants with limited redesign. A board can be deployed in a 3.3 V-oriented environment or a 5 V-oriented environment, then tuned by firmware and clock configuration for performance, low power, or timing precision. That reusability tends to shorten platform qualification cycles and reduce divergence between product lines. In embedded product families, the most valuable MCU features are often the ones that preserve architectural options late into the project, and this device does that well.

For harsh or noisy environments, the strongest design pattern is to treat power supervision and clock configuration as a single reliability problem. Supply disturbances can destabilize oscillators, distort startup timing, or trigger peripheral faults before a full reset occurs. A robust implementation uses brown-out detection thresholds that reflect actual regulator behavior, validates oscillator startup under temperature extremes, and verifies clock switching sequences under slow and fast supply ramps. These checks are often more predictive of field stability than nominal functional testing. The ATSAMC21N18A-ANT provides the internal building blocks needed for that approach, but the quality of the result depends on using them deliberately.

Overall, the operating conditions, power architecture, and clocking options of ATSAMC21N18A-ANT make it well suited to embedded control designs that must bridge mixed-voltage interfaces, survive wide environmental variation, and maintain deterministic timing behavior. Its 5 V-capable supply range reduces integration friction in legacy and industrial domains. Its thermal-frequency limits support deployment in demanding environments when chosen with proper derating discipline. Its reset and brown-out infrastructure improve startup predictability under real supply conditions. Its layered clock subsystem gives enough control to balance precision, power, and performance without forcing a one-clock compromise. In practice, that combination is what makes the device attractive not only on a datasheet, but on a board that has to pass validation and remain stable in the field.

ATSAMC21N18A-ANT communication interfaces for networked embedded systems

ATSAMC21N18A-ANT is unusually strong when the design priority is interface density without moving into a larger, more power-hungry MCU class. Its communication subsystem is not just a checklist of buses. It is a configurable fabric built around up to eight SERCOM instances, combined with dedicated CAN capability in the SAM C21 family. That distinction matters. Many MCUs advertise several protocols, but only a subset can be instantiated concurrently or routed flexibly enough to survive product-line variation. Here, the communication architecture is one of the device’s real system-level advantages.

At the lowest layer, the key mechanism is SERCOM reuse. Each SERCOM can be configured as USART, SPI, or I2C, and the family extends this further into protocol roles such as LIN host/client, RS-485, and PMBus through suitable peripheral configuration and software framing. This means the interface count is not fixed in the rigid sense of “one UART block, one SPI block, one I2C block.” Instead, the interface topology is shaped around the application. In practice, this is often more valuable than having a larger number of dedicated peripherals, because real products rarely need the same mix across all variants.

That flexibility becomes especially important during hardware platform consolidation. A single board may need to support a maintenance port in one product, an external metering interface in another, and a motor-driver sideband channel in a third. With the ATSAMC21N18A-ANT, one SERCOM can be assigned to a diagnostic UART, another to an SPI sensor or ADC chain, another to an I2C backplane or expansion connector, while still reserving additional instances for future options. This reduces the common failure mode where a design is forced into a higher-end MCU only because one more serial port is needed. In cost-sensitive embedded platforms, avoiding that step often has a larger impact than raw CPU performance gains.

The USART mode deserves more attention than it usually gets. Full-duplex support is standard, but the availability of single-wire half-duplex operation broadens its use in tightly constrained wiring environments. That is relevant for debug access, compact peripheral links, and bus structures where pin count or connector complexity must be minimized. Once RS-485 framing and direction control are layered on top, the same basic serial resource can be pushed into industrial multidrop communication with relatively little hardware overhead. This is one of the more practical advantages of the SERCOM approach: the same peripheral block can move from board bring-up utility to production fieldbus role with only moderate redesign effort.

The I2C support up to 3.4 MHz also deserves a nuanced reading. On paper, high-speed I2C enables denser sensor aggregation and faster register-based peripheral access. In actual board designs, the usable ceiling depends heavily on bus capacitance, pull-up sizing, stub length, and device tolerance. The noted exceptions for SERCOM6 and SERCOM7 should be treated as a placement constraint early in architecture planning rather than as a minor footnote. If a design depends on high-speed I2C for a display bridge, PMBus power stage, or clustered sensing front end, those channels should be assigned deliberately to the SERCOM instances that fully support the target mode. This is the kind of detail that is easy to overlook in schematic capture and expensive to correct after routing is frozen.

SPI remains the simplest path for deterministic, high-throughput peripheral attachment. On ATSAMC21N18A-ANT, SPI through SERCOM is especially useful when several latency-sensitive devices must coexist, such as converters, external memory, gate drivers, or high-rate sensors. Compared with I2C, SPI scales better when payload timing matters and bus arbitration must be avoided. In mixed-signal control boards, this often leads to a natural partition: SPI for fast acquisition or actuation devices, I2C for configuration-centric devices, and USART-based channels for diagnostics or external service access. The MCU’s communication subsystem maps cleanly onto that pattern.

The LIN host/client capability adds another layer of usefulness. LIN is not just a lower-cost alternative to CAN. It occupies a different design space: lower bandwidth, simpler physical layer requirements, and good fit for distributed submodules with modest timing demands. When the same controller must coordinate a higher-level CAN or CAN-FD network while managing lower-speed peripheral nodes over LIN, the ATSAMC21N18A-ANT becomes a good fit for gateway-style functions. This pattern appears naturally in body electronics, modular machinery, and distributed sensing assemblies where one central node needs to bridge robust backbone communication with simpler edge devices. The value is not merely that both protocols are present, but that they can coexist without excessive peripheral contention.

The dedicated CAN support in the SAM C21 family is where the device moves from being merely flexible to being genuinely network-capable. The family supports up to two CAN interfaces with CAN 2.0A/B and CAN-FD according to ISO 11898-1:2015. That immediately positions it beyond legacy control-node designs. CAN-FD changes the payload economics of the bus. By allowing larger data fields and higher bit rates during the data phase, it improves effective throughput and reduces protocol overhead for measurement-heavy or command-dense traffic. In practical terms, that means fewer frames for the same application payload, lower software interrupt pressure per unit data, and better bus utilization in systems that are beginning to outgrow classical CAN.

This matters in modern architectures where a node is no longer just flipping outputs or reporting a few status bits. A smart actuator may need to expose calibration state, thermal margins, waveform statistics, and fault context in addition to command-response traffic. A distributed industrial module may forward aggregated sensor data rather than single values. A zonal controller may act as a concentration point for several local subsystems. In these cases, classical CAN can become message-fragmentation heavy. CAN-FD reduces that inefficiency and gives the MCU a longer useful life in evolving network designs.

Another strong design detail is the availability of two selectable pin locations for each CAN interface. This is easy to underestimate until layout constraints become dominant. Board variants often differ in connector position, transceiver placement, isolation boundaries, or cable harness orientation. Being able to select between two CAN pin mappings can eliminate awkward trace detours, reduce crossover density, and improve EMC behavior simply by enabling cleaner routing. It also creates an elegant path for multi-variant products: one PCB can support alternative transceiver populations or connector footprints without external analog switching. That reduces BOM complexity and avoids introducing additional failure points into the signal path.

From an EMC and reliability standpoint, this routing flexibility can have disproportionate value. CAN edges, especially in noisy industrial or vehicular environments, benefit from disciplined layout around the transceiver, reference return, and common-mode containment strategy. If an alternate pin assignment allows the CAN controller pins to align more directly with the transceiver location, the result is often a cleaner implementation than trying to force a fixed peripheral map into a compromised placement. Small routing freedoms frequently prevent large compliance problems later.

A practical interface allocation strategy with ATSAMC21N18A-ANT is to treat communication resources as tiers rather than as isolated blocks. The first tier is deterministic control and backbone networking, usually assigned to CAN or CAN-FD. The second tier is local high-speed peripheral attachment, often handled by SPI. The third tier is configuration, telemetry, and moderate-speed module expansion, usually mapped to I2C or PMBus. The fourth tier is service and interoperability channels, where UART/USART, LIN, or RS-485 fit naturally. Designing with this layered model tends to produce cleaner firmware partitioning as well, because transport roles map more directly to software tasks and fault domains.

That layered view also improves product scalability. If the communication architecture is defined around bus roles instead of peripheral names, migrating between product variants becomes easier. A low-end model may use one CAN channel, one SPI bus, and a service UART. A higher-end model can activate a second CAN interface, repurpose an unused SERCOM into LIN or RS-485, and preserve most of the software structure. This is where the SAM C21 communication subsystem pays off most clearly: it supports reuse not only of hardware but also of integration logic and validation effort.

There is also a less obvious system benefit in having both flexible SERCOM blocks and dedicated CAN controllers. It avoids the common tradeoff where robust field networking consumes the same serial resources needed for local peripherals. In constrained MCUs, external communication features can starve internal expansion options. Here, CAN remains a first-class subsystem while SERCOM resources stay available for board-level integration. For gateway nodes, power-control modules, and smart sensor concentrators, that separation is often exactly what prevents architectural dead ends.

In mixed-network designs, ATSAMC21N18A-ANT can therefore sit in several useful roles. It can operate as a CAN-FD endpoint with local SPI sensing and I2C expansion. It can act as a bridge between a CAN backbone and LIN subnodes. It can serve as a compact industrial controller using CAN for machine-level coordination and RS-485 for legacy side links. It can also function as a smart actuator controller where deterministic bus communication, local diagnostics, and power-management telemetry all need to coexist on one device. The communication subsystem is broad enough that these are not edge-case deployments; they are natural fits.

One practical lesson from deploying highly configurable serial architectures is that flexibility only creates value if pin planning and firmware ownership are decided early. Because SERCOM instances are multifunctional, leaving assignments open too long can produce conflicts between PCB routing, bootloader needs, and application firmware expectations. A disciplined approach is to reserve one low-risk service interface from the start, lock down any high-speed or timing-critical buses next, and only then distribute the remaining SERCOMs among optional features. On devices like ATSAMC21N18A-ANT, that small amount of up-front structure usually preserves the very flexibility the hardware was chosen for.

Seen from that perspective, the strongest reason to consider ATSAMC21N18A-ANT is not simply that it supports CANbus, I2C, LINbus, SPI, and UART/USART. It is that these interfaces are organized in a way that scales across real embedded product constraints: variant pressure, wiring limitations, mixed network layers, EMC-sensitive layouts, and rising payload demands on control buses. The result is an MCU that fits especially well in networked embedded systems where communication architecture is not an accessory to the design, but one of its central engineering decisions.

ATSAMC21N18A-ANT analog, timing, and control peripherals for mixed-signal applications

ATSAMC21N18A-ANT integrates a notably balanced set of analog, timing, and control peripherals that extends its role well beyond a communication-focused MCU. In mixed-signal designs, that balance matters more than peak peripheral count alone. What makes this device class useful is not just that it includes ADCs, DAC, comparators, and timers, but that these blocks can be combined into short, hardware-assisted signal paths with predictable latency. That characteristic is often the difference between a controller that merely measures and one that can close loops, react to faults, and maintain timing quality under software load.

The analog subsystem is structured to cover both general-purpose acquisition and higher-integrity measurement tasks. The family provides up to two 12-bit, 1 Msps ADCs with up to 12 channels each and 20 unique channels in total, one 16-bit sigma-delta ADC with up to three differential channels, one 10-bit DAC operating up to 350 ksps, up to four analog comparators with window mode, and an integrated temperature sensor. This mix is practical because it aligns with the way real systems are partitioned. Fast SAR ADCs are typically used for control-loop observability, waveform sampling, and multiplexed sensor inputs, while the sigma-delta path is better suited to lower-bandwidth, higher-dynamic-range measurements such as shunt current sensing, bridge sensors, or precision voltage monitoring.

The dual 12-bit ADC architecture deserves attention because it reduces a common system bottleneck: sequential sampling delay. In single-ADC systems, current, voltage, and reference channels are often interleaved, which introduces phase skew into calculations that assume simultaneity. With two ADCs available, designs can separate critical channels or align sampling more effectively with PWM edges and control events. In motor-adjacent or power-conversion systems, this can materially improve current reconstruction and transient visibility. Even outside strict control applications, it simplifies front-end scheduling and reduces firmware complexity around sample timing.

The sigma-delta ADC adds another layer of capability. A 16-bit sigma-delta converter with differential inputs is especially relevant when the measured signal is small relative to common-mode noise or supply variation. Bridge sensors, low-side shunts, and slow precision instrumentation channels benefit from this architecture because resolution is not the only concern; rejection of noise and offset behavior across operating conditions are equally important. In practice, this peripheral can absorb use cases that would otherwise push a design toward an external precision ADC, particularly when bandwidth is moderate and board area or BOM sensitivity is high.

Differential and single-ended input modes, automatic offset and gain compensation, and hardware oversampling with decimation further strengthen the measurement path. Oversampling is often treated as a marketing bullet, but here it has real system value because it allows effective 13-, 14-, 15-, or 16-bit resolution without forcing the CPU into sample accumulation loops. The important point is not that oversampling creates ideal resolution for free; it does not. It improves effective resolution only when noise characteristics and signal bandwidth allow it. Still, when paired with proper analog front-end filtering, stable references, and controlled sampling instants, it can significantly reduce quantization artifacts and measurement jitter. In compact industrial or appliance-class designs, that can be enough to avoid an external converter while preserving usable precision.

The DAC is modest at 10 bits, but its role should be understood correctly. It is not a precision instrumentation DAC. It is a fast, integrated analog output resource suitable for threshold generation, bias setting, analog test stimulus, low-complexity waveform generation, and closed-loop reference output. Combined with comparators or ADC feedback, it can support calibration routines, programmable trip levels, or low-bandwidth analog control functions. In embedded systems, a built-in DAC often creates disproportionate design flexibility because it allows analog behavior to be adjusted in software without adding external bias networks or digital potentiometers.

The analog comparators are particularly valuable in systems that need immediate hardware reactions. Window compare capability allows a signal to be monitored not only for a single threshold crossing but for out-of-range behavior on both sides. That is useful for overcurrent, undervoltage, sensor plausibility, or thermal envelope detection. The deeper advantage is architectural: comparators can operate as part of a protection layer independent of the main control loop. When a design relies only on sampled ADC data for fault handling, reaction time is bounded by the sample schedule, interrupt latency, and firmware execution. Comparator-based paths can be made far more deterministic, especially when routed directly into timer fault inputs or event logic.

The timing and control subsystem is strong enough to support sophisticated actuation and synchronization tasks. The family includes up to eight 16-bit Timer/Counters, plus two 24-bit and one 16-bit Timer/Counters for Control. The TCC blocks provide up to eight PWM channels on each 24-bit instance and up to two PWM channels on the 16-bit instance, with complementary outputs, deterministic fault protection, fast decay support, configurable dead time, synchronized PWM pattern generation across pins, and dithering. This is not a generic timer set dressed in broad claims. These features are directly aligned with switched systems, where edge placement, output interlock, and fault behavior must be handled in hardware.

The 24-bit TCC blocks are especially important because they give more room to balance PWM frequency and duty-cycle granularity. In high-frequency switching applications, timer resolution often collapses quickly as the carrier rises. Additional counter depth helps preserve control authority without dropping frequency or resorting immediately to external PWM controllers. Dithering extends this further by effectively spreading quantization over time. In practice, this can reduce visible LED stepping, smooth low-duty motor actuation, or improve average-value control in power stages where one LSB of duty-cycle change is otherwise too coarse.

Complementary outputs and dead-time insertion make the device viable for half-bridge and full-bridge drive generation, whether the load is a motor winding, a synchronous buck stage, or a bidirectional actuator. The implementation detail that matters is deterministic fault handling. In real switching systems, safe shutdown cannot depend on firmware being ready. Hardware fault inputs tied to comparators or external protection signals allow the PWM generator to force outputs into known states immediately. That path is often underappreciated during initial design and then becomes central during validation, where transient shoot-through, desaturation-like conditions, or load disconnect events expose the limits of software-only protection.

Synchronized PWM pattern generation across port pins also has broader value than traditional motor control. It supports coordinated actuation in systems with multiple valves, synchronized illumination channels, phased switching elements, or pulse sequencing requirements. Once multiple outputs must change at exact boundaries, software-driven GPIO updates become inadequate due to skew and interrupt variability. A timer-controlled output matrix avoids these timing inconsistencies and simplifies verification because output relationships are defined by hardware state transitions rather than code execution order.

The timer resources also improve signal capture and time-domain measurement. Mixed-signal applications often need more than periodic PWM. They need pulse-width capture, edge timestamping, frequency measurement, and synchronized trigger generation for ADC sampling. Using timer hardware for these tasks avoids the latency and nondeterminism of software polling. A practical pattern is to trigger ADC conversions from a timer event at a controlled point in the PWM cycle, then use capture channels to record external events such as zero crossings, tachometer pulses, or protection signals. This creates a coherent timing framework in which excitation, measurement, and response are all phase-related. Systems built this way are easier to tune and generally more stable under load.

The custom logic and event-style hardware interaction increase the value of the peripheral set because they reduce the need to route every decision through the CPU. In embedded control, the most robust designs usually minimize the number of critical paths that depend on interrupt timing. A comparator can detect a fault, a timer can shut down PWM, an ADC can sample on a hardware trigger, and the CPU can process the result afterward rather than being responsible for the first reaction. That separation is a strong architectural choice for safety margins, EMI resilience, and real-time consistency.

The 32-bit Real-Time Counter with calendar function may look peripheral to the mixed-signal story, but it becomes useful in systems that combine control with supervision, maintenance scheduling, logging, or energy profiling. Long-duration timing and timestamping often end up added late in the project, and having a dedicated RTC avoids burdening high-resolution control timers with slow supervisory tasks. The CRC-32 generator similarly supports product-level integrity functions, including parameter block verification, communication payload checking, and firmware image validation. These are not signal-chain features, but they matter in fielded systems where deterministic control must coexist with reliable configuration and diagnostics.

From an application standpoint, ATSAMC21N18A-ANT fits well in current and voltage monitoring nodes, thermal control modules, sensor-interface controllers, digitally managed power stages, intelligent actuator modules, LED drivers, and compact motor-adjacent controllers. It is especially effective where moderate control complexity, multiple analog channels, and strong timing coordination are required without the cost and board impact of several external mixed-signal companion devices. A recurring advantage in these designs is subsystem consolidation. The integrated ADCs, DAC, comparators, and TCCs reduce inter-device latency, simplify trigger routing, and eliminate many of the small timing uncertainties introduced by board-level interfaces between separate ICs.

In practice, the analog front end still determines much of the achievable performance. Oversampling and calibration features help, but they do not compensate for poor source impedance management, noisy grounds, or careless reference routing. The best results usually come from treating the internal converters as part of a complete measurement chain: stable reference strategy, appropriate anti-alias filtering, synchronized sampling relative to switching noise, and channel grouping based on dynamic behavior. When these details are handled well, the internal analog resources perform above what a surface reading of the specification might suggest.

A similar principle applies to the control peripherals. The TCC feature set is powerful, but its real value appears when the design is partitioned so that repetitive timing, output safety, and trigger alignment are hardware-owned, while firmware handles adaptation, estimation, and communication. That division typically produces lower jitter, cleaner fault behavior, and more maintainable control software. In that sense, the device is most compelling not because any single peripheral is extreme, but because the analog and timing blocks are sufficiently matched to support disciplined mixed-signal architecture within a single MCU platform.

ATSAMC21N18A-ANT I/O resources, package format, and integration considerations

ATSAMC21N18A-ANT targets designs that need a high pin count without stepping outside the cost and power profile typical of a Cortex-M0+ platform. The device is delivered in a 100-pin TQFP package with a 14 mm x 14 mm body and supports up to 84 programmable I/O pins. That number is not just a catalog feature. It directly changes system partitioning. With this I/O budget, many designs can keep interface expansion, external GPIO devices, and glue logic to a minimum, which often reduces firmware overhead, BOM count, and signal-latency paths at the same time.

The practical value of the package becomes clearer when the I/O count is viewed through the SAM C21 multiplexing model. The device family relies heavily on a PORT controller architecture in which most peripheral functions are mapped onto shared physical pins through configurable multiplexers. This gives strong flexibility, but it also means the real constraint is rarely the raw number of pins. The real constraint is whether the exact combination of functions can coexist on the exact set of pins needed by the board layout, connector placement, EMC strategy, and timing requirements. In early evaluation, it is common to see a design appear feasible from a peripheral list perspective, then fail during pin assignment because CAN, a preferred SERCOM route, timer waveforms, ADC channels, and external interrupt lines collide on the same ports or on physically inconvenient pins.

That is why package selection for ATSAMC21N18A-ANT should be treated as a routing and resource-allocation problem rather than a simple pin-count decision. The 100-pin package gives more escape options and usually relaxes multiplexing pressure compared with smaller variants, but it does not eliminate it. A disciplined pin-planning pass should be done before schematic completion. The most effective approach is to map the design in layers: first lock safety-critical and timing-critical functions, then reserve communication interfaces, then place analog inputs, and only after that assign lower-priority GPIO. This sequence tends to avoid the common failure mode where generic GPIO consumption blocks a clean route for a timer capture input or a differential-sensitive analog channel.

The CAN, SERCOM, timer, ADC, and interrupt resources deserve special attention because they often interact in non-obvious ways. CAN placement is not only about signal availability. It also affects transceiver placement, bus entry topology, return-current control, and protection-device positioning. SERCOM blocks are flexible enough to implement UART, SPI, or I2C, but that flexibility can become deceptive if all preferred pad options land in congested board regions. Timer channels matter not just for PWM generation, but also for synchronized control loops, event timing, and capture measurements. ADC-capable pins should be screened for noise exposure early, especially if they share neighborhoods with fast-edge digital outputs, switching regulators, or communication lines. External interrupt mapping also deserves early reservation because seemingly minor digital inputs can become much more complex once wake-up behavior, debounce needs, or timestamping requirements enter the design.

The N-family distinctions are particularly important in this context. The SAM C20/C21 N variants introduce feature differences such as hardware interrupt debouncing and certain timer-related behaviors. These are not marginal details. They can materially change the amount of external conditioning required on noisy input signals and can simplify firmware filtering in systems exposed to electrical disturbance, long cable runs, relay contacts, or mechanically unstable transitions. In designs with distributed switches, industrial sensors, or field wiring, built-in debounce support can reduce edge ambiguity and lower interrupt servicing noise. The gain is not only code simplification. It can also improve event determinism because filtering is applied closer to the hardware boundary rather than later in software after latency and jitter have already been introduced.

Timer-related variant differences should be evaluated with the same seriousness. Precise capture and waveform behavior often sit at the center of motor control, pulse measurement, flow sensing, and synchronized actuation. Small architectural differences in timer capability can force large workarounds in firmware or board design. A design that depends on clean edge capture, low-jitter PWM updates, or tight coupling between timers and event inputs should validate those paths against the exact N-device behavior rather than assuming family-wide equivalence. In practice, this check is often more important than comparing headline CPU or memory specifications, because timing architecture tends to determine whether the design remains elegant under stress.

The Peripheral Touch Controller adds another integration dimension. Support for up to 256-channel capacitive touch and proximity sensing allows ATSAMC21N18A-ANT to absorb interface functions that would otherwise require a dedicated touch controller. This is especially useful in control panels, sealed enclosures, and mixed-mode products where mechanical inputs, capacitive keys, and proximity wake-up must coexist with industrial communications and analog acquisition. The strong point here is not just feature consolidation. It is architectural unification. A single MCU can supervise sensing, communication, state control, and front-panel interaction within one timing domain and one software stack, which usually improves system coherence.

Even so, touch integration should not be treated as free capacity. Capacitive sensing competes for pin access, layout quality, and noise headroom. In boards that also carry CAN transceivers, switching power stages, or dense digital buses, touch performance can degrade if electrode routing is added late or if reference strategy is weak. A stable implementation usually benefits from assigning touch channels early, keeping electrode traces controlled and isolated, and separating high dV/dt regions from sensitive sensing paths. Where proximity wake-up is required, the margin should be validated under enclosure, cable, and ground-condition variations rather than under bench-only conditions. Touch systems often pass initial tests easily and then lose robustness when the final mechanical stack-up changes the parasitic environment.

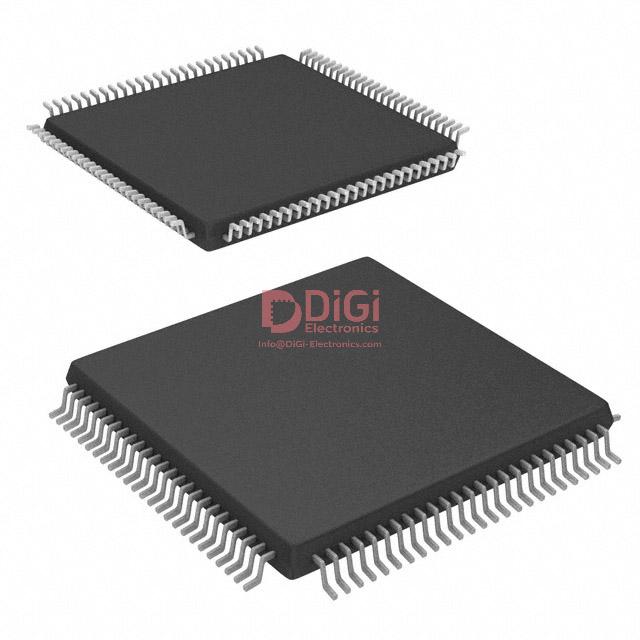

From an integration perspective, the 100-pin TQFP package itself offers a useful balance. It is dense enough to expose most of the MCU’s connectivity while remaining accessible for mainstream surface-mount assembly and inspection. Compared with finer-pitch or lower-profile packages, TQFP generally reduces manufacturing friction during early prototypes, rework, and failure analysis. That matters in bring-up. High-I/O devices often go through several pinout refinements, and package formats that support straightforward probing and rework can shorten iteration cycles considerably. For many teams, this practical advantage outweighs the area savings of smaller packages, especially when firmware and hardware are being co-developed.

Board-level escape planning remains critical despite the relatively friendly package format. A 100-pin device with 84 programmable I/O pins can create local routing density that affects return paths, impedance continuity, and analog cleanliness. It is usually worth assigning port groups and interface clusters with routing topology in mind rather than by schematic convenience. Keeping related functions physically localized on the PCB often produces cleaner timing and lower EMC risk than simply maximizing logical neatness. This is particularly true when digital outputs with fast transitions sit near ADC inputs or touch channels. The package offers enough flexibility to do better than an arbitrary spread, and exploiting that flexibility is often where the strongest design quality gains appear.

The note on drop-in compatibility with SAM D20 and SAM D21 in selected 32-pin, 48-pin, and 64-pin TQFP and VQFN packages does not directly extend to the 100-pin ATSAMC21N18A-ANT, but it still conveys something useful about platform continuity. It signals shared design lineage, similar development concepts, and a familiar software ecosystem for designs already aligned with the SAM D family. That continuity lowers migration friction at the toolchain, driver, and architectural levels even when package-level pin compatibility is not available. In practice, this kind of lineage often matters more than strict pin-for-pin portability, because reuse of peripheral abstractions, startup code structure, and validation strategy can preserve engineering effort across product generations.

A useful way to judge ATSAMC21N18A-ANT is to see it not as a small MCU with many pins, but as an integration node optimized for mixed-signal and multi-interface consolidation. Its value increases when the design needs several communication channels, distributed I/O, timing functions, analog sensing, and front-end interaction in one controller. In that role, the package and I/O resources are strong assets, but only if the multiplexing model is managed intentionally. The best outcomes usually come from treating pin assignment, signal integrity, peripheral conflicts, and feature-variant checks as one combined design task from the start. That approach exposes hidden constraints early and allows the device’s flexibility to work in favor of the system rather than against it.

ATSAMC21N18A-ANT low-power, monitoring, reset, and system protection features

ATSAMC21N18A-ANT integrates a protection and supervision set that is more meaningful at system level than the short feature list initially suggests. Brown-out detect/reset, power-on reset, watchdog supervision, DMA, low-power modes, and access control are not isolated checkboxes. In this device family, they form a coordinated runtime stability framework intended to keep the MCU predictable during supply variation, asynchronous events, firmware faults, and long idle intervals.

A useful way to evaluate these features is to separate them into three layers: power-state control, fault detection and recovery, and containment of unintended behavior. This layered view usually exposes whether the device can simply run code, or whether it can keep running correctly when the environment becomes hostile.

At the power-management layer, Idle and Standby modes are not only about lowering current. They are also about preserving system responsiveness while minimizing unnecessary core activity. Idle mode typically keeps more of the clock tree and logic available, which is useful when latency matters and wake-up overhead must stay small. Standby goes further by shutting down more of the active logic while retaining enough context and peripheral capability to support event-driven operation. The practical value appears in products that spend most of their life waiting: sensor nodes, distributed controllers, bus-connected modules, and battery-backed maintenance interfaces. In these cases, average energy is determined less by active processing time and more by how selectively the platform avoids waking the CPU.

That is where SleepWalking becomes structurally important. It allows selected peripherals to remain observant and react to qualifying conditions while the core stays asleep. This shifts part of the decision chain from firmware into hardware. Instead of waking on every edge, frame, or threshold crossing, the peripheral path can pre-process the event, determine whether it is relevant, and wake the CPU only when software action is truly needed. In field designs, this usually produces a bigger power reduction than sleep mode selection alone, because spurious wake-ups often dominate the energy budget. It also improves timing behavior under bursty input conditions, since simple qualification can occur without scheduler latency.

For monitoring-intensive applications, this has a second-order benefit: reduced software churn. If the core is not repeatedly entering and exiting active state for low-value events, watchdog servicing becomes more intentional, interrupt load drops, and worst-case execution timing becomes easier to reason about. This matters in mixed workloads where communication, diagnostics, and control loops coexist on a small MCU.

The system supervision layer starts with startup integrity. Power-on Reset establishes a defined entry condition when the device begins operating. That sounds basic, but in embedded practice the quality of startup behavior determines whether every higher-level protection feature starts from a trusted baseline. If oscillator stabilization, voltage rise time, and early peripheral initialization do not align cleanly, the first milliseconds can create elusive faults that are difficult to reproduce. A solid reset path reduces these edge-condition failures before firmware ever executes meaningful logic.

Brown-out Detection extends that protection into runtime. Supply droop is one of the most underestimated fault sources in deployed electronics. It may come from hot-plug transients, weak upstream regulators, cable losses, relay actuation, motor startup, or simply poor decoupling under pulse load. When supply voltage falls into a marginal region, digital logic can continue switching while no longer meeting timing or memory integrity assumptions. That is the dangerous zone: the device may not stop cleanly, but may instead execute corrupted state transitions. Brown-out reset exists to avoid exactly that mode of failure. From a system design perspective, the key value is not that the MCU resets, but that it refuses to operate in an electrically ambiguous region.

In practice, brown-out settings should be chosen with the full power tree in mind rather than copied from a default configuration. If the threshold is too low, the device may continue operating past the safe margin of flash or SRAM access. If it is too high, nuisance resets may appear during legitimate load transients. The best configuration usually emerges only after observing rail behavior under worst-case dynamic load, temperature, and startup conditions. This is one of those areas where bench traces reveal more truth than nominal voltage tables.

The Watchdog Timer provides the next line of defense by supervising firmware liveness. Its value is often misunderstood when used as a mere reset-on-hang mechanism. In a robust design, the watchdog should confirm useful system progress, not just periodic CPU activity. If firmware refreshes the watchdog from a high-priority timer interrupt regardless of application state, many deadlocks remain invisible. A better strategy is to service it only after critical tasks, communication state machines, or control loops complete their expected cycle. That approach turns the watchdog into a progress monitor rather than a pulse generator. On this device family, the watchdog works best when paired with reset-cause logging and nonvolatile diagnostic breadcrumbs, so post-reset analysis can distinguish transient overload, clock failure side effects, bus lock conditions, and genuine software defects.

The Reset Controller and Supply Controller deepen this supervision model by centralizing the interpretation of reset sources and power-related state transitions. This is not just administrative hardware. It provides the basis for controlled recovery policies. If firmware can identify whether the previous reset came from power-on, brown-out, watchdog, or external assertion, startup code can adjust behavior accordingly. For example, repeated watchdog resets may justify entering a reduced-function safe mode, delaying communication stack bring-up, or preserving key fault counters before normal application startup. This kind of graded recovery is often what separates a device that merely reboots from one that remains diagnosable in service.

External Interrupt Controller support and non-maskable interrupt capability add another dimension: handling urgent external conditions with defined priority and low latency. In industrial and automotive-adjacent environments, external lines are often imperfect. They can carry legitimate fault indicators, but they can also reflect EMI, contact bounce, level translation artifacts, or line-sharing side effects. The hardware interrupt path therefore needs to be used selectively. The presence of non-maskable interrupt support is particularly useful for conditions that must preempt ordinary firmware scheduling, such as catastrophic fault signaling, last-chance state capture, or immediate transition into a protective routine. The important design point is restraint: the NMI path should be kept minimal, deterministic, and side-effect aware. Treating it like a normal interrupt usually creates new failure modes rather than reducing them.

The Peripheral Access Controller contributes to fault containment rather than fault detection. That distinction matters. Many embedded failures do not originate from hardware malfunction but from unintended register writes caused by pointer corruption, stale drivers, race conditions, or unvalidated reuse of shared low-level code. Access control on peripheral writes provides a hardware-enforced boundary that reduces the blast radius of such defects. In safety-conscious firmware structures, this can be used to protect critical peripherals after initialization or to separate trusted control paths from noncritical service code. It is not a complete security or safety model by itself, but it is a very effective way to reduce accidental configuration drift inside long-lived firmware.

The MPU serves a related role at the memory level. Combined with peripheral access restrictions, it allows software architecture to move from “everything can touch everything” toward explicit domains of responsibility. On smaller MCUs, this often yields a larger reliability gain than expected because latent memory corruption becomes easier to trap instead of silently propagating into control logic. When DMA is also present, this boundary thinking becomes even more important. DMA improves efficiency and reduces CPU load, but it also creates another master capable of moving data without direct instruction-by-instruction software control. If descriptors, destination ranges, and trigger conditions are not tightly managed, DMA can undermine otherwise careful isolation. Used well, however, DMA and MPU together let the system offload repetitive data movement while keeping memory ownership clearer and CPU wake time shorter.

The CRC-32 generator strengthens data integrity workflows. Its value goes beyond communication payload checks. It is useful for firmware image verification, parameter block validation, startup self-tests, and periodic consistency checks on retained data structures. In systems that rely on calibration tables, network configuration, or safety-relevant thresholds stored in nonvolatile memory, lightweight integrity verification often prevents subtle misbehavior long before a fault escalates into visible failure. The hardware accelerator matters because it makes integrity checks cheap enough to run regularly rather than only during maintenance or firmware update events.

Deterministic timer fault-protection mechanisms are especially relevant in control-oriented applications. Whenever timers drive PWM, commutation, actuator timing, or synchronized sampling, a misconfigured or stalled timing block can have immediate physical consequences. Hardware fault handling in the timer path reduces dependence on software response time. That is a strong design pattern: put the fastest protective action in hardware, and let software provide diagnosis, logging, and recovery afterward. In motor control, power conversion, and high-side/low-side drive applications, this separation is often the difference between a graceful shutdown and a damaged output stage.

The functional safety labeling of the family should be interpreted carefully but positively. It does not mean the MCU alone makes a design safe. A complete safety case still depends on system architecture, diagnostic coverage, failure mode analysis, software process discipline, and the supporting documentation set. What the label does indicate is that the device family was positioned with safety-oriented use in mind, and its hardware feature set reflects that orientation. The MCU provides supervision hooks, containment mechanisms, and diagnostic primitives that can support controlled behavior under fault. That makes it a credible base for designs that need more than best-effort robustness.

A practical evaluation should focus less on whether each feature exists and more on how they interact in the intended application. For a low-power monitor node, the strongest combination may be Standby mode, SleepWalking, brown-out protection, and a progress-aware watchdog. For a controller with real-time outputs, timer fault protection, reset-cause handling, MPU boundaries, and protected peripheral configuration may dominate. For communication-heavy embedded endpoints, DMA, CRC-assisted checking, interrupt discipline, and selective wake-up paths usually deliver the most value. The device is strongest when these blocks are composed into a deliberate fault-handling strategy instead of being enabled one by one.

One design pattern stands out as especially effective on this class of MCU: keep normal operation inexpensive, keep fault detection hardware-close, and keep recovery stateful. Low-power hardware should reduce unnecessary software execution. Supervisory hardware should detect power or execution anomalies before they become undefined behavior. Startup code should interpret the reason for reset and react differently based on repeated history. This approach turns the ATSAMC21N18A-ANT from a general-purpose MCU with a long feature list into a controllable platform for resilient embedded systems.

In that sense, the most important characteristic of its low-power, monitoring, reset, and protection features is not their individual presence, but their composability. The family gives enough hardware support to build systems that sleep aggressively, wake selectively, detect unsafe electrical conditions early, constrain accidental software damage, and recover with diagnostic context still intact. For embedded designs expected to survive noisy rails, intermittent events, and long unattended operation, that combination is often more valuable than raw compute performance alone.

ATSAMC21N18A-ANT development, debugging, and device management support

ATSAMC21N18A-ANT includes a compact but production-relevant set of capabilities for firmware development, debug access, provisioning, and device lifecycle control. These features are easy to underestimate because they sit outside the application datapath, yet in practice they strongly influence bring-up time, manufacturing efficiency, failure analysis, and long-term maintainability. On this device family, the support infrastructure is not just a convenience layer around the MCU core. It is part of the system architecture that determines how safely and repeatably the product can move from prototype to volume deployment.

At the board level, the two-pin Serial Wire Debug interface provides the primary access path for programming, testing, and interactive debugging. This is a practical choice for embedded designs where connector area, signal routing, and fixture complexity must be controlled. SWD preserves compatibility with standard Arm tooling while avoiding the overhead of wider legacy debug interfaces. In dense designs, this matters because debug access often competes with analog routing, communication buses, and EMI-sensitive regions. A minimal debug interface reduces intrusion into the layout and makes it easier to leave manufacturing and service access in place without compromising the final hardware design.

From a mechanism perspective, SWD is more than a programming port. It is the entry point into the processor debug fabric, register inspection, memory access, breakpoint control, and low-level fault analysis. During early bring-up, this enables direct verification of clocks, reset behavior, power-domain sequencing, and peripheral initialization before the full application stack is stable. In systems that use multiple clock sources or rely on tightly timed peripheral startup, the ability to halt execution and inspect state at precise points often reveals issues that are otherwise masked as intermittent firmware failures. In practice, many “software bugs” discovered during first power-on are actually configuration timing errors, startup dependency violations, or unintended pin-function conflicts, and SWD is the shortest path to isolating them.

The Device Service Unit adds another layer that is especially valuable beyond the lab. It supports debug operation, device identification, programming, chip erase, and protection-related functions. These capabilities are directly relevant to manufacturing flows, where the MCU must move through blank-device verification, firmware loading, lock-state configuration, and final test without ambiguity. A dedicated service block for these operations improves repeatability because it decouples core device management tasks from the application firmware itself. That separation is important. It means a damaged application image, incomplete flash update, or unstable peripheral configuration does not necessarily block recovery or reprogramming, which is essential for robust production and service processes.

Chip erase and programming support through the Device Service Unit also simplify failure recovery strategy. In development, this helps when prototype firmware misconfigures clocks, enters unintended low-power states, or disables key interfaces. In production, it provides a controlled path for rework and recovery. Designs that omit a clear recovery method often accumulate hidden cost later in test fixtures, return handling, and field diagnostics. Keeping the recovery path simple and hardware-rooted is usually the most reliable option, especially for devices deployed in distributed or hard-to-access installations.

Device identification features are equally important, although they are often treated as secondary. A stable identity path allows manufacturing software to bind each unit to test results, firmware versions, and calibration records. This becomes increasingly useful as products adopt serialized traceability, parameterized firmware images, or post-deployment analytics. Even where regulatory requirements are modest, the operational benefit is significant. It becomes much easier to answer basic but critical questions such as which firmware build was loaded, which production lot a failing unit came from, or whether a returned device was ever provisioned correctly. In well-structured embedded workflows, unique identification is not merely inventory metadata. It is a key index into the technical history of the product.

The intellectual property protection functions supported by the family documentation should be viewed in this broader lifecycle context. Their role is not only to prevent casual firmware extraction. They also establish boundaries between development access, production programming, and deployed-device service rights. A useful pattern is to treat protection as a staged configuration rather than a binary final step. During bring-up, unrestricted access speeds diagnosis. During pilot builds, selective locking validates the manufacturing script and verifies recovery behavior. In release production, the final protection state is applied only after firmware, calibration constants, and identity data are confirmed. This staged approach reduces the risk of locking devices into an unusable state while still meeting product security goals.

For runtime observability, the Micro Trace Buffer is one of the more technically meaningful debug aids on a resource-constrained MCU. In small embedded systems, full external trace is often unavailable because of pin limits, tool cost, or board complexity. The MTB addresses part of this gap by capturing execution history into memory, which can then be inspected after a fault or during controlled debug sessions. This is particularly effective in firmware that combines interrupt-driven communication, timer-based scheduling, state machines, and mixed-signal acquisition. Those systems rarely fail in a way that is visible from a single halted program counter. What matters is the execution path leading up to the event: which interrupt preempted which task, whether a timeout handler fired earlier than expected, or whether a sampling routine was delayed by bus or CPU contention.

That kind of visibility shortens debug cycles because it shifts analysis from static state inspection to execution-sequence reconstruction. The difference is substantial. Without trace context, transient faults such as race conditions, priority inversions, stack corruption, or deadline misses can be difficult to reproduce and even harder to prove. With MTB data, it becomes much easier to correlate a system-level symptom with the code path that caused it. In communication-heavy designs, this can reveal framing loss caused by ISR latency rather than peripheral misconfiguration. In control loops, it can show that jitter originates in scheduling interactions rather than timer hardware. In mixed-signal systems, it often helps separate ADC quality issues caused by analog front-end limitations from those caused by inconsistent sampling cadence.

There is also a practical engineering pattern here: use the MTB early, not only after faults become complex. On MCUs in this class, many teams rely first on breakpoints, register watches, and GPIO toggling for visibility. Those tools remain useful, but they perturb timing and scale poorly when concurrency increases. Lightweight trace history can expose timing-sensitive defects while preserving behavior much more effectively. In real-time firmware, observability that minimally disturbs the system is usually worth more than richer instrumentation that changes the very conditions being measured.

Calibration-related memory areas and serial number support extend the lifecycle model from debugging into production quality and long-term maintenance. Device-specific calibration data allows firmware to compensate for process variation, analog offset, oscillator behavior, or other per-unit characteristics documented by the vendor. Correct use of this data improves repeatability and can eliminate unnecessary guard-banding in the application layer. For example, if analog acquisition, timing accuracy, or temperature-related behavior matters to system performance, consuming device calibration values is often a lower-cost way to stabilize results than tightening external component tolerances.

The key engineering point is that calibration support should not be treated as an optional enhancement left for late firmware revisions. It belongs in the initial platform layer because it affects baseline behavior across all higher-level functions. If the abstraction is built correctly from the start, application code sees a stable peripheral model and test results remain comparable across units. If calibration is bolted on later, teams often end up revalidating control thresholds, communication timing margins, and measurement pipelines that were implicitly tuned against uncalibrated behavior.

Serial number access complements this by enabling strong traceability. A unique device identifier can anchor manufacturing logs, secure provisioning steps, calibration records, and service history. In systems that support firmware updates or parameter personalization, tying these records to a hardware identity reduces ambiguity and improves operational confidence. It also allows firmware to implement controlled behaviors such as device-specific provisioning, authenticated enrollment, or maintenance reporting without requiring additional identity hardware. For regulated or quality-controlled equipment, this supports auditability. For cost-sensitive products, it provides many of the same benefits with almost no BOM impact.

In applied designs, these capabilities work best when treated as one continuous support chain rather than isolated features. SWD handles low-friction access during bring-up and service. The Device Service Unit provides deterministic control for erase, programming, identification, and protection. The Micro Trace Buffer improves visibility into real execution flow where conventional debugging becomes intrusive or incomplete. Calibration memory and serial number support connect the technical state of the MCU to manufacturing data and deployed-device management. When these elements are integrated into the platform architecture early, the result is not just easier debugging. It is a more recoverable, more traceable, and more production-ready embedded system.

A strong implementation approach is to define lifecycle states explicitly in firmware and tooling: blank device, development image, manufacturing test image, release image, locked production image, and service recovery image. The ATSAMC21N18A-ANT support features map naturally onto this model. Doing so reduces ad hoc procedures, which are often the main source of programming errors, inconsistent lock settings, and weak traceability. On embedded products that must scale beyond a few prototypes, this discipline usually has higher return than adding more application-level complexity. The infrastructure around the MCU determines how reliably the system can be built, diagnosed, updated, and trusted over time.

ATSAMC21N18A-ANT application fit and engineering evaluation priorities

ATSAMC21N18A-ANT should be positioned as a mixed-signal communication MCU for embedded nodes that must sense, decide, and exchange data in electrically noisy, interface-dense environments. Its value is not defined by raw compute alone. It comes from how effectively it compresses control, networking, timing, and analog acquisition into one device while maintaining 5 V-oriented system compatibility. That combination makes it especially relevant in designs where board area, wiring complexity, protocol diversity, and environmental robustness matter as much as processing throughput.

At the architectural level, the device fits systems that are not compute-heavy in the classic application-processor sense, but are integration-heavy. A 48 MHz Cortex-M0+ core is typically sufficient when the workload is dominated by deterministic state machines, peripheral-assisted control loops, moderate protocol handling, sensor acquisition, diagnostics, and supervisory logic. In practice, this class of MCU performs well when the design uses hardware peripherals aggressively instead of pushing timing-sensitive functions into software. That distinction is important. If the firmware plan assumes frequent interrupt-driven data movement, software-generated timing, and multiple protocol stacks running concurrently without peripheral offload, the core can become the bottleneck earlier than expected. If the design is built around DMA, event routing, timer capture/compare, hardware serial blocks, and analog trigger chains, the same core often has comfortable margin.

This makes ATSAMC21N18A-ANT a strong fit for distributed automotive and transportation electronics. Body-domain submodules, seat or door controllers, lighting nodes, local environmental sensing units, compact actuator controllers, and gateway-adjacent edge modules align well with its feature set. CAN-FD support addresses the bandwidth and framing needs of modern in-vehicle subnetworks, while LIN support covers lower-cost peripheral communication. The 5 V operating context reduces interface friction with common automotive sensors, transceivers, and legacy logic domains. Broad temperature capability also matters here, but temperature grade should not be treated as a checkbox. It directly influences oscillator stability, analog drift, startup behavior, and long-term reliability margins, especially in under-dash, door, or engine-adjacent placements where thermal cycling is persistent.

In industrial systems, the device is particularly attractive for nodes that must bridge field connectivity with local control. PLC expansion modules, remote I/O slices, compact machine subcontrollers, valve islands, smart transmitters, and serial protocol concentrators are typical examples. These applications often need several things at once: multiple UART/SPI/I2C channels, reliable timing resources, local analog measurement, and a network path that is deterministic enough for supervisory integration. A highly integrated MCU reduces the need for dedicated housekeeping logic, separate monitoring devices, or external timing glue. That reduction has second-order benefits. It simplifies power-tree design, lowers pin-to-pin failure exposure, and usually shortens bring-up because fewer inter-chip interactions must be validated under corner conditions.

The power and control domain is another strong match, provided the control bandwidth is aligned with the MCU class. The timer/PWM resources, DAC, ADC, and comparators support digital power supervision, actuator drive management, current and voltage monitoring, threshold-based protection, and closed-loop adjustment tasks. The useful question is not whether the part can “do control,” but what level of control partitioning makes sense. It is well suited to supervisory loops, medium-speed regulation, fault handling, startup sequencing, calibration, telemetry, and multi-rail coordination. For very fast current loops or algorithms requiring extensive mathematical throughput, an M0+ may need support from dedicated analog control paths or a higher-performance digital controller. In many practical designs, the most robust partition is hybrid: let analog comparators and timer fault inputs enforce immediate protection, use PWM hardware for deterministic actuation, and reserve firmware for setpoint management, filtering, adaptation, and communications.

From an analog-integration perspective, ATSAMC21N18A-ANT deserves careful attention because this is often where BOM reduction is either validated or disproven. On paper, integrated ADC, DAC, and comparators can eliminate external converters and monitor ICs. In real designs, that is only true if input source impedance, grounding strategy, reference stability, channel switching behavior, and noise coupling are handled early. ADC performance in mixed-signal MCUs is highly layout-dependent. Fast digital edges from communication buses or PWM outputs can easily degrade effective measurement quality if return paths and analog partitioning are weak. A common failure pattern is assuming nominal ADC resolution translates directly into system accuracy. It rarely does without calibration strategy, acquisition-time tuning, and a realistic error budget that includes reference error, sensor tolerance, front-end settling, and thermal drift. If those are addressed, the integrated analog can be good enough to remove external data converters in many monitoring and control applications.

The communication subsystem is one of the device’s clearest differentiators. CAN-FD and LIN on the same MCU support platform unification across product tiers, especially where one hardware base must serve both higher-end and cost-sensitive variants. Multiple serial interfaces further improve its role as a protocol concentration point or intelligent sensor endpoint. This matters not only for function density, but also for software reuse. A single MCU platform that can cover local sensing, actuator control, diagnostics, bootloading, and network connectivity reduces architectural fragmentation across product lines. That kind of reuse is often more valuable than a small difference in unit price because validation effort, maintenance cost, and field-service consistency tend to dominate over time.

Memory sizing should be reviewed against the actual firmware architecture, not against a feature checklist. 256 KB Flash and 32 KB SRAM are workable for many embedded communication-control nodes, but margin disappears quickly when the software stack includes a bootloader, protocol libraries, diagnostics, calibration data handling, safety checks, and field-update capability. RAM pressure usually appears first. Buffered CAN-FD traffic, serial queues, ADC sample windows, control state, and abstraction-heavy middleware can consume SRAM faster than expected. A practical evaluation method is to map worst-case concurrent operation rather than average behavior. For example, combine firmware update mode, active bus traffic, peak diagnostic logging, and sensor acquisition at the same time. If the memory budget is only comfortable in nominal mode, the design is under-provisioned. Stable products are usually the result of preserving memory headroom for late-stage fixes, not maximizing utilization on the first pass.

Pin planning is another priority that should be elevated early in the evaluation. The 100-pin package offers substantial interface flexibility, but multiplexed functions always create hidden coupling between aspirations and reality. It is common for a design to appear feasible until debug access, programming interface retention, oscillator placement, analog channel isolation, and transceiver control signals are added. Then the pin map starts to collapse. The most efficient approach is to build a “simultaneous-use” matrix rather than reviewing peripherals one by one. List every interface that must operate in the same product variant, including manufacturing, test, recovery, diagnostics, and optional future expansion. That exercise usually reveals whether the part is genuinely well matched or only superficially feature-rich.

The distinction between SAM C21 family functions and N-variant-specific capabilities should also be treated as a primary filter. Device-family naming often suggests close interchangeability, but practical interchangeability depends on exact peripheral presence, package routing, memory configuration, and qualified operating grade. If a design depends on one narrow feature subset, then the second-source path inside the family may be weaker than expected. This has direct implications for lifecycle planning and procurement strategy. A part that technically fits today but forces a board re-spin when supply conditions change is less integrated than it appears.

Supply range and environmental compatibility should be judged at system level. 5 V compatibility is useful, but the design still needs explicit review of transceiver interfaces, sensor excitation strategy, ADC reference choice, and I/O protection topology. In harsh installations, transient behavior matters more than nominal supply numbers. Brownout response, startup sequencing with external loads attached, bus-line fault exposure, and reset integrity under noise deserve more attention than datasheet headline values. Designs that pass bench testing sometimes fail in the field because reset and supply supervision were treated as generic rather than application-specific. With this MCU class, robust deployment usually comes from combining internal supervisory features with carefully chosen external protection and power conditioning, not from relying on either one alone.

For engineering evaluation, several checks should be treated as gating items rather than routine review points. First, verify whether 48 MHz M0+ performance is sufficient under worst-case real-time concurrency, not only under average CPU load. Second, confirm that Flash and SRAM support the intended software architecture with update and diagnostic margins included. Third, validate pin multiplexing against simultaneous interface demand and board-layout constraints. Fourth, check whether the exact variant-specific functions are truly required and whether they limit migration options. Fifth, determine whether the integrated analog block meets system accuracy and latency targets without external converters. Sixth, confirm that supply, I/O, and thermal characteristics align with the actual installation and fault environment.

There is also a broader engineering lesson in this device category. Integration is beneficial only when it reduces system uncertainty, not merely component count. A single MCU with network, analog, and control functions can absolutely simplify the BOM and reduce external ICs. But if the design then requires complicated pin compromises, extensive analog filtering to recover measurement quality, or firmware workarounds to compensate for overloaded compute resources, the apparent savings can erode. The best use of ATSAMC21N18A-ANT is in designs where its peripheral mix maps naturally to the system partition. In those cases, it can consolidate multiple board variants, shorten validation paths, and improve maintainability. In mismatched designs, the same integration can create dense coupling between unrelated functions, making the product harder to scale or debug.

From a procurement and platform perspective, the strongest value proposition is indeed consolidation. A single MCU that brings CAN-FD, LIN capability, multiple serial interfaces, mixed-signal resources, and 5 V-oriented operation can reduce transceiver-side glue logic, eliminate some external monitoring devices, and support a more unified hardware architecture across several node types. That said, the real economic advantage comes when engineering deliberately standardizes firmware layers, manufacturing test strategy, and connector/pinout philosophy around that integration. The silicon enables consolidation, but platform discipline is what converts that into lower lifecycle cost and faster derivative development.

For teams deciding whether ATSAMC21N18A-ANT is the right fit, the most reliable framing is simple: choose it for interface-rich, control-centric, mixed-signal edge nodes where deterministic peripheral behavior matters more than high-end compute. If the design leans toward protocol diversity, moderate control complexity, integrated sensing, 5 V system compatibility, and compact implementation, this MCU is a strong candidate. If the application is memory-heavy, algorithmically dense, or pin-multiplexing-sensitive to the point of architectural strain, a higher-tier MCU or a more specialized controller may produce a cleaner result.

ATSAMC21N18A-ANT Potential Equivalent/Replacement Models

ATSAMC21N18A-ANT does not appear, from the provided material, to have a clearly identified one-step replacement under a different ordering code. The more defensible approach is to treat replacement selection as a family-level migration problem inside the Microchip Cortex-M0+ portfolio, with the decision driven by package constraints, memory requirements, peripheral dependencies, and the acceptable level of redesign.

The most direct path sits within the SAM C21 family. If the existing design depends on CAN capability, the richer analog subsystem, and the broader peripheral profile associated with SAM C21 devices, then another SAM C21 variant is the closest equivalent class. This is the only path that preserves the highest probability of architectural continuity. In practice, that continuity matters more than a simple part-number similarity. It affects firmware reuse, peripheral driver stability, clock-tree assumptions, interrupt mapping, pin multiplexing flexibility, and the validation effort needed after substitution.

Within SAM C21, the main variables are package size, pin count, and memory density. The documentation indicates coverage across 32-pin, 48-pin, 64-pin, and 100-pin package groups, with different Flash and SRAM options. That means a replacement can be selected in two distinct ways. One is a horizontal move, where the design remains in the same functional class and package tier, minimizing PCB disruption. The other is a vertical optimization, where the replacement deliberately reduces package size or memory to lower cost or board area, but only if the application has enough margin in I/O usage, RAM headroom, and nonvolatile storage.

That distinction is important because many replacement efforts fail not on headline features, but on secondary constraints. A design may appear to fit into a smaller device until late-stage checks reveal excessive pin multiplexing conflicts, bootloader growth, or analog channel congestion. In embedded platforms with mixed communication and sensing roles, the limiting resource is often not CPU throughput but routable peripheral combinations on the required pins. For that reason, a same-family SAM C21 replacement should be screened not only for Flash and SRAM, but also for SERCOM allocation, timer placement, ADC/DAC channel availability, interrupt timing sensitivity, and package-specific pin functions.

A second tier of replacement is the SAM C20 family. This option should not be described as equivalent in the strict sense. It is better understood as a controlled downgrade path for applications that use the same general MCU architecture but do not require the features marked as SAM C21-specific. The documentation explicitly separates certain functions as C21-only, including CAN and parts of the analog capability set such as DAC and SDADC. That makes SAM C20 suitable only when those blocks are either unused, replaceable at the system level, or already abstracted away behind external components.

This distinction has practical design implications. If a board uses ATSAMC21N18A-ANT mainly for low-cost control, GPIO expansion, simple serial connectivity, and moderate analog acquisition, then a SAM C20 variant may be acceptable after a structured feature audit. If the product uses on-chip CAN, relies on integrated analog precision features, or depends on the C21 peripheral mix to avoid external support ICs, then moving to C20 usually shifts complexity elsewhere in the system. The part may be cheaper, but the design may become more expensive overall once external transceivers, converters, or interface logic are added. In replacement planning, this system-level cost often matters more than the unit price delta of the MCU itself.

The SAM D20 and SAM D21 families form a third, weaker replacement tier. Their relevance comes from architectural proximity and the documented package-level drop-in compatibility for some 32-pin, 48-pin, and 64-pin TQFP and VQFN variants. That note is useful, but it should be interpreted carefully. It does not establish direct substitution for ATSAMC21N18A-ANT in a 100-pin TQFP context. Instead, it suggests that the D20 and D21 families can serve as reference points when evaluating firmware portability, toolchain continuity, or lower-feature alternatives in smaller package classes where the documentation explicitly confirms compatibility.

This makes SAM D20 and SAM D21 more appropriate for redesign-oriented decisions than for immediate replacement. They may be attractive when a product is being cost-reduced, repackaged, or functionally simplified, especially if the software stack already follows a hardware abstraction model and avoids deep coupling to C21-only peripherals. However, once the migration crosses family boundaries, subtle differences become more important. Clocking options, peripheral register behavior, event system usage, analog performance, and pin mux details can all increase integration risk. The migration may still be efficient, but it stops being a drop-in exercise and becomes a platform adaptation task.

A useful way to frame the decision is to start from the hardest-to-replace dependencies.

If the design requires CAN, advanced analog capability, and broad firmware continuity, stay in SAM C21. This is the strongest replacement path and usually the lowest-risk route.

If CAN and the C21-specific analog blocks are not required, and the design can tolerate a reduced feature envelope, evaluate SAM C20. This path works best when the original design had functional margin and the MCU was not heavily exploiting the C21-specific silicon.

If package changes, PCB revision, and peripheral remapping are acceptable, then SAM D20 or SAM D21 can be considered as redesign candidates in the package groups where the documentation supports compatibility. These are not natural replacements for the exact 100-pin device, but they are relevant comparison targets for teams optimizing footprint, cost, or software commonality across product variants.

From an engineering standpoint, the replacement process should be staged rather than purely catalog-driven.

Start with package reality. ATSAMC21N18A-ANT is a 100-pin device class in this context, so any move to a smaller package immediately changes routing density, available interfaces, and likely the board layout. If the project cannot absorb a PCB respin, then the candidate pool narrows sharply and same-package SAM C21 variants become the only credible direction.

Next, verify memory margin using actual build artifacts rather than nominal estimates. Replacement decisions often overlook how much Flash is consumed by protocol stacks, diagnostics, calibration tables, and field-update support. SRAM pressure also tends to rise over time as buffers, middleware, and safety checks accumulate. Choosing a lower-density device because current utilization appears safe can create long-term maintenance friction.

Then audit the peripheral dependency graph. Map every active interface in the design, not just the obvious ones. That includes communication ports, PWM outputs, capture inputs, analog triggers, DMA channels, event links, and any timing-critical ISR interactions. On Microchip MCU families, the peripheral set may look similar on paper while the usable combinations differ significantly by package and variant. A replacement is only successful if the required functions can coexist on the actual routed pins.

Finally, examine software coupling. If the codebase directly accesses C21-specific blocks or assumes certain startup, clock, or analog behaviors, same-core similarity alone will not ensure a low-effort migration. Where firmware has been written with clean driver boundaries, family migration is usually manageable. Where application logic and hardware registers are tightly interwoven, even a near-neighbor device can require nontrivial refactoring.

A practical rule is to treat “equivalent” and “replaceable” as different engineering categories. A same-family SAM C21 part can be equivalent enough to preserve product behavior with controlled verification. A SAM C20 part can be replaceable if the system requirements are relaxed. A SAM D20 or SAM D21 part may be a valid redesign target, but only when package, pinout, and peripheral assumptions are deliberately reopened. That separation prevents the common mistake of forcing a supply-chain substitution into what is actually a product re-architecture.

Based on the supplied documentation, the replacement logic is therefore clear and ordered by technical fit.

A SAM C21 family member is the preferred alternative when CAN capability, advanced analog functions, and close architectural alignment must be retained.

A SAM C20 family member is appropriate only when the application can give up the functions identified as SAM C21-specific and accept a reduced feature set.

A SAM D20 or SAM D21 device is relevant only when a broader redesign is acceptable, especially in the smaller package classes where the documentation explicitly notes compatibility, rather than as a direct substitute for the 100-pin ATSAMC21N18A-ANT.

conclusion

ATSAMC21N18A-ANT is best understood as a mixed-signal control MCU optimized for connected embedded nodes that must combine deterministic control, field-bus communication, and direct sensor or actuator interfacing within a single device. It integrates a 32-bit Arm Cortex-M0+ core, 256 KB Flash, 32 KB SRAM, up to 84 I/O pins, and operation from 2.7 V to 5.5 V in a 100-pin TQFP package. This combination is not just a matter of feature count. It reflects a system architecture intended to reduce external logic, simplify board-level partitioning, and support designs that need to remain electrically compatible with both modern low-power subsystems and legacy 5 V domains.

At the compute layer, the Cortex-M0+ core is not positioned for heavy algorithmic processing, but it is highly effective for real-time supervisory control, protocol handling, state-machine execution, and peripheral orchestration. In many industrial and transportation-adjacent nodes, this is the more relevant requirement. The real value comes from how efficiently the core interacts with the on-chip peripherals. When communication, timing, ADC sampling, protection monitoring, and interrupt handling are all integrated coherently, system responsiveness often depends more on peripheral topology than on raw CPU throughput. In that respect, the device is well balanced. It is designed less as a small general-purpose processor and more as a tightly integrated control endpoint.

A major differentiator is the native support for CAN and CAN FD. This immediately places the device in a class suited to distributed control networks, smart actuators, gateway-adjacent sensor nodes, battery-connected subsystems, and industrial communication endpoints. CAN FD matters because it allows a node to retain the robustness and arbitration model of classic CAN while increasing payload efficiency and improving data transfer performance where network architecture permits. In practical designs, this reduces the need to split functions across multiple controllers or to offload communication tasks to external companion devices. It also helps when firmware must support both legacy installed bases and newer network variants with minimal hardware divergence.

The communication subsystem becomes more compelling when viewed together with the SERCOM architecture. Flexible serial communication blocks allow SPI, UART, and I2C roles to be mapped according to board and firmware needs rather than being locked into rigid pin-function assumptions. This is particularly useful in products that evolve across several variants. A design may begin as a sensor acquisition node with dual UART interfaces and later shift toward SPI-connected front ends or isolated communication modules. With SERCOM flexibility, those transitions can often be absorbed with fewer schematic changes and less PCB disruption. That kind of adaptability has tangible program value because late-stage interface changes are common in embedded projects, especially when external modules, transceivers, or diagnostics channels are still being finalized.

The analog subsystem is another reason the ATSAMC21N18A-ANT fits connected control nodes rather than serving only as a communication MCU. Strong analog capability allows direct acquisition of sensor outputs, supply rails, current shunts, or control-loop feedback signals without immediately forcing the use of an external data-conversion chain. This is especially useful in compact designs where board area, BOM count, and routing complexity must be controlled. The practical advantage is not merely cost reduction. Integrated analog shortens signal paths, lowers connector and interconnect exposure, and often improves overall reliability in electrically noisy environments. In many embedded systems, every external analog component adds another calibration, grounding, or layout sensitivity issue. A more integrated path usually leads to a more predictable design.

Timer resources further reinforce the device’s role in real-time control. Advanced timers are central in applications such as motor-adjacent actuation, pulse generation, synchronized sampling, event scheduling, capture/compare measurement, and closed-loop control timing. Good timer integration often determines whether a design can maintain precise behavior under communication load. A common challenge in embedded control nodes is the collision between protocol servicing and timing-critical output tasks. Devices with weak timer and event support force the CPU into constant intervention, raising latency and jitter. Here, the MCU’s timer capabilities help shift repetitive timing work into hardware, which is generally the correct engineering direction for stable and scalable control behavior.

Low-power operation is equally relevant, but its importance should not be reduced to battery products alone. Power modes matter in any thermally constrained, always-on, or standby-heavy design. A controller that can drop into lower-power states while retaining wake responsiveness enables better energy management across the full system, including networked nodes that spend long intervals waiting for commands or monitoring thresholds. In practice, low-power modes often contribute to thermal margin, supply sizing flexibility, and longer service life in sealed assemblies. For remote or semi-autonomous equipment, these benefits can matter as much as nominal current figures.

System-level monitoring and protection features deserve more attention than they usually receive in selection discussions. In robust embedded products, fault handling is not a peripheral concern. Voltage supervision, watchdog behavior, brownout response, and related protection mechanisms frequently determine whether a system fails safely, recovers cleanly, or enters a difficult-to-diagnose unstable state. An MCU intended for industrial or automotive-oriented environments should contribute actively to fault containment rather than simply execute application code. The ATSAMC21N18A-ANT aligns well with that expectation. This is one of the reasons it can support demanding field deployments with fewer external supervisory devices, especially in designs where board space and reliability are both high priorities.

From a hardware integration perspective, the 100-pin TQFP package and high I/O count make the device suitable for designs that need broad peripheral exposure without moving into more complex packaging. This matters in production environments where manufacturability, inspection, hand-rework feasibility, and assembly maturity still influence package choice. The package offers enough connectivity to expose communication interfaces, analog channels, timer outputs, and diagnostics lines simultaneously, which is often necessary in real systems. It allows one controller to manage network transceivers, local sensors, service interfaces, status outputs, and actuator stages without aggressive pin-multiplex compromises.

The 2.7 V to 5.5 V supply range is also strategically important. True 5 V-capable operation simplifies interfacing with many established sensor families, transceivers, digital inputs, and mixed-voltage subsystems. It reduces dependence on level shifting and can ease migration from older 8-bit or 16-bit control platforms that were built around 5 V assumptions. In mixed-generation products, this often shortens redesign time and lowers interface risk. It also improves tolerance for wider supply conditions in systems powered from industrial rails, battery-backed domains, or less tightly regulated sources. In many cases, wide-voltage compatibility is not just a convenience feature. It is a constraint remover.

For product selection engineers, the device is particularly attractive when the target architecture requires one MCU to sit at the intersection of network communication, analog acquisition, and deterministic local control. Typical examples include distributed I/O modules, smart sensor heads, compact motor-control support boards, vehicle body-related subsystems, industrial gateway satellites, and control panels with both field-bus and local sensing functions. In these scenarios, the key benefit is architectural consolidation. Instead of combining a communication controller, analog front-end manager, and timing-oriented control MCU, the design can often be collapsed into a single-chip solution with cleaner firmware ownership and fewer board-level dependencies.

For sourcing and platform planning, the part offers value beyond the headline specifications. High peripheral integration can reduce BOM size, shrink PCB area, and lower the number of external support ICs that must be qualified and stocked. That has second-order effects in supply resilience, assembly flow, and test strategy. Fewer companion components usually mean fewer failure points, fewer interface validation tasks, and a shorter path from prototype to stable production. In embedded programs that must support multiple product variants over time, this kind of integration also creates a more reusable hardware base. A well-chosen MCU can become a platform anchor rather than a one-off component selection.

One practical observation is that devices in this class deliver the most value when the design team actively exploits the internal interconnect between peripherals instead of treating the MCU as a CPU plus a loose collection of blocks. Real gains appear when timers trigger sampling, communication channels operate with minimal CPU servicing, monitoring features are tied into recovery logic, and pin multiplexing is planned from the first schematic revision. If these interactions are addressed early, the MCU can support surprisingly sophisticated control behavior with modest firmware overhead. If they are deferred, the design may still work, but much of the integration advantage is lost to avoidable software complexity and routing compromises.

Another useful perspective is that the ATSAMC21N18A-ANT occupies a productive middle ground. It is more capable than a basic general-purpose MCU, yet it does not impose the cost, software mass, or power burden associated with larger application-oriented processors. That balance is often where durable embedded products succeed. Many field devices do not need maximum compute density. They need stable real-time behavior, strong interface coverage, analog awareness, and reliable operation across imperfect electrical conditions. This MCU aligns closely with that profile.

ATSAMC21N18A-ANT therefore stands out as a versatile and technically well-composed controller for connected control nodes operating in demanding embedded environments. Its combination of CAN/CAN FD, flexible SERCOM interfaces, analog integration, advanced timers, low-power support, protective system features, broad I/O availability, and 5 V-capable operation makes it especially suitable where communication depth and mixed-signal control must coexist on a single chip. For designs aiming to reduce external circuitry without sacrificing field-ready robustness, it is not merely a viable option but often a structurally efficient one.
