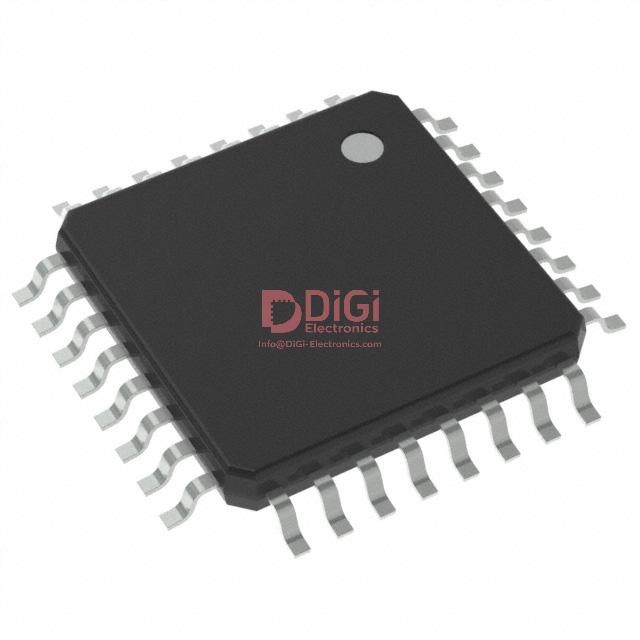

ATMEGA48PA-15AZ

ATMEGA48PA-15AZ product overview and device positioning

ATMEGA48PA-15AZ is positioned as a compact, automotive-qualified 8-bit AVR microcontroller for embedded control tasks where determinism, peripheral density, and long-term platform stability matter more than raw compute throughput. Within Microchip’s ATmega line, it sits in the small-memory segment, aimed at designs that need a proven controller core with enough mixed-signal and serial capability to close a control loop, supervise a sensor set, or manage a low-complexity subsystem without the cost, power profile, or software overhead of a larger MCU class. In practical product planning, this device is not a reduced-feature placeholder. It is better understood as a tightly bounded controller optimized for reliable real-time execution in space-constrained and cost-sensitive designs.

The device integrates 4 KB of flash, 256 bytes of EEPROM, and 512 bytes of SRAM. Those numbers immediately define its ideal workload envelope. Flash size is sufficient for compact state machines, protocol handlers, calibration tables, and low-to-moderate control logic, but it enforces discipline in firmware architecture. Monolithic frameworks, abstraction-heavy code, and large communication stacks will quickly consume the available space. The SRAM budget is similarly modest, which favors static allocation, short interrupt paths, and careful buffering strategy. In practice, this memory profile aligns well with keypad or switch processing, actuator control, LED or lamp management, environmental sensing, simple gateway behavior, and supervisory functions that coordinate rather than compute. EEPROM adds value in the field by supporting retention of calibration constants, configuration bytes, event counters, or fallback operating parameters without external nonvolatile storage.

Its 8-bit AVR architecture remains relevant because of its predictable execution model and low barrier to deterministic control. For many embedded nodes, especially those handling GPIO timing, serial exchanges, periodic ADC sampling, or PWM-based actuation, response consistency matters more than architectural width. The AVR core has long been favored in these environments because it allows direct register-level control with low latency and relatively transparent timing behavior. That simplicity often shortens bring-up and reduces debugging friction, particularly when the system must be verified across supply and temperature corners rather than merely demonstrated under nominal lab conditions.

The peripheral mix is one of the strongest reasons to select ATMEGA48PA-15AZ. With 23 programmable I/O lines, it can support a fairly dense external interface for its class. The serial blocks cover the common embedded communication set: I2C-compatible 2-wire interface for low-speed device interconnect, SPI for higher-speed peripheral expansion or daisy-chained control components, and UART/USART for diagnostics, module communication, or boot-time service access. This combination makes the part especially useful as a local controller sitting between sensors, power stages, and a higher-level host. It can sample analog inputs, generate PWM outputs, supervise status lines, and still maintain one or two communication channels without resorting to external glue logic.

The integrated 8-channel 10-bit ADC is a practical asset rather than a headline feature. In this class of device, ADC capability often determines whether the MCU can directly terminate sensor signals or must rely on an external converter. For voltage monitoring, thermistors, potentiometric position sensing, current feedback through conditioned analog front ends, and low-bandwidth environmental inputs, the built-in ADC is usually sufficient. The real engineering value comes from system consolidation: one package can handle acquisition, threshold processing, and reporting. That reduces BOM count and routing complexity, and often improves fault containment because fewer external interconnects are exposed to noise or assembly variation. The tradeoff, as usual, is that analog accuracy depends heavily on reference stability, grounding, source impedance, and sampling strategy. On devices in this category, layout discipline often contributes more to usable measurement quality than nominal ADC resolution.

PWM support extends the part into actuation and power-control roles. Typical use includes LED dimming, small motor drive signaling, heater modulation, fan control, buzzer generation, and closed-loop duty-cycle adjustment. When paired with watchdog supervision and brown-out detection, the MCU can support systems that need to recover cleanly from transient faults or supply instability. That combination is often undervalued during early selection, yet in deployed equipment it becomes central to resilience. Brown-out protection helps prevent corrupted execution during supply collapse or undervoltage events, while the watchdog provides a hardware-level escape path from stalled firmware states. In small controllers used at the edge of a system, these features often separate a robust product from one that requires manual recovery after rare but inevitable disturbances.

Clock and voltage behavior should be interpreted carefully, because this is where many otherwise valid designs drift into marginal operation. The product-level supply range is 1.8 V to 5.5 V, which gives flexibility across low-voltage and traditional 5 V systems. However, the speed grade places explicit limits on the clock frequency that can be sustained at a given voltage. Operation up to 8 MHz is supported from 2.7 V to 5.5 V, while 16 MHz operation requires 4.5 V to 5.5 V. This is not a minor footnote. It directly affects timing closure, serial baud accuracy, interrupt load, and power budgeting. A design running at 3.3 V cannot simply assume 16 MHz headroom because the package and family are commonly associated with that clock rate. The correct engineering approach is to treat supply-frequency pairing as a first-order design constraint, especially when ambient temperature variation and startup transients are part of the operating profile.

In low-voltage designs, a conservative clock choice usually pays off. It reduces timing stress, lowers dynamic consumption, and leaves more margin under cold-crank or droop conditions. In 5 V designs, 16 MHz operation is straightforward, but peripheral timing should still be reviewed against the application’s worst-case interrupt density. On small-memory MCUs, performance loss is often caused less by core speed than by inefficient interrupt architecture, oversized protocol framing, or excessive polling. It is common to see a design meet timing at the instruction level and still fail system-level responsiveness because the software structure ignores SRAM limits and peripheral contention. This device performs best when each peripheral is assigned a narrow, well-defined role and firmware paths are intentionally bounded.

The automotive qualification is a major part of the device’s positioning. AEC-Q100 qualification and the -40°C to +125°C operating range make the ATMEGA48PA-15AZ suitable for environments where procurement and reliability criteria are more stringent than in general-purpose consumer electronics. This does not turn the MCU into an application-specific automotive controller by itself, but it does mean the component is screened and characterized in a way that aligns better with body electronics, distributed sensing, cabin auxiliaries, power accessory management, and industrial nodes exposed to harsh thermal conditions. For sourcing teams and design reviewers, this reduces friction when the target product must demonstrate component suitability beyond nominal commercial temperature grades.

The 32-pin TQFP package at 7 mm × 7 mm gives a useful compromise between I/O accessibility and board density. It is small enough for compact modules, yet still manageable for routing mixed analog, digital, and programming connections without extreme PCB complexity. That package size also helps in designs where peripheral breakout matters more than absolute miniaturization. With 23 programmable I/Os available, the package supports direct attachment to switches, status outputs, sensor enables, communication lines, and low-pin-count expansion devices. In practice, this simplifies partitioning. One MCU can often absorb the role of a GPIO expander, analog monitor, and local protocol endpoint at the same time.

From a device-positioning perspective, ATMEGA48PA-15AZ is best selected when the application is fundamentally control-centric rather than software-centric. If the design requires large buffers, advanced security stacks, complex UI logic, over-the-air update infrastructure, or multiple concurrent high-level protocols, the memory limits will become the dominant constraint and a larger MCU class is a better fit. If the requirement is stable timing, modest code size, broad peripheral utility, and operation across industrial or automotive temperature ranges, this device becomes much more attractive. It is particularly effective as a dedicated subsystem controller in a larger architecture, where it handles local sensing and actuation while a higher-level processor manages networking, user interaction, or system orchestration.

A recurring advantage in real deployments is that mature 8-bit devices like this one tend to reduce engineering uncertainty. The architecture, toolchain expectations, peripheral behavior, and board-level integration patterns are well understood. That maturity shortens failure analysis and makes edge-case behavior easier to characterize. In constrained products, that often has more value than a newer MCU with more resources but a larger validation burden. The ATMEGA48PA-15AZ fits this pattern well: it is not intended to be everything, but within its operating envelope it is highly efficient.

For sensor interface modules, the device can sample multiple analog channels, apply thresholding or lightweight filtering, store calibration values in EEPROM, and report over UART, SPI, or I2C. For automotive body control, it can supervise switch inputs, drive PWM loads, monitor supply integrity, and recover safely from transients using watchdog and brown-out mechanisms. For industrial auxiliaries, it can act as a deterministic sequencer with local diagnostics and fault handling. These are not edge cases; they map directly to the device’s internal balance of memory, I/O, communication, and qualification level.

The strongest reason to choose ATMEGA48PA-15AZ is that its specification is coherent. The memory size, peripheral set, voltage range, package, and automotive qualification all point toward the same use model: compact, reliable embedded control at the edge of a system. Devices are easiest to engineer with when their capabilities align naturally with their intended role, and this part does. It rewards disciplined firmware, careful clock-to-voltage matching, and clean board-level analog design. In return, it offers a stable and efficient platform for embedded nodes that need to keep working under real electrical and thermal stress rather than only under ideal bench conditions.

ATMEGA48PA-15AZ core architecture and processing capabilities

At the heart of the ATMEGA48PA-15AZ is the AVR 8-bit CPU, a compact RISC core engineered for deterministic embedded execution rather than raw computational scale. Its value is not defined by clock frequency alone, but by the efficiency of each cycle. The core implements 131 instructions, with most completing in a single clock cycle, and uses 32 × 8-bit general-purpose registers directly attached to the ALU. This register-centric design removes much of the memory traffic that would otherwise burden instruction execution. In small control-oriented systems, that matters more than headline architecture width. Fewer intermediate loads and stores translate directly into lower latency, tighter interrupt response, and code paths whose timing remains easier to reason about under real operating conditions.

This direct register-to-ALU coupling is one of the strongest architectural traits of the AVR family. In many embedded workloads, especially state machines, digital control, low-bandwidth protocol parsing, and periodic sensor processing, the dominant requirement is not complex algorithmic throughput but predictable instruction flow. The ATMEGA48PA-15AZ serves that requirement well because its execution model stays simple enough to support cycle-aware firmware design. When a control loop must sample, compute, and update within a fixed interval, architectural simplicity becomes a practical performance feature. A smaller CPU with stable timing often outperforms a nominally more capable core once interrupt jitter, code overhead, and peripheral coordination are taken into account.

The specified throughput of up to 16 MIPS at 16 MHz reflects this efficiency. Since most instructions complete in one cycle, the core can sustain near one-instruction-per-clock behavior over a large part of real firmware. That does not mean every workload reaches peak throughput, because branches, memory accesses, and multi-cycle instructions still shape actual execution time. However, for compact embedded code, the gap between theoretical and realized performance is often narrower than on more deeply pipelined architectures. This is particularly relevant in designs where the processor must divide time between foreground logic and asynchronous service routines. The AVR core does not hide timing behavior behind complex speculative execution, so performance remains transparent enough to budget at the instruction level when necessary.

The fully static design extends that practicality. A static CPU can run from DC up to its rated clock without requiring a minimum operating frequency for internal state retention. In engineering terms, this enables aggressive clock scaling, controlled pauses, and low-duty-cycle operation without introducing architectural instability. Systems that wake periodically to sample a signal, service a communication frame, or refresh an actuator can spend significant time in reduced-power states, then resume execution cleanly. This characteristic is often more useful than it first appears. In battery-powered or thermally constrained designs, fine-grained control of active time frequently delivers larger system-level gains than optimizing arithmetic efficiency alone.

The on-chip 2-cycle multiplier further improves the balance between simplicity and capability. On an 8-bit controller, multiply operations can otherwise become a bottleneck in scaled integer math. Here, the hardware multiplier allows proportional control, digital filtering, coordinate transforms of modest size, and calibration routines to execute with much lower overhead. This is especially useful when fixed-point arithmetic replaces floating-point support, which is common in resource-limited systems. A well-structured fixed-point implementation on this core can handle many real measurement and control tasks with excellent efficiency, provided scaling and saturation are planned early. In practice, designs become more robust when numerical format decisions are treated as part of architecture, not as a late-stage coding detail.

The Harvard architecture is another major contributor to effective throughput. Program memory and data memory are separated, with independent buses that allow instruction fetch and data operations to proceed without the same level of contention found in simpler shared-bus designs. The CPU pre-fetches the next instruction while executing the current one, creating a single-level pipeline that supports the one-instruction-per-clock behavior across much of the instruction set. This pipelining is intentionally shallow. That is a strength, not a limitation, in small embedded control. Deep pipelines can increase peak performance, but they also complicate interrupt latency, branch cost, and timing predictability. The ATMEGA48PA-15AZ instead prioritizes stable, analyzable execution, which aligns well with real-time firmware patterns.

From a firmware perspective, this architectural arrangement improves both code density and timing clarity. AVR instructions are compact and well matched to common embedded operations, so meaningful control functionality can fit into relatively limited program space without excessive abstraction penalty. More importantly, timing can often be estimated directly from instruction sequences and peripheral event timing. This simplifies the design of cycle-sensitive routines such as software-driven serial interfaces, pulse measurement support, waveform generation assistance, and tightly bounded interrupt service routines. Where certification, safety review, or formal timing validation is relevant, a core with transparent execution behavior reduces verification effort significantly.

The CPU should also be viewed as a coordination engine rather than only an arithmetic unit. In the ATMEGA48PA-15AZ, the processor is responsible for orchestrating memory movement, peripheral configuration, interrupt dispatch, and mode transitions across the device. That role becomes central in small systems because there is usually no companion processor, DMA engine, or external logic layer to absorb complexity. The microcontroller must simultaneously manage timers, serial communication, analog acquisition, and low-power wake-up behavior while preserving application responsiveness. A core that can shift rapidly between these responsibilities, without incurring large context or scheduling overhead, often determines whether the entire design feels clean or fragile.

Interrupt handling is especially important in this class of device. The architectural value is not merely that interrupts exist, but that service latency remains short and behavior remains repeatable. In mixed interrupt-driven and foreground applications, the CPU can handle periodic timer events, serial receive activity, or ADC completion flags while the main loop performs supervisory logic. This pattern is common because it maps naturally onto the hardware. The main loop owns policy and state progression, while interrupts handle precise event capture and bounded response tasks. Systems built this way are usually easier to debug and more resilient under corner conditions than designs that push too much work directly into interrupt context.

A practical approach on this core is to keep interrupt handlers minimal: capture data, timestamp events, set flags, and return. Heavier processing should stay in the foreground unless latency requirements are strict. This preserves determinism, avoids stack pressure, and reduces the risk of nested timing faults. On small AVR devices, the architectural strengths appear most clearly when firmware mirrors the hardware philosophy: short paths, explicit state, bounded work, and careful ownership of timing-critical actions. Attempts to impose overly abstract software structures can consume the very predictability the device provides.

The ATMEGA48PA-15AZ is therefore best understood as a deterministic control processor with efficient peripheral supervision capability. It is well matched to closed-loop control, low-to-moderate speed communication handling, scheduled measurement, signal conditioning with fixed-point math, and compact standalone embedded nodes. It is less suited to workloads dominated by large memory footprints, heavy data buffering, or computationally dense algorithms requiring wide arithmetic and complex memory hierarchies. Used within its natural operating envelope, however, the architecture is remarkably efficient. The important insight is that its strength comes from balance: fast enough execution, low enough power, simple enough timing, and enough integration to eliminate external support in many designs. That combination is why the device remains compelling for embedded systems where correctness per cycle matters more than complexity per core.

ATMEGA48PA-15AZ memory resources and self-programming characteristics

The ATMEGA48PA-15AZ integrates a compact but well-balanced memory subsystem: 4 KB of in-system self-programmable Flash arranged as 2K × 16, 256 bytes of EEPROM, and 512 bytes of SRAM. Within the ATmega48PA/88PA/168PA family, this places it at the smallest capacity point, which directly shapes the class of firmware it can carry efficiently. It is best matched to control-oriented applications with narrow functional boundaries: actuator sequencing, sensor front-end filtering, supervisory logic, simple protocol bridging, compact UI handling, and deterministic housekeeping tasks. In practice, this memory size does not merely limit feature count; it drives architectural discipline. Code structure, state representation, and update strategy all need to be chosen with memory behavior in mind rather than added later as optimization work.

The Flash array is the primary program store and supports 10,000 erase/write cycles. EEPROM supports 100,000 cycles and is therefore the preferred non-volatile target for parameters that change during service life. This distinction is more important than it first appears. Flash endurance is usually sufficient for production programming, occasional field updates, and controlled maintenance operations. EEPROM, by contrast, is the correct location for calibration trims, installation options, persistent counters, threshold tables, and service-adjustable settings. When these roles are mixed carelessly, endurance margin is consumed in the wrong place. A common failure pattern in small embedded systems is not absolute memory exhaustion but premature wear caused by storing operational metadata in Flash simply because it is already part of the programming flow. On this device, that tradeoff is rarely justified.

SRAM at 512 bytes is the tightest constraint for many designs. Flash size often receives the most attention during part selection, but SRAM usually becomes the first hard limit once communication stacks, temporary buffers, and nested control logic are introduced. Buffer sizing for UART, SPI, or TWI transactions must therefore be conservative. Deep call trees, large local arrays, and printf-style formatting are expensive decisions on a device at this scale. A more robust approach is to keep data paths static, preallocate compact buffers, and encode state transitions explicitly rather than indirectly through layered abstractions. In small AVR systems, SRAM pressure also influences system stability under edge conditions, because stack growth and interrupt activity can collide with application data silently if margins are not measured.

The self-programming model is one of the most important implementation details of the ATMEGA48PA-15AZ. The device is in-system programmable and supports software protection features such as lock bits, which is useful for production control, IP protection, and field servicing policy. However, the self-programming behavior differs materially from larger members of the family. Although the broader family documentation discusses true read-while-write capability and boot loader support, the ATmega48PA specifically does not provide read-while-write support and does not include a separate boot loader section. The SPM instruction can execute from the entire Flash space.

That difference has direct engineering consequences. On devices with a dedicated boot section and read-while-write support, firmware update design can be partitioned cleanly: one region continues executing while another region is being programmed. On the ATMEGA48PA-15AZ, that model does not apply. During self-programming, code execution and memory update are not isolated in the same way, so field-update mechanisms must be designed with greater caution. Any bootloader concept must account for the fact that there is no protected hardware-defined boot partition to anchor the update process. This changes risk distribution. Update reliability becomes more dependent on software structure, power stability, image validation method, and recovery policy.

A practical implication is that a full-featured resident bootloader is often less attractive on this device than on larger AVR variants. With only 4 KB of Flash, the bootloader itself consumes a meaningful percentage of total code space, and the lack of a dedicated boot section reduces the usual architectural advantage of keeping update code isolated. In many products, a simpler approach is stronger: use ISP during manufacturing and service, and reserve self-programming only for tightly controlled update paths where the power environment, communication integrity, and rollback behavior are well bounded. If field update is mandatory, the update agent should be extremely small, deterministic, and defensive. Page-level verification, strict image integrity checks, brownout protection, and explicit update state markers in EEPROM become more important than update speed.

EEPROM endurance and retention characteristics make it the natural anchor for these state markers. Because EEPROM is rated to 100,000 cycles, it can safely hold update status flags, configuration blocks, version metadata, and error counters, provided writes are managed intelligently. It is still good practice to avoid rewriting the same byte location on every event. Even on modest systems, simple wear-distribution schemes extend lifetime with little code overhead. Rotating records, monotonic sequence numbers, and CRC-protected parameter blocks are usually enough. In fielded systems, the difference between “works in the lab” and “survives years of intermittent resets” often comes down to exactly this kind of non-volatile data discipline.

The retention data is also notable. Qualification results indicate a projected data retention failure rate far below 1 PPM over 20 years at 85°C. For long-life industrial and automotive-adjacent deployments, this supports confidence in the stability of stored firmware and parameters under elevated temperature conditions. The useful engineering interpretation is not that retention can be ignored, but that the dominant risks usually shift elsewhere: uncontrolled write patterns, unstable supply rails during programming, inadequate corruption detection, and weak update-state management. Retention is rarely the first problem in a well-designed product based on this device. Write policy and recovery design are more likely to determine long-term reliability.

From a system architecture perspective, the memory profile strongly favors compact, explicit firmware designs over modular excess. Table-driven state machines fit well. Fixed-point arithmetic is usually preferable to floating point. Protocol handling should be selective rather than generic. Diagnostic features should be designed as narrow observability hooks instead of broad logging frameworks. This device rewards code that is shaped around execution certainty, bounded memory use, and low update frequency. When those constraints are accepted early, the ATMEGA48PA-15AZ becomes a very efficient control MCU. When treated as a general-purpose platform expected to absorb late feature growth, it reaches its limits quickly.

A useful way to think about the ATMEGA48PA-15AZ is that its memory resources are not simply “small”; they are intentionally sufficient for firmware with a stable behavioral core. Flash is adequate for tightly scoped control logic. EEPROM is large enough for meaningful persistent configuration if records are compact. SRAM is enough for deterministic runtime behavior if buffering is disciplined. The self-programming capability adds flexibility, but on this specific device it should be viewed as a constrained maintenance feature rather than an invitation to implement heavyweight in-application update frameworks. That distinction is central to successful product use. In designs where firmware scope is controlled, parameter persistence is handled through EEPROM, and update strategy respects the absence of read-while-write and a dedicated boot section, the device delivers a reliable and efficient memory architecture for long-life embedded control nodes.

ATMEGA48PA-15AZ peripheral set for control, sensing, and communication

ATMEGA48PA-15AZ provides an unusually complete peripheral set for a small 8-bit controller, and that balance is the main reason it remains useful in compact control nodes, sensor interfaces, and low-complexity communication endpoints. Its value is not just the number of integrated blocks, but how those blocks interact with each other to reduce external logic, simplify firmware architecture, and preserve PCB area. In designs where every pin, timer channel, and interrupt source matters, this device offers a level of functional density that is often more important than raw memory size.

The peripheral mix includes two 8-bit Timer/Counters, one 16-bit Timer/Counter, six PWM outputs, an 8-channel 10-bit ADC, an analog comparator, on-chip temperature measurement support, a programmable watchdog timer with an independent oscillator, and three common serial interfaces: USART, SPI, and 2-wire serial interface compatible with I²C. This combination positions the device well for systems that must sense analog conditions, generate deterministic timing, control actuators, and exchange data with external components without relying on a larger MCU class.

The timer subsystem is one of the most technically significant parts of the device. In small embedded systems, timers define real-time behavior more than CPU frequency does. The two 8-bit timers are well suited for periodic task scheduling, simple PWM generation, debounce timing, and software timebase creation. The 16-bit timer extends this capability into precision timing domains where wider count range and finer resolution are required. That difference becomes critical in pulse-width measurement, tachometer capture, input period analysis, and event timestamping. When designing closed-loop functions, the 16-bit path usually becomes the anchor for measurement, while the 8-bit timers handle background scheduling and auxiliary waveform generation.

The input capture capability on the 16-bit timer deserves special attention. It allows an external edge to latch the current timer value in hardware, which avoids software latency and interrupt jitter from corrupting timing measurements. In practice, this is the difference between a system that estimates frequency and one that measures it cleanly. Applications such as fan RPM monitoring, ultrasonic echo timing, pulse-train decoding, and low-cost flow sensing benefit directly from this hardware path. A recurring design pattern is to use input capture for edge acquisition, an output compare channel for periodic control updates, and an overflow interrupt to extend timing range in software. That arrangement creates a surprisingly capable timing engine within a very small MCU footprint.

The six PWM channels expand the device from a sensing controller into a practical actuator interface. PWM is often treated as a simple duty-cycle output, but in embedded control it is the primary bridge between digital decision logic and analog energy delivery. With six channels, the ATMEGA48PA-15AZ can independently modulate multiple LED strings, drive transistor stages for motors or valves, control fan speed, or provide bias and housekeeping waveforms in mixed-signal systems. For low-power motor or blower control, PWM frequency selection matters as much as duty-cycle resolution. Too low, and acoustic noise becomes objectionable. Too high, and switching losses or driver limitations appear. The timer architecture gives enough flexibility to place the waveform in a practical range while still preserving interrupt bandwidth for the rest of the application.

A useful implementation detail is that PWM channels can also serve as low-cost DAC substitutes when combined with an RC filter or an active stage. This is often sufficient for threshold control, contrast adjustment, bias generation, or setpoint output into an analog subsystem. In constrained designs, using PWM this way avoids adding a dedicated DAC and saves both BOM cost and interface complexity. The tradeoff is ripple, response time, and sensitivity to timer reconfiguration, so it works best where the analog target is slow-moving and the firmware owns the timing budget carefully.

The analog subsystem is sized for mainstream embedded sensing rather than precision instrumentation, and that is exactly where it is most effective. The 8-channel 10-bit ADC supports common measurement tasks such as thermistor sensing, battery monitoring, current feedback from shunts or amplifier outputs, potentiometer position reading, light sensing, and general-purpose analog module interfacing. Ten-bit resolution is often enough when the signal chain is designed correctly. In many field systems, the limiting factor is not converter resolution but sensor tolerance, reference stability, layout noise, and calibration strategy. A well-routed 10-bit ADC with a stable reference often outperforms a nominally higher-resolution implementation that ignores analog fundamentals.

AREF and AVCC are especially important in this context. Their presence is not a minor pin-level detail; they define whether the ADC behaves like a measurement block or merely a rough indicator. Clean analog supply routing, local decoupling, controlled return current paths, and separation of switching noise from the analog reference network strongly influence conversion repeatability. A common practical improvement is to low-pass filter AVCC and keep high di/dt digital currents away from the analog section, even on a small board. Another effective technique is synchronized sampling: trigger ADC conversions at a known phase relative to PWM switching or communication bursts so that measurements are taken during quieter electrical windows. This often produces a larger accuracy gain than firmware averaging alone.

The analog comparator adds a different class of capability. Unlike the ADC, which is optimized for sampled measurement, the comparator is useful for threshold detection and fast event response. It can support zero-crossing detection, overcurrent indication, edge conditioning, simple waveform discrimination, or wake-up logic. In power or motor-related designs, a comparator often becomes the first line of protection because it can react to analog thresholds with less overhead than a sampled software loop. This is one of those peripherals that is easy to overlook during early planning and then becomes extremely valuable once fault handling requirements tighten.

The temperature measurement capability is best understood as a supervisory feature rather than a precision thermal sensor. It can help estimate internal operating conditions, support thermal derating logic, or provide coarse environmental context for compensation and diagnostics. In practical systems, its strongest use is trend observation. A stable rise over time under constant load can indicate enclosure heating, regulator stress, or a shift in airflow conditions. It is less about absolute temperature accuracy and more about adding another internal variable to system awareness at almost no hardware cost.

Communication support is another reason the device integrates well into real products rather than isolated demos. USART, SPI, and 2-wire serial cover most low- to medium-speed embedded interconnect patterns. USART remains the simplest path for bootstrapping, field diagnostics, logging, and external host interaction. It is forgiving, broadly supported, and ideal for bringing visibility into firmware state during development and service. SPI provides a high-speed synchronous link for displays, shift registers, external converters, memory devices, or local co-processors. The 2-wire interface is well matched to digital sensors, EEPROMs, expanders, and board-level peripheral clusters where bus sharing is more valuable than throughput.

What matters in practice is that these interfaces can coexist in a clear system partition. SPI can serve bandwidth-sensitive peripherals such as displays or fast converters. TWI can aggregate slower sensors and configuration devices. USART can remain reserved for maintenance traffic, command-line diagnostics, or telemetry. That separation reduces bus contention, simplifies software layering, and makes failure analysis easier. In constrained firmware, interface specialization usually leads to more robust behavior than trying to push all external traffic through a single bus type.

There is also a subtle architectural benefit to having all three interfaces on a small controller: it enables bridging functions. The ATMEGA48PA-15AZ can act as a protocol adapter between a UART-based host and an I²C sensor group, or between a simple serial command interface and an SPI-controlled peripheral. This is often useful in modular systems where one board must isolate timing-sensitive local peripherals from a higher-level controller. In that role, the MCU is not just executing application logic; it is absorbing protocol mismatch and timing details so the surrounding system remains simpler.

The supervisory features are aligned with reliability-focused design. Power-on reset, programmable brown-out detection, watchdog timing, external interrupts, and pin-change interrupts form the safety and recovery layer that keeps embedded nodes stable in electrically noisy environments. Brown-out detection is particularly important because many field failures are not caused by full power loss but by partial supply collapse, slow ramps, or brief dips that leave logic in undefined states. Enabling an appropriate brown-out threshold typically costs some power budget, but it prevents far more difficult faults such as corrupted state machines, failed peripheral initialization, or EEPROM misuse during marginal voltage conditions.

The watchdog timer, backed by its own oscillator, is equally important because it gives the system an independent recovery path when the main firmware flow stalls. The best watchdog implementations are not simple periodic resets in a main loop. A stronger pattern is to service the watchdog only after critical tasks have completed in sequence: timing update, input acquisition, communication maintenance, and fault checks. That turns the watchdog from a symbolic safety feature into a real execution-integrity monitor. In small control systems, this distinction has a visible impact on long-term stability.

Interrupt support further strengthens the device’s role in responsive control. External interrupts and pin-change interrupts allow the MCU to stay in low-power or low-activity states until a real event occurs. This matters not only for energy savings but also for determinism. Polling scales poorly when multiple asynchronous signals exist, especially if communication, sampling, and timing tasks already compete for CPU cycles. Event-driven firmware mapped carefully onto timer interrupts, capture events, and external interrupt sources tends to be simpler, more predictable, and easier to validate.

From an application perspective, the peripheral set maps naturally into several embedded patterns. In sensor concentrators, the ADC reads analog channels while TWI gathers digital sensors, USART reports diagnostics, and a timer schedules acquisition cycles. In actuator-oriented nodes, PWM drives external stages, the ADC closes the loop through current or voltage feedback, and comparator-based fault detection provides fast shutdown paths. In communication adapters, SPI or TWI links connect local peripherals while USART exposes a host-facing interface. In low-cost industrial or automotive-adjacent modules, brown-out detection, watchdog recovery, and interrupt-based event handling provide the baseline resilience expected from equipment that must survive transients and intermittent faults.

A practical strength of the ATMEGA48PA-15AZ is that it encourages balanced designs rather than overbuilt ones. The device does not invite wasteful abstraction or peripheral excess. Instead, it rewards disciplined partitioning: assign the 16-bit timer to precision work, reserve PWM channels for outputs with real control significance, protect the ADC with proper reference and layout treatment, and use the serial interfaces according to traffic character rather than convenience. When applied this way, the MCU often delivers more system-level capability than its memory size suggests.

The most effective use of this device comes from viewing the peripherals as a coordinated fabric rather than independent checkboxes. The timers create time structure. PWM translates control decisions into physical outputs. ADC and comparator provide visibility into analog behavior. Serial blocks connect the node to the rest of the system. Reset, brown-out, watchdog, and interrupts keep the whole design recoverable and deterministic. That integration is the real advantage of the ATMEGA48PA-15AZ: it supports complete embedded control loops in a compact implementation, with just enough analog, timing, and communication capability to solve real engineering problems cleanly.

ATMEGA48PA-15AZ power, clock, and low-power operating behavior

ATMEGA48PA-15AZ power and clock behavior directly shape its usefulness in compact embedded designs, especially where average current matters more than peak compute capability. The device is not merely a small 8-bit controller with sleep states attached; it is a power-managed execution platform whose efficiency depends heavily on how firmware schedules work, how clocks are sourced, and how the board constrains leakage outside the silicon. The published figures provide a useful starting point: typical active current is 1.4 mA at 4 MHz, 3 V, and 25°C, while power-down current is 0.8 µA. In practice, these numbers signal that the part can support long battery residence times or ignition-off standby operation, but only when the complete design treats current as a system budget rather than a microcontroller-only parameter.

A useful way to read these specifications is to separate dynamic consumption from static retention behavior. In active mode, current is dominated by clock-driven switching inside the CPU core, buses, memory interfaces, and enabled peripherals. This means active current scales not only with supply voltage and clock frequency, but also with how much of the chip is actually toggling. Firmware that leaves timers, ADC, analog comparator, SPI, TWI, or UART enabled without need often pays a quiet but persistent current penalty. In low-power designs, the largest savings often come from disciplined peripheral gating rather than from changing the processor itself. The part rewards firmware that treats every enabled block as an energy decision.

The six sleep modes are best understood as progressively different tradeoffs between state retention, wake latency, peripheral availability, and clock domain activity. Idle mode is the lightest intervention. It stops the CPU while allowing major peripherals to continue operating. This is useful when the application is event-driven and the core spends much of its time waiting for a serial byte, timer compare, or capture event. Idle mode works well when response time is important and the peripheral clocks must remain alive, but its current reduction is limited because much of the internal clock tree is still active.

ADC Noise Reduction mode is more specialized and more valuable than its name initially suggests. By suppressing CPU and much of the surrounding digital switching during conversion, it improves analog measurement integrity without requiring external analog complexity. This matters in designs with high source impedance sensors, ratiometric sensing, or millivolt-level signal margins. The benefit is not only lower current during conversion, but also lower deterministic digital noise coupling into the substrate and supply rails. In mixed-signal layouts, that often translates into more stable least significant bits and reduced need for heavy averaging in firmware.

Power-down mode is the true low-leakage anchor. In this state, the main oscillator is stopped and most internal activity is halted, leaving only wake-capable sources and retained state where supported. It is the mode to target when the product spends long intervals waiting for an external interrupt, watchdog event, or infrequent wake trigger. For many battery systems, the difference between an acceptable shelf-life profile and a disappointing one is whether firmware reaches Power-down quickly, reliably, and repeatedly after each useful task. Designs that remain in a lighter sleep because of an avoidable software dependency often miss the main advantage of the device.

Power-save extends this concept by preserving asynchronous timer operation, typically through Timer/Counter2 running from a separate low-frequency oscillator path. This mode is particularly effective when the system needs a persistent low-power time base for periodic wake-up, timestamping, debounce windows, or duty-cycled sensing. It avoids the energy cost of keeping the main clock alive just to count time. For systems that wake every few seconds or minutes, asynchronous timing often produces a better energy profile than watchdog-only scheduling because it gives finer control over cadence and can reduce unnecessary wake overhead.

Standby and Extended Standby exist to optimize wake behavior when oscillator startup time would otherwise dominate latency. Their value appears when the application must sleep deeply but resume quickly with deterministic clock availability. This is often relevant in communication edges, burst measurement nodes, or control loops that remain mostly dormant but occasionally need short active windows with minimal startup uncertainty. The trade is straightforward: retaining more oscillator-related readiness costs more current than Power-down, but it can reduce lost time and energy around wake transitions if wake events are frequent enough. That balance should be evaluated with real wake interval distributions, not just with static mode tables.

Clock architecture is where much of the device’s flexibility becomes operationally meaningful. The internal calibrated oscillator supports low component count, simpler routing, and faster bring-up. For many control tasks, housekeeping functions, and low-cost sensing nodes, it is the most efficient choice from a BOM and assembly standpoint. It also reduces sensitivity to crystal placement, load capacitor errors, and startup irregularities. However, its simplicity comes with accuracy and drift limits, especially across voltage and temperature. That makes it less suitable when protocol timing margins are tight, baud rate error budgets are narrow, or long-term timekeeping must remain stable without frequent calibration.

External clocking through XTAL1 and XTAL2 is the natural path when timing precision matters more than component minimization. A crystal or resonator improves frequency stability and makes serial communication, synchronous sampling, and deterministic timing easier to validate across conditions. The cost is not just additional components. External resonant clocking also affects startup time, board layout sensitivity, EMC behavior, and low-power transition strategy. In products with aggressive sleep cycling, the oscillator startup interval can become a nontrivial share of total energy. That is why crystal selection should not be treated as an isolated timing decision. It is also a power-state decision.

The asynchronous timing path through TOSC1 and TOSC2 adds another layer of utility. Running Timer/Counter2 from a separate low-frequency oscillator allows the device to maintain coarse real-time behavior while the main clock domain is inactive. This architecture is especially effective in periodic acquisition nodes, maintenance monitors, and systems that need a consistent wake scheduler without paying the cost of a continuously running high-frequency source. A recurring design pattern is to let the asynchronous timer define the system heartbeat, wake the core briefly, sample inputs, update state, and return immediately to sleep. When implemented carefully, this pattern shifts the energy model from “always ready” to “briefly active by design,” which is usually a better fit for long-life embedded products.

Voltage and speed limits require careful reading because they affect not only nominal operation, but also validation coverage and field robustness. The device supports supply operation down to 1.8 V in the provided information, but the family speed grade constrains maximum clock frequency with supply voltage. The cited ranges indicate 0 to 8 MHz at 2.7 V to 5.5 V and 0 to 16 MHz at 4.5 V to 5.5 V. This means low-voltage operation and high-frequency operation are not independent choices. They are coupled constraints. A design that runs near the edge of both may appear stable in room-temperature lab testing and still fail timing margins across process spread, cold crank, hot soak, or battery droop.

This interaction becomes especially important when fuse settings, oscillator selection, and firmware delays are defined early and then reused across product variants. A common failure pattern is to validate firmware timing using a benchtop supply at 5 V and then deploy the same build into a battery-powered unit expected to operate near the lower end of its voltage range. If the clock remains too aggressive for that supply region, behavior can become intermittent rather than cleanly failing. Serial framing errors, marginal EEPROM timing assumptions, unstable startup, and sporadic reset behavior can all appear before the issue is recognized as a voltage-frequency violation. For that reason, the clock plan should be tied directly to the worst-case electrical envelope, not to the most comfortable lab condition.

Brown-out behavior and startup policy also deserve attention in this context. Although low-voltage operation is attractive for battery efficiency, the reset strategy must ensure the controller does not execute code in a region where timing is no longer guaranteed. Conservative brown-out thresholds may increase quiescent current slightly, but they often improve total system reliability by preventing undefined execution during slow supply ramps or transient droops. In many practical designs, a small current increase at the supervisory level is more than offset by fewer false states, cleaner recovery, and lower risk of corrupted nonvolatile operations.

From a board-level perspective, ultra-low sleep current claims only hold when surrounding circuitry is equally disciplined. Regulator quiescent current, pull-up sizing, sensor leakage, reverse-current paths, ESD network selection, debug headers, and level shifters can easily dominate the 0.8 µA power-down figure. It is common for an otherwise well-configured microcontroller to contribute only a small fraction of measured standby current once the full assembly is powered. For that reason, sleep-current debugging should start with current partitioning rather than with firmware assumptions. Measuring the bare controller state, then adding peripherals one by one, usually reveals whether the real issue is GPIO biasing, a partially powered interface, or an always-on support component outside the MCU.

GPIO state management during sleep is another practical lever. Unused pins should not be left floating, and connected pins should be driven or biased into states that prevent downstream leakage. This is particularly relevant when external devices remain powered while the controller sleeps, or when the controller remains powered while peripherals collapse. Back-powering through protection structures can quietly multiply standby current and create unreliable wake behavior. The most robust low-power designs define a pin-state table for each power mode and enforce it in firmware before sleep entry. That approach is more reliable than relying on reset defaults or scattered peripheral shutdown code.

A disciplined implementation flow usually produces the best results. First define the operating envelope: supply range, required timing accuracy, wake sources, maximum acceptable wake latency, and target average current. Then choose the primary clock source and the deepest sleep mode that still preserves required function. After that, map each peripheral to an explicit policy: always on, active-window only, or wake-trigger only. Finally, validate power across realistic temperature, voltage, and wake interval conditions. The device supports efficient designs, but it does not automatically create them. Its low-power value emerges when the firmware state machine, oscillator strategy, and hardware leakage controls are aligned from the start.

For most applications, the strongest configuration is not the one with the lowest datasheet sleep number or the highest clock rate. It is the one that minimizes total energy per useful task while preserving timing margin. In that sense, the ATMEGA48PA-15AZ is best used as a controller that wakes with purpose, runs briefly at an appropriate frequency, and returns to a well-defined low-power state with every unnecessary clock domain disabled. That operating style fits the device better than continuous activity, and it is where its power and clock architecture deliver the most practical value.

ATMEGA48PA-15AZ pin structure, I/O resources, and package considerations

ATMEGA48PA-15AZ exposes a compact but unusually flexible pin set for an 8-bit MCU in the 32-lead TQFP class. Its 23 programmable I/O lines are not just generic GPIOs; they are a multiplexed resource shared among timing, communication, clocking, and analog functions. That multiplexing is the real design constraint. Pin planning on this device is less about counting available pins and more about resolving overlaps early, especially where oscillator options, reset behavior, ADC channels, and serial interfaces compete for the same pads.

The 32-lead TQFP package is a practical midpoint between pin accessibility and assembly density. It provides the full feature exposure of the ATMEGA48PA pin map, including the extra analog inputs that do not appear in smaller packages, while still remaining straightforward for standard reflow processes and moderate-layer PCB routing. In dense embedded layouts, this package often avoids the escape-routing penalties seen in finer-pitch devices, yet still supports enough signal breakout for mixed-signal designs. That balance matters because the electrical value of the MCU is only fully realized if the package allows clean access to its analog nodes, low-noise power distribution, and non-congested routing for fast digital nets.

The GPIO architecture is distributed across Port B, Port C, and Port D, and each port carries a distinct functional bias. At the register level, each pin follows the standard AVR model: direction control through DDRx, output drive through PORTx, and input sampling through PINx. Internal pull-ups are available on most lines, which simplifies switch inputs and lightly biased digital interfaces. In practice, however, the presence of internal pull-ups should be treated as a convenience feature rather than a precision biasing element, since their effective resistance varies across process and operating conditions. For deterministic timing edges, analog threshold control, or low-leakage sensing, external components still produce more stable results.

Port B is the most timing- and clock-sensitive group. As an 8-bit bidirectional port, it supports general digital I/O, but its alternate-function load is substantial: SPI signals, timer output functions, and oscillator-related roles are all mapped here. This makes Port B the first place where architectural choices propagate into board-level consequences. If SPI is needed for programming, in-system updates, or peripheral expansion, PB3 through PB5 are effectively constrained. If the design depends on an external crystal or resonator, PB6 and PB7 are no longer freely available. If asynchronous Timer/Counter2 operation is required using an external 32.768 kHz watch crystal while the core runs from the internal RC oscillator, those same pins may be consumed as TOSC inputs. The implication is simple: Port B cannot be allocated casually. It should be reserved first for non-negotiable timing and clock functions, then used for general GPIO only after fuse settings and clock architecture are frozen.

That point becomes more important during firmware evolution. A design may begin with the internal RC oscillator and minimal peripherals, making PB6 and PB7 appear available. Later, a tighter baud-rate tolerance, lower drift, or RTC-style timing requirement can force a move to external clocking or asynchronous timing. If those pins have already been committed to LEDs, chip selects, or control lines, the redesign cost spreads into firmware, PCB, and production programming flow. The pin map therefore rewards conservative planning: preserve clock-capable pins unless there is strong confidence they will never be needed for timing infrastructure.

Port C is where digital control and analog acquisition intersect. PC0 through PC5 provide bidirectional I/O with internal pull-ups and are also tied to ADC-related functions and TWI on the relevant pins. This dual-use behavior makes Port C especially valuable in sensor and control systems. It is often the best place to land low-speed configuration lines, analog measurements, and board-management signals, but only if noise discipline is maintained. Once ADC channels are active, the switching behavior on adjacent traces, the quality of AVCC filtering, and the return-current path near AREF begin to matter more than the logical pin assignment itself. Mixed-use routing on Port C works well when digital activity is localized and edge rates are controlled, but it can degrade conversion repeatability if PWM lines, chattering inputs, or heavily loaded outputs are placed too close to sensitive analog channels.

PC6 deserves separate treatment. It is not a normal Port C pin in the usual sense because it is multiplexed with RESET, and its reuse depends on the RSTDISBL fuse. Electrically, it does not match the other Port C pins closely enough to justify assuming identical drive, threshold, or robustness behavior. Reclaiming PC6 as general-purpose I/O is therefore a high-friction decision, not a free extra pin. Once RESET is disabled, programming and recovery options become more restrictive, typically requiring high-voltage programming paths if the configuration must be reversed. In development and field-serviced products, keeping PC6 dedicated to RESET is usually the more resilient choice. Repurposing it tends to make sense only in mature, volume-constrained designs where every pin has a defined role, the programming flow is controlled, and the risk of lockout is fully managed.

Port D is the communication-heavy port. As an 8-bit bidirectional group with internal pull-ups, it carries several of the most operationally useful alternate functions: UART receive and transmit, external interrupts, timer outputs, and PWM-capable signals. In communication-centric or actuator-oriented designs, Port D becomes the functional backbone of the application. RXD and TXD typically anchor debug, bootloading, or host communication. External interrupt pins provide low-latency event capture. PWM outputs support motor drive, dimming, or waveform generation. The practical challenge is that these use cases often coexist. A design that needs UART for diagnostics, PWM for control, and interrupt-driven wakeup can consume Port D rapidly. For that reason, Port D should usually be allocated around runtime-critical signals first, with secondary GPIO functions placed elsewhere.

One useful pattern is to treat the ports according to electrical role rather than numerical availability. Port B fits deterministic timing and hardware interface functions. Port C fits analog-adjacent and configuration-oriented signals. Port D fits event-driven communication and control outputs. This classification is not mandated by the silicon, but it aligns well with the internal multiplexing and tends to reduce conflicts later in the project. It also simplifies firmware abstraction because related peripherals remain geographically grouped in both schematic and software models.

The analog subsystem adds another layer of package-dependent value. AVCC powers the ADC domain and also relates to Port C[3:0], so it must not be left floating even when no ADC conversions are planned. That recommendation is often underestimated. Leaving AVCC improperly connected can lead not only to failed analog operation but also to abnormal behavior on the associated port functionality. When ADC performance matters, AVCC should be tied to VCC through a low-pass filter, typically using a ferrite bead or small inductor with local decoupling selected for the target noise spectrum. The purpose is not to create a mathematically ideal analog rail, but to isolate the conversion domain from digital switching currents enough to improve repeatability and reduce code spread.

AREF is equally important. It is the reference anchor for ADC measurements, and its treatment should match the intended measurement quality. If the internal reference is used, the board still benefits from careful routing and local bypassing around AREF. If an external reference is used, the reference source must be low-noise and low-impedance over the conversion bandwidth seen by the sample-and-hold network. The common mistake is to think of AREF as a static DC node. In reality, its dynamic behavior during sampling can directly affect linearity and noise. Short routing, clean return paths, and isolation from fast digital traces produce a larger benefit than many firmware-side averaging schemes.

The availability of ADC6 and ADC7 in the TQFP and QFN variants expands the device’s usefulness in sensor-rich designs. These additional channels are often decisive in compact systems where one more voltage monitor, thermistor, or feedback signal would otherwise require an external mux or a larger MCU. Their presence is one of the reasons the 32-pin package is more than a mechanical choice; it changes the feasible system partition. A design that needs multiple analog inputs, TWI connectivity, UART debug, and a few PWM outputs can remain on this device specifically because the package exposes those extra channels without forcing a migration to a larger footprint.

Package selection also affects manufacturability and field robustness. The 32-lead TQFP supports automated assembly with broadly available process windows and manageable inspection requirements. Its leads provide some compliance against solder-joint stress compared with leadless options, which can be helpful in environments with repeated thermal cycling or moderate mechanical strain. Routing is also more forgiving. Fan-out from a TQFP usually allows cleaner separation of analog and digital escape paths, and that translates into fewer compromises around AREF, AVCC filtering, and crystal routing. In practice, this often reduces board spins more than the nominal package size difference would suggest.

Clock-related routing deserves specific care because the pin structure makes clock choices inseparable from layout quality. If PB6 and PB7 are used for an external crystal or resonator, the loop area around those pins should be minimized, load capacitors should return cleanly to ground, and nearby high-edge-rate traces should be avoided. These are standard rules, but on a small MCU board they are often violated by trying to route unrelated control signals through the oscillator region. The failure mode is not always total startup failure; more often it appears as intermittent startup margin issues, drift sensitivity, or elevated EMI. Reserving a quiet zone around the oscillator pins is usually worth more than squeezing one extra routing shortcut through that area.

Power pin treatment should follow the same discipline. VCC and GND decoupling should be placed with minimal loop length, and AVCC should have its own local high-frequency capacitor even if filtered from the main rail. On mixed-signal boards, separating the analog return path conceptually is useful, but splitting ground planes aggressively on a small AVR board can create more problems than it solves. A continuous ground reference with careful current-path control is generally more effective than hard segmentation. The device benefits more from short return paths and local containment of switching currents than from symbolic analog/digital ground partitioning.

From a system design perspective, the most important insight is that the ATMEGA48PA-15AZ rewards early pin budgeting at the architecture stage, not after schematic capture. The nominal count of 23 programmable I/O lines is accurate but somewhat misleading if read without context. Several of those lines are conditionally available, electrically specialized, or strategically expensive to consume. The highest-value design approach is to classify pins by reversibility. RESET-capable, oscillator-capable, programming-related, and serial-debug-related pins should be treated as premium resources. General LEDs, mode straps, and low-priority chip enables should be pushed onto the most replaceable GPIOs. That strategy preserves flexibility when firmware, timing, or production requirements shift.

RoHS compliance and MSL 3 classification support mainstream procurement and assembly flows, especially in controlled-volume and automotive-adjacent SMT environments where handling discipline matters. These attributes do not change circuit behavior, but they do affect operational predictability in manufacturing. Devices that fit standard moisture-control and reflow procedures reduce hidden process variation, and with compact mixed-signal MCUs, process stability often shows up later as lower fallout in programming, clock startup, and analog calibration.

Taken together, the ATMEGA48PA-15AZ pin structure is best understood as a constrained resource network rather than a flat GPIO list. Port B carries clock and timing leverage. Port C bridges digital control and analog measurement. Port D concentrates communication and event handling. The 32-lead TQFP package exposes the full utility of that network while keeping layout and assembly practical. Designs that respect these roles from the start tend to achieve cleaner routing, fewer peripheral conflicts, better ADC behavior, and a far more stable path from prototype to production.

ATMEGA48PA-15AZ automotive qualification and reliability profile

ATMEGA48PA-15AZ is not simply a temperature-extended AVR variant. Its value in automotive and other stress-intensive deployments comes from the combination of process discipline, qualification scope, and long-term memory reliability. That combination matters because field failures in these environments rarely originate from nominal functionality alone. They are usually driven by cumulative stress: thermal cycling, supply disturbance, aging of nonvolatile storage, package-level fatigue, and variation across long production windows. The ATMEGA48PA-15AZ addresses this risk profile through an automotive-qualified manufacturing and validation framework rather than through feature set alone.

The device family is developed and manufactured in alignment with ISO/TS-16949 requirements, which is a meaningful indicator for engineering teams assessing production robustness. In practice, this points to a controlled quality system built for automotive supply expectations: traceability, disciplined change management, repeatable process monitoring, and structured corrective action. For a design team, this reduces uncertainty in areas that are often overlooked during prototype success, such as lot-to-lot consistency, parameter drift across revisions, and the probability of subtle manufacturing excursions appearing years into a program. For sourcing and lifecycle planning, this type of framework usually has equal importance to the electrical specification because stable production behavior is often what determines whether a platform remains supportable over long service intervals.

The AEC-Q100 Grade 1 qualification is the more visible reliability marker. Grade 1 corresponds to an ambient operating range of -40°C to +125°C, and the “Z” suffix identifies that full automotive temperature span. This should not be interpreted as a simple statement that the MCU can boot at both extremes. The stronger implication is that the device has been qualified against a stress model intended to expose failure mechanisms relevant to automotive field use. That includes high-temperature operating stress, temperature cycling, and other accelerated conditions designed to reveal weaknesses in die, interconnect, package, and memory structures before the part reaches production use. Qualification at this level does not eliminate all system risk, but it significantly improves confidence that the component can tolerate the environmental envelope assumed in body electronics and adjacent control nodes.

This qualification profile places the ATMEGA48PA-15AZ in a well-defined application class. It is appropriate for non-powertrain automotive electronics where environmental severity is real but computational demand remains moderate. Typical examples include cabin control modules, local switch sensing, seat or mirror subcontrollers, simple actuator coordination, sensor front-end management, gateway assistance for distributed body functions, and compact monitoring nodes located away from direct engine-bay thermal extremes. In these roles, the main engineering challenge is often not processing throughput. It is predictable behavior under noisy supplies, repetitive wake-sleep cycles, extended hot soak, and years of unattended operation. An 8-bit MCU with established qualification can therefore be the lower-risk choice over a more complex controller when the system problem is dominated by reliability, boot determinism, and cost stability.

The same reasoning extends beyond automotive. Industrial controllers mounted in poorly ventilated housings, outdoor metering units, access systems, agricultural electronics, and infrastructure sensors often experience stress patterns that look similar to automotive body applications even when they are not certified under the same standards. Daily thermal swings, condensation risk, supply transients from long cable runs, and long service life without maintenance all amplify the value of a qualified temperature range and proven nonvolatile endurance behavior. In such systems, selecting an automotive-grade MCU can be a practical way to create environmental margin rather than just meet the minimum datasheet condition.

One of the more important data points in the reliability profile is the nonvolatile data retention characteristic. The projected retention failure rate of much less than 1 PPM over 20 years at 85°C is highly relevant when stored information directly affects field behavior. Calibration constants, learned offsets, node identifiers, service counters, configuration bytes, and fallback operating parameters all depend on stable retention. This matters most in designs that are rarely reprogrammed after manufacturing and may spend years in elevated ambient conditions. In those cases, retention is not an abstract memory number. It is tied directly to whether the unit powers up with valid operating context after long dormant periods, repeated heat exposure, or intermittent battery conditions.

A useful engineering view is to treat retention and endurance separately, even when they are often discussed together. Endurance describes how many write/erase cycles the memory can tolerate. Retention describes how long the stored state remains valid once written. Field issues often come from confusing the two. A design may write infrequently and therefore be safe on endurance, yet still depend critically on long-term retention of a calibration image written only once during production. The ATMEGA48PA-15AZ retention projection strengthens that use case. It is especially relevant for products where service access is expensive, firmware refresh is rare, and loss of stored parameters would cause silent degradation rather than obvious failure.

From a system design perspective, automotive qualification should influence more than the component selection checklist. It should also shape integration strategy. A qualified MCU still requires board-level protection against reverse battery events, load-dump-related disturbances where applicable, ESD exposure, ground shift, and connector-induced transients. The most reliable outcomes usually come from pairing the MCU’s inherent robustness with conservative power architecture: stable brown-out supervision, controlled reset behavior, adequate decoupling close to supply pins, and clear handling of startup races on shared buses or sensor rails. In small control nodes, many intermittent failures blamed on firmware are actually reset-path or supply-integrity problems aggravated by temperature. Using a Grade 1 MCU helps, but the design only realizes that advantage when the power and I/O environment are engineered with the same discipline.

Thermal margin should also be interpreted carefully. AEC-Q100 Grade 1 supports operation up to +125°C ambient, but local board temperature can diverge sharply from ambient in enclosed modules. Linear regulators, power FETs, backlight drivers, and nearby resistive loads can create local hotspots that push silicon temperature well above expectations. In compact automotive assemblies, it is common for a controller that appears thermally safe in bench conditions to spend long periods much hotter once installed behind trim, inside roof modules, or near glazing under solar load. The practical lesson is to validate not just ambient rating but real PCB thermal distribution, especially around memory retention assumptions and oscillator stability over life.

For procurement and platform management, automotive qualification often carries a second-order benefit: confidence in long-term manufacturing consistency. In high-volume or long-lived programs, subtle process changes can become a larger risk than initial electrical suitability. Devices built under automotive-oriented control regimes are generally expected to maintain tighter oversight on fab, assembly, test, and change notification. That does not remove the need for incoming validation or periodic requalification at the system level, but it reduces the probability that a nominally identical replacement lot behaves differently enough to disrupt production yield or field performance. For organizations managing multiple product revisions across years, that consistency can be as valuable as raw device capability.

There is also a strategic design principle worth noting. In harsh-environment embedded systems, reliability margin often delivers more system value than architectural ambition. A simpler MCU with known qualification pedigree, stable memory characteristics, and predictable supply behavior can outperform a more feature-rich alternative if the application spends its life fighting thermal stress, electrical noise, and long retention intervals rather than running complex algorithms. The ATMEGA48PA-15AZ fits that pattern well. Its qualification status and retention profile make it a strong candidate when the objective is durable control logic at the edge of the system, where robustness, repeatability, and service-life confidence matter more than computational headroom.

In that sense, the ATMEGA48PA-15AZ should be evaluated as a reliability-centered component. ISO/TS-16949-aligned manufacturing supports process maturity. AEC-Q100 Grade 1 establishes environmental validation across -40°C to +125°C, with the “Z” suffix explicitly marking that range. The memory retention projection supports long-lived storage of configuration and calibration data at elevated temperature. Together, these attributes make the device well suited to non-powertrain automotive modules, industrial nodes, and outdoor embedded equipment that must remain stable through heat, cold, voltage irregularity, and long field life with minimal intervention.

ATMEGA48PA-15AZ engineering use cases and design-selection considerations

The ATMEGA48PA-15AZ is well aligned with embedded designs that sit in the middle ground between very small fixed-function logic and larger 16-bit or 32-bit controllers. Its value is not raw compute capacity. It comes from balanced integration: usable analog input capability, deterministic timers, nonvolatile parameter storage, standard serial interfaces, low-power operating modes, and an automotive-qualified implementation. In practice, this makes it a strong fit for control-oriented nodes where the firmware is compact, the timing behavior must remain predictable, and the hardware budget favors a single-chip solution with few external dependencies.

A good match is a sensor conditioning or edge-processing module placed close to the signal source. In this role, the device can sample multiple analog channels through its 8-channel ADC, apply filtering, scaling, offset correction, threshold evaluation, and plausibility checks in firmware, then forward condensed status or measurement data over USART or SPI. This architecture is especially effective when the upstream controller should be insulated from raw sensor noise, calibration drift, or local fault behavior. EEPROM is useful here because calibration constants, trim values, and field-specific configuration can be retained across resets and power cycles without consuming code space or requiring external memory. The watchdog timer adds a practical layer of recovery when the module must remain operational in electrically noisy environments or under intermittent supply disturbances.

In these sensor-facing applications, the main engineering advantage is not simply that peripherals exist, but that they interact cleanly. The ADC can be triggered and scheduled around timer events. Thresholding and compensation can be executed in deterministic intervals. Serial transmission can be limited to exception reporting or reduced-rate telemetry to save bandwidth and simplify system integration. That pattern often produces a more robust system than streaming everything to a central processor, especially when cable length, EMC exposure, or bus loading creates avoidable risk.

The device also fits compact actuator and lighting control functions. Six PWM channels, combined with the timer blocks, support dimming, pulse shaping, soft-start behavior, basic motor interface timing, periodic supervision, and fault response without the need for a dedicated external PWM generator. For LED control, this allows stable brightness management with firmware-defined ramps, blink patterns, current-derating logic, and thermal or supply-related fallback behavior. For simple actuator interfaces, the timers can coordinate enable windows, debounce inputs, monitor timeout conditions, and enforce minimum-off or minimum-on intervals that protect downstream power stages.

A practical benefit appears when the control law is simple but timing discipline matters more than algorithmic complexity. In such designs, moving to a larger controller often adds software overhead, power cost, and integration effort without improving the actual control outcome. The ATMEGA48PA-15AZ is often sufficient when the required behavior can be expressed as state machines, threshold logic, timer-driven scheduling, and low-rate communication. That design style also tends to be easier to validate because timing paths remain visible and peripheral usage remains explicit.

Low-duty-cycle data acquisition nodes are another strong use case. The device can remain in sleep for most of its service life, wake on timer events or external triggers, perform sampling and local decision logic, exchange a short message, and return to a low-power state. Its multiple sleep modes and asynchronous timer support are useful when the system must retain timekeeping or periodic wake behavior while minimizing current draw. In battery-powered or energy-constrained nodes, this is often more important than peak performance. The most effective implementations usually reduce active time first, then optimize clock rate and peripheral usage second. In that operating model, an 8-bit MCU with fast wake behavior and predictable startup can outperform a higher-performance part at the system level simply because it finishes a small job quickly and sleeps cleanly.

From a design-selection perspective, code-space margin is the first constraint that should be examined with discipline. The 4 KB flash can support focused embedded functions very well, but it leaves little tolerance for feature growth once communication framing, diagnostics, filtering, parameter management, fault logging, and production test hooks are added. Many designs fit comfortably at concept stage and become constrained later when edge cases, safety handling, and service tooling are introduced. A useful rule is to size not only for nominal application logic, but also for the firmware that appears during integration: timeout recovery, input validation, manufacturing modes, calibration routines, and communication exception paths. On small AVR devices, these supporting functions often consume more code than the primary control algorithm.

The second issue is field-update architecture. The ATmega48PA does not provide the same self-programming behavior profile as larger family members with more capable bootloader and read-while-write support. That matters early because update strategy influences memory partitioning, service procedures, and even connector definition. If in-system reprogramming is expected, the design should verify the exact programming flow supported by the device rather than assuming feature equivalence across the AVR family. In practice, this affects whether firmware updates are handled through a local programming interface, through a supervising controller, or only at manufacturing or service level. Small-memory devices are often selected under the assumption that update support can be added later; on this class of part, that assumption should be tested immediately.

Voltage-versus-frequency limits are the third issue, and they should be treated as a hard design boundary rather than a nominal guideline. For a 16 MHz implementation, the specified operating supply must support that clock rate, which for this speed grade means aligning the design with the documented 4.5 V to 5.5 V range. This has direct implications for oscillator selection, brown-out settings, startup behavior, and environmental margin. Designs that operate near supply minimums, include long harnesses, or encounter crank-like dips or transient loading should not assume that a bench-stable 5 V rail guarantees field stability. A more reliable approach is to derive clock strategy from worst-case supply behavior, not from typical conditions. In many cases, reducing clock frequency slightly creates disproportionate gains in voltage margin, EMC resilience, and reset robustness, with little impact on application-level function.

Pin multiplexing is the fourth issue, and it often becomes the real integration bottleneck. Communication interfaces, timer outputs, oscillator connections, and ADC inputs share package pins, so peripheral richness does not mean all functions can be used simultaneously without tradeoffs. Early pin planning is essential. It should begin from fixed external constraints such as connectors, sensor channels, communication ports, and timing outputs, then map inward to firmware architecture. That sequence tends to expose conflicts sooner. For example, an analog-heavy design can lose usable ADC channels once debug access, clock options, and communication links are locked in. Likewise, PWM-rich control concepts may discover late that the chosen package cannot expose the required timer outputs together with the intended serial interface and crystal pins. These conflicts are easier to solve in schematic planning than after PCB routing and software assumptions have already solidified.

There is also a less obvious interaction between pin planning and signal integrity. Shared-function pins often force routing compromises between quiet analog paths and fast digital edges. On this class of mixed-signal MCU, ADC performance is strongly influenced by layout discipline, reference stability, sampling sequence, and switching noise from timer-driven outputs or serial activity. A practical pattern is to cluster analog sources physically, reserve the cleanest return path for the reference network, and schedule high-current or high-edge-rate activity away from sensitive conversions where possible. Firmware timing can partially compensate for board-level limitations. Sampling immediately after a PWM edge or during active serial bursts often produces avoidable noise spread; moving conversions into quieter windows usually yields more improvement than adding algorithmic filtering later.

For automotive or industrial-adjacent use, AEC-Q100 qualification is a strong selection argument, but it should not be interpreted as a complete system-level robustness guarantee. The part supports a robust foundation, yet resilience still depends on reset strategy, supply conditioning, I/O protection, clock source choice, and software fault handling. The watchdog should be configured as part of a broader recovery model rather than as a last-minute safety net. Brown-out detection, startup timing, EEPROM write policy, and communication timeout behavior should all be aligned so that the node fails predictably and restarts coherently. In practice, the most reliable implementations keep startup state machines simple, avoid unnecessary EEPROM writes under unstable supply conditions, and treat every external interface as potentially asynchronous or noisy.

From an architectural standpoint, the strongest use of the ATMEGA48PA-15AZ is as a deterministic peripheral controller with embedded decision-making, not as a miniature general-purpose compute platform. When the design is framed that way, its limitations become easier to manage and its strengths become more valuable. It performs best when the firmware is organized around fixed-rate scheduling, interrupt discipline, explicit resource budgeting, and stable peripheral ownership. It performs less well when asked to absorb expanding protocol stacks, complex diagnostics, or feature layering that would be more natural on a larger memory device.

A sound selection decision therefore depends less on whether the device can meet the first revision of requirements and more on whether it can absorb the second revision without architectural strain. If the product roadmap suggests protocol growth, heavier diagnostics, richer calibration models, or field-update demands, moving one step up in memory early may reduce total engineering cost. If the application is stable, timing-centric, and pin-compatible with the device’s multiplexing constraints, the ATMEGA48PA-15AZ remains an efficient and technically disciplined choice. In that space, it offers a useful combination of analog reach, timer control, low-power behavior, and proven 8-bit predictability that is difficult to replace with a cheaper discrete solution and often unnecessary to replace with a larger MCU.

Potential Equivalent/Replacement Models for ATMEGA48PA-15AZ

Potential equivalent or replacement paths for the ATMEGA48PA-15AZ are best evaluated inside the ATmega48PA/88PA/168PA device family, because these parts were designed around the same AVR core, nearly the same peripheral model, and a closely matched software environment. In practical terms, that means migration risk is usually dominated by memory map differences, boot and self-programming behavior, and a small set of firmware assumptions rather than by any fundamental architectural change. For most designs, the two most direct upward replacements are the ATmega88PA and ATmega168PA.

At the architectural level, these three devices are intentionally similar. They follow the same 8-bit AVR execution model, expose the same general peripheral philosophy, and support a highly comparable register-level programming style. This matters because replacement is rarely about pin count or supply range alone. The real engineering cost sits in whether the new device preserves timing behavior, initialization flow, peripheral usage patterns, fuse assumptions, programming tools, and production test coverage. Within this family, that continuity is relatively strong, which is why the ATmega88PA and ATmega168PA stand out as low-friction migration candidates.

The first replacement path is the ATmega88PA. It expands the ATMEGA48PA-15AZ resource envelope from the smaller baseline to 8 KB of Flash, 512 bytes of EEPROM, and 1 KB of SRAM. This makes it the most natural step when the original design is functionally correct but beginning to show firmware compression pressure. Typical triggers include protocol handling that no longer fits comfortably, increasing use of lookup tables, larger state machines, or the addition of manufacturing diagnostics and field configurability. In those cases, the ATmega88PA often solves the problem without forcing a redesign of the software structure. The application can remain conceptually identical while gaining enough memory margin to reduce optimization stress.

That memory margin is more important than it first appears. Designs built close to Flash limits tend to accumulate hidden technical debt. Developers start avoiding useful abstractions, trimming error handling, and compressing protocol layers in ways that reduce maintainability. Moving from ATMEGA48PA-15AZ to ATmega88PA often restores engineering flexibility. It allows code to be organized around clear module boundaries instead of around linker survival. In embedded products, that usually improves long-term stability more than a nominal memory increase would suggest.

The second replacement path is the ATmega168PA. It pushes Flash to 16 KB while keeping EEPROM at 512 bytes and SRAM at 1 KB. This option is better aligned with applications that are not merely tight on memory today, but are likely to continue growing. Typical examples include communication-heavy nodes, products with richer self-test functions, systems with event logging, configurable control logic, or firmware that may later absorb multiple product variants into one common build. The extra Flash is especially valuable when the roadmap includes additional protocol layers, stronger fault reporting, calibration logic, or a more structured firmware architecture.

The ATmega168PA is not simply a larger container for the same code. It shifts the engineering tradeoff from short-term fit to medium-term scalability. That makes it attractive when the original ATMEGA48PA-15AZ design already shows signs of expansion pressure. A frequent pattern in deployed systems is that memory demand grows in small increments that seem harmless in isolation: one more communication command, one more diagnostic mode, one more recovery routine, one more production option. Individually, none justifies a platform change. Collectively, they create an unstable firmware boundary. In such cases, the ATmega168PA is often the more robust decision because it absorbs future growth without repeated migration work.

A critical distinction across these devices lies in boot and self-programming behavior. The ATMEGA48PA-15AZ does not offer the same read-while-write support or separate boot loader section behavior found in the larger variants. This is not a minor datasheet detail. It directly affects whether the device can support reliable in-application reprogramming, staged firmware update mechanisms, or a cleaner separation between application code and update logic. If the product architecture may eventually require field firmware updates, remote maintenance, or secure update sequencing, the ATmega88PA and ATmega168PA are technically better aligned from the start.

This point is often underestimated during early product definition. A design may begin as a fixed-function controller with no update requirement, then later need a service interface, parameter loader, or firmware patch path. When that happens, choosing a larger family member early can prevent a difficult transition later. In many embedded platforms, boot capability is not just a feature. It is a system-level design option that changes manufacturing flow, service strategy, and lifecycle support. A part that supports cleaner boot partitioning gives more room to build controlled update behavior and recovery paths.

Firmware migration between these devices is usually straightforward, but it should not be treated as automatic. The documentation notes that the ATmega168PA has a different interrupt vector size, so startup code, vector table placement, linker settings, and any low-level assumptions around reset handling should be reviewed carefully. This becomes especially relevant in codebases with custom bootloaders, hand-tuned assembly startup, interrupt redirection, or nonstandard memory section control. A pure C application using standard toolchain defaults may migrate cleanly, but production firmware often contains just enough low-level customization to make a quick review essential.

Memory growth also affects testing strategy. When moving from ATMEGA48PA-15AZ to ATmega88PA or ATmega168PA, it is good practice to revalidate more than just functional behavior. Watchdog startup timing, EEPROM handling, self-programming paths, and interrupt-driven peripherals deserve targeted regression coverage. Larger memory devices can encourage feature expansion, and feature expansion often changes execution timing and stack usage in ways that are not visible from schematic comparison alone. In compact AVR systems, small changes in ISR density or buffer sizing can alter real-time margins more than expected.

From a hardware standpoint, family continuity is a major advantage. Engineers usually prefer replacements that preserve board-level assumptions, manufacturing process, and programming fixtures. Staying within the same ATmega family reduces the probability of needing changes in power design, decoupling strategy, programming methodology, or debug workflow. That commonality also simplifies qualification because the replacement remains inside a familiar electrical and software ecosystem. In practice, this can matter more than the nominal component cost delta, especially in mature products where validation effort dominates total migration cost.

For sourcing and lifecycle planning, the ATmega88PA and ATmega168PA also work well as continuity options within a common AVR platform strategy. If a product family may split into multiple firmware variants over time, using a shared hardware design with selectively populated device densities can be operationally efficient. One board can support entry-level and feature-rich firmware images with minimal change to manufacturing flow. That approach reduces redesign frequency and can absorb demand shifts or memory creep without a full architecture transition. It also creates a cleaner fallback path when one density becomes less available in the supply chain.

The stronger replacement decision therefore depends on the intended design horizon. If the ATMEGA48PA-15AZ is mostly sufficient and only needs modest extra room, the ATmega88PA is usually the most balanced upgrade. If the application is expected to gain communication complexity, richer diagnostics, or firmware update capability, the ATmega168PA is the safer strategic choice. In both cases, the value of the replacement is not just the extra memory. It is the preservation of architectural continuity while removing constraints that would otherwise distort firmware design.

For that reason, the most effective selection method is to evaluate the replacement in three layers: current code fit, expected firmware growth, and lifecycle features such as bootloading or field update support. Looking only at present memory usage often leads to under-selection. Choosing a device with measured headroom usually produces a cleaner firmware architecture, a more stable validation cycle, and a product that tolerates roadmap expansion without repeated platform decisions. Within the documented family, that makes the ATmega88PA and ATmega168PA the clearest and most technically defensible replacement models for the ATMEGA48PA-15AZ.

conclusion

The ATMEGA48PA-15AZ sits in a class of microcontrollers where architecture discipline matters more than raw specification scale. It is a compact 8-bit AVR device, but its value does not come from headline memory size or computational reach. Its value comes from integration quality, timing predictability, peripheral completeness, and deployment maturity. With 4 KB of Flash, 512 B of SRAM, 256 B of EEPROM, and roughly 23 programmable I/O lines, it is engineered for tightly scoped control tasks in which deterministic response, low standby power, and long-term component stability are more important than software expansion margin.

At the core is the AVR 8-bit RISC architecture, which remains effective because of its efficient instruction execution model and low interrupt latency. In practical control loops, this matters more than marketing-level MIPS figures. The device can service sensor inputs, update PWM outputs, manage communication traffic, and maintain supervisory logic without introducing large scheduling uncertainty. That characteristic is especially useful in body electronics, actuator control, small power-management nodes, and industrial housekeeping functions, where response consistency often defines system quality more clearly than peak throughput.

Its peripheral mix is one of the strongest reasons it continues to fit long-life embedded designs. The timer resources support both interval timing and PWM generation, enabling the same device to handle periodic scheduling and real-time drive modulation. This is useful in applications such as motor preload control, lamp dimming, fan speed regulation, and valve actuation, where a clean separation between software state logic and hardware-assisted waveform generation reduces CPU burden and improves output stability. In small embedded designs, assigning waveform-critical behavior to timer hardware usually produces more robust results than trying to synthesize it entirely in firmware.

The 10-bit ADC extends the device beyond pure digital control and allows direct integration with analog sensor networks. For low-to-moderate bandwidth sensing, this is often enough to capture temperature, voltage, current shunt, pressure, or position-related signals without adding an external converter. The practical advantage is not just BOM reduction. It also simplifies grounding strategy, board area, qualification effort, and software ownership. On compact boards, every removed external interface lowers sensitivity to layout mistakes and conducted noise. In this class of microcontroller, integrated analog capability is most valuable when the measurement chain is kept simple, calibrated carefully, and protected from switching interference generated by nearby PWM activity.

The communication interfaces give the part enough flexibility to act as a local controller within a wider embedded system. USART, SPI, and I2C-compatible serial capability allow it to connect upward to a host controller, sideways to sensors or EEPROMs, or downward to dedicated peripheral devices. This makes it suitable as a deterministic edge node that handles localized timing and filtering while exposing a simpler status or command interface to the rest of the system. That partitioning is often a better use of an 8-bit MCU than attempting to centralize every control function in one larger processor. A small controller placed close to the transducer or actuator usually improves signal integrity, shortens fault paths, and reduces software coupling across the overall design.

Power behavior is another area where the ATMEGA48PA-15AZ remains relevant. The AVR family’s sleep modes and generally efficient operation allow the device to support duty-cycled measurement and event-driven wake-up strategies with little architectural overhead. In battery-assisted automotive subsystems, distributed sensor modules, or industrial standby nodes, low-power capability is not only a current-consumption issue. It directly affects thermal headroom, regulator sizing, and sleep-state system design. The part works best when firmware is structured around peripheral-triggered wake events rather than continuous polling. In practice, designs that lean on timer compare interrupts, pin-change wake-up, and burst-style ADC sampling tend to extract far better energy efficiency than those ported from desktop-style control logic.

The automotive-grade positioning is not a minor attribute. AEC-Q100 qualification and wide-temperature suitability significantly improve confidence in long-field deployments, especially when the controller is exposed to under-dash, door-module, engine-adjacent, or industrial enclosure environments with repeated thermal cycling. Qualification does not remove the need for system-level hardening, but it reduces one category of uncertainty in the component selection process. In long-life programs, this matters because maintenance cost is often driven less by initial functionality than by behavior under aging, supply variation, and environmental stress. Devices with mature ecosystems and known derating patterns tend to lower integration risk across the full product lifecycle.

Its limitations are equally important and should shape the design from the beginning. The 4 KB Flash budget is enough for compact state machines, calibration tables, communication handlers, and moderate diagnostic logic, but it leaves little room for layered middleware, large protocol stacks, or feature creep. This device rewards software discipline. Fixed-size data structures, interrupt-aware design, compact drivers, and direct peripheral use typically lead to better outcomes than abstraction-heavy codebases. Once the application starts requiring extensive logging, bootloader complexity, advanced filtering, or multi-protocol support, the memory ceiling becomes a structural constraint rather than an inconvenience.

That is why the family migration path to ATmega88PA and ATmega168PA is strategically important. It allows a design team to keep the same architectural base, toolchain familiarity, and much of the board-level interface definition while scaling code space upward when requirements drift. This is one of the more practical strengths of the platform. Early prototypes often fit into a smaller device, then absorb diagnostics, communication robustness, calibration features, and service hooks over time. Having a pin-compatible or near-compatible growth option can save a redesign when software reality overtakes initial assumptions.

In implementation, the part performs best when the system architecture respects its role. It should not be treated as a general-purpose compute engine. It should be used as a focused embedded controller with clear timing ownership, narrow communication boundaries, and a well-bounded software image. In that role, it is highly efficient. A common pattern is to assign it one physical domain: one sensor cluster, one actuator channel group, one local safety monitor, or one low-level sequencing function. This keeps interrupt interactions manageable and makes validation more straightforward. On constrained MCUs, simplicity is not merely a coding preference; it is a reliability strategy.

A recurring lesson in compact AVR deployments is that peripheral coupling determines system quality more than CPU load. PWM outputs can inject noise into ADC readings, serial interrupts can disturb sampling intervals, and EEPROM writes can create timing side effects if scheduled carelessly. Strong designs usually separate noisy and quiet activities in time as well as in layout. ADC sampling during PWM dead time, buffered communication handling, and carefully bounded ISR execution can materially improve stability without changing hardware. On small controllers, these design choices often distinguish a stable product from one that appears correct only under nominal lab conditions.

From a procurement and lifecycle perspective, the device remains attractive because it is active, qualified, and backed by a well-established ecosystem. That combination is especially useful in cost-sensitive programs where redesign avoidance is as important as unit price. Mature 8-bit platforms often outperform newer alternatives in total engineering efficiency when requirements are modest but validation demands are strict. Tooling is stable, failure modes are well understood, and bring-up is usually fast. For embedded products with long service horizons, those factors can carry more real value than incremental architectural novelty.

The ATMEGA48PA-15AZ therefore fits best in designs that are intentionally sized to its strengths: deterministic 8-bit control, integrated mixed-signal I/O, compact communication handling, and low-power operation under demanding environmental conditions. It is not a device for software expansion by accident. It is a device for controlled, efficient implementation. When selected with that mindset, it delivers a strong balance of capability, reliability, thermal resilience, and integration economy for automotive and industrial embedded systems.
