AT91SAM9XE512-QU Product Overview

AT91SAM9XE512-QU is a highly integrated embedded microprocessor in Microchip’s SAM9XE family, centered on a single-core ARM926EJ-S. It targets the design space between a conventional microcontroller and a heavier external-memory-centric application processor. That positioning is important. Devices in this class are typically selected when the system must handle a richer software stack, multiple I/O domains, display or networking tasks, and moderate data movement, while still preserving board simplicity, deterministic control behavior, and manageable power and cost.

At the core of the device is the ARM926EJ-S, an ARM9-class processor well suited to embedded Linux, compact real-time operating systems, and bare-metal control firmware that needs more address space and software flexibility than Cortex-M era microcontrollers usually provide. The architectural value is not just raw CPU capability. It is the combination of a general-purpose 32-bit processor, memory hierarchy, and on-chip peripheral fabric that allows one chip to bridge control, communications, and user-interface tasks without immediately forcing a split into multiple processors or large external companion logic.

A defining feature of the AT91SAM9XE512-QU is its 512 Kbytes of embedded high-speed Flash, combined with internal ROM and SRAM. In practical system design, this materially changes startup strategy and software partitioning. Embedded Flash enables a reliable first-stage boot path without depending on external nonvolatile storage for every boot condition. Internal ROM typically provides recovery and bootstrap utility paths, while SRAM gives low-latency storage for early initialization, interrupt-critical routines, and temporary buffers before external memory is trained and available. This arrangement improves resilience during power sequencing, firmware updates, and field recovery. In designs exposed to unstable supply ramps or harsh industrial power environments, having a known-good internal boot foundation often simplifies both validation and service procedures.

The external memory interface extends the device beyond the limits of its internal memory resources. Support for SDRAM, SRAM, NAND Flash, and CompactFlash allows the processor to scale from compact firmware-driven systems to richer embedded platforms with frame buffers, file systems, network stacks, and graphical user interfaces. This is one of the key engineering strengths of the part. A design can begin with internal Flash-centric software for bring-up and production test, then expand into external SDRAM and NAND-based storage for full-feature deployments. That staged architecture is often more robust than committing too early to an external-memory-only boot model, because it preserves a clean recovery anchor inside the processor.

The communication subsystem is broad enough to make the device useful as a central controller in connected equipment. The integrated 10/100 Ethernet MAC supports networked industrial nodes, remote diagnostics, protocol gateways, and web-managed control units. In real deployments, Ethernet on this class of processor is less about headline bandwidth and more about system consolidation. It allows one device to own both local control and supervisory connectivity, eliminating the need for a second communications processor in many architectures. When paired with external SDRAM and a disciplined software stack, the MAC is sufficient for deterministic command channels, configuration services, logging, and moderate protocol translation workloads.

USB 2.0 full-speed host and device capability increases integration density further. Device mode supports firmware update interfaces, service ports, PC connectivity, and product configuration workflows. Host mode opens a path to removable storage, adapters, or peripheral attachment in self-contained embedded terminals. In practice, USB host support can become deceptively demanding because software complexity rises quickly once hot-plug handling, file systems, and fault recovery are added. On a processor like the AT91SAM9XE512-QU, that means memory budgeting and interrupt prioritization must be planned early, especially if Ethernet, display updates, and USB traffic are expected to coexist without visible latency.

The display and interface capabilities make the part particularly relevant for HMIs and operator terminals. LCD support, touchscreen-related interfacing, and image sensor connectivity indicate that the device was designed not just for headless control but also for interactive and media-aware embedded products. This is where the ARM9 balance becomes valuable. It is capable enough to drive structured graphical interfaces, capture or relay moderate image data, and manage control loops at the same time, provided the software architecture respects bandwidth boundaries. A common pitfall in such systems is to evaluate CPU load only in average terms. In reality, the limiting factor is often memory bus contention between display refresh, Ethernet DMA, USB activity, and software-driven peripheral servicing. Good design on this platform depends less on peak MIPS and more on disciplined partitioning of real-time paths, DMA usage, and external memory timing.

The serial interfaces, timer resources, and ADC functionality round out the device as a mixed-role embedded controller. Multiple serial ports enable attachment to sensors, industrial modules, configuration ports, wireless modems, and legacy equipment. Timers support scheduling, pulse generation, timestamping, and control-loop cadence. ADC capability allows local analog acquisition without adding a separate converter for basic supervisory measurements. The strategic advantage here is not that any single peripheral is extraordinary, but that the combination supports a complete edge node on one processor. That matters in industrial and instrumentation designs, where every additional companion IC increases layout effort, power-domain complexity, boot dependencies, and qualification burden.

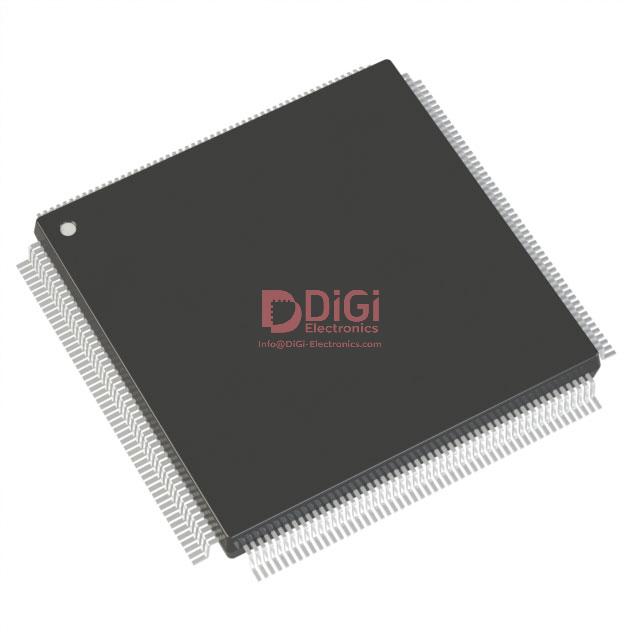

The AT91SAM9XE512-QU is supplied in a 208-pin PQFP package for surface-mount assembly and specified across an industrial temperature range of -40°C to 85°C. Package choice affects more than manufacturability. A 208-PQFP gives ample I/O access and can simplify inspection and rework compared with high-density BGA options, which is still relevant in long-life industrial programs and lower-to-medium volume products. At the same time, the package and pin count imply that PCB escape, signal grouping, SDRAM routing discipline, Ethernet layout, clock integrity, and power decoupling must be handled with care. These devices are integrated, but they are not forgiving of casual board design. Stable SDRAM operation, clean Ethernet clocks, and low-noise analog behavior depend heavily on grounding strategy and pin-level partitioning.

From an application perspective, the processor fits well in industrial HMIs, networked controllers, data acquisition front ends, embedded imaging terminals, and multifunction control platforms. In HMIs, the integrated display support, serial expansion, and Ethernet create a compact architecture for touch-driven operator panels with remote access. In networked controllers, internal Flash and broad I/O help maintain a reliable boot and service path while still allowing richer software than a small MCU could comfortably host. In data acquisition systems, the processor can aggregate local measurements, preprocess data, log to external storage, and expose results over Ethernet or USB. In imaging-enabled terminals, the image sensor interface and LCD path allow a single processor to manage acquisition, display, and communications in a tightly constrained hardware envelope.

A useful way to evaluate this device is to see it as a system integration tool rather than simply an ARM9 CPU with peripherals. Its real value appears when reducing component count, shortening boot dependency chains, and keeping software ownership centralized. That often leads to better field behavior than a fragmented architecture built from a small MCU plus external networking chip plus display controller plus boot Flash. Fewer major devices usually means fewer asynchronous failure modes, fewer firmware boundaries, and a cleaner update strategy. On products expected to stay in service for years, that simplification often outweighs the appeal of newer but more distributed architectures.

There are, however, engineering tradeoffs that should be recognized early. The ARM926EJ-S generation is mature, but it is not a modern high-performance application core. Its strengths are integration, determinism, and software ecosystem maturity within its class, not advanced graphics, heavy encryption workloads, or broadband multimedia processing. Designs that require large secure stacks, high-resolution UI rendering, or substantial protocol concurrency may reach memory and bus limits before CPU utilization appears critical. The most successful implementations usually reserve this device for systems where interface richness and connectivity matter, but workload profiles remain bounded and well understood.

In practical development flows, the embedded Flash can be used to hold a compact bootloader, board diagnostics, manufacturing test routines, and a recovery image, while external NAND or other mass storage carries the main application image and data. That split is often effective in industrial products because it preserves a serviceable fallback state even after interrupted updates or file system corruption. Similarly, early board bring-up tends to benefit from first validating clocks, SDRAM timing, serial console, and Ethernet using a minimal internal-memory-resident test image before layering in a full OS and graphics stack. This staged method reduces ambiguity during debug and exposes signal-integrity issues before the software environment becomes too complex to isolate root causes cleanly.

Overall, the AT91SAM9XE512-QU is best understood as a balanced embedded processor for control-plus-connectivity systems that need meaningful peripheral breadth, internal nonvolatile memory, and scalable external memory expansion. Its architecture supports a layered design approach: secure and recoverable boot from internal resources, feature growth through external memory, and application differentiation through networking, display, acquisition, and interface integration. In that role, it remains a technically coherent choice for embedded platforms where robustness, integration efficiency, and functional range matter more than peak compute density.

AT91SAM9XE512-QU Core Architecture and Processing Capabilities

AT91SAM9XE512-QU is built around the ARM926EJ-S, a mature 32-bit application-oriented core positioned between simple microcontrollers and higher-end application processors. Its value is not defined by clock rate alone, but by the balance between instruction set flexibility, memory-system capability, and software ecosystem fit. Running at up to 180 MHz and delivering roughly 200 MIPS, it targets systems that need more than deterministic register-level control yet do not justify the cost, power, or software complexity of heavier processor classes. This makes it well suited for embedded Linux platforms, feature-rich RTOS designs, communication gateways, operator interfaces, and control nodes that must process protocol traffic while maintaining real-time peripheral interaction.

The ARM926EJ-S core supports both ARM and Thumb instruction sets. That dual-mode execution model matters in deployed products because it gives software teams a practical tradeoff between code density and raw execution efficiency. ARM mode is typically preferred in performance-sensitive paths, while Thumb mode helps compress firmware footprint when nonvolatile memory usage becomes a constraint. In systems with substantial middleware, file systems, networking components, or UI logic, this flexibility often improves overall memory economics more than a nominal clock increase would. In practice, code density affects not only storage cost but also fetch behavior, boot media pressure, and instruction-cache efficiency.

The DSP instruction extensions are equally important, though often underestimated. They do not transform the device into a dedicated signal processor, but they do make integer-heavy workloads more efficient. Audio pre-processing, motor-control support routines, sensor filtering, checksum computation, packet manipulation, and simple algorithmic transforms benefit from this capability. In many embedded designs, these operations appear as background functions embedded inside communication or control loops. A core with lightweight DSP acceleration can absorb them without forcing the design toward a separate coprocessor or a significantly more expensive CPU tier. That usually improves board simplicity and reduces software partitioning overhead.

ARM Jazelle support reflects the design priorities of its era, when embedded Java execution was a stronger commercial requirement in some vertical systems. Its practical relevance today depends on the software stack, but architecturally it signals that the processor was intended for richer managed-runtime environments rather than strictly fixed-function firmware. Even when Jazelle is not used directly, the broader implication remains useful: this is a processor class designed to host layered software, not just interrupt-driven control code.

A more decisive architectural feature is the memory subsystem. The AT91SAM9XE512-QU integrates an 8 Kbyte data cache, a 16 Kbyte instruction cache, a write buffer, and a memory management unit. These elements shift the device into a different software category from conventional MCU-class parts. Once an MMU is present, the processor can support operating systems and memory models that depend on virtual address translation, access permissions, process isolation, and more disciplined handling of dynamic memory. This does not mean every design should run Linux, but it means the option is technically credible. That distinction is important early in platform selection, because replacing an MMU-capable processor later is usually expensive at both hardware and software levels.

The cache configuration deserves closer examination. The 16 Kbyte instruction cache helps sustain throughput when running large code bases from external memory or from nonuniform memory regions. In application-style workloads, performance is often limited less by ALU speed than by instruction fetch latency and branch behavior. The instruction cache reduces repeated fetch penalties across kernel code, networking stacks, graphics primitives, and protocol handlers. The 8 Kbyte data cache improves access locality for stack frames, control structures, buffers, and descriptor tables. For many embedded workloads, this has a visible effect on responsiveness because packet metadata, state machines, and small working sets repeatedly circulate through a limited set of memory locations.

The write buffer complements the cache system by decoupling CPU execution from slower memory writes. This matters when the processor must update descriptors, queue data, or commit control information while continuing execution. In communication-heavy systems, buffered writes can smooth performance significantly, especially when external memory latency is variable. The benefit is not merely synthetic benchmark gain. It often appears during real system operation as lower software jitter under mixed read/write traffic. That said, designs involving DMA, memory-mapped peripherals, or strict ordering requirements must handle cacheability and buffer behavior carefully. Coherency mistakes in these systems are rarely dramatic at first; they usually emerge as intermittent startup faults, corrupted packet handling, or device state inconsistencies under load. The presence of cache and write buffering therefore improves performance, but it also demands more disciplined memory-map design and software ownership rules.

The MMU changes software architecture even more profoundly than the caches. With it, the processor can support protected memory layouts, user and kernel separation, and controlled mapping of device registers versus normal RAM. This is highly relevant in products expected to run large protocol stacks, updateable application code, or third-party software components. A protected memory model does not eliminate software defects, but it changes how failures propagate. Instead of silent corruption spreading across the entire system, faults are more often contained, diagnosed, and logged. In fielded equipment, that translates into shorter debug cycles and more predictable recovery behavior. From an engineering perspective, this often matters more than peak MIPS.

The performance figure of up to 200 MIPS should be interpreted in that broader context. It is enough compute capacity for systems that combine control, communications, and moderate data handling, but it is not excessive headroom for poorly optimized software. On this class of processor, architecture-aware software structure still matters. Cache locality, interrupt design, DMA usage, copy avoidance, and peripheral offload have direct impact on delivered system performance. A common pattern is that the processor feels fast during early firmware bring-up, then appears constrained once networking, file systems, logging, and UI tasks are added together. The most successful designs on this platform usually separate latency-sensitive tasks from throughput-oriented tasks early, then map data movement to DMA wherever possible. That approach preserves CPU bandwidth for protocol logic, scheduling, and exception handling rather than spending it on repetitive memory transfers.

From an application standpoint, the AT91SAM9XE512-QU is especially effective in systems with mixed operational profiles. It can manage deterministic control loops, supervise communication interfaces, host an operating system, and execute supervisory application logic within one device. This is a strong fit for industrial terminals, connected instrumentation, HMI panels, secure access controllers, data concentrators, and intelligent communication modules. The processor is less compelling for either extreme end of the design space: ultra-low-power deeply embedded control can often be handled more efficiently by smaller MCUs, while advanced multimedia or high-bandwidth UI systems may outgrow the ARM9-class execution model quickly. Its strength lies in the middle ground, where software richness and peripheral control must coexist on a modest power and cost budget.

Debug capability is another area where the architecture shows its practical orientation. EmbeddedICE and the Debug Communication Channel provide low-level visibility that is highly valuable during board bring-up and early firmware validation. At this stage, many failures occur before higher-level software infrastructure is available. DDR timing may be marginal, boot media may be mapped incorrectly, clocks may not be stable, or peripheral pin multiplexing may conflict with assumptions in the startup code. In these conditions, basic debug access is not optional. It becomes the primary path to determine whether the processor is fetching correctly, whether the exception vectors are valid, and whether early initialization is progressing at all.

The practical advantage of EmbeddedICE is that it supports inspection and control close to the execution pipeline, where startup faults can still be observed before the system becomes nonresponsive. The Debug Communication Channel is useful when standard serial output is not yet configured or when the failing subsystem includes the normal diagnostic interface itself. During low-level software development, this shortens the path between symptom and root cause. One recurring pattern in complex board bring-up is that apparent software faults are often memory configuration or clock-domain issues in disguise. A processor with robust low-level debug support helps separate these categories quickly, which reduces iteration time across hardware and firmware teams.

Another important point is that manageability during development is part of architectural value, not an afterthought. A processor may look attractive on paper because of core speed or peripheral count, yet prove expensive in schedule if boot analysis, exception tracing, and hardware-state inspection are weak. The AT91SAM9XE512-QU avoids part of that risk by providing the debug infrastructure expected of an application-oriented embedded processor. In engineering terms, this improves not only verification efficiency but also design confidence when integrating bootloaders, operating systems, and custom drivers.

Taken as a whole, the AT91SAM9XE512-QU should be understood as a software-capable embedded processor rather than a scaled-up MCU. The ARM926EJ-S core, dual instruction-set support, DSP extensions, cache hierarchy, write buffering, MMU, and debug features form a coherent architecture intended for systems with layered software and mixed workloads. The most important insight is that its real strength does not come from any single feature in isolation. It comes from the way these features enable a practical system architecture: compact enough for embedded deployment, strong enough for OS-based designs, and transparent enough to debug when real hardware behavior diverges from the ideal model. For teams building networked or interface-rich embedded products, that balance is often more valuable than raw peak performance.

AT91SAM9XE512-QU Memory Subsystem and Embedded Flash Advantages

AT91SAM9XE512-QU stands out in the SAM9 family because its memory subsystem is not just a storage resource. It is part of the device architecture strategy. The combination of 32 Kbytes of internal ROM, 32 Kbytes of internal SRAM, and 512 Kbytes of embedded Flash creates a compact execution and boot environment that can remove an entire class of external memory devices from the design. In practice, this changes more than BOM cost. It affects routing density, power sequencing, startup determinism, EMI behavior, and firmware deployment flow.

At the lowest level, the value of this memory mix comes from how each block serves a distinct stage of system life. The internal ROM provides a fixed and trusted entry point for early boot behavior. The SRAM gives a fast workspace for stack, initialization code, temporary buffers, and critical runtime data. The 512-Kbyte embedded Flash provides nonvolatile storage close to the processor core, making it suitable for first-stage firmware, compact application images, parameter sets, and protected configuration data. When these blocks are integrated on-chip, boot does not need to wait for external memory interface stabilization or serial Flash transactions. That shorter path usually means fewer failure modes during power-up and fewer board-level constraints during bring-up.

The Flash array itself is organized into 1024 pages of 512 bytes. This page granularity is important because it defines the practical unit of firmware update, data logging, and parameter persistence. A 512-byte page is large enough to hold structured records, configuration tables, or small code fragments, yet small enough to localize erase/program operations. In embedded products, this matters when only a narrow region of data changes over time. A coarse erase unit wastes endurance and complicates update logic. A 512-byte page allows tighter control over what is rewritten and when.

The 128-bit access width is one of the more meaningful architectural details. It is not simply a marketing number. It directly influences instruction fetch efficiency and bus utilization. On an ARM926-based system, wider Flash access helps reduce the fetch penalty associated with nonvolatile memory execution. Combined with the Enhanced Embedded Flash Controller, this allows the processor to sustain more efficient code reads in both ARM and Thumb modes. The practical effect is that moderately sized firmware can execute from internal Flash with acceptable responsiveness, especially for control paths, startup code, communication stacks, and supervisory logic that do not justify migration into external SDRAM. For many designs, this shifts internal Flash from being just a boot repository to being an active execution space.

The 45 ns read time further reinforces that role. It places the embedded Flash in a range where direct code execution is viable without the severe latency usually associated with slower nonvolatile technologies. This does not mean it replaces SRAM for performance-critical routines. Tight interrupt handlers, high-frequency data processing loops, and latency-sensitive cryptographic primitives still benefit from SRAM placement when cycle determinism matters. But for broad sections of firmware, the integrated Flash can deliver a strong balance between persistence and speed. That balance often simplifies memory mapping and reduces the pressure to over-engineer external memory subsystems.

Programming behavior is equally relevant. The specified 4 ms page programming time, including auto-erase, is short enough for practical field updates and manufacturing programming, while the 10 ms full erase time supports controlled device reconditioning or mass image replacement. These values suggest that the Flash was designed not only for static code storage but also for managed lifecycle updates. In real deployment, update strategy should still be page-aware. Frequent rewriting of small metadata structures can unintentionally create endurance hotspots. A more robust layout places immutable firmware in fixed page ranges, allocates rotating parameter pages for frequently updated data, and separates calibration constants from runtime counters. That arrangement usually extends usable life significantly without adding external EEPROM or serial Flash.

The 10,000-cycle endurance and 10-year retention figures should be interpreted correctly. They are sufficient for firmware images, calibration blocks, product configuration, and occasional event history. They are not ideal for high-frequency logging or continuously updated counters. A common design mistake is to treat embedded Flash as a drop-in replacement for true nonvolatile transactional storage. It works well when writes are infrequent and carefully managed. It works poorly when software updates the same page on every state change, meter pulse, or communication event. The more effective approach is to reserve Flash for versioned records, checkpointed state, and bounded-write persistence. If the product requires aggressive data churn, external FRAM, EEPROM, or managed wear-leveling in a broader memory architecture is usually the cleaner solution.

Security features in the Flash block add another layer of system value. Page lock capability enables segmentation of firmware regions so that application code, boot code, and protected constants can be controlled independently. The Flash security bit provides a baseline mechanism against unauthorized extraction or casual duplication of the programmed image. These controls are not a complete security architecture by themselves, but they materially improve resistance against common manufacturing and service-path exposures. In systems where boot code integrity and IP containment matter, embedded Flash with hardware-enforced protection is preferable to loosely managed external memory devices that sit on exposed board traces.

From a hardware perspective, integrating 512 Kbytes of Flash on-chip reduces design friction in several ways. It can eliminate a dedicated boot NOR device and its associated address/data bus routing, chip-select allocation, decoupling, signal integrity work, and sourcing complexity. That reduction is especially valuable on dense industrial control boards, HMI modules, compact gateways, and cost-sensitive networked nodes. It also helps power sequencing. External boot memory often introduces additional startup dependencies and interface timing checks. With on-chip Flash, first instruction fetch occurs within a more controlled silicon boundary, which generally improves repeatability across voltage, temperature, and manufacturing spread.

This integration also changes firmware architecture decisions. When 512 Kbytes of internal Flash is available with reasonable execution performance, teams can partition software more deliberately. A minimal and durable first-stage loader can remain permanently resident in a protected region. Main application code can occupy the larger program area. Calibration and unit-specific identity can be isolated into separate page groups. Recovery images or rollback markers can be inserted without requiring another device on the board. This type of segmentation is often more stable than storing everything in one monolithic external image, because corruption domains become smaller and update sequencing becomes easier to verify.

The internal SRAM, though modest at 32 Kbytes, plays a critical supporting role in this model. It is the correct location for startup relocation, temporary decompression, interrupt vectors if remapped, and critical routines that must run while Flash is being programmed. Since Flash writes and erase operations can constrain read access behavior depending on controller state, robust in-application programming typically copies essential service code into SRAM before committing updates. This is one of those implementation details that often determines whether field update logic is merely functional or truly reliable. Systems that ignore this separation may work in basic tests but become fragile under brownout, watchdog, or communication interruption conditions.

The ROM also deserves attention beyond its nominal size. Internal ROM usually anchors the device’s early boot and recovery behavior. In production environments, that makes board bring-up less fragile because there is always a known entry mechanism before application firmware is valid. In service environments, it can provide a recovery path when the main Flash image is incomplete or improperly programmed. This hidden operational advantage often outweighs the raw capacity numbers, because a recoverable platform is more valuable than a marginally larger but less controllable memory map.

Manufacturing flexibility is another strong advantage of this subsystem. The device supports in-system programming through JTAG-ICE as well as programming before assembly through a parallel interface on production equipment. That allows multiple factory flows without redesigning the board. For lower volumes or engineering builds, programming after assembly is often simpler because firmware can be loaded late in the process, after test coverage and serial-number association are complete. For higher volumes, preprogrammed parts can reduce line time and shorten final test. The key is that the silicon does not force one strategy. It supports staged deployment models, including blank-device ICT flashing, fixture-based image loading, and preloaded inventory for stable firmware revisions.

There is also a procurement benefit that is easy to underestimate. Removing a separate boot memory device does not only reduce unit cost. It reduces supplier coupling. In constrained markets, memory sourcing problems often propagate into redesigns, alternate footprint validation, and software modifications for new boot devices. A microcontroller or MPU with sufficient embedded Flash limits that exposure. This can materially improve schedule resilience, especially for products with moderate firmware size and long production life.

In application terms, the AT91SAM9XE512-QU memory subsystem is well suited to designs where code footprint is disciplined and startup integrity matters. Industrial controllers, communication modules, secure instrumentation, compact Linux-adjacent control nodes with a small resident loader, and dedicated HMI subsystems are strong candidates. It is less compelling for applications with large graphics assets, heavy middleware stacks, or frequent nonvolatile data churn. In those cases, the embedded Flash is still useful, but mainly as a secure boot and recovery anchor rather than the sole program store.

A useful design pattern with this device is to treat internal Flash as the trusted operational core, not as a general-purpose storage pool. Keep boot code small and protected. Place the main control firmware where it can execute directly with minimal dependency. Store only bounded-write parameters internally. Move high-write or high-volume data elsewhere. That approach aligns with the actual physics of embedded Flash and usually leads to a cleaner, more predictable system than trying to maximize every byte of on-chip nonvolatile capacity.

What makes the AT91SAM9XE512-QU notable is not just that it includes 512 Kbytes of Flash. It is that the Flash, ROM, SRAM, controller interface, and programming paths form a coherent subsystem. When used with disciplined partitioning and realistic endurance assumptions, this subsystem can simplify hardware, stabilize boot behavior, and make firmware deployment more robust across development, manufacturing, and field service.

AT91SAM9XE512-QU Internal Bus Matrix and System Bandwidth Design

AT91SAM9XE512-QU is built around a six-layer 32-bit internal bus matrix, and this choice strongly shapes the practical performance envelope of the device. The matrix is not just a feature-list item. It is the main mechanism that allows the ARM926EJ-S core, DMA-capable peripherals, and memory interfaces to remain productive under concurrent load. In a conventional shared-bus design, every active master competes for a single transport path, so aggregate throughput collapses as traffic increases. In the AT91SAM9XE512-QU, multiple transfers can proceed in parallel across independent matrix layers, which raises sustained bandwidth and reduces the latency spikes that usually appear when communication, buffering, and code execution overlap.

At a structural level, the six-layer matrix should be understood as an internal interconnect fabric that links multiple bus masters to multiple bus slaves through arbitration and routing logic. Each active master can request access to a target slave independently. If two masters address different slaves, the matrix can usually serve both transactions at the same time. This is the central advantage: bandwidth scales with access distribution, not just with bus clock frequency. A 32-bit width on each active path further supports deterministic movement of instruction fetches, data loads, descriptor reads, and peripheral payload transfers without collapsing into a single bottleneck.

The engineering value of this approach becomes clearer when looking at mixed workloads. A processor may fetch code from internal memory or external SDRAM while an Ethernet controller pushes frame buffers through DMA, a USB block exchanges packet data, and an image capture interface streams incoming samples into memory. In a single-bus architecture, these operations serialize quickly, and software often ends up compensating through reduced sampling rates, smaller buffers, or stricter scheduling. In the SAM9XE512-QU, the matrix improves concurrency by separating traffic flows whenever source and destination combinations permit it. The result is not infinite bandwidth, but a much higher probability that time-critical transfers complete on schedule.

This distinction matters because real bottlenecks in embedded systems rarely come from one large transfer alone. They come from interference between many moderate transfers with different timing characteristics. Ethernet traffic is bursty. USB can produce periodic or bulk transfer pressure. Image capture often behaves like a sustained stream with limited tolerance for backpressure. Meanwhile, the CPU still needs instruction fetch bandwidth and low-latency access to control structures. A matrix architecture reduces the chance that one traffic class blocks all others. In practice, this often translates into fewer dropped frames, more stable communication throughput, and lower interrupt service jitter.

A useful way to analyze the bus matrix is to separate masters, slaves, and arbitration behavior. Masters are the initiators of transactions: the CPU core, DMA engines, and peripheral controllers that can read or write memory autonomously. Slaves are the destinations: internal SRAM, embedded Flash regions, external bus interfaces, SDRAM controllers, and peripheral register spaces. The bus matrix sits between them and decides who gets access to what, and when. System performance therefore depends less on raw clock speed than on traffic placement. If several active masters repeatedly target the same slave, contention still occurs even with a multilayer matrix. If traffic can be distributed across different memory regions and interfaces, the architecture delivers much better parallel efficiency.

That point is often underestimated during early design. A six-layer matrix does not remove all conflicts; it localizes them. The dominant limitation shifts from “one bus for everything” to “hotspot slaves under multi-master pressure.” External SDRAM is a common example. It is frequently used as the default destination for frame buffers, protocol stacks, USB payloads, and application data. If Ethernet DMA, USB DMA, image capture, and the CPU all target SDRAM heavily, the matrix can route requests efficiently, but the SDRAM interface itself still becomes the choke point. The interconnect is parallel; the memory target is not infinitely parallel. Good bandwidth design therefore starts with traffic mapping, not just peripheral enablement.

For this reason, memory placement has a first-order effect on achievable throughput. Control structures, interrupt stacks, and latency-sensitive working buffers are often better placed in internal SRAM, where access is faster and contention is lower. Bulk data buffers that tolerate higher latency can be assigned to external SDRAM. Descriptor rings for Ethernet or USB can benefit from careful placement because small control reads and writes suffer disproportionately when they share a heavily loaded path with large payload bursts. When these structures are moved out of congested memory regions, system responsiveness usually improves more than expected, even when total bandwidth remains unchanged.

Another practical design pattern is to separate code and data traffic whenever possible. If instruction fetches and data transfers repeatedly hit the same external memory resource, CPU execution becomes vulnerable to peripheral burst traffic. This effect is visible as irregular task execution time rather than obvious failure, which makes it difficult to diagnose. Placing frequently executed code, exception vectors, boot-critical routines, or DMA management logic in lower-latency internal memory can stabilize the system under load. The gain is often not higher peak throughput but tighter worst-case timing, which is usually the more valuable metric in embedded control and communication systems.

The bus matrix also improves the usefulness of DMA. DMA is commonly treated as a way to “free the CPU,” but that statement is incomplete. DMA only helps if the interconnect and memory system can sustain concurrent master activity without introducing severe backpressure. In the AT91SAM9XE512-QU, the matrix gives DMA engines room to operate in parallel with processor accesses, making autonomous data movement materially effective. This is especially important in packet-based and streaming applications, where CPU cycles saved by DMA can otherwise be lost again waiting on memory stalls. A well-designed matrix turns DMA from a nominal feature into a measurable system-level gain.

In communication-heavy designs, Ethernet and USB provide a good stress case. Ethernet frame reception may fill buffers in SDRAM while the CPU processes protocol state and USB handles control or bulk transfers. If descriptor tables, payload buffers, and stack memory are all concentrated in one memory target, arbitration delays rise quickly. A more disciplined partitioning strategy usually performs better: keep descriptors and control state close to low-latency memory, place larger payload buffers in external SDRAM, and avoid forcing both networking and storage traffic through the same narrow path during peak activity windows. This kind of arrangement aligns with the matrix architecture instead of fighting it.

Image capture introduces a different pressure profile. Unlike packet traffic, image streams are sustained and timing-sensitive. Once capture begins, the write path must accept incoming data with minimal interruption. If that stream lands in external SDRAM while the CPU is executing from the same memory and another DMA master is also active, missed deadlines become more likely. In these cases, the internal bus matrix helps, but only up to the point where the destination memory accepts the write rate. Buffering strategy becomes critical. Double-buffering or ring-buffering can absorb short arbitration delays, and separating metadata from pixel payloads can reduce cache pollution and bus churn. In practice, the cleanest designs are usually the ones that reserve a predictable path for the stream instead of relying on average-case bandwidth.

The remap command adds another layer of architectural flexibility. During boot, systems often need one memory view for startup and another for normal operation. The remap mechanism allows the address space to be reorganized so that boot ROM, embedded Flash, SRAM, or external memory can appear at preferred locations depending on execution phase. This simplifies early initialization, exception handling, and software layout. It also supports a cleaner transition from immutable boot code to higher-performance runtime placement. For example, a system may begin execution from boot ROM or Flash, initialize clocks and memory controllers, then remap a faster or more suitable memory region into the low address space for normal execution. This avoids awkward linker compromises and can reduce the startup complexity of low-level software.

The deeper benefit of remap is not only convenience. It allows the memory map to reflect system state. During initial power-up, reliability and deterministic boot access are the priority. After initialization, performance and software organization become more important. A static memory map forces one compromise across all phases. Remap allows phase-specific optimization. In tightly engineered systems, this can simplify exception vector placement, accelerate critical routines, and isolate bootloader behavior from the main application without adding external glue logic.

From a bandwidth-design perspective, the best way to use the AT91SAM9XE512-QU is to think in terms of transaction topology rather than peripheral checklists. The question is not simply which interfaces are enabled, but which masters talk to which slaves at the same time, with what burst sizes, and under what timing constraints. Once the traffic graph is visible, the matrix becomes a design tool rather than a background feature. Internal SRAM should be treated as a latency-control asset. External SDRAM should be treated as a shared bulk-storage resource whose peak bandwidth is attractive but whose arbitration cost under concurrency must be respected. DMA channels should be assigned with awareness of destination hotspots. Remap should be used to align boot-time and run-time memory behavior with actual execution needs.

A recurring lesson in this class of SoC is that average throughput numbers can be misleading. Systems fail at contention boundaries, not in empty-bus conditions. The six-layer matrix in the AT91SAM9XE512-QU substantially raises the ceiling for concurrent operation, but its full value appears only when software layout, buffer placement, and DMA strategy are coordinated with the internal interconnect. When that alignment is done well, the device can sustain communication, streaming, and control workloads in parallel with much better stability than a single-bus architecture of similar width and clock class. The architecture rewards designs that distribute traffic intelligently, keep critical paths short, and treat memory mapping as part of performance engineering rather than as a late-stage software detail.

AT91SAM9XE512-QU External Memory and Expansion Interfaces

AT91SAM9XE512-QU integrates an External Bus Interface intended to extend the device well beyond its internal SRAM and embedded Flash. In practical system design, this interface is not just a collection of pins for attaching memory devices. It is the main path for scaling software complexity, storage capacity, display capability, and data buffering depth. Once an application moves from simple control logic to an operating system, networked services, graphical output, or persistent logging, the internal memory resources usually stop being the limiting factor only because the external memory subsystem takes over that role.

At the electrical and architectural level, the External Bus Interface separates memory classes according to access behavior. SDRAM is used where bandwidth and capacity matter most. Static memory devices are suited to simpler timing models and deterministic access. NAND Flash addresses high-density nonvolatile storage, and CompactFlash provides a block-storage-oriented expansion path with broad legacy compatibility. This partitioning is important because each memory type solves a different system problem. Treating them as interchangeable often leads to unstable timing margins, unnecessary software complexity, or avoidable BOM cost.

External SDRAM is typically the first expansion resource considered in systems built around AT91SAM9XE512-QU. Its controller interface exposes the expected SDRAM signaling set, including SDCK, SDCKE, SDCS, BA0-BA1, SDWE, RAS, CAS, and SDA10. These signals support row and column addressing, bank management, command sequencing, and clocked data transactions required for synchronous dynamic memory operation. From a software perspective, SDRAM usually becomes the execution and working memory space for operating systems, protocol stacks, heap allocation, large task contexts, multimedia buffers, and frame buffers. From a hardware perspective, however, SDRAM is less forgiving than its logical abstraction suggests. Layout quality, clock integrity, trace matching, and power sequencing can determine whether a board boots reliably or fails intermittently only under temperature variation or high bus activity.

A useful way to evaluate SDRAM integration is to start from access patterns rather than raw size. If the application includes an LCD controller, TCP/IP traffic, filesystem cache, and image processing, peak memory traffic matters as much as memory capacity. It is common to size SDRAM for software footprint and then discover that contention, refresh overhead, and burst inefficiency reduce practical bandwidth. A more robust design approach is to estimate simultaneous consumers of external memory early, then map their latency tolerance. That often reveals whether a modest SDRAM device is enough or whether bus arbitration pressure will dominate system behavior.

Static memory support adds a different type of flexibility. Compared with SDRAM, static memory interfaces are operationally simpler and usually easier to validate. They are useful when the design prioritizes predictable timing, straightforward initialization, or compatibility with legacy external devices. In many embedded systems, static memory space is not only used for SRAM or NOR-class resources, but also for memory-mapped peripherals that benefit from direct bus attachment. This makes the static memory interface valuable even in systems that already include SDRAM. It can isolate slow, control-oriented, or qualification-sensitive components from the high-speed working memory domain.

The practical tradeoff is density and cost efficiency. Static memory tends to consume more board area and cost per bit than SDRAM or NAND Flash, but it reduces controller complexity and can improve debug visibility. In early platform bring-up, for example, static memory-backed diagnostics are often easier to trust because timing closure is simpler and failure modes are more transparent. That predictability still has value in industrial and long-life designs where field behavior matters more than maximum throughput.

NAND Flash support is particularly relevant for designs that need substantial nonvolatile storage without the cost structure of large parallel NOR devices. The dedicated control signals, including NANDOE and NANDWE, indicate that the device is prepared for direct attachment to raw NAND media. This matters because NAND is fundamentally different from memory used for direct random-access execution. It is page-oriented, block-erase-based, and error-prone enough that ECC is not optional in any serious implementation. The mention of ECC-enabled NAND support is therefore not a peripheral feature. It is a system-enabler. Without robust error correction, bad-block management, and software aware of NAND semantics, high-density storage quickly becomes unreliable under normal write and erase cycling.

In application terms, NAND Flash is usually the right answer for root filesystems, firmware images, persistent logs, media assets, and update packages. It is less appropriate as a direct substitute for low-latency executable memory. Designs that attempt to use NAND as if it were linear storage often accumulate complexity at the bootloader, filesystem, and recovery levels. A better design pattern is to reserve internal Flash for first-stage boot robustness, use external NAND for bulk storage, and place active execution and runtime state in SDRAM. That arrangement aligns well with the strengths of each memory technology and reduces recovery risk after interrupted updates or power disturbances.

CompactFlash support gives the AT91SAM9XE512-QU another expansion path that is structurally different from raw memory attachment. Signals such as CFCE1, CFCE2, CFOE, CFWE, CFIOR, CFIOW, CFRNW, and CFCS0-CFCS1 indicate compatibility with CompactFlash operation modes where removable or fixed solid-state storage integration is useful. In system architecture terms, CompactFlash occupies a middle ground between memory expansion and storage subsystem integration. It is attractive when the design needs field-replaceable media, established ecosystem support, or compatibility with older storage-qualified platforms.

CompactFlash can be especially useful in environments where service procedures prefer media replacement over in-system reprogramming. It also simplifies some deployment workflows, such as preloading software images or data sets offline. The downside is that removable storage introduces connector reliability concerns, insertion-cycle limits, and broader variation in media behavior across vendors. Designs intended for harsh environments often discover that the electrical interface is only one part of the challenge; retention mechanics, contamination resistance, and safe-write handling become equally important. For that reason, CompactFlash is strongest where maintenance workflow or compatibility needs justify the mechanical and validation overhead.

The real strength of the AT91SAM9XE512-QU external memory architecture lies in how these interfaces can be combined into a layered memory hierarchy. Internal SRAM and embedded Flash handle early boot, critical routines, and minimal recovery paths. External SDRAM absorbs runtime volatility and bandwidth demand. NAND Flash provides scalable persistent storage. Static memory fills deterministic or legacy roles. CompactFlash supports removable or service-oriented storage models. When these roles are assigned deliberately, the result is a system with better fault isolation and clearer software boundaries. When assigned casually, the design may still function, but boot flow, memory map complexity, and long-term maintainability tend to degrade.

For cost-sensitive products, a balanced configuration often works best: use internal nonvolatile memory for secure boot and essential code, add only enough SDRAM to support the software stack with margin, and avoid external storage types that do not directly support the product requirement. Overbuilding memory subsystems is common in early designs because capacity is easy to justify, while signal integrity effort and software maintenance cost remain hidden until late validation. A smaller, well-partitioned memory architecture is often more reliable and easier to manufacture than a feature-maximal design.

For data-centric systems, the emphasis shifts. External NAND becomes central for logs, local databases, firmware rollback images, or content storage. In these systems, ECC strategy, wear distribution, and power-fail behavior deserve the same design attention as processor selection. A recurring issue in storage-heavy embedded platforms is that the hardware interface is treated as complete once read and write cycles pass bench testing. In reality, the difficult part begins with sustained field use, where repeated updates, brownout events, and fragmented writes expose weak assumptions in both driver design and storage layout.

For legacy-compatible or ruggedized designs, static memory and CompactFlash remain relevant despite newer storage trends. Their continued value is not based on raw technical superiority, but on qualification history, software inertia, and maintenance economics. In some projects, replacing a proven external memory topology with a denser modern option creates more certification and validation work than the performance gain justifies. That tradeoff is often underestimated. The best engineering choice is not always the most modern interface, but the one that minimizes total system risk across production, deployment, and service life.

Signal planning also deserves attention early in the design cycle. External memory buses tend to consume high-value pins and impose routing constraints that affect the entire PCB stack-up. SDRAM clocking, NAND timing margins, and CompactFlash control line integrity can interact with processor package escape and power distribution more strongly than expected. If the memory topology is decided too late, board rework usually becomes expensive. A disciplined pinout and routing strategy should therefore be treated as part of system architecture, not as a downstream layout task.

Software initialization is another place where the memory architecture becomes visible. SDRAM requires controller setup before it can host normal execution. NAND requires ECC-aware drivers and bad-block-tolerant storage management. CompactFlash may require mode handling and media-state awareness. Static memory may be simpler, but it still depends on correctly programmed timing windows. This means bootloader design should be aligned with memory hardware from the start. A common and effective pattern is to keep the earliest boot path as short and deterministic as possible, then enable more complex memory resources in stages. That staged approach improves debuggability and reduces the chance that a single external memory issue prevents all forms of recovery.

Seen in this light, the External Bus Interface of the AT91SAM9XE512-QU is not merely an expansion feature. It is the mechanism that defines how far the device can scale from a compact controller to a storage-aware, OS-capable embedded platform. Its support for SDRAM, static memory, ECC-protected NAND Flash, and CompactFlash enables a wide range of system profiles, but the best results come from assigning each interface a precise role. Capacity, bandwidth, persistence, determinism, serviceability, and qualification burden should each be treated as first-class design variables. When that discipline is applied, the external memory subsystem becomes a stable foundation rather than a source of late-stage integration risk.

AT91SAM9XE512-QU Communication and Connectivity Resources

AT91SAM9XE512-QU communication resources are built around a clear system-level objective: move data between network links, peripheral buses, and memory with minimal CPU intervention. That design choice matters more than the raw interface count. In embedded platforms that must handle protocol stacks, control logic, storage access, and user interaction at the same time, the real constraint is often deterministic data movement rather than nominal peripheral availability. The device addresses this well by combining a relatively broad peripheral set with DMA-assisted transfer paths and interface-specific buffering.

At the network layer, the integrated 10/100 Base-T Ethernet MAC is one of the most consequential blocks. Support for both MII and RMII gives board designers flexibility in PHY selection, pin budgeting, and layout complexity. MII is useful when broader PHY compatibility or separate signal paths are preferred, while RMII reduces pin count and tends to simplify routing on dense boards. The inclusion of dedicated DMA channels on both receive and transmit paths, combined with 128-byte FIFOs, is not just a convenience feature. It directly reduces interrupt pressure, lowers software latency sensitivity, and improves sustained throughput under mixed workloads. In practice, this means the processor can continue handling application tasks while packet traffic is absorbed and dispatched with less frequent CPU servicing.

This Ethernet integration is especially valuable in industrial nodes and compact gateways, where adding an external MAC or network controller would increase BOM cost, board area, power, and software complexity. More importantly, a tightly coupled on-chip MAC usually gives a cleaner memory-transfer model than an external controller connected over a slower peripheral bus. That becomes noticeable when the system must bridge traffic between Ethernet and serial field interfaces, log events to storage, or serve a lightweight web or management interface. The architecture is not intended for high-end switching workloads, but for embedded endpoint and gateway roles it reaches a practical balance between integration and control.

USB capability follows the same integration-first philosophy. The device provides a USB 2.0 full-speed device interface at 12 Mbits/s with an on-chip transceiver and 2,688 bytes of configurable DPRAM. That local packet memory is useful because USB traffic is bursty by nature. Configurable DPRAM allows endpoint allocation to be tuned around the application rather than fixed around a generic template. A firmware update device, measurement instrument, or configuration interface can assign memory differently from a composite device carrying multiple endpoints. This flexibility is often underestimated, but it helps avoid endpoint bottlenecks and makes it easier to stabilize performance under real enumeration and transfer conditions.

The USB host side is also implemented at full speed and, in the 208-pin PQFP variant, exposed as a single-port host. It includes the on-chip transceiver, integrated FIFOs, and dedicated DMA channels. For embedded designs, this host capability is usually less about general-purpose USB expansion and more about tightly scoped functions such as connecting a flash drive, a service dongle, a simple communication accessory, or a low-bandwidth HMI element. Full-speed-only host support sets clear bandwidth limits, so it should be evaluated against actual traffic profiles rather than checkbox requirements. For many control and service applications, that limitation is acceptable. For camera-class data rates or storage-heavy workflows, it is not. That boundary is worth recognizing early because USB host expectations tend to expand late in projects.

The serial subsystem is unusually versatile, and its value comes from protocol diversity rather than just port count. Four USARTs with independent baud-rate generators allow multiple asynchronous channels to run simultaneously without timing compromises. This is useful in systems that must isolate maintenance access, fieldbus adaptation, internal module links, and debug traffic. Hardware handshaking support improves robustness with modems, radio modules, and higher-rate UART peripherals. RS485 support is particularly relevant in industrial environments, where multidrop buses, longer cable runs, and half-duplex operation are still common. When properly paired with line transceivers and disciplined timing control, this allows the processor to sit naturally at the intersection of legacy and IP-based systems.

The protocol extensions on the USARTs deserve attention because they reduce the amount of software bit-level handling required for specialized interfaces. IrDA modulation/demodulation is useful in narrow legacy niches. Manchester encoding/decoding is more broadly significant in custom transport schemes and timing-sensitive encoded links. ISO7816 T0/T1 support enables direct smart-card interfacing without forcing firmware to reconstruct transaction timing from a generic UART. Full modem control on USART0 is also a practical feature for cellular or dial-up style modules, where out-of-band status lines can simplify power-state and link-state management. These hardware assists do not eliminate software complexity, but they move time-critical framing and signaling functions into deterministic peripheral logic, which is usually the right trade in medium-performance embedded systems.

The additional 2-wire UART is small in scope but strategically useful. In constrained designs, a simpler auxiliary serial channel often ends up serving a high-value function such as console access, housekeeping communication, or a dedicated low-speed management path. Keeping such traffic off the primary USART set avoids resource contention and simplifies software partitioning. That kind of separation often improves maintainability more than adding another feature-rich port.

The two SPI controllers extend the device into a much wider peripheral ecosystem. Support for master and slave modes, programmable data widths from 8 to 16 bits, and four external chip selects per controller makes SPI suitable for both control-oriented and streaming use cases. Flash devices, ADCs, DACs, LCD controllers, secure elements, FPGA configuration chains, and isolated interface expanders can all be integrated without external bus glue. In practice, the dual-controller arrangement matters because it allows traffic classes to be separated. One SPI bus can serve latency-tolerant configuration devices, while the other handles time-sensitive converters or display refresh transactions. This reduces the scheduling friction that appears when a single shared bus is asked to satisfy incompatible timing needs.

The two TWI interfaces provide another important degree of separation. Since they support master, multi-master, and slave modes, they can be used not only for conventional sensor and EEPROM attachment but also for supervisory or backplane communication roles. In dense systems, splitting low-speed control peripherals across two TWI buses improves fault containment and address-management flexibility. It also helps when one branch must remain accessible during partial subsystem resets or power sequencing events. That kind of partitioning is often more useful in the field than a higher headline bus speed.

The SSC adds capability that many general-purpose microprocessors lack in a compact form. With I2S analog interface support and time-division multiplexing support, it can handle synchronous serial streams for audio codecs, telecom-style framing, and other structured data channels. This makes the device viable for operator panels with voice prompts, monitoring units with audio capture, or control products that must bridge between network and synchronous local streams. TDM support is especially relevant where multiple channels share a common serial transport. The SSC is one of those peripherals that tends to look optional on paper but becomes highly valuable when the application needs deterministic framed data exchange without consuming excessive GPIO and CPU time.

The two-slot Multimedia Card Interface broadens the connectivity model beyond communication links into removable and embedded storage workflows. Compatibility with SD Card, SDIO, and MultiMediaCard means the interface can support local logging, firmware distribution, data export, or attachment of SDIO-based modules. In products that collect operational data or event histories, removable media support can reduce dependency on constant network availability. It also creates a practical maintenance path for isolated deployments. The two-slot capability can be used for flexible product variants, though actual usefulness depends on routing space, enclosure constraints, and software policy for media handling.

What ties these interfaces together is the Peripheral DMA Controller. On devices in this class, DMA is not a performance luxury; it is the difference between a system that remains responsive under concurrent traffic and one that becomes interrupt-bound. The communication blocks in the AT91SAM9XE512-QU are most effective when firmware is structured around buffer ownership, descriptor flow, and event-driven servicing rather than byte-wise transactions. Ethernet frames, USB packets, SPI bursts, SSC streams, and memory-card transfers all benefit from moving data in chunks. That reduces context-switch overhead, improves cache and memory-bus efficiency, and gives tighter control over worst-case latency. The hardware clearly encourages this model, and designs that embrace it usually scale better as features accumulate.

A useful way to view the device is not as a controller with many unrelated ports, but as a data-convergence engine for mid-range embedded systems. Ethernet handles external network presence. USB covers provisioning, servicing, or peripheral attachment. USARTs and RS485 support connect field devices and control modules. SPI and TWI bind local mixed-signal and support ICs. SSC handles synchronous media or framed streams. The Multimedia Card Interface provides persistent or portable data handling. When these are orchestrated through DMA-backed transfers, the processor can supervise multiple communication domains without collapsing into a pure protocol-forwarding role.

There is also a practical board-level implication. Because many of the required communication functions are already integrated, signal integrity and layout risk can be managed more predictably than in designs assembled from several external controllers. Fewer high-activity inter-chip buses usually means fewer timing corners, less EMI exposure, and a simpler bring-up sequence. That does not remove the need for careful PHY routing, USB power handling, clock design, or RS485 isolation strategy, but it shifts complexity toward well-understood interface boundaries rather than internal interconnect glue. In real projects, that often shortens the path from schematic completion to stable firmware validation.

The strongest application fit is therefore not defined by any single interface. It emerges when several of them are active at once. An industrial gateway can bridge Ethernet to RS485 while logging events to SD card. A connected HMI can combine Ethernet, USB device access, audio streaming through SSC, and local expansion over SPI. A remote I/O controller can manage field sensors over TWI and SPI, expose diagnostics over USB, and publish status over Ethernet. In these roles, the AT91SAM9XE512-QU benefits from an architecture that prioritizes coordinated peripheral operation over isolated peak performance. That is often the more useful design center for embedded communication platforms that must remain stable, serviceable, and cost-efficient over long deployment cycles.

AT91SAM9XE512-QU Multimedia, Sensor, and Analog Functions

The AT91SAM9XE512-QU extends well beyond a basic ARM9 control processor. Its multimedia, sensor, and analog resources make it suitable for designs that need direct interaction with image sources, display subsystems, touch input, and low-bandwidth analog signals without adding a large number of external companion devices. The practical value of these blocks is not that they compete with dedicated vision SoCs or high-end mixed-signal controllers, but that they reduce system partitioning in products where integration, BOM control, and software cohesion matter more than peak processing density.

A central element is the integrated Image Sensor Interface, which gives the device a direct path to camera-class inputs using ITU-R BT.601/656-style external interfaces. That matters because it removes the need for a separate bridge FPGA or custom glue logic in many moderate-throughput imaging designs. The interface supports programmable frame capture rates, a 12-bit data path, SAV/EAV synchronization handling, YCbCr processing, and a preview path with scaler. Taken together, these features indicate a capture subsystem designed not only to ingest image data, but also to shape it into a form that downstream software can consume with lower memory and CPU pressure.

The 12-bit sensor interface is especially useful in systems built around higher-sensitivity image sensors or sensors configured for wider dynamic range operation. In practice, this does not automatically translate into end-to-end 12-bit image quality, because total image fidelity still depends on sensor noise, clock integrity, analog front-end quality, and memory bandwidth. However, preserving higher source precision at the ingress point gives more room for exposure tuning, thresholding, edge extraction, and grayscale analysis before information is discarded. That is often more valuable in embedded inspection or detection tasks than simply pushing for higher pixel counts.

The synchronization support through SAV/EAV is also more important than it first appears. In embedded imaging systems, frame alignment problems usually emerge not from headline bandwidth limits but from edge cases in timing, blanking intervals, and software assumptions about line boundaries. Hardware support for video-style synchronization reduces that friction and improves interoperability with sensors and decoder-class devices that already speak these conventions. It simplifies DMA-oriented capture pipelines and makes the behavior more deterministic under sustained acquisition, which is exactly where software-only synchronization schemes tend to become fragile.

The preview path with integrated scaling deserves attention because it changes the system architecture. A common issue in ARM9-class imaging products is that the main processor can capture full frames, but continuous full-resolution display or analysis quickly saturates memory traffic and CPU cycles. A hardware preview stream allows the design to maintain two image representations at once: a lower-resolution live view for UI responsiveness and a higher-detail capture path for storage or selective processing. This pattern is effective in portable inspection tools, compact smart terminals, and machine-vision edge nodes where operators need immediate visual feedback, while the application only occasionally performs heavier analysis on full-frame data.

YCbCr handling further reinforces that the device is comfortable in display- and video-adjacent systems. YCbCr is often the natural output format for many imaging components and is efficient for display pipelines, compression preprocessing, and color-space-aware filtering. Keeping this format available in hardware avoids unnecessary software color conversion stages, which is significant on an ARM9-class core where every memory copy and per-pixel transform has a visible cost. In embedded processors of this class, reducing data movement is often more beneficial than optimizing arithmetic alone.

These imaging features make the AT91SAM9XE512-QU a strong fit for embedded imaging front ends, machine-vision preprocessing nodes, portable inspection equipment, and smart terminals that need direct sensor connectivity but do not justify a larger applications processor. The key is to place it correctly in the system. It is well suited to acquisition, format adaptation, preview generation, event-triggered capture, and lightweight feature extraction. It is less suited to dense modern vision workloads such as neural inference over large frames or complex multi-camera fusion unless paired with external acceleration. In many products, that boundary is actually desirable. It keeps the device in a deterministic, low-complexity role where it can acquire and condition data reliably before passing selected results upstream.

The LCD and touchscreen controller support broadens that role into a complete local interface platform. For designs that combine display, touch input, storage, and networking, integrating these functions around one processor simplifies both hardware and software ownership. A single processor handling capture, UI rendering, file management, and network exchange reduces interprocessor protocol overhead and avoids the synchronization problems that appear when a separate UI processor must coordinate with a sensor processor. This is particularly effective in products with moderate interface complexity, where the challenge is not raw graphics performance but keeping the interaction loop responsive while background acquisition and communication continue uninterrupted.

The LCD controller also has system-level implications. Display refresh is one of the most consistent consumers of memory bandwidth in embedded HMI designs. When image capture, framebuffer updates, and network traffic all share the same memory subsystem, performance failures often show up as intermittent tearing, delayed touch response, or frame drops rather than obvious CPU overload. The presence of dedicated controller support suggests a better partitioning of these duties than a pure software-driven display approach. In practice, careful buffer strategy still matters. Double buffering for the UI, separate DMA-safe capture buffers, and conservative assumptions about peak bandwidth usually produce more stable behavior than trying to maximize nominal throughput on paper.

Touchscreen support complements this by enabling compact HMI implementations without requiring an external application processor solely for input handling. In embedded terminals, service panels, or portable tools, touch input is often event-driven and low data rate, but the perceived quality of the product depends heavily on latency consistency. Integrating touch, display, and control tasks on one platform makes it easier to align input events with display state and application logic. The result is usually a more coherent interface, especially when alarms, image previews, and parameter adjustments must coexist in real time.

On the analog side, the device includes one 4-channel 10-bit ADC. This is not a precision instrumentation block, and it should not be treated as one. Its value lies in local observability and low-complexity signal acquisition. It is well suited for housekeeping measurements such as supply rail monitoring, battery level tracking, thermal sensor reading, potentiometer inputs, light sensing, threshold detection, or simple analog feedback loops. In a mixed-function embedded node, these channels often eliminate the need for a separate low-end ADC device, which saves board area and reduces software integration effort.

The 10-bit resolution is adequate for supervisory and trend-oriented tasks, especially when paired with averaging, hysteresis, and sensible analog conditioning. For example, power-path monitoring, fan or actuator feedback, and environmental sensing often benefit more from stable reference design and filtering than from increasing nominal ADC resolution. A recurring pattern in fielded designs is that errors blamed on converter resolution are actually caused by poor grounding, noisy references, source impedance mismatches, or inadequate settling time. With compact integrated ADCs, the analog layout and sampling strategy usually define usable performance more strongly than the datasheet bit count.

The four-channel limit also encourages a disciplined partitioning of analog responsibilities. The internal ADC should be reserved for signals that support local control, safety interlocks, or maintenance visibility. If the product requires simultaneous multi-channel sampling, calibrated measurement chains, or higher dynamic range, an external converter remains the better architectural choice. This is not a weakness of the device; it is a design boundary that helps keep the internal resources aligned with system-management tasks rather than forcing them into precision acquisition roles they were not built to serve.

A practical way to view the AT91SAM9XE512-QU is as an integration-focused embedded platform for products sitting between simple controllers and full application processors. Its sensor interface can terminate image data close to the source. Its display and touch support can drive a local operational interface. Its ADC can supervise analog conditions that influence reliability and control decisions. When these blocks are used together, the processor can form a compact node that acquires, interprets, presents, and communicates data with relatively little external logic.

The most effective designs with this class of device usually avoid chasing feature extremes. Instead, they use the built-in hardware blocks to remove avoidable software load and to keep data flows short and deterministic. That approach tends to produce systems that are easier to validate, more predictable under continuous operation, and less vulnerable to integration drift late in development. In engineering terms, the real strength of the AT91SAM9XE512-QU is not any single multimedia or analog feature in isolation, but the way these features can be composed into a balanced embedded architecture with controlled complexity.

AT91SAM9XE512-QU System Control, Clocking, Reset, and Power Management

AT91SAM9XE512-QU places most platform-critical infrastructure inside a single system controller block, and that design choice has direct consequences for board simplicity, boot reliability, and long-term field stability. Rather than treating reset, clocks, interrupts, timing, and low-power behavior as unrelated peripherals, the device binds them into a coordinated control plane. In practice, this is what makes the part suitable for embedded designs that must start cleanly, react predictably, and remain serviceable after months or years of unattended operation.

At the center of this control plane is the reset architecture. The reset controller is built around a power-on-reset cell and adds two capabilities that matter more than they first appear: reset source identification and reset output control. Reset source identification is not just diagnostic convenience. It is the basis for distinguishing whether the software is returning from a clean power ramp, a watchdog event, an external reset assertion, or another fault path. That distinction shapes early boot behavior. A system that knows it was watchdog-reset can preserve error context, reduce feature activation, or enter a guarded recovery path instead of blindly repeating the same failure. Reset output control is equally important at board level because many designs include external PHYs, PMICs, data converters, or companion controllers that must see a defined reset sequence. If reset timing is unmanaged, the CPU can become ready before its dependencies are stable, which creates intermittent faults that are hard to reproduce and even harder to isolate.

A useful engineering pattern with this device is to treat reset-cause capture as part of the boot contract. The first-stage software should read and store reset status before any peripheral reconfiguration obscures system state. In systems exposed to brownout-like supply disturbances, this often reveals that apparent software instability is actually power sequencing noise. That kind of visibility shortens failure analysis considerably.

The clocking structure is one of the stronger aspects of the AT91SAM9XE512-QU because it supports both continuity and performance scaling. The device maintains a permanent slow clock domain from either a 32.768 kHz low-power oscillator or an internal low-power RC oscillator powered from the backup supply. This backup-backed slow clock is the foundation for time retention, low-power supervision, and functions that must persist while the main domain is inactive. The external 32.768 kHz source is the better choice when timing accuracy matters, particularly for real-time scheduling, calendar-like functions, or predictable watchdog behavior across temperature and voltage variation. The internal RC option is attractive when cost, startup simplicity, or board area dominates and absolute accuracy is secondary.

Above the slow clock domain, the main clocking resources include an on-chip 3 to 20 MHz oscillator and two PLLs, one operating up to 240 MHz and the other up to 100 MHz. This gives software several levers for shaping system behavior. One lever is raw CPU and bus performance. Another is peripheral clock suitability, since not every interface benefits from maximum frequency. A third, often underestimated, lever is clock-domain partitioning for noise and power control. High-frequency PLL operation improves throughput, but it also raises dynamic power and can increase sensitivity to layout weaknesses, supply ripple, and EMI. In mixed-signal boards or communication-heavy designs, stable operation often comes less from selecting the highest possible frequency and more from choosing frequencies that align cleanly with peripheral timing needs and leave margin in the power distribution network.

That is why the clock tree should be viewed as an optimization framework, not just a performance feature. A common mistake is to lock the system into a high-frequency PLL configuration immediately after boot and leave it there permanently. A more robust approach is to scale clocks according to operating phase: conservative clocks during bring-up, elevated clocks during compute or communication bursts, and reduced clocks during idle or supervisory windows. This reduces average power and often improves thermal behavior without sacrificing responsiveness where it matters.

The power management controller turns this clock flexibility into a usable runtime policy. Support for very slow clock mode and software-programmable power optimization allows the system to move between active and reduced-power states with finer control than simple on/off gating. The presence of two programmable external clock outputs is also more useful than it may seem. These outputs can be used to clock external logic, synchronize subordinate devices, or provide observability during validation. In debugging sessions, routing an internal timing reference outward can quickly reveal whether a wakeup issue is caused by firmware sequencing, oscillator startup, or external dependency timing.

In standby-oriented systems, the key challenge is rarely entering low-power mode. The difficult part is preserving enough timing and control context to wake up deterministically. The slow clock domain and backup-backed resources support that requirement by keeping a minimum supervision layer alive while the rest of the system is reduced. Designs that depend on scheduled wakeup, periodic health checks, or external-triggered recovery benefit from this separation. The part is well suited to architectures where a low-energy always-on domain supervises a larger application domain that only runs when needed.

The advanced interrupt controller is another major contributor to determinism. It provides individually maskable vectored interrupt sources, eight priority levels, three external interrupt sources, one fast interrupt source, and spurious interrupt protection. This is not merely a feature list. It is a framework for controlling latency under mixed workloads. In embedded systems that combine communication stacks, periodic control loops, storage events, and fault monitoring, unstructured interrupt handling creates timing collapse. Vectored dispatch reduces software overhead by allowing more direct response paths. Priority levels let the system reserve bounded latency for critical events. The fast interrupt source gives a dedicated low-latency path for the most time-sensitive condition, typically a control or capture event that cannot tolerate variable service delay.

Spurious interrupt protection is especially valuable in electrically noisy environments or during transitional phases such as clock switching and startup. False interrupt entries waste cycles at best and can destabilize state machines at worst. A controller that can reject or safely classify these conditions helps preserve system integrity when hardware conditions are not ideal.

Effective use of the interrupt controller depends on disciplined priority design. Not every urgent-looking source deserves a high priority. If too many sources are promoted, the priority scheme stops carrying useful meaning. In practice, the best results come from assigning top levels only to events with strict latency budgets, placing throughput-oriented communication below them, and moving noncritical housekeeping to lower levels or polling contexts. This preserves responsiveness without creating interrupt storms that starve foreground execution.

The timing and supervision blocks complete the control architecture. The periodic interval timer, watchdog timer, and real-time timer form a layered timing model with different purposes and persistence levels. The periodic interval timer is useful for regular kernel ticks, maintenance scheduling, and low-overhead periodic work. The watchdog provides fault containment. The real-time timer supports long-duration counting and time retention with minimal software overhead.

The watchdog implementation deserves careful attention because its behavior influences system recovery philosophy. It is key-protected, programmable only once, and based on a windowed 16-bit counter running from the slow clock. Those details indicate a deliberate design aimed at preventing accidental or late-stage reconfiguration. A windowed watchdog is stronger than a simple timeout watchdog because it can detect not only stalled software but also software that services the watchdog too early due to runaway loops or corrupted execution flow. Running from the slow clock decouples watchdog supervision from high-speed clock instability, which is exactly what is needed in failure scenarios where the main clock domain may be compromised.

In real deployments, watchdog misuse is common. If it is serviced by a low-level timer interrupt with no connection to application health, it becomes little more than a heartbeat for the interrupt subsystem. A more resilient pattern is to gate watchdog refresh through several health conditions: scheduler progress, communication stack liveliness, memory sanity markers, or completion of essential background work. This makes the watchdog reflect system usefulness rather than simple code execution. On this device, because configuration is effectively fixed once set, that policy should be designed early and validated under fault injection rather than treated as a late integration detail.

The real-time timer is a 32-bit free-running backup counter with a 16-bit prescaler, which makes it well suited for long-interval measurement, persistent uptime tracking, and wakeup scheduling relative to the backup domain. Because it lives in a more persistent timing context, it can bridge across low-power states more reliably than application-level software counters. This is especially helpful in systems that must correlate events before and after sleep, preserve maintenance intervals, or enforce delayed restart backoff after repeated failures. The prescaler also allows practical adjustment between resolution and interval span, which is often preferable to building equivalent functionality in software.

Battery backup registers complement these timing resources by providing a small retained state area across main power loss or deep power transitions. Their value is not in storage size but in strategic continuity. They can hold boot mode flags, reset breadcrumbs, monotonic counters, or compact fault signatures that allow the next startup to make better decisions. In robust designs, these registers become part of the resilience path: the previous reset cause, watchdog strike count, and last recovery stage can all be retained there, allowing software to detect repeated failure loops and shift into a safe mode rather than continuously rebooting into the same fault.

The shutdown controller extends the same philosophy into power-off behavior. A controlled shutdown path is cleaner than simply dropping system power because it allows the platform to quiesce peripherals, preserve minimal state, and leave the backup domain in a known condition. This matters in systems with external nonvolatile storage, communication links, or actuators that should not be abandoned mid-transaction. Even when the application appears simple, disciplined shutdown sequencing often prevents the class of intermittent startup failures that originate from incomplete prior shutdown.

The debug unit also belongs in this system-control discussion because low-level visibility is essential when dealing with resets, clock transitions, and early boot problems. Failures in these areas often occur before the full software stack is available. A lightweight debug path provides observability exactly where conventional application logging is weakest. For board bring-up, that often makes the difference between guessing at startup faults and identifying whether the issue is oscillator lock, reset propagation, interrupt misrouting, or watchdog escalation.

Taken together, these blocks show a consistent architectural intent. The AT91SAM9XE512-QU is not only offering features for nominal operation; it is providing mechanisms for controlled degradation, staged recovery, and low-power continuity. That distinction matters in embedded products deployed outside laboratory conditions. A design based on this part can be structured around a stable slow-clock and backup domain, a scalable performance domain driven by oscillators and PLLs, and a deterministic event-handling layer enforced through prioritized interrupts and supervised timers. When these resources are configured as one policy rather than as isolated peripherals, the platform behaves more predictably under both normal load and fault conditions.

A practical implementation strategy is to define system modes first, then map controller resources to each mode. For example, a startup mode can use conservative clocks, verbose reset-cause handling, and broad diagnostics. A normal mode can raise PLL frequencies and enable full interrupt scheduling. A standby mode can collapse activity into the slow clock domain while preserving wakeup timing through the real-time timer. A recovery mode can tighten watchdog criteria, reduce peripheral activation, and log failure breadcrumbs into backup registers. This mode-based use of the system controller tends to produce cleaner firmware than ad hoc register programming spread across drivers.

The strongest aspect of this device is the way its control infrastructure supports intention. Reset tells the software why execution restarted. Clocking defines how aggressively the system should run. Power management determines what remains alive between active phases. Interrupt control enforces which events matter most. Timers and watchdogs verify that time and progress are still coherent. When these pieces are engineered together, the AT91SAM9XE512-QU moves from being a general embedded processor to being a platform capable of reliable autonomous operation.

AT91SAM9XE512-QU I/O Resources, Signal Organization, and Package Considerations

AT91SAM9XE512-QU exposes its external connectivity through three 32-bit Parallel I/O controllers, PIOA, PIOB, and PIOC, giving 96 software-managed lines. This number looks straightforward at first glance, but the real design value lies in how these lines are organized and arbitrated. Each pin is not just a GPIO. It sits at the intersection of general-purpose control, peripheral multiplexing, interrupt generation, and electrical behavior tuning. In practice, the I/O subsystem is less a flat pin list and more a constrained routing fabric at the chip boundary.

Each PIO line can typically operate in GPIO mode or be assigned to one of up to two peripheral functions. That creates a dense multiplexing model where the same pad may serve as a simple output in one design, a serial bus signal in another, or part of an external memory or timing interface in a third. The architectural advantage is obvious: a relatively compact package can support a broad range of applications. The engineering cost is that the pad map becomes a first-order design problem rather than a later-stage schematic detail.

At the electrical and control level, the PIO block provides several features that materially affect board behavior. Input change interrupt capability on every line allows event-driven firmware design without dedicating special external interrupt pins. This is useful for keypad matrices, wakeup sources, fault lines, or low-rate sensor signaling. Individual open-drain configuration supports wired-OR style interfaces and level-safe sharing in mixed-voltage or multi-device control paths, assuming external pull-up strategy is correctly designed. Internal pull-ups reduce external component count and help define startup states, but they should be treated as biasing aids rather than precision termination elements. Synchronous output support improves timing determinism when output transitions must align with internal clocking domains, which matters in control loops, handshake signals, and some parallel interface cases.

A useful way to interpret the AT91SAM9XE512-QU I/O system is to separate it into three layers. The first layer is pad capability: input, output, pull-up, open-drain, interrupt sensing. The second layer is function ownership: whether the pin is controlled by the PIO block or handed over to an internal peripheral. The third layer is package exposure: whether the die-level function is actually bonded out in the selected package. Many integration mistakes happen when the first two layers are reviewed carefully and the third is assumed.

That third layer is especially important for the 208-pin PQFP implementation. Some functions present in the broader AT91SAM9 family documentation are not available on this package. This means family-level block diagrams can overstate what is accessible on the actual device variant. In the AT91SAM9XE512-QU 208-PQFP, unavailable signals include HDPB, HDMB, selected SPI and USART alternate functions, TWI1- and ISI-related signals, some ADC-associated multiplexed lines, and certain chip-select or interrupt-related functions. USB Host Port B is also not available. These are not minor omissions if the design depends on peripheral concurrency. They directly affect interface count, routing options, and feature scalability.

From a system design perspective, this changes how pin planning should be done. The correct sequence is not “select MCU, assign peripherals, then route pins.” For a device with this level of multiplexing, the sequence should be “define mandatory interfaces, map them against package-exposed signals, identify collisions, then decide what remains for GPIO or optional functions.” This sounds procedural, but it has a strong architectural effect. It forces differentiation between hard requirements and convenient features early enough to prevent board respins.

A common pressure point is overlap between communication interfaces and board-control signals. A pin needed for an alternate USART function may also be attractive as a GPIO for reset control, LED drive, or interrupt capture. On paper, both uses look feasible because the controller supports flexible reassignment. In a real product, startup behavior, boot-time ownership, and software sequencing can make that dual use fragile. If a line must be valid before firmware configures the PIO controller, then its muxed peripheral role may be less useful than expected. This is one of the less obvious but more important aspects of working with highly integrated ARM9-era devices: not all nominally available functions are equally usable across all boot and recovery states.

The same caution applies to external memory and high-pin-count peripheral combinations. If the application uses multiple serial ports, external bus resources, image-related interfaces, and USB simultaneously, the package can become the limiting factor long before CPU or memory capacity does. The AT91SAM9XE512-QU is capable, but not infinitely composable. The practical limit is often determined by pad exposure and multiplexing conflicts rather than by internal peripheral count. In design reviews, this is often the point where a feature-complete concept quietly collapses into a pin-budget problem.

Interrupt-capable I/O on all lines is a strong asset, but it should be used with selectivity. It is tempting to route many asynchronous events directly into PIO interrupts because the hardware permits it. In dense embedded systems, however, excessive fine-grained interrupt use can complicate latency analysis and power-state behavior. A better approach is to reserve direct interrupt handling for timing-relevant or wakeup-critical signals, while grouping slower status inputs under polling windows or peripheral-side aggregation. The hardware flexibility supports both models, but disciplined assignment tends to produce more predictable systems.

Open-drain support also deserves a more nuanced view. It is often described as a convenience feature, yet its board-level value depends heavily on timing, edge rate, and bus loading. For slow control nets, fault aggregation, and shared enable lines, it is highly effective. For faster signaling, especially where trace capacitance is nontrivial, the pull-up network becomes part of the timing budget. In those cases, the internal capability is useful, but the external resistor and layout strategy determine whether the interface behaves cleanly. The device gives the option; the signal integrity work still sits at board level.

Package constraints also affect forward compatibility. If a design begins with modest peripheral use but may later require a second serial channel, imaging support, or additional host capability, the 208-PQFP should be evaluated not only for current pin fit but for growth margin. A package that meets revision A requirements exactly can become a dead end for revision B if the missing alternate functions were assumed to be merely optional. This is particularly relevant when software teams expect latent peripherals to be activated later through firmware updates. In this device class, dormant internal peripherals do not guarantee dormant external access.

For board bring-up, a practical strategy is to classify all required signals into four groups: boot-critical, timing-critical, bandwidth-critical, and convenience I/O. Boot-critical signals include anything needed for startup mode selection, reset interaction, or mandatory external memory and console access. Timing-critical signals include strobes, interrupts, or control lines with deterministic requirements. Bandwidth-critical signals cover high-activity serial or parallel interfaces. Convenience I/O includes LEDs, low-rate status inputs, and auxiliary control. Assigning pins in that order usually leads to a more robust map than assigning by schematic block ownership. It naturally protects the limited set of package-exposed alternate functions from being consumed by low-value GPIO tasks.

Another practical point is to validate mux assumptions against both the datasheet pinout and the package-specific signal matrix, not just peripheral chapters. Peripheral descriptions often imply full feature availability because they are written at IP-block scope. The package chapter defines what can actually leave the silicon. In other words, the peripheral manual explains capability, while the package tables define feasibility. Treating those as separate validation steps reduces late-stage surprises.

The AT91SAM9XE512-QU remains attractive because its I/O architecture is versatile enough to support mixed embedded roles: communications gateway, control processor, interface concentrator, or moderate external-bus system. Its strength is not raw pin count alone, but the degree of software-governed signal shaping available at each line. That flexibility, however, only pays off when pin multiplexing and package exposure are handled as part of system architecture, not as post-architecture implementation detail. On this device, successful designs usually emerge from early pin-budget discipline, realistic assumptions about concurrent peripheral use, and a package-level reading of the signal map before the schematic hardens.

AT91SAM9XE512-QU Security, Reliability, and Debug Support

AT91SAM9XE512-QU integrates a practical set of protection, debug, and fault-handling features that make it suitable for embedded systems expected to survive both hostile conditions and long service cycles. Its value is not in any single mechanism, but in how Flash protection, processor-level memory control, debug access, and supervision logic work together. In deployed equipment, especially networked controllers, gateways, HMI units, and industrial nodes, that combination often determines whether a product remains maintainable without becoming easy to tamper with.

Firmware protection begins at the nonvolatile storage level. The device provides Flash lock bits and a security bit to reduce the risk of unauthorized modification or extraction of the software image. These features are most effective when treated as part of a staged trust model rather than as isolated checkboxes. Page-level locking allows selective hardening of critical regions such as boot code, calibration constants, device identity data, or update control logic. This is useful because not all firmware regions carry the same operational risk. Locking the entire Flash too early can complicate field servicing, while leaving boot-critical pages writable creates a narrow but dangerous failure path during updates or fault conditions.

The security bit adds another layer by restricting access to internal Flash contents. In practice, this matters less as a theoretical anti-copy feature and more as a control against low-effort extraction during manufacturing leakage, depot handling, or unauthorized service access. For products with differentiated firmware or embedded credentials, even basic readout protection can significantly raise the cost of cloning. Its real strength appears when combined with disciplined provisioning flow: program, verify, lock, then disable unnecessary access paths. Without that sequence, protection features can exist on paper while remaining ineffective in the shipped unit.

The MMU-based architecture strengthens firmware isolation beyond raw Flash controls. This is an important distinction. Flash lock bits protect stored content; the MMU helps govern runtime behavior. On ARM9-class systems running richer software stacks, many failures come not from deliberate overwrite of Flash but from incorrect memory access, faulty drivers, pointer corruption, or unintended execution flow. Proper MMU configuration allows separation of executable code, read-only data, peripheral mappings, and writable memory regions. That separation reduces the blast radius of software defects and creates a cleaner boundary between trusted startup code, kernel space, and application layers. In systems with remote update capability, this architecture becomes especially useful because update agents, network stacks, and application services often operate in the same device but should not share unrestricted memory visibility.

A practical design pattern is to place the first-stage boot path and recovery logic in tightly controlled Flash pages, lock them after validation, and use the MMU to ensure that only intended software components can manipulate update buffers or remap execution regions. This does not turn the device into a secure enclave, but it creates a credible baseline against common failure modes: accidental corruption, unbounded writes, and simple extraction attempts. In many embedded deployments, that baseline is the difference between recoverable faults and field returns.

Debug support in the AT91SAM9XE512-QU is equally significant because reliability is rarely achieved without observability. The device supports IEEE 1149.1 JTAG boundary scan across digital pins, along with processor debug signals and a dedicated debug unit. Boundary scan is often undervalued until manufacturing volume increases. At prototype stage, direct probing can mask layout and assembly weaknesses. In production, however, boundary scan becomes a scalable method for verifying interconnect integrity, detecting opens and shorts, and validating signal reachability even when physical access is poor. Dense multilayer boards, fine-pitch packages, and high pin utilization make this capability far more than a convenience.

At the processor level, JTAG and ICE-related support enable low-level inspection during boot, exception entry, peripheral initialization, and memory setup. This is particularly useful on ARM9 systems because early startup bugs tend to appear before higher-level diagnostics are available. Clocking mistakes, SDRAM bring-up failures, remap issues, and malformed boot vectors can leave little visible evidence except a dead board. With proper debug access, those failure modes become inspectable rather than speculative. That shortens root-cause cycles and improves confidence during board spins and software integration.

The dedicated debug unit also has operational value beyond classic development. It helps during firmware recovery, manufacturing test, and failure analysis after intermittent field reports. A device that can still be halted, inspected, and characterized at a low level is much easier to support over a long product lifetime. In practice, maintainability often depends less on average-case firmware quality than on whether rare failures can be reproduced and observed when they do occur.

This debug capability, however, creates an architectural tradeoff. Interfaces that are ideal during bring-up can become liabilities after deployment if left unrestricted. A disciplined product design usually treats debug access as lifecycle-dependent. Development units expose full access. Manufacturing units use it for test and provisioning. Released products either disable, fuse-limit, physically restrict, or procedurally control that path depending on system risk. The strongest designs do not frame debug and security as opposing goals. They separate trusted debug use from uncontrolled debug exposure.

System reliability on the AT91SAM9XE512-QU is reinforced by supervisory blocks such as the reset controller, watchdog timer, and power-related monitoring, including brownout handling described at the device level. These functions are foundational in real installations where power quality is imperfect and software is expected to run unattended. Many field failures originate not from permanent hardware damage, but from transient undervoltage, supply dip during load switching, EMI-induced control flow disruption, or software deadlock after an unhandled edge case. Supervision logic is what converts these events from persistent outages into bounded disturbances.

The reset controller provides a controlled way to re-establish a known startup state. That sounds basic, but reset behavior is one of the most underestimated parts of embedded robustness. If reset sources are not distinguished clearly, the software cannot tell whether it is recovering from watchdog expiry, external intervention, power instability, or brownout. When reset cause information is captured and used early in boot, the device can choose more appropriate recovery actions. For example, repeated watchdog resets may trigger a degraded startup profile, skip optional services, preserve diagnostic data, or enter a maintenance-safe mode rather than continuing to reboot blindly.

The watchdog timer is essential in systems where forward progress matters more than uninterrupted execution of a faulty software state. Its usefulness depends on configuration quality. A watchdog that is serviced from a single fast loop provides little protection; a watchdog integrated into genuine health checks is much more effective. A robust implementation ties refresh permission to completion of key tasks such as scheduler tick progression, communication stack responsiveness, storage subsystem availability, or control-loop timing integrity. This approach makes the watchdog a liveness validator instead of a ceremonial reset trigger.

Brownout-related monitoring is equally critical because undervoltage events can corrupt state long before complete power loss occurs. Flash operations, memory transactions, and peripheral state machines are all vulnerable when supply rails dip through marginal regions. Reliable systems do not merely reset after brownout; they avoid unsafe operations as voltage degrades and ensure that startup after recovery is deterministic. This is especially important in products that write parameters, logs, or update metadata to nonvolatile memory. A partially completed write under unstable power can be more damaging than an immediate shutdown. The safest design usually combines voltage monitoring with strict write policies, transactional metadata, and a boot-time integrity check.

When these features are applied together, the device supports a layered operational model. At the storage layer, Flash lock and security mechanisms protect static assets. At the execution layer, the MMU constrains runtime access and isolates faults. At the observability layer, JTAG and the debug unit enable bring-up, manufacturing verification, and post-failure analysis. At the resilience layer, reset, watchdog, and brownout supervision keep the system recoverable under abnormal conditions. This layering is what makes the part effective in long-lived embedded products. Protection without recovery leads to bricked devices. Recovery without isolation leads to repeated corruption. Debug without access control weakens the platform. The engineering balance lies in enabling each function with clear lifecycle intent.

In application scenarios such as industrial Ethernet nodes, remote monitoring terminals, data concentrators, or secure control panels, these capabilities map directly to recurring design concerns. Firmware must survive update interruptions. Diagnostic access must accelerate support without exposing the product. Power events must not silently corrupt operational state. Boards must be testable in volume without relying on intrusive fixtures. The AT91SAM9XE512-QU addresses these needs with mechanisms that are modest individually but strong when integrated into a disciplined system architecture.

A useful implementation strategy is to define product states explicitly: development, manufacturing, deployment, and service. In each state, decide which Flash regions are writable, whether JTAG is open or restricted, how reset causes are logged, what watchdog policy is active, and how brownout events influence storage operations. Designs that make these decisions early usually achieve better stability and lower field-support cost than designs that add them reactively after failures appear. On this device, the available hardware support is sufficient to build that structure, but the real result depends on whether software and production flow are aligned with it. That is where the platform shows its full value: not as a collection of isolated safety features, but as a framework for building embedded systems that remain controllable, diagnosable, and resistant to avoidable failure over time.

AT91SAM9XE512-QU Electrical Supply Requirements and Environmental Characteristics

AT91SAM9XE512-QU places its electrical and environmental constraints at the center of system design rather than at the edge of component selection. Its supply architecture reflects the internal partitioning of an ARM9-based SoC: digital core logic, PLLs, analog blocks, backup domain, memory interfaces, and external I/O are not powered as a single monolithic rail. They are separated to preserve signal integrity, manage noise coupling, and support mixed-voltage interoperability across the board.

The required supply domains are:

- VDDBU, VDDCORE, and VDDPLL: 1.65 V to 1.95 V

- VDDIOP1: 1.65 V to 3.6 V

- VDDIOP0 and VDDANA: 3.0 V to 3.6 V

- VDDIOM: selectable between 1.65 V to 1.95 V or 3.0 V to 3.6 V

This distribution is not just a datasheet formality. It reveals how the device expects power quality to be managed internally and externally. VDDCORE feeds the main digital logic, so its stability directly affects timing closure inside the processor and embedded memory structures. VDDPLL is separated because clock generation is highly sensitive to ripple and transient noise; even modest disturbances on this rail can appear as jitter, which then propagates into CPU, bus, and peripheral timing margins. VDDBU supports the backup domain, typically used for retention logic, RTC-related functions, or low-power state persistence. Treating this rail casually often leads to subtle field failures rather than immediate bring-up issues.

The I/O rails define the external electrical personality of the device. VDDIOP0 and VDDANA are constrained to 3.0 V to 3.6 V, indicating that some peripheral and analog functions are intended to operate only in the higher voltage range. VDDIOP1 provides broader flexibility, allowing direct support for either low-voltage or 3.3 V-class interfaces depending on the surrounding design. VDDIOM is especially important because it governs the memory interface voltage and therefore has direct implications for external memory selection, signal swing, timing margins, and board-level power distribution. In practice, this rail tends to lock in a larger set of architectural decisions than expected, because once memory voltage is chosen, termination strategy, level compatibility, and routing constraints often follow.

A robust power-tree design starts by grouping rails not only by nominal voltage but also by noise sensitivity and startup dependency. It is tempting to combine all 1.8 V-class domains under one regulator and all 3.3 V-class domains under another. That approach may work in simple systems, but it should not be assumed safe without checking transient behavior, analog sensitivity, and current step interactions. PLL and analog rails benefit from cleaner isolation, whether through dedicated regulators, ferrite filtering, or carefully dimensioned local filtering networks. The best choice depends on switching noise spectrum, load profile, and available board area. Over-isolation can waste margin and complicate startup; under-isolation can create intermittent faults that are hard to reproduce outside EMI or temperature stress.

Rail tolerance matters as much as nominal voltage. A regulator labeled 1.8 V is not automatically acceptable unless its line/load regulation, startup overshoot, and transient response stay inside the 1.65 V to 1.95 V window under all operating conditions. The same applies to 3.3 V rails near the 3.6 V upper limit. Designs that look compliant at room temperature can drift toward violation when input supply rises, load drops abruptly, or converter compensation shifts with temperature. It is generally safer to design for center-window operation with margin reserved for tolerance stack-up, rather than targeting the edge of the allowed range.

Sequencing deserves explicit verification. Multi-domain SoCs often tolerate some degree of simultaneous ramping, but board-level interactions can still create hidden problems. If one I/O bank powers significantly ahead of the core or backup domain, external devices can drive pins into partially powered structures. That can trigger latch-up risk, leakage paths, or undefined boot behavior. The memory rail deserves particular attention because memory devices may initialize faster than the processor domain that controls them. A design review should therefore check not only regulator enable order, but also ramp rates, discharge paths during power-down, and whether any external pull-ups inject current into unpowered banks.

Decoupling strategy should follow rail function. VDDCORE requires low-inductance local capacitance to absorb fast digital current edges. VDDPLL and VDDANA should prioritize clean high-frequency behavior and short return paths over bulk-only approaches. The usual failure mode here is not complete malfunction but degraded margin: random boot instability, elevated clock noise, ADC inaccuracy, or communication faults that appear only under CPU load. Layout quality often determines whether the theoretical separation of supply domains delivers actual benefit. Shared vias, long supply loops, or poorly placed stitching can erase the isolation intended by the pinout.

VDDIOM deserves a design decision early in the project. If configured for 1.8 V operation, it can reduce interface power and align with low-voltage memory ecosystems, but it also narrows tolerance to noise and raises sensitivity to routing quality and edge integrity. If configured for 3.3 V operation, interoperability may improve with legacy devices, though power consumption and switching noise generally increase. In many designs, the memory interface is not the place to optimize for regulator count. It is the place to optimize for deterministic timing and clean logic thresholds. A slightly more complex power tree often costs less than a marginal memory subsystem debug cycle late in development.

Environmental characteristics are equally relevant because they define whether the electrical design remains valid in real deployment. The AT91SAM9XE512-QU is specified for ambient operation from -40°C to 85°C, placing it firmly in the industrial range. That rating is meaningful only when interpreted at system level. Ambient temperature is not junction temperature, and junction temperature is what affects leakage, timing, regulator drift, oscillator stability, and long-term reliability. In compact enclosures or low-airflow installations, internal self-heating can consume a large fraction of thermal margin. A board that appears comfortable at 25°C bench conditions may approach critical limits once processor load, PMIC losses, and nearby heat sources are active.

Temperature also interacts with the supply network. Regulator accuracy shifts over temperature. Capacitor effective value changes, especially for small ceramic parts under DC bias. ESR and transient response move. Crystals and PLL behavior drift. These effects rarely fail all at once, but they can combine into reduced startup margin or communication instability at the corners. A practical validation approach is to test cold start, hot restart, and high-load operation separately rather than assuming one thermal test covers all failure modes. The corner case that escapes review is often a supply-related timing issue during ramp-up at low temperature.

The device’s RoHS compliance and REACH-unaffected status simplify material compliance flow, but manufacturing constraints still require discipline. The MSL 3 rating with 168-hour floor life means moisture exposure control must be built into assembly handling, storage, and rework procedures. If that window is exceeded before reflow, the package can accumulate enough moisture to risk internal damage during soldering. This is not just a factory logistics issue. Latent package stress can later show up as reliability degradation that is difficult to trace back to handling history. For that reason, production planning should treat floor-life tracking and bake control as part of quality assurance, not as an administrative afterthought.

From a procurement and hardware planning perspective, the part’s flexibility is real but conditional. Multiple voltage domains allow the device to fit into mixed-voltage systems and varied memory ecosystems, yet each degree of flexibility increases the need for disciplined rail planning. Regulator count, power sequencing, decoupling topology, memory voltage selection, and assembly control are tightly coupled decisions. The most effective designs treat the datasheet limits as dynamic design constraints rather than static acceptance criteria. That mindset usually leads to cleaner bring-up, fewer corner-case escapes, and a platform that remains stable when moved from lab conditions into production hardware and full environmental range.

AT91SAM9XE512-QU Application Positioning and Engineering Evaluation Points

AT91SAM9XE512-QU is positioned in a very specific and useful middle layer of embedded design. It is not a small MCU intended for tightly bounded control loops with minimal software. It is also not a high-end application processor built for graphics-heavy HMI stacks or compute-intensive edge analytics. Its real value appears in products that need a Linux-class or RTOS-capable MPU architecture, but still benefit from integrated nonvolatile memory, deterministic peripheral access, and relatively compact board-level implementation. In practice, it fits systems where communication, storage, and control must coexist without pushing power, memory, and cost into a much larger processor class.

The device becomes especially attractive when system requirements include autonomous boot, moderate networking, local data retention, and mixed-signal or serial field interfacing. That combination is common in industrial operator panels, networked controllers, secure maintenance terminals, environmental data concentrators, and instrument front ends. In these designs, the processor must do more than simple control. It often needs to host a protocol stack, manage removable media, supervise external devices, and maintain serviceability in the field. AT91SAM9XE512-QU addresses this space by combining MPU-grade capability with on-chip Flash, external memory support, and a broad peripheral set that reduces the number of companion devices.

From an architectural standpoint, the key tradeoff is clear: the integrated 512 Kbytes Flash improves standalone boot robustness and manufacturing simplicity, while external SDRAM provides the runtime headroom needed for larger software images, frame buffers, protocol handling, and data staging. This split is important. The internal Flash should not be interpreted as a substitute for full application memory. It is better treated as a reliable boot anchor, recovery image location, or storage area for compact production firmware. Once the software stack grows to include network services, a file system, graphics elements, or camera-related processing, external memory rapidly becomes the defining factor in actual system capability. In many successful designs, the internal Flash carries first-stage boot code, configuration data, and a fallback service image, while SDRAM carries the operational software and dynamic workloads.

This leads directly to application positioning. In an industrial control panel, the processor can boot from internal Flash, initialize external SDRAM, bring up Ethernet, and run a communication-centric application with local UI and fieldbus bridging. The USB interface supports maintenance workflows such as firmware updates, configuration export, or local logging extraction. UART, SPI, and TWI connect cleanly to metering ICs, PLC-side devices, sensor modules, and supervisory components. ADC channels support lower-bandwidth analog acquisition, often for health monitoring, local diagnostics, or auxiliary measurements rather than heavy signal processing. In compact data loggers, the balance is similarly effective: Ethernet or serial uplink handles communication, SD storage extends retention, watchdog logic supports unattended operation, and the integrated Flash simplifies cold-start behavior after power disturbances. In more advanced smart-terminal designs, the image sensor interface opens another path, but this should be evaluated carefully. It is suitable for structured image capture, light machine vision, or camera-assisted identification tasks, yet memory bandwidth, SDRAM sizing, and software pipeline efficiency will determine whether the overall design remains practical.

A useful way to evaluate the part is to start from boot and memory flow rather than from peripheral count. Many projects begin by matching features on paper, but field behavior is usually decided by startup sequencing, memory pressure, and software update strategy. With AT91SAM9XE512-QU, the strongest designs are the ones where the boot chain is intentionally simple and fault-tolerant. If the internal Flash holds only the code necessary to initialize clocks, memory, and recovery paths, then maintenance becomes much safer. If the same Flash is overloaded with a growing application stack, later updates become riskier and layout constraints start to show up indirectly through timing, storage, and validation overhead. The practical lesson is that integrated Flash is most valuable when used strategically, not maximally.

Flash sufficiency is therefore the first engineering checkpoint, but it should be examined at system level, not just by binary size. A nominally fitting image may still leave too little margin for secure update logic, parameter storage, calibration data, manufacturing metadata, or rollback capability. Compression can delay the limit, but it does not remove it. Once diagnostics, cryptographic material, multilingual resources, or richer protocol support are added, headroom disappears quickly. A disciplined memory budget should separate immutable boot code, update-safe recovery assets, mutable configuration, and the main application image. This partitioning approach tends to expose whether 512 Kbytes is a convenience or a hard constraint. In several product lines, the deciding factor is not initial firmware size but second-year feature growth. Designs that ignore that expansion path often end up forcing awkward external boot storage additions later, which weakens one of the processor’s core advantages.

Package-level signal availability is the second major checkpoint, and it is frequently underestimated early in design. The 208-PQFP package provides broad connectivity, but family-level peripheral capability does not automatically translate into simultaneously available board-level interfaces. Pin multiplexing can create conflicts between Ethernet, external memory, display-related signals, camera input, SD interfaces, and general serial expansion. The issue is not only whether a function exists, but whether it remains routable and electrically clean in the intended combination. A schematic can appear complete while the PCB later reveals that key interfaces compete for the same multiplexed pins or drive difficult breakout patterns around memory buses and high-fanout control nets. The practical method is to build a pin-allocation matrix very early, including future debug access, manufacturing test hooks, and worst-case expansion options. That exercise usually surfaces the real package fit faster than feature-list comparison.

External memory planning is the third and arguably most decisive checkpoint. The processor’s perceived performance depends heavily on SDRAM presence, size, and interface quality. Without adequate external memory, the software architecture becomes artificially constrained. Network buffers, file-system caches, GUI assets, image lines, and protocol state all compete for the same space, and the resulting fragmentation can degrade stability long before the CPU itself becomes the bottleneck. With properly sized SDRAM, however, the device class shifts upward in practical usefulness. This is why early memory sizing should include not only current code and data, but also transient peaks: boot-time decompression, simultaneous Ethernet and USB activity, logging bursts, camera buffering, and firmware update staging. Those peaks often define the minimum safe memory footprint more accurately than average-state operation.

There is also a board-level dimension to SDRAM that should not be ignored. Signal integrity, clock quality, trace matching discipline, and power decoupling affect real stability. Marginal SDRAM layouts often pass basic bring-up and then fail only under thermal variation, large I/O bursts, or long-duration uptime. When that happens, the symptoms usually appear as software instability even though the root cause is electrical. For this processor class, memory reliability is inseparable from software reliability. That is why the memory subsystem should be treated as a first-order design block, not a support component.

Power architecture is the fourth practical checkpoint. AT91SAM9XE512-QU requires more supply planning than simpler single-rail MCUs, and the complexity is not merely schematic overhead. Multi-rail sequencing, regulator transient response, startup monotonicity, and domain isolation all influence boot success and long-term robustness. In mixed-interface systems with Ethernet PHYs, USB activity, SD cards, analog inputs, and external SDRAM, rail interactions can become the hidden source of intermittent faults. Clean separation between digital core, I/O, analog-sensitive sections, and memory supply domains reduces noise coupling and improves startup repeatability. Power-good supervision and brownout behavior deserve explicit validation, especially in industrial environments where supply sag, hot-plug events, and field wiring disturbances are common. A design that starts reliably on a lab bench may still fail in a cabinet with noisy loads unless rail behavior is tested under realistic disturbance conditions.

Networking and serviceability are where the processor often delivers disproportionate value. Ethernet support allows the device to serve as a system node rather than a simple endpoint. It can host remote diagnostics, log export, distributed control messaging, and secure maintenance workflows. USB adds a second maintenance plane that remains useful when network access is unavailable or intentionally restricted. This dual-path service model is especially effective in deployed equipment because it shortens recovery time and reduces dependence on a single interface. A resilient design often uses internal Flash to guarantee a recovery environment, Ethernet for normal fleet operations, and USB for local fallback intervention. That arrangement tends to improve field maintainability without adding much hardware complexity.

The peripheral mix also supports a layered I/O architecture that suits embedded edge systems well. UARTs handle legacy devices and debug channels. SPI provides high-speed attachment to converters, displays, or specialized sensors. TWI supports low-pin-count supervisory and housekeeping components. ADC channels cover local analog observability, often used for thresholding, telemetry, or supply and thermal monitoring. The image sensor interface extends the platform into camera-assisted products, but it should be used with a clear understanding that acquisition is only one part of the pipeline. Storage throughput, memory organization, and software filtering strategy determine whether image data becomes actionable system information or just a bandwidth burden. In this class of processor, success usually comes from constrained vision tasks with tightly scoped algorithms rather than open-ended image processing ambitions.

A deeper engineering reading of AT91SAM9XE512-QU suggests that its strongest role is as an integration optimizer. It reduces BOM and boot-storage complexity compared with external-Flash-only MPU designs, while offering substantially more software and connectivity headroom than typical microcontrollers. That middle-ground value is easy to miss if evaluation focuses only on peak performance metrics. The part is most compelling when judged by total system efficiency: predictable startup, reduced component count, flexible field interface options, and enough compute capacity to consolidate control, communication, and moderate application logic onto one device. In other words, it is less about maximizing any single specification and more about compressing multiple product requirements into a balanced and supportable architecture.

For engineering selection, the most reliable approach is to test the part against three concrete questions. First, can internal Flash support a robust boot, recovery, and update model with comfortable growth margin. Second, can the chosen package expose the exact peripheral combination needed without hidden pin-mux compromises. Third, can the external SDRAM and power architecture be implemented with enough margin to support the intended software stack under real operating stress. If the answer to all three is yes, AT91SAM9XE512-QU is usually a strong fit for compact, networked, serviceable embedded equipment that must bridge control, storage, and communication in a single design. If any one of those answers is weak, the limitations tend to surface late and expensively, which is why disciplined front-end evaluation matters more here than raw feature count.

Potential Equivalent/Replacement Models for AT91SAM9XE512-QU

Potential replacement options for the AT91SAM9XE512-QU should be evaluated from three coupled dimensions: core architecture compatibility, on-chip nonvolatile memory capacity, and boot-time system behavior. If the goal is to minimize redesign risk, the closest alternatives are the AT91SAM9XE256 and AT91SAM9XE128. These parts remain within the same SAM9XE lineage, so they preserve the same ARM9-class processing foundation, peripheral model, and overall software integration approach. In most cases, this means the board-level clocking concept, peripheral driver structure, interrupt model, and low-level initialization flow remain largely familiar. The main tradeoff is reduced embedded Flash capacity, and in some cases associated memory resource differences that can affect linker layout, bootloader partitioning, persistent parameter storage, and recovery image design.

This distinction matters more than it first appears. In embedded Linux or RTOS-based systems, integrated Flash is not only a code container. It often absorbs multiple functions at once: first-stage boot code, second-stage loader, calibration blocks, manufacturing data, fallback images, and field-update safety margins. A design that appears to fit within a smaller Flash variant at the application level can fail later when diagnostic logs, rollback support, or secure update metadata are added. In practice, migration from the 512 variant to the 256 or 128 variant is usually straightforward only when the existing software image already has disciplined storage budgeting and the product does not depend heavily on redundant image slots or persistent local data retention.

Among same-family options, the AT91SAM9XE256 is usually the most practical down-capacity substitute. It retains the strongest similarity to the AT91SAM9XE512-QU while reducing the integrated Flash headroom by half. This is often acceptable in systems where the codebase is stable, the boot chain is compact, and bulk storage is already offloaded to external NAND, NOR, DataFlash, or removable media. The AT91SAM9XE128 is a more constrained option. It can still serve as a functional replacement in tightly controlled firmware environments, but it leaves less tolerance for feature growth, debug instrumentation, or robust in-field servicing strategies. That reduced margin tends to surface late in development, especially after protocol stacks, security patches, and manufacturing support functions accumulate.

The AT91SAM9260 deserves separate treatment because it is not simply a lower-memory variant of the same device. It is a closely related platform with strong structural compatibility, and the documentation indicates full pinout and ball-out compatibility except for one important detail: the BMS pin on the AT91SAM9260 is replaced by the ERASE pin in the AT91SAM9XE family. This makes the AT91SAM9260 highly relevant for platform migration, footprint reuse, or supply-chain contingency planning, but it cannot be treated as a drop-in equivalent without checking the system’s memory and boot assumptions. The reason is fundamental: the AT91SAM9XE512-QU integrates Flash, while the AT91SAM9260 is typically positioned around external memory dependence. That difference propagates into startup sequencing, boot medium selection, board bring-up behavior, programming flow, and recovery handling.

From an engineering standpoint, the integrated Flash in the AT91SAM9XE512-QU is not just a convenience feature. It changes the system partitioning model. It can reduce BOM complexity, simplify early boot reliability, and shorten manufacturing programming flows because critical boot content is hosted internally rather than requiring immediate availability of an external nonvolatile device. Once moving toward a device with different or absent internal Flash assumptions, the external memory subsystem becomes part of the boot-critical path. That shifts signal integrity requirements, reset timing sensitivity, and production test coverage. Designs that were originally robust because they relied on internal Flash for first-stage execution may need additional validation around external memory power-up timing, bootstrap configuration, and field recovery entry conditions.

A useful way to assess replacement suitability is to separate the problem into hardware equivalence, firmware portability, and lifecycle resilience.

At the hardware level, same-family SAM9XE variants are the lowest-risk candidates because package and peripheral philosophy remain aligned. Even so, package-level compatibility alone is insufficient. It is necessary to verify whether every used peripheral pin in the specific design remains available in the same multiplexing context, especially if the board already operates near the limits of the device’s pin-function map. Seemingly compatible devices can still create secondary issues when a peripheral previously unused during prototyping becomes mandatory in production, such as additional UARTs for diagnostics, Ethernet signals, or memory bus lines. In dense designs, these constraints tend to emerge at the last moment, so reviewing the exact package-specific signal matrix is more valuable than relying on family naming similarity.

At the firmware level, the first checkpoint is the boot chain. If the current design places only a small bootstrap and a compact secondary loader in internal Flash, then a move from 512 KB to 256 KB may be manageable with modest linker and storage adjustments. If the system stores Linux kernel fragments, rescue environments, web assets, certificates, or large update packages internally, then the smaller variants will likely force architectural changes rather than simple recompilation. This is where many substitution exercises become misleading. CPU and peripheral compatibility can look excellent, yet the memory map breaks the design economics because too much software was implicitly coupled to the larger embedded Flash footprint.

At the lifecycle level, replacement decisions should consider not only what fits today, but what remains supportable after several software revisions. A design that consumes 80 to 90 percent of available embedded Flash at release is effectively already out of margin. Security maintenance, protocol stack updates, and manufacturing diagnostics typically increase image size over time, not decrease it. For this reason, the AT91SAM9XE256 should be viewed as a controlled optimization only when code growth is well characterized. The AT91SAM9XE128 is better suited to mature products with fixed functionality, stable update practices, and external storage already handling noncritical assets. Using it in a growing platform can create recurring integration friction that exceeds any short-term sourcing benefit.

The AT91SAM9260 becomes attractive in a different scenario: when board compatibility and processor continuity matter more than preserving the exact internal memory architecture. It can be a viable migration path for designs already using external boot media or for redesigns where adding or relying more heavily on external nonvolatile memory is acceptable. In that context, the footprint compatibility is strategically useful. It allows procurement flexibility and can support phased redesigns without discarding the entire hardware platform. However, the pin-function difference involving BMS versus ERASE must be examined in the context of the actual reset and recovery design. If that signal participates in manufacturing mode selection, boot strapping, or service procedures, even a single pin-role change can alter system behavior in ways that are not obvious from the schematic alone.

In practical validation work, two failure patterns appear repeatedly. The first is assuming that software size is the only memory question. In reality, non-code storage often dominates late-stage integration: device identity blocks, configuration redundancy, calibration retention, OTA metadata, and crash diagnostics all compete for the same embedded Flash budget. The second is underestimating boot recovery behavior. A replacement may boot correctly in the lab under ideal programming conditions, yet behave poorly during interrupted updates, marginal power ramps, or partially erased states. That is why schematic review alone is not enough. Substitution should include boot stress testing, image update interruption testing, and confirmation of factory programming flow under real production constraints.

For procurement planning, the replacement hierarchy is clear. The AT91SAM9XE256 is the nearest lower-capacity alternative when the existing software and data layout can tolerate reduced embedded Flash. The AT91SAM9XE128 is a further cost- or availability-driven option for tighter firmware builds with limited growth expectations. The AT91SAM9260 is the broader compatibility candidate for teams prepared to re-evaluate boot architecture, memory strategy, and the specific BMS-to-ERASE pin difference. These are not equivalent choices; they reflect three different substitution philosophies: capacity reduction within the same architecture, aggressive footprint-preserving downsizing, and platform-adjacent migration.

For a disciplined replacement decision, the most effective sequence is simple: confirm package and pin-function usage, compare internal and external memory assumptions, map the complete boot chain, measure real Flash occupancy including service data, and then run firmware on the candidate device under abnormal startup and update conditions. If a substitute passes those stages, it is usually a credible engineering replacement rather than a nominal catalog match. In this device class, that distinction is what prevents a compatible part number from turning into an unstable product.

Conclusion

The AT91SAM9XE512-QU is best understood as a convergence device positioned between a conventional microcontroller and a small application processor. It is built around the ARM926EJ-S core running at up to 180 MHz, but its practical value does not come from CPU frequency alone. The more important characteristic is the level of on-chip integration around that core: 512 Kbytes of embedded Flash, internal ROM and SRAM, a six-layer internal bus matrix, Ethernet MAC, USB support, multimedia-oriented interfaces, ADC capability, and broad serial connectivity. This combination allows a design to absorb a significant amount of system functionality without immediately depending on a large external chipset.

At the architectural level, the device gains much of its effectiveness from how internal resources are organized rather than from any single headline feature. The ARM926EJ-S core provides enough compute headroom for control-heavy embedded software, protocol handling, lightweight user interfaces, and mid-level data processing. The embedded Flash changes the design equation in a very practical way. It simplifies the boot path, reduces dependence on external nonvolatile storage for many products, and improves board-level integration in space-constrained systems. In many embedded programs, that single point shifts the design from a multi-device boot architecture to a more deterministic and compact bring-up strategy.

The internal ROM and SRAM also matter more than they first appear to. ROM typically anchors first-stage boot behavior and recovery mechanisms, while SRAM gives the platform a reliable high-speed workspace for startup code, interrupt paths, stack usage, and performance-sensitive routines. In practice, this reduces fragility during early initialization, especially in systems where external memory timing is still being established. That is often where designs either feel robust or become difficult to stabilize. Devices with a stronger internal memory base generally produce cleaner bring-up and more predictable low-level software behavior.

A key structural advantage of the AT91SAM9XE512-QU is the six-layer internal bus matrix. This is not just a specification detail. It directly affects how well the processor, DMA-capable peripherals, memory interfaces, and communications blocks can operate concurrently. In embedded products that combine networking, USB transfers, display or audio movement, and background control tasks, bus contention often becomes the hidden limiter long before raw CPU throughput does. A multi-layer bus architecture helps isolate traffic classes and sustain parallel activity with less blocking. The result is not simply higher performance, but better timing consistency under mixed workloads. That consistency is often more valuable than peak benchmark numbers in real deployments.

The communication subsystem is one of the device’s strongest selection points. Broad serial connectivity gives system architects flexibility in attaching sensors, control modules, field buses, supervisory processors, or legacy interface devices. Ethernet support enables direct networked deployment without a separate communications controller, which is especially useful in industrial gateways, monitoring nodes, remote service interfaces, and equipment with built-in diagnostics. USB extends that flexibility toward local service, firmware updates, removable connectivity, and host-or-device interaction models depending on product intent. When Ethernet and USB coexist on the same controller family, the system can often support both remote management and local maintenance without major external logic additions.

The multimedia support should be interpreted carefully. It does not place the device in the class of high-end graphics or media processors, but it does make it suitable for products that need basic display interaction, audio-adjacent functions, image interfacing, or richer HMI behavior than a traditional MCU can comfortably sustain. This is an important middle ground. Many embedded products do not need a full Linux-capable multimedia platform with DDR-heavy architectures and complex PMIC dependencies. They need enough capability for modest interface richness while preserving deterministic control behavior and manageable hardware complexity. This device fits that niche well.

The ADC resources further extend its usefulness in mixed-signal systems. In industrial and instrumentation designs, integrated conversion capability can offload supervisory analog measurements, health checks, environmental sensing, or control feedback paths without adding a separate converter immediately. That said, practical design experience usually shows that integrated ADC blocks are most effective for support functions rather than for the most noise-sensitive acquisition channels. When analog precision becomes central to product value, board partitioning, reference stability, grounding discipline, and conversion timing quickly dominate the result. The embedded ADC is therefore best viewed as a strong integration asset, not a blanket replacement for dedicated precision data-conversion hardware.

External memory expansion is another major part of the device’s system role. This is where the processor clearly steps beyond the limits of a fixed-resource MCU. Designers can scale memory according to software ambition, buffering needs, protocol stacks, file systems, or UI requirements. That flexibility allows one hardware platform to cover multiple product variants, from a compact control node using mostly internal resources to a more feature-rich model with expanded external memory. In practice, however, external memory is where many projects inherit their main complexity. Signal integrity, timing closure, boot dependencies, and power sequencing all become more sensitive. The technical appeal of the device remains high, but only when the memory architecture is chosen with restraint and aligned tightly to the software load.

From a software perspective, the AT91SAM9XE512-QU occupies a productive middle tier. It offers more operating headroom and peripheral sophistication than a classical microcontroller, yet avoids much of the infrastructure overhead associated with larger processor platforms. That balance is often more important than absolute capability. A processor that can do slightly more than required while remaining understandable at the board, boot, and firmware levels usually produces a better product than a more powerful device that introduces unnecessary subsystem complexity. This is especially true in long-life embedded programs, where maintainability, deterministic startup, and component availability can matter more than feature excess.

For selection engineering, the main value is function consolidation with controlled system complexity. The integrated Flash reduces boot-storage dependence. Internal ROM and SRAM improve startup resilience. Ethernet and USB reduce the need for separate interface controllers. Serial peripherals support broad integration across industrial and embedded ecosystems. The package still leaves room for meaningful external expansion, making the device versatile rather than over-specialized. This combination can lower PCB area, reduce BOM fragmentation, and shorten low-level integration effort if the design is scoped correctly.

For sourcing and productization teams, the consolidation effect has equally practical implications. A device that absorbs code storage, communications control, interface management, and part of the analog support path can reduce both component count and supply-chain exposure. Fewer external devices usually mean fewer qualification points, less routing density, and a simpler manufacturing test strategy. The benefit is not just cost reduction. It is often risk reduction through fewer interdependent parts. In embedded production, that kind of simplification tends to deliver value repeatedly across bring-up, compliance, manufacturing, and field support.

The 208-pin PQFP package is an important part of the device profile. It gives substantial I/O access and integration density while remaining more assembly-friendly than many fine-pitch BGA options. This can simplify prototype turns, inspection, rework, and lower-volume industrial builds. At the same time, package-level signal availability must be checked carefully against the intended peripheral mix. High integration does not guarantee that every internal function can be exposed simultaneously in every package configuration. This is a common trap in early device selection. A schematic can look complete at the block-diagram level and still fail at the pin-multiplexing stage. Early pin-budget analysis usually saves far more effort than late-stage rerouting.

Power-rail planning also deserves more attention than the feature list suggests. Devices in this class often appear compact from a BOM perspective, but they concentrate digital core power, I/O domains, analog sensitivity, clocking requirements, and external memory interactions into one central component. If the rail architecture is treated casually, the design can become unstable in ways that are difficult to diagnose: unreliable boot, peripheral lockups, ADC noise, USB inconsistencies, or Ethernet edge-case failures. Stable operation usually comes from disciplined partitioning of supply domains, careful decoupling placement, clean reset handling, and a clock tree designed for both startup margin and interface compliance. These are not secondary implementation details. They are part of the processor selection decision itself.

In industrial-temperature applications, the device remains particularly relevant because its integration profile matches a common class of field-deployed systems: networked controllers, protocol bridges, service terminals, data concentrators, compact HMIs, and embedded instrumentation nodes. These products often need nonvolatile local code storage, moderate processing capability, several communication interfaces, and some room for feature growth, but they do not always justify the cost, power, and software overhead of a larger processor subsystem. This is where the AT91SAM9XE512-QU remains technically compelling. It supports enough software sophistication to build capable connected systems while preserving an architecture that can still be reasoned about at the hardware and firmware boundary.

The strongest reason to evaluate this device is not any isolated feature. It is the way its internal Flash, communication set, memory options, and bus architecture combine into a disciplined embedded platform. Its best use is in designs that need more than an MCU can comfortably deliver, but that still benefit from bounded complexity, direct hardware visibility, and compact board-level implementation. When package constraints, memory architecture, and power planning are aligned early with the end product, the device can anchor a design that is both capable and operationally efficient over a long product lifecycle.
