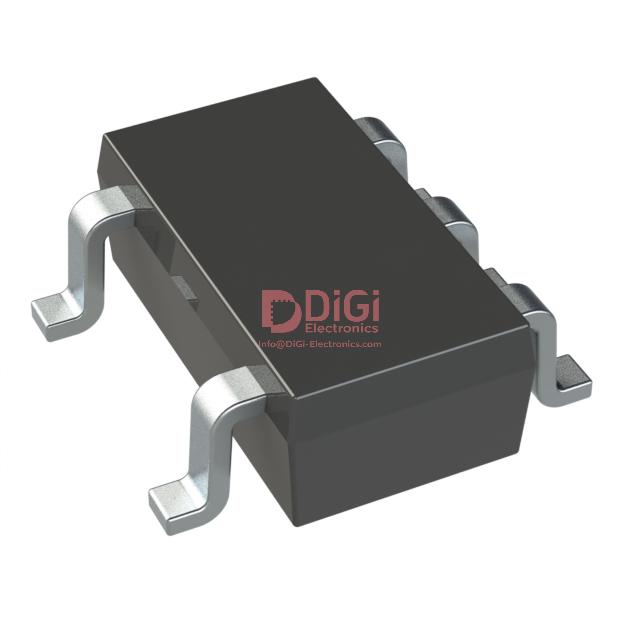

Product overview: AT24MAC402-STUM-T Microchip Technology IC EEPROM 2KBIT I2C 1MHz SOT23-5
The AT24MAC402-STUM-T from Microchip Technology integrates a 2-Kbit (256 x 8-bit) serial EEPROM with a built-in, globally unique 48-bit node identity, supporting secure device authentication and asset tracking across distributed systems. Leveraging an I2C-compatible interface operable at clock rates up to 1MHz, the device enables seamless integration within host microcontroller environments, facilitating rapid data transactions in both high-performance and resource-constrained applications. The I2C protocol’s standardization ensures interoperability and reduces firmware overhead, especially valuable in expanding IoT device clusters and embedded subsystems.
A key engineering advantage lies in the wide input voltage range, from 1.7V to 5.5V, which enhances design flexibility and tolerance to fluctuating supply conditions. This capability aligns with mixed-voltage environments, minimizing interface complications and maintaining stable data retention even as system power sources vary. The EEPROM’s inherent non-volatile characteristics ensure that both configuration parameters and sensitive identity data persist across power cycles, supporting secure boot, anti-counterfeiting mechanisms, and post-deployment system integrity checks.
Optimized for miniature form factors, the SOT23-5 package addresses dense PCB layouts prevalent in portable and embedded modules. Its environmental compliance and low-power operation further suit applications where thermal budgets and energy consumption require tight control, such as battery-powered medical devices and sensor nodes. The device’s write endurance and data retention specs, typically exceeding 1 million cycles and 40 years respectively, address the long-term reliability demands of industrial control and automotive networks.
When integrating the AT24MAC402-STUM-T, careful bus topology management prevents address conflicts and maximizes throughput in multi-device arrays. Practical tuning of pull-up resistor values on the I2C lines reduces noise-induced errors, especially in electrically noisy environments or when operating at the interface’s higher speed grades. The unique MAC address provisioning can be exploited for secure supply chain traceability and convenient IPv6 network configuration, streamlining compliance with global device identification protocols.
An implicit insight emerges in the device’s dual-role capability: it serves as both a secure ID anchor and flexible configuration repository. This combination strengthens tamper resistance in security-centric deployments, reduces component count, and simplifies PCB routing compared to discrete solutions. As embedded ecosystems converge toward zero-trust paradigms and device provenance requirements, devices like the AT24MAC402-STUM-T provide foundational hardware assurance while maintaining cost, power, and space efficiency across diverse application spaces.
Core features and advantages of AT24MAC402-STUM-T
The AT24MAC402-STUM-T serves as a specialized 2-Kbit serial EEPROM, leveraging a 256 x 8-bit memory array for optimal flexibility in embedded system design. This byte/page organization enables both random word access and efficient handling of multi-byte updates via 16-byte page addressing, significantly improving throughput during firmware updates or configuration storage processes. The memory structure supports partial page writes, minimizing unnecessary data refresh and reducing overall write cycle wear—a vital consideration in extended-lifetime industrial and IoT applications.
Integrating a Schmitt-trigger equipped I2C interface, the device achieves robust communication stability even in electrically noisy environments. The dual-speed support—400kHz at low voltage operation (1.7V) and a fast 1MHz rate at higher voltages (2.5V/5V)—underscores its adaptability for a wide range of board-level designs. The interface design directly addresses signal quality issues present in high-density assemblies where bus contention and electromagnetic interference are prevalent; implementation of Schmitt triggers prevents inadvertent data corruption, ensuring deterministic system behavior.
Data integrity and non-volatility are engineered through an endurance rating of one million write cycles and an exceptional 100-year retention specification. This combination targets mission-critical systems where configuration persistence and failure rate reduction are paramount, such as access control endpoints and telemetry modules. The 5ms self-timed write cycle is calibrated to balance power dissipation and bus availability, avoiding excessive latency in time-sensitive scenarios—experience shows that integrating EEPROM with prompt write completion directly improves system responsiveness in real-time controller designs.
Dual-level data protection highlights the device’s architectural sophistication. Hardware write protection via dedicated pins and software-based protection mechanisms allow granular control over memory access rights. This layered approach is particularly effective for safeguarding calibration parameters, cryptographic keys, or device identification data; practical deployment often leverages page-level locks in combination with session-based software protection to thwart unintended overwrites during field upgrades or remote maintenance operations.
The AT24MAC402-STUM-T’s compliance with RoHS and provision of green packaging options streamline regulatory certifications and facilitate global supply chain integration. Consistent product quality and conformance with environmental requirements accelerate time-to-market for OEMs seeking to scale production across multiple regions.
This device exemplifies how tightly integrated features—spanning robust electrical interfacing, adaptive memory management, and multi-modal protection—can converge to address evolving embedded system requirements. Notably, the synergy between fast-write capability and versatile protection mechanisms supports system architectures where in-field programmability and reliability are non-negotiable, illustrating a strategic shift from legacy parallel EEPROMs to advanced I2C-based solutions.
Enhanced security and identification capabilities in AT24MAC402-STUM-T
The AT24MAC402-STUM-T integrates advanced security and device identification mechanisms directly within its architecture, positioning it well beyond standard EEPROM implementations. At the core, a dedicated read-only memory block stores a factory-programmed, permanently locked EUI-48 MAC address. Isolating this address from the general-purpose data EEPROM ensures absolute integrity and immutability, providing a globally unique identifier that is natively compliant with Ethernet and many IoT communication protocols. This hardware-level address guarantees layer-2 uniqueness without post-deployment provisioning, which streamlines mass production logistics and automates onboarding in dynamic network environments.
Complementing the MAC address, a 128-bit serial number resides in its own secure, read-only segment. Both identification elements are permanently programmed during manufacturing, rendering cloning, tampering, or spoofing effectively infeasible. This architecture enables robust asset tracking, device provenance, and low-overhead hardware authentication—capabilities critical for distributed systems or security-sensitive applications such as industrial controls, medical instrumentation, and audit-level supply chain tracking.
All interactions with these secure identification features leverage specialized, command-driven I2C protocol sequences. Unlike simple memory addressing, this transaction model removes any risk of inadvertent writes, while isolating access to sensitive data from generic EEPROM operations. Field experience shows that this separation is crucial in mixed-security systems—devices routinely survive bulk data updates and remote management over I2C interfaces, while their identity credentials remain securely locked and verifiable.
By combining immutable identity anchors with standard nonvolatile storage, the AT24MAC402-STUM-T supports device-level trust models foundational to secure boot processes, PKI-based provisioning, and anti-counterfeiting workflows. Integrators achieve both production efficiency and traceability, as global uniqueness is certified at the silicon level, without the need for external programming stations or additional serialization steps. This synergy of security and convenience reflects a broader trend—embedding trust primitives directly in memory devices accelerates the adoption of secure edge computing architectures while maintaining compatibility with legacy I2C toolchains.
In deployment, the device’s physical separation of secure identification from user-modifiable EEPROM translates directly to reduced system attack surfaces. Even sophisticated firmware attacks face significant barriers, as cryptographic onboarding or attestation protocols can rely on unforgeable, hardware-rooted identities. This tangible uplift in hardware trustworthiness is now indispensable for sectors transitioning to zero-trust environments, where each endpoint must assert its authenticity from the first power-on event onwards.
Interface, memory organization, and device operation of AT24MAC402-STUM-T
The AT24MAC402-STUM-T integrates a robust I2C-compatible two-wire interface, enabling seamless bidirectional data transfer critical for space-conscious embedded designs. Its communication framework is anchored by strict protocol adherence. Each device on a shared I2C bus possesses a unique address, normally specified through external hard-wired pins (A0, A1, A2). In the 5-lead SOT23 package configuration, these pins default internally to zero, which reduces PCB routing overhead and simplifies device inventory management, but also requires careful system-level addressing to avoid conflicts in multi-device topologies.
The device’s 2Kbit nonvolatile EEPROM memory is architected into sixteen fixed pages of sixteen bytes, promoting both effective memory mapping and efficient write cycles. Page-oriented operations, as opposed to mere byte-wise writes, reduce bus transaction overhead by allowing full-page data buffering prior to a single write instruction, thus optimizing timing closure in deep-embedded firmware. The support for both random and sequential addressing modes offers versatile access; random read modifies the internal address pointer, facilitating non-linear data structures, while sequential mode benefits high-throughput logging or configuration tables, exploiting the auto-increment pointer for rapid multi-byte reads or writes. Write operations are safeguarded by built-in acknowledge polling—valuable in fault-tolerant applications—enabling hosts to ascertain precisely when the device is ready for the next transaction, avoiding bus contention or data corruption.
In addition to the main memory array, the AT24MAC402 features a dedicated, protected memory block housing both an IEEE-supplied EUI-48 MAC address and a unique 128-bit serial number. This separation precludes end-user operations from impacting device identification, preserving system traceability and authentication features—essential in secure, networked environments. Operating parameters emphasize energy efficiency and durability. Automatic standby and low-power idle states ensure negligible quiescent current draw in sleep-heavy duty cycles, and integrated I2C software reset capability enables system or bus recovery without physical intervention, underpinning reliability in unmonitored or industrial deployments.
Close adherence to proper bus recovery procedures, especially following communication interruptions or power glitches, is advised; real-world deployments benefit from error-handling routines that exploit the software reset feature to ensure device availability in harsh EMI or brownout-prone settings. Engineering teams routinely rely on the AT24MAC402’s predictable behavior during acknowledgment polling and low-power transitions, finding this essential for deterministic scripting of initialization sequences in rapidly booting microcontroller platforms. A notable insight: leveraging the immutable EUI-48 and serial number block as a root of trust is increasingly advantageous when provisioning secure device identity at the edge, bridging traditional memory and emerging cybersecurity requirements without added board-level complexity.
Layering peripheral-level protocol rigor atop a fail-safe memory system, the AT24MAC402-STUM-T stands as a proven solution for compact, power-conscious devices demanding intrinsic, tamper-resistant identification as well as standard EEPROM functionality—all within a streamlined I2C footprint adaptable to volume production constraints.
Write protection mechanisms in AT24MAC402-STUM-T
The AT24MAC402-STUM-T utilizes a comprehensive set of write protection measures, each operating at distinct levels within the memory protection hierarchy. The first layer, hardware write protection, employs the WP pin as a direct, low-latency gate for write operations. When tied to VCC, this mechanism effectively sets a physical barrier against all writes across the EEPROM array without interfering with read operations. This straightforward interface provides an immediate hardware response, ideal for scenarios requiring rapid state transitions, such as firmware validation phases or maintenance modes. In board-level integration, routing the WP line for system control lines ensures that hardware-layer protection is synchronized with global enable-disable cycles, supporting both redundancy and fail-safe system states.
Another axis of security is provided by permanent software write protection. This function targets the lower memory address range (00h–7Fh) and is set through a defined write command protocol via the I2C interface. Upon activation, this protection is irrevocable, effectively locking down stored parameters, such as authentication keys or factory calibration data, for the device's operational lifetime. The absolute nature of this lock reinforces system trust anchors and is particularly suited for applications governed by regulatory or contractual requirements for unalterable baseline data. In practical deployment, careful sequence management during initial programming is crucial, as the transition to a locked state is one-way; once invoked, attempts to recover or reuse those memory sectors for different secured variables become impossible.
Complementing irreversible locks, the reversible software write protection allows for dynamic control over the same memory range, contingent upon system requirements. This layer is enabled and disabled using specific software commands, granting flexibility in applications that necessitate periodic updates to protected fields—such as user credentials or device configuration settings—while still constraining modification windows to tightly controlled events. However, the reversible software feature is contingent on package choice; it is not accessible in the 5-lead SOT23 variant, due to omitted address pins, emphasizing the necessity of matching package selection to anticipated feature use cases during the BOM phase.
Status verification is integral to dependable write protection management. The device provides explicit command-level feedback regarding the status of both hardware and software protection states over I2C, allowing firmware to validate security posture before critical operations. This supports implementation of pre-write check routines, reducing the incidence of failed operations and enabling granular error logging. In mission-critical platforms, such runtime status polling is tightly coupled with automated failover routines; systems can immediately react to unauthorized state changes by entering safe modes or triggering event logs, bolstering both traceability and recovery robustness.
Altogether, the layered approach of the AT24MAC402-STUM-T aligns with core principles of modern embedded security by separating immutable, policy-enforced domains from areas requiring authorized mutability. The coexistence of physically enforced and software-programmable attributes enables tailored security models that flexibly accommodate both manufacturing controls and field-based adaptation, all while retaining deterministic, programmatically auditable verification pathways. Integrating these protection modalities strategically at the circuit and application layer provides a pragmatic path toward reducing both accidental and adversarial risks in data-sensitive designs.
Electrical and environmental characteristics of AT24MAC402-STUM-T
Electrical and environmental parameters of the AT24MAC402-STUM-T align with rigorous system-level requirements, supporting seamless interoperability within diverse circuit topologies. The wide supply voltage window, spanning 1.7V to 5.5V, enables interface with both legacy logic families and modern, energy-efficient designs, simplifying power domain management and lowering overall design complexity. This range strengthens design flexibility, particularly in mixed-voltage systems, where consistent device behavior across fluctuating supply levels is mandatory for reliable multi-node communication.
Thermal robustness is underscored by the device’s -55°C to +125°C operating envelope, positioning it for applications routinely exposed to extreme ambient or process-driven temperature gradients. Such resilience is particularly beneficial in embedded platforms for industrial automation and automotive control units, where stable memory performance is required under continuous thermal cycling. Experience with similar components shows that stable operation in high-temperature regimes mitigates data corruption risk during extended field deployment.
The AT24MAC402-STUM-T implements static and dynamic DC features precisely engineered for rapid, noise-resistant I2C transactions. Controlled DC output current, capped at 5mA, and minimized pin capacitance collectively enhance signal integrity in high-density board layouts, reducing susceptibility to cross-talk and electromagnetic interference. Engineers leveraging this memory IC in designs with congested routing and varied ground return paths benefit from reliable bit error rates and signal timing margins, promoting straightforward compliance with high-speed bus specifications.
Compliance with RoHS and PB/Halide-free standards is an intrinsic part of the component’s material stack, facilitating global deployment without additional validation steps for environmental stewardship. This attribute streamlines certification processes in markets with strict limitations on hazardous material use.
The device’s high endurance and robust data retention profiles further distinguish it for extended lifecycle use in precision applications. In automotive telemetry modules and distributed control equipment, memory cell integrity during millions of write/read cycles is crucial to safeguarding system stability. Practical deployment confirms that such durability supports maintenance-free operation, minimizing downtime in mission-critical environments. These characteristics provide latent value, as they anticipate evolving reliability constraints by exceeding minimum industry benchmarks, potentially reducing total cost of ownership over the system’s functional lifetime.
Integrated MAC addressing capability expands the IC’s utility, empowering secure authentication and inventory management in distributed asset tracking networks. This built-in feature, combined with the aforementioned electrical and environmental strengths, supports a broader spectrum of applications demanding both operational resilience and cryptographic traceability—hallmarks of advanced industrial and long-lifecycle consumer platforms.
Package options and mechanical details for AT24MAC402-STUM-T
The AT24MAC402-STUM-T exemplifies design optimization for constrained PCB layouts through its compact 5-lead SOT23 package. This package achieves sub-3 mm² footprints, maximizing board utilization where real estate is a limiting factor. The short lead lengths and small outline facilitate high-frequency routing and mitigate parasitic effects in dense analog or mixed-signal environments.
Within the AT24MAC402 family, the diverse package portfolio extends applicability across varied assembly and reliability requirements. The 8-lead JEDEC SOIC format supports industry-standard SMT processes with robust handling and legacy compatibility, streamlining component sourcing and offering a proven solution for high-throughput lines. The 8-lead TSSOP option delivers reduced profile height, supporting applications where Z-axis clearance is restricted, such as card-edge modules or stacked assemblies. The 8-pad UDFN variant sharply reduces package volume and lead inductance, enabling deployments in tightly integrated sensor nodes and next-generation wearables with challenging thermal and electrical constraints.
Mechanical dimensioning adheres strictly to JEDEC reference outlines, aligning pad geometry and pin pitches with automated pick-and-place calibration standards. This design choice directly lowers risk in the transition from schematic to fabrication, minimizing fitment issues and simplifying DFM reviews. The symmetry and lead coplanarity intrinsic to these packages enhance solder joint reliability during reflow, maintaining consistent yields even under temperature cycle stress.
Effective utilization of these variants emerges most clearly in high-mix product environments, where personalized layouts benefit from mechanical modularity and predictable manufacturability. Selection of package type typically initiates at the mechanical-engineering phase, impacting thermal dissipation, signal integrity, and robustness to handling. Experience underscores that early alignment to production capabilities and precise review of pad design against package tolerances considerably reduces re-spin occurrences and yield loss.
This multi-package strategy does more than offer logistics convenience—it unlocks nuanced layout trade-offs. For signal-sensitive or ultra-compact designs, the UDFN’s low profile not only aids in miniaturization but also enhances EMI suppression through shorter interconnect paths. Meanwhile, SOIC packages often accelerate NPI turnaround due to broad availability and standardized process windows, a factor critical in design cycles with compressed lead times.
The engineering intent behind the AT24MAC402 family’s packaging options is multi-layered: streamline integration, facilitate reliability, adapt to rapid changes in form factor requirements, and preserve system-level flexibility. Evaluating these details holistically and integrating package selection as an early discipline within the product definition phase yields measurable gains in manufacturability and field performance. The AT24MAC402 demonstrates how careful mechanical and electrical synergy at the package level can multiply the value of a component across diverse real-world scenarios.
Potential equivalent/replacement models for AT24MAC402-STUM-T
Choosing suitable alternatives to the AT24MAC402-STUM-T requires a systematic assessment of both silicon-level characteristics and system-level integration. At the heart of the selection process lies the evaluation of EEPROM architecture, particularly how the device encodes and secures unique hardware identifiers such as MAC or EUI addresses. The AT24MAC402 device, for instance, integrates a factory-programmed, globally unique EUI-48 node address, making it well-aligned for secure authentication, network identification, and traceability in demanding communication and IoT frameworks. Any alternative must reliably replicate this trust anchor to maintain system authenticity and compliance.
Exploring analogous solutions begins with the AT24MAC602, which expands core functionality by offering an EUI-64 identifier native to advanced networking standards and pervasive IoT endpoints. Migration to this device is particularly advantageous when scaling toward IPv6-based architectures or adhering to IEEE 802 requirements, as the extended 64-bit address space future-proofs device identity allocation. However, differences such as the memory map layout or particular I²C addressing schemes demand a line-by-line cross-examination at the firmware and software-driver level to preclude latent bugs during design transfer.
Equally, the AT24CS, AT93CS, and AT25S families provide devices with embedded, immutable 128-bit serial numbers, addressing similar use cases for component-level authentication and asset monitoring. Nevertheless, these series diverge in aspects like protocol (I²C vs. SPI), available density, and sector organization. Some variants implement alternate write-protection logic or customized status register layouts, which may interact with upper-level security routines or provisioning scripts. A hands-on approach—such as bench-testing the interface timing and stress-testing memory endurance in representative circuit conditions—quickly reveals subtle incompatibilities otherwise obscured in datasheet comparison alone.
For cross-vendor replacements, the stakes increase. Candidates must provide not only a hardware-locked MAC/EUI or serial number but also precise voltage thresholds, timing margins, and brown-out resilience compatible with the original design’s operational window. In practice, disparities in power-up sequencing, standby current, or pinout conventions often surface only under exhaustive validation sweeps or can trigger qualification setbacks if overlooked. Matching the layout footprint is equally crucial to avoid costly board spins when dealing with alternate DFN, TSSOP, or SOT23 packages.
One frequently underestimated factor is the impact of bus arbitration and error recovery behavior, especially in dense address environments or where EMC disturbances can provoke rare protocol faults. Real-world deployments show that migration projects succeed most smoothly when engineers scrutinize not just typical operation but stress scenarios, ensuring that pull-up resistor values, bus recovery logic, and noise immunity meet or exceed prior system margins.
Ultimately, the most robust migration path leverages not only parity in electrical and protocol specification, but also in lifecycle support and supply assurance. A model with multi-sourcing or enhanced documentation history often mitigates future obsolescence risk. Substituting EEPROM-based identity devices is less about matching a parameter-for-parameter checklist than architecting for system resilience and forward compatibility—a principle that consistently delineates long-term design success in both industrial and consumer segments.
Conclusion
The AT24MAC402-STUM-T integrates essential non-volatile memory and device authentication primitives within a compact I2C interface, catering directly to system requirements where reliable device identification and configuration integrity are mandatory. At its core, the device features a 2-Kbit EEPROM array, supporting byte and page write modes that balance fine-grained data management with efficient bulk updates. This flexible architecture enables seamless implementation of device parameter storage, calibration coefficients, and boot-time configuration snapshots, all within a secure, tamper-resistant framework.
A distinguishing mechanism is the factory-programmed EUI-48 address and a globally unique serial number, hardcoded during manufacture. This eliminates address collisions in distributed systems and supports automated inventory, remote asset management, and anti-counterfeiting measures. The hardware-based uniqueness unlocks streamlined provisioning flows, as new modules can be automatically registered and authenticated on connection, reducing commissioning errors and operational friction. In deployment, direct reading of the identifier fields expedites fault localization and compliance auditing—even under constrained-access scenarios.
Robustness in security arises from the layered write protection mechanisms. The device supports both fixed and programmable protection schemes, allowing software or system-driven locking of critical memory sections. This protects bootstrapping credentials, system keys, or configuration seeds from erroneous rewriting or malicious injection. In practice, the combination of write protection and immutable identifier fields underpins a trust anchor for broader security frameworks, such as device attestation or cryptographic binding within edge or industrial networks.
The AT24MAC402-STUM-T's low-voltage operational envelope (down to 1.7V) and industrial temperature rating ensure suitability across diverse power regimes and harsh deployment environments. This level of environmental resilience is vital for edge nodes in IIoT, automotive modules, or telecom infrastructure, where field reliability correlates directly with minimized service costs and prolonged system lifespans. The device’s small footprint and mechanically robust package ease integration on dense PCBs, further supporting aggressive miniaturization or retrofit cycles.
In practical manufacturing, automated test stations use the unique address to program bespoke settings, while production firmware can verify device authenticity at final assembly. Field updates leverage the EEPROM's endurance, supporting over a million write cycles per cell, which accommodates recurring calibration or remote reconfiguration without reliability degradation. Across deployments, the default EUI-48 provisioning supports global compliance and vendor-agnostic interoperability, facilitating cross-market release and streamlined certification.
The convergence of identification, security, and non-volatile storage in the AT24MAC402-STUM-T presents a unified solution ecosystem architects can exploit to reduce BOM complexity, accelerate certification timelines, and enforce end-to-end traceability. The interplay of architectural rigidity—the immutable address and unique serial—with memory flexibility unlocks a platform for trusted device identity, resilience against unauthorized tampering, and persistent, reliable data management. This holistic value, often underestimated in initial design, ultimately ensures future-proof scalability and operational confidence in connected hardware systems.
