AT24C164-10SU-1.8

AT24C164-10SU-1.8 product overview and positioning

The AT24C164-10SU-1.8 is a 16 Kbit serial EEPROM from Microchip Technology positioned for embedded designs that need modest amounts of non-volatile storage with low implementation cost, low standby burden, and broad supply compatibility. Its memory array is organized as 2048 × 8, which aligns well with byte-granular data models commonly used in firmware: configuration words, calibration coefficients, serial numbers, usage counters, fault history, and compact parameter blocks. This capacity sits in a practical middle range. It is large enough to separate persistent system state from application code storage, yet small enough to remain simple to manage without the overhead associated with flash translation layers or file-system-style abstractions.

At the interface level, the device uses a 2-wire serial bus, making it attractive in systems where GPIO count, routing area, and connector pin budget are constrained. For many control boards and peripheral modules, that matters more than raw memory density. A small EEPROM on an I2C-compatible bus is often the most efficient way to preserve a limited set of critical values across power cycles while avoiding the board cost and software complexity of larger non-volatile memory devices. In practice, this class of EEPROM is often chosen not because it is the fastest or densest option, but because it is predictable. The access model is simple, the integration path is mature, and firmware teams can usually implement robust support with little architectural risk.

The 1.8 V to 5.5 V operating range is one of the device’s strongest positioning elements. It allows the same part family to fit legacy 5 V control logic, mixed-voltage industrial nodes, and newer low-power digital platforms. That flexibility reduces redesign friction in derivative products and helps during BOM consolidation. In systems that pass through multiple supply states during startup, sleep, or brownout recovery, a wide valid operating window also improves design margin. EEPROMs are often treated as secondary components, but persistent storage failures tend to surface as high-cost field issues because they corrupt identity, calibration, or recovery metadata rather than simply halting the processor. For that reason, voltage tolerance is not just a convenience parameter; it directly affects system resilience.

Internally, the device is optimized for electrically erasable, byte-addressable non-volatile storage rather than bulk data logging. That distinction is important. EEPROM technology supports repeated small updates without requiring erase of large sectors, which makes it well suited to sparse, infrequent writes. If a design writes only during commissioning, configuration change, service events, or controlled checkpoints, a device like the AT24C164 is typically a clean fit. If the application writes continuously at runtime, such as high-rate telemetry capture or rolling sensor history, the design can quickly move outside the efficient operating envelope of EEPROM and into endurance-management territory. A common mistake is to select EEPROM based only on capacity and bus simplicity, then use it like a log memory. The better approach is to treat it as parameter memory and architect write behavior accordingly.

The 2048-byte capacity is often enough to support disciplined data partitioning. A practical layout might reserve one region for factory-programmed constants, one for field-updated configuration, one for event counters, and another for redundant copies of critical records with versioning and checksums. This kind of structured use extracts more value from a small memory than a flat address map with ad hoc writes. In real deployments, corruption events are more often caused by interrupted writes, firmware defects, or poor update sequencing than by intrinsic silicon failure. A lightweight record scheme with sequence numbers, CRC protection, and copy-on-update behavior usually delivers a disproportionate reliability gain at minimal code cost. Small EEPROMs reward careful data modeling.

The industrial temperature range of -40°C to +85°C places the device firmly in embedded control, instrumentation, and distributed sensor applications. This range is wide enough for many indoor industrial and outdoor sheltered installations, portable equipment, utility accessories, and appliance-class electronics. Temperature capability matters not only for functional operation but also for retention confidence and write timing margin across environmental extremes. Non-volatile memories are often validated late in a project because they appear straightforward, but temperature and supply interactions can expose weak assumptions in the software driver, especially around write-cycle completion, polling strategy, and power-loss handling. Designs that behave well on a bench supply at room temperature can become fragile in cold-start or hot-shutdown conditions if the EEPROM transaction model is not respected carefully.

From a system architecture perspective, the AT24C164-10SU-1.8 is best viewed as persistent metadata storage. It is an enabling component for products that need to remember identity and state but do not need a mass-storage subsystem. Sensor modules can store calibration and traceability data locally. Control boards can preserve tuning parameters and service counters. Battery-powered devices can retain user settings with negligible quiescent impact. Industrial subsystems can isolate product-specific data from replaceable controller firmware, which simplifies service workflows and supports board-level modularity. This separation between executable image and persistent device identity is often an underrated design pattern. It improves maintainability and reduces the operational cost of firmware replacement or board swap scenarios.

The 2-wire interface also affects software architecture in useful ways. Because the bus is shared, the EEPROM can coexist with sensors, RTCs, ADCs, and other management devices on the same serial lines, minimizing interconnect overhead. However, that convenience introduces bus-governance requirements. Arbitration, address planning, bus pull-up sizing, and recovery from stuck-line faults all matter. In compact systems with several low-speed peripherals, the EEPROM itself rarely causes communication problems, but it participates in the same failure domain. Good implementations include timeout handling, acknowledgment polling after writes, and a strategy for bus recovery if a reset occurs mid-transaction. These details are easy to overlook when the memory footprint is small, yet they often determine whether field behavior remains stable under power disturbances and asynchronous resets.

Another practical design consideration is write management. EEPROM writes are not instantaneous, and repeated updates to the same address range can accumulate wear. Even when the nominal endurance is adequate, the firmware should avoid unnecessary write amplification. That means comparing new values before committing them, grouping related parameters into coherent update units, and rate-limiting writes for frequently changing variables. A robust pattern is to maintain RAM-resident working state and commit only validated changes at controlled times, such as graceful shutdown, explicit save operations, or low-frequency checkpoints. For counters or lifetime statistics that must survive unexpected power loss, rotating storage slots or journal-style updates can spread wear and improve recoverability. These techniques are simple, and in practice they extend useful life far more effectively than relying on raw endurance numbers alone.

The specific part designation also signals low-voltage suitability and package targeting that fit dense embedded layouts. In selection terms, this makes the device relevant where board area and power domain compatibility are more important than maximum throughput. EEPROMs of this class are rarely chosen in isolation; they are chosen because they match the surrounding design philosophy. If the product emphasizes deterministic behavior, low pin count, long retention, and straightforward firmware control, the AT24C164 family is conceptually aligned with that goal.

At the same time, the obsolete product status materially changes its positioning. Technically, the device remains understandable and often supportable in legacy systems, service inventories, and long-lived fielded equipment. Commercially, however, obsolescence shifts the decision framework from pure fit to lifecycle risk management. In existing platforms, engineers need to preserve functional knowledge, verify alternate sourcing assumptions, and review whether software depends on device-specific behaviors such as page boundaries, address handling, or write-cycle timing. In maintenance environments, even nominally compatible replacements can expose latent driver assumptions that were never documented because the original part remained stable for years. That is why legacy EEPROM substitutions should be treated as validation exercises, not clerical BOM edits.

For new designs, the right interpretation is cautious rather than dismissive. The underlying requirement that this device serves is still common: small, reliable, low-power non-volatile storage over a wide voltage range. What changes is that the exact part should no longer be treated as a forward-looking default. A better selection process starts with the persistence model the system actually needs, then evaluates current-generation EEPROM or adjacent NVM options against endurance, retention, bus compatibility, operating voltage, temperature grade, package, and lifecycle commitment. In many cases, the replacement path is straightforward. In others, moving from legacy EEPROM to newer serial NVM can affect write semantics, timing assumptions, and error-handling behavior enough to justify a modest software refactor.

Viewed in that context, the AT24C164-10SU-1.8 is best understood as a well-matched legacy solution for compact persistent storage in embedded systems that value simplicity, voltage flexibility, and proven serial interfacing. Its technical profile remains relevant because the design problem it addresses has not changed. What has changed is the procurement and sustainment boundary around it. In legacy platforms, it remains a practical and often sensible component. In new platforms, it serves more usefully as a reference point: a reminder that the most reliable non-volatile storage choice is usually the one whose electrical behavior, write model, and lifecycle status are all aligned with the real operating pattern of the system.

AT24C164-10SU-1.8 memory architecture and storage organization

The AT24C164-10SU-1.8 integrates 16,384 bits of EEPROM, exposed as 2,048 addressable bytes. From the host perspective, it behaves like a linear byte-addressable nonvolatile array, which simplifies firmware design. Configuration records, calibration constants, serial identifiers, event counters, and compact operating logs can all be mapped directly into fixed byte offsets without introducing custom packing schemes. That simplicity is not just convenient. It reduces parser complexity, lowers the chance of field-alignment errors, and makes long-term maintenance easier when the memory map evolves across product revisions.

At the physical organization level, the device is page-oriented. The full 2 KB array is partitioned into 256 pages of 8 bytes each. This internal page granularity is the key to understanding write behavior, endurance distribution, and update latency. EEPROM cells are not rewritten one byte at a time in the same way SRAM is updated. A write command typically loads data into an internal page buffer and then triggers a self-timed nonvolatile programming cycle. Because of that mechanism, the apparent byte-addressable model and the actual program operation are not identical. Reads are random-access and straightforward. Writes are constrained by page boundaries and internal programming timing.

This distinction becomes important when firmware performs multi-byte updates. If several adjacent parameters reside in the same page, they can often be updated efficiently in a single page-write transaction. If the data crosses a page boundary, the transfer must be split into multiple write operations. That split is not merely a protocol detail. It affects bus occupancy, write-cycle count, and worst-case update timing. In systems with tight startup deadlines or aggressive power management, these details can become first-order design constraints rather than minor implementation issues.

A point that deserves careful handling is the relationship between the documented page size and the stated page-write capability. The memory organization indicates 8-byte pages, while some feature listings may refer to write sequences of up to 16 bytes. In engineering practice, this kind of mismatch should never be resolved by assumption. The safe approach is to treat the actual internal page boundary as authoritative and verify the effective write behavior on hardware, especially when portability across vendor revisions, second sources, or legacy firmware is required. A design that assumes a wider write window than the array actually supports may appear to work during basic validation yet fail intermittently when data starts near the end of a page. Those failures are often difficult to diagnose because the I2C transaction itself can still complete normally while the wrapped or truncated data corrupts adjacent fields.

Addressing also reflects the device scale cleanly. A 2,048-byte space requires 11 bits of word address, which gives direct access to any byte location in the array. That address width is large enough to support structured storage schemes while still remaining lightweight for small microcontrollers. The memory map can be implemented with simple offset definitions, packed structs with explicit versioning, or a small record directory. For many embedded products, this density sits in a useful middle range. It is large enough to hold several generations of configuration blocks, manufacturing metadata, and a modest fault history, yet small enough that full-map integrity checks and migration routines remain computationally inexpensive.

A useful way to think about this device is to separate three layers: logical layout, transaction layout, and physical wear. The logical layout is the application-visible byte map. The transaction layout is how reads and writes are grouped on the I2C bus. The physical wear pattern is how often the same EEPROM cells are reprogrammed over the product lifetime. Problems usually appear when these three layers are designed independently. For example, placing a frequently updated boot counter beside rarely changed factory calibration data inside the same page can cause unnecessary rewrite exposure for the static fields, since page-oriented programming may reissue the full page update path even for a small change. A more robust map groups high-churn and low-churn data into different regions, ideally aligned to page boundaries.

In practical firmware, page alignment is worth treating as a design primitive rather than a low-level optimization. Small EEPROMs often end up storing mixed data classes: immutable manufacturing information, occasionally updated user settings, and high-frequency operational statistics. If these are laid out casually, later firmware features can create hidden endurance hotspots. A cleaner approach is to reserve page-aligned zones for each update pattern. Static identity data can live in one block. Configuration structures can occupy another, with explicit version and CRC fields. Rolling counters or recent history can use a small journal or rotating slot scheme. This improves fault tolerance and also makes field diagnostics easier because each region has a clear operational role.

The 8-byte page structure also influences how to design data records. Records that fit inside a single page are easier to update atomically from the application viewpoint. Once a record spans multiple pages, power-loss behavior becomes more complicated because one page may commit while the next does not. For that reason, compact records with local integrity markers often perform better than monolithic structures. A common pattern is to store a header byte, payload bytes, and a checksum or sequence marker within one page-sized unit. Another is to use dual copies of a configuration record and alternate updates between them, selecting the latest valid copy during boot. This approach costs capacity, but in a 2 KB EEPROM it often buys more reliability than attempting fine-grained in-place modification.

Read access is generally less constrained, which makes the AT24C164 attractive for parameter-heavy systems that mostly read and only occasionally write. Device initialization can fetch an entire configuration image quickly with simple sequential reads. Runtime updates can then be limited to changed fields. In practice, it is usually better to stage modifications in RAM and commit them in page-aware bursts rather than issuing many isolated byte writes. This reduces total write cycles, shortens cumulative programming time, and lowers the risk of partially updated state if power quality degrades during a long sequence of independent commits.

For application scenarios, the density and organization are well matched to compact but persistent datasets. Equipment setup profiles can be stored as fixed-length structures indexed by slot number. Board serial data and production traceability information fit naturally into protected low-write regions. Operating history can be implemented as a ring buffer of short event records, provided page boundaries are respected in the record design. Calibration systems benefit from keeping raw coefficients and validated derived values in separate blocks so recalibration workflows do not disturb baseline manufacturing data. In control products, one of the more effective patterns is to reserve a small metadata page at the front of memory that describes the active schema version, validity state, and the base addresses of major records. That small layer of indirection makes future firmware updates much less disruptive.

One subtle but important observation is that, in EEPROM design, capacity is rarely the limiting factor first. The real constraints are usually write granularity, endurance concentration, and recovery strategy after interrupted updates. With the AT24C164-10SU-1.8, the nominal 2 KB size is enough for many embedded use cases, but the architecture rewards disciplined layout. Designs that respect page boundaries, isolate wear domains, and attach integrity metadata to each logical block tend to remain stable over long deployments. Designs that treat the device as a flat byte pool often work initially, then become fragile as features accumulate.

Seen through that lens, the AT24C164-10SU-1.8 is best used not as a generic memory dump area but as a small persistent database with page-sized transactional constraints. Once firmware is structured around that model, the device becomes predictable and efficient. Addressing stays simple, storage remains compact, and nonvolatile data handling scales cleanly from basic parameter retention to more deliberate schemes such as redundant records, rolling logs, and versioned configuration storage.

AT24C164-10SU-1.8 interface method and bus-level communication behavior

AT24C164-10SU-1.8 uses a standard 2-wire serial interface built on SDA and SCL. SDA carries bidirectional data, and SCL provides timing from the bus master. This architecture is attractive in embedded designs because it compresses control and data signaling into two shared lines, reducing routing pressure, package pin count, and interconnect complexity. In practice, that simplicity is only reliable when the bus is treated as an analog-digital mixed structure rather than as an abstract logic link. Pull-up strength, trace length, device count, and switching noise all directly shape communication margins.

At the protocol level, the device follows conventional serial EEPROM bus timing. SDA is valid only when SCL is low for data transitions. When SCL is high, any SDA edge is interpreted as a control event. A falling edge on SDA while SCL remains high creates a START condition. A rising edge on SDA while SCL remains high creates a STOP condition. These two transitions frame every transaction and define bus ownership. This rule is not just formal protocol syntax. It is the basis for bus determinism. If layout noise, excessive ringing, or weak rise time causes unintended SDA movement while SCL is high, the EEPROM may decode false START or STOP conditions, which usually appears at system level as intermittent write failures or address loss rather than as a clean communication fault.

Each 8-bit transfer is followed by a ninth clock used for acknowledge. During this cycle, the receiver pulls SDA low to confirm valid reception. For the master, this ACK phase is the first line of runtime observability. It confirms that the target address was accepted and that the internal state machine is still aligned with the transaction. For EEPROM access, this matters more than in many other I2C-compatible peripherals because the device includes an internal nonvolatile write cycle that temporarily blocks new write acceptance. After a page or byte write command, the device will not immediately respond as normal while it completes the internal programming operation. Acknowledge polling is therefore the preferred firmware method to detect write completion. Instead of waiting for a conservative fixed delay, the controller repeatedly issues the device address until ACK returns. This shortens average write latency and improves responsiveness, especially in systems where EEPROM updates are sporadic but timing-sensitive.

The electrical behavior of SDA is open-drain, which allows multiple devices to share the same physical line through wire-AND signaling. No device actively drives the line high. The line returns high only through external pull-up resistors. This detail has several design consequences. First, pull-up values cannot be chosen casually. If the resistors are too large, rising edges become slow, reducing timing margin and making the bus more vulnerable to capacitive loading. If they are too small, sink current rises, increasing power consumption and stressing low-voltage devices during active low periods. For a 1.8 V bus, this tradeoff becomes tighter because noise margin is already smaller than on 3.3 V or 5 V systems. A practical design approach is to choose pull-ups from the rise-time budget backward, using total bus capacitance, target speed, and sink capability as primary constraints rather than relying on generic default values.

Bus capacitance deserves explicit attention because it is often the hidden reason a design works on a bench but fails after enclosure integration or cable extension. Every device pin, trace segment, connector, and test point adds capacitance. Since the bus rises through passive pull-up action, larger capacitance directly slows the edge. In lightly loaded prototypes, the EEPROM may appear fully stable. After adding production harnesses, nearby power stages, or long sensor stubs, the same bus can drift into marginal timing. The resulting failures are often temperature-dependent and difficult to reproduce. This is why bus validation should include oscilloscope measurement of SDA and SCL rise times under final loading, not only logical verification with a protocol analyzer.

The AT24C164-10SU-1.8 also benefits from Schmitt-trigger and filtered inputs. These input features are more important than they first appear. Schmitt-trigger action adds hysteresis, reducing susceptibility to slow or noisy edges around the switching threshold. Input filtering suppresses short disturbances that would otherwise be decoded as clock or data activity. On mixed-signal boards, motor-control platforms, and industrial sensor nodes, these features materially improve communication robustness. Even so, they should be treated as a secondary defense, not as permission for weak signal integrity. If the bus repeatedly depends on internal filtering to survive, the design is already too close to the edge.

From a bus-behavior perspective, the EEPROM should be viewed as a timing-sensitive state machine attached to a shared RC network. That viewpoint helps connect protocol rules to implementation choices. A START condition is not just a software event. It is a controlled edge sequence that must remain distinct in the presence of finite rise time and coupled noise. An ACK bit is not just a logic response. It is a contention-free low level produced by open-drain arbitration on a line that may be carrying multiple loads. Once the interface is understood this way, several practical design habits become almost mandatory: keep SDA and SCL short and clean, avoid routing them parallel to fast switching power nodes, place pull-ups where the bus is electrically coherent, and verify that write-cycle polling is built into firmware instead of assuming fixed timing.

In application scenarios, this interface method fits well where small amounts of nonvolatile data must survive power loss without consuming excessive MCU resources. Typical use includes configuration storage, calibration constants, field update counters, serial identifiers, and fault history records. In such use cases, bus-level behavior matters most during edge conditions: brownout recovery, shared-bus startup, hot-plug variants, or noise bursts during actuator switching. One recurring pattern is that EEPROM communication issues rarely come from nominal reads. They emerge during writes, because writes combine protocol correctness, address alignment, ACK management, supply stability, and internal programming time into one path. Designs that treat read success as proof of bus health usually miss this distinction.

A useful engineering practice is to separate validation into three layers. First confirm protocol correctness: START, address phase, data phase, ACK, and STOP. Then confirm electrical margin: rise time, low-level sink strength, overshoot, undershoot, and noise coupling. Finally confirm system behavior: repeated writes, power interruption during write cycles, and bus recovery after abnormal resets. This layered method exposes problems early and makes failures easier to localize. It also reflects the real nature of the AT24C164-10SU-1.8 interface: simple at the pin level, but dependent on disciplined interaction between firmware timing, shared-bus physics, and nonvolatile memory write behavior.

AT24C164-10SU-1.8 addressing, cascading, and system expansion capability

The AT24C164-10SU-1.8 provides more than simple nonvolatile storage. Its addressing model and cascade support make it a practical building block for scalable I2C memory topologies, especially where board area, bus count, and firmware simplicity must be balanced against future expansion. The three hardware address pins, A0, A1, and A2, are central to that flexibility. Each pin can be tied to VDD or VSS, or driven dynamically if the system architecture requires programmable device selection. Together they define up to eight unique device addresses on the same 2-wire bus, allowing multiple EEPROMs to coexist without bus duplication.

At the electrical and protocol level, this matters because I2C is inherently a shared medium. Every device sees the same SCL and SDA activity, so conflict avoidance depends on unique addressing. The AT24C164 uses the state of A0-A2 to differentiate one device from another, which means capacity can be increased linearly by adding parts instead of redesigning the control interface. In practice, that is often the lowest-risk scaling path. The MCU keeps one bus instance, the PCB keeps one routed serial channel, and expansion is handled through address planning rather than architectural change.

This cascade approach is especially effective in systems where memory growth is uncertain at initial design time. A board can be laid out with one EEPROM populated and footprints reserved for additional devices, all connected to the same SDA and SCL lines. The initial product variant may ship with only the base memory installed, while higher-tier versions populate more devices for added logging depth, configuration storage, or field-updatable parameter space. That approach reduces platform fragmentation and usually simplifies validation because the bus behavior remains fundamentally the same across variants.

A useful way to think about the eight-device limit is not only as a density multiplier, but as a method for functional partitioning. Separate EEPROM devices can isolate unrelated data classes at the hardware level. Factory calibration constants can reside in one device, user configuration in another, event history in a third, and service metadata in a fourth. This is often cleaner than placing everything into one larger flat address space. Partitioning reduces the risk of accidental overwrite across domains, makes firmware ownership boundaries clearer, and can simplify wear management when some data blocks are updated far more frequently than others. In deployed systems, this separation tends to pay off during diagnostics: if one category of data appears corrupted or stale, the fault domain is narrower and easier to analyze.

There is also a subtle reliability advantage in distributing writes across multiple EEPROMs. EEPROM endurance is finite, and real products rarely write all data with equal frequency. If settings are updated often but calibration values are effectively static, placing them in separate devices avoids concentrating all write stress into one memory array while preserving a simple bus structure. This is not a replacement for proper wear-leveling strategy where needed, but it is a useful architectural lever that is often overlooked during early design.

When A0, A1, and A2 are actively driven instead of statically strapped, the designer gains additional control but also takes on timing and signal-integrity responsibility. The address pins must be stable before the device address byte is issued on the bus. If these lines transition near transaction start, intermittent addressing faults can appear that are difficult to reproduce, especially under temperature or voltage variation. In most designs, fixed pull-up or pull-down strapping is the cleaner solution unless runtime address remapping is genuinely required. Dynamic control is best reserved for constrained systems where pin multiplexing, manufacturing test modes, or selective device enable behavior justifies the extra complexity.

From a firmware perspective, cascaded AT24C164 devices are straightforward if the software treats each EEPROM as an explicitly addressed storage target rather than trying to abstract the entire population too early into one monolithic block. A flat virtual address map can be built on top, but keeping the physical device boundary visible inside the storage driver usually makes page writes, polling, fault handling, and recovery logic more deterministic. This becomes important when the application performs background logging or transactional updates. If a write cycle is interrupted, knowing which physical device was targeted can simplify rollback, retry, and integrity verification.

System expansion on a common 2-wire bus does, however, introduce familiar I2C loading tradeoffs. Each added EEPROM increases bus capacitance and adds another set of pins tied to SDA and SCL. At low bus speeds and short trace lengths this is usually manageable, but larger backplanes, cable-connected modules, or heavily populated sensor buses can push the bus closer to its rise-time limits. In those cases, the EEPROM’s cascade capability should be evaluated together with pull-up sizing, trace length, bus frequency, and worst-case loading. The address space may support eight devices cleanly, but the physical bus may not, at least not without stronger pull-ups, bus segmentation, or lower clock rates. This is one of those cases where logical expandability and electrical expandability are related but not identical.

The AT24C164-10SU-1.8 is also notable for its compatibility path with the AT24C16. Tying A2, A1, and A0 to VSS aligns the device behavior with legacy AT24C16-style address expectations. That detail is easy to dismiss as a footnote, but in maintenance programs and second-source redesigns it can remove a surprising amount of integration risk. Older firmware, production test tooling, or board-level assumptions may already be built around a fixed low-address device. Preserving that expectation avoids touching validated software unnecessarily, which is often more valuable than the component substitution itself. In mature products, backward-compatible address behavior can be the difference between a drop-in update and a full regression cycle.

In board bring-up, address pin handling is worth explicit verification rather than assumption. Mis-strapped A0-A2 pins tend to manifest as missing-device faults, mirrored responses, or writes apparently succeeding to the wrong storage region. These symptoms are sometimes misdiagnosed as bus timing problems or defective EEPROMs. A quick I2C scan and cross-check against the intended strap matrix usually exposes the issue early. It is also good practice to label device address assignments clearly in both the schematic and firmware configuration tables. Once multiple identical EEPROMs share a bus, disciplined address documentation becomes part of system reliability.

For expansion-oriented designs, a structured allocation scheme works better than ad hoc usage. Reserve one address for immutable manufacturing data, another for field configuration, another for rolling logs, and another for future features even if not populated initially. That kind of upfront address budgeting reduces later migration pain. It also creates a cleaner path for software updates because new data classes can be assigned to known hardware regions without disturbing validated storage already in the field. In systems expected to evolve over several hardware revisions, this foresight usually matters more than the raw memory size of any single device.

The broader engineering value of the AT24C164-10SU-1.8 lies in how its simple hardware addressing enables modular memory architecture. It lets capacity scale, keeps the serial interface compact, and supports clean separation of persistent data domains. Used carefully, the device is not just an EEPROM on an I2C bus, but a low-complexity mechanism for shaping nonvolatile storage into something more maintainable, more diagnosable, and easier to evolve across product generations.

AT24C164-10SU-1.8 write operation mechanisms and data protection features

The AT24C164-10SU-1.8 write path is simple at the interface level, but its internal behavior has several design implications that matter in robust embedded systems. The device does not complete a nonvolatile write at the instant the last data byte is transferred over I2C. A valid STOP condition only marks the end of the command phase. After that point, the EEPROM enters an internal self-timed clear/write cycle, with a maximum write cycle time of 10 ms. During this interval, the array is busy committing charge into nonvolatile cells, and the device cannot be treated as immediately available for another write operation.

This distinction between bus-level completion and memory-level completion is critical. From firmware’s perspective, the write transaction appears finished when STOP is issued, but from the EEPROM’s perspective, the actual state transition is still in progress. Designs that ignore this gap often show intermittent failures: back-to-back writes are dropped, initialization sequences become timing-sensitive, or configuration values appear to revert after reset. The safer pattern is not to delay with a fixed worst-case timeout unless simplicity is more important than responsiveness. Acknowledge polling is typically the cleaner method. After STOP, the controller repeatedly addresses the device until it responds with ACK, which indicates that the internal write cycle has completed and the memory is ready for the next command. This reduces unnecessary idle time and tracks real device behavior rather than a pessimistic timer.

At a lower level, this self-timed operation exists because EEPROM programming is an analog process wrapped in a digital protocol. Internal charge pumps, erase/program timing, and cell verification all require bounded but nonzero time. That is why the 10 ms figure should be read as an upper bound, not a normal operating constant. In practice, many writes finish sooner, but firmware should never be architected around typical timing when data integrity is involved. A system that works only when the EEPROM is fast is already fragile.

Partial page writes are another feature that looks straightforward but deserves careful handling. The device allows writing fewer than the full page size, which is valuable when only selected bytes inside a parameter block need updating. This aligns well with common embedded data models where calibration constants, counters, flags, or thresholds change independently rather than as a full record. Used correctly, partial page writes can simplify update logic and reduce bus traffic. They also help avoid unnecessary rewriting of adjacent bytes that are logically unchanged.

However, partial page writes do not eliminate the need to think in page terms. EEPROMs still program data through page-oriented internal mechanisms, and write behavior near page boundaries remains a common source of defects. If firmware streams data past the end of a page without constraining the transfer correctly, address wrapping within the current page can overwrite earlier bytes unexpectedly. This is one of those issues that often escapes early validation because short lab tests use aligned addresses and small payloads, while field data eventually exercises the edge case. The reliable approach is to make page geometry explicit in the driver: calculate remaining space in the current page, split writes deterministically, and never let higher software layers assume that arbitrary-length writes are inherently safe.

Endurance management becomes more important precisely because partial writes are so convenient. It is easy to treat EEPROM like RAM with persistence, especially for status flags or frequently updated counters. That pattern usually works at first and then quietly consumes write budget over product lifetime. A better design separates high-churn data from true configuration state. If a value changes often, consider caching it in volatile memory and committing only on controlled events, applying threshold-based updates, or rotating storage locations when the application permits it. Even where endurance numbers seem generous on paper, repeated writes concentrated on a few bytes can dominate lifetime faster than expected. The practical lesson is that write minimization should be built into the data model, not added later as a patch.

The WP pin provides a simple but effective hardware barrier against unintended modification. When WP is low, normal writes are enabled. When WP is high, write operations are inhibited. This mechanism is especially valuable because it acts below the firmware layer. If the system experiences a software defect, a malformed command sequence, or spurious bus activity, hardware write protection can still prevent corruption of critical contents. In systems with safety, metering, identity, or factory calibration data, that distinction matters. A software lock can fail in the same fault domain as the software that is issuing the write. WP gives the design a separate control plane.

The most effective use of WP depends on how the stored data is classified. For read-mostly data such as serial numbers, board trim values, production calibration, or deployment credentials, tying WP permanently to VCC is often the cleanest option. It removes an entire class of accidental overwrite scenarios and simplifies qualification because the protected region becomes physically immutable in normal operation. For systems that need occasional field updates, routing WP through a controller GPIO, service header, secure strap, or maintenance state machine offers more flexibility. In those cases, the update flow should not simply toggle WP and write immediately. It is better to treat write-enable as a tightly bounded maintenance window: assert WP inactive only after validating update intent, perform the minimum required transactions, verify the written data, and return WP to the protected state without delay. That sequence limits exposure if power quality is poor or the bus is shared with other devices.

There is also a subtle architectural point here: WP is most useful when combined with data segmentation. If all EEPROM contents have the same protection requirement, the pin helps, but its value increases when software distinguishes immutable data, rarely changed settings, and runtime-managed state. That separation encourages cleaner storage maps and more predictable update policies. In practice, memory maps that evolve without such discipline tend to accumulate mixed-purpose data in adjacent locations, making protection strategy harder and increasing the odds of broad corruption from a single faulty write path.

The device’s reset recovery method addresses another class of problems that appear outside normal protocol timing: interrupted transactions, power collapse during bus activity, controller reset while the EEPROM remains powered, or line disturbances that leave the bus in a stuck state. The recovery sequence is to issue up to nine clock pulses, observe SDA for release high while SCL is high, and then create a START condition. This method is grounded in how I2C slaves track bit-level state. If a device is left waiting for additional clock edges because a byte transfer was truncated, extra clocks can advance its internal shift logic until it reaches a release point. Once SDA is high during SCL high, the bus is effectively idle again and a new START can reestablish framing.

This recovery behavior becomes especially relevant in systems exposed to brownouts, hot insertion, aggressive watchdog policies, or multi-rail sequencing. A controller may restart much faster than peripheral power decays, creating a situation where the master believes it is at transaction start while the EEPROM is still mid-byte from its earlier perspective. Without explicit bus recovery, startup code can fail nondeterministically, and the failures often look like random communication loss rather than a repeatable protocol issue. Integrating bus-clear logic early in the I2C stack usually pays for itself quickly, particularly when the same bus also serves sensors or mixed-vendor peripherals with different reset behavior.

A practical implementation detail is that recovery should be treated as part of bus initialization and fault handling, not as an exceptional afterthought buried deep in application logic. If the driver detects SDA held low when the bus should be idle, perform the recovery clocks, generate a clean START or STOP as required by the controller architecture, and then reattempt communication in a bounded manner. If recovery fails, escalate explicitly rather than looping indefinitely. Systems become much easier to debug when the EEPROM driver can distinguish between write busy, address NACK during acknowledge polling, and bus-stuck conditions caused by incomplete prior transfers.

Putting these mechanisms together reveals a broader engineering pattern. Reliable EEPROM use is less about issuing correct commands once and more about controlling state transitions across three layers: protocol state on the I2C bus, internal programming state inside the EEPROM, and system power/reset state around both of them. Problems usually arise at the boundaries between those layers. A write completes on the bus but not yet in the array. A page update is logically partial but physically constrained by page organization. A reset clears the controller but not the peripheral’s bit parser. A software permission model allows writes, but only hardware protection can defend against certain fault classes. Designs that explicitly model these boundaries tend to be stable in production.

A robust driver for the AT24C164-10SU-1.8 therefore usually includes four disciplined behaviors: page-aware write splitting, acknowledge polling after every write, controlled use of the WP pin aligned with data criticality, and deterministic I2C bus recovery during startup and fault cases. On top of that, data structures should be chosen to reduce write frequency and support verification where corruption cost is high. Simple additions such as version fields, checksums, dual-copy parameter blocks, or write-complete markers can significantly improve recoverability when power fails during an update. The device itself provides the fundamental mechanisms, but system reliability comes from how deliberately those mechanisms are composed.

AT24C164-10SU-1.8 electrical characteristics and operating conditions

The AT24C164-10SU-1.8 is a 16-Kbit serial EEPROM positioned for mixed-voltage embedded systems that need nonvolatile storage with very low idle power. Its operating window of 1.8 V to 5.5 V is one of its most practical electrical traits. It allows the same device family to fit directly into legacy 5 V platforms, 3.3 V control boards, and newer 1.8 V power domains without introducing level-translation complexity in many standard I²C topologies. That voltage span is not just a catalog convenience. It directly affects timing margin, pull-up design, standby loss, write energy, and interface robustness.

The 1.8 V suffix matters because low-voltage EEPROM variants are often where system-level tradeoffs become visible. At 1.8 V, logic thresholds tighten, noise margin becomes more sensitive to layout and bus capacitance, and the impact of weak pull-ups becomes easier to see on rising edges. In that context, the device’s ability to retain full functional compatibility down to 1.8 V makes it suitable for sensor nodes, low-duty-cycle controllers, and retention storage in systems where the main processor frequently sleeps and wakes.

Standby current is the first parameter that usually determines whether an EEPROM is acceptable in an energy-constrained design. For this device, standby current at 1.8 V is specified at 0.6 µA typical and 3.0 µA maximum when inputs are tied to VCC or VSS. At 2.5 V, the figure increases to 1.4 µA typical and 4.0 µA maximum. At 2.7 V, it is 1.6 µA typical and 4.0 µA maximum. At 5.0 V, it rises to 8.0 µA typical and 18.0 µA maximum. The trend is expected: leakage-related current generally increases with supply voltage, and EEPROM bias circuitry is no exception. In practice, this means the same memory device can look almost negligible in a 1.8 V design yet become a nontrivial contributor in a long-life primary-cell product if the rail is held near 5 V continuously.

That distinction often affects architecture decisions more than the raw numbers suggest. In ultra-low-duty systems, standby current dominates total energy use because write and read events are infrequent. A design that wakes once per minute to log a few bytes may spend more than 99% of its lifetime in an idle state. Under those conditions, choosing the 1.8 V operating class and keeping the memory rail aligned with the lowest stable system voltage can yield more practical battery-life improvement than optimizing active bus speed. This is a recurring pattern in persistent-storage design: average current is usually governed by the quiet state, not the transaction state.

Active current defines a different part of the power budget. At VCC = 5.0 V, read current at 100 kHz is specified at 0.4 mA typical and 1.0 mA maximum. Write current at 100 kHz is 2.0 mA typical and 3.0 mA maximum. These values are modest, but they should not be treated as background load. EEPROM writes are internally more expensive than reads because the device must generate the programming conditions required to alter floating-gate charge. The external bus transaction is only part of the event. The internal write cycle continues after the host has delivered the data, and during that interval the device remains in a higher-current operating mode until programming completes.

This has two practical consequences. First, local decoupling near the device should not be minimized simply because the average current looks small. A nearby capacitor helps contain rail disturbance during write initiation, especially on thin power traces or shared rails with analog circuitry. Second, firmware should avoid clustering unnecessary write bursts when the power source has high impedance, such as a coin cell, energy-harvesting rail, or a regulator operating close to dropout. Brownout-related corruption is less often caused by average load than by poor margin during write activity.

Input and output leakage currents are also important, particularly on shared buses that must remain valid during deep-sleep states. Input leakage is specified at 0.10 µA typical and 3.0 µA maximum. Output leakage is 0.05 µA typical and 3.0 µA maximum. These values are low enough to support standard pull-up resistor networks without materially shifting logic levels in most designs, but they still belong in worst-case calculations when the bus is driven by weak pull-ups for power reduction. On a lightly loaded I²C bus, it is easy to assume that leakage is irrelevant. In reality, leakage from several devices, combined with PCB contamination, ESD structures, and long trace parasitics, can meaningfully change idle bus voltage and rise time.

The output low-voltage specification gives more direct insight into bus-drive capability. At VCC = 3.0 V, VOL is specified as 0.4 V maximum with 2.1 mA sink current. At VCC = 1.8 V, VOL is 0.2 V maximum with 0.15 mA sink current. This is where interface theory meets board-level implementation. On an open-drain bus, the EEPROM does not drive high; it only pulls low against the pull-up network. A valid low level therefore depends on the relation between sink capability and pull-up current. If the pull-ups are too strong, the device may still work under nominal conditions but lose margin across temperature, process spread, or low-voltage corners. If they are too weak, rise times degrade and clock stretching, ACK timing, or signal recognition can become unreliable on a larger bus.

A practical way to interpret these numbers is to treat pull-up selection as a three-way constraint problem involving sink current, bus capacitance, and target clock rate. Stronger pull-ups improve edge speed but increase low-level current. Weaker pull-ups reduce static sink demand but slow rising edges and shrink timing margin. For designs operating near 1.8 V, the balance is usually less forgiving than at 3.3 V or 5 V because the available logic swing is smaller and rail noise consumes a larger fraction of it. In compact layouts with short traces, moderate pull-ups often provide the best compromise. In larger assemblies with cable runs or multiple devices, the bus should be evaluated with actual capacitance rather than nominal resistor formulas alone.

The broad supply range also affects system partitioning. Because the device supports both low-voltage and higher-voltage environments, it can sit either on the main logic rail or on a retention rail that remains powered while other domains shut down. That is valuable in systems that preserve configuration, calibration constants, event counters, or fault history during aggressive power gating. In those applications, the EEPROM becomes part of the always-on infrastructure, and the standby current numbers become more important than the active current values. A common design error is to focus on write-current peaks while overlooking that the memory may remain biased for months or years.

Another useful perspective is that EEPROM electrical characteristics should be interpreted probabilistically rather than only nominally. Typical values are useful for estimating average performance, but design closure should be based on maximum specifications and worst-case combinations. For the AT24C164-10SU-1.8, that means using maximum standby current in battery-life guarantees, maximum active current in regulator margin checks, and guaranteed VOL behavior when sizing pull-ups. This approach tends to prevent subtle field issues that do not appear during bench validation, especially when prototypes are tested at room temperature with short interconnects and clean supplies.

In deployment, the most stable implementations usually share several traits: the EEPROM is placed close to the controller or bus backbone, the decoupling capacitor is physically adjacent to the VCC pin, pull-up resistors are selected from measured bus rise times rather than copied from a generic reference design, and firmware avoids unnecessary write cycles. These are simple choices, but they extract the full value of the device’s electrical envelope. The AT24C164-10SU-1.8 is electrically straightforward, yet it rewards disciplined integration. Its specifications show a device optimized not for headline speed, but for compatibility, low idle burden, and predictable behavior across a wide range of supply conditions.

AT24C164-10SU-1.8 timing performance and design implications

AT24C164-10SU-1.8 timing performance directly constrains how the device can be integrated into an I2C-compatible serial bus, especially when the design spans multiple supply domains or operates near timing limits. The key point is simple: this EEPROM does not offer a single timing envelope across all operating voltages. Its usable bus speed is voltage-dependent, and that dependency must be treated as a first-order design parameter rather than a datasheet footnote.

At higher supply voltage, the device supports faster bus operation. At 5.0 V, the AC characteristics allow operation up to 400 kHz. At reduced supply levels such as 2.7 V, 2.5 V, and 1.8 V, the maximum supported clock frequency drops to 100 kHz. That shift reflects the internal analog behavior of the part. Lower voltage reduces switching headroom inside the input filters, edge-detection circuits, output drivers, and timing generators. The result is a longer time budget for valid signal recognition and output response. In practice, the EEPROM is not merely “slower” at low voltage; its entire timing window expands, and the bus master must respect that larger window on every transaction.

This has immediate system-level implications. If a platform runs a shared bus at 400 kHz, but the EEPROM can be powered at 1.8 V under some operating modes, the interface may become noncompliant even if communication appears functional during bench bring-up. Marginal operation often survives in short traces, room temperature, and low bus loading, then fails after layout scaling, temperature spread, or production variation. A robust design should therefore align bus frequency with the slowest valid timing domain present on that bus. If that is not acceptable, the architecture usually needs adjustment through bus segmentation, voltage-domain isolation, dynamic frequency switching, or selection of a memory variant with timing support at the intended rail.

The most important timing parameters define the minimum pulse widths and spacing that the device needs to decode bus activity correctly. For lower-voltage operation, the clock low period is specified at 4.7 µs minimum and the clock high period at 4.0 µs minimum. At 5 V, those values tighten to 1.2 µs and 0.6 µs. These numbers effectively describe the minimum SCL pulse geometry the device can tolerate. If the controller generates a faster waveform, the EEPROM may not reliably sample address bits, data bits, or bus conditions such as ACK cycles. This is why nominal bus frequency alone is not enough. Two controllers can both claim 100 kHz or 400 kHz operation yet produce different duty cycles, edge rates, and timing skews. Compliance must be checked against the actual low and high durations seen at the EEPROM pins, not just against a configuration register in the host.

START and STOP timing requirements matter for the same reason. The EEPROM must distinguish valid bus framing from noise, clock stretching side effects, and edge distortion caused by capacitance or pull-up selection. Setup and hold times for data relative to SCL define when SDA must be stable so the internal input path can latch each bit without ambiguity. These parameters tend to look small in isolation, but in a loaded bus they interact with rise time, propagation delay, and controller output skew. A design with weak pull-ups may still meet average frequency requirements while violating setup margin at the pin because SDA and SCL do not cross valid logic thresholds at the expected moments.

Rise and fall time constraints are especially relevant in real hardware. On paper, an EEPROM on a short bus can appear comfortably inside the timing budget. On an assembled board with several peripherals, long routing stubs, level translators, and conservative pull-ups for power savings, the effective edge shape can degrade enough to consume most of the available margin. This is more noticeable at 400 kHz, but it also matters at 100 kHz when the supply is low, because the input threshold crossing becomes more sensitive to slower transitions and waveform asymmetry. In many designs, timing failures attributed to “EEPROM instability” are actually bus edge-shape problems. The device is simply exposing a marginal interconnect.

The clock-low-to-data-out valid time is one of the more practical parameters when evaluating read-cycle robustness. At lower voltage, this value can be as high as 4.5 µs, while at 5 V it reduces to 0.9 µs. This means that after SCL goes low, the EEPROM may take significantly longer to present valid output data in low-voltage operation. In a lightly loaded bus running at 100 kHz, this is usually acceptable. In a bus with heavy capacitance, a controller that samples aggressively, or additional delay through translation devices, the margin can narrow quickly. The safe approach is to treat this number as part of the end-to-end read timing path: EEPROM output delay, bus RC rise behavior, any translator propagation, and controller input sampling phase all stack together.

The bus-free time between transactions also deserves more attention than it often receives. The specified minimum is 4.7 µs at lower voltage and 1.2 µs at 5 V. This interval is the quiet period needed before the next START condition. In firmware, it is easy to assume that once a STOP is issued, the next command can begin immediately if the controller allows it. That assumption can push the EEPROM into marginal recognition, especially when software performs rapid repeated access in initialization loops or production test flows. In practice, controllers with hardware-managed timing usually handle this correctly, but bit-banged implementations and some high-level driver stacks can violate bus-free timing unless the delay is inserted deliberately.

There is also a broader design lesson here: the EEPROM timing table should be read as a system contract, not as a list of isolated device properties. For example, if the bus is shared with sensors that support Fast-mode at 400 kHz across the full rail range, it may seem natural to configure the whole bus for 400 kHz. But if the AT24C164-10SU-1.8 sits on that same net and can operate from 1.8 V, then the bus capability is effectively reduced to the slowest attached target under the worst allowed operating condition. Ignoring that asymmetry creates hidden coupling between power-state management and communication reliability. That coupling becomes particularly visible in low-power products where rails are sequenced, scaled, or duty-cycled.

A practical integration method is to evaluate the device in three layers. First, confirm static compatibility: logic levels, pull-up rail, and supply range. Second, verify dynamic compatibility: SCL low/high time, setup and hold margins, rise/fall time, and bus-free interval at the actual pin. Third, validate operating corners: minimum supply, maximum temperature, worst-case loading, and firmware transaction patterns. This layered review is more effective than checking only the maximum frequency number, because most field issues arise from cumulative timing erosion rather than a single gross violation.

In board-level implementations, pull-up resistor choice often decides whether the interface has comfortable margin or lives near failure. Stronger pull-ups improve rise time and help recover timing margin on capacitive buses, but they increase sink current and can stress low-voltage devices or exceed power targets. Weaker pull-ups reduce current but can stretch edges enough to violate timing at the EEPROM even when the controller still reports normal operation. A useful pattern is to estimate total bus capacitance early, then choose pull-ups from timing rather than from convention. Values copied from older designs often work only because those earlier buses had different trace lengths, fewer targets, or a higher supply rail.

Firmware strategy can also compensate for limited timing headroom. If the EEPROM is on a shared bus that otherwise benefits from higher speed, dynamic clock reduction around EEPROM transactions is often cleaner than accepting global slowdown. That approach only works if the controller truly re-times the bus and all software layers understand the transition. Another reliable method is bus partitioning, where slower nonvolatile memory is placed behind a separate controller instance or switch path. This adds hardware cost, but it removes a class of intermittent failures that is expensive to debug later.

One subtle but important point is that successful write and read operations during basic validation do not prove timing compliance. EEPROMs are often forgiving enough to pass functional tests in nominal conditions while remaining out of spec. The real indicator is measured waveform margin at the device pins under worst-case voltage and loading. Capturing SCL and SDA with sufficient bandwidth, then checking actual low/high widths, rise time, and acknowledge timing, usually reveals whether the design is robust or simply fortunate. Designs that rely on fortune tend to fail after revisions add one more peripheral, one more cable, or one more power mode.

For the AT24C164-10SU-1.8, the most defensible engineering position is to anchor bus timing to the supply-dependent limits, then build explicit margin on top of them. At 1.8 V operation, assume a 100 kHz-class bus and verify all low-voltage AC parameters at the pin level. At 5 V, 400 kHz is available, but it should still be justified against real bus capacitance and controller timing behavior. This part integrates cleanly when its voltage-dependent timing model is treated as a structural constraint early in the design. It becomes problematic mainly when the bus is defined first and the EEPROM is asked to adapt afterward.

AT24C164-10SU-1.8 package, pin functions, and hardware integration points

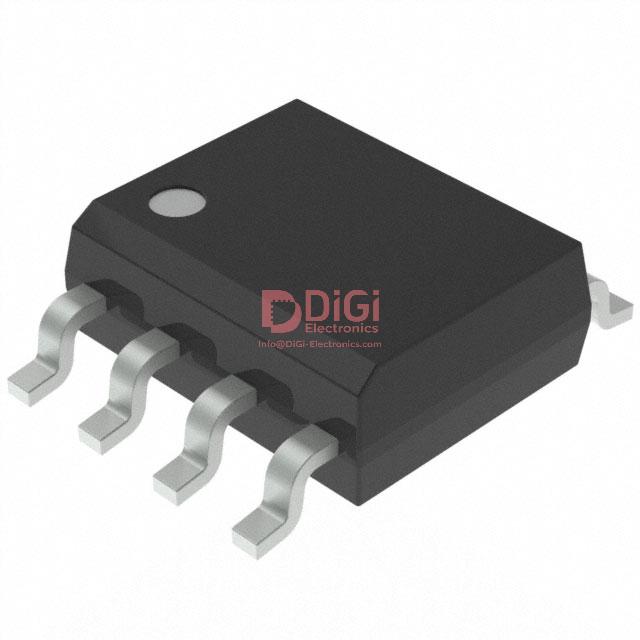

The AT24C164-10SU-1.8 is a 16 Kbit I2C serial EEPROM offered in 8-lead PDIP and 8-lead JEDEC SOIC packages. In the specific -10SU-1.8 variant, the device is implemented in an 8-lead SOIC, which makes it well suited to compact embedded boards where routing density, automated assembly, and visual inspection all matter. From a hardware integration perspective, the package is simple, but the design decisions around pin usage, bus loading, and protection strategy have a direct effect on system robustness and long-term compatibility.

At the pin level, the device follows the expected structure of a small serial EEPROM. A0, A1, and A2 are hardware address inputs. They define how the device participates in shared-bus addressing and therefore determine whether multiple EEPROMs can coexist on the same I2C segment without address collisions. SDA is the bidirectional serial data line, and SCL is the serial clock input. WP is the write-protect control input, used to block write operations when required by the application. VCC and GND provide power and the reference return path.

Although the pin list looks basic, each signal has a specific integration role that should be treated deliberately rather than left to default assumptions. That is especially true for A0 through A2 and WP. These pins are often viewed as low-priority strapping signals, but in practice they influence board variants, production test behavior, firmware portability, and field reliability.

The three address pins, A0, A1, and A2, are the first place where hardware and software assumptions meet. In the simplest design, they are tied directly to VCC or GND to assign a fixed device address. This works well for single-device systems and keeps firmware deterministic. In multi-device systems, these pins allow several EEPROMs to share the same I2C bus, each with a unique address selection. The important detail is not only the immediate address assignment, but also the future serviceability of the design. If a board may later need a density upgrade, a second EEPROM option, or assembly substitutions across product revisions, the chosen strapping pattern should be documented as part of the platform architecture rather than treated as a local schematic detail. Many board rework issues originate from address straps that seemed harmless during first spin but later constrained firmware reuse or manufacturing flexibility.

SDA and SCL form the electrical core of the interface. Since I2C uses open-drain signaling, both lines require pull-up resistors to the bus supply rail. The AT24C164-10SU-1.8 does not remove the need for careful pull-up selection simply because it is a low-pin-count memory device. Pull-up values must be selected against total bus capacitance, target clock speed, and the sink capability of all devices on the bus. If the pull-ups are too weak, edges become slow and timing margins collapse, especially at higher bus speeds or under heavy loading. If they are too strong, low-level current increases unnecessarily and can stress weaker bus participants or reduce noise margin in marginal layouts. In practice, stable EEPROM communication failures on otherwise working I2C buses are often traced not to protocol errors but to edge-shape problems caused by pull-up choices that were copied from a reference design without recalculation.

The documented pin capacitance is relevant here. SDA has a maximum pin capacitance of 8 pF, while A0, A1, A2, and SCL are specified at 6 pF maximum under the stated test conditions. In a small system with one controller and one EEPROM, these values are rarely limiting. On a larger bus with sensors, GPIO expanders, level translators, connectors, and long traces, they become part of the aggregate capacitance budget. The EEPROM may not dominate that total, but it still contributes to rise-time degradation. A sound engineering approach is to budget bus capacitance early, not after signal integrity issues appear during validation. Once connector parasitics, cable stubs, and multiple package loads accumulate, a bus that looked acceptable in schematic review can become marginal on the bench. This is one reason compact EEPROMs deserve the same interface discipline as more complex I2C peripherals.

WP, the write-protect input, deserves more attention than it usually receives. Functionally, it provides a hardware-level method to prevent accidental or unauthorized writes. In systems that store calibration data, product identity, serial numbers, boot parameters, or event history, this pin can be used to separate factory programming mode from field-protected mode. The design choice is not just whether WP is tied high or low, but whether the application benefits from dynamic control. If firmware must occasionally update data, WP can be driven by a controller GPIO, but that choice introduces a control dependency that should be reviewed for startup states, fault handling, and unintended writes during resets. If data integrity is more important than update flexibility, tying WP to a fixed protective state is often the cleaner solution. A recurring integration lesson is that writable nonvolatile memory tends to be modified eventually by paths that were never intended, especially during error recovery, manufacturing scripts, or software migration. A hardwired protection strategy can prevent subtle field failures that are otherwise difficult to reproduce.

Power integration is straightforward but should not be treated casually. VCC must remain within the operating range implied by the 1.8 V suffix, and local decoupling should be placed close to the package. Even though EEPROM current is modest, local bypassing improves immunity to transient supply disturbances and supports clean internal write cycles. On dense boards, placing the decoupling capacitor near the SOIC and keeping the return path short is usually enough. If the device shares a rail with noisy digital loads or switching domains, attention should be given to local rail quality during write operations, because nonvolatile memory writes are more sensitive to supply integrity than simple read transactions. In practical layouts, the EEPROM often works reliably in read-only test scenarios but exhibits intermittent write anomalies when placed near aggressively switching loads with weak local decoupling.

The SOIC package itself offers a useful balance between size and manufacturability. It is compact enough for space-conscious layouts while still forgiving in assembly and inspection compared with finer-pitch alternatives. For many designs, this improves second-source handling at the PCB level because land patterns are standardized and accessible. That said, package compatibility alone does not guarantee drop-in replacement. Pin behavior must also match at the electrical and protocol level. Address pin interpretation, write-protect behavior, timing limits, and operating voltage range all influence whether a replacement is truly transparent. This is where schematic compatibility and firmware compatibility diverge. A part can fit the footprint and still break assumptions built into bus enumeration or memory map handling.

For PCB integration, routing is usually uncomplicated, but a few layout priorities improve margin. Keep SDA and SCL short and free from unnecessary stubs, especially if the bus fans out to multiple devices. Avoid routing these lines through noisy regions when practical. If the design uses configurable address straps, place the strap resistors or tie options close enough to keep the logic level unambiguous and easy to inspect. If WP is controlled dynamically, treat it as a real digital control net rather than an afterthought; a floating or weakly driven WP pin can create inconsistent behavior that looks like software malfunction. Good practice is to ensure every static logic pin has a defined default state across power-up, reset, and programming conditions.

From a system architecture standpoint, the AT24C164-10SU-1.8 is most effective when treated not as a generic memory chip but as a persistent state element in the product. That framing changes several design choices. Address selection becomes part of platform scaling. WP becomes part of the data integrity model. Pull-up sizing becomes part of bus timing closure. Package choice becomes part of assembly strategy and service continuity. Small serial EEPROMs often appear late in the design process because they seem easy to add, but they reward being planned early. The cost of doing so is negligible compared with the debugging time spent on address conflicts, unstable I2C edges, or protected data unexpectedly becoming writable.

In application terms, the device fits well in configuration storage, calibration retention, board identity tagging, and low-volume parameter logging where simple byte-level nonvolatile memory is sufficient. In these roles, the hardware integration points are not complicated, but they are tightly coupled to how the product behaves over time. The most reliable implementations are usually the ones that assign fixed addresses deliberately, keep the bus electrically conservative, define WP behavior with intent, and verify capacitance and pull-up choices against the complete bus rather than against the EEPROM in isolation. That approach turns a basic 8-pin memory into a predictable and maintainable subsystem component rather than just another peripheral on the schematic.

AT24C164-10SU-1.8 reliability characteristics and suitability for industrial use

The AT24C164-10SU-1.8 is well aligned with embedded designs that prioritize nonvolatile data integrity over long service intervals. Its reliability profile is built around two parameters that matter at system level: 1 million write cycles and 100-year data retention. These values are not just component-level marketing metrics. They define how aggressively firmware can update state, how often calibration data may be refreshed, and how confidently a design can preserve field history across years of power cycling, storage, and intermittent maintenance.

Serial EEPROM remains relevant because it solves a specific engineering problem cleanly. It offers byte-addressable nonvolatile storage with predictable behavior, low interface complexity, and far better rewrite tolerance than many alternative memories used for code or bulk data. In systems where a few kilobytes of persistent information determine startup behavior, safety margins, maintenance intervals, or traceability, this combination is difficult to replace. The AT24C164-10SU-1.8 fits that role well, especially when the stored content changes often enough to challenge Flash endurance but not enough to justify more complex memory management schemes.

The endurance specification of 1 million write cycles should be interpreted at memory-location level, not as a blanket license for unrestricted rewriting. EEPROM wear is cumulative and local. A configuration byte rewritten on every control loop iteration will age very differently from a serial-number field programmed once at manufacturing. This distinction directly affects memory-map design. The most durable systems separate static identity data, infrequently updated configuration data, and high-churn operational counters into different regions. That approach avoids concentrating wear in a narrow set of addresses and makes lifetime calculations more realistic.

In practice, endurance becomes a firmware architecture issue before it becomes a component limitation. A common pattern is to defer writes until a parameter set becomes stable rather than committing every intermediate adjustment. Another effective method is transactional batching, where several related variables are written together after validation. This reduces bus traffic, lowers total write count, and prevents partially updated state after brownout or reset events. Rotating record slots for counters, event logs, or service timestamps also extends usable life substantially with very little memory overhead. On small EEPROMs, even a simple ring structure can multiply effective lifetime when compared with repeatedly overwriting a single address block.

The 100-year retention figure is equally important, but it should be read in the right context. Retention reflects the ability of the programmed charge state to remain distinguishable over time, and it is influenced by prior cycling history and storage temperature. In real deployments, retention and endurance are coupled rather than fully independent. Heavily cycled cells generally provide less margin than cells programmed only a few times. For long-life industrial assets, this means the most critical persistent values should not only be protected from corruption but also shielded from unnecessary rewrite activity. Designs that periodically rewrite unchanged data “just to be safe” often reduce actual lifetime margin instead of improving it.

From a system reliability perspective, the strongest use of this EEPROM is not raw storage but controlled persistence. Configuration constants, calibration coefficients, operating mode selections, field-installed option flags, maintenance counters, and last-known-safe settings are all strong candidates. These data types tend to be small, operationally valuable, and expensive to reconstruct if lost. They also benefit from EEPROM’s deterministic access model. Recovery logic can remain simple: read known addresses, verify integrity, and restore operation without requiring block-erase management, complex flash translation layers, or external power-loss handling circuitry beyond basic supervision.

Temperature capability is another reason the device is suitable for industrial use. The specified ambient operating range of -40°C to +85°C covers a broad set of factory, utility, building automation, and outdoor enclosure applications. This range is especially relevant because nonvolatile memory stress rarely occurs in isolation. Elevated temperature accelerates charge leakage mechanisms, while low temperature can coincide with startup-voltage irregularities and slower peripheral stabilization. A memory device qualified across this span reduces uncertainty when the surrounding design must operate through cold starts, enclosure heat soak, or seasonal cycling. In many industrial assemblies, memory failure is not caused by nominal operation but by repeated exposure to marginal power and thermal transitions. A device intended for this range provides a more credible margin in such conditions.

The broader family context also matters. Availability of automotive-grade, extended-temperature, lead-free, and halogen-free variants indicates a platform designed with qualification continuity in mind. That is often more valuable than it first appears. Once a design is validated for EMC, environmental testing, and long-term supply, migrating within the same EEPROM family is far less disruptive than redesigning around a different memory architecture. For industrial programs with long maintenance tails, component family stability can be part of reliability, even though it is not usually listed in the endurance table.

A practical design lesson is that EEPROM reliability depends heavily on what surrounds it. The I2C bus should be kept clean, pull-up values should match bus capacitance and speed, and supply ramp behavior should be understood. Write operations interrupted by voltage collapse are a classic source of latent field issues. It is good practice to block EEPROM writes when supply voltage falls below a validated threshold and to store data with integrity markers such as version bytes, sequence counters, and CRC checks. Dual-copy schemes are often justified for critical settings: one active record and one previous valid record. This adds a small storage cost but greatly improves recovery after interrupted writes or unexpected resets.

Another point that deserves more emphasis is that industrial suitability is not determined by temperature range alone. What makes the AT24C164-10SU-1.8 suitable is the combination of moderate density, strong rewrite endurance, long retention, low-voltage operation, and a simple serial interface that can be implemented robustly on a wide range of controllers. In embedded control systems, simplicity frequently improves reliability more than raw specification increases do. A memory device that is easy to power correctly, address correctly, and protect with straightforward firmware logic often outperforms theoretically more capable alternatives in actual deployments.

For applications such as industrial controllers, smart instrumentation, metering nodes, serviceable electronics, and distributed sensor modules, this EEPROM is a strong fit when persistent data volume is modest and update behavior is well managed. It is particularly effective where parameters must survive repeated service changes, calibration refreshes, and long idle periods without data loss. When paired with disciplined write policies, integrity checking, and power-fail-aware firmware, the AT24C164-10SU-1.8 offers a reliability profile that is fully credible for industrial embedded systems and, in many cases, better aligned with real operational needs than denser but less rewrite-tolerant memory options.

Potential equivalent/replacement models for AT24C164-10SU-1.8

Potential replacement evaluation for AT24C164-10SU-1.8 should start from function preservation, not just part-number similarity. Since the device is obsolete, the real task is to identify a substitute that minimizes electrical risk, firmware change, and requalification effort at the same time. For this specific EEPROM class, the relevant baseline is clear: 16-Kbit nonvolatile storage, 2-wire serial interface, operation down to 1.8 V, 8-pin package availability, comparable temperature capability, and equivalent write-protect behavior.

The strongest replacement path indicated by the available information is within the same family, specifically toward AT24C16-class devices. The documented note that AT24C164-10SU-1.8 can be made compatible with AT24C16 by tying A2, A1, and A0 to VSS is important because it reveals more than a naming relationship. It suggests that the original device sits close to the AT24C16 architecture from an interface perspective, and that at least some system-level compatibility was intentionally designed into the product family. That said, this should be treated as a migration clue, not as proof of drop-in interchangeability. In EEPROM replacements, family resemblance often hides subtle differences in slave addressing, internal block selection, page boundaries, and supported bus speed under low-voltage conditions.

A sound replacement review should therefore be layered from physical compatibility upward. The first layer is package and pinout. An 8-pin package match is necessary but not sufficient. The exact package code, land pattern, pin assignment, and orientation must all align. Even within nominally identical SOIC or TSSOP families, suffix differences can imply assembly, moisture sensitivity, lead finish, or temperature-grade variations that affect manufacturing and qualification. The write-protect pin deserves special attention here. If the existing design actively drives WP, the replacement must match both logic behavior and timing expectations. If WP is hard-strapped, verify that the replacement does not reinterpret the pin or apply different internal pull characteristics.

The second layer is electrical operating envelope. The original part targets low-voltage operation down to 1.8 V, which is often the first point where otherwise similar EEPROMs diverge. Many candidates support 1.8 V nominally but reduce maximum clock rate, increase write-cycle time, or tighten rise-time requirements at the low end of the supply range. In practice, this matters most in systems where the EEPROM shares the bus with faster peripherals and the controller does not dynamically derate I2C speed during brownout or low-power operation. A replacement that is functionally correct at 3.3 V can still fail margin analysis if the system is expected to read configuration data reliably during a cold start near the minimum supply threshold.

The third layer is protocol behavior. Density matching alone does not guarantee software compatibility. In this memory range, vendor implementations may differ in how address bits are mapped between the slave address field and the internal word address. That mapping determines whether the controller can access the entire array using the same transaction sequence as before. The note about tying A2, A1, and A0 to VSS is a strong indication that hardware address inputs interact with compatibility mode, so any replacement review should explicitly compare device addressing format, block selection method, and bus transaction framing. This is one of the most common causes of “works in bench test, fails in field image migration” issues, especially when old firmware contains hard-coded device addresses rather than abstracted EEPROM drivers.

Page structure is the next critical layer. EEPROM write behavior is rarely visible during light validation because single-byte writes almost always pass. Problems appear when production firmware performs page writes, stores parameter sets, or logs calibration records in bursts. A replacement with a different page size, page wrap behavior, or write-cycle acknowledgment profile can corrupt data without generating a bus fault. In legacy designs, page boundaries are often embedded implicitly in application code rather than documented at the driver level. For that reason, page size and write-cycle polling should be treated as firmware compatibility items, not just memory-array characteristics.

Write endurance and retention should also be reviewed, even if the replacement meets nominal density and interface requirements. On paper, most serial EEPROMs in this category look interchangeable. In deployed systems, actual usage patterns are often highly localized: the same few bytes may store counters, fault history, or last-known state and may therefore see far more write stress than the rest of the array. If the obsolete part is being replaced in a design with periodic updates, endurance margin can become more important than bus compatibility. A candidate that meets electrical requirements but offers weaker practical endurance in the active address range can shorten service life in subtle ways that are difficult to catch during qualification.

Temperature range and lifecycle status form the next filter. A technically suitable substitute is still a poor choice if it is already near end-of-life or limited to a commercial temperature grade while the original deployment spans industrial conditions. Obsolescence replacement should solve the supply problem for the next product cycle, not recreate it in a shorter horizon. This is where engineering and sourcing objectives need to align. The best replacement is usually not the closest available part today, but the one that combines acceptable compatibility with stable long-term manufacturing support.

From an application standpoint, replacement risk depends heavily on how the EEPROM is used. If the device stores static identification data written once at manufacturing, the substitution space is relatively broad. If it holds boot-time configuration, trim values, or region-specific calibration constants, compatibility requirements become stricter because any addressing or timing mismatch can prevent system initialization. The strictest case is when the EEPROM participates in in-system updates, field logging, or power-loss-sensitive writes. In those designs, write-cycle timing, ACK polling behavior, and bus recovery after interrupted writes matter as much as pin compatibility. It is often in these scenarios that seemingly minor differences between vendors become expensive.

A practical screening flow is therefore useful. Start by filtering for 16-Kbit 2-wire EEPROMs that explicitly support 1.8 V minimum operation in the required package and temperature grade. Then compare pinout and WP behavior. Next, verify bus speed across the full supply range, not just at typical voltage. After that, inspect the addressing model carefully and confirm whether the software sees the replacement as the same logical device. Then validate page-write behavior, write-cycle timing, and ACK polling with the actual firmware image or a bus-level emulator. Finally, review endurance, retention, qualification pedigree, and lifecycle status. This order is efficient because it eliminates false candidates early while reserving firmware and reliability effort for the small set of parts that are genuinely close.

The key point is that AT24C164-10SU-1.8 replacement should be evaluated as a system migration problem rather than a catalog substitution problem. The documented compatibility direction toward AT24C16-family devices is meaningful and should be the first place to look, but it should not bypass disciplined checks on addressing, page behavior, and low-voltage timing. In serial EEPROM replacements, most failures do not come from dramatic incompatibility. They come from small assumptions left untested. The safest substitute is the one that preserves not only the datasheet parameters, but also the transaction patterns and edge conditions already embedded in the design.

Conclusion

The AT24C164-10SU-1.8 is a 16 Kbit I2C-compatible serial EEPROM designed for systems that need small, reliable non-volatile storage with minimal interface cost. Its value is not defined by raw density, but by the balance it offers between electrical simplicity, stable data retention, low-voltage operation, and predictable integration behavior. In designs where only a few kilobytes are required for configuration parameters, board identity, calibration constants, event counters, or manufacturing data, this device fits naturally into the system architecture without introducing the software and hardware overhead associated with larger Flash or more complex non-volatile memory types.

At the device level, its 2048 × 8 memory organization is straightforward and practical. The array is large enough for structured parameter storage yet small enough to keep addressing, validation, and update logic simple. This matters in embedded products where firmware robustness is often more important than storage capacity. A compact EEPROM often encourages disciplined data modeling: fixed offsets, version headers, checksums, mirrored records, and bounded write regions are easier to implement and verify in a 2 KB space than in a larger memory map that invites unnecessary complexity. In many fielded systems, long-term stability comes less from memory size and more from how predictably the storage is used.

Its operating voltage range, extending from 1.8 V to 5.5 V, is one of its strongest practical advantages. This range allows the same part family behavior to span legacy 5 V controllers, mixed-voltage boards, and modern low-power 1.8 V or 3.3 V logic domains. That flexibility reduces redesign friction, especially in products that evolve over multiple hardware revisions. In practice, wide supply tolerance also simplifies qualification across variants of a platform. When a memory device can remain unchanged while the processor or power tree shifts, it removes one source of compatibility risk. This is often more valuable than it appears in the schematic, because non-volatile memory tends to sit on critical boot or configuration paths where even minor electrical mismatches can create hard-to-diagnose startup faults.

From a bus integration perspective, the AT24C164-10SU-1.8 benefits from the maturity of the I2C ecosystem. The interface uses only two active signal lines, supports straightforward multi-device attachment, and is already well supported by most microcontrollers, test tools, and production fixtures. That lowers total system effort across design, firmware, validation, and manufacturing. The benefit is not only lower pin count. It is also the deterministic nature of access patterns. EEPROM transactions are short, bounded, and easy to observe on a logic analyzer. For debugging and bring-up, this transparency is highly useful. When a board fails to boot because of corrupted configuration data or bus contention, a simple I2C memory device is usually easier to isolate than a denser serial Flash device with deeper command state and more complex timing behavior.

The hardware write-protect capability adds another layer of system-level value. In non-volatile storage, accidental writes are often more damaging than read failures. A single unintended update to calibration or identity data can turn a functioning board into a difficult service case. Hardware write protection gives the design a physical control point that firmware alone cannot fully guarantee. This is especially relevant in products with bootloaders, in-circuit programming, field updates, or noisy power-down conditions. In well-structured designs, write-protect is not treated as an optional pin but as part of the data integrity strategy. It can be tied to operating mode, manufacturing state, or service access state so that writes are only permitted during tightly controlled windows.

The cascading capability is another useful feature, though its value depends on the design objective. If the product roadmap may require more non-volatile storage while preserving the same bus and software model, the ability to place multiple devices on the same I2C bus gives moderate scaling without architectural change. This is not the same as true memory expansion in a high-throughput storage system. It is a controlled way to preserve a known-good design pattern. In practice, cascading works best when each device is assigned a clear role, such as separating factory-programmed identity data from field-modifiable configuration data. That partitioning improves serviceability and reduces the chance that one software defect corrupts all persistent information.

Retention characteristics and EEPROM endurance remain central to its selection value. A device like this is best applied where data changes infrequently but must survive long power-off intervals and environmental variation. It is well suited to storing “state with meaning” rather than “state with traffic.” Configuration words, trim constants, serial numbers, usage history snapshots, and maintenance flags are all examples of data classes that align with EEPROM physics. By contrast, frequent logging or high-rate counters can exhaust write endurance quickly if the firmware is careless. This distinction is critical in selection. EEPROM is highly reliable when used in the regime it was built for, and surprisingly fragile when forced into pseudo-RAM or data-logger duty. Strong design practice therefore starts with matching the write profile to the memory technology, not just matching the bit count.

The industrial temperature support strengthens its role in embedded control, instrumentation, and distributed electronics deployed outside benign office conditions. Temperature range is not only a procurement line item. It affects retention margin, write timing stability, and confidence during field aging. In systems exposed to cold starts, enclosure heating cycles, or power fluctuations under load, conservative non-volatile memory selection often pays back through reduced service uncertainty. It is common for small EEPROMs to become the silent anchor of system identity and recoverability; when they fail, replacement becomes disproportionately expensive because the lost data is often unique to the unit.

Low standby current also contributes meaningful system value, especially in battery-powered or intermittently powered designs. In always-connected systems the EEPROM may seem electrically insignificant, but in ultra-low-power nodes every leakage path matters. A memory device that consumes very little current while preserving critical data helps maintain long shelf life and better dormant-state behavior. This is particularly important when the stored information is needed before the rest of the system can fully initialize, such as boot configuration, radio calibration, or secure provisioning identifiers.

Despite these technical strengths, the selection decision cannot be separated from lifecycle status. The AT24C164-10SU-1.8 remains attractive in legacy designs because behavior continuity has real engineering value. When a part has years of validation history, known bus timing, established programming flow, and stable field performance, replacing it is not a trivial line-item optimization. The replacement effort often expands into requalification, firmware regression, production test updates, second-source review, and documentation changes. In tightly controlled products, especially industrial or long-lived embedded systems, preserving a qualified memory component may be more economical in the short term than migrating to a newer device.

However, obsolete status changes the decision framework. Once a component leaves active lifecycle support, technical suitability is no longer sufficient. Supply continuity, lot traceability, counterfeit exposure, and long-term maintenance risk become first-order factors. For procurement and design teams, this means the part should only be selected intentionally, with a defined sourcing strategy and a clear exit path. If the device is being retained, it should typically be because the existing platform still depends on its exact operating behavior or because the cost of immediate redesign exceeds the near-term sourcing risk. If it is being considered for a new design, that choice is difficult to justify unless there is a highly specific compatibility requirement.

A practical evaluation should therefore move through four layers. First, verify functional fit: 2 KB capacity, byte-oriented storage, page write behavior, endurance, and retention must match the actual data model. Second, confirm electrical and timing compatibility: supply range, bus speed, pull-up sizing, write-cycle timing, and power-up sequencing must align with the host platform. Third, assess protection and reliability strategy: write-protect usage, checksum or CRC coverage, wear management, and recovery behavior after interrupted writes should be explicitly designed. Fourth, evaluate lifecycle viability: availability, approved vendors, stocking plan, and migration candidate must be known before the design is frozen.

Experience with small serial EEPROMs repeatedly shows that integration problems rarely come from basic read operations. They usually appear at the edges: brownout during write, software assumptions about immediate write completion, page boundary mistakes, address mapping errors, and insufficient handling of bus recovery after interrupted transactions. These are not exotic failure modes. They are routine issues that surface when the memory is treated as “simple” and therefore not architected carefully. A disciplined implementation uses delayed commit or shadow buffering for critical data, validates content on every boot, and separates immutable data from writable operational parameters. With that approach, a device like the AT24C164-10SU-1.8 can perform with very high reliability over long deployment periods.

There is also a broader design insight here: the real value of this EEPROM is not that it stores 16 Kbits, but that it enables controlled persistence with low integration entropy. In many embedded systems, the best component is not the one with the highest specification headline, but the one that introduces the fewest hidden failure paths while remaining easy to qualify, debug, and support. That is where this device has historically been strong. Its architecture is modest, but it is technically coherent.

For ongoing products already built around the AT24C164-10SU-1.8, it still holds value as a known and proven element, provided sourcing risk is actively managed. For new programs, its obsolete status shifts the recommendation toward current alternatives unless exact backward compatibility is essential. The correct selection judgment comes from viewing the part not only as a memory IC, but as a persistent-state component whose electrical behavior, write model, protection strategy, and lifecycle position all directly shape product reliability.
