AT17F16-30CU product overview and AT17F16 series positioning

The AT17F16-30CU sits in a class of components that are easy to underestimate if viewed only as “nonvolatile storage.” In practice, it is a purpose-built FPGA configuration source engineered for deterministic startup behavior, pin-efficient system integration, and low-overhead configuration management. Within the AT17F family, this device represents the higher-density end of the series, intended for designs where configuration bitstreams have outgrown smaller serial PROM options but where a parallel memory solution would add unnecessary routing, pin count, and board complexity.

At the device level, the AT17F16-30CU stores 16,777,216 bits in a 1-bit-wide serial architecture. That organization is not a limitation in the intended use case; it is the design center. FPGA configuration is inherently sequential in many legacy SRAM-based architectures, so a serial stream maps directly onto the configuration engine inside the FPGA. This allows the PROM, the FPGA, and the board-level reset logic to form a tightly coupled startup chain with minimal glue logic. In well-structured systems, that simplicity translates into fewer timing corner cases during power-up, fewer opportunities for bus contention, and a cleaner path to reconfiguration.

Its positioning within the AT17F series is best understood through that specialization. The family is not trying to compete with generic SPI flash as a universal memory element. It is optimized around the electrical and sequencing requirements of FPGA configuration pins. That distinction matters. A generic serial memory often requires a host controller, a custom bootloader path, or FPGA-side logic capable of speaking a memory protocol before the FPGA is even configured. The AT17F16-30CU avoids that dependency loop. The FPGA can directly control the configuration flow using a dedicated, expected signaling model, which reduces bring-up friction and shortens the chain between power becoming valid and the device reaching a known configured state.

The 3.3 V operating focus is another central part of its system-level value. The AT17F16-30CU is designed for 3.3 V output environments while maintaining 5 V tolerant inputs, which is particularly useful in mixed-voltage designs common in transitional FPGA generations. Many legacy backplanes, supervisory circuits, and peripheral interfaces still expose 5 V signaling domains even when the configuration logic and core digital plane have moved to 3.3 V. In that context, this PROM helps absorb some of the integration mismatch without forcing immediate level translation on every control path. That does not eliminate the need for disciplined signal integrity review, but it reduces the number of external components and simplifies schematic partitioning.

The real engineering advantage of a dedicated configuration PROM becomes more visible when startup behavior is examined as a sequence rather than as a static feature list. During power ramp, the FPGA remains unconfigured and therefore unavailable to solve its own boot problem. The configuration PROM must already be electrically stable, respond predictably to the FPGA’s control pins, and deliver a clean serial bitstream at the required rate. Devices like the AT17F16-30CU are valuable because they are designed around that exact dependency chain. Their utility is less about raw memory capacity than about correct behavior in the first milliseconds of system life. In fielded equipment, many “mysterious intermittent faults” trace back not to logic design but to marginal startup ordering, reset timing, or voltage-domain interaction. Using a dedicated configurator narrows that risk surface.

The density of the AT17F16-30CU makes it suitable for larger bitstreams associated with more capable SRAM-based FPGAs, especially where feature creep has expanded design images over multiple product revisions. That extra headroom often matters more than expected. Configuration files tend to grow gradually as interfaces are added, timing closure introduces placement constraints, or debug instrumentation is retained for service builds. Choosing a configuration device too close to the immediate image size can create an avoidable redesign path later. In practice, reserving capacity margin in the configurator is often one of the lowest-cost ways to preserve lifecycle flexibility in FPGA-based products.

Its broad compatibility with platforms such as Atmel AT40K and AT94K, Altera FLEX and APEX, Lucent ORCA, Xilinx XC3000/XC4000/XC5200/Spartan/Virtex, and Motorola MPA1000 reflects the era and intent of the series. This is not broad compatibility in the modern software abstraction sense; it is compatibility at the electrical interface and configuration-method level. That makes the AT17F16-30CU particularly relevant in legacy maintenance, long-life industrial equipment, telecom infrastructure, defense sustainment programs, and embedded platforms where replacing the FPGA family is far more disruptive than replacing surrounding support devices. In these contexts, a stable, known-good configurator can be more valuable than adopting a newer memory technology that would require behavioral validation across the entire startup chain.

There is also a subtle architectural benefit in using a dedicated configuration PROM when reliability and validation scope matter. A general-purpose flash device may appear more flexible, but flexibility often shifts complexity upward into firmware, CPLD glue logic, or FPGA-side boot state machines. Every added layer broadens the verification burden. The AT17F16-30CU keeps the configuration path narrow and explicit. That usually makes manufacturing test simpler, boot-failure analysis faster, and requalification easier when the system must remain frozen around a validated hardware baseline. In regulated or long-support products, reduced behavioral ambiguity is often more important than adding optional features that are unlikely to be used.

From a board design perspective, the compact serial interface helps control routing overhead and package-level integration cost. Compared with wider configuration buses, a serial configurator consumes fewer FPGA pins and eases PCB escape, which is especially useful in dense boards where the FPGA already carries pressure from user I/O, clocks, and memory interfaces. Lower pin demand also has a second-order benefit: it can preserve package options for the FPGA itself, sometimes allowing the use of a smaller or more available variant. That kind of system optimization rarely appears in a one-line component description, but it is often where BOM and layout decisions converge.

In deployment, the most effective use of the AT17F16-30CU comes from treating it as part of a configuration subsystem rather than as an isolated memory IC. Power sequencing, FPGA mode pin strapping, reset supervision, configuration clock quality, and PCB noise environment all affect observed behavior. Designs that work on the bench but fail sporadically in production often reveal weak pull-up sizing, marginal reset release timing, or excessive supply dip during simultaneous startup events. A configuration PROM with the right nominal specifications does not compensate for poor sequencing discipline, but a dedicated device like this tends to be more forgiving because its intended interaction model is constrained and well characterized.

For engineers selecting within the AT17F family, the series positioning is therefore clear. Smaller members serve modest configuration images and cost-sensitive designs. The AT17F16-30CU addresses larger bitstreams, mixed-voltage compatibility concerns, and FPGA platforms where a direct, controller-free configuration path is preferred. It is the right fit when the design goal is not merely to store bits, but to deliver those bits to an SRAM FPGA with minimal system overhead, predictable startup behavior, and strong compatibility with established device families. In legacy and long-lifecycle systems especially, that focus remains highly practical: when the configuration path is simple, deterministic, and electrically aligned with the FPGA, the entire platform becomes easier to validate, easier to sustain, and less likely to fail in the least convenient part of its operating life.

AT17F16-30CU core architecture and how the AT17F16 supports FPGA configuration

The AT17F16-30CU is best understood as a dedicated nonvolatile bitstream source rather than a general-purpose serial flash. Its architecture is intentionally narrow: store FPGA configuration data in on-chip Flash, expose that data through a clocked serial path, and let the FPGA control when bits appear and when addressing resets. That design choice removes protocol overhead during configuration and shifts timing ownership to the FPGA, which is exactly where determinism matters most.

At the core of the device is a Flash memory array paired with serial output logic, address sequencing logic, and a small control interface built around CLK, DATA, CE, and RESET/OE. The Flash array holds the preprogrammed configuration image. The address logic tracks the current bit position or byte position within that image, depending on the internal organization exposed through the serial output path. The serial download block converts stored memory contents into a continuous configuration stream. This stream is not packetized in the way common SPI memories are. There is no instruction decode stage in the normal configuration path, no runtime command framing, and no need for the FPGA to issue read opcodes before data becomes available. That simplification is the central architectural advantage.

The power-up behavior is equally deliberate. On startup, the AT17F16-30CU initializes its internal state by resetting the address counter to the beginning of the configuration image. This ensures that each configuration cycle starts from a known location without requiring external software intervention. In board-level designs, this matters because FPGA configuration happens during a period where system resources are not yet stable. Any dependency on a host processor, bus transaction, or software-controlled memory access would increase failure modes. The AT17F16 avoids that by making the start-of-bitstream condition a hardware default.

During configuration, the FPGA supplies the clock on CLK. This point is more important than it first appears. Because the FPGA owns the clock, it also owns the pacing of data extraction. That means the source of configuration data is effectively slaved to the sink consuming it. In practice, this reduces timing ambiguity and avoids the need for elastic buffering between the memory and the FPGA configuration input. Each clock edge advances the internal read path and presents the next configuration bit on DATA. The memory is therefore not acting as an active bus master. It is behaving as a synchronous serial shift source under FPGA control.

The CE and RESET/OE pins define the operational state machine in a compact but effective way. RESET/OE low forces two things at once: the internal address counter returns to its initial state, and the DATA output is placed in high impedance. This dual action is useful because it guarantees that a restart of configuration does not leave stale output activity on a shared or sensitive line. Once RESET/OE returns high, the device becomes eligible to drive data again, but only if CE is also low. With RESET/OE high and CE low, the output driver is enabled and incoming clocks can advance the address counter. If CE goes high, the device disables counter activity and tri-states the output. Operationally, CE acts as a gate for participation, while RESET/OE acts as both a restart control and output-enable qualifier.

This pin-level behavior maps cleanly onto FPGA master serial configuration because the FPGA typically needs only three things from a configuration memory: a known starting point, one-bit-at-a-time data delivery, and a way to stop or restart the stream cleanly. The AT17F16-30CU provides all three in hardware. The absence of command sequencing is not merely a convenience feature. It directly improves robustness in early boot conditions, where margins are narrow and state recovery must be simple. A configuration device that behaves like a deterministic serial ROM is often more reliable in this role than a richer memory interface that requires transaction setup.

From an architectural perspective, the internal address counter is the quiet workhorse. It replaces what would otherwise be an external state machine or protocol engine. Every valid clock edge in the active state advances the read position through the stored bitstream. This creates a very predictable transfer model: reset to zero, enable output, clock data out, stop when configuration completes. In actual designs, this predictability helps when diagnosing startup issues. If configuration fails, the debug space is smaller. The likely causes are usually reduced to clock integrity, control pin sequencing, bitstream validity, power stability, or signal connection between DATA and the FPGA input. That is a significantly cleaner problem set than debugging a full serial memory transaction layer.

Another useful characteristic is the high-impedance behavior when the device is not actively participating. Tri-stating DATA when CE is high or RESET/OE is low prevents bus contention and allows cleaner integration in systems where configuration lines may be shared, probed, or conditionally isolated. In mixed-configuration boards, this matters more than datasheets often suggest. Startup contention on a single configuration net can produce intermittent failures that look like random FPGA bring-up problems but are actually output-enable timing conflicts. A device with explicit and simple output gating reduces that risk.

The architecture also reflects an important engineering tradeoff: it optimizes the configuration path for certainty, not flexibility. A generic SPI Flash can store more kinds of data and support in-system access after boot, but it requires a more capable FPGA configuration controller or an embedded boot sequence. The AT17F16-30CU instead minimizes moving parts in the critical boot chain. For systems where the primary requirement is consistent FPGA initialization, this is often the better design choice. Reducing protocol complexity in the first milliseconds after power-up usually pays back in lower validation effort and fewer field anomalies.

In application terms, the device fits naturally into master serial FPGA schemes where the FPGA initiates configuration immediately after reset, drives the configuration clock, and consumes a single serial data stream. The memory behaves almost like a hardware extension of the FPGA’s configuration engine. That tight coupling is why the interface feels so direct. The FPGA does not negotiate with the memory. It simply clocks configuration bits out of it.

A practical point worth noting is that clean reset behavior is essential when validating startup sequencing. If RESET/OE is not held in the intended state during supply ramp or if CE is allowed to float, the resulting symptoms can be misleading. Configuration may appear to fail only on cold starts, only at certain ramp rates, or only after brownout events. In many boards, the issue is not corruption of the bitstream but ambiguous control-pin timing that causes the address counter or output enable path to enter the wrong state momentarily. Designs that give RESET/OE and CE defined pull states and keep the clock quiet until supplies settle usually behave far more consistently.

Signal integrity on CLK also deserves more attention than the interface simplicity might imply. Since the address counter advances directly from the clock input, extra edges, ringing, or marginal thresholds can shift the output stream by one or more bits. Unlike higher-level buses, there is no framing layer here to recover alignment. One unintended clock edge can invalidate the rest of the configuration sequence. That makes short routing, controlled edge quality, and a stable reference plane more valuable than the low pin count may suggest.

The deeper lesson in the AT17F16-30CU architecture is that successful FPGA configuration hardware is often defined less by memory density and more by state discipline. This device works well because its internal behavior is constrained, observable, and aligned with the FPGA’s configuration model. It starts from address zero, outputs data only when explicitly enabled, and advances only when clocked by the consumer. Those are modest features individually, but together they create a configuration path with very little ambiguity. For boot infrastructure, that is usually the most valuable property.

AT17F16-30CU key electrical and functional features relevant to design selection

AT17F16-30CU is best evaluated not as a generic serial ROM, but as a dedicated FPGA configuration component whose value depends on how cleanly it closes the gap between nonvolatile storage, power-up behavior, and in-system update strategy. For design selection, the important features are not only the listed specifications, but how those specifications interact under real startup, programming, and maintenance conditions.

At the storage level, the device provides 16 Mbits of nonvolatile flash memory arranged for serial configuration bitstream delivery. This capacity is large enough for substantial FPGA images and can, depending on bitstream size and system architecture, support more than one selectable image in a single device. That matters in designs requiring fallback configuration, product variants, or staged feature enablement without changing hardware. In practice, this can simplify BOM control and reduce manufacturing branching, especially when one PCB must support multiple firmware personalities. The useful question is not only whether 16 Mbits is sufficient, but how much margin remains after accounting for bitstream growth across FPGA tool revisions. That margin is often underestimated during early selection.

Its 3.3 V operating range is another strong fit point. VCC is specified at 3.3 V ±10%, or 2.97 V to 3.6 V, which aligns well with mainstream 3.3 V digital rails and many FPGA configuration domains. This simplifies integration in systems already centered around 3.3 V logic and avoids the level-shifting overhead that lower-voltage-only memories can introduce. From a board-level perspective, this also reduces startup ambiguity because the configuration source and the receiving FPGA can often share similar supply sequencing assumptions. In mixed-voltage systems, however, the nominal compatibility can hide edge cases. If the FPGA bank used for configuration is not truly 3.3 V tolerant or if power rails ramp at different rates, the interface still needs a disciplined review of thresholds, pull-ups, and power sequencing behavior.

Serial download performance up to 33 MHz directly influences configuration time, which is one of the most operationally visible parameters in FPGA-based equipment. A high maximum clock rate reduces the interval between power being applied and the FPGA reaching a usable state. This becomes important in systems with watchdog-controlled restarts, tight boot-time requirements, or power-cycled field equipment. The practical impact is best understood in system terms: configuration latency is not determined by memory clock capability alone, but by the full chain including FPGA acceptance rate, reset timing, oscillator stability, and any image-selection overhead. A common design mistake is to read the 33 MHz figure as guaranteed system boot speed. It is better treated as the memory-side ceiling, with actual startup budget validated at board level across voltage and temperature corners.

The device is fabricated on a low-power CMOS flash process and includes a low-power standby mode. That combination is useful in products where configuration data must remain immediately available while average system energy consumption stays controlled. Industrial controllers, communication modules, and intermittently active instruments often fit this pattern. The advantage is not only lower static dissipation, but also architectural predictability: a dedicated configuration memory can remain passive most of the time yet still provide deterministic behavior at every cold start. In power-sensitive designs, this is often more robust than relying on a larger shared nonvolatile memory that serves multiple software layers and may complicate ownership, access timing, or boot arbitration.

Endurance is specified at 10,000 write cycles typical, which is adequate for many production and maintenance models but should not be treated as effectively unlimited. During development, repeated image iteration can consume write budget faster than expected, particularly when one device is reused across debug cycles, automated validation, and field-update testing. In deployed systems, endurance becomes relevant if configuration images are refreshed as part of routine service, adaptive feature rollout, or recovery workflows. A useful engineering approach is to separate “development rewrite frequency” from “lifetime field rewrite frequency” early in the program. Devices that appear comfortable on paper can become marginal if they are also used as a general-purpose update scratchpad rather than as a mostly static configuration store.

The support for in-system programmability over a 2-wire bus adds flexibility at both manufacturing and service stages. It enables the configuration memory to be loaded or updated after assembly without requiring physical replacement or dedicated high-pin-count access. This can streamline factory programming flow and support post-deployment updates where service access is limited. It also creates options for system controllers to manage image refresh operations directly. The design implication is that the memory is not isolated from the wider platform architecture; it can become part of the update framework. Once that happens, bus ownership, fault recovery, and protection against interrupted writes deserve explicit handling. The convenience of in-system programmability is highest when paired with a deliberate policy for image validation and rollback.

The AT24CXXX serial EEPROM emulation capability is also strategically relevant. It broadens compatibility with existing programming and access ecosystems, which can reduce software tooling effort and ease integration into established production environments. This is more valuable than it first appears. In many projects, schedule risk comes less from raw hardware compatibility and more from the friction of bringing up programmers, scripts, and manufacturing stations. A device that fits familiar EEPROM-like handling models can shorten that path. Broad support from the Atmel ATDH2200E programming system and third-party programmers further improves procurement and lifecycle resilience by reducing dependence on a single tool vendor or programming workflow.

From a selection standpoint, the strongest case for AT17F16-30CU appears in designs that need dedicated, nonvolatile FPGA configuration storage with solid 3.3 V compatibility, reasonably fast boot transfer, practical in-system update capability, and manageable power draw. It is especially well suited where configuration must remain simple, deterministic, and decoupled from larger system storage devices. That separation often pays off later in validation and service, because startup behavior stays easier to bound and failure analysis stays localized.

The more subtle selection criterion is system intent. If the platform expects frequent image changes, multiboot strategies, remote recovery logic, and long field life under active update management, then memory size and endurance should be reviewed with more caution than headline specs suggest. If the platform instead values stable configuration, straightforward manufacturing, and predictable startup behavior, this device fits naturally. In that sense, the AT17F16-30CU is less about maximum feature breadth and more about controlled behavior at a critical system boundary: getting the FPGA configured correctly, quickly, and repeatedly over the full product lifecycle.

AT17F16-30CU package options, pin structure, and signal roles

The AT17F16-30CU is best understood not only as a small serial configuration memory, but as a device whose package choice, pin multiplexing, and default pin behavior directly influence configuration robustness, programming flow, and board integration strategy. Its external interface looks simple, yet several pins serve dual roles depending on whether the device is configuring an FPGA or being programmed in-system. That duality is where most implementation mistakes occur, especially when a design is compact, shared across multiple product variants, or expected to support both manufacturing programming and field updates.

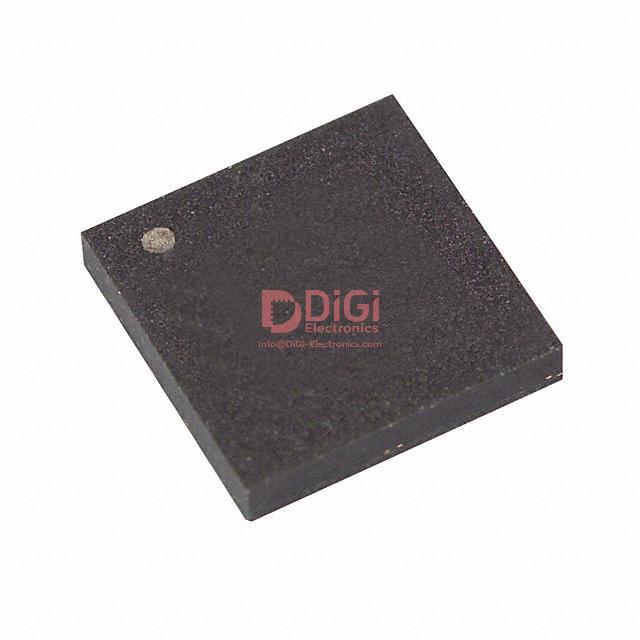

The AT17F16-30CU itself is offered in an 8-lead LAP package with dimensions of 6 mm × 6 mm × 1 mm. Across the AT17F16 family, additional package options include 20-lead PLCC and 44-lead TQFP variants. This package scaling is not only a mechanical matter. It determines which auxiliary control features are exposed. The 8-lead device focuses on the essential serial configuration path, while larger packages provide extra paging and readiness signals that support more advanced programming or density-management schemes. The 8-lead LAP version is pin-compatible with 8-lead SOIC and VSOIC-style footprints, which is useful when a design must balance small area, assembly flexibility, and second-source PCB land-pattern planning. In practice, this compatibility often reduces layout churn during late-stage packaging changes, but only if pad geometry, stencil design, and assembly tolerances are checked rather than assumed equivalent.

At the signal level, the basic interface consists of DATA, CLK, RESET/OE, CE, CEO/A2, SER_EN, VCC, and GND. In the larger package options, READY, PAGE_EN, and PAGESEL[1:0] extend that interface. The architecture follows a clear principle: a minimal pin set is used to support autonomous FPGA configuration, while certain pins are repurposed when the device enters programming mode. That reuse is efficient, but it means every system designer should think in terms of operating states, not just pin names. A pin label in isolation is less informative than its behavior across power-up, configuration, and programming.

DATA is the primary serial data path during FPGA configuration. In that mode it acts as a three-state output, delivering the stored bitstream to the target device. During programming, however, it becomes an open-collector bidirectional pin. This distinction matters electrically. A three-state output assumes controlled bus ownership, while an open-collector path assumes external pull-up behavior and permits shared line operation. If a design uses the same programming header across multiple boards or supports gang programming, the pull-up network on DATA should be sized with bus capacitance and edge-rate requirements in mind. Weak pull-ups may pass bench tests but fail margin tests when cable length, fixture parasitics, or low-voltage corners are introduced.

CLK drives internal address advancement and the bit counter during both readout and programming operations. It is more than a simple shift clock. It is the timing reference for the internal state progression of the memory. As a result, clock quality directly affects repeatability. Excessive ringing, double-clocking caused by poor signal integrity, or slow edges near threshold can lead to subtle misalignment rather than immediate hard failure. On dense boards, keeping CLK short, referencing it cleanly to ground, and avoiding aggressive coupling from switching power nodes usually improves first-pass configuration reliability more than adding software-side retries later.

RESET/OE is another pin whose meaning depends on mode. When driven high, it enables output behavior; when low, it resets the device. This combined reset and output-enable function is efficient for low-pin-count packaging, but it deserves careful power-sequencing analysis. If RESET/OE is allowed to float through an intermediate region during ramp-up, the configuration source may not present a deterministic output state when the FPGA expects it. Internal biasing helps, but relying solely on undocumented timing interactions between rail ramp and internal threshold circuits is rarely a strong design choice. A deliberate external bias or a supervisory relationship to the system reset network generally produces cleaner startup behavior.

CE is an active-low chip enable. In configuration mode, it controls both output activation and address advancement. This is a deceptively important behavior. CE does not merely select the part; it effectively gates progression through the stored bitstream. That makes it useful in controlled startup architectures, but also sensitive to unintended disturbances. Noise or transient assertions on CE can stall or corrupt the expected data flow. In systems where CE is shared with FPGA-driven handshaking or where long traces run near high-dI/dt nets, filtering through layout discipline is preferable to trying to “tolerate” marginal activation windows.

CEO is one of the most system-relevant signals when multiple configuration memories are cascaded. It indicates that the current device has reached the end of its stored data, allowing the next device in the chain to participate. This supports straightforward memory expansion without requiring a more complex external controller. In programming mode, the same pin is used as A2, a device-selection input. That multiplexing reflects a consistent design philosophy in the device family: pins are optimized for whichever function is dominant in the current mode. For board design, the implication is clear. If a design must support in-circuit programming and multi-device configuration, routing and pull-state planning for CEO/A2 should be done early. It is easy to create a board that configures properly in production but is awkward to address during programming, or the reverse. A practical approach is to review this pin in both schematics and fixture-interface documents at the same time, not as separate tasks.

SER_EN is the mode boundary signal. It must stay high during FPGA configuration and is driven low only when entering the 2-wire serial programming mode. This pin deserves more attention than its simple name suggests because it effectively selects the device’s operating domain. If SER_EN is left vulnerable to leakage, slow transitions, or accidental fixture contention, the part can enter the wrong interface state and appear nonresponsive. In compact systems, especially where programming connectors are removable or multiplexed with other debug functions, tying SER_EN with a strong enough default bias and ensuring clean override control usually prevents elusive manufacturing issues. A recurring pattern in bring-up work is that mode-select lines cause more wasted time than core data lines, because failures look like total communication loss rather than localized signal corruption.

In larger package variants, READY provides additional visibility into device state. It is an open-collector output indicating reset completion and is intended for external pull-up use, with 4.7 kΩ recommended when the signal is used. READY is helpful in systems that need explicit sequencing confirmation before beginning configuration or programming transactions. Since it is open-collector, rise time depends on the pull-up resistor and total line capacitance. If the signal is routed over a long trace or shared by multiple devices, a nominal 4.7 kΩ may still need reevaluation against timing requirements. Open-collector status signals often look functionally correct on a static logic probe while still violating setup assumptions in a tightly sequenced startup controller.

PAGE_EN and PAGESEL[1:0], available in larger packages, support page-related addressing control. These pins become relevant when managing segmented memory regions or application structures that need more than a linear, monolithic configuration image. Their presence signals a transition from simple one-image storage toward more structured configuration handling. Even when a design initially uses only one page, exposing these controls in a higher-pin-count package can preserve migration options for later revisions. That said, leaving page-related pins to internal defaults without verifying the intended page map can create silent misselection, particularly when firmware tools evolve or programming scripts are reused across product variants.

The internal pull-up resistors on several pins and internal pull-down resistors on page-related inputs are useful default mechanisms. They reduce the number of external passive components and help establish a known state when pins are left unconnected. However, internal bias networks should be treated as convenience features, not as the primary method for defining critical operating modes. Their resistance values are typically broad in tolerance and may be too weak against leakage, noise injection, fixture loading, or unusual power sequencing. A sound engineering rule is to use internal biasing for benign defaults and external biasing for any pin that determines mode entry, bus ownership, or startup sequencing. That distinction keeps the schematic lean without making behavior probabilistic.

From an application perspective, the 8-lead package is ideal when the design goal is compact FPGA configuration with minimal external logic. It works well in space-constrained embedded boards, low-profile modules, and designs where the FPGA bitstream is static and field programmability is secondary. The larger PLCC and TQFP variants become more attractive when the configuration subsystem must expose richer control, support paging, or integrate more transparently with manufacturing and debug infrastructure. In other words, package selection should follow system intent, not only board area constraints. A design that begins with the smallest package to save space can become more expensive overall if later requirements demand programming visibility or image-management features that the smaller pin count cannot expose.

Another useful way to evaluate the device is by separating its interfaces into three layers. The first layer is electrical behavior: output type, pull structure, thresholds, and timing sensitivity. The second is state behavior: configuration mode versus programming mode, and the pin-role changes between them. The third is system behavior: startup sequencing, cascaded memories, test access, and production programming flow. Most integration errors come from handling only one of these layers. For example, treating DATA as merely “the serial output” ignores its open-collector programming behavior. Treating CEO only as “end-of-data” overlooks its A2 addressing role during programming. Treating SER_EN as just another control input underestimates its role as a mode partition. Robust designs account for all three layers at once.

A subtle but important design insight is that low-pin-count configuration memories often appear simple precisely because the complexity has been compressed into multifunction pins. That compression reduces package size but increases the need for disciplined state-aware design. The AT17F16-30CU fits that pattern. The fastest path to a stable implementation is to define every relevant pin state for every operating phase: power-off, ramp-up, FPGA configuration, in-system programming, and idle service conditions. Once this matrix is explicit, choices about pull resistors, test headers, FPGA interconnect, and supervisory logic become straightforward. Without that matrix, small assumptions accumulate until startup becomes sensitive to board revision, fixture type, or supply behavior.

For board-level implementation, several practices consistently improve outcomes. Keep CLK and DATA routing short and quiet. Give RESET/OE, CE, and SER_EN explicit default states rather than relying on weak internals alone. If READY is used, verify its rise time under actual capacitive loading. If CEO is used for cascade control, confirm both end-of-data timing and programming-mode address behavior. If page controls exist in the selected package, tie them deliberately even when unused. These are not elaborate measures, but they turn the device from a nominal configuration source into a predictable subsystem.

Viewed as a whole, the AT17F16-30CU family offers a compact and effective nonvolatile configuration solution, with packaging options that scale from minimal implementation to more feature-exposed system integration. Its signal set is efficient, but that efficiency depends on understanding how each pin shifts role with context. When the package decision, pin-state definition, and startup sequence are treated as one engineering problem rather than separate checklist items, the device integrates cleanly and tends to remain trouble-free across prototype, production, and maintenance phases.

AT17F16-30CU operating logic in configuration mode

AT17F16-30CU configuration-mode logic is built around a very narrow purpose: deliver a deterministic serial bitstream to an FPGA with minimal protocol overhead. In normal configuration service, SER_EN is held high, which places the device in its serial configuration operating path. In this mode, the FPGA does not negotiate with the memory through an instruction set or runtime command layer. It simply drives a small set of control signals and receives a clocked data stream. That design choice is the key to understanding the device. The AT17F16-30CU behaves less like a general nonvolatile memory and more like a hardware configuration sequencer that has been reduced to the signals an FPGA actually needs during boot.

The control model is centered on RESET/OE, CE, CLK, DATA, and CEO. Each pin has a tightly scoped role, and the interaction between them defines the full configuration cycle. A low pulse on RESET/OE clears the internal address counter and bit counter. This forces the read pointer back to the first bit of the selected memory image. From a system perspective, this is not merely a reset of output state; it is a reset of stream position. That distinction matters because FPGA configuration is serial and strictly order-dependent. If the stream restarts from any position other than bit zero, the downstream device will interpret the frame incorrectly and configuration will fail in a way that may look random at first glance.

After the reset pulse is removed, the next state depends on CE. If CE remains high, the device stays deselected and DATA remains tri-stated. This is a quiet state, useful during power stabilization or when multiple configuration sources share routing resources. Once CE is driven low while RESET/OE is high, the output path becomes active. At that point, each valid clock pulse on CLK advances the internal counters and shifts the next configuration bit onto DATA. This behavior is fully synchronous from the perspective of stream progression: no clock, no movement through the bitstream. That simplicity is valuable in board-level timing analysis because it eliminates ambiguity about when the data pointer changes.

A practical way to view the internal logic is as two coupled machines. One machine tracks where the device is in the stored image through address and bit counters. The other machine governs whether the output buffer is allowed to drive the line. RESET/OE initializes the first machine and gates visibility of the second. CE selects whether the device participates at all. CLK advances the stream only when the device is both selected and enabled. This layered interpretation helps when debugging startup issues. If the FPGA does not receive valid configuration data, the first question is whether the stream pointer is at the correct origin. The second is whether the device is actually driving the bus. Those are separate failure domains, and treating them separately usually shortens debug time.

The DATA pin behavior deserves close attention because it affects both correctness and signal integrity. During active configuration, DATA is a driven serial output. Outside that window, it can be tri-stated. This transition is not a minor implementation detail. It is the mechanism that allows clean handoff in cascaded topologies. When the AT17F16-30CU reaches the end of its programmed contents, CEO goes low and DATA is placed in a high-impedance state. In a single-device design, this marks completion of the local stream. In a multi-device chain, it becomes a bus arbitration event implemented entirely in hardware. The completed device removes itself from the shared data line, allowing the next configuration memory to drive the same path without contention.

That output-contestion prevention logic is one of the more elegant parts of the device behavior. Many startup problems in chained configuration systems are not caused by incorrect data content but by timing overlap between devices that believe they own the line. The AT17F16-30CU avoids that class of problem by binding end-of-data detection to both CEO state and DATA output disable. In other words, completion is not just reported; it is enforced electrically. This is a small but important architectural decision. It reduces the amount of external glue logic needed to build reliable cascaded configuration chains.

In practice, the most common integration mistakes tend to occur around reset timing and chip-enable assumptions. If RESET/OE is pulsed too briefly relative to system settling, the counters may restart correctly but the FPGA may begin clocking before its own configuration logic is ready to consume stable data. If CE is asserted too early in a noisy power ramp, the serial output may become active before the receiving side has established valid thresholds. The device itself is straightforward, but the surrounding power-up environment is often not. A robust implementation usually treats RESET/OE as a true stream reinitialization signal and keeps CE inactive until the board-level supply, oscillator behavior, and FPGA configuration state are all inside known limits.

Another useful engineering perspective is to separate logical completion from system completion. The AT17F16-30CU finishes when it has shifted out its last bit and deasserts ownership of DATA through tri-state behavior. The FPGA finishes only when it has accepted the stream, validated it internally, and transitioned into its configured state. These two moments are related but not identical. Designs that monitor only the memory-side behavior can miss cases where the serial source performed correctly but the FPGA rejected the image due to integrity, format, or sequencing issues elsewhere. That is why startup verification should observe both the memory control pins and the FPGA’s own configuration status signals.

The device’s deterministic nature is its strongest advantage. There is no per-boot command transaction sequence, no address packet, and no protocol framing beyond reset, select, and clock. That reduces software dependence and removes an entire class of initialization failure seen with more general boot memories. It also means the system designer is responsible for getting a few hardware details exactly right. Because the interface is minimal, every signal carries structural importance. RESET/OE defines the stream origin, CE defines participation, CLK defines progression, DATA carries payload, and CEO defines chain transfer. There is little redundancy, but there is also little ambiguity.

From an application standpoint, this makes the AT17F16-30CU well suited to systems where predictable FPGA startup matters more than flexibility during boot. Industrial control boards, communication modules, and embedded compute assemblies often benefit from a configuration source that behaves as a dedicated hardware appliance rather than a programmable storage endpoint. The reduced control surface simplifies timing closure during bring-up, eases waveform inspection on the bench, and makes failure analysis more direct. When configuration has to succeed every cycle under fixed hardware sequencing, that predictability is often more valuable than feature richness.

The most effective way to reason about the device is to think in terms of ownership and progression. Ownership determines whether the AT17F16-30CU is allowed to drive the serial line. Progression determines where it is within the stored bitstream. RESET/OE and CE largely define ownership boundaries, while RESET/OE and CLK define progression behavior. CEO then extends that model into multi-device systems by signaling when ownership should pass downstream. Once that model is clear, the part stops looking like a memory with unusual pins and starts looking like a purpose-built serial configuration engine. That framing usually leads to cleaner schematics, better startup sequencing, and faster diagnosis when the first configuration attempt does not behave as expected.

AT17F16-30CU paging capability and multi-bitstream storage strategy

The AT17F16-30CU becomes significantly more useful when its paging mechanism is viewed not as a simple memory split, but as a lightweight image-management layer for FPGA configuration control. In page mode, the device does more than store configuration data. It creates a deterministic way to isolate multiple bitstreams inside one nonvolatile memory, which simplifies reconfiguration strategy, variant control, and recovery design without adding another storage component.

When PAGE_EN is asserted high, the full memory array is partitioned into four equal regions. Each page occupies 256 Kbits of the total 1 Mbit address space, and page selection is performed through PAGESEL[1:0]. The mapping is fixed:

00000h to 3FFFFh with PAGESEL = 00

40000h to 7FFFFh with PAGESEL = 01

80000h to BFFFFh with PAGESEL = 10

C0000h to FFFFFh with PAGESEL = 11

When PAGE_EN is low, these boundaries disappear from the external control perspective and the device behaves as one continuous memory from 00000h to FFFFFh. This dual behavior is important. It means the same configuration memory can support either a conventional single-image design or a multi-image architecture, depending on board-level control strategy rather than silicon changes.

At the mechanism level, paging is valuable because it introduces hard address containment. Each bitstream resides in a bounded region, so one image does not overlap another unless the programming process is explicitly incorrect. That sounds basic, but in practice this matters a great deal during manufacturing programming, field updates, and version maintenance. Systems that rely on one linear address space often end up managing offsets manually in software tools, and those workflows are more fragile than they first appear. A page boundary is a simple construct, but it acts like a guardrail.

This is where the AT17F16-30CU moves beyond raw storage density. A 1 Mbit serial configuration device is not especially large by current standards, but four independently selectable storage regions can be more operationally useful than a larger monolithic space. In many deployed systems, the main challenge is not storing the biggest possible image. It is ensuring the right image is available under the right condition, with minimal hardware complexity and predictable startup behavior.

A practical way to think about the feature is to separate it into three layers: storage partitioning, image selection, and system policy. Storage partitioning is handled by the memory itself through PAGE_EN and PAGESEL. Image selection is implemented by board logic, FPGA pins, supervisory logic, or a controller that determines which page is exposed for configuration. System policy defines why a page is selected at all: production boot, diagnostic recovery, hardware option matching, regional firmware variation, or staged upgrade fallback.

This layered view avoids a common design mistake. Some designs treat multi-bitstream storage as only a memory-capacity question. In practice, the harder problem is deciding who owns page selection and when that decision is made. If page selection is static, tied to straps or fixed logic, the device behaves like a configurable manufacturing option store. If page selection is dynamic, controlled by a supervisor or embedded controller, it becomes part of a reconfiguration framework. The memory feature is simple, but the system behavior built on top of it can range from passive to highly adaptive.

For straightforward product families, page mode is often enough to support multiple FPGA personalities on one board. One page can hold the standard production image, another a manufacturing-test image, a third a service or diagnostic image, and a fourth a geographic or customer-specific variant. This avoids BOM changes and reduces inventory branching. It also keeps board qualification more stable, because hardware remains constant while functionality shifts through configuration image choice. That benefit is often underestimated. Stable hardware combined with controlled image selection usually reduces validation effort more effectively than introducing separate configuration devices for each variant.

The fallback use case is especially compelling. A reliable field-updatable design rarely depends on a single reprogrammable image with no recovery path. If one page holds a known-good golden image and another holds the active field image, the system gains a basic resilience mechanism. If the updated image fails validation, times out during startup, or does not reach an expected health state, external logic can force reselection of the golden page on the next configuration cycle. This is not a full secure-boot architecture, but it is a very practical robustness improvement for systems that must remain serviceable in distributed deployments.

In engineering practice, the golden-image concept works best when treated conservatively. The recovery image should be minimal, stable, and rarely changed. It does not need every application feature. It only needs enough logic to establish communications, expose diagnostics, and allow controlled restoration. Teams sometimes waste page space by cloning the main application into both the active and fallback pages. That reduces the value of having multiple pages. A lean recovery image usually delivers better system survivability than a second full-feature image that shares the same failure risks.

The mention that the device can hold four bitstream files aligns naturally with this architecture. That statement should not be read only as a storage-capacity note. It implies a design pattern: one nonvolatile device can serve as a compact image bank. The real advantage appears when image roles are intentionally differentiated. For example, storing four minor revisions of the same design is possible, but storing four operationally distinct images is often more powerful: production, bring-up, recovery, and feature-limited compatibility mode. The latter approach tends to produce a system that is easier to debug and easier to maintain over time.

There is also a less obvious benefit in manufacturing and support workflows. During board bring-up, a diagnostic page can drastically shorten fault isolation. If the production image fails to configure correctly or does not drive expected interfaces, selecting a stripped-down test image can help separate FPGA logic problems from power, clock, or signal-integrity issues. That is often faster than repeatedly reprogramming the configuration memory during bench debug. The page mechanism effectively turns one component into a small image library that can be switched with minimal intervention.

From a board-design perspective, the page pins should be handled with the same care given to boot-mode controls. Floating selection inputs, ambiguous reset timing, or uncontrolled transitions near configuration startup can produce intermittent boot-image selection, which is far more difficult to diagnose than a hard failure. In robust designs, PAGE_EN and PAGESEL are driven to known states through strong default biasing or controlled logic, and their timing relative to FPGA configuration initiation is kept deterministic. This is one of those details that seems trivial in a schematic review but can dominate debug time if ignored.

Another practical consideration is image size margin. Since each page is limited to one quarter of the total address space in page mode, the bitstream must comfortably fit within that page. This requires attention not only to current FPGA utilization but also to growth over future revisions. A multi-image strategy that looks elegant at revision A can become restrictive once synthesis results expand. It is generally wise to reserve headroom in each page rather than packing images to the boundary. Otherwise, a later design change can force a painful architectural decision: abandon paging, split product variants across hardware versions, or migrate to a larger configuration memory.

This leads to an important design tradeoff. Paging is most effective when image size is predictable and image roles are stable. If the FPGA design is evolving quickly or variant count is increasing, the four-page structure may shift from an advantage to a constraint. In that case, the right question is not whether the AT17F16 supports multiple images, but whether the image lifecycle fits inside four fixed partitions over the product lifetime. Good architecture decisions usually come from matching memory topology to maintenance reality, not from maximizing feature usage on paper.

For serviceable systems, version discipline also becomes critical. Once several pages are used for different purposes, configuration management must track not only bitstream revision but also intended page role, compatibility assumptions, and selection policy. Confusion at this level can create subtle failures, especially when one page depends on external hardware settings or a specific FPGA revision. In well-run programs, page assignment is treated as part of the product definition, not as a loose programming detail.

The AT17F16-30CU therefore occupies an interesting position. It is simple enough to integrate into modest FPGA systems, yet its paging capability enables a surprisingly capable multi-image strategy when paired with disciplined control logic. Its value is not just that it can store four bitstreams. Its value is that it allows those bitstreams to be isolated, selected, and operationally differentiated in a way that supports recovery, diagnostics, product variation, and controlled deployment. For many designs, that is a more meaningful advantage than memory density by itself.

AT17F16-30CU FPGA interface method and master serial configuration use

AT17F16-30CU is a serial configuration memory intended to sit directly in the FPGA boot path, especially in designs that use master serial configuration. Its value is not just protocol compatibility. It simplifies the configuration architecture by letting the FPGA pull in its own bitstream with minimal external control. In practice, this reduces startup dependencies, lowers the amount of support logic around the programmable device, and makes power-up behavior easier to predict.

In master serial mode, the FPGA acts as the timing master. After power-up, or after a reconfiguration event, it checks its mode pins and enters a state where it generates configuration clock pulses on CCLK. Those pulses are routed to the AT17F16-30CU CLK input. The configuration memory responds by shifting out the next data bit on its DATA pin, which connects directly to the FPGA DIN input. This arrangement is important because the FPGA controls the read rate itself. The memory is not pushing data asynchronously and does not require a separate controller to sequence access. The configuration channel is therefore self-clocking from the FPGA side, which is one of the cleaner boot architectures available for legacy SRAM-based FPGAs.

The core signal mapping is straightforward but should be understood in terms of startup state flow rather than just pin names. DATA from the AT17F16-30CU feeds FPGA DIN. FPGA CCLK feeds AT17F16-30CU CLK. If multiple configuration memories are used in sequence, the CEO output of one device drives the CE input of the next. That chaining mechanism allows a larger aggregate bitstream space without changing the FPGA’s basic configuration behavior. The first device shifts out its stored data until completion, then its CEO state enables the next device in the chain. From a system perspective, this creates a simple serialized memory expansion model that preserves the same two essential transfer signals: clock and data.

What makes this interface attractive is the division of responsibility. The FPGA owns configuration timing and state progression. The AT17F16-30CU behaves as a deterministic serial source. That separation removes the need for a processor-assisted boot sequence in many designs. It also avoids a class of failure modes seen in firmware-managed configuration paths, where software timing, reset ordering, or peripheral initialization can delay or block FPGA startup. For embedded systems that must enter a known hardware state quickly after power application, a direct master serial path is often more robust than a shared-boot architecture.

The simplicity of the wiring can be misleading. Reliable operation still depends on several low-level conditions. Power sequencing must bring both devices into valid operating range with enough margin for configuration startup. Signal integrity on CCLK and DATA matters, especially when the traces are longer or routed through noisy digital regions. Since CCLK is edge-sensitive and directly drives serial data extraction, ringing or slow edges can create marginal behavior that only appears across temperature or supply variation. In compact boards, the interface usually works without effort. In denser mixed-signal or industrial layouts, keeping the configuration path short, quiet, and free from unnecessary loading is often the difference between a consistently booting product and one that intermittently fails in the field.

The CE and CEO behavior in cascaded memories deserves more attention than it usually gets. On paper, daisy chaining is simple. In implementation, it introduces state dependency between devices. The downstream memory should remain inactive until the upstream device has completed its output sequence. Any ambiguity in CE biasing, board-level noise at startup, or poor reset behavior can break the chain in a way that looks like a corrupt bitstream rather than an interface problem. A practical design habit is to treat enable routing with the same care as clock routing, even though CE is not toggling continuously during transfer. Startup qualification issues often hide there.

The AT17F16-30CU is commonly associated with Atmel AT40K, AT40KAL, AT94KAL, and certain Xilinx FPGA families because those devices support the expected serial configuration style and pin behavior. That said, compatibility should not be interpreted only at the naming level. The real engineering check is whether the FPGA expects an external serial source in master mode, whether the clock polarity and sequencing align with the memory’s behavior, and whether bitstream size fits within one device or a valid cascaded set. A nominally compatible interface can still fail if the startup conventions differ at the electrical or timing level.

For legacy FPGA platforms, this memory remains useful because it supports a hardware-native boot model. Many older systems were designed around a clean separation between application logic and configuration storage, with no processor in the path. In those systems, replacing the configuration device with a more flexible flash-plus-controller scheme can add cost, board area, software burden, and qualification effort without delivering much benefit. Where the requirement is simply “load the FPGA every time, the same way, with high repeatability,” a dedicated serial configuration memory is still a strong architectural choice.

There is also a maintainability advantage in this approach. Debugging a failed FPGA boot is much easier when the configuration chain is electrically simple. The relevant signals are few, the ownership of timing is clear, and the boot sequence can be observed directly on CCLK, DATA, and device status pins. In contrast, when a processor loads the FPGA indirectly, the investigation expands into firmware state, peripheral setup, flash mapping, reset release timing, and possible software race conditions. The dedicated serial memory path reduces that diagnostic surface area. That often matters more in long-lived industrial or infrastructure products than raw feature flexibility.

A useful way to evaluate AT17F16-30CU in a design is to start from boot philosophy rather than device availability. If the system benefits from immediate, deterministic, hardware-driven FPGA configuration, then this memory fits naturally. If the design instead requires field-selectable images, cryptographic boot controls, remote update management, or dynamic configuration under software control, then a processor-managed or higher-density flash architecture may be more appropriate. The AT17F16-30CU is strongest when configuration is treated as a fixed hardware service, not as a runtime software feature.

In real board designs, the most common issues are not protocol-level incompatibilities but peripheral details around them: wrong mode strap states on the FPGA, weak pull-ups or pull-downs on enable-related pins, configuration clock traces routed too aggressively near switching supplies, and assumptions that a bench-stable startup sequence will remain stable across voltage corners. The interface itself is simple enough that most failures come from neglecting these surrounding conditions. That is one reason this device works well in disciplined embedded designs: when the startup path is kept electrically clean and topologically simple, master serial configuration with AT17F16-30CU is usually very predictable.

The deeper engineering lesson is that the device’s main advantage is architectural clarity. It creates a dedicated, single-purpose path between nonvolatile storage and FPGA configuration logic. That clarity improves determinism, reduces hidden dependencies, and keeps system startup behavior close to the hardware. For systems built around established FPGA families and fixed boot images, that is often the most reliable solution available.

AT17F16-30CU cascading behavior for larger memory requirements and multi-device chains

The AT17F16-30CU supports cascading in a way that directly addresses two practical scaling problems in FPGA configuration design: a single FPGA image that exceeds the capacity of one configuration memory, and systems where multiple FPGAs must be configured in sequence from a shared serial path. This is not just a capacity extension feature. It is a controlled handoff mechanism that lets several nonvolatile configuration memories behave like one longer serial source without adding complex arbitration logic.

At the signal level, the cascade relies on a simple but carefully timed relationship between CE and CEO. The CEO output of the upstream AT17F16-30CU connects to the CE input of the next device in the chain. While the first device is actively shifting configuration bits, it owns the DATA output path. When it reaches the end of its stored bitstream, it asserts CEO low, which enables the following device. At nearly the same point, it disables its own DATA line driver. This matters because the cascade is only reliable if bus ownership transfers cleanly. The first device must stop driving before or as the second begins. The architecture is effective because it embeds this sequencing into the devices themselves rather than pushing it into external glue logic.

From a system perspective, this creates a serial memory continuum. The FPGA or FPGA chain does not need to distinguish where one AT17F16-30CU ends and the next begins. It continues clocking configuration data, while the memories self-sequence through CE/CEO propagation. In practice, this reduces design friction. There is no need for an external controller to count bits and manually switch chip enables at exact boundaries. The memory chain advances itself based on internal end-of-data detection, which is a more robust approach than trying to synchronize several discrete control events in programmable logic or firmware.

This behavior becomes especially useful when one FPGA requires a bitstream larger than a single AT17F16-30CU can hold. Instead of moving to a different memory architecture, the design can often remain within the same device family and scale linearly by adding another serial PROM. That preserves programming flow, signal conventions, and board-level design patterns. In larger programs, this kind of continuity reduces risk more than it first appears. Reusing the same configuration scheme across multiple product variants tends to simplify validation, manufacturing programming, and field-service procedures.

The second common use case is a daisy-chained FPGA system. In that topology, configuration bits for multiple FPGAs are clocked through one serial chain, with each FPGA consuming its own portion of the stream and passing the remainder downstream. A cascaded AT17F16-30CU chain complements that model naturally. Each PROM contributes a segment of the overall data stream, and the complete memory chain feeds the full multi-device configuration sequence. The result is a modular mapping: as FPGA count grows, configuration storage can grow with the same serial paradigm. This alignment between memory topology and FPGA topology is one of the more elegant aspects of the device. It keeps the architecture conceptually flat even as the system expands.

There is also an important electrical detail behind the phrase “orderly bus handoff.” In shared serial-output chains, contention is one of the easiest failure modes to overlook during schematic review and one of the hardest to diagnose on hardware once it appears intermittently. If two devices drive the DATA line at the same time, even briefly, the error may not present as a clean logic fault. It can show up as marginal signal levels, corrupted bits near the cascade boundary, or occasional startup failures that depend on voltage ramp, temperature, or clock edge placement. The AT17F16-30CU’s built-in behavior of disabling the earlier DATA driver before the next device becomes active is therefore not a convenience feature. It is a core reliability mechanism.

In board design, the cascade itself is simple, but the surrounding implementation still deserves discipline. CE and CEO routing should be kept clean and deterministic, especially when multiple devices are chained. Long, noisy traces on these control signals can create edge uncertainty exactly where device ownership changes. The DATA path should also be treated as a controlled serial signal rather than a casual low-speed net, particularly when the configuration clock is pushed toward the upper end of the supported range or when the board includes dense switching noise from power regulators or high-speed interfaces. Many startup issues attributed to “bad programming” are actually trace integrity or power sequencing problems appearing at the point where the chain transitions from one PROM to the next.

RESET/OE adds another layer of system control after configuration. Once configuration is complete, all cascaded AT17F16-30CU devices can be reset together by driving RESET/OE low on each device. This resets their internal address counters and prepares the chain for another configuration cycle. If the design never needs to restart the read sequence in normal operation, tying RESET/OE high is often acceptable and reduces control overhead. The better choice depends on how the system handles brownout recovery, watchdog-triggered reconfiguration, and in-system debug. In designs expected to recover autonomously from fault conditions, preserving a positive way to reset all configuration memories is usually worth the extra routing. A fixed tie-high approach is cleaner on paper, but it removes a useful recovery lever.

A practical pattern is to think of RESET/OE not only as a memory reset input but as part of the board’s startup state machine. If the FPGA can enter reconfiguration under software control, after watchdog intervention, or after supply supervision events, then coordinated reset of the PROM chain avoids ambiguous restart states. This is particularly relevant in systems where power rails ramp asynchronously or where configuration clocks may continue briefly during reset events. A predictable reset strategy can eliminate edge-case startup faults that are otherwise difficult to reproduce.

For memory-strategy selection, the AT17F16-30CU’s cascade capability makes it suitable for modular designs rather than fixed-capacity designs. That distinction matters. A fixed-capacity part solves today’s bitstream size. A cascade-capable part supports a scalable configuration architecture. In product families where lower-end and higher-end boards share a common design base, the same configuration circuitry can often be extended by stuffing additional PROMs only where needed. This reduces redesign effort and keeps layout reuse high. It also helps with lifecycle planning, since configuration demand tends to grow over time as FPGA logic expands, debug instrumentation is retained longer, and security or startup features add overhead to the bitstream.

One subtle design benefit is that cascading shifts complexity from control into topology. Instead of building smarter control logic around a single memory device or external multiplexer, the designer can often build a more predictable chain of identical elements. In engineering practice, topology-driven simplicity usually scales better than control-driven cleverness. Fewer special cases mean fewer startup corner conditions, clearer test procedures, and easier failure isolation.

For larger FPGA systems or boards requiring expandable configuration depth, the AT17F16-30CU is therefore more than a standalone serial PROM. It functions as a chainable configuration building block. Its CE/CEO sequencing, DATA driver handoff, and shared reset behavior allow memory depth to grow with little added control burden, while preserving orderly operation across device boundaries. That combination is what makes it effective in real hardware: capacity scales, interface behavior stays disciplined, and the overall configuration path remains architecturally simple.

AT17F16-30CU programming method and in-system programmability

AT17F16-30CU uses a low-complexity serial programming architecture built around in-system programmability. The device enters programming mode when SER_EN is driven low. Once that condition is asserted, configuration memory access shifts to a 2-wire serial interface, allowing erase, program, and read operations without any dedicated high-voltage programming pin. This is a meaningful design choice. The charge generation required for nonvolatile memory programming is created internally, so the external system only needs to provide a stable nominal 3.3 V rail and proper control sequencing. In practice, this removes one of the common friction points in production and service workflows: no separate programming voltage domain, no boost circuitry on the board, and no dependency on a specialized socket-only programming process.

The 3.3 V nominal programming supply is more important than it first appears. Devices that require a separate programming voltage often force board-level compromises, especially in mixed-voltage systems or compact assemblies where routing, protection, and sequencing margins are already tight. By keeping programming and normal operation on the same supply class, AT17F16-30CU reduces power-tree divergence between manufacturing mode and deployed mode. That usually leads to fewer corner cases during bring-up. It also simplifies fixture design, because the same regulated rail used in normal board operation can typically support image loading during test, provisioning, or field servicing. The result is not just convenience; it is lower integration risk.

The 2-wire bus should be viewed not only as a programming interface but as a system integration mechanism. At the lowest level, it provides serialized access to nonvolatile configuration storage. At the board level, it enables controlled image loading after assembly, when the memory device is already soldered in place and electrically coupled to the FPGA and surrounding logic. At the product level, it opens a path for firmware infrastructure to manage FPGA configuration as part of a broader update strategy. This layered value is often underestimated. A serial configuration memory that can be rewritten in-system effectively turns the FPGA image into a serviceable asset rather than a fixed manufacturing artifact.

Support by the Atmel ATDH2200E programming system, along with broad compatibility across third-party programmers, strengthens this flexibility. Toolchain diversity matters because programming requirements change across the product lifecycle. During early development, bench-top programmers and ad hoc scripts may be sufficient. In pilot builds, engineering teams often move toward repeatable fixture-based loading with verification and traceability. In volume manufacturing, the priority shifts again toward throughput, programming yield, operator simplicity, and integration with MES or serialization systems. A device that fits across these environments avoids unnecessary process bifurcation. It is generally better when the same memory part can move from lab validation to factory programming to field recovery without forcing a different hardware path at each stage.

In-system programmability over the 2-wire interface is particularly valuable when the final FPGA image is not stable at the time of PCB assembly. This is common in projects where hardware is available before the logic design is frozen, or where several customer-specific builds share a common board. In those cases, the memory can be left blank or loaded with a provisional image during manufacturing, then updated later through a controlled system-level process. That shortens schedule pressure between hardware release and software or logic readiness. It also improves inventory agility. A single board SKU can often serve multiple product variants if the differentiation is carried in the FPGA configuration image rather than in population options.

Field update capability follows naturally from the same mechanism. If the host processor, service interface, or maintenance controller can access the 2-wire bus, the configuration memory can be rewritten after deployment. This is especially useful in systems where FPGA logic is responsible for protocol handling, timing adaptation, feature gating, or hardware acceleration, all of which may evolve after shipment. The operational benefit is not just feature expansion. It also allows correction of logic-level defects without physical replacement of the memory device or the FPGA carrier board. In service-sensitive equipment, that can materially reduce downtime and logistics cost.

That said, the mere presence of in-system programmability does not guarantee a robust update design. Reliable deployment depends on sequencing discipline, bus ownership control, and power integrity during write operations. If SER_EN is asserted low to enter programming mode, the surrounding system must ensure that no bus contention or unintended access path can interfere with the transaction. Shared serial buses are often the first source of subtle failures. In mixed-function designs, isolating the programming path or defining strict arbitration rules tends to prevent intermittent corruption events that are difficult to reproduce later. Good designs treat the programming interface as a managed resource, not just as a pin-level capability.

Power stability during programming is another practical concern. Since the internal programming voltages are generated on-chip from the 3.3 V rail, supply droop, noisy transients, or poorly controlled ramp behavior can directly affect margin during erase or write cycles. On paper, single-rail programming looks simple. On a real board, it still benefits from local decoupling, clean ground return, and a write sequence that avoids simultaneous high-current events elsewhere in the system. It is usually wise to perform updates in a reduced-activity mode, especially if motors, radios, backlights, or other dynamic loads share the same rail. This is one of those areas where the device architecture is forgiving, but the system architecture still determines the final robustness.

Verification strategy also deserves attention. Since the device supports read/write operations through the serial interface, programming should be treated as a closed-loop process: write, read back, compare, then release the device to normal operation. This matters equally in manufacturing and in the field. A programming flow without explicit verification may appear to work during nominal conditions but become fragile under temperature spread, supply variance, or connector wear in service tools. A disciplined readback step is usually inexpensive compared with the cost of a latent configuration failure discovered after installation.

From an engineering perspective, the most useful way to think about AT17F16-30CU is as a programmable configuration repository that decouples board assembly from FPGA image finalization. Its interface model is intentionally simple, but the system-level consequences are significant. It reduces hardware overhead by avoiding external programming voltage requirements. It supports multiple programming ecosystems, which eases migration across development and manufacturing stages. Most importantly, it allows configuration management to remain active after the board leaves the factory. That capability becomes increasingly valuable as products move toward longer service lives, staged feature delivery, and tighter coordination between hardware platforms and update infrastructure.

A well-implemented design will therefore do more than connect the 2-wire pins and expose SER_EN. It will define safe entry into programming mode, guarantee supply margin during nonvolatile writes, verify every transaction, and ensure recovery paths exist if an update is interrupted. When these details are handled correctly, the in-system programmability of AT17F16-30CU is not just a convenience feature. It becomes a practical mechanism for reducing manufacturing rigidity, improving maintainability, and extending the usable life of the FPGA-based platform.

AT17F16-30CU power behavior, reset indication, and standby characteristics

AT17F16-30CU power behavior defines how reliably the device enters a known state and how efficiently it remains attached to the system when inactive. Its startup and standby mechanisms are simple at the interface level, but they carry important implications for board-level sequencing, signal validity, and long-term power budgeting.

At power-up, the device automatically clears its internal address counter. This matters because the serial configuration stream must always begin from a deterministic first bit position. If the counter did not return to its initial state at every valid power cycle, downstream configuration logic could begin reading from an arbitrary offset, which would corrupt the bitstream transfer even if the memory contents were intact. The automatic reset eliminates that risk at the source. In practical designs, this behavior makes the device largely self-aligning during startup, provided the supply ramp meets the operating requirements and the control pins are not being driven into conflicting states during the reset window.

This internal reset action should be viewed as part of the device’s power-state machine rather than as a minor convenience feature. It establishes the initial read context, stabilizes startup behavior across repeated power cycles, and reduces dependency on external recovery logic. In systems that must configure programmable logic immediately after rail bring-up, this deterministic reset of the address path is one of the main reasons the configuration memory can be treated as a predictable boot component rather than as a passive serial ROM.

The READY signal extends that internal behavior into a board-visible indication. On package options that expose READY, the pin acts as an open-collector reset-state output. During the power-up reset interval, READY is actively driven low. Once internal initialization completes, the output is released. Because the pin is open-collector, it does not drive high by itself; it requires an external pull-up resistor, with 4.7 kΩ being the recommended value when the signal is used. This detail is not merely electrical housekeeping. It determines edge rate, noise margin, and the ability to share the signal with supervisory or wired-logic structures.

READY is best understood as a validity qualifier for the configuration memory’s own startup state. It does not simply indicate that VCC exists. It indicates that the device has progressed through its internal reset phase and is no longer asserting its not-ready condition. In board integration, that distinction is useful. A supply rail may be present while internal initialization is still incomplete, especially during slow ramps or in systems with distributed power domains. Treating READY as a reset-state indicator rather than as a generic power-good signal leads to cleaner sequencing decisions.

In practice, READY becomes most valuable when startup timing margins are tight or when the configuration source is only one part of a larger initialization chain. It can be routed to a controller, a reset combiner, or monitoring logic to delay dependent activity until the memory has reached a stable post-reset condition. On multi-device boards, this avoids subtle race conditions where downstream logic starts clocking the configuration interface before the memory has fully initialized. That kind of issue often appears intermittent in validation because it depends on ramp slope, temperature, and rail interaction rather than on any fixed logic fault.

The open-collector implementation also gives flexibility in mixed-voltage or multi-source reset architectures. Since the signal only pulls low and otherwise releases, it can coexist with other low-true status outputs if the pull-up domain is chosen correctly. This makes READY easy to integrate into fault aggregation or startup interlock networks. Still, the pull-up should not be selected casually. A value that is too weak can slow the release edge and blur timing interpretation. A value that is too strong increases sink current unnecessarily and can stress low-power signaling paths. The recommended 4.7 kΩ is a balanced choice for most boards because it gives a reasonably firm high level without creating excessive static load when READY is asserted low.

The standby behavior of the AT17F16 series is equally important, especially in products where configuration occurs only at startup and the memory remains electrically connected afterward. When SER_EN is high and CE is high, the device enters low-power standby. In this state, supply current is less than 5 mA at 3.6 V, and the output remains high impedance regardless of RESET/OE. This combination of conditions defines a clean inactive mode: the device reduces current draw while also withdrawing from active bus participation.

The high-impedance output characteristic is more significant than it first appears. It prevents the configuration memory from interfering with shared lines or from presenting stale logic levels after startup. If the output were left actively driven while the device was nominally idle, it could create contention with other devices, distort line biasing, or complicate mode transitions. By forcing the output to high impedance in standby independent of RESET/OE, the device makes its inactive state unambiguous at the electrical boundary. This simplifies system design because standby behavior does not rely on maintaining a secondary pin in a particular output-enable condition.

From a power architecture perspective, the standby mode is well suited to systems that retain the configuration memory as a resident component but rarely need to read from it after initial boot. That pattern is common in programmable logic platforms, field-updatable industrial controllers, and embedded systems where reconfiguration is possible but infrequent. In those cases, reducing inactive current is not just an efficiency improvement. It limits unnecessary thermal contribution, reduces regulator overhead, and helps preserve margin in tightly budgeted always-on domains.

A useful design approach is to think of SER_EN and CE not only as functional controls but also as power-state selectors. Their logic combination determines whether the device is actively participating in serial configuration or sitting in a passive low-load state. This framing helps during firmware and hardware partitioning. If system control logic explicitly drives the memory into standby after successful configuration, the board gains a predictable post-boot operating state. That tends to produce cleaner behavior than simply leaving the device enabled and assuming inactivity is harmless.

There is also a subtle reliability advantage in using standby intentionally. After startup, configuration lines on real boards are often exposed to noise coupling, debug access, or partial-domain activity. A device left unnecessarily active can respond to these conditions in ways that are electrically legal but systemically undesirable. A device placed into standby with CE and SER_EN high is less likely to contribute to line disturbances or accidental read activity, and its high-impedance output makes downstream observation easier during troubleshooting.

Taken together, the AT17F16-30CU startup reset, READY indication, and standby mode form a coherent operating model. The device initializes itself into a known address state, exposes its reset progress through an optional board-level indicator, and then supports a low-power electrically passive state once active configuration is no longer needed. That progression is efficient and well aligned with real boot flows. The most effective implementations tend to use all three aspects deliberately: rely on the automatic address reset for deterministic startup, use READY when configuration timing must be observed externally, and force standby after boot to minimize both current waste and signal-side ambiguity.

AT17F16-30CU practical engineering considerations for implementation

AT17F16-30CU implementation details have a direct impact on configuration robustness, startup repeatability, and manufacturing stability. The device is simple at the interface level, but in practice it sits on a sensitive boundary between power integrity, FPGA boot sequencing, and production handling. Small schematic choices often determine whether configuration is deterministic across voltage corners, temperature variation, and repeated field resets.

Power integrity is the first practical constraint. The recommended 0.2 μF decoupling capacitor between VCC and GND should be treated as a local high-frequency energy source, not as a generic checklist item. During FPGA configuration, the configuration EEPROM and the FPGA I/O involved in the serial transfer can switch with sharp current edges, especially when the clock rate approaches the 33 MHz serial limit. If the capacitor is placed too far from the AT17F16-30CU, trace inductance reduces its effectiveness and the local supply can dip or ring during readout. That behavior may not always cause a hard failure; more often it appears as intermittent startup issues, marginal timing, or occasional misconfiguration after cold power-up. In dense boards, a practical pattern is to place the decoupler immediately adjacent to the supply pins and let it share a short, low-impedance return path into the local ground structure. This is one of those cases where layout quality is part of logic correctness.

Control-pin biasing deserves the same level of discipline. SER_EN must be tied high, or otherwise guaranteed high, for standard FPGA configuration use. In theory this is straightforward. In production hardware, however, any pin that is left weakly biased or exposed to undefined sequencing during ramp-up can enter the wrong state for a short interval, and that is enough to break expected startup behavior. Treat SER_EN as a mode strap, not as a casual GPIO-style input. PAGE_EN follows the same principle in the opposite direction: if paging is not used, it should be held low with a hard-defined logic level. PAGESEL lines must also be tied high or low, never left floating. Undefined page selection is particularly problematic because it does not always fail immediately. It can create a design that appears functional on the bench yet boots from inconsistent memory regions under supply ramp variation, noise, or board-to-board parasitics. Reliable configuration systems are usually the result of aggressively eliminating undefined states before they become field failures.

Paging introduces an architectural constraint that should be handled early, not after bitstream generation. The AT17F16-30CU divides memory into fixed page regions, so the selected configuration image must fit completely within the intended page boundary. This means page planning is not only a storage question but also a release-management issue. If FPGA revisions grow over time, a design that initially fits comfortably in one page can later cross the limit and force repartitioning. That tends to surface late, often when software, FPGA image generation, and hardware assumptions are already coupled. A more robust approach is to reserve margin inside each page from the beginning and align image management with the actual page map rather than the nominal memory capacity. In systems that use multiple boot images, this also improves maintainability because page selection logic stays stable while bitstreams evolve. The underlying lesson is that fixed memory segmentation should be treated as a hard system interface.

Cascaded configurations require additional attention because RESET/OE behavior affects address progression and restart semantics across devices. If the system requires all cascaded memories to restart from address zero after each configuration cycle, RESET/OE must be driven in a way that guarantees this reset condition. Without that control, subsequent configuration events may not begin from the expected location, especially in systems that rely on repeated reconfiguration or recovery sequences. A fixed-high connection can simplify the design, but only when the complete configuration flow has been verified to remain valid under all expected reset scenarios. In practice, simplification is safe only when the system never depends on reinitializing the internal read pointer through that pin. This is a common place where minimal hardware works for a nominal demo flow but becomes fragile once watchdog resets, partial power cycling, or FPGA-driven reprovisioning are added. For cascaded devices, reset policy should be defined at the system level, not improvised at the schematic level.

Timing and sequencing should be considered as interacting mechanisms rather than isolated datasheet parameters. A serial clock rating of up to 33 MHz does not mean every board should run at that edge without verification. Signal integrity on the serial path, FPGA input thresholds, supply ramp shape, and the relative timing of control signals all influence the effective margin. In short trace environments with solid grounding, operation near the maximum rate may be uneventful. On longer routes, multilayer boards with shared startup rails, or designs where configuration lines pass near noisy switching nodes, the same nominal clock can become marginal. A useful engineering habit is to validate startup over voltage and temperature while also varying ramp conditions, because many configuration issues appear only during non-ideal power transitions rather than during warm resets on a lab bench.

Manufacturing and logistics parameters also affect implementation quality, even though they are not functional features. RoHS compliance and REACH unaffected status simplify regulatory alignment, but MSL 3 classification has more direct process consequences. Moisture sensitivity influences storage duration after bag opening, floor life control, and reflow handling. If these controls are ignored, package stress during assembly can degrade long-term reliability even when the board passes initial electrical test. For procurement and manufacturing engineering, this means the device should be integrated into the same traceable handling flow used for other moisture-sensitive ICs. Good implementation is not finished at the schematic; it extends through component storage, bake policy where required, and assembly timing discipline.

A practical way to think about the AT17F16-30CU is that it is not merely a passive bitstream container. It is an active participant in the FPGA boot path, and boot paths are unforgiving. Stable supply bypassing, deterministic mode pin states, explicit page planning, and defined reset behavior produce a configuration subsystem that behaves like infrastructure rather than a source of exceptions. Designs that treat these details as first-order constraints usually scale better from prototype to production, because the same decisions that prevent startup anomalies also reduce manufacturing escapes and simplify future image management.

Potential Equivalent/Replacement Models for AT17F16-30CU

Potential replacement evaluation for AT17F16-30CU should start from device function, not from part-number similarity. The available documentation points most directly to other members of the same AT17F16 family rather than to drop-in alternatives from different product lines. In practical terms, the first replacement candidates are the AT17F16 package variants offered in 8-lead LAP, 20-lead PLCC, and 44-lead TQFP forms. If the configuration architecture must remain unchanged, staying inside the same memory family usually minimizes risk because the serial protocol, programming behavior, and FPGA startup interaction are already aligned by design.

AT17F16-30CU is fundamentally a 16 Mbit serial configuration memory intended for FPGA master serial configuration flows at 3.3 V. Any credible substitute must preserve that core role without introducing timing or control-sequence mismatches during power-up and configuration. This requirement is more important than superficial package compatibility. In configuration chains, even small deviations in reset behavior, output enable timing, or clock/data alignment can produce failures that appear intermittent and are therefore expensive to isolate.

The most reliable way to think about equivalence is to split it into three layers: storage equivalence, electrical/interface equivalence, and system-behavior equivalence.

At the storage layer, the replacement must provide sufficient nonvolatile capacity for the target bitstream, including any header, addressing overhead, or multiple image allocation if page-based selection is used. The nominal 16 Mbit density is the starting point, but effective usable capacity should be confirmed against the actual programming format. In redesign work, this is often where hidden margin disappears. A device that appears large enough on paper may become unsuitable once dual-image fallback, manufacturing metadata, or revision padding is included.

At the electrical and interface layer, the replacement must support 3.3 V operation across the full operating range expected by the board. This includes not only nominal supply voltage, but also input threshold compatibility, output drive behavior, startup voltage sequencing, and tolerance to supply ramp variations. The critical interface signals listed in the source material remain the right checklist: RESET/OE, CE, CLK, DATA, and CEO. These signals define whether the FPGA can consume the bitstream in the expected way, whether daisy-chain expansion still works, and whether the memory will remain quiet or active under all reset states. If in-system programming is required, ISP support also becomes a hard requirement rather than a convenience feature.

At the system-behavior layer, the replacement must reproduce the same configuration method seen by the FPGA. This is where many near-equivalents fail. A serial configuration memory is not just a storage device; it is part of the startup state machine of the whole platform. It must respond correctly to power-on conditions, release data at the proper point in the sequence, sustain the needed serial clock rate, and interact properly with downstream devices in cascaded configurations. If the design uses page selection, the replacement must implement that feature in a way that matches both board wiring and firmware assumptions. A mismatch in page-control semantics can turn a nominally compatible memory into a field-return source.

Package substitution inside the AT17F16 family deserves separate attention because package changes are often the easiest path during supply pressure or board refresh. However, package migration is only simple when pin function mapping, reserved pins, thermal behavior, and assembly constraints have all been checked. The 8-lead, 20-lead, and 44-lead versions are not merely mechanical options; they can expose different feature accessibility, including pins associated with READY or page control. On dense boards, this matters more than expected. A package with the right silicon but inaccessible control functions can force strap changes, FPGA pin reallocation, or even a partial PCB reroute. That is still a valid replacement path, but it is no longer a drop-in substitution.

For maintenance projects, the strongest equivalence test is not a datasheet table but a configuration-path audit. That audit should verify six points in order. First, confirm memory density and image organization. Second, confirm supply voltage and I/O compatibility under all operating corners. Third, confirm package, pinout, and board-level accessibility of required control signals. Fourth, confirm timing behavior for reset, output enable, clocking, and data valid windows. Fifth, confirm support for cascaded configuration through CEO or equivalent chaining behavior. Sixth, confirm manufacturing and field-programming flow, especially if ISP is used for updates or rework.

This sequence tends to expose issues early. For example, a candidate may pass density and voltage checks yet fail because CEO timing does not support the chained device arrangement already built into the platform. In another common case, page-mode support exists but requires different pin defaults or programming conventions, which can silently break multi-image systems. These are not edge cases; they are typical failure modes when configuration memories are treated too much like generic serial storage.

A useful engineering approach is to classify candidate replacements into three categories. The first category is same-family package variants. These are usually the lowest-risk options and should be considered first when the goal is to preserve firmware, FPGA image format, and board behavior. The second category is functionally similar serial configuration memories from adjacent families or later generations. These may work, but only after detailed validation of startup timing, command behavior, and chain support. The third category is architecture-level replacement, such as moving to a different nonvolatile storage scheme or using FPGA internal alternatives where supported. This can improve long-term sourcing resilience, but it is a redesign, not a substitute.

One important practical point is that configuration memories often sit at the boundary between hardware design and manufacturing flow. A part can be electrically suitable yet operationally disruptive if its programming algorithm, socketing method, or in-circuit update process differs from the established process. For low-volume repair this may be manageable. For production or field service, it can create avoidable friction. In that sense, ISP capability and programming-tool support should be treated as system requirements. They affect turnaround time, rework strategy, and failure recovery just as directly as pin compatibility.

Another issue worth weighing is serial data rate margin. Many designs operate comfortably below the headline limit, so a replacement that appears slower may still be acceptable. But this should be proven from actual startup timing, not inferred from average behavior. Configuration flows are often sensitive to cold-start conditions, oscillator tolerance, and rail ramp characteristics. A design that boots reliably on a bench can become marginal in the field when supply rise time changes or temperature shifts move the timing relationship between FPGA and memory. Conservative timing margin is therefore not excess caution; it is part of configuration robustness.

If no direct non-AT17F16 cross-reference is provided in the source material, then equivalence must be treated as an application-level verification exercise rather than a purchasing shortcut. That is the correct engineering posture. For AT17F16-30CU specifically, the most defensible replacement path is first to check other AT17F16 package variants that preserve the same fundamental device behavior. If broader substitution is necessary, the evaluation should remain anchored to the exact configuration interface, 3.3 V operating profile, signal semantics, cascade behavior, ISP needs, and page-selection requirements of the original design.

In short, AT17F16-30CU replacement is less about finding a memory with the same bit count and more about preserving a deterministic FPGA startup path. Devices that match density but diverge in control behavior are poor replacements. Devices that maintain the same configuration contract, even if package adaptation is required, are usually the stronger choice. That distinction tends to separate substitutions that only look equivalent from those that remain reliable in deployed systems.

conclusion

The AT17F16-30CU is a dedicated 16 Mbit serial configuration memory designed specifically for SRAM-based FPGA startup. Its main advantage is not raw density, but architectural alignment with FPGA configuration behavior. Unlike generic serial flash, it is built to participate directly in the power-up and configuration sequence, reducing interface ambiguity, simplifying board-level control, and improving startup determinism. In designs where configuration reliability matters more than storage versatility, that distinction becomes significant.

At the device level, the part combines nonvolatile flash storage with a hardware-oriented serial configuration interface optimized for direct FPGA loading. This matters because SRAM-based FPGAs are blank at power-up and depend entirely on an external source to load the bitstream before application logic can run. A dedicated configuration memory removes much of the adaptation logic often required when using commodity SPI flash. That usually translates into cleaner timing closure around startup, fewer edge-case interactions between power rails and control pins, and less firmware dependency during first-stage bring-up.

Its 3.3 V operation fits a large class of embedded and industrial boards where legacy FPGA I/O banks, supervisory devices, and peripheral control rails still center around 3.3 V. In practice, this simplifies power-tree decisions and reduces level-shifting overhead in established platforms. That benefit is easy to underestimate during schematic review, but it becomes more valuable when working through board validation, where every avoided translator and every reduced control dependency lowers failure surface area.

A key strength is in-system programmability. This allows the configuration memory to be loaded or updated after assembly without removing the device or relying on socketed workflows. From a manufacturing and service perspective, this supports a cleaner path from prototype to production. It also enables late-stage bitstream revisions, field maintenance strategies, and controlled image updates during system qualification. In embedded programs with long validation cycles, this flexibility often becomes more important than headline memory size, because configuration images tend to evolve well after hardware is frozen.

The optional four-page bitstream partitioning adds another practical layer. It allows the memory space to be divided into multiple configuration images, creating a structured way to manage revision fallback, feature variants, or staged deployment. This is especially useful when a platform must support more than one operational personality without changing hardware. A common pattern is to keep a stable production image alongside a newer candidate image, giving the system a safer migration path during rollout or service updates. The mechanism is simple, but its system-level value is high because it supports resilience without requiring a second storage device.

Cascading support extends that logic further. When a single device cannot hold the required configuration data, multiple memories can be chained to present a larger effective configuration space. This preserves the same startup model while scaling to larger FPGA images. The practical benefit is continuity: designers can keep a known configuration architecture even as logic utilization grows across product generations. That continuity reduces redesign effort and helps maintain predictable boot behavior, which is often more valuable than switching to a completely different storage topology just to gain density.

From an engineering selection standpoint, the AT17F16-30CU is best suited to systems using master serial FPGA configuration, where the FPGA expects an external nonvolatile device to feed the bitstream in a controlled and repeatable manner. In such cases, a dedicated configurator is often the better fit than a general-purpose serial memory because it matches the electrical and sequencing expectations of the FPGA more directly. That typically shortens integration time and reduces the amount of custom handling needed in CPLD glue logic, boot firmware, or supervisory circuits.

It is less about feature abundance and more about startup discipline. That is the central reason this class of device remains relevant. In many embedded systems, the first requirement is not flexible storage access but guaranteed configuration availability under power cycling, brownout recovery, and unattended restart conditions. Devices like the AT17F16-30CU serve that requirement well because their design intent is narrow and explicit. Narrow intent often produces stronger behavior in critical paths.

For procurement and lifecycle planning, the device also fits long-life platforms well. Package options across the family, broad programmer support, and standard environmental compliance characteristics all improve deployability in production environments. These factors reduce friction in sourcing, manufacturing test, and service replacement planning. In programs with extended maintenance obligations, mature tool compatibility can matter as much as electrical performance, especially when avoiding specialized programming infrastructure helps stabilize operations across contract manufacturing sites.

A practical consideration is endurance and update frequency. This device is appropriate where configuration data changes occasionally or on a managed schedule, not where constant rewrite activity is expected. That aligns with the real behavior of most FPGA-based products, where bitstreams are updated during development, qualification, and periodic maintenance, but not continuously in normal operation. Treating the configuration store as a controlled asset rather than a high-churn memory resource generally leads to better reliability margins and clearer update procedures.

Another important point is design intent around failure handling. Multi-image capability and dedicated startup behavior are most valuable when paired with explicit board-level recovery strategy. That means defining how image selection is controlled, how failed configuration attempts are detected, and what the system should do after repeated boot faults. In practice, the memory device alone does not create robustness; robustness comes from combining its capabilities with disciplined reset supervision, clean power sequencing, and conservative image management. When those pieces are aligned, startup becomes much more predictable.

Viewed in that context, the AT17F16-30CU is a practical and disciplined configuration memory solution for SRAM-based FPGA systems that need reliable boot behavior, moderate update endurance, straightforward in-system reprogramming, and a scalable path to multi-image or expanded-memory configurations. Its value is strongest in designs that prioritize deterministic hardware bring-up over storage generality, and in platforms where stable integration and long-term maintainability outweigh the appeal of more universal flash devices.
