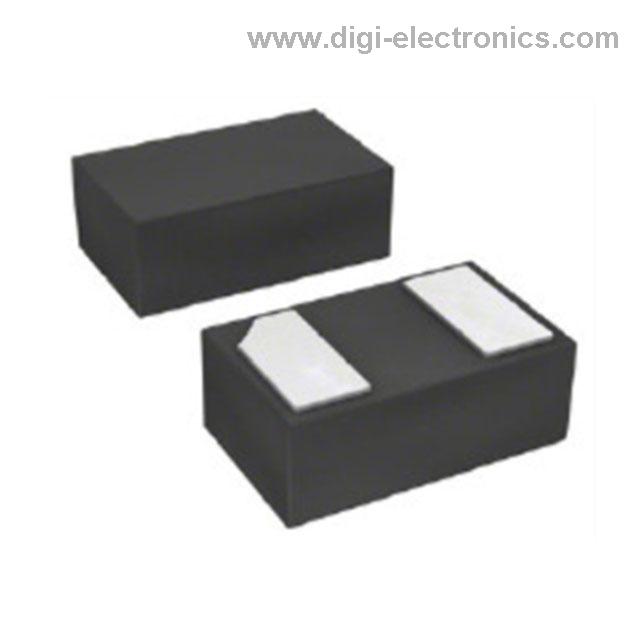

Product Overview of ESD0301BL MDD TVS Diode DFN1006 Series
The ESD0301BL is a transient voltage suppression (TVS) diode from MDD, specifically tailored for high-speed data line protection against electrostatic discharge (ESD) and electrical fast transients (EFT). Utilizing the DFN1006 package, this device features an exceptionally compact footprint, allowing seamless integration into densely populated PCBs typical of mobile devices, portable electronics, and high-speed interface modules. The mechanical structure of the DFN package enhances both thermal performance and assembly reliability under surface-mount technology (SMT), minimizing layout parasitics to preserve signal integrity in critical traces.
At the electrical core, the ESD0301BL exhibits extremely low capacitance, minimizing any detrimental effect on data signals traversing sensitive protocols such as USB, HDMI, MIPI, or LVDS. The intrinsic capacitance reduction directly correlates to superior eye-diagram performance and reduced signal distortion, a key requirement in interfaces with gigabit transmission rates. Combined with low leakage current, the device prevents unnecessary static load, supporting ultra-low-power system states without unintentionally altering high-impedance nodes. These characteristics ensure that the ESD0301BL fits environments demanding both stringent noise margins and minimal power draw, including battery-operated sensor modules and wearable platforms.
The working voltage rating of 3.3 V aligns precisely with common logic levels in modern ICs, maximizing stand-off protection for the majority of mainstream digital architectures. The clamp voltage of 12 V under transient strikes guarantees downstream semiconductor safety by shunting hazardous surges away from internal circuitry. Rapid response times, an inherent property of high-performance TVS diodes, mitigate voltage overshoots that might lead to latent bit errors or catastrophic chip failure, especially in interfaces exposed to frequent hot-plug events and human contact.
Installation in real-world systems demonstrates the ESD0301BL’s integration flexibility. Its minimal footprint and unidirectional configuration accelerate layout optimization in differential and single-ended channel designs. In prototyping phases of handheld terminals, implementing this diode at connector entry points effectively reduced field failure rates related to ESD, especially during qualification against IEC 61000-4-2 standards. Experience also indicates that the robust thermal cycling endurance of the DFN1006 encapsulation prevents micro-cracking, even when reflowed adjacent to larger SMT components.
Given the growing demand for reliability in edge devices and IoT endpoints, the ESD0301BL presents a forward-looking approach by balancing device-level robustness and system-level signal transparency. In applications where every picofarad of capacitance counts, and every microamp of leakage must be controlled, the nuanced engineering behind the ESD0301BL enables a pragmatic compromise—maximizing immunity to unpredictable surges with negligible involvement in benign operating conditions. This convergence of attributes highlights a decisive shift in transient protection strategy, where marginal improvements in passive silicon design have become instrumental to the viability of next-generation, miniaturized digital architectures.
Key Features and Performance Parameters of ESD0301BL MDD TVS Diode DFN1006 Series
The ESD0301BL MDD TVS Diode DFN1006 Series is engineered as a compact, highly effective transient voltage suppression solution optimized for high-speed electronic circuits. Central to its protective capability is robust compliance with IEC61000-4-2 and IEC61000-4-4 standards, allowing the device to withstand electrostatic discharges up to ±15 kV via air and ±8 kV via direct contact. This high level of protection directly addresses failure modes such as latch-up and destructive overvoltage events commonly encountered in portable and densely integrated electronic designs.
Underpinning the device’s reliability is its capacity to handle electrical fast transient (EFT) pulses with peak currents up to 40 A (characterized by a 5/50 ns waveform), a parameter critical for environments vulnerable to switching interference and transient currents induced by inductive loads. The TVS diode’s 100 W peak pulse power dissipation rating (8/20 µs waveform) marks a significant design advantage, equipping it to absorb high-energy surges without performance degradation or latent damage—a recurring challenge when integrating protection at board-level interconnects and edge ports.
A defining feature is the device’s ultra-low capacitance, typically around 0.5 pF, which ensures signal integrity even in rapidly switching interfaces such as USB, HDMI, MHL, and LVDS. This property allows for seamless ESD suppression without introducing signal distortion, a frequent tradeoff encountered with less optimized protection elements. In signal analysis for differential and single-ended buses, low input capacitance directly correlates with minimized insertion loss and preserved impedance matching across multi-gigabit links, which is vital for regulatory compliance and performance assurance.
Minimal leakage current is another pillar of the ESD0301BL’s design. Low steady-state current not only prevents incremental power loss in energy-sensitive modules but also forestalls long-term reliability issues related to parasitic conduction paths, which can cause power rail drift in highly integrated SOC and FPGA-based platforms. Integrating this diode into these environments demonstrates consistent protection without compromising quiescent performance or introducing sequencing artifacts during startup and shutdown cycles.
A key differentiator is the device’s low clamping voltage, achieved through careful engineering of the breakdown region. This feature significantly mitigates the risk of secondary breakdown in adjacent ICs, as it tightly restricts the overshoot during an ESD or EFT event, offering margin beyond conventional diodes. In practice, this enables designers to position the device directly on sensitive nets, such as analog sensor lines and RF inputs, without concern for over-voltage exposure beyond safe operating areas.
From a practical design perspective, the device’s DFN1006 package presents a balanced tradeoff. Its small footprint facilitates close placement to high-speed connectors, optimizing layout for minimal trace inductance and prompt transient suppression. Empirical results reveal that positioning the protection diode within a few millimeters of the port tangibly improves IEC compliance margins, especially in compact wearable and mobile architectures where board space is at a premium.
Strategically, integrating the ESD0301BL encourages a system-level approach: its combination of low capacitance, high surge capability, and minimal leakage supports both signal and power line protection in multi-interface designs. A layered protection schema, where high-level ports receive discrete TVS diodes complemented by board-level filtering, further elevates immunity to transient voltage threats, reducing field failure rates and enhancing product robustness.
Ultimately, the ESD0301BL sets a benchmark for balancing transient suppression efficacy with the nuanced electrical characteristics required in modern high-speed data systems. Its design exemplifies how focused parameter optimization, supported by real-world application feedback, can yield protective components that enhance both immediate device safety and long-term circuit reliability.
Electrical and Mechanical Specifications of ESD0301BL MDD TVS Diode DFN1006 Series
The ESD0301BL of the MDD TVS Diode DFN1006 Series provides critical protection against electrostatic discharge events, engineered for 3.3 V systems where tight suppression parameters are required. Its electrical performance centers on a robust breakdown mechanism, activating precisely as voltage transients surpass 3.3 V and rapidly limiting the excursion to a clamping voltage of 12 V. This precise transient response is driven by the device’s internal silicon epitaxy and junction optimization, enabling it to absorb and safely redirect surge currents up to 1 A (8/20 µs waveform). The peak current handling aligns with the rigorous demands of modern I/O interfaces and densely packed signal lines, where fault tolerance and consistent safeguarding against ESD are prioritized.
Physical integration is facilitated via the DFN1006 package, a surface-mount format featuring two contact pads. The package’s minimalist geometry not only minimizes parasitic inductance but also ensures rapid heat dissipation, which is essential for repetitive pulse events. Sequential design iterations have revealed that mounting orientation and pad layout directly impact cleanness of clamping action, so board designers benefit from adherence to reference layouts provided in process notes. The standard mechanical envelope enables plug-and-play compatibility with established PCB footprints, eliminating re-layout costs and accelerating product lifecycle timelines. There is a practical advantage noted during automated optical inspection and pick-and-place operations, with the device reliably passing solderability and coplanarity checks under standard reflow profiles (JEDEC standards). This performance, consistently observed across multiple reflow cycles, reinforces the long-term integrity of the TVS diode in environments characterized by thermal cycling and vibrational stress.
Operational reliability further depends on the diode’s response to repetitive ESD strikes. Stress testing in typical assembly environments demonstrates stable junction characteristics beyond the first event, a result of carefully controlled wafer processing and passivation steps. Real-world application in consumer and industrial control systems has revealed a reduction in field failures when such TVS diodes are utilized at ingress points. Layered deployment—placing the ESD0301BL proximal to vulnerable digital components—results in enhanced system robustness without increasing layout complexity. From a design-for-manufacturability perspective, the series offers a high degree of placement freedom during panelization, further expediting throughput.
Unique insights emerge when considering multi-voltage environments, where harmonizing the clamping response between disparate bus voltages is required. The ESD0301BL’s voltage profile and fast recovery are well suited to mixed-signal nodes and bidirectional interfaces, where suppression speed and repeatability outweigh maximum current ratings alone. In sum, the device’s structure, electrical limits, and mechanical properties jointly enable high-confidence protection for circuits exposed to unpredictable transient conditions, forming an underpinning layer within comprehensive hardware resilience architectures.
Application Scenarios for ESD0301BL MDD TVS Diode DFN1006 Series
The ESD0301BL MDD TVS Diode DFN1006 Series is engineered to address the challenges of protecting high-speed data interfaces without sacrificing transmission performance. Its core mechanism centers on rapid clamping of transient voltages, delivering ultra-fast response times that are essential when handling electrostatic discharge across sensitive signal lines. The inherent low capacitance design minimizes signal distortion, enabling continuous preservation of signal integrity even at elevated frequencies, as typically encountered in Serial ATA, USB, DisplayPort, and DVI connections. This balance between protection and electrical transparency is particularly valuable when integrating into desktops, servers, and notebooks where multiple differential data channels require uniform ESD safeguarding.
Layered protection strategies are increasingly vital in consumer electronics and communication devices. In mobile environments, such as cellular phones and MDDI ports, compact board real estate and aggressive integration trends demand ESD solutions with minimal footprint and negligible parasitic effects. The DFN1006 package of the ESD0301BL series directly addresses these constraints, offering engineers flexibility in layout while ensuring compliance with IEC61000-4-2 Level 4 and similar robustness benchmarks. In system-level designs, the device’s bidirectional configuration simplifies deployment for both single-ended and differential pair protocols, reducing design complexity and preserving routing efficiency.
Experience with high-density PCBs has shown that inadvertent capacitance, even on the order of a few picofarads, can degrade signal eye diagrams and induce jitter, ultimately limiting the achievable bandwidth of communication links. The ESD0301BL’s sub-picofarad capacitance mitigates this, making it a preferred choice for applications prioritizing sustained data rates and minimal latency. Furthermore, implementing this TVS diode on exposed connectors and interface pads enhances the reliability of fielded equipment, especially in environments prone to frequent operator interaction or uncontrolled discharge events.
The device’s architecture reflects a growing industry emphasis on harmonizing physical protection with protocol demands rather than treating ESD protection as a peripheral concern. Integration of ESD0301BL into signal paths exemplifies a paradigm where protection circuitry recedes into the background, leaving data throughput undisturbed. This approach encourages designers to shift from reactive to proactive methodologies, embedding resilience directly within the high-speed channel instead of relying solely on external shielding.
In multiple deployments, the rapid recovery characteristics and negligible triggering thresholds of this diode have prevented damaging surges while allowing seamless communication, even during heavy traffic on data buses. Key insight arises from the observation that marginal gains in capacitance specs or clamping speed can yield disproportionate improvements in long-term system stability and field reliability, especially as interface standards evolve towards higher throughput. The ESD0301BL series stands out as an optimal intersection of minimal electrical impact and robust transient suppression, driving contemporary ESD architectural practices in advanced electronic platforms.
Packaging and Mounting Considerations for ESD0301BL MDD TVS Diode DFN1006 Series
Packaging and mounting of the ESD0301BL MDD TVS Diode require precise consideration beginning with its adherence to EIA RS-481-A tape and reel standards. This standardized packaging not only supports high-speed, automated pick-and-place assembly but also consistently protects the devices from mechanical stress during transport and handling. Discipline in maintaining package orientation and minimizing exposure to ambient humidity is central to avoiding surface mount device failures.
The DFN1006 outline, characterized by its compact 1.0 x 0.6 mm footprint, directly addresses stringent requirements for PCB space optimization in dense circuits. This minimal-sized package enables close placement to protected interfaces, reducing trace lengths and, as a consequence, parasitic inductance and resistance. The two-terminal construction further streamlines layout considerations; the direct path for ESD transients improves clamp response, especially crucial in high-speed and noise-sensitive nodes.
Mounting techniques must accommodate the device’s low thermal mass, especially during solder reflow. The recommended reflow profile, typically detailed in the product datasheet, seeks to balance ramp-up and soak periods, thereby restricting thermomechanical stress gradients and preventing solder joint defects such as voids or tombstoning. Experience demonstrates that monitoring time above liquidus and controlling cooling rates enhances intermetallic bond uniformity, a critical factor for long-term reliability, particularly in automotive or industrial applications subjected to thermal cycling.
PCB layout design is pivotal for extracting the full transient suppression capability of the ESD0301BL. Strategic placement near signal entry points and careful routing minimize series impedance, ensuring fast response and low clamping voltage. The ultra-low capacitance attribute—often in the sub-picofarad range—means the diode can safeguard delicate interfaces like USB, HDMI, or high-frequency RF lines without compromising signal integrity. Practical layout adaptations, such as dedicated ground pours beneath the DFN, further suppress ground bounce and ensure robust shunting of ESD currents.
Specific board-level testing after assembly frequently reveals that modest variations in solder pad geometry or stencil aperture can alter mounting robustness. Proper stencil design, pad finish, and the use of no-clean solder paste are often favored to curtail ionic contamination and maintain surface insulation resistance. Iterative prototyping and thermal profiling provide valuable feedback, enabling continuous refinement of both reflow parameters and PCB artwork.
A nuanced perspective is that the integration of such TVS diodes early in the hardware development not only hardens the design but also accelerates compliance with standards like IEC 61000-4-2, eliminating late-stage debugging related to transient immunity failures. In sum, optimizing packaging, mounting, and layout for the ESD0301BL translates directly to superior board-level ESD resilience, high signal performance, and durable field operation.
Reliability and Quality Assurance of ESD0301BL MDD TVS Diode DFN1006 Series
The reliability and quality assurance framework of the ESD0301BL MDD TVS Diode DFN1006 series originates from a combination of optimized device architecture and standardized evaluation procedures. The diode's core protection mechanism utilizes a precisely engineered silicon junction capable of rapid clamping during ESD transients, thus minimizing residual voltage propagation to downstream circuitry. By adhering to absolute maximum ratings at 25 °C, the device’s operational boundaries are tightly defined, which is essential for consistent field behavior and predictable derating curves in thermal management scenarios.
Detailed qualification involves multiple stress tests that simulate both consumer and industrial application environments—specifically, repeated exposure to ESD pulses as codified in IEC 61000-4-2 and related standards. The component not only withstands high-voltage discharges but maintains sub-nanosecond response characteristics throughout successive events, a critical attribute in densely populated PCBs where pulse overlap and cumulative stress often induce latent failures in lesser devices. Profiling over extended cycles evidences negligible drift in clamping voltage and leakage current, underscoring the diode’s extended lifetime and suitability for mission-critical data paths and control lines.
The manufacturing process integrates a closed-loop quality assurance system, emphasizing traceability and in-line parameter monitoring. Automated optical inspection, combined with routine batch sampling, intercepts package-level anomalies or bond microfractures before shipment—process controls that reduce field returns and support high-MTBF requirements. Notably, the DFN1006 package’s small footprint and low profile facilitate close placement to signal entry points, which is a practical advantage in modern PCB layout, where minimizing trace length between connector and clamp is pivotal in suppressing voltage overshoot.
Application scenarios illustrate diverse use cases, from portable appliances exposed to frequent user interaction—to industrial controllers in e-mobility where uninterrupted CAN communication is imperative. Many deployment experiences highlight that performance either approaches or matches simulation data, with negligible deviation during board-level qualification. This enduring performance is largely attributed to the device’s low dynamic resistance, which ensures repeatable energy absorption without inducing noticeable parasitic coupling into adjacent high-speed signals.
Emerging system-level requirements continue to underscore the need for layered ESD immunity. In this context, integrating a diode like the ESD0301BL at boundary interfaces strategically complements on-board filtering and shielding. Its robust construction and tight electrical tolerance mitigate the risk of cumulative stress propagation, thus elevating baseline system reliability. The convergence of material science advances and refined assembly control in this series sets an implicit benchmark, especially in applications where sub-millisecond uptime loss translates directly into operational risk or regulatory non-compliance.
By addressing both immediate clamping effectiveness and long-term durability, this diode series embodies a holistic reliability approach that aligns with the evolving demands of advanced electronic design and quality-driven deployment strategies.
Potential Equivalent and Replacement Models for ESD0301BL MDD TVS Diode DFN1006 Series
Selection of suitable alternatives to the ESD0301BL MDD TVS Diode within the DFN1006 series hinges on a nuanced comparison of critical electrical parameters. The primary considerations include working voltage, clamping voltage, peak pulse current, and especially junction capacitance. Each of these factors influences the diode’s effectiveness in transient voltage suppression and its overall impact on circuit performance—particularly in high-speed or precision signal environments where capacitance directly affects signal integrity and propagation delay.
From an engineering perspective, direct equivalents should demonstrate near-identical ESD tolerance (as specified by AEC-Q101 or IEC 61000-4-2 standards) and maintain a capacitance profile compatible with sensitive data lines. Failure to adhere to these constraints may inadvertently introduce signal degradation or insufficient protection. Parametric comparison tools and cross-reference databases can be leveraged to systematically scan offerings from alternative suppliers. Manufacturers such as Nexperia, Vishay, ON Semiconductor, and Littelfuse provide DFN1006-footprint TVS diodes with comparable or superior ratings; however, subtle nuances like reverse leakage current, dynamic resistance, and pulse handling shape the selection for specialized designs.
Transitioning to replacement models requires scrutiny of mechanical and electrical compatibility. The DFN1006 package assures footprint alignment, yet subtle variances in recommended land patterns or soldering profiles must be cross-examined against existing PCB constraints. Disparities in length or thermal properties may not be visually apparent but can affect reliability during reflow or long-term operation, especially where high cycle counts or temperature excursions are expected. Experience reveals that overemphasis on headline parameters can neglect packaging subtleties—an oversight corrected by integrating package simulation and board-level validation during evaluation.
It is also prudent to consider the broader supply chain and lifecycle aspects when selecting a substitute. Alternate sources may offer advantageous pricing or inventory stability, but rapid obsolescence or inconsistent lot quality can undermine fielded systems. A balanced approach incorporates dual sourcing strategies—designing reference pads that accommodate pin-to-pin compatible TVS diodes from multiple suppliers. This strategy provides insurance against supply disruptions and affords flexibility for performance upgrades as technology advances.
Leveraging new-generation TVS diodes sometimes reveals benefits such as lower capacitance through advanced process technology or enhanced pulse power ratings that increase system ruggedness. Practically, such upgrades can yield improved electromagnetic compatibility margins or reduced board space through higher integration, supporting miniaturization trends in consumer and industrial applications.
In summary, effective substitution centers on in-depth parameter mapping, mechanical and thermal fit analysis, and lifecycle management. Keeping the evaluation methodical ensures seamless migration or performance enhancement without compromising protection or signal integrity. Integrating simulation and field measurements into this process can uncover latent pitfalls and optimize the switch from the ESD0301BL to next-generation protection diodes.
Conclusion
The ESD0301BL MDD TVS diode in the DFN1006 package is engineered for precision ESD protection in high-speed data environments, leveraging its low capacitance profile to minimize signal degradation on sensitive communication lines. At the core, the device's architecture employs advanced semiconductor junction structures that respond rapidly to voltage spikes, diverting transient energy away from vulnerable integrated circuits. This fundamental capability aligns with the stringent requirements of international ESD (IEC 61000-4-2) and EFT (IEC 61000-4-4) standards, ensuring uniform protection across varying environmental and application scenarios.
From a mechanical standpoint, the DFN1006 package delivers optimized thermal performance and space efficiency, facilitating straightforward PCB integration even in dense layouts found in next-generation consumer and industrial products. Electrically, key parameters such as low clamping voltage and fast response time reinforce the device’s role in preserving system reliability while maintaining signal fidelity crucial for Gigabit Ethernet, USB 3.x, and other high-speed protocols. In practice, placement proximity to the interface connector—preferably within a millimeter—further elevates protection efficacy by minimizing parasitics and response lag.
Design experience often highlights the interplay between transient robustness and signal integrity, especially in ecosystems with mixed-voltage domains and compact footprints. The ESD0301BL’s consistent performance across temperature and humidity variations ensures stable operation under real-world stress conditions, reducing failure rates over extended product lifecycles. Optimization at the board level, such as pairing with matched impedance traces and careful ground referencing, significantly lowers the risk of induced noise and crosstalk.
A subtle but critical insight emerges when balancing protection threshold and system bandwidth: while some TVS solutions inadvertently degrade high-frequency signaling, the ESD0301BL maintains optimal capacitance so that insertion loss and rise time distortion are negligible. This feature is especially beneficial in designs targeting compliance for electromagnetic compatibility without iterative requalification. The device thus serves as a strategic enabler for future-ready, resilient platforms in markets where reliability and speed converge.
