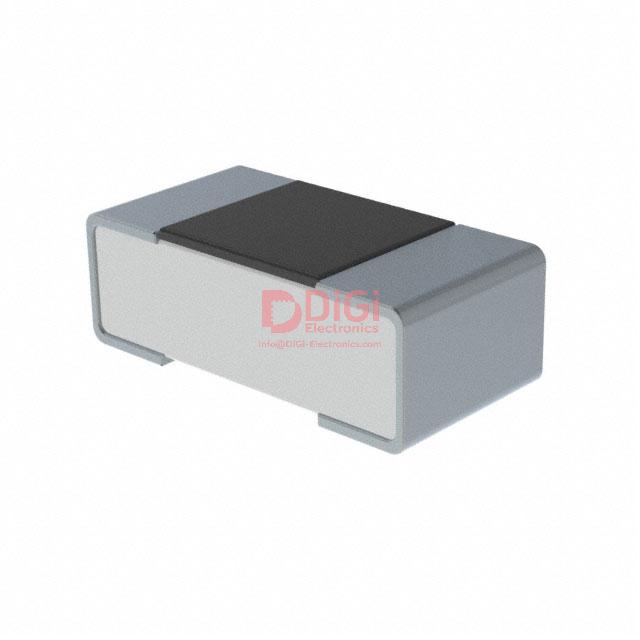

SG73S1ETTP3903F
KOA Speer Electronics, Inc.
RES 390K OHM 1% 1/8W 0402
1114 Pcs New Original In Stock
390 kOhms ±1% 0.125W, 1/8W Chip Resistor 0402 (1005 Metric) Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding Thick Film
Request Quote
(Ships tomorrow)
*Quantity
Minimum 1
Minimum 1
5.0 / 5.0
- (507 Ratings)
SG73S1ETTP3903F
Product Overview
810049
DiGi Electronics Part Number
SG73S1ETTP3903F-DGManufacturer
KOA Speer Electronics, Inc.
SG73S1ETTP3903F
Description
RES 390K OHM 1% 1/8W 0402Inventory
1114 Pcs New Original In Stock
390 kOhms ±1% 0.125W, 1/8W Chip Resistor 0402 (1005 Metric) Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding Thick Film
Quantity
Minimum 1
Minimum 1
Purchase and inquiry
Warranty & Returns
How to Order
Shipping & Delivery
Quality Assurance
365 - Day Quality Guarantee - Every part fully backed.
90 - Day Refund or Exchange - Defective parts? No hassle.
Limited Stock, Order Now - Get reliable parts without worry.
Global Shipping & Secure Packaging
Worldwide Delivery in 3-5 Business Days
100% ESD Anti-Static Packaging
Real-Time Tracking for Every Order
Secure & Flexible Payment
Credit Card, VISA, MasterCard, PayPal, Western Union, Telegraphic Transfer(T/T) and more
All payments encrypted for security
SG73S1ETTP3903F Technical Specifications
Category
Chip Resistor - Surface Mount
Packaging
Tape & Reel (TR)
Series
SG73S
Product Status
Active
Resistance
390 kOhms
Tolerance
±1%
Power (Watts)
0.125W, 1/8W
Composition
Thick Film
Features
Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding
Temperature Coefficient
±200ppm/°C
Operating Temperature
-55°C ~ 155°C
Package / Case
0402 (1005 Metric)
Supplier Device Package
0402
Ratings
AEC-Q200
Size / Dimension
0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max)
0.016" (0.40mm)
Number of Terminations
2
Failure Rate
-
Base Product Number
SG73S1
Datasheet & Documents
HTML Datasheet
SG73S1ETTP3903F-DG
Environmental & Export Classification
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8533.21.0030
Additional Information
Other Names
2019-SG73S1ETTP3903FTR
Standard Package
10,000
Publish Evalution
Evalution Message
Please enter your review message.
Please post honest comments and do not post ilegal comments.
Frequently Asked Questions (FAQ)
What is the resistance value and tolerance of the SG73S1ETTP3903F chip resistor?
This resistor has a resistance value of 390 kOhms with a tolerance of ±1%, ensuring precise and reliable performance in electronic circuits. The tight tolerance makes it suitable for applications requiring accurate resistance values.
What power rating does this 0402 chip resistor have?
The SG73S1ETTP3903F is rated at 0.125W (1/8W), making it ideal for compact, low-power applications. Despite its small size, it can handle the thermal demands of automotive and industrial environments.
Is this resistor suitable for automotive applications?
Yes, this resistor meets AEC-Q200 automotive standards and features pulse withstanding and moisture resistance. It is designed to operate reliably in harsh automotive environments with temperature ranges from -55°C to 155°C.
What is the package size and dimensions of this chip resistor?
The resistor comes in a 0402 (1005 Metric) package measuring 1.00mm x 0.50mm in length and width, with a maximum seated height of 0.40mm. This ultra-compact size is ideal for space-constrained PCB designs.
What are the key features and ratings of the SG73S1ETTP3903F?
Key features include AEC-Q200 automotive certification, thick-film composition, moisture resistance, and pulse withstanding capability. It is RoHS3 compliant, has an MSL rating of 1 (unlimited shelf life), and operates with a temperature coefficient of ±200ppm/°C.
Quality Assurance (QC)
DiGi ensures the quality and authenticity of every electronic component through professional inspections and batch sampling, guaranteeing reliable sourcing, stable performance, and compliance with technical specifications, helping customers reduce supply chain risks and confidently use components in production.
SG73S1ETTP3903F CAD Models
KOA Speer Electronics, Inc. SG73S1ETTP3903F PCB symbols & footprints
