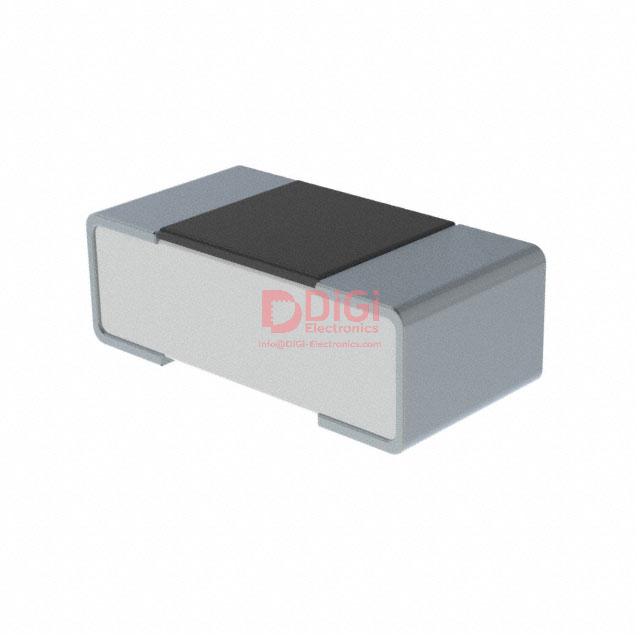

SG73S1ETTP36R0D
KOA Speer Electronics, Inc.
RES 36 OHM 0.5% 1/8W 0402
886 Pcs New Original In Stock
36 Ohms ±0.5% 0.125W, 1/8W Chip Resistor 0402 (1005 Metric) Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding Thick Film
Request Quote
(Ships tomorrow)
*Quantity
Minimum 1
Minimum 1
5.0 / 5.0
- (376 Ratings)
SG73S1ETTP36R0D
Product Overview
810041
DiGi Electronics Part Number
SG73S1ETTP36R0D-DGManufacturer
KOA Speer Electronics, Inc.
SG73S1ETTP36R0D
Description
RES 36 OHM 0.5% 1/8W 0402Inventory
886 Pcs New Original In Stock
36 Ohms ±0.5% 0.125W, 1/8W Chip Resistor 0402 (1005 Metric) Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding Thick Film
Quantity
Minimum 1
Minimum 1
Purchase and inquiry
Warranty & Returns
How to Order
Shipping & Delivery
Quality Assurance
365 - Day Quality Guarantee - Every part fully backed.
90 - Day Refund or Exchange - Defective parts? No hassle.
Limited Stock, Order Now - Get reliable parts without worry.
Global Shipping & Secure Packaging
Worldwide Delivery in 3-5 Business Days
100% ESD Anti-Static Packaging
Real-Time Tracking for Every Order
Secure & Flexible Payment
Credit Card, VISA, MasterCard, PayPal, Western Union, Telegraphic Transfer(T/T) and more
All payments encrypted for security
SG73S1ETTP36R0D Technical Specifications
Category
Chip Resistor - Surface Mount
Packaging
Tape & Reel (TR)
Series
SG73S
Product Status
Active
Resistance
36 Ohms
Tolerance
±0.5%
Power (Watts)
0.125W, 1/8W
Composition
Thick Film
Features
Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding
Temperature Coefficient
±200ppm/°C
Operating Temperature
-55°C ~ 155°C
Package / Case
0402 (1005 Metric)
Supplier Device Package
0402
Ratings
AEC-Q200
Size / Dimension
0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max)
0.016" (0.40mm)
Number of Terminations
2
Failure Rate
-
Base Product Number
SG73S1
Datasheet & Documents
HTML Datasheet
SG73S1ETTP36R0D-DG
Environmental & Export Classification
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8533.21.0030
Additional Information
Other Names
2019-SG73S1ETTP36R0DTR
Standard Package
10,000
Publish Evalution
Evalution Message
Please enter your review message.
Please post honest comments and do not post ilegal comments.
Frequently Asked Questions (FAQ)
What is the resistance value and tolerance of the SG73S1ETTP36R0D chip resistor?
This resistor has a resistance value of 36 Ohms with a tolerance of ±0.5%, ensuring high precision for demanding applications. The tight tolerance makes it suitable for circuits requiring accurate impedance matching and signal integrity.
Is this 0402 resistor suitable for automotive applications?
Yes, the SG73S1ETTP36R0D meets AEC-Q200 automotive standards and is designed for automotive-grade reliability. It operates across a wide temperature range from -55°C to 155°C, making it ideal for harsh automotive environments.
What is the power rating of this thick film chip resistor?
This resistor is rated for 0.125W (1/8W) power dissipation, suitable for low-power signal applications and general-purpose circuits. The thick film construction provides reliable pulse withstanding capability.
What are the dimensions and package type of the SG73S1ETTP36R0D?
This resistor comes in a 0402 (1005 Metric) package measuring 1.00mm × 0.50mm with a maximum seated height of 0.40mm. It is supplied on tape and reel (TR) for automated assembly.
Is this resistor RoHS compliant and moisture resistant?
Yes, the SG73S1ETTP36R0D is ROHS3 compliant and features moisture-resistant construction with an MSL rating of 1 (unlimited). It meets REACH regulations and is suitable for high-reliability applications.
