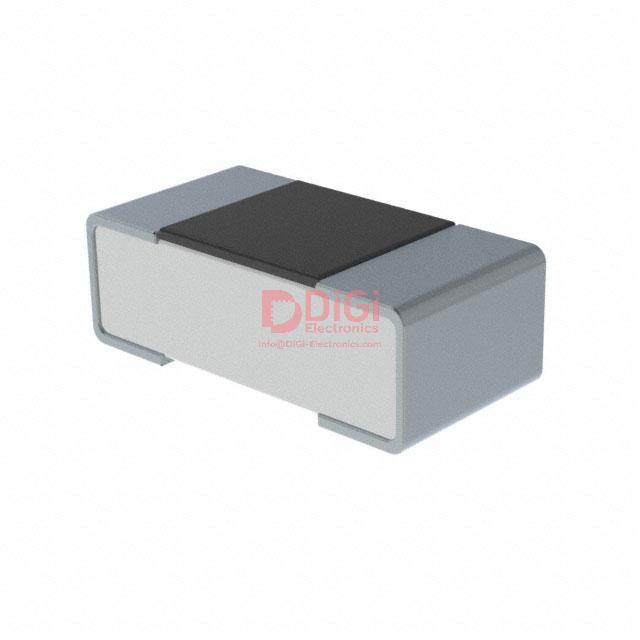

SG73S1ETTP3003F
KOA Speer Electronics, Inc.
RES 300K OHM 1% 1/8W 0402
972 Pcs New Original In Stock
300 kOhms ±1% 0.125W, 1/8W Chip Resistor 0402 (1005 Metric) Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding Thick Film
Request Quote
(Ships tomorrow)
*Quantity
Minimum 1
Minimum 1
5.0 / 5.0
- (112 Ratings)
SG73S1ETTP3003F
Product Overview
810130
DiGi Electronics Part Number
SG73S1ETTP3003F-DGManufacturer
KOA Speer Electronics, Inc.
SG73S1ETTP3003F
Description
RES 300K OHM 1% 1/8W 0402Inventory
972 Pcs New Original In Stock
300 kOhms ±1% 0.125W, 1/8W Chip Resistor 0402 (1005 Metric) Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding Thick Film
Quantity
Minimum 1
Minimum 1
Purchase and inquiry
Warranty & Returns
How to Order
Shipping & Delivery
Quality Assurance
365 - Day Quality Guarantee - Every part fully backed.
90 - Day Refund or Exchange - Defective parts? No hassle.
Limited Stock, Order Now - Get reliable parts without worry.
Global Shipping & Secure Packaging
Worldwide Delivery in 3-5 Business Days
100% ESD Anti-Static Packaging
Real-Time Tracking for Every Order
Secure & Flexible Payment
Credit Card, VISA, MasterCard, PayPal, Western Union, Telegraphic Transfer(T/T) and more
All payments encrypted for security
SG73S1ETTP3003F Technical Specifications
Category
Chip Resistor - Surface Mount
Packaging
Tape & Reel (TR)
Series
SG73S
Product Status
Active
Resistance
300 kOhms
Tolerance
±1%
Power (Watts)
0.125W, 1/8W
Composition
Thick Film
Features
Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding
Temperature Coefficient
±200ppm/°C
Operating Temperature
-55°C ~ 155°C
Package / Case
0402 (1005 Metric)
Supplier Device Package
0402
Ratings
AEC-Q200
Size / Dimension
0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max)
0.016" (0.40mm)
Number of Terminations
2
Failure Rate
-
Base Product Number
SG73S1
Datasheet & Documents
HTML Datasheet
SG73S1ETTP3003F-DG
Environmental & Export Classification
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8533.21.0030
Additional Information
Other Names
2019-SG73S1ETTP3003FTR
Standard Package
10,000
Publish Evalution
Evalution Message
Please enter your review message.
Please post honest comments and do not post ilegal comments.
Frequently Asked Questions (FAQ)
What is the KOA Speer SG73S1ETTP3003F 300k ohm resistor used for?
This 300 kOhm chip resistor is designed for automotive and industrial applications requiring precision resistance. With AEC-Q200 certification, it's ideal for engine control modules, sensor circuits, and other mission-critical automotive systems where reliability and accuracy are essential.
What are the key specifications of this 0402 chip resistor?
The SG73S1ETTP3003F features 300 kOhms resistance with ±1% tolerance, 1/8W power rating, and operates from -55°C to 155°C. Its compact 0402 (1.00mm x 0.50mm) size makes it ideal for space-constrained PCB designs while maintaining high performance.
Is this resistor suitable for automotive applications?
Yes, this resistor meets AEC-Q200 automotive standards and is moisture-resistant with pulse-withstanding capabilities. It's specifically rated for automotive use and can handle the demanding temperature and reliability requirements of vehicle electronics.
What makes the thick film composition beneficial?
Thick film resistors offer excellent pulse withstanding capability, moisture resistance, and stable performance across temperature ranges. This composition provides superior reliability compared to thin film alternatives, particularly in harsh automotive environments.
Is this resistor RoHS and REACH compliant?
Yes, the SG73S1ETTP3003F is RoHS3 compliant and REACH unaffected, making it suitable for applications in regulated markets. Its MSL rating of 1 (unlimited) means it requires no special moisture handling during storage or assembly.
Quality Assurance (QC)
DiGi ensures the quality and authenticity of every electronic component through professional inspections and batch sampling, guaranteeing reliable sourcing, stable performance, and compliance with technical specifications, helping customers reduce supply chain risks and confidently use components in production.
SG73S1ETTP3003F CAD Models
KOA Speer Electronics, Inc. SG73S1ETTP3003F PCB symbols & footprints
