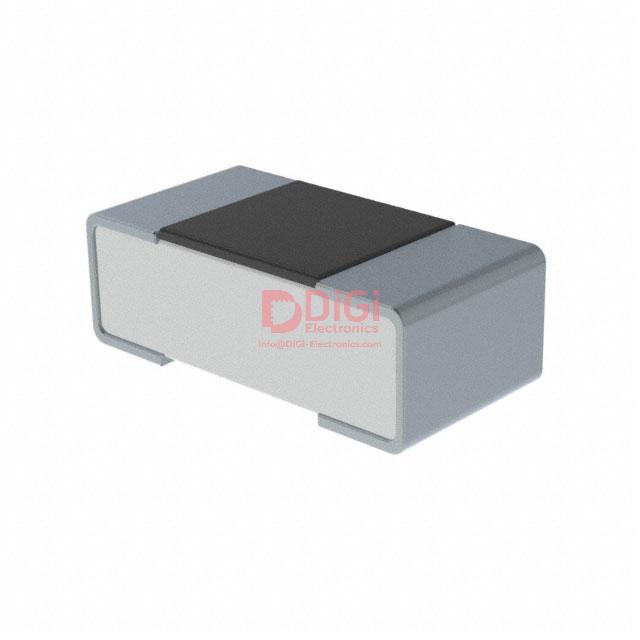

SG73S1ETTP1372F
KOA Speer Electronics, Inc.
RES 13.7K OHM 1% 1/8W 0402
934 Pcs New Original In Stock
13.7 kOhms ±1% 0.125W, 1/8W Chip Resistor 0402 (1005 Metric) Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding Thick Film
Request Quote
(Ships tomorrow)
*Quantity
Minimum 1
Minimum 1
5.0 / 5.0
- (490 Ratings)
SG73S1ETTP1372F
Product Overview
810216
DiGi Electronics Part Number
SG73S1ETTP1372F-DGManufacturer
KOA Speer Electronics, Inc.
SG73S1ETTP1372F
Description
RES 13.7K OHM 1% 1/8W 0402Inventory
934 Pcs New Original In Stock
13.7 kOhms ±1% 0.125W, 1/8W Chip Resistor 0402 (1005 Metric) Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding Thick Film
Quantity
Minimum 1
Minimum 1
Purchase and inquiry
Warranty & Returns
How to Order
Shipping & Delivery
Quality Assurance
365 - Day Quality Guarantee - Every part fully backed.
90 - Day Refund or Exchange - Defective parts? No hassle.
Limited Stock, Order Now - Get reliable parts without worry.
Global Shipping & Secure Packaging
Worldwide Delivery in 3-5 Business Days
100% ESD Anti-Static Packaging
Real-Time Tracking for Every Order
Secure & Flexible Payment
Credit Card, VISA, MasterCard, PayPal, Western Union, Telegraphic Transfer(T/T) and more
All payments encrypted for security
SG73S1ETTP1372F Technical Specifications
Category
Chip Resistor - Surface Mount
Packaging
Tape & Reel (TR)
Series
SG73S
Product Status
Active
Resistance
13.7 kOhms
Tolerance
±1%
Power (Watts)
0.125W, 1/8W
Composition
Thick Film
Features
Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding
Temperature Coefficient
±200ppm/°C
Operating Temperature
-55°C ~ 155°C
Package / Case
0402 (1005 Metric)
Supplier Device Package
0402
Ratings
AEC-Q200
Size / Dimension
0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max)
0.016" (0.40mm)
Number of Terminations
2
Base Product Number
SG73S1
Datasheet & Documents
HTML Datasheet
SG73S1ETTP1372F-DG
Environmental & Export Classification
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8533.21.0030
Additional Information
Other Names
2019-SG73S1ETTP1372FTR
Standard Package
10,000
Publish Evalution
Evalution Message
Please enter your review message.
Please post honest comments and do not post ilegal comments.
Frequently Asked Questions (FAQ)
What is a 13.7K ohm 1/8W chip resistor and what are its common applications?
A 13.7K ohm 1/8W chip resistor is a precision electronic component used in circuits requiring stable resistance values with tight tolerances. The 0402 package size makes it ideal for compact automotive, consumer electronics, and industrial applications where space is limited. Its ±1% tolerance ensures reliable performance in signal conditioning, biasing, and pull-up/pull-down circuits.
Is the SG73S1ETTP1372F resistor suitable for automotive applications?
Yes, this resistor is fully qualified for automotive use, meeting AEC-Q200 standards which ensure reliability in demanding vehicle environments. It operates reliably across the automotive temperature range of -55°C to 155°C and includes moisture resistance for enhanced durability in harsh conditions.
What does AEC-Q200 certification mean for this chip resistor?
AEC-Q200 is an automotive reliability qualification standard that guarantees this resistor meets stringent quality and durability requirements for automotive applications. It ensures the component can withstand temperature cycling, vibration, moisture exposure, and other stressors common in vehicle electronics.
What is the package size and physical dimension of the SG73S resistor?
This resistor uses the 0402 package (metric 1005), measuring 1.00mm x 0.50mm in length and width with a maximum seated height of 0.40mm. This ultra-compact size makes it ideal for high-density PCB layouts where space optimization is critical.
What is the temperature coefficient and operating range of this 13.7K resistor?
The resistor has a temperature coefficient of ±200ppm/°C and operates reliably from -55°C to 155°C, making it suitable for extreme temperature environments. This stability ensures consistent resistance values across wide temperature variations common in automotive and industrial settings.
Quality Assurance (QC)
DiGi ensures the quality and authenticity of every electronic component through professional inspections and batch sampling, guaranteeing reliable sourcing, stable performance, and compliance with technical specifications, helping customers reduce supply chain risks and confidently use components in production.
SG73S1ETTP1372F CAD Models
KOA Speer Electronics, Inc. SG73S1ETTP1372F PCB symbols & footprints
