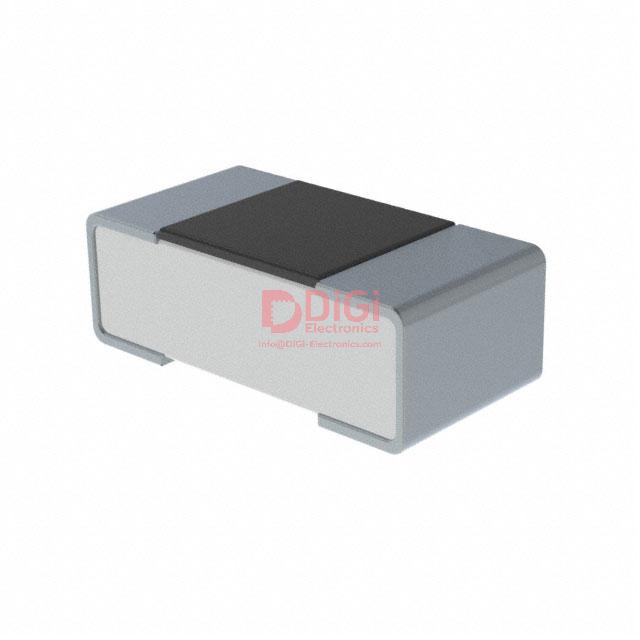

SG73S1ETTP130G
KOA Speer Electronics, Inc.
RES 13 OHM 2% 1/8W 0402
729 Pcs New Original In Stock
13 Ohms ±2% 0.125W, 1/8W Chip Resistor 0402 (1005 Metric) Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding Thick Film
Request Quote
(Ships tomorrow)
*Quantity
Minimum 1
Minimum 1
5.0 / 5.0
- (519 Ratings)
SG73S1ETTP130G
Product Overview
809919
DiGi Electronics Part Number
SG73S1ETTP130G-DGManufacturer
KOA Speer Electronics, Inc.
SG73S1ETTP130G
Description
RES 13 OHM 2% 1/8W 0402Inventory
729 Pcs New Original In Stock
13 Ohms ±2% 0.125W, 1/8W Chip Resistor 0402 (1005 Metric) Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding Thick Film
Quantity
Minimum 1
Minimum 1
Purchase and inquiry
Warranty & Returns
How to Order
Shipping & Delivery
Quality Assurance
365 - Day Quality Guarantee - Every part fully backed.
90 - Day Refund or Exchange - Defective parts? No hassle.
Limited Stock, Order Now - Get reliable parts without worry.
Global Shipping & Secure Packaging
Worldwide Delivery in 3-5 Business Days
100% ESD Anti-Static Packaging
Real-Time Tracking for Every Order
Secure & Flexible Payment
Credit Card, VISA, MasterCard, PayPal, Western Union, Telegraphic Transfer(T/T) and more
All payments encrypted for security
SG73S1ETTP130G Technical Specifications
Category
Chip Resistor - Surface Mount
Packaging
Tape & Reel (TR)
Series
SG73S
Product Status
Active
Resistance
13 Ohms
Tolerance
±2%
Power (Watts)
0.125W, 1/8W
Composition
Thick Film
Features
Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding
Temperature Coefficient
±200ppm/°C
Operating Temperature
-55°C ~ 155°C
Package / Case
0402 (1005 Metric)
Supplier Device Package
0402
Ratings
AEC-Q200
Size / Dimension
0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max)
0.016" (0.40mm)
Number of Terminations
2
Failure Rate
-
Base Product Number
SG73S1
Datasheet & Documents
HTML Datasheet
SG73S1ETTP130G-DG
Environmental & Export Classification
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8533.21.0030
Additional Information
Other Names
2019-SG73S1ETTP130GTR
Standard Package
10,000
Publish Evalution
Evalution Message
Please enter your review message.
Please post honest comments and do not post ilegal comments.
Frequently Asked Questions (FAQ)
What is the resistance value and tolerance of the SG73S1ETTP130G chip resistor?
The SG73S1ETTP130G is a 13 Ohm resistor with ±2% tolerance, making it suitable for precision applications where accurate resistance values are critical. This tight tolerance ensures reliable performance in automotive and industrial circuits.
Is this 0402 chip resistor suitable for automotive applications?
Yes, this resistor is AEC-Q200 certified and specifically designed for automotive use. It meets strict automotive quality standards and can withstand demanding automotive environments with operating temperatures from -55°C to 155°C.
What is the power rating of the SG73S1ETTP130G resistor?
This resistor has a power rating of 0.125W (1/8W), making it ideal for low-power circuits and compact PCB designs. The thick film construction provides reliable pulse withstanding capability.
What are the physical dimensions and package type of this chip resistor?
The SG73S1ETTP130G comes in a 0402 (1005 Metric) package measuring 1.00mm x 0.50mm in length and width, with a maximum seated height of 0.40mm. It is supplied on tape and reel (TR) for automated assembly.
Is this resistor RoHS compliant and moisture resistant?
Yes, the SG73S1ETTP130G is ROHS3 compliant and features moisture resistance with MSL rating of 1 (Unlimited). This means it can handle moisture exposure without degradation, making it suitable for various environmental conditions.
Quality Assurance (QC)
DiGi ensures the quality and authenticity of every electronic component through professional inspections and batch sampling, guaranteeing reliable sourcing, stable performance, and compliance with technical specifications, helping customers reduce supply chain risks and confidently use components in production.
SG73S1ETTP130G CAD Models
KOA Speer Electronics, Inc. SG73S1ETTP130G PCB symbols & footprints
