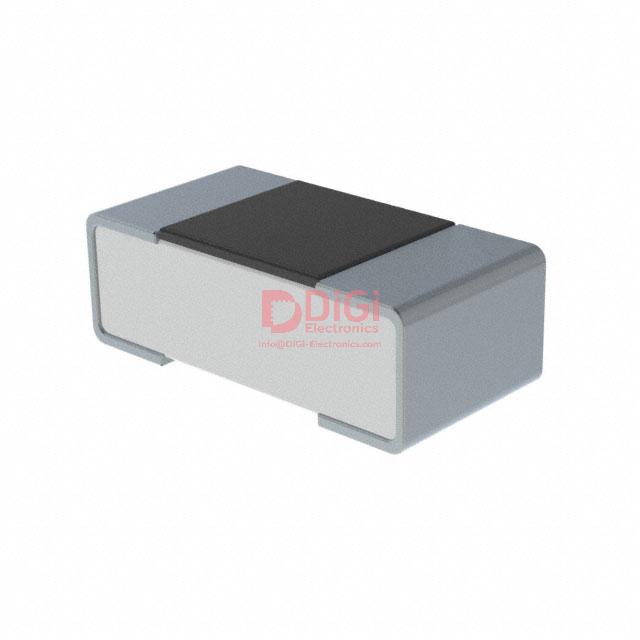

SG73S1ETTP1243D
KOA Speer Electronics, Inc.
RES 124K OHM 0.5% 1/8W 0402
774 Pcs New Original In Stock
124 kOhms ±0.5% 0.125W, 1/8W Chip Resistor 0402 (1005 Metric) Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding Thick Film
Request Quote
(Ships tomorrow)
*Quantity
Minimum 1
Minimum 1
5.0 / 5.0
- (116 Ratings)
SG73S1ETTP1243D
Product Overview
809904
DiGi Electronics Part Number
SG73S1ETTP1243D-DGManufacturer
KOA Speer Electronics, Inc.
SG73S1ETTP1243D
Description
RES 124K OHM 0.5% 1/8W 0402Inventory
774 Pcs New Original In Stock
124 kOhms ±0.5% 0.125W, 1/8W Chip Resistor 0402 (1005 Metric) Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding Thick Film
Quantity
Minimum 1
Minimum 1
Purchase and inquiry
Warranty & Returns
How to Order
Shipping & Delivery
Quality Assurance
365 - Day Quality Guarantee - Every part fully backed.
90 - Day Refund or Exchange - Defective parts? No hassle.
Limited Stock, Order Now - Get reliable parts without worry.
Global Shipping & Secure Packaging
Worldwide Delivery in 3-5 Business Days
100% ESD Anti-Static Packaging
Real-Time Tracking for Every Order
Secure & Flexible Payment
Credit Card, VISA, MasterCard, PayPal, Western Union, Telegraphic Transfer(T/T) and more
All payments encrypted for security
SG73S1ETTP1243D Technical Specifications
Category
Chip Resistor - Surface Mount
Packaging
Tape & Reel (TR)
Series
SG73S
Product Status
Active
Resistance
124 kOhms
Tolerance
±0.5%
Power (Watts)
0.125W, 1/8W
Composition
Thick Film
Features
Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding
Temperature Coefficient
±200ppm/°C
Operating Temperature
-55°C ~ 155°C
Package / Case
0402 (1005 Metric)
Supplier Device Package
0402
Ratings
AEC-Q200
Size / Dimension
0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max)
0.016" (0.40mm)
Number of Terminations
2
Failure Rate
-
Base Product Number
SG73S1
Datasheet & Documents
HTML Datasheet
SG73S1ETTP1243D-DG
Environmental & Export Classification
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8533.21.0030
Additional Information
Other Names
2019-SG73S1ETTP1243DTR
Standard Package
10,000
Publish Evalution
Evalution Message
Please enter your review message.
Please post honest comments and do not post ilegal comments.
Frequently Asked Questions (FAQ)
What is the resistance value and tolerance of the SG73S1ETTP1243D chip resistor?
The SG73S1ETTP1243D is a 124 kOhm resistor with ±0.5% tolerance, ensuring high precision for automotive and industrial applications. This tight tolerance makes it suitable for circuits requiring stable and accurate resistance values. The resistor is manufactured by KOA Speer Electronics using thick film technology.
Is this resistor suitable for automotive applications?
Yes, this resistor is fully automotive-qualified under the AEC-Q200 standard, making it ideal for harsh automotive environments. It features moisture resistance and pulse-withstanding capabilities, ensuring reliable performance in demanding conditions. The component is ROHS3 compliant and REACH unaffected.
What is the operating temperature range for the SG73S1ETTP1243D?
This resistor operates reliably across a wide temperature range of -55°C to 155°C, with a temperature coefficient of ±200ppm/°C. This makes it suitable for both extreme cold and hot environments, including automotive under-hood applications.
What package size and specifications does this chip resistor come in?
The SG73S1ETTP1243D comes in 0402 metric package (1.00mm x 0.50mm) with a maximum seated height of 0.40mm. This compact size is ideal for space-constrained PCB designs while maintaining the 0.125W (1/8W) power rating.
What is the moisture sensitivity level (MSL) of this resistor?
The resistor has a Moisture Sensitivity Level (MSL) of 1, which means unlimited shelf life without special moisture-control packaging requirements. This simplifies inventory management and reduces storage concerns.
Quality Assurance (QC)
DiGi ensures the quality and authenticity of every electronic component through professional inspections and batch sampling, guaranteeing reliable sourcing, stable performance, and compliance with technical specifications, helping customers reduce supply chain risks and confidently use components in production.
SG73S1ETTP1243D CAD Models
KOA Speer Electronics, Inc. SG73S1ETTP1243D PCB symbols & footprints
