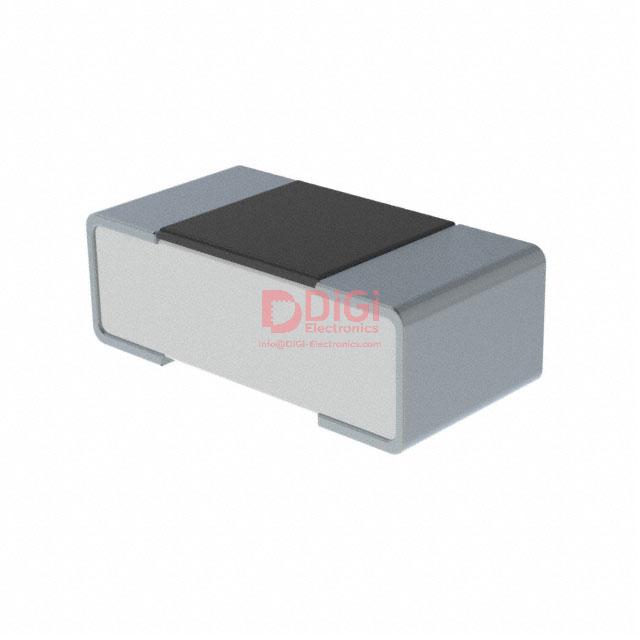

SG73S1ETTP1000F
KOA Speer Electronics, Inc.
RES 100 OHM 1% 1/8W 0402
8797 Pcs New Original In Stock
100 Ohms ±1% 0.125W, 1/8W Chip Resistor 0402 (1005 Metric) Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding Thick Film
Request Quote
(Ships tomorrow)
*Quantity
Minimum 1
Minimum 1
5.0 / 5.0
- (130 Ratings)
SG73S1ETTP1000F
Product Overview
809862
DiGi Electronics Part Number
SG73S1ETTP1000F-DGManufacturer
KOA Speer Electronics, Inc.
SG73S1ETTP1000F
Description
RES 100 OHM 1% 1/8W 0402Inventory
8797 Pcs New Original In Stock
100 Ohms ±1% 0.125W, 1/8W Chip Resistor 0402 (1005 Metric) Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding Thick Film
Quantity
Minimum 1
Minimum 1
Purchase and inquiry
Warranty & Returns
How to Order
Shipping & Delivery
Quality Assurance
365 - Day Quality Guarantee - Every part fully backed.
90 - Day Refund or Exchange - Defective parts? No hassle.
Limited Stock, Order Now - Get reliable parts without worry.
Global Shipping & Secure Packaging
Worldwide Delivery in 3-5 Business Days
100% ESD Anti-Static Packaging
Real-Time Tracking for Every Order
Secure & Flexible Payment
Credit Card, VISA, MasterCard, PayPal, Western Union, Telegraphic Transfer(T/T) and more
All payments encrypted for security
SG73S1ETTP1000F Technical Specifications
Category
Chip Resistor - Surface Mount
Packaging
Tape & Reel (TR)
Series
SG73S
Product Status
Active
Resistance
100 Ohms
Tolerance
±1%
Power (Watts)
0.125W, 1/8W
Composition
Thick Film
Features
Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding
Temperature Coefficient
±200ppm/°C
Operating Temperature
-55°C ~ 155°C
Package / Case
0402 (1005 Metric)
Supplier Device Package
0402
Ratings
AEC-Q200
Size / Dimension
0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max)
0.016" (0.40mm)
Number of Terminations
2
Failure Rate
-
Base Product Number
SG73S1
Datasheet & Documents
HTML Datasheet
SG73S1ETTP1000F-DG
Environmental & Export Classification
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8533.21.0030
Additional Information
Other Names
2019-SG73S1ETTP1000FTR
2019-SG73S1ETTP1000FDKR
2019-SG73S1ETTP1000FCT
Standard Package
10,000
Alternative Parts
View DetailsPART NUMBER
MANUFACTURER
QUANTITY AVAILABLE
DiGi PART NUMBER
UNIT PRICE
SUBSTITUTE TYPE
Publish Evalution
Evalution Message
Please enter your review message.
Please post honest comments and do not post ilegal comments.
Frequently Asked Questions (FAQ)
What is the SG73S1ETTP1000F resistor and what are its key specifications?
The SG73S1ETTP1000F is a 100 Ohm, 1% tolerance chip resistor manufactured by KOA Speer Electronics in 0402 (1005 Metric) package size. It delivers 0.125W (1/8W) power rating and features automotive-grade AEC-Q200 certification, moisture resistance, and pulse withstanding capability. The resistor operates reliably across -55°C to 155°C temperature range with ±200ppm/°C temperature coefficient.
Is this resistor suitable for automotive applications?
Yes, the SG73S1ETTP1000F is fully automotive-qualified with AEC-Q200 certification, making it ideal for demanding automotive and industrial environments. It meets rigorous reliability and performance standards required in automotive electronics.
What package size does the SG73S1ETTP1000F come in?
This resistor comes in 0402 package size (1005 Metric standard), measuring 1.00mm L x 0.50mm W x 0.40mm maximum height. The compact 0402 footprint is ideal for space-constrained PCB designs and high-density applications.
What is the moisture sensitivity level (MSL) rating?
The SG73S1ETTP1000F has an MSL rating of 1 (Unlimited), indicating excellent moisture resistance with no shelf-life restrictions. This makes it suitable for storage in various humidity conditions without degradation concerns.
Is the SG73S1ETTP1000F RoHS and REACH compliant?
Yes, the resistor is ROHS3 compliant and REACH unaffected, meeting all major environmental and hazardous substance regulations for global electronics manufacturing.
Quality Assurance (QC)
DiGi ensures the quality and authenticity of every electronic component through professional inspections and batch sampling, guaranteeing reliable sourcing, stable performance, and compliance with technical specifications, helping customers reduce supply chain risks and confidently use components in production.
SG73S1ETTP1000F CAD Models
KOA Speer Electronics, Inc. SG73S1ETTP1000F PCB symbols & footprints
