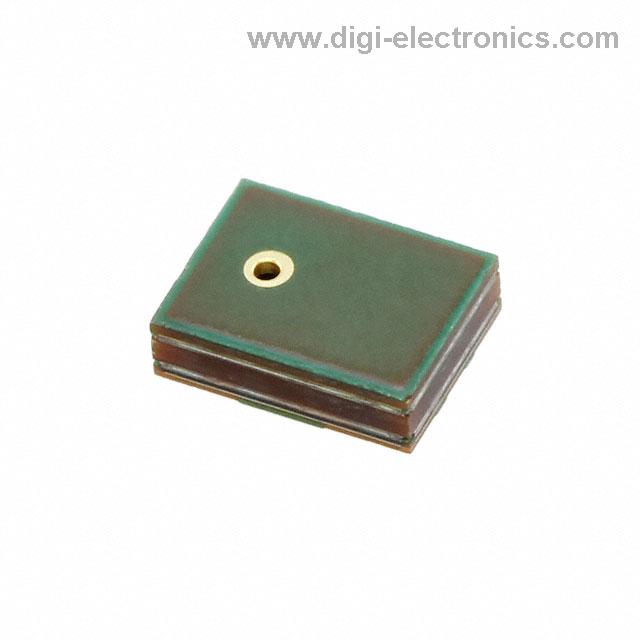

Product overview: Knowles SPH0642HT5H-1 MEMS microphone
The Knowles SPH0642HT5H-1 MEMS microphone integrates advanced microelectromechanical systems (MEMS) architecture to optimize the capture of accurate acoustic signals. Central to its performance is the proprietary SiSonicTM technology, which leverages silicon-based fabrication processes to produce consistent mechanical movement at the diaphragm level, enabling fine control over sensitivity and minimizing manufacturing-induced performance variance. The top-port configuration, a deliberate design choice, streamlines acoustic path integration by allowing direct mounting beneath exterior device surfaces, reducing unwanted noise ingress while simplifying PCB layout in space-constrained assemblies.
The device exhibits a wide linear frequency response between 100 Hz and 10 kHz, effectively capturing full-spectral voice and ambience with minimal harmonic distortion. This attribute ensures superior signal reconstruction in applications such as mobile communication, field recording, and smart computing platforms, where audio clarity directly influences user experience and downstream signal processing accuracy. Its omnidirectional pickup pattern further supports uniform sound acquisition across diverse operational environments, making the SPH0642HT5H-1 highly adaptable to multi-microphone array configurations and dynamic scene monitoring for spatial audio and noise cancellation algorithms.
Mechanically, the miniature form factor not only facilitates integration into ultra-slim device enclosures but also enhances environmental resilience. The microphone’s encapsulation and porting method mitigate dust and particulate intrusion—a frequent concern in consumer electronics subject to field deployment and daily wear. In practice, deployment in harsh operating conditions, such as outdoor audio recorders and highly trafficked smart devices, has shown consistent performance retention, even after exposure to rapid thermal cycling and high-humidity environments.
From a circuit designer’s perspective, the consistently matched analog output levels simplify interface design with standard audio amplification and DSP front-ends. The analog nature of the output allows for flexible signal routing, minimizing latency and supporting real-time capture scenarios critical in professional audio, telecommunication, and multi-source voice recognition pipelines.
The convergence of miniaturization, acoustic fidelity, and mechanical durability exemplifies the current trajectory of MEMS microphone development, addressing evolving demands in compact consumer electronics and emerging edge-AI platforms. One notable insight is the balance achieved between footprint reduction and uncompromised acoustic dynamic range, a result of advanced MEMS etching and packaging processes. The SPH0642HT5H-1 sets a technical benchmark for analog MEMS microphones, presenting engineers with a solution that meets stringent space, performance, and reliability criteria without imposing excess design complexity.
Key features and technology of the SPH0642HT5H-1
The SPH0642HT5H-1 leverages Knowles’ advanced SiSonicTM MEMS technology, establishing a benchmark for miniature digital microphones. The underlying fourth-generation MEMS process directly contributes to its precise dimensional profile of 3.50 mm × 2.65 mm × 1.00 mm, optimizing integration in ultra-thin form factors without compromising acoustic transparency or long-term stability. Internal architecture brings together a highly sensitive acoustic sensor, a precision-engineered low-noise buffer, and a linear output amplifier, collectively calibrated for minimal distortion even at low supply voltages.
Voltage flexibility remains a critical enabler for modern system designers. Operating seamlessly across a wide supply range (1.5 V–3.6 V), the SPH0642HT5H-1 aligns with dynamic power domains found in hand-held consumer electronics, wearables, and IoT peripherals. Such adaptability enhances design reuse across platforms, minimizes the need for supply rail conditioning, and streamlines power sequencing protocols. The device’s low signal-to-noise ratio, typically measured at 65 dB(A) under standardized acoustic pressure, ensures fidelity in both voice recognition and broadband music applications. Notably, this SNR profile supports effective capture of nuanced audio signatures, reducing the burden on post-processing algorithms.
Spectral response is engineered for consistency, featuring a flat output from voice through high-fidelity audio bands. Calibrated sensitivity—documented as -38 dB ±1 dB at 1 kHz with 94 dB SPL stimulus—yields predictable performance across production lots, which accelerates hardware tuning in volume manufacturing. In practice, this reduces per-device calibration steps and enhances inter-unit consistency within the application product. Experienced implementation in high-density sensor arrays highlights the SPH0642HT5H-1’s capability for uniform audio pickup and low drift over environmental exposure cycles.
Ultra-low power operation emerges from both silicon process advancements and circuit refinement. Typical quiescent supply currents as low as 117 µA (measured at 1.8 V) provide extended battery runtimes in always-on interfaces and low-duty-cycle sensor networks. In iterative product builds, this metric often shifts total system operating budgets, allowing for higher feature sets or increased standby durations. Such power profile becomes particularly relevant in miniaturized medical and communication modules, where heat dissipation and battery chemistry constraints dictate component selection.
Electromagnetic resilience is built in at both circuit and package levels. Integrated RF shielding and high intrinsic power supply rejection—measured at 78 dB (1 kHz) and 106 dBV(A) (217 Hz)—protect signal integrity in dense wireless device architectures. Observed field performance underscores reliable operation amid proximity to high-frequency transmitters and noisy DC/DC switching nodes, validating robustness in harsh RF environments. These characteristics mitigate problematic audio dropouts or false triggers in voice-enabled control systems commonly deployed in smart home and automotive settings.
Unconventional “Zero-Height MicTM” classification transforms mechanical integration strategy. The microphone’s profile supports placement directly beneath thin covers or within highly confined enclosures, facilitating innovative mechanical layouts. For design teams, this alleviates stack-up height constraints, simplifies acoustic port routing, and enables flush industrial designs for ruggedized or water-resistant electronics. Repeated deployment has demonstrated reductions in total assembly height and failure rates tied to acoustic obstruction, reinforcing its utility in evolving product archetypes.
Overall, the SPH0642HT5H-1 exhibits tightly interwoven attributes: advanced MEMS construction, power efficiency, spectral consistency, and interference immunity. Its feature set directly addresses contemporary engineering challenges in audio system design, contributing not only to technical merit but also to scalable manufacturability and enduring product reliability.
Detailed acoustic and electrical performance of the SPH0642HT5H-1
The SPH0642HT5H-1 exemplifies advanced MEMS microphone engineering, demonstrating rigorous control over critical acoustic and electrical parameters. At its core, the device achieves consistent sensitivity aligned with industry-standard specifications, preserving accurate sound pressure conversion in variable environments. The frequency response extends linearly from 100 Hz through 10 kHz, mitigating coloration across the audible spectrum. This uncolored response is particularly advantageous in multichannel voice acquisition, conferencing systems, and professional recording gear, where neutral tonal reproduction is essential for downstream signal processing and intelligibility.
Harmonic distortion is suppressed to a mere 0.25% under typical speech-level sound pressures at 1 kHz, supporting high-fidelity capture. The acoustic overload point, measured at 124 dB SPL, equips the microphone to withstand transient peaks and loud sources without compressing or altering input, thereby maintaining waveform integrity. The interplay between a wide dynamic range and low distortion is a foundation for flexible application, from close-talk scenarios to ambient room monitoring. Subtle engineering refinements, such as diaphragm geometry and ASIC-driven signal conditioning, contribute to this robust linearity even in acoustically challenging spaces.
From an electrical standpoint, the output impedance of 500 Ω at 1 kHz enables straightforward analog front-end integration, reducing the risk of mismatches and signal loss across traces or interconnects. Power supply rejection ratio (PSRR) is optimized via internal reference architecture and supply decoupling, effectively suppressing artifacts rooted in rail variations or digital domain switching—these design choices exhibit particular value when co-locating microphones near RF emitters or noisy regulators within densely layered PCBs. Such mitigation supports consistent audio quality and simplifies board-level noise management.
Output polarity is specified so that rising sound pressure reliably produces a proportional increase in output voltage. This clarity in transducer behavior minimizes integration ambiguity in multipath systems, supporting predictable digital signal chain alignment and system testability. Compliance with absolute maximum ratings and recommended operational envelopes is achieved through a combination of protective measures and material selection, helping ensure longevity and performance resilience. The SPH0642HT5H-1 is thus suited not only for consumer devices but also for demanding embedded deployments, including multi-mic arrays and low-power audio nodes in distributed sensing platforms.
Practical deployments underscore the microphone's flexibility; tightly regulated response and overload resilience translate to clean voice pick-up in both quiet and high-activity spaces. System architects benefit from the minimized need for external compensation or calibration, facilitating rapid prototyping and scalable production. Layered acoustic-electrical robustness is a key differentiator, supporting long-term reliability with reduced maintenance cycles. The inherent predictability across signal integrity, noise immunity, and mechanical operating limits serve as enablers for innovative array processing, machine listening, and edge AI audio recognition, where reproducible baseline performance is essential for complex post-processing algorithms and multi-source fusion. In synthesis, intelligent sensor design—exemplified here—directly translates to enhanced application versatility and system-level audio reliability.
Mechanical design and integration considerations for the SPH0642HT5H-1
The SPH0642HT5H-1 MEMS microphone embodies deliberate mechanical design choices guided by reflow surface-mount requirements and top-port acoustic optimization. Its package geometry—precisely dimensioned at 3.50 mm × 2.65 mm × 1.00 mm—supports high positional accuracy during automated assembly, minimizing the risk of placement misalignments that can degrade both performance and yield. The defined “pick area” directly interfaces with SMT vacuum pickup equipment, reducing defect rates associated with non-standard form factors. This alignment with mainstream assembly practices streamlines process validation and scaling, a notable advantage for production engineers managing throughput and line stability.
Terminal layout emphasizes both electrical integrity and EMI mitigation. Multiple ground pads distributed strategically across the package perimeter anchor the SPH0642HT5H-1 electrically, constraining ground loops and providing low-impedance returns necessary for low-noise operation. This approach enhances analog reference stability and supports predictable signal behavior even in dense, high-frequency environments. Notably, the ground network interacts effectively with well-designed PCB ground planes, helping suppress common-mode noise—a frequent challenge in compact, multifunctional consumer devices.
The top-port configuration, with a port diameter of 0.325 mm, simplifies enclosure integration. By aligning the acoustic axis directly with the enclosure surface, the microphone design eliminates the need for side porting or complex channeling, which can introduce unpredictable resonances or attenuate high-frequency content. This positioning is particularly advantageous in laptop and smartphone implementations, where sound inlet directionality must be tightly controlled to maximize speech clarity while minimizing ingress of debris or contaminant particles. Design teams often exploit this structure to position the microphone precisely relative to speakers or airflow openings, a small but consequential detail in maximizing signal-to-noise ratio and voice assistant performance.
Mechanical tolerance specifications facilitate high-yield enclosure and gasket mating, minimizing the risk of acoustic sealing failures or interference with nearby components. Tighter tolerances translate into repeatable acoustic coupling across production lots, reducing unit-to-unit variability—a significant factor in applications demanding consistent far-field or multi-mic performance. In practice, even minor deviation in package height or port alignment can manifest as frequency response anomalies or increased susceptibility to wind noise; this package’s precision directly supports system-level reliability and design-for-manufacturability goals.
Design insights show that grounding discipline and acoustic port management, when implemented in parallel, serve as primary levers for achieving both robust performance and smooth manufacturing integration. High-density consumer product layouts benefit from the reduced risk envelope and process compatibility offered by the SPH0642HT5H-1. Its standardized mechanical and electrical interfaces lower NPI risk, enabling design reuse and faster migration across device generations—an often-overlooked advantage in competitive development cycles. The ability to predict mechanical and acoustic outcomes across diverse application scenarios ultimately marks the SPH0642HT5H-1 as a component tailored for both engineering rigor and production efficiency, bridging the gap between innovative product design and scalable assembly.
Recommended PCB footprint and assembly for the SPH0642HT5H-1
Adhering closely to the recommended PCB footprint and stencil patterns for the SPH0642HT5H-1 is essential to unlock its full acoustic fidelity and electrical performance. The manufacturer’s guidelines specify pad shapes and solder mask openings that minimize device tilt, ensure planar contact, and optimize thermal transfer. Precise stencil thickness directly impacts solder joint reliability; 0.1–0.125 mm stencils typically yield a balanced fillet, supporting both mechanical integrity and low impedance electrical connections.
During assembly, compliance with JEDEC-standard Pb-free reflow profiles, reaching 260°C peak, preserves device integrity while enabling streamlined integration within existing SMT lines. Uniform temperature gradients mitigate internal stress across the MEMS package, reducing risk of deformation or compromised sensitivity. Careful control of ramp rates and soaking times prevents void formation and preserves acoustic port clearing.
On the layout level, all ground pads must converge on a low-impedance, unified ground plane to suppress parasitic coupling and maintain stable reference potential across extended frequency ranges. Placement of low ESR decoupling capacitors (using class 1 ceramic dielectrics) within millimeters of the VDD pin ensures energy delivery with minimal inductive delay, safeguarding power integrity under dynamic load transients typical of high-resolution audio acquisition.
Signal traces conveying analog output demand rigorous isolation from potential aggressors: wide separation from digital clocks, switching regulators, and RF lines preempts capacitive and inductive crosstalk. Trace routing on inner layers with backed ground shielding further dampens radiated and conducted interference, translating into reduced noise floor and enhanced SNR in real-world measurements.
These combined measures—precise footprint adherence, controlled thermal cycling, robust ground architecture, localized decoupling, and disciplined signal segregation—consistently yield best-in-class acoustic response and immunity to layout-induced artifacts. Empirical tuning, such as iterative trace width modification and real-time impedance validation, accelerates release cycles and achieves predictable, reproducible performance across production volumes. Robust grounding and proximity decoupling emerge repeatedly as pivotal in combating power supply ripple and board-level EMI, underscoring their centrality in the design chain.
Environmental reliability and compliance of the SPH0642HT5H-1
Engineered for demanding electronics manufacturing ecosystems, the SPH0642HT5H-1 achieves environmental reliability by adhering to stringent material and process standards. At the foundational level, the component’s Moisture Sensitivity Level 1 rating confers unlimited floor life under ambient conditions not exceeding 30°C and 85% relative humidity. This mitigates the complexity associated with dry packing or tightly regulated storage environments, effectively reducing process risk during surface mount assembly. In practice, this capability sustains throughput in high-mix, high-volume production lines, where logistical efficiency directly impacts yield and schedule adherence.
From a regulatory standpoint, the SPH0642HT5H-1 is fully RoHS compliant and explicitly free from REACH-restricted substances, reducing downstream compliance verification effort. This compatibility streamlines cross-border distribution and end-product certification, eliminating common bottlenecks encountered during regulatory audits. By being classified as EAR99 for export, the device is unencumbered by export licensing requirements that often challenge the deployment of advanced electronics in diversified markets.
Robustness in environmental performance is evidenced by its operational stability across the -40°C to +100°C temperature envelope. This range enables integration into designs destined for industrial, automotive, and consumer environments where wide thermal excursions are routine. Field experience demonstrates that consistent sensor characteristics under such conditions reduce recalibration frequencies and simplify preventive maintenance routines, supporting long-term reliability targets.
A notable advantage derives from the synergy between materials selection, marking, and mechanical design—choices which collectively reduce the risk of non-compliance or misidentification during physical audits or customs inspection. These subtle optimizations translate into tangible reductions in supply chain interruptions and reputational risk.
A holistic view reveals that components like the SPH0642HT5H-1, exhibiting advanced compliance and environmental resilience, are not merely drop-in solutions; they form keystones in scalable, agile manufacturing workflows. Their adoption allows engineering teams to focus resources on innovation and system optimization rather than remedial measures for regulatory or environmental deficiencies. This strategic flexibility remains a critical differentiator in compressed development cycles and rapidly evolving market landscapes.
Example applications and engineering scenarios for the SPH0642HT5H-1
The SPH0642HT5H-1 MEMS microphone integrates advanced signal chain design with a compact, surface-mountable package, positioning it as an optimal choice for high-integration consumer electronics requiring stringent audio performance standards. Its high signal-to-noise ratio and consistent, flat frequency response directly support applications like smartphones and tablets, where accurate voice capture, minimal coloration, and extended dynamic range translate into more reliable communication and immersive multimedia experiences. The stable frequency curve proves advantageous when applying downstream algorithms such as beamforming or noise suppression, as it reduces preprocessing overhead and enhances intelligibility in variable environments.
The device's low profile, reflow compatibility, and robust mechanical structure streamline its integration into ultraportable laptops and notebook architectures. These features facilitate aggressive industrial design targets, including ultra-thin chassis, while retaining sensitivity to both far-field and near-field sources. Consistent real-world performance indicates that board-level acoustic engineering challenges, such as porting and enclosure variations, are more easily resolved due to the microphone’s predictable behavior and EMI resilience. Cost-efficient automated assembly is further supported through standardized surface-mount processes, allowing for volume scalability in mass-produced platforms.
For digital still and video cameras, the SPH0642HT5H-1 offers an analog output path characterized by low self-noise and wide dynamic range, effectively minimizing audio artifacts inherent to traditional compact microphones. This characteristic is particularly effective in mitigating hiss and hum when paired with higher-gain analog front-ends, and it ensures fidelity when capturing ambient soundscapes or dialog under challenging environmental conditions.
Voice-driven IoT endpoints and smart home automation nodes benefit from the microphone’s omnidirectional response and sub-milliamp-level current draw. These parameters yield broad field coverage, which is critical in distributed sensor arrays or when supporting multi-directional voice trigger functionality in acoustically dynamic spaces. Long-term deployment experiences have demonstrated that the SPH0642HT5H-1’s low power profile enables energy autonomy designs—such as battery-powered or energy-harvesting modules—without sacrificing standby readiness or detection reliability.
Notably, the microphone’s high maximum sound pressure resilience and minimal total harmonic distortion underpin its versatility. These attributes maintain waveform integrity across a broad input SPL range, providing headroom for emergent audio use cases involving AI-driven context awareness or multi-channel array processing. In well-architected systems, these features reduce calibration complexity and maintenance effort, ultimately enhancing product reliability and user satisfaction. The integration of these engineering advantages within a single MEMS solution reflects ongoing trends toward more connected, miniaturized, and acoustically intelligent device ecosystems.
Potential equivalent/replacement models for the SPH0642HT5H-1
The obsolescence of the Knowles SPH0642HT5H-1 necessitates a methodical approach for sourcing equivalent MEMS microphone solutions that ensure seamless circuit integration and maintain acoustic performance benchmarks. The initial phase centers on identifying analog MEMS microphones, ideally from the SiSonic™ lineage, that replicate the critical mechanical and electrical attributes of the SPH0642HT5H-1—primarily footprint, frequency band, and sensitivity figures. When cross-referencing other suppliers, close attention must be paid to dimensional conformity; the replacement's package must match the 3.5 mm × 2.65 mm × 1.0 mm spec, with omnidirectional directivity and near -38 dBV sensitivity at 1 kHz. Such details preserve PCB land patterns and mitigate layout rework.
Interface requirements extend beyond mere physical alignment. The analog output characteristics need validation for both DC bias compatibility and drive capability, safeguarding against unwanted power supply interaction or signal attenuation. Acoustic port positioning is another pivotal parameter: a misaligned port can undermine enclosure tuning and off-axis response. Selection criteria must also address supply voltage span, ensuring the new microphone fits within existing regulator and power sequencing constraints. It’s prudent to audit datasheet details for maximum and minimum supply thresholds as even subtle deviations can induce performance shift or long-term reliability issues.
For new designs prioritizing digital audio workflows, transitioning to PDM or I2S MEMS microphones offers distinct system-level advantages such as lower EMI susceptibility, improved SNR, and streamlined MCU interfacing. However, this migration demands backend architectural preparedness—audio codec or microcontroller side must natively support the chosen digital format, and firmware must accommodate real-time oversampling and error correction where necessary. Integrating digital microphones in legacy analog designs is rarely trivial; signal integrity and noise coupling scenarios often manifest during prototyping, reinforcing the value of disciplined bench-level evaluation before PCB commitment.
Direct experience has revealed that even nominally equivalent MEMS microphones can exhibit subtle tonal shifts, driven by minute diaphragm design or acoustic package geometry disparities. Quantifying those differences through side-by-side A/B envelope sweeps accelerates qualification, especially in applications where end-user perception anchors product value—such as voice-triggered consumer devices. The most efficient selection strategy leverages a blend of datasheet analytics, prototype validation, and close cooperation with manufacturer FAE resources. Defining clear acceptance criteria rooted in both electrical and acoustic metrics dramatically shortens the integration cycle and ensures the replacement microphone functions as a true drop-in, without introducing system-level compromise.
System architecture leverage is maximized when candidate microphones are evaluated with a holistic understanding of downstream signal processing, enclosure transmission loss, and array tuning constraints. Expanding consideration beyond simple equivalence metrics toward long-term reliability and manufacturability consolidates development efforts and fortifies product quality. The transition from obsolete to next-generation MEMS microphones thus becomes an engineered opportunity to enhance overall audio subsystem performance while sustaining manufacturing flexibility.
Conclusion
The Knowles SPH0642HT5H-1 exemplifies the technical advances achieved in fourth-generation MEMS microphone design, integrating wideband analog signal fidelity with a footprint engineered for minimal power consumption and robust device compatibility. Its architecture, defined by a fine-tuned acoustic port and low-noise analog output, leverages advances in silicon micromachining to deliver enhanced signal-to-noise ratios across a broad frequency spectrum. This sensitivity profile addresses essential requirements in portable audio capture, voice recognition, and environmental monitoring, where capturing subtle nuances is paramount.
Power management is a critical axis in mobile hardware integration. This model’s ability to operate at sub-milliwatt power levels reduces heat generation within dense system boards, mitigating thermal drift and safeguarding analog performance. The proprietary packaging—compact yet mechanically resilient—integrates into micro-assembly workflows, supporting automated pick-and-place procedures and minimizing the risk of alignment or soldering defects. Such mechanical compliance directly impacts yields and long-term reliability, especially in wearables or IoT nodes subjected to repetitive mechanical stresses.
From an electrical perspective, the microphone’s interface specifications are designed for seamless analog front-end design, with impedance matching and EMI mitigation measures pre-integrated into the reference design. Deploying this component within noise-sensitive analog or mixed-signal circuits requires precise PCB layout practices: differential routing, ground plane continuity beneath the signal path, and strategic shielding deliver repeatable, low-noise system-level outputs. Discussions within engineering teams have repeatedly highlighted the value of thorough decoupling, particularly in battery-backed designs where instantaneous transients can mask low-level audio signals.
Although the SPH0642HT5H-1 is now obsolete, its datasheet remains a cornerstone in benchmarking current and future performance targets. Engineers tasked with selecting functionally equivalent solutions pursue specifications that replicate its dynamic range, environmental resilience, and assembly compatibility, drawing from lessons learned in legacy deployment scenarios. The evolution toward Knowles’ SiSonicTM portfolio demonstrates how incremental improvements in MEMS die geometry and analog interface coalesce into versatile products that satisfy both next-generation requirements and legacy system constraints.
Distinctive project experience underlines the importance of adhering meticulously to manufacturer guidelines for mechanical mounting torque, reflow profiles, and protective enclosure design. Deviations often exacerbate parasitic capacitance or acoustic artefacts, underscoring the critical interplay between specification fidelity and real-world system optimization. Spanning both high-end consumer audio and low-power sensor arrays, this class of MEMS microphone continues to define performance baselines, offering a resilient blend of acoustic accuracy, efficiency, and integration flexibility that informs component selection and design methodologies.
