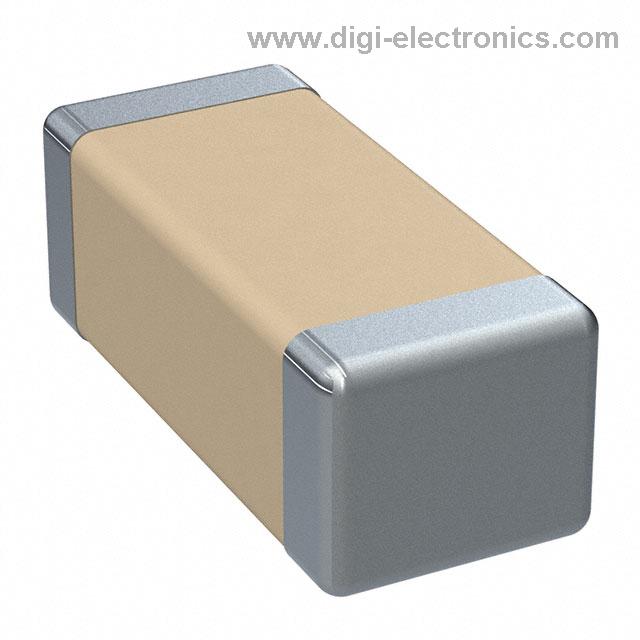

Product overview: KEMET C1206C472KFRACAUTO
The KEMET C1206C472KFRACAUTO exemplifies advanced engineering in surface mount multilayer ceramic chip capacitors, tailored for the rigorous demands of automotive electronics. At its core, this device leverages the robust X7R dielectric, renowned for its stable capacitance over a wide temperature range (-55°C to +125°C) and low voltage coefficient. The chosen X7R material ensures minimal drift under thermal and electrical stress, addressing a key reliability concern in environments with frequent load variation and temperature cycling.
Structurally, the capacitor adopts the industry-standard 1206 SMD footprint, balancing volumetric efficiency with mechanical robustness—a critical parameter in high-density PCB layouts for automotive control units. The 4700 pF capacitance and ±10% tolerance cater to EMI filtering, decoupling, and transient suppression, functions frequently deployed alongside high-speed microcontrollers, sensor interfaces, and power electronics. The elevated 1.5 kV rating empowers designers to deploy the device in both low- and high-voltage domains, such as ignition systems, battery management units, and motor drive inverters, where transient overvoltages and switching noise are prevalent.
Automotive qualification (AEC-Q200) reflects stringent endurance against thermal shock, vibration, and humidity, minimizing field failure risk. It often outperforms commercial-grade alternatives in under-the-hood applications, where exposure to oil mist, temperature gradients, and continuous mechanical stress is common. This reliability directly translates to enhanced design margins, reducing the need for conservative over-specification.
From an engineering integration perspective, the C1206C472KFRACAUTO’s compatibility with lead-free soldering and automated pick-and-place processes streamlines assembly, minimizing board-level defects linked to thermal cycling and solder fatigue. High voltage insulation, maintained via multilayer ceramic architecture, stably isolates the electrodes even in the event of surface contamination or board flexure, a frequent challenge in densely packed automotive modules.
Practically, deploying this component simplifies compliance with electromagnetic compatibility (EMC) standards. Its stable impedance profile aids in controlling high-frequency noise propagation across power lines; real-world layout strategies often pair this MLCC at strategic points—input/output filters and local decoupling nodes—with ferrite beads or common mode chokes. Adopting capacitors with such voltage tolerance eliminates serial derating, unlocking more headroom for aggressive electrical designs.
An often-overlooked benefit is the reduction in inventory complexity: the wide operating temperature and robust envelope allow this model to replace several commercial variants typically needed for differing zones within a vehicle. This consolidation streamlines qualification and reduces certification overhead, directly impacting time-to-market for new platforms.
The combination of dielectric stability, mechanical resilience, and high-voltage capability positions the KEMET C1206C472KFRACAUTO as a cornerstone passive for modern automotive electronics, especially as electrification and autonomous functions push system voltages and reliability demands ever higher. Selecting such capacitors anchors design robustness, facilitating long-term system reliability and compliance in the highly regulated automotive sector.
Key features and technical specifications of C1206C472KFRACAUTO
The C1206C472KFRACAUTO is engineered as a 4700 pF multilayer ceramic chip capacitor, designed for high-voltage automotive applications. Leveraging KEMET’s advanced X7R dielectric technology, it delivers stable electrical characteristics over a broad thermal environment ranging from –55°C to +125°C. This thermal resilience, defined by a limited capacitance variation of ±15%, ensures reliable circuit performance under cyclic temperature stress, critical for automotive modules exposed to engine bay and climate-control system conditions.
At its core, the X7R Class II dielectric balances capacitance density and electrical stability, positioned for circuits where moderate accuracy and minimal drift are required without compromising compactness. This compromise is achieved via engineered grain structure and controlled ceramic composition. The low ESR and ESL values inherent to the MLCC architecture facilitate robust attenuation of high-frequency noise, which is essential in power conversion, RF filtering, and signal path stabilizing in hybrid and electric vehicle platforms. When integrated in switched-mode power supplies or DC-link blocks, its low impedance at broadband frequencies minimizes parasitic oscillation, promoting electromagnetic compatibility and system efficiency.
Structurally, the 1206 housing—with physical dimensions of 3.20 x 1.60 mm and a maximum thickness of 1.75 mm—supports dense PCB layouts, allowing space-efficient designs in compact modules. Surface-mount termination featuring 100% matte tin optimizes wetting during automated soldering, minimizing cold joints and ensuring consistent electrical connectivity under thermal cycling and mechanical shock. The non-polar nature of the MLCC further streamlines placement, avoiding orientation errors during high-speed pick-and-place operations.
Electrical ratings are robust: the rated voltage of 1500V DC extends the operational envelope into high-voltage isolation tasks, such as inverter snubber networks and battery management systems in automotive sectors. The tight capacitance tolerance of ±10% gives designers confidence in predictable filter response and timing accuracy, notably when parallelized for increased total capacitance or distributed for decoupling across critical ICs.
Compliance-driven design enables unrestricted use in environmentally regulated supply chains. Full conformity with RoHS3 and REACH directives—alongside the absence of lead in the bill-of-materials—addresses mounting regulatory and market demands for sustainable electronics. The AEC-Q200 qualification further certifies its capability to endure automotive-grade stressors: voltage surges, vibration, humidity, and prolonged thermal exposure.
Practical implementation frequently exploits the device in high-reliability domains, where board designers leverage its footprint for surge protection, CAN bus stabilization, and ancillary power system filtering. In prototyping, usage in noise-sensitive analog sections has demonstrated effective suppression of transient spikes without introducing distortion, reinforcing its utility in critical signal conditioning nodes.
Core observations highlight the value proposition of embedding such capacitors at the intersection of mechanical durability and electrical precision. The ability to withstand voltage stress in a compact form caters to next-generation vehicular architectures, supporting electrification trends and modular design demands. Design iteration experience suggests that specifying the C1206C472KFRACAUTO early in the schematic phase allows for risk mitigation against future supply chain audits and compliance-driven redesign, ultimately streamlining product certification cycles.
Application areas for C1206C472KFRACAUTO
The C1206C472KFRACAUTO, with its high voltage tolerance and robust capacitance characteristics, directly addresses several demanding requirements found in automotive and industrial electronics. At its core, this MLCC’s architectural strengths—particularly its stable dielectric behavior across temperature and bias ranges—enable its integration where both reliability and predictability in transient-rich environments are paramount.
Within DC/DC converter applications, the device operates as a critical bypass and decoupling component. By shunting high-frequency noise and stabilizing supply rails, the C1206C472KFRACAUTO enhances overall system efficiency and prevents oscillation in feedback loops. In practical power supply environments, deploying these capacitors near gate drivers or feedback nodes mitigates conducted and radiated EMI, allowing for tighter board layouts without sacrificing EMC compliance. This is especially apparent in the context of automotive power management nodes, where compact modular designs and increased functionality often challenge traditional filtering approaches.
The device’s high voltage rating extends its utility to areas such as high-side gate drive circuits and high-voltage interface modules. In mission-critical automotive subsystems, such as electric steering, battery management, and propulsion inverters, the C1206C472KFRACAUTO ensures that switching events and unpredictable electrical transients do not compromise circuit integrity. The capacitor’s consistency under wide operational voltages reduces the likelihood of drift or parametric shifts—a key requirement where fail-safe operation is non-negotiable.
Its filtering and DC blocking roles are evident across signal chain isolation and conditioning stages. For LAN/WAN interface modules and charging station communication links, the component’s low loss at high frequencies contributes to minimal insertion loss and preserves signal integrity, even in the presence of high common-mode noise. This characteristic enables the realization of robust data transmission and clean power delivery architectures.
In ESD protection networks and voltage multiplier topologies used within LCD fluorescent ballast circuits and similar high-voltage assemblies, the C1206C472KFRACAUTO serves both as an energy reservoir and a surge-clamping element. Its high capacitance density in a compact footprint yields an optimal balance between protection and PCB real estate, a notable advantage for designs where space constraints coexist with the need for long-term reliability.
Observations in the field show that leveraging such capacitors in densely populated mixed-signal boards curtails unexpected coupling between analog and digital domains, a recurring pain point in EMI-prone environments. Positioning these capacitors near susceptible nodes—such as microcontroller supply pins or analog reference lines—effectively bridges the theoretical and practical aspects of noise suppression.
A layered implementation strategy highlights the device’s strategic role: starting from high-voltage protection upstream, progressing through decoupling at key supply junctures, to final-stage filtering and signal line isolation. This gradual allocation maximizes the inherent strengths of the C1206C472KFRACAUTO, translating component-level benefits directly into improved system reliability and overall EMI resilience.
The subtle advantage observed is the capacitor’s ability to deliver performance margins in evolving application demands, accommodating automotive electrification trends and smart industrial modules without significant redesign. The C1206C472KFRACAUTO thus represents not only a technically robust choice but also a forward-compatible building block in complex, safety-oriented electronic platforms.
Product qualification and automotive compliance of C1206C472KFRACAUTO
C1206C472KFRACAUTO exemplifies rigorous qualification protocols essential for automotive environments. Its compliance with AEC-Q200 validates its resilience under stress, reflecting extensive exposure to high temperatures, thermal shock, humidity, and mechanical vibrations. The underlying reliability starts at the material level—high-purity ceramics and precise electrode composition minimize failure modes such as dielectric breakdown and migration, which are heightened in vehicular contexts. KEMET extends qualification by introducing enhanced test cycles and refined inspection processes beyond the AEC-Q200 baseline, including finer detection thresholds for micro-cracking and solder leach, ensuring component integrity over extended operational lifespans.
The part integrates seamlessly within advanced automotive electronic systems, including powertrain, ADAS, and infotainment modules. Its capacitive stability and minimal loss factor safeguard signal integrity and electromagnetic compatibility in densely packed PCB architectures. Traceability and change management adopt a rigorous framework through standardized Product Change Notifications and the Production Part Approval Process. This systematic approach ensures supply continuity and robust feedback loops across the value chain—every engineering revision triggers transparent documentation, root cause analysis, and sample validation, reducing the risk of latent field failures.
Practical deployment often reveals challenges in matching paper specifications to real-world board-level reliability. Factors such as solder joint fatigue under automotive thermal cycles necessitate careful footprint selection and reflow profiling. Empirical field data shows that parts meeting both extended temperature and vibration requirements substantially reduce early-life failures in in-vehicle networking and engine control units. By prioritizing components with advanced test pedigree and transparent PPAP documentation, engineering teams accelerate design validation phases, preempting integration risks.
Ultimately, pursuing components constructed with meticulous process controls and validated to exceed industry norms represents the most reliable foundation for automotive innovation. Layering robust compliance with proactive change management not only safeguards production stability, but also shortens time to market when scaling next-generation vehicle platforms. This approach establishes a resilient engineering practice that harmonizes material science, process discipline, and application-driven performance.
Electrical characteristics of C1206C472KFRACAUTO
Electrical characteristics of the C1206C472KFRACAUTO capacitor center on its suitability for high-reliability circuits subjected to demanding electrical environments. The X7R dielectric serves as the functional core, imparting reliable permittivity stability across a substantial range of temperatures and voltages. This dielectric formulation maintains capacitance variation within ±15% over −55 °C to +125 °C, which is foundational for designs requiring predictable frequency response or precise filter characteristics. As application circuits increasingly demand consistency under variable field conditions, reliance on X7R’s regulated dielectric constant mitigates the risk of performance drift, especially where analog signal integrity or timing precision are critical.
Capacitance aging for the device follows a logarithmic decrease—typified by a referee window of 1,000 hours for measurement—held to single-digit percentage losses per decade. This predictable drift supports designers in compensating for long-term variation at the project’s outset, thus achieving stable margining and derating strategies in service. Such planning prevents latent failures and ensures alignment with lifetime reliability targets, particularly vital in automotive environments where component access for servicing is constrained.
Dielectric withstand voltage (DWV), specified beyond the rated working voltage, equips the device to absorb transient overvoltages without catastrophic breakdown. This headroom, typically validated in short-duration factory tests, addresses real-world fault scenarios like load dumps or indirect lightning strikes. Notably, in systems subject to repetitive transients, the wide DWV margin translates to greater design confidence, obviating the need for external protective elements while bolstering long-term system durability.
The dissipation factor—a measure of lossiness under AC stress—remains stable for X7R even as ambient conditions fluctuate. Since increased losses can manifest as local heating and potential dielectric breakdown, the tight dissipation factor spec underpins the capacitor’s fitness for continuous operation in switching regulators or decoupling arrays where ripple currents fluctuate. Insulation resistance, typically exceeding 10^9 Ω at room temperature and rated bias, further ensures minimal leakage paths, sustaining the high-impedance characteristics demanded by low-standby-power architectures or sensitive analog front-ends.
Drawing on applied scenarios, the C1206C472KFRACAUTO excels in powertrain ECUs and industrial drives that experience significant voltage surges and thermal cycling. Successful deployments consistently leverage its characteristic robustness, enabling aggressive layout miniaturization without sacrificing noise suppression or bypass reliability. This reliability, adjunct to its predictable degradation profile, enables qualification in AEC-Q200 stress environments—facilitating seamless integration in automotive certified assemblies.
When evaluating supply chains or lifecycle management, the predictable parametric stability of X7R also allows for streamlined failure mode analysis and supports proactive reliability modeling. This predictive clarity often simplifies qualification, forecasting, and product maintenance cycles, reducing the risk of unexpected field issues and supporting a holistic approach to electronic system resilience.
In summary, the combination of well-defined aging, high insulation resistance, favorable DWV margins, and stable dielectric loss positions the C1206C472KFRACAUTO as a pragmatic choice in modern, safety-critical electronic architectures. These attributes anchor its application in mission-critical automotive and industrial sectors, where component reliability and circuit predictability are paramount.
Design considerations for C1206C472KFRACAUTO
Designing with C1206C472KFRACAUTO in high voltage environments—particularly where ratings exceed 1500V—demands rigorous attention to surface insulation and mechanical integrities. Conformal coating becomes essential to suppress surface arcing, with material selection extending beyond baseline dielectric strength. Thermal expansion coefficients of coatings should closely match those of the MLCC itself, minimizing strain-induced microcracks during thermal cycling; these microcracks can serve as initiation points for premature breakdown paths under sustained high-voltage stress.
PCB layout significantly influences long-term reliability at elevated voltages. Introducing strategic slits beneath the MLCC facilitates comprehensive solder flux residue removal during cleaning processes. These slits interrupt potential ionic contamination routes, curtailing both leakage currents and the risk of surface arcing—a phenomenon frequently traced to improper cleaning in practical failure analyses. Moreover, the exclusion of solder resist directly under the component preserves critical creepage distances. This approach also prevents the entrapment of residues, yielding a cleaner, more robust interface in the operational environment commonly encountered in automotive or industrial power applications.
Assembly processes must reinforce the electrical insulation framework. Both wave and reflow soldering are compatible with the 1206 package; however, adherence to controlled thermal profiles—as defined by standards like IPC/J-STD-020—is imperative. Limiting the number of reflow cycles to a maximum of three preserves the ceramic’s physical integrity and mitigates risk of delamination or metallization defects. Automated inspection tools can efficiently screen for solder ball formation, which, if unmitigated, can substantially degrade both surface insulation performance and the device’s resilience to vibration or shock loads.
Transitioning from foundational measures to in-field applications, these guidelines yield reliable outcomes for high-density inverter boards, battery management systems, and other demanding high-voltage subsystems. Real-world deployment corroborates that careful integration of these practices directly translates to sustained component performance and reduced field failures. Subtle design nuances, such as the avoidance of solder resist underbody or disciplined coating selection, can dictate whether an assembly meets elevated automotive qualification benchmarks or fails during accelerated life testing.
Emphasis on materials compatibility, process discipline, and holistic PCB design sets the framework for substantial improvements not just in isolation performance, but also in product lifecycle reliability. These principles, when interwoven with meticulous quality checks, form a blueprint for robust MLCC integration in relentlessly challenging voltage arenas.
Packaging, storage, and handling of C1206C472KFRACAUTO
The packaging of C1206C472KFRACAUTO capacitors employs standardized tape-and-reel configurations that interface seamlessly with automated pick-and-place equipment. The choice between punched paper and embossed plastic carrier tape directly influences component stability and mechanical protection during transport and installation. Embossed plastic is preferred where high positional accuracy is required on dense boards, minimizing the risk of microfractures that can compromise dielectric integrity. Individual cell cavities in the tape restrict lateral movement and shield the ceramic body against static charges or abrasive forces encountered during reel unwind and component pick cycles.
Storage parameters play a pivotal role in maintaining both solderability and electrical characteristics. Controlled environments, not exceeding 40°C and 70% RH, reduce the adsorption of surface moisture that could trigger silver migration during solder reflow, or lead to increased leakage currents post-assembly. Capacitors exposed to humidity variations may develop thin oxide layers on terminations, raising wetting time and causing intermittent solder joints—a failure mode frequently observed in high-reliability automotive ECM boards. Rapid temperature shifts must be mitigated through staged ingress or the use of moisture barrier bags, as condensation events promote ionic contamination and potential migration paths on the ceramic surface, undermining both ESR stability and capacitance consistency.
Lifecycle management recommends utilization within 1.5 years of receipt, a constraint informed by the evolution of termination materials and packaging relaxation over time. Elevated shelf-life correlates with increased risk of pad oxidation, microcracking, or accidental bending following prolonged exposure to reel tension. In practice, FIFO approaches and digital inventory tracking ensure traceable lot identification and swift replenishment, reducing outgassing and limiting the ingress of ambient contaminants.
Layering these technical concepts reveals the outcomes engineering teams can achieve: Reduced placement errors and improved yield metrics stem from robust packaging selection; enhanced solderability and minimized rework follow stringent storage management. Real-world process data demonstrates that capacitors handled under these regimes consistently deliver lower failure rates in accelerated aging and thermal cycle tests. It is essential that PCB assembly flows incorporate both preventive and detective controls at each logistical stage, leveraging statistical process control to flag deviations early. This holistic approach ensures that inherent device performance—dictated by precise ceramic formulation and robust termination—is delivered reliably to the end application, particularly in safety-critical automotive domains.
Construction and marking options for C1206C472KFRACAUTO
Built on a multilayer ceramic architecture, the C1206C472KFRACAUTO achieves high volumetric efficiency and mechanical robustness, tailored for applications where space constraints and thermal cycling present critical challenges. The configuration leverages stacked alternating layers of high-k dielectric and internal electrodes, optimizing both capacitance density and reliability under sustained electrical and thermal stress. Precision in layer alignment and termination metallurgy further ensures stable ESR and minimal drift over extended operational lifecycles.
For component identification, the device is shipped unmarked to minimize production complexity and inadvertent contamination—streamlining inline optical inspection for high-throughput board assembly. When direct marking is essential for downstream traceability or field service, laser marking can be specified. This non-contact method applies high-resolution alphanumeric codes, including manufacturer data and capacitance values, onto the ceramic surface without compromising package integrity or dielectric performance. Selection of marking parameters balances legibility and substrate tolerance, particularly for varying case sizes, and aligns with manufacturing practices aimed at reducing assembly ambiguity during pick-and-place.
Laser-marked identification significantly enhances traceability, facilitating real-time tracking across automated supply chains and enabling effective quality assurance protocols. In practice, efficient marking schemes allow rapid root-cause analysis during failure investigation, supporting long-term reliability analysis in automotive and industrial environments. This traceable approach proves advantageous in complex system integration, where maintaining component provenance is critical for meeting stringent compliance and operational standards.
Integrating these construction and marking strategies ensures the C1206C472KFRACAUTO not only addresses high-density circuit design requirements but also streamlines process control and end-to-end lifecycle management. Optimizing for both form factor and traceability positions the component as a reliable choice within demanding automated assembly workflows.
Potential equivalent/replacement models for C1206C472KFRACAUTO
Selecting suitable replacements for the C1206C472KFRACAUTO requires precise evaluation of several interrelated electrical and physical parameters. Within KEMET’s Automotive Grade High Voltage X7R MLCC portfolio, multiple surface-mount options provide overlapping performance characteristics—capacitance ranges from 10 pF up to 560 nF and voltage ratings extending to 3kV, all available in industry-standard SMD case formats, including 0402 through 2225.
The functional equivalence extends well beyond capacitance and package size. Voltage rating must be matched or exceeded relative to the original component, as automotive applications frequently mandate robust design margins to counter transient spikes and ensure long-term reliability under harsh operating conditions. Capacitance stability, tied to the specific dielectric class such as X7R, becomes critical for noisy or temperature-variable circuits, particularly in power management, filtering, and coupling roles within the vehicle ecosystem.
Thermal and mechanical performance, closely linked to case size, directly impact solder joint reliability and board-level stress tolerance. For example, the 1206 footprint of the C1206C472KFRACAUTO strikes a careful balance between volumetric efficiency and mechanical robustness, which is required in high-vibration environments like engine compartments or electric drivetrains.
Adhering to the AEC-Q200 qualification is non-negotiable in automotive contexts, since this guarantees a standardized baseline for failure rates under accelerated conditions such as thermal cycling, humidity bias, and mechanical shock. Cross-referencing datasheets and manufacturer qualification documents is a necessary step to verify these certifications rather than relying solely on family or series nomenclature.
Beyond KEMET's own lineup, cross-compatibility exists across other reputable vendors—Murata’s GRM and TDK’s C series, for instance—provided careful attention is given to subtle variations in temperature coefficient, aging rate, and package tolerances. Field deployment frequently reveals that minor changes in these parameters can translate to meaningful differences in EMC performance or system-level derating requirements.
Experience demonstrates that a successful second-source strategy incorporates laboratory validation, including component-level characterization under actual load and temperature profiles. Looping in real PCB assemblies for accelerated life testing can expose hidden failure modes such as microcracking or capacitance drift that may not be immediately apparent in standard qualification tests.
Ultimately, the most robust approach integrates both datasheet-level analysis and practical verification, fostering designs resilient against both product obsolescence and unpredictable environmental extremes. The nuanced differences among automotive MLCCs, though subtle, can have outsized influence on end-system longevity and compliance, making meticulous selection a cornerstone of automotive-grade electronic engineering.
Conclusion
The KEMET C1206C472KFRACAUTO exemplifies the synthesis of robust materials science, advanced processing, and application-driven engineering. At its core, this automotive-grade 4700 pF multilayer ceramic capacitor leverages Class 1 C0G dielectric, ensuring near-zero temperature coefficient and stable capacitance across a broad temperature spectrum. Such intrinsic thermal stability is crucial in automotive environments, where thermal cycling, rapid load changes, and mechanical shocks are routine operational realities. The precision of the 1206 SMD form factor enables high-density PCB layouts, minimizing parasitic effects without compromising electrical isolation or breakdown voltage.
Electrical reliability underpins large-scale automotive adoption. The capacitor’s high working voltage rating, typically up to 250V, is complemented by stringent AEC-Q200 qualification and PPAP documentation, satisfying established industry reliability matrices. These certifications do not merely offer theoretical peace of mind; they manifest in sustained field performance, reduced warranty claims, and streamlined supply chain auditing. In practice, engineers find that such components consistently deliver low ESR and high insulation resistance over extended lifecycles, even under aggressive voltage derating—a preferred approach that amplifies both longevity and system-level safety margins.
Integration flexibility distinguishes the C1206C472KFRACAUTO in complex design scopes. It seamlessly supports functions such as DC bus filtering, snubber circuits, and EMI suppression in powertrain electrification, LED drivers, and battery management systems. The compact footprint facilitates reflow soldering profiles compatible with both leaded and lead-free assembly lines, enhancing build efficiency and yield rates in high-throughput manufacturing settings. In scenarios where board real estate competes with stringent creepage and clearance requirements, this capacitor produces an optimal compromise between compactness and electrical integrity.
Adjacent to these foundational strengths, the nuanced balancing of capacitance, rated voltage, and physical dimensions across the KEMET MLCC portfolio allows tailored component selection for unique load profiles and regulatory requirements. Iterating across models with varying temperature and voltage ratings enables cross-validation of design robustness and cost-effectiveness—a strategy that reduces field failures from voltage overstress or unexpected resonance.
A distinctive insight emerges when correlating qualification data with real-world application feedback: carefully selected derating strategies, paired with precise placement and validated thermal management, extend operational lifetimes well beyond nominal datasheet projections. This supports modular, service-friendly designs capable of withstanding the evolving operational envelopes typical in next-generation automotive and industrial platforms.
