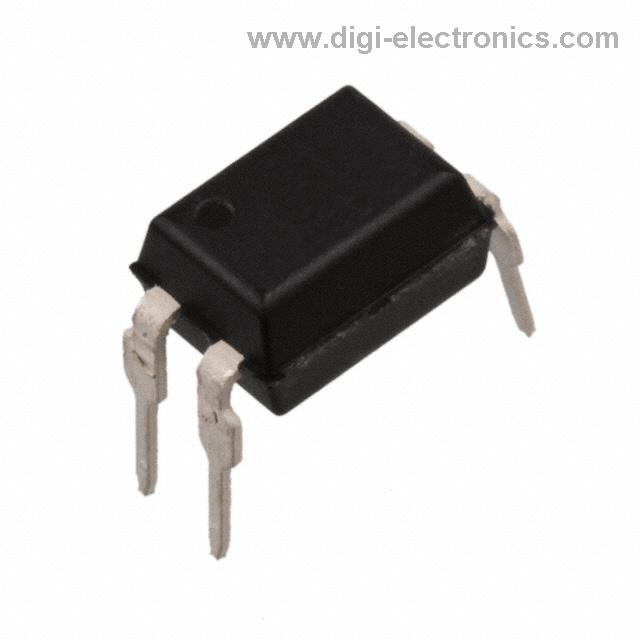

Product Overview: ISP321-1 Isocom Components Optoisolator
The ISP321-1 optoisolator from Isocom Components exemplifies a robust solution for electrical isolation challenges within modern electronic systems. At its core, the device leverages an integrated infrared LED-phototransistor photonic link, providing a secure method for upstream signals to traverse disparate voltage domains while maintaining stringent galvanic isolation. This separation effectively mitigates risks associated with ground loops, overvoltage transients, and common-mode noise—issues prevalent in complex industrial and instrumentation environments.
Engineering focus centers on the ISP321-1’s transistor output architecture, which balances fast signal transfer with low power consumption, favoring deployment in logic interfacing, microcontroller inputs, and sensitive data acquisition circuits. Its four-pin DIP footprint streamlines PCB layout, supporting both automated assembly and field retrofits where mechanical constraints dictate design feasibility. The high insulation voltage specification, a result of careful optoelectronic coupling distances and dielectric design, enables the component to withstand significant potential differences, a critical parameter in monitoring and protection subsystems.
Practical deployments reveal the reliability of this optoisolator under sustained thermal and electrical load, with a consistent CTR (Current Transfer Ratio) profile across production lots—a result of Isocom’s process controls. In applications such as signal sensing, relay driving, or serial data transmission across isolated domains, the ISP321-1 demonstrates superior immunity to electromagnetic interference, outperforming direct-coupled or transformer-based alternatives where size and frequency bandwidth are limiting factors.
Careful biasing of the LED side and load consideration for the phototransistor enables predictably sharp switching, critical for maintaining timing integrity in cascaded digital interfaces. This reliability underpins its frequent use in safety-critical circuits and isolating control logic from high-voltage power stages, as seen in programmable logic controllers, inverter gate drives, and precision measurement front-ends.
An often-overlooked advantage is the device’s stable operation over wide temperature swings and in environments with mixed analog and digital signals. By eliminating the electrical path between input and output, the ISP321-1 not only enhances operational safety but also suppresses subtle crosstalk effects that typically degrade measurement performance in densely packed control boards.
The underlying simplicity of single-channel optoisolators enables scalable architectures: parallel deployment yields multichannel isolation, while compatible pinout arrangements ease drop-in upgrades or design iterations. Overall, the ISP321-1 encapsulates a blend of reliability, integration flexibility, and noise immunity suited for both legacy system updates and forward-looking smart automation platforms.
Design and Functional Principles of the ISP321-1
The ISP321-1 leverages an optically coupled system comprising an infrared LED and an NPN silicon phototransistor, providing galvanic isolation essential for safeguarding sensitive logic circuits in environments with substantial electrical potential differences or elevated noise levels. The LED, positioned on the input side, receives an electrical excitation corresponding to the system’s control signal. This stimulation triggers the emission of infrared photons, optimally engineered to match the spectral sensitivity of the phototransistor.
The phototransistor, placed across an isolating dielectric barrier, operates exclusively in response to the incident infrared energy. Silicon process tuning enables fast rise and fall times, minimizing signal latency while optimizing sensitivity for rapid pulse transmission. As photons traverse the insulating gap—rated for 5300 Vrms dielectric strength—the phototransistor enters conduction, mirroring the input signal on the output leg. The architecture eliminates direct electrical coupling, which mitigates ground loop currents, and fortifies the integrity of logic-level communication in systems exposed to high EMI, transient voltage spikes, or the risk of surges.
Isolation technology in the ISP321-1 demonstrates a balance between minimal optical loss and robust electrical isolation. The optical channel exhibits minimal signal attenuation under standard alignment and controlled ambient conditions, supporting consistent pulse fidelity critical for industrial control and medical equipment. The encapsulation and leadframe layout are optimized to prevent leakage paths, ensuring long-term reliability even in elevated humidity or temperature cycling situations.
A practical experience with integrating ISP321-1 in a motor drive feedback system revealed its resilience against induced voltage transients from switching operations. In such deployment, the device consistently maintained low propagation delay while upholding logic isolation, allowing for seamless interfacing from microcontroller outputs to triac-based load drivers. Notably, the ISP321-1’s optical coupling method exhibits high immunity to differential mode noise, which tends to be less effectively suppressed in purely capacitive isolation configurations.
From an engineering perspective, the design of the optocoupler assembly directly influences distortion and jitter characteristics in high-speed digital signaling. Efficient LED drive circuitry and careful calculation of collector load on the phototransistor are pivotal for shaping output edge rates and preventing false triggers. Additional consideration should be given to LED degradation under sustained high-current operation, a factor that can silently erode isolation performance over time, underscoring the necessity for periodic validation in safety-critical applications.
Advanced deployment scenarios further highlight the value of optically isolated links for remote sensor integration and process monitoring. The ISP321-1’s topology substantially reduces the risk of propagating destructive voltages downstream in distributed automation networks. The device’s tight integration of high isolation voltage, low propagation delay, and consistent transfer characteristics positions it as a reliable bridge in circuits demanding precision connectivity across hostile operating domains.
Through precise optical engineering and robust packaging, the ISP321-1 embodies a layered approach to isolation, signal preservation, and long-term operational stability, making it an optimal choice for environments where electrical separation is paramount and signal authenticity cannot be compromised.
Key Features and Performance Characteristics of the ISP321-1
The ISP321-1 distinguishes itself through a set of tightly integrated electrical and regulatory characteristics, directly targeting reliability and adaptability in electrically demanding environments. The 5300 Vrms isolation voltage achieves robust galvanic separation, effectively mitigating risks associated with high transient voltages or surges between control and power domains. This insulation robustness is foundational in settings where safety and signal integrity are paramount, including motor drive interfaces and industrial power conversion systems, where the device is routinely subjected to line-to-line or line-to-ground faults.
Selectable Current Transfer Ratio (CTR) options are central to accommodating diverse input and output stage sensitivities. These multiple bins provide designers with a tunable parameter, enabling precise balancing between input current consumption and output drive strength. This flexibility facilitates direct interfacing across low-level microcontroller signals as well as legacy logic families, eliminating the need for supplemental amplification or conditioning circuitry. Uniformity in CTR across temperature and operating voltage further minimizes gain drift, crucial in analog measurement signal paths and high-speed data links where deterministic behavior underlies system stability.
Durability under environmental extremes is achieved with an operating temperature envelope spanning −30°C to +100°C, extending applicability to both controlled industrial environments and field-deployed outdoor installations. The predictable performance across this range stems from careful semiconductor and package design, with minimized leakage currents and stable CTR in the face of temperature-induced material changes. This supports mission-critical infrastructure including renewable energy systems and remote monitoring equipment, where reliability and minimal field maintenance are design priorities.
Conformance to RoHS3 and a lead-free bill of materials reflect an alignment with current global manufacturing and environmental directives. This enables procurement and deployment in forward-compatible product lines without exception handling, reducing qualification cycles. The holding of UL and VDE safety certificates further accelerates regulatory acceptance and simplifies downstream compliance documentation—advantages that directly shorten overall time-to-market and reduce redesign cycles due to shifting legislation.
High-speed switching and stable CTR reinforce the ISP321-1’s suitability for time-sensitive applications. Rapid signal propagation and minimal skew are vital in edge-detection, feedback isolation, and communication protocols within programmable logic controllers. In practical circuit implementations, this translates to unambiguous logic transitions and reduced susceptibility to signal degradation in electrically noisy environments—capabilities that are routinely validated in process automation panels and robotics interfaces.
Ultimately, the ISP321-1's blend of high insulation strength, responsive and consistent transfer characteristics, regulatory readiness, and environmental robustness forms a well-calibrated solution for modern isolation requirements. A core observation is that its design anticipates and directly addresses the intersecting domains of safety, signal quality, and regulatory compliance, offering a straightforward path to both circuit-level and system-wide robustness without undue engineering compromise.
Package Variations and Mechanical Details for the ISP321-1 Series
The ISP321-1 series exhibits substantial versatility in package configurations, directly addressing divergent requirements in electronic system integration. The standard 4-pin dual-in-line (DIP) variant remains optimal for conventional through-hole mounting, where mechanical robustness and legacy compatibility are prioritized. This configuration enables straightforward insertion and soldering, favoring prototyping phases or servicing environments that leverage manual assembly.
In scenarios demanding increased isolation or flexible board routing, the G Form variant introduces a 10 mm lead spacing. This adjustment enhances creepage and clearance distances, mitigating risks of electrical arcing in high-voltage sections and complying with stringent safety standards. It provides greater latitude for trace routing, a valuable attribute when optimizing signal integrity or separating sensitive domains within multilayer boards.
Surface-mount options, including both SM and SMT&R formats, are engineered for high-density layouts and compatibility with automated pick-and-place workflows. These packages support miniaturization and facilitate rapid assembly cycles, especially beneficial within mass production contexts. Accessible pad layouts are strategically designed to reinforce solder joint durability and enable stable thermal profiles during reflow soldering. Such pad geometries alleviate common pitfalls like tombstoning or cold joints, yielding robust interconnects and lower field failure rates.
Each mechanical option is accompanied by detailed package dimension drawings, serving as essential references during PCB footprint development. Leveraging these resources allows for precise pad definition and accurate hole placement, which reduces assembly yield losses and accelerates design validation. Aligning mechanical constraints with electrical performance often requires iterative co-design; accurate documentation minimizes discrepancies between schematic intent and physical realization.
Experience indicates that early engagement with dimension data and pad layouts streamlines not only initial prototyping but also successive revisions. Selecting the optimal package must account for production volume, board density, maintenance expectations, and regulatory mandates. Integration with automated manufacturing platforms is considerably simplified when package selections anticipate downstream process constraints.
Package-level decisions have a disproportionate impact on overall reliability and manufacturability. The ISP321-1 portfolio’s multidimensional approach—offering isolation, density optimization, and thermal integrity—enables tailored deployment across consumer, industrial, and critical infrastructure applications. Within the broader context of electronic design, harmonizing mechanical options with application-specific requirements drives both cost and performance advantages, underscoring the significance of these details in the life-cycle success of the final product.
Electrical and Thermal Ratings of the ISP321-1
Electrical and thermal limitations essentially govern the operational envelope of the ISP321-1 optocoupler, forming the foundation for long-term system robustness and signal isolation consistency. At the input node, the integrated infrared LED establishes the primary isolation barrier. The forward current and voltage ratings, typically characterized in manufacturer data sheets, are not arbitrary; they reflect material and geometry constraints intrinsic to the compound semiconductor junction. Operation close to these maxima minimizes headroom for tolerances such as supply fluctuation and component aging, leading to non-linear degradation of the optical coupling. Surpassing these constraints even briefly induces localized heating and accelerated electromigration, compromising both transfer efficiency and isolation resistance—effects that accumulate with thermal cycling. Furthermore, allowing for designed-in operational margin below absolute maximum ratings enables mitigation of aging shifts in forward voltage and stabilizes coupling coefficient across the projected lifetime.
On the output stage, the NPN phototransistor serves as the key signal interface between the isolated control network and low-voltage logic. Optimal switching fidelity and low saturation voltage are sustained only within the permissible collector-emitter voltage, collector current, and saturation current. These parameters must be balanced with respect to circuit impedance and expected switching frequency, as exceeding the given envelope may accelerate base-emitter junction fatigue or trigger avalanche events within the output transistor. Tighter tolerances applied at the PCB level—especially on low-impedance traces for high-speed switching—reduce the risk of overshoot or ringing, which in turn extends device stamina.
Thermal management emerges as an operational pillar in scenarios where system density or ambient conditions push devices toward their upper power-dissipation threshold. The package dissipation rating is derived by factoring junction-to-ambient thermal resistance and maximum junction temperature. Real-world application frequently exposes the device to intermittent pulses or sustained high throughput, conditions under which continuous self-heating can incrementally move the junction temperature closer to critical limits. Conservative design dictates that boards incorporate local copper planes or propose forced airflow if the calculated heat rise exceeds 70% of the allowable margin. Beyond heat removal, the environmental temperature envelope should be cross-validated with derating curves to validate uninterrupted performance under worst-case conditions.
Assembly methodology directly interacts with reliability, particularly for SMD packages. The ISP321-1 tolerates a single IR reflow soldering pass, and this technical limit traces back to compound stresses that manifest during thermal excursions. Multi-pass soldering, or submergence in flux, risks microcrack formation in the package or photonic barrier, which translates into unpredictable insulation leakage or leakage current drift. Optimal outcomes in automated production lines are achieved with precisely controlled peak reflow profiles and careful handling to prevent inadvertent flexing or shock during board transport.
From a broader perspective, these constraints underscore the interdependence of electrical and thermal phenomena in optocoupler deployment. Thoughtful margins at each operational level—input drive, output load, thermal environment, and assembly—extend in-service fidelity, particularly in highly integrated or mission-critical control systems. Experience demonstrates that proactive derating and targeted mitigation at the board level are invariably less costly than post-failure analysis, linking robust up-front engineering to downstream system performance and maintainability. The value in integrating awareness of these factors into the earliest stages of hardware design cannot be overstated, especially as system complexity and channel counts increase.
Regulatory Compliance and Environmental Information for the ISP321-1
Regulatory compliance for the ISP321-1 encompasses crucial frameworks that mitigate risk across the component lifecycle. Its certification to RoHS 3 restricts hazardous substance content, notably ensuring lead-free design and manufacturing processes. This regulation not only aligns the module with current environmental mandates but also reduces long-term liability by minimizing future environmental remediation concerns. Selecting components pre-validated for RoHS 3 thus repurposes engineering bandwidth, relieving design teams from redundant material investigations and facilitating streamlined bill-of-materials approval.
REACH exemption for the ISP321-1 further simplifies regulatory navigation. Absence from the Substances of Very High Concern (SVHC) list eliminates the need for periodic supplier disclosures or dossier updates, sustaining compliance integrity through product iterations. Such pre-qualification shields the downstream supply chain from disruptive component substitutions or surprise audits, lending predictability to project management schedules. Proven practice reveals that integrating REACH-unencumbered modules sharply reduces non-compliance escalation paths during quarterly or annual regulatory reviews.
The MSL 1 designation signals exceptional resilience against ambient moisture exposure, conferring logistical flexibility. Components with MSL 1 status can be stored unrefrigerated at ≤30°C and 85% relative humidity, granting broad leeway in facilities deprived of climate control. This characteristic simplifies procurement for production lines and field repair kits, where staging and transportation delays are routine. In several deployments, reliance on MSL 1 parts has streamlined inventory turnover and eliminated dry-packing costs, optimizing both cash flow and operational throughput.
Cross-certification by global agencies, including UL and VDE, underpins the ISP321-1’s credibility for high-assurance verticals. These listings validate that the part has been subjected to independent, multi-regional safety and reliability scrutiny, providing a pre-tested pathway to market-specific approvals. In industrial automation and instrumentation, rapid system certification hinges on such upstream validations; experience shows this dramatically compresses time-to-market and mitigates the risk of last-minute regulatory rejections. As regulatory regimes tighten and harmonize globally, components like the ISP321-1, with broad agency recognition, increasingly function as strategic enablers within compliance-driven design programs.
Leveraging ISP321-1’s robust compliance profile not only addresses immediate certification requirements but also builds a modular foundation resilient to evolving regulatory landscapes. This future-proofs product lines, reduces hidden costs, and ensures that compliance is integrated with core engineering operations rather than treated as a downstream constraint.
Potential Equivalent/Replacement Models for the ISP321-1
Exploring alternatives to the ISP321-1 necessitates close evaluation of electrical performance, isolation characteristics, package integration, and compliance with systemic design constraints. Within Isocom’s portfolio, the ISP321-2 and ISP321-4 extend the core architecture of the ISP321-1 to dual and quad channels, respectively. These derivatives maintain the primary specifications—such as isolation voltage rating near 5300 Vrms, NPN phototransistor output topology, and consistent input sensitivity thresholds—while enabling increased signal density and reduced PCB real estate per function. Multiplexed-channel packages can streamline designs in control interfaces or data acquisition subsystems where circuit uniformity and isolation per signal path are critical.
When seeking equivalents beyond Isocom, the central equivalence criteria focus on infrared LED signal input, NPN phototransistor output stage, minimum 5300 Vrms isolation, and form-factor parity—typically either through-hole DIP or SMD outlines. Manufacturers such as Vishay, Toshiba, Lite-On, and Everlight periodically offer direct substitutes, but subtle variations in CTR (current transfer ratio), propagation delay, and insulation thickness may result in marginal performance deviations or qualification hurdles. These parameters tend to have disproportionate impact in high-reliability or timing-sensitive control applications, where meticulous comparison of component datasheets against original ISP321-1 parameters is recommended before selection.
An often-overlooked aspect concerns regulatory and mechanical compatibility. UL, VDE, or IEC approvals—imposed for reinforced isolation or fail-safe requirements—must be individually cross-matched, particularly in medical, industrial, or energy domains. Physical dimensions, leadframe metallurgy, and pinout patterns grant straightforward substitutability only when evaluated against the host PCB’s footprint and soldering process. Past deployments in harsh electromagnetic environments highlight the need to verify adequate common-mode transient immunity and insulation aging, as overlooked differences can precipitate latent field failures or certification bottlenecks.
Engineers consistently find that early engagement with sampling and pre-compliance testing—rather than relying solely on datasheet comparison—streamlines integration and de-risks volume transition. In complex systems, judicious selection sometimes even justifies a minor increase in input current or output saturation voltage if it secures better long-term component availability or a more robust certification baseline.
Synthesizing experience across multiple migration projects, one insight stands out: the replacement process is rarely a one-to-one mapping of part numbers. Instead, it functions as an engineered decision boundary, balancing electrical equivalence, mechanical fit, and lifecycle assurance. Strategic anticipation of secondary effects—such as altered timing margin, board layout constraints, or supply chain volatility—enables proactive design adaptation and more resilient system evolution.
Application Scenarios and Engineering Integration Considerations for the ISP321-1
The ISP321-1 leverages advanced optoelectronic isolation to deliver reliable signal separation across diverse voltage domains, a critical requirement in modern embedded and industrial systems. Its robust common-mode transient immunity ensures stable operation under significant noise coupling, enabling the device to maintain defined switching thresholds even in electrically hostile environments. This isolation capability directly addresses the needs of engineers working on projects where low-level logic circuits share proximity with high-voltage power stages, such as in factory automation nodes or programmable logic controllers (PLCs). When embedded between data acquisition modules and field interfaces, the ISP321-1 prevents conducted and radiated transients from undermining microcontroller or ADC integrity, thereby extending system longevity and reducing downtime due to soft failures.
At the circuit level, the ISP321-1’s flexible drive and receive characteristics are governed by its current transfer ratio (CTR), which must be meticulously selected to balance input drive constraints against output side requirements. Precision selection of CTR bands is crucial when targeting applications such as system health monitoring, where undervoltage or an excessive drive can trigger degraded at-speed signal fidelity. Designs often employ the ISP321-1 in logic level bridging circuits or analog front-end buffering, integrating the device directly between disparate ground references. This minimizes risk during intrusive transients, such as line surges or switching events, underscoring the value of intrinsic device symmetry and radiation-hardened encapsulation.
Mechanical and thermal factors demand equal attention. For engineers committed to high-reliability assembly lines, careful matching of the ISP321-1’s package style (DIP or SMD) to PCB layout methodology is non-negotiable. DIP packages suit through-hole insertion processes prevalent in high-vibration industrial applications, while SMD footprints are optimized for automated pick-and-place and reflow soldering. Incorrect footprint definition can introduce solder-joint reliability concerns and even marginal offsets in coplanarity, affecting long-term mechanical integrity. Furthermore, thermal coupling is best managed by allocating ground fill and optimizing copper plane geometry beneath the device to dissipate localized hotspots, especially in dense multi-channel modules. Test data reveals that wide copper pours beneath SMD variants can reduce package thermal rise by up to 15–20%, directly impacting operational margins in tightly regulated enclosures.
Practically, seamless integration of the ISP321-1 into system schematics calls for nuanced PCB design tactics. For instance, strategic guard traces around input and output pads can lower parasitic coupling and crosstalk. Field experience shows that deliberate isolation slotting in the PCB substrate, especially under analog front-ends, further boosts immunity to pulse events while maintaining specified creepage and clearance distances. This multi-layered, application-aware design—anchored in a deep understanding of both the isolation device’s physics and the unique demands of the deployment environment—yields solutions that are robust, scalable, and resistant to evolving electrical threats. Such an approach tilts the cost–benefit analysis in favor of more extensive use of high-reliability isolation, even in cost-sensitive scenarios where failures can carry significant downstream implications.
Conclusion
The Isocom Components ISP321-1 optoisolator provides a precise approach to galvanic isolation, fundamental for mitigating ground loop and transient risks in demanding industrial signaling architectures. Its insulation voltage surpasses 5kVrms, qualifying it for line-voltage separation essential in automation, medical instrumentation, and control interfaces. The encapsulation technology employed ensures minimal risk of internal tracking under repetitive surges, addressing long-term high-voltage stability, which is especially relevant for installations subject to unpredictable transients or variable humidity.
Device packaging flexibility supports both through-hole and surface-mount placements, integrating seamlessly into PCB layouts for either compact next-generation boards or retrofits in legacy assemblies. Such mechanical adaptability facilitates controlled creepage distances and satisfies layout constraints without compromising performance, a necessity in high-density modular systems and replacements where board real estate is limited.
Regulatory compliance, with approvals from UL, VDE, and IEC, removes ambiguity in specification stages. This alignment with international standards allows for confident cross-market deployments and preempts delays in certification processes. These certifications confirm isolation metrics under stringent test environments, reassuring compliance for installations targeting safety-critical sectors like factory automation and power distribution.
Signal integrity is maintained over a broad temperature and voltage envelope, enabling consistent low-jitter transmission and preventing false triggering across RS-232/RS-485 serial buses, PLC logic isolators, and sensor front ends. The device’s propagation delay and common-mode transient immunity parameters stand up to interference-prone settings typical in switchgear rooms and process plants. Design experience reveals that integrating the ISP321-1 often resolves cross-channel crosstalk and attenuates noise pickup from adjacent high-current traces, reducing post-deployment debugging cycles.
An often-overlooked dimension is legacy system maintenance, where mixing aging isolated control cards and new sensor nodes strains compatibility. The ISP321-1’s electrical footprints and input-output characteristics bridge this gap, enabling incremental upgrades without incurring system-wide redesign costs. This feature supports gradual migration strategies and just-in-time maintenance workflows, maximizing asset lifespan and minimizing operational disruption.
The integration of optoisolators like the ISP321-1 epitomizes convergence between robust engineering practice and practical deployment flexibility. Their nuanced role extends beyond basic isolation, providing foundational support for system safety architectures, noise mitigation, and regulatory assurance. Well-tailored components in this domain not only enhance current system reliability but also facilitate scalable responses to evolving field conditions and interoperability demands.
