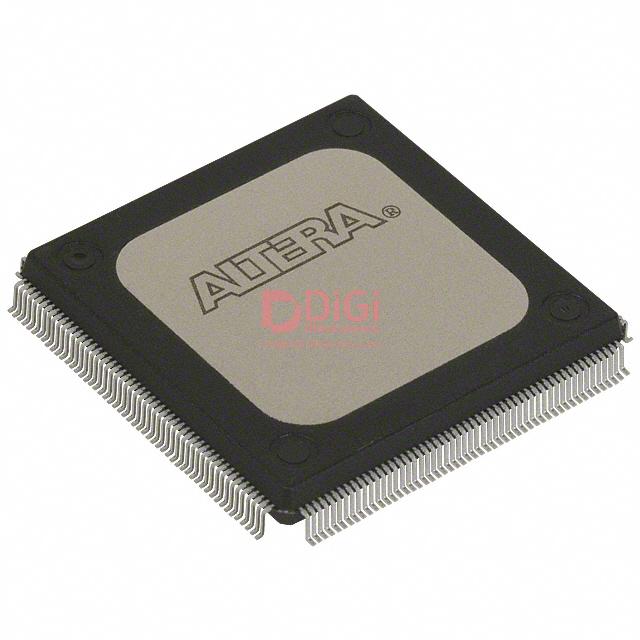

Altera EPM9400RC208-15 Product Overview

Altera EPM9400RC208-15 belongs to the MAX 9000 CPLD family and targets board-level digital integration where fixed timing, non-volatile configuration, and moderate-to-high logic density matter more than algorithmic flexibility. It is an EEPROM-based programmable logic device, which means configuration is retained without an external boot memory and becomes available immediately at power-up. In practical designs, that characteristic is often more valuable than raw capacity. It simplifies reset strategy, reduces dependency on configuration sequencing, and makes the device attractive for systems that must present valid control logic as soon as supply rails settle.

This specific device integrates 400 macrocells, 580 flip-flops, 25 logic array blocks, and up to 139 user I/O pins in a 208-pin RQFP package. That resource profile places it in a useful middle ground: large enough to absorb substantial glue logic and multiple control domains, but still constrained enough that architecture-aware design decisions strongly affect the final fit and timing. It is best understood not as a miniature FPGA, but as a deterministic logic fabric optimized for wide product-term logic, registered control, and structured interface handling.

At the architectural level, the EPM9400RC208-15 is built around macrocell-based logic organization. In this class of device, logic is formed through programmable product terms feeding macrocells and shared routing resources inside logic array blocks. This structure is especially efficient for decoders, address qualification, interrupt control, bus arbitration, chip-select generation, mode control, and finite-state machines with predictable transition logic. Designs with explicit Boolean structure map well. Designs dominated by deep datapaths, arithmetic chains, or RAM-centric processing do not. That distinction is important during part selection, because successful use of a CPLD depends less on total gate-style capacity and more on whether the target logic aligns with the macrocell and interconnect model.

The 400-macrocell density allows the device to replace a meaningful amount of discrete TTL or multiple smaller PLDs on a board. In many embedded platforms, this translates into consolidation of address decoding, wait-state insertion, peripheral enables, reset sequencing, interrupt prioritization, watchdog interaction, and protocol framing into one non-volatile programmable component. The 580 flip-flops indicate that the device can support not only simple registered outputs but also layered synchronous control structures. For example, a design may include several medium-complexity state machines, pipelined control strobes, and synchronized external inputs while still leaving room for supervisory logic. The available 25 logic array blocks also help partition the design into timing-local regions, which matters when multiple subsystems with different fan-in and routing pressure are merged into one image.

The I/O count is one of the more strategically significant features of the RC208 package. Up to 139 user pins make the device well suited for bus-rich systems, especially legacy 5 V designs with parallel control interfaces. It can sit between a processor, memory devices, peripheral ASICs, and external connectors while still maintaining enough signal visibility for debug and test access. In practice, high pin count often unlocks more system value than additional internal logic. A CPLD that can terminate many control signals, reshape them, and redistribute them with deterministic timing can eliminate a surprising amount of board complexity. This is particularly effective in designs where several subsystems need centralized qualification logic but not large-scale computation.

The 5 V operating range, specified at 4.75 V to 5.2 V, reflects the device’s intended use in established industrial and embedded digital ecosystems built around 5 V logic. This makes the part naturally compatible with older microprocessors, memory buses, peripheral controllers, and transceivers without widespread level shifting. From an engineering perspective, that reduces both electrical risk and timing uncertainty. Level translators add propagation delay, direction-control constraints, and failure modes during power sequencing. A native 5 V programmable logic device avoids much of that overhead. At the same time, this supply domain also means the device belongs to an earlier logic generation, so mixed-voltage integration must be reviewed carefully if adjacent devices are 3.3 V or lower. In such systems, pin-level voltage tolerance and interface directionality need to be considered early, not deferred to layout.

The built-in JTAG interface for in-system programmability is another defining feature. For production, it reduces handling steps because the device can be programmed after board assembly. For development, it shortens logic iteration cycles and makes late-stage functional adjustments feasible without replacing the component. This is one of the reasons CPLDs of this class remained popular in control-heavy systems long after denser FPGA options became available. When the design objective is board stabilization rather than computational acceleration, the ability to revise decode equations, state transitions, startup behavior, or timing qualification directly in-system is operationally significant. It supports incremental refinement of hardware behavior in exactly the areas where board bring-up tends to reveal edge cases.

The -15 speed grade places the device in a moderate performance tier within the MAX 9000 family. It is not the fastest option, but it remains suitable for a wide range of control-path functions, registered interfaces, and synchronous coordination logic. The key point is that CPLD timing should be evaluated in terms of determinism and bounded path behavior rather than headline frequency alone. In many embedded systems, the relevant requirement is not maximum toggle rate but guaranteed decode validity, chip-select timing, or state-machine response inside a narrow control window. A -15 grade device often meets those needs comfortably, provided the design avoids excessive product-term expansion and long cross-device routing dependencies.

That last point becomes critical during implementation. In macrocell architectures, timing degradation is often driven less by the nominal function and more by how much logic must be borrowed, cascaded, or globally routed to realize it. A compact state machine with disciplined output encoding may close easily, while an apparently simple “one more condition” added to several enable terms can push multiple paths into slower resource structures. A useful design habit is to separate high-fan-in decode from cycle-critical output generation. Register intermediate qualifiers, localize related control functions within the same logic region when possible, and avoid building large monolithic equations when staged logic can achieve the same behavior with cleaner timing. This usually improves both fit stability and maintainability.

The part is specified for commercial temperature operation from 0°C to 70°C, which aligns with office, lab, communications, and many indoor embedded applications. That range is sufficient for a large share of instrumentation, development equipment, point-of-sale systems, network peripherals, and legacy controller boards. It does, however, define the deployment boundary clearly. When a design may experience enclosure heating, poor airflow, or ambient variation near industrial limits, margin analysis should not stop at the published temperature band. A CPLD used for reset control, bus qualification, or watchdog management often sits in the system’s critical path. If it is thermally stressed beyond its intended class, failures can appear as intermittent startup anomalies or timing-sensitive field faults rather than obvious device shutdown.

From an application standpoint, the EPM9400RC208-15 is particularly strong in five categories. First, glue logic consolidation: replacing multiple SSI/MSI logic devices with one programmable element reduces routing congestion, eases BOM management, and makes future revisions less invasive. Second, state-machine implementation: deterministic registered control for startup sequencing, bus ownership, protocol framing, and fault recovery maps efficiently into the architecture. Third, interface adaptation: the device can reshape legacy timing relationships between processors, memory, and peripherals when off-the-shelf timing compatibility is imperfect. Fourth, supervisory logic: reset trees, interrupt masks, boot configuration straps, and watchdog coordination benefit from non-volatile immediate operation. Fifth, debug-oriented instrumentation: spare macrocells and I/O can be used to expose internal conditions, generate observation strobes, or insert temporary hardware checks during validation.

In board bring-up scenarios, this kind of device often proves most valuable when the original timing assumptions are almost, but not quite, correct. A processor may deassert a control line too early for one peripheral and too late for another. An external device may require a qualified write pulse only under a narrow address and mode combination. A reset source may need pulse stretching and sequencing across several rails and clock domains. These are not large problems in terms of gate count, but they are exactly the kind of problems that consume time if handled with discrete logic or PCB rework. A CPLD like the EPM9400RC208-15 absorbs those adjustments cleanly because its architecture is optimized for explicit control relationships rather than general-purpose compute structures.

There is also a subtle system-level advantage in using a device of this class for central coordination logic: it creates a single authoritative place where board policy is encoded. Instead of scattering bus conditions, reset qualifiers, and enable dependencies across many packages, the design becomes inspectable as one programmable hardware description. That improves revision control and reduces the chance that undocumented board behavior accumulates over successive spins. In older systems, where timing knowledge often lives in schematics and lab notes rather than formal models, this centralization is often the difference between a maintainable platform and a fragile one.

The package choice, 208-pin RQFP, is consistent with dense control-plane integration. It provides the pin count needed for broad connectivity, though it also demands careful PCB planning. With high-I/O CPLDs, pin assignment is not just a layout exercise; it directly affects timing quality, routability inside the device, and signal integrity outside it. Grouping related buses, keeping timing-critical inputs and outputs near each other in logic terms, and reserving clean access to JTAG pins all help avoid avoidable implementation penalties. Power distribution and decoupling should be treated seriously as well, because simultaneous switching on wide control groups can create enough noise to complicate reliable operation if bypassing is minimal or poorly placed.

Viewed in context, the EPM9400RC208-15 is best selected when a design needs stable, non-volatile, medium-density programmable logic with substantial I/O and predictable control timing in a 5 V environment. It is not the right answer for heavy datapath processing, large memory-based logic, or aggressive high-speed design. It is a strong answer for integrating board logic that must be present immediately at startup, remain easy to revise during development, and behave consistently across repeated manufacturing builds. Its value comes from architectural fit: when the problem is structured control, interface qualification, or logic consolidation, this device delivers more practical utility than its raw resource numbers alone might suggest.

Altera EPM9400RC208-15 Positioning Within the MAX 9000 Family

Altera EPM9400RC208-15 occupies a deliberate middle tier within the MAX 9000 family. That position is not just a catalog distinction. It defines the device’s practical value in systems that need more than entry-level CPLD capacity but do not justify the routing complexity, package pressure, or resource overhead of the larger members. In the MAX 9000 range, built on Altera’s third-generation Multiple Array MatriX architecture, the portfolio extends from roughly 6,000 to 12,000 usable gates and includes parts such as EPM9320, EPM9400, EPM9480, EPM9560, and later A-suffixed variants. The EPM9400 is the 8,000 usable-gate point in that progression, which makes it a structurally balanced option rather than simply a numerically intermediate one.

The key to understanding its placement is to look beyond gate count and examine the relationship between macrocells, interconnect structure, and package-exposed I/O. The EPM9400 integrates 400 macrocells, placing it above the EPM9320 and below the EPM9480 and EPM9560 in internal logic capacity. At the family level, it supports up to 159 user I/O pins, while the RC208 package exposes 139 user I/O pins. That distinction matters. In CPLD selection, silicon capability and package-accessible capability are often treated as equivalent during early planning, but they diverge quickly when pin budgeting becomes real. A design may fit the macrocell count comfortably and still fail package selection because memory interfaces, bus segmentation, debug signals, clock distribution, or device-to-device glue logic consume pins faster than expected.

This is where the EPM9400RC208-15 becomes technically attractive. It offers enough logic to absorb medium-complexity control planes, bus arbitration, protocol translation, wide state machines, address decoding, and timing supervision without forcing migration into a larger part. At the same time, the 208-pin package provides substantial I/O availability while avoiding the mechanical and routing penalties associated with denser, larger packages. In many boards, especially those mixing legacy parallel interfaces with moderate amounts of synchronous control logic, this balance can reduce both layer count pressure and constraint management effort.

From an architectural perspective, MAX 9000 devices are most effective when deterministic wide logic is more important than the deep, heavily registered data-path style usually associated with later FPGA families. The EPM9400 fits that pattern well. Its macrocell-based structure is well suited to implementing control-centric designs where predictable timing, direct pin-level interfacing, and compact combinational equations matter more than raw arithmetic throughput. That makes it especially useful in bus interface consolidation, system glue logic replacement, industrial control backplanes, instrumentation timing control, and telecom support logic. In those scenarios, the difference between 320 and 400 macrocells is often not incremental. It can be the margin that allows a design to stay in a single CPLD instead of splitting functions across multiple devices.

The RC208 package choice sharpens that positioning further. A device with 400 macrocells but constrained package I/O can become logic-rich yet board-limited. Conversely, high pin count with insufficient internal logic leads to fragmented implementation and awkward partitioning. The EPM9400RC208-15 avoids that imbalance for a broad class of designs. The 139 user I/O pins are typically enough to support multiple external buses, control lines, status monitoring, boundary functions, and programming overhead while preserving internal logic for meaningful integration. In practice, this often allows consolidation of several smaller PLDs or discrete glue devices into one programmable component, which improves timing coherence and simplifies revision management.

The “-15” speed grade also deserves attention because family positioning is not only about resource count. In CPLD-based systems, timing closure is frequently constrained by external interface requirements rather than internal algorithmic depth. A mid-range device with adequate speed and clean pin access can outperform a nominally larger option if it reduces routing detours and simplifies signal assignment. Designs with asynchronous strobes, decode-heavy control paths, or strict setup relationships to older processors often benefit more from balanced logic placement and package efficiency than from excess macrocell inventory. That is one reason mid-tier CPLDs tend to remain attractive in maintenance-heavy or interface-driven platforms.

A practical pattern appears in board-level integration work. Early estimates often focus on logic equations and state machine size, suggesting that a smaller family member might be sufficient. After pin reservation for clocks, resets, test access, interrupts, configuration hooks, and future feature growth, the smaller device starts to collapse at the edges. The next larger family member may solve the issue, but it can also introduce unnecessary cost and board disruption. The EPM9400RC208-15 often lands in the useful center: enough macrocells to absorb feature creep, enough I/O to tolerate interface expansion, and a package size that remains manageable for routing and assembly. That middle ground is frequently where engineering efficiency is highest.

Another important aspect is design resilience over product lifetime. Choosing a device too close to its logical or I/O ceiling usually creates hidden fragility. Minor firmware-driven hardware changes, protocol revisions, added diagnostics, or manufacturing test hooks can consume the remaining margin quickly. The EPM9400’s family position provides a more forgiving envelope than the lower MAX 9000 members, without committing the design to the larger parts when their extra resources may never be used. This is often the more robust engineering decision, because moderate reserve capacity tends to reduce redesign frequency and preserve timing margins as the netlist evolves.

Seen in the context of the full MAX 9000 lineup, the EPM9400RC208-15 is best understood as a device optimized for balanced integration. It is not the smallest entry point and not the family maximum. Its value lies in matching medium-density control logic with substantial, but not excessive, package-level connectivity. For designs that outgrow the EPM9320 in either macrocell usage or practical pin count, yet do not truly need the larger envelope of the EPM9480 or EPM9560, this device offers a technically efficient fit. It supports cleaner partitioning, better board-level economy, and a more sustainable logic budget, which is often the real measure of whether a CPLD choice is correct.

Altera EPM9400RC208-15 Core Architecture and Logic Organization

Altera EPM9400RC208-15 is built on the MAX 9000 CPLD architecture, and its behavior is best understood by looking at how fixed logic resources, interconnect topology, and macrocell-level control are composed into a timing-stable logic platform. The device is not optimized for arithmetic density or deeply pipelined datapaths in the FPGA sense. Its strength lies in deterministic control logic, bounded routing behavior, and efficient implementation of wide combinational conditions with registered or combinational outputs.

At the top level, the device contains 400 macrocells arranged into 25 logic array blocks, with 16 macrocells per LAB. This partitioning is not just an organizational detail. It defines the locality model of the device. Logic that fits well within a LAB can exploit short internal paths and direct feedback, while logic that spans LAB boundaries relies more heavily on the global routing structure. In practical designs, this means functional clustering has a measurable impact on both fitting quality and timing margin. State machines, decoders, bus qualification logic, and interrupt aggregation networks usually benefit when their tightly coupled terms are kept within a small number of LABs.

Each LAB combines product-term style logic construction with macrocell output control. This gives the device its CPLD identity. Instead of decomposing logic into many small LUT-level fragments, the EPM9400RC208-15 forms logic through structured sum-of-products style resources supported by expander terms and shared interconnect. That difference matters. Wide decode functions, chip-select generation, mode qualification, and protocol steering often map more directly into this architecture than they would in a fine-grained LUT fabric. When a design contains many explicit boolean conditions with moderate register count, resource usage is often more intuitive and timing closure more repeatable.

The macrocell is the central execution unit of the architecture. A macrocell can implement either combinational or registered behavior, and it sits at the boundary between logic generation and observable device behavior. In engineering terms, the macrocell is where logic terms are turned into usable system signals: synchronous state bits, output enables, handshake lines, address qualifiers, and control strobes. Because macrocells also support feedback into the local LAB, they allow iterative logic refinement without always paying a global routing penalty. This local feedback path is one of the reasons CPLDs of this class handle control-oriented next-state logic cleanly.

Expanders play an important role when logic width exceeds the direct capacity of a single macrocell’s product-term allocation. Their value is architectural, not cosmetic. They allow logic equations to scale without forcing awkward decomposition into multiple externally routed stages. For functions such as large address maps, privilege checks, bus-cycle qualification, or multi-signal exception detection, expander terms help preserve a flatter implementation. A flatter implementation usually reduces uncertainty. Fewer logic levels and fewer cross-block dependencies often translate into better timing consistency and simpler verification.

The FastTrack Interconnect is the device’s main routing framework and a major contributor to its predictable timing character. Unlike highly flexible FPGA routing networks that can vary substantially depending on placement and congestion, FastTrack is engineered to support relatively direct signal movement across the device with more bounded routing behavior. This is why MAX 9000 devices are often selected for designs where timing predictability matters at least as much as raw logic density. In board-level control systems, consistency is often more valuable than theoretical peak utilization. A design that compiles the same way across revisions and maintains margin on asynchronous interfaces can be preferable to one that is denser but less transparent.

Signals are available in both true and inverted forms, which may appear minor but has direct implementation value. This reduces the need to spend logic resources on explicit inversion and gives the fitter more freedom when mapping boolean expressions. In practice, this improves packing efficiency for control-heavy equations with mixed active-high and active-low conditions. It also helps when interfacing to legacy buses and peripherals, where signal polarity conventions are often inconsistent. The architecture absorbs that polarity complexity with relatively low overhead.

Dedicated inputs and I/O cells complete the system-facing side of the architecture. Dedicated inputs are useful for high-fan-in control signals such as clocks, resets, enables, or globally referenced strobes. Their presence reduces contention on general routing and improves the integrity of timing-critical control distribution. The I/O cells provide the interface between internal macrocell logic and external pins, supporting the device’s role as a board-level integration element. In many applications, the real design challenge is not the internal logic equation itself but the disciplined handling of external timing, bus turn-around, output enable sequencing, and asynchronous qualification. This class of device is particularly effective when those concerns dominate.

The architectural distinction between a CPLD and an FPGA is especially important here. The EPM9400RC208-15 does not aim to emulate a sea of generic logic tiles. It offers a more rigid but more legible structure. That rigidity is often an advantage. For address decoding, bus interfacing, reset sequencing, interrupt shaping, and protocol glue logic, the mapping from RTL or schematic intent to physical implementation is usually easier to reason about. The timing model tends to stay closer to the conceptual design. As a result, late-stage surprises are less common when the design is dominated by control conditions rather than algorithmic processing.

A useful way to think about the device is to separate three layers of behavior. At the first layer, product terms and expanders define how boolean conditions are formed. At the second layer, macrocells decide whether those conditions become combinational outputs, registered state, or feedback signals. At the third layer, FastTrack and I/O resources determine how those results are distributed internally and presented externally. This layered view helps during design partitioning. If a function is failing to fit, the issue is often in term width. If timing is weak, the issue is often interconnect span or unnecessary cross-LAB dependence. If interface behavior is unstable, the issue is often in I/O timing assumptions rather than logic capacity.

In real projects, one recurring pattern is that designers initially underestimate the cost of global coupling. A control design may look small in macrocell count, yet still compile poorly if status signals, mode bits, and asynchronous qualifiers are shared too broadly across many LABs. The architecture rewards locality. Group related equations around common enables and shared conditions. Keep state machines near the decoders that consume their outputs. Avoid distributing raw asynchronous signals deep into multiple logic regions; qualify or register them early where possible. These choices usually improve both fit and timing without changing device size.

Another practical lesson is that wide decodes should be treated as first-class architectural objects. This device handles them well, but only when they are written and partitioned with awareness of product-term usage. Large monolithic equations can fit efficiently if they align with macrocell and expander structures. If written carelessly, they can create avoidable consumption of shared terms and introduce routing pressure. In many cases, separating stable predecode conditions from final enable generation produces a better implementation than forcing every condition into one expression. That approach also improves signal observability during debug.

For system integration, the EPM9400RC208-15 remains most compelling when the design requirement is “make the board behave correctly and predictably” rather than “maximize raw logic throughput.” It is well suited to centralizing miscellaneous control functions that would otherwise be spread across SSI/MSI logic or burden a larger FPGA with non-core tasks. Typical use cases include memory and peripheral decoding, bus arbitration support, boot-time control sequencing, interrupt consolidation, interface adaptation, and timing cleanup around legacy peripherals. In these roles, architectural determinism often has more value than configurability depth.

The deeper insight is that this device should not be judged only by macrocell count. Its real utility comes from how efficiently it converts system-level boolean structure into timing-stable hardware. The fixed nature of the MAX 9000 organization imposes constraints, but those constraints create clarity. When the design is aligned with that model, utilization is high, compilation outcomes are repeatable, and external behavior is easier to validate. That is why the EPM9400RC208-15 continues to make sense in control-centric digital systems where reliable logic integration matters more than fine-grained computational flexibility.

Altera EPM9400RC208-15 Macrocell Resources and Logic Implementation Flexibility

Altera EPM9400RC208-15 centers its logic capacity around the macrocell, and the real value of the device comes less from raw gate count than from how flexibly each macrocell can be repurposed. In this family, a macrocell is not just a fixed sum-of-products block followed by a flip-flop. It is a configurable logic endpoint that can absorb data-path logic, state-holding behavior, and portions of control distribution in the same local structure. That architectural choice is what makes the device effective for dense control-oriented designs, especially where logic equations are irregular rather than deeply arithmetic.

At the lowest level, each macrocell is built from product terms generated in the local array, a product-term select matrix that routes those terms to different internal functions, and a programmable register that can be bypassed or engaged depending on implementation needs. This matters because the device does not force a strict separation between combinational evaluation and sequential control. Instead, the same local term resources can be allocated where they create the highest functional value. In practice, this lets a design absorb asynchronous control conditions, edge-qualified state updates, and output decoding without immediately spilling into neighboring resources.

The base combinational structure provides five product terms per macrocell. In a simple view, these terms feed OR and XOR logic to implement sum-of-products functions. In a more useful engineering view, those five terms are the first allocation budget for a logic endpoint. If the equation is compact, all terms can be consumed by the data function. If the equation is moderate but the register requires non-default behavior, some terms can be diverted to clear, preset, clock, or clock-enable control through the product-term select matrix. That reassignment capability is one of the defining strengths of the architecture. It allows the control plane of a register to be synthesized locally instead of being built externally through additional glue logic.

This has a direct effect on implementation quality. In many programmable logic devices, control signals become expensive when they must be generated outside the destination register path. Here, local product terms can encode application-specific control conditions close to the storage element. A register can therefore be updated only under a narrow combination of events, asynchronously forced to a safe state, or conditionally held without requiring a separate control macrocell chain. For finite-state controllers, protocol handlers, and bus arbitration logic, this often reduces both logic fragmentation and timing uncertainty.

The programmable register itself enables each macrocell to operate in either sequential or combinational mode. That sounds standard, but in the EPM9400RC208-15 the significance lies in how lightly the architecture transitions between the two. The combinational path is not an afterthought to the registered path, nor vice versa. This balanced treatment is useful in mixed logic regions where some outputs must react immediately while related signals must be captured and synchronized. Instead of partitioning these functions into dissimilar resources, the macrocell can often host both styles with limited overhead.

A particularly strong feature is the dual-output macrocell structure. This allows the combinational output and the registered output to exist as separate usable results from the same macrocell logic context. For logic designers, this is more important than it first appears. In many control designs, the same Boolean condition is needed in two forms: one immediate version for current-cycle gating and one registered version for next-cycle sequencing or output qualification. Without dual-output support, such behavior often duplicates equations across multiple logic cells, consuming product terms and adding routing load. With the EPM9400RC208-15, both views of the logic can be derived from one macrocell, which improves effective density and often simplifies timing closure.

That dual-path behavior is especially efficient when implementing handshake logic, event detectors, or edge-sensitive control pipelines. A condition can be decoded combinatorially for immediate response while also being captured into the register for stable downstream use. The benefit is not only area savings. It also tends to preserve functional coherence, because both outputs originate from the same localized equation network. This reduces the chance that later optimization causes the immediate and stored forms of a signal to diverge in unintended ways.

The product-term select matrix is where much of the implementation flexibility actually materializes. Rather than treating product terms as fixed contributors to one output equation, the matrix allows them to be assigned to logic output formation or register control generation. This means the macrocell behaves more like a configurable micro-cluster than a single-purpose logic primitive. When a design contains sparse equations with special control requirements, the matrix can convert otherwise underused product terms into useful behavioral qualifiers. In dense decoders, the same structure can keep most terms focused on the data expression itself.

This local resource steering becomes even more important when equations exceed the native five-product-term budget. The EPM9400RC208-15 addresses this with configurable expander product-term distribution, allowing a macrocell to access as many as 32 product terms. That capability changes the practical scope of what can be implemented in a single logic destination. Wide address decodes, instruction recognition blocks, interrupt masks, and multi-condition state transitions often require more terms than a basic macrocell can supply. The expander network allows those functions to remain localized rather than being decomposed into multiple intermediate nodes.

Two expander types are provided, and their distinction is architecturally meaningful. Shareable expanders are inverted product terms fed back into the logic array. They are useful when a derived condition has value beyond one endpoint and can serve as a reusable intermediate expression. This is beneficial in designs with recurring sub-conditions, such as protocol phase decodes or address-region qualifiers. Instead of regenerating the same expression repeatedly, the shareable expander creates a form of local term reuse that can reduce duplication and improve consistency.

Parallel expanders are borrowed from adjacent macrocells and effectively extend the product-term width of a target macrocell directly. These are well suited to equations that are intrinsically wide but still logically singular, such as large one-hot decoders, complex enable conditions, or branch-heavy state transition expressions. The practical design question is whether an expression should be factored into reusable sub-expressions or preserved as one wide decode. Shareable expanders favor the first approach. Parallel expanders favor the second. Good implementation usually comes from matching the equation topology to the expander style instead of applying both indiscriminately.

In real design work, wide equations are not always the main source of pressure. Control-term allocation is often the hidden limiter. A logic function may appear to fit within five terms until asynchronous reset behavior, conditional clock enable, output polarity handling, and test-mode overrides are included. Once these are added, local resources tighten quickly. The EPM9400RC208-15 handles this better than simpler macrocell architectures because product terms are not locked to one role. Even so, efficient designs usually emerge when control equations are written deliberately, with common qualifiers pulled upward and unnecessary special cases avoided. Keeping control orthogonal to data logic tends to preserve both product-term headroom and routing simplicity.

Another practical pattern is that not all product terms carry equal timing impact once expanders are involved. A compact five-term equation in one macrocell will generally be easier to manage than a heavily expanded 20- to 30-term decode spread across neighboring resources. While the device supports such width, very broad equations should be used where they simplify the state model or eliminate entire layers of intermediate logic. If a wide decode is merely compensating for an overcomplicated specification, the result may be resource-efficient on paper but brittle in timing and maintainability. The most robust implementations usually reserve deep expansion for places where the logic is naturally wide and semantically stable.

From an application standpoint, this macrocell architecture is particularly effective in control-dominant systems: bus interface logic, industrial sequencing, legacy protocol conversion, address decoding, and deterministic supervisory functions. These workloads benefit from sum-of-products realization, local register control, and the ability to mix immediate and stored signal forms. They benefit less from architectures optimized primarily for datapath arithmetic. That distinction is important. The EPM9400RC208-15 is strongest when the design is dominated by Boolean structure, explicit conditions, and stateful control interactions rather than by wide arithmetic operators or heavily pipelined numeric processing.

A useful design approach with this device is to think in terms of condition ownership. Each macrocell should ideally own a complete logical intent: a decode, a state bit update, an output qualification, or a local control predicate. When equations are split too early into artificial intermediate nodes, product-term usage may appear smaller locally but can increase globally through duplication and feedback. Conversely, when a naturally shared condition is recognized early and mapped through a shareable expander path, the device can exploit its architecture efficiently. The architecture rewards deliberate factoring, not aggressive fragmentation.

The dual-output capability also encourages a more disciplined handling of synchronous boundaries. A combinational condition can be exposed for immediate internal use while its registered counterpart defines a stable interface to the next stage. This pattern is often cleaner than building separate predecode and state-holding layers. It reduces logic drift and makes timing intent easier to preserve. In systems where event qualification and event capture must remain tightly aligned, that architectural feature is more than a convenience; it becomes a correctness aid.

Viewed as a whole, the EPM9400RC208-15 macrocell architecture offers a dense and unusually flexible implementation model for control-centric logic. Five local product terms provide the base economy. The product-term select matrix turns those terms into a shared pool for both data and control semantics. The programmable register supports either pure combinational or sequential realization. Dual outputs increase functional yield per macrocell. Expander resources extend the architecture from compact equations to very wide decodes without forcing a complete change in design style. The result is a device that rewards careful equation shaping and local control integration, and when used that way, it delivers far more practical logic capacity than a simple macrocell count would suggest.

Altera EPM9400RC208-15 Interconnect, I/O Structure, and Global Control Signals

Altera EPM9400RC208-15 uses the FastTrack Interconnect as the central routing fabric, and this choice defines much of the device’s timing behavior. Unlike routing structures that rely heavily on segmented or deeply nested switch matrices, FastTrack is built around continuous row and column channels spanning the device. The practical result is not just high speed, but a narrower spread of interconnect delay across different logic placements. In CPLD-based designs, that predictability often matters more than peak theoretical performance. Control-path logic, state sequencing, bus arbitration, and interface glue logic typically fail on timing margin erosion, not on lack of raw gate capability, so a routing model with stable delay characteristics is a strong architectural advantage.

The key routing behavior starts at the logic array block and macrocell level. Each LAB can directly drive both row and column interconnect resources, and each macrocell can feed one or both of those resources as required. This creates a relatively flat communication model between functional regions of the device. Once a signal is promoted onto the row or column network, it can be observed by other LABs or forwarded toward peripheral I/O cells with limited routing ambiguity. That matters during implementation because timing does not depend as strongly on whether the source and destination happen to fall inside a favorable local cluster. In practice, this reduces the amount of placement sensitivity that often complicates timing closure in more hierarchical programmable logic.

A useful way to view the FastTrack fabric is as a deterministic transport layer between computation points. The logic is still implemented in macrocells and product-term structures, but the interconnect behaves more like a uniform distribution grid than a maze of opportunistic paths. For medium-complexity designs, this improves design portability across revisions. Small RTL changes are less likely to trigger disproportionate timing shifts, which is valuable when the device is used in systems that evolve through incremental feature additions, protocol fixes, or board-level timing adjustments.

This routing model also aligns well with the historical role of CPLDs in timing-critical supervisory logic. When implementing decode trees, chip-select generation, interrupt qualification, address qualification, or deterministic handshake logic, the designer usually cares about bounded delay and repeatable response. The EPM9400RC208-15 is well suited to that style of work because the interconnect is optimized for consistency. In many cases, the most important metric is not logic depth alone, but the combined delay of product terms, macrocell behavior, and routing across the device. FastTrack helps keep that combined path easier to estimate and control.

The I/O structure extends this timing-oriented philosophy to the device boundary. Each pin is associated with an I/O cell register that includes clock enable control. This is more significant than it first appears. Registering signals at the I/O boundary removes a large portion of internal combinational uncertainty from external timing relationships. For outputs, the register allows clock-to-output timing to be driven primarily by a dedicated boundary register path rather than by a deeper internal logic cone. For inputs, sampling at the periphery reduces the effective input-to-register delay and improves the ability to meet setup requirements against incoming clocks or strobes.

In board-level interfaces, this per-pin register capability often determines whether the CPLD can participate cleanly in synchronous buses. A registered output can produce tighter edge placement and lower skew relative to a device-wide clocking scheme. A registered input can capture asynchronous-looking external activity in a controlled way before the signal is distributed internally. This is especially useful in interfaces where margins are small and the CPLD is expected to act as a bridge, formatter, or timing conditioner between devices with different internal delay characteristics. Designs that leave I/O unregistered may appear functionally correct in simulation, then become fragile once trace delay, output loading, and clock distribution are accounted for.

Clock enable support in the I/O registers adds another layer of control efficiency. Rather than synthesizing gating behavior through general logic, data movement at the pins can be qualified directly at the register stage. That reduces internal resource usage and avoids unnecessary combinational insertion on timing-sensitive paths. In practical interface design, this is an effective way to implement byte enables, bus turnaround control, conditional sampling, or protocol-qualified output updates without degrading the global timing model. The more logic that can be absorbed into dedicated register control features, the more stable the rest of the design tends to become.

Global control resources are another major strength of the EPM9400RC208-15. The device provides four dedicated inputs intended for high-fanout control signals, and each LAB receives two low-skew global clocks plus one global clear. These resources are distributed to all 16 macrocells in the LAB. Architecturally, this solves a classic scaling problem in programmable logic: clocks and resets are functionally simple but physically expensive when they must reach many endpoints with low skew and low delay. If they are routed through ordinary interconnect, they consume routing capacity and accumulate placement-dependent timing variation. By assigning them to dedicated global resources, the device protects both timing integrity and routing efficiency.

The presence of two low-skew clocks per LAB supports a wider range of synchronous design styles than a single-clock distribution model. It enables partitioning between related timing domains, such as a system clock and an interface clock, or a main clock and a phase-qualified derivative handled externally. This should not be read as a license for uncontrolled multi-clock design inside a CPLD. The more disciplined approach is still to minimize clock domains and treat global clocks as scarce, high-value infrastructure. Even so, having two clocks available at the LAB level provides important flexibility when the device must sit between subsystems with distinct timing references.

Global clear deserves equal attention. In CPLD designs, reset strategy often has a larger effect on robustness than the logic equations themselves. A dedicated clear signal reaching every macrocell in a LAB simplifies startup behavior, deterministic reinitialization, and recovery from fault conditions. It also avoids wasting product terms or routing channels on reset fanout. For state machines and control registers, using the global clear path generally produces cleaner and more analyzable behavior than constructing distributed reset trees in ordinary logic. At the same time, excessive dependence on asynchronous clearing can create release-timing issues if external reset generation is noisy or poorly aligned. A strong implementation pattern is to use the dedicated clear for device-wide initialization and then rely on synchronous state control during normal operation.

The interaction between FastTrack interconnect, global control resources, and I/O registers is where the device becomes especially effective. These are not isolated features. Together they form a coherent timing architecture. FastTrack reduces uncertainty in signal transport. Global clocks and clear reduce uncertainty in high-fanout control distribution. I/O registers reduce uncertainty at the chip boundary. When these three are used together, the design becomes easier to constrain mentally even before formal timing analysis. That is one of the reasons CPLDs of this class remain useful in deterministic digital control roles despite offering less raw density than larger FPGA families.

A practical implementation pattern for the EPM9400RC208-15 is to push state retention toward macrocells and I/O registers, keep combinational cones shallow, and reserve global resources for signals that truly justify device-wide distribution. For example, external control inputs can be captured at the I/O cells, qualified in nearby logic, and then distributed through FastTrack only after they have been synchronized or decoded. Likewise, outputs that affect off-chip timing should generally be driven from registered sources rather than from deep combinational paths. This not only improves timing closure but also makes post-fit behavior more repeatable across builds.

Another useful discipline is to treat row and column interconnect as a shared timing budget, not just as a routing convenience. Signals with broad fanout or cross-device significance should be structured carefully so that they enter the interconnect in a controlled form. Wide combinational expressions that feed many destinations can consume routing flexibility and create avoidable delay growth. A more efficient approach is often to predecode locally, register intermediate control points when possible, and then distribute compact control signals through the global or FastTrack resources. In this device class, architecture-aware decomposition usually outperforms brute-force equation minimization.

For bus interfaces and external control timing, per-pin I/O registers are often the first feature to exploit. For internal sequencing and state control, the global clocks and clear should be established early in the design. FastTrack then serves as the fabric that connects those timing-stable islands. When used in that order—boundary registration first, control distribution second, interconnect planning third—the EPM9400RC208-15 tends to deliver what CPLD users usually want most: stable timing, straightforward implementation, and behavior that remains consistent as the design matures.

Altera EPM9400RC208-15 Performance Characteristics and Speed Grade Implications

Altera EPM9400RC208-15 sits in the MAX 9000 CPLD family as a mid-speed option, and the -15 speed grade is the key parameter that defines how aggressively it can be used in timing-sensitive logic. At the family level, the -15 grade is characterized by a maximum 15 ns pin-to-pin delay, with typical counter performance around 118 MHz. This places it clearly above the -20 grade parts, which are closer to 100 MHz, but below the -10 grade devices that reach roughly 144 MHz and carry the strongest timing position inside the family. From a design perspective, this is not just a numerical ranking. It determines whether the device is best treated as a general-purpose synchronous logic engine or as a candidate for tighter interface timing where margin is limited.

The most useful way to interpret the -15 grade is to separate absolute datasheet limits from typical functional behavior. The 15 ns pin-to-pin number is the conservative boundary used for worst-case design closure across process, voltage, and temperature variation. In contrast, the typical function examples describe what the architecture often delivers under more favorable conditions. That distinction matters because CPLD timing tends to look deceptively strong in small test cases while becoming constrained once routing, product-term usage, and global resource allocation become less ideal. In practice, the -15 grade should be read as a device with respectable deterministic timing, but not one that should be budgeted using typical values unless the environment and implementation are tightly controlled.

The family performance data provides a good starting point for understanding internal operating range. A 118 MHz counter frequency implies that the macrocells, local interconnect, and clock distribution can support moderately fast synchronous state evolution when the logic depth is controlled. This is consistent with the function-level examples: 16-bit loadable counters, 16-bit up/down counters, and 16-bit prescaled counters are all shown at 118 MHz for -15 devices. That consistency is important. It suggests that the architecture handles arithmetic-style control logic efficiently, especially when the implementation aligns with the native macrocell structure and uses predictable carry-like or register-centric paths rather than wide irregular combinational networks.

That makes the EPM9400RC208-15 well suited to timing-deterministic control applications. Typical examples include address qualification, bus arbitration support, state machines, programmable chip-select generation, timing sequencers, and counter-driven supervisory logic. In these use cases, the part benefits from one of the traditional strengths of CPLD architecture: relatively stable and analyzable timing compared with deeper LUT-based fabrics. When the design is dominated by registered paths and bounded combinational fan-in, the -15 grade usually provides a comfortable operating window for many embedded control tasks.

The logic-path examples reveal the next layer of behavior. A 16-bit address decode is listed at 7.9 ns typical, with 15 ns shown in parentheses, while a 16-to-1 multiplexer is listed at 10.9 ns typical, with 18 ns in parentheses. These numbers show two important effects. First, decode-style logic can map efficiently in the device and may achieve quite good typical delay when product-term usage remains favorable. Second, not all combinational structures scale equally. The multiplexer example is slower, which is expected because selection trees and wide data steering often consume more logic depth and routing resources than straightforward decode functions. For engineering decisions, this means the part should not be evaluated only by the headline 15 ns pin-to-pin metric. Path topology matters. A design with many steering functions, layered enables, or cascaded selects can degrade faster than a design based on clean registered decode and control equations.

This distinction becomes critical when building timing budgets. If a design target is derived from the 118 MHz counter figure alone, the implied cycle time is about 8.5 ns, which may look attractive at first glance. But that number reflects a favorable registered function path, not a universal combinational guarantee across arbitrary logic. Once external setup, clock uncertainty, board delay, output enable timing, and internal path variation are included, the usable system frequency can fall well below the headline function number. This is where many designs become fragile: the internal core logic appears fast enough, but the actual interface path fails because the budget was built from representative figures rather than worst-case closure values. A more reliable approach is to treat the 118 MHz data as evidence of architectural capability, while using the worst-case path data to determine whether a specific implementation is robust.

For bus-oriented applications, the speed-grade implications become sharper. The MAX 9000 documentation explicitly identifies -10 devices as compliant with PCI Local Bus Specification Revision 2.2. That statement should not be generalized to the -15 grade. The architectural family may be the same, but compliance is a timing statement, not a functional one. The -15 device can still be entirely valid in bus-support logic around PCI-like systems, especially for glue logic, decode, interrupt handling, and non-critical sideband control, but it should not be assumed to carry the same setup, hold, and propagation margin as the faster speed bin. This is one of the most common traps in legacy CPLD selection: assuming family membership implies interface equivalence. In reality, the speed grade is often the difference between a design that works on a quiet bench and one that remains stable across voltage corners, temperature rise, and production spread.

A practical evaluation of the EPM9400RC208-15 should start from the path classes inside the intended design. Registered counter and state-machine paths are generally favorable. Wide decodes are often acceptable if they are not chained through additional gating. Multiplexing networks, combinational steering, and asynchronous-looking control structures deserve tighter scrutiny. If an output is driving an external bus with narrow timing margin, the path must be treated as end-to-end, including internal logic delay, output buffer timing, trace delay, receiving device setup, and any clock skew between source and destination. In systems with multiple clock domains or externally derived strobes, the available margin can collapse quickly, even when individual datasheet numbers appear reasonable in isolation.

In implementation terms, the -15 grade rewards disciplined logic partitioning. Keeping combinational depth shallow between registers has an outsized impact. Collapsing several conditions into a single equation may reduce resource count, but it can also create slower product-term expansion and longer routing paths. A better trade is often to pipeline control decisions or split large steering functions into staged decode plus register plus output-select structures. That approach aligns more naturally with CPLD timing behavior and usually makes the final result easier to analyze. In older programmable logic families, timing closure often depends less on raw silicon speed than on whether the design style matches the fabric’s preferred structures.

There is also a subtle but important system-level point in the 15 ns pin-to-pin figure. In CPLDs, pin-to-pin timing is especially relevant because these devices are frequently inserted as interface adapters between external components. Unlike a purely internal logic frequency metric, pin-to-pin delay directly affects whether the device can sit in a control loop, generate timely chip-selects, or transform one bus protocol into another without violating external timing windows. For the EPM9400RC208-15, this means it is usually comfortable in moderately fast glue-logic roles, but less comfortable where the CPLD becomes a transparent participant in a highly constrained bus phase. Once the programmable device is expected to react within only a few nanoseconds of an incoming event, the -15 grade is no longer a broad-margin choice.

The package and density context also matter indirectly. A 208-pin package and a 400-macrocell-class device invite large I/O-rich designs, but larger pin count often correlates with broader fan-out, more distributed logic, and more opportunities for long routes. In practice, timing pressure in such parts often comes not from a single deep logic expression but from global connectivity demands. Designs that use many I/O pins, numerous bidirectional controls, or several unrelated timing domains can consume the device in a way that makes a nominally simple design harder to close than expected. This is why early floorplanning, even in a CPLD environment, remains useful: identify critical I/O groups, isolate fast paths, and avoid letting convenience logic sprawl across the fabric.

One useful mental model is to place the EPM9400RC208-15 in the “deterministic control, not edge-of-spec interface” category. It is strong for synchronous supervisory logic and can support reasonably high operating rates when the equations are architecture-friendly. It is weaker as a drop-in answer for interfaces where compliance depends on the last few nanoseconds of margin. That is not a limitation unique to this device; it reflects the broader reality that speed grades inside a programmable logic family are not cosmetic. They define the safe operating envelope, especially when the implementation leaves the textbook examples and moves into real boards with noise, loading, and corner variation.

Used with that mindset, the device remains highly practical. It can absorb substantial control logic, simplify board-level state handling, and provide predictable behavior for counters, decoders, and registered control paths. The engineering discipline is to let the worst-case timing numbers govern external commitments, let the typical numbers inform architectural intuition, and avoid promoting a mid-speed grade into a high-margin interface role without explicit verification. That balance is where the EPM9400RC208-15 performs best.

Altera EPM9400RC208-15 Voltage, Mixed-Voltage Interfacing, and In-System Programmability

Altera EPM9400RC208-15 combines three integration advantages that remain highly relevant in board-level digital design: 5.0 V in-system programmability, IEEE 1149.1 JTAG-based test access, and MultiVolt I/O support for mixed-voltage environments. Taken together, these features do more than simplify configuration. They reduce rework risk, improve manufacturing observability, and make the device practical as a glue-logic element between logic domains that do not share the same electrical standards.

At the programming level, the device supports 5.0 V in-system programmability through an embedded JTAG interface. This allows the CPLD to be programmed and erased after soldering, directly on the target PCB, without removing the device or using a dedicated socketing flow. In development, this shortens the edit-compile-program-test loop. Logic fixes can be pushed into assembled hardware immediately, which is especially valuable when the CPLD is used for address decoding, bus arbitration, timing cleanup, or interface adaptation. In controlled deployment environments, the same capability enables late-stage image loading and selective field updates, provided configuration management is handled carefully. The guaranteed endurance of 100 program/erase cycles is sufficient for normal design iteration and maintenance activity, but it also sets a practical limit: this is not a device for frequent runtime reconfiguration. In practice, teams that treat the cycle budget as an engineering resource rather than an abstract datasheet number tend to avoid unnecessary rewrite operations during validation and preserve margin for production support.

The JTAG implementation is important not only for programming but also for structural test. The integrated boundary-scan circuitry complies with IEEE 1149.1-1990, which gives test engineers a standardized path to observe and control pins even when physical probing is difficult. On dense boards, especially those using fine-pitch packages such as the 208-pin form factor, traditional bed-of-nails access quickly becomes constrained. Boundary scan helps recover visibility by allowing interconnect testing, detection of opens and shorts, and verification of device-level connectivity through the scan chain. This becomes more valuable as board complexity rises, because the cost of missing a soldering or routing defect increases sharply once system bring-up begins. A useful way to think about the JTAG block is that it turns the CPLD into both a programmable logic resource and a test access anchor. If the scan chain is planned early, it can materially reduce debug time during prototype bring-up and improve fault isolation in manufacturing.

MultiVolt I/O is the electrical feature that most directly affects system integration. The EPM9400RC208-15 allows output drivers to be configured for either 3.3 V or 5.0 V operation, making it suitable for mixed-voltage systems where legacy peripherals, backplanes, or control logic must coexist with newer 3.3 V devices. This is not just a convenience feature. It changes partitioning decisions at the board level. Instead of inserting discrete level shifters on every affected path, the CPLD can often absorb protocol adaptation, signal qualification, bus steering, and voltage-domain interfacing in one location. That reduces component count, routing congestion, and timing uncertainty introduced by extra translation devices. In many designs, the real benefit is not merely electrical compatibility but architectural cleanup: one programmable device can centralize interface behavior that would otherwise be scattered across multiple small logic and translation components.

The underlying mechanism is straightforward but often underestimated. When a CPLD can present outputs at the voltage expected by downstream logic, it avoids the edge-case behavior that appears when threshold margins are only marginally compatible across families. This matters on buses with multiple loads, shared control signals, or asynchronous handshakes, where a technically “working” interface may still suffer from weak noise margin or intermittent behavior across temperature, process, and supply variation. Mixed-voltage integration should therefore be evaluated not only at the nominal VIH/VIL level, but also in terms of edge rate, fanout, clamp behavior, and power-up sequencing. Devices like the EPM9400RC208-15 are most effective when used deliberately as boundary elements between domains, with clear ownership of which side defines logic-high amplitude, startup state, and contention control.

In application scenarios, the device fits naturally into systems that must bridge old and new logic generations. A common case is a 5 V microprocessor or peripheral bus interfacing to 3.3 V controllers, memories, or ASIC support logic. Here the CPLD can perform address qualification, chip-select generation, wait-state insertion, and protocol reshaping while also presenting the correct output voltage to each domain. In industrial and embedded boards, it is also effective as a supervisory logic layer between legacy expansion connectors and lower-voltage local logic. Another practical use appears in design migrations: when an existing 5 V platform is being incrementally modernized, the CPLD can serve as an electrical and logical transition point, allowing newer subsystems to be introduced without forcing a full redesign of the legacy interface fabric.

There is also a manufacturing and lifecycle angle that should not be overlooked. In-system programmability and boundary scan together create a cleaner production flow. Blank or preloaded devices can be assembled uniformly, then programmed at a later stage in board test or final configuration. This allows the logic image to remain flexible deeper into the manufacturing cycle, which is useful when product variants share hardware but differ in feature enablement or interface timing. It also supports tighter control over revision alignment between PCB spins and logic builds. In practice, many avoidable failures come not from logic design errors but from version skew between documentation, programming files, and assembled boards. A JTAG-accessible CPLD reduces the operational cost of correcting those mismatches.

A subtle but important design benefit is that these features reinforce each other. Mixed-voltage support makes the device easy to place at critical electrical boundaries. JTAG programmability makes post-assembly updates feasible when interface assumptions change. Boundary scan makes those same high-connectivity locations observable during test. That combination is stronger than any single feature considered in isolation. For board-level control logic, the best components are often not the ones with the most raw logic resources, but the ones that reduce integration friction across the full product cycle: schematic capture, layout, bring-up, test, update, and maintenance. The EPM9400RC208-15 fits that profile well, particularly in systems where 5 V compatibility still matters and where practical debug access is as important as logic density.

Altera EPM9400RC208-15 Power Optimization and Signal-Integrity Features

Altera EPM9400RC208-15 integrates two capabilities that are often treated separately in board-level design: localized power optimization and output-edge shaping. In practice, these features matter because CPLDs are frequently placed at the intersection of fast control logic, wide fan-out decode paths, and electrically noisy I/O domains. The device therefore does more than implement logic equations. It gives the designer limited but useful control over where dynamic power is spent and how aggressively the device excites the interconnect around it.

At the core of the EPM9400RC208-15 power strategy is macrocell-level speed/power programmability. Within the MAX 9000 architecture, individual macrocells or groups of macrocells can be assigned reduced-power operation, typically cutting power consumption to 50% or below with only a modest timing penalty. That trade is significant because dynamic power in programmable logic is not uniformly valuable. Some nodes sit on cycle-critical paths and directly define interface margin, while others only support configuration, decode qualification, mode control, interrupt steering, or low-rate supervisory sequencing. Applying the same performance setting to all logic wastes power where timing headroom already exists.

The more useful way to think about this feature is as timing-budget allocation rather than simple power reduction. A CPLD design usually contains a small percentage of truly speed-limiting logic and a larger percentage of support logic that is electrically active but not timing-dominant. If the high-speed path is preserved in full-power mode and the surrounding non-critical logic is moved into reduced-power mode, the overall design often retains system-level performance while lowering thermal loading and internal switching stress. This selective optimization is much more efficient than a global derating approach, which tends to penalize critical paths for the benefit of logic that did not need optimization in the first place.

This matters most in systems where thermal margin is tight but not catastrophic. A densely populated board with limited airflow, adjacent high-dissipation components, or a constrained enclosure often fails not because one device is grossly over power, but because several moderate heat sources stack locally and raise the board temperature enough to erode timing and reliability margin. In that environment, shaving power from housekeeping logic inside the CPLD can be disproportionately valuable. The temperature reduction may look small in isolation, yet it can help stabilize neighboring analog references, reduce regulator stress, and keep junction temperature drift from accumulating across the board.

A common implementation pattern is to leave external timing interfaces, handshake generation, and any logic associated with narrow setup/hold windows in high-speed mode. These paths usually interact with clocks, strobes, memory controls, or deterministic bus timing and therefore deserve the highest performance setting. In contrast, address decoding, reset qualification, boot-mode selection, interrupt masking, LED/status driving, and slow peripheral enables are good candidates for reduced-power assignment. The distinction becomes clearer after timing analysis: if a path retains comfortable slack across process, voltage, and temperature corners, there is little value in paying full switching cost for it.

One practical lesson is that “nominal timing delay” should not be interpreted as negligible in all contexts. In CPLD-based glue logic, delay often accumulates through several apparently harmless decode stages, especially when asynchronous control terms are mixed with wide product terms and high fan-out destinations. A reduced-power macrocell may be harmless alone, yet a chain of such choices can quietly consume the margin of a chip-select path or a bus turnaround signal. The better method is to downgrade power only after identifying the actual endpoint requirements and checking compounded delay, not just local path slack. Designs that follow this discipline usually get the power benefit without introducing hard-to-debug corner failures.

The second major feature, programmable output slew-rate control, addresses a different but closely related problem: how quickly the CPLD injects energy into the board when outputs transition. Fast edges improve timing margin, but they also increase di/dt and dv/dt, which directly drives simultaneous switching noise, ground bounce, ringing, crosstalk, and radiated emissions. In a CPLD with many outputs switching into shared return paths or long board traces, the edge rate often matters more than the nominal toggle frequency. Even a relatively slow control bus can become a noise source if dozens of lines transition with unnecessarily sharp edges.

Slew-rate control is therefore best understood as impedance-stress management for the surrounding system. Slowing the output edge on non-critical signals reduces the high-frequency spectral content of each transition. That lowers the excitation of trace inductance, package parasitics, connector discontinuities, and imperfect return paths. The result is usually cleaner waveforms, less overshoot and undershoot, and reduced disturbance on shared power and ground networks. In mixed-signal or multi-device systems, this often improves robustness beyond the CPLD itself, because quieter switching reduces the chance of false triggering, comparator perturbation, clock contamination, or marginal reset behavior elsewhere on the board.

The strongest use case appears in large digital assemblies with broad control buses or many status outputs switching at once. If these outputs are not timing-critical at the receiving device, fast slew is simply electrical waste. A slower edge can still meet setup and hold requirements while significantly improving signal quality. This becomes especially valuable on boards with long parallel routes, sparse return vias, connectorized interfaces, or legacy backplane loading, where edge-induced reflections can dominate the error budget. In those situations, controlling slew at the source is often more effective than trying to patch the problem later with resistive damping or layout workarounds.

There is also a useful interaction between the two features. Power optimization reduces internal switching burden in non-critical logic, while slew-rate control limits how aggressively non-critical outputs disturb the board. Together, they create a cleaner partition between “logic that must be fast” and “logic that only needs to be correct.” That separation is one of the more underused design principles in CPLD work. Many implementations fail to distinguish functional importance from timing importance, even though the two are not equivalent. A reset controller may be functionally essential but still tolerate relaxed internal speed and softened output edges. Conversely, a narrow external strobe may be logically simple yet require full-performance treatment. The device’s programmability allows the implementation to reflect that distinction directly.

In real design flow, the best results usually come from classifying signals into three groups before fitting the design. The first group contains cycle-critical internal paths and external interface signals that need full speed and, where required, fast edges. The second group contains moderate-speed control logic that can often accept reduced-power macrocells but may still need normal output behavior depending on load and route length. The third group contains slow supervisory and static-control functions that are ideal targets for both reduced-power logic implementation and slower slew-rate outputs. This early partitioning shortens iteration time because it aligns synthesis and fitting decisions with system intent instead of treating all resources uniformly.

It is also worth noting that slew-rate reduction is not a universal good. If an output drives a heavily loaded node with tight setup requirements, slowing the edge can move the actual threshold crossing enough to degrade timing at the receiver. The same is true for signals crossing noisy reference domains, where a slow edge may spend more time near the switching threshold and become more susceptible to coupled noise. The useful rule is simple: slow edges where timing margin is abundant and the receiving environment is forgiving; keep fast edges where threshold timing or noise immunity depends on rapid transitions. This balance usually yields better system behavior than maximizing or minimizing slew globally.

For the EPM9400RC208-15, these features are most valuable when treated as part of system-level electrical design rather than isolated device options. Macrocell-level power selection helps manage thermal density and internal efficiency. Output slew-rate control helps manage edge-induced noise and external signal quality. Used together, they allow the CPLD to fit more gracefully into constrained boards, mixed-speed interfaces, and electrically crowded digital systems. The deeper engineering advantage is not merely lower power or cleaner edges. It is the ability to assign performance only where performance creates measurable value.

Altera EPM9400RC208-15 Package, Temperature Range, and Physical Integration Considerations

Altera EPM9400RC208-15 is built around a 208-pin RQFP surface-mount package with a 28 × 28 mm body, and that packaging choice has direct implications for electrical access, assembly strategy, thermal behavior, and long-term board reliability. Although the device belongs to the EPM9400 family, the RC208 option exposes 139 user I/O pins rather than the family’s highest possible package-dependent I/O count. In practice, this still places it in a useful range for dense glue-logic replacement, bus interfacing, address decoding, state-machine consolidation, and control-plane integration where board space and routing simplicity matter more than absolute I/O maximization.

The package should be viewed not as a passive enclosure but as part of the system interface. A 208-pin RQFP gives a relatively high pin count in a footprint that remains manufacturable on standard multilayer boards without the escape complexity associated with finer-pitch ball-grid solutions. That makes it attractive for designs that need broad signal visibility, easier probing, and lower assembly risk in mature production flows. At the same time, the leaded perimeter format increases routing pressure around the device boundary. Once several parallel buses, clocks, resets, and control strobes converge at the CPLD, pin planning becomes a first-order design task rather than a late-stage layout exercise. Good results usually come from assigning pins by functional locality: keep related buses on adjacent sides, isolate timing-critical paths from noisy switching groups, and reserve clean return paths near high-activity outputs. This reduces crossover density and often improves signal integrity without adding layers.

The 139 available I/O pins are substantial, but the practical value lies in how they are budgeted. In many CPLD-based boards, nominal I/O count is consumed quickly by configuration straps, debug access, boundary-scan chains, bus transceivers, interrupt aggregation, and redundant control lines that were underestimated during initial architecture work. A common mistake is to size the device by logic resource demand alone and treat package selection as secondary. For this class of component, package choice frequently determines whether the design remains elegant or devolves into awkward multiplexing and external gating. A more robust approach is to allocate I/O early using three categories: fixed infrastructure signals, timing-sensitive application signals, and future expansion margin. That margin is often what prevents a respin when firmware, test coverage, or subsystem partitioning evolves.

The specified operating temperature range of 0°C to 70°C positions the EPM9400RC208-15 squarely in the commercial domain. This is appropriate for controlled-environment systems such as office equipment, communications racks with managed airflow, lab instrumentation, and embedded platforms installed in thermally moderated enclosures. The key point is that the temperature rating is not just an ambient label; it defines the validated operating envelope for internal timing, switching behavior, and reliability expectations. In programmable logic, timing closure is always tied to process, voltage, and temperature conditions. When a device is used near or beyond its specified thermal boundary, logic may still appear functional under light validation, yet timing margin can erode in ways that only surface during startup transients, peak toggle conditions, or long-duration field operation.

That is why thermal evaluation should be system-based rather than part-based. A board may operate in a nominally commercial environment and still expose the CPLD to localized heating from nearby regulators, FPGAs, power resistors, or insufficient airflow near the package perimeter. Thin quad flat packages do not dissipate heat in the same way as larger thermal-pad packages, so board copper distribution, adjacent component spacing, and airflow direction all matter. In practice, if the CPLD sits close to a linear regulator or under a shielding structure with weak convection, local ambient can rise well above the enclosure average. It is often worth checking the device temperature under worst-case I/O activity, because output loading and simultaneous switching can shift the thermal profile more than static estimates suggest. For commercial-temperature logic, modest layout improvements often buy more real margin than nominal derating assumptions.

Physical integration on the PCB also needs mechanical discipline. A 28 × 28 mm RQFP occupies meaningful board area, and its lead geometry demands accurate land pattern control, solder paste definition, and reflow consistency. This package is generally easier to inspect and rework than many array packages, which is one reason it remains useful in serviceable or low-to-medium volume systems. However, the long lead perimeter makes solder bridging, coplanarity sensitivity, and pad design quality more visible issues. Stable assembly results usually come from using proven footprint libraries, maintaining solder mask definition appropriate to the fabrication process, and avoiding aggressive local warpage induced by uneven copper balance. Boards that place large thermal masses near one side of the package can see asymmetric heating during reflow, which increases defect risk even when the profile looks nominal on paper.

The MSL 3 rating with 168 hours of floor life adds an important manufacturing constraint. Moisture sensitivity is not an electrical operating parameter, but it directly affects package integrity during assembly. Once the dry-pack barrier is opened, exposure time before reflow must be controlled. If that window is exceeded without proper rebake, absorbed moisture can expand rapidly during soldering and induce internal delamination or package damage. These failures are especially problematic because they may not present as immediate catastrophic defects. Instead, they can appear later as intermittent behavior, degraded reliability, or latent assembly escapes that are difficult to isolate. In production environments, this means material control for the device should be linked to reel or tray open time, humidity exposure logging, and explicit rebake criteria. Treating MSL handling as a documentation formality usually creates avoidable yield variability.

There is also a useful connection between moisture handling and procurement strategy. Older programmable logic families are often sourced through mixed channels, and packaging history can vary more than with current high-volume parts. For the EPM9400RC208-15, incoming inspection should not stop at part marking and quantity verification. Storage condition, seal integrity, label consistency, date-code coherence, and package lead condition all influence assembly confidence. Oxidized leads or poorly controlled storage can turn an otherwise valid component into a solderability risk. In builds where lot sizes are small and replacement stock is limited, that risk carries more schedule impact than the device cost itself. It is usually more efficient to qualify handling and solderability up front than to debug sporadic assembly fallout later.

From an application standpoint, this package and temperature grade are well matched to systems where the CPLD acts as the deterministic coordination layer between processors, memory-mapped peripherals, legacy interfaces, and supervisory logic. The exposed lead format helps during bring-up because critical nets are easier to probe, isolate, and correlate with timing behavior. That matters in designs where the CPLD is not the computational center but the timing backbone. In those cases, package accessibility and routability can be more valuable than raw integration density. A design that is easy to observe and rework often reaches stable production faster than one that is theoretically denser but operationally opaque.

A sound engineering decision for EPM9400RC208-15 therefore depends on aligning three dimensions: I/O topology, environmental envelope, and manufacturing discipline. If the system fits within commercial thermal conditions, needs around 139 user I/O, and benefits from a serviceable high-pin-count leaded package, this variant remains a practical integration choice. If ambient conditions are uncertain, airflow is weak, or future revisions are likely to consume additional pins, those constraints should be addressed at the architecture stage rather than after schematic completion. With this device, the package is not merely a catalog attribute. It defines how comfortably the logic can be routed, assembled, validated, and sustained in the final product.

Altera EPM9400RC208-15 Development Environment and Design Flow Support

Altera EPM9400RC208-15 is positioned within a development flow built around the MAX+PLUS II environment, and that support model is one of the main reasons the device remains usable in long-life programmable logic platforms. The value is not only that the device can be compiled and programmed, but that the surrounding toolchain covers the full implementation path from design capture to timing closure and device download. For a CPLD-class component, that breadth matters because design risks often come less from raw logic capacity and more from fit behavior, pin constraints, and deterministic timing under real board conditions.

MAX+PLUS II provides an integrated flow for schematic entry, HDL-based entry, waveform-based stimulus creation, compilation, synthesis, simulation, timing analysis, and programming. This integration is especially relevant for the EPM9400RC208-15 because devices in the MAX 9000 family are typically used in glue logic, control decoding, interface adaptation, and timing-sensitive supervisory logic. In these use cases, the engineering objective is rarely abstract algorithmic complexity. It is predictable implementation of medium-scale logic with stable pinout, bounded delay, and repeatable field programming behavior. A development environment that keeps these steps tightly coupled reduces the friction between logic intent and hardware realization.

The design entry model is flexible enough to support multiple abstraction levels. Schematic capture remains useful when the design is centered on explicit control paths, bus steering, or board-level replacement of SSI/MSI logic. Text-based entry through VHDL, Verilog HDL, and AHDL enables a more maintainable path when the design contains reusable state machines, counters, register-transfer structures, or parameterized interface blocks. Waveform entry adds another practical layer because many legacy CPLD projects were validated with targeted stimulus patterns rather than large constrained-random benches. In practice, this mixed-entry capability is often more valuable than a purely HDL-centric flow, especially when maintaining designs that evolved across several generations of tools and engineering teams.

Compilation and synthesis support are central to device usability, but for this class of device the more important issue is how synthesis maps logic into the actual CPLD architecture. The EPM9400RC208-15 does not behave like a modern FPGA where abundant routing and deep logic resources can often absorb inefficient coding styles. Product-term allocation, macrocell usage, and pin-locking decisions can materially affect fit rate and timing margin. A well-supported flow therefore needs to expose not only functional correctness but also architectural consequences. MAX+PLUS II addresses this by coupling synthesis and fitting closely enough that design changes can be evaluated in terms of both logic intent and physical implementation cost. That is critical when an apparently minor HDL edit causes a sharp increase in product-term demand or breaks a previously stable pin assignment.

Simulation and timing analysis support should be viewed as more than a checkbox. In the EPM9400RC208-15 context, they are part of the mechanism for controlling deterministic behavior at the board interface. CPLDs are often selected because they offer relatively predictable timing compared with larger programmable fabrics. That advantage only holds if post-fit timing is reviewed carefully. Internal combinational depth, input setup relationships, asynchronous control paths, and output enable timing can all become limiting factors. Designs that pass simple functional simulation may still fail in-system when external memory, peripheral strobes, or bus turnaround windows are tight. It is usually the timing analyzer, not the synthesizer, that reveals whether the device is truly viable in a given slot on a board.

Interoperability with EDIF 2 0 0 and 3 0 0 netlists extends the practical life of the device substantially. EDIF support matters because many organizations that still encounter EPM9400RC208-15 designs are not starting from a clean-sheet project. They are inheriting archived netlists, imported modules, or third-party generated logic from older EDA environments. The ability to bring those netlists into the Altera flow lowers migration friction and reduces the risk of rewriting proven logic simply to satisfy tool limitations. This is particularly important in regulated or service-critical systems where logic equivalence and revision traceability matter more than adopting a newer design style.

The parameterized module library adds another layer of engineering efficiency. In a CPLD, common building blocks such as decoders, counters, multiplexers, comparators, and registered interface elements appear repeatedly. Parameterized modules shorten development time, but more importantly they reduce variability in implementation quality. Reusing a known-good module often produces cleaner fit and timing behavior than hand-writing a fresh block under schedule pressure. In older programmable logic environments, stable reuse is often the difference between a maintainable product line and a collection of one-off logic images that become difficult to support.

Interfaces to tools from Cadence, Exemplar Logic, Mentor Graphics, OrCAD, Synopsys, Synplicity, and VeriBest show that Altera understood the device would live inside broader EDA ecosystems rather than inside an isolated vendor flow. That interoperability has a practical effect on engineering operations. It allows front-end capture, simulation, or synthesis tasks to remain aligned with an existing methodology while still targeting the EPM9400RC208-15 for implementation. For legacy programs, this can preserve verification assets, naming conventions, and release procedures that would otherwise be disrupted by a forced tool migration. In many cases, the strategic value of the device is not its logic density but its ability to fit into a mature workflow with minimal process disturbance.

Programming support is equally important because deployment friction can erase the benefits of a stable design flow. The device can be programmed using Altera hardware such as the Master Programming Unit, BitBlaster serial download cable, ByteBlaster parallel port cable, and ByteBlasterMV cable, along with compatible third-party programmers. Each option reflects a different operational model. Development-stage updates benefit from direct download tools. Production programming may favor dedicated equipment with repeatable cycle control. Field maintenance often depends on whether the organization can still source and operate the required cable or programmer on currently available host systems. That last point is easy to underestimate until a stable design must be rebuilt years later and the limiting factor turns out to be the programming interface rather than the logic source.

In practice, the weakest point in sustaining EPM9400RC208-15 deployments is often not logic design but environment reproducibility. Older MAX+PLUS II versions may depend on legacy operating systems, older driver models, and physical interfaces such as parallel ports that are absent from modern workstations. A robust support strategy usually includes preserving the exact software version, fitter settings, programming files, cable compatibility notes, and a known-good host configuration. Virtualization can help for archive access and basic project inspection, but direct hardware programming is sometimes less tolerant than compilation. For that reason, maintaining one validated programming station is often more valuable than maintaining several partially working setups.

Another recurring issue is design re-entry versus design preservation. When a legacy project exists only as a programmer file or a flattened netlist, there is a temptation to recreate the source in a modern HDL flow. That approach should be taken cautiously. Recreated logic can be functionally equivalent yet differ in timing, reset behavior, power-up states, or pin-level electrical assumptions. For a device such as the EPM9400RC208-15, preserving original source, fit reports, timing reports, and programming artifacts is usually the safer path. If modernization is necessary, it should begin with a characterization pass that identifies which signals are timing-critical, which outputs are asynchronous, and which internal paths are consuming the architectural margin.

The strongest reason this ecosystem support still matters is that the EPM9400RC208-15 is typically part of a larger system whose constraints were closed long ago. In that environment, a programmable logic device is not judged only by datasheet capability. It is judged by whether the complete chain of design entry, verification, fitting, programming, and maintenance remains reliable. MAX+PLUS II, EDIF compatibility, third-party EDA interfaces, and multiple programming options together form that chain. When those elements are intact, the device remains practical for sustaining established hardware. When any of them fail, even a technically suitable device can become operationally expensive.

Seen from that perspective, development environment support is not a secondary convenience for the EPM9400RC208-15. It is part of the device’s real engineering specification. The logic architecture defines what can be built. The toolchain determines whether it can be built again, verified again, and deployed again with confidence. For long-lived systems, that distinction is often the one that matters most.

Altera EPM9400RC208-15 Typical Engineering Use Cases and Selection Considerations

Altera EPM9400RC208-15 is best understood as a high-density CPLD intended for deterministic system logic rather than datapath-heavy computation. Its value appears when a design needs fixed-latency control behavior, wide I/O visibility, and consolidation of scattered support logic into a single programmable device. In practice, this places it between small discrete logic networks and larger FPGA-based solutions. It is not the device to choose for algorithmic acceleration or deep pipelined processing, but it is often the right choice for managing the structural logic around processors, memory, buses, and mixed-voltage peripherals.

The MAX 9000 architecture is particularly effective in designs where logic was historically implemented across PALs, GALs, 22V10-class devices, and miscellaneous glue logic. Consolidating those functions into the EPM9400RC208-15 reduces component count, shortens board-level interconnect, and simplifies timing ownership. That last point matters more than it first appears. When logic is distributed across several devices, timing uncertainty accumulates through package delays, PCB routing mismatch, and inconsistent implementation styles. A CPLD with predictable product-term-based logic and structured routing helps turn a loosely bounded timing problem into a controlled one. For control-plane logic, that predictability is often more valuable than raw gate density.

At the architectural level, the device aligns well with logic patterns built from state transitions, decodes, enables, arbitration paths, and registered outputs. The macrocell structure supports wide combinational functions with registered control points, while global clocks provide a clean way to synchronize timing-sensitive outputs. This makes the device strong in applications where external interfaces expect stable setup and hold relationships over many operating cycles. Compared with FPGA fabrics that may offer more resources but less immediately transparent timing behavior for small control functions, a CPLD like this tends to produce designs that are easier to reason about at the pin level. That is one reason these devices remain useful in industrial and maintenance-oriented systems long after newer programmable logic families become available.

A common use case is system-level address decoding. In processor-based boards, address maps often evolve as memory, peripherals, and legacy interfaces are added. The EPM9400RC208-15 can absorb chip-select generation, wait-state insertion, memory banking control, and bus qualification logic in one place. This is more than a convenience. It allows the address map to remain programmable late into development, which reduces board respins caused by small logic-definition errors. In dense boards, moving these functions into one CPLD also reduces the routing burden around the CPU and memory devices. Designs that began with several discrete decoders often show cleaner signal integrity after consolidation simply because fewer package-to-package transitions remain in critical control paths.

Bus control and protocol adaptation form another strong application area. Many embedded systems use buses with strict sequencing rules for read strobes, write strobes, output enable control, and turnaround timing. The EPM9400RC208-15 can implement these relationships with deterministic timing and explicit state handling. This is useful when bridging older microprocessor buses to peripherals that have slightly different control expectations, or when reconstructing timing behavior from obsolete support chipsets. A practical pattern is to use registered outputs for the externally visible strobes while keeping qualification logic internal and synchronous. That approach usually gives cleaner margins than driving everything as pure combinational logic, especially when board loading or asynchronous inputs are involved.

Finite state machines are a natural fit for this device family. Supervisory control, startup sequencing, watchdog coordination, interrupt prioritization, and mode management all map well into macrocell-based logic. The advantage is not merely that these functions fit, but that they can be implemented with highly repeatable timing and strong observability. In bring-up, state-machine-driven control logic inside a CPLD is usually easier to probe and validate than a distributed network of SSI and MSI devices. Experience also shows that system startup problems often come from small sequencing races rather than major architectural faults. A CPLD centralizes that sequencing and makes corrective revisions easier, provided reset strategy and asynchronous event handling are designed carefully from the start.

Counter logic, dividers, and timing generators are also typical. This includes event counting, timeout generation, periodic strobes, pulse stretching, and programmable interval control. These functions are often secondary in a design, but they create disproportionate complexity if built from separate logic. Integrating them into the EPM9400RC208-15 keeps the timing model local and reduces the number of free-running nets crossing the board. That helps not only with design cleanliness but also with EMI behavior, since broad distribution of asynchronous or high-toggle control lines tends to create avoidable noise sources.

Multiplexing and interface conditioning are another practical fit. Systems with shared buses, diagnostic access paths, fallback boot sources, or redundant control channels often need conditional routing of signals under strict timing constraints. The device can manage these paths while also enforcing safe enable relationships. This is especially useful where two devices must never drive the same bus simultaneously. A disciplined CPLD implementation can insert explicit dead-band or turnaround control that would be awkward to guarantee with only software sequencing. In fielded equipment, such protection logic often matters more than nominal throughput because it prevents rare but destructive contention cases.

Mixed-voltage interfacing between 3.3 V and 5.0 V domains is often cited as a use case, but this area requires more than a checkbox review. The first question is not only whether the I/O standards are nominally compatible, but under what conditions, with what thresholds, and in which signal directions. Control signals, reset lines, and strobes may tolerate certain level relationships that bidirectional buses or margin-sensitive inputs will not. It is also necessary to account for power sequencing and the behavior of connected devices during ramp-up and ramp-down. In older mixed-voltage systems, many intermittent startup failures come from logic becoming active before all rails and references are settled. A CPLD can improve integration here, but only if the I/O behavior during initialization is fully understood and matched to the surrounding hardware.

From a selection standpoint, macrocell count is the first filter, but not the decisive one. The nominal 400-macrocell capacity can appear generous until real-world overhead is included. Pin reservations for JTAG, clocks, resets, test hooks, manufacturing options, and future rework paths quickly reduce usable space. Logic utilization also does not scale linearly with equations on paper. Wide decode terms, hazard suppression, registered staging, and timing cleanup often consume additional product terms and routing resources. A practical planning rule is to leave nontrivial headroom rather than targeting near-maximum utilization. Designs pushed too close to capacity tend to become fragile: small requirement changes trigger disproportionate fitting or timing consequences.

I/O count deserves the same caution. The 208-pin package may suggest abundant connectivity, but available user I/O must be evaluated after power, ground, dedicated functions, clocking needs, and debug access are assigned. Bus-oriented designs can consume pins quickly, especially when byte enables, wait controls, interrupts, sideband status, and test observability are included. It is also wise to consider whether some outputs should be duplicated for measurement or whether certain internal conditions need temporary export during validation. Boards that reserve no such margin often become difficult to debug once assembled. A device that is technically sufficient on pin count can still be operationally cramped.

Speed-grade selection should be handled from worst-case timing outward. The -15 grade must be checked against the actual external timing budget, including clock uncertainty, propagation through board traces, receiving-device setup and hold requirements, and the variation introduced by process, voltage, and temperature. Typical timing numbers are useful only for rough estimation. For control logic connected to off-chip buses, the correct method is to derive slack from the complete path, not from the programmable device in isolation. This is where CPLDs can be deceptive in a good way: they are predictable, but that predictability still has to be evaluated at the system boundary. Conservative analysis here usually prevents the hard-to-reproduce failures that only show up at low voltage, high temperature, or cold startup.

Temperature range and lifecycle alignment are equally important. A commercial-grade device may be perfectly acceptable for office or lab equipment, but less suitable for thermally stressed enclosures, outdoor cabinets, or systems with limited airflow. Thermal assumptions should include local board heating from adjacent components, not only ambient air temperature. Legacy support strategy also matters. Devices like the EPM9400RC208-15 are often selected for designs with long service life, stable feature sets, and low tolerance for behavioral drift. In that context, tool-chain continuity, programmer availability, JEDEC file control, and maintainable source archives become part of the engineering selection, not an administrative afterthought. A programmable logic device that cannot be reliably rebuilt or reprogrammed years later becomes a hidden operational risk.

Compatibility with the existing development flow should be checked early. Synthesis, fitting, timing verification, in-system programmability support, and regression practices need to align with the organization’s maintained tools. Older CPLD families can be highly reliable in service while being surprisingly sensitive to version mismatches in design environments or programming hardware. For maintenance-heavy products, reproducibility is often more important than using the newest tool option. A stable, validated build flow with archived constraints and known-good programming steps usually delivers more value than marginal optimization gains.

One practical design principle stands out with this class of device: use it to own control determinism, not to chase logic density. When the CPLD is assigned clear responsibilities such as reset sequencing, decode qualification, bus arbitration, fault interlocks, and timing cleanup, it tends to simplify the whole board. When overloaded with loosely related functions simply because spare macrocells remain, it can become the place where every late change lands, and timing clarity degrades. The best implementations keep the boundary crisp: time-critical control and interface logic in the CPLD, algorithmic or software-defined behavior elsewhere.

For engineers evaluating the EPM9400RC208-15 today, the strongest case is usually not that it is flexible in the abstract, but that it provides a controlled way to collapse peripheral logic into a single deterministic component. If the design needs wide I/O reach, stable pin-to-pin timing, straightforward state-machine behavior, and support for board-level integration tasks, the device remains a credible fit. The selection should be driven by real pin budgeting, realistic utilization headroom, worst-case timing closure, voltage-domain behavior, and lifecycle support discipline. Under those conditions, it performs best as a structural logic anchor around the rest of the system rather than as a general-purpose programmable fabric.

Altera EPM9400RC208-15 Potential Equivalent/Replacement Models

When evaluating potential equivalents or replacements for the Altera EPM9400RC208-15, the most defensible starting point is the MAX 9000 family itself. Devices in the same family share the same CPLD design model, similar timing behavior, comparable development flow, and broadly consistent programming methodology. That matters because a replacement is rarely defined only by raw logic capacity. In practice, the closer the architectural match, the lower the migration risk in pinout reuse, timing closure, tool compatibility, and verification effort.

The EPM9400RC208-15 sits in a density range where both downward and upward substitution are possible, but not equally safe. The nearest adjacent candidates are the EPM9320, EPM9480, and EPM9560. These devices form the most relevant replacement set because they bracket the original part in macrocell count and generally preserve the same family-level implementation style.

A downward option such as the EPM9320 should be treated cautiously. With 320 macrocells, it provides materially less logic than the EPM9400. It can only function as a replacement if the existing design uses well below the original device limit, and that margin must be confirmed rather than assumed. In CPLD designs, resource usage often looks acceptable at first glance but tightens quickly once pin locking, product-term demand, and timing-driven fitting are applied. A design that compiles into an EPM9400 with moderate utilization may still fail to fit a smaller member because CPLD packing efficiency is strongly influenced by logic distribution, not just total macrocell count.

The EPM9480 is usually the most practical upward replacement. With 480 macrocells, it offers modest density headroom without moving too far from the original device class. This is often the best choice when the objective is to preserve the existing architecture while absorbing small logic additions, timing optimizations, or fitter inefficiencies. In many maintenance cases, a slightly larger CPLD is more robust than searching for an exact density match, especially when the original design was already near product-term or routing limits. That extra headroom frequently reduces iteration time during recompilation.

The EPM9560 extends that idea further. Its 560-macrocell capacity makes it less of a direct substitute and more of a controlled migration target. It becomes relevant when the replacement effort is tied to feature growth, I/O expansion, or package-driven redesign. This kind of device is useful when the original EPM9400 design is no longer static and the replacement must support both legacy behavior and foreseeable additions. The tradeoff is that larger family members can introduce more pin migration work and may alter placement behavior enough to require renewed timing analysis rather than simple recompilation.

Speed grade is the second critical axis after logic density. For the EPM9400 family members, speed options such as -10, -15, and -20 indicate different performance classes, with lower numbers generally representing faster timing. If the replacement remains the same density and package, speed-grade substitution can be straightforward, but only when the timing context is understood. Replacing an EPM9400RC208-15 with a faster grade is typically low risk and may even improve margin in critical paths. Replacing it with a slower grade is far less predictable. CPLD-based systems often interface with fixed external timing, and designs that appear functionally simple may still depend on deterministic pin-to-pin delay. A slower part may compile and program successfully yet fail in-system due to setup, hold, or asynchronous handshake violations that were previously hidden by margin.

This is why timing evaluation should not stop at the datasheet headline values. Internal path structure, output enable timing, and clock-to-out behavior all need review, especially in bus-interface logic, address decoding, legacy glue logic, and state machines interacting with asynchronous peripherals. In older CPLD deployments, the device often acts as a timing boundary element. That role makes speed grade a system-level parameter, not just a device-level one.

Package compatibility is equally important and often more restrictive than logic count. The “RC208” designation identifies the package style and pin count, and this can dominate replacement feasibility. A nominally larger MAX 9000 device may seem attractive on paper, but if the package variant changes user I/O availability, bank arrangement assumptions, or mechanical footprint, it stops being a practical drop-in option. Even within the same pin count, usable I/O can differ once dedicated pins, clock inputs, control resources, and programming requirements are accounted for.

Board-level constraints tend to surface late if they are not checked early. For example, a larger replacement may technically fit the logic but force signal reassignment due to different pin capabilities. That can ripple into PCB rework, altered trace lengths, changed signal integrity, and new EMC behavior. In compact legacy boards, thermal and clearance constraints can also matter more than expected. In this class of replacement, package equivalence should be treated as a first-pass filter, not a final confirmation.

The EPM9320A and EPM9560A deserve mention, but they should not be framed as direct one-for-one replacements for the EPM9400RC208-15. They belong to the broader MAX 9000 ecosystem, so they may preserve enough architectural continuity to support a redesign, but their capacities and package mappings differ enough that they are better viewed as migration candidates than strict equivalents. This distinction is important. A true replacement minimizes redesign variables. A migration candidate may still be the better engineering choice when supply constraints, lifecycle issues, or future maintainability outweigh short-term substitution convenience.

A sound replacement process should therefore evaluate at least four parameters in a fixed order: logic resources, package and usable I/O, speed grade, and electrical compatibility. Logic resources determine whether the design can fit. Package and I/O determine whether it can connect. Speed grade determines whether it can operate correctly in context. Electrical compatibility determines whether it can survive and communicate in the target system.

Electrical review is often underestimated in MAX 9000 replacement work. System voltage, input thresholds, output drive capability, and interface style must be checked against the actual board environment, not just nominal supply rails. Legacy designs frequently mix TTL-compatible assumptions, pull-up networks, shared buses, and peripheral timing conventions that are only partially documented. A replacement that is architecturally valid but electrically marginal can create intermittent faults that are difficult to isolate because they appear only under load, temperature drift, or startup conditions.

In practice, the safest path is usually not the mathematically closest part but the part that preserves the largest amount of verified system behavior. That often favors a same-family, same-package, equal-or-faster device with some logic headroom rather than a tighter-fit alternative. Engineering effort is generally minimized when the fitter has margin, the pinout remains stable, and timing only moves in a favorable direction. The temptation to select the smallest possible substitute should be balanced against recompilation risk, hidden product-term bottlenecks, and the cost of revalidation.

For applications that require strict drop-in behavior, the first candidates should be other EPM9400 variants that preserve package style while meeting or exceeding the -15 speed grade. If exact EPM9400 sourcing is not viable, the EPM9480 is typically the strongest upward family alternative, provided package and pin-use constraints align. The EPM9560 becomes attractive when the replacement is part of a broader design refresh or when future logic growth is expected. The EPM9320 should only be considered after fit analysis confirms substantial unused margin in the original implementation.

The central point is simple: replacement quality is defined by design risk, not by catalog adjacency. In the MAX 9000 family, resource count gives the first answer, but timing, package realism, and electrical behavior decide whether the answer is actually usable.

Conclusion

The Altera EPM9400RC208-15 sits in the mid-range of the MAX 9000 EPLD/CPLD family and is best understood as a system-integration device rather than a small glue-logic replacement. Its 400 macrocells, 25 logic array blocks, 580 flip-flops, and 139 user I/O pins in a 208-pin RQFP place it in the category where multiple discrete control, decode, arbitration, and interface functions can be consolidated into one deterministic programmable logic element. That positioning is important. Devices in this class are rarely chosen only for raw logic density. They are selected because they reduce board complexity, shorten control-path latency, and make timing behavior easier to bound at the system level.

The architectural character of the MAX 9000 family is central to the device’s value. Unlike LUT-dominant FPGA fabrics that trade determinism for flexibility, this CPLD-style structure is built around predictable product-term logic and a FastTrack interconnect that behaves in a more bounded and transparent way. In practical design work, that predictability often matters more than theoretical logic capacity. When implementing address decoding, bus control, chip-select generation, interrupt routing, state sequencing, or timing cleanup around processors and peripherals, stable timing closure with limited variance across routing solutions is usually more useful than highly elastic logic mapping. The EPM9400RC208-15 fits precisely into that design space.

Its 400 macrocells provide enough room for moderately complex control-centric designs, especially where the logic can be expressed efficiently in sum-of-products form. This makes the device well suited to register-mapped peripheral decoding, legacy bus adaptation, supervisory logic, startup sequencing, protocol framing, and finite-state control engines. The 25 LAB organization gives the designer a structured resource layout, and the 580 available flip-flops support designs with substantial registered behavior rather than purely combinational glue logic. That distinction is often underestimated. Once a board-level design begins to include multi-cycle sequencing, handshake synchronization, wait-state insertion, fault latching, or event capture, flip-flop availability becomes just as critical as macrocell count. A device may appear large enough from a combinational perspective and still become register-constrained in the actual implementation.

The 139 user I/O pins available in the 208-pin RQFP package significantly expand the device’s usefulness in board-level integration. This is one of the stronger practical advantages of the EPM9400RC208-15. A logic device with adequate internal capacity but insufficient I/O often forces architectural compromises, such as splitting related control logic across devices or retaining external decoders and transceivers that should have been absorbed. In this case, the package gives enough signal reach for dense control-plane integration, especially in systems where the programmable logic must sit between processors, memory devices, ASICs, ADC/DAC subsystems, or mixed-voltage peripheral clusters. In many designs, I/O count becomes the first limiting resource, not internal logic. This makes the RC208 package a meaningful part of the device’s value proposition rather than a secondary mechanical detail.

JTAG-based in-system programmability remains another highly relevant feature. In engineering terms, ISP changes the operational model of the component from a fixed logic device to a field-configurable board asset. That affects prototype iteration, manufacturing flow, service procedures, and even risk management. During bring-up, logic fixes can be applied without device removal. In production, programming can be moved later in the assembly process, reducing inventory fragmentation. In maintenance contexts, late-stage corrections to decode behavior, interface timing, or control polarity can be deployed with far less disruption than with one-time-programmable alternatives. This capability is especially valuable in designs where the programmable logic mediates between devices whose final timing or protocol details are only fully validated on assembled hardware.

The -15 speed grade deserves focused attention because timing adequacy is often the decisive criterion in CPLD selection. For this class of device, the question is not whether it is “fast” in abstract terms, but whether it is fast enough for the exact control-plane paths being implemented. That includes chip-select assertion windows, read/write strobe qualification, interrupt response timing, bus turnaround logic, clock-enable generation, and protocol state progression. A common selection error is to estimate timing only from nominal bus frequency. In reality, decode depth, pin-to-pin path requirements, external setup/hold windows, and skew budgets determine suitability. The right evaluation method is to map the actual critical paths, identify where combinational depth accumulates, and compare those requirements against the speed-grade budget with realistic board delays included. In stable CPLD architectures, this analysis is often more straightforward than with larger FPGA devices, which is part of their enduring appeal in deterministic control systems.

Voltage behavior is equally important. The EPM9400RC208-15 belongs to a generation shaped around 5 V-centric system design, and that characteristic must align with the intended electrical environment. In legacy or industrial platforms, this can be an advantage. Direct interaction with 5 V buses, TTL-level interfaces, and older memory or peripheral devices simplifies integration and can eliminate the need for level translation. In newer platforms dominated by 3.3 V or lower I/O standards, however, the same characteristic can become a constraint. This is not merely a compatibility checkbox. Voltage domain strategy influences signal integrity, power distribution, clamp behavior, startup sequencing, and long-term substitution options. A device can fit functionally and still create avoidable interface risk if the surrounding system has already migrated to lower-voltage logic.

From a board-design perspective, the 208-pin RQFP package brings both opportunity and discipline. It enables high I/O utilization and broad signal consolidation, but it also raises routing density, escape planning, and assembly sensitivity. Fine-pitch packages of this class reward early pin-planning. Signals with shared timing sensitivity, bus structure, or clock/control relationships should be grouped deliberately before the logic is finalized. When that step is deferred, the result is often unnecessary routing congestion, longer interconnects, and more difficult signal containment around the CPLD. In practice, well-planned pin assignment can have a disproportionate effect on final board quality, especially in mixed control/data interfaces where dozens of medium-speed signals converge on one device.

For product selection engineers, the device offers a mature and balanced architecture rather than a frontier-performance solution. That is often exactly the right trade. Mature CPLDs tend to excel where requirements are stable, logic behavior must remain transparent, and implementation risk matters more than density scaling. The EPM9400RC208-15 is strong when the design objective is to collapse multiple SSI/MSI logic functions, PAL/GAL replacements, and modest state-machine logic into one maintainable programmable component with predictable timing. It is less compelling when the application requires deep datapath processing, extensive embedded memory, advanced clock management, or aggressive low-voltage integration. The key is to treat it as a control fabric, not a general-purpose programmable compute fabric.

For procurement and lifecycle planning, family context matters as much as the individual part number. Devices like the EPM9400RC208-15 are frequently used in long-lived industrial, instrumentation, telecom, and embedded maintenance programs precisely because their function is narrow, reliable, and difficult to justify redesigning. Yet that same longevity raises availability and substitution concerns. Package-specific dependence, speed-grade constraints, and voltage assumptions should all be reviewed early. A nominal family alternative may match macrocell count but fail on I/O availability, timing margin, or package compatibility. In practice, the most robust planning approach is to regard the device not just as a logic resource but as a board-level interface contract. Once it absorbs decode, sequencing, bus adaptation, and signal conditioning functions, replacing it is no longer a simple capacity comparison.

Application fit becomes clearest when viewed from the bottom up. At the mechanism level, the device provides deterministic product-term logic, registered control, and structured interconnect. At the subsystem level, that translates into reliable state machines, bus arbitration, address qualification, interrupt concentration, and timing coordination. At the board level, it enables consolidation of scattered logic into one programmable point of control. In fielded equipment, that consolidation tends to improve serviceability and revision control because behavior that would otherwise be distributed across many fixed logic devices can be maintained in one design image. This is one of the less visible but more durable benefits of CPLD deployment.

One practical pattern appears repeatedly in designs that use devices of this class: initial resource estimates tend to undercount “small” control features. Sticky status bits, test hooks, watchdog support, reset stretching, revision straps, LED/debug multiplexing, fault masking, and manufacturing modes often accumulate late in the design cycle. These functions are individually cheap, but together they consume meaningful macrocell and I/O budget. A device with balanced headroom, like the EPM9400RC208-15, is often preferable to a tighter-fit option because control logic rarely stays minimal once the board reaches validation. That reserve is not waste; it is what keeps the programmable logic useful through revision churn.

The EPM9400RC208-15 remains a technically coherent choice when three conditions are satisfied. First, the -15 timing grade must cover the real pin-to-pin and internal control-path requirements with margin. Second, the 208-pin package must provide enough I/O not only for the present signal list but also for likely integration creep. Third, the system must either benefit from or at least comfortably accommodate the device’s 5 V-oriented operating model. When those conditions hold, the part is more than a legacy logic option. It becomes a stable integration anchor for embedded control logic, especially in systems where determinism, board-level consolidation, and maintainable programmable behavior are worth more than architectural novelty.
