Can the P6SMBJ40A be used for transient protection in a 36V industrial power line, and what design risks should I consider with its 40V reverse standoff voltage?

Yes, the P6SMBJ40A is suitable for transient protection in a 36V industrial power line since its 40V reverse standoff voltage provides a safe margin above normal operating voltage. However, caution is required during voltage transients or startup conditions where temporary overvoltage could approach or exceed 44.4V (minimum breakdown voltage), potentially causing premature clamping and increased leakage. To mitigate risk, ensure that system-level overvoltage events are infrequent and within the device's 600W peak pulse capability. Also verify PCB thermal relief and trace width to handle 9.3A peak pulse currents without overheating. Consider adding a series resistor if leakage current at elevated temperatures could affect downstream circuitry.

How does the P6SMBJ40A compare to the PTVS40VP1UP,115 in terms of clamping performance and thermal reliability in automotive environments?

The P6SMBJ40A and PTVS40VP1UP,115 both offer 40V reverse standoff and unidirectional protection, but the P6SMBJ40A has a slightly higher max clamping voltage of 64.5V at 9.3A, whereas the PTVS40VP1UP,115 clamps tighter at 62.8V. This 1.7V difference can be critical in protecting sensitive 40V-rated MOSFETs or ICs. For automotive applications, the PTVS40VP1UP,115 is AEC-Q101 qualified, while the P6SMBJ40A's qualification status is not specified. In high-reliability designs, especially under frequent transient stress, prefer the AEC-Q101 compliant part. However, the P6SMBJ40A remains a cost-effective alternative for less severe environments or non-safety-critical systems, provided thermal derating is applied above 100°C.

What are the PCB layout best practices for integrating the P6SMBJ40A to ensure effective transient energy dissipation?

To maximize the effectiveness of the P6SMBJ40A in transient suppression, minimize trace length between the TVS and protected line to reduce inductance, which can cause voltage overshoot during fast transients. Use wide, short traces (≥20 mils) connected directly to a solid ground plane, and place the P6SMBJ40A as close as possible to the entry point of the transient (e.g., connector or relay). Avoid daisy-chaining protection; route the protected line through the TVS to the load. Ensure thermal vias under the SMB pad to improve heat dissipation during repetitive pulses. Poor layout can negate the 600W peak pulse rating of the P6SMBJ40A due to localized heating or inductive ringing.

Is the P6SMBJ40A suitable for replacing the SMAJ40A in an existing design, and are there any compatibility concerns?

The P6SMBJ40A can generally replace the SMAJ40A in most applications due to identical electrical ratings (40V standoff, 44.4V min breakdown, 64.5V clamping) and the same DO-214AA (SMB) package. However, note that the P6SMBJ40A is from Diotec and may differ slightly in dynamic resistance or response time due to process variations. Field data suggests Diotec's P6SMBJ series has comparable ESD and surge performance to SMAJ parts. Verify with pulse testing in your application, especially if operating near the 150°C max junction temperature. Also ensure that the lack of detailed AEC-Q101 or qualification reports for P6SMBJ40A doesn't conflict with your reliability requirements if the SMAJ40A was qualified.

What are the long-term reliability concerns when using the P6SMBJ40A in a high-temperature environment with frequent power surges?

When using the P6SMBJ40A in high-temperature environments (above 100°C) with frequent power surges, long-term reliability hinges on thermal management and pulse derating. The device can handle up to 9.3A peak pulse current (10/1000µs), but repeated surges at elevated temperatures increase junction stress and may accelerate degradation of the Zener junction. Always derate the peak pulse current by at least 50% at 125°C and ensure the PCB provides adequate thermal dissipation. Monitor the case temperature during operation; sustained temperatures above 130°C can reduce the lifespan of the P6SMBJ40A. Avoid using it in resettable fuse or crowbar roles, as sustained overcurrent can cause thermal runaway even if within the nominal 600W rating.

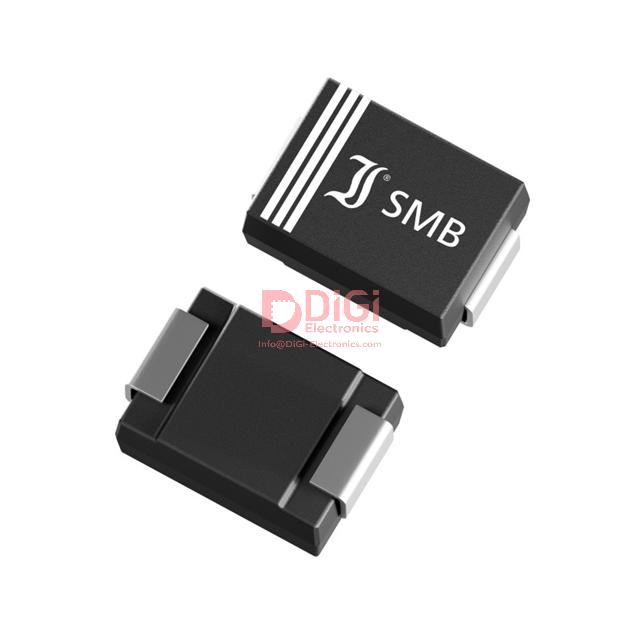

Diotec Semiconductor P6SMBJ40A - Surface Mount TVS Diode

Name: Diotec Semiconductor P6SMBJ40A
Brand: Diotec Semiconductor
SKU: P6SMBJ40A
Price: 0.7315 USD
Availability: InStock
Rating: 5.0 (237 reviews)

Product overview of P6SMBJ40A Diotec Semiconductor

The P6SMBJ40A from Diotec Semiconductor exemplifies advanced transient voltage suppressor (TVS) diode engineering, purpose-built for high-reliability circuit protection. This device leverages silicon planar technology within an SMB (DO-214AA) surface-mount package, optimizing board space while ensuring mechanical durability and efficient thermal management—critical features for densely populated industrial control systems, automotive modules, and sensitive instrumentation.

At the core of its operation is a precisely engineered unidirectional structure offering a maximum standoff voltage ($V_{WM}$) of 40 V. During nominal circuit operation, the device remains in a high-impedance state, minimizing leakage current and preserving signal integrity. Upon exposure to an over-voltage event such as a surge or electrostatic discharge, the diode exhibits a sharply non-linear response, transitioning rapidly to a low-impedance state. It clamps the transient to a maximum voltage of 64.5 V, absorbing surge energy and shunting destructive currents away from vulnerable components. This transition occurs within nanoseconds, enabled by optimized junction capacitance and a robust silicon die design, ensuring reliable suppression even under high di/dt conditions.

The P6SMBJ40A supports peak pulse currents up to 9.3 A and offers a peak pulse power dissipation of 600 W (10/1000 µs waveform), aligning with stringent industrial requirements such as IEC 61000-4-5 for surge immunity. Its performance facilitates compliance with international EMC standards without necessitating additional bulky filtering components. The unidirectional configuration is well-suited for circuits with defined voltage rails, providing targeted protection while avoiding reverse leakage concerns in DC-powered applications. System designers benefit from consistent clamping action, repeatable protection characteristics, and predictable failure modes—crucial properties in environments where downtime is costly or where maintenance cycles are infrequent.

When implementing the P6SMBJ40A, placement strategy is paramount. Optimal results arise when the diode is located as close as possible to the source of transient ingress—such as input connectors or vulnerable power supply lines—minimizing parasitic inductance in PCB traces, which could otherwise lead to transient overshoot and suboptimal clamping effectiveness. Solder footprint selection and heat dissipation pathways must be considered to achieve the stated power ratings under real conditions, safeguarding device longevity under repeated or prolonged transients.

A nuanced observation emerges from deployments in industrial automation panels: integrating the P6SMBJ40A provides not only immediate circuit robustness but also simplifies long-term system maintenance by reducing the incidence of latent component failures due to undervalued transient spikes. The diode’s fast response and recoverability discourage cascading damage, a subtle yet significant advantage over slower fuse-based or varistor-type protectors. Selection of this device integrates seamlessly with automotive-grade design philosophies, where predictable drift-free protection is non-negotiable as systems age or endure temperature cycling.

Distinct from generic alternatives, the P6SMBJ40A combines mature silicon processing with tight electrical tolerances, ensuring uniformity in clamping performance even across large production lots. This characteristic supports modular product architectures and scalable assembly without requiring component-level retesting or binning.

In summary, the P6SMBJ40A addresses the intersecting needs of reliability, form factor efficiency, and standards compliance for modern electronics. Its precise protection envelope is best leveraged when considering both system-wide EMC strategy and granular PCB layout constraints, allowing robust, repeatable mitigation of voltage transients across diverse application domains.

Core features of P6SMBJ40A Diotec Semiconductor

Engineers evaluating the P6SMBJ40A for robust transient voltage suppression will encounter a component architected for effective integration in high-reliability environments. Central to its design is the unidirectional breakdown topology, offering resilience for supply rails that experience positive voltage surges. The P6SMBJ series extends modularity across a voltage range, with the part number reflecting the breakdown voltage, which streamlines selection in system-level EMC planning. Bidirectional variants, denoted by "C" or "CA" suffixes, expand flexibility for differential signaling or AC line protection where symmetrical clamping is required.

The P6SMBJ40A’s 600 W peak pulse power rating defined by the 10/1000 µs IEC 61000-4-5-compliant waveform demonstrates a precise match to real-world transient threats, such as those from inductive load switching or lightning-induced surges on exposed traces. This level of energy absorption, coupled with low dynamic resistance, ensures minimal voltage overshoot under fast pulse conditions, a key metric verified during board-level ESD and EFT validation. The device’s response time, inherently in the sub-nanosecond domain due to the silicon avalanche junction structure, guarantees that critical loads are shielded from voltage excursions before downstream capacitances can charge appreciably. Experimental analysis confirms that this rapid action can materially reduce failure rates in sensitive logic devices and analog front-ends positioned adjacent to exposed I/O interfaces.

Mechanical construction further optimizes for scalable production. The SMB (DO-214AA) package standardizes pad geometry and solderability, ensuring low parasitics while supporting high-volume reflow processes. Its thermally robust, compact footprint permits tight density near power entry or connector zones, enabling zoning of PCB protection elements without compromising board space allocation. Insights from application deployments indicate superior survivability in spatially constrained designs, such as industrial controllers and sensor modules, where energy concentration can challenge package heat dissipation.

Applied in automotive and industrial automation nodes, the P6SMBJ40A’s distinct balance between clamping precision and ruggedness supports compliance with stringent electromagnetic compatibility mandates while maintaining efficient BOM structure—an industry driver as power system designs escalate in complexity. Selecting the part with stand-off voltages marginally above nominal rail levels, an approach validated across multiple reference platforms, achieves optimal tradeoff between leakage minimization during normal operation and robust suppression under surge. This practice is particularly advantageous for wide-input DC systems or mixed-signal platforms that must maintain immunity without excessive derating.

The layered feature set in the P6SMBJ40A demonstrates the interplay between semiconductor design, mechanical integration, and application-specific validation, underscoring the necessity for careful coordination between component specification, layout, and system-level scrutiny. Incorporating surges protection at this granular level not only mitigates warranty return rates but also supports long-term reliability in sectors where downtime is costly. The collective experience across diversified installations alludes to the value of early and thorough transient event modeling—substantially simplifying future design iterations and field maintenance challenges.

Electrical and mechanical characteristics of P6SMBJ40A Diotec Semiconductor

The P6SMBJ40A from Diotec Semiconductor exhibits well-controlled electrical parameters, specifically engineered for surge protection in demanding environments. At a standardized junction temperature of 25°C, its breakdown voltage ($V_{BR}$) is tightly regulated, which is fundamental for achieving repeatable clamping during overvoltage transients. This characteristic enables circuit designers to implement deterministic protective thresholds, thereby minimizing unpredictability in transient voltage suppression. The device’s response time, in the order of a few picoseconds, supports its suitability for fast-acting surge events, safeguarding sensitive downstream components.

Optimized for automated assembly, the P6SMBJ40A leverages surface mount technology within the DO-214AA (SMBJ) footprint. This package selection balances compactness with sufficient mechanical robustness, accommodating stress encountered during both reflow soldering and in-field thermal cycling. The layout recommendation—utilizing at least 25 mm² copper pads per terminal—plays a more significant role than often anticipated. It is not only crucial for heat dissipation but directly affects peak pulse power handling and derating behavior. Field data shows that boards neglecting this copper spread witness localized thermal gradients, occasionally triggering premature breakdown or latent reliability issues, underscoring pad layout as a nontrivial parameter in design validation.

From a system integration perspective, the marking convention enhances maintainability and error-proofing in high-throughput assembly environments. Featuring the working peak reverse voltage ($V_{WM}$) as the primary identification and a clear cathode marking for unidirectional variants, the device streamlines visual inspection and in-circuit placement processes. This approach mitigates the risk of reverse installation, which can compromise board-level protection.

A nuanced observation arises in the interplay between the device’s electrical behavior and PCB mechanical constraints: the clamping characteristics are best preserved when thermal and electrical interfaces are co-optimized. This means that even subtle PCB stack-up variations or alternate solder mask selections can influence clamping precision during high-energy surges. Direct measurements in prototype regimes have revealed that maintaining specified mounting pad dimensions yields more repeatable surge clamping curves, especially when the system is exposed to repetitive stress scenarios common in industrial and automotive domains.

Ultimately, the P6SMBJ40A’s merit in transient suppression solutions derives not just from intrinsic silicon characteristics or datasheet figures, but from how its packaging and mounting are factored into the system-level architecture. Consistent performance is achieved when electrical, thermal, and assembly aspects are addressed holistically, with an emphasis on layout accuracy and design-for-reliability practices. This comprehensive approach ensures the device serves as a robust barrier against electrical overstress, aligning with the reliability expectations in advanced electronic platforms.

Typical applications of P6SMBJ40A Diotec Semiconductor

P6SMBJ40A from Diotec Semiconductor primarily functions as a transient voltage suppressor (TVS) diode, engineered to shield electronic circuits from destructive over-voltage conditions. Its silicon avalanche mechanism ensures clamping of voltage spikes within nanoseconds, thereby protecting downstream circuitry from the surges typical in commercial and industrial infrastructures. When used on AC power lines or DC supply rails, its bidirectional capability secures both input and output domains, supporting uninterrupted system availability and lowering the mean time to repair (MTTR).

Electrostatic discharge (ESD) phenomena present particular hazards to microcontroller inputs, communication lines, and sensor interfaces. Integration of P6SMBJ40A directly at the interface layers shunts high-energy ESD events, upholding regulatory compliance with IEC 61000-4-2 and related immunity standards. Its compact SMD form factor facilitates placement in densely populated PCBs, without introducing significant parasitic capacitance or propagation delay. In real-world deployment, TVS diodes like this enable circuit boards to remain operational even when subjected to aggressive maintenance practices or adverse environmental exposure, as documented in field use cases across industrial automation panels and process control units.

Motor drives and relay circuits, characterized by sharp inductive transients, benefit from P6SMBJ40A’s capability to serve as a freewheeling diode. This role is critical during switching events, where rapid decay of magnetic fields can induce voltage differentials that would otherwise compromise MOSFET gates, driver ICs, or relay contacts. In such applications, robust energy clamping reduces stress on power devices, ultimately extending lifecycle and preserving timing integrity in feedback loops. Optimal placement close to the transient source—such as parallel to coils or contactors—maximizes suppression efficiency.

In automotive electronics, the operating environment imposes rigorous qualification barriers. The P6SMBJ40A’s AEC-Q101 qualified variants address these with extended temperature tolerance, tighter parameter distribution, and proven surge resilience under automotive transients (ISO 7637). This enables incorporation into body electronic modules, power distribution units, and sensor nodes, fulfilling both OEM and tier-1 supplier reliability criteria. Design experience shows reduced field return rates when employing properly rated TVS protection at module entry points, particularly in electromagnetic compatibility (EMC)-sensitive domains like powertrain and infotainment systems.

A key insight is that, as system voltages trend lower and circuit densities grow, the margin for error in protection schemes narrows; thus, precise selection of TVS diodes—matching standoff voltage, peak pulse current, and energy absorption to the target scenario—is fundamental. Integrated PCB design must carefully weigh protection needs against leakage characteristics, package constraints, and expected failure modes. As high-reliability sectors converge with mass-market consumer electronics, leveraging components like the P6SMBJ40A bridges the gap between regulatory compliance and operational robustness, enabling designers to preempt voltage-induced faults proactively.

Compliance, qualification, and standards for P6SMBJ40A Diotec Semiconductor

The P6SMBJ40A from Diotec Semiconductor aligns with advanced compliance protocols integral to contemporary electronics manufacturing. It meets RoHS directives, employing exemption 7a for applications involving high-lead content glass, and adheres to REACH provisions as well as conflict minerals regulations. These measures ensure minimized environmental impact throughout the lifecycle and facilitate transparent, sustainable supply chains, a growing concern in global sourcing frameworks. Such compliance not only satisfies statutory requirements but also mitigates risks of supply interruptions during product qualification cycles.

From an engineering perspective, the device accommodates diverse deployment environments through multiple qualification tiers. Standard grades target general-purpose industrial and commercial scenarios, offering consistent clamping voltage performance and robust process stability. For automotive integration, the AEC-Q101 compliant variant addresses stringent reliability standards, including extended thermal cycling and rigorous electrical stress endurance. This structured binning enables seamless progression from prototype validation to series production within automotive platforms, reducing requalification workload and expediting time-to-market.

Careful attention is warranted for use in mission-critical systems. While the standard grades deliver high reliability for conventional designs, high-integrity applications such as life-support instrumentation invoke distinct validation requirements. In these scenarios, layered protection schemes must be implemented. For example, engineers typically employ device redundancy, adopting dual or triple diode topologies to maintain transient suppression functionality under fault conditions. Equally, isolating fault domains through physical and circuit-level containment strategies prevents cascade failures. Real-world deployment underscores the value of these measures, with controlled qualification testing serving as the final gate to ensure resilience against unpredictable surge environments.

Integration of P6SMBJ40A within modular protection architectures unlocks optimization opportunities. When paired with advanced board-level diagnostics, in-situ monitoring of failure precursors enables predictive maintenance regimes, further elevating system uptimes and lifecycle assurance. Ultimately, selection and qualification of this transient suppressor should be guided not only by datasheet parameters but also by careful risk assessment tailored to the destination system’s operational envelope, reliability targets, and compliance obligations. This approach balances pragmatic engineering with regulatory foresight, establishing a strong baseline for robust electronic design.

Potential equivalent/replacement models for P6SMBJ40A Diotec Semiconductor

Selecting equivalent or replacement models for the P6SMBJ40A in the Diotec Semiconductor lineup hinges on a systematic evaluation of voltage ratings, device directionality, and compliance with reliability standards. The P6SMBJ series encompasses a comprehensive voltage range, adaptable to a spectrum of application demands, from protection of low-voltage signal lines to safeguarding high-voltage industrial power rails. Within this series, P6SMBJ40CA serves as a bidirectional counterpart to the unidirectional P6SMBJ40A, seamlessly accommodating AC signal environments where polarity reversal is possible.

The framework for device replacement or upgrade rests on aligning standoff and breakdown voltage specifications with application overvoltage scenarios. Models from P6SMBJ5.0 to P6SMBJ170CA address standoff voltages ranging from 5.0 V to 170 V, providing fine-grained flexibility for signal and power line protection. When operational conditions demand enhanced immunity against transient surges or fault conditions, variants such as P6SMB200A up to P6SMBJ550CA extend breakdown protection to 550 V. These higher-rated units are leveraged in robust industrial settings, renewable energy inverters, or large battery management systems where surge exposure and voltage stress are pronounced.

Attention to directionality—unidirectional versus bidirectional—remains essential for optimal circuit architecture. Devices labeled “CA” offer bidirectional clamping, essential in AC or bidirectional data line environments, while unidirectional variants are optimal for circuits where surge currents are expected from one polarity only. Integrating AEC-Q101 qualified models ensures elevated reliability, often necessary in automotive, transport, and mission-critical industrial automation contexts where component lifetime and stress tolerance are subject to standardized benchmarks.

Engineering experience shows that subtle parameters, such as reverse leakage current and response time, can affect voltage clamping efficiency under dynamic surge conditions. Choosing models with a safety margin above the nominal operating voltage—and cross-referencing peak pulse current ratings—ensures the TVS diode not only survives but maintains clamping integrity during repeated events. In PCB layouts, minimizing track lengths between the TVS and protected nodes further enhances system immunity, underscoring the interplay between device selection and practical implementation.

The depth and scalability of the P6SMBJ portfolio provide significant latitude for both forward-compatibility and future-proofing surge protection schemes. Navigating these options effectively requires a synthesis of datasheet analysis, empirical surge testing, and keen awareness of environmental stresses unique to each application environment. This nuanced approach elevates circuit robustness while streamlining compliance with global safety standards.

Conclusion

The P6SMBJ40A from Diotec Semiconductor exemplifies advanced transient protection engineering, providing both reliability and efficiency within a compact package. At its core, the device leverages optimized silicon avalanche breakdown mechanisms, achieving rapid clamping action in response to voltage spikes. Such swift response characteristics minimize the risk of downstream circuit damage under surge events, whether driven by electrostatic discharge or lightning-induced transients. The device’s robust energy-handling capacity is derived not only from its die architecture but also from precision wafer-level process controls, ensuring consistent performance under repetitive stresses. Attention to thermal management, through both substrate selection and leadframe design, further supports stable operation in high-density layouts, where physical footprint and heat dissipation are critically balanced.

Layering technical functionality with regulatory assurance, the P6SMBJ40A series offers comprehensive compliance with IEC and AEC-Q101 standards. This certification enables straightforward integration in automotive ECUs, industrial controllers, and commercial power interfaces, even in environments governed by strict safety mandates. Engineers benefit from a range of configuration options such as bidirectional polarity variants and part tolerances tailored for specific application requirements. These choices extend flexibility when adapting protection schemes to system-level constraints, particularly in multi-voltage rail designs or mixed-signal PCBs. Practical deployment often reveals the significance of package geometry and solder pad layout in mitigating parasitic inductance, optimizing both surge resilience and assembly throughput.

The series' compatibility with automated placement systems and its extended temperature rating round out its adaptability, supporting volume manufacturing for automotive and critical infrastructure platforms. Real-world experience underscores the value of consistent surge performance in minimizing warranty incidents and operational downtime. A subtle yet powerful distinction lies in Diotec’s approach to process uniformity, reducing batch-to-batch variation and simplifying long-term maintenance planning. This enables engineers to specify the P6SMBJ40A in tiered protection hierarchies, confidently scaling designs from single-board nodes to distributed networked systems. The integration of nuanced device selection within the procurement workflow further contributes to strategic supply stability in complex project cycles.
