Amphenol ICC (FCI)
CONN FPC BOTTOM 40POS 0.5MM R/A
50204 Pcs New Original In Stock

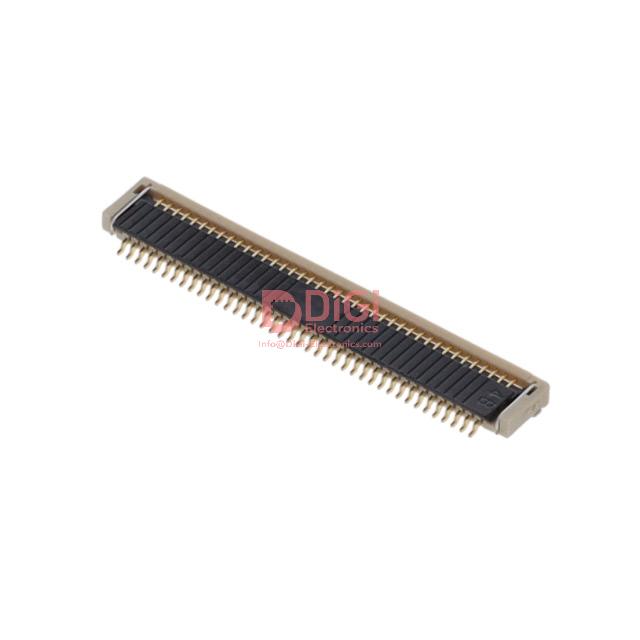

40 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Request Quote
(Ships tomorrow)
*Quantity
Minimum 1
Minimum 1
5.0 / 5.0
- (347 Ratings)
10042867-40MB10ELF
Product Overview
1317354
DiGi Electronics Part Number
10042867-40MB10ELF-DGManufacturer
Amphenol ICC (FCI)
10042867-40MB10ELF
Description
CONN FPC BOTTOM 40POS 0.5MM R/AInventory
50204 Pcs New Original In Stock
40 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Quantity
Minimum 1
Minimum 1
Purchase and inquiry
Warranty & Returns
How to Order
Shipping & Delivery
Quality Assurance
365 - Day Quality Guarantee - Every part fully backed.
90 - Day Refund or Exchange - Defective parts? No hassle.
Limited Stock, Order Now - Get reliable parts without worry.
Global Shipping & Secure Packaging
Worldwide Delivery in 3-5 Business Days
100% ESD Anti-Static Packaging
Real-Time Tracking for Every Order
Secure & Flexible Payment
Credit Card, VISA, MasterCard, PayPal, Western Union, Telegraphic Transfer(T/T) and more
All payments encrypted for security
10042867-40MB10ELF Technical Specifications
Category
FFC, FPC (Flat Flexible) Connectors, FFC, FPC (Flat Flexible) Connector Assemblies
Packaging
-
Series
VLH
Product Status
Obsolete
Flat Flex Type
FPC
Mounting Type
Surface Mount, Right Angle
Connector/Contact Type
Contacts, Bottom
Number of Positions
40
Pitch
0.020" (0.50mm)
Termination
Solder
FFC, FCB Thickness
0.30mm
Height Above Board
0.051" (1.30mm)
Locking Feature
Slide Lock
Cable End Type
Straight
Contact Material
Phosphor Bronze
Contact Finish
Gold
Housing Material
Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material
Liquid Crystal Polymer (LCP), Glass Filled
Features
Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating
50V
Operating Temperature
-55°C ~ 85°C
Material Flammability Rating
UL94 V-0
Current Rating (Amps)
0.4A
Contact Finish Thickness
-
Housing Color
Natural
Actuator Color
Black
Mating Cycles
20
Base Product Number
10042867
Datasheet & Documents
Product Drawings
10042867 Series Drawing
HTML Datasheet
10042867-40MB10ELF-DG
Environmental & Export Classification
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Affected
ECCN
EAR99
HTSUS
8536.69.4051
Additional Information
Other Names
10042867-40MB10ELF-DG
609-10042867-40MB10ELFCT
609-10042867-40MB10ELFTR
Standard Package
4,500
