Pull-up and pull-down resistors help keep digital signals at a clear logic state when no device is controlling the line. This stops floating inputs, which can cause false readings and unstable switching.
Purpose of Pull-up and Pull-down Resistors
Pull-up and pull-down resistors are used in digital circuits to keep a signal line at a known logic state when no active device is driving it. This prevents the input from floating.
A floating input has no clear high or low state. Because of noise, leakage current, and the high input resistance of many digital devices, the voltage on a floating line can drift. This can cause false readings or unstable switching.
A pull-up resistor connects the line to the supply voltage, so the default state is high. A pull-down resistor connects the line to ground, so the default state is low. These resistors hold the signal at a stable level until the circuit actively changes it.

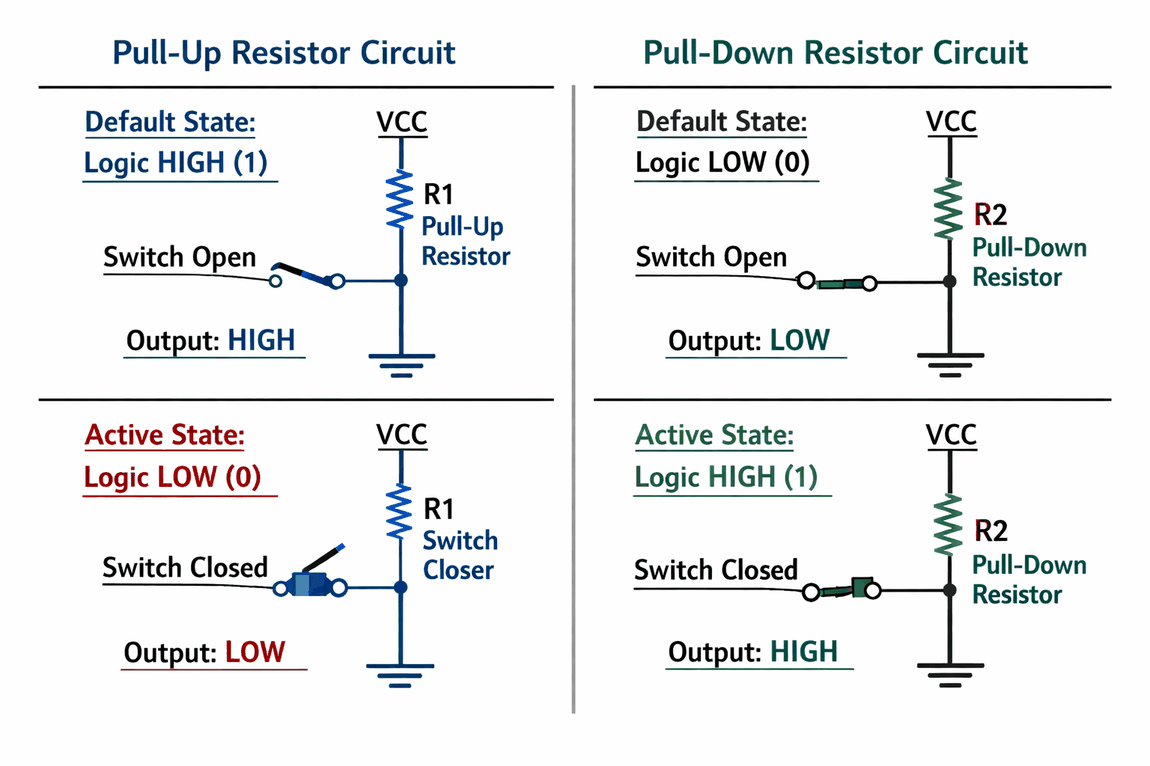

Stable Logic States with Pull-up and Pull-down Resistors
Pull-up Resistor Operation
A pull-up resistor is connected between a signal line and the positive supply voltage. It keeps the line at a high logic level when no other part of the circuit is pulling the signal low, so the input does not become uncertain.
When the signal line is connected to ground, the logic state changes from high to low. This allows the line to remain clearly defined in either condition.
Pull-down Resistor Operation
A pull-down resistor is connected between a signal line and ground. It keeps the line at a low logic level when no other part of the circuit is driving it high, which helps prevent the signal from floating.
Differences Between Pull-up and Pull-down Resistors
| Feature | Pull-up Resistor | Pull-down Resistor |
|---|---|---|
| Connection | To supply voltage | To ground |
| Default state | High | Low |
| Active state | Pulled low | Driven high |
| Common use | Buttons, open-drain lines, I2C | Logic inputs, control lines |
| Main purpose | Keeps the line high when idle | Keeps the line low when idle |
Choosing the Right Pull-up and Pull-down Resistor Value
• A lower resistance gives the signal a stronger pull toward its default state, which helps keep the logic level clear and stable.
• A higher resistance reduces current draw, which can help limit unnecessary power use.
• A very high resistance can make the default state weaker and less reliable.
• Line capacitance can slow down how quickly the signal changes between logic states.
• Input leakage current should also be considered because it can affect the voltage on the line.
• Faster or more sensitive circuits often need more careful resistor selection to keep the signal stable while allowing clean switching.

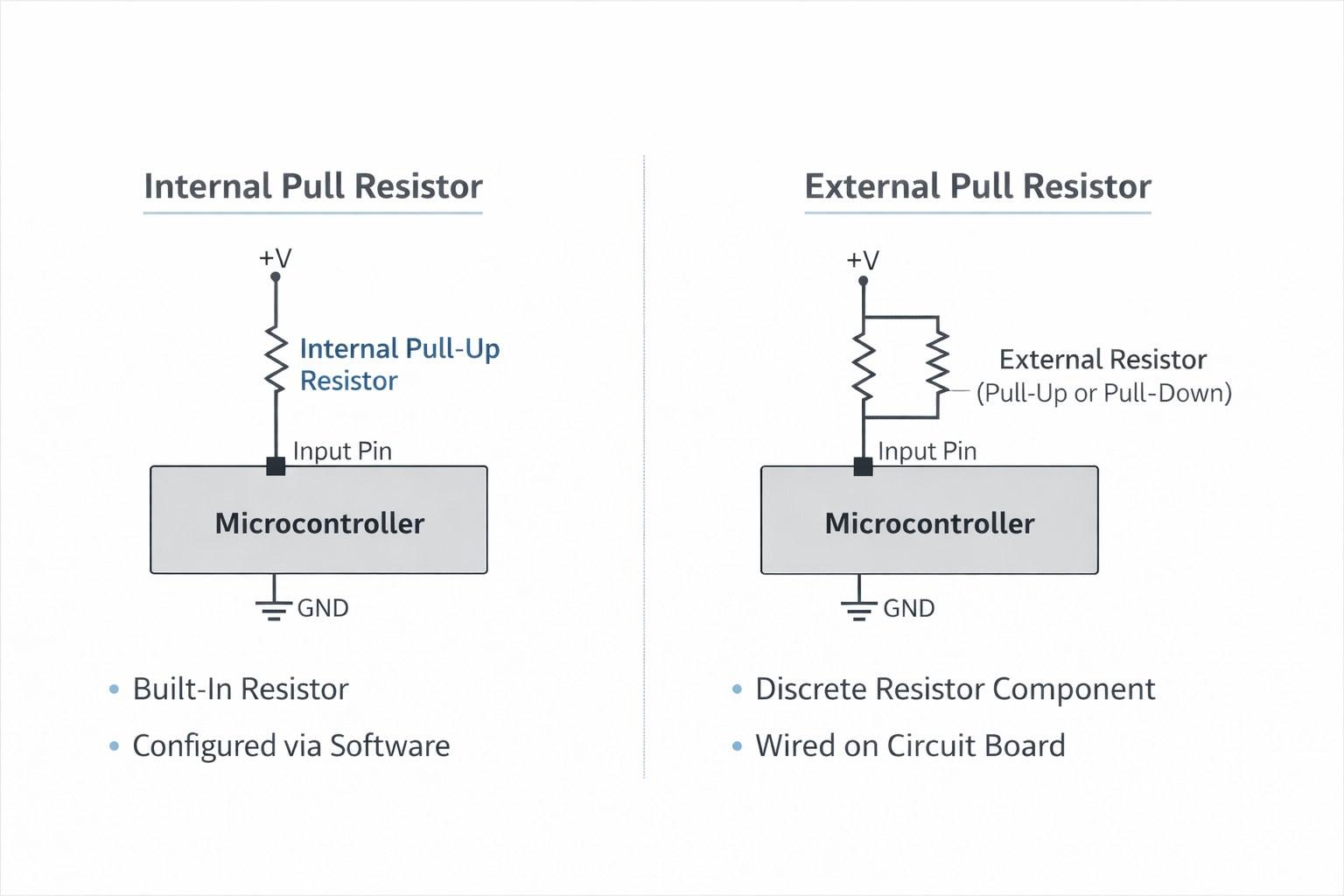

Internal and External Pull-up and Pull-down Resistors
Some microcontrollers and digital devices include internal pull resistors that can be enabled via software or configuration settings. These built-in resistors help reduce the need for extra parts and keep the circuit simpler.
External pull resistors are separate components placed outside the device. They allow more control over resistor value and can provide better signal performance when the circuit needs stronger biasing, better noise resistance, or more consistent timing.
• Internal pull resistors are built into some digital devices.
• External pull resistors are added outside the device.
• Internal pull resistors help save parts and board space.
• External pull resistors give more control over value and performance.
• External pull resistors may be better for faster or noisier circuits.
Pull-up and Pull-down Resistors in Button and Switch Circuits

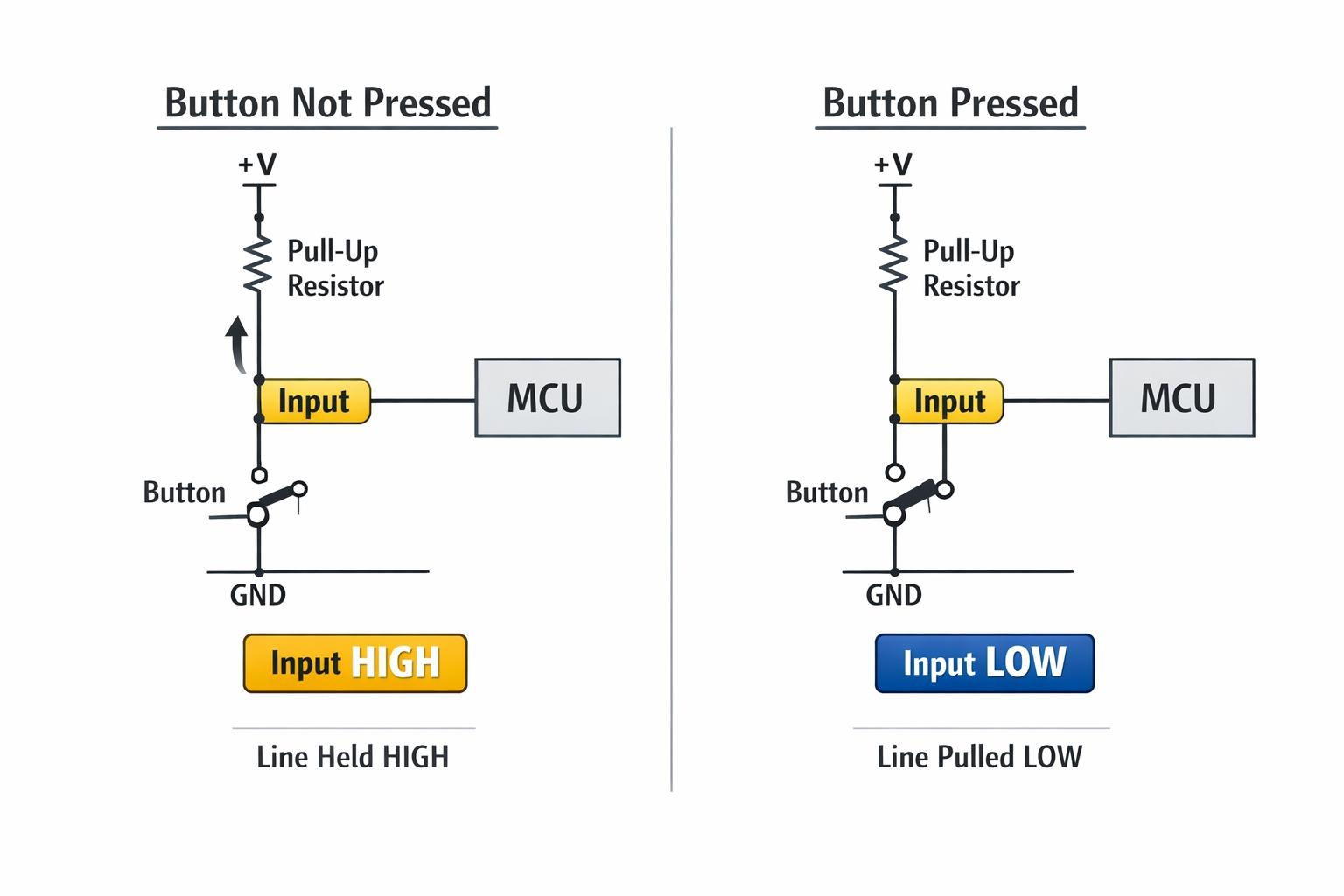

Pull-up and pull-down resistors are widely used in button and switch input circuits to keep the input pin at a defined logic state when the switch is open. Without a pull resistor, the input can float and produce unstable or false transitions. In a pull-up button circuit, the input stays high when the button is not pressed and changes low when the button connects the line to ground. This active-low arrangement is common in microcontroller designs because many devices provide built-in pull-up resistors.

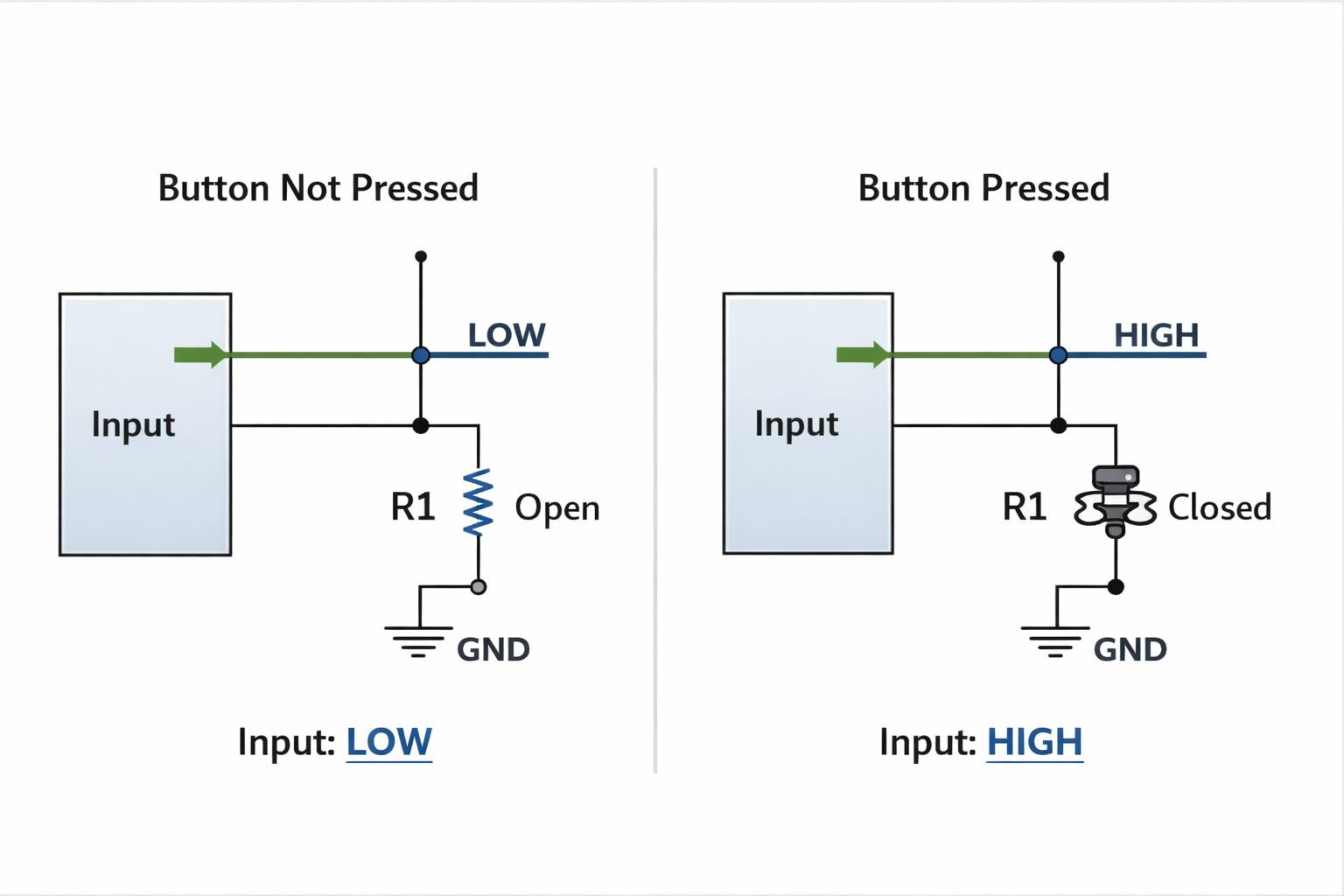

In a pull-down button circuit, the input stays low when the button is open and changes high when the button connects the line to the supply voltage. This arrangement is also valid, but external pull-down resistors are often used more than internal ones in many MCU families. For practical design, the pull-up or pull-down choice should match the required default logic state, the input structure, and the need for stable switching in the presence of noise or long traces.
Common Uses of Pull-up and Pull-down Resistors
Pull-up resistors are required in open-drain and open-collector circuits because these outputs can pull a line low but cannot drive it high by themselves. When the output transistor is off, the signal line would otherwise remain undefined. The pull-up resistor restores the line to a valid high level and allows the circuit to switch cleanly between low and high states.
This arrangement is widely used in shared communication and interface lines, especially in I²C buses and other wired-logic connections. A lower pull-up value can improve rise time and help the line recover faster, but it also increases current when the line is pulled low. A higher value reduces current consumption, but it may make the signal transition slower because the line capacitance charges more slowly. For this reason, pull-up resistor selection in open-drain and I²C circuits should consider bus capacitance, logic thresholds, and the sink capability of the driving device.
Other Common Applications of Pull-up and Pull-down Resistors
Beyond button inputs and open-drain outputs, pull-up and pull-down resistors are also used in many other digital and mixed-signal circuits. They are commonly added to microcontroller input pins, logic gate inputs, and sensor interface lines to maintain a defined idle state when no device is actively driving the signal. This helps reduce false triggering and improves signal reliability in practical systems.
These resistors are also useful in control lines that must remain in a known state during startup, reset, or temporary disconnection. In these cases, the pull resistor provides a simple way to avoid undefined input behavior and improve overall circuit stability. The choice between a pull-up and a pull-down depends on the required default logic state, the signal environment, and whether the system is designed around active-high or active-low control.
Common Pull-up and Pull-down Resistor Design Mistakes
| Common mistake | Why does it cause problems? | How to avoid it? |
|---|---|---|
| Using a resistor that is too small | Causes unnecessary current flow | Choose a value that limits current while keeping a valid logic level |
| Using a resistor that is too large | Creates a weak default state and slower signal change | Check the leakage current and capacitance before choosing a high value |
| Ignoring input characteristics | May cause unreliable logic levels | Review input impedance and logic thresholds |
| Forgetting internal pull resistors | Can lead to unnecessary external components | Check whether the device already includes built-in pull resistors |
| Not checking signal speed | Large resistance can slow transitions | Consider RC effects in faster circuits |
Conclusion
Pull-up and pull-down resistors are important for maintaining signal line stability and preventing floating inputs in digital circuits. They set a default high or low state, support clean switching, and improve reliable operation. Choosing the right resistor value, checking leakage current and capacitance, and knowing when to use internal or external resistors all help ensure the circuit works as intended.
Frequently Asked Questions [FAQ]
What value pull-up resistor should I use for 3.3V GPIO?
A common starting range is 4.7 kΩ to 10 kΩ. Lower values give a stronger pull and faster edges, while higher values reduce current.
Can I use the MCU’s internal pull-up instead of an external resistor?
Yes. It is often enough for buttons and simple GPIO inputs. Use an external resistor when you need better noise control, a fixed value, or longer traces.
Why is an I²C line pulled high instead of driven high?
Because I²C uses open-drain outputs. Devices can pull the line low, but the pull-up resistor returns it high and lets multiple devices share the bus safely.
What happens if the pull-up resistor is too strong or too weak?
If it is too strong, current is higher when the line is low. If it is too weak, the line rises more slowly and the high state becomes less stable.
Are pull resistors only used in digital circuits?
No. They are also used in mixed-signal and interface circuits to maintain line states.
How do you choose between a pull-up and a pull-down resistor?
Choose a pull-up when the line should rest high. Choose a pull-down when the line should rest at a low position.
